Time-resolved X-ray diffraction study of the structural dynamics in a ferroelectric thin film induced by sub-coercive fields

TL;DR

This study uses time-resolved X-ray diffraction to investigate how sub-coercive electric fields influence the structural dynamics and domain behavior in a ferroelectric thin film, revealing reversible domain nucleation and growth processes.

Contribution

It provides new insights into the structural response of ferroelectric thin films under sub-coercive fields using time-resolved X-ray diffraction techniques.

Findings

Structural signatures of domain nucleation and growth observed

Disordered domain state is remanent and reversible

Peak broadening correlates with domain dynamics

Abstract

The electric field-dependence of structural dynamics in a tetragonal ferroelectric lead zirconate titanate thin film is investigated under sub-coercive and above-coercive fields using time-resolved X-ray diffraction. During the application of an external field to the pre-poled thin film capacitor, structural signatures of domain nucleation and growth include broadening of the in-plane peak width of a Bragg reflection concomitant with a decrease of the peak intensity. This disordered domain state is remanent and can be erased with an appropriate voltage pulse sequence.

Figures

Full text

Ferroelectrics (FE) are not only technologically interesting because of their electromechanical properties that enable their application in transducer devices. The reversible spontaneous polarization of FE has been used in memory devices with a reported data retention of about 10 years Scott and Paz de Araujo (1989). FE memory devices make use of the remnant polarization state obtained after poling or reversing the FE polarization by an electric field to store the boolean algebraic logic states “0“ and “1“. Operating FEs above their coercive field leads to fatigue, which limits device lifetime Duiker et al. (1990); Yi et al. (2002); Luo et al. (2012); Shieh et al. (2006); Jiang et al. (1994). Also, the quest for low power consumption requires operating such devices under the lowest possible bias. Hence there is growing interest in sub-coercive field applications and associated remnant states Kundys et al. (2014); Yimnirun et al. (2008); Pramanick et al. (2011); Jones et al. (2012); Wongdamnern et al. (2010).

It is well known that FE thin films do not reverse their polarity as a whole when an external field is applied. After domain nucleation, the regions with opposite polarization are separated by domain walls (DW) Merz (1954); Kim et al. (2007). One of the domain polarization directions prevails as the external field approaches the saturation field, however, the time required to fully suppress domains with the opposite polarization is determined by the domain wall velocity. The DWs are mobile, add structural disorder within the sample volume, and reduce the observed maximum polarization. DWs contribute to the observed piezoelectric strain in FE devices already at very low fields Pramanick et al. (2009a, b). This has lead to new devices in magnetic and FE materials for DW logic and DW diode applications Allwood et al. (2004); Allwood (2005); Whyte and Gregg (2015). It has recently been demonstrated that multiple memory states can be created due to the coupling between remnant strain and domain states Kundys et al. (2014); Zhou et al. (2016).

Some actuator applications require fast actuation with reproducible length changes that are not affected by drifts on longer time-scale. To study the time-dependent response of FE ceramics, time-resolved X-ray diffraction (TR-XRD) has been used to probe the dynamics under electrical loading, offering the possibility to distinguish between the intrinsic piezoelectric response of individual domains and extrinsic contributions originating from changes of the volume fraction of the domains. Pramanick et al. (2009a, b). In the last years, in-situ synchrotron XRD has been used to quantify the electromechanical response and fatigue behavior of FE thin films and powders under loading, with the advantage of yielding appropriate temporal and spatial resolution as compared to conventional X-ray setups Davydok et al. (2016); DO et al. (2008); Gorfman et al. (2015); Cornelius et al. (2017). In-situ high-resolution XRD has for example been used to study the switching dynamics of $90^{\circ}$ domains in epitaxial PZT Jones et al. (2006). More recent measurements aim at combining laser excitation and electrical excitation for x-ray structural dynamics investigations Akamatsu et al. (2018). Several synchrotron-based experiments reported intensity and position changes of the diffraction maxima in PZT thin films, however, electrical characterization was studied independently Grigoriev et al. (2006, 2009). The interpretation of very large intensity changes up to $40\%$ for the two polarization states solely ascribed to the anomalous scattering must be reconsidered since contributions from disorder cannot be neglected. We have recently reported the structural dynamics accompanying the reproducible repeated electrical switching of FE thin films, relating the observations to the simultaneously measured electrical charging with saturation fields of opposite polarity Kwamen et al. (2017).

In the present TR-XRD study of a 250 nm thin $\text{Pb}(\text{Zr}_{0.2}\text{Ti}_{0.8})\text{O}_{3}$ (PZT) FE capacitor, we compare the time-dependent structural dynamics during sub-coercive field pulses to the full switching dynamics under saturation fields. We present the field- and time-dependent lattice response, infer the domain dynamics, and demonstrate the presence of remnant disordered states. The experiments were realized on a FE capacitor composed of PZT as FE layer and a metallic SrRuO3 (SRO) electrode epitaxially grown on a (001) oriented SrTiO3 (STO) substrate by pulsed laser deposition. Platinum top electrodes of hexagonal shape with 0.3  mm edge length and a thickness of about 30 nm were deposited onto the PZT film by sputtering. The sample structure is sketched in the inset of Figure 1. An external field was applied between one Pt electrode and the SRO layer along the [001] direction, which is the FE polarization axis of PZT. A pulse generator (Keithley 3390) was used to apply voltage pulses up to $\pm 8$ V with the help of a tungsten needle Kwamen et al. (2017). X-rays of 9 keV photon energy provided at the XPP-KMC3 endstation at the storage ring BESSY II at the Hemholtz Zentrum in Berlin were employed for the TR-XRD. The experiments were performed in the so-called multibunch operation mode Holldack et al. (2014); Navirian et al. (2012). The X-ray beam was focused onto the sample surface such that only the region under one electrode was probed. For recording full reciprocal space maps (RSM) a PILATUS 100K pixel detector (DECTRIS) was used. To obtain time-resolved signals, the detector gate was triggered appropriately by the electric field pulse sequence. In order to increase the acquisition speed, $\omega$ scans through the RSM were recorded with a home-built detector made of a photomultiplier tube (Hamamatsu) and a fast scintillator with <$1$ ns response time, which collects an angular divergence of the diffracted x-rays of $0.9^{\circ}$, which exceeds the width of the RSM in either angular direction by a factor of three. This detection geometry is often referred to as rocking curve, an established method to determine lattice plane spacings in mosaic crystals via Bragg’s law Ayers (1993); Serafínczuk (2016); Kobayashi et al. (1999). The typical full-width-at-half-maximum (FWHM) of the rocking curves was $0.3^{\circ}$.The X-ray signal is sent to a time-correlated single photon counting system (PicoHarp 300), which allows reconstructing the rocking curves at different delays by synchronizing the detector trigger with the rising edge of the electrical pulse. Navirian et al. (2012) The high resolution X-ray diffraction measurement showed that the film is $c$-axis oriented Kwamen et al. (2017). The reciprocal space map without applied external field was reported in a recent publication for a different electrode of the same sample Kwamen et al. (2017).

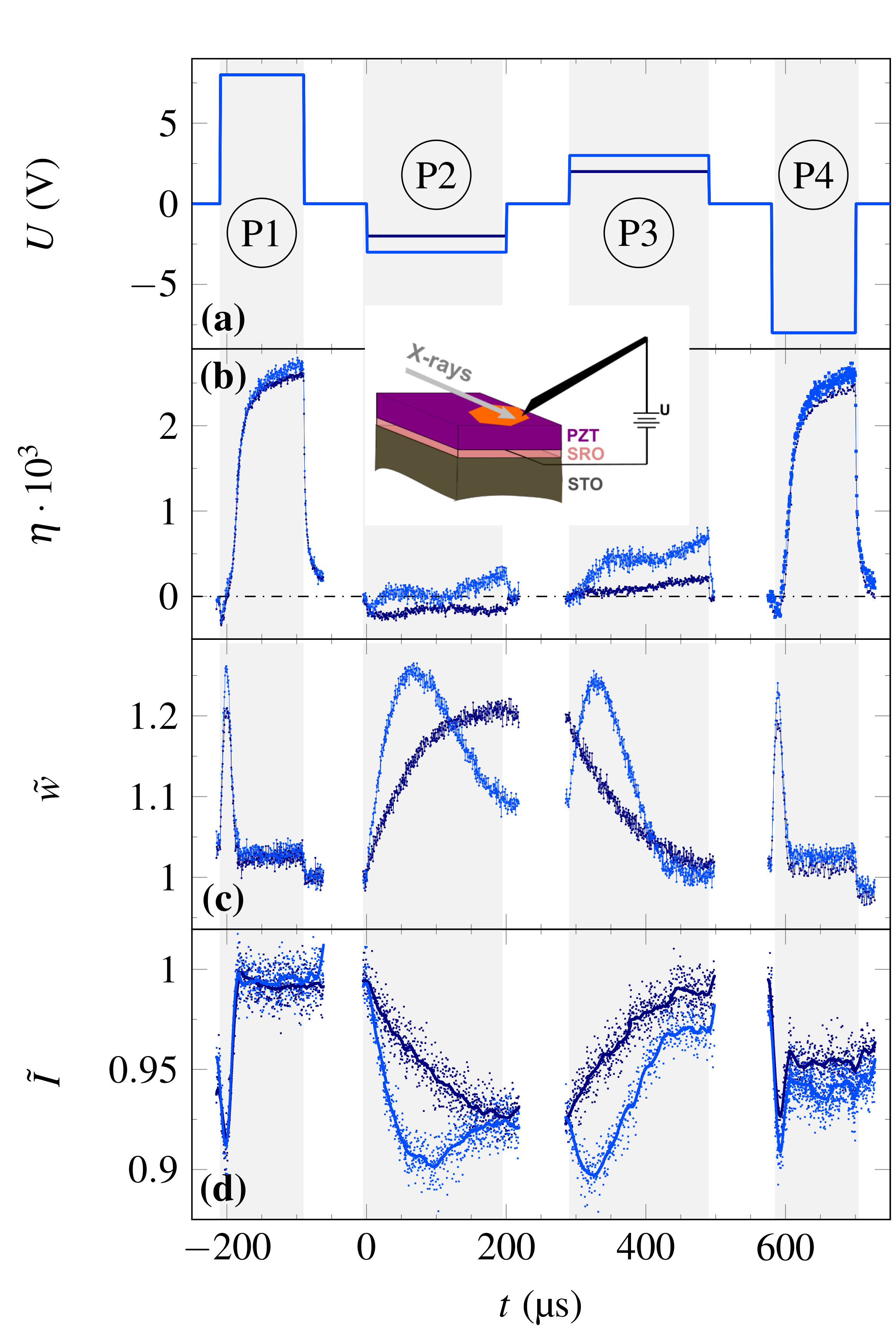

The excellent FE properties of the device with an $RC$ time constant of about 1 $\mu$s and a coercivity of about 4.5 V have been discussed in ref. Kwamen et al. (2017): Polarization reversal observed by electronic measurements was shown to be accompanied by a intensity changes of about $\Delta I=5\%$ resulting form difference in structure factor between the (00$2$) and (00$\bar{2}$) Bragg reflections  Kwamen et al. (2017). This is consistent with a relative motion of the Ti and Zr atoms relative to the Oxygen octahedra of $\Delta\xi_{\text{Pb-Ti}}=0.0187$ nm and $\Delta\xi_{\text{Ti-O}}=0.03$ nm along the $c$-axis Noheda et al. (2000). Now we apply an asymmetric square pulse sequence as shown in Figure 1(a) to a test device and analyze the dynamics of the 002 PZT reflection. The strain $\eta=\Delta c(t)/c(t=0)$ corresponding to the relative $c$-axis change is shown in Figure 1(b). In standard models of polarization switching in thin films under saturation fields  Merz (1954); Kim et al. (2007); Dawber et al. (2005); So et al. (2005); Fatuzzo and Merz (1959), the polarization reversal is mediated by the nucleation of new domains with reversed polarization, their subsequent propagation across the film thickness, and a subsequent lateral motion of DWs perpendicular to the field direction that finally leads to a merging of the reversed domains. The structural dynamics observed in our sample for two different voltages, $U$, are shown in Figure 1. The pulses marked P1 and P4 are the poling pulses used to initialize the filmfls polarization state in a reproducible manner. Pulse P2 and P3 are chosen to be symmetrical and below the coercive field $U_{\text{c}}$. Note that the time $t=0$ is defined as onset of pulse P2, since we are interested in the sub-coercive field dynamics.

We first discuss the darkblue lines in Figure 1 representing an electric field of -2 V, well below $U_{\text{c}}$ of the device. The PE response to pulse P2 is purely compressive (Figure 1b), indicating that the majority of the thin film has retained its initial polarization. The relative peak width $\tilde{w}=(w(t)-w(t=0))/w(t=0)$ represented in Figure 1(c) increases slowly and reaches a saturation value after $\sim\!150$ $\mu$s with an overall width change of $\sim\!20$%. We also note that the value of $\tilde{w}$ remains constant even after switching the external field off at about 200 $\mu$s. Simultaneously, the normalized integrated intensity $I$ shown in Figure 1(d) decreases by $\sim\!7.5$% of its initial value. The continuous change of $\tilde{w}$ at constant field shows that domains nucleate and move within the FE film towards a state with approximately equal amounts of both polarization states as this increases the inhomogeneity of the film. Pulse P3 with opposite polarity is applied after a short field-free time and recovers $\tilde{w}$ and $I$, thereby resetting the domain state in the film. The stability of $\tilde{w}$ during the time between the electrical pulses, i.e. at zero fields, proves that the disordered domain configuration induced by sub-coercive fields is remnant. In contrast, the small PE $c$-axis contraction, which is induced by pulse P2, relaxes back to its zero-field value. Pulse P3 with opposite polarity then leads to an expansion with similar amplitude, which is consistent with the small applied field below $U_{\text{c}}$, which leaves the majority of the FE film in the initial polarization state.

We now discuss the blue lines in Figure 1 that represent a somewhat larger electric field pulse with $U_{2}=-3$V, which is just below $U_{\text{c}}$ for a standard hysteresis loop measured at 1 kHz. Now a PE expansion is observed during both pulse P2 and P3, indicating that a bit more than 50% of the thin film have reversed polarization during pulse P2, which is then switched back by pulse P3. Thus for this pulse sequence, the coercive field is slightly below $3$ V.

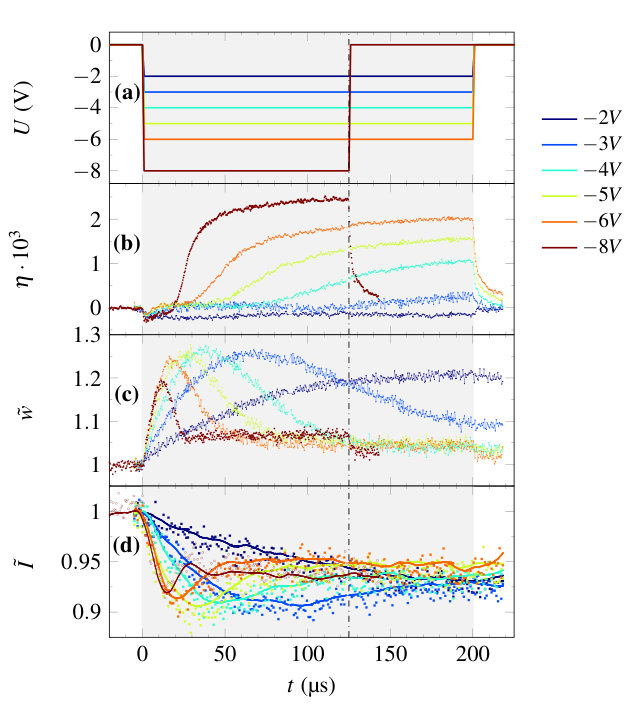

In Figure 2 we concentrate on the temporal sample response during Pulse 2 with various field amplitudes. In Figure 2(a), the different applied fields are plotted as function of time after the application of the pulse. Before each of these pulses were applied, the poling pulse P1 from Figure 1(a) with opposite polarity and amplitude 8 V set the initial condition of the sample. We varied the amplitude of pulse P2 from $-2$ to $-6$ V and kept its duration constant. For the experiment at $-8$ V we reduced the pulse length to avoid degradation of the sample. The X-ray analysis of the structural dynamics of the PZT film is plotted in Figures  2(b-d). Figure 2(b) confirms the PE contraction of the film for $-2$ V which can now be compared to the much larger inverse piezo-effect obtained under larger fields. In addition, we would like to highlight the steeper and steeper gradient of the expansion dynamics for larger fields. The domain nucleation and propagation is more efficient and leads to a more rapid positive PE expansion. The initial increase of $\tilde{w}$ of about 20% shown in Figure 1(c) indicates disorder in the film that increases by domain nucleation and propagation. For fields $|U_{2}|\geq 3$ V $\tilde{w}$ decreases again as domains merge and grow, thus decreasing the disorder. For $U_{2}=-3$ V some disorder remains when pulse P2 comes to an end and this disorder remains under zero field for $t>200\mu$s. For $U_{2}=-2$ V the pulse ends in the state of maximum peak width, and also this signature of large domain disorder is remnant. In fact, a small increase of the peak width remains after switching off Pulse P2 even for the largest applied field. This probably indicates a slight asymmetry of the film’s structural properties. For the high field of $-6$ V and $-8$ V the normalized diffracted intensity plotted in Figure  2(d) confirms the expected structure factor change for full polarization reversal. However, for low field switching, the intensity decreases by more than the $\Delta I=5\%$ expected for the structure factor change. The polarization is only reversed in a small fraction of the sample, and hence it is not the structure factor but rather disorder associated with inhomogeneous domain nucleation and motion that induces the intensity reduction.

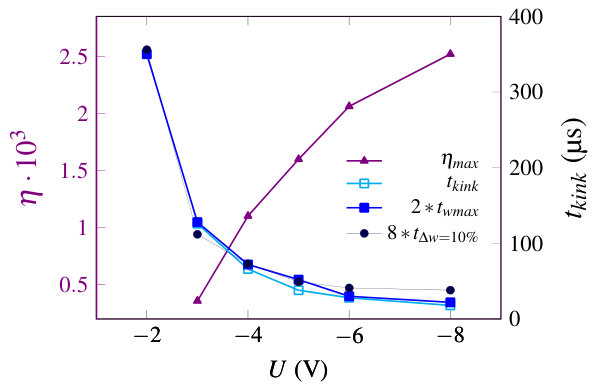

Now we extract the significant signatures of sub-coercive field induced polarization reversal from Figure 2(b-d) and plot these signatures as a function of the field $U$ in Figure 3. Each of the strain transients above $|U_{2}|\geq 3$ V in Figure 2(b) shows a pronounced kink where the rate of expansion, $d\eta/dt$, changes. It occurs at the time $t_{\text{kink}}$ which shows a very similar field dependence as the time t_{\text{wmax}} at which the maximum of the peak width is reached. This indicates maximum structural disorder and the point where the reversed domains start merging. This time precedes the time $t_{\text{kink}}$ of the sudden increase of the lattice constant by a constant factor of t_{\text{kink}}/t_{\text{wmax}}=2. Figure 3 also reports the initial rate $dw/dt$ at which the peak width changes. In order to emphasize the identical voltage dependence we plot the time $t_{\Delta w=10\%}$ where the peak width has increased by $10\%$ (full black circles) as a measure of the inverse rate. There is another constant factor of $t_{\text{kink}}/t_{\text{w10\%}}=8$.

We would like to emphasize that the different remnant values of $\tilde{w}$ after 200 $\mu$s define domain states that are stable as long as no electric fields are applied. This disorder could be used for multi-level memory applications based on remnant domain configurations Kundys et al. (2014). Such domain states can be created by the pulse sequence discussed above.

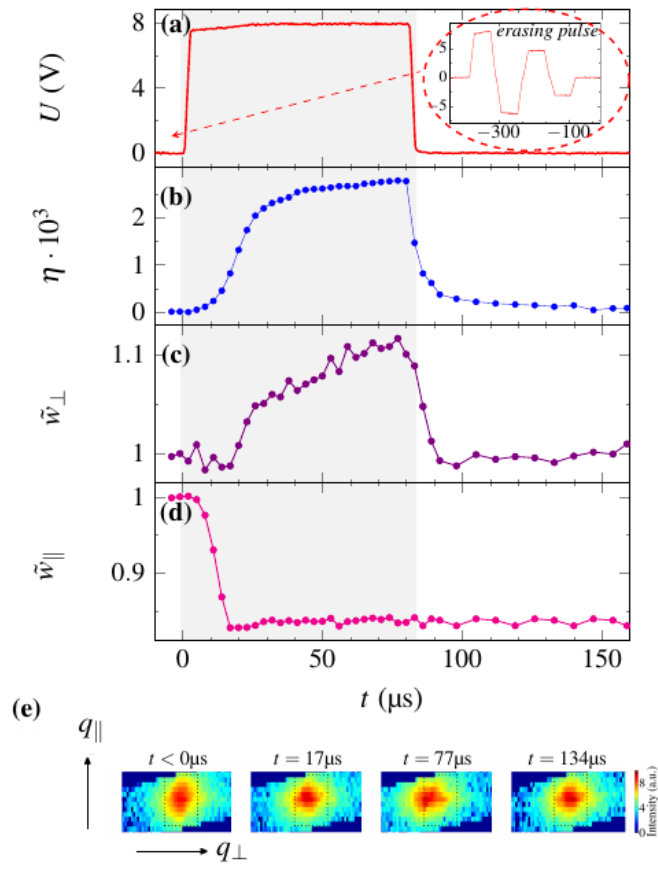

In the following, we demonstrate that these states can be erased by using an appropriate pulse sequence in order to define a reference state for multi-level memory applications. A simple ”erasing” pulse sequence is indicated in the inset of Figure 4(a). We monitored this reference domain structure and the changes induced by the writing pulse shown in Figure  4(a) with 8 V amplitude by reciprocal space mapping (RSM). Figure  4(e) visualizes the structural changes directly in the RSM for selected time delays. Figure 4(b) shows the peak shift, which is only present while the electric field is applied. Figure 4(c) indicates the normalized width $\tilde{w_{\perp}}$ along $q_{z}$ indicating an inhomogeneous electric field distribution across the electrode area.Kwamen et al. (2017) This peak width change disappears after the external field is switched off. In contrast, the large FWHM of the in-plane component of the Bragg peak $\tilde{w}_{\parallel}$ after the “erasing“ sequence indicates a high density of small domains, which is rapidly reduced by the external field pulse. This ordering of the domain structure again is remnant and states of different degrees of disorder are stable states in the thin film device.

We demonstrated that states of remnant ferroelectric domain disorder can be written in a nanometric PZT thin film device at sub-coercive fields. The structural changes of the domain states were observed by time-resolved reciprocal space mapping with hard X-rays, looking at a working device that was operated for more than $10^{8}$ switching cycles during these measurements. This sub-coercive field switching could be used in low power ferroelectric memory applications operating at low field. We showed that the intensity of Bragg reflections changes during the switching not only because the structure factor changes but also because the domain disorder broadens the Bragg peaks.

We acknowledge the BMBF for the financial support via grant No. 05K16IPA. M.A. acknowledges support of Royal Society through the Wolfson Research Merit and Theo Murphy Blue-sky Awards and EPSRC (UK) through grants No. EP/P031544/1 and EP/P025803/1.
