Dark matter stability and Dirac neutrinos using only Standard Model symmetries

TL;DR

This paper introduces a framework where the spontaneous breaking of the Standard Model's $U(1)_{B-L}$ symmetry naturally results in stable dark matter and Dirac neutrinos, with potential for gauging.

Contribution

It presents a novel mechanism linking dark matter stability and Dirac neutrino masses through residual symmetries from $U(1)_{B-L}$ breaking, compatible with Standard Model symmetries.

Findings

Residual $ ext{Z}_n$ symmetry ensures dark matter stability

Dirac neutrino masses generated at loop level

Framework is anomaly free and gaugeable

Abstract

We provide a generic framework to obtain stable dark matter along with naturally small Dirac neutrino masses generated at the loop level. This is achieved through the spontaneous breaking of the global $U(1)_{B-L}$ symmetry already present in Standard Model. The $U(1)_{B-L}$ symmetry is broken down to a residual even $\mathcal{Z}_n$; $n \geq 4$ subgroup. The residual $\mathcal{Z}_n$ symmetry simultaneously guarantees dark matter stability and protects the Dirac nature of neutrinos. The $U(1)_{B-L}$ symmetry in our setup is anomaly free and can also be gauged in a straightforward way. Finally, we present an explicit example using our framework to show the idea in action.

Figures

Tables

Table 1. Table 1 : Charge assignment for all of the fields. 𝒵 6 subscript 𝒵 6 \mathcal{Z}_{6} is the residual symmetry in this example, with ω 6 = 1 superscript 𝜔 6 1 \omega^{6}=1 .

	Fields	$SU{\left(2\right)}_L\otimes U{\left(1\right)}_Y$	$U{\left(1\right)}_{B-L}$	${𝒵}_6$
Fermions	$L_i$	($\mathrm{𝟐},-1/2$)	$-1$	${\omega }^4$
	${\nu }_{R_i}$	($\mathrm{𝟏},0$)	$(-4,-4,\mathrm{\hspace{0.17em}5})$	(${\omega }^4,{\omega }^4,{\omega }^4)$
	$N_{L_l}$	($\mathrm{𝟏},0$)	$-1/2$	${\omega }^5$
	$N_{R_l}$	($\mathrm{𝟏},0$)	$-1/2$	${\omega }^5$
Scalars	$H$	($\mathrm{𝟐},1/2$)	$0$	$1$
	$\chi$	($\mathrm{𝟏},0$)	$3$	$1$
	$\eta$	($\mathrm{𝟐},1/2$)	$1/2$	$\omega$
	$\xi$	($\mathrm{𝟏},0$)	$7/2$	$\omega$

Equations

$$U(1{)}_{B-L}$$

$$\displaystyle L_{i}\left\{\begin{array}[]{ll}\nsim\omega^{n}\ \ \text{under $\mathcal{Z}_{2n}$}&\Rightarrow\text{Dirac neutrinos}\\ \sim\omega^{n}\ \ \text{under $\mathcal{Z}_{2n}$}&\Rightarrow\text{Majorana neutrinos}\end{array}\right.$$

$${\mathcal{L}}_{\nu }=y_{il}{\bar{L}}_i\tilde{\eta }{N}_{R_l}+y_{li}^{\prime }{\bar{N}}_{L_l}{\nu }_{R_i}\xi +M_{lm}{\bar{N}}_{R_l}{N}_{L_m}+h.c.,$$

$$\mathcal{V}\supset m_{\eta }^2{\eta }^{†}\eta +m_{\xi }^2{\xi }^{†}\xi +({\lambda }_D{H}^{†}\eta \chi {\xi }^{\ast }+h.c.),$$

$$(M_{\nu }{)}_{\alpha \beta }\sim \frac{1}{16{\pi }^2}\frac{{\lambda }_D\text{v}\text{u}}{m_{\xi }^2-m_{\eta }^2}{y}_{\alpha k}{y}_{k\beta }^{\prime }{M}_k\sum _{i=1}^2(-1{)}^i{B}_0(0,m_i^2,M_k^2),$$

$$m_{\nu }\sim \frac{1}{16{\pi }^2}\frac{vu}{M}y{y}^{\prime }{\lambda }_D.$$

$$M\sim \frac{1}{16{\pi }^2}\frac{vu}{m_{\nu }}y{y}^{\prime }{\lambda }_D\sim 10^4\text{GeV}.$$

Full text

At present, a plethora of cosmic observations all indicate that the bulk of matter in the Universe is in the form of dark matter, a hitherto unknown form of matter which interacts gravitationally, but has little or no electromagnetic interaction Aghanim et al. (2018). Similarly, the observation of neutrino oscillations has conclusively proven the existence of mass for at least two active neutrinos de Salas et al. (2018); Whitehead (2016); Abe et al. (2017); Decowski (2016). These observations are two of the most serious shortcomings of the Standard Model (SM) since in the SM there is no viable candidate for dark matter and neutrinos are predicted to be massless. Thus, they both inarguably point to the presence of new physics beyond the SM and they are topics of active theoretical and experimental research.

To explain dark matter, the particle content of the SM needs to be extended. Furthermore, to account for dark matter stability new explicit Silveira and Zee (1985); Ma (2006) or accidental symmetries Cirelli et al. (2006) beyond those of the SM are also invoked. On the other hand, the understanding of the tiny, yet non-zero, masses of neutrinos also requires extending the SM in one way or another Ma (1998); Centelles Chuliá et al. (2018). However, the type of SM extensions required to explain the neutrino masses depend crucially on the Dirac/Majorana nature of neutrinos. This still remains an open question despite a tremendous amount of experimental effort Agostini et al. (2018); Gando et al. (2016); Agostini et al. (2017); Kaulard et al. (1998).

There are several ongoing and planned experiments searching for neutrinoless double beta decay Gando et al. (2016); Agostini et al. (2017), which if observed, owing to the Black-Box theorem Schechter and Valle (1982), would imply that neutrinos are Majorana particles. Furthermore, inference about nature of neutrinos can also be derived if lepton number violating decays are observed at colliders Aaboud et al. (2018) or in the conversion of $\mu^{-}\to e^{+}$ in muonic atoms Kaulard et al. (1998) In the absence of any experimental or observational signature, the nature of neutrinos remains an open question.

From a theoretical point of view, the issue of the Dirac/Majorana nature of neutrinos is intimately connected with the $U(1)_{B-L}$ symmetry of the SM and its possible breaking pattern Hirsch et al. (2018). If the $U(1)_{B-L}$ symmetry is conserved in nature, then the neutrinos will be Dirac fermions. However, if it is broken to a residual $\mathcal{Z}_{m}$ subgroup with $m\in\mathbb{Z}^{+}$ and $m\geq 2$, with $\mathbb{Z}^{+}$ being the set of all positive integers, then the Dirac/Majorana nature will depend on the residual $\mathcal{Z}_{m}$ symmetry provided that the SM lepton doublets $L_{i}=(\nu_{L_{i}},l_{L_{i}})^{T}$ do not transform trivially under it. Thus, we have

[TABLE]

If the $U(1)_{B-L}$ is broken to a $\mathcal{Z}_{2n}$ subgroup, then one can make a further classification depending on how the $L_{i}$ transform,

[TABLE]

where $\omega^{2n}=1$. Thus, from a symmetry point of view there are more options that lead to Dirac neutrinos than Majorana. Moreover, in some recent works it has been argued that in a full theory with the weak gravity conjecture neutrinos are expected to be Dirac fermions Ibanez et al. (2017). Owing to the above arguments, in the past few years, Dirac neutrinos have gained a significant amount of attention leading to the development of several elegant mass mechanisms to generate naturally small Dirac neutrino masses Ma and Srivastava (2015); Ma et al. (2015); Centelles Chuliá et al. (2016); Bonilla et al. (2016); Ma and Popov (2017); Wang and Han (2016); Borah and Karmakar (2018); Yao and Ding (2018); Reig et al. (2018); Han and Wang (2018).

Coming back to dark matter, there are particularly attractive scenarios that connect dark matter to neutrino physics in an intimate manner. The scotogenic model is one such model where the “dark sector” participates in the loop responsible for neutrino mass generation Ma (2006). Recently, a relation between the Dirac nature of neutrinos and dark matter stability has also been established Centelles Chuliá et al. (2017). Furthermore, it has been shown that this relation is independent of the neutrino mass generation mechanism Centelles Chuliá et al. (2018). It utilizes the SM lepton number $U(1)_{L}$ symmetry111One can equivalently use the anomaly free $U(1)_{B-L}$ symmetry., or its appropriate $\mathcal{Z}_{n}$ subgroup, to forbid Majorana mass terms of neutrinos as well as to stabilize dark matter Centelles Chuliá et al. (2017). In this approach, the Dirac nature of neutrinos and the stability of dark matter are intimately connected, having their origins in the same lepton number symmetry.

In this paper we aim to combine and generalize these two approaches and develop a general formalism where the following conditions are satisfied:

1. I.

Neutrinos are Dirac in nature. 2. II.

Naturally small neutrino masses are generated through finite loops, forbidding the tree-level neutrino Yukawa couplings. 3. III.

The dark sector participates in the loop. The lightest particle being stable is a good dark matter candidate.

Usually one needs at least three different symmetries besides those within the Standard Model to achieve this Bonilla et al. (2016). However, we show that all of these requirements can be satisfied without adding any extra explicit or accidental symmetries. In our formalism we employ an anomaly free chiral realization of the $U(1)_{B-L}$ spontaneously broken to a residual $\mathcal{Z}_{n}$ symmetry and show that just the $U(1)_{B-L}$ already present in the SM is sufficient.

Before going into the details of the formalism, let us briefly discuss the possibility of chiral solutions to $U(1)_{B-L}$ anomaly cancellation conditions. It is well known that the accidental $U(1)_{B}$ and $U(1)_{L}$ symmetries of the SM are anomalous, but the $U(1)_{B-L}$ combination can be made anomaly free by adding three right-handed neutrinos $\nu_{R_{i}}$ with $(-1,-1,-1)$ vector charges under $U(1)_{B-L}$. However, chiral solutions to $U(1)_{B-L}$ anomaly cancellation conditions are also possible. The particularly attractive feature of chiral solutions is that by using them one can automatically satisfy conditions I and II, as shown in Ma and Srivastava (2015); Ma et al. (2015), using the chiral solution $\nu_{R_{i}}\sim(-4,-4,5)$ under $U(1)_{B-L}$ symmetry.

Our general strategy is to use the chiral anomaly free solutions of $U(1)_{B-L}$ symmetry to generate loop masses for Dirac neutrinos and also have a stable dark matter particle mediating the aforementioned loop. Then, after symmetry breaking, once all of the scalars get a vacuum expectation value (vev), the $U(1)_{B-L}$ symmetry will be broken down to one of its $\mathcal{Z}_{n}$ subgroups, such that the dark matter stability and Dirac nature of neutrinos remain protected. This scheme is shown diagrammatically in Fig. 1.

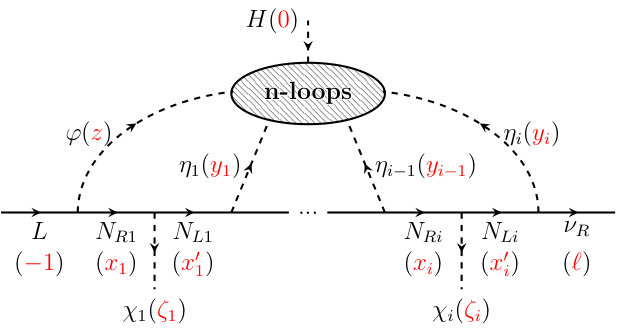

In Fig. 1 the SM singlet fermions $N_{Li},N_{Ri}$, as well as the right-handed neutrinos $\nu_{R}$, have non-trivial chiral charges under $U(1)_{B-L}$ symmetry.222It is not necessary that all fermions $N_{Li},N_{Ri}$ be chiral under $U(1)_{B-L}$ symmetry. In order to generate the masses of these chiral fermions we have also added SM singlet scalars $\chi_{i}$ which also carry $U(1)_{B-L}$ charges. To complete the neutrino mass generation loop, additional scalars $\varphi,\eta_{i}$ are required. After spontaneous symmetry breaking (SSB) of the $U(1)_{B-L}$ symmetry, all of the scalars $\chi_{i}$ will acquire vevs that break the $U(1)_{B-L}\to\mathcal{Z}_{n}$ residual symmetry. The fermions $N_{Li},N_{Ri}$ get masses through the vevs of the scalars $\chi_{i}$, while the neutrinos acquire a naturally small $n$-loop mass as shown in Fig. 1.

In order to satisfy all of the requirements listed above, several conditions must be applied. First of all, the model should be anomaly-free:

• •

The chiral charges of the fermions must be taken in such a way that the anomalies are canceled.

In order to obtain non-zero but naturally small Dirac neutrino masses we impose the following conditions:

• •

The tree-level Yukawa coupling $\bar{L}\tilde{H}\nu_{R}$ should be forbidden. This implies that apart from the SM lepton doublets $L_{i}$ no other fermion can have $U(1)_{B-L}$ charge of $\pm 1$. Furthermore, to ensure that the desired loop diagram gives the dominant contribution to the neutrino masses, all lower loop diagrams should also be forbidden by an appropriate choice of the charges of the fields.

• •

The operator leading to neutrino mass generation, i.e. $\bar{L}H^{c}\chi_{1}\dots\chi_{i}\nu_{R}$, should be invariant under the SM gauge symmetries as well as under $U(1)_{B-L}$. Following the charge convention of Fig. 1, the charges of the vev carrying scalars $\chi_{i}$ should be such that $\sum_{i}\zeta_{i}=-1-\ell$ .

• •

All of the fermions and scalars running in the neutrino mass loop must be massive. Since the fermions will be in general chiral, this mass can only be generated via the coupling with a vev carrying scalar. For example, in the diagram in Fig. 1 we should have $-x_{i}+x^{\prime}_{i}+\zeta_{i}=0$.

• •

To protect the Diracness of neutrinos, all of the Majorana mass terms for the neutrino fields at all loops must be forbidden in accordance with Eq. (4).

Additionally, for dark matter stability, we impose the following conditions:

• •

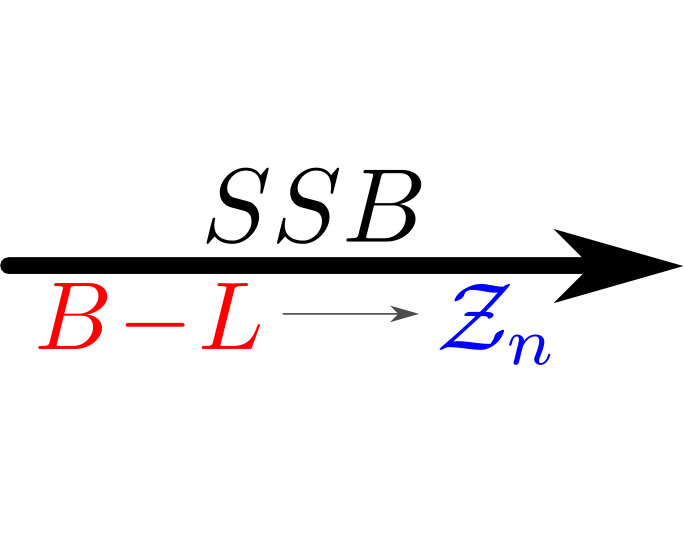

After SSB, the $U(1)_{B-L}$ symmetry is broken down to a $\mathcal{Z}_{n}$ subgroup. Only even $\mathcal{Z}_{n}$ subgroups with $n>2$ can protect dark matter stability. The odd $\mathcal{Z}_{n}$ subgroups invariably lead to dark matter decay.333For odd $\mathcal{Z}_{n}$ subgroups, there will always be an effective dark matter decay operator allowed by the residual odd $\mathcal{Z}_{n}$ symmetry. Even then it is possible that such an operator cannot be closed within a particular model, thus pinpointing the existence of an accidental symmetry that stabilizes dark matter. Another possibility is that the dark matter candidate decays at a sufficiently slow rate. Thus for residual odd $\mathcal{Z}_{n}$ symmetries, one can still have either a stable dark matter stabilized by an accidental symmetry or a phenomenologically viable decaying dark matter. In this paper, we will not explore such possibilities. The symmetry breaking pattern can be extracted as follows. First all the $U(1)$ charges must be rescaled in such a way that all the charges are integers and the least common multiple (lcm) of all of the rescaled charges is $1$. Defining $n$ as the least common multiple of the charges of the scalars $\chi_{i}$, it is easy to see that the $U(1)$ will break to a residual $\mathcal{Z}_{n}$. This $n$ must be taken to be even as explained before, i.e. $n\equiv$ lcm$(\zeta_{i})\in 2\mathbb{Z}$.

• •

Dark sector particles should neither mix with nor decay to SM particles or to vev carrying scalars.

• •

There are two viable dark matter scenarios depending on the transformation of the SM fermions under the residual symmetry.

• –

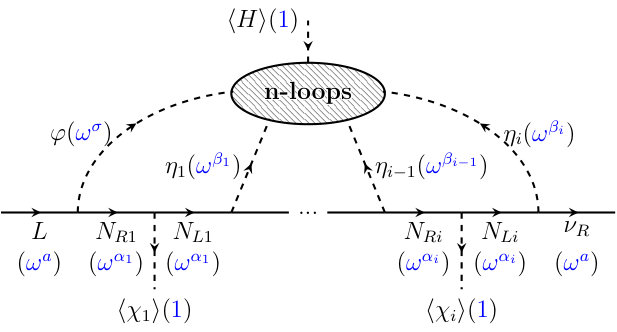

When all SM fields transform as even powers of $\omega$, where $\omega^{n}=1$, under the residual $\mathcal{Z}_{n}$, the lightest particle transforming as an odd power will be automatically stable, irrespective of its fermionic or scalar nature. We will show an explicit example of this simple yet powerful idea later.

• –

In the case in which all SM fermions transform as odd powers of the residual subgroup, it can be shown that all of the odd scalars and the even fermions will be stable due to a combination of the residual $\mathcal{Z}_{n}$ and Lorentz symmetry.

Given the long list of requirements, most of the possible solutions that lead to anomaly cancellation fail to satisfy some or most of them. Still we have found some simple one-loop and several two-loop solutions that can satisfy all of the conditions listed above.

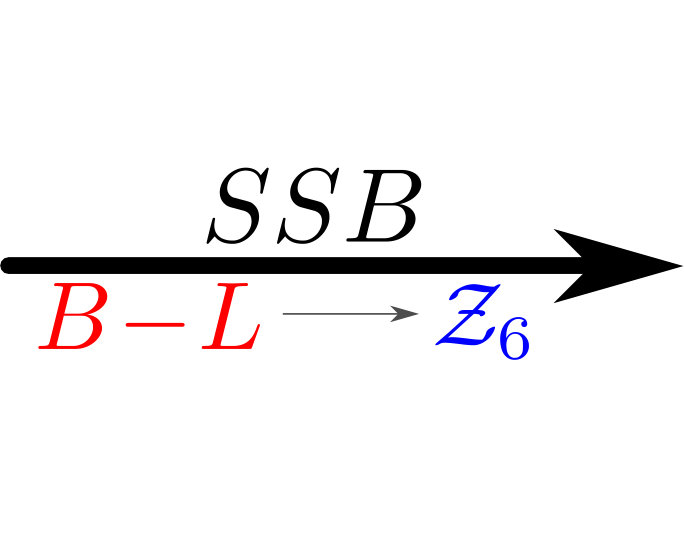

In this paper, we demonstrate the idea for a simple solution in which the $U(1)_{B-L}$ symmetry is broken down to a residual $\mathcal{Z}_{6}$ symmetry. However, in general, many other examples with different residual even $\mathcal{Z}_{n}$ symmetries can be found by applying the given framework.

Realistic example

Let us consider an extension of the SM by adding an extra Higgs singlet $\chi$ with a $U(1)_{B-L}$ charge of $3$, along with an scalar doublet $\eta$, a singlet $\xi$ and two vector-like fermions $N_{L_{l}}$ and $N_{R_{l}}$, with $l=1,2$, all carrying non-trivial $U(1)_{B-L}$ charges as shown in Table 1 and depicted in Fig. 2(a).

The neutrino interactions are described by the following Lagrangian,

[TABLE]

where $\tilde{\eta}=i\tau_{2}\eta^{*}$, with the indices $i=1,2,3$ and $l,m=1,2$. The relevant part of the scalar potential for generating the Dirac neutrino mass is given by

[TABLE]

where $\lambda_{D}$ is a dimensionless quartic coupling.

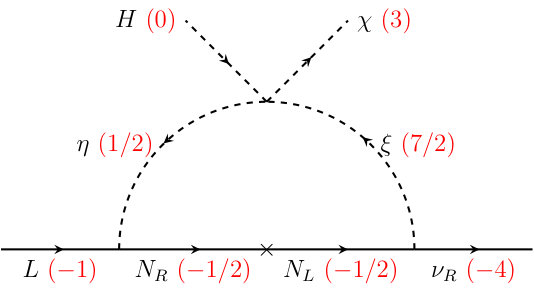

After spontaneous symmetry breaking of $U(1)_{B-L}$, the scalar $\chi$ gets a vev $\left\langle\chi\right\rangle=\text{u}$, giving mass to two neutrinos through the loop depicted in Fig. 2. Note that only $\nu_{R_{1}}$ and $\nu_{R_{2}}$ can participate in this mass generation due to the chiral charges $(-4,-4,\,5)$, i.e. $y^{\prime}_{l3}=0$ in Eq. (5). The third right-handed neutrino $\nu_{R_{3}}$ remains massless and decouples from the rest of the model, although it is trivial to extend this simple model to generate its mass.

The neutral component of the gauge doublet $\eta$ and the singlet $\xi$ are rotated into the mass eigenbasis with eigenvalues $m^{2}_{i}$ in the basis of ($\xi$, $\eta^{0}$). The neutrino mass matrix is then given in terms of the one-loop Passarino-Veltman function $B_{0}$ Passarino and Veltman (1979) by,

[TABLE]

where $M_{k}$ ($k=1,2$) are the masses of the Dirac fermions $N_{k}$ and $\left\langle H\right\rangle=\text{v}$ the Standard Model vev.

As a benchmark point, we can take the internal fermion to be heavier than the scalars running in the loop, one of which will be the dark matter candidate. Then, Eq. (7) can be approximated by,

[TABLE]

For comparison, we can take the Yukawa couplings to be of order $10^{-2}$ and the quartic coupling $\lambda_{D}\sim 10^{-4}$, like in the original scotogenic model Ma (2006). We can also take neutrino masses to be of order $0.1$ eV and $u\sim v$. With these choices, we can find the mass scale of the neutral fermions,

[TABLE]

Compared with the type-I seesaw scale $M\approx y^{2}\frac{v^{2}}{m_{\nu}}\sim 10^{10}$ GeV we can see a five order of magnitude suppression coming from the loop and the possibility of a broader parameter space.

It is worth mentioning that since the $U(1)_{B-L}$ is anomaly free, it can be gauged. Then the physical Nambu-Goldstone boson associated to the dynamical generation of the Dirac neutrino mass Bonilla and Valle (2016) is absent.

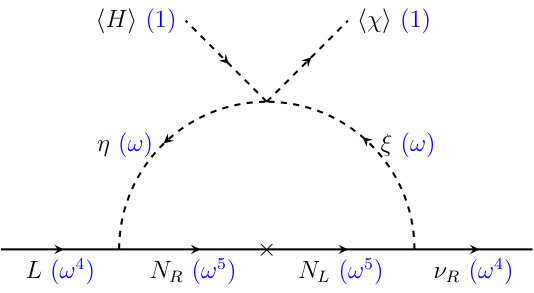

Regarding dark matter stability in this particular model, we can see that the lightest particle inside the loop is stable. This is true for both the fermionic and scalar dark matter candidates. As can be seen in Fig. 2(b), all of the internal loop particles are odd under the remnant $\mathcal{Z}_{6}$, while all of the SM particles are even. Therefore any combination of SM fields will be even under the residual subgroup, forbidding all effective operators leading to dark matter decay as shown graphically in Fig. 3.

To summarize, we have shown that by using the $U(1)_{B-L}$ symmetry already present in the Standard Model, it is possible to address the dark matter stability and relate it to the smallness of Dirac neutrino masses. We have described a general framework in which these features are realized by exploiting the anomaly free chiral solutions of a global $U(1)_{B-L}$. This framework can be utilized in a wide variety of scenarios. We have presented a particular simple realization of this idea where neutrino masses are generated at the one-loop level and the $U(1)_{B-L}$ symmetry is broken spontaneously to a residual $\mathcal{Z}_{6}$ symmetry. The framework can also be used in models with higher-order loops as well as in cases where $U(1)_{B-L}$ symmetry is broken to other even $\mathcal{Z}_{n}$ subgroups. Since the $U(1)_{B-L}$ is anomaly free, it can be gauged in a straightforward way, giving a richer phenomenology from the dark matter and collider point of view.
