Nematic superconductivity in doped Bi2Se3 topological superconductors

TL;DR

This paper reviews recent discoveries of nematic superconductivity in doped Bi2Se3 materials, highlighting experimental evidence of rotational symmetry breaking and discussing future research directions.

Contribution

It provides a comprehensive summary of experimental findings and discusses the implications of nematic superconductivity in doped Bi2Se3 systems.

Findings

Two-fold symmetric behavior observed in experiments

Nematic superconductivity visualized via STM/STS

Discussion of future research challenges

Abstract

Nematic superconductivity is a novel class of superconductivity characterized by spontaneous rotational-symmetry breaking in the superconducting gap amplitude and/or Cooper-pair spins with respect to the underlying lattice symmetry. Doped Bi2Se3 superconductors, such as CuxBi2Se3, SrxBi2Se3, and NbxBi2Se3, are considered as candidates for nematic superconductors, in addition to the anticipated topological superconductivity. Recently, various bulk probes, such as nuclear magnetic resonance, specific heat, magnetotransport, magnetic torque, and magnetization, have consistently revealed two-fold symmetric behavior in their in-plane magnetic-field-direction dependence, although the underlying crystal lattice possesses three-fold rotational symmetry. More recently, nematic superconductivity is directly visualized using scanning tunneling microscopy and spectroscopy. In this short review, we summarize the current researches on the nematic behavior in superconducting doped Bi2Se3 systems, and discuss issues and perspectives.

Figures

Tables

Table 1. Table 1: Proposed superconducting states for doped Bi 2 Se 3   Fu and Berg ( 2010 ); Hashimoto et al. ( 2013 , 2014 ); Sasaki and Mizushima ( 2015 ); Ando and Fu ( 2015 ) . The 𝒅 𝒅 \bm{d} vector structures in the band bases are from Refs.  Hashimoto et al. ( 2013 , 2014 ) . Here, λ 𝜆 \lambda represents the strength of the spin-orbit coupling; and ε 𝜀 \varepsilon represents the gap minima for the Δ 4 ​ y subscript Δ 4 𝑦 \Delta_{4y} state (see text). In the bottom row, schematic gap and d 𝑑 d -vector structures of each state are shown, together with various cut views. The λ 𝜆 \lambda value is chosen to be 0.5 and the ε 𝜀 \varepsilon value is just set to be 0.1. The sphere at a center of the cut views is the Fermi surface. The gap structure is expressed with colored surfaces, whose distance from the Fermi surface corresponds to the SC gap amplitude | 𝒅 | 𝒅 |\bm{d}| normalized by its maximal value d 0 subscript 𝑑 0 d_{0} . The color of this surface also depicts the gap value, as well as the d 𝑑 d -vector direction, as explained in the left bottom cell: The hue and lightness of the color indicate the azimuthal and polar angles of the d 𝑑 d vector, ϕ 𝒅 subscript italic-ϕ 𝒅 \phi_{\bm{d}} and θ 𝒅 subscript 𝜃 𝒅 \theta_{\bm{d}} , respectively; whereas the grayness of the color depicts the normalized gap, with 50%-gray corresponding to | 𝒅 | = 0 𝒅 0 |\bm{d}|=0 .

	${𝚫}_{\mathrm{𝟏}𝒂}$	${𝚫}_{\mathrm{𝟏}𝒃}$	${𝚫}_{\mathrm{𝟐}}$	${𝚫}_{\mathrm{𝟑}}$	${𝚫}_{\mathrm{𝟒}𝒙}$	${𝚫}_{\mathrm{𝟒}𝒚}$
Irreducible representation	$A_{1g}$	$A_{1g}$	$A_{1u}$	$A_{2u}$	$E_u$
Pairing potential	${\sigma }_0$	${\sigma }_x$	${\sigma }_y{s}_z$	${\sigma }_z$	${\sigma }_y{s}_x$	${\sigma }_y{s}_y$
$𝒅$-vector	-	-	$\sim (\lambda k_x,\lambda k_y,k_z)$	$\sim (-\lambda k_y,\lambda k_x,0)$	$\sim (k_z,0,-\lambda k_x)$	$\sim (\epsilon k_x,-k_z,\lambda k_y)$
Parity	even	even	odd	odd	odd
Topo. SC	no	no	yes	yes	yes
Nematic SC	no	no	no	no	yes

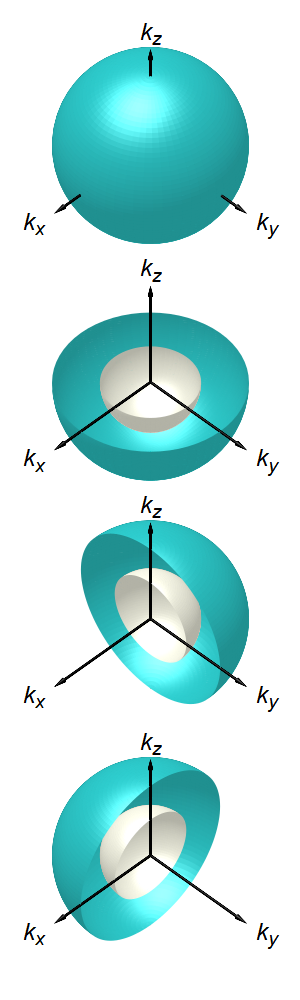

Schematic $𝒅$-vector / gap structures

Table 2. Table 2: Comparison of experimental reports on nematic superconductivity in doped Bi 2 Se 3  and related systems.

Material	Reference	Growth methodi	Doping level $x$	Probe	Large $H_{\mathrm{𝐜𝟐}}$	Suggested state
CuxBi2Se3	Matano 2016 Matano et al. (2016)	MG + ECI	0.29-0.31	NMR	$y$	${\Delta }_{4x}$
	Yonezawa 2017 Yonezawa et al. (2017)	MG + ECI	0.3	$C$	$x$	${\Delta }_{4y}$
	Tao 2018 Tao et al. (2018)	MG + ECI	0.31	STM	-	${\Delta }_{4x}$
SrxBi2Se3	Pan 2016 Pan et al. (2016)	MG	0.10, 0.15	${\rho }_{ab}$	$x$
	Nikitin 2016 Nikitin et al. (2016)	MG	0.15	${\rho }_{ab}$ in $P$	$x$
	Du 2017 Du et al. (2017)	MG	NA	${\rho }_c$	$x$ (#1, #2)
					$y$ (#3)
	Smylie 2018 Smylie et al. (2018)	MG	0.1	${\rho }_{ab}$, $M$	$x$
	Kuntsevich 2018 Kuntsevich et al. (2018)	BG	0.10-0.20	${\rho }_{ab}$	$x$ (some)
					$y$ (others)
	Willa 2018 Willa et al. (2018)	MG	0.1	$C$	$y$
NbxBi2Se3	Asaba 2017 Asaba et al. (2017)	MG	NA	torque	-
	Shen 2017 Shen et al. (2017)	MG	0.25	${\rho }_{ab}$, $M$	y
Cux(PbSe)5(Bi2Se3)6	Andersen 2018 Andersen et al. (2018)	BG + ECI	1.5	${\rho }_{ab}$, ${\rho }_c$, $C$	$x$	${\Delta }_{4x}$
Bi2Te3/Fe(Se,Te)	Chen 2018 Chen et al. (2018)	MBE	-	STM	-	${\Delta }_{4y}$
i MG: melt growth, ECI: electrochemical intercalation, BG: Bridgman method, MBE: molecular beam epitaxy

Full text

\pubvolume

xx \issuenum1 \articlenumber1

\externaleditorAcademic Editor: name \historyReceived: date; Accepted: date; Published: date

\TitleNematic superconductivity

in doped Bi2Se3 topological superconductors \AuthorShingo Yonezawa 1\orcidA \AuthorNamesShingo Yonezawa

\corresCorrespondence: yonezawa@scphys.kyoto-u.ac.jp; Tel.: +81-75-753-3744

1 Introduction

In the last decade, the research field on topological materials, which possess non-trivial topology in their electronic-state wave functions in the reciprocal space, has been expanding substantially Hasan and Kane (2010); Qi and Zhang (2011); Ando (2013). As a counterpart of topological insulators, it has been recognized that certain superconductors can have non-trivial topological nature in their wavefunctions Qi and Zhang (2011); Schnyder and Brydon (2015); Sato and Ando (2017). Superconductivity with such non-trivial wavefunction topology is now called topological superconductivity. It has been predicted that topological superconductivity can lead to various novel phenomena. In particular, the Majorana quasiparticles with non-Abelian zero-energy modes, hosted in topologically protected edge states or vortex cores, are quite intriguing Wilczek (2009). The realization and utilization of such Majorana modes are one of the holy grails of this research field.

There are a number of superconductors that seemingly exhibit topological superconductivity in bulk Yonezawa (2016). Such bulk topological superconductors are the prototype of topological superconductivity, although there are now other recipes to induce topological superconductivity by making use of the proximity effect. Recently, a candidate for a bulk topological superconductor, doped Bi2Se3, has been found to exhibit unusual rotational-symmetry breaking in the superconducting (SC) gap amplitude as well as in the SC spin degree of freedom Matano et al. (2016); Yonezawa et al. (2017); Pan et al. (2016); Asaba et al. (2017). This phenomena, called as “nematic” superconductivity Fu (2014), has been attracting much attention as a new species in the superconductor zoo, accompanied by a novel class of symmetry breaking in its SC wave function. The shape and topology of the SC wave function are closely related. Indeed, in $A_{x}$Bi2Se3, it has been theoretically known that the nematic superconductivity is accompanied by non-trivial topological SC gap Fu and Berg (2010); Ando and Fu (2015); Sasaki and Mizushima (2015); Sato and Ando (2017). Therefore, these new experimental observations of the nematic SC gap and spin have been providing firm bulk evidence for topological superconductivity, and thus establish strong bases toward realization and manipulation of Majorana states in this class of compounds.

In this short review, we summarize recent observations of the nematic behavior in superconducting doped Bi2Se3 systems. After a brief introduction of nematic superconductivity in Sec. 2, we explain experimental and theoretical understandings of superconductivity in $A_{x}$Bi2Se3 in Sec. 3. Section 4 is devoted to explain recent experimental findings of nematic superconductivity. Then we discuss several known issues in Sec. 5, before summarizing the content in Sec. 6.

2 Nematic Superconductivity: Rotational Symmetry Breaking in the Gap Amplitude

2.1 Symmetry Breaking in Superconductivity

The concept of the spontaneous symmetry breaking has fundamental importance in superconductivity. In the Bardeen-Cooper-Schrieffer (BCS) theory Bardeen et al. (1957), the SC state spontaneously breaks the $U(1)$ gauge symmetry, even for the ordinary $s$-wave superconductivity (Fig. 1(a)). It has been then an interesting and long-standing question whether SC states with additional symmetry breaking exists or not. Such superconductivity with additional symmetry breaking is called unconventional superconductivity.

For example, superconductivity with spontaneous time-reversal symmetry breaking in the orbital part of the SC order parameter (Fig. 1(b)) is called as “chiral” superconductivity, and is believed to be realized in several materials such as Sr2RuO4 Luke et al. (1998); Xia et al. (2006), URu2Si2 Yamashita et al. (2015); Schemm et al. (2015) and UPt3 Schemm et al. (2014). Odd parity superconductivity, which exhibit $\pi$ phase shift under spacial inversion (see again Fig. 1(b)), has been an interesting topic for fairly a long time Anderson and Morel (1961); Balian and Werthamer (1963). Odd-parity superconductivity (and superfluidity) is confirmed in superfluid 3He Leggett (1975); Mizushima et al. (2016), and is very probably realized in Sr2RuO4 Mackenzie and Maeno (2003); Maeno et al. (2012); Mackenzie et al. (2017) and UPt3 Izawa et al. (2014). Moreover, odd-parity superconductivity is now recognized as an key ingredient to realize topological superconductivity Sato (2010); Fu and Berg (2010).

Another fundamentally important symmetry is rotational symmetry. The symmetry behavior under rotation provides a basis of the classification of superconductivity into $s$-wave, $p$-wave, $d$-wave, $f$-wave, etc. However, the infinitesimal rotational symmetry $C_{\infty}$ is already broken in superconductors because of the crystal lattice. Thus, in reality, what actually matters is the breaking / invariance of the discrete $C_{n}$ rotational symmetry of the underlying lattice. For example, in $d$-wave superconductivity in a tetragonal system (Fig. 1(c)), the phase factor for one $k$ direction and for its perpendicular direction differs by $\pi$. Therefore, the four-fold rotation $C_{4}$ symmetry is broken in the phase factor of the SC order parameter.

2.2 Gap-Nematic and Spin-Nematic Superconductivity

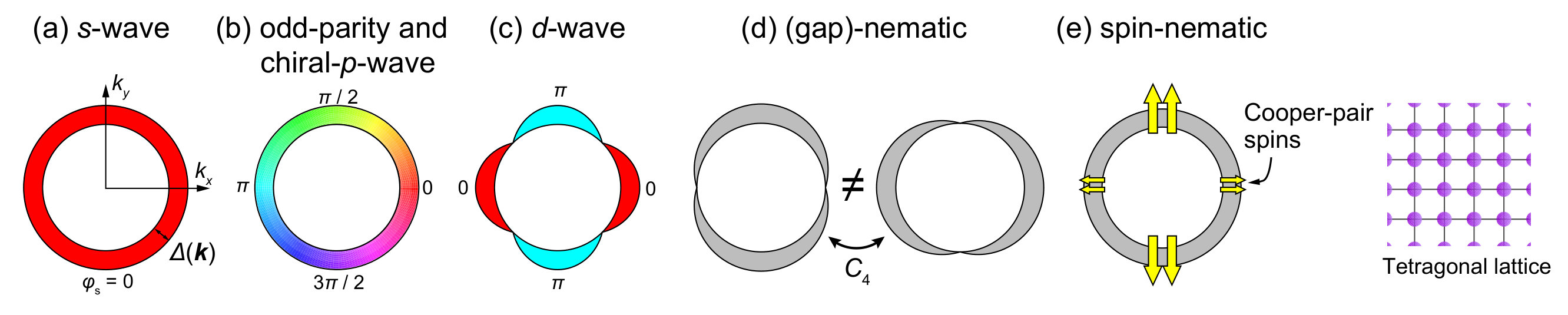

Such a rotational symmetry breaking in the phase degree of freedom in non-$s$-wave superconductivity is intriguing but the experimental detection of such symmetry breaking is actually very difficult. This is because the SC gap amplitude, which governs most of superconducting properties, is actually invariant under the $C_{n}$ rotation. To detect the rotational symmetry breaking in the phase factor, one has to utilize sophisticated interference techniques, as performed in cuprate $d$-wave superconductors Van Harlingen (1995); Tsuei and Kirtley (2000). In contrast, if the rotational-symmetry breaking occurs in the SC gap amplitude as shown in Fig. 1(d), the rotational symmetry breaking would be more robust and be detectable in principle in any bulk quantities. Such superconductivity with broken rotational symmetry in the gap amplitude, was named as “nematic superconductivity” first by Fu Fu (2014), and has been attracting much attention as a new class of superconductivity accompanied by a novel spontaneous symmetry breaking.

The word “nematic”, originally used in the research field of liquid crystals, refers to the states with the spontaneous rotational symmetry breaking of the bar-shaped liquid crystal molecules but without breaking the translational symmetry. Now this word is imported to solid-state physics, and the “nematic electron liquid” with spontaneous rotational symmetry breaking in the conduction electron without losing conductivity has been attracting much attention and actually found in various systems such as cuprates Ando et al. (2002); Vojta (2009), iron pnictides Kasahara et al. (2012); Fernandes et al. (2014), and a ruthenate Borzi et al. (2007). The nematic superconductivity is a superconducting version of such nematic electron liquids, but occurring as a consequence of Cooper-pair formation.

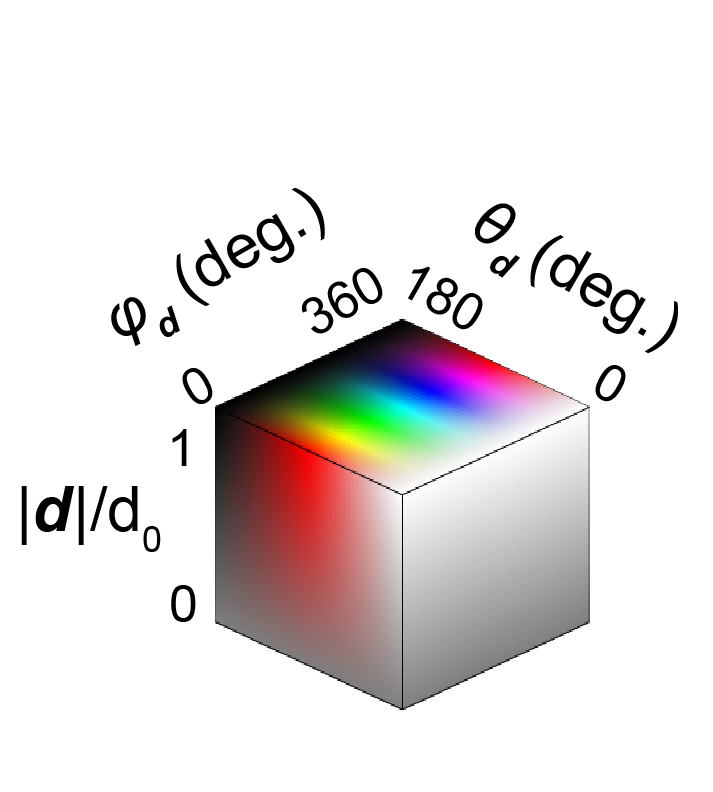

In the case of spin-triplet superconductivity, the spin part of the order parameter, i.e. the $\bm{d}$ vector, can also exhibit rotational symmetry breaking. Here, we should be careful that there are two different levels of the spin-rotational-symmetry breaking. Firstly, the $SO(3)$ symmetry of the spin space breaks in the presence of spin-orbit interaction. In this case, the spin susceptibility exhibit anisotropic behavior but still obeys the symmetry of the lattice. This first kind of the spin-rotational symmetry breaking has not been observed in a leading candidate spin-triplet superconductor Sr2RuO4 Murakawa et al. (2004) and was weakly observed in another candidate UPt3 Tou et al. (1998). A more exotic phenomenon is that the spin part even breaks the $C_{n}$ lattice rotational symmetry (but without spin polarization). In this case, spin susceptibility exhibit rotational-symmetry breaking, as schematically shown in Fig. 1(e). We shall call this phenomenon as “spin-nematic superconductivity”; and for distinguishment, the nematic superconductivity with the rotational symmetry breaking in the gap amplitude is also called as “gap-nematic superconductivity”. Spin-nematic superconductivity has never been known in any material before its discovery in CuxBi2Se3 Matano et al. (2016).

3 Superconductivity in Doped Bi2Se3

In this section, SC and normal-state properties of doped Bi2Se3, as well as theoretically proposed SC states, are described. For more detailed information, refer to the nice reviews found in Refs. Ando and Fu (2015); Sasaki and Mizushima (2015); Sato and Ando (2017).

3.1 Crystal Structure of the Mother Compound Bi2Se3

Bi2Se3, the mother compound of the doped Bi2Se3 superconductors, has been extensively studied as a prototypical topological insulator Zhang et al. (2009); Xia et al. (2009). This compound has a rhombohedral (or trigonal) crystal structure as shown in Fig. 2, with the space group of $R\bar{3}m$ ($D^{5}_{3d}$) Nakajima (1963). The crystal structure contains three equivalent $a$ axes. Strictly speaking, the situations with $H$ parallel to the $a$ axis and $-a$ axis are different because of the trigonal symmetry and the pseudo-vector nature of the magnetic field. Nevertheless, practically, $H\parallel a$ and $H\parallel-a$ are almost equivalent in most cases and thus many physical quantities are expected to exhibit pseudo-six-fold rotational symmetry as a function of in-plane field direction. The $a^{\ast}$ axis is perpendicular to the $a$ axis within the $ab$ plane. Importantly, the $a^{\ast}$-$c$ plane is a mirror-symmetry plane, whereas the $a$-$c$ plane is not, as clearly seen in Fig. 2(b). This existence/absence of the mirror symmetry is closely related to the stability of the gap nodes in the nematic SC state, as will be discussed in Sec. 3.3. Throughout this paper, we define the $x$ axis along one of the three $a$ axes. In most cases, we choose $x$ to be along the “special” $a$ axis due to the nematic SC order (e.g. the $a$ axis with maximal or minimal $H_{\mathrm{c2}}$). Then the $y$ axis is defined so that it is perpendicular to the $x$ axis within the $ab$ plane, as explained in Fig. 2(b).

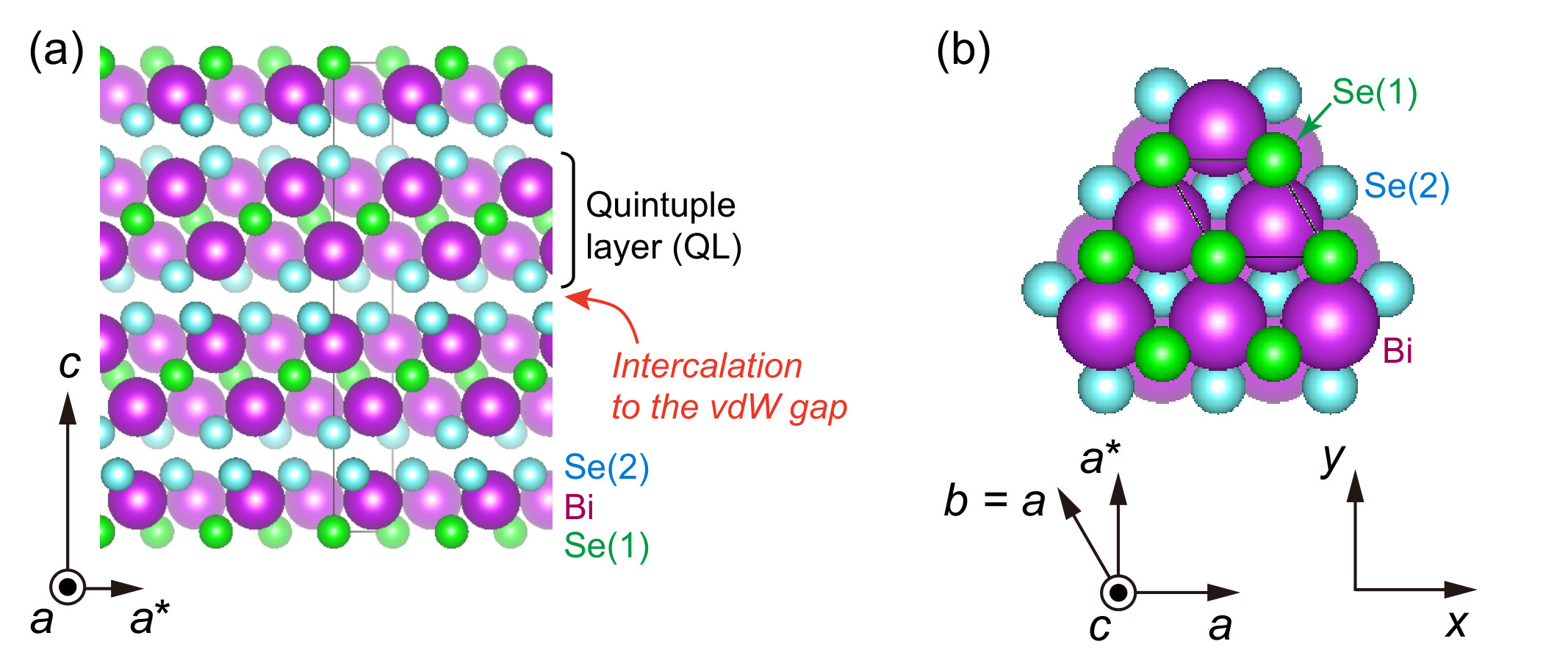

The crystal structure consists of Se-Bi-Se-Bi-Se layers, as shown in Fig. 2(a). This set of layers is called as the quintuple layer (QL). Between the QLs, there is a van-der Waals (vdW) gap, through which metallic ions penetrate the sample during the synthesis process. Thus the ions are most likely to be intercalated into a certain site within the vdW gap. For Sr-doped Bi2Se3, Sr ions may also sit in a interstitial site Li et al. (2018). The precise position of the doped ions, in particular that for superconducting samples, has not been fully clarified.

3.2 Basic Properties of Doped Bi2Se3 Superconductors

In 2010, the pioneering work by Hor et al. revealed that CuxBi2Se3 exhibits superconductivity below the critical temperature $T_{\mathrm{c}}$ of around 3 K Hor et al. (2010). This is truly the beginning of the research field of superconducting doped Bi2Se3 systems, but the initial samples grown by ordinary melt-grown technique exhibited the superconducting shielding fraction of about 20% and did not show complete vanishing of resistivity. One year later, Kriener et al. found that, with the electrochemical intercalation of Cu and with a suitable annealing process, CuxBi2Se3 indeed exhibit bulk superconductivity with clear zero resisivity and volume fractions reaching 60-70% evaluated from specific-heat and magnetization measurements Kriener et al. (2011a, b). In 2015, Sr doping or Nb doping were also found to drive Bi2Se3 to superconduct, with $T_{\mathrm{c}}$ again around 3 K Liu et al. (2015); Shruti et al. (2015); Qiu et al. (2015). In contrast to the Cu-doped material, SrxBi2Se3 and NbxBi2Se3 exhibit bulk superconductivity with fairly a large shielding fraction close to 100% even with melt-grown samples.

These three compounds exhibit similar SC behavior but there are several significant differences as well. Firstly, the normal-state electronic state is different. In CuxBi2Se3, an ellipsoidal or cylindrical Fermi surface, depending on the carrier density, has been revealed by angle-resolved photoemission spectroscopy (ARPES) and quantum oscillation experiments Lahoud et al. (2013). Superconducting CuxBi2Se3 typically has the carrier density $n$ of around $10^{20}$ cm*-3* Hor et al. (2010); Kriener et al. (2011a); Lahoud et al. (2013). Furthermore, $n$ is known to be rather insensitive to the Cu concentration Kriener et al. (2011b). In SrxBi2Se3, $n$ tends to be even lower than that in CuxBi2Se3: $n$ for superconducting SrxBi2Se3 is consistently reported to be $\sim 2\times 10^{19}$ cm*-3* Liu et al. (2015); Shruti et al. (2015). For NbxBi2Se3, the quantum oscillation consists of oscillations with different frequencies and with different field-angular dependence, indicating that the Fermi surface is not a simple ellipsoid or cylinder but is composed of multiple pockets Lawson et al. (2016). This is crucially different from the single Fermi surface in CuxBi2Se3 and SrxBi2Se3. In addition, NbxBi2Se3 has some controversy on the magnetism: in the initial report, it was argued that NbxBi2Se3 exhibits long-range magnetic order in the superconducting state and this magnetic order assists formation of a chiral SC state Qiu et al. (2015). In later reports, however, such magnetism has not been reported Asaba et al. (2017); Shen et al. (2017). Secondly, a practical difference among the three compounds is that SrxBi2Se3 and NbxBi2Se3 are stable in air, whereas superconductivity in CuxBi2Se3 is known to diminish if a sample is kept in air Hor et al. (2010). We should comment here that single-crystalline CuxBi2Se3 prepared by electrochemical intercalation might not be as air-sensitive as melt-grown samples Kri . Because of the higher stability, Sr and Nb-doped Bi2Se3 have been extensively studied since their discoveries, as reviewed below.

The normal-state electronic state of CuxBi2Se3 was investigated with ARPES and quantum oscillation experiments Lahoud et al. (2013). It was found that the electronic band structure of CuxBi2Se3 is essentially the same as that of Bi2Se3, and that the surface state originating from the topological-insulator nature of Bi2Se3 still exist even after the Cu doping. As expected, CuxBi2Se3 is heavily electron doped compared to the mother compound: the chemical potential is located 0.2-0.5 eV above the Dirac point of the topological surface state. Still, the surface state was clearly observed even at the chemical potential, well distinguishable from the bulk band. This means that the bulk conduction electrons on the Fermi surface of CuxBi2Se3 inherit the “twisted” nature of the bulk electronic state of the mother compound. Once superconductivity sets in, the Cooper pairs are formed among bulk electrons in such a non-trivial topological state. Such situation is favorable for the realization of odd-parity and topological SC states even for simple pairing interactions, as described in the next subsection. The preserved topological-insulator surface state after doping was also confirmed in SrxBi2Se3 via quantum oscillation and scanning tunneling microscope (STM) experiments Liu et al. (2015); Du et al. (2017)

3.3 Possible Superconducting States

Just after the discovery of superconductivity in CuxBi2Se3 Hor et al. (2010), Fu et al. performed theoretical analysis on possible SC states realized in this compound Fu and Berg (2010). The result is quite surprising since odd-parity topological superconductivity was predicted even with a simple pairing interaction. Previously, it had been believed that an unconventional pairing glue such as ferromagnetic spin fluctuation is required to realize bulk odd-parity superconductivity. Very naively, the odd-parity superconductivity in this model originates from strong orbital mixing on the Fermi surface; when a Cooper pair is formed among electrons in different orbitals, odd-parity superconductivity is rather easily realized.

Let us review the result of this theory in a bit more detail. Fu et al. considered the $D_{3d}$ point group of Bi2Se3 and assumed Cooper pairing of electrons in two $p_{z}$ orbitals localized nearly at the top and bottom of a QL. On the other hand, the pairing interaction was assumed to be point-like. Then, six possible pairing states $\Delta_{1a}$, $\Delta_{1b}$, $\Delta_{2}$, $\Delta_{3}$, $\Delta_{4x}$, and $\Delta_{4y}$, were proposed as listed in Table 1. Here, the pairing potential in the orbital bases is expressed with Pauli matrices in the orbital and spin spaces, $\sigma_{\mu}$ and $s_{\mu}$ ($\mu=x,y,z$); Thus those with off-diagonal terms in the orbital matrices $\sigma$, i.e., those containing $\sigma_{x}$ or $\sigma_{y}$, are inter-orbital pairing states and $\sigma_{y}$ characterizes an orbital-singlet state Sasaki and Mizushima (2015). Among them, $\Delta_{1a}$ and $\Delta_{1b}$ are even-parity states and the others, $\Delta_{2}$, $\Delta_{3}$, $\Delta_{4x}$ and $\Delta_{4y}$ are the odd-parity states. All of these odd-parity states belong to topological superconductivity, because odd-parity superconductivity is proved to have a non-trivial topological nature if the Fermi surface encloses an odd number of high-symmetry points in the Brillouin zone Sato (2010); Fu and Berg (2010). The states $\Delta_{2}$, $\Delta_{4x}$ and $\Delta_{4y}$ contain $s$ matrices in the pairing potential and thus are fundamentally spin-triplet SC states even in the absence of the spin-orbit interaction. In contrast, $\Delta_{3}$ in the absence of the spin-orbit interaction is a spin-singlet state in spite of odd-parity nature (Notice that $\bm{d}=0$ for $\lambda=0$), since the Pauli principle is satisfied together with the orbital degree of freedom Hashimoto et al. (2013). Nevertheless, with finite spin-orbit interaction, $\Delta_{3}$ also acquires spin-triplet nature.

To evaluate the SC-gap and $\bm{d}$-vector structures in the reciprocal space, the pair potential in the orbital bases has to be converted to the SC order parameter in the band bases. In the work by Hashimoto et al. Hashimoto et al. (2013, 2014), the $\bm{d}$ vector for the lowest order in $k$ was evaluated as listed in Table 1. Here, the $\bm{d}$ vector depends on the ratio $\lambda$ between the spin-orbit interaction (denoted as $v$ in Ref. Hashimoto et al. (2013)) and the coefficient $v_{z}$ describing the $k_{z}$-linear term in the bulk electronic band dispersion. These values are estimated to be $v=4.1$ eV Å and $v_{z}=9.5$ eV Å Hashimoto et al. (2013, 2014); Zhang et al. (2009); thus $\lambda$ is roughly 0.5. In addition, there is a small gapping term $\varepsilon$ to express the disappearance of the point nodes in the $\Delta_{4y}$ pairing Fu (2014). Experimentally, this term is expected to be fairly small Yonezawa et al. (2017). In the bottom row of Table 1, the $\bm{d}$ vector structure in the $k$ space, as well as the gap $|\bm{d}(\bm{k})|$, are schematically shown for a spherical Fermi surface and with the parameters $\lambda=0.5$ and $\varepsilon=0.1$. The $\bm{d}$-vector structure of each odd-parity state has a complicated texture on the Fermi surface, being similar to the $\bm{d}$-vector structure in the Balian-Werthamer (BW) state (the B phase of 3He) Balian and Werthamer (1963) but quite different from a $k$-uniform $\bm{d}$ vector in, e.g., Sr2RuO4 Mackenzie and Maeno (2003); Maeno et al. (2012).

One can easily notice in the figures that the $\Delta_{4x}$ and $\Delta_{4y}$ states have quite characteristic gap structures: The $\Delta_{4x}$ state has a pair of point nodes ($|\bm{d}(\bm{k})|=0$) along the $\pm k_{y}$ direction and $\Delta_{4y}$ has a pair of point-like gap minima along the $\pm k_{x}$ direction. This existence of a pair of gap node/minima violates the $C_{3}$ rotational symmetry of the crystal structure of Bi2Se3. Thus, the $\Delta_{4x}$ and $\Delta_{4y}$ states are both gap-nematic SC states. The nodes in $\Delta_{4x}$ are protected by the mirror symmetry along the $a^{\ast}$-$c$ plane, whereas the nodes initially existing in $\Delta_{4y}$ are gapped out to become gap minima because there is no symmetry protecting the nodes Fu (2014). In addition to the gap amplitude, the $\bm{d}$ vector structures of these $\Delta_{4}$ states also have nematic natures: On the whole Fermi surface, the $\bm{d}$ vectors preferentially align along the $k_{x}$ direction in the $\Delta_{4x}$ state and along the $k_{y}$ direction in the $\Delta_{4y}$ state. Reminding that a $\bm{d}$ vector is perpendicular to the Cooper-pair spin and the spin susceptibility should be small along the $\bm{d}$ vector, it is expected that the spin susceptibility of the $\Delta_{4}$ states exhibits two-fold behavior, with minima along the $x$ direction for $\Delta_{4x}$ and $y$ for $\Delta_{4y}$ Hashimoto et al. (2013). Thus, the $\Delta_{4x}$ and $\Delta_{4y}$ states are spin nematic as well.

We should comment on the robustness of the proposed odd-parity states against non-magnetic impurity scattering. Ordinarily, unconventional superconductivity is rather fragile against non-magnetic impurity scatterings, and such a strong reduction of superconductivity has been found in various non-$s$-wave superconductors Sun and Maki (1995); Mackenzie et al. (1998); Joo et al. (2004); Yonezawa et al. (2018). In doped Bi2Se3 superconductors, because of the ion doping, impurity scattering is inevitably stronger than those of stoichiometric unconventional superconductors and can suppress the predicted odd-parity ($\Delta_{2}$, $\Delta_{3}$, and $\Delta_{4}$) states. However, theories by Michaeli et al. Michaeli and Fu (2012) and Nagai et al. Nagai (2015) proposed that these odd-parity states are rather robust against impurity scatterings because of strong spin-momentum locking in the normal-state Fermi surface. Thus, odd-parity superconductivity itself as well as the nodal gap structure can be still stable in doped Bi2Se3.

3.4 Early Experiments on the Superconducting State in Doped Bi2Se3

After the discovery of superconductivity in CuxBi2Se3, various experiments were performed on the SC nature of this compound. As a bulk probe, the temperature dependence of the electronic specific heat of CuxBi2Se3 was studied and was found to be different from the ordinary weak-coupling BCS behavior Kriener et al. (2011a). A theoretical calculation revealed that this $T$ dependence can be fitted well either with the $\Delta_{2}$ or $\Delta_{4}$-state models Hashimoto et al. (2013). Anomalous suppression of the superfluid density evaluated from the lower critical field $H_{\mathrm{c1}}$ upon the change of the amount of Cu has been also attributed to the topological superconducting nature Kriener et al. (2012). The $T$ dependence of the upper critical field $H_{\mathrm{c2}}$ was investigated, and from the shape of $H_{\mathrm{c2}}(T)$ curve possibility of unconventional pairing was claimed Bay et al. (2012). However, in general, the shape of a $H_{\mathrm{c2}}(T)$ curve can vary merely due to changes in the Fermi-surface shape Kita and Arai (2004).

Several surface-sensitive experiments, seeking for topological Majorana surface states, were also performed. The soft-point-contact spectroscopy has been the first experiment revealing the possible topological nature of the SC state Sasaki et al. (2011). A zero-bias peak in the differential conductivity as a function of the bias voltage was found and is attributed to topologically protected surface states. Indeed, a theoretical calculation revealed that the observed conductivity is consistent with the odd-parity states Yamakage et al. (2012). However, shortly later, a STM study on CuxBi2Se3 was performed and spectra resembling those of fully-gapped $s$-wave superconductivity was observed. This apparent discrepancy may be due to the dimensionality of the system: if the Fermi surface of CuxBi2Se3 is a quasi-two-dimensional cylinder rather than an ellipsoid (as indeed suggested by the ARPES and quantum oscillation experiment Lahoud et al. (2013)), an STM spectrum on the $ab$ surface should be indistinguishable from the ordinary $s$-wave behavior. In contrast, a soft-point contact spectroscopy is expected to collect a certain average of conductivity of various directions, resulting in detecting the zero-bias anomaly in the $ab$-plane conductivity. It was also claimed that STM spectra for $s$-wave superconductivity with an ellipsoidal Fermi surface should form a double peak structure, one originating from the coherence peak of the $s$-wave gap and the other from the surface state of the topological-insulator nature of Bi2Se3 Mizushima et al. (2014).

Summarizing the experimental situation before the discovery of nematic superconductivity, there were evidence for topologically non-trivial superconductivity in CuxBi2Se3 but the debate was yet far from convergence. It had been required to uncover more robust and reproducible properties evidencing for an interesting SC state.

4 Recent Experiments on Nematic Superconducting Behavior

In this section, we briefly review recent experimental findings on the nematic superconductivity in doped Bi2Se3 superconductors. As summarized in Table 2, nematic SC features have been reported quite consistently in all of Cu-, Sr, and Nb-doped Bi2Se3 superconductors as well as in related compounds, and have been observed with various bulk probes such as nuclear magnetic resonance (NMR) Knight shift, specific heat, resistivity and magnetization. More recently, the STM technique has been successfully utilized to observe nematic features, adding microscopic evidence for the nematic superconductivity.

4.1 Beginning of the Story: Nuclear Magnetic Resonance

The pioneering work on the nematic superconductivity in doped Bi2Se3 systems was performed by Matano et al., who investigated the spin susceptibility in the SC state of CuxBi2Se3 with the NMR technique Matano et al. (2016). The spin susceptibility in the SC state is in general rather difficult to be measured, because of the strong Meissner screening. The NMR Knight shift is one of the few techniques that can measure the spin susceptibility directly, and has been utilized for various superconductors Tou et al. (1996); Ishida et al. (1998); Tien and Jiang (1989); Shinagawa et al. (2007).

Matano et al. used 77Se nucleus (nuclear spin: 1/2) for NMR and investigate the spin susceptibility for various field directions within the $ab$ plane. They used a set of four single crystals of CuxBi2Se3 with the Cu content $x$ of 0.29-0.31. Usually the Knight shift contains the spin part and the other parts, and the latter was evaluated using NMR of non-doped Bi2Se3. It was then found that the spin susceptibility decreases by nearly 80% in the SC state for field directions parallel to one of the three equivalent crystalline $a$ axis, but does not change at all for other field directions, as shown in Fig. 3(a). Overall, the spin susceptibility exhibit 180∘ periodicity as a function of in-plane field direction in spite of the trigonal crystalline lattice, evidencing that the spin part of the SC order parameter in CuxBi2Se3 is actually nematic. This is not only the first clear observation of $SO(3)$ spin-rotational symmetry breaking in a SC state but also the first observation of the spin-nematic superconductivity in any known superconductors.

Results of this NMR work had been actually known in the community long before the final publication in 2016, and stimulated subsequent studies. In theories, Nagai et al. already in 2012 pointed out that bulk superconducting properties such as thermal conductivity can exhibit rotational symmetry breaking if one of the $\Delta_{4}$ states is realized Nagai et al. (2012). In 2014, Fu introduced the term “nematic superconductivity” in Ref. Fu (2014) and this suitable name seems to have contributed significantly to the expansion of the research field.

4.2 Pioneering Reports of Bulk Properties

In early 2016, three subsequent works reporting the nematic bulk SC nature in doped Bi2Se3 were independently and almost simultaneously submitted to the arXiv server, and were later published in 2016-2017 Yonezawa et al. (2017); Pan et al. (2016); Asaba et al. (2017). As briefly reviewed below, these three works by different groups consistently revealed the nematic nature for different dopants (Cu, Sr, and Nb) and using different experimental probes, demonstrating that the nematic superconductivity is a robust and ubiquitous feature in doped Bi2Se3 superconductors.

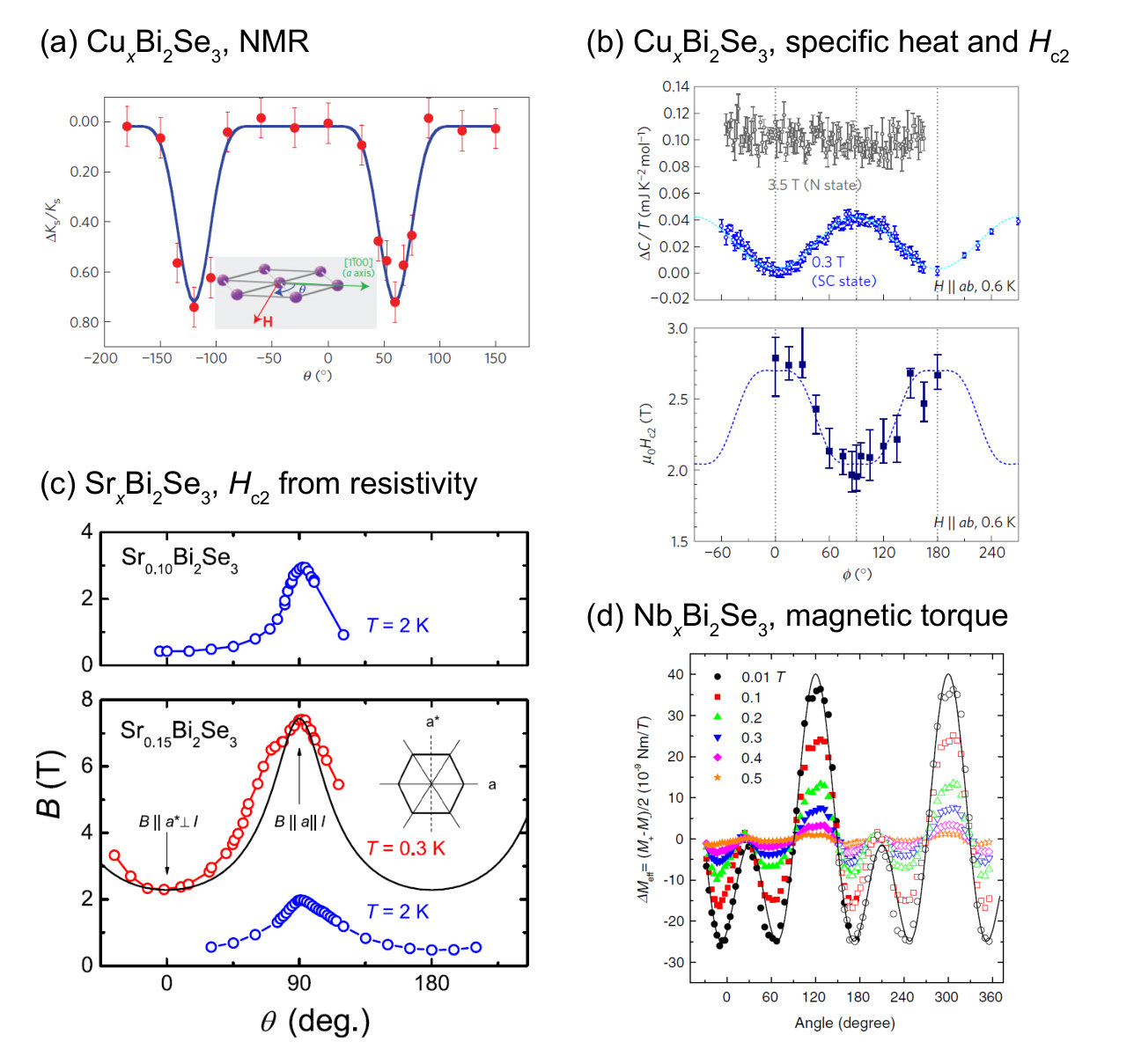

The present author and coworkers performed specific-heat measurements of CuxBi2Se3 single crystals under precise two-axis field-direction control Yonezawa et al. (2017). Since the electronic specific heat is quite small in doped Bi2Se3 because of low carrier concentration and weak electron correlation, it was necessary to measure the specific heat with high resolution. To achieve this goal, they built a small and low-background calorimeter utilizing the AC technique Sullivan and Seidel (1968), which has the highest resolution among the standard heat-capacity measurement techniques. To apply magnetic fields, they used a vector magnet system Deguchi et al. (2004), allowing them to perform two-axis field-direction control. With this system, together with a careful field-alignment process, field misalignment effects were minimized. It was then found that the specific heat as a function of the in-plane field angle exhibit a two-fold symmetric behavior (Fig. 3(b)), clearly breaking the lattice $C_{3}$ rotational symmetry. This nematicity in a bulk thermodynamic quantity is only possible if the SC gap amplitude has a nematic nature. Thus, this specific-heat result provides the first thermodynamic evidence for the gap-nematic superconductivity. From a comparison between the observed specific-heat oscillation and theoretical calculation, it was concluded that the $\Delta_{4y}$ state is realized. In addition, the upper critical field $H_{\mathrm{c2}}$ was also found to exhibit two-fold behavior with in-plane anisotropy of 20% as shown in Fig. 3(b), providing additional evidence for the nematic superconductivity.

Pan et al. measured the in-plane resistivity of SrxBi2Se3 under in-plane magnetic fields, and observed in-plane $H_{\mathrm{c2}}$ anisotropy of around 400% Pan et al. (2016) as plotted in Fig. 3(c). In this experiment, strictly speaking, the applied electric current explicitly breaks the in-plane rotational symmetry. Nevertheless, the observed anisotropy is huge and cannot be explained by the anisotropy due to the applied current. Indeed, the absence of the role of the electric current direction on the SC nematicity was later confirmed by $c$-axis resistivity measurements Du et al. (2017) as well as by in-plane resistivity measurements upon varying the current direction Kuntsevich et al. (2018). This work has another important aspect for demonstrating that a simple technique such as resistivity can probe the nematicity. Shortly later, Nikitin et al. (the same group as Pan et al.) reported that the nematic SC feature is robust even under hydrostatic pressure Nikitin et al. (2016).

Asaba et al. investigated NbxBi2Se3 single crystals by means of torque magnetometry under various in-plane field directions Asaba et al. (2017). They studied the size of the hysteresis between the field-up and down sweep torque signals. They found that this hysteresis size exhibits clear breaking of the expected six-fold symmetric behavior as a function of the in-plane field angle (Fig. 3(d)). The hysteresis size is actually not a thermodynamic quantity but is rather related to the vortex pinning and the critical current density of the sample. Thus, it is not very straightforward how this quantity is related to the nematic SC gap. Nevertheless, it is also difficult to come up with other extrinsic origins on this nematic hysteresis. The mechanism of this interesting appearance of nematicity in the hysteresis should be clarified in future.

4.3 Recent Reports

More recently, many other groups reported nematic superconductivity in doped Bi2Se3. In particular, many works have been performed for Sr-doped Bi2Se3. Du et al. measured $c$-axis resistance under magnetic field to avoid the symmetry breaking due to the external current, and found that the nematicity is still there; thus the external current is not the origin of the observed two-fold behavior in the in-plane resistivity Du et al. (2017). More interestingly, they investigated the sample dependence of the nematic behavior, and found that the anisotropy of the upper critical field, depicting the nematicity, is actually sample dependent: among the three samples investigated, two have a large $H_{\mathrm{c2}}$ for the $x$ direction but the other has a large $H_{\mathrm{c2}}$ for the $y$ direction. Such a sample dependence implies that the ground state ($\Delta_{4x}$ or $\Delta_{4y}$) is also sample dependent. This issue will be discussed in more detail in the next section. Smylie et al. investigated the in-plane field-angle dependence of resistivity and magnetization Smylie et al. (2018). The observed two-fold behavior in the magnetization provides the first thermodynamic evidence of the gap-nematic superconductivity in the Sr-doped compound. They also investigated the crystal structure using X-ray diffraction, and concluded that there is no detectable crystalline distortion in their sample. Kuntsevich et al. reported in-plane resistivity anisotropy using samples grown with the Bridgman method Kuntsevich et al. (2018). They cut two kinds of samples from the same batch: ones cut along the $a$ axis and the others cut along the $a^{\ast}$ axis, to check the current-direction dependence of the nematicity. It was found that the nematicity is independent of the current direction. But the nematicity is actually dependent on batches, confirming the sample-dependent nematicity reported in Ref. Du et al. (2017). They also reported a tiny crystal deformation as well as two-fold resistivity anisotropy even in the normal state. This possible “normal-state nematicity” will be discussed in Sec. 5.2. Willa et al. succeeded in measuring the specific heat of SrxBi2Se3 Willa et al. (2018). Calorimetry of SrxBi2Se3 is more challenging than that of CuxBi2Se3, because the carrier density and resulting electronic specific heat tends to be much lower in SrxBi2Se3 Liu et al. (2015); Shruti et al. (2015). Nevertheless, they used a micro-structured calorimeter to achieve sensitivity high enough for a SrxBi2Se3 single crystal and resolved a specific-heat jump of around 0.25 mJ/K2mol, which is only a fraction of that observed in CuxBi2Se3 Kriener et al. (2011a); Yonezawa et al. (2017). The two-fold specific-heat behavior was then observed, which was attributed to large $H_{\mathrm{c2}}$ anisotropy rather than the gap anisotropy.

For Nb-doped Bi2Se3, Shen et al. reported in-plane field-angle dependence of magnetization and resistivity Shen et al. (2017). They found nematicity in both quantities, providing the first thermodynamic and transport evidence for the gap-nematic superconductivity in NbxBi2Se3. We should also mention that a penetration-depth measurement was performed on NbxBi2Se3 Smylie et al. (2017). The penetration depth was found to exhibit a $T^{2}$-temperature dependence down to $T/T_{\mathrm{c}}\sim 0.12$. This behavior is consistent with the existence of point-nodes or point-like very small gap minima. This result provides an indirect support for the nematic $\Delta_{4}$ states. It was also found that the $T^{2}$ dependence is robust against the increase of the impurity concentration. This robustness is consistent with theoretical proposals Michaeli and Fu (2012); Nagai (2015).

Quite recently, Andersen et al. reported that Cu-intercalated (PbSe)5(Bi2Se3)6, which is a “naturally-made heterostructure” of PbSe and Bi2Se3 layers and exhibits superconductivity below $T_{\mathrm{c}}\sim 2.5$ K after intercalation Sasaki et al. (2014), exhibits two-fold anisotropy in the SC state via resistivity and specific-heat measurements Andersen et al. (2018). Strictly speaking, the global crystal symmetry of this compound is orthorhombic and does not have three-fold rotational symmetry due to the neighboring PbSe layer. Nevertheless, the Bi2Se3 layer of this compound, as well as its electronic structure, almost preserves the three-fold symmetry Sasaki et al. (2014); Nakayama et al. (2015). Therefore, the observed two-fold anisotropy in the SC state is most likely due to a nematic SC gap, rather than the conventional origin such as Fermi-velocity anisotropy. It is worth commenting that Cux(PbSe)5(Bi2Se3)6 substantially differs from $A_{x}$Bi2Se3 in various aspects: Cux(PbSe)5(Bi2Se3)6 has a highly two-dimensional electronic structure because of separation of the conductive Bi2Se3 layers by insulating PbSe layers, and exhibit line-nodal SC behavior Sasaki et al. (2014). This observation implies that the nematic superconductivity is quite robust irrespective of the dimensionality and gap structure of the system, thus providing important information on the origin and nature of nematic superconductivity.

4.4 Direct Visualization

Recently, direct visualization of nematic superconductivity by STM has been reported. Chen et al. investigated Bi2Te3 thin films (with typical thickness of 2QL) grown on a FeSe0.55Te0.45 single-crystal substrate via molecular-beam epitaxy (MBE) Chen et al. (2018). This system is a bit different from doped Bi2Se3, because the Bi2Te3 thin film exhibits superconductivity due to the proximity effect from the substrate, whereas doped Bi2Se3 exhibits bulk superconductivity. On the other hand, the surface of Bi2Te3/FeSe0.55Te0.45 can be cleaner than $A_{x}$Bi2Se3 because no ion doping is necessary to induce superconductivity, being more suited for STM investigations. In the quasiparticle interference spectra of Bi2Te3/FeSe0.55Te0.45 at zero field, the quasiparticle excitation in the intermediate energy range below the SC gap was found to exhibit two-fold anisotropy. The excitation is stronger along the $\pm k_{x}$ direction, indicating that the SC gap is smaller for this field direction, thus suggesting the $\Delta_{4y}$ state. In addition, they found that the magnetic vortices under $H\parallel c$ have an ellipsoidal shape elongating along the $x$ ($a$) direction, although a nearly isotropic vortex shape is expected for the trigonal crystal structure. Such a vortex core shape provides microscopic evidence for two-fold anisotropy in the penetration depth and in the coherence length.

Independently, an STM study of CuxBi2Se3 was reported by Tao et al. Tao et al. (2018). In spite of difficulties in finding good surfaces for STM, they succeeded in obtaining STM spectra under magnetic field. Under $c$-axis field, they observed ellipsoidal vortex cores elongating along the $y$ ($a^{\ast}$) direction, breaking the $C_{3}$ rotational symmetry. Moreover, they investigated the dependence of the gap amplitude on the in-plane field directions. They directly observed that the SC gap amplitude exhibits a two-fold field-angle dependence. The gap is larger for $H\parallel y$ than for $H\parallel x$ at 0.5 T, in favor of the $\Delta_{4x}$ state. At higher fields, the large-gap axis rotates by $\sim 20^{\circ}$. The origin of this rotation is not clear yet.

These STM studies are significant in providing clear microscopic evidence for gap-nematic superconductivity. Also, they are the first observations of nematicity in the absence of an in-plane magnetic field; it is now confirmed that the nematic superconductivity is the ground state even at zero in-plane field.

5 Known Issues

Although the nematic feature in the SC state has been consistently and reproducibly observed in $A_{x}$Bi2Se3 as well as in a related compound, there are several controversial or unresolved issues. These issues are addressed in this section.

5.1 Which of $\Delta_{4x}$ or $\Delta_{4y}$ are Realized?

One of the most important but puzzling issue is which of $\Delta_{4x}$ or $\Delta_{4y}$ are realized in actual samples. As listed in Table 2, the NMR Matano et al. (2016) and STM Tao et al. (2018) studies on CuxBi2Se3 suggested the $\Delta_{4x}$ state but the specific heat study Yonezawa et al. (2017) on the same compound suggested the $\Delta_{4y}$ state. Moreover, the $H_{\mathrm{c2}}$ anisotropy, an indicator of the nematic direction, significantly varies: some reports suggest a large $H_{\mathrm{c2}}$ for $H\parallel x$ and others for $H\parallel y$. Works on multiple samples indicate that the $H_{\mathrm{c2}}$ anisotropy is actually sample dependent Du et al. (2017); Kuntsevich et al. (2018). Thus, the variation in the $H_{\mathrm{c2}}$ anisotropy is not an artifact but is an intrinsic property of $A_{x}$Bi2Se3.

This fact very likely suggests that the $\Delta_{4x}$ and $\Delta_{4y}$ states are nearly degenerate and are chosen depending on the in-plane symmetry breaking fields. Such a situation is described in Fig. 4: the nematic SC order parameter, which is reflected in, e.g., in-plane $H_{\mathrm{c2}}$ anisotropy, exhibits multiple branches as a function of the in-plane symmetry breaking field, such as in-plane uniaxial strain Venderbos et al. (2016a), crystal deformation, or some arrangement of doped ions. This coupling between the order parameter and the symmetry-breaking field resembles the coupling between ferromagnetism and external magnetic fields.

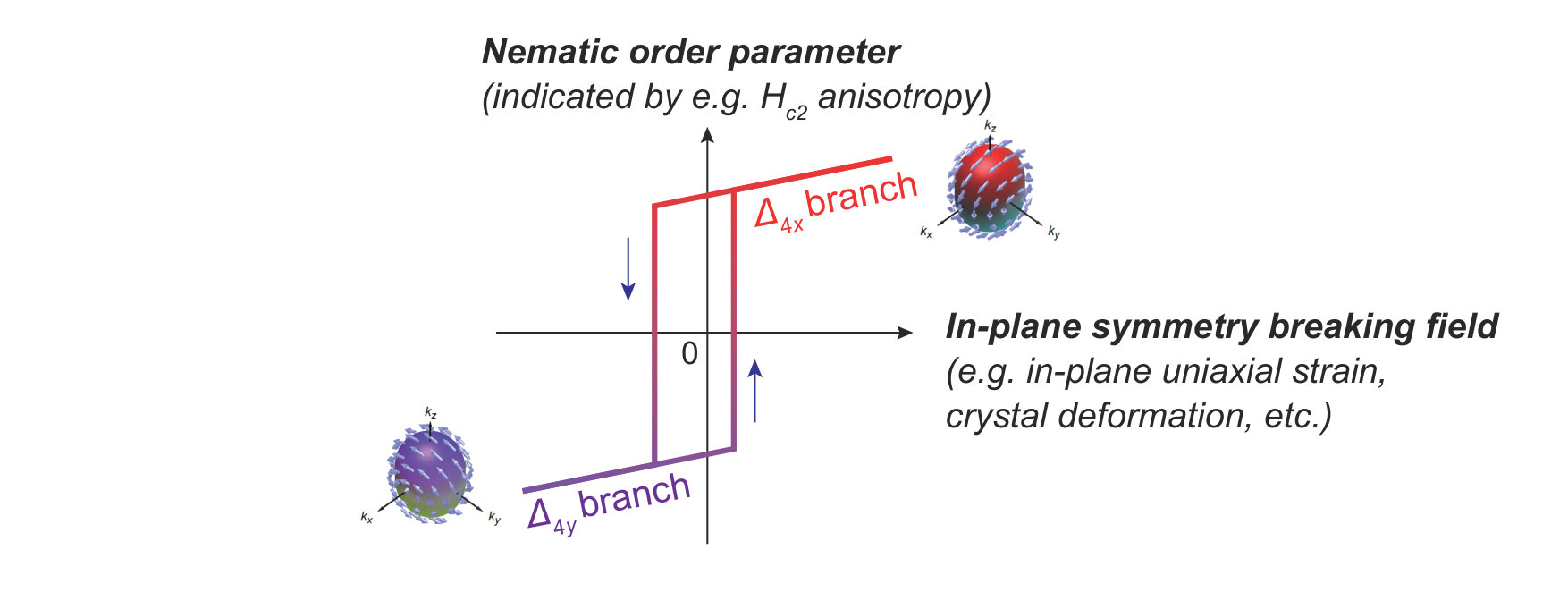

The schematic model in Fig. 4 explains the reason of the variation in the large $H_{\mathrm{c2}}$ direction: for some samples $\Delta_{4x}$ is favored because of a tiny but positive symmetry breaking field and for others $\Delta_{4y}$ is realized due to negative field. This also explains the absence of random switching of nematicity orientation upon different coolings: So far there are no reports that the nematic behavior is altered by different cooling histories across $T_{\mathrm{c}}$. Thus all the samples seem to have finite symmetry-breaking fields that pin the nematicity.

5.2 Normal-State and Superconducting-State Nematicities

This model also explain the relation between the SC nematicity and the possible lattice distortion. Because it is quite important whether the trigonal lattice symmetry is preserved even after the doping, the existence of lattice symmetry breaking has been investigated. Until recently, there has been no positive evidence for the lattice distortion as well as for nematic behavior in the normal state Matano et al. (2016); Yonezawa et al. (2017); Smylie et al. (2018). Recently, Kuntsevich et al. reported that their samples grown using the Bridgman method (in which crystals tend to grow along one direction) have a tiny lattice distortion (0.02% orthorhombic distortion and $0.005^{\circ}$ $c$-axis inclination) Kuntsevich et al. (2018). These samples exhibit in-plane $H_{\mathrm{c2}}$ anisotropies ranging 300-800%. Such large anisotropy cannot be explained at all by the electronic anisotropy caused by the observed tiny lattice distortion. Therefore, SC nematicity is mostly caused by the Cooper-pair formation and the concept of nematic superconductivity should be still valid in the presence of explicit breaking of the trigonal symmetry. These samples with relatively large SC anisotropy and detectable lattice distortion are probably located in the region far from the origin in the schematic in Fig. 4.

The nematic SC features observed in Cux(PbSe)5(Bi2Se3)6 Andersen et al. (2018) and Bi2Te3/Fe(Se,Te) Chen et al. (2018) are also regarded as nematic superconductivity in explicit symmetry-breaking fields. In these systems, the global crystal structures do not possess trigonal rotational symmetry due to the neighboring non-trigonal layers. Thus, there are finite symmetry breaking fields in these compounds. Still, anisotropies in their normal states are rather small and are not sufficient to explain the sizable two-fold anisotropies in their SC states.

5.3 Nematic Domains

If the symmetry-breaking field is rather weak, a formation of multiple nematic domains is expected. In the specific-heat study in Ref. Yonezawa et al. (2017), one sample with possibe nematic domains was reported (See the Supplementary Information of Ref. Yonezawa et al. (2017)). This sample exhibits very weak $H_{\mathrm{c2}}$ anisotropy, as well as weak and distorted specific-heat oscillation as a function of in-plane magnetic field direction, in contrast to the sample mainly focused on in Ref. Yonezawa et al. (2017). Angular magnetoresistance (AMR) is more sensitive to the existence of domains. Indeed, complicated structures in AMR curves attributable to domains were observed in Refs. Du et al. (2017); Kuntsevich et al. (2018).

However, in most of the other studies, samples seem to be in single-domain states. For example, in the NMR study Matano et al. (2016), multiple domains would result in multiple sets of dips in the Knight shift as a function of in-plane field angle. In the actual experiment, only one set of dips was observed, suggesting a single-domain sample. Such dominance of single-domain samples indicate that the in-plane symmetry breaking field is in most cases strong enough to avoid the formation of multiple domains.

A nematic domain wall, if existing, is a fascinating object, forming naturally a junction between topological pairing states. This may host novel Majorana quasiparticles and may be controllable by an external symmetry breaking field. Investigation of detailed order-parameter structures near the domain wall would be quite interesting.

5.4 Possible Nematic Superconductivity in Other Systems

In principle, gap-nematic superconductivity can occur in any type of superconductivity, even in ordinary $s$-wave superconductivity. Nevertheless, a straightforward way to realize nematic superconductivity is to bring a multi-component superconductor (i.e., a superconductor with a multi-dimensional irreducible representation) and to stabilize one of the SC-order-parameter components. In such multi-component superconductivity, each component is in most cases nematic. But usually the components form a complex linear combination to satisfy the rotational symmetry of the underlying lattice. For example, in the chiral $p_{x}\pm ip_{y}$-wave superconductivity on a tetragonal lattice (Fig. 1(b)), each $p_{x}$ or $p_{y}$ component breaks the tetragonal symmetry, thus possessing the nematic nature. However, they form the complex (chiral) combination $p_{x}\pm ip_{y}$ to satisfy the tetragonal symmetry except in the SC phase degree of freedom. If, however, the formation of such a chiral state is unfavored, one of the nematic components can be stabilized.

Actually, in doped Bi2Se3, the predicted nematic $\Delta_{4x}$ and $\Delta_{4y}$ states both belong to the two-dimensional $E_{u}$ representation, as described in Table 1. The two components thus in principle can form complex (chiral) combinations. However, in the present case, the strong spin-momentum locking forces a non-unitary SC state to emerge when the chiral superconductivity is realized Venderbos et al. (2016b). Notice that the $\bm{d}$ vector of the chiral state $\bm{d}_{\mathrm{chiral}}=\bm{d}_{4x}\pm i\bm{d}_{4y}\sim(k_{z}\pm i\varepsilon k_{x},\mp ik_{z},\lambda(k_{x}\pm ik_{y}))$ has a complex spin component: See, for example, along the $k_{z}$ axis, $\bm{d}_{\mathrm{chiral}}\sim\pm k_{z}(\hat{\bm{x}}-i\hat{\bm{y}})$ is non-unitary ($\bm{d}\times\bm{d}^{\ast}\neq 0$). Generally, non-unitary states have spin-dependent excitation gaps and usually one spin component has a significantly smaller gap than the other. Thus, non-unitary states are expected to have smaller condensation energies than the ordinary unitary SC states. This inevitable formation of non-unitary gaps in chiral states prevents the formation of complex linear combination of $\bm{d}_{4x}$ and $\bm{d}_{4y}$ and favors the realization of single-component nematic superconductivity in this system.

From the discussion above, a multi-component superconductor is a promising platform to probe nematic superconductivity. Indeed, in UPt3 with a trigonal crystal structure $P\bar{3}m1$ Walko et al. (2001), multi-component superconductivity is believed to be realized Izawa et al. (2014) with one of the components relatively stabilized by the short-ranged antiferromagnetic ordering Aeppli et al. (1988). In the in-plane field-angle dependence of the thermal conductivity, two-fold symmetric behavior was observed in the C phase Machida et al. (2012); Izawa et al. (2014). This phenomenon can be considered as a consequence of nematic superconductivity with a finite in-plane symmetry-breaking field (see Fig. 4). In PrOs4Sb12 with a cubic structure $Im\bar{3}$, similar two-fold behavior in the field-angle-dependent heat transport was observed in a part of the $H$-$T$ phase diagram Izawa et al. (2003). Strictly speaking, two-fold symmetry in the magneto-transport is allowed in the space group $Im\bar{3}$. Nevertheless, it seems difficult to explain the clear two-fold anisotropy just due to the electronic-state anisotropy, and gap nematicity due to a multi-component order parameter may be playing an important role. On the other hand, two-fold behavior has not been observed in the specific heat of both superconductors Sakakibara et al. (2007); Kittaka et al. (2013). Thus, the nematic feature of these compounds, if existing, is subtle compared with those observed in doped Bi2Se3 superconductors. Theoretically, several other multi-comonent-superconductor candidates such as U1-xThxBe13 Machida (2018) and half-Heusler compounds Roy et al. (2017); Venderbos et al. (2018) were proposed to exhibit nematic superconductivity, and experimental verification is strongly called for.

We also comment on another leading candidate of multi-component superconductivity, Sr2RuO4, seemingly exhibiting quasi-two-dimensional chiral $p_{x}\pm ip_{y}$-wave superconductivity. Theoretically, it has been predicted that a non-chiral single-component $p_{x}$ (or $p_{y}$) state Agterberg (1998) should be realized under in-plane magnetic field or in-plane uniaxial strain. Such non-chiral states may be regarded as a symmetry-breaking-field-induced nematic state, or a “meta-nematic” state in an analogy to the metamagnetic transition (field-induced ferromagnetism) in a paramagnet. Although clear experimental observation has not been achieved yet Yonezawa et al. (2013, 2014); Hicks et al. (2014); Steppke et al. (2017), it is worth investigating seriously nematic features of Sr2RuO4 under in-plane symmetry breaking fields. Lastly, we mention that nematic superconductivity in Sr2RuO4 at ambient condition is theoretically proposed very recently in Ref. Huang and Yao (2018).

6 Summary and Perspectives

To summarize, we have reviewed recent researches on nematic superconductivity in doped Bi2Se3 topological superconductors and in related compounds. Two-fold symmetric behavior in many quantities, breaking the trigonal symmetry of the underlying lattice, has been reported by more than ten groups, with excellent reproducibility. These experimental works demonstrate that the nematic superconductivity is a common and robust feature among the $A_{x}$Bi2Se3 family. In addition, observation of nematic gap structures in turn provide bulk evidence for topological superconductivity in this family Fu and Berg (2010). However, there are several issues unresolved; in particular, apparent inconsistency in the nematic direction and its relation to the possibly existing in-plane symmetry-breaking field are most important subjects to be investigated next. Also, predicted novel phenomena originating from nematic superconductivity, such as the superconductivity-fluctuation-induced nematic order above $T_{\mathrm{c}}$ Hecker and Schmalian (2018), the chiral Higgs mode in the electromagnetic response Uematsu et al. (2018), spin polarization of Majorana quasiparticles in a vortex core Nagai et al. (2014), and nematic Skyrmion texture near half-quantum vortices Zyuzin et al. (2017), would be worth seeking for.

The nematic SC state in $A_{x}$Bi2Se3 is qualitatively unique compared with other nematic systems in liquid crystals or normal-state electron systems: The nematic superconductivity is realized by a macroscopically-coherent quantum-mechanical wavefunction, accompanied by an odd-parity nature, non-trivial topology, and an active spin degree of freedom. We believe that this new class of nematic states stimulates further researches both in the fields of nematic liquids and of unconventional topological superconductivity.
