What Is Inside Matters: Simulated Green Valley Galaxies Have Centrally Concentrated Star Formation

TL;DR

This study compares simulated galaxy star formation profiles with observations, revealing that simulations show centrally concentrated star formation in Green Valley galaxies, suggesting outside-in quenching contrary to observed inside-out quenching.

Contribution

First to analyze radial specific star formation rate profiles in simulated galaxies, highlighting discrepancies with observations and constraining feedback models in galaxy simulations.

Findings

Simulated profiles agree loosely with observations for star-forming galaxies.

Green Valley galaxies in simulations show central star formation concentration.

Simulations conflict with observations by indicating outside-in quenching.

Abstract

In spatially resolved galaxy observations, star formation rate radial profiles are found to correlate with total specific star formation rates. A central depletion in star formation is thought to correlate with the globally depressed star formation rates of, for example, galaxies within the Green Valley. We present, for the first time, radial specific star formation rate profiles for a statistical sample of simulated galaxies from the Illustris and EAGLE large cosmological simulations. For galaxies on the star-forming sequence, simulated specific star formation rate profiles are in loose agreement with observations, although galaxies from the EAGLE simulation are too centrally peaked, and galaxies from Illustris have a steeper decline at large radii. However, both galaxy samples show centrally concentrated star formation for galaxies in the Green Valley at all galaxy stellar masses, indicating that quenching occurs from the outside-in, in strong conflict with observations of inside-out quenching. These results appear in spite of the different feedback models in these two simulations. We conclude that the distribution of star formation within galaxies is a strong additional constraint for star formation and feedback models in simulations, in particular related to the quenching of star formation.

Figures

Full text

However, both galaxy samples show centrally concentrated star formation for galaxies in the Green Valley at all galaxy stellar masses, suggesting that quenching occurs from the outside-in, in strong conflict with observations of inside-out quenching. This difference between simulations and observations may be due to resolution issues and/or possible failures in the star formation and feedback implementation in current large-scale cosmological simulations. We conclude that the distribution of star formation within galaxies is a strong additional constraint for simulations and models, in particular related to the quenching of star formation.

1 Introduction

How galaxies stop forming stars, i.e. quench, is an outstanding question in both observations and simulations (e.g. Man & Belli, 2018). Observations of the star formation rates (SFR) and stellar masses of galaxies find that the star-forming galaxy population tends to lie along a star-forming sequence (SFS) that depends on galaxy stellar mass, with a large tail of galaxies with low SFRs (e.g. Noeske et al., 2007; Daddi et al., 2007; Salim et al., 2007). This low-SFR tail is often called the green valley (GV), through which galaxies pass from blue and star-forming to red and quenched (e.g. Faber et al., 2007; Martin et al., 2007; Schiminovich et al., 2007; Peng et al., 2010).

Reproducing the distribution of galaxies in the SFR–stellar mass plane is one of the requirements of a successful large-scale cosmological simulation. In massive halos, shock-heated gas may not form stars (e.g. Silk, 1977; Rees & Ostriker, 1977; Binney, 1977; Birnboim & Dekel, 2003), and satellite galaxies can be quenched due to gas removal or consumption (e.g. Boselli & Gavazzi, 2006); yet in order to match the observed fraction of quenched galaxies, simulations must include feedback from both supernovae and active galactic nuclei (e.g. Somerville & Davé, 2015, and references therein).

Although current large-scale simulations include a diversity of feedback prescriptions, they all qualitatively reproduce the general distribution of galaxies on the SFR–mass plane (e.g. Vogelsberger et al. 2014; Genel et al. 2014; Schaye et al. 2015, see Somerville & Davé 2015; Hahn et al. 2018 for a comparison). However, recent observations have radially mapped the SFR in galaxies, providing a more stringent test of star formation and quenching in galaxies. For example, using the CALIFA survey, Pérez et al. (2013) find that the central regions of massive galaxies (log(M∗/M*☉*) > 10.5) are older than the outer disks, while at lower masses the age gradient flattens. Similar trends with regards to stellar mass are found in color gradients (Pan et al., 2015), while Ibarra-Medel et al. (2016) find a larger age gradient diversity for lower mass systems.

The MaNGA survey (Bundy et al., 2015; Yan et al., 2016; Blanton et al., 2017) is obtaining spatially resolved spectroscopy for nearby galaxies. Using this survey, Belfiore et al. (2018, hereafter B18) present the radial profiles for galaxies on and above the SFS and for galaxies below the SFS (GV galaxies) for a range of stellar masses. In general they find that with increasing stellar mass, the specific SFR (SFR/M∗, sSFR) in the central regions of galaxies is more depressed relative to that beyond one half-light radius ($1R_{e}$). For galaxies with log(M∗/M*☉*) > 10, the difference between the sSFR in the central and outer regions is significantly more pronounced in GV galaxies than in star-forming galaxies, reaching differences ${\gtrsim}1$ dex.

Similar central sSFR suppression was found for both the CALIFA and SAMI surveys, increasing toward earlier galaxy Hubble type (González Delgado et al., 2016; Medling et al., 2018). Nelson et al. (2016) find a correlation between a galaxy’s distance from the SFS and the SFR at all radii in stacked H$\alpha$ maps for galaxies at $z\sim 1$, but see additional central suppression for galaxies with ($10.5<\textrm{log}(M_{*}/M_{\sun})<11$). Ellison et al. (2018) use the individual spaxels from the MANGA survey and find that the resolved local SFR is increased or depressed at all radii in correlation with the total SFR. For galaxies with total SFRs more than 1 dex below the SFS the SFR shows additional depression in the central regions.

Zoom cosmological simulations have found central star formation enhancement and depletion for high-redshift galaxies (Tacchella et al., 2016). Additionally, Orr et al. (2017) find that stacked radial profiles correlate with total sSFR for a sample of galaxies while individual galaxies show strong variability over time in their SFR profiles. However, these zoom cosmological simulations lack AGN feedback and are unable to fully model the quenching of galaxies. Moreover, no results for (s)SFR profiles exist for statistical samples across a large range in stellar masses and total sSFR.

In this letter we examine the radial dependence of sSFR in large-scale cosmological simulations in order to compare to observations, specifically B18. We use the publicly available data from cosmological simulations using different hydrodynamic solvers: the Illustris (Vogelsberger et al., 2014; Genel et al., 2014) and EAGLE (Schaye et al., 2015; Crain et al., 2015) simulations. These simulations also use different stellar and AGN feedback prescriptions; which also differ from IllustrisTNG (Pillepich et al., 2018), recently publicly released.

In Section 2 we briefly introduce the Illustris and EAGLE simulations. We present our radial profiles in Section 3, and discuss these in Section 4. We summarize our conclusions in Section 5.

2 Data

Our sample consists of $z=0$ galaxies from the Illustris and EAGLE simulations with stellar masses within the mass range in B18: $9<\textrm{log}(M_{*}/M_{\sun})<12$.

The Illustris simulation111http://www.illustris-project.org (Vogelsberger et al., 2014; Genel et al., 2014) is a cosmological hydrodynamic simulation with a ($106$Mpc)3 volume using the Arepo moving-mesh code (Springel, 2010) with a uniform baryonic mass resolution of $1.26\times 10^{6}\ M_{\sun}$, and gravitational softening length of $0.7$ kpc for collisionless baryonic particles at $z\lesssim 1$. This value is also the minimum gravitational softening for gas, which is tied to the cell size. Subgrid models implement star formation and feedback (Springel & Hernquist, 2003), and black hole accretion and dual-mode AGN feedback (Sijacki et al., 2007; Vogelsberger et al., 2013). We use the public data for Illustris-1 (Nelson et al., 2015).

The Evolution and Assembly of GaLaxies and their Environment (EAGLE)222http://www.eaglesim.org project of the Virgo Consortium (Schaye et al., 2015; Crain et al., 2015) consists of a suite of cosmological hydrodynamic simulations, run using a modified version of the N-body/SPH code Gadget3 (lastly described in Springel, 2005) called Anarchy (Dalla Vecchia et al. in prep.; see also Schaye et al. 2015; Schaller et al. 2015), with sub-grid models for star formation (Schaye & Dalla Vecchia, 2008), black hole formation, accretion, and AGN feedback (Booth & Schaye, 2009; Schaye et al., 2015). The baryonic particle resolution is $1.81\times 10^{6}\ M_{\sun}$ and the gravitational softening is $0.7$ kpc at $z<2.8$. We use the large box reference simulation of the EAGLE suite (RefL0100N1504) with a volume of ($100$ Mpc)3, and use the public data release (McAlpine et al., 2016).

In this work we define the total stellar mass, SFR, and sSFR as the total within 3 times the stellar half mass radius (3Rhalf), although our results do not depend on the maximum radius used. We choose to include star formation at larger radii than B18 (maximum radius of $2.5R_{e}$) in order to make sure that we include galaxies with no central star formation out to large radii (for spheroidal galaxies $2.5R_{e}$ approximates 3Rhalf; see e.g. the discussion in Somerville et al., 2018). We examine the sSFR profiles of currently star-forming galaxies, and therefore include galaxies with total log(sSFR yr*-1*) $>-13$. We require galaxies in our samples to have Rhalf > 4 kpc, which is slightly larger than the size of one MANGA fiber, but ensures that Rhalf is well resolved.

3 Results

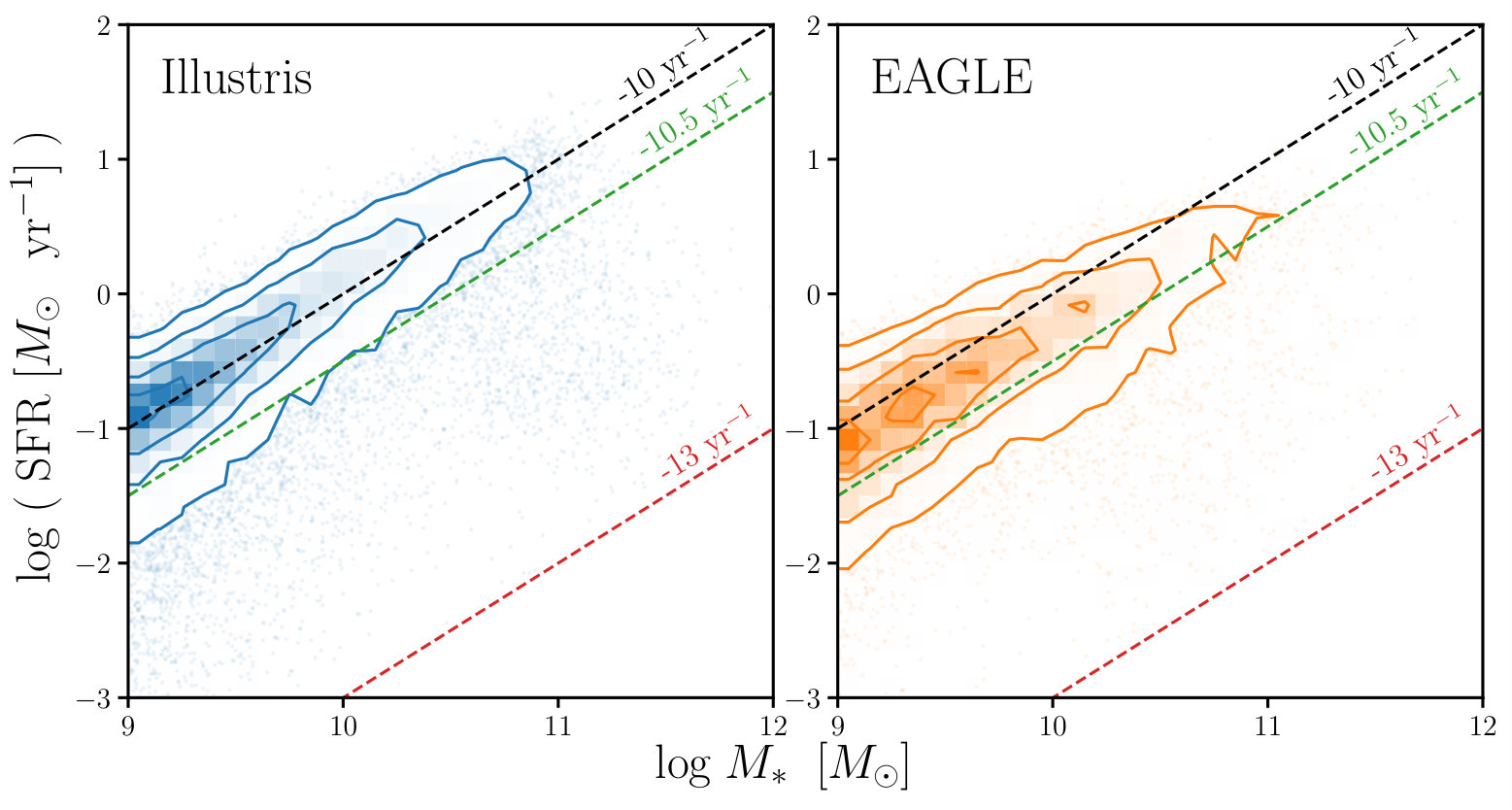

Figure 1 shows the total SFR–stellar mass relation for our samples. Importantly, both simulations form a well-defined star-forming sequence. The Illustris SFS has log(sSFR yr*-1*) slightly above $-10$ while the EAGLE SFS is below $-10$. Because of this difference, we tested multiple definitions for the GV: as galaxies with SFR $<0.39$ dex below the SFS and log(sSFR yr*-1*) $>-13$ (following B18), and as galaxies with $-13<$ log(sSFR yr${}^{-1})$  $<-10.5$ or $-13<$ log(sSFR yr*-1*) $<-11$. The linear fitted SFS for Illustris and EAGLE are log(SFR) $=m(\textrm{log}(M_{*})-10.5)+b$ with $m=1.01$ and $b=0.59$ for Illustris, and $m=0.91$ and $b=0.23$ for EAGLE (Hahn et al., 2018). Qualitatively, our results do not depend on the GV definition, so for consistency across the two simulations and the observations, we follow the first GV definition. Our Star-Forming samples consists of all galaxies with SFR $>$ SFS $-0.39$ dex.

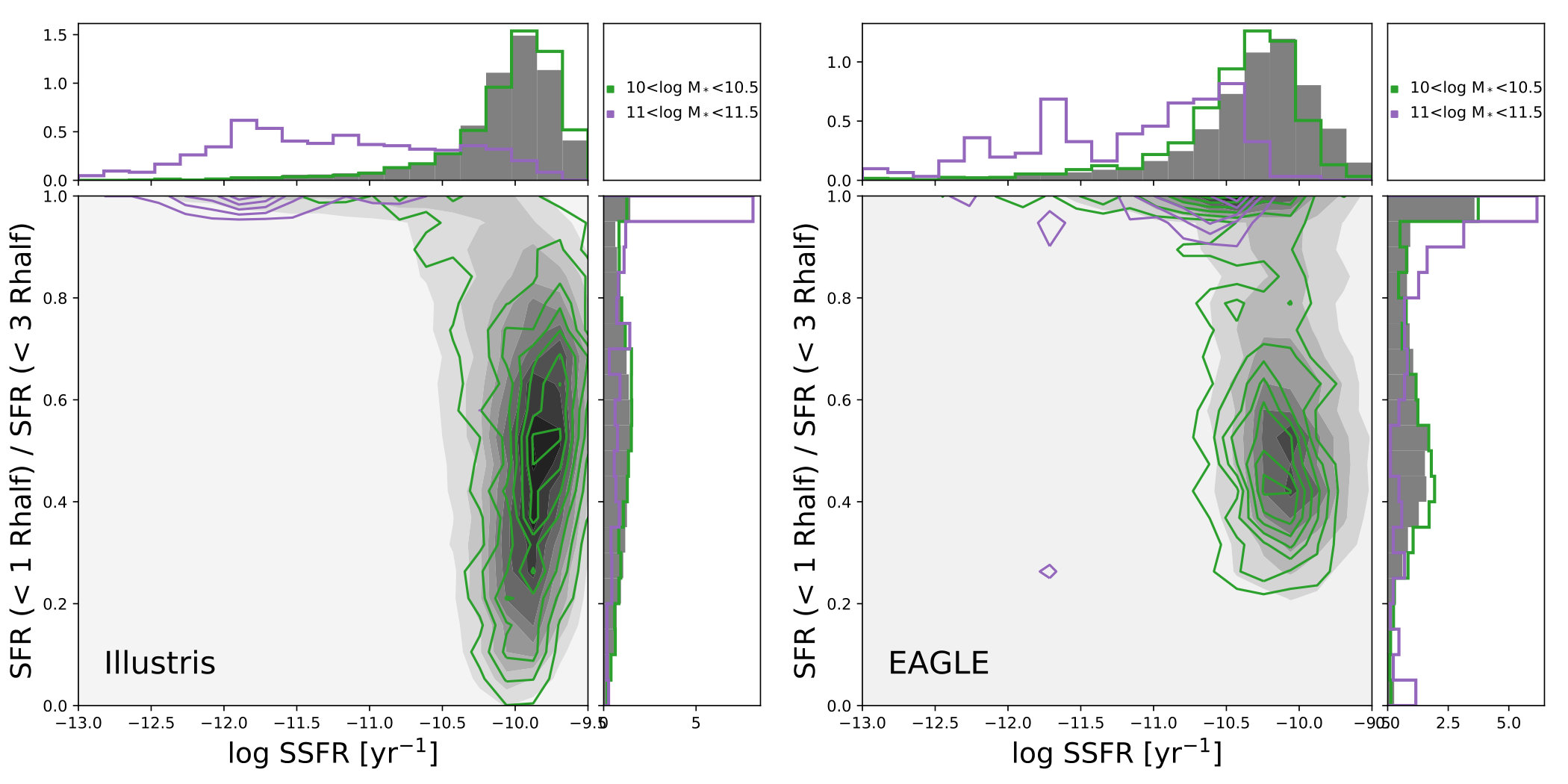

The central concentration of the SFR in the galaxies is illustrated in Figure 2. The gray contours show our complete sample from $9<\textrm{log}(M_{*}/M_{\sun})<12$. To illustrate any mass dependence of this relation, we overplot the contours of two mass bins as green ($10<\textrm{log}(M_{*}/M_{\sun})<10.5$) and purple ($11<\textrm{log}(M_{*}/M_{\sun})<11.5$). As expected, in both simulations we find that more massive galaxies tend to have lower total sSFRs. More massive galaxies also tend to have more centrally concentrated SF. In Illustris (left panel), strongly star-forming galaxies generally do not have centrally-concentrated SF, but as the sSFR decreases, the SF becomes more centrally concentrated. In EAGLE (right panel), the distribution of SF in star-forming galaxies is more centrally concentrated than in Illustris.

Nevertheless, at low sSFRs (log(sSFR yr)${}_{\rm 3Rhalf}<-10.5$) galaxies in both simulations have strongly centralized SF.

In order to best compare with B18, we plot radial profiles of sSFR in these simulated galaxies in Figures 3 and 4, using the B18 mass bins. We measure sSFR volume density in radial bins of $0.3$Rhalf (our results are insensitive to differences between sSFR volume density ($\rho_{\rm SFR}/\rho_{M_{*}}$) and sSFR surface density ($\Sigma_{\rm SFR}/\Sigma_{M_{*}}$), so we use the more physically meaningful volume density). These bins are not well resolved for all galaxies, an effect we discuss in Section 4. As the star formation distribution in satellite galaxies can be affected by environmental effects we show sSFR profiles considering all galaxies (top panels) and only central galaxies (bottom panels).

For comparison we show the B18 data in the top panels, using a correction of Rhalf $=1.2R_{e}$ (Somerville et al., 2018).

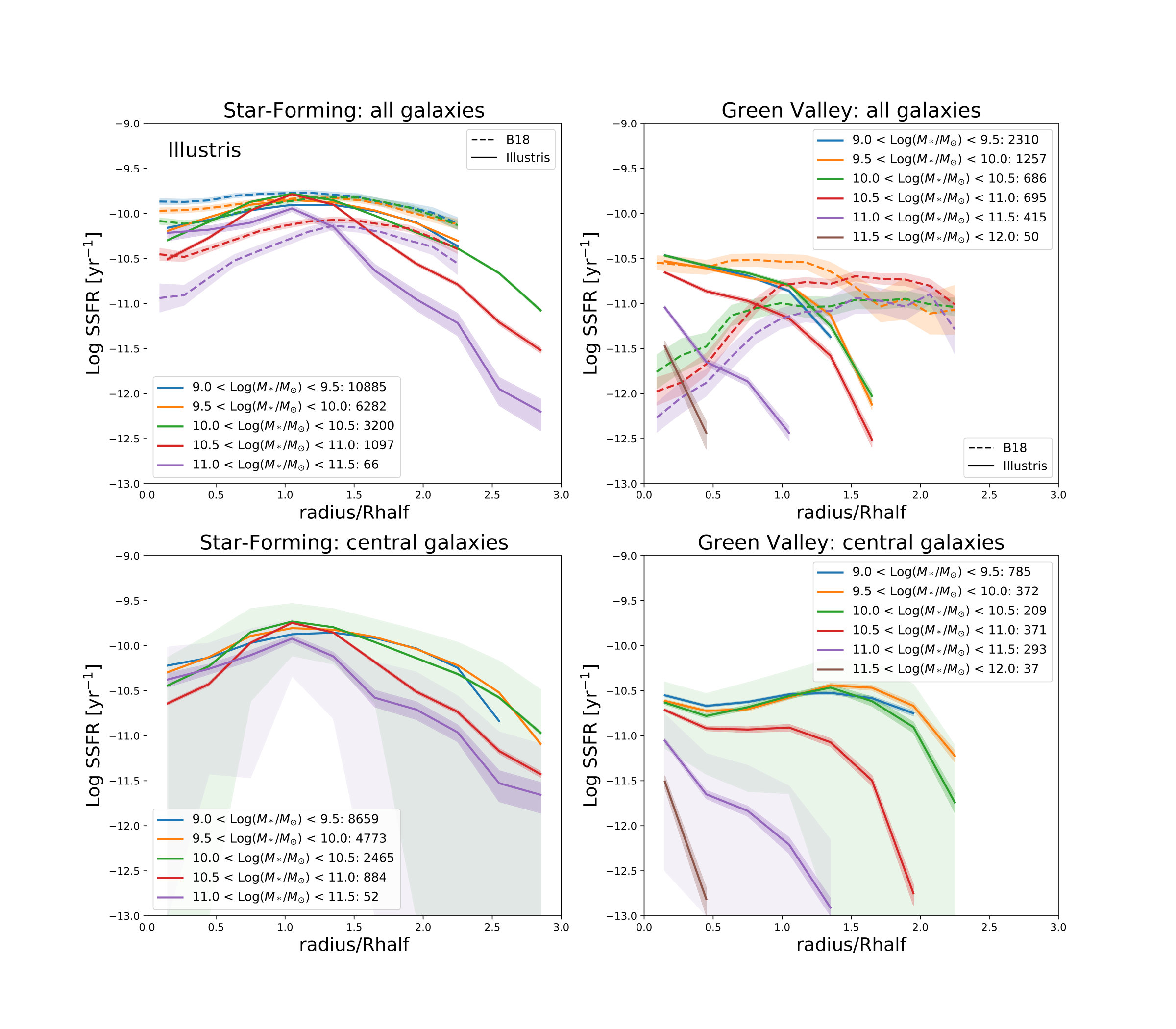

We first focus on Illustris galaxies (Figure 3). For the Star-Forming sample (left panels), for all mass bins, the log(sSFR yr*-1*) is near $-10.5$ in the center, then increases slightly with radius (${\sim}0.5$ dex) to peak around 1–1.5Rhalf, and drops off toward larger radii, where the drop off is larger for higher mass galaxies. This pattern is almost identical when considering either all galaxies or only central galaxies, and is in reasonable agreement with B18 until radii $\geq$1.5Rhalf, where B18 find flatter profiles.

For GV galaxies the central sSFR volume density depends strongly on mass with values around $-10.5$ for galaxies with $9<\textrm{log}(M_{*}/M_{\sun})<11$, and values ${\sim}0.5$–$1$ dex lower for more massive galaxies.

In all cases the sSFR drops sharply at larger radii. For galaxies with $\textrm{log}(M_{*}/M_{\sun})<10.5$, the star formation profile is significantly flatter within $1.5$Rhalf and more extended for central galaxies than for the whole sample of GV galaxies. Only the $9.5<\textrm{log}(M_{*}/M_{\sun})<10$ mass bin of central GV galaxies in Illustris agrees well with the B18 data. For all more massive systems the B18 lines show strong central depletion in sSFRs. Even considering the significant scatter, shown in the lighter shaded bands, the decreasing sSFR with increasing radius in Illustris GV galaxies is strikingly different from the low central sSFRs observed in B18.

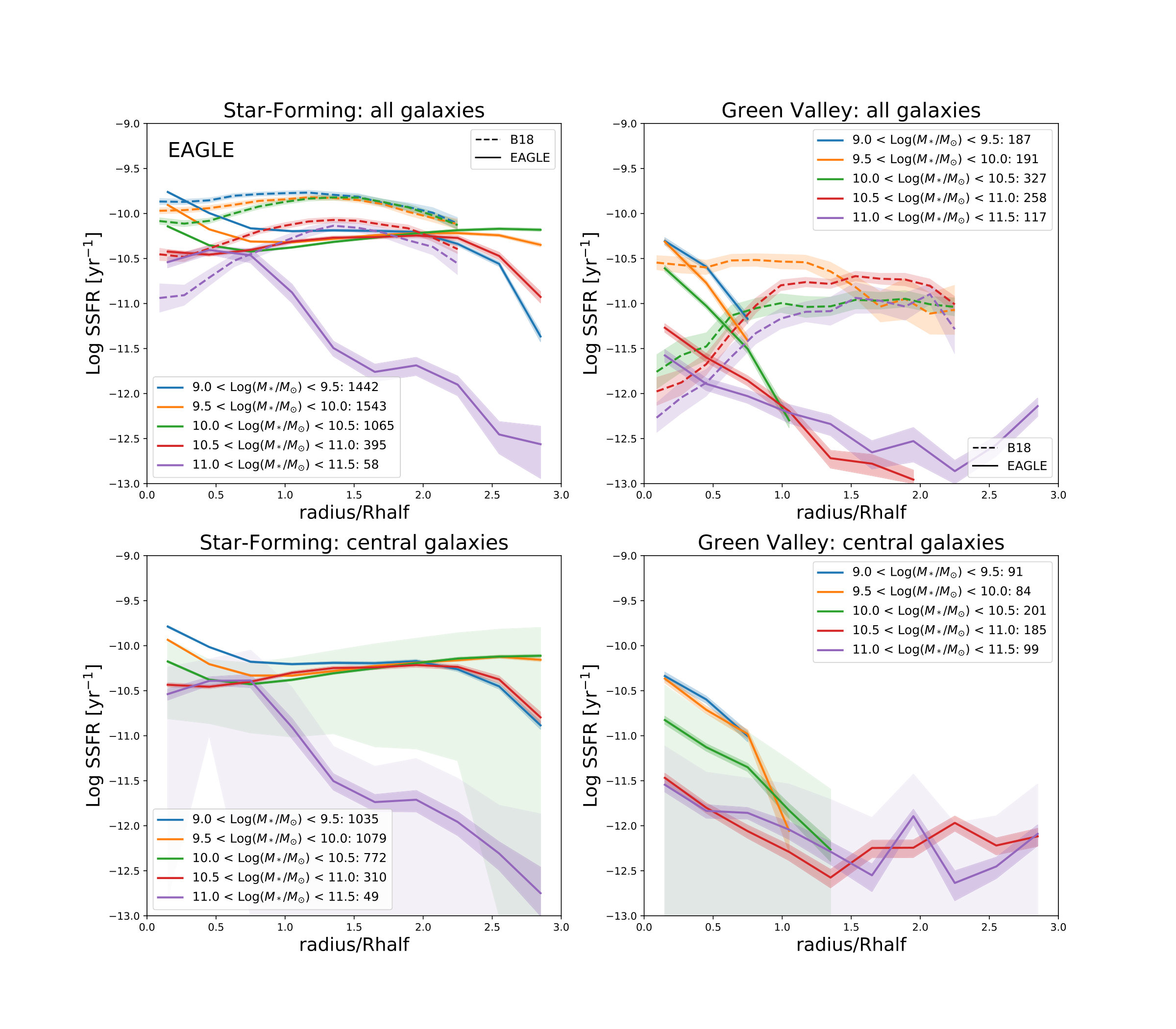

Figure 4 shows the sSFR volume density of galaxies from the EAGLE simulation. Star-Forming galaxies have a more centrally concentrated sSFR density than those in Illustris, as is also seen in Figure 2. For all galaxies with $\textrm{log}(M_{*}/M_{\sun})>9.5$, the sSFR profiles have similar values, and are flat from $\leq$ 1Rhalf to 3Rhalf, in contrast to the steeply decreasing profiles (beyond ${\sim}1$Rhalf) in the Illustris galaxy population. As in the Illustris sample, the difference between the sSFR profiles for all Star-Forming galaxies and only central Star-Forming galaxies is minimal. The sSFR profiles are in reasonable agreement with B18 at larger radii (except for the lowest and highest mass bins), but almost all mass bins show additional star formation in the centers. The exception is the $10.5<\textrm{log}(M_{*}/M_{\sun})<11.0$ bin: the sSFR profile of this mass bin matches well with the observed sample in B18.

In the EAGLE GV population, the sSFR profiles for all galaxies and for central galaxies are again similar. In contrast to the Illustris sample, the distribution of sSFR in EAGLE is significantly flatter for more massive galaxies and shows a steep decline with radius for lower mass galaxies. Therefore, the EAGLE galaxy sample shows significantly higher central sSFR than the observational results from B18, for all mass bins.

Although we do not directly compare, we note that the difference between observations and simulations persists in relation to the observational profiles of Nelson et al. (2016) and Ellison et al. (2018). The sSFR profiles of both EAGLE and Illustris suggest outside-in quenching, as opposed to the inside-out quenching often found in observations (e.g. Belfiore et al., 2018; Nelson et al., 2016; Ellison et al., 2018).

4 Discussion

We have identified a dramatic difference between the sSFR density profiles of Green Valley galaxies in the EAGLE and Illustris simulations and those in B18. In this section we briefly mention possible causes of this failure: the feedback prescriptions and resolution.

In the Illustris AGN feedback model, the dominant mechanism to quench galaxies is the low-accretion rate radio-mode feedback, modeled in the form of hot bubbles released in the CGM (Sijacki et al., 2007; Vogelsberger et al., 2013).

In EAGLE on the other hand the thermal energy from AGN feedback is deposited stochastically close to the black hole, independent of the black hole accretion rate (Booth & Schaye, 2009; Schaye et al., 2015). Additionally, differences in the star formation feedback may affect the central star formation density and central stellar mass profiles, and the simulations also use different hydrodynamic methods.

A future comparison with IllustrisTNG will be interesting as its model contains updated stellar and AGN feedback recipes with respect to the Illustris simulation while maintaining the same hydrodynamical solver, showing different distributions in many global galaxy properties (Pillepich et al., 2018), in particular an improved match to the color distribution of galaxies (Nelson et al., 2018).

Resolution is extremely important to consider in simulations, especially when examining local galaxy properties.

Indeed, measuring the sSFR profiles of galaxies may exacerbate resolution effects. Because in both simulations the gravitational softening lengths are larger than the smoothing lengths for high-density gas, the stellar mass in these galaxies will be less centrally concentrated than the gas. This purely numerical effect may result in centrally peaked sSFR profiles. While this issue may deserve its own in-depth study, in this letter we can address it in two ways. First, we verify our results using radial bins of 0.5Rhalf, only including galaxies with Rhalf $>8$ kpc, so all radial bins are resolved by ${\geq}5.6$ softening lengths in order to account for the spline kernel. Although this reduces our sample size, particularly in EAGLE, our results do not qualitatively change.

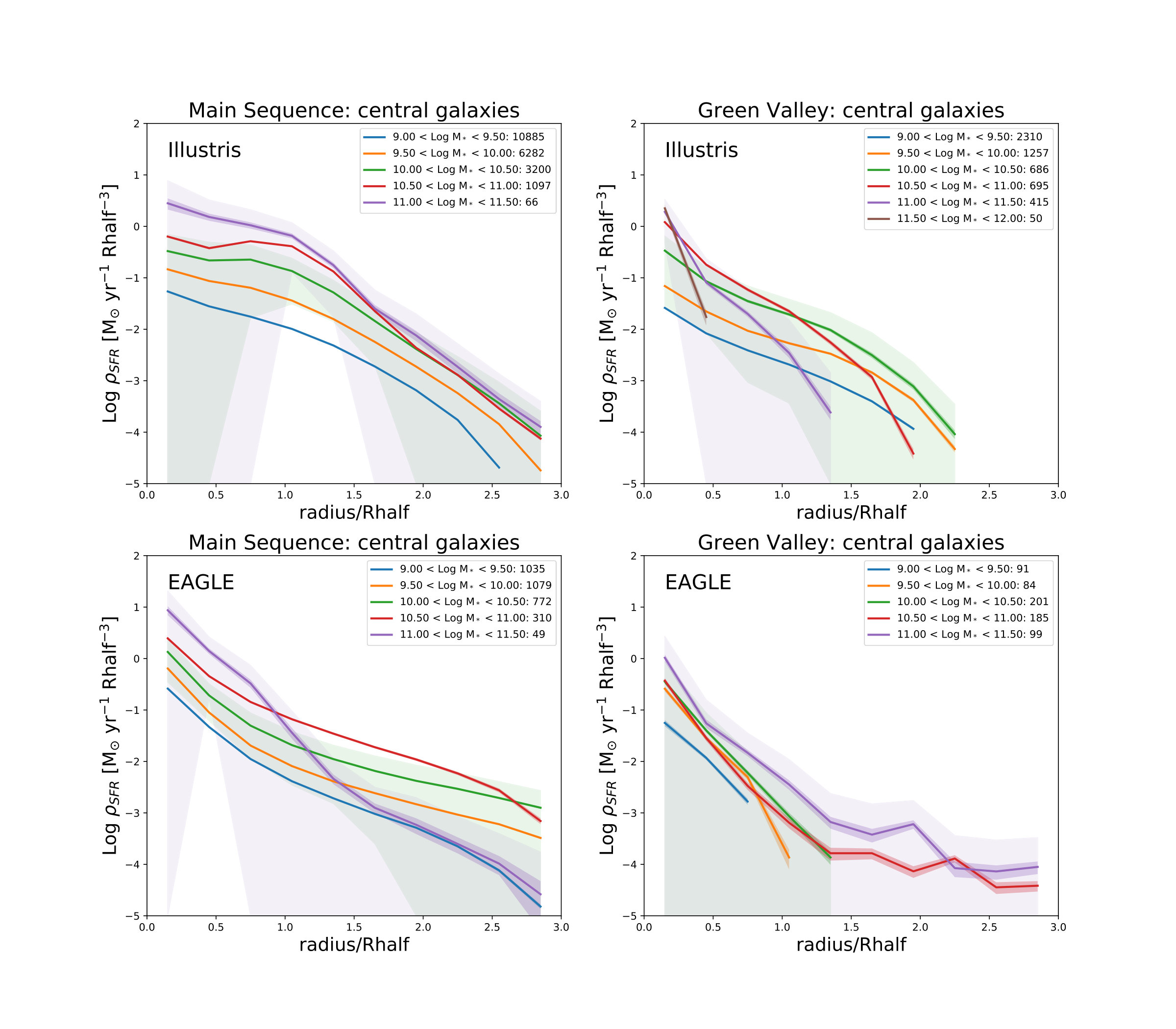

Second, in Figure 5 we plot the SFR volume-density profiles for the central galaxies in Illustris and EAGLE. In all of our galaxy subsets, the SFR volume-density is centrally concentrated. In Illustris (top panels), the central SFR of GV galaxies is always depressed by a smaller factor than the SFR in the outer regions (and in fact is not depressed in the center of $10<\textrm{log}(M_{*}/M_{\sun})<11$ galaxies).

There is generally more central SFR depression in the EAGLE GV sample, but for all galaxies $\textrm{log}(M_{*}/M_{\sun})<11$ the outer SFR is more depressed than the inner SFR, in agreement with Illustris. Only the most massive GV galaxies in EAGLE show more SFR depression within 1.5Rhalf than in the outskirts, however, for this mass bin the SF SFR radial profile is much steeper than for lower mass galaxies.

Therefore the differences between the sSFR profiles in Star-Forming and GV galaxies are largely driven by the SFR profiles. We verified that the biweight stellar mass profiles for EAGLE GV galaxies are very similar to the SF sample (not shown). Illustris GV galaxies have either a similar mass profile to the SF sample, or are more massive in the center than at $1$Rhalf (for $\textrm{log}(M_{*}/M_{\sun})>10.5$).

Furthermore, when using the star formation rates based on the ages and birth masses of star particles (averaged over $50$ Myr or $100$ Myr), the SFR profiles of Figure 5 essentially do not change, and neither do the sSFR profiles of Figures 3 and 4. Due to the star particle-based SFRs not recording the lowest SFRs on $50$ or $100$ Myr timescales, both the size of the galaxy sample and the extent of the star formation profiles decrease somewhat when using star particle-based SFRs.

The lowest mass bins in both simulations may also suffer from resolution effects due to a low number of gas or star particles or cells. However, only for the lowest three mass bins in the EAGLE GV sample do galaxies have less than ${\sim}100$ gas resolving elements in a number of radial bins.

Furthermore, we explore the sSFR profiles for galaxies from higher resolution smaller boxes of the EAGLE simulation suite (RefL0025N0752 and RecalL0025N0752). Although the number of galaxies is very small, the 16 central galaxies in the Green Valley (all $10.0<\textrm{log}(M_{*}/M_{\sun})<11$) show flat profiles, showing less centrally concentrated sSFR compared to the large reference box. However, this is still discrepant with the significant central SFR deficit of B18.

We have shown that the distribution of sSFR provides additional constraints on galaxy formation models, and point out that both feedback prescriptions and resolution may be important. The distribution of other galaxy properties may also provide important constraints on models, for example, stellar mass profiles (Nelson et al., 2016) and gas profiles (Lin et al., 2017).

Finally we note that because SFR and stellar mass are directly computed quantities from simulations, we compare sSFR with B18. However, the sSFR profiles in B18 are based on the H$\alpha$ flux, corrected for dust attenuation using the Balmer decrement and with a correction from low-ionisation emission-line regions (LIERs). B18 only include spaxels with high S/N to ensure reliable extinction correction, but they do note that the central sSFR depends somewhat on their correction for the large fraction of LIER emission. However, they show that EW(H$\alpha$) can serve as a cross-check against dust extinction corrections and that even without LIER corrections EW(H$\alpha$) profiles show a decrement in central regions.

5 Conclusions

In this paper, we identify a fundamental mismatch between the radial sSFR profiles of galaxies in the Illustris and EAGLE simulations and observations. Specifically, in comparison to Belfiore et al. (2018), the sSFR of simulated Green Valley galaxies is too centrally concentrated. Simulated galaxies seem to quench outside-in instead of inside-out.

We argue that sSFR profiles should be an important test of simulations, in addition to galaxy-wide measures like the relation between total SFR and stellar mass. Using the sSFR profiles we also find differences between Illustris and EAGLE, likely due to differences in hydrodynamical solvers and feedback prescriptions. Differences between the GV populations in the simulations, however, are dwarfed by the dramatic difference between the sSFR profiles of both simulations and the B18 observations. As large-scale simulations can increasingly be used to study local galaxy properties, we need to understand how these properties compare to resolved observations.
