Spinning-black-hole scattering and the test-black-hole limit at second post-Minkowskian order

TL;DR

This paper extends the gravitational scattering mapping of black holes to second post-Minkowskian order, enabling better modeling of spinning binary black hole dynamics by connecting complex two-body interactions to simpler test-body scenarios.

Contribution

It introduces a 2PM order extension of the black hole scattering mapping, validated against known analytical results and the test-BH limit, aiding in modeling spinning binary black holes.

Findings

Mapping at 2PM order is consistent with post-Newtonian results.

Mapping aligns with the test-BH limit.

Potential to improve effective-one-body models.

Abstract

Recently, the gravitational scattering of two black holes (BHs) treated at the leading order in the weak-field, or post-Minkowskian (PM), approximation to General Relativity has been shown to map bijectively onto a simpler effectively one-body process: the scattering of a test BH in a stationary BH spacetime. Here, for BH spins aligned with the orbital angular momentum, we propose a simple extension of that mapping to 2PM order. We provide evidence for the validity and utility of this 2PM mapping by demonstrating its compatibility with all known analytical results for the conservative local-in-time dynamics of binary BHs in the post-Newtonian (weak-field and slow-motion) approximation and, separately, in the test-BH limit. Our result could be employed in the construction of improved effective-one-body models for the conservative dynamics of inspiraling spinning binary BHs.

Figures

Equations

$$\chi (m_1,m_2,E,J)$$

$${\chi }_{\mathrm{t}}(m_{\mathrm{B}},m_{\mathrm{t}},E_{\mathrm{t}},J_{\mathrm{t}})$$

$$M=m_1+m_2,\mu =\frac{m_1{m}_2}{M}=\nu M,$$

$$\begin{array}[]{c}\phantom{\Big{|}}\mu=m_{\mathrm{t}},\quad M=m_{\mathrm{B}},\phantom{\Big{|}}\\ \phantom{\Big{|}}J=J_{\mathrm{,}}\quad\gamma=\gamma_{\mathrm{t}}\phantom{\Big{|}}\end{array}\;\Rightarrow\quad\chi=\chi_{\mathrm{t}}+{\cal O}(G^{2});$$

$$\gamma ={\gamma }_{\mathrm{t}}\iff E_{\mathrm{t}}=\mu +\frac{E^2-M^2}{2M},$$

$$\gamma =\frac{p_1\cdot p_2}{m_1{m}_2},$$

$$E^2=(p_1+p_2{)}^2=m_1^2+m_2^2+2m_1{m}_2\gamma ,$$

$$({\gamma }_{\mathrm{t}}\to )\gamma =\frac{E_{\mathrm{t}}}{m_{\mathrm{t}}}=\frac{p_{\mathrm{t}}\cdot p_{\mathrm{B}}}{m_{\mathrm{t}}{m}_{\mathrm{B}}},$$

$$\gamma =\frac{1}{\sqrt{1-v^2}}.$$

$$J^{\mu \nu }(x)=2p_1^{[\mu }(x-z_1{)}^{\nu ]}+2p_2^{[\mu }(x-z_2{)}^{\nu ]},$$

$$\begin{array}{rl}{J}^{\mu }& =\frac{1}{2}{ϵ}^{\mu }{}_{\nu \rho \sigma }{u}_{\mathrm{cm}}^{\nu }{J}^{\rho \sigma }\text{mbox}with{u}_{\mathrm{cm}}^{\mu }=\frac{p_1^{\mu }+p_2^{\mu }}{E},\\ & =-\frac{1}{E}{ϵ}^{\mu }{}_{\nu \rho \sigma }{p}_1^{\nu }{p}_2^{\rho }(z_1-z_2{)}^{\sigma }\\ & =-\frac{1}{E}{ϵ}^{\mu }{}_{\nu \rho \sigma }{p}_1^{\nu }{p}_2^{\rho }{b}^{\sigma }.\end{array}$$

$$J=\frac{M}{E}\mu \gamma vb.$$

$$J_{\mathrm{t}}^{\mu \nu }=-2p_{\mathrm{t}}^{[\mu }{z}_{\mathrm{t}}^{\nu ]},$$

$$\begin{array}{rl}{J}_{\mathrm{t}}^{\mu }& ={ϵ}^{\mu }{}_{\nu \rho \sigma }{u}_{\mathrm{B}}^{\nu }{J}_{\mathrm{t}}^{\rho \sigma }\text{mbox}with{u}_{\mathrm{B}}^{\mu }=\frac{p_{\mathrm{B}}^{\mu }}{m_{\mathrm{B}}},\\ & =-\frac{1}{m_{\mathrm{B}}}{ϵ}^{\mu }{}_{\nu \rho \sigma }{p}_{\mathrm{B}}^{\nu }{p}_{\mathrm{t}}^{\rho }{z}_{\mathrm{t}}^{\sigma }\\ & =-\frac{1}{m_{\mathrm{B}}}{ϵ}^{\mu }{}_{\nu \rho \sigma }{p}_{\mathrm{B}}^{\nu }{p}_{\mathrm{t}}^{\rho }{b}^{\sigma },\end{array}$$

$$J_{\mathrm{t}}=m_{\mathrm{t}}\gamma vb,$$

$$\chi (m_1,m_2,v,b)$$

$$\displaystyle\quad=2\frac{GE}{v^{2}b}\left[1+v^{2}+3\pi\frac{4+v^{2}}{8}\frac{GM}{b}\right]+{\cal O}(G^{3}),\phantom{\Bigg{|}}$$

$${\chi }_{\mathrm{t}}(m_{\mathrm{B}},v,b)$$

$$=2\frac{G{m}_{\mathrm{B}}}{v^{2}b}\left[1+v^2+3\pi \frac{4+v^2}{8}\frac{G{m}_{\mathrm{B}}}{b}\right]+\mathcal{O}(G^3).$$

$$\chi (m_1,m_2,v,b)=\frac{E}{M}{\chi }_{\mathrm{t}}(M,v,b)+\mathcal{O}(G^3),$$

$$\chi (m_1,m_2,v,b)$$

$$=\frac{\sqrt{m_1^2+m_2^2+2m_1{m}_2\gamma }}{m_1+m_2}{\chi }_{\mathrm{t}}(m_1+m_2,v,b)+\mathcal{O}(G^3).$$

$$\displaystyle\begin{array}[]{c}p_{1}-q\\ \\ \\ \\ \\ \\ p_{1}\end{array}\!\!\!\!\!\!\!\!\!\!\vbox{\hbox{\includegraphics[scale={.25}]{fig_amp_M}}}\!\!\!\!\!\!\!\!\!\begin{array}[]{c}p_{2}+q\\ \\ \\ \\ \\ \\ p_{2}\end{array}=\mathcal{M}=\vbox{\hbox{\includegraphics[scale={.25}]{fig_amp_tree}}}+\vbox{\hbox{\includegraphics[scale={.25}]{fig_amp_ab}}}+\vbox{\hbox{\includegraphics[scale={.25}]{fig_amp_ba}}}+{\cal O}(G^{3}),$$

$$={\mathcal{M}}_{\mathrm{tree}}=\frac{16\pi G(m_1{m}_2{)}^2}{\hslash |\mathbf{q}{|}^2}(2{\gamma }^2-1)+\mathcal{O}(q^0),$$

$$={\mathcal{M}}_{◃}=\frac{6{\pi }^2{G}^2(m_1{m}_2{)}^2}{{\hslash }^2|\mathbf{q}|}{m}_2(5{\gamma }^2-1)+\mathcal{O}(q^1),$$

$$={\mathcal{M}}_{▹}=\frac{6{\pi }^2{G}^2(m_1{m}_2{)}^2}{{\hslash }^2|\mathbf{q}|}{m}_1(5{\gamma }^2-1)+\mathcal{O}(q^1),$$

$$\chi$$

$$=\frac{-\hslash E}{(2\gamma v{)}^2}\frac{\partial }{\partial b}\int \frac{d^2\mathbf{q}}{(2\pi {)}^2}{e}^{-i\mathbf{q}\cdot \mathbf{b}/\hslash }\frac{\mathcal{M}(\mathbf{q})}{(m_1{m}_2{)}^2}+\mathcal{O}(G^3),$$

$$\chi [\mathcal{M}]$$

$$\chi [{\mathcal{M}}_{\mathrm{tree}}]$$

$$\chi [{\mathcal{M}}_{◃}]$$

$$\chi [{\mathcal{M}}_{▹}]$$

$$\chi=E\Big{[}f_{\mathrm{tree}}(v,b)+Mf_{\triangleleft}(v,b)\Big{]}+{\cal O}(G^{3}),$$

$$\chi \to {\chi }_{\mathrm{t}}=m_{\mathrm{B}}{f}_{\mathrm{tree}}(v,b)+m_{\mathrm{B}}^2{f}_{◃}(v,b)+\mathcal{O}(G^3).$$

$$\displaystyle\begin{aligned} \chi\big{(}(m_{1},a_{1}),(m_{2},a_{2}),v,b\big{)}&\\ =\chi\big{(}(m_{2},a_{2}),(m_{1},a_{1}),v,b\big{)}&\end{aligned}$$

$$a_1=\frac{S_1}{m_1},a_2=\frac{S_2}{m_2}$$

$${\chi }_{\mathrm{t}}(m_{\mathrm{B}},a_{\mathrm{B}},a_{\mathrm{t}},v,b)$$

Full text

I Introduction

Sometimes it is easier to solve complicated problems by looking at seemingly more complicated ones. For example, new insights into the study of the (classical) relativistic gravitational interaction of massive bodies might be gained by considering the even more formidable problem of their quantum gravitational interaction.111As often emphasized by J. A. Wheeler (see, e.g., Box 25.3 in Ref. Misner et al. (1973)), quantum mechanics can help us elucidate the essence of classical mechanics.

Attempts to understand surprisingly simple results from computations of quantum scattering amplitudes, at higher orders in perturbation theory, for gauge theories as well as gravity theories, have led in recent years to an amplitudes revolution of physical insights breeding new more efficient computational techniques Parke and Taylor (1986); Bern et al. (1994, 1995); Britto et al. (2005a, b, c); Bern et al. (2008, 2010a, 2010b). A central theme has been that amplitudes or S-matrices are determined to a surprising extent by general principles such as symmetries, unitarity, and locality. Very recent progress along these lines has included analyses of tree and loop amplitudes involving quantum particles with arbitrary masses and spins Guevara (2017); Arkani-Hamed et al. (2017); Ochirov (2018).

Directly connecting such advances to the classical dynamics of spinning black holes (BHs) would be highly valuable, particularly for the study of binary BHs and their gravitational-wave (GW) emissions, with important applications to the new field of GW astrophysics Abbott et al. (2016). In spite of some progress along these lines Vaidya (2015), it remains unclear to what extent the scattering of (minimally coupled) quantum particles might correspond to scattering of classical BHs, especially when the particles and BHs are spinning, and when we consider their complete multipole series. It is hence important to approach such questions from both the quantum and classical sides. The present paper is concerned with classical scattering of spinning BHs, but we will make tangential contact with (and draw inspiration from) aspects of amplitudes approaches.

As another example of this section’s opening maxim (being particularly relevant for gravitational scattering), in an analytic treatment of the binary BH problem, we can trade the more easily handled post-Newtonian (PN) approximation Blanchet (2014); Schäfer and Jaranowski (2018); Futamase and Itoh (2007); Poisson and Will (2014); Goldberger (2007); Foffa and Sturani (2014); Porto (2016); Rothstein (2014); Levi (2018) for the post-Minkowskian (PM) approximation Blanchet (2014); Poisson and Will (2014); Bertotti (1956); Bertotti and Plebanski (1960); Rosenblum (1978); Bel et al. (1981); Damour and Deruelle (1981); Portilla (1979, 1980); Westpfahl and Goller (1979); Westpfahl (1985); Schäfer (1986); Westpfahl et al. (1987): weak-field perturbation theory on a background flat Minkowski spacetime, without the further assumption of nonrelativistic speeds which would lead to the PN approximation. The PM approximation has recently been a subject of renewed interest concerning its applications to classical and quantum gravitational scattering of massive bodies and to the dynamics of bound binary systems Ledvinka et al. (2008); Foffa (2014); Damour (2016); Bini and Damour (2017a); Vines (2018); Damour (2018); Bini and Damour (2018); Blanchet and Fokas (2018); Bjerrum-Bohr et al. (2014); Holstein and Donoghue (2004); Bjerrum-Bohr et al. (2018); Neill and Rothstein (2013); Vaidya (2015); Cheung et al. (2018) (see also Refs. Duff (1973); Iwasaki (1971); Kosower et al. (2018)). A related and very active line of research aims at deriving predictions in classical gravity from double-copy constructions, or color-kinematics dualities Bern et al. (2008, 2010a, 2010b, 2018), between scattering amplitudes for gauge theories and gravity theories Monteiro et al. (2014); Luna et al. (2015, 2017, 2016, 2018); Goldberger and Ridgway (2017, 2018); Goldberger et al. (2018, 2017); Chester (2018); Shen (2018); Plefka et al. (2018).

References Damour (2016); Bini and Damour (2017a); Vines (2018); Damour (2018); Bini and Damour (2018) in particular have considered both PM two-body scattering and its relationship to effective-one-body (EOB) models for binary dynamics Buonanno and Damour (1999, 2000); Damour (2001); Damour et al. (2008a); Barausse and Buonanno (2010). This was initiated in Ref. Damour (2016) with an analysis at 1PM order (at linear order in the gravitational coupling $G$, or in linearized gravity) of a system of two pure-monopole/point-mass bodies. This was followed by a treatment of dipole/linear-in-spin/spin-orbit effects at 1PM order in Ref. Bini and Damour (2017a). The point-mass case was considered at 2PM order (quadratic order in $G$) in Ref. Damour (2018), and 2PM spin-orbit effects were treated in Ref. Bini and Damour (2018).

The pole-dipole (point-mass and spin-orbit) contributions to the classical gravitational dynamics of a system of massive bodies (in vacuum) are universal, i.e., they are independent of the nature of the bodies Mathisson (1937, 2010); Dixon (1979, 2015). This reflects local conservation of linear and angular momenta, due to local Poincaré invariance. A body’s internal structure influences its orbital dynamics through its intrinsic quadrupole and higher multipole moments. The leading contributions to the $2^{l}$-pole moments $M_{l}$ of a BH are fully determined by its mass $m$ and spin (intrinsic angular momentum) $S$, its monopole and dipole, according to Hansen’s formula Hansen (1974) for a stationary Kerr BH, $M_{l}\sim m(ia)^{l}$, with the rescaled spin $a=S/mc$ being the radius of the BH’s ring singularity. For the specific case of a two-spinning-BH system, the analysis of PM scattering was extended to treat all-multipole/all-orders-in-spin effects at 1PM order in Ref. Vines (2018).

Here we begin to analyze the higher-multipole contributions for binary BHs at 2PM order, with an eye toward including the BHs’ complete multipole series and resumming them, as in Refs. Vines and Steinhoff (2018); Vines (2018); Siemonsen et al. (2018). We continue, as in Refs. Damour (2016); Vines (2018), to investigate the extent to which PM results for the conservative local-in-time dynamics of real (arbitrary-mass-ratio) binary BHs can be deduced via simple mappings from results in the test-body limit — specifically, the spinning-test-BH limit, in which the mass ratio tends to zero while keeping finite the smaller BH’s (the test BH’s) mass-rescaled spin or ring radius $a=S/mc$, and thus also all of its mass-rescaled multipoles. This approach is valuable since exact solutions for the gravitational field in classical gravity are known, in particular the Schwarzschild and Kerr metrics, which makes the test-body case particularly tractable, even nonperturbatively. Figure 1 sketches the limiting cases encountered in the present paper.

Our investigations are greatly simplified by restricting attention to the aligned-spin case, in which the BHs’ spin vectors are parallel (anti-parallel) to the systems’ orbital (and thus to its total) angular momentum vector. This is one case in which the directions of all of these vectors are unambiguously defined even in full general relativity. The orbital motion is confined to a plane, the one orthogonal to the constant direction of the angular momentum.

Regarding the conservative contributions to the orbital dynamics (to the extent that these can be well defined), an aligned-spin binary BH has effectively the same degrees of freedom as a two-point-mass system, with only a 2D relative position (and velocity or momentum) in the orbital plane. We thus expect the aligned-spin binary BH system to share the following important properties with the binary point-mass system, as emphasized in Refs. Damour (2016, 2018). For the point-mass system, at 1PM order (apparently to all PN orders) and at 2PM order (at least through the third subleading PN order), the complete conservative local-in-time dynamical information is encoded in the system’s scattering-angle function: for an unbound system, the angle by which both masses are scattered in the center-of-mass frame, as a function of the (rest) masses, the total energy (or the relative velocity at infinity), and the orbital angular momentum (or the impact parameter). The complete conservative information, for both unbound and bound orbits, can be defined, for example, as the part of the information content of a (perturbative) canonical Hamiltonian governing the conservative dynamics which is invariant under (perturbative) canonical transformations.

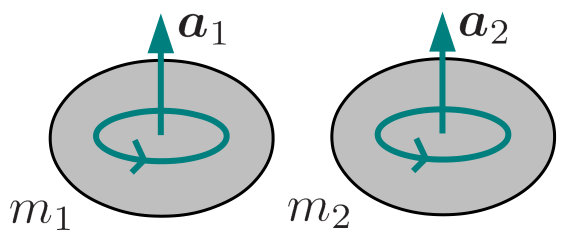

In this paper, considering an aligned-spin binary BH system instead of a binary point-mass system, we verify that its scattering angle function also encodes its complete conservative local-in-time dynamics, to a similar level of approximation. This holds according to all available PN results (truncated at 2PM order), including in particular the 1PM and 2PM contributions through quadratic order in the BHs’ spins, through subsubleading PN orders. Up to those same levels of approximation, we find a simple mapping between the scattering-angle functions for a real binary BH and for a test BH moving in a background Kerr spacetime. A potentially more general form of this result (still at 2PM order but extending beyond the reach of current PN results) is suggested by considerations of amplitudes-based derivations of classical scattering angles. Given that the scattering angle fully encodes the conservative local-in-time dynamics, this has significant implications for constructions of EOB models for binary BHs.

The paper is organized as follows. We begin in Sec. II with a discussion of two-point-mass scattering at 2PM order. We point out a simple mapping between the real system and its test-body limit (geodesic motion in a stationary Schwarzschild spacetime) which is implicit in the 2PM result for the scattering angle first derived in Ref. Westpfahl (1985); this generalizes similar observations at 1PM order made in Ref. Damour (2016). After defining the scattering-angle function for an aligned-spin binary BH in Sec. III.1, we briefly review in Sec. III.2 the mappings between the real two-body angle and its test-body limits found at 1PM order in Ref. Vines (2018). In Sec. III.3, we present and discuss our generalization of one of those mappings to 2PM order, valid at least in the restricted 2PM context described above (within the reach of available PN results). This is the central result of the present paper. In Sec. IV we derive a dual PN-PM expansion of the scattering angle from known PN results for canonical Hamiltonians encoding the conservative local-in-time dynamics of aligned-spin binary BHs. Focusing on the 1PM and 2PM (spin-dependent) parts of the PN results, we discuss how the gauge-invariant information content of a canonical Hamiltonian (defined modulo canonical transformations) is uniquely determined by the scattering-angle function. In Sec. V, we compare the PN-PM expansion of the real binary-BH scattering angle to PM results which can be obtained in the limit of test-BH motion in a stationary Kerr spacetime. This comparison leads us to the 2PM mapping discussed in Sec. III.3, i.e., to the central result. We focus on contributions up to quadratic order in the spin of the test BH, as PN results with 2PM parts are available only up to spin-squared order. Section III.3 also serves as an illustration of the utility of exact BH metrics in connection with our central result. Finally, we conclude in Sec. VI.

II Nonspinning-black-hole scattering at second post-Minkowskian order

Pioneering studies of the PM approximation Bertotti (1956); Bertotti and Plebanski (1960); Rosenblum (1978); Bel et al. (1981); Damour and Deruelle (1981); Portilla (1979, 1980); Westpfahl and Goller (1979); Westpfahl (1985); Schäfer (1986); Westpfahl et al. (1987) applied to the gravitational dynamics of massive bodies culminated in Westpfahl’s computation, to 2PM order, of the scattering-angle function for an unbound system of two monopolar point masses (which could represent nonspinning BHs), via a direct assault on the nonlinear field equations in position space coupled with effective point-particle equations of motion Westpfahl (1985). In the intervening decades, this result stood alone and quite separated from primarily PN studies of bound coalescing binary systems and their GW emissions, until it was revisited in the latter context in Ref. Damour (2018).

It was shown in Ref. Damour (2018) that the full gauge-invariant information determining the two-point-mass conservative local-in-time dynamics (for unbound and bound orbits) through 2PM order (at least up to 3PN order) is contained in Westpfahl’s result for the center-of-mass-frame scattering-angle function; the information can be quantified, e.g., by counting coefficients in a dual PN-PM expansion of the scattering angle and of a Hamiltonian or Lagrangian along with relevant phase-space diffeomorphisms. This property had been discussed at 1PM order in Ref. Damour (2016), where it was shown that the 1PM scattering angle for a real two-body system can be deduced, via a simple kinematical mapping, from the scattering angle for geodesics in a Schwarzschild spacetime (truncated at 1PM order). Reference Damour (2018) demonstrated that Westpfahl’s 2PM result agrees with available PN results (up to 3PN order) and that it correctly reduces in the test-body limit (the zero-mass-ratio limit) to the 2PM result for Schwarzschild geodesics. (See Ref. Bini and Damour (2017b) for a calculation of the scattering angle to 4PN order, the order at which one first encounters nonlocal-in-time contributions Damour et al. (2014).) Reference Damour (2018) did not explicitly discuss any mapping by which one could recover the real two-body angle from the (much more easily obtained) 2PM expansion of the Schwarzschild-geodesic angle.

It is nonetheless hard to miss the striking similarity between the two 2PM results. Westpfahl’s Westpfahl (1985) scattering angle $\chi$ for an arbitrary-mass-ratio two-body system with rest masses $m_{1}$ and $m_{2}$ and total center-of-mass-frame energy $E$ and angular momentum $J$, and the scattering angle $\chi_{\mathrm{t}}$ for a test particle of mass $m_{\mathrm{t}}$ with (background-frame) energy $E_{\mathrm{t}}$ and angular momentum $J_{\mathrm{t}}$ following a geodesic in a Schwarzschild background of mass $m_{\mathrm{B}}$ (B for background) are given, as in Eqs. (2.18)–(2.24) of Ref. Damour (2018), by

[TABLE]

where $M$ is the two-body system’s total rest mass, and $\mu$ is its reduced mass,

[TABLE]

defining also the symmetric mass ratio $\nu=\mu/M$. The quantities $\gamma$ and $\gamma_{\mathrm{t}}$ here are both denoted $\hat{\mathcal{E}}_{\mathrm{eff}}$ in Ref. Damour (2018); they correspond to the relative Lorentz factors between the respective pairs of the bodies’ rest frames at infinity, as further detailed below.

It was pointed out in Ref. Damour (2016) that one mapping by which one can obtain the 1PM part [the ${\cal O}(G^{1})$ part] of the real two-body result (1a) from the 1PM part of the test-body result (1b), which we will refer to as an “EOB scattering-angle mapping,” is as follows:

[TABLE]

i.e., the scattering angles will be equal at 1PM order if we use the usual “Newtonian EOB mapping” of the rest masses (the test-body mass is the reduced mass, and the background mass is the total mass), if we identify the two angular momenta with one another, and if the two energies are related by

[TABLE]

which is the “EOB energy map,” proposed in Ref. Buonanno and Damour (1999) to relate the Hamiltonian of an effective test body in an effective background to the Hamiltonian of a real two-body system.

It is clear from (1) that the mapping (3) breaks down at 2PM order, specifically because of the factor of $M/E$ in the ${\cal O}(G^{2})$ term of (1a). We will see presently that an alternative EOB scattering-angle mapping which continues to hold at 2PM order suggests itself when we look at the same results (1) expressed in terms of different (equivalent) variables, in particular, trading the angular momenta for the corresponding impact parameters [see Eq. (15) below].

Let us first recall how the energies $E$ and $E_{\mathrm{t}}$ are related to the respective pairs of the bodies’ asymptotic 4-momenta, using flat-spacetime kinematics at infinity (see Fig. 2). For the two-body system, with momenta $p_{1}^{\mu}$ and $p_{2}^{\mu}$ and relative Lorentz factor

[TABLE]

the total center-of-mass-frame energy $E$ is the magnitude of the system’s total momentum,

[TABLE]

which, with Eq. (2), leads to the expression for $\gamma$ in Eq. (1a). The energy $E_{\mathrm{t}}$ of the test body in the background frame is defined by

[TABLE]

where we indicate that we will henceforth drop the subscript t on the relative Lorentz factor for the test-background system. In both cases, the relative velocity $v$ between the bodies’ asymptotic rest frames is related to the Lorentz factor by

[TABLE]

The 4-momenta, $p_{1}^{\mu}$ and $p_{2}^{\mu}$, or $p_{\mathrm{t}}^{\mu}$ and $p_{\mathrm{B}}^{\mu}$, here could be either (both) the initial or (both) the final momenta at infinity, since the rest masses and the energies (and thus $v$ and $\gamma$) are conserved at the level of approximation we consider. Note that we use the $(+,-,-,-)$ signature for the Minkowski metric, with $p_{1}^{2}=m_{1}^{2}$, etc., and in this and the following section we work in units in which the speed of light $c$ is $1$.

Next, let us recall how the angular momenta $J$ and $J_{\mathrm{t}}$ are related to the (point-mass) bodies’ asymptotic worldlines (trajectories), and thus to the respective impact parameters defined at infinity. For the two-body system, the total relativistic angular momentum tensor about any point $x$ is given by

[TABLE]

where $z_{1}$ and $z_{2}$ can be any points on each of the bodies’ asymptotic (zeroth-order; say, incoming) worldlines (which are flat-spacetime geodesics), and where square brackets denote antisymmetrization of enclosed indices. In the center-of-mass frame, with unit 4-velocity $u_{\mathrm{cm}}^{\mu}$, the total angular momentum vector $J^{\mu}$ is defined by the first line here (and turns out to be independent of $x$), and the second follows from inserting Eq. (9):

[TABLE]

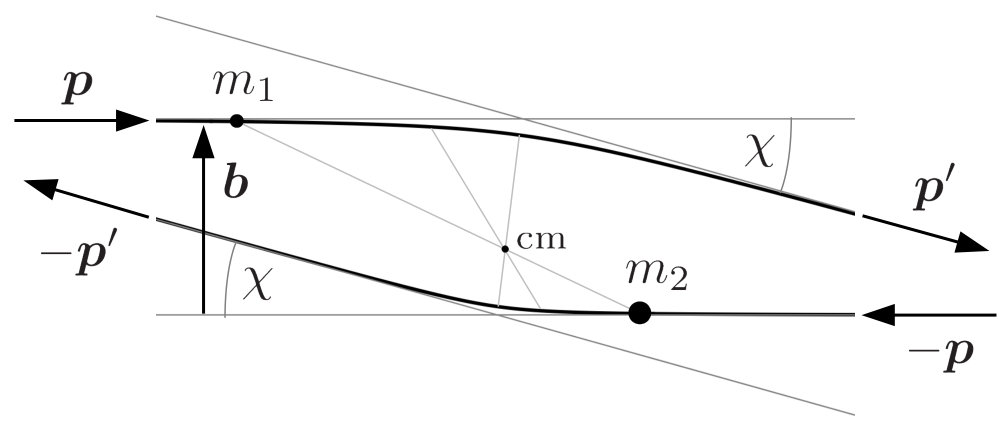

Here, $b^{\mu}$ is the vectorial impact parameter, connecting the two worldlines’ points of mutual closest approach, equal to the projection of $(z_{1}-z_{2})^{\mu}$ orthogonal to both $p_{1}^{\mu}$ and $p_{2}^{\mu}$ (again for any points $z_{1}$ and $z_{2}$ on the asymptotic worldlines). It follows from Eqs. (2), (5), (8), and (10) that the magnitude $J$ of the (center-of-mass-frame) angular momentum and the magnitude $b$ of the impact parameter are related by

[TABLE]

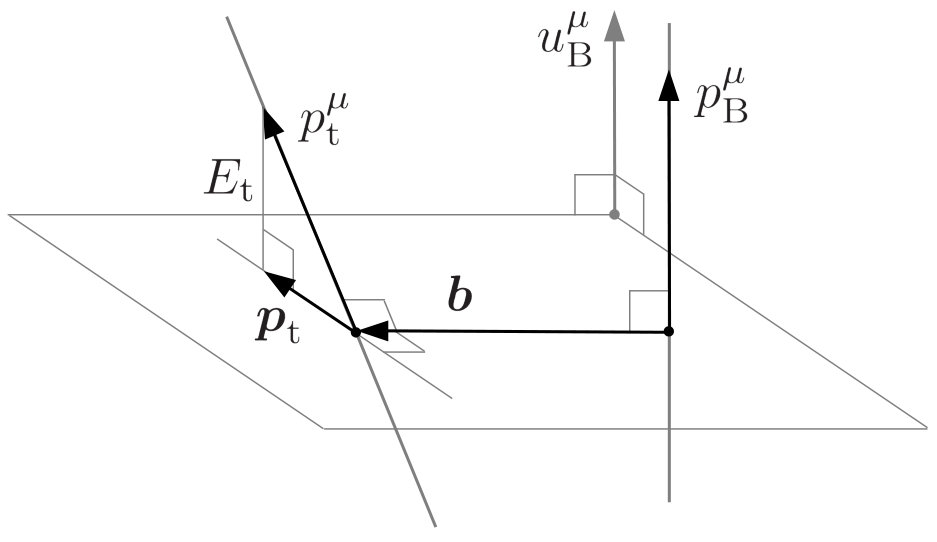

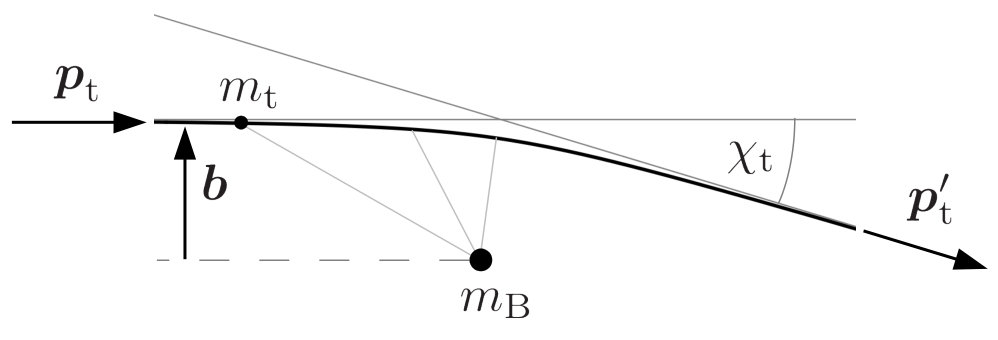

On the other hand, consider the angular momentum tensor of (only) the test body, about the background body, assuming the latter to be at rest at the origin for simplicity $(x=0=z_{\mathrm{B}})$,

[TABLE]

for any point $z_{\mathrm{t}}$ on the test body’s asymptotic worldline. The test body’s background-frame angular momentum vector is

[TABLE]

where $b^{\mu}$ is the impact parameter (which we will not distinguish from that for the two-body system above), orthogonal to both momenta. The magnitudes are related by

[TABLE]

having used (7) and (8). Equations (6), (7), (11) and (14) allow us to express the energies and angular momenta, $E$ and $J$ for the two-body case, and $E_{\mathrm{t}}$ and $J_{\mathrm{t}}$ for the test-body case, in terms of the rest masses and $v$ and $b$, where, in both cases, $v$ is the relative velocity at infinity and $b$ is the impact parameter.

In terms of these new variables, the scattering angle $\chi$ (1a) for the arbitrary-mass-ratio two-body system is given by

[TABLE]

We now see that one simple way to obtain the two-body result (15a) from the test-body result (15b), up to 2PM order, is as follows, directly generalizing Eq. (92) of Ref. Vines (2018) to 2PM order for point masses,

[TABLE]

Comparing this alternative EOB scattering-angle mapping to the original mapping (3) from Ref. Damour (2016), they both involve the identifying of the relative velocity $v$ (or $\gamma$ factor) at infinity for the test-body system with that for the two-body system, which (along with the Newtonian rest-mass mappings) implies the EOB energy map (4); the differences are that (3) similarly identifies the two angular momenta, while (16) instead identifies the two impact parameters, and that the two scattering angles are equal in (3), while they differ by a factor of $E/M$ in (16).

We should be shocked that the two-body result is so simple (and that it is so simply related to the test-body result). In Westpfahl’s calculation Westpfahl (1985), one sees many complicated pieces—related to finite retardation effects, the nonlinearity of the (gauge-dependent) field equations, iterating the effective orbital equations of motion to second order, etc.—but in the end, it all boils down to (15a), which can be obtained from the test-body result (15b), via the simple mapping (16). This is quite reminiscent of (and not unrelated to) difficult Feynman-diagram calculations boiling down to shockingly simple results for quantum scattering amplitudes.

We can in fact give one explanation for the validity of the 2PM EOB scattering-angle mapping (16) based on simple properties of the recent derivation in Ref. Bjerrum-Bohr et al. (2018) of Westpfahl’s 2PM scattering angle from the leading classical parts of tree (1PM) and one-loop (2PM) amplitudes for massive scalars (becoming monopolar point masses in the eikonal limit) exchanging gravitons, obtained via the on-shell unitarity method Neill and Rothstein (2013); Bjerrum-Bohr et al. (2014); Vaidya (2015); Cachazo and Guevara (2017); Guevara (2017). The relevant classical part of the total amplitude (at the leading orders in the momentum transfer $q$, those which contribute to the classical scattering angle) is given by Eqs. (16) and (19) of Ref. Bjerrum-Bohr et al. (2018) as

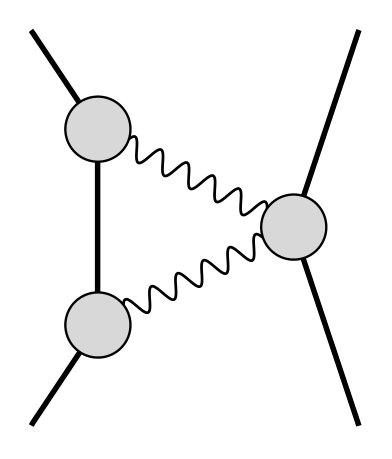

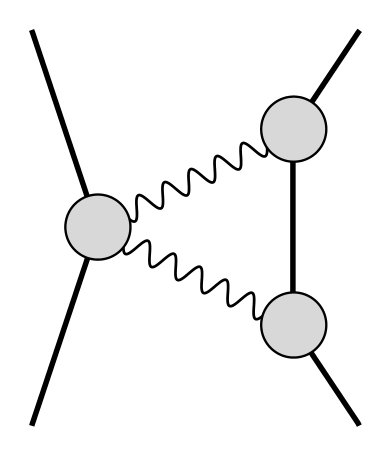

[TABLE]

where $\gamma=p_{1}\cdot p_{2}/m_{1}m_{2}=(1-v^{2})^{-1/2}$ just as in Eqs. (5) and (8) above, and where we have restored factors of $\hbar$, noting that the amplitude $\mathcal{M}$ is dimensionless. As in Eqs. (23)–(24) of Ref. Bjerrum-Bohr et al. (2018), the classical scattering angle $\chi$ (called $\theta$ in Ref. Bjerrum-Bohr et al. (2018)), through one-loop (2PM) order, is a linear functional of the amplitude $\mathcal{M}$ given in our notation (and with some suggestive rearrangement) by

[TABLE]

where the integral over the (spacelike) momentum transfer $\bm{q}$ spans the 2D plane orthogonal to $p_{1}^{\mu}$ and $p_{2}^{\mu}$, the plane containing the impact parameter vector $\bm{b}$, and the result of the integral depends only on $b=|\bm{b}|$. As in Eq. (28) of Ref. Bjerrum-Bohr et al. (2018), inserting the amplitude (17) into Eq. (18), dropping the $\hbar$ corrections resulting from the higher-order-in-$q$ terms, yields the two-body scattering angle $\chi$ just as in Eq. (15a) or (1a) above.

The important point we would like to note about this calculation concerns the dependence of the various contributions on the masses $m_{1}$ and $m_{2}$, at fixed $v$ (or $\gamma$) and $b$. Apart from the explicit appearances of $m_{1}$ and $m_{2}$ in Eqs. (17) and (18), they otherwise enter only through the total center-of-mass-frame energy $E$ (6) in the prefactor of Eq. (18). Thus, using the linearity of Eq. (18), we can fully separate out the mass dependence as follows:

[TABLE]

where again $M=m_{1}+m_{2}$. If we take the test-body limit, say, $m_{1}\to 0$ and $m_{2}\to m_{\mathrm{B}}$, we have from (6) that $E\to m_{2}\to m_{\mathrm{B}}$, and thus

[TABLE]

Here, in the test-body limit, we have lost the contribution from $\mathcal{M}_{\triangleright}$. But we have not lost the most nontrivial part of the information in $\mathcal{M}_{\triangleright}$, the function $f_{\triangleright}(v,b)$, due to the symmetry property $f_{\triangleright}=f_{\triangleleft}$ and to the fact that $f_{\triangleleft}(v,b)$ still appears. Comparing (19) and (20), we see that, regardless of the precise forms of the $f$ functions, given only that $f_{\triangleright}=f_{\triangleleft}$, the arbitrary-mass-ratio two-body result (19) can be obtained from the test-body result (20) via the mapping (16).222It is further suggested by this discussion that the EOB scattering-angle mapping (16) can only be expected to hold up to quadratic order in $G$, i.e., up to 2PM (or one-loop) order. If, hypothetically, a linear formula like (18) continued to hold at ${\cal O}(G^{3})$, we could naively extrapolate the pattern of mass dependence, $\chi[\mathcal{M}_{\mathrm{tree}}]\propto E$ and $\chi[\{\mathcal{M}_{\textrm{one-loop}}\}]\propto E\{m_{1},m_{2}\}$, to continue as $\chi[\{\mathcal{M}_{\textrm{two-loop}}\}]\propto E\{m_{1}^{2},m_{1}m_{2},m_{2}^{2}\}$. Continuing to naively extrapolate, we would then lose both the $m_{1}^{2}$ and $m_{1}m_{2}$ terms in the test-body limit $m_{1}\to 0$; while one might expect to recover the $m_{1}^{2}$ terms from symmetry with the $m_{2}^{2}$ terms, there would be no such hope for the $m_{1}m_{2}$ terms. At least the conclusion of this hand-waving argument, that the mapping (16) will break down at 3PM order (where complete PM results are currently unavailable), is confirmed by results from the PN approximation, as we will see in Sec. IV below. However, by the same reasoning, one might expect that results at the next order in the small-mass-ratio approximation (beyond the test-BH case) can be mapped to the generic-mass case at 3PM order.

This kind of reasoning, about the interplay between scattering angles, scattering amplitudes, and the test-body limit, will guide us in our analysis below, where we consider scattering not of two (monopolar) point masses but of two spinning BHs (including higher-multipole contributions).

III Effective-one-body scattering-angle mappings for an aligned-spin two-black-hole system

As shown in Ref. Vines (2018), a direct analog of the EOB (test-body to two-body) scattering-angle mapping (16) holds for a two-spinning-BH system, with aligned spins, at 1PM order. This is expressed in Eq. (III.2) below. Furthermore, the two-spinning-BH scattering angles, the two-body version $\chi$ and its test-body limit $\chi_{\mathrm{t}}$, can both be obtained at 1PM order from the scattering angle $\chi_{\mathrm{g}}$ for geodesics in the equatorial plane of a stationary Kerr spacetime. The mappings and the three scattering-angle functions are given in Eqs. (26)–(31) below.

Direct analogs of those 1PM EOB aligned-spin scattering-angle mappings do not hold for binary BHs at 2PM order. We find that there is a straightforward 2PM generalization of the former mapping (from a spinning test BH in Kerr to the real binary BH), but not the latter (from equatorial Kerr geodesics to either of the two-spinning-BH cases). This, our central result, is expressed in Eq. (36) below. As discussed in the introduction, we do not prove Eq. (36) to its full potential extent at 2PM order, but instead verify it against available PN results, in Sec. IV below. While we originally arrived at the mapping (36) via the manipulations of PN results described in Sec. IV, we motivate it here, in Sec. III.3, with (conjectural) arguments about derivations of aligned-spin binary-BH scattering angles from (classical limits of) quantum scattering amplitudes for massive spinning particles exchanging gravitons.

Let us emphasize again that the utility of such mappings is rooted in the existence of analytic expressions for BH metrics (in particular the Schwarzschild and Kerr metrics), with two important implications: (i) a calculation of the test-BH scattering angle is a much more tractable problem than of the generic binary BH (see Sec. V), and (ii) the test-BH scattering angle can be obtained without restriction on the impact parameter or velocity and hence is nonperturbative from the PN and PM perspectives.

III.1 Aligned-spin scattering angles

As in the two-monopole case, the scattering angle for an aligned-spin two-BH system can be expressed as a function of the relative velocity $v$ at infinity, an impact parameter $b$, and the masses $m_{1}$ and $m_{2}$, but now with an extra dependence on the BH’s spins $S_{1}$ and $S_{2}$. These (aligned) spin components $S_{1}$ and $S_{2}$ are positive if they are aligned with the orbital angular momentum, negative if antialigned.

Now we must also more precisely define the impact parameter (at infinity), in relation to each BH’s total angular momentum tensor field. For the initial and final asymptotic states (or zeroth-order states, effectively in flat spacetime at infinity), we define, for each BH, its “proper” center-of-mass(-energy) worldline to be the set of points $x$ about which its proper mass-dipole vector $\propto J^{\mu\nu}(x)p_{\nu}$ vanishes, where $J^{\mu\nu}(x)$ is the single BH’s total relativistic angular momentum about $x$, and $p^{\mu}$ is its momentum. The impact parameter we use here is the one orthogonally separating the two BH’s proper worldlines (asymptotically). In other words, we employ here the “covariant” or Tulczyjew-Dixon “spin supplementary condition” to define the representative trajectory of each BH Tulczyjew (1959); Dixon (1979); Schattner (1979); Vines (2018). The BHs’ (Pauli-Lubanski) spin vectors $S^{\mu}$ are each defined by $S^{\mu}=\epsilon^{\mu}{}_{\nu\rho\sigma}J^{\rho\sigma}p^{\nu}/2m$, and their magnitudes are the scalars $(\pm)S$ (see, e.g., Secs. II.H and III of Ref. Vines (2018) for further details).

We can then express the scattering angle for an aligned-spin binary BH as

[TABLE]

where

[TABLE]

are the (oriented/signed) radii of the BHs’ ring singularities, or their mass-rescaled spins (sometimes also referred to simply as the spins below).

Let

[TABLE]

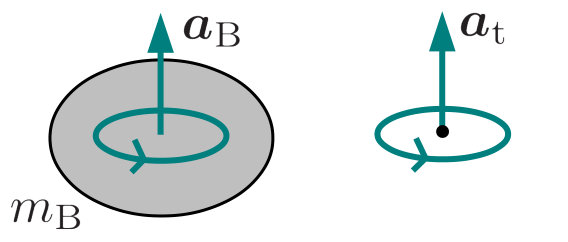

be the scattering angle for a test BH—in a way, a naked ring singularity of finite radius $a_{\mathrm{t}}$ and negligible mass (see Fig. 1)—in a background Kerr spacetime with mass $m_{\mathrm{B}}$ and spin $m_{\mathrm{B}}a_{\mathrm{B}}$, in the aligned-spin configuration. It is obtained as the test-body limit of the two-body angle $\chi$, with $m_{\mathrm{t}}\to 0$ at fixed $a_{\mathrm{t}}$,

[TABLE]

An important assumption implicit throughout our analysis is that this limit is well-defined and finite; we find that this is true at least through the orders considered here. Then, with $a_{\mathrm{t}}\to 0$,

[TABLE]

is the scattering angle for geodesics in the equatorial plane of a Kerr background with mass $m$ and spin $ma$.

III.2 At first post-Minkowskian order

From Eq. (94) of Ref. Vines (2018), the scattering angle for equatorial-Kerr geodesics is given to 1PM order by

[TABLE]

The spinning-test-BH-in-Kerr angle $\chi_{\mathrm{t}}$,

[TABLE]

is obtained from the geodesic result via the mapping

[TABLE]

as in Eq. (90) of Ref. Vines (2018). Furthermore, the angle $\chi$ for the arbitrary-mass-ratio two-body case,

[TABLE]

is obtained from $\chi_{\mathrm{t}}$, much like in Eq. (16) for the nonspinning case, or from $\chi_{\mathrm{g}}$, via the mappings

[TABLE]

as in Eq. (93) of Ref. Vines (2018).

III.3 At second post-Minkowskian order

At 2PM order, neither Eq. (III.2) nor Eq. (28) [nor (31)] holds. There seems to be no directly straightforward generalization to 2PM order of the relation (28) which determines the spinning-test-BH angle $\chi_{\mathrm{t}}$ from the geodesic angle $\chi_{\mathrm{g}}$. Unlike at 1PM order, from 2PM order onward, $\chi_{\mathrm{t}}$ does not depend only on the combination $a_{\mathrm{B}}+a_{\mathrm{t}}$, (dropping the $(v,b)$ dependence)

[TABLE]

Furthermore, also unlike its 1PM version, $\chi_{\mathrm{t}}$ is not symmetric under $a_{\mathrm{B}}\leftrightarrow a_{\mathrm{t}}$,

[TABLE]

But there is a slight modification of the mapping (III.2), determining the real binary-BH angle $\chi$ from the test-BH-in-Kerr angle $\chi_{\mathrm{t}}$, which does hold up to 2PM order—according to the 1PM and 2PM parts of the aligned-spin scattering angles derived from all known PN results for binary-BH dynamics, as we will show in Sec. IV.

We can (hand-wavingly) motivate the form of this mapping as follows, extrapolating from the discussion of classical limits of quantum scattering amplitudes for monopolar (scalar) masses at the end of Sec. II. It is suggested, most directly by the results of Ref. Guevara (2017), that when considering particles/bodies with spin and higher (spin-induced) multipoles, it will continue to be true that the relevant classical-limit scattering amplitude $\mathcal{M}$, through 2PM/one-loop order, will be sufficiently described by a sum of contributions precisely as appearing in Eq. (17o), with one tree-level $\mathcal{M}_{\mathrm{tree}}$ contribution and two one-loop “triangles” $\mathcal{M}_{\triangleleft}$ and $\mathcal{M}_{\triangleright}$ related by interchange of the two massive (now spinning) particles. Due to the correspondence between the effective degrees of freedom for a two-monopole system and an aligned-spin two-BH system, we are led to conjecture that there exists a functional analogous to (18) which linearly produces the aligned-spin scattering angle $\chi$ from (an appropriate form of) the amplitude $\mathcal{M}$. We can further conjecture, extrapolating from (19), that the contributions to the scattering angle will take the following form, in particular regarding their dependences on the masses $m_{1}$ and $m_{2}$ (and the energy $E$),

[TABLE]

This generalizes (19) only by adding a dependence of the $f$ functions on the mass-rescaled spins $a_{1}$ and $a_{2}$ (which crucially differs from having an analogous dependence on, e.g., the full spins $S=ma$, or the dimensionless spins $\hat{a}=a/Gm$); this is motivated by Eqs. (4.12), (4.20) and (A.10) of Ref. Guevara (2017). If we assume (III.3), then the inherent $(m_{1},a_{1})\leftrightarrow(m_{2},a_{2})$ symmetry of the two triangle-loop contributions implies

[TABLE]

This would mean that the information in $f_{\triangleright}$, which would be lost in the test-body limit $m_{1}\to 0$, could be recovered from the information in $f_{\triangleleft}$ which remains. Thus, if Eq. (III.3) and thus Eq. (35) were to validly apply to the aligned-spin scattering angle for a two-spinning-BH system, to some or all orders in spin, then one would be able to conclude that the EOB scattering-angle mapping stated in the following paragraph holds to all orders in $1/c$ and to some or all orders in the BHs’ spins, at 2PM order.

As we will show in the following section, given the scattering angle $\chi_{t}(m_{\mathrm{B}},a_{\mathrm{B}},a_{\mathrm{t}},v,b)$ for a spinning test BH with ring radius $a_{\mathrm{t}}$ in a background Kerr spacetime with mass $m_{\mathrm{B}}$ and spin $m_{\mathrm{B}}a_{\mathrm{B}}$, the scattering angle $\chi$ for an arbitrary-mass-ratio aligned-spin binary BH is given, at least to the accuracy indicated here, by

[TABLE]

This reduces to Eq. (III.2) at 1PM order because $\chi_{\mathrm{t}}$ is symmetric under $a_{1}\leftrightarrow a_{2}$ at 1PM order. There is no such symmetry at 2PM order, and we see in Eq. (36) a rest-mass-weighted average of the angles for each of $a_{1}$ and $a_{2}$ playing the roles of the background Kerr BH’s spin, with the other as the test BH’s spin. We also see the same overall factor of $E/M$ appearing in all of the above scattering-angle mappings, with that factor carrying the only (other) dependence on the mass ratio, at fixed $(M,a_{1},a_{2},b,v)$.

We have indicated in Eq. (36) the levels of approximation up to which we have verified this 2PM EOB aligned-spin scattering-angle mapping against available PN results for binary BH conservative local-in-time dynamics (see Sec. IV.3). This includes333Here we use the standard PN order counting for rapidly rotating BHs. Restoring factors of $c$, we assume spin magnitudes $S=mca$ with the BHs’ ring radii $a$ being on the order of their gravitational radii, $a=(Gm/c^{2})\hat{a}$, with the dimensionless spins $\hat{a}$ being of order unity; i.e., we assume the BHs are nearly extremally spinning. Then, using $1/c^{2}$ as the formal PN expansion parameter, an $n$PN contribution (to the scattering angle, or to a Hamiltonian, as below) comes with a factor of $1/c^{2n}$ relative to Newtonian (0PN) order, when the results are expressed in terms of the dimensionless spins $\hat{a}$. We use the shorthands LO for leading order (the leading PN order at a given order in spin), NLO for next-to-leading order (or subleading order), etc., where “next-to-” or “N” always increments by “one PN order,” i.e., by a factor of $1/c^{2}$. See Footnote 2 of Ref. Vines (2018) for comments on the PM order counting for spin effects being used here.

• •

the point-mass results through NNNLO, 3PN Jaranowski and Schäfer (1998, 1999); Damour et al. (2000a); Jaranowski and Schäfer (2000); Blanchet and Faye (2000a, 2001a, b, 2001b); Damour et al. (2001a); de Andrade et al. (2001); Damour et al. (2001b); Blanchet et al. (2004); Blanchet and Iyer (2003); Itoh and Futamase (2003); Itoh (2004); Foffa and Sturani (2011), which are complete at (are fully determined by the results at) 4PM order,

• •

the spin-orbit (linear-in-spin) results, at

• –

LO, 1.5PN Tulczyjew (1959); Barker and O’Connell (1970, 1975); D’Eath (1975); Barker and Oconnell (1979); Damour (1982); Thorne and Hartle (1984); Damour and Schäfer (1988), complete at 1PM,

• –

NLO, 2.5PN Tagoshi et al. (2001); Faye et al. (2006); Damour et al. (2008b); Steinhoff et al. (2008a); Perrodin (2010); Porto (2010); Levi (2010a), complete at 2PM,

• –

NNLO, 3.5PN Hartung and Steinhoff (2011a); Hartung et al. (2013); Marsat et al. (2013); Bohe et al. (2013); Levi and Steinhoff (2016a, 2015), complete at 3PM,

• •

and the quadratic-in-spin results, at

• –

LO, 2PN Barker and O’Connell (1975); D’Eath (1975); Barker and Oconnell (1979); Thorne and Hartle (1984); Poisson (1998); Damour (2001); Racine (2008), complete at 1PM,

• –

NLO, 3PN Steinhoff et al. (2008b); Porto and Rothstein (2008a, 2006); Levi (2010b); Porto and Rothstein (2008b); Steinhoff et al. (2008c); Hergt et al. (2010, 2012); Bohé et al. (2015), complete at 2PM,

• –

NNLO, 4PN Hartung and Steinhoff (2011b); Levi (2012); Hartung et al. (2013); Levi and Steinhoff (2014, 2016b, 2015), complete at 3PM.

This list includes all currently known PN results for spin-dependent contributions with 2PM parts, with 2PM parts first appearing at the NLO PN levels. The 1PM and 2PM parts constitute the complete LO and NLO PN results at each order in spin. No NLO PN results for real binary BHs are currently available at cubic and higher orders in spin. The mapping (36) holds to all orders in spin at 1PM order [where it simplifies to (III.2)], and thus at the LO PN levels at all orders in spin, according to the results of Refs. Vines (2018); Vines and Steinhoff (2018). According to Westpfahl’s 2PM point-mass scattering angle Westpfahl (1985), and according to the scattering angle derived from Bini and Damour’s 2PM spin-orbit results Bini and Damour (2018), the mapping (36) also holds for the 1PM and 2PM parts at all PN orders up to linear order in the BHs’ spins.

A canonical Hamiltonian (in a certain gauge) encoding the known aligned-spin binary BH dynamics at all the PN orders listed above is shown in Sec. IV.3 below. We derive from this a dual PN-PM expansion of the real binary BH scattering-angle function, through the same orders, in Sec. IV.4. We show that the complete 1PM and 2PM parts of those PN-expanded scattering angles are indeed obtained from the mapping (36) applied to results for a test BH in a background Kerr spacetime presented in Sec. V. The 2PM test-BH results are contained in Eq. (V) below.

We also argue in Sec. IV.3 that Eqs. (36) and (V) allow one to reconstruct the original Hamiltonians at the considered order (up to a gauge or canonical transformation). Hence Eq. (36) applied to Eq. (V) encodes a number of rather lengthy PN results—the complete 1PM and 2PM parts of all the PN results, thus including the complete PN results through NLOs, for aligned spins—in a strikingly compact manner.

IV The post-Newtonian–

post-Minkowskian expansion of the scattering angle

Here we take PN results for canonical Hamiltonians governing the conservative local-in-time dynamics of arbitrary-mass-ratio binary BHs, specialized to the aligned-spin case, and derive from them a PN-PM expansion of the scattering-angle function. This generalizes to spin-squared order similar calculations in Ref. Bini and Damour (2017b) through linear order in spin. We also discuss how this process can be run in reverse, to deduce from the scattering angle a complete aligned-spin Hamiltonian (valid for both unbound and bound orbits), modulo phase-space gauge freedom, at least at the considered PN orders.

We begin in Sec. IV.1 with a general discussion of canonical Hamiltonians for binary-BH conservative local-in-time dynamics, the specialization to the aligned-spin case, and the procedure for deriving the scattering angle from an aligned-spin Hamiltonian. An important ingredient, discussed in Sec. IV.2, is the translation from the “canonical variables” associated with the canonical Hamiltonian—specifically, the orbital angular momentum and the corresponding impact parameter—to the “covariant variables” (those used in Sec. III.1) in terms of which the spin-dependent parts of the scattering angle take their simplest forms. In Sec. IV.3, we display an aligned-spin Hamiltonian in a “quasi-isotropic” gauge, at all of the PN orders listed in Sec. III.3, derived via canonical transformations from the Hamiltonians given in Refs. Damour et al. (2000b); Levi and Steinhoff (2016a, c). We present the resultant PN-PM-expanded scattering angle in Sec. IV.4. We restore in this section factors of the speed of light $c$ which were set to 1 in the previous two sections.

IV.1 Canonical Hamiltonians, aligned spins, and the scattering angle

A canonical Hamiltonian encoding the conservative local-in-time dynamics of a generic binary BH in the center-of-mass frame, with arbitrary spin orientations,

[TABLE]

depends on the (constant) rest masses $m_{1}$ and $m_{2}$, a canonical relative position $\bm{R}(t)$ and its conjugate momentum $\bm{P}(t)$, and the canonical spin vectors $\bm{S}_{1}(t)$ and $\bm{S}_{2}(t)$ with rescaled versions

[TABLE]

having dimensions of length. The Hamiltonian determines the canonical equations of motion,

[TABLE]

with $A=1,2$ (no sum implied), via the canonical Poisson brackets

[TABLE]

with all others vanishing.

In the aligned-spin configuration, both spin vectors are constant and parallel to the constant (canonical) orbital angular momentum vector

[TABLE]

with $L=|\bm{L}|$,

[TABLE]

The orbit is confined to the plane orthogonal to $\hat{\bm{L}}$, in which we can use polar coordinates $(R,\phi)$, where $R=|\bm{R}|$, with canonically conjugate momenta $(P_{R},P_{\phi})$, where $P_{\phi}=L$ is the (canonical) orbital angular momentum, with

[TABLE]

Note that we are implicitly employing a flat background Euclidean 3-metric here. An aligned-spin binary-BH canonical Hamiltonian takes the form

[TABLE]

with the equations of motion

[TABLE]

where $L=P_{\phi}$ is a constant of motion due to the system’s axial symmetry. For the generic Hamiltonians of the form (37) which we employ, from Refs. Damour et al. (2000b); Levi and Steinhoff (2016a, c), the corresponding aligned-spin Hamiltonian of the form (44) can be obtained simply by inserting the aligned-spin relations (42) and simplifying.444This involves, e.g., taking $\bm{a}\cdot\bm{L}\to aL$ (as is the spin dependence of all linear-in-spin terms) and setting to zero the quantities $\bm{a}\cdot\bm{R}$ and $\bm{a}\cdot\bm{P}$. In general, with spin-squared terms, one should be concerned that this process may not commute with the process of obtaining the equations of motion from the Hamiltonian (involving derivatives). However, one can verify that these processes do commute for the generic Hamiltonians we employ, most notably because the quantities $\bm{a}\cdot\bm{R}$ and $\bm{a}\cdot\bm{P}$ which vanish for aligned spins never appear as lone factors in a given term in the Hamiltonian; rather, they always appear multiplied by a second such factor.

Apart from the spins $a_{1}$ and $a_{2}$ appearing as constant parameters, the aligned-spin binary-BH Hamiltonian and equations of motion (44)–(45) are identical in form to those for a two-point-mass system. It follows from the equations of motion (45), as shown e.g. in Ref. Damour (2018), that the gauge-invariant scattering angle $\chi$—the total change in the angle coordinate, $\Delta\phi$, minus $\pi$ (minus $\Delta\phi$ for $G\to 0$)—can be found by solving the relation $H=H(R,P_{R},L)$ giving the Hamiltonian for the relation $P_{R}=P_{R}(H,L,R)$ giving the radial momentum (up to a sign), and then evaluating

[TABLE]

along the appropriate path through the phase space—namely: first, with $P_{R}<0$, from $R=\infty$ down to $R_{\mathrm{min}}$ ($>0$) where $P_{R}=0$, and then back to infinity with $P_{R}>0$. Here we are assuming that $L$ and $H$ are such that $P_{R}$ is real as $R\to\infty$ (such that the orbit is unbound). Note that we have suppressed in Eq. (46) the dependence on the constant masses and spins. The total change in the angle coordinate $\phi$ will correspond to the physical center-of-mass-frame scattering angle as long as the Hamiltonian $H$ reduces to a standard form for a free system in Minkowski space as $R\to\infty$—specifically, with that (0PM) Hamiltonian depending only on $\bm{P}^{2}=P_{R}^{2}+L^{2}/R^{2}$ (and on the constant rest masses), with $H$ and $L$ being the physical center-of-mass-frame total energy and (canonical) orbital angular momentum, respectively.

We note that for a scattering orbit, as opposed to a bound (or, more precisely, nearly circular) orbit, the velocity and the gravitational field strength become independent. Hence we expand the scattering angle (46) independently in $G$ (PM expansion) and $c^{-1}$ (PN expansion). When this expansion is applied to the integrand of Eq. (46), the individual parts of the integral become simple to evaluate (but one has to deal with singularities). We refer the reader to Appendix B of Ref. Damour and Schäfer (1988) for an explanation of this perturbative integration method.

IV.2 Orbital angular momenta and impact parameters: “canonical” versus “covariant” variables

The $L$ above is the magnitude of the canonical orbital angular momentum

[TABLE]

given in terms of the canonical $\bm{R}$ and $\bm{P}$ from the Hamiltonian. This corresponds Barausse et al. (2009); Vines et al. (2016); Vines (2018) to the physical orbital angular momentum (at least at infinity) defined in terms of the BHs’ worldlines which are specified by canonical (or Pryce-Newton-Wigner Pryce (1935, 1948); Newton and Wigner (1949)) spin supplementary conditions for each BH with respect to the system’s center-of-mass frame.

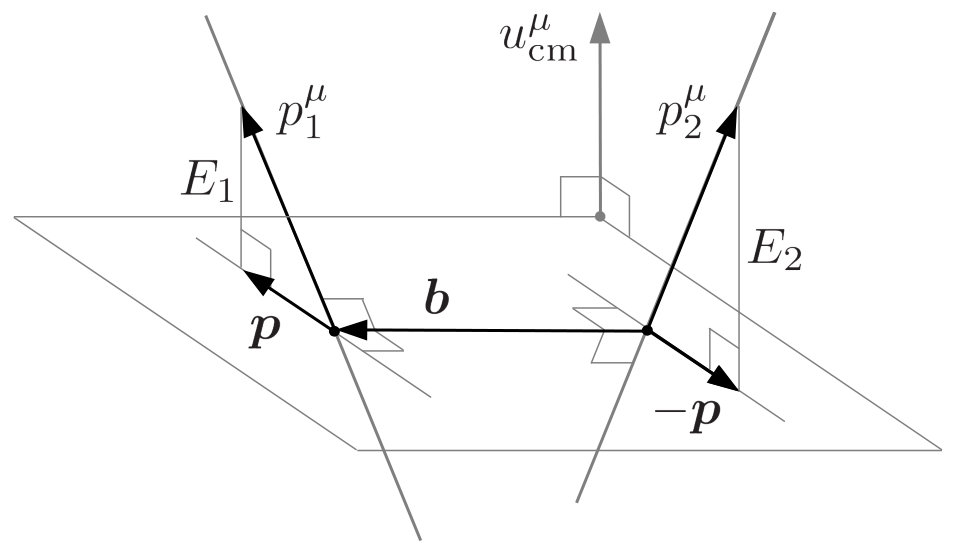

Referring the reader to Ref. Vines (2018) for further details, in the aligned-spin case, a simple way to relate the canonical orbital angular momentum $L=L_{\mathrm{can}}$ to the “covariant” orbital angular momentum $L_{\mathrm{cov}}$ (the one defined in terms of the BHs’ Tulczyjew-Dixon worldlines as discussed in Sec. III.1), is to note their respective relationships (at infinity) to the invariant magnitude $J_{\mathrm{tot}}$ of the two-BH system’s center-of-mass-frame total angular momentum and to the (rescaled) spins $a_{1}$ and $a_{2}$. From Eqs. (96a) and (106d) of Ref. Vines (2018), we have

[TABLE]

where $E_{1}$ and $E_{2}$ are the BHs’ individual energies in the center-of-mass frame. These energies are defined, at infinity, by $E_{1}=p_{1}\cdot u_{\mathrm{cm}}$ and $E_{2}=p_{2}\cdot u_{\mathrm{cm}}$, where $u_{\mathrm{cm}}^{\mu}=(p_{1}^{\mu}+p_{2}^{\mu})/H$ is the 4-velocity of the center-of-mass frame. Like the relative speed $v$ at infinity and the Lorentz factor $\gamma$, the energies $E_{1}$ and $E_{2}$ can be expressed solely in terms of the rest masses $m_{1}$ and $m_{2}$ and the total center-of-mass-frame energy $H$, equal to the quantity $E$ from (6),

[TABLE]

is the magnitude of the (physical) relative momentum $\bm{p}$, orthogonal to $u_{\mathrm{cm}}^{\mu}$, as defined in Sec. II.H.1 of Ref. Vines (2018) where it is called $p_{\perp}^{\mu}$, such that $p_{1}^{\mu}=E_{1}u_{\mathrm{cm}}^{\mu}+\bm{p}^{\mu}$ and $p_{2}^{\mu}=E_{2}u_{\mathrm{cm}}^{\mu}-\bm{p}^{\mu}$ asymptotically (see Fig. 2). Note that $|\bm{p}|$ generally differs from the magnitude $|\bm{P}|$ of the canonical momentum $\bm{P}$ (at infinity) in the Hamiltonian. Finally, one finds from (48)–(49) that the relationship between the (aligned-spin) canonical and covariant orbital angular momenta can be expressed as

[TABLE]

where we define

[TABLE]

The impact parameters—the distances (in either BH’s rest frame or in the center-of-mass frame) orthogonally separating the BHs’ asymptotic worldlines, $b_{\mathrm{can}}$ for the center-of-mass-frame Pryce-Newton-Wigner worldlines, and $b_{\mathrm{cov}}\equiv b$ for the Tulczyjew-Dixon worldlines—are related to the orbital angular momenta by

[TABLE]

as in Eq. (67) of Ref. Vines (2018). Thus, from (49)–(52), the canonical orbital angular momentum $L=L_{\mathrm{can}}$, appearing in the aligned-spin Hamiltonian (44), is related to the covariant impact parameter $b=b_{\mathrm{cov}}$ by

[TABLE]

Using this key relation to express $L$ in terms of $b$ leads to significant simplifications of the spin-dependent parts of the PN-PM expansion of the scattering angle.

Note that, given fixed rest masses, the quantities $v$, $\gamma$, and $\Gamma$ are each determined by the total energy $H$, and vice versa, via (49a)–(49b). We can thus trade $H$ for $v$, and $L$ for $b$, as the independent variables in the scattering-angle function. Then (46) is replaced by

[TABLE]

where $P_{R}(v,b,R)$ is found by solving the Hamiltonian relation $H=H(R,P_{R},L)$ while using (49) and (53) to eliminate $H$ and $L$ in favor of $v$ and $b$.

IV.3 The post-Newtonian Hamiltonian in a quasi-isotropic gauge

In the following we collect the PN Hamiltonians that enter the calculation of the scattering angle. A canonical Hamiltonian for a binary BH including the NNLO-PN contributions up to quadratic order in the BHs’ spins is given in Refs. Levi and Steinhoff (2016a, c). The NNNLO (3PN) point-mass contributions can be found in Ref. Damour et al. (2000b). Since the Hamiltonians are given in different gauges (or canonical coordinates) in the literature, we need to take special care to transform them to the same canonical variables.

Using PN perturbative canonical transformations as discussed in, e.g., Refs. Buonanno and Damour (1999); Damour et al. (2000b); Levi and Steinhoff (2016a), one finds that the aligned-spin Hamiltonian can be brought into a form such that it depends on the momentum $\bm{P}$ only through $\bm{P}^{2}=P_{R}^{2}+L^{2}/R^{2}$ (not separately on $P_{R}$ and $L$), except in the odd-in-spin terms where one has single factors of $\bm{L}\cdot\bm{a}\to La$. This defines a “quasi-isotropic” gauge. One finds, in fact, that these requirements fix the gauge of the Hamiltonian up to a family of canonical transformations determined by one function of one (dynamical) variable (and rest masses), and that this freedom is fixed once a 0PM Hamiltonian of the form $H_{\mathrm{0PM}}(\bm{P}^{2};m_{1},m_{2})$ is fixed—at the least, at the PN orders considered here. It can be easily verified that the scattering angle derived from (54) is invariant under this family of canonical transformations, as is a consequence of the less easily verified fact that the scattering angle is invariant under arbitrary canonical transformations of the Hamiltonian preserving the property that $H_{\mathrm{0PM}}$ depends only on $\bm{P}^{2}$ (and rest masses). These facts, along with counting coefficients in the angle and in the Hamiltonian, demonstrate that the complete (phase-space-)gauge-invariant information of the Hamiltonian is encoded in the scattering angle. At least perturbatively, at the orders considered here, one can deduce a valid Hamiltonian, modulo gauge, by posing an ansatz with undetermined coefficients, computing the scattering angle, and matching coefficients. Specifically, for example, one can start from the Hamiltonians given precisely as in Eqs. (IV.3.1), (IV.3.2) and (IV.3.3) below, with unknown coefficients $\alpha_{\ldots}$, compute the scattering angle from that Hamiltonian, and set it equal to the final result (68); this yields a redundant system of equations with a family of solutions for the Hamiltonian coefficients having one constant (mass-dependent) free coefficient at each (point-mass) PN order starting from 1PN, and this remaining freedom can be fixed by demanding a particular form for the 0PM Hamiltonian as a function of $\bm{P}^{2}$. We present in the following the results for the Hamiltonian in a certain quasi-isotropic gauge, with the remaining freedom fixed as described in the following subsection.

IV.3.1 Point-mass contributions

At 4PN order the point-mass or spin-independent Hamiltonian becomes nonlocal in time Damour et al. (2014); see Ref. Bini and Damour (2017b) for a calculation of the scattering angle to this order. Since the present paper is concerned with spin contributions, we restrict our attention here to the simpler local-in-time point-mass Hamiltonian up to 3PN. The point-mass contributions to the Hamiltonian, in an isotropic gauge, can be expressed as follows,

[TABLE]

with the 1PN coefficients,

[TABLE]

The gauge of the Hamiltonian here has been fixed by requiring that it is isotropic, depending on the canonical momentum $\bm{P}$ only through ${\bm{P}}^{2}$, and (to fix the remaining gauge freedom discussed above) by requiring that the 0PM column of Eq. (IV.3.1) matches the expansion in $1/c^{2}$ of

[TABLE]

which is the result of the EOB energy map (4) being applied, with $E\to H$, to the Hamiltonian $E_{\mathrm{t}}\to H_{\mathrm{t}}=\sqrt{\mu^{2}c^{4}+\bm{P}^{2}c^{2}}$ for a free particle of mass $\mu$ in flat spacetime.555The 1PN part of the Hamiltonian in the standard Arnowitt-Deser-Misner (ADM) gauge Blanchet (2014) reads

$\displaystyle H_{\mathrm{1PN}}^{\mathrm{ADM}}$ \displaystyle=\frac{\mu}{c^{2}}\bigg{[}-\frac{1-3\nu}{8}\frac{\bm{P}^{4}}{\mu^{4}}-\frac{3+\nu}{2}\frac{L^{2}}{\mu^{2}R^{2}}\frac{GM}{R}

\displaystyle\qquad\quad-\frac{3+2\nu}{2}\frac{P_{R}^{2}}{\mu^{2}}\frac{GM}{R}+\frac{G^{2}M^{2}}{2R^{2}}\bigg{]}.

(58)

Using the generating function

\mathcal{G}_{\mathrm{1PN}}=\bm{P}\cdot\bm{R}\frac{1}{c^{2}}\bigg{(}\beta_{1}\frac{\bm{P}^{2}}{\mu^{2}}+\beta_{2}\frac{GM}{R}\bigg{)},

(59) a perturbative canonical transformation yields the transformed 1PN Hamiltonian $H^{\prime}_{\mathrm{1PN}}=H_{\mathrm{1PN}}^{\mathrm{ADM}}+\{\mathcal{G}_{\mathrm{1PN}},H_{\mathrm{0PN}}\}$,

$\displaystyle H^{\prime}_{\mathrm{1PN}}$ \displaystyle=\frac{\mu}{c^{2}}\bigg{[}-\frac{1-3\nu+8\beta_{1}}{8}\frac{\bm{P}^{4}}{\mu^{4}}

$\displaystyle\qquad\quad-\frac{3+\nu-2\beta_{1}+2\beta_{2}}{2}\frac{L^{2}}{\mu^{2}R^{2}}\frac{GM}{R}$

\displaystyle\qquad\quad-\frac{3+2\nu-6\beta_{1}}{2}\frac{P_{R}^{2}}{\mu^{2}}\frac{GM}{R}+\frac{1+2\beta_{2}}{2}\frac{G^{2}M^{2}}{R^{2}}\bigg{]}.

(60)

We see that the second two terms will combine into one term proportional to $\bm{P}^{2}=L^{2}/R^{2}+P_{R}^{2}$ if

$\beta_{2}=\frac{\nu-4\beta_{1}}{2}\quad\Rightarrow\quad\textrm{an isotropic gauge},$

(61) but there is still the freedom of choosing $\beta_{1}$, so that we have a one-parameter family of isotropic gauges up to the 1PN point-mass level. While continuing to enforce the isotropic condition, one similarly encounters one new free parameter at each $n$PN point-mass level with $n\geq 1$. In (56), we have used $\beta_{1}=\nu/2$ at 1PN and corresponding choices at higher PN orders which make the 0PM column of Eq. (IV.3.1) match the $1/c^{2}$ expansion of Eq. (57), yielding an isotropic EOB gauge for the point-mass Hamiltonian. One can instead make the 0PM column match

$H_{\mathrm{0PM}}^{\prime}=\sqrt{m_{1}^{2}c^{4}+\bm{P}^{2}c^{2}}+\sqrt{m_{2}^{2}c^{4}+\bm{P}^{2}c^{2}},$

(62) as in the 0PM part of the ADM-gauge Hamiltonian Blanchet (2014), or as in the isotropic-gauge Hamiltonian of Ref. Cheung et al. (2018), by using $\beta_{1}=0$ and corresponding choices at higher PN orders.

This defines a unique isotropic EOB gauge for the point-mass Hamiltonian $H_{a^{0}}(R,\bm{P}^{2};m_{1},m_{2})$. It also fixes a unique quasi-isotropic gauge for the aligned-spin Hamiltonian $H(R,\bm{P}^{2},L;m_{1},m_{2},a_{1},a_{2})$. Once the remaining freedom (among isotropic gauges) has been fixed in this way for the point-mass part of the Hamiltonian, no further gauge freedom is present in the following aligned-spin contributions, if we impose the quasi-isotropic conditions discussed above.

IV.3.2 Spin-orbit contributions

The linear-in-spin, or spin-orbit, Hamiltonians up to NNLO from Ref. Levi and Steinhoff (2016a) can be brought into a quasi-isotropic gauge through a canonical transformation, yielding the form

[TABLE]

recalling $a_{\pm}=a_{1}\pm a_{2}$ and $\delta=\dfrac{m_{1}-m_{2}}{M}$.

With the point-mass part in the isotropic EOB gauge, the spin-orbit coefficients in the unique quasi-isotropic EOB gauge are as follows: at NLO,

[TABLE]

and at NNLO,

[TABLE]

IV.3.3 Spin-squared and quadrupole contributions

The spin-squared parts of the Hamiltonians up to NNLO from Refs. Levi and Steinhoff (2016a, c) include contributions from the bodies’ quadrupole moments, which depend on the internal structure. The quadrupole moments here are specialized to those of BHs. After performing a perturbative canonical transformation, the spin-squared Hamiltonian in the quasi-isotropic EOB gauge reads

[TABLE]

with the NLO coefficients

[TABLE]

and the NNLO coefficients

[TABLE]

IV.4 The scattering angle

Solving the expression of the Hamiltonian for the radial momentum $P_{R}$ as discussed below (54), inserting this into (54), and integrating (using, e.g., the method described in Damour and Schäfer (1988)) yields the scattering angle as follows. Factoring out the quantity $\Gamma=H/M$ seen in the numerator of the prefactor in (54), we find the spin0 part,

[TABLE]

We can already see here that, in these forms, in terms of these variables, remarkably, the 1PM and 2PM parts (of the right-hand sides) are independent of the symmetric mass ratio $\nu$ and linear in the antisymmetric mass ratio $\delta$. In the test-body limit, say, $m_{2}\to 0$, we have $\nu\to 0$, $\delta\to 1$, and $\Gamma\to 1$. One can then verify directly from Eq. (68) and its test-body limit that our main result, the EOB scattering-angle mapping (36), holds up to these PN orders. At 1PM order, also the dependence on $\delta$ drops out, and the simpler map in Eq. (III.2) is valid.

As discussed above, the scattering angle $\chi$ determines the Hamiltonian $H$ (for arbitrary mass ratios) up to gauge, at these PN orders (not just at 1PM and 2PM orders, but also including the 3PM and 4PM parts seen here). The process of deriving $\chi$ from $H$ projects out precisely the gauge information, and $H$ can be fully recovered from $\chi$, modulo phase-space gauge freedom, at these orders. While we have started here from a PN Hamiltonian, one could also start from independent results for the scattering angle and deduce a valid Hamiltonian.

Such independent results for the scattering angle can be obtained up to 2PM order by applying the 2PM EOB scattering-angle mapping (36) to results for spinning test BH in a background Kerr spacetime presented in the following section. The test-BH results below are in fact valid for arbitrary $v/c$, i.e. to all PN orders at a given PM order. While we have shown conclusively only that the mapping (36) produces correct arbitrary-mass-ratio results up to certain PN orders and certain orders in spin, we conjecture that its validity extends beyond these orders.

V Test-black-hole scattering in a background Kerr spacetime

Above we have worked with the dynamics of arbitrary-mass-ratio binary BHs as calculated in the PN (weak-field and slow-motion) approximation, in particular having computed the binary BH scattering angle as a dual expansion in $G$ and in $1/c^{2}$, to orders accessible by use of previous derivations of PN Hamiltonians. Here we present analogous PM (weak-field, arbitrary-speed) results which can be obtained in a certain test-body limit (a limit where the mass ratio tends to zero) of the binary BH problem. We verify that (i) when we take the test-body limit of the PN results from Sec. IV.4, we obtain the PN expansions (expansions in $1/c^{2}$) of the test-body results presented here, and (ii) the 1PM and 2PM parts of the arbitrary-mass-ratio PN results are fully recovered from the PN expansion of the mapping (36), our central result, applied to the test-body results. We emphasize again that the (PM, or even strong-field) test-body computations are significantly more easily accomplished than the arbitrary-mass-ratio (PN) computations, while our mapping (36) allows one to obtain the latter from the former, up to 2PM order, to the extent that PN results are available. The PM test-body results below are in fact obtained by PM-expanding exact (nonperturbative, strong-field) equations governing the motion of a test body (a test BH) in a background Kerr spacetime, at low orders in the multipole expansion of the test body. We again set $c=1$ in this section.

We consider in particular an extended-test-body limit, in which the mass of one body (and thus its influence on the gravitational field) becomes negligible, but in which it retains a finite spatial extent; even as its mass tends to zero, the extended test body’s mass-rescaled multipole moments remain finite, and influence its motion. Such a test body, moving in an arbitrary (possibly strong-field) fixed background spacetime with metric $g_{\mu\nu}$, can be described by a (physical or effective) stress-energy tensor $T^{\mu\nu}$ which is conserved according to $\nabla_{\mu}T^{\mu\nu}=0$, where $\nabla_{\mu}$ is the covariant derivative for the background $g_{\mu\nu}$. Following the early analyses of Mathisson Mathisson (1937, 2010) and Papapetrou Papapetrou (1951) at pole-dipole order (see also Tulczyjew (1959)), it was most rigorously demonstrated by Dixon Dixon (1979, 2015) (see also Ehlers and Rudolph (1977); Schattner (1979); Harte (2012, 2015)) that such a test body must obey translational and rotational equations of motion of the following form, obtained via a multipole expansion of the body’s stress-energy distribution, the so-called Mathisson-Papapetrou-Dixon (MPD) equations,

[TABLE]

The MPD equations (the first two lines) govern the evolution of the test body’s linear momentum vector $p^{\mu}(\sigma)$ and angular momentum (or spin) tensor $S^{\mu\nu}(\sigma)$ along a worldline $x=z(\sigma)$ with tangent $\dot{z}^{\mu}=dz^{\mu}/d\sigma$, where $\sigma$ is an arbitrary parameter. The last line is the Tulczyjew-Dixon supplementary condition Tulczyjew (1959); Dixon (1979); Schattner (1979), which fixes a choice for the body’s centroid worldline by setting to zero its mass-dipole vector $(\propto S^{\mu\nu}p_{\nu})$ about that worldline as defined in the body’s own local rest frame. The equations further depend only on the background spacetime (through the metric $g_{\mu\nu}$ and its covariant curvature tensors, the Riemann tensor $R_{\mu\nu\rho\sigma}$ and its covariant derivatives) and on the body’s higher (relativistic) multipole moments, beginning with the quadrupole $J^{\mu\nu\rho\sigma}$.

We refer the reader to Dixon (1979, 2015); Harte (2012, 2015) for detailed discussions of Dixon’s definitions of the multipoles, the monopole $p_{\mu}$, the dipole $S_{\mu\nu}$, etc., in terms of its stress-energy $T^{\mu\nu}$, noting here only the following two properties. Firstly, in the absence of spacetime curvature, the definitions of $p_{\mu}$ and $S_{\mu\nu}$ reduce to the standard definitions for an isolated body in flat spacetime. Secondly, given any Killing vector $\xi^{\mu}$ of the background, the quantity

[TABLE]

is exactly conserved, to all orders in the multipole expansion Ehlers and Rudolph (1977); Dixon (1979); Harte (2015).

We are interested here in taking an extended-test-body limit for a spinning BH, to obtain a “spinning test BH.” By this we understand that we neglect the influence of the test BH on the curvature of spacetime (its mass is small compared to the scale of the “background” curvature), while we keep its spatial extent finite. This can be achieved by taking the limit $m_{\mathrm{t}}/m_{\mathrm{B}}\rightarrow 0$ while keeping fixed the ring radius $a_{t}$ of the test BH. Strictly speaking, this does not describe a BH (with a ring singularity hidden behind an event horizon), but a “naked” ring singularity of negligible mass. But the mass-rescaled multipoles, and hence the equations of motion, of both the naked ring singularity and the BH ring singularity are identically determined as a function of the ring radius $a_{\mathrm{t}}$ Hansen (1974) at the level of approximation that we are interested in; these are the spin-induced multipole moments. (We neglect tidally induced multipole moments, including absorption or “tidal heating” effects from the horizon, which would contribute at orders beyond those considered here.) At the quadrupolar level in the multipole expansion, a worldline action including a generic spin-induced quadrupole was derived in Ref. Porto and Rothstein (2008b), and this can be related to the MPD equations Steinhoff (2011); Steinhoff and Puetzfeld (2012); Buonanno et al. (2013); Bini and Geralico (2013, 2014); Marsat (2015); Vines et al. (2016) and specialized to a BH (with appropriate matching to the Kerr solution), leading to

[TABLE]

as the relativistic quadrupole moment appropriate for a spinning BH in the MPD equations with the Tulczyjew-Dixon condition (V).

Let us now discuss the motion of a test BH in the background spacetime of a large BH described by the Kerr metric. The Kerr metric possesses two Killing vectors, a timelike Killing vector $t^{\mu}$ (time translation symmetry) and an axial Killing vector $\phi^{\mu}$ (rotation symmetry about the spin axis), leading respectively to the test body’s conserved energy $E$ and total angular momentum $J$ via Eq. (70), for an aligned-spin equatorial orbit,

[TABLE]

[See Eq. (7) and the test-body ($\nu\to 0$) limits of Eqs. (48) and (53), and discussion, e.g., in Refs. Bini et al. (2017); Vines (2018), for the identifications on far-left-hand sides.] These conservation laws allow one to integrate the equations of motion for the aligned-spin case Steinhoff and Puetzfeld (2012); Bini et al. (2017): we have three independent equations from the supplementary condition $S^{\mu\nu}p_{\nu}=0$, another three from its time derivative, the normalization $\dot{z}^{\mu}\dot{z}_{\mu}=1$, the (approximately) conserved mass of the test BH related to $p^{\mu}p_{\mu}$ [see Eq. (64) in Ref. Steinhoff and Puetzfeld (2012) or Ref. Bini et al. (2017)], one equation restricting the motion to the equatorial plane, three equations for the (constant) magnitude and aligned direction of the test spin, and the two conservation laws (72). These 14 algebraic equations can be solved for the 14 independent components of $p_{\mu}$, $\dot{z}^{\mu}$, and $S^{\mu\nu}=-S^{\nu\mu}$.

Having an algebraic solution for $\dot{z}^{\mu}$, one can integrate it to yield $z^{\mu}(\sigma)$. Since we are only interested in the scattering angle, we can directly integrate $d\phi/dr=\dot{z}^{\phi}/\dot{z}^{r}$ given by Eq. (66) from Ref. Bini et al. (2017) between the initial and final state. Expanding the integrand in spins and in $G$ (PM expansion) to the same levels as in the last section (but without PN expansion in $v$) leads to the following result for the aligned-spin scattering angle for a test BH with ring radius $a_{\mathrm{t}}$ in a Kerr background with mass $m_{\mathrm{B}}\equiv M$ and spin ${M}a_{\mathrm{B}}$,

[TABLE]

where, here,

[TABLE]

Firstly, one can verify that the test-body limit of the PN scattering angle given by Eqs. (68), to the given PN orders, matches this result derived from the test-BH MPD equations. Finally and most importantly, applying the mapping (36) to the test-BH-in-Kerr scattering angle (V), and PN-expanding the result, one obtains precisely the 1PM and 2PM parts of the PN-PM results (68).

VI Conclusions

The encounter of two BHs is a fundamental process in our Universe, from the inspiral of astrophysical BHs, observed through GWs, to the (hypothetical) scattering of two BHs in analogy to particle physics experiments. In the present paper, we proposed that the scattering-angle function for two spinning BHs at 2PM order is related in a particularly simple way to the scattering angle for a test BH in a stationary BH spacetime, for the case of aligned spins [see Eq. (36)]. While we were unable to verify this mapping to its full potential extent at 2PM order and at all orders in spins, we checked its validity against all available results for the conservative local-in-time dynamics of binary BHs in the PM, PN, and test-BH approximations: the PN Hamiltonian including subsubleading-order results up to quadratic order in spin Damour et al. (2000b); Levi and Steinhoff (2016a, c), the 1PM scattering angle at all orders in spin Vines (2018) (implying agreement with the LO PN Hamiltonian to all orders in spin Vines and Steinhoff (2018)), the 2PM spin-orbit (linear-in-spin) scattering angle Bini and Damour (2018), and the scattering angle for a test BH in a Kerr background to quadratic order in spin Bini et al. (2017).

This result is interesting not only for the scattering of BHs, but also for BHs in bound orbits. The reason is that, for aligned spins and at least to 2PM order (at least up to the subsubleading PN orders), the scattering angle uniquely encodes the Hamiltonian dynamics (more precisely, an equivalence class of Hamiltonians subject to canonical transformations). An important possible application of our result is the 2PM resummation of conservative spin effects in the EOB gravitational waveform model for inspiraling BHs. The challenge here is to find a suitable gauge (canonical representation) for the EOB Hamiltonian informed by the 2PM scattering angle.

It is not uncommon that elegant resummations at lower orders have extrapolated to new results. For instance, it was shown in Ref. Vines and Steinhoff (2018) that the simple “EOB spin map” employed in Ref. Damour et al. (2008a) and some subsequent EOB models (identifying the ring radius of an effective [$\nu$-deformed] Kerr spacetime with the sum of the ring radii of the individual BHs, as first suggested in Ref. Damour (2001)), while intending to resum LO PN results at quadratic order in spin only, in fact led to the correct dynamics at the leading PN orders for all even orders in spin. If the map (36) were to hold to some further extent at 2PM order, say, through subleading PN orders at some higher orders in spin, and if one had results for the test-BH-in-Kerr scattering angle at higher orders in spin, then this would provide new and complete sub-LO PN results beyond quadratic order in spin (for aligned spins). Furthermore, since the scattering angle for a test BH (assuming that this is well-defined at higher orders in spin at 2PM order) could be obtained exactly, based on exact solutions like the Kerr metric, the map (36) represents a PM-nonperturbative resummation in the spirit of EOB models.

The simplicity of the BH scattering-angle map at 2PM order is reminiscent of the elegance of on-shell methods used to calculate scattering amplitudes for elementary particles, using consistency with relativistic kinematics, gauge symmetries, locality, and unitarity Parke and Taylor (1986); Bern et al. (1994, 1995); Britto et al. (2005a, b, c); Bern et al. (2008, 2010a, 2010b); Guevara (2017); Arkani-Hamed et al. (2017); Ochirov (2018). This is in sharp contrast to the lengthy calculations of scattering amplitudes through Feynman diagrams, rules, and integrals. Likewise, we suspect that a proof of the BH scattering-angle map at 2PM (at least up to the PN and/or spin orders where it has been shown to hold here, if not higher) is possible using simple generic principles, instead of going through lengthy iterative solutions of the equations of motion (which should in complete generality involve asymptotic matching to perturbed BH spacetimes). In fact, it is conceivable that the simplest demonstration of some (approximate or exact) version of the scattering-angle map might come from a classical limit of a seemingly more complicated problem, namely, calculation of the one-loop quantum scattering amplitude involving two quantum BHs.

Acknowledgements.

We are grateful to Mohammed Khalil for his help in verifying the changes in this new version of this paper, where we have corrected misstatements concerning the amount of freedom in canonical transformations between different quasi-isotropic gauges for aligned-spin canonical Hamiltonians.
