Spatio-temporal Persistent Homology for Dynamic Metric Spaces

TL;DR

This paper introduces a new spatiotemporal filtration method for dynamic metric spaces in topological data analysis, establishing stability results and proposing practical metrics for comparing their multidimensional persistence modules.

Contribution

It extends Rips filtration stability to dynamic metric spaces using a three-parameter filtration and proposes practical metrics for comparing their persistence invariants.

Findings

Stability of multidimensional persistence modules under a generalized Gromov-Hausdorff distance.

Introduction of a spatiotemporal filtration for dynamic metric spaces.

Analysis of computational complexity for proposed comparison metrics.

Abstract

Characterizing the dynamics of time-evolving data within the framework of topological data analysis (TDA) has been attracting increasingly more attention. Popular instances of time-evolving data include flocking/swarming behaviors in animals and social networks in the human sphere. A natural mathematical model for such collective behaviors is a dynamic point cloud, or more generally a dynamic metric space (DMS). In this paper we extend the Rips filtration stability result for (static) metric spaces to the setting of DMSs. We do this by devising a certain three-parameter "spatiotemporal" filtration of a DMS. Applying the homology functor to this filtration gives rise to multidimensional persistence module derived from the DMS. We show that this multidimensional module enjoys stability under a suitable generalization of the Gromov-Hausdorff distance which permits metrizing the collection of all DMSs. On the other hand, it is recognized that, in general, comparing two multidimensional persistence modules leads to intractable computational problems. For the purpose of practical comparison of DMSs, we focus on both the rank invariant or the dimension function of the multidimensional persistence module that is derived from a DMS. We specifically propose to utilize a certain metric d for comparing these invariants: In our work this d is either (1) a certain generalization of the erosion distance by Patel, or (2) a specialized version of the well known interleaving distance. We also study the computational complexity associated to both choices of d.

Figures

Equations

$$\left(\varphi^{*}d\right)(z,z^{\prime}):=d\left(\varphi(z),\varphi(z^{\prime})\right),\ \ \mbox{ $(z,z^{\prime})\in Z\times Z.$}$$

$$d_1{\le }_R{d}_2,$$

$$\left(I,x,x^{\prime }\right)\mapsto \underset{I}{\bigvee }{d}_X(x,x^{\prime }):=\underset{s\in I}{\min }{d}_X(s)(x,x^{\prime }).$$

$$\mbox{for all $t\in\mathbf{R}$},\ \ \bigvee_{[t]^{\varepsilon}}d_{X}\leq_{R}d_{Y}(t)+2\varepsilon\ \ \mbox{and}\ \ \bigvee_{[t]^{\varepsilon}}d_{Y}\leq_{R}d_{X}(t)+2\varepsilon.$$

$$d_{\mathtt{dyn}}({\gamma }_X,{\gamma }_Y):=\underset{R}{\min }{\mathrm{dis}}^{\mathrm{dyn}}(R),$$

$$\left\lvert d_{X}(x,x^{\prime})-d_{Y}(y,y^{\prime})\right\rvert\leq 2\varepsilon\ \ \mbox{for all $(x,y),(x^{\prime},y^{\prime})\in R$}.$$

$$d_{\mathrm{GH}}((X,d_X),(Y,d_Y))=d_{\mathtt{dyn}}({\gamma }_X,{\gamma }_Y).$$

$$\mbox{for all $t\in\mathbf{R}$},\ \ \bigvee_{[t]^{\varepsilon}}d_{X}\leq_{R}d_{Y}(t)+\lambda\varepsilon\ \mbox{and}\ \ \bigvee_{[t]^{\varepsilon}}d_{Y}\leq_{R}d_{X}(t)+\lambda\varepsilon.$$

$$\mbox{for all $t\in\mathbf{R}$},\ \ \bigvee_{[t]^{\frac{\varepsilon}{\lambda}}}d_{X}\leq_{R}d_{Y}(t)+\varepsilon\ \ \mbox{and}\ \ \bigvee_{[t]^{\frac{\varepsilon}{\lambda}}}d_{Y}\leq_{R}d_{X}(t)+\varepsilon.$$

$$\mathrm{dis}(R)(t):=\inf \{\epsilon \in {\mathbf{R}}_{+}:d_X(t){\le }_R{d}_Y(t)+\epsilon \text{mbox}and{d}_Y(t){\le }_R{d}_X(t)+\epsilon \}.$$

$$d_{\mathrm{GH}}^{\mathrm{dyn}}({\gamma }_X,{\gamma }_Y):=\underset{R}{\min }\underset{t\in \mathbf{R}}{\sup }\mathrm{dis}(R)(t),$$

$$\underset{\lambda \to \infty }{\lim }{d}_{\lambda }^{\bullet }({\gamma }_X,{\gamma }_Y)=d_{\mathrm{GH}}^{\mathrm{dyn}}({\gamma }_X,{\gamma }_Y).$$

$$L_{\mathrm{GH}}^{(\infty )}({\gamma }_X,{\gamma }_Y):=\underset{t\in \mathbf{R}}{\sup }{d}_{\mathrm{GH}}({\gamma }_X(t),{\gamma }_Y(t))=\frac{1}{2}\cdot \underset{t\in \mathbf{R}}{\sup }\underset{R}{\min }\mathrm{dis}(R)(t)\stackrel{(\ast )}{\le }\frac{1}{2}\cdot \underset{R}{\min }\underset{t\in \mathbf{R}}{\sup }\mathrm{dis}(R)(t)=\frac{1}{2}\cdot d_{\mathrm{GH}}^{\mathrm{dyn}}({\gamma }_X,{\gamma }_Y).$$

$$L^{(p)}_{\mathrm{GH},\zeta}(\gamma_{X},\gamma_{Y}):=\left(\int_{t\in\mathbf{R}}\big{(}d_{\mathrm{GH}}(\gamma_{X}(t),\gamma_{Y}(t))\big{)}^{p}d\zeta\right)^{\frac{1}{p}}.$$

$$([t_{1},t_{2}],\delta)\leq([t_{1}^{\prime},t_{2}^{\prime}],\delta^{\prime})\ \mbox{in $\mathbf{Int}\times\mathbf{R}_{+}$\ \ \ if and only if}\ \ \ (t_{1},t_{2},\delta)\leq(t_{1}^{\prime},t_{2}^{\prime},\delta^{\prime})\ \mbox{in $\mathbf{R}_{\times}^{3}$}.$$

$${\mathcal{R}}^{\mathrm{lev}}({\gamma }_X{)}_{(I,\delta )}={\mathcal{R}}_{\delta }(X,d_X).$$

$${\mathcal{R}}^{\mathrm{lev}}({\gamma }_X{)}_{([t,t],\delta )}={\mathcal{R}}_{\delta }(X,d_X(t)),t\in \mathbf{R},\delta \in {\mathbf{R}}_{+}.$$

$$\underline{{\mathbf{R}}^6}:=\{(t_1,t_2,\delta ,t_1^{\prime },t_2^{\prime },{\delta }^{\prime })\in {\mathbf{R}}^6:[t_1,t_2]\subset [t_1^{\prime },t_2^{\prime }]\text{mbox}and\delta \le {\delta }^{\prime }\}.$$

$${\mathrm{rk}}_k({\gamma }_X)\left(t_1,t_2,\delta ,t_1^{\prime },t_2^{\prime },{\delta }^{\prime }\right):=\mathrm{rank}\left({\mathrm{H}}_k\left({\mathcal{R}}_{\delta }\left(X,\underset{[t_1,t_2]}{\bigvee }{d}_X\right)\hookrightarrow {\mathcal{R}}_{{\delta }^{\prime }}\left(X,\underset{[t_1^{\prime },t_2^{\prime }]}{\bigvee }{d}_X\right)\right)\right).$$

$$F(\mathbf{v}{)}_{\mathbf{a}}:=F_{\mathbf{a}+\mathbf{v}}.$$

$$F(\mathbf{v})(\mathbf{a}\le {\mathbf{a}}^{\prime }):=F\left(\mathbf{a}+\mathbf{v}\le {\mathbf{a}}^{\prime }+\mathbf{v}\right).$$

$$d_{\mathrm{I},d}^{\mathcal{C}}(F,G):=\inf\{\varepsilon\in[0,\infty):F,G\ \mbox{are $\vec{\varepsilon}$-interleaved}\},$$

$$\mathbf{d}_{\mathrm{I},d}^{\mathcal{C}}(F,G):=\inf\left\{\varepsilon\in[0,\infty):\ \mbox{$F,G$ are \emph{fully} $\vec{\varepsilon}$-interleaved}\right\}.$$

$$d_{\mathrm{I},d}^{{\mathbf{Z}}_{+}^{\mathrm{op}}}(F,G)=\inf \{\epsilon \in [0,\infty ):\forall \mathbf{a}\in {\mathbf{R}}^d,F_{\mathbf{a}}\ge G_{\mathbf{a}+\vec{\epsilon }},\text{mbox}and{G}_{\mathbf{a}}\ge F_{\mathbf{a}+\vec{\epsilon }}\}.$$

$$d_{\mathrm{I}}^{\mathbf{Vec}}\left({\mathrm{H}}_k({\mathcal{R}}^{\mathrm{lev}}({\gamma }_X)),{\mathrm{H}}_k({\mathcal{R}}^{\mathrm{lev}}({\gamma }_Y))\right)\le 2\cdot d_{\mathtt{dyn}}({\gamma }_X,{\gamma }_Y).$$

$${\mathbf{R}}_{\times }^6:=\mathbf{R}\times {\mathbf{R}}^{\mathrm{op}}\times {\mathbf{R}}^{\mathrm{op}}\times {\mathbf{R}}^{\mathrm{op}}\times \mathbf{R}\times \mathbf{R},$$

$$\mathrm{rk}_{k}(\gamma_{X})(\mathbf{a}):=\begin{cases}\mathrm{rank}\left(\mathrm{H}_{k}\left(\mathcal{R}_{\delta}(\bigvee_{I}d_{X})\hookrightarrow\mathcal{R}_{\delta^{\prime}}(\bigvee_{I^{\prime}}d_{X})\right)\right),&\mbox{$\mathbf{a}$ is admissible,}\\ \infty,&\mbox{$\mathbf{a}$ is trivially non-admissible,}\\ 0,&\mbox{otherwise.}\end{cases}$$

$${\mathrm{rk}}_0({\gamma }_X)(\mathbf{a})=\dim \left({\mathrm{H}}_0\left({\mathcal{R}}_{{\delta }_0}(X,d_X(t_0))\right)\right)={\beta }_0^{{\gamma }_X}(t_0,t_0,{\delta }_0)\text{mbox}(Definition\text{ref}def:betti0).$$

$$\mathrm{rk}_{k}(\gamma_{X})(\mathbf{a})\geq\mathrm{rk}_{k}(\gamma_{X})(\mathbf{b})\ \ \mbox{in $\mathbf{Z}_{+}\cup\{\infty\}$.}$$

$$d_{\mathrm{I}}\left({\mathrm{rk}}_k({\gamma }_X),{\mathrm{rk}}_k({\gamma }_Y)\right)\le 2\cdot d_{\mathtt{dyn}}({\gamma }_X,{\gamma }_Y).$$

Full text

In this paper we extend the Rips filtration stability result for (static) metric spaces to the setting of DMSs. We do this by devising a certain three-parameter ”spatiotemporal” filtration of a DMS. Applying the homology functor to this filtration gives rise to multidimensional persistence module derived from the DMS. We show that this multidimensional module enjoys stability under a suitable generalization of the Gromov-Hausdorff distance which permits metrizing the collection of all DMSs.

On the other hand, it is recognized that, in general, comparing two multidimensional persistence modules leads to intractable computational problems. For the purpose of practical comparison of DMSs, we focus on both the rank invariant or the dimension function of the multidimensional persistence module that is derived from a DMS. We specifically propose to utilize a certain metric $d$ for comparing these invariants: In our work this $d$ is either (1) a certain generalization of the erosion distance by Patel, or (2) a specialized version of the well known interleaving distance. In either case, the metric $d$ can be computed in polynomial time.

1. 1 Introduction

2. 2 Dynamic metric spaces (DMSs)

3. 2.1 Definition of DMSs

4. 2.2 The $\lambda$-slack interleaving distance between DMSs

5. 2.3 Variants of $d_{\mathtt{dyn}}$

6. 2.4 Persistent homology features of a DMS

7. 3 Interleaving distance

8. 3.1 Interleaving distance

9. 3.2 Interleaving distance between integer-valued functions

10. 4 Stability theorems for persistent homology features of DMSs

11. 4.1 Stability theorems

12. 4.2 Relationship with standard stability theorems

13. 5 Computing the interleaving distance between integer-valued functions

14. 6 Details about stability theorems

15. 6.1 Interleaving stability of rank invariants and dimension functions

16. 6.2 Proof of Theorem 4.1

17. 6.3 Proof of Proposition 4.3

18. 6.4 Spatiotemporal Dendrogram of a DMS and Proof of Theorem 4.5

19. 6.5 Proof of Theorem 4.14

20. 7 Discussion

21. A Discretization of DMSs

22. B Relationship between the rank invariant and CROCKER-plot

23. C Other relevant metrics

24. D Stability of the single linkage hierarchical clustering method

25. D.1 The Gromov-Hausdorff distance

26. D.2 Single linkage hierarchical clustering (SLHC) method

1 Introduction

Stability and tractability of TDA for studying metric spaces.

Finite point clouds or finite metric spaces are amongst the most common data representations considered in topological data analysis (TDA) [13, 29, 33]. In particular, the stability of the Single Linkage Hierarchical Clustering (SLHC) method [16] or the stability of the persistent homology of filtered Rips complexes built on metric spaces [22, 23] motivates adopting these constructions when studying metric spaces arising in applications.

Whereas there has been extensive applications of TDA to static metric data (thanks to the aforementioned theoretical underpinnings), there is not much study of dynamic metric data from the TDA perspective. Our motivation for considering dynamic metric data stems from the study and characterization of flocking/swarming behaviors of animals [5, 36, 37, 39, 53, 57, 63, 69], convoys [41], moving clusters [43], or mobile groups [40, 70]. In this paper, by extending ideas from [16, 22, 23, 47, 46], we aim at establishing a TDA framework for the study of dynamic metric spaces (DMSs) which comes together with stability theorems. We begin by describing and comparing relevant work with ours.

Lack of an adequate metric for DMSs.

In [55], Munch considers vineyards — a certain notion of time-varying persistence diagrams introduced by Cohen-Steiner et al. [25] — as signatures for dynamic point clouds. Munch, in particular, shows that vineyards are stable111Under a certain notion of distance arising from in the integration over time of the bottleneck distance between the instantaneous persistence diagrams. [24] under perturbations of the input dynamic point cloud [55, Theorem 17]. However, we will observe below that, for the purpose of comparing two DMSs (which we regard as models of flocking behaviors), the metrics that directly arise as the integration of the Hausdorff or Gromov-Haussdorff distance can sometimes fail to be discriminative enough (see Example 2.4 and Remark 4.6).

In [64], Halverson, Topaz and Ziegelmeier study aggregation models for biological systems by adopting ideas from TDA. They show that topological analysis of aggregation reveals dynamical events which are not captured by classical analysis methods. Specifically, in order to extract insights about the global behavior of dynamic point clouds obtained by simulating aggregation models, they employ the so-called CROCKER222Contour Realization Of Computed $k$-dimensional hole Evolution in the Rips complex plot. This plot represents the evolution of Betti numbers of Rips complexes over the plane of time and scale parameters. In [65], Topaz, Ulmer and Ziegelmeier discretize CROCKER plots as matrices and make use of Frobenius norm for comparing any two such matrices. In [64, 65], the authors do not provide stability results for CROCKER plots derived from biological aggregation models.

Motivation for introducing a new metric for DMSs.

Consider the two dynamic point clouds $X_{r}(\cdot)$ and $Y_{r}(\cdot)$ illustrated as in Figure 1. Let us regard them as instances of DMS with the time-dependent metrics obtained by restricting the Euclidean metric on $\mathbf{R}^{2}$ at each time $t\in\mathbf{R}$.

Observe that for each time $t\in\mathbf{R}$, the metric spaces $X_{r}(t)$ and $Y_{r}(t)$ are isometric and hence the Gromov-Hausdorff distance [12, Ch.7] $d_{\mathrm{GH}}\left(X_{r}(t),Y_{r}(t)\right)$ is zero. This in turn implies that the integral $\int_{t\in\mathbf{R}}\ d_{\mathrm{GH}}\left(X_{r}(t),Y_{r}(t)\right)\ dt$ is also zero, implying that $X_{r}(\cdot)$ and $Y_{r}(\cdot)$ are not distinguished from each other by the integrated Gromov-Hausdorff distance. 333In [55], in order to compare two dynamic point clouds, Munch considered the integrated Hausdorff distance $\int d_{\mathrm{H}}$ over time. Since the metric $\int d_{\mathrm{H}}$ takes account of relative position of two dynamic point clouds inside an ambient metric space, we do not consider utilizing $\int d_{\mathrm{H}}$ for the purpose of comparing intrinsic behaviors of two dynamic metric data. Also, Munch considered the integrated bottleneck distance $\int d_{\mathrm{B}}$ by computing the Rips filtrations of dynamic point clouds at each time. However, by [22, Theorem 3.1], the metric $\int d_{\mathrm{B}}$ is upper-bounded by (twice) the integrated Gromov-Hausdorff distance, which in this case vanishes. Therefore, $\int d_{\mathrm{B}}$ does not discriminate the two dynamic point clouds given as in Figure 1. See Remark 2.16.

However, regarding $X_{r}(\cdot)$ and $Y_{r}(\cdot)$ as models of collective behaviors of animals,vehicles or people, $X_{r}(\cdot)$ and $Y_{r}(\cdot)$ are clearly distinct from each other. This motivates us to seek an adequate metric that measures the difference between the dynamics underlying any two given DMSs. In particular, this metric should not be a mere sum of instantaneous differences of the given DMSs over time.

In this paper, we adopt $d_{\mathtt{dyn}}$, called the $\lambda$-slack interleaving distance with $\lambda=2$ (Definition 2.10, originally introduced in [47]), as a measure of the behavioral difference between DMSs. In Section 4, we specifically show that the metric $d_{\mathtt{dyn}}$ returns a positive value for the pair of DMSs $X_{r}(\cdot)$ and $Y_{r}(\cdot)$ in Figure 1, demonstrating its sensitivity.

About stability and tractability of $d_{\mathtt{dyn}}$.

Even though the metric $d_{\mathtt{dyn}}$ is able to differentiate subtly different DMSs (Theorem 2.11), computing $d_{\mathtt{dyn}}$ is not tractable in general (Remark 2.13). This hinders us from utilizing $d_{\mathtt{dyn}}$ in practice. Therefore, as a pragmatic approach, we adopt the comparison of invariants of DMSs, rather than directly comparing DMSs . To this end,

• (a)

the invariants must be stable under perturbations of the input DMS, and

• (b)

the metric for comparing two invariants extracted from two DMSs must be efficiently computable.

Contributions.

In this work, we achieve both items (a) and (b) above, described as follows.

With regard to (a), we first extract invariants from a given DMS, where these invariants are in the form of 3-dimensional persistence modules of sets or vector spaces. These are obtained from a blend of ideas related to the Rips filtration [24, 22, 30], the single linkage hierarchical clustering (SLHC) method [16], and the interlevel set persistence/categorified Reeb graphs [4, 9, 15, 26].

We are able to prove the stability of these invariants (Theorems 4.1 and 6.17) by adapting ideas from [16, 22, 23]. We specifically emphasize that our stability results are a generalization of the well known stability theorems for the SLHC method [16] and the Rips filtration of a metric space [22, 23]: Indeed, we show that by restricting ourselves to the class of constant DMSs, our results reduce to the standard stability theorems for static metric spaces in [16, 22, 23].

Next, in regard to item (b) above, we address the issue of computability of the metric between invariants of DMSs. In [7, 8], Bjerkevik and Botnan show that computing the interleaving distance $d_{\mathrm{I}}$ [52] between multidimensional persistence modules can in general be NP-hard. Also, since we are not guaranteed to have interval decomposability [9, 17] of the $3$-dimensional modules considered in this paper, we are not in a position to utilize the bottleneck distance and relevant algorithms developed by Dey and Xin [28] instead of $d_{\mathrm{I}}$.

This motivates us to further simplify our invariant $M_{X}$ associated to a DMS $(X,d_{X}(\cdot))$, which is in the form of $3$-dimensional persistence module. We focus on both the dimension function and the rank function. The dimension function $\mathrm{dm}(M_{X})$ of a persistence module $M_{X}$ has been studied in various contexts and with various names such as Betti curve, feature counting function, etc, [2, 28, 34, 35, 42, 62]. The rank function $\mathrm{rk}(M_{X})$ of $M_{X}$ has also been extensively considered [17, 19, 51, 58, 59]. We observe that both of these functions (1) can themselves be computed in polynomial time, (2) can be compared to each other via the interleaving distance $d_{\mathrm{I}}^{\mathbf{Z}}$ for integer-valued functions (see Section 3.2) and (3) are stable to perturbations of $(X,d_{X}(\cdot))$ under $d_{\mathtt{dyn}}$ (Theorems 4.4 and 4.5). We also propose a simple algorithm for computing $d_{\mathrm{I}}^{\mathbf{Z}}$ in poly-time (Section 5). Therefore, we can bound the distance $d_{\mathtt{dyn}}$ in poly-time by computing $d_{\mathrm{I}}^{\mathbf{Z}}$ and either $\mathrm{dm}(\cdot)$ or $\mathrm{rk}(\cdot)$.

We in particular emphasize that our method for computing $d_{\mathrm{I}}^{\mathbf{Z}}$ provides a poly-time algorithm for bounding from below the interleaving distance between

$d$-dimensional persistence modules $M$ of vector spaces without any restriction on $d$ or on the structure of $M$ (even if $M$ is not derived from a DMS).

Other related work.

Aiming at analyzing/summarizing trajectory data such as the movement of animals, vehicles, and people, Buchin and et al. introduce the notion of trajectory grouping structure [11]. This is a summarization, in the form of a labeled Reeb graph, of a set of points having piecewise linear trajectories with time-stamped vertices in Euclidean space $\mathbf{R}^{d}$. This work was subsequently enriched in [50, 66, 67, 68].

In [46, 47], the thread of ideas in [11] is blended with ideas in zigzag persistence theory [14]. Specifically, particular cases of trajectory grouping structure in [11], are named formigrams. By clarifying the zigzag persistence structure of formigrams, formigrams are further summarized into barcodes. Regarding the barcode as a signature of a set of trajectory data, the authors of [46, 47] utilize these barcodes for carrying out the classification task of a family of synthetic flocking behaviors [48].

The central results in [46, 47] show that barcodes or formigrams from a trajectory data are stable to perturbations of the input data [46, Theorem 5],[47, Theorem 9.21]. This work is a sequel to [46, 47]. Namely, by considering Rips-like filtrations parametrized both by time intervals and spatial scale, we obtain novel stability results in every homological dimension.

Other work utilizing TDA-like ideas in the analysis of dynamic data includes: a study of time-varying merge trees or time-varying Reeb graphs [31, 56]. Also, ideas of persistent homology are utilized in the study of time-varying graphs [38], discretely sampled dynamical systems [3, 32] or in the study of combinatorial dynamical systems [27].

Organization.

In Section 2 we review the notion of DMSs and the metric $d_{\mathtt{dyn}}$ on DMSs. In Section 3 we review the interleaving distance. In Section 4 we provide an overview of our new stability results about persistent homology features of DMSs. In Section 5 we propose and study an algorithm for computing the interleaving distance between integer-valued functions. Section 6 contains proofs of statements (theorems, etc.) from Section 4.

In Section A we describe how to analyze and compare discrete time series of metric data. In Section B we clarify the relationship between the rank invariants of DMSs and the CROCKER-plots of DMSs. In Section C we compare the interleaving distance between integer-valued functions with other relevant metrics. In Section D we review the stability of the single linkage hierarchical clustering (SLHC) method for static metric spaces; results in this section are generalized to those in Section 6.4.

Acknowledgement.

FM thanks Justin Curry and Amit Patel for beneficial discussions. This work was partially supported by NSF grants IIS-1422400, CCF-1526513, DMS-1723003, and CCF-1740761.

2 Dynamic metric spaces (DMSs)

Throughout this paper, we fix a certain field $\mathbb{F}$ and only consider vector spaces over $\mathbb{F}$ whenever they arise. Any simplicial homology has coefficients in $\mathbb{F}$. By $\mathbf{Z}_{+}$ and $\mathbf{R}_{+}$, we denote the set of non-negative integers and the set of non-negative reals, respectively.

2.1 Definition of DMSs

DMSs.

A DMS $\gamma_{X}=(X,d_{X}(\cdot))$ stands for a pair of finite set $X$ with $\mathbf{R}$-parametrized metric $d_{X}(\cdot):\mathbf{R}\times X\times X\rightarrow\mathbf{R}_{+}$: for each $t\in\mathbf{R}$, a certain (pseudo-)metric $d_{X}(t):X\times X\rightarrow\mathbf{R}_{+}$ is obtained:

Definition 2.1** (Dynamic metric spaces [47]).**

A dynamic metric space is a pair $\gamma_{X}=(X,d_{X}(\cdot))$ where $X$ is a non-empty finite set and $d_{X}(\cdot):\mathbf{R}\times X\times X\rightarrow\mathbf{R}_{+}$ satisfies:

1. (i)

For every $t\in\mathbf{R}$, $\gamma_{X}(t)=(X,d_{X}(t))$ is a pseudo-metric space. 2. (ii)

There exists $t_{0}\in\mathbf{R}$ such that $\gamma_{X}(t_{0})$ is a metric space.444This condition is assumed since otherwise one could substitute the DMSs $\gamma_{X}$ by another DMSs $\gamma_{X^{\prime}}$ over a set $X^{\prime}$ which satisfies $|X^{\prime}|<|X|$, and such that $\gamma_{X^{\prime}}$ is point-wisely equivalent to $\gamma_{X}$. 3. (iii)

For fixed $x,x^{\prime}\in X$, $d_{X}(\cdot)(x,x^{\prime}):\mathbf{R}\rightarrow\mathbf{R}_{+}$ is continuous.

We refer to $t$ as the time parameter.

Let $(\mathcal{M},d_{\mathrm{GH}})$ be the collection of all finite (pseudo-)metric spaces equipped with the Gromov-Hausdorff distance (Definition D.1). Any DMS $\gamma_{X}=(X,d_{X}(\cdot))$ can be seen as a continuous curve from $\mathbf{R}$ to $(\mathcal{M},d_{\mathrm{GH}})$.

Example 2.2** ([47]).**

Examples of DMSs include:

1. (i)

(Constant DMSs) Given a finite metric space $(X,d_{X})$, define the DMS $\gamma_{X}=(X,d_{X}^{\prime}(\cdot))$ by declaring that for all $t\in\mathbf{R}$, $d_{X}^{\prime}(t)=d_{X}$ as a function $X\times X\rightarrow\mathbf{R}_{+}$. We refer to such $\gamma_{X}$ as a constant DMS and simply write $\gamma_{X}\equiv(X,d_{X})$. 2. (ii)

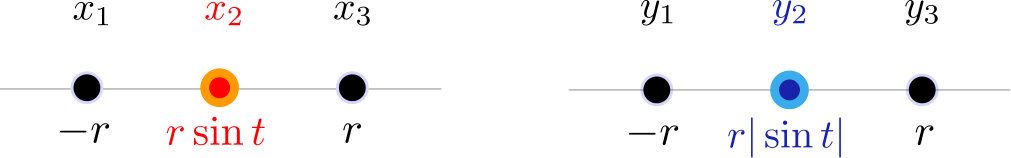

(Dynamic point clouds) A family of examples is given by $n$ points moving continuously inside an ambient metric space $(Z,d_{Z})$ where particles are allowed to coalesce. If the $n$ trajectories are $x_{1}(t),\ldots,x_{n}(t)\in Z$, then let $X:=\{1,\ldots,n\}$ and define the DMS $\gamma_{X}:=(X,d_{X}(\cdot))$ as follows: for $t\in\mathbf{R}$ and $i,j\in\{1,\ldots,n\}$, let $d_{X}(t)(i,j):=d_{Z}(x_{i}(t),x_{j}(t)).$ We call $\gamma_{X}$ a dynamic point cloud in $Z$ and simply write $X(\cdot)=\{x_{i}(\cdot)\}_{i=1}^{n}$ or $X(\cdot)$.

Weak and strong isomorphism between DMSs.

We introduce two different notions of isomorphism between DMSs.

Definition 2.3** (Isomorphism between DMSs).**

Let $\gamma_{X}=(X,d_{X}(\cdot)),\gamma_{Y}=(Y,d_{Y}(\cdot))$ be any two DMSs.

1. (i)

$\gamma_{X}$ and $\gamma_{Y}$ are strongly isomorphic if there exists a bijection $\varphi:X\rightarrow Y$ such that $\varphi$ is an isometry between $\gamma_{X}(t)=(X,d_{X}(t))$ and $\gamma_{Y}(t)=(Y,d_{Y}(t))$ for all $t\in\mathbf{R}$. 2. (ii)

$\gamma_{X}$ and $\gamma_{Y}$ are weakly isomorphic if for each $t\in\mathbf{R}$, $\gamma_{X}(t)=(X,d_{X}(t))$ is isometric to $\gamma_{Y}(t)=(Y,d_{Y}(t))$.

Any two strongly isomorphic DMSs are weakly isomorphic, but the converse is not true:

Example 2.4** (Weakly isomorphic DMSs).**

The dynamic point clouds $X_{r}(\cdot)$ and $Y_{r}(\cdot)$ described in Figure 1 are weakly isomorphic, but not strongly isormorphic: Indeed, there is no bijection between $\{x_{1},x_{2},x_{3}\}$ and $\{y_{1},y_{2},y_{3}\}$ which serves as an isometry for all $t\in\mathbf{R}$.

2.2 The $\lambda$-slack interleaving distance between DMSs

We review the extended metric $d_{\mathtt{dyn}}$ for DMSs, which was introduced in [47, Definition 9.13] under the name of $\lambda$-slack interleaving distance, for each $\lambda\in[0,\infty)$.

Definition 2.5**.**

Let $\varepsilon\geq 0$. Given any map $d:X\times X\rightarrow\mathbf{R}$, by $d+\varepsilon$ we denote the map $X\times X\rightarrow\mathbf{R}$ defined as $(d+\varepsilon)(x,x^{\prime})=d(x,x^{\prime})+\varepsilon$ for all $(x,x^{\prime})\in X\times X.$

In order to compare any two DMSs, we will utilize the notion of tripod:

Definition 2.6** (Tripod).**

Let $X$ and $Y$ be any two non-empty sets. For another set $Z$, any pair of surjective maps $R:\ X\xtwoheadleftarrow{\varphi_{X}}Z\xtwoheadrightarrow{\varphi_{Y}}Y$ is called a tripod between $X$ and $Y$.

Given any map $d:X\times X\rightarrow\mathbf{R}$, let $Z$ be any set and let $\varphi:Z\rightarrow X$ be any map. Then, we define $\left(\varphi^{*}d\right):Z\times Z\rightarrow\mathbf{R}$ as

[TABLE]

Definition 2.7** (Comparison of metrics via tripods).**

Consider any two maps $d_{1}:X\times X\rightarrow\mathbf{R}$ and $d_{2}:Y\times Y\rightarrow\mathbf{R}$. Given a tripod $R:\ X\xtwoheadleftarrow{\varphi_{X}}Z\xtwoheadrightarrow{\varphi_{Y}}Y$ between $X$ and $Y$, by

[TABLE]

we mean $\left(\varphi_{X}^{*}d_{1}\right)(z,z^{\prime})\leq\left(\varphi_{Y}^{*}d_{2}\right)(z,z^{\prime})$ for all $(z,z^{\prime})\in Z\times Z$.

Let $\mathbf{Int}$ be the collection of all finite closed intervals of $\mathbf{R}$. See Figure 2.

Definition 2.8** (Time-interlevel analysis of a DMS).**

Given a DMS $\gamma_{X}=(X,d_{X}(\cdot))$, define the function $\bigvee d_{X}:\mathbf{Int}\times X\times X\rightarrow\mathbf{R}_{+}$ as

[TABLE]

In words, $\bigvee_{I}d_{X}(x,x^{\prime})$ stands for the minimum distance between $x$ and $x^{\prime}$ within the time interval $I$. Observe that if $I\subset I^{\prime}$ are both in $\mathbf{Int}$, then $\bigvee_{I^{\prime}}d_{X}(x,x^{\prime})\leq\bigvee_{I}d_{X}(x,x^{\prime})$ for all $x,x^{\prime}\in X$.

For any $t\in\mathbf{R}$, let $[t]^{\varepsilon}:=[t-\varepsilon,t+\varepsilon]\in\mathbf{Int}$.

Definition 2.9** (Distortion of a tripod).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ and $\gamma_{Y}=(Y,d_{Y}(\cdot))$ be any two DMSs. Let $R:\ X\xtwoheadleftarrow{\varphi_{X}}Z\xtwoheadrightarrow{\varphi_{Y}}Y$ be a tripod between $X$ and $Y$ such that

[TABLE]

We call any such $R$ an $\varepsilon$-tripod between $\gamma_{X}$ and $\gamma_{Y}$. Define the distortion $\mathrm{dis}^{\mathrm{dyn}}(R)$ of $R$ to be the infimum of $\varepsilon\geq 0$ for which $R$ is an $\varepsilon$-tripod.

In Definition 2.9, if $R$ is a $\varepsilon$-tripod, then $R$ is also a $\varepsilon^{\prime}$-tripod for any $\varepsilon^{\prime}\geq\varepsilon$.

Definition 2.10** (The distance $d_{\mathtt{dyn}}$ between DMSs).**

Given any two DMSs

$\gamma_{X}=(X,d_{X}(\cdot))$ and $\gamma_{Y}=(Y,d_{Y}(\cdot))$, we define

[TABLE]

where the minimum ranges over all tripods between $X$ and $Y$.

We remark that $d_{\mathtt{dyn}}$ is a hybrid between the Gromov-Hausdorff distance (Definition D.1) and the interleaving distance [10, 21] for Reeb graphs [26]. We also remark that, in [47], $d_{\mathtt{dyn}}$ is introduced under the name of $\lambda$-slack interleaving distance for $\lambda=2$. We use $\lambda=2$ in this paper for ease of notation. This choice is not significant because different choices of $\lambda>0$ yield bilipschitz equivalent metrics for DMSs [47, Proposition 11.29].

Any DMS $\gamma_{X}=(X,d_{X}(\cdot))$ is said to be bounded if there exists $r\in[0,\infty)$ such that for all $x,x^{\prime}\in X$ and all $t\in\mathbf{R},$ $d_{X}(t)(x,x^{\prime})\leq r.$ For example, both DMSs given in Figure 1 are bounded.

Theorem 2.11** ([47, Theorem 9.14]).**

$d_{\mathtt{dyn}}$ is an extended metric between DMSs modulo strong isomorphism (Definition 2.3 (i)). In particular, $d_{\mathtt{dyn}}$ is a metric between bounded DMSs modulo strong isomorphism.

Remark 2.12** ($d_{\mathtt{dyn}}$ generalizes the Gromov-Hausdorff distance [47, Remark 11.28]).**

Given any two constant DMSs $\gamma_{X}\equiv(X,d_{X})$ and $\gamma_{Y}\equiv(Y,d_{Y})$, the metric $d_{\mathtt{dyn}}$ recovers the Gromov-Hausdorff distance between $(X,d_{X})$ and $(Y,d_{Y})$. Indeed, for any tripod $R$ between $X$ and $Y$, condition (1) reduces to

[TABLE]

Therefore,

[TABLE]

Remark 2.13**.**

From Remark 2.12, we conclude that the computation of $d_{\mathtt{dyn}}$ is in general not tractable: On the class of constant DMSs the metric $d_{\mathtt{dyn}}$ reduces to the Gromov-Hausdorff distance, which leads to NP-hard problems [1, 60, 61].

2.3 Variants of $d_{\mathtt{dyn}}$

Recall that $d_{\mathtt{dyn}}$ is the $\lambda$-slack interleaving distance for $\lambda=2$. Here we discuss a variant of the $\lambda$-slack interleaving distance which arises from a slightly different way of incorporating the $\lambda$ parameter:

Definition 2.14** (Multiplicative $\lambda$-slack interleaving distance).**

For $\lambda\in(0,\infty)$, we define the multiplicative $\lambda$-slack interleaving distance $d_{\lambda}^{\bullet}(\gamma_{X},\gamma_{Y})$ between two DMSs $\gamma_{X}=(X,d_{X}(\cdot))$ and $\gamma_{Y}=(Y,d_{Y}(\cdot))$ as the infimum $\varepsilon$ for which there exists a tripod $R$ between $X$ and $Y$ such that555In [47], the original $\lambda$-slack interleaving distance $d_{\lambda}(\gamma_{X},\gamma_{Y})$, $\lambda\in[0,\infty)$ is defined as the infimum amount of time $\varepsilon$ for which there exists a tripod $R$ between $X$ and $Y$ such that

\mbox{for all t\in\mathbf{R}},\ \ \bigvee_{[t]^{\varepsilon}}d_{X}\leq_{R}d_{Y}(t)+\lambda\varepsilon\ \mbox{and}\ \ \bigvee_{[t]^{\varepsilon}}d_{Y}\leq_{R}d_{X}(t)+\lambda\varepsilon.

In this original definition, the units of $\lambda$ is (distance units)/(time unit), whereas the units of $\lambda$ for $d_{\lambda}^{\bullet}$ is (time units)/(distance units).

[TABLE]

Definition 2.15** (dyn-Gromov-Hausdorff distance between DMSs and its relation to $d_{\lambda}^{\bullet}$).**

Let $\gamma_{X}$ and $\gamma_{Y}$ be any two DMSs and fix a tripod $R$ between $X$ and $Y$. For each $t\in\mathbf{R}$, let

[TABLE]

Define

[TABLE]

where the minimum is taken over all tripods $R$ between $X$ and $Y$. We call this distance the dyn-Gromov-Hausdorff distance between $\gamma_{X}$ and $\gamma_{Y}$.

Note that, for the multiplicative interleaving distance $d_{\lambda}^{\bullet}$ in Definition 2.14, we have

[TABLE]

Also, note that $d_{\mathrm{GH}}^{\mathrm{dyn}}$ between constant DMSs $\gamma_{X}\equiv(X,d_{X})$ and $\gamma_{Y}\equiv(Y,d_{Y})$ reduces to twice the Gromov-Hausdorff distance between $(X,d_{X})$ and $(Y,d_{Y})$. We remark that $d_{\mathrm{GH}}^{\mathrm{dyn}}$ is in general not the supremum of the Gromov-Hausdorff distances $d_{\mathrm{GH}}(\gamma_{X}(t),\gamma_{Y}(t))$ over all times $t\in\mathbf{R}$. Specifically, we have the following inequality:

[TABLE]

The inequality denoted by $(\ast)$ above is often strict, as it is to be expected as a result of swapping the $\sup\min$ implicit in $L^{(\infty)}_{\mathrm{GH}}$ for the $\min\sup$ in the definition of $d_{\mathrm{GH}}^{\mathrm{dyn}}$.666The quantity in the LHS is allows for picking a different correspondence for each time $t$ whereas the RHS demands that a single correspondence is adequate for all times. For instance, for any pair $\gamma_{X},\gamma_{Y}$ of weakly isomorphic but not strongly isomorphic DMSs (cf. Example 2.4), one has that (1) $d_{\mathrm{GH}}(\gamma_{X}(t),\gamma_{Y}(t))=0$ for every $t\in\mathbf{R}$ and in turn $\sup_{t\in\mathbf{R}}\ d_{\mathrm{GH}}(\gamma_{X}(t),\gamma_{Y}(t))=0$; but in contrast (2) $d_{\mathrm{GH}}^{\mathrm{dyn}}(\gamma_{X},\gamma_{Y})$ is strictly positive.

It is possible to give rise to a whole family of pseudo-distances of which $L_{\mathrm{GH}}^{(\infty)}$ is a particular example.

This construction is analogous to the integrated Hausdorff distance between dynamic point clouds considered in [55].

Remark 2.16** (Weak-$L^{p}$-Gromov-Hausdorff distance).**

Fix any two DMSs $\gamma_{X}$ and $\gamma_{Y}$. For any fully supportted probability measure $\zeta$on $\mathbf{R}$ and $p\in[1,\infty)$, define

[TABLE]

It is clear that $L^{(p)}_{\mathrm{GH},\zeta}(\gamma_{X},\gamma_{Y})$ vanishes whenever $\gamma_{X}$ and $\gamma_{Y}$ are weakly isomorphic.

2.4 Persistent homology features of a DMS

We extend ideas from persistent homology/single linkage hierarchical clustering method for metric spaces (Section D) to the setting of dynamic metric spaces (DMSs).

Posets and their opposite.

Given any poset $\mathbf{P}=(\mathbf{P},\leq)$, we regard $\mathbf{P}$ as the category: Objects are the elements of $\mathbf{P}$. Also, for any $p,q\in\mathbf{P}$, there exists the unique morphism $p\rightarrow q$ if and only if $p\leq q$. Since there exists at most one morphism between any two elements of $\mathbf{P}$, the category $\mathbf{P}$ is called thin and, any closed diagram in $\mathbf{P}$ must commute. We sometimes consider the opposite category of $\mathbf{P}$, which will be denoted by $\mathbf{P}^{\mathrm{op}}$. In the category $\mathbf{P}^{\mathrm{op}}$, for $p,q\in\mathbf{P}$, there exists the unique morphism $p\rightarrow q$ if and only if $p\geq q$.

Example 2.17** ($\mathbf{Int}$).**

Recall the collection $\mathbf{Int}$ of all finite closed intervals of $\mathbf{R}$. We regard $\mathbf{Int}$ as poset, where the order $\leq$ is the inclusion $\subseteq$. Hence, $\mathbf{Int}$ can be seen as the category of finite closed real intervals whose morphisms are inclusions.

Product of posets.

Given any two posets $\mathbf{P}$ and $\mathbf{Q}$, we assume by default that their product $\mathbf{P}\times\mathbf{Q}$ is equipped with the partial order $\leq$ defined as $(p,q)\leq(p^{\prime}.q^{\prime})$ if and only if $p\leq p^{\prime}$ in $\mathbf{P}$ and $q\leq q^{\prime}$ in $\mathbf{Q}$.

Remark 2.18**.**

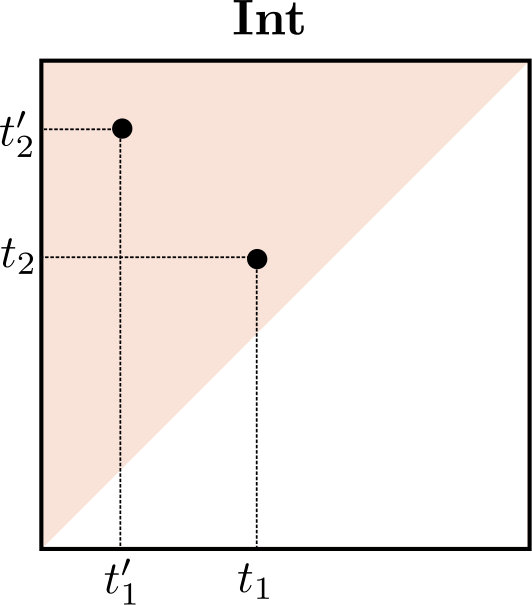

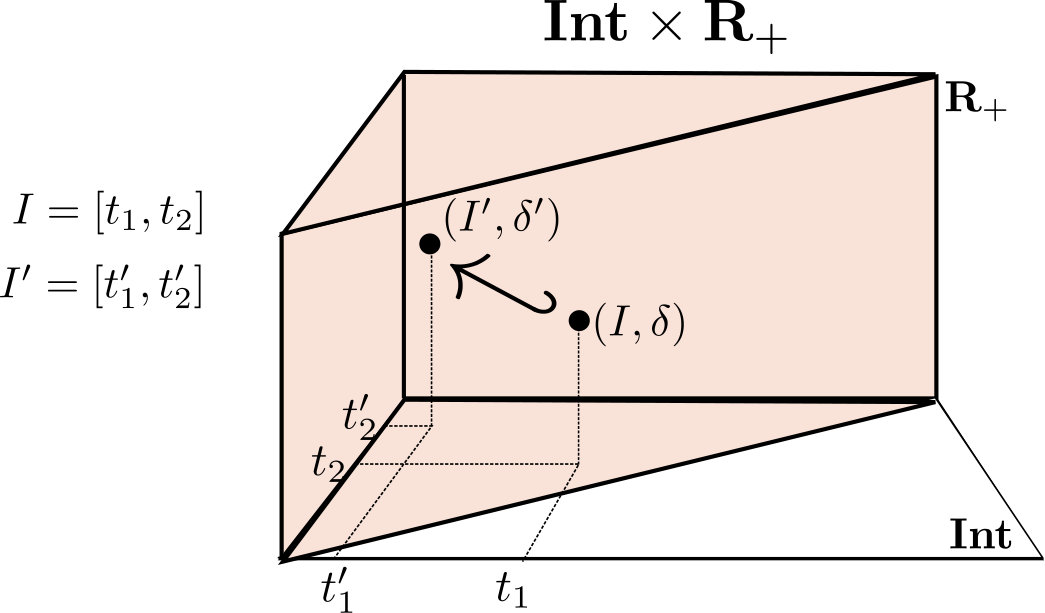

In the poset $\mathbf{Int}\times\mathbf{R}_{+}$, we have $(I,\delta)\leq(I^{\prime},\delta^{\prime})$ if and only if $I\subset I^{\prime}$ and $\delta\leq\delta^{\prime}$. See Figure 3. We will regard $\mathbf{Int}\times\mathbf{R}_{+}$ as a subposet of the product poset $\mathbf{R}_{\times}^{3}:=\mathbf{R}^{\mathrm{op}}\times\mathbf{R}\times\mathbf{R}$ via the identification $([t_{1},t_{2}],\delta)\leftrightarrow(t_{1},t_{2},\delta)$. Indeed,

[TABLE]

Spatiotemporal Rips filtration of a DMS.

Let $\mathbf{Simp}$ be the cateogry of abstract simplicial complexes with simplicial maps. By a (simplicial) filtration we mean a functor from a poset to $\mathbf{Simp}$. In order to encode multiscale topological features of DMSs into a single filtration, we define the spatiotemporal Rips filtration of a DMS. Let us begin by recalling the Rips complex:

Definition 2.19** (The Rips complex).**

Let $(X,d_{X})$ be a metric space. For each $\delta\in\mathbf{R}$, by $\mathcal{R}_{\delta}(X,d_{X})$ we mean the abstract simplicial complex on the set $X$ where a subset $\sigma\subset X$ belongs to $\mathcal{R}_{\delta}(X,d_{X})$ if and only if $d_{X}(x,x^{\prime})\leq\delta$ for all $x,x^{\prime}\in\sigma$. Note that if $\delta<0$, then $\mathcal{R}_{\delta}(X,d_{X})$ is empty.

Definition 2.20** (The Rips filtration).**

Let $(X,d_{X})$ be a metric space. The Rips filtration of a finite metric space $(X,d_{X})$ is the functor $\mathcal{R}_{\bullet}(X,d_{X}):\mathbf{R}\rightarrow\mathbf{Simp}$ described as follows: To each $\delta\in\mathbf{R}$, the simplicial complex $\mathcal{R}_{\delta}(X,d_{X})$ is assigned. Also, to any pair $\delta\leq\delta^{\prime}$ in $\mathbf{R}$, the inclusion map $\mathcal{R}_{\delta}(X,d_{X})\hookrightarrow\mathcal{R}_{\delta^{\prime}}(X,d_{X})$ is assigned.

Definition 2.21** (The spatiotemporal Rips filtration of a DMS).**

Given any DMS $\gamma_{X}=(X,d_{X}(\cdot))$, the simplicial filtration $\mathcal{R}^{\mathrm{lev}}(\gamma_{X}):\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Simp}$ defined as in Figure 3 is called the (spatiotemporal) Rips filtration of $\gamma_{X}$.

Definition 2.21 is based on a blend of ideas related to the Rips filtration [24, 22, 30] and the interlevel set persistence/categorified Reeb graphs [4, 9, 15, 26]. The super-index “lev” in $\mathcal{R}^{\mathrm{lev}}(\gamma_{X})$ is meant to emphasize the connection to “interlevelset persistence”.

Remark 2.22** (Comprehensiveness of Definition 2.21).**

We remark the following:

1. (i)

Consider the constant DMS $\gamma_{X}\equiv(X,d_{X})$ as in Example 2.2 (i). Then, the spatiotemporal Rips filtration of $\gamma_{X}$ amounts to the Rips filtration of $(X,d_{X})$: for all $I\in\mathbf{Int}$ and $\delta\in\mathbf{R}_{+}$,

[TABLE] 2. (ii)

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be a DMS. For each $t\in\mathbf{R}$, we have the Rips filtration

$\mathcal{R}_{\bullet}(X,d_{X}(t)):\mathbf{R}_{+}\rightarrow\mathbf{Simp}$ of the metric space $(X,d_{X}(t))$. All those filtrations are incorporated by $\mathcal{R}^{\mathrm{lev}}(\gamma_{X})$ in the following sense:

[TABLE]

By functoriality of the simplicial homology functor, we can define, for each $k\in\mathbf{Z}_{+}$, the persistence module $\mathrm{H}_{k}\left(\mathcal{R}^{\mathrm{lev}}(\gamma_{X})\right):=\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Vec}$.

The rank invariant and the Betti-[math] function of a DMS.

We consider the rank invariant [17] of this multidimensional persistence module $\mathrm{H}_{k}(\mathcal{R}^{\mathrm{lev}}(\gamma_{X}))$. Let

[TABLE]

Definition 2.23** (The rank invariant of a DMS).**

Let $\gamma_{X}$ be any DMS. For each non-negative integer $k$, the $k$-th rank invariant of $\gamma_{X}$ is a function $\mathrm{rk}_{k}(\gamma_{X}):\underline{\mathbf{R}^{6}}\rightarrow\mathbf{Z}_{+}$ defined as

[TABLE]

See Figure 3.

In Section B we compare the rank invariant of a DMS with the CROCKER-plots introduced in [64].

Definition 2.24** (The Betti-0 function of a DMS).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be a DMS. We define the Betti-0 function $\beta_{0}^{\gamma_{X}}:\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Z}_{+}$ of $\gamma_{X}$ by sending each $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$ to the dimension of $\mathrm{H}_{0}\left(\mathcal{R}_{\delta}\left(X,\bigvee_{I}d_{X}\right)\right)$.

Example 2.25**.**

Consider the DMSs $\gamma_{X}$ and $\gamma_{Y}$ given as the dynamic point clouds $X_{r}(\cdot)$ and $Y_{r}(\cdot)$ in Figure 1 respectively. The Betti [math]-functions of $\gamma_{X}$ and $\gamma_{Y}$ are illustrated in Figure 4.

It is not difficult to check that if $I\subset I^{\prime}$ in $\mathbf{Int}$ and $\delta\leq\delta^{\prime}$ in $\mathbf{R}_{+}$, then $\beta_{0}^{\gamma_{X}}(I,\delta)\geq\beta_{0}^{\gamma_{X}}(I^{\prime},\delta^{\prime})$. This monotonicity is a special feature of Betti-[math] functions, which is not shared by other Betti-$k$ functions for $k\geq 1$. We will exploit this monotonicity property to metrize the collection of Betti-[math] functions and in turn to obtain a tight lower bound for $d_{\mathtt{dyn}}$ or $d_{\mathrm{GH}}$. Also, we remark that when $\gamma_{X}$ is a constant DMS (Example 2.2 (i)), $\beta_{0}^{\gamma_{X}}$ is constant with respect to the first factor.

3 Interleaving distance

In this section we review the interleaving distance for $\mathbf{R}^{d}$-indexed functors [9, 21, 52]. In particular, the interleaving distance between integer-valued functions (Section 3.2) will be utilized for obtaining a computationally tractable lower bound for $d_{\mathtt{dyn}}$.

3.1 Interleaving distance

Natural transformations.

We recall the notion of natural transformations from category theory [54]: Let $\mathcal{C}$ and $\mathcal{D}$ be any categories and let $F,G:\mathcal{C}\rightarrow\mathcal{D}$ be any two functors. A natural transformation $\varphi:F\Rightarrow G$ is a collection of morphisms $\varphi_{c}:F_{c}\rightarrow G_{c}$ in $\mathcal{D}$ for all objects $c\in\mathcal{C}$ such that for any morphism $f:c\rightarrow c^{\prime}$ in $\mathcal{C}$, the following diagram commutes:

{F_{c}}$${F_{c^{\prime}}}$${G_{c}}$${G_{c^{\prime}}.}$$\scriptstyle{F(f)}$$\scriptstyle{\varphi_{c}}$$\scriptstyle{\varphi_{c^{\prime}}}$$\scriptstyle{G(f)}

Natural transformations $\varphi:F\rightarrow G$ are considered as morphisms in the category $\mathcal{D}^{\mathcal{C}}$ of all functors from $\mathcal{C}$ to $\mathcal{D}.$

The interleaving distance between $\mathbf{R}^{d}$-indexed functors.

In what follows, for any $\varepsilon\in[0,\infty)$, we will denote the vector $\varepsilon(1,\ldots,1)\in\mathbf{R}^{d}$ by $\vec{\varepsilon}$. The dimension $d$ will be clearly specified in context.

Definition 3.1** ($\mathbf{v}$-shift functor).**

Let $\mathcal{C}$ be any category. For each $\mathbf{v}\in[0,\infty)^{n}$, the $\mathbf{v}$-shift functor $(-)(\mathbf{v}):\mathcal{C}^{\mathbf{R}^{d}}\rightarrow\mathcal{C}^{\mathbf{R}^{d}}$ is defined as follows:

1. (i)

(On objects) Let $F:\mathbf{R}^{d}\rightarrow\mathcal{C}$ be any functor. Then the functor $F(\mathbf{v}):\mathbf{R}^{d}\rightarrow\mathcal{C}$ is defined as follows: For any $\mathbf{a}\in\mathbf{R}^{d}$,

[TABLE]

Also, for another $\mathbf{a}^{\prime}\in\mathbf{R}^{d}$ such that $\mathbf{a}\leq\mathbf{a}^{\prime}$ we define

[TABLE]

In particular, if $\mathbf{v}=\vec{\varepsilon}\in[0,\infty)^{d}$, then we simply write $F(\varepsilon)$ in lieu of $F(\vec{\varepsilon})$. 2. (ii)

(On morphisms) Given any natural transformation $\varphi:F\Rightarrow G$, the natural transformation $\varphi(\mathbf{v}):F(\mathbf{v})\Rightarrow G(\mathbf{v})$ is defined as $\varphi(\mathbf{v})_{\mathbf{a}}=\varphi_{\mathbf{a}+\mathbf{v}}:F(\mathbf{v})_{\mathbf{a}}\rightarrow G(\mathbf{v})_{\mathbf{a}}$ for each $\mathbf{a}\in\mathbf{R}^{d}$.

For any $\mathbf{v}\in[0,\infty)^{d}$, let $\varphi_{F}^{\mathbf{v}}:F\Rightarrow F(\mathbf{v})$ be the natural transformation whose restriction to each $F_{\mathbf{a}}$ is the morphism $F(\mathbf{a}\leq\mathbf{a}+\mathbf{v})$ in $\mathcal{C}$. When $\mathbf{v}=\vec{\varepsilon}$, we denote $\varphi_{F}^{\mathbf{v}}$ simply by $\varphi_{F}^{\varepsilon}$.

Definition 3.2** ($\mathbf{v}$-interleaving between $\mathbf{R}^{d}$-indexed functors).**

Let $\mathcal{C}$ be any category. Given any two functors $F,G:\mathbf{R}^{d}\rightarrow\mathcal{C},$ we say that they are $\mathbf{v}$-interleaved if there are natural transformations $f:F\Rightarrow G(\mathbf{v})$ and $g:G\Rightarrow F(\mathbf{v})$ such that

1. (i)

$g(\mathbf{v})\circ f=\varphi_{F}^{2\mathbf{v}}$, 2. (ii)

$f(\mathbf{v})\circ g=\varphi_{G}^{2\mathbf{v}}$.

In this case, we call $(f,g)$ a $\mathbf{v}$-interleaving pair. When $\mathbf{v}=\varepsilon(1,\ldots,1)$, we simply call $(f,g)$ $\varepsilon$-interleaving pair. The interleaving distance between $F$ and $G$ is defined as

[TABLE]

where we set $d_{\mathrm{I},d}^{\mathcal{C}}(F,G)=\infty$ if there is no $\varepsilon$-interleaving pair between $F$ and $G$ for any $\varepsilon\in[0,\infty)$. Then $d_{\mathrm{I},d}^{\mathcal{C}}$ is an extended pseudo-metric for $\mathcal{C}$-valued $\mathbf{R}^{d}$-indexed functors. We drop the subscript $d$ from $d_{\mathrm{I},d}^{\mathcal{C}}$ when confusion is unlikely.

Remark 3.3**.**

1. (i)

Let $\mathbf{R}^{\Diamond}$ denote the poset either of $\mathbf{R}$ or $\mathbf{R}^{\mathrm{op}}$. The interleaving distance $d_{\mathrm{I}}^{\mathcal{C}}$ is also defined in the similar way for $\mathbf{R}^{d}$-indexed modules, where the poset $\mathbf{R}^{d}$ is equipped with the product partial order $\mathbf{R}^{\Diamond}\times\mathbf{R}^{\Diamond}\times\ldots\times\mathbf{R}^{\Diamond}.$ 2. (ii)

Let $\mathbf{P}$ be any non-empty upper set of $\mathbf{R}^{d}$: For every $p\in\mathbf{P}$, $U(p):=\{q\in\mathbf{R}^{d}:q\geq p\}$ is contained in $\mathbf{P}$. Then, we can define the interleaving distance between $\mathbf{P}$-indexed modules in the manner described by Definition 3.2.

Full interleaving.

By $\mathbf{Sets}$, we mean the category of sets with set maps as morphisms. Also, by $\mathbf{Vec}$, we mean the category of vector spaces over a fixed field $\mathbb{F}$, with linear maps as morphisms.

Let $\mathcal{C}$ be either $\mathbf{Sets}$ or $\mathbf{Vec}$. Given any $F,G:\mathbf{R}^{d}\rightarrow\mathcal{C}$, suppose that $(f,g)$ is an $\varepsilon$-interleaving pair between $F$ and $G$. For each $\mathbf{a}\in\mathbf{R}^{d}$, if $f_{\mathbf{a}}:F_{\mathbf{a}}\rightarrow G_{\mathbf{a}+\vec{\varepsilon}}$ and $g_{\mathbf{a}}:G_{\mathbf{a}}\rightarrow F_{\mathbf{a}+\vec{\varepsilon}}$ are surjective, then we call $(f,g)$ a surjective $\varepsilon$-interleaving pair. If there exists a surjective $\varepsilon$-interleaving between $F$ and $G$, we say that $F$ and $G$ are fully $\varepsilon$-interleaved. We define

[TABLE]

We drop the subscript $d$ from $\mathbf{d}_{\mathrm{I},d}^{\mathcal{C}}$ when confusion is unlikely. By definition, for any $F,G:\mathbf{R}^{d}\rightarrow\mathcal{C}$, it is clear that $d_{\mathrm{I},d}^{\mathcal{C}}(F,G)\leq\mathbf{d}_{\mathrm{I},d}^{\mathcal{C}}(F,G)$. Also, it is not difficult to check that $\mathbf{d}_{\mathrm{I},d}^{\mathcal{C}}$ is an extended pseudometric on $\mathrm{ob}(\mathcal{C}^{\mathbf{R}^{d}})$.

By utilizing the full interleaving distance $\mathbf{d}_{\mathrm{I}}^{\mathcal{C}}$, we obtain a lower bound for $d_{\mathtt{dyn}}$ as well as a new lower bound for the Gromov-Hausdorff distance (Theorem 4.5, Remark 4.13 and Theorem 4.14).

3.2 Interleaving distance between integer-valued functions

In this section we consider the interleaving distance between monotonic integer-valued functions by regarding them as functors.

Poset-valued maps.

Let $\mathbf{P}$ and $\mathbf{Q}$ be any two posets. Suppose that $f:\mathbf{P}\rightarrow\mathbf{Q}$ is any (monotonically) increasing map, i.e. for any $p\leq q$ in $\mathbf{P}$, $f(p)\leq f(q)$. Then, by regarding $\mathbf{P},\mathbf{Q}$ as categories, $f$ can be regarded as a functor. On the other hand, suppose that $g:\mathbf{P}\rightarrow\mathbf{Q}$ is any (monotonically) decreasing map, i.e. for any $p\leq q$ in $\mathbf{P}$, $f(p)\geq f(q)$. Then, $g:\mathbf{P}\rightarrow\mathbf{Q}^{\mathrm{op}}$ can also be called a functor.

The interleaving distance between integer-valued functions.

Let $d$ be a positive integer. Let $\mathbf{R}^{d}$ be the poset, where $\mathbf{a}=(a_{1},\ldots,a_{d})\leq\mathbf{b}=(b_{1},\ldots,b_{d})$ in $\mathbf{R}^{d}$ if and only if $a_{i}\leq b_{i}$ for each $i=1,\ldots,d$. For any $\varepsilon>0$, let $\vec{\varepsilon}:=\varepsilon(1,\ldots,1)\in\mathbf{R}^{d}$. Consider any non-increasing integer-valued function $F:\mathbf{R}^{d}\rightarrow\mathbf{Z}_{+}$. Note that $F$ can be regarded as a functor from the poset cateogory $\mathbf{R}^{d}$ to the other poset category $\mathbf{Z}_{+}^{\mathrm{op}}$. Since $\mathbf{Z}_{+}^{\mathrm{op}}$ is a thin category, given another functor $G:\mathbf{R}^{d}\rightarrow\mathbf{Z}_{+}^{\mathrm{op}}$, the interleaving distance (Definition 3.2) between $F$ and $G$ can be written as

[TABLE]

The computational complexity for $d_{\mathrm{I},d}^{\mathbf{Z}_{+}^{\mathrm{op}}}$ is provided in Theorem 5.4. We will use $d_{\mathrm{I},d}$, or even more simply $d_{\mathrm{I}}$ in place of $d_{\mathrm{I},d}^{\mathbf{Z}_{+}^{\mathrm{op}}}$ when confusion is unlikely.

Remark 3.4**.**

The metric $d_{\mathrm{I}}$ is closely related to the erosion distance [58]. See Remark 6.3.

4 Stability theorems for persistent homology features of DMSs

In this section we establish the main results of this paper: namely, stability of the rank invariant and Betti-[math] function of DMSs (Section 4.1). We interpret these stability theorems as a generalization of the standard stability results for (static) metric spaces (Section 4.2).

4.1 Stability theorems

Recall the spatiotemporal Rips filtration $\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Simp}$ of a DMS (Definition 2.21). The poset $\mathbf{Int}\times\mathbf{R}_{+}$ can be regarded as an upper set of $\mathbf{R}_{\times}^{3}$ (Remarks 2.18 and 3.3 (ii)) and thus we can utilize $d_{\mathrm{I}}^{\mathbf{Vec}}$ for comparing $(\mathbf{Int}\times\mathbf{R}_{+})$-indexed persistence modules.

Theorem 4.1** (Stability of spatiotemporal persistence modules induced by DMSs).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ and $\gamma_{Y}=(Y,d_{Y}(\cdot))$ be any two DMSs. Then for any $k\in\mathbf{Z}+$,

[TABLE]

In particular, when $k=0$, the $d_{\mathrm{I}}^{\mathbf{Vec}}$ in the LHS of the above inequality can be promoted to the full interleaving $\mathbf{d}_{\mathrm{I}}^{\mathbf{Vec}}$.

We remark that the promotion of $d_{\mathrm{I}}^{\mathbf{Vec}}$ to $\mathbf{d}_{\mathrm{I}}^{\mathbf{Vec}}$ for $k=0$ is crucial for proving Theorem 4.5 below. See Section 6.2 for the proof of Theorem 4.1. This stability implies that $d_{\mathrm{I}}^{\mathbf{Vec}}$ between 3-dimensional persistence modules serves as a lower bound for $d_{\mathtt{dyn}}$. Since computing $d_{\mathrm{I}}^{\mathbf{Vec}}$ between 3-dimensional persistence modules is prohibitive [9], we make use of the rank invariants/Betti-[math] functions of DMSs (Definitions 2.23 and 2.24) and the interleaving distance $d_{\mathrm{I}}$ between integer-valued functions (Section 3.2) to obtain a lower bound for $d_{\mathtt{dyn}}$ as below.

Adapted rank invariant of a DMS.

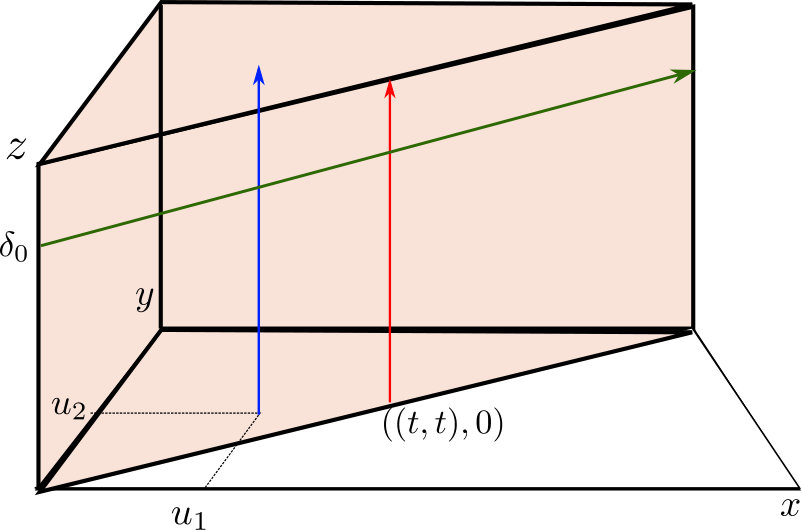

The set $\underline{\mathbf{R}^{6}}$ in (3) is not an upper set (Remark 3.3 (ii)) of the poset

[TABLE]

into which $(\mathbf{Int}\times\mathbf{R}_{+})^{\mathrm{op}}\times(\mathbf{Int}\times\mathbf{R}_{+})$ can be embedded. In order to ensure that we are in a position to utilize the metric $d_{\mathrm{I}}$ for comparing rank invariants of DMSs, we extend the domain of the rank invariant of a DMS to the poset $\mathbf{R}_{\times}^{6}$. Given any $(v_{1},v_{2},v_{3})\in\mathbf{R}^{3}$, we write $(v_{1},v_{2},v_{3})\in\mathbf{Int}\times\mathbf{R}_{+}$ if $v_{1}\leq v_{2}$ and $v_{3}\in\mathbf{R}_{+}$.

Any element $\mathbf{a}=(a_{1},a_{2},a_{3},a_{4},a_{5},a_{6})\in\mathbf{R}^{6}$, is called admissible, if $\mathbf{a}$ is obtained by concatenating a comparable pair of elements in $\mathbf{Int}\times\mathbf{R}_{+}$, i.e. both $(a_{1},a_{2},a_{3})$ and $(a_{4},a_{5},a_{6})$ belong to $\mathbf{Int}\times\mathbf{R}_{+}$ and $(a_{1},a_{2},a_{3})\leq(a_{4},a_{5},a_{6})$ in $\mathbf{Int}\times\mathbf{R}_{+}$. Otherwise, $\mathbf{a}$ is called non-admissible. In particular, $\mathbf{a}$ is called trivially non-admissible, if there is no admissible $\mathbf{b}\in\mathbf{R}^{6}$ such that $\mathbf{b}<\mathbf{a}$ in the poset $\mathbf{R}_{\times}^{6}$.

Definition 4.2** (Adapted rank invariant of a DMS).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be any DMS and let $k\in\mathbf{Z}_{+}$. We define the map $\mathrm{rk}_{k}(\gamma_{X}):\mathbf{R}^{6}\rightarrow\mathbf{Z}_{+}\cup\{\infty\}$, called the $k$-th rank invariant of $\gamma_{X}$, as follows: For $\mathbf{a}=(a_{1},\ldots,a_{6})\in\mathbf{R}^{6}$,

[TABLE]

where $I=[a_{1},a_{2}]$, $I^{\prime}=[a_{4},a_{5}]$, $\delta=a_{3}$ , and $\delta^{\prime}=a_{6}$.

Note that when $\mathbf{a}\in\mathbf{R}^{6}$ is a concatenation of a repeated pair $([t_{0},t_{0}],\delta_{0}),([t_{0},t_{0}],\delta_{0})\in\mathbf{Int}\times\mathbf{R}_{+}$, i.e. $\mathbf{a}=(t_{0},t_{0},\delta_{0},t_{0},t_{0},\delta_{0})$, then

[TABLE]

We can regard $\mathrm{rk}_{k}(\gamma_{X})$ as a functor $\mathbf{R}^{6}_{\times}\rightarrow(\mathbf{Z}_{+}\cup\{\infty\})^{\mathrm{op}}$:

Proposition 4.3**.**

Let $\gamma_{X}$ be any DMS. For any $\mathbf{a},\mathbf{b}\in\mathbf{R}_{\times}^{6}$ with $\mathbf{a}\leq\mathbf{b}$,

[TABLE]

See Section 6.3 for the proof. By virtue of Proposition 4.3, $d_{\mathrm{I}}$ can serve as a metric on the collection of all (adapted) rank invariants of DMSs.

By combining Theorem 4.1 with standard stability results for the rank invariant (Theorem 6.2) we arrive at:

Theorem 4.4** (Stability of the rank invariant of DMSs).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ and $\gamma_{Y}=(Y,d_{Y}(\cdot))$ be any two DMSs. For any $k\in\mathbf{Z}_{+}$,

[TABLE]

Improvement for $k=0$.

By restricting ourselves to clustering information (i.e. [math]-th homology) of DMSs, we obtain a stronger lower bound for the metric $d_{\mathtt{dyn}}$. Namely, by regarding the Betti-[math] function of a DMS (Definition 2.24) as a functor $\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Z}_{+}^{\mathrm{op}}$, we can compare any two Betti-0 functions of DMSs via the interleaving distance $d_{\mathrm{I}}$ and we have:

Theorem 4.5** (Stability of the Betti-0 function).**

Let $\gamma_{X}$ and $\gamma_{Y}$ be any two DMSs. Then,

[TABLE]

We prove Theorem 4.5 in Section 6.4. Also, we remark that the LHSs of inequalities in (7) and (8) are computable in poly-time (Theorem 5.4) using the well-known binary search algorithm.

Remark 4.6** (Sensitivity of the LHS in (8)).**

Consider the DMSs $\gamma_{X}$ and $\gamma_{Y}$ given as in Example 2.25. The value $d_{\mathrm{I}}\left(\beta_{0}^{\gamma_{X}},\beta_{0}^{\gamma_{Y}}\right)$ is at least $r$, as we will see below. This in turn implies that the metric $d_{\mathrm{I}}$ is sensitive enough to discriminate (the Betti-[math] functions of) $\gamma_{X}$ and $\gamma_{Y}$.

Details about Remark 4.6.

Observe that

[TABLE]

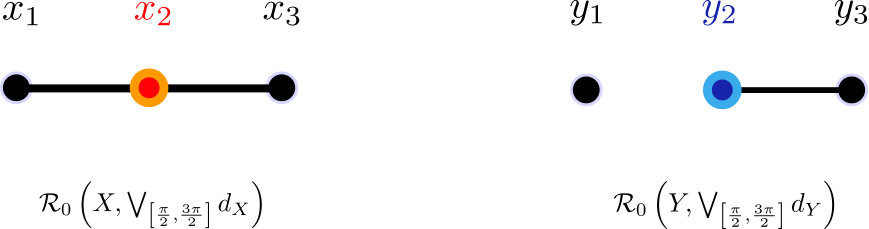

Hence, the geometric realization of Rips complexes $\mathcal{R}_{0}(X,\bigvee_{\left[\frac{\pi}{2},\frac{3\pi}{2}\right]}d_{X})$ and

$\mathcal{R}_{0}(Y,\bigvee_{\left[\frac{\pi}{2},\frac{3\pi}{2}\right]}d_{Y})$ are illustrated in Figure 5.

By counting the number of connected components of these complexes, we have $\beta_{0}^{\gamma_{X}}\left(\left[\frac{\pi}{2},\frac{3\pi}{2}\right],0\right)=1$ and $\beta_{0}^{\gamma_{Y}}\left(\left[\frac{\pi}{2},\frac{3\pi}{2}\right],0\right)=2$. Also, it is not difficult to check that for any $\varepsilon\in[0,r)$, $\mathcal{R}_{\varepsilon}(Y,\bigvee_{\left[\frac{\pi}{2}-\varepsilon,\frac{3\pi}{2}+\varepsilon\right]}d_{Y})=\mathcal{R}_{0}(Y,\bigvee_{\left[\frac{\pi}{2},\frac{3\pi}{2}\right]}d_{Y})$, so that

[TABLE]

By the definition of $d_{\mathrm{I}}$, this inequality implies that $d_{\mathrm{I}}\left(\beta_{0}^{\gamma_{X}},\beta_{0}^{\gamma_{Y}}\right)$ is at least $r$.

Next, we show that $d_{\mathrm{I}}\left(\beta_{0}^{\gamma_{X}},\beta_{0}^{\gamma_{Y}}\right)\leq 2r$. For any $\varepsilon\in[2r,\infty)$ and any $I\in\mathbf{Int}$,

[TABLE]

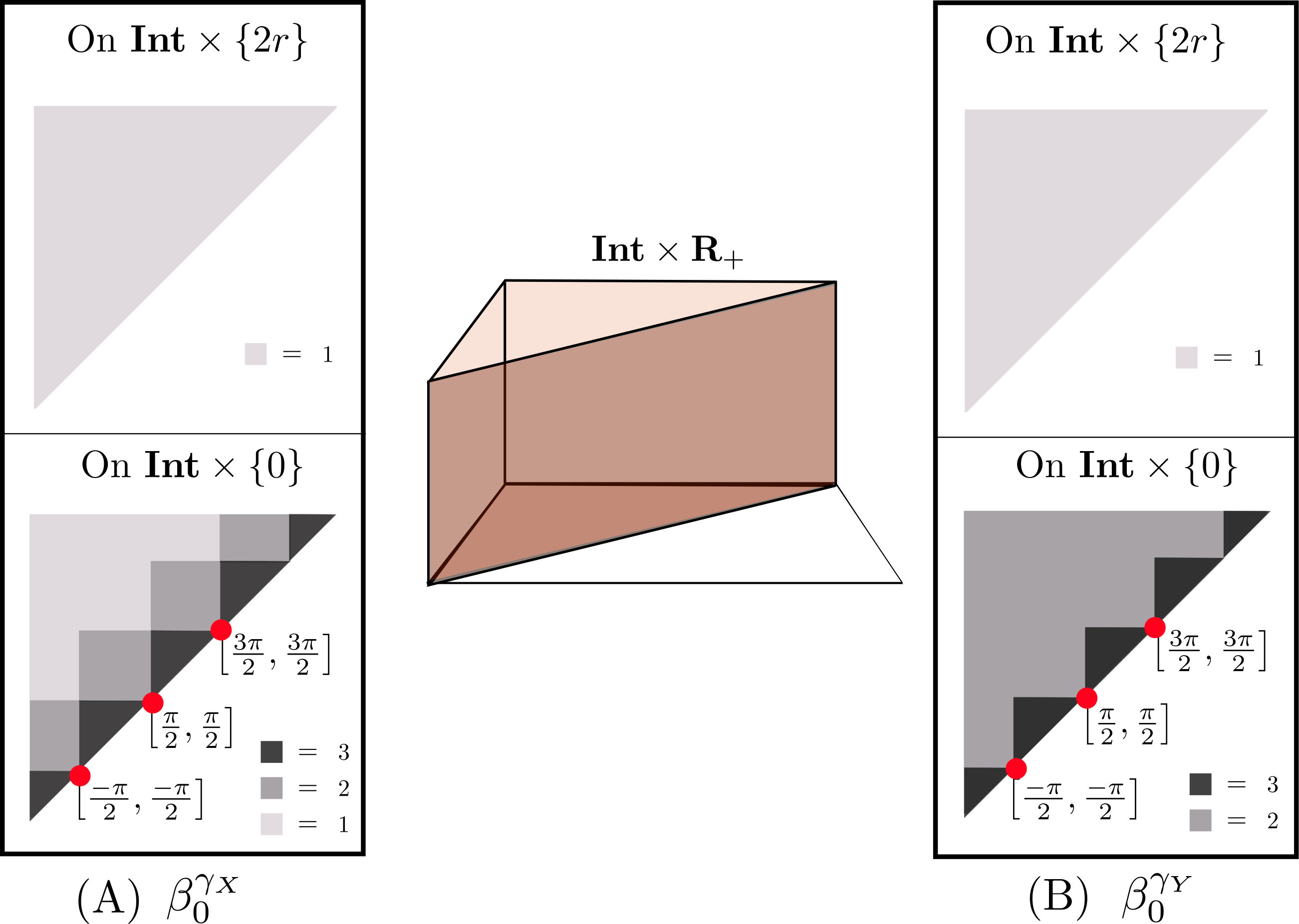

which is illustrated in Figure 4. Therefore, for any $([t_{1},t_{2}],\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$,

[TABLE]

[TABLE]

Therefore, we have $d_{\mathrm{I}}\left(\beta_{0}^{\gamma_{X}},\beta_{0}^{\gamma_{Y}}\right)\leq 2r$. ∎

In order to obtain a lower bound for $d_{\mathtt{dyn}}$ between two DMSs, computing the distance between the Betti-[math] functions of the DMSs (the LHS of the inequaliy in (8)) is better than computing the distance between their [math]-th rank invariants (the LHS of the inequaliy in (7)) :

Proposition 4.7**.**

For any two DMSs $\gamma_{X}=(X,d_{X}(\cdot))$ and $\gamma_{Y}=(Y,d_{Y}(\cdot))$,

[TABLE]

Proposition 4.7 is a corollary of Proposition 6.10. The proof relies on the fact that all inner morphisms of the persistence modules $\mathrm{H}_{0}\left(\mathcal{R}^{\mathrm{lev}}(\gamma_{X})\right)$ and $\mathrm{H}_{0}\left(\mathcal{R}^{\mathrm{lev}}(\gamma_{Y})\right)$ are surjective. In Example 4.16, we consider a concrete example of the bound provided in Proposition 4.7.

4.2 Relationship with standard stability theorems

The main goal of this section is to explain, when restricting ourselves to the class of constant DMSs (Example 2.2 (i)), how Theorems 4.1, 4.4 and 4.5 boil down to the well-known stability theorems for (static) metric spaces. Along the way, we also identify a new lower bound for the Gromov-Hausdorff distance, which is tighter than the bottleneck distance between the [math]-th persistence diagrams of Rips filtrations (Remark 4.13 and Theorem 4.14).

For $k\in\mathbf{Z}_{+}$, by post-composing the simplicial homology functor $\mathrm{H}_{k}:\mathbf{Simp}\rightarrow\mathbf{Vec}$ (with coefficients in the field $\mathbb{F}$) to the Rips filtration $\mathcal{R}_{\bullet}(X,d_{X})$ of a metric space $(X,d_{X})$, we obtain the persistence module

[TABLE]

Let $\mathrm{dgm}_{k}(\mathcal{R}_{\bullet}(X,d_{X}))$ be the $k$-th persistence diagram of the Rips filtration

$\mathcal{R}_{\bullet}(X,d_{X})$. Also, let $d_{\mathrm{B}}$ be the bottleneck distance (Definition C.1). Recall that $d_{\mathtt{dyn}}$ coincides with $d_{\mathrm{GH}}$ on the class of constant DMSs (Remark 2.12).

Remark 4.8**.**

Consider any two constant DMSs $\gamma_{X}\equiv(X,d_{X})$ and $\gamma_{Y}\equiv(Y,d_{Y})$. Then, for any $k\in\mathbf{Z}_{+}$, inequality (5) reduces to:

[TABLE]

or equivalently to

[TABLE]

which are known in [22, 23]. In other words, the LHS and the RHS of inequality (5) are respectively identical to the LHS and the RHS of inequalities (10) or (11).

We define the rank invariant of a finite metric space as follows:

Definition 4.9** (The rank invariant of a metric space).**

Let $(X,d_{X})$ be any finite metric space and let $k\in\mathbf{Z}_{+}$. We define the map $\mathrm{rk}_{k}(X,d_{X}):\mathbf{R}^{2}\rightarrow\mathbf{Z}_{+}\cup\{\infty\}$, called the $k$-th rank invariant of $(X,d_{X})$, as follows: For $\mathbf{a}=(\delta,\delta^{\prime})\in\mathbf{R}^{2}$,

[TABLE]

(cf. Definition 4.2)

In Definition 4.9, note that we can regard $\mathrm{rk}_{k}(X,d_{X})$ as a functor

$\mathbf{R}^{\mathrm{op}}\times\mathbf{R}\rightarrow(\mathbf{Z}_{+}\cup\{\infty\})^{\mathrm{op}}$. Therefore, we can compare the rank invariants of any two finite metric metric spaces via the interleaving distance $d_{\mathrm{I}}$.

Remark 4.10**.**

Consider any two constant DMSs $\gamma_{X}\equiv(X,d_{X})$ and $\gamma_{Y}\equiv(Y,d_{Y})$. Then, for any $k\in\mathbf{Z}_{+}$, inequality (7) reduces to:

[TABLE]

Remark 4.11**.**

We also remark that the LHS of (11) is greater than equal to that of (12) by Corollary 6.4:

[TABLE]

.

Definition 4.12** (The Betti-0 function of a finite metric space).**

Let $(X,d_{X})$ be any finite metric space. We define the Betti-[math] function $\beta_{0}^{(X,d_{X})}:\mathbf{R}_{+}\rightarrow\mathbf{Z}_{+}$ of $(X,d_{X})$ by sending each $\delta\in\mathbf{R}_{+}$ to the dimension of $\mathrm{H}_{0}(\mathcal{R}_{\delta}(X,d_{X}))$ (cf. Definition 2.24).

Since $\beta_{0}^{(X,d_{X})}$ is non-increasing function and $\mathbf{R}_{+}$ is an upper set of $\mathbf{R}$, we can compare any two Betti-[math] functions via $d_{\mathrm{I}}$.

Remark 4.13** (Stability of the Betti-[math] function).**

Consider any two constant DMSs $\gamma_{X}\equiv(X,d_{X})$ and $\gamma_{Y}\equiv(Y,d_{Y})$. Then, the inequality in (8) reduces to:

[TABLE]

In particular, as a lower bound for $2\cdot d_{\mathrm{GH}}$, the LHS of inequality (13) is always as effective as the LHS of inequality (11) for $k=0$:

Theorem 4.14**.**

For any finite metric spaces $(X,d_{X})$ and $(Y,d_{Y})$,

[TABLE]

The proof is provided in Section 6.5. Example 4.15 below illustrates Theorem 4.14.

Example 4.15**.**

Let $X=\{x_{1},x_{2}\}$. For any $\varepsilon\in[0,\infty)$, we define the two metrics $d_{X}$ and $d_{X}^{\varepsilon}$ on $X$ as

[TABLE]

By definition of $d_{\mathrm{GH}}$ (Definitions D.1) and $d_{\mathrm{I}}$(Section 3.2), one can check the following:

1. (i)

$2\ d_{\mathrm{GH}}\left((X,d_{X}),(X,d_{X}^{\varepsilon})\right)=\varepsilon$. 2. (ii)

$\beta_{0}^{(X,d_{X})}(\delta)=\begin{cases}2,&\delta<[0,1)\\ 1,&\delta\in[1,+\infty)\end{cases}$ and $\beta_{0}^{(X,d_{X}^{\varepsilon})}(\delta)=\begin{cases}2,&\delta<[0,1+\varepsilon)\\ 1,&\delta\in[1+\varepsilon,+\infty)\end{cases}.$ Also,

[TABLE]

1. (iii)

$\mathrm{dgm}_{0}\left(\mathcal{R}_{\bullet}(X,d_{X})\right)=\{(0,+\infty),(0,1)\}$, and $\mathrm{dgm}_{0}\left(\mathcal{R}_{\bullet}(X,d_{X}^{\varepsilon})\right)=\{(0,+\infty),(0,1+\varepsilon)\}.$ Also,

[TABLE] 2. (iv)

For $k\geq 1$, both $\mathrm{dgm}_{k}\left(\mathcal{R}_{\bullet}(X,d_{X})\right)$ and $\mathrm{dgm}_{k}\left(\mathcal{R}_{\bullet}(Y,d_{Y})\right)$ are the empty set, and thus

[TABLE]

Items (iii) and (iv) indicate that the best lower bound for $2\ d_{\mathrm{GH}}\left((X,d_{X}),(X,d_{X}^{\varepsilon})\right)$ obtained by invoking inequality (11) is $\min\left(\varepsilon,\frac{1+\varepsilon}{2}\right)$. On the other hand, from items (i) and (ii), we have

[TABLE]

which is, when $\varepsilon>1$, strictly larger than $\min\left(\varepsilon,\frac{1+\varepsilon}{2}\right)$. This example demonstrates inequality (13) is a complement to the bottleneck stablility of Rips filtration, inequality (11). Also, items (i) and (ii) show the tightness of inequality (13).

Example 4.16**.**

Define two DMSs $\gamma_{X}$ and $\gamma_{X}^{\prime}$ to be the constant DMSs which are, for every time $t\in\mathbf{R}$, isometric respectively to the metric spaces $(X,d_{X})$ and $(X,d_{X}^{\varepsilon})$ in Example 4.15. Then, invoking Remarks 4.10 and 4.13, one can compute:

[TABLE]

[TABLE]

See below for computational details. When $\varepsilon>1$, this example demonstrates that the RHS of inequality (9) can be strictly larger.

Details about Example 4.16.

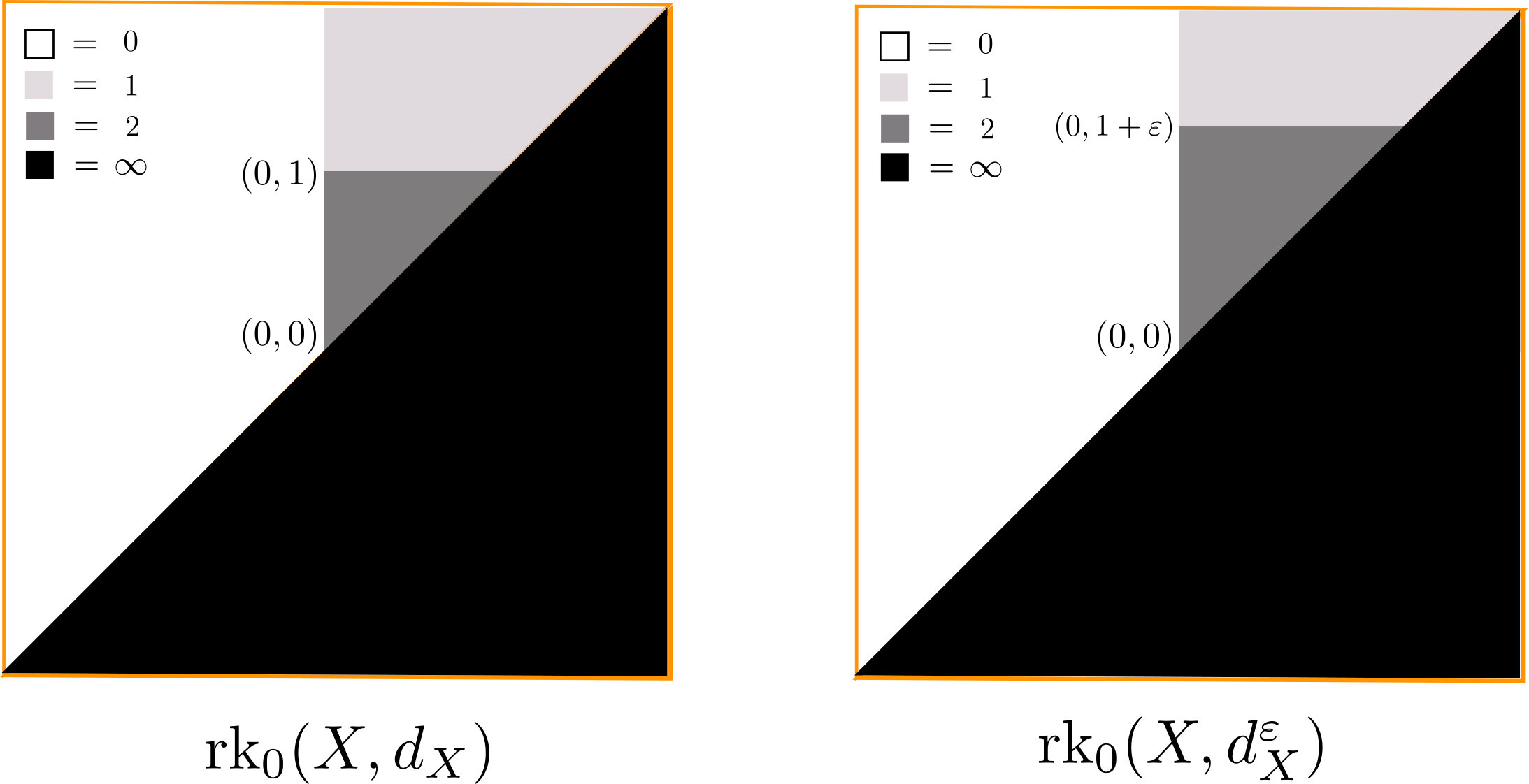

One can compute $\mathrm{rk}_{0}(X,d_{X}),\mathrm{rk}_{0}(X,d_{X}^{\varepsilon}):\mathbf{R}^{2}\rightarrow(\mathbf{Z}_{+}\cup\{\infty\})^{\mathrm{op}}$ (Definition 4.9) as illustrated in Figure 6.

From this plot, one can check that

[TABLE]

which amounts to

[TABLE]

We already computed $\beta_{0}^{(X,d_{X})}$ and $\beta_{0}^{(X,d_{X}^{\varepsilon})}$ in Example 4.15. Observe that the value

[TABLE]

is equal to $\varepsilon$. This implies that $d_{\mathrm{I},1}\left(\beta_{0}^{(X,d_{X})},\beta_{0}^{(X,d_{X}^{\varepsilon})}\right)=\varepsilon.$ ∎

5 Computing the interleaving distance between integer-valued functions

In this section we propose an algorithm for computing the interleaving distance between integer-valued functors based on ordinary binary search.

For $n\in\mathbf{N}$, let $[n]:=\{1,\ldots,n\}$. Also, for each $d\in\mathbf{N}$, let $[n]^{d}\subset\mathbf{Z}^{d}$ be the subposet of $\mathbf{Z}^{d}$. Assume that $\mathbf{a}=(a_{1},\ldots,a_{d})\in[n]^{d}$. If there exists $i\in\{1,\ldots,d\}$ such that $a_{i}=n$, we refer to $\mathbf{a}$ as an upper boundary point of $[n]^{d}$.

Let $F:[n]^{d}\rightarrow\mathbf{Z}_{+}$ be any function. Then, $F$ can be regarded as a array of non-negative integers. For each $k\in\{0,\ldots,n-1\}$, the restriction $F|_{[n-k]^{d}}$ of $F$ is the lower-left block of $F$. Symmetrically, we define the upper-right block $F|^{[n-k]^{d}}:[n-k]^{d}\rightarrow\mathbf{Z}_{+}$ of $F$ as follows:

[TABLE]

In words, $F|^{[n-k]^{d}}$ is the restriction of the array $F$ to its upper-right corner of size $(n-k)^{d}$ with a re-indexing (in the obvious way).

Given $F,G:[n]^{d}\rightarrow\mathbf{Z}_{+}$, we write $F\geq G$ if $F_{\mathbf{a}}\geq G_{\mathbf{a}}$ for all $\mathbf{a}\in[n]^{d}$. Let $F,G:[n]^{d}\rightarrow\mathbf{Z}_{+}$ be any two order-reversing functions with $0=F_{\mathbf{a}}=G_{\mathbf{a}}$ for each upper boundary point $\mathbf{a}\in[n]^{d}$. For each $k\in\{0,\ldots,n-1\}$, we define the $k$-test for the pair $(F,G)$:

Remark 5.1**.**

Let $F,G:[n]^{d}\rightarrow\mathbf{Z}_{+}$ be any two order-reversing functions with $0=F_{\mathbf{a}}=G_{\mathbf{a}}$ for each upper boundary point $\mathbf{a}\in[n]^{d}$. Fix $k\in\{0,\ldots,n-1\}$. Then,

1. (i)

suppose that the $k$-test for $(F,G)$ returns ”Yes”. Then, for any $k^{\prime}\in\{k,\ldots,n-1\}$ the $k^{\prime}$-test for $(F,G)$ returns also ”Yes”, 2. (ii)

the $(n-1)$-test for $(F,G)$ always returns ”Yes”.

Example 5.2**.**

We consider two examples.

1. (A)

$(d=1)$ Consider $F,G:[4]\rightarrow\mathbf{Z}_{+}$ defined as follows:

[TABLE]

Since $F\not\geq G$ nor $G\not\geq F$, the [math]-test for $(F,G)$ returns ”No”. However, since

[TABLE]

the $1$-test for $(F,G)$ returns ”Yes”. Also, one can check that for any $k\in\{2,3\}$, the $k$-test returns ”Yes” (cf. Remark 5.1 (i)). 2. (B)

$(d=2)$ Consider $F,G:[3]^{2}\rightarrow\mathbf{Z}_{+}$ defined as follows:

[TABLE]

Since $G\not\geq F$, the [math]-test for $(F,G)$ returns ”No”. Also, since

[TABLE]

the $1$-test returns ”No”. Since $4\geq 0$ and $2\geq 0$, one can see that the $2$-test returns ”Yes”.

Recall the poset category $\mathbf{Z}_{+}^{\mathrm{op}}$: for any $p,q\in\mathbf{Z}_{+}$, there exists the unique arrow $p\rightarrow q$ if and only if $p\geq q$. A function $\overline{F}:\mathbf{N}^{d}\rightarrow\mathbf{Z}_{+}$ can be regarded as a functor $\overline{F}:\mathbf{N}^{d}\rightarrow\mathbf{Z}_{+}^{\mathrm{op}}$ if and only if $\overline{F}:\mathbf{N}^{d}\rightarrow\mathbf{Z}_{+}$ is order-reversing.

By the definition of interleaving distance, we straightforwardly have:

Proposition 5.3**.**

For $n,d\in\mathbf{N}$, let $\overline{F},\overline{G}:\mathbf{N}^{d}\rightarrow\mathbf{Z}_{+}^{\mathrm{op}}$ be any two functors with $0=F_{\mathbf{a}}=G_{\mathbf{a}}$ for each upper boundary point $\mathbf{a}\in[n]^{d}$. Consider the restrictions $F:=\overline{F}|_{[n]^{d}}$ and $G:=\overline{G}|_{[n]^{d}}$. Then,

[TABLE]

Computational complexity of computing the rank invariant.

Let $\mathbf{Vec}$ be the category of vector spaces over a fixed field $\mathbb{F}$ with linear maps. Let $M:[n]^{d}\rightarrow\mathbf{Vec}$ be a (finite) multidimensional module. Let $\mathrm{total}(M):=\sum_{\mathbf{a}\in[n]^{d}}\dim(M_{\mathbf{a}})$. In order to compute the rank invariant $\mathrm{rk}(M):[n]^{d}\rightarrow\mathbf{Z}_{+}$, one needs $O(\mathrm{total}(M)^{\omega})$ operations [8, Appendix C], where $\omega$ is the matrix multiplication exponent.

Proposed algorithm for computing $d_{\mathrm{I}}$ and its computational complexity.

Let $F,G:[n]^{d}\rightarrow\mathbf{Z}_{+}$ be any two order-reversing functions. Based on Proposition 5.3, in order to find the mimimal $k\in\{0,\ldots,n-1\}$ for which the $k$-test for $(F,G)$ (Algorithm 1) returns ”Yes”, we carry out binary search.

Let us fix $k\in\{0,\ldots,n-1\}$. For carrying out the $k$-test for $(F,G)$, we compare pairs of integers from the arrays of $F$ and $G$. Assume that pairs of integers are compared one by one. Then, notice that, depending on $F$ and $G$, the number of comparisons which are necessary to complete the $k$-test can vary from $1$ to $2(n-k)^{d}$. Under the assumption that the number of required comparisons is a random variable uniformly distributed in $\{1,\ldots,2(n-d)^{k}\}$ one can conclude that $\frac{1+2(n-d)^{k}}{2}\approx(n-d)^{k}$ comparisons are needed on average. Under the preceeding assumptions, by results from [49, Section 4], we directly have:

Theorem 5.4**.**

The expected cost of computing $d_{\mathrm{I},d}(F,G)$ is at least $O(n^{d}\log n)$. Furthermore, the algorithm based on ordinary binary search has this expected cost.

By Theorem 5.4, the expected costs of computing the LHSs of inequalities in Theorems 4.4 and 4.5, and Remarks 4.10 and 4.13 are $O(n^{d}\log n)$ where $d=6,3,2$ and $1$, respectively in order.

In Section C we compare $d_{\mathrm{I},d}$ with the matching distance [19, 20, 51], and with the dimension distance [28, Section 4].

6 Details about stability theorems

The goal of this section is to prove all theorems in Section 4 whose proof was not given therein.

6.1 Interleaving stability of rank invariants and dimension functions

The rank invariant and its stability.

For any persistence module $M:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$, the rank invariant of $M$ is defined as follows [17]:

Definition 6.1** (The rank invariant).**

For any $M:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$, the map $\mathrm{rk}(M):\mathbf{R}^{2d}\rightarrow\mathbf{Z}_{+}\cup\{\infty\}$ defined as

[TABLE]

is called the rank invariant of $M$.

Given any $M:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$, note that for any $\mathbf{a}^{\prime}\leq\mathbf{a}\leq\mathbf{b}\leq\mathbf{b}^{\prime}$ in $\mathbf{R}^{d}$,

[TABLE]

Hence, we have that $\mathrm{rk}(M)(\mathbf{a}^{\prime},\mathbf{b}^{\prime})\leq\mathrm{rk}(M)(\mathbf{a},\mathbf{b})$. This means that $\mathrm{rk}(M)$ is a functor between its domain and codomain when regarded

1. (i)

the domain $\mathbf{R}^{2d}$ as the product poset $(\mathbf{R}^{d})^{\mathrm{op}}\times\mathbf{R}^{d}$ and, 2. (ii)

the codomain $\mathbf{Z}_{+}\cup\{\infty\}$ as the poset $(\mathbf{Z}_{+}\cup\{\infty\})^{\mathrm{op}}$.

We have stability of the rank invariant:

Theorem 6.2** (Stability of the rank invariant [58, Theorem 8.2],[59, Theorem 22]).**

For any $M,N:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$,

[TABLE]

Note that Theorem 6.2 together with Theorem 4.1 result in Theorem 4.4. Even though the proof of Theorem 6.2 is given in [58, Theorem 8.2],[59, Theorem 22] in more general setting, we provide a brief version of the proof here.

Proof.

Since we regard $\mathrm{rk}(M)$ as a functor from $(\mathbf{R}^{d},\geq)\times(\mathbf{R}^{d},\leq)$ to $(\mathbf{Z}_{+}\cup\{\infty\})^{\mathrm{op}}$, for any $\varepsilon\in[0,\infty)$, the $\varepsilon$-shift $\mathrm{rk}(M)(\varepsilon):(\mathbf{R}^{d},\geq)\times(\mathbf{R}^{d},\leq)\rightarrow(\mathbf{Z}_{+}\cup\{\infty\})^{\mathrm{op}}$ of $\mathrm{rk}(M)$ is defined as

[TABLE]

Similarly, the $\varepsilon$-shift of $\mathrm{rk}(N)$ is defined.

Suppose that for some $\varepsilon\in[0,\infty)$, the pair $(f,g)$ is an $\varepsilon$-interleaving pair for $M,N:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$ (Definition 3.2). We show $\mathrm{rk}(N)(\varepsilon)\leq\mathrm{rk}(M)$. Pick any $(\mathbf{a},\mathbf{b})\in\mathbf{R}^{d}\times\mathbf{R}^{d}$. If $\mathbf{a}\not\leq\mathbf{b}$ in $\mathbf{R}^{d}$, then $\mathrm{rk}(M)(\mathbf{a},\mathbf{b})=\infty$, and thus we trivially have $\mathrm{rk}(N)_{(\mathbf{a}-\vec{\varepsilon},\mathbf{b}+\vec{\varepsilon})}\leq\mathrm{rk}(M)_{(\mathbf{a},\mathbf{b})}$. If $\mathbf{a}\leq\mathbf{b}$ in $\mathbf{R}^{d}$, then $\mathbf{a}-\vec{\varepsilon}\leq\mathbf{b}+\vec{\varepsilon}$, and since

[TABLE]

we have $\mathrm{rk}(N)_{(\mathbf{a}-\vec{\varepsilon},\mathbf{b}+\vec{\varepsilon})}\leq\mathrm{rk}(M)_{(\mathbf{a},\mathbf{b})}$. By symmetry, we also have $\mathrm{rk}(M)(\varepsilon)\leq\mathrm{rk}(N)$, completing the proof. ∎

Remark 6.3**.**

In order to compare the rank invariants, the author of [59] makes use of a generalization of the erosion distance in [58], which is denoted by $d_{\mathrm{E}}$ (see Section C). It can be deduced that for the LHS of inequality (14) coincides with $d_{\mathrm{E}}(\mathrm{rk}(M),\mathrm{rk}(N))$.

Given $\delta>0$, deciding whether $d_{\mathrm{I}}^{\mathbf{Vec}}(M,N)\leq\delta$ is in general NP-hard [7, 8].

In Theorem 6.2, substituting the comparison of $M$ and $N$ with that of $\mathrm{rk}(M)$ and $\mathrm{rk}(N)$ results in doubling of the underlying dimension of the interleaving distance. This increase of dimension is a price one must pay for substituting the target category $\mathbf{Vec}$ with the poset category $(\mathbf{Z}_{+}\cup\{\infty\})^{\mathrm{op}}$. Despite the increase in the underlying dimension, as we show in Section 5, it turns out that computing $d_{\mathrm{I}}$ is easier than computing $d_{\mathrm{I}}^{\mathbf{Vec}}$.

For any interval decomposable modules $M,N:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$, let $\mathcal{B}(M)$ and $\mathcal{B}(N)$ be the barcode of $M$ and $N$, respectively. Then, by [9, Proposition 2.13],

[TABLE]

Hence, together with Theorem 6.2 ,we straightforwardly have:

Corollary 6.4**.**

For any interval decomposable $M,N:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$, let $\mathcal{B}(M)$ and $\mathcal{B}(N)$ be the barcode of $M$ and $N$, respectively. Then,

[TABLE]

Monotonicity and stability of dimension functions for surjective modules.

Definition 6.5** (Surjective persistence modules).**

Let $\mathcal{C}$ be either $\mathbf{Sets}$ or $\mathbf{Vec}$ and let $M:\mathbf{R}^{d}\rightarrow\mathcal{C}$ be any persistence module. We call $M$ surjective if $\varphi_{M}(\mathbf{a},\mathbf{b}):M_{\mathbf{a}}\rightarrow M_{\mathbf{b}}$ is surjective for all $\mathbf{a}\leq\mathbf{b}$ in $\mathbf{R}^{d}.$

Example 6.6** (The [math]-th homology of the Rips filtration).**

Let $(X,d_{X})$ be a metric space. By applying the 0-th (simplicial) homology functor to the Rips filtration of $(X,d_{X})$, we obtain surjective persistence module $\mathbf{R}\rightarrow\mathbf{Vec}$.

Definition 6.7** (Dimension function).**

Let $\mathcal{C}$ be either $\mathbf{Sets}$ or $\mathbf{Vec}$ and let $M:\mathbf{R}^{d}\rightarrow\mathcal{C}$ be any persistence module. The dimension function $\mathrm{dm}(M):\mathbf{R}^{d}\rightarrow\mathbf{Z}_{+}$ of $M$ is defined by sending each $\mathbf{a}\in\mathbf{R}^{d}$ to the cardinality of $M_{\mathbf{a}}$ (when $\mathcal{C}=\mathbf{Sets}$) or the dimension of the vector spaces $M_{\mathbf{a}}$ (when $\mathcal{C}=\mathbf{Vec}$).

Remark 6.8**.**

In Definition 6.7, if $M$ is a surjective persistence module, then we can regard $\mathrm{dm}(M)$ as a functor $\mathbf{R}^{d}\rightarrow\mathbf{Z}_{+}^{\mathrm{op}}$.

Proposition 6.9** (Interleaving stability of the dimension function).**

Let $\mathcal{C}$ be either $\mathbf{Sets}$ or $\mathbf{Vec}$ and let $M,N:\mathbf{R}^{d}\rightarrow\mathcal{C}$ be any two surjective persistence modules. Then,

1. (i)

$d_{\mathrm{I},d}\left(\mathrm{dm}(M),\mathrm{dm}(N)\right)\leq 2\cdot d_{\mathrm{I},d}^{\mathcal{C}}(M,N).$ 2. (ii)

$d_{\mathrm{I},d}\left(\mathrm{dm}(M),\mathrm{dm}(N)\right)\leq\mathbf{d}_{\mathrm{I},d}^{\mathcal{C}}(M,N),$

Proof.

Let us assume that $\mathcal{C}=\mathbf{Sets}$. The proof for the case $\mathcal{C}=\mathbf{Vec}$ is similar. We show (i). Suppose that $(f,g)$ is an $\varepsilon$-interleaving pair between $M$ and $N$. Pick any $\mathbf{a}\in\mathbf{R}^{d}$. We have $\varphi_{N}(\mathbf{a},\mathbf{a}+2\vec{\varepsilon})=g_{\mathbf{a}+\vec{\varepsilon}}\circ f_{\mathbf{a}}$. Since $\varphi_{N}(\mathbf{a},\mathbf{a}+2\vec{\varepsilon})$ is surjective, we also have that $g_{\mathbf{a}+\vec{\varepsilon}}$ is surjective. Since $\varphi_{M}(\mathbf{a},\mathbf{a}+\varepsilon)$ is also surjective, the composition $g_{\mathbf{a}+\vec{\varepsilon}}\circ\varphi_{M}(\mathbf{a},\mathbf{a}+\vec{\varepsilon}):M_{\mathbf{a}}\rightarrow N_{\mathbf{a}+\vec{\varepsilon}}$ is surjective. This implies that $\mathrm{dm}(M)_{\mathbf{a}}\geq\mathrm{dm}(N)_{\mathbf{a}+2\vec{\varepsilon}}$. By symmetry, we also have that $\mathrm{dm}(N)_{\mathbf{a}}\geq\mathrm{dm}(M)_{\mathbf{a}+2\vec{\varepsilon}}$ for each $\mathbf{a}\in\mathbf{R}^{d}$. Therefore, $d_{\mathrm{I}}\left(\mathrm{dm}(M),\mathrm{dm}(N)\right)\leq 2\varepsilon$, as desired.

We prove Item (ii). Suppose that there exists a full $\varepsilon$-interleaving pair between $M$ and $N$. Then, this directly implies that for all $\mathbf{a}\in\mathbf{R}^{d}$, $\mathrm{dm}(M)_{\mathbf{a}}\geq\mathrm{dm}(N)_{\mathbf{a}+\vec{\varepsilon}}$ and $\mathrm{dm}(N)_{\mathbf{a}}\geq\mathrm{dm}(M)_{\mathbf{a}+\vec{\varepsilon}}$. ∎

Proposition 6.10**.**

Let $\mathcal{C}$ be either $\mathbf{Sets}$ or $\mathbf{Vec}$ and let $M,N:\mathbf{R}^{d}\rightarrow\mathcal{C}$ be any two surjective persistence modules. Then,

[TABLE]

Proof.

Suppose that for some $\varepsilon\in[0,\infty)$, $d_{\mathrm{I}}\left(\mathrm{dm}(M),\mathrm{dm}(N)\right)<\varepsilon$. It suffices to prove that for all $\mathbf{a},\mathbf{b}\in\mathbf{R}^{d}$ with $\mathbf{a}\leq\mathbf{b}$, and for all $\varepsilon^{\prime}>\varepsilon$ in $[0,\infty)$,

[TABLE]

Invoking that $M$ and $N$ are surjective, notice that $\mathrm{rk}(N)(\mathbf{a}-\vec{\varepsilon^{\prime}},\mathbf{b}+\vec{\varepsilon^{\prime}})=\mathrm{dm}(N)(\mathbf{b}+\vec{\varepsilon^{\prime}})$ and $\mathrm{rk}(M)(\mathbf{a},\mathbf{b})=\mathrm{dm}(M)(\mathbf{b}).$ By assumption, we readily have that $\mathrm{dm}(N)(\mathbf{b}+\vec{\varepsilon^{\prime}})\leq\mathrm{dm}(M)(\mathbf{b})$, completing the proof. ∎

Proposition 4.7 is a corollary of Proposition 6.10.

6.2 Proof of Theorem 4.1

Before showing Theorem 4.1, we begin with the remarks below.

Remark 6.11** (Simplicial maps between Rips complexes).**

For any (semi-)metric spaces777 We call $(X,d_{X})$ a semi-metric space if the function $d_{X}:X\times X\rightarrow\mathbf{R}_{+}$ satisfies: (1) for all $x\in X$, $d_{X}(x,x)=0$, and (2) for all $x,x^{\prime}\in X$, $d_{X}(x,x^{\prime})=d_{X}(x^{\prime},x)$. $(X,d_{X})$ and $(Y,d_{Y})$, and for some $\delta,\delta^{\prime}\geq 0$, consider the Rips complexes $K=\mathcal{R}_{\delta}(X,d_{X})$ and $L=\mathcal{R}_{\delta^{\prime}}(Y,d_{Y})$ . By the definition of Rips complex, in order to claim that any map $f:X\rightarrow Y$ is a simplicial map, it suffices to show that whenever $x,x^{\prime}\in X$ with $d_{X}(x,x^{\prime})\leq\delta$, it holds that $d_{Y}(f(x),f(x^{\prime}))\leq\delta^{\prime}.$

For $I=[u,u^{\prime}]\in\mathbf{Int}$ and $\varepsilon\in[0,\infty)$, let $I^{\varepsilon}:=[u-\varepsilon,u^{\prime}+\varepsilon]$.

Remark 6.12**.**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ and $\gamma_{Y}=(Y,d_{Y}(\cdot))$ be any two DMSs and let $R:\ X\xtwoheadleftarrow{\varphi_{X}}Z\xtwoheadrightarrow{\varphi_{Y}}Y$ be a $\varepsilon$-tripod between $\gamma_{X}$ and $\gamma_{Y}$. Then it is not difficult to check that for any closed interval $I$ of $\mathbf{R}$,

[TABLE]

which is slightly more general than the condition in (1).

Proof of Theorem 4.1.

If $d_{\mathtt{dyn}}(\gamma_{X},\gamma_{Y})=\infty$, there is nothing to prove. Suppose that $d_{\mathtt{dyn}}(\gamma_{X},\gamma_{Y})<\varepsilon$ for some $\varepsilon\in(0,\infty)$. Let $\mathcal{S}:=\mathcal{R}^{\mathrm{lev}}(\gamma_{X})$ and $\mathcal{T}:=\mathcal{R}^{\mathrm{lev}}(\gamma_{Y})$ (Definition 2.21). We regard $\mathbf{Int}\times\mathbf{R}_{+}$ as the subposet of $\mathbf{R}^{\mathrm{op}}\times\mathbf{R}\times\mathbf{R}$ (Figure 3). Let $\mathbf{v}:=\varepsilon(-1,1,2)\in\mathbf{R}^{3}$. It suffices to show that there are natural transformations $\Phi:\mathcal{S}\Rightarrow\mathcal{T}(\mathbf{v})$ and $\Psi:\mathcal{T}\Rightarrow\mathcal{S}(\mathbf{v})$ (between the two $\mathbf{Int}\times\mathbf{R}_{+}$-indexed, $\mathbf{Simp}$-valued functors) such that for each $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+},$ the following diagrams commute up to contiguity:

[TABLE]

Indeed, by functoriality of homology, the existence of such pair $(\Phi,\Psi)$ of natural transformations guarantees the $\mathbf{v}$-interleaving between two $(\mathbf{Int}\times\mathbf{R}_{+})$-indexed modules $\mathrm{H}_{k}\circ\mathcal{S}$ and $\mathrm{H}_{k}\circ\mathcal{T}.$

Suppose that $R:\ X\xtwoheadleftarrow{\varphi_{X}}Z\xtwoheadrightarrow{\varphi_{Y}}Y$ is an $\varepsilon$-tripod between $\gamma_{X}$ and $\gamma_{Y}$ (Definition 2.9), which exists by the assumption $d_{\mathtt{dyn}}(\gamma_{X},\gamma_{Y})<\varepsilon$. Since $\varphi_{X}$ and $\varphi_{Y}$ are surjective, we can take two maps $\phi:X\rightarrow Y$ and $\psi:Y\rightarrow X$ such that

[TABLE]

First, let us check that for any $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+},$ $\phi$ is a simplicial map from $\mathcal{S}(I,\delta)$ to $\mathcal{T}(I^{\varepsilon},\delta+2\varepsilon).$ Fix any $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$, and assume that an 1-simplex $\{x,x^{\prime}\}\subset X$ is contained in the simplicial complex $\mathcal{S}(I,\delta).$ Denoting $I=[u,u^{\prime}]$, this means that $\left(\bigvee_{[u,u^{\prime}]}d_{X}\right)(x,x^{\prime})\leq\delta.$ By Remark 6.11, it suffices to show that $\left(\bigvee_{[u,u^{\prime}]^{\varepsilon}}d_{Y}\right)(\phi(x),\phi(x^{\prime}))\leq\delta+2\varepsilon.$ This is immediate from the fact that $R$ is an $\varepsilon$-tripod, and the assumption $\{(x,\phi(x)):x\in X\}\subset\varphi_{Y}\circ\varphi_{X}^{-1}.$

Furthermore, $\phi$ serves as an $\mathbf{v}$-morphism $\mathcal{S}\Rightarrow\mathcal{T}(\mathbf{v})$. Indeed, for any $(I,\delta)\leq(J,\delta^{\prime})$ in $\mathbf{Int}\times\mathbf{R}_{+}$,

[TABLE]

By symmetry, $\psi:Y\Rightarrow X$ also serves as an $\mathbf{v}$-morphism $\mathcal{T}\Rightarrow\mathcal{S}(\mathbf{v})$.

Next, we show that $(\phi,\psi)$ is an $\varepsilon$-interleaving pair. By symmetry we only prove that for any $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$, $\psi_{(I^{\varepsilon},\delta+\varepsilon)}\circ\phi_{(I,\delta)}$ is contiguous to $\mathcal{S}\left((I,\delta)\leq(I^{2\varepsilon},\delta+2\varepsilon)\right)$, which is the identity map on the vertex set $X$. Let $\sigma\subset X$ be a simplex in $\mathcal{S}(I,\delta).$ We wish to show that there is a simplex in $\mathcal{S}(I^{2\varepsilon},\delta+2\varepsilon)$ that contains both $\sigma$ and the image $\mathrm{im}(\sigma)$ of $\sigma$ by $\psi_{(I^{\varepsilon},\delta+\varepsilon)}\circ\phi_{(I,\delta)}$. To this end, we prove that the union $\sigma\cup\mathrm{im}(\sigma)$ has the diameter that is less than or equal to $\delta+2\varepsilon$ in the (semi-)metric space $(X,\bigvee_{[u,u^{\prime}]^{2\varepsilon}}d_{X}).$ Invoking Remark 6.12, we consider the following three different cases of choosing any two elements in $\sigma\cup\mathrm{im}(\sigma)$:

1. (i)

Take any $x,x^{\prime}\in\sigma$. Since $\sigma$ is a simplex in the Rips complex $\mathcal{S}(I,\delta)=\newline \mathcal{R}_{\delta}(X,\bigvee_{[u,u^{\prime}]}d_{X}),$ we have

[TABLE]

Let $\tilde{R}:=\{(x,\phi(x)):x\in X\}\cup\{(\psi(y),y):y\in Y\}$ (see the inclusion in (16)).

1. (ii)

Take $x\in\sigma$ and $x^{\prime}\in\mathrm{im}(\sigma)$. Then $x^{\prime}=\psi\circ\phi(x^{\prime\prime})$ for some $x^{\prime\prime}\in\sigma$. Since $(x,\phi(x))$, $(x^{\prime},\phi(x^{\prime\prime})),(x^{\prime\prime},\phi(x^{\prime\prime}))\in\tilde{R}$,

[TABLE] 2. (iii)

Take any $x,x^{\prime}\in\mathrm{im}(\sigma)$. Then there are $x^{\prime\prime},x^{\prime\prime\prime}\in\sigma$ which are sent to $x,x^{\prime}$ via $\psi\circ\phi$, respectively. Since $(x,\phi(x^{\prime\prime})),(x^{\prime},\phi(x^{\prime\prime\prime})),(x^{\prime\prime},\phi(x^{\prime\prime})),(x^{\prime\prime\prime},\phi(x^{\prime\prime\prime}))\in\tilde{R}$,

[TABLE]

∎

6.3 Proof of Proposition 4.3

Lemma 6.13** (Convexity of admissible vectors).**

Suppose that $\mathbf{a},\mathbf{b}\in\mathbf{R}^{6}_{\times}$ are admissible with $\mathbf{a}\leq\mathbf{b}$. Then, any $\mathbf{c}\in\mathbf{R}_{\times}^{6}$ such that $\mathbf{a}\leq\mathbf{c}\leq\mathbf{b}$ is also admissible.

Proof.

Let $\mathbf{a}:=(a_{i})_{i=1}^{6}$ and $\mathbf{b}:=(b_{i})_{i=1}^{6}$ and $\mathbf{c}=(c_{i})_{i=1}^{6}$. From the assumptions that $\mathbf{a}\leq\mathbf{c}\leq\mathbf{b}$ and that $\mathbf{a},\mathbf{b}$ are admissible, one can see that

[TABLE]

[TABLE]

Therefore, $\mathbf{c}$ is admissible. ∎

Proof of Proposition 4.3.

Pick $\mathbf{a},\mathbf{b}\in\mathbf{R}_{\times}^{6}$ such that $\mathbf{a}\leq\mathbf{b}$. We consider the following cases:

1. (i)

Both $\mathbf{a}$ and $\mathbf{b}$ are admissible. 2. (ii)

$\mathbf{a}$ is admissible and $\mathbf{b}$ is non-admissible. 3. (iii)

$\mathbf{a}$ is non-admissible and $\mathbf{b}$ is admissible. 4. (iv)

Both $\mathbf{a}$ and $\mathbf{b}$ are non-admissible.

In case (i), let $\mathbf{a}=(a_{1},a_{2},a_{3},a_{4},a_{5},a_{6})$ and $\mathbf{b}=(b_{1}.b_{2},b_{3},b_{4},b_{5},b_{6})$. Then we have the inclusions

[TABLE]

By applying $\mathrm{H}_{k}$ to the above inclusions, we obtain the diagram of vector spaces and linear maps

[TABLE]

Notice that $\mathrm{rk}_{k}(\mathbf{a})$ is the rank of $\mathrm{H}_{k}(i_{2})$, whereas $\mathrm{rk}_{k}(\mathbf{b})$ is the rank of $\mathrm{H}_{k}(i_{3})\circ\mathrm{H}_{k}(i_{2})\circ\mathrm{H}_{k}(i_{1})$. This implies that $\mathrm{rk}_{k}(\mathbf{a})\geq\mathrm{rk}_{k}(\mathbf{b})$. In case (ii), $\mathbf{b}$ cannot be trivially non-admissible by definition. Therefore, $\mathrm{rk}_{k}(\gamma_{X})(\mathbf{b})=0$. In case (iii), by Lemma 6.13, $\mathbf{a}$ must be trivially non-admissible and hence $\mathrm{rk}_{k}(\gamma_{X})(\mathbf{a})=\infty$. In case (iv), by the definition of trivially non-admissible, it is not possible that $\mathbf{a}$ is non-trivially non-admissible with $\mathbf{b}$ being trivially non-admissible. Therefore, we always have

$\mathrm{rk}_{k}(\gamma_{X})(\mathbf{a})\geq\mathrm{rk}_{k}(\gamma_{X})(\mathbf{b})$. ∎

6.4 Spatiotemporal Dendrogram of a DMS and Proof of Theorem 4.5

Overview of the proof.

The Betti-[math] function of a DMS $\gamma_{X}$ can be obtained by the two steps: First, adapting the ideas of the SLHC method (Section D.2) , we induce the spatiotemporal SLHC dendrogram $\theta(\gamma_{X})$ of $\gamma_{X}$. Then, the dimension function $\mathrm{dm}\left(\theta(\gamma_{X})\right)$ (Definition 6.7) of $\theta(\gamma_{X})$ coincides with the Betti-[math] function of $\gamma_{X}$ given in Definition 2.24. Therefore, by proving that each of the successive associations $\gamma_{X}\mapsto\theta(\gamma_{X})\mapsto\mathrm{dm}\left(\theta(\gamma_{X})\right)$ is stable, we can show Theorem 4.5.

Partition category and dendrograms.

Let $X$ be a non-empty finite set. Given any two partitions $P,Q$ of $X$, we write $P\leq Q$ if $P$ refines $Q$, i.e. for all $B\in P$, there exists a (unique) $C\in Q$ such that $B\subset C$. In this case, the surjective map $P\twoheadrightarrow Q$ sending each $B\in P$ to the unique block $C\in Q$ such that $B\subset C$ is called the natural map from $P$ to $Q$.

Definition 6.14** ($\mathbf{Part}(X)$ and its structure).**

Let $X$ be a non-empty finite set.

By $\mathbf{Part}(X)$, we mean the subcategory of $\mathbf{Sets}$ described as follows:

1. (i)

Objects: All partitions of $X$. 2. (ii)

Morphisms: For any two partitions $P,Q$ of $X$ with $P\leq Q$, the unique morphism $P\twoheadrightarrow Q$ is the natural map.

We remark that any partition $P$ of $X$ has the corresponding equivalence relation $\sim$ on $X$. Namely, $P=X/\sim$, where $x\sim x^{\prime}$ if and only if $x,x^{\prime}$ belong to the same block of $P$.

Definition 6.15** (Dendrogram).**

Let $X$ be a non-empty finite set and let $\mathbf{P}$ be any poset. We will call any functor $\mathbf{P}\rightarrow\mathbf{Part}(X)$ a $\mathbf{P}$-indexed dendrogram over $X$ or simply a dendrogram.

The spatiotemporal SLHC dendrogram of a DMS.

We aim at encoding multiscale clustering features of a DMS into a single dendrogram (Definition 6.16). Since we take into account both temporal and spatial parameters, this dendrogram will have a multidimensional indexing poset, in contrast to its counterpart for a static metric space (Definition D.2). We prove that this dendrogram is stable under perturbation of the input DMS (Theorem 6.17).

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be a DMS. For $I\in\mathbf{Int}$ and $\delta\in\mathbf{R}_{+}$, we define the equivalence relation $\sim_{X,\delta}^{I}$ on $X$ as follows:

[TABLE]

Observe that, for any pair $(I,\delta)\leq(J,\delta^{\prime})$ in $\mathbf{Int}\times\mathbf{R}_{+}$, the relation $\sim_{X,\delta}^{I}$ is contained in $\sim_{X,\delta^{\prime}}^{J}$ and hence

[TABLE]

By this monotonicity in (17), we can extend the notion of SLHC dendrogram for static metric spaces (Definition D.2) to the spatiotemporal SLHC dendrogram of a DMS:

Definition 6.16** (The spatiotemporal SLHC dendrogram of a DMS).**

Given any DMS $\gamma_{X}=(X,d_{X}(\cdot))$, we define the spatiotemporal SLHC dendrogram $\theta(\gamma_{X}):\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Part}(X)$ of $\gamma_{X}$ as follows:

1. (i)

To each $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$, assign the partition $X/\sim_{X,\delta}^{I}$ of $X$. 2. (ii)

To each pair $(I,\delta)\leq(J,\delta^{\prime})$ in $\mathbf{Int}\times\mathbf{R}_{+}$, assign the natural map (Definition 6.14)

[TABLE]

In order to prove Theorem 4.5, we need:

Theorem 6.17** (Stability of the spatiotemporal SLHC dendrogram).**

Then,

[TABLE]

The proof of Theorem 4.5 will be straightforward by re-interpreting Definition 2.24:

Definition 6.18** (Another interpretation of Definition 2.24).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be a DMS. We define the Betti-0 function $\beta_{0}^{\gamma_{X}}:\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Z}_{+}$ of $\gamma_{X}$ as the dimension function of the spatiotemporal dendrogram $\theta(\gamma_{X}):\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Part}(X)$ of $\gamma_{X}$. In other words, $\beta_{0}^{\gamma_{X}}$ sends each $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$ to the number of blocks in the partition $\theta(\gamma_{X})(I,\delta).$

Proof of Theorem 4.5.

Invoking that $\beta_{0}^{\gamma_{X}}$ and $\beta_{0}^{\gamma_{Y}}$ are the dimension functions of $\theta(\gamma_{X})$ and $\theta(\gamma_{Y})$, respectively, the proof straightforwardly follows from Proposition 6.9 and Theorem 6.17. ∎

Proof of Theorem 6.17.

Let $M:=\theta(\gamma_{X}):\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Part}(X)(\hookrightarrow\mathbf{Sets})$ and $N:=\theta(\gamma_{Y}):\mathbf{Int}\times\mathbf{R}_{+}\rightarrow\mathbf{Part}(Y)(\hookrightarrow\mathbf{Sets})$. For each $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$, consider the equivalence relation $\sim^{X}_{I,\delta}$ on $X$ defined, for any $x,x^{\prime}\in X$, as $x\sim^{X}_{I,\delta}x^{\prime}$ if and only if there is a sequence $x=x_{0},x_{1},\ldots,x_{l}=x^{\prime}$ in $X$ such that $\bigvee_{I}d_{X}(x_{i},x_{i+1})\leq\delta$ for each $i=0,\ldots,l-1$. Similarly, define the equivalence relation $\sim^{Y}_{I,\delta}$ on $Y$. Note that, by definition of $M$ and $N$,

[TABLE]

For $x\in X$, let $[x]_{(I,\delta)}^{X}$ be the block containing $x$ in the partition $M_{(I,\delta)}$. Then, for any $(I,\delta),(J,\delta^{\prime})\in\mathbf{Int}\times\mathbf{R}_{+}$ with $(I,\delta)\leq(J,\delta^{\prime})$, the internal morphism $\varphi_{M}((I,\delta),(J,\delta^{\prime}))$ of $M$ sends $[x]_{(I,\delta)}^{X}$ to $[x]_{(J,\delta^{\prime})}^{X}$ for each $x\in X$. We can describe the internal morphisms of $N$ in the same way.

Suppose that $2\ d_{\mathtt{dyn}}\left(\gamma_{X},\gamma_{Y}\right)<\varepsilon$ for some $\varepsilon\in(0,\infty)$. Then, there exists an $(\varepsilon/2)$-tripod $R:\ X\xtwoheadleftarrow{\varphi_{X}}Z\xtwoheadrightarrow{\varphi_{Y}}Y$ between $\gamma_{X}$ and $\gamma_{Y}$ (Definitions 2.9 and 2.10).

Since two maps $\varphi_{X}:Z\rightarrow X$ and $\varphi_{Y}:Z\rightarrow Y$ are surjective, we can take two maps $f:X\rightarrow Y$ and $g:Y\rightarrow X$ such that

[TABLE]

We will show that $f,g$ induce a full $\varepsilon$-interleaving pair between $M$ and $N$. For any $I=[u,u^{\prime}]\in\mathbf{Int}$ and any $\alpha\in[0,\infty)$, let $I^{\alpha}:=[u-\alpha,u^{\prime}+\alpha]$. For each $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$, we define $\bar{f}_{(I,\delta)}:M_{(I,\delta)}\rightarrow N_{(I^{\varepsilon},\delta+\varepsilon)}$ as

[TABLE]

Similarly, we define $\bar{g}_{(I,\delta)}:N_{(I,\delta)}\rightarrow M_{(I^{\varepsilon},\delta+\varepsilon)}$. It suffices to show that for each $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$,

1. (i)

$\bar{f}_{(I,\delta)}$ (resp. $\bar{g}_{(I,\delta)}$) is a well-defined set map from $M_{(I,\delta)}$ to $N_{(I^{\varepsilon},\delta+\varepsilon)}$ (resp. from $N_{(I,\delta)}$ to $M_{(I^{\varepsilon},\delta+\varepsilon)}$), 2. (ii)

$\bar{f}_{(I,\delta)}:M_{(I,\delta)}\rightarrow N_{(I^{\varepsilon},\delta+\varepsilon)}$ and $\bar{g}_{(I,\delta)}:N_{(I,\delta)}\rightarrow M_{(I^{\varepsilon},\delta+\varepsilon)}$ are surjective. 3. (iii)

when $(I,\delta)\leq(J,\delta^{\prime})$ in $\mathbf{Int}\times\mathbf{R}_{+}$,

[TABLE]

[TABLE] 4. (iv)

$\bar{g}_{(I^{\varepsilon},\delta+\varepsilon)}\circ\bar{f}_{(I,\delta)}=\varphi_{M}((I,\delta),(I^{2\varepsilon},\delta+2\varepsilon))$, and

$\bar{f}_{(I^{\varepsilon},\delta+\varepsilon)}\circ\bar{g}_{(I,\delta)}=\varphi_{N}((I,\delta),(I^{2\varepsilon},\delta+2\varepsilon)).$

We prove (i). Fix $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$. Suppose that $x^{\prime}\in[x]_{(I,\delta)}^{X}$. It suffices to show that $f(x^{\prime})\in[f(x)]_{(I^{\varepsilon},\delta+\varepsilon)}^{Y}$. By assumption, there exist $x=x_{0},\ldots,x_{l}=x^{\prime}$ in $X$ such that $\bigvee_{I}d_{X}(x_{i},x_{i+1})\leq\delta$, $i=1,\ldots,l-1$. Then, invoking $R$ is an $(\varepsilon/2)$-tripod between $\gamma_{X}$ and $\gamma_{Y}$ (see (1)), together with assumption (18) and Remark 6.12,

[TABLE]

This directly implies that $f(x^{\prime})\in[f(x)]_{(I^{\varepsilon},\delta+\varepsilon)}^{Y}$. In a similar way, it can be proved that $\bar{g}_{(I,\delta)}$ is well-defined.

Now we show (ii). Fix $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$. We only prove that $\bar{f}_{(I,\delta)}:M_{(I,\delta)}\rightarrow N_{(I^{\varepsilon},\delta+\varepsilon)}$ is surejctive. Pick any $[y]^{Y}_{(I^{\varepsilon},\delta+\varepsilon)}\in N_{(I^{\varepsilon},\delta+\varepsilon)}.$ Since $\varphi_{Y}:Z\rightarrow Y$ is surjective, there exists $z\in Z$ such that $\varphi_{Y}(z)=y.$ Let $x:=\varphi_{X}(z)$. Then, invoking $R$ is an $(\varepsilon/2)$-tripod between $\gamma_{X}$ and $\gamma_{Y}$, together with assumption (18) and Remark 6.12,

[TABLE]

This implies that $[f(x)]^{Y}_{(I^{\varepsilon},\delta+\varepsilon)}=[y]^{Y}_{(I^{\varepsilon},\delta+\varepsilon)}$. Also, by definition of $\bar{f}_{(I,\delta)}$, $[x]^{X}_{(I,\delta)}$ is sent to $[y]^{Y}_{(I^{\varepsilon},\delta+\varepsilon)}$ via $\bar{f}_{(I,\delta)}$. Since $[y]^{Y}_{(I^{\varepsilon},\delta+\varepsilon)}\in N_{(I^{\varepsilon},\delta+\varepsilon)}$ was arbitrary chosen, we have shown the surjectivity of $\bar{f}_{(I,\delta)}$.

Next we prove (iii). Fix $(I,\delta)\leq(J,\delta^{\prime})$ in $\mathbf{Int}\times\mathbf{R}_{+}$. We only show

[TABLE]

By the definition of maps $\varphi_{M}(\cdot,\cdot),\varphi_{N}(\cdot,\cdot),\bar{f}_{(\cdot,\cdot)}$ and $\bar{g}_{(\cdot,\cdot)}$, for any $[x]_{(I,\delta)}^{X}\in M_{(I,\delta)}$,

[TABLE]

[TABLE]

Finally, we prove (iv). Fix $(I,\delta)\in\mathbf{Int}\times\mathbf{R}_{+}$. We only show

[TABLE]

Take any $[x]_{(I,\delta)}^{X}\in M_{(I,\delta)}$. Then, by $\bar{g}_{(I^{\varepsilon},\delta+\varepsilon)}\circ\bar{f}_{(I,\delta)}$, the block $[x]_{(I,\delta)}^{X}$ is sent to $[g\circ f(x)]_{(I^{2\varepsilon},\delta+2\varepsilon)}^{X}$. By invoking that $R$ is an $(\varepsilon/2)$-tripod between $\gamma_{X}$ and $\gamma_{Y}$ and (18) and Remark 6.12, we also have

[TABLE]

This implies that $[x]_{\delta+2\varepsilon}^{X}=[g\circ f(x)]_{\delta+2\varepsilon}^{X}$, completing the proof. ∎

For $t\in\mathbf{R}$, consider $[t,t]\in\mathbf{Int}$.

Remark 6.19** (Comprehensiveness of Definition 6.16).**

We remark the following (see Figure 7):

1. (i)

Consider the constant DMS $\gamma_{X}\equiv(X,d_{X})$ as in Example 2.2. Then, the spatiotemporal SLHC dendrogram of $\gamma_{X}$ is amount to the SLHC dendrogram (Definition D.2) of $(X,d_{X})$: for all $I\in\mathbf{Int}$ and $\delta\in\mathbf{R}_{+}$,

[TABLE] 2. (ii)

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be a DMS. For each $t\in\mathbf{R}$, we have the SLHC dendrogram $\theta(X,d_{X}(t)):\mathbf{R}_{+}\rightarrow\mathbf{Part}(X)$ of the metric space $(X,d_{X}(t))$ (Definition D.2). All those dendrograms are incorporated by $\theta(\gamma_{X})$ in the following sense:

[TABLE]

Remark 6.20** (Connection to [47]).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be a DMS and fix $\delta_{0}\in\mathbf{R}_{+}$. The map $\theta_{X}^{\delta}:\mathbf{R}\rightarrow\mathbf{Part}(X)$ defined as

[TABLE]

is the formigram induced from $\gamma_{X}$ with respect to the connectivity parameter $\delta$ [47].

6.5 Proof of Theorem 4.14

Proof of Theorem 4.14.

We utilize $\{\!\!\{\cdot\}\!\!\}$ instead of $\{\cdot\}$ to denote multisets. Let $m:=\left\lvert X\right\rvert$, $n:=\left\lvert Y\right\rvert$, and without loss of generality assume that $m\leq n$. Then, for some $a_{1}\leq\ldots\leq a_{m-1}$, and $b_{1}\leq\ldots\leq b_{n-1}$ in $\mathbf{R}_{+}$, we have

[TABLE]

[TABLE]

Then,

[TABLE]

Let $A=\{\!\!\{a_{1}^{\prime},\ldots,a_{n-1}^{\prime}\}\!\!\}$ and $B=\{\!\!\{b_{1},\ldots,b_{n-1}\}\!\!\}$, where $A$ consists of $n-m$ zeros at the beginning, followed by the sequence $a_{1},a_{2}\ldots,a_{m-1}.$ Then, notice that

[TABLE]

Therefore, it suffices to show that

[TABLE]

Let $\varepsilon:=d_{\mathrm{I}}\left(\beta_{0}^{(X,d_{X})},\beta_{0}^{(Y,d_{Y})}\right),$ i.e.

[TABLE]

Observe the following:

1. (i)

$\beta_{0}^{(X,d_{X})},\beta_{0}^{(Y,d_{Y})}$ are monotonically decreasing as maps from $\mathbf{R}_{+}$ to $\mathbf{Z}_{+}$, 2. (ii)

For $0\leq\delta<a_{1}=a_{n-m+1}^{\prime},$ we have $\beta_{0}^{(X,d_{X})}(\delta)=m$, 3. (iii)

For integers $k=1,\ldots,m-1$, we have $a_{n-k}^{\prime}=\min\left\{\delta\in\mathbf{R}_{+}:\beta_{0}^{(X,d_{X})}(\delta)=k\right\},$ 4. (iv)

For integers $k=1,\ldots,n-1$, we have $b_{n-k}=\min\left\{\delta\in\mathbf{R}_{+}:\beta_{0}^{(Y,d_{Y})}(\delta)=k\right\}.$

In order to show inequality (19), first we show that $\left\lvert a_{i}^{\prime}-b_{i}\right\rvert\leq\varepsilon$ for $1\leq i\leq n-m$. By construction we have $a_{1}^{\prime}=a_{2}^{\prime}=\ldots=a_{n-m}^{\prime}=0$, and thus it suffices to show that $b_{i}\leq\varepsilon$ for $1\leq i\leq n-m$. By the assumption in (20) and item (ii), we have

[TABLE]

Also, by items (i) and (iv), we have $b_{n-m}\leq\varepsilon.$ Since $b_{1}\leq b_{2}\leq\ldots\leq b_{n-m-1}\leq b_{n-m}$, we have shown that $b_{i}\leq\varepsilon$ for $1\leq i\leq n-m$, as desired.

Now we show that $\left\lvert a_{i}^{\prime}-b_{i}\right\rvert\leq\varepsilon$ for $i=n-m+1,n-m+2,\ldots,n-1$. By re-indexing it suffices to prove that $\left\lvert a_{n-k}^{\prime}-b_{n-k}\right\rvert\leq\varepsilon$ for $k=1,\ldots,m-1$. Notice that, for $k=1,\ldots,m-1$, by the assumption in (20) and item (iv), we have

[TABLE]

Then by items (i) and (iii), we have that $a^{\prime}_{n-k}\leq b_{n-k}+\varepsilon$. Similarly, one can prove that for $k=1,\ldots,m-1$, it holds that $b_{n-k}\leq a_{n-k}^{\prime}+\varepsilon$. Therefore, we have $\left\lvert a_{n-k}^{\prime}-b_{n-k}\right\rvert\leq\varepsilon$ for $k=1,\ldots,m-1$, as desired. ∎

7 Discussion

The primary contribution of this paper is to construct multiparameter persistent homology groups from dynamic metric data. Not only are these persistent homology groups stable to perturbations of the input, but also this stability result turns out to be a generalization of a fundamental stability theorem in topological data analysis. A second practical contribution of our paper is to propose a polynomial time algorithm that can be carried out for quantifying the behavioral difference between two dynamic metric data sets.

Appendix A Discretization of DMSs

In order to compute the lower bound for the distance $d_{\mathtt{dyn}}$ given in Theorems 4.4 and 4.5 in practice, we need to discretize DMSs, i.e. turn DMSs into a locally constant DMSs. This discretization depends on the resolution parameter $\alpha\in(0,\infty)$, described as below. We will show that, if $\alpha$ is small and DMSs $\gamma_{X}$ and $\gamma_{Y}$ satisfy a mild assumption, then the lower bounds for $d_{\mathtt{dyn}}(\gamma_{X},\gamma_{Y})$ given in Theorems 4.4 and 4.5 can be well-approximated using the $\alpha$-discretized DMSs associated to $\gamma_{X}$ and $\gamma_{Y}$.

We call any map $i:\mathbf{Z}^{d}\rightarrow\mathbf{R}^{d}$ grid-like if $i$ is an strictly injective poset morphism, i.e.

1. (i)

for any pair $\mathbf{a}=(a_{1},\ldots,a_{d})<\mathbf{b}=(b_{1},\ldots,b_{d})$ with $a_{i}<b_{i}$, $i=1,\ldots,d$ in $\mathbf{Z}^{d}$, for $i(\mathbf{a})=(a_{1}^{\prime},\ldots,a_{d}^{\prime})$ and $i(\mathbf{b})=(b_{1}^{\prime},\ldots,b_{d}^{\prime})$, we have $a_{i}^{\prime}<b_{i}^{\prime}$, $i=1,\ldots,d$. 2. (ii)

For all $\mathbf{c}=(c_{1},\ldots,c_{d})\in\mathbf{R}^{d}$, there are $\mathbf{a},\mathbf{b}\in\mathbf{Z}^{d}$ such that $i(\mathbf{a})\leq\mathbf{c}\leq i(\mathbf{b})$.

Given a grid-like $i:\mathbf{Z}^{d}\rightarrow\mathbf{R}^{d}$, for any $\mathbf{a}\in\mathbf{R}^{d}$, define $\lfloor\mathbf{a}\rfloor_{i}$ to be the maximum element in the image of $\mathbf{Z}^{d}$ by $i$ which does not exceed $\mathbf{a}$.

Definition A.1** (Discrete persistence modules).**

We call a persistence module $M:\mathbf{R}^{d}\rightarrow\mathcal{C}$ discrete if there exists a grid-like map $i:\mathbf{Z}^{d}\rightarrow\mathbf{R}^{d}$ such that for each $\mathbf{a}\in\mathbf{R}^{d}$, the morphism $\varphi_{M}(\lfloor\mathbf{a}\rfloor_{i},\mathbf{a}):M_{\lfloor\mathbf{a}\rfloor_{i}}\rightarrow M_{\mathbf{a}}$ is an isomorphism.

Let $\alpha\in(0,\infty)$. For any $t\in\mathbf{R}$, let $\lfloor t\rfloor_{\alpha}\in\alpha\mathbf{Z}$ be the greatest element in $\alpha\mathbf{Z}$ which does not exceed $t$. Given any DMS $\gamma_{X}=(X,d_{X}(\cdot))$, we define the $\alpha$-discretization of $\gamma_{X}$:

Definition A.2** (Discretization of a DMS).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be any DMS and let $\alpha\in(0,\infty)$. The $\alpha$-discretization of $\gamma_{X}$ is the $\mathbf{R}$-parametrized family of finite (pseudo-)metric spaces $\gamma_{X}^{\alpha}:=\left\{\left(X,d_{X}^{\alpha\mathbf{Z}}(t)\right):t\in\mathbf{R}\right\}$, where

[TABLE]

Notice that the discretization $\gamma_{X}^{\alpha}$ of $\gamma_{X}$ does not necessarily satisfy Definition 2.1 4 and (iii) and hence $\gamma_{X}^{\alpha}$ does not deserve to be called a DMS. However, for convenience, we will call $\gamma_{X}^{\alpha}$ the $\alpha$-discretized DMS of $\gamma_{X}$ or simply the discretized DMS.

We can regard $d_{\mathtt{dyn}}$ as an extended pseudometric on a collection containing both all DMSs and all discretized DMSs: Indeed, items 4 and (iii) in Definition 2.1 are not necessary to claim that $d_{\mathtt{dyn}}$ satisfies the triangle inequality (see the proof of [47, Theorem 9.14] in [47, Section 11.4.2]).

A DMS $\gamma_{X}=(X,d_{X}(\cdot))$ is said to be $l$-Lipschitz if $d_{X}(\cdot)(x,x^{\prime}):\mathbf{R}\rightarrow\mathbf{R}_{+}$ is $l$-Lipschitz for every $x,x^{\prime}\in X$. Assuming that $\gamma_{X}$ is $l$-Lipschitz, the smaller the resolution parameter $\alpha$ is, the closer the discretized DMS $\gamma_{X}^{\alpha}$ to $\gamma_{X}$ is:

Proposition A.3**.**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be any $l$-Lipschitz DMS. Then,

[TABLE]

Note that for the discretized DMS $\gamma_{X}^{\alpha}$, we can define the rank invariant and the Betti-[math] function of $\gamma_{X}^{\alpha}$ in the same way as in Definitions 2.23 and 2.24, respectively. Furthermore, in a bounded time interval $I\subset\mathbf{R}$, it is not difficult to check that both the Betti-[math] function $\beta_{0}^{\gamma_{X}^{\alpha}}$ and the rank invariant $\mathrm{rk}_{k}(\gamma_{X}^{\alpha}),\ k\in\mathbf{Z}_{+}$ are discrete (Definition A.1). Therefore, one can straightforwardly utilize the results in Section 5 for computing $d_{\mathrm{I}}$.

Proposition A.4** (Approximating $d_{\mathtt{dyn}}$ from below with discretized DMSs).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ and $\gamma_{Y}=(Y,d_{Y}(\cdot))$ be any two $l$-Lipschitz DMSs.

[TABLE]

[TABLE]

Proof of Proposition A.3.

For ease of notation, we prove the statement assuming that $\alpha=1$, without loss of generality. Consider the tripod $R:X\xtwoheadleftarrow{\mathrm{id}_{X}}X\xtwoheadrightarrow{\mathrm{id}_{X}}X$ (Definition 2.6). We prove that $R$ is a $l$-tripod between $\gamma_{X}$ and $\gamma_{X}^{\alpha\mathbf{Z}}$ (Definition 2.9). Fix $t\in\mathbf{R}$. Since $\lfloor t\rfloor\in[t-1,t+1]=[t]^{1}$, it is clear that $\bigvee_{[t]^{1}}d_{X}\leq_{R}d_{X}^{\alpha}(t)$ and hence $\bigvee_{[t]^{1}}d_{X}\leq_{R}d_{X}^{\alpha\mathbf{Z}}(t)+2l.$ It remains to show that $\bigvee_{[t]^{1}}d_{X}^{\alpha\mathbf{Z}}\leq_{R}d_{X}(t)+2l.$ Observe that, for any $x,x^{\prime}\in X$, $\left(\bigvee_{[t]^{1}}d_{X}^{\alpha\mathbf{Z}}\right)(x,x^{\prime})$ is the minimum among $d_{X}(\lfloor t\rfloor-1)(x,x^{\prime}),\ d_{X}(\lfloor t\rfloor)(x,x^{\prime})$ and $d_{X}(\lfloor t\rfloor+1)(x,x^{\prime}).$ Also, observe that all of $\lfloor t\rfloor-1,\lfloor t\rfloor,\lfloor t\rfloor+1$ belong to the closed interval $[t]^{2}=[t-2,t+2]$. Therefore, invoking that $\gamma_{X}$ is $l$-Lipschitz, for any $x,x^{\prime}\in X$,

[TABLE]

This implies that $\bigvee_{[t]^{1}}d_{X}^{\mathbf{Z}}\leq_{R}d_{X}(t)+2l$, as desired. ∎

Proof of Proposition A.4.

We have

[TABLE]

Also, by Theorem 4.5, we obtain $d_{\mathrm{I}}\left(\beta_{0}^{\gamma_{X}^{\alpha}},\beta_{0}^{\gamma_{Y}^{\alpha}}\right)\leq 2\cdot d_{\mathtt{dyn}}(\gamma_{X}^{\alpha},\gamma_{Y}^{\alpha})$, and in turn the first inequality in the statement. The second inequality can be proved in a similar way. ∎

Appendix B Relationship between the rank invariant and CROCKER-plot

We relate the rank invariant of a DMS to the CROCKER plot of [64]:

Definition B.1** (The CROCKER plots of a DMS [64]).**

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be a DMS. For $k\in\mathbf{Z}_{+}$, the $k$-th CROCKER plot $C_{k}(\gamma_{X})$ of $\gamma_{X}$ is a map $\mathbf{R}\times\mathbf{R}_{+}\rightarrow\mathbf{Z}_{+}$ sending $(t,\delta)\in\mathbf{R}\times\mathbf{R}_{+}$ to the dimension of the vector space $\mathrm{H}_{k}\left(\mathcal{R}_{\delta}(X,d_{X}(t))\right)$.

Let $\gamma_{X}=(X,d_{X}(\cdot))$ be any DMS. Note that for any time $t_{0}\in\mathbf{R}$ and scale $\delta_{0}\in\mathbf{R}_{+}$, the value of $\mathrm{rk}_{k}(\gamma_{X})$ associated to the repeated pair $([t_{0},t_{0}],\delta_{0}),([t_{0},t_{0}],\delta_{0})\in\mathbf{Int}\times\mathbf{R}_{+}$ is identical to the dimension of the vector space $\mathrm{H}_{k}\left(\mathcal{R}_{\delta_{0}}(X,d_{X}(t_{0}))\right)$, i.e. $C_{k}(\gamma_{X})(t_{0},\delta_{0})$. This implies that $\mathrm{rk}_{k}(\gamma_{X})$ is an enriched version of the $k$-th CROCKER plot $C_{k}(\gamma_{X})$ of $\gamma_{X}$.888To illustrate this, the [math]-th CROCKER plot $C_{0}(\gamma_{X})$ is obtained by restricting $\beta_{0}^{\gamma_{X}}$ to the front diagonal vertical plane $\{[t,t]:t\in\mathbf{R}\}\times\mathbf{R}_{+}\subset\mathbf{Int}\times\mathbf{R}_{+}$, which is colored brown in the middle picture of Figure 4. Therefore, Theorem 4.4 can be interpreted somehow as establishing the stability of the CROCKER plots of a DMS.

Recall Definition 2.24, the Betti-[math] function of a DMS.

Remark B.2** (Comparison between the Betti-[math] function and the [math]-th CROCKER plot).**

Consider the DMSs $\gamma_{X}$ and $\gamma_{Y}$ in Figure 1. Since the two metric spaces $\gamma_{X}(t)$ and $\gamma_{Y}(t)$ are isometric at each time $t\in\mathbf{R}$, the two CROCKER plots $C_{0}(\gamma_{X})$ and $C_{0}(\gamma_{Y})$ are identical. On the other hand, the Betti-[math] function $\beta_{0}^{\gamma_{X}}$ is distinct from $\beta_{0}^{\gamma_{Y}}$ as illustrated in Figure 4. This implies that, in comparison with the [math]-th CROCKER plot, the Betti-[math] function is more sensitive invariant of a DMS.

Appendix C Other relevant metrics

Bottleneck distance

Let us define:

• •

$\overline{\mathbf{R}}:=\mathbf{R}\cup\{+\infty,-\infty\}$,

• •

$\mathbf{U}:=\{(u_{1},u_{2})\in\mathbf{R}^{2}:u_{1}\leq u_{2}\}$, which is the upper-half plane above the line $y=x$ in $\mathbf{R}^{2}$.

• •

$\overline{\mathbf{U}}:=\{(u_{1},u_{2})\in\overline{\mathbf{R}}^{2}:u_{1}\leq u_{2}\}$, which is the upper-half plane above the line $y=x$ in the extended plane $\overline{\mathbf{R}}^{2}$.

For $\mathbf{u}=(u_{1},u_{2}),\ \mathbf{v}=(v_{1},v_{2})\in\overline{\mathbf{U}}$, let

[TABLE]

Let $X_{1}$ and $X_{2}$ be multisets of points. Let $\alpha:X_{1}\nrightarrow X_{2}$ be a matching, i.e. a partial injection. By $\mathrm{dom}(\alpha)$ and $\mathrm{im}(\alpha)$, we denote the points in $X_{1}$ and $X_{2}$ respectively, which are matched by $\alpha$.

Definition C.1** (The bottleneck distance [24]).**

Let $X_{1},X_{2}$ be multisets of points in $\overline{\mathbf{U}}$. Let $\alpha:X_{1}\nrightarrow X_{2}$ be a matching. We call $\alpha$ an $\varepsilon$-matching if

1. (i)

for all $\mathbf{u}\in\mathrm{dom}(\alpha)$, $\left\lVert\mathbf{u}-\alpha(\mathbf{u})\right\rVert_{\infty}\leq\varepsilon$, 2. (ii)

for all $\mathbf{u}=(u_{1},u_{2})\in X_{1}\setminus\mathrm{dom}(\alpha)$, $u_{2}-u_{1}\leq 2\varepsilon$, 3. (iii)

for all $\mathbf{v}=(v_{1},v_{2})\in X_{2}\setminus\mathrm{im}(\alpha)$, $v_{2}-v_{1}\leq 2\varepsilon$.

Their bottleneck distance $d_{\mathrm{B}}(X_{1},X_{2})$ is defined as the infimum of $\varepsilon\in[0,\infty)$ for which there exists an $\varepsilon$-matching $\alpha:X_{1}\nrightarrow X_{2}$.

Erosion distance.

Recently, Patel generalized the notion of persistence diagrams and proposed a new metric, the erosion distance, for comparing generalized persistence diagrams [58]. We review a particular case of the erosion distance. Let $\mathbf{P}$ and $\mathbf{Q}$ be any two posets. Given any two maps $f,g:\mathbf{P}\rightarrow\mathbf{Q}$, we write $f\leq g$ if $f(p)\leq g(p)$ for all $p\in\mathbf{P}$.

Let $\mathbf{U}:=\{(x,y)\in\mathbf{R}^{2}:x\leq y\}$ equipped with the partial order inherited from $\mathbf{R}^{\mathrm{op}}\times\mathbf{R}$. For any $\varepsilon\in[0,\infty),$ let $\vec{\varepsilon}:=(-\varepsilon,\varepsilon)\in\mathbf{U}$. Given any map $Y:\mathbf{U}\rightarrow\mathbf{Z}_{+}$ and $\varepsilon\in[0,\infty)$, define another map $\nabla_{\varepsilon}Y:\mathbf{U}\rightarrow\mathbf{Z}_{+}$ as $\nabla_{\varepsilon}Y(I):=Y(I+\vec{\varepsilon}).$ If $Y$ is order-reversing, it is clear that $\nabla_{\varepsilon}Y\leq Y.$

Definition C.2** (Erosion distance [58]).**

Let $Y_{1},Y_{2}:\mathbf{U}\rightarrow\mathbf{Z}_{+}$ be any two order-reversing maps. The erosion distance between $Y_{1}$ and $Y_{2}$ is defined as

[TABLE]

with the convention that $d_{\mathrm{E}}(Y_{1},Y_{2})=\infty$ when there is no $\varepsilon\in[0,\infty)$ satisfying the condition in the above set.

Note that since $\mathbf{U}$ is a subposet of $\mathbf{R}^{\mathrm{op}}\times\mathbf{R}$, we can regard $d_{\mathrm{E}}$ is a particular case of $d_{\mathrm{I},2}$ from Section 3.2. The erosion distance is further generalized in [59].

Matching distance [19, 51].

In brief, the matching distance $d_{\mathrm{match}}$ compares rank invariants via one-dimensional reduction along lines. Namely, for any $M,N:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$, the matching distance between $\mathrm{rk}(M)$ and $\mathrm{rk}(N)$ is defined as

[TABLE]

where $L$ varies in the set of all the lines parameterized by $u=s\vec{m}+b$, with $m^{\ast}:=\min_{i}m_{i}>0$, $\max_{i}m_{i}=1$, $\sum_{i}^{n}b_{i}=0$. Specifically, $d_{\mathrm{match}}$ is upper bounded by $d_{\mathrm{I}}^{\mathbf{Vec}}$ [51]. We briefly discuss about the algorithms for $d_{\mathrm{match}}$ and their computational cost:

• •

For $d=1$, the RHS of equation (21) reduces to the bottleneck distance between the barcodes of $M$ and $N$. The bottleneck distance can be computed in time $O(n^{1.5}\log n)$ where $n$ is the total cardinality of the two barcodes [45]. See also [18].

• •

For $d=2$, $d_{\mathrm{match}}$ can be computed exactly in time $O(n^{11})$ where $n$ is the size of finite presentations of $M$ and $N$ [44].

• •

For $d\geq 2$, algorithms for approximating $d_{\mathrm{match}}$ within any threshold $\varepsilon>0$ are proposed in [6, 20]. In particular, for the case $d\geq 3$ which is of our interest, the running time for the proposed algorithm is proportional to $\left(\frac{d}{\varepsilon}\right)^{d}$ in the worst case [20, Section 3.1].

Dimension distance [28, Section 4].

Let $M,N:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$ be any two persistence modules. If $M,N$ are nice999A persistence module $M:\mathbf{R}^{d}\rightarrow\mathbf{Vec}$ is nice if there exists a value $\varepsilon_{0}\in\mathbf{R}_{+}$ so that for every $\varepsilon<\varepsilon_{0}$, each internal morphism $\varphi_{M}(\mathbf{a},\mathbf{a}+\vec{\varepsilon})$ is either injective or surjective (or both)., then the dimension distance $d_{0}$ between $\mathrm{dm}(M)$ and $\mathrm{dm}(N)$ serves as a lower bound for $d_{\mathrm{I}}^{\mathbf{Vec}}(M,N)$ [28, Theorem 39]. A strength of $d_{0}$ is the computational efficiency. Let $M^{\prime},N^{\prime}:[n]^{d}\rightarrow\mathbf{Vec}$ be any two finite persistence modules. The entire computation for $d_{0}(\mathrm{dm}(M^{\prime}),\mathrm{dm}(N^{\prime}))$ takes only $O(n^{2}\log n)$ [28, Section 4.2].

If a persistence module $M$ is obtained by applying the [math]-th homology functor to the spatiotemporal Rips filtration of a DMS $\gamma_{X}$ (Definition 2.21), then every internal morphim $\varphi_{M}(\cdot,\cdot)$ is surjective, and hence $M$ is nice. Specifically, $\mathrm{dm}(M)$ coincides with the Betti-[math] function $\beta_{0}^{\gamma_{X}}$ (Definition 2.24). Therefore, one can utilize $d_{0}$ for comparing Betti-[math] functions of DMSs and for obtaining a lower bound of $d_{\mathtt{dyn}}$ (by virtue of Theorem 4.1).

On the other hand, for $k\geq 1$, a persistence module $M$ obtained by applying the $k$-th homology functor to the spatiotemporal Rips filtration of a DMS does not necessarily satisfy the “nice” condition. This prevents us from freely utilizing $d_{0}$ in order to obtain a lower bound for $d_{\mathtt{dyn}}$.

Appendix D Stability of the single linkage hierarchical clustering method

We review the single linkage hierarchical clustering (SLHC) method and its stability under the Gromov-Hausdorff distance. We begin by reviewing the Gromov-Hausdorff distance.

D.1 The Gromov-Hausdorff distance

The Gromov-Hausdorff distance $d_{\mathrm{GH}}$ (Definition D.1) measures how far two metric spaces are from being isometric.

Let $(X,d_{X})$ and $(Y,d_{Y})$ be any two metric spaces and let $R:\ X\xtwoheadleftarrow{\varphi_{X}}Z\xtwoheadrightarrow{\varphi_{Y}}Y$ be a tripod between $X$ and $Y$. Then, the distortion of $R$ is defined as

[TABLE]

Definition D.1** (Gromov-Hausdorff distance [12, Section 7.3.3]).**

Let $(X,d_{X})$ and $(Y,d_{Y})$ be any two metric spaces. Then,

[TABLE]

where the infimum is taken over all tripods $R$ between $X$ and $Y$. In particular, any tripod $R$ between $X$ and $Y$ with $\mathrm{dis}(R)\leq\varepsilon$ is said to be an $\varepsilon$-tripod between $(X,d_{X})$ and $(Y,d_{Y})$.

The computation cost of $d_{\mathrm{GH}}$ leads to NP-hard problem, even for metric spaces of simple structure [1, 61]. Therefore, one of practical approaches for estimating $d_{\mathrm{GH}}$ is to search for tractable lower bounds.

D.2 Single linkage hierarchical clustering (SLHC) method

Let $(X,d_{X})$ be a finite metric space. For each $\delta\in\mathbf{R}_{+}$, we define the equivalence relation $\sim_{\delta}$ on $X$ as

[TABLE]

Observe that for any $\delta\leq\delta^{\prime}$ in $\mathbf{R}_{+}$, the inclusion $\sim_{\delta}\ \subset\ \sim_{\delta^{\prime}}$ holds, leading to $(X/\sim_{\delta})\leq(X/\sim_{\delta^{\prime}})$ in $\mathbf{Part}(X)$ (Definition 6.14).

Definition D.2** (The dendrogram from the SLHC).**

Let $(X,d_{X})$ be a finite metric space. The dendrogram $\theta(X,d_{X}):\mathbf{R}_{+}\rightarrow\mathbf{Part}(X)$ defined by sending $\delta\in\mathbf{R}_{+}$ to $X/\sim_{\delta}$ is called the SLHC dendrogram of $(X,d_{X})$.

The ultrametric induced by the single linkage hierarchical clustering method [16].

An ultrametric space $(X,u_{X})$ is a metric space satisfying the strong triangle inequality: for all $x,x^{\prime},x^{\prime\prime}\in X$, $u_{X}(x,x^{\prime})\leq\max\left\{u_{X}(x,x^{\prime\prime}),u_{X}(x^{\prime\prime},x^{\prime})\right\}$.

Let $(X,d_{X})$ be a finite metric space and consider its SLHC dendrogram $\theta(X,d_{X}):\mathbf{R}_{+}\rightarrow\mathbf{Part}(X)$. For any $x,x^{\prime}\in X$, define

[TABLE]

It is not difficult to check that $u_{X}:X\times X\rightarrow\mathbf{R}_{+}$ is a ultrametric and that $u_{X}(x,x^{\prime})\leq d_{(}x,x^{\prime})$, for all $x,x^{\prime}\in X$.

Definition D.3** (The ultrametrics induced by the single linkage hierarchical clustering [16]).**

Given any finite metric space $(X,d_{X})$, the ultrametric space $(X,u_{X})$ defined as above is said to be the ultrametric space induced by the SLHC on $(X,d_{X})$ and we write $(X,u_{X})=\mathcal{H}^{\mathrm{SL}}(X,d_{X}).$

The assignment $(X,d_{X})\mapsto\mathcal{H}^{\mathrm{SL}}(X,d_{X})$ is known to be 1-Lipschitz with respect to the Gromov-Hausdorff distance:

Theorem D.4** (Stability of the SLHC [16]).**

For any two finite metric spaces $(X,d_{X})$ and $(Y,d_{Y})$, let $(X,u_{X})$ and $(Y,u_{Y})$ be the ultrametric spaces induced from $(X,d_{X})$ and $(Y,d_{Y})$ by the SLHC method. Then,

[TABLE]

Remark D.5**.**

The term $d_{\mathrm{GH}}((X,u_{X}),(Y,u_{Y}))$ in (22) cannot be approximated within any factor less than 3 in polynomial time, unless P = NP [46, Theorem 3]. Therefore, in a practical viewpoint, it is desirable to find another lower bound for $d_{\mathrm{GH}}$.

The Gromov-Hausdorff distance can be bounded from below by the bottleneck distance between persistence diagrams associated to Rips filtrations: see inequality (11). Computing the LHS of inequality (11) can be carried out in polynomial time [45].

Remark D.6**.**

Observe that both of the LHSs of the inequalities in (22) and (11) with $k=0$ measure the difference between clustering features of $(X,d_{X})$ and $(Y,d_{Y})$. In fact, for any two finite metric spaces $(X,d_{X})$ and $(Y,d_{Y})$, the persistence modules $\mathrm{H}_{0}\left(\mathcal{R}_{\bullet}(X,d_{X})\right)$ and $\mathrm{H}_{0}\left(\mathcal{R}_{\bullet}(Y,d_{Y})\right)$ are isomorphic to $\mathrm{H}_{0}\left(\mathcal{R}_{\bullet}(X,u_{X})\right)$ and $\mathrm{H}_{0}\left(\mathcal{R}_{\bullet}(Y,u_{Y})\right)$, respectively. Therefore,

[TABLE]
