The Magnetic Properties of 1111-type Diluted Magnetic Semiconductor (La$_{1-x}$Ba$_{x}$)(Zn$_{1-x}$Mn$_{x}$)AsO in the Low Doping Regime

TL;DR

This study explores the magnetic behavior of a diluted magnetic semiconductor (La$_{1-x}$Ba$_{x}$)(Zn$_{1-x}$Mn$_{x}$)AsO at low doping levels, revealing a transition from antiferromagnetic to ferromagnetic interactions as doping increases.

Contribution

It provides detailed experimental insights into the doping-dependent magnetic interactions and the competition between ferromagnetic and antiferromagnetic exchanges in this material.

Findings

Paramagnetic at low doping levels ($x \,\leq\, 0.01$)

Ferromagnetic ordering appears at $x = 0.02$

Antiferromagnetic interactions dominate at low doping, ferromagnetic at higher doping

Abstract

We investigated the magnetic properties of (La$_{1-x}$Ba$_{x}$)(Zn$_{1-x}$Mn$_{x}$)AsO with $x$ varying from 0.005 to 0.05 at an external magnetic field of 1000 Oe. For doping levels of $x$ $\leq$ 0.01, the system remains paramagnetic down to the lowest measurable temperature of 2 K. Only when the doping level increases to $x$ = 0.02 does the ferromagnetic ordering appear. Our analysis indicates that antiferromagnetic exchange interactions dominate for $x$ $\leq$ 0.01, as shown by the negative Weiss temperature fitted from the magnetization data. The Weiss temperature becomes positive, i.e., ferromagnetic coupling starts to dominate, for $x$ $\geq$ 0.02. The Mn-Mn spin interaction parameter $\mid$$2J/k_B$$\mid$ is estimated to be in the order of 10 K for both $x$ $\leq$ 0.01 (antiferromagnetic ordered state) and $x$ $\geq$ 0.02 (ferromagnetic ordered state). Our results unequivocally demonstrate the competition between ferromagnetic and antiferromagnetic exchange interactions in carrier-mediated ferromagnetic systems.

Figures

Tables

Table 1. Table 1: Weiss temperature ( θ 𝜃 \theta ) and the nearest neighbor exchange interaction for (La 1-x Ba x )(Zn 1-x Mn x )AsO.

x	$\overline{\text{x}}$	$\theta$ (K)	2$J$/kB (K)
0.005	0.0064 $\pm$ 0.0003	$-$0.9 $\pm$ 0.1	$-$11.71
0.0075	0.0034 $\pm$ 0.0002	$-$0.3 $\pm$ 0.1	$-$7.47
0.01	0.011 $\pm$ 0.001	$-$1.7 $\pm$ 0.2	$-$13.45
0.02	0.018 $\pm$ 0.001	2.5 $\pm$ 0.2	12.12
0.03	0.032 $\pm$ 0.002	5.8 $\pm$ 0.1	15.44
0.04	0.046 $\pm$ 0.003	6.2 $\pm$ 0.1	11.64
0.05	0.066 $\pm$ 0.003	16.2 $\pm$ 0.2	21.22

Full text

\pubvolume

3 \issuenum1 \articlenumber0

\historyReceived: 14 September 2018; Accepted: 26 November 2018; Published: date \updatesyes \TitleThe Magnetic Properties of 1111-type Diluted Magnetic Semiconductor (La1-xBax)(Zn1-xMnx)AsO in the Low Doping Regime \AuthorGuoxiang Zhi 1, Kai Wang 1, Haojie Zhang 1, Cui Ding 1, Shengli Guo 1, Yilun Gu 1, Licheng Fu 1 and F. L. Ning *1,2,**\AuthorNamesGuoxiang Zhi, Kai Wang, Haojie Zhang, Cui Ding, Shengli Guo, Yilun Gu, Licheng Fu, and F. L. Ning

\corresCorrespondence: ningfl@zju.edu.cn

1 Introduction

Combining the properties of semiconductor and magnetism, diluted magnetic semiconductors (DMSs) have potential application in industry Furdyna ; Zutic ; Jungwirth . In the 1980s, the focus was mainly on II-VI DMSs A${}^{II}_{1-x}$MnxBVI (A = Zn, Cd, Hg; B = Se, Te), where iso-valent substitution of Mn2+ for A2+ in AIIBVI usually induces spin glass Furdyna . The research of DMSs has become explosive since III-V DMSs (In,Mn)As and (Ga,Mn)As were successfully fabricated via low temperature molecular beam epitaxy in the 1990s InMnAs ; GaMnAs ; Chambers ; Dietl1 ; Jungwirth ; Samarth ; Zutic ; Dietl2 . It was initially proposed that the Curie temperature TC of III-V DMSs would reach room temperature assuming sufficient Mn ions could be doped homogeneously ZenerModel . However, after more than two decades of effort, the highest TC of (Ga1-xMnx)As has been reported as $\sim$200 K with x$$\sim12$\%$ GaMnAs_190K ; ZhaoJH1 ; ZhaoJH2 . Some difficulties are encountered in the research of (Ga,Mn)As. Firstly, it is difficult to increase Mn concentration while keeping thin films homogeneous due to the low solid solubility of Mn in GaAs. Secondly, Mn substitution for GaAs provides not only local moments but also carriers. Moreover, some Mn2+ ions behave as double donors when getting into interstitial sites Jungwirth . Thirdly, it seems that TC does not increase above 200 K where even higher Mn doping levels could be achieved, i.e., TC saturates at $\sim$200 K. The possible reason is that Mn2+ are more likely to have another Mn2+ at nearest-neighbour sites for higher Mn doping levels, which results in antiferromagnetic exchange interactions that compete with the ferromagnetic ordering.

Recently, several bulk form DMS systems derived from Fe-based superconductors have been reported ZhaoJH2 ; Li(ZnMn)As_JCQ ; Li(ZnMn)P_JCQ ; Li(ZnCr)As_WQ ; Li(ZnMn)P_Man ; (BaK)(ZnMn)2As2_JCQ ; ZhaoK_CSB_230K ; (BaK)(CdMN)2As2_YXJ ; (LaBa)(ZnMn)AsO_DC ; (LaSr)(ZnMn)AsO_DC ; (LaCa)(ZnMn)SbO_JCQ ; (LaCa)(ZnMn)AsO_DC ; (LaSr)(ZnFe)AsO_LJC ; (LaSr)(CuMn)SO_YXJ . Similar to the style used in Fe-based superconductors, these DMS systems are named as “111” Li(ZnMn)As_JCQ ; Li(ZnMn)P_JCQ ; Li(ZnCr)As_WQ ; Li(ZnMn)P_Man , “122” (BaK)(ZnMn)2As2_JCQ ; ZhaoK_CSB_230K ; (BaK)(CdMN)2As2_YXJ , “1111” (LaBa)(ZnMn)AsO_DC ; (LaSr)(ZnMn)AsO_DC ; (LaCa)(ZnMn)SbO_JCQ ; (LaCa)(ZnMn)AsO_DC ; (LaSr)(ZnFe)AsO_LJC ; (LaSr)(CuMn)SO_YXJ , and “32522” 32522_MHY type DMSs. The progress on this research stream can be found in a recent review article Shengli_CPB . The bulk form DMSs have some advantages. Firstly, we can apply conventional magnetic probes, such as muon spin relaxation ($\mu$SR) and nuclear magnetic resonance (NMR) to investigate the ferromagnetism at a microscopic level. $\mu$SR measurements have confirmed that the ferromagnetism in these DMSs is homogeneous and shares the same mechanism as that of (Ga,Mn)As Li(ZnMn)As_JCQ ; Li(ZnMn)P_Man ; (BaK)(ZnMn)2As2_JCQ ; (LaBa)(ZnMn)AsO_DC ; (LaCa)(ZnMn)AsO_DC ; Dunsiger . On the other hand, NMR results of Li(Zn0.9Mn0.1)P have demonstrated that Mn–Mn spin interactions are mediated by hole carriers, and the averaged ferromagnetic exchange interactions are in the order of 100 K LiZnMnP_NMR . Another advantage of these bulk form DMSs is that we can control the doping concentrations of spins and carriers separately, and their individual influence on ferromagnetic ordering can be investigated. For example, we found that there is no ferromagnetic order occurring when only doping Mn into the parent compound LaZnAsO up to 10$\%$ (LaBa)(ZnMn)AsO_DC . The ferromagnetic order does not develop until carriers and spins are codoped into LaZnAsO. On the other hand, for a fixed amount of Mn concentration, too many carriers will suppress Curie temperature instead (LaSr)(ZnMn)AsO_DC ; Li(ZnMn)P_Man .

From theoretical point of view, the NMR results on Li(Zn0.9Mn0.1)P are consistent with the theoretical model that spin interactions are mediated by conduction carriers to form long range magnetic order. The long range ferromagnetic order has been explained by the p-d Zener exchange model ZenerModel , which is an analog of the Ruderman–Kittel –Kasuya–Yosida (RKKY) interaction in metals. However, in the very dilute regime, i.e., the concentrations of both spins and carriers are at a very low levels, carriers might be localized and cannot mediate the spin interactions. Bound magnetic polaron (BMP) model, which proposes that the percolation of magnetic polarons will induce ferromagnetic ordering, has been applied to explain the mechanism in the very dilute regime of DMSs BMP .

We fully used the advantages of decoupled charge and spin doping in (La1-xBax)(Zn1-xMnx)AsO, and investigated the magnetic properties in the very dilute doped regime. We codoped Ba and Mn into the direct gap parent semiconductor LaZnAsO at low doping concentration, $x$ $\leq$ 0.05 (more details about the synthesis and characterizations of (La1-xBax)(Zn1-xMnx)AsO with higher doping level can be found in Ref. (LaBa)(ZnMn)AsO_DC ). We measured the magnetization at Bext = 1000 Oe and fit the data above TC to obtain the Weiss temperature $\theta$. Our fitting results indicate that weak antiferromagnetic exchange coupling dominates for $x$ $\leq$ 0.01, and ferromagnetic coupling starts to dominate for $x$ $\geq$ 0.02. We calculated the Mn–Mn spin interactions parameter $J$, and $2J/k_{B}$ is about $-$10 K $\pm$ 3 K for x $\leq$ 0.01 and about 17 K $\pm$ 5 K for x $\geq$ 0.02, which are in the same order as that of Hg1-xMnxTe magnetic_IV-VI . We show that the random nature of the spin interactions for the doping regime of $x$ $\leq$ 0.01 can be explained by models based on random-exchange interactions HgMnTe ; AndresPRB1981 ; MurayamaPRB1984 ; BhattPRL1982 .

2 Results and Discussion

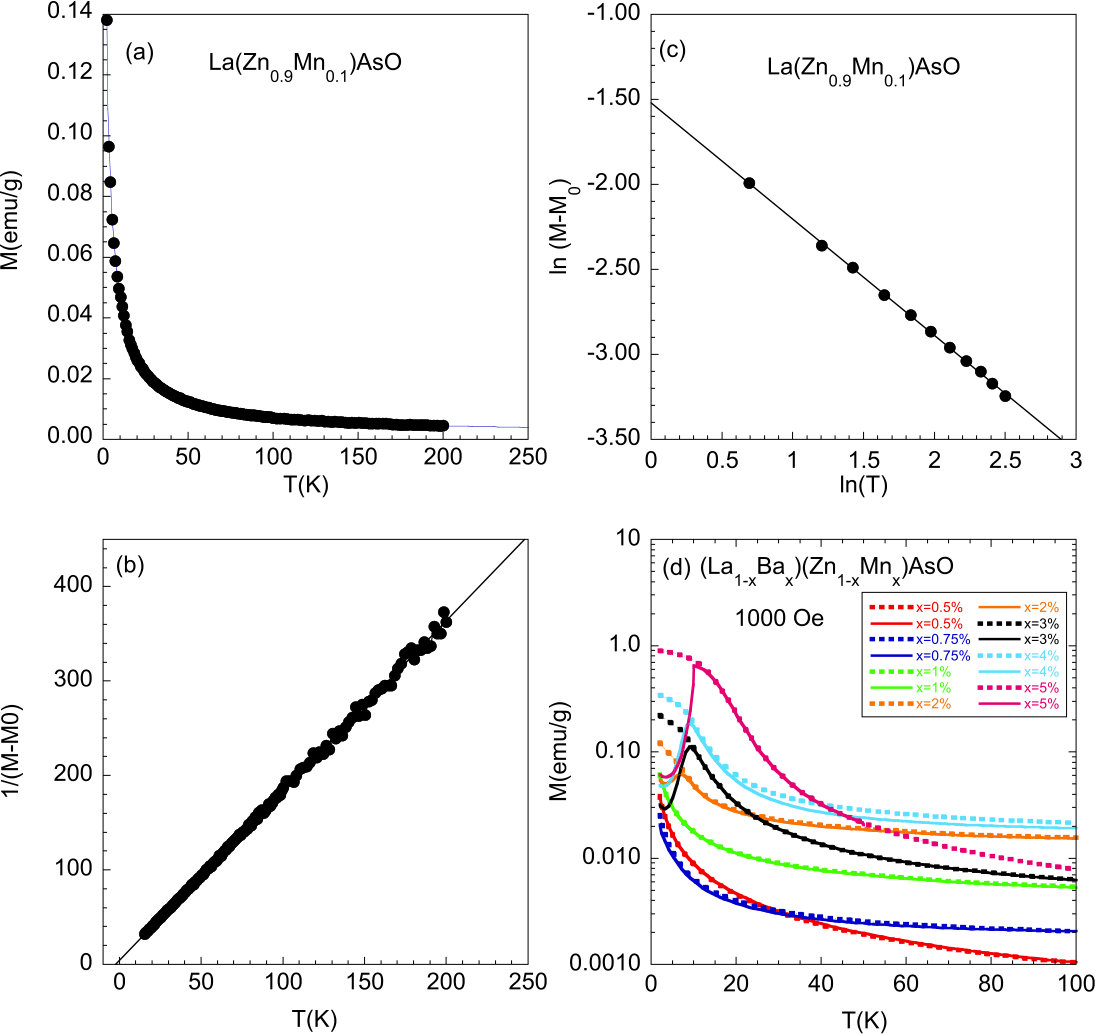

In Figure 1a, we show the dc-magnetization of La(Zn0.9Mn0.1)AsO measured under field cooling (FC) and zero field cooling (ZFC) condition with Bext = 1000 Oe. The two curves are superposed to each other in the whole measured temperature range and can be well fitted by a Curie–Weiss relation M = $\frac{C}{T-\theta}$+M0, suggesting a paramagnetic ground state, where M0 is temperature independent part induced by the host lattice (LaZnAsO). (M $-$ M0)-1 versus T (15 K to 200 K) is shown in Figure 1b. The intercept in the T-axis is the Weiss temperature, $\theta$ = $-$2.6 K, indicating the antiferromagnetic coupling. The negative intercept was also found for Hg1-xMnxTe and Pb1-xMnxTe, and other II-VI HgMnTe and IV-VI magnetic_IV-VI DMSs. In Figure 1c, we show the plot of ln(M) versus ln(T), which can be fitted by a straight line $\mathrm{ln}(M-M_{0})=-1.52-0.68\mathrm{ln}(T)$. This behavior indicates that the magnetization of La(Zn0.9Mn0.1)AsO follows a power-law dependence with temperature, with the slope $\alpha$ = $-$0.68. The well fitted results are consistent with models based on random-exchange interactions HgMnTe ; AndresPRB1981 ; MurayamaPRB1984 ; BhattPRL1982 . In these models, the low-temperature magnetization in a system with random exchange interactions in any dimensions follows a power-law with temperature as Tα ( $-$1 $\leq$ $\alpha$ $\leq$ 0 ) HgMnTe . The magnitude of $\alpha$ is a measure of how random the spin interactions are. For example, $\alpha$ = $-$1 corresponds to the standard Curie-law behavior HgMnTe .

We show the field cooling (FC) and zero field cooling (ZFC) dc-magnetization of (La1-xBax)(Zn1-xMnx)AsO ($x$ = 0.005$\sim$0.05) for Bext = 1000 Oe in Figure 1d. The magnitude of magnetization at low temperature (2 K) measured under FC condition increases from 0.039 emu/g (x = 0.005) to 0.903 emu/g (x = 0.05). For $x$ $\leq$ 0.01, no magnetic instability or anomaly is observed in both FC and ZFC curves, indicating there is no ferromagnetic or spin-glass ordering induced. Starting from $x$ = 0.02, a clear splitting between FC and ZFC curves at low temperature can be observed. We fit the data of susceptibility (M/H) at high enough (much higher than $\theta$) temperature by a Curie–Weiss law $\chi$ = $\frac{C}{T-\theta}$+$\chi_{0}$, where $\chi_{0}$ is temperature independent part induced by the host lattice, C is the Curie constant and $\theta$ the Weiss temperature. With the number C, we can calculate the effective occupation probability of magnetic ion on a Zn site, $\bar{x}$. Considering a modified Brillouin function with Weiss’ molecule field theory, the magnetization of $\bar{x}N_{0}$ Mn ions is $M=S_{Mn}g_{Mn}\mu_{B}\bar{x}N_{0}B_{S_{Mn}}(\xi)$, where $\xi=\frac{g_{Mn}\mu_{B}S_{Mn}H_{eff}}{k_{B}T}$, $H_{eff}=H_{e}+\lambda M$, $S_{Mn}$ is the spin of Mn, gMn is the spin-splitting g factor of Mn, $\mu_{B}$ is the Bohr magneton, $N_{0}$ is the number of Zn site per gram, $k_{B}$ is the Boltzmann constant, $H_{eff}$ is the effective magnetic field, $H_{e}$ is the applied field and $\lambda$ is a constant. Since the Brillouin function $B_{S}(\xi)=\frac{S+1}{3S}\xi+O(x^{3})$, we have $\chi=\frac{\bar{x}N_{0}(g_{Mn}\mu_{B})^{2}S_{Mn}(S_{Mn}+1)}{3k_{B}(T-\theta^{\prime})}$, where $\theta^{\prime}=\frac{\bar{x}N_{0}(g_{Mn}\mu_{B})^{2}S_{Mn}(S_{Mn}+1)\lambda}{3k_{B}}$. Comparing with the Curie–Weiss law, we have $\theta^{\prime}$=$\theta$ and $\bar{x}$ =$\frac{3k_{B}CM_{mol}}{(g_{Mn}\mu_{B})^{2}S_{Mn}(S_{Mn}+1)N_{A}}$, where Mmol is the formula weight and NA is the Avogadro number. We assume that gMn = 2 and SMn = $\frac{5}{2}$ (this assumption is reasonable because the effective moment from experiments is estimated to be 4–5 $\mu_{B}$/Mn (LaBa)(ZnMn)AsO_DC ).

From the Heisenberg model, if we count only the nearest-neighbor exchange interaction of Mn ions, we can derive the molecular field $H_{mf}=\lambda M=\frac{1}{g\mu_{B}}\sum\limits_{\textbf{R}^{\prime}}\bar{x}J(\textbf{R}-\textbf{R}^{\prime})S(\textbf{R}^{\prime})$. Assuming every spin has the same value and sums up to give the total magnetization, we have $S(\textbf{R}^{\prime})$ = $\frac{M}{g\mu_{B}\bar{x}N_{0}}$, and $\lambda=\frac{2\bar{x}zJ}{\bar{x}N_{0}(g\mu_{B})^{2}}$. Under the circumstance that temperature is in the range where no long-range magnetic order formed, the nearest–neighbor exchange interaction can be estimated by using $\theta$ and $\bar{x}$ from the relation $J$ = $\frac{3{\theta}k_{B}}{2\bar{x}S_{Mn}(S_{Mn}+1)z}$, where $z$ is the number of nearest neighbors on Zn site. $z$ equals to 4 in (La1-xBax)(Zn1-xMnx)AsO system.

In Table 1, we list the concentration $x$, obtained $\bar{x}$, $\theta$ and $J$ for (La1-xBax)(Zn1-xMnx)AsO. The small negative Weiss temperature $\theta$ for $x$ $\leq$ 0.01 indicates that weak antiferromagnetic interactions dominate. On the other hand, starting from x = 0.02, the Weiss temperature $\theta$ turns into a positive value, indicating ferromagnetic interactions start to dominate. Note that, in Pb1-xEuxTe, the coupling between Eu ions is still antiferromagnetic for the doping level up to 31.6 % magnetic_IV-VI .

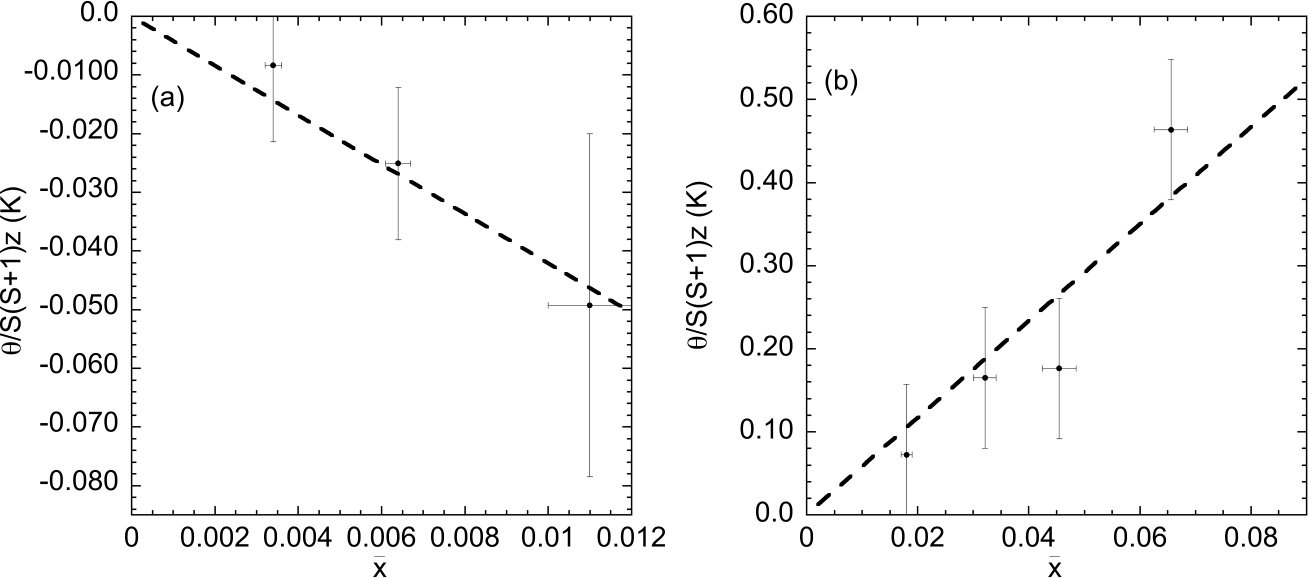

In the first approximation, $\frac{\theta}{S_{Mn}(S_{Mn}+1)z}$ should depend linearly on $\bar{x}$ and go to zero when $\bar{x}$ goes to zero, with a slope of $\frac{2J}{3k_{B}}$ magnetic_IV-VI . We show the plot of $\frac{\theta}{S_{Mn}(S_{Mn}+1)z}$ versus $\bar{x}$ of (La1-xBax)(Zn1-xMnx)AsO for 0.005 $\leq$ $x$ $\leq$ 0.01 and 0.02 $\leq$ $x$ $\leq$ 0.05 in Figure 2a,b, respectively. The dashed linear lines passing through the origin are guides for eyes. In Figure 2, the data points are not far away from a linear line, which gives evidence for the validity of calculating $\bar{x}$ with such method.

For $x\geq 0.02$, the nearest-neighbor interaction parameter $\mid 2J/k_{B}\mid$ of (La1-xBax)(Zn1-xMnx)AsO with ferromagnetic coupling is about 17 K $\pm$ 5 K. For x $\leq$ 0.01, with antiferromagnetic coupling, $\mid 2J/k_{B}\mid$ is about 10 K $\pm$ 3 K, which is in the same order of magnitude as that in Mn-doped II-VI systems magnetic_IV-VI . For instance, $\mid 2J/k_{B}\mid$ for Mn-doped HgSe, CdSe and CdTe are 21.8 K, 21.2 K and 13.8 K, respectively HgCdMnSeCdMnTe . However, this value is much larger than that in IV-VI systems with Mn or rare-earth doped. $\mid 2J/k_{B}\mid$ for Mn-doped IV-VI compounds is in the order of 1 K magnetic_IV-VI . For example, $\mid 2J/k_{B}\mid$ for Mn-doped PbS, PbSe and PbTe are 2.57 K PbMnS , 3.35 K magnetic_IV-VI and 1.69 K magnetic_IV-VI , respectively. For rare-earth-doped IV-VI compounds, $\mid 2J/k_{B}\mid$ is in the order of 0.1 K magnetic_IV-VI . For instance, $\mid 2J/k_{B}\mid$ for Pb1-xEuxTe PbEuTe and Pb1-xGdxTe magnetic_IV-VI is 0.23 K and 0.72 K, respectively. This means that the magnitude of nearest-neighbor exchange interaction in $(La_{1-x}Ba_{x})(Zn_{1-x}Mn_{x})AsO$ is an order of magnitude higher than that in Mn-doped IV-VI systems, and two orders of magnitude higher than that in rare-earth-doped IV-VI systems.

The magnitude of the nearest-neighbor exchange interaction in (La1-xBax)(Zn1-xMnx)AsO is quite different from that in Mn-doped IV-VI systems; one possible reason is that $J$ strongly depends on the cation-anion distance in DMSs magnetic_IV-VI . CdTe(II-VI DMS), HgTe(II-VI DMS) and PbTe(IV-VI DMS) share almost the same lattice constant $a$ ($\sim$6.5 Å), but their magnitude of exchange interactions are quite different. The cation-anion separation of II-VI systems with zinc-blende or wurtzite structure can be calculated as $a\sqrt{3}/4$ ($\sim$2.8 Å), while the cation-anion separation of IV-VI systems with rock salt structure is $0.5a$ ($\sim$3.3 Å). M. Gorska and J. R. Anderson calculated that this difference in the cation-anion separation alone can lead to an order of magnitude or more difference in the superexchange interaction parameter $J$ magnetic_IV-VI , and they believe that superexchange is the dominant exchange mechanism for these DMSs. For LaZnAsO with a ZrCuSiAs-type tetragonal crystal structure, the cation-anion separation of Mn-doped ZnO layer is $\sim$ 2.8 Å, which is close to that in II-VI systems, and explains why the value of J in (La1-xBax)(Zn1-xMnx)AsO $(x\leq 0.01)$ is higher than that in IV-VI systems and close to that in II-VI systems.

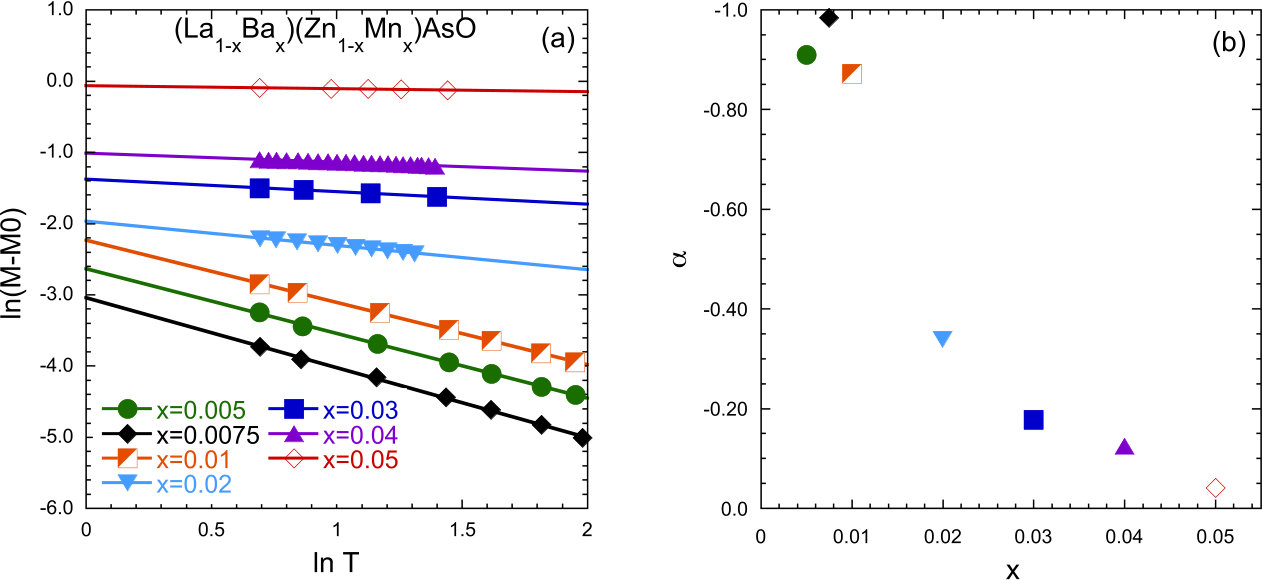

We have seen that in, the very dilute regime ($x$ $\leq$ 0.01), even carriers and spins are codoped; (La1-xBax)(Zn1-xMnx)AsO do not show any ferromagnetic or spin-glass ordering, similarly to the case of La(Zn0.9Mn0.1)AsO (where no carriers are introduced). This behavior can be explained by models based on random exchange interactions, in which the low-temperature susceptibility follows a power law in temperature as $T^{\alpha}$ with $-1\leq\alpha\leq 0$ HgMnTe . We plot ln(M$-$M0) versus ln(T) of (La1-xBax)(Zn1-xMnx)AsO for 0.005 $\leq$ $x$ $\leq$ 0.02 in Figure 3a. The data can be fitted by straight lines with the slopes as the random-exchange parameters, $\alpha$. The plot of $\alpha$ versus concentration $x$ is shown in Figure 3b. Note that $\alpha$ equal to $-$1 corresponds to a standard Curie-law behavior. For $x$ = 0.005, $\alpha$ is $-$0.91, which is quite close to a fully paramagnetic ground state. For $x$ = 0.0075, $\alpha$(\sim$$-0.98) is closer to $-$1 than that for $x$ = 0.005, which is consistent with the magnitude of effective occupation probability of magnetic ion, $\bar{x}$($\sim$0.0034 for x = 0.0075, which is smaller than \bar{x}$$\sim0.0064 for x = 0.005). As more Ba and Mn are doped, the absolute value of $\alpha$ is suppressed quickly. For $x$ = 0.02, the absolute value of $\alpha$ already decreases to \sim$$-0.3, as shown in Figure 3b. The suppression of magnitude of $\mid\alpha\mid$ with increasing $x$ indicates that increasing carriers and spins concentration enhances the coupling between Mn ions, and eventually results in the formation of ferromagnetic long range ordering.

3 Materials and Methods

(La1-xBax)(Zn1-xMnx)AsO polycrystalline specimens were synthesized by solid-state reaction method as described in (LaBa)(ZnMn)AsO_DC . High purity elements of La, Zn and As were mixed and heated slowly to 900 ${}^{\circ}\mbox{C}$ in evacuated silica tubes, and held for 15 h before shutting off the furnace to produce intermediate products LaAs and ZnAs. LaAs and ZnAs were then mixed with ZnO, BaO2 and Mn with the stoichiometric composition. The mixture was pressed into pellets and slowly heated up to 1150 ${}^{\circ}\mbox{C}$ and kept for 40 h before cooling at a rate of 10 ${}^{\circ}\mbox{C}$/h to room temperature. The polycrystals were characterized via X-ray diffraction at room temperature using a PANalytical X-ray diffractometer (Model EMPYREAN) with monochromatic $\mbox{CuK}_{\alpha 1}$ radiation. The dc-magnetization measurements were conducted on a Quantum Design superconducting quantum interference device (SQUID).

4 Conclusions

The carrier and spin density of (La,Ba)(Zn,Mn)AsO can be accurately controlled with the doping level ranging from 0.005 to 0.05. No ferromagnetic ordering occurs when only doping Mn into the parent compound LaZnAsO up to 10%. With both carriers and moments doping, ferromagnetic ordering starts to form when x $\geq$ 0.02. With the doping level increasing, the obtained Weiss temperature $\theta$ changes from negative to positive at $x$ = 0.02, indicating the dominated exchange coupling between Mn ions is transformed from antiferromagnetic to ferromagnetic. For $x$ $\leq$ 0.02, the magnetization at low temperature is proportional to Tα with $-1\leq\alpha\leq 0$, which can be explained by models based on random-exchange interactions. The nearest neighbor exchange interaction parameter $\mid 2J/k_{B}\mid$ is about 10 K $\pm$ 3 K and 17 K $\pm$ 5 K for x $\leq$ 0.01 and $x\geq 0.02$, respectively. Possessing the advantages of decoupled spin and charge doping, (La,A)(Zn,B)PnO (A = Ca, Sr, Ba; B = Mn, Fe, Pn = As, P) are chemically stable systems for investigation of ferromagnetic mechanism (LaBa)(ZnMn)AsO_DC ; (LaSr)(ZnMn)AsO_DC ; (LaCa)(ZnMn)SbO_JCQ ; (LaSr)(ZnFe)AsO_LJC .

\authorcontributions

Conceptualization, F.L.N.; formal analysis, G.Z. and C.D.; investigation, C.D., K.W., H.Z., S.G., G.Z., Y.G. and L.F.; writing—original draft preparation, C.D.; writing—review and editing, G.Z. and F.L.N.; visualization, C.D. and G.Z.; and supervision, F.L.N.

\funding

This research was funded by Key Projects for Research and Development of China (No. 2016FYA0300402), National Natural Science Foundation of China (No.11574265), Natural Science Foundation of Zhejiang Province (No. LR15A040001), and the Fundamental Research Funds for the Central Universities (No. 2017FZA3003).

Acknowledgements.

F.L. Ning acknowledges helpful discussions with R.N. Bhatt. \conflictsofinterestThe authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results. \abbreviationsThe following abbreviations are used in this manuscript:
