Depleted Fully Monolithic Active CMOS Pixel Sensors (DMAPS) in High Resistivity 150~nm Technology for LHC

TL;DR

This paper presents the development and testing of high-resistivity CMOS DMAPS prototypes for LHC detectors, demonstrating their radiation hardness, high efficiency, and suitability for high-luminosity collider environments.

Contribution

It introduces fully monolithic CMOS DMAPS in 150 nm technology with integrated digital readout, tested for radiation tolerance and high-rate performance in LHC conditions.

Findings

Analog readout maintains performance after TID irradiation.

Hit efficiency exceeds 98.9% after NIEL irradiation.

Prototypes demonstrate suitability for HL-LHC inner tracker applications.

Abstract

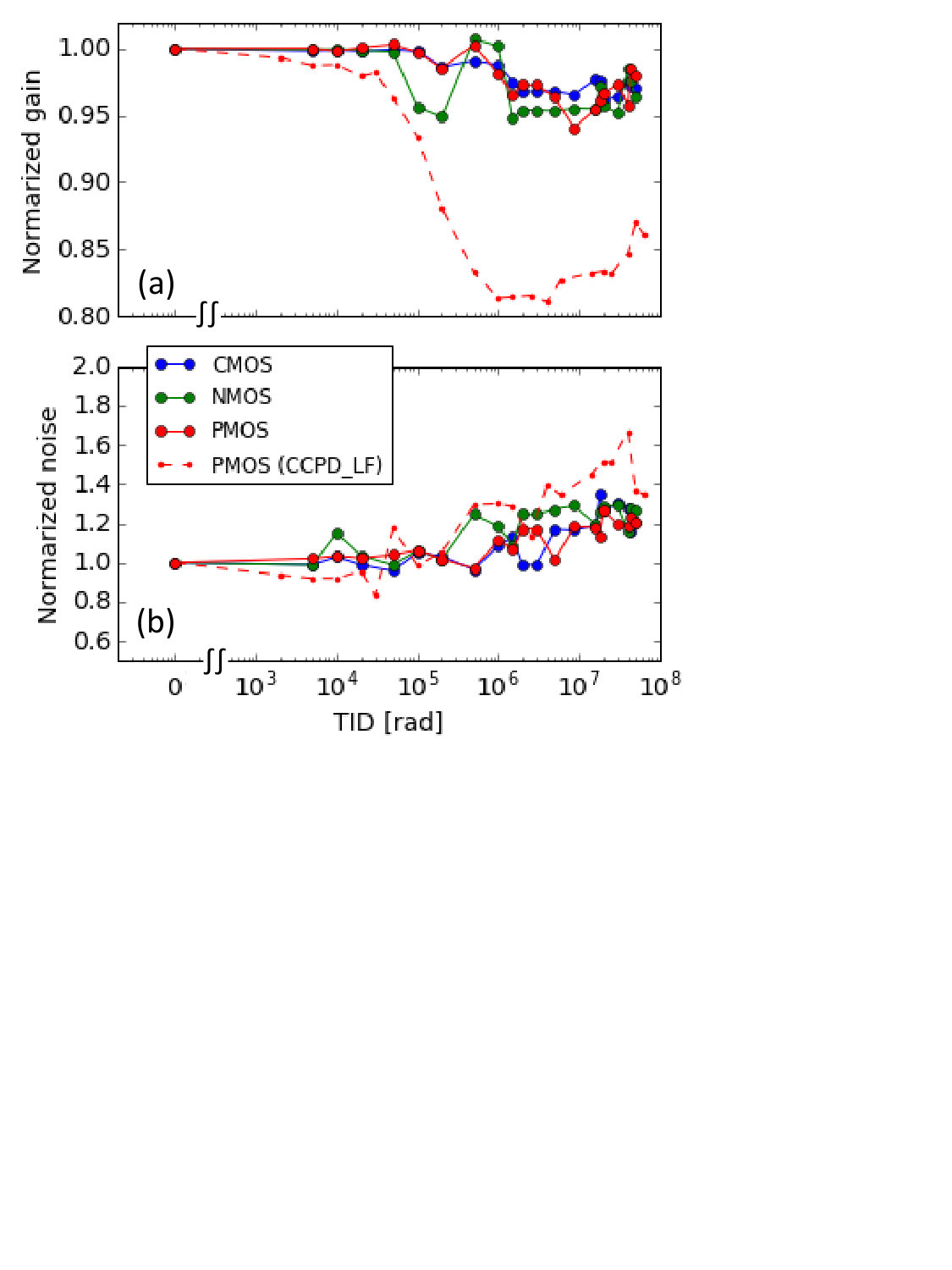

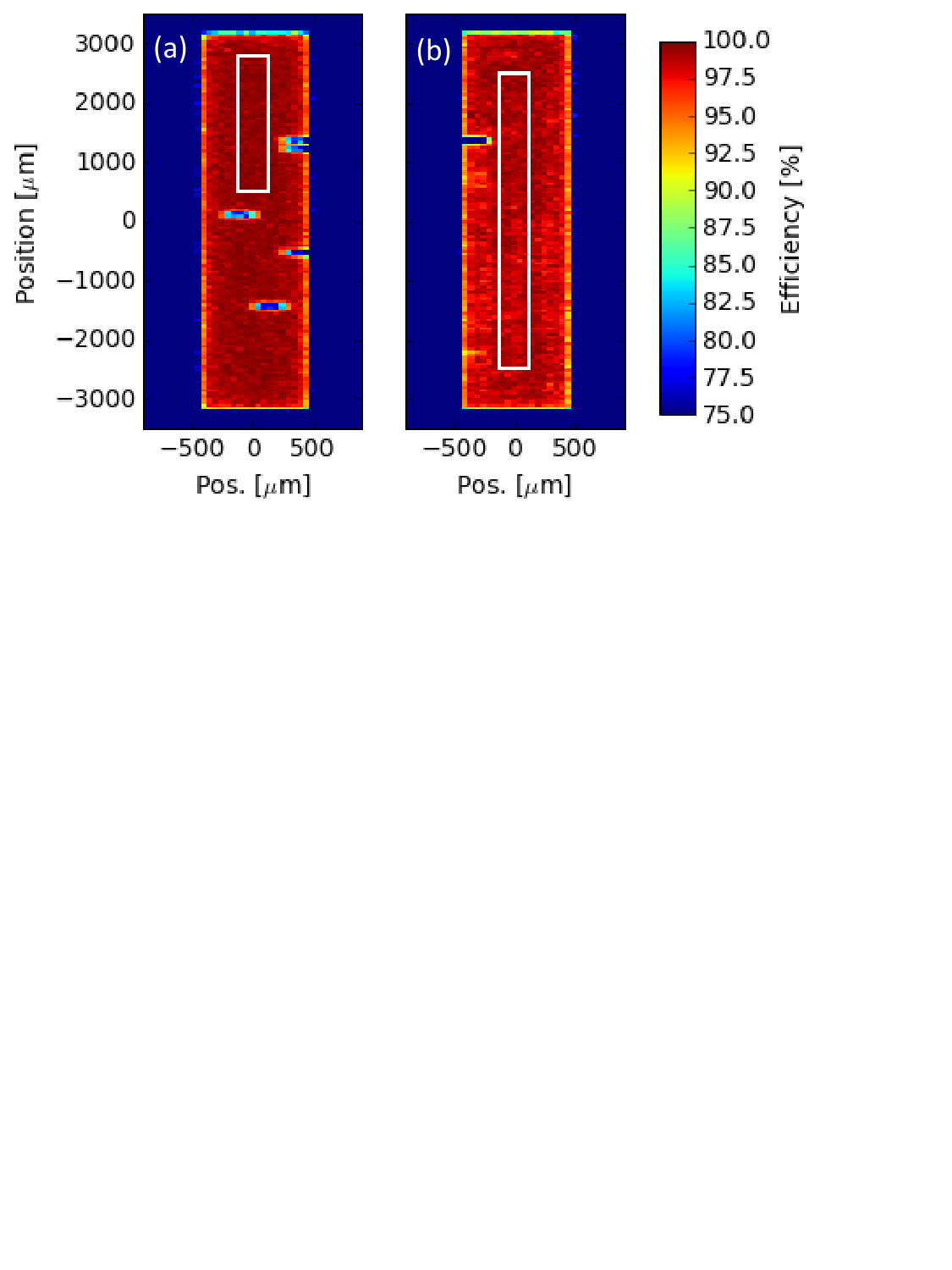

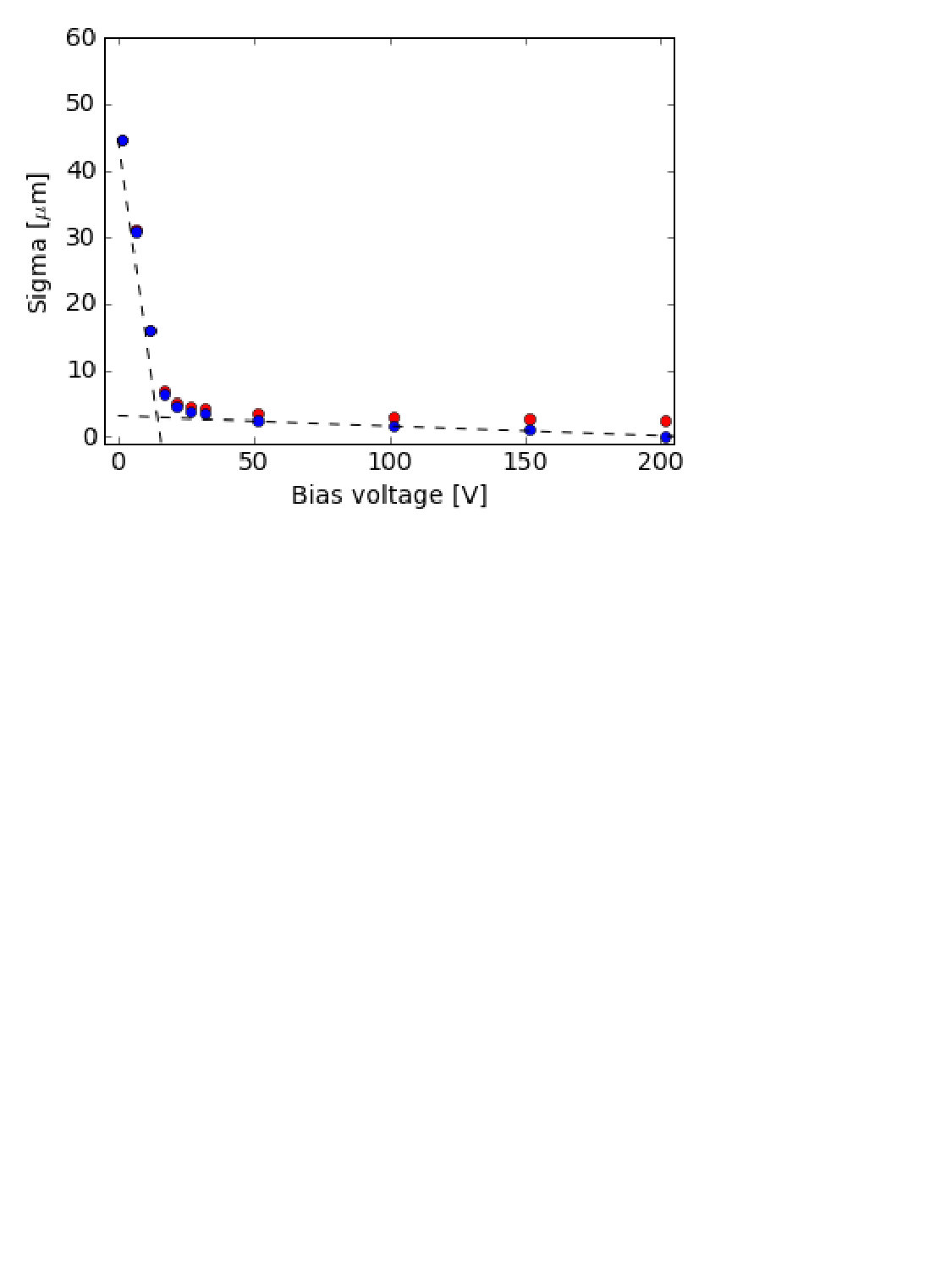

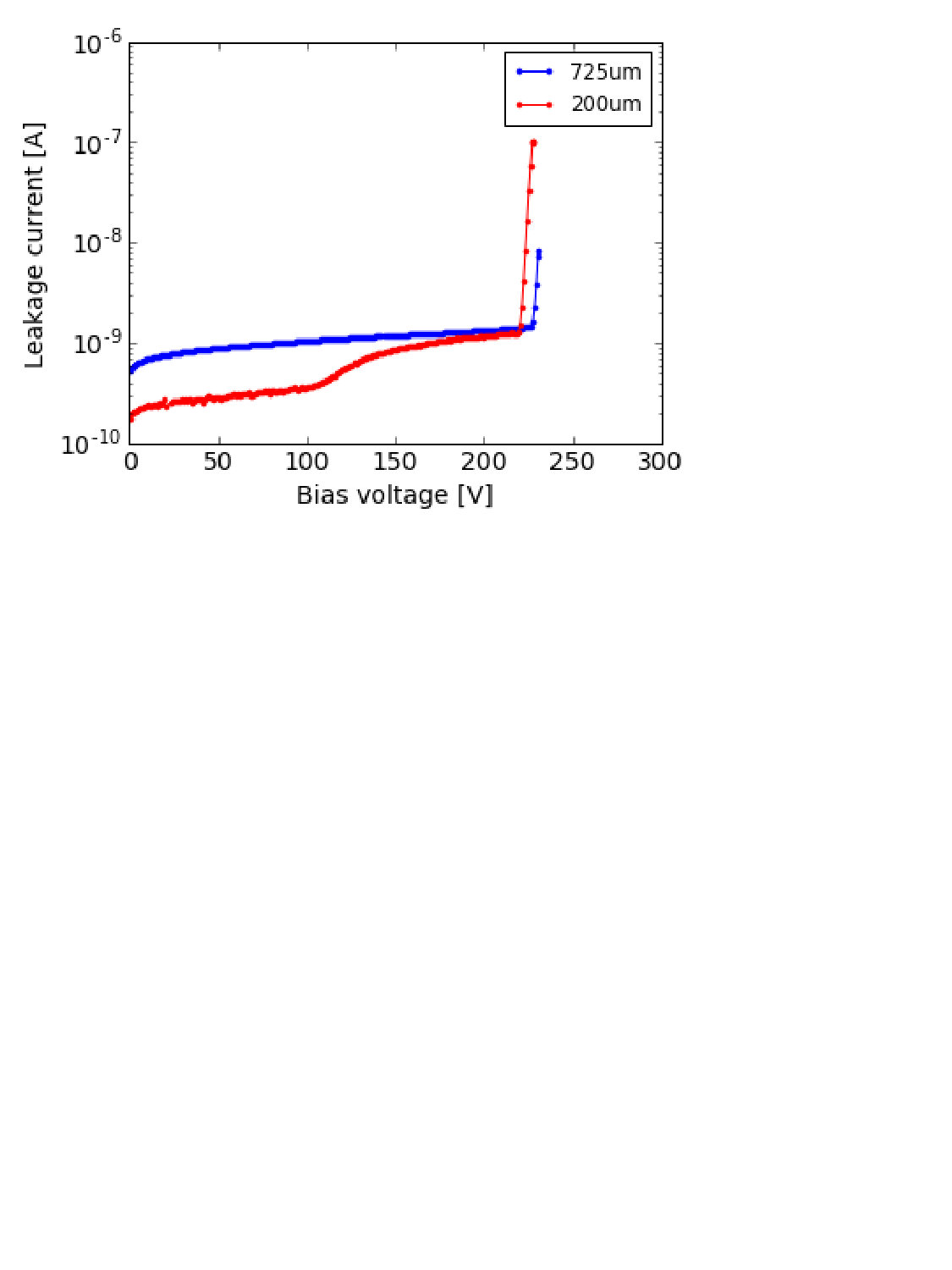

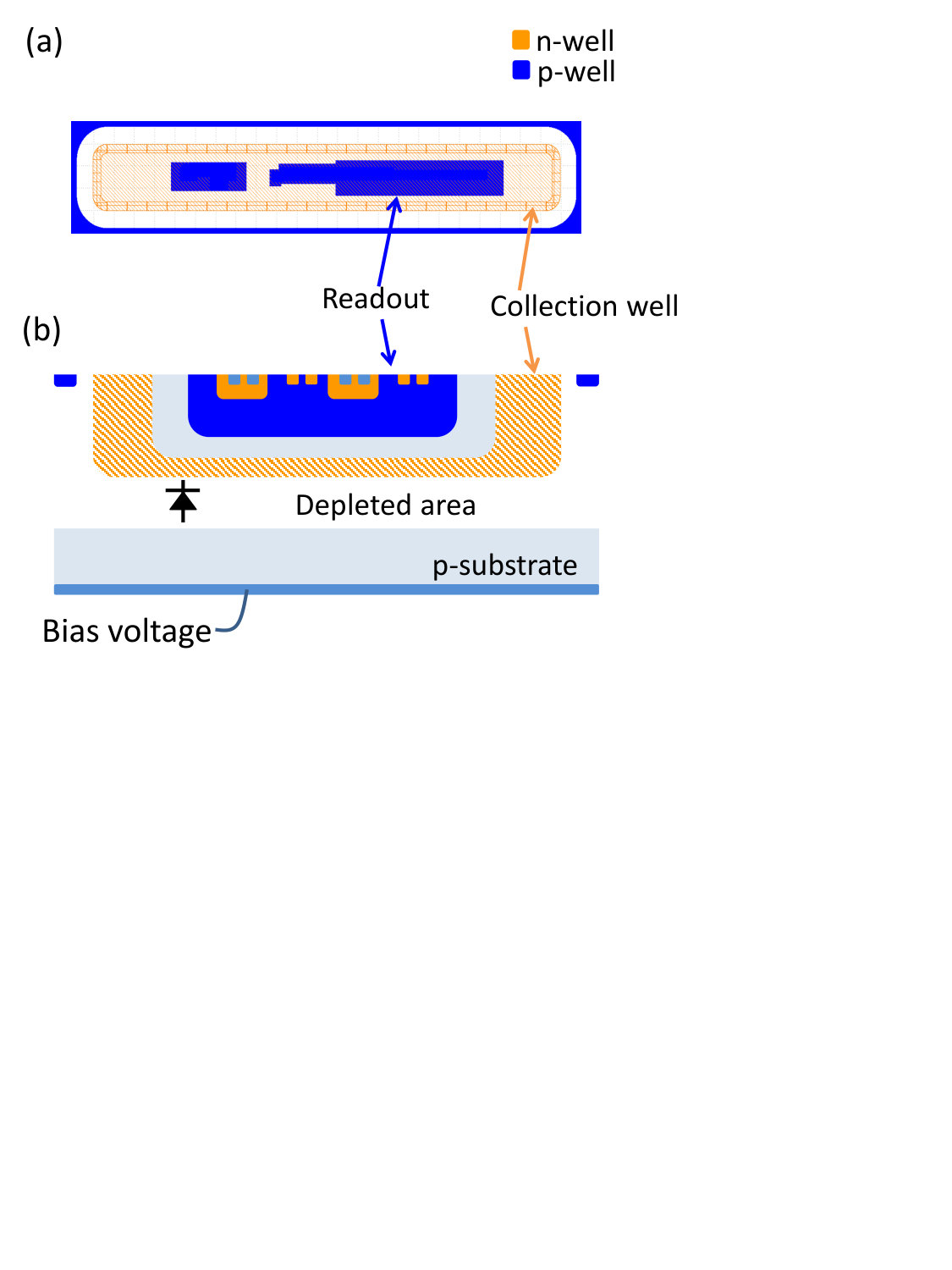

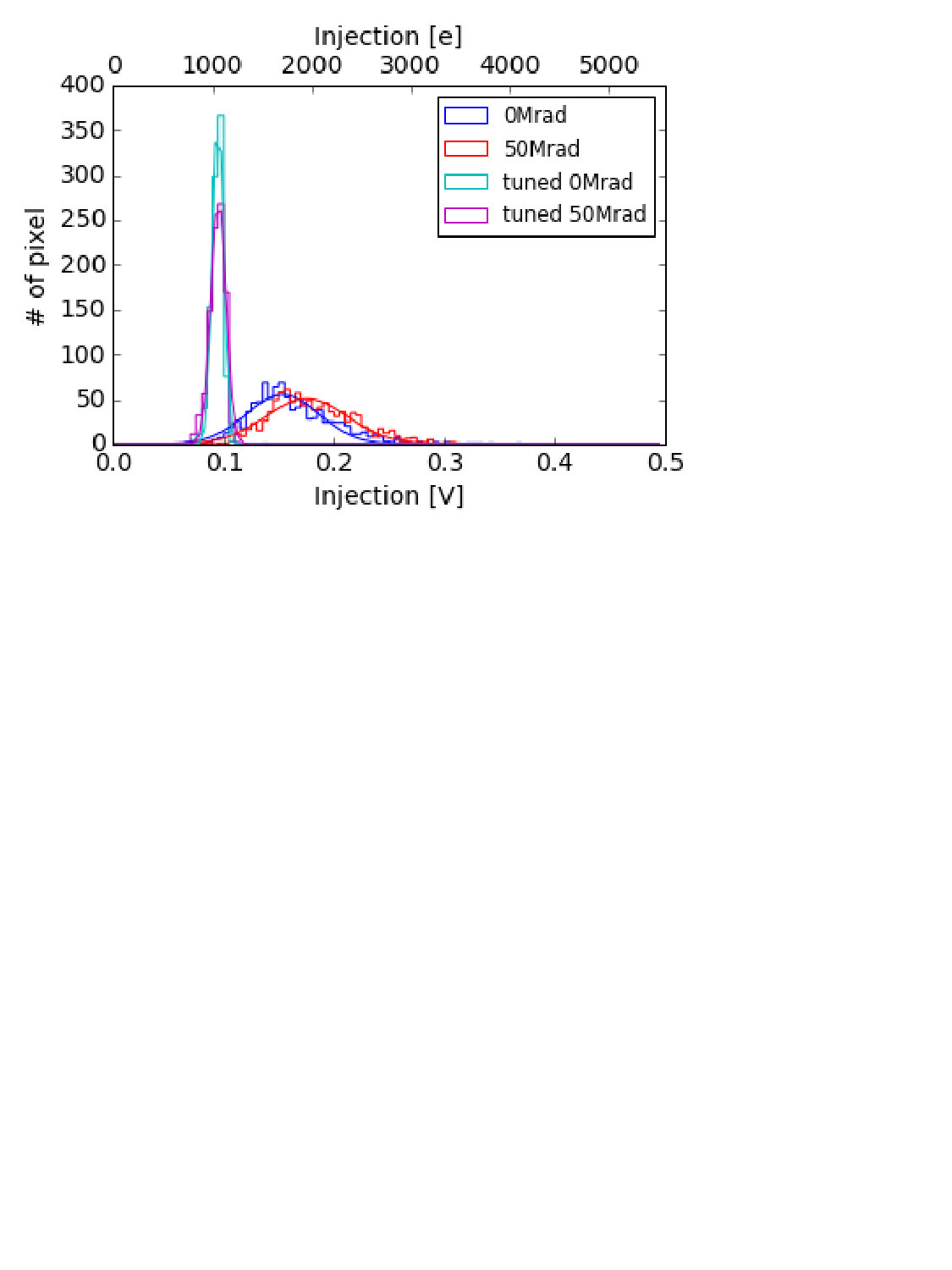

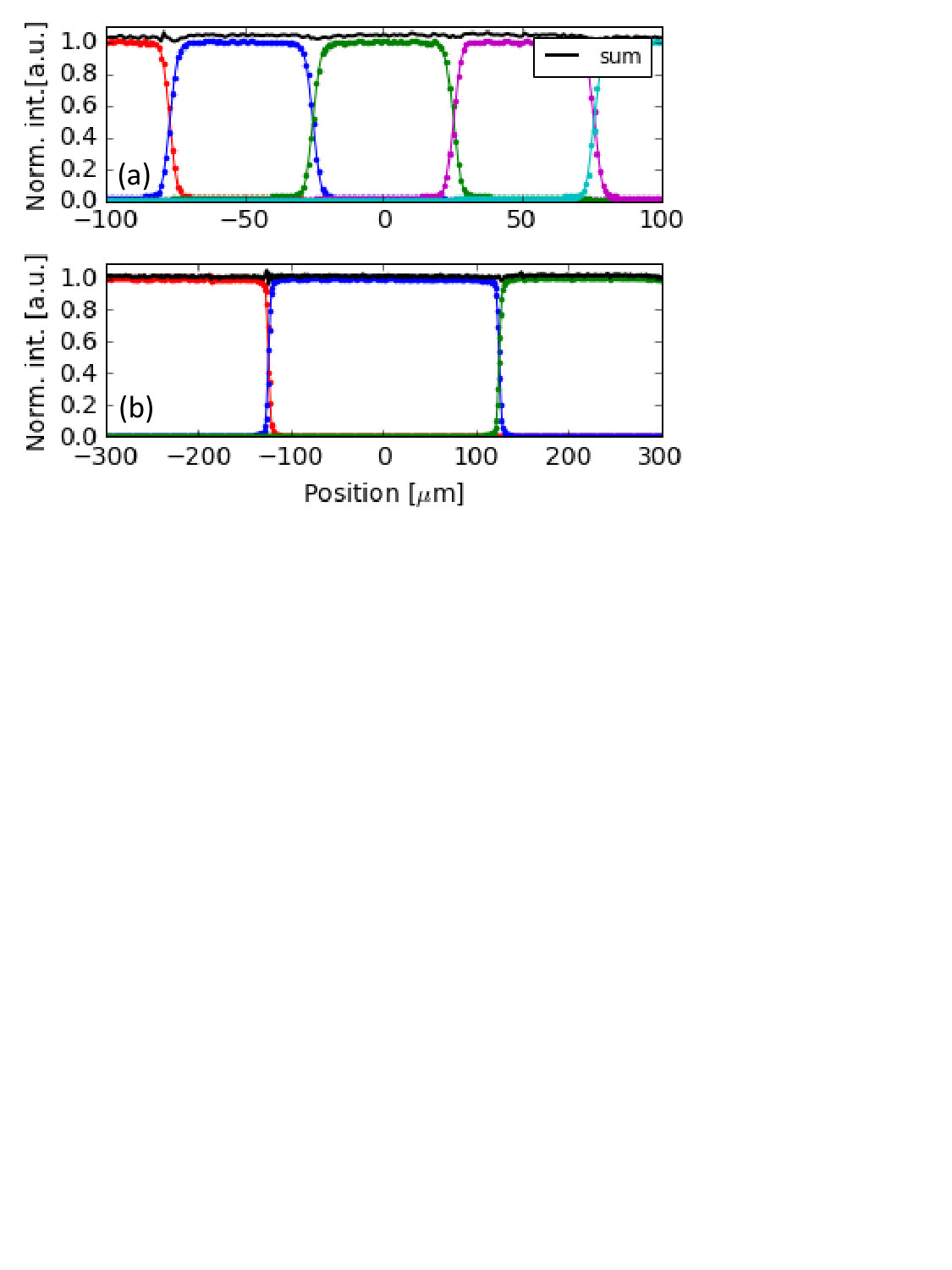

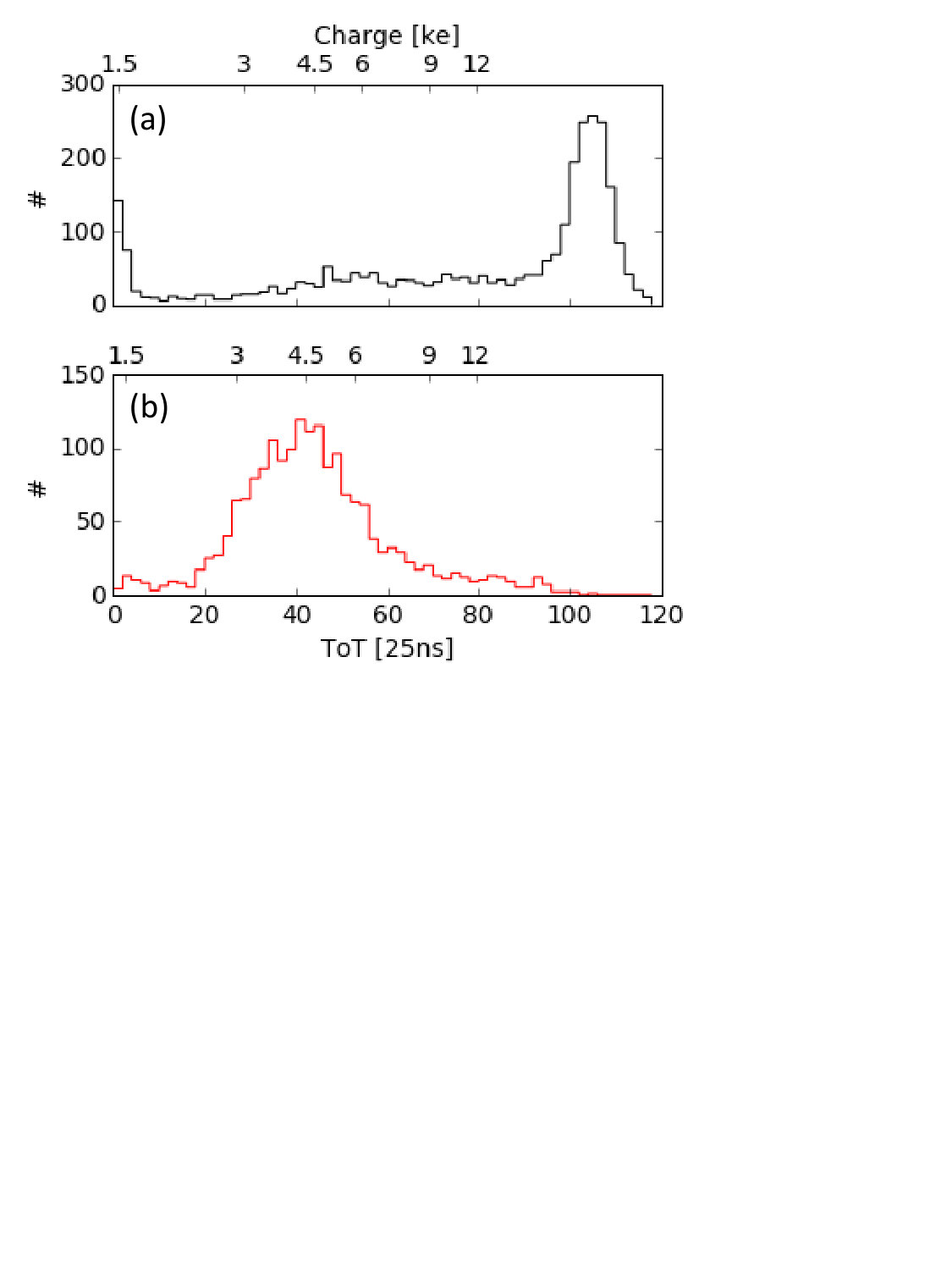

Depleted monolithic CMOS active pixel sensors (DMAPS) have been developed in order to demonstrate their suitability as pixel detectors in the outer layers of a toroidal LHC apparatus inner tracker (ATLAS ITk) pixel detector in the high-luminosity large hadron collider (HL-LHC). Two prototypes have been fabricated using 150 nm CMOS technology on high resistivity (> 2 k$\Omega$ $cm^2$) wafers. The chip size is equivalent to that of the current ATLAS pixel detector readout chip. One of the prototypes is used for detailed characterization of the sensor and the analog readout of the DMAPS. The other is a fully monolithic DMAPS including fast readout digital logic that handles the required hit rate. In order to yield a strong homogeneous electric field within the sensor volume, thinning of the wafer was tested. The prototypes were irradiated with X-ray up to a total ionization dose (TID) of 50 Mrad and with neutrons up to non-ionizing energy loss (NIEL) of $10^{15}$ $n_{eq}/cm^2$. The analog readout circuitry maintained its performance after TID irradiation, and the hit-efficiency at > $10^7$ noise occupancy was as high as 98.9 % after NIEL irradiation.
