DOP: Deep Optimistic Planning with Approximate Value Function Evaluation

TL;DR

DOP is a deep model-based reinforcement learning algorithm that uses learned Q-functions to guide exploration and planning, effectively handling high-dimensional, uncertain scenarios in robotics.

Contribution

This paper introduces DOP, a novel deep RL method that leverages approximate Q-functions for efficient exploration and planning in complex robotic tasks.

Findings

DOP reduces computational demand in planning.

DOP achieves effective performance in various robotic scenarios.

DOP successfully applied in simulation and real-world tasks.

Abstract

Research on reinforcement learning has demonstrated promising results in manifold applications and domains. Still, efficiently learning effective robot behaviors is very difficult, due to unstructured scenarios, high uncertainties, and large state dimensionality (e.g. multi-agent systems or hyper-redundant robots). To alleviate this problem, we present DOP, a deep model-based reinforcement learning algorithm, which exploits action values to both (1) guide the exploration of the state space and (2) plan effective policies. Specifically, we exploit deep neural networks to learn Q-functions that are used to attack the curse of dimensionality during a Monte-Carlo tree search. Our algorithm, in fact, constructs upper confidence bounds on the learned value function to select actions optimistically. We implement and evaluate DOP on different scenarios: (1) a cooperative navigation problem, (2) a fetching task for a 7-DOF KUKA robot, and (3) a human-robot handover with a humanoid robot (both in simulation and real). The obtained results show the effectiveness of DOP in the chosen applications, where action values drive the exploration and reduce the computational demand of the planning process while achieving good performance.

Figures

Equations

$$MDP=(\text{textsc}S,\text{textsc}A,\mathcal{T},R,\gamma ),$$

$${\ell }_2(r_{t+1}+\gamma \underset{a^{\prime }}{\max }{Q}_{\theta }(s_{t+1},a^{\prime }),Q_{\theta }(s_t,a_t)),$$

$$\begin{array}{r}{Q}_{\theta }(s_{t+(h-1)},a)>=\text{leavevmode}\lambda \underset{a}{\max }{Q}_{\theta }(s_{t+(h-1)},a)+{ϵ}_{\tilde{A}}\end{array}$$

$$\begin{array}{rl}e& =C\cdot \sqrt{\frac{\log ({\sum }_a\eta (s_{t+(h-1)},a))}{\eta (s_{t+(h-1)},a)}}\\ a_h^{\ast }& =\underset{a}{\mathrm{argmax}}{Q}_{\theta }(s_{t+(h-1)},a)+e,\end{array}$$

Full text

1. Introduction

Action planning in robotics is a complex task due to unpredictabilities of the physical world, uncertainties in the observations, and rapid explosions of the state dimensionality. For example, hyper-redundant manipulators are typically affected by the curse of dimensionality problem when planning in large state spaces. Similarly, in multi-robot collaborative tasks, each robot has to account for both the state of the environment and other robots’ states. Due to the curse of dimensionality, generalization and policy generation are time consuming and resource intensive. While deep learning approaches led to improved generalization capabilities and major successes in reinforcement learning Mnih et al. (2015); Lillicrap et al. (2015); Mnih et al. (2016) and robot planning Levine et al. (2016a); Levine et al. (2016b), most techniques require huge amounts of data collected through agent’s experience.

In robotics, this is often achieved by spawning multiple simulations Rusu et al. (2016) in parallel to feed a single neural network. During simulation, however, the robot explores its huge search space, with little or no prior knowledge. While encoding prior information in robot behaviors is often desirable, this is difficult when using neural networks and it is mostly achieved through imitation learning Calinon et al. (2010); Večerík et al. (2017) with little performance guarantees. To overcome this issue, decision theoretical planning techniques, such as Monte-Carlo tree search Browne et al. (2012), have been applied in literature. Unfortunately, these methods fail in generalizing and show limitations in relating similar states Silver et al. (2012) (i.e. nodes of the search tree).

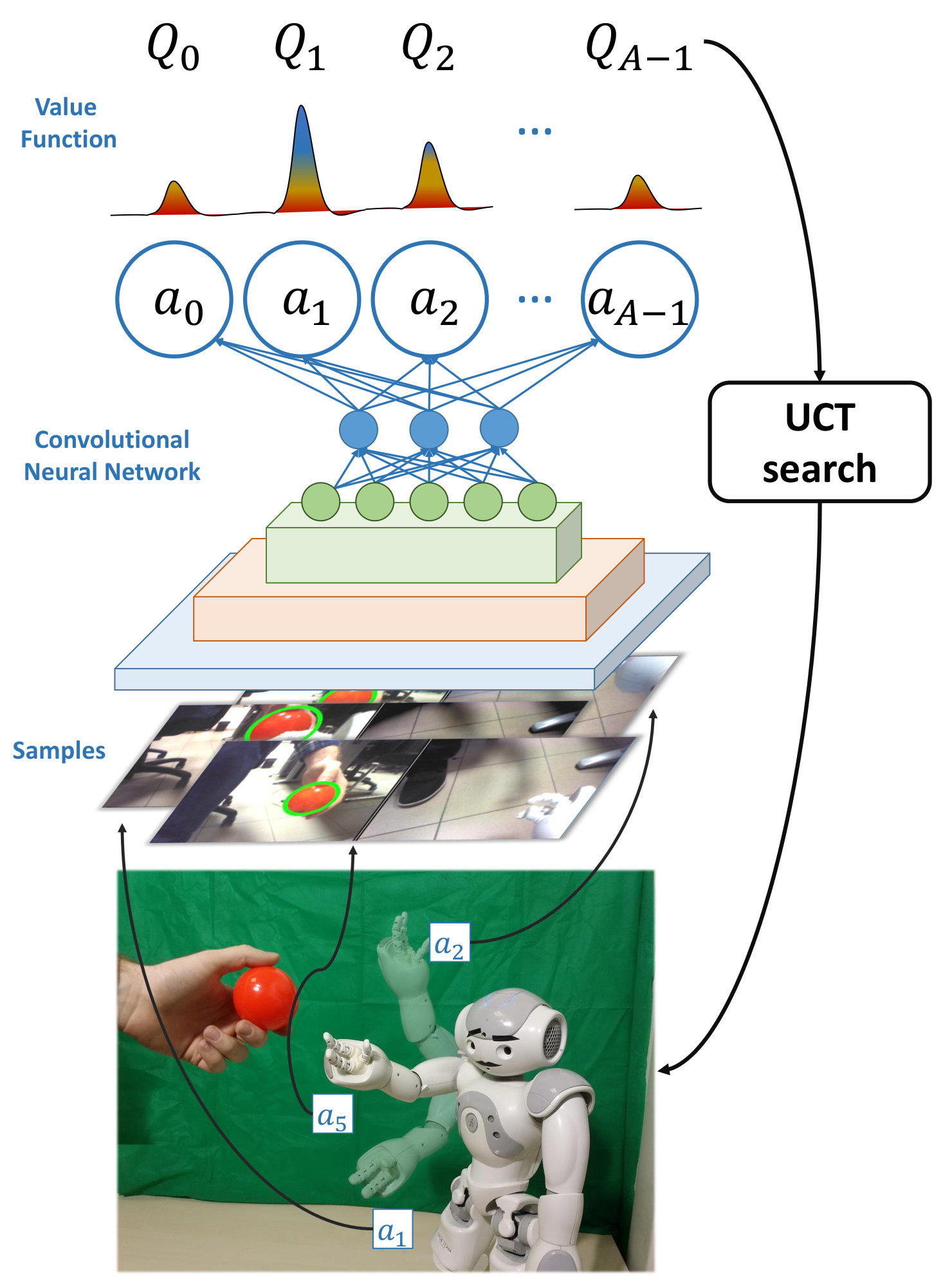

As in prior work Riccio et al. (2018), we attack the generalization problem in policy generation by enhancing the Upper Confidence Tree (UCT) algorithm Kocsis and Szepesvári (2006) – a variant of Monte-Carlo tree search – with an external action-value function approximator, that selects admissible actions and consequently drives the node-expansion phase during episode simulation. In particular, in this paper, we extend the algorithm in Riccio et al. (2018) to use a more powerful representation, based on deep learning, that enables better generalization and supports higher dimensional problems. In fact, DOP (Deep Optimistic Planning), is based on Q-learning and allows agents to plan complex behaviors in scenarios characterized by discrete action spaces and large state spaces. As shown in Figure 1, to model action values, we use a convolutional neural network (CNN) that is iteratively refined by aggregating Ross et al. (2011) samples collected at every timestep. Specifically, DOP generates action policies by running a Monte Carlo tree search Winands et al. (2008) and incrementally collecting new samples that are used to improve a deep $Q$-network approximating action values.

We aim at demonstrating that DOP can efficiently be used to generalize policies and restrict the search space to support learning in high-dimensional state spaces. To this end, we address applications that involve multi and hyper-redundant robots by evaluating DOP over three complex scenarios: a cooperative navigation task of 3 Pioneer robots in a simple environment, a fetching task with a 7-DOF KUKA arm, and an handover task with a humanoid NAO robot. The experimental evaluation shows the effectiveness of using deep learning to represent action values that are exploited in the search process, resulting in improved generalization capabilities of the planning algorithm – that make it suitable also for multi-agent domains. Our main contributions consist in (1) an extension of prior work Riccio et al. (2018) to use deep learning and improve both the focused exploration and generalization capabilities, and (2) an extended experimental evaluation of the representation and the algorithm, that shows the usability of DOP in complex high-dimensional and multi-robot domains.

The reminder of the paper is organized as follows. Section 2 reports recent research on (deep) reinforcement learning and planning, and Section 3 describes the DOP representation and algorithm. Finally, Section 4 describes our experimental setup, as well as the obtained results, and Section 5 discusses final remarks, limitations and future directions.

2. Related Work

Recent trends in reinforcement learning have shown improved generalization capabilities, by exploiting deep learning techniques. For example, Mnih et al. Mnih et al. (2015) use a deep $Q$-network to learn directly from high-dimensional visual sensory inputs on Atari 2600 games. Silver et al. Silver et al. (2016); Silver et al. (2017) use deep value networks and policy networks to respectively evaluate board positions and select moves to achieve superhuman performance in Go. In Mnih et al. (2016), instead, the authors execute multiple agents in parallel, on several instances of the same environment, to learn a variety of tasks using actor-critic with asynchronous gradient descent. Similar advancements have been shown in the robotics domain. For instance, Levine et al. Levine et al. (2016a) represent policies through deep convolutional neural networks, and train them using a partially observed guided policy search method on real-world manipulation tasks. Moreover, Rusu et al.Rusu et al. (2016) use deep learning in simulation, and propose progressive networks to bridge the reality gap and transfer learned policies from simulation to the real world. Unfortunately, planning and learning with deep networks is computationally demanding (i.e., requires a huge number of heavy simulations). For this reason, Weber et al. Weber et al. (2017) introduce I2As to exploit outcome of virtual policy executions, in the Sokoban domain, learned with a deep network.

During simulation, the robot uninformedly explores its search space, and attempts to find an optimal policy. To facilitate this task, several approaches initialize robot policies with reasonable behaviors collected from human experts (e.g., through the aid of expert demonstrations Mnih et al. (2015); Sun et al. (2017)). For example, in Večerík et al. (2017) the authors rely on a Deep Deterministic Policy Gradient approach to exploit expert demonstration in object insertion tasks. These methods, however, generally require a considerable number of training examples, and are not easily applicable to complex domains, such as multi-agent scenarios and highly redundant robots. While traditional decision theoretic planning methods, such as Monte-Carlo tree search Kocsis and Szepesvári (2006); Browne et al. (2012), enable easier injection of prior knowledge in generated behaviors, they do not provide sufficient generalization capabilities, that are required in common robotics problems, where large portions of the state space are rarely or never explored.

In this paper, we address generalization at learning time by introducing DOP, an iterative algorithm for policy generation that makes use of deep $Q$-networks to drive a focused exploration. DOP relies on previous work Riccio et al. (2018) and extends it with a different representation to obtain improved generalization capabilities over higher dimensional problems. In particular, we approximate the $Q$ function using $Q$-learning with a deep convolutional neural network. Similar to $Q$-CP Riccio et al. (2018) and TD-search Silver et al. (2012), we aim at reducing the variance of value estimates during the search procedure by means of temporal difference learning. However, as in Riccio et al. (2018), DOP extends TD-search by constructing upper confidence bounds on the value function, and by selecting optimistically with respect to those, instead of performing $\epsilon$-greedy exploration. Thanks to the generalization capabilities of deep networks, DOP improves over $Q$-CP both in terms of policy and exploration. Our representation, in fact, not only enables the algorithm to explore more informative portions of the search space Gelly and Silver (2011); James et al. (2017), but also is able to generalize better among them with positive effects on the overall policy and search space expansion.

3. DOP

We describe DOP by adopting the standard Markov Decision Process (MDP) notation, in which the decision-making problem is represented as a tuple

[TABLE]

where S is the set of states of the environment, A represents the set of discrete actions available to the agent, $\mathcal{T}:\textsc{S}\times\textsc{A}\times\textsc{S}\rightarrow[0,1]$ is the stochastic transition function that models the probabilities of transitioning from state $s\in\textsc{S}$ to $s^{\prime}\in\textsc{S}$ when an action is executed, $R:\textsc{S}\times\textsc{A}\rightarrow\mathbb{R}$ is the reward function. In this setting, actions are chosen according to a policy $\pi(a|s)$ (or more simply $\pi(s)$), that maps states to actions. Given an MDP, the goal of the agent consists in finding a policy $\pi(s)$ that maximizes its future reward with a discount factor $\gamma\in[0,1)$.

Under this framework, DOP builds on Riccio et al. (2018) and iteratively evolves by (1) running a Monte-Carlo tree search, where admissible actions are selected through $Q$-value estimates learned through a deep neural network and (2) incrementally collecting new samples that are used to improve $Q$-value estimates. In this section, we first describe our representation for the $Q$ function; then, we present an explanation of the algorithm.

3.1. Representation

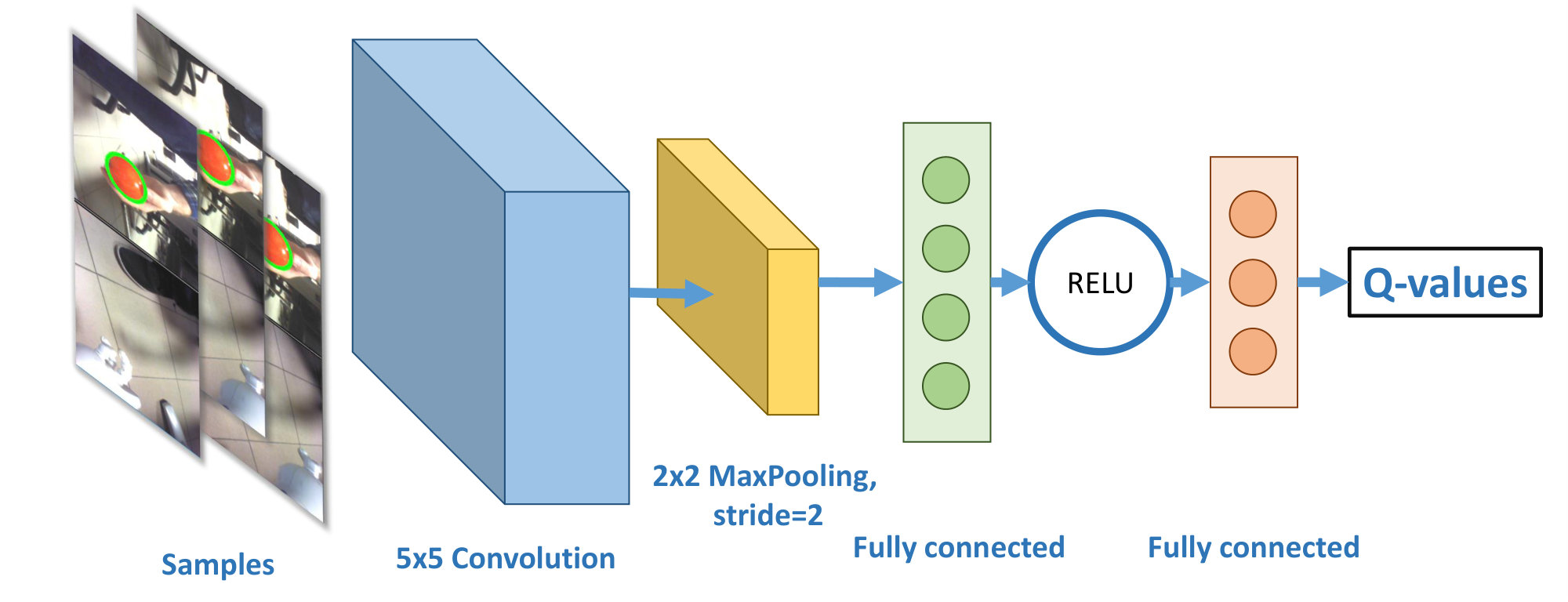

As in previous literature Mnih et al. (2015); Mnih et al. (2016), we choose to change the representation adopted in Riccio et al. (2018) and approximate the action values using a deep neural network. In particular, we adopt a deep neural network (implemented in Caffe2111https://caffe2.ai), composed by a convolutional layer, followed by a max pooling operator and two fully connected layers, one with ReLU activations, the other linear. The input of the network is an image capturing the state of the environment, and its output is the $Q$ value for each action. In our work, we always assume one single frame to be sufficient to fully represent the state $s$ at each timestep, and we store in our dataset transitions $x=(s_{t},a_{t},s_{t+1},r_{t+1})$.

Differently from DQN, we do not explicitly make use of an experience replay buffer, and we replace it with a data aggregation Ross et al. (2011) procedure, where all the transitions are iteratively collected, aggregated and used at training time. Specifically, at each iteration $i$ of DOP we collect a dataset $\textsc{D}^{i}=\{x\}$ of transitions experienced by the agent, and we aggregate it into $\textsc{D}^{0:i}=\{\cup\textsc{D}^{d}|d=0\dots i\}$, that is used for learning. In practice, this results in a very similar mechanism that enables data decorrelation and facilitates learning. In fact, the network is always re-trained using mini-batches of samples randomly selected within $\textsc{D}^{0:i}$, until the dataset is exhaustively used. Hence, each mini-batch is less affected by the non-i.i.d structure of the dataset, and this procedure closely resembles the more standard replay mechanism.

The aggregated dataset is finally used to minimize the $\ell_{2}$-loss:

[TABLE]

where $\theta$ are the current parameters of the network. The optimization is performed using an Adam Kingma and Ba (2014) optimizer with a learning rate $\alpha$ selected according to the task.

3.2. Algorithm

DOP builds on $Q$-CP Riccio et al. (2018), which is an iterative algorithm that, at each iteration $i$, (1) generates a new policy $\pi_{i}$ which improves $\pi_{i-1}$ and (2) learns action values that are used at planning time to reduce the search space. In this section, we briefly describe the algorithm by adapting its discussion to the representation adopted in DOP. Specifically, at every iteration the agent executes an UCT search, where admissible actions are selected through $Q$ value estimates, and incrementally collects new samples that are used to improve $Q$ value estimates as described in previous section.

More in detail (see Algorithm 1), DOP takes as input an initial policy $\pi^{0}$ and, at each iteration $i=1\dots I$, evolves as follows:

1. (1)

the agent follows its policy $\pi^{i-1}$ for $T$ timesteps, generating a set of $T$ states $\{s_{t}\}$; 2. (2)

for each generated state $s_{t}$, the agent runs a modified UCT search Kocsis and Szepesvári (2006) with depth $H$. Specifically, at each $h=1\dots H$, the search algorithm

1. (a)

evaluates a subset of “admissible” actions $\tilde{\textsc{A}}\subseteq\textsc{A}$ in $s_{t+(h-1)}$, that are determined according to $Q_{\theta}(s_{t+(h-1)},a)$. In particular, differently from vanilla UCT, we only allow actions $a$ such that

[TABLE]

where $\lambda$ is typically initialized to $0.5$ and increases with the number of iterations $i$. Through $\epsilon_{\tilde{A}}$, a certain amount of exploration is guaranteed; 2. (b)

selects and executes the best action $a^{*}_{h}\in\tilde{\textsc{A}}$ according to

[TABLE]

where $C$ is a constant that multiplies and controls the exploration term $e$, and $\eta(s_{t+(h-1)},a)$ is the number of occurrences of $a$ in $s_{t+(h-1)}$. To use DOP on robotic applications with images as state representations, we define a comparison operator that introduces a discretization by computing whether the difference of two states is smaller than a given threshold $\xi$; 3. (c)

runs $M$ simulations (or roll-outs), by executing an $\epsilon$-greedy policy based on $\pi^{i-1}$ until a terminal state is reached.

DOP uses UCT as an expert and collects, a dataset $\textsc{D}^{i}$ of $H$ transitions experienced in simulation. 3. (3)

$\textsc{D}^{i}$ is aggregated into $\textsc{D}^{0:i}=\textsc{D}^{i}\cup\textsc{D}^{0:i-1}$ Ross et al. (2011); Ross and Bagnell (2014), and the dataset is used to perform updates of the $Q$-network, as illustrated in previous section. 4. (4)

once $Q_{\theta}$ is updated, the policy is generated as to maximize the action values: $\pi^{i}(s)=\operatorname*{\arg\max}_{a}Q_{\theta}(s,a)$.

4. Experimental Evaluation

One of the main contributions of this paper consists in an extended experimental evaluation of the representation and the algorithm, that shows the usability of DOP in complex high-dimensional and multi-agent domains. In particular, we evaluate DOP against multiple algorithms over a set of 3 different tasks, as shown in Figure 3. Specifically, we run our experiments on three high-dimensional problems, where either a robot is hyper-redundant, or multiple robots are involved: (1) a cooperative navigation application, where three robots have to coordinate in order to find the minimum path to their respective targets in a simple environment; (2) a fetching task, where a 7-DOF robotic arm has to fetch an object while avoiding an obstacle in the environment; and (3) a handover task among a NAO (humanoid) robot and a human.

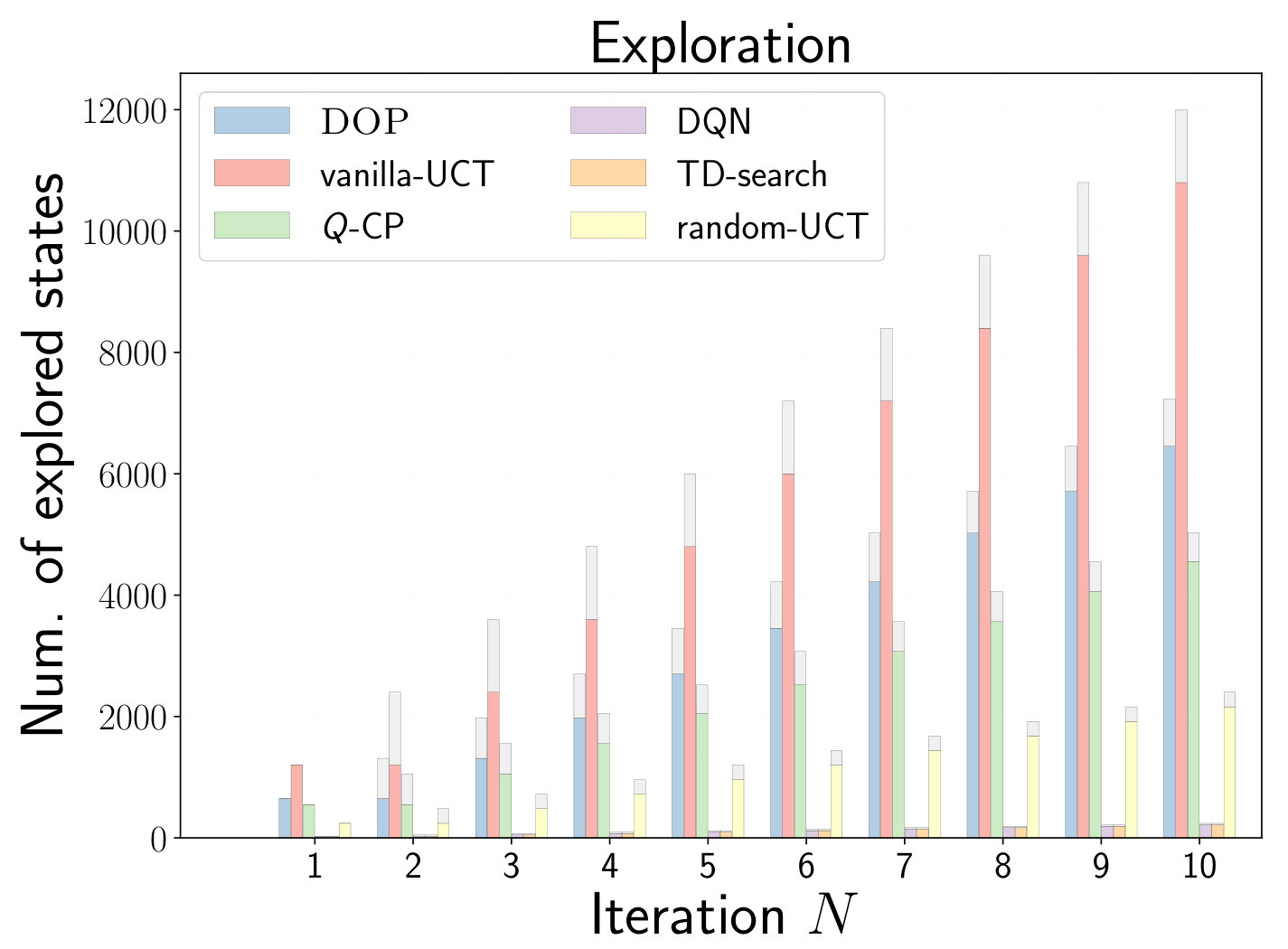

To report our results, we compare against DQN Mnih et al. (2015), TD-search Silver et al. (2012) and both a vanilla-UCT and random-UCT implementations. We refer to vanilla-UCT as the standard UCT algorithm that, at each iteration, expands every possible action in $A_{j}$, for every agent $j$. Random-UCT, instead, is a naive algorithm where at each step of the Monte-Carlo search one action is randomly expanded. Moreover, in the handover (Figure 3(b)) scenario, we compare the performance of DOP against the base $Q$-CP algorithm Riccio et al. (2018) and, we present the cumulative reward obtained by transferring the learned policy on a real NAO.

4.1. Experimental Setup

Experiments have been conducted using the V-REP simulator running on a single Intel Core i7-5700HQ core, with CPU@2.70GHz and 16GB of RAM. For all the scenarios, unless otherwise specified, the algorithm was configured with the same meta-parameters. The UCT horizon is set to $H=4$ to trade-off between usability and performance of the search algorithm; the number of roll-outs is set to be $M=3$, while admissible actions are evaluated with an initial $\lambda=0.5$, and $\epsilon_{\tilde{{A}}}=0.3$, guaranteeing good amounts of exploration. The $C$ constant in Eq. 3 is set to $0.7$. The learning rate $\alpha$ is set to $0.15$, while the discount factor $\gamma$ is equal to $0.8$. The state space, the set of actions and the reward functions are finally chosen and implemented depending on the robots and applications. In each of the proposed applications, stochastic actions are obtained by randomizing their outcomes with a $5$% probability. We evaluate the cumulative reward obtained during different executions of DOP against the number of explored states and iterations of the algorithms. In our environments, we adopt a shaped reward function, thus providing a reward to the agent at each of the visited states.

4.2. Cooperative Navigation

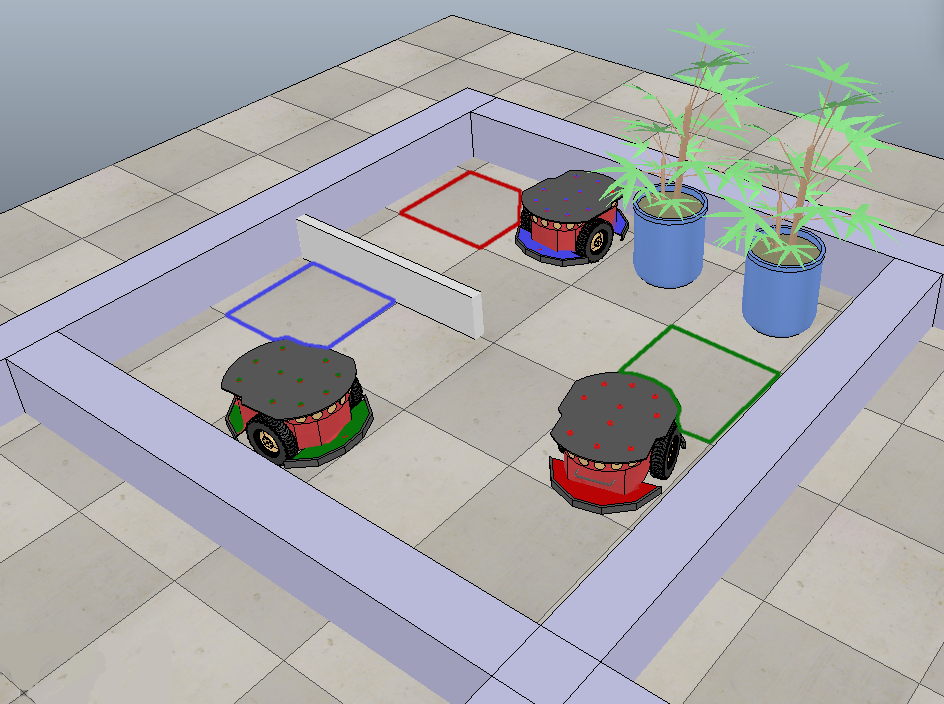

In this scenario, three robots have to perform a cooperative navigation task in a simple world composed by 16 reachable squares distributed on a 4x4 grid (see Figure 3(a)). The goal is assigned individually to each robot and consists in finding the minimum collision-free path to target square matching the their color (highlighted in the figure). The state is represented through an image collected from the top by an overlooking camera (i.e., all the robots are visible), while the set of discrete actions is composed by $A=\langle$ noop, up, down, right, left $\rangle$. The reward function is normalized between $[0,1]$ and is shaped to be inversely proportional to the sum of the minimum path steps from the robot positions and targets. Figure 4 shows the results obtained by DOP against $Q$-CP Riccio et al. (2018), TD-search, DQN, random-UCT and vanilla-UCT. Figure 4(a) reports the average cumulative reward and standard deviation (line width) over 10 iterations – averaged over 10 runs – for each of the implemented algorithms. Figure 4(b), reports the number of states explored per iteration. Bars represent the number of states explored until the $i$th iteration, and the top gray bar highlights the amount of states expanded during iteration $i$ against the number of states explored until $i-1$. The results show different behaviors for each of the algorithm: random-UCT reports a low number of explored states – since it only expands one random action at each UCT iteration – but, as expected, it performs poorly. Similarly, TD-search and DQN show a good trade-off between number explored states and cumulative reward, however, they are not able to generate competitive policies with few iterations and a reduced number of training samples. On the other hand, if we consider vanilla-UCT and DOP the algorithms report comparable cumulative rewards. However, our algorithm is able to generate a competitive policy with a reduced number of explored states – typically half the number of vanilla-UCT ($\sim$45% lower). $Q$-CP obtains a lower cumulative reward while visiting a slightly reduced number of states with respect to DOP. In fact, its reduced representational power does not enable the algorithm to immediately generalize informative states that need to be explored to obtain a better policy. Finally, it is worth highlighting that, even if both DQN and TD-search present a good trade-off between number of explored states and performance, they are not able to complete the task since initial iterations.

4.3. Fetching Task

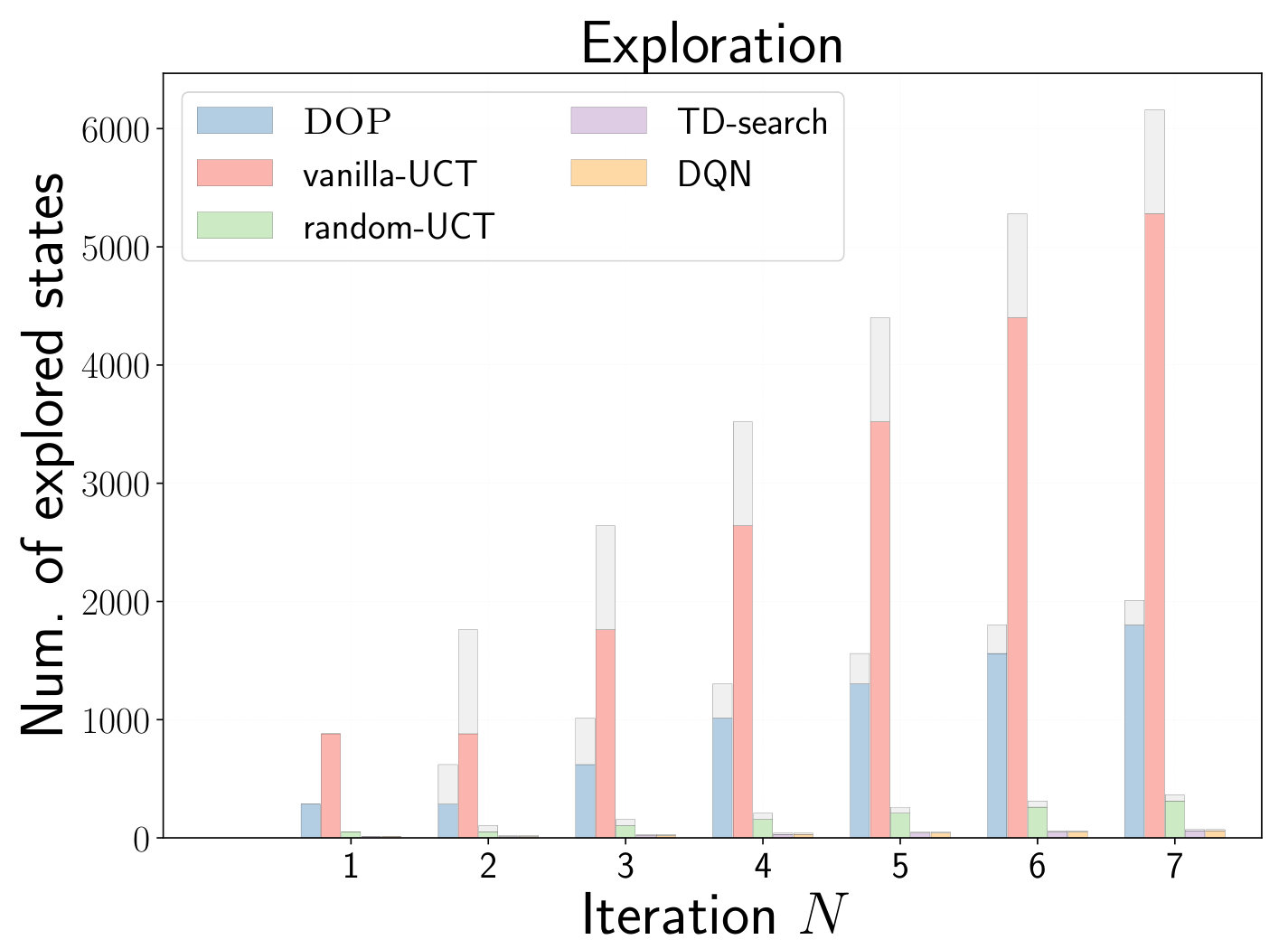

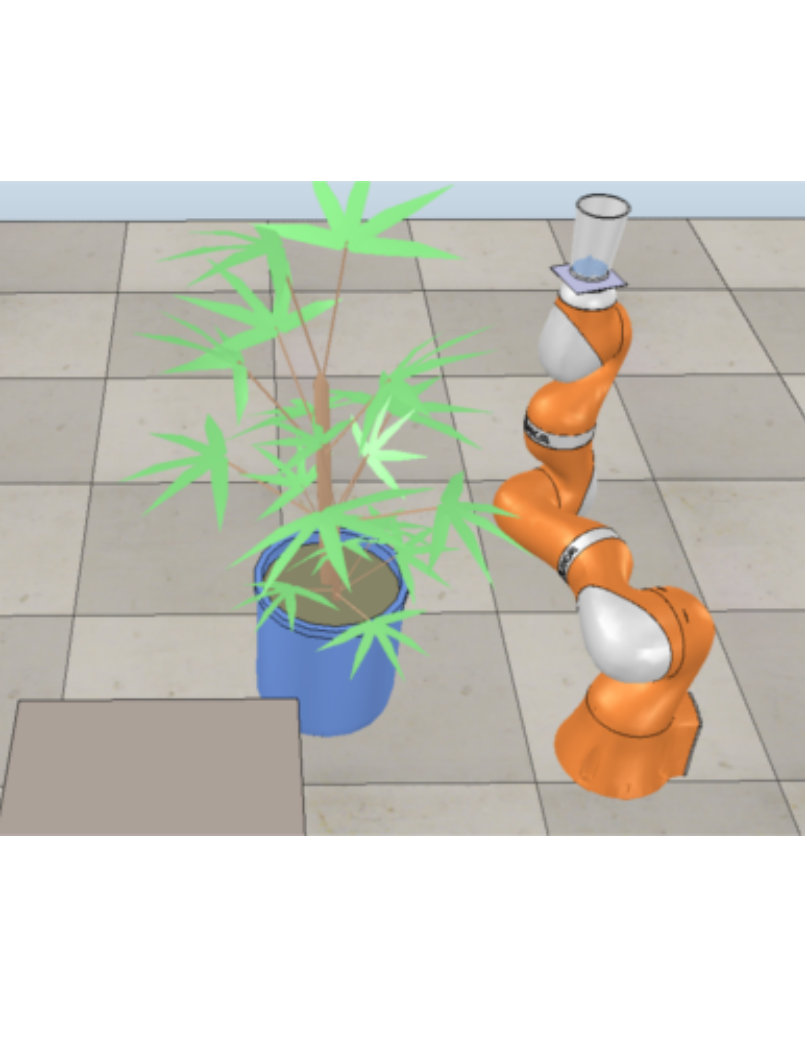

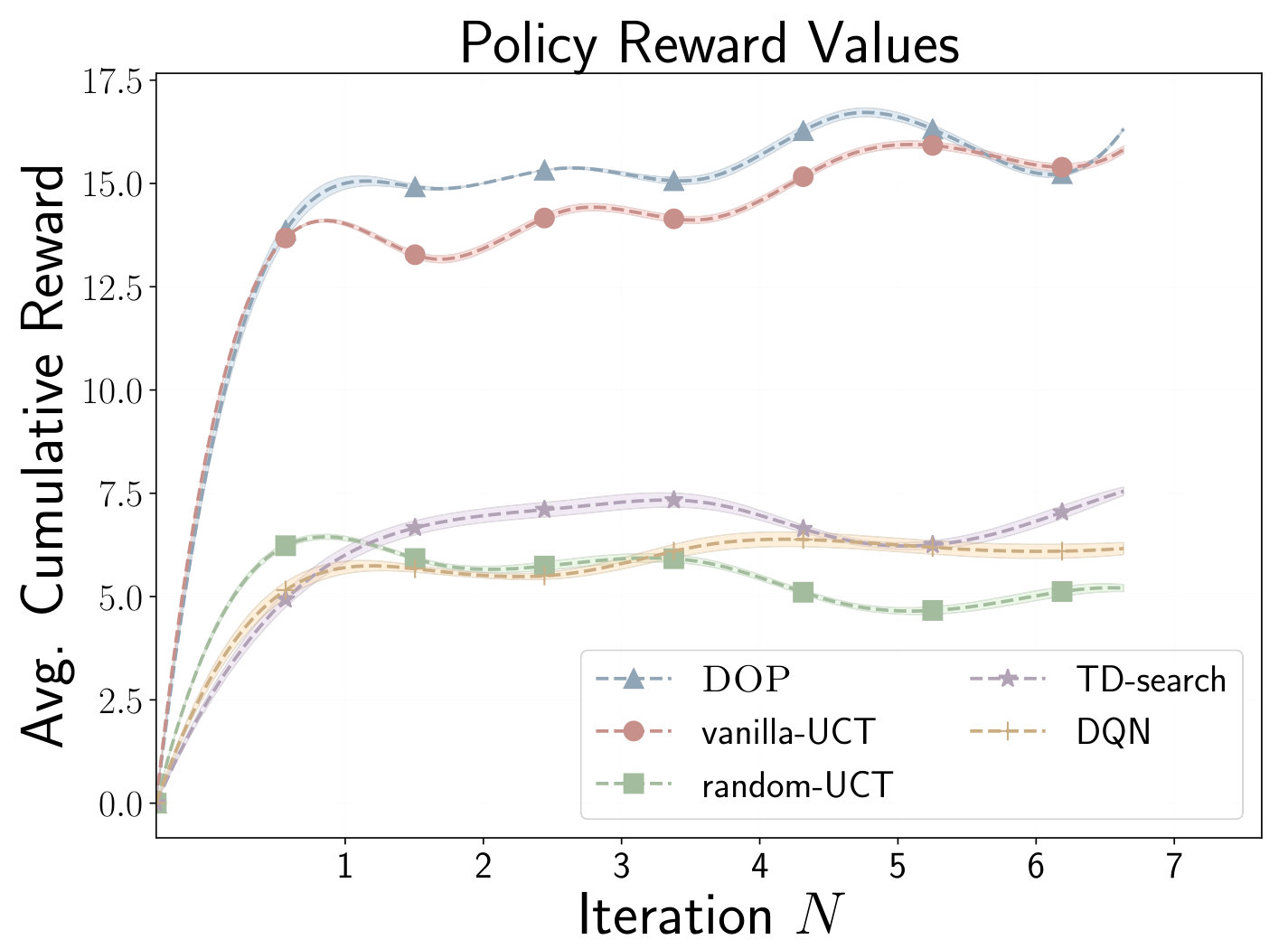

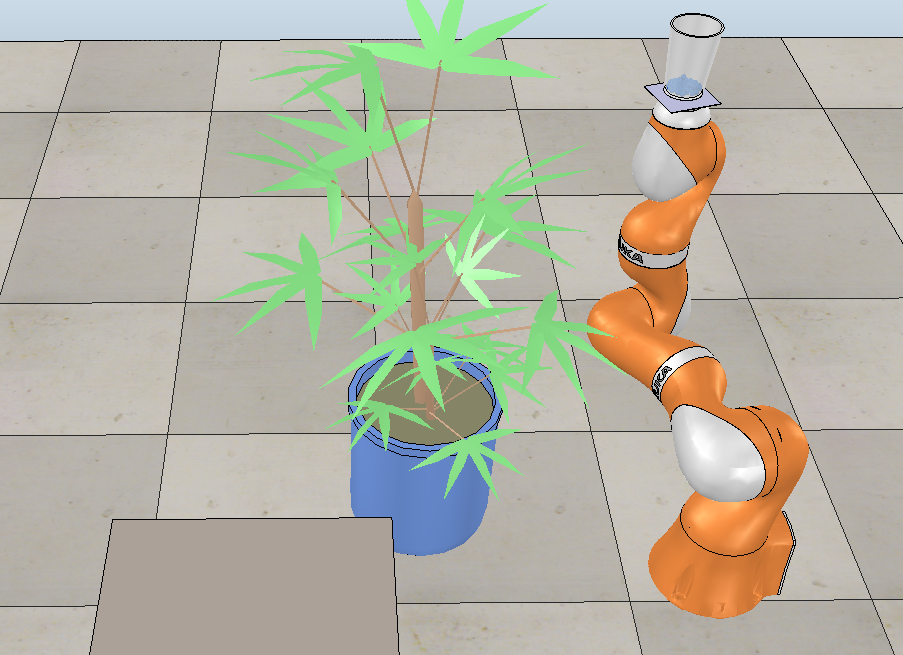

Here, the 7-DOF KUKA lightweight arm has to learn to fetch an object (e.g. a glass, Figure 3(c)) while avoiding an obstacle (a plant). In this scenario, the state space is again represented through an image collected by an overlooking camera, and the discretization of the state space is realized as described in Section 3.2. The robot can perform 10 actions: $A=\langle$arm-up, arm-down, arm-forward, arm-backward, arm-right, arm-left, pitch-turn-left, pitch-

turn-right, yaw-turn-left, yaw-turn-left$\rangle$. Rotations on the roll angle have been removed as they do not influence the desired orientation of the fetched object. The reward function is in $[0,1]$ and it is computed as a weighted sum of four components: the first is inversely proportional to the Euclidean distance of the end-effector to the target, the second it proportional to the distance to the virtual center of the obstacle, the third and the fourth are inversely proportional to the pitch and yaw angle respectively. In this way the reward function promotes states that are near the target, far from the obstacle, and with the end-effector oriented upwards. This is implemented to succeed in the fetching task of objects that are to be carried with a preferred orientation (e.g. a glass full of water). As for the cooperative navigation scenario, Figure 5 shows the performance of DOP, DQN, TD-search, random-UCT and vanilla-UCT. This scenario is key to highlight that our contribution is more suitable and practical in robotic tasks with large state space. In fact, since first iterations and with a reduced set of training samples, DOP is able to outperform other algorithms that need a huge training set to learn competitive policies, e.g. DQN. Still, vanilla-UCT shows comparable rewards, but the number of explored states for this algorithm is $\sim$65% larger than DOP.

4.4. Human-Robot Handover

The last scenario is characterized by two agents performing a human-robot interaction. The robot has to complete an handover by receiving an object which is hold by a human. In this setting, the state is represented through the images collected by the cameras of the robot. Moreover, the agent can perform a set of 25 actions: $A=\langle$body-noop, body-forward, body-backward, body-turn-left,

body-turn-right, head-up, head-down, head-right, head-left, right-arm-up, right-arm-down, right-arm-left, right-arm-

right, right-arm-forward, right-arm-backward, left-arm-up, left-arm-down, left-arm-left, left-arm-right, left-arm-fo-

rward, left-arm-backward, open-right-hand, open-left-hand, close-right-hand, close-left-hand$\rangle$.

The (shaped) reward function is in $[0,1]$ and it is implemented as a weighted sum of 6 components: the first component is inversely proportional to the distance between the robot and the handed object, the second and third are inversely proportional to the distance from the object to the left and right hand respectively, the fourth component is inversely proportional to the distance between the ball and the center of the robot camera computed directly in the image frame, and the fifth and sixth components model the desired status of the hands, promoting states that with open hands near the handed object. For this task, we choose a learning rate $\alpha=0.2$.

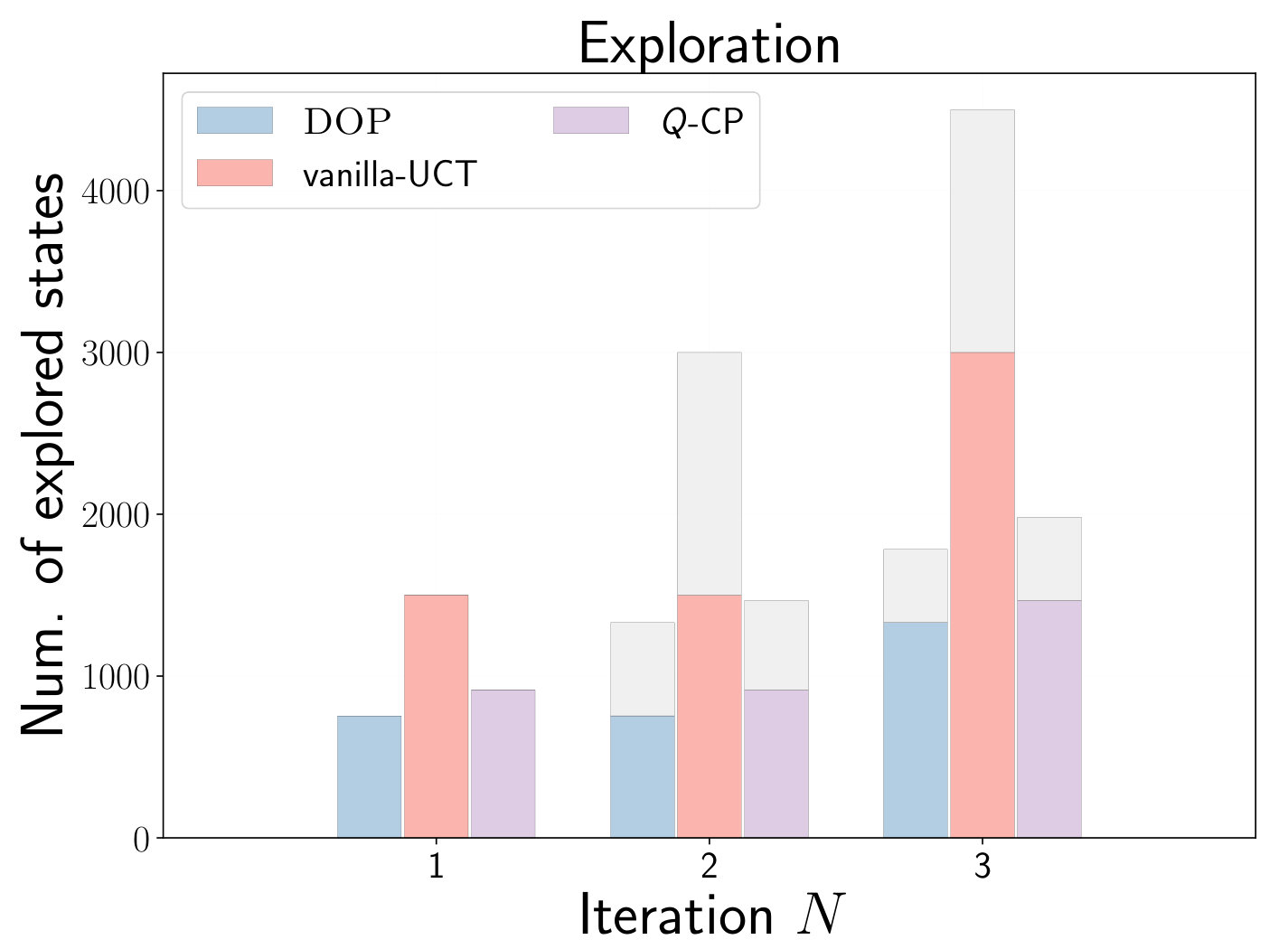

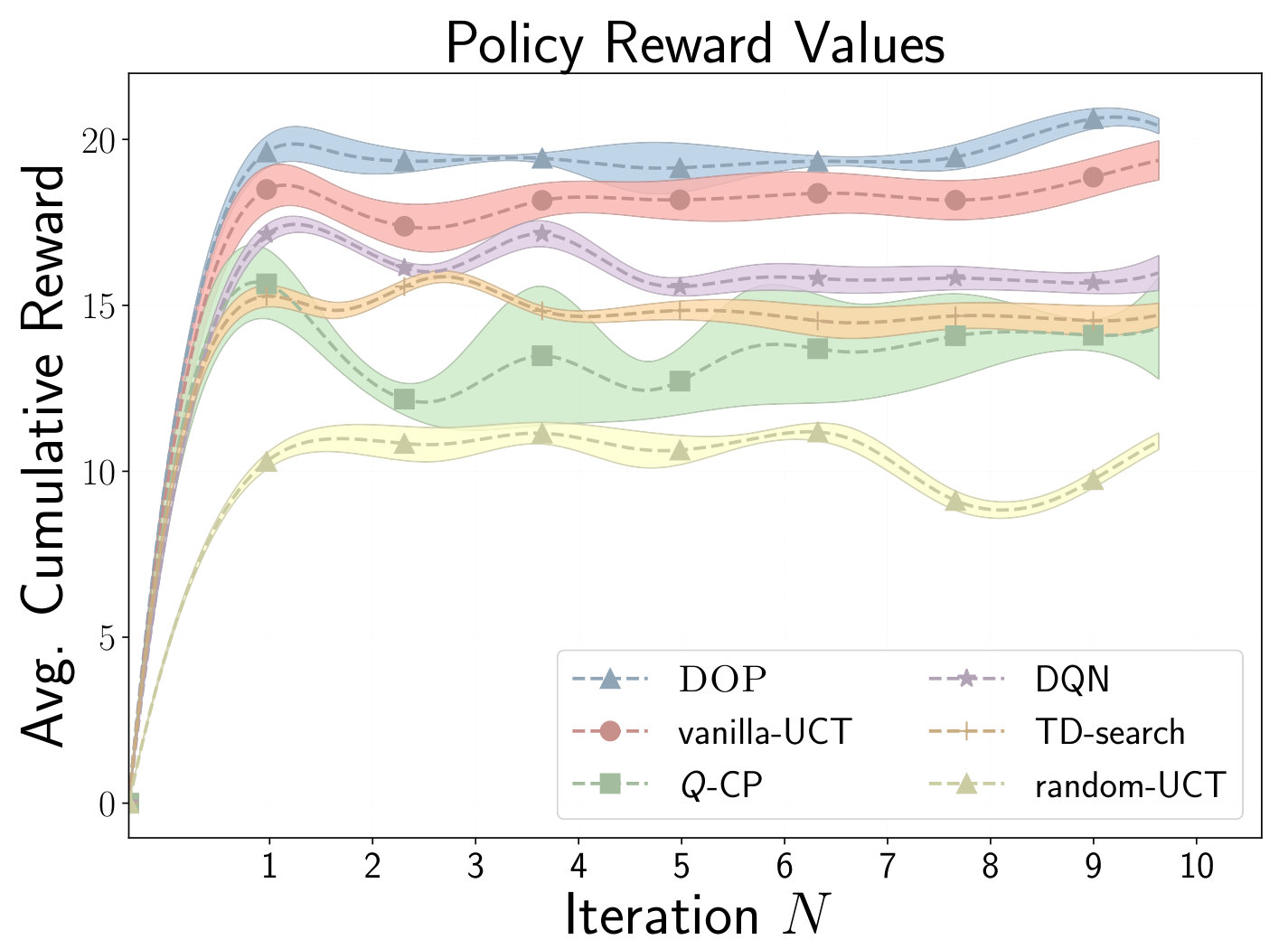

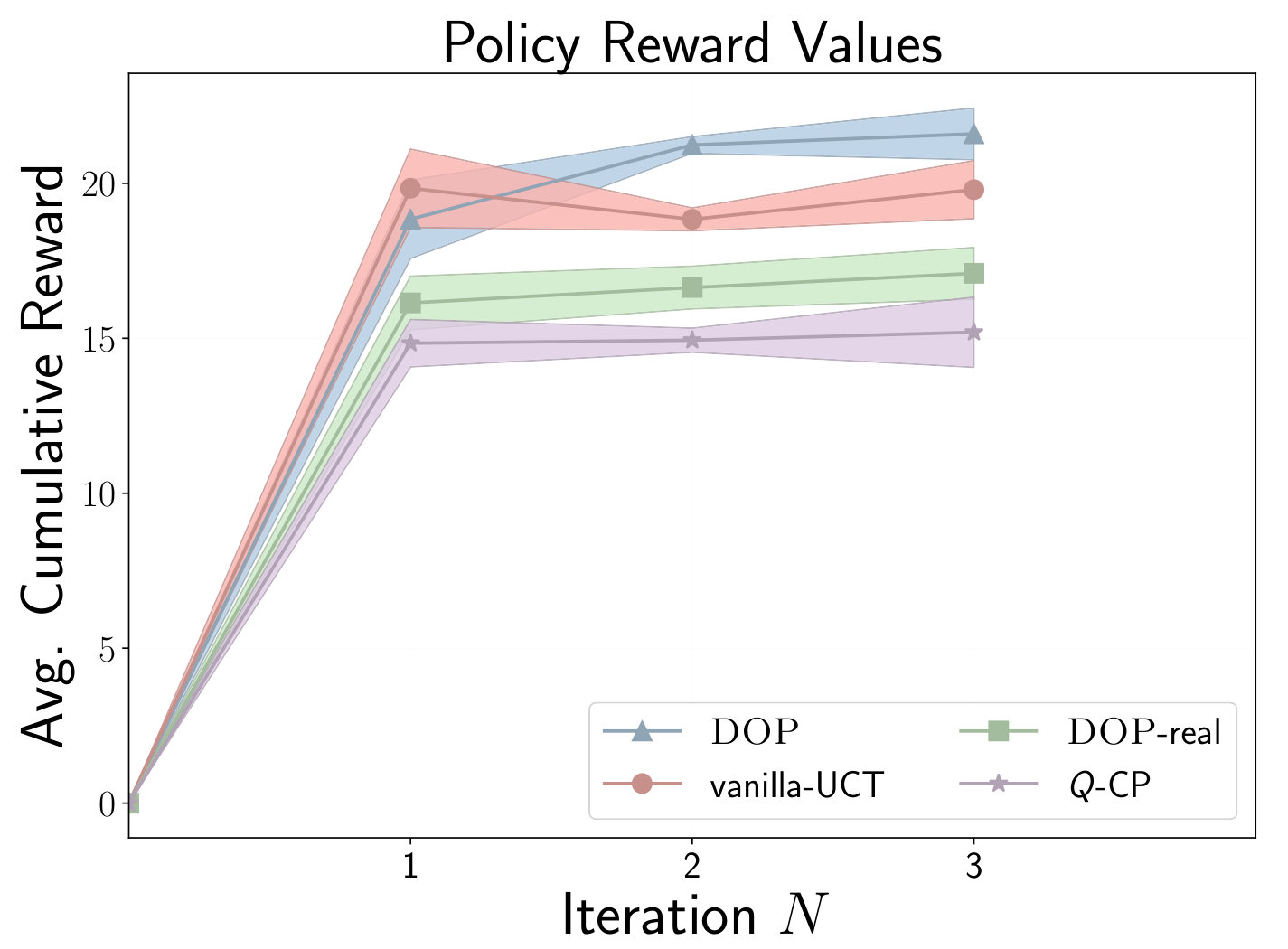

The purpose of this experimental evaluation is to highlight both the quality of the learned policy when transferred in a real setting and the improvements of our representation with respect to $Q$-CP. Hence, we compare the results obtained by DOP against $Q$-CP and vanilla-UCT. As in previous scenarios, the two plots represent the obtained cumulative average reward and the number of explored states (Figure 6). As expected, DOP preserves the same improvements over the vanilla-UCT and, also in this case, our algorithm generates an effective policy with a remarkably reduced number of training examples. Differently, when comparing DOP against $Q$-CP we notice a similar number of explored states while DOP obtains higher cumulative rewards. This shows the improved generalization capabilities of our representation, that is able to significantly improve performance while preserving sample complexity of the original algorithm. Finally, DOP-real shows the rewards obtained by transferring and rolling out the policy in real settings. In this case, the reward values show that, even though the robot does not perform as well as in simulation, it is still able to complete the task being robust to the noise of the real-world deployment. In fact, we consider the reduced cumulative reward values to be mostly due to noise in both the perception pipeline and motor encoders of the real NAO robot.

5. Conclusion

In this paper we introduced DOP, an iterative algorithm that uses action values learned through a deep $Q$-network to guide and reduce the exploration of the state space in different high-dimensional scenarios. Our key contribution consists in an extension of $Q$-CP Riccio et al. (2018) to use deep learning and improve both the focused exploration and the generalization of the algorithm. Thanks to the better generalization capabilities, DOP can be used in domains with high-dimensional states, such as multi-agent scenarios. For this reason, we evaluated both the representation and the algorithm on three different tasks that involve multiple or hyper-redundant robots. To better analyze the quality of the adopted representation, we also transferred a learned policy from simulation to real-world.

Unfortunately, DOP still needs a predefined simulation environment. This is not always available, and does not properly capture the dynamics of the world, making our algorithm less appealing in highly interactive scenarios. To address this issue, we aim at learning the dynamics of the world at robot operation time, and simultaneously improving its policy based on the learned model Weber et al. (2017).
