On the optimization of conservation law models at a junction with inflow and flow distribution controls
Fabio Ancona, Annalisa Cesaroni, Giuseppe Maria Coclite, Mauro, Garavello
TL;DR
This paper develops a framework for optimizing conservation law models at network junctions with control over inflow and flow distribution, establishing solution existence and providing a variational formulation with numerical simulations.
Contribution
It introduces a general control framework for conservation laws at junctions, proving solution compactness and existence, and formulates an equivalent variational problem with numerical insights.
Findings
Established compactness of flux-traces in $L^1$
Proved existence of solutions for optimization problems
Provided a variational formulation and numerical simulations
Abstract

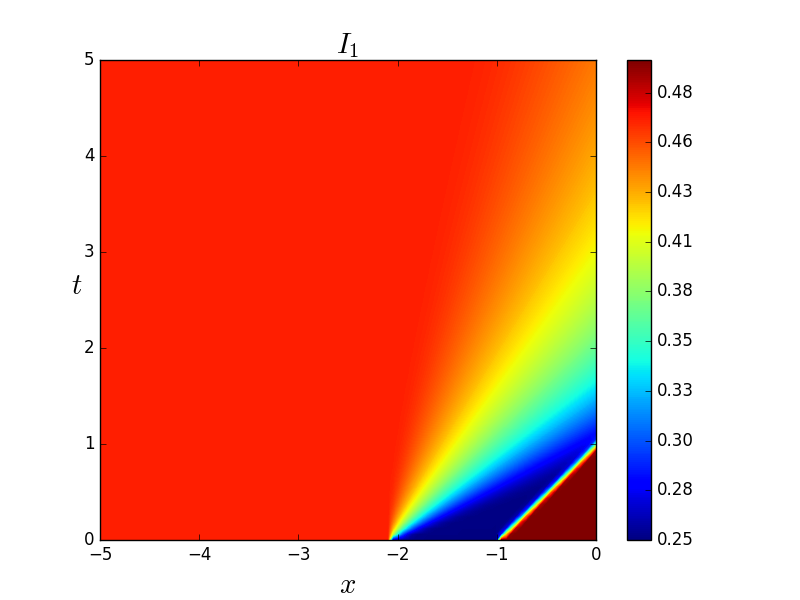

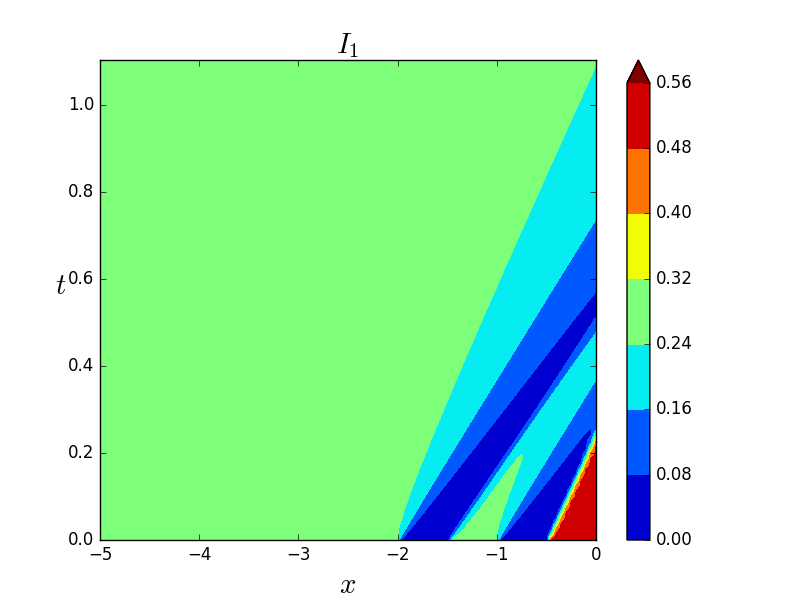

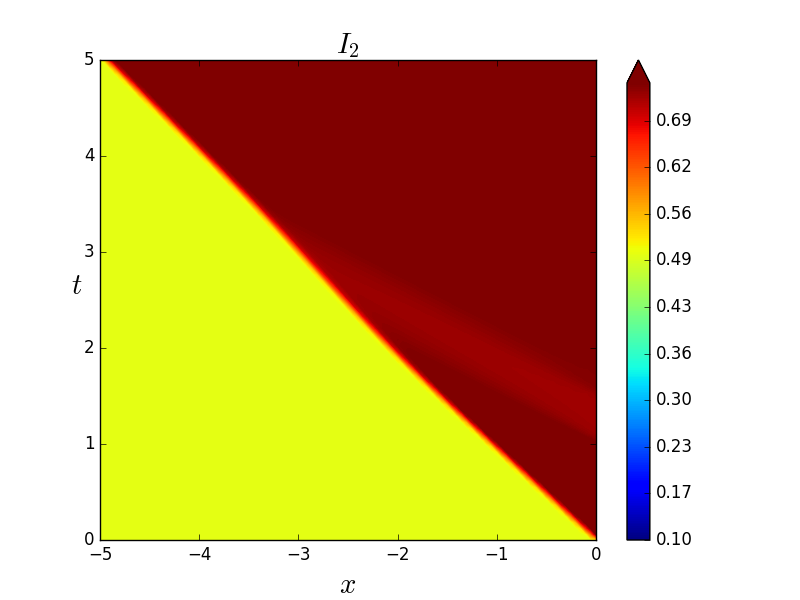

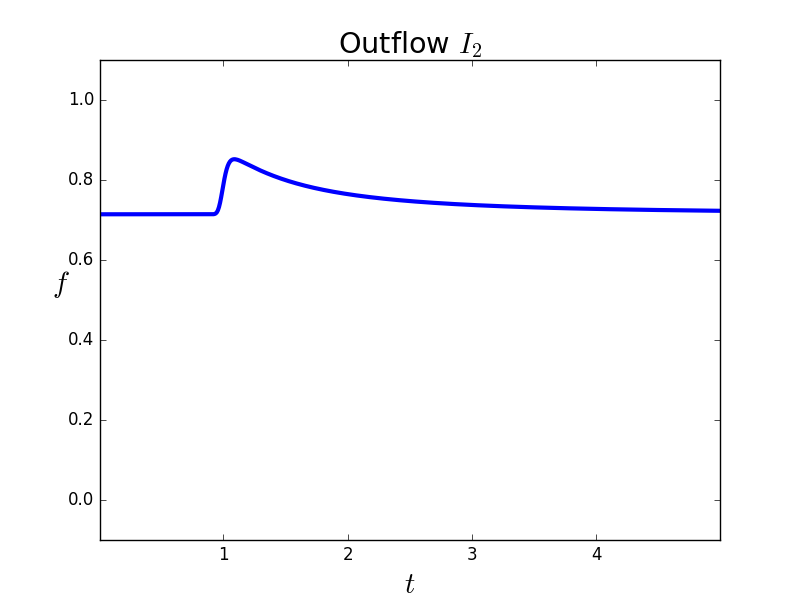

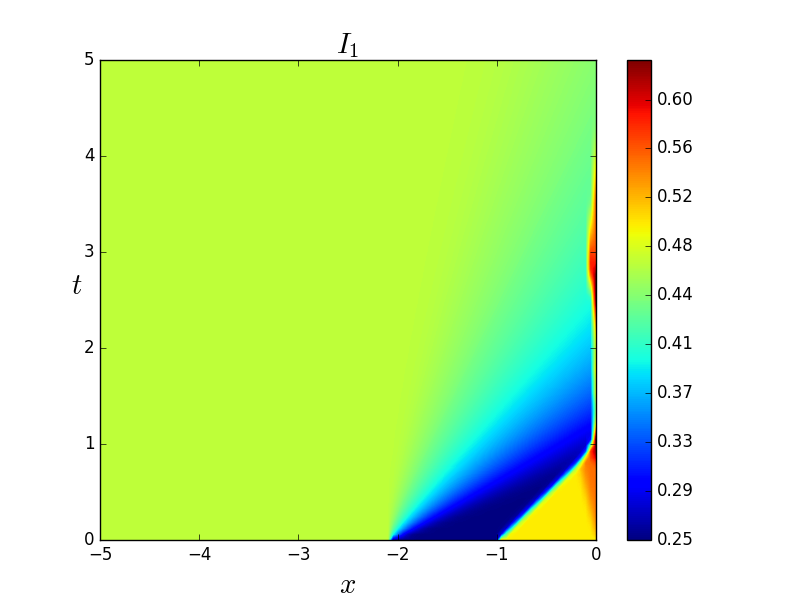

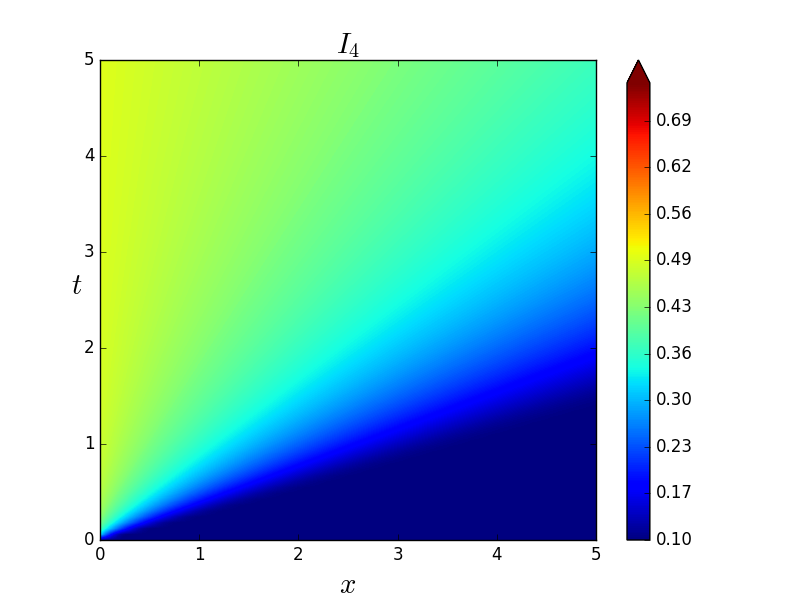

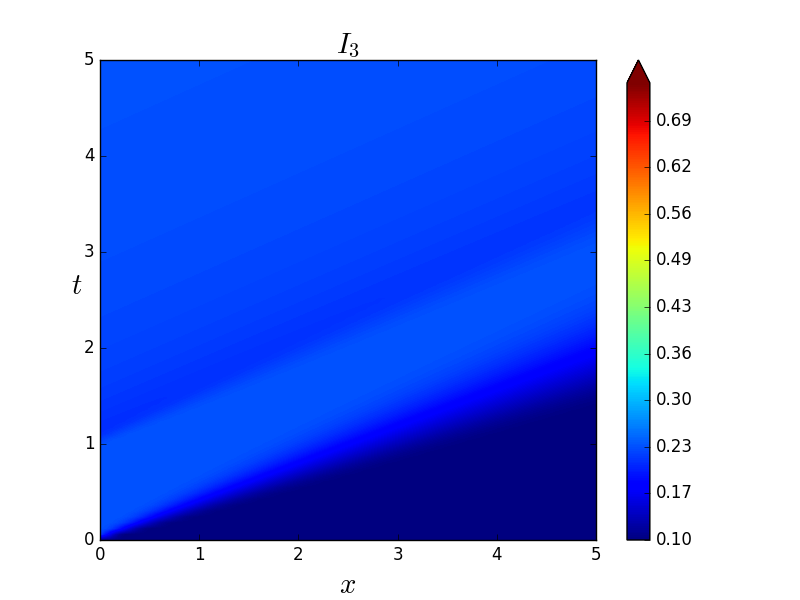

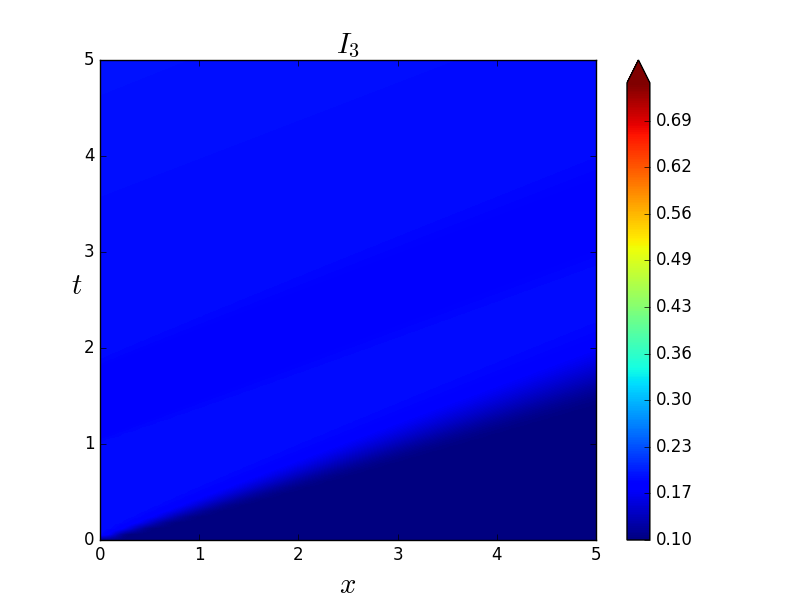

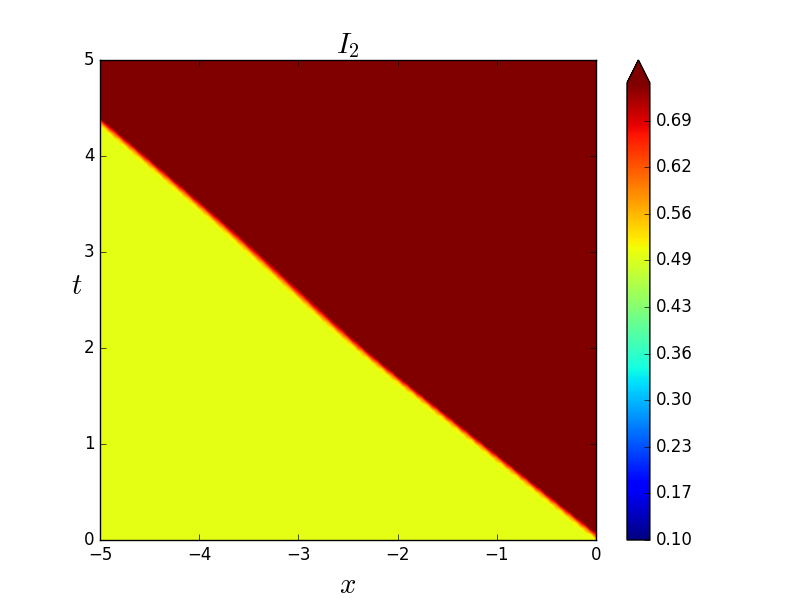

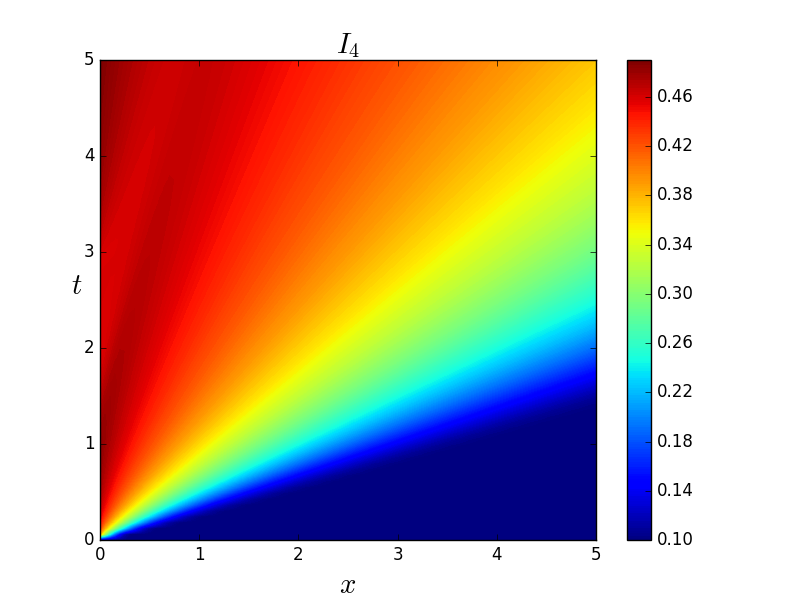

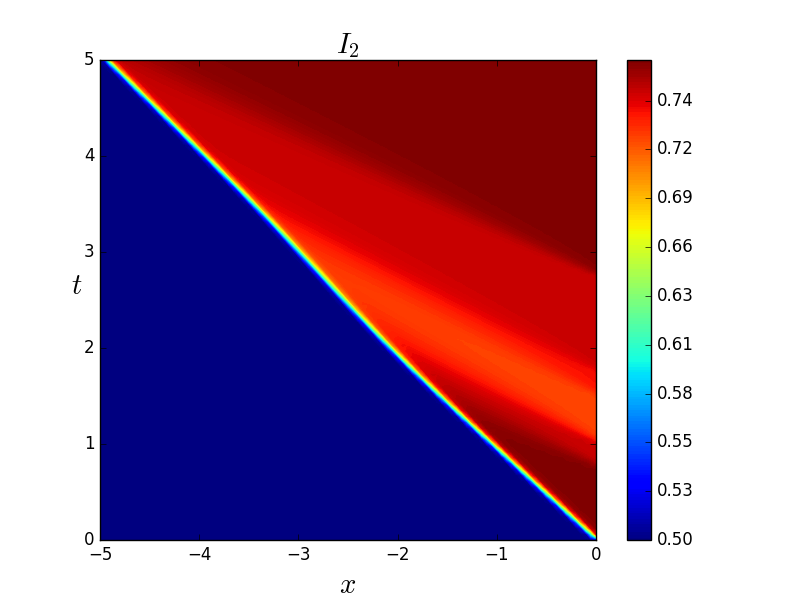

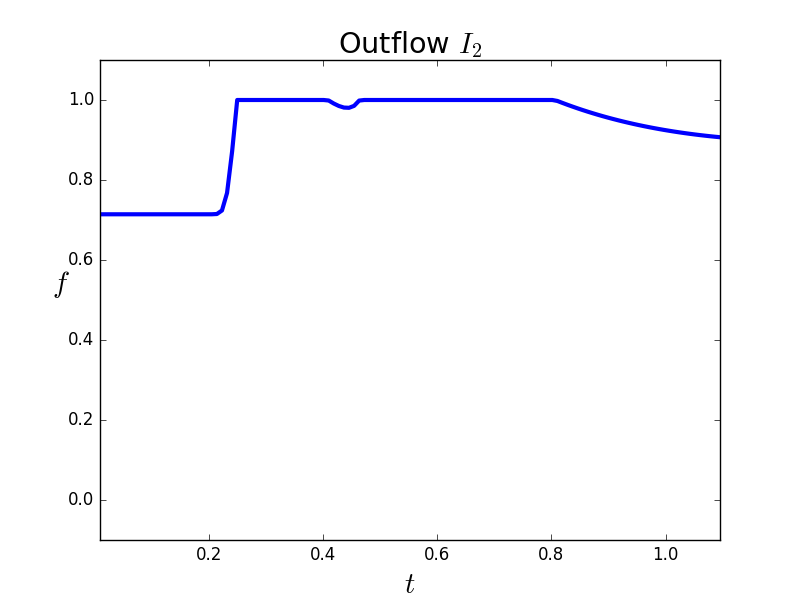

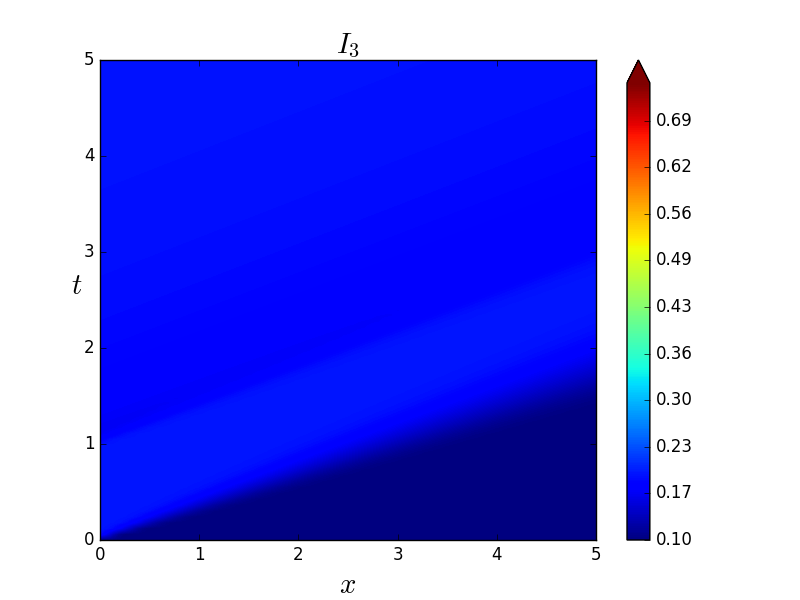

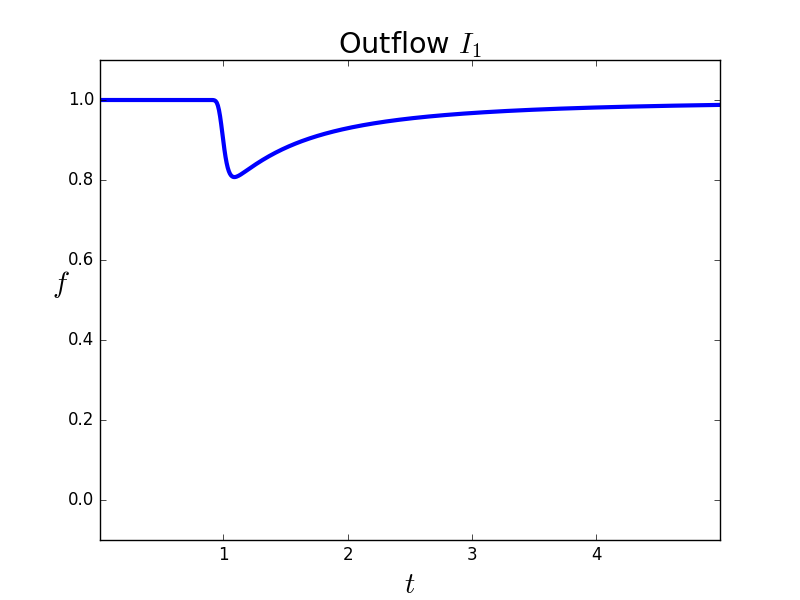

The paper proposes a general framework to analyze control problems for conservation law models on a network. Namely we consider a general class of junction distribution controls and inflow controls and we establish the compactness in of a class of flux-traces of solutions. We then derive the existence of solutions for two optimization problems: (I) the maximization of an integral functional depending on the flux-traces of solutions evaluated at points of the incoming and outgoing edges; (II) the minimization of the total variation of the optimal solutions of problem (I). Finally we provide an equivalent variational formulation of the min-max problem (II) and we discuss some numerical simulations for a junction with two incoming and two outgoing edges.
Click any figure to enlarge with its caption.

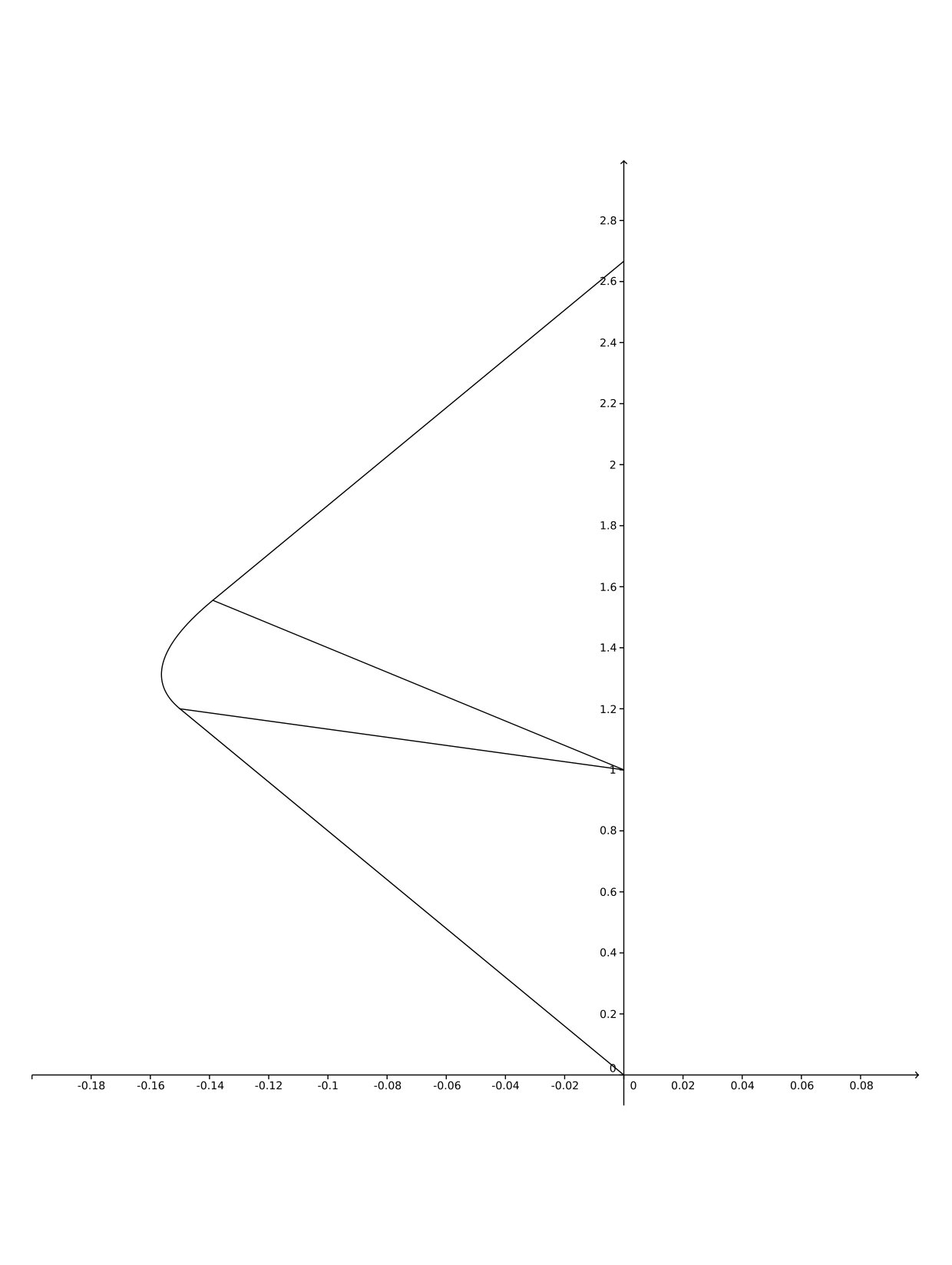

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6

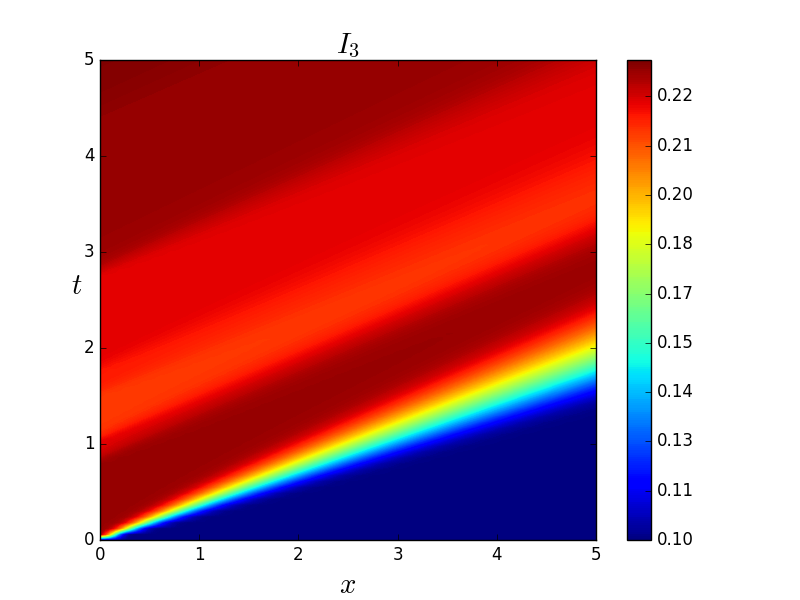

Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14

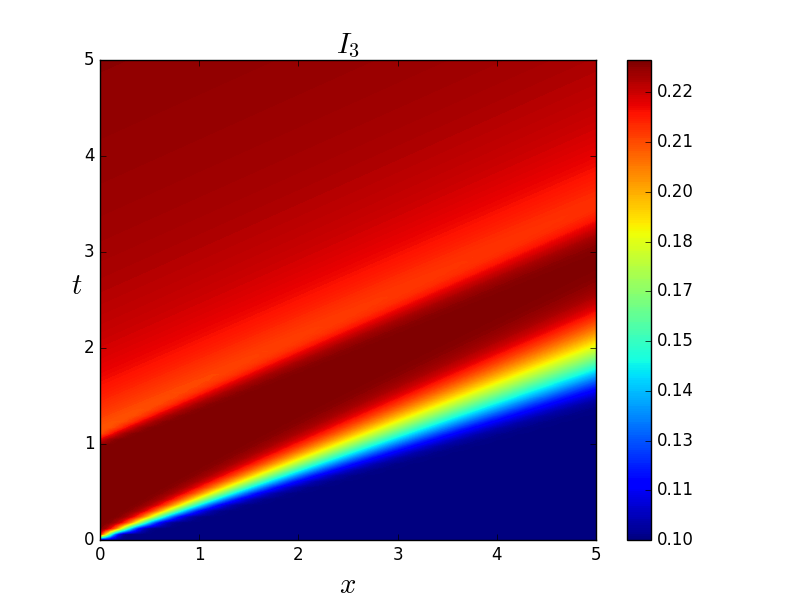

Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26

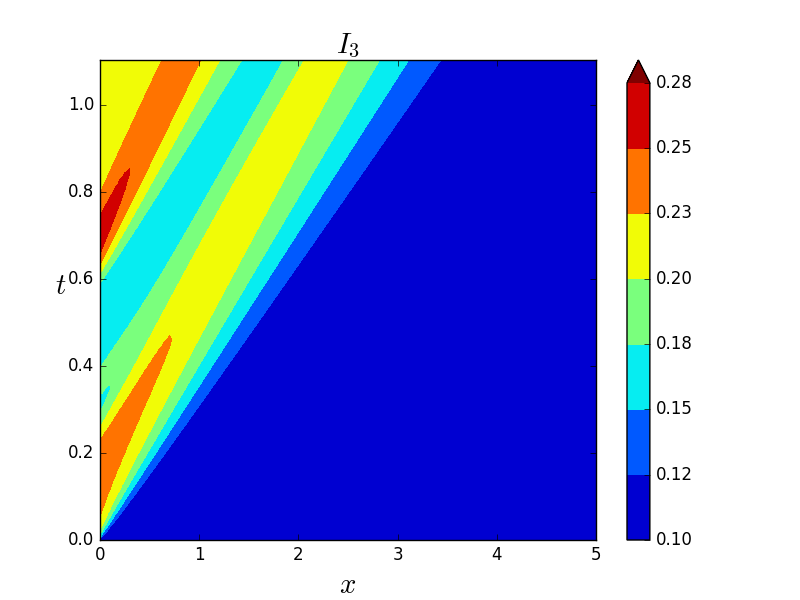

Figure 27
Figure 28

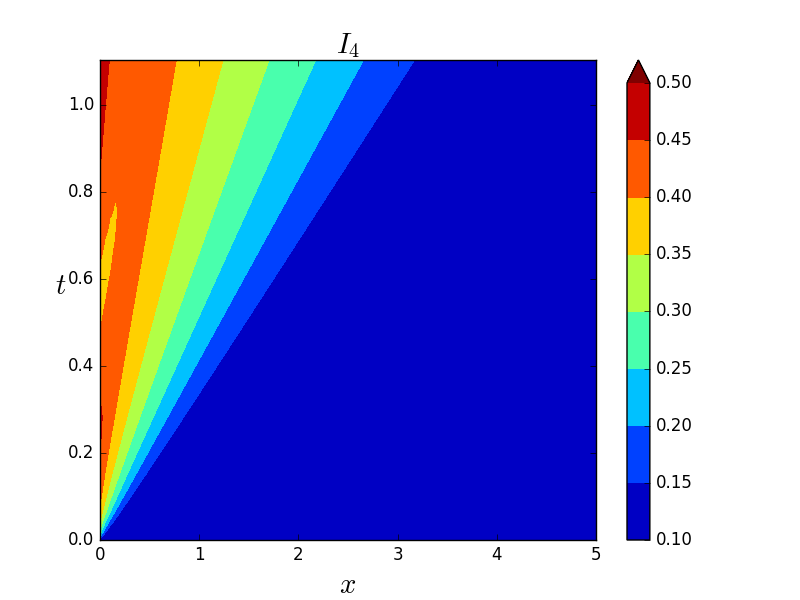

Figure 29
Figure 30
Figure 31
Figure 32
Figure 33
Figure 34
Figure 35
Figure 36

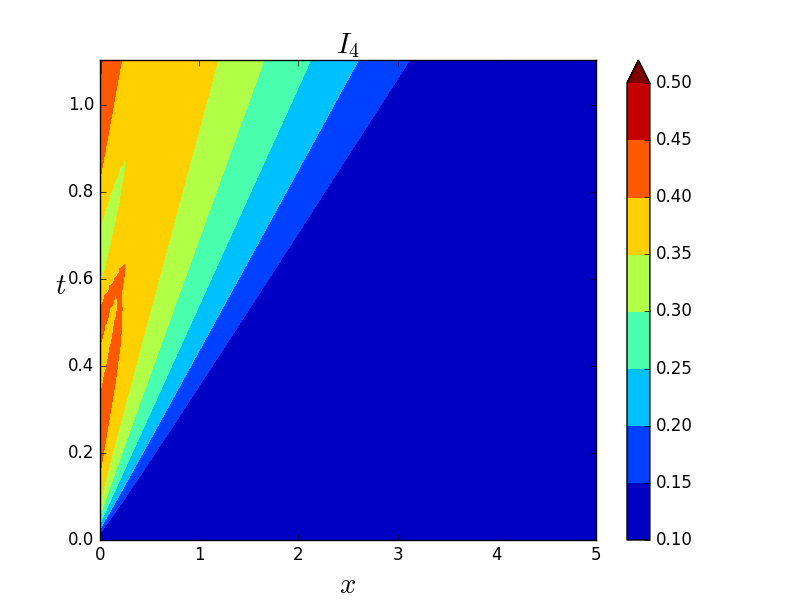

Figure 37

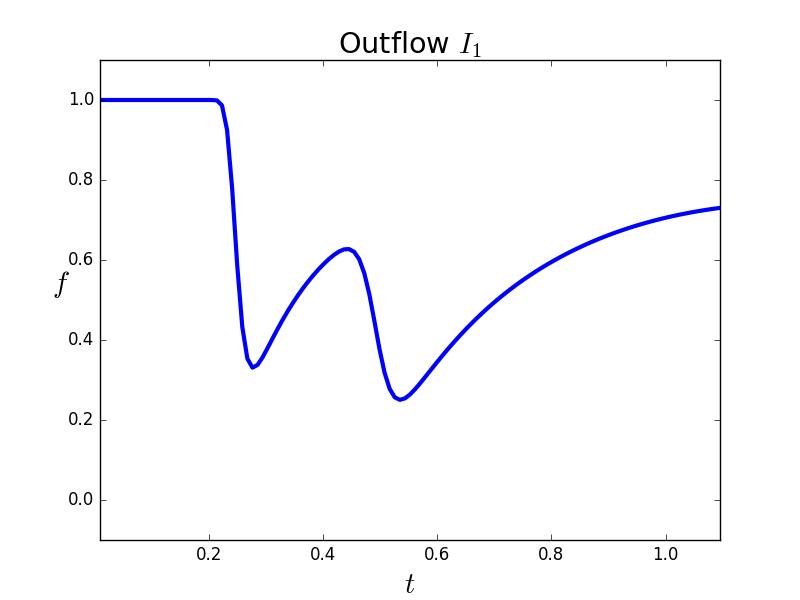

Figure 38
Figure 39

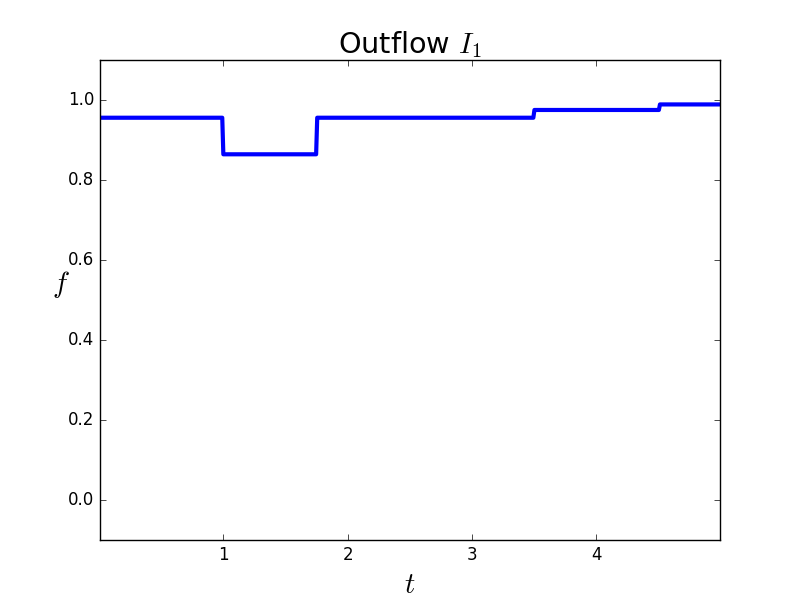

Figure 40
