Time-Staging Enhancement of Hybrid System Falsification

TL;DR

This paper introduces time staging, a method that improves the efficiency of optimization-based falsification of hybrid systems by exploiting the time-causal structure of signals, demonstrated through experiments and theoretical analysis.

Contribution

The paper proposes a novel time staging approach that enhances hybrid system falsification by incrementally constructing input signals, with supporting theoretical insights.

Findings

Time staging significantly improves falsification performance in certain cases.

Experimental results confirm the effectiveness of the proposed method.

Theoretical analysis identifies conditions where time staging is most beneficial.

Abstract

Optimization-based falsification employs stochastic optimization algorithms to search for error input of hybrid systems. In this paper we introduce a simple idea to enhance falsification, namely time staging, that allows the time-causal structure of time-dependent signals to be exploited by the optimizers. Time staging consists of running a falsification solver multiple times, from one interval to another, incrementally constructing an input signal candidate. Our experiments show that time staging can dramatically increase performance in some realistic examples. We also present theoretical results that suggest the kinds of models and specifications for which time staging is likely to be effective.

Figures

Tables

Table 1. Table 1: Experimental results. Each column shows how many falsification trials succeeded (out of 20), and the average runtime. S1:  □ [ 0 , 30 ] ​ ( v < 120 ) subscript □ 0 30 𝑣 120 \Box_{[0,30]}~{}(v<120) . S2:  □ [ 0 , 30 ] ​ ( g = 3 → v ≥ 30 ) subscript □ 0 30 𝑔 3 → 𝑣 30 \Box_{[0,30]}~{}(g=3\to v\geq 30) . S3:  ◇ [ 10 , 30 ] ​ ( v ≤ v min ∨ v ≥ v max ) subscript ◇ 10 30 𝑣 subscript 𝑣 min 𝑣 subscript 𝑣 max \Diamond_{[10,30]}~{}(v\leq v_{\text{min}}\lor v\geq v_{\text{max}}) , where: v min = 50 subscript 𝑣 min 50 v_{\text{min}}=50 , v max = 60 subscript 𝑣 max 60 v_{\text{max}}=60 (easy); v min = 53 subscript 𝑣 min 53 v_{\text{min}}=53 , v max = 57 subscript 𝑣 max 57 v_{\text{max}}=57 (hard). S4:  □ [ 0 , 10 ] ​ ( v < v ) ∨ ◇ [ 0 , 30 ] ​ ( ω > ω max ) subscript □ 0 10 𝑣 𝑣 subscript ◇ 0 30 𝜔 subscript 𝜔 max \Box_{[0,10]}(v<v)\lor\Diamond_{[0,30]}(\omega>\omega_{\text{max}}) , where: v min = 80 , ω max = 4500 formulae-sequence subscript 𝑣 min 80 subscript 𝜔 max 4500 v_{\text{min}}=80,\omega_{\text{max}}=4500 (easy); v min = 50 , ω max = 2700 formulae-sequence subscript 𝑣 min 50 subscript 𝜔 max 2700 v_{\text{min}}=50,\omega_{\text{max}}=2700 (mid); v min = 50 , ω max = 2520 formulae-sequence subscript 𝑣 min 50 subscript 𝜔 max 2520 v_{\text{min}}=50,\omega_{\text{max}}=2520 (hard). The specification S for the Abstract Fuel Control model is ¬ ( ◇ [ t 1 , t 2 ] ​ □ [ 0 , t ′ ] ​ ( 𝐴𝐹 − 𝐴𝐹 ref > δ ∗ 14.7 ) ) subscript ◇ subscript 𝑡 1 subscript 𝑡 2 subscript □ 0 superscript 𝑡 ′ 𝐴𝐹 subscript 𝐴𝐹 ref 𝛿 14.7 \neg(\Diamond_{[t_{1},t_{2}]}{\square_{[0,t^{\prime}]}{(\mathit{AF}-\mathit{AF}_{\text{ref}}>\delta*14.7))}} , where: t 1 = 0 subscript 𝑡 1 0 t_{1}=0 , t 2 = 6 subscript 𝑡 2 6 t_{2}=6 , t ′ = 3 superscript 𝑡 ′ 3 t^{\prime}=3 , δ = 0.07 𝛿 0.07 \delta=0.07 (init); t 1 = 6 subscript 𝑡 1 6 t_{1}=6 , t 2 = 26 subscript 𝑡 2 26 t_{2}=26 , t ′ = 4 superscript 𝑡 ′ 4 t^{\prime}=4 , δ = 0.01 𝛿 0.01 \delta=0.01 (stable). Starred numbers 0* or 20* indicate that GNM is deterministic so all trials yield the same result.

model	Automatic Transmission														Abst. Fuel Ctrl.
spec.	S1		S2		S3 easy		S3 hard		S4 easy		S4 mid		S4 hard		S init		S stable
algorithm	time	#/20	time	#/20	time	#/20	time	#/20	time	#/20	time	#/20	time	#/20	time	#/20	time	#/20
CMA-ES	27s	20	5s	20	39s	14	57s	0	32s	16	37s	9	59s	0	49s	0	82s	1
+TS	52s	15	15s	16	9s	19	23s	11	15s	14	14s	14	24s	3	30s	0	42s	1
+A-TS	41s	18	15s	17	9s	16	21s	10	26s	14	22s	14	20s	5	26s	0	41s	0
SA	50s	5	43s	7	37s	9	55s	0	35s	6	36s	9	47s	5	51s	0	76s	2
+TS	37s	20	33s	16	11s	19	33s	8	21s	14	25s	13	51s	0	47s	1	54s	7
+A-TS	34s	20	18s	17	9s	18	26s	4	16s	18	21s	11	30s	2	34s	0	42s	5
GNM	6s	20*	61s	0*	56s	0*	55s	0*	43s	0*	46s	0*	53s	0*	50s	0*	86s	0*
+TS	42s	20*	15s	20*	13s	20*	25s	20*	11s	20*	45s	0*	52s	0*	30s	20*	20s	20*
+A-TS	20s	20*	16s	20*	10s	20*	26s	20*	13s	20*	45s	0*	43s	0*	37s	0*	19s	20*

Equations

$$\begin{array}[]{l}{\llbracket\mathbf{w},f(x_{1},\cdots,x_{n})>0\rrbracket}\;:=\;f\bigl{(}\mathbf{w}(0)(x_{1}),\cdots,\mathbf{w}(0)(x_{n})\bigr{)}\qquad{\llbracket\mathbf{w},\bot\rrbracket}\;:=\;-\infty\\ {\llbracket\mathbf{w},\neg\varphi\rrbracket}\;:=\;-{\llbracket\mathbf{w},\varphi\rrbracket}\qquad{\llbracket\mathbf{w},\varphi_{1}\wedge\varphi_{2}\rrbracket}\;:=\;{\llbracket\mathbf{w},\varphi_{1}\rrbracket}\sqcap{\llbracket\mathbf{w},\varphi_{2}\rrbracket}\\ {\llbracket\mathbf{w},\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2}\rrbracket}\;:=\;\textstyle{{{\bigsqcup_{t\in I}}}\bigl{(}\,{\llbracket\mathbf{w}^{t},\varphi_{2}\rrbracket}\sqcap{{\bigsqcap_{t^{\prime}\in[0,t)}}}{\llbracket\mathbf{w}^{t^{\prime}},\varphi_{1}\rrbracket}\,\bigr{)}}\end{array}$$

$${\rho }_{\phi }(\mathbf{v}):=[[\mathbf{v},\phi ]]$$

$$({\partial }_{\mathbf{v}}{\rho }_{\phi })({\mathbf{v}}^{\prime }):={\rho }_{\phi }(\mathbf{v}\cdot {\mathbf{v}}^{\prime })\stackrel{(\text{ref}eq:scoreByRobustness)}{=}[[\mathbf{v}\cdot {\mathbf{v}}^{\prime },\phi ]].$$

$$\begin{array}[]{l}\partial_{\mathbf{v}}\bigl{(}f(\vec{x})>0\bigr{)}\;:\equiv\;\mathsf{c}_{\llbracket\mathbf{v},f(\vec{x})>0\rrbracket}\qquad\qquad\partial_{\mathbf{v}}\bot\;:\equiv\;\bot\\ \partial_{\mathbf{v}}(\lnot\varphi)\;:\equiv\;\lnot\partial_{\mathbf{v}}\varphi\qquad\partial_{\mathbf{v}}(\varphi_{1}\land\varphi_{2})\;:\equiv\;(\partial_{\mathbf{v}}\varphi_{1})\land(\partial_{\mathbf{v}}\varphi_{2})\\ \partial_{\mathbf{v}}(\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2})\;:\equiv\;\mathsf{c}_{\llbracket\mathbf{v},\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2}\rrbracket}\lor\bigl{(}\,(\mathsf{c}_{\llbracket\mathbf{v},\Box\varphi_{1}\rrbracket}\land\varphi_{1})\mathbin{\mathcal{U}_{I-T}}{\varphi_{2}}\,\bigr{)}\end{array}$$

$$\min_{\mathbf{u}}\llbracket\mathcal{M}(\mathbf{u}),\varphi\rrbracket\;=\;\min_{\mathbf{u}_{2}}\Bigl{\llbracket}\mathcal{M}\Bigl{(}\bigl{(}\operatorname*{arg\,min}_{\mathbf{u}_{1}}\llbracket\mathcal{M}(\mathbf{u}_{1}),\varphi\rrbracket\bigr{)}\cdot\mathbf{u}_{2}\Bigr{)},\varphi\Bigr{\rrbracket}$$

$$\begin{array}[]{l}{\llbracket\mathbf{w},f(x_{1},\dotsc,x_{n})>0\rrbracket}^{T}\;:=\;f\bigl{(}\mathbf{w}(0)(x_{1}),\dotsc,\mathbf{w}(0)(x_{n})\bigr{)}\qquad{\llbracket\mathbf{w},\bot\rrbracket}^{T}\;:=\;-\infty\\ {\llbracket\mathbf{w},\neg\varphi\rrbracket}^{T}\;:=\;-{\llbracket\mathbf{w},\varphi\rrbracket}^{T}\qquad{\llbracket\mathbf{w},\varphi_{1}\wedge\varphi_{2}\rrbracket}^{T}\;:=\;{\llbracket\mathbf{w},\varphi_{1}\rrbracket}^{T}\sqcap{\llbracket\mathbf{w},\varphi_{2}\rrbracket}^{T}\\ {\llbracket\mathbf{w},\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2}\rrbracket}^{T}\;:=\;\displaystyle{{{\bigsqcup_{t\in I\cap[0,T]}}}\bigl{(}\,{\llbracket\mathbf{w}^{t},\varphi_{2}\rrbracket}^{T-t}\sqcap{{\bigsqcap_{t^{\prime}\in[0,t)}}}{\llbracket\mathbf{w}^{t^{\prime}},\varphi_{1}\rrbracket}^{T-t^{\prime}}\,\bigr{)}}\end{array}$$

$$\begin{array}[]{l}\partial_{\mathbf{v}}\bigl{(}f(\vec{x})>0\bigr{)}\;:\equiv\;\mathsf{c}_{\llbracket\mathbf{v},f(\vec{x})>0\rrbracket}\qquad\partial_{\mathbf{v}}\mathsf{c}_{r}\;:\equiv\;\mathsf{c}_{r}\qquad\partial_{\mathbf{v}}\bot\;:\equiv\;\bot\\ \partial_{\mathbf{v}}(\lnot\varphi)\;:\equiv\;\lnot\partial_{\mathbf{v}}\varphi\qquad\partial_{\mathbf{v}}(\varphi_{1}\land\varphi_{2})\;:\equiv\;(\partial_{\mathbf{v}}\varphi_{1})\land(\partial_{\mathbf{v}}\varphi_{2})\\ \partial_{\mathbf{v}}(\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2})\;:\equiv\;\mathsf{c}_{\llbracket\mathbf{v},\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2}\rrbracket}\lor\bigl{(}\,(\mathsf{c}_{\llbracket\mathbf{v},\Box\varphi_{1}\rrbracket}\land\varphi_{1})\mathbin{\mathcal{U}_{I-T}}{\varphi_{2}}\,\bigr{)}\end{array}$$

$$\displaystyle\llbracket\mathbf{v}^{\prime},\partial_{\mathbf{v}}\bigl{(}f(\vec{x})>0\bigr{)}\rrbracket$$

$$[[{\mathbf{v}}^{\prime },{\partial }_{\mathbf{v}}{\mathsf{c}}_r]]$$

$$[[{\mathbf{v}}^{\prime },{\partial }_{\mathbf{v}}\perp ]]$$

$$[[{\mathbf{v}}^{\prime },{\partial }_{\mathbf{v}}(\neg \phi )]]$$

$$[[{\mathbf{v}}^{\prime },{\partial }_{\mathbf{v}}({\phi }_1\wedge {\phi }_2)]]$$

$$\stackrel{\text{I.H.}}{=}[[\mathbf{v}\cdot {\mathbf{v}}^{\prime },{\phi }_1]]\sqcap [[\mathbf{v}\cdot {\mathbf{v}}^{\prime },{\phi }_2]]=[[\mathbf{v}\cdot {\mathbf{v}}^{\prime },{\phi }_1\wedge {\phi }_2]]$$

$$[[{\mathbf{v}}^{\prime },{\partial }_{\mathbf{v}}({\phi }_1{\mathcal{U}}_I{\phi }_2)]]$$

$$\displaystyle=\llbracket\mathbf{v}^{\prime},\mathsf{c}_{\llbracket\mathbf{v},\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2}\rrbracket}\rrbracket\sqcup\llbracket\mathbf{v}^{\prime},\bigl{(}\,(\mathsf{c}_{\llbracket\mathbf{v},\Box\varphi_{1}\rrbracket}\land\varphi_{1})\mathbin{\mathcal{U}_{I-T}}{\varphi_{2}}\,\bigr{)}\rrbracket$$

$$\displaystyle=\llbracket\mathbf{v},\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2}\rrbracket\sqcup\displaystyle{{{\bigsqcup_{t\in(I-T)\cap[0,T^{\prime}]}}}\bigl{(}\,{\llbracket\mathbf{v}^{\prime t},\varphi_{2}\rrbracket}\sqcap\llbracket\mathbf{v},\Box\varphi_{1}\rrbracket\sqcap{{\bigsqcap_{t^{\prime}\in[0,t)}}}{\llbracket\mathbf{v}^{\prime t^{\prime}},\varphi_{1}\rrbracket}\,\bigr{)}}$$

$$\displaystyle={{\bigsqcup_{t\in I\cap[0,T]}}}\bigl{(}\llbracket\mathbf{v}^{t},\varphi_{2}\rrbracket\sqcap{{\bigsqcap_{t^{\prime}\in[0,t)}}}\llbracket\mathbf{v}^{t^{\prime}},\varphi_{1}\rrbracket\bigr{)}$$

$$\displaystyle\qquad\sqcup\displaystyle{{{\bigsqcup_{t\in(I-T)\cap[0,T^{\prime}]}}}\bigl{(}\,{\llbracket\mathbf{v}^{\prime t},\varphi_{2}\rrbracket}\sqcap\bigl{(}\,{{\bigsqcap_{t^{\prime}\in[0,T]}}}\llbracket\mathbf{v}^{t^{\prime}},\varphi_{1}\rrbracket\,\bigr{)}\sqcap{{\bigsqcap_{t^{\prime}\in[T,T+t)}}}{\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t^{\prime}},\varphi_{1}\rrbracket}\,\bigr{)}}$$

$$\displaystyle\stackrel{{\scriptstyle(*)}}{{=}}{{\bigsqcup_{t\in I\cap[0,T]}}}\bigl{(}\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t},\varphi_{2}\rrbracket\sqcap{{\bigsqcap_{t^{\prime}\in[0,t)}}}\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t^{\prime}},\varphi_{1}\rrbracket\bigr{)}$$

$$\displaystyle\qquad\sqcup\displaystyle{{{\bigsqcup_{t^{\prime\prime}\in I\cap[T,T+T^{\prime}]}}}\bigl{(}\,{\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t^{\prime\prime}},\varphi_{2}\rrbracket}\sqcap\bigl{(}\,{{\bigsqcap_{t^{\prime}\in[0,T]}}}\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t^{\prime}},\varphi_{1}\rrbracket\,\bigr{)}\sqcap{{\bigsqcap_{t^{\prime}\in[T,t^{\prime\prime})}}}{\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t^{\prime}},\varphi_{1}\rrbracket}\,\bigr{)}}$$

$$\displaystyle={{\bigsqcup_{t\in I\cap[0,T]}}}\bigl{(}\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t},\varphi_{2}\rrbracket\sqcap{{\bigsqcap_{t^{\prime}\in[0,t)}}}\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t^{\prime}},\varphi_{1}\rrbracket\bigr{)}$$

$$\displaystyle\qquad\sqcup\displaystyle{{{\bigsqcup_{t^{\prime\prime}\in I\cap[T,T+T^{\prime}]}}}\bigl{(}\,{\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t^{\prime\prime}},\varphi_{2}\rrbracket}\sqcap{{\bigsqcap_{t^{\prime}\in[0,t^{\prime\prime})}}}\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t^{\prime}},\varphi_{1}\rrbracket\,\bigr{)}}$$

$$\displaystyle={{\bigsqcup_{t\in I\cap[0,T+T^{\prime\prime}]}}}\bigl{(}\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t},\varphi_{2}\rrbracket\sqcap{{\bigsqcap_{t^{\prime}\in[0,t)}}}\llbracket(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t^{\prime}},\varphi_{1}\rrbracket\bigr{)}$$

$$=[[\mathbf{v}\cdot {\mathbf{v}}^{\prime },{\phi }_1{\mathcal{U}}_I{\phi }_2]]$$

$$[[\mathcal{M}(\mathbf{u}),\square (x<c)]]$$

$${\text{bigsqcap}}_{t\in [0,T_1]}c-\mathcal{M}({\mathbf{u}}_1)(t)(x)$$

$${\text{bigsqcap}}_{t\in [0,T_1]}c-\mathcal{M}({\mathbf{u}}_1)(t)(x)={\text{bigsqcap}}_{t\in [0,T]}c-\mathcal{M}({\mathbf{u}}_1)(t)(x)=c-\mathcal{M}({\mathbf{u}}_1)(T)(x)$$

$$\le {\text{bigsqcap}}_{t\in [0,T_1]}c-\mathcal{M}({\mathbf{u}}_1^{\prime })(t)(x)\le {\text{bigsqcap}}_{t\in [0,T]}c-\mathcal{M}({\mathbf{u}}_1^{\prime })(t)(x).$$

$$c-\mathcal{M}({\mathbf{u}}_1{|}_{[0,T]})(T)(x)\le c-\mathcal{M}({\mathbf{u}}_1^{\prime }{|}_{[0,T]})(T)(x).$$

$$[[\mathcal{M}({\mathbf{u}}_1^{\prime }{|}_{[0,T]}\cdot {\mathbf{u}}_2),\square (x<c)]]$$

$$={\text{bigsqcap}}_{t\in [0,T+T_2]}c-\mathcal{M}({\mathbf{u}}_1^{\prime }{|}_{[0,T]}\cdot {\mathbf{u}}_2)(t)(x)$$

$$={\text{bigsqcap}}_{t\in [0,T]}c-\mathcal{M}({\mathbf{u}}_1^{\prime })(t)(x)\sqcap {\text{bigsqcap}}_{t\in (T,T+T_2]}c-\mathcal{M}({\mathbf{u}}_1^{\prime }{|}_{[0,T]}\cdot {\mathbf{u}}_2{|}_{[0,t-T]})(t)(x)$$

$$\ge {\text{bigsqcap}}_{t\in [0,T]}c-\mathcal{M}({\mathbf{u}}_1)(t)(x)\sqcap {\text{bigsqcap}}_{t\in (T,T+T_2]}c-\mathcal{M}({\mathbf{u}}_1^{\prime }{|}_{[0,T]}\cdot {\mathbf{u}}_2{|}_{[0,t-T]})(t)(x)\text{by (refeq:2017-12-08-20-27)}$$

$$\ge {\text{bigsqcap}}_{t\in [0,T]}c-\mathcal{M}({\mathbf{u}}_1)(t)(x)\sqcap {\text{bigsqcap}}_{t\in (T,T+T_2]}c-\mathcal{M}({\mathbf{u}}_1{|}_{[0,T]}\cdot {\mathbf{u}}_2{|}_{[0,t-T]})(t)(x)$$

$$=\cdots$$

$$=[[\mathcal{M}({\mathbf{u}}_1{|}_{[0,T]}\cdot {\mathbf{u}}_2),\square (x<c)]].$$

Full text

1 Introduction

Hybrid Systems

Quality assurance of cyber-physical systems (CPS) has been recognized as an important challenge, where many CPS are hybrid systems that combine the discrete dynamics of computers and the continuous dynamics of physical components. Unfortunately, analysis of hybrid systems poses unique challenges, such as the limited applicability of formal verification. In formal verification one aims to give a mathematical proof for a system’s correctness. This is much harder for hybrid systems than for computer software/hardware, where the presence of continuous dynamics makes many problems more complex or even undecidable (e.g. reachability in hybrid automata).

Optimization-Based Falsification

Because of these difficulties, an increasing number of researchers are turning to optimization-based falsification as a quality assurance measure. It is a testing method rather than that of formal verification; the problem is formalized as follows.

• •

Given: a model $\mathcal{M}$ (that takes an input signal $\mathbf{u}$ and yields an output signal $\mathcal{M}(\mathbf{u})$), and a specification $\varphi$ (a temporal formula)

• •

Answer: error input, that is, an input signal $\mathbf{u}$ such that the corresponding output $\mathcal{M}(\mathbf{u})$ violates $\varphi$

\textstyle{\mathbf{u}}$$\textstyle{\mathcal{M}}$$\textstyle{\mathcal{M}(\mathbf{u})}$$\textstyle{\not\models\varphi\;?}

In the optimization-based falsification approach, the above falsification problem is turned into an optimization problem. This is possible thanks to robust semantics of temporal formulas [15]. Instead of the Boolean satisfaction relation $\mathbf{v}\models\varphi$, robust semantics assigns a quantity $\llbracket\mathbf{v},\varphi\rrbracket\in{\mathbb{R}}\cup\{\infty,-\infty\}$ that tells us, not only whether $\varphi$ is true or not (by the sign), but also how robustly the formula is true or false. This allows one to employ hill-climbing optimization (see Fig. 1): we iteratively generate input signals, in the direction of decreasing robustness, hoping that eventually we hit negative robustness.

Optimization-based falsification is a subclass of search-based testing: it adaptively chooses test cases (input signals $\mathbf{u}$) based on previous observations. One can use stochastic algorithms for optimization (such as simulated annealing), which turn out to be much more scalable than many model checking algorithms that rely on exhaustive search. Note also that the system model $\mathcal{M}$ can be black box: it is enough to know the correspondence between input $\mathbf{u}$ and output $\mathcal{M}(\mathbf{u})$. An error input $\mathbf{u}$ is concrete evidence for the system’s need for improvement, and thus has great appeal to practitioners.

The approach of optimization-based falsification was initiated in [15] and has been actively pursued ever since [6, 4, 8, 21, 9, 11, 12]. There are now mature tools, such as Breach [9] and S-Taliro [6], which work with industry-standard Simulink models.

Contribution

We introduce a simple idea of time staging for enhancement of optimization-based falsification. Time staging consists of running a falsification solver repeatedly, from one input segment to another, incrementally constructing an input signal.

In general, in solving a concrete problem $\mathcal{C}$ by a metaheuristic $\mathcal{H}$ (such as stochastic optimization, evolutionary computation, etc.), a key to success is to communicate as much information as possible in the translation from $\mathcal{C}$ to $\mathcal{H}$—that is, to let $\mathcal{H}$ exploit structures unique to $\mathcal{C}$. Our idea of time staging follows this philosophy. More specifically, via time staging we communicate the time-causal structure of time-dependent signals—a structure that is present in some instances of the falsification problem but not in optimization problems in general—to stochastic optimization solvers.

Our implementation of time-staged falsification is based on Breach [9]. We show that this simple idea can dramatically enhance its performance in some examples. We also present some theoretical considerations on the kinds of problem instances where time staging is likely to work, and some results that aid implementation of time staging.

Structure of the Paper

In §2 we informally outline optimization-based falsification and illustrate the idea of time staging. We then turn to formal developments: in §3 we review existing falsification works and in §4 we present our algorithm, augmented by some theoretical results that aid its implementation. §5 is devoted to the theoretical consideration of two specific settings in which time staging is guaranteed to work well. These settings will serve as useful “rules of thumb” for practical applications. In §6 we discuss our implementation and experimental results. We conclude in §8.

2 Schematic Overview: Falsification and Time Staging

We illustrate falsification and time staging, informally with an example.

Example Setting

We take as a system model $\mathcal{M}$ a simple automotive powertrain whose input signal is $1$-dimensional (the throttle $u$) and whose output signal is the vehicle speed $v$. We assume that $\mathcal{M}$ exhibits the following natural behavior: the larger $u$ is, the quicker $v$ grows. Let our specification be \varphi\equiv\bigl{(}\Box(v\leq 120)\bigr{)}, where $\equiv$ denotes the syntactic equality. To falsify $\varphi$ the vehicle speed $v$ must exceed $120$. From the assumption about $\mathcal{M}$’s behavior, we expect $u$ to be large in a falsifying input signal. Note that this is a simplified version of one of our experiments in §6.

Optimization-Based Falsification

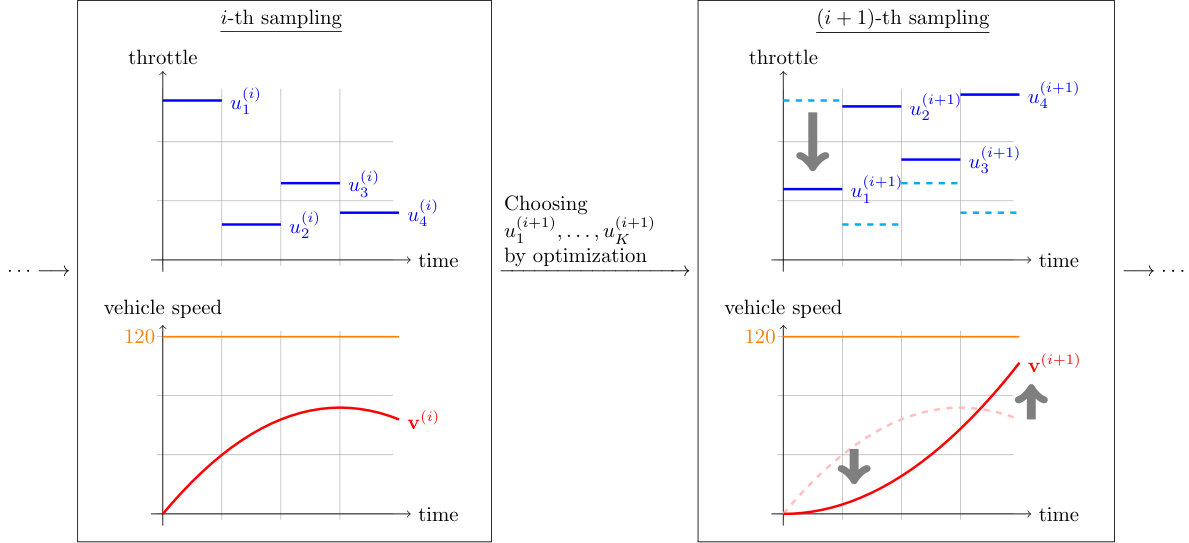

Fig. 5 illustrates how a conventional optimization-based falsification procedure works. In the $i$-th sampling one tries an input signal $\mathbf{u}^{(i)}$. Following the falsification literature we focus on piecewise constant signals. Thus a signal $\mathbf{u}^{(i)}$ is represented by a sequence $(u_{1}^{(i)},\dotsc,u_{K}^{(i)})$ of real numbers. See the top left of Fig. 5. The corresponding output signal $\mathbf{v}^{(i)}=\mathcal{M}(\mathbf{u}^{(i)})$ is shown below it.

Since $\mathbf{v}^{(i)}$ does not reach the threshold $120$, we move on to the $(i+1)$-th sampling and try a new input signal $\mathbf{u}^{(i+1)}=(u_{1}^{(i+1)},\dotsc,u_{K}^{(i+1)})$. The choice of $\mathbf{u}^{(i+1)}$ is made by an optimization algorithm. Specifically, the optimization algorithm observes the results of the previously sampled input signals $\mathbf{u}^{(1)},\dotsc,\mathbf{u}^{(i)}$—especially the robustness value $\llbracket\mathcal{M}(\mathbf{u}^{(i)}),\varphi\rrbracket$ that each input $\mathbf{u}^{(i)}$ achieves. In the current setting where \varphi\equiv\bigl{(}\Box(v\leq 120)\bigr{)}, the robustness value is simply the difference between $120$ and the peak vehicle speed. The optimization algorithm tries to derive some general tendency, which it then uses to increase the probability that the next input signal $\mathbf{u}^{(i+1)}$ will make the robustness smaller (i.e. the peak vehicle speed higher).

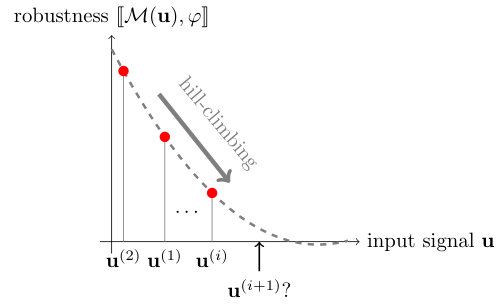

Hill climbing is a prototype of such optimization algorithms. Its use in falsification is illustrated in Fig. 5, where $\mathbf{u}=(u_{1},\dotsc,u_{K})$ is depicted as one-dimensional for clarity. The actual curve for the robustness value $\llbracket\mathcal{M}(\mathbf{u}),\varphi\rrbracket$ (gray and dashed) is unknown. Still the previous observations under input $\mathbf{u}^{(1)},\dotsc,\mathbf{u}^{(i)}$ suggest that to the right is the climbing down direction. The next candidate $\mathbf{u}^{(i+1)}$ is picked accordingly, towards negative robustness. Another well-known optimization algorithm is the Nelder-Mead algorithm. See Fig. 5, where the input space is two-dimensional and the (unknown) robustness function is depicted by contour lines.

We see in the right of Fig. 5 that the new input signal $\mathbf{u}^{(i+1)}=(u^{(i+1)}_{1},\dotsc,u^{(i+1)}_{K})$ leads to a corresponding output signal $\mathbf{v}^{(i+1)}$ that reduces the robustness value by achieving a higher peak speed. We continue this way, $\mathbf{u}^{(i+2)},\mathbf{u}^{(i+3)},\dotsc$, hoping to eventually reach a falsifying input signal.

Absence of the Time-Causal Information

A closer look at Fig. 5 reveals room for improvement. In Fig. 5, the new input signal $\mathbf{u}^{(i+1)}$ indeed achieves a smaller overall robustness $\llbracket\mathcal{M}(\mathbf{u}),\varphi\rrbracket$ than ${\mathbf{u}^{(i)}}$. However, its initial segment ${u^{(i+1)}_{1}}$ is smaller than ${u^{(i)}_{1}}$; consequently the vehicle speed ${\mathbf{v}^{(i+1)}}$ is smaller than ${\mathbf{v}^{(i)}}$ in the first few seconds. Keeping the initial segment ${u^{(i)}_{1}}$ would have achieved an even greater peak speed.

The problem here is that the time-causal structure inherent in the problem is not explicitly communicated to the optimization algorithm. The relevant structure is more specifically time monotonicity: an input prefix that achieves smaller robustness (i.e. a greater peak speed) is more likely to extend to a full falsifying input signal. Although it is possible that a stochastic optimization algorithm somehow “learns” time monotonicity, it is not guaranteed, because the structure of input spaces (the horizontal axis in Fig. 5 and the squares in Fig. 5) does not explicitly reflect time-causal structures.

While the time monotonicity is not shared by all instances of the falsification problems, we find many realistic instances that approximately satisfy the property. We discuss time monotonicity in §5, as well as in the context of our experiments in §6.

Falsification with Time Staging

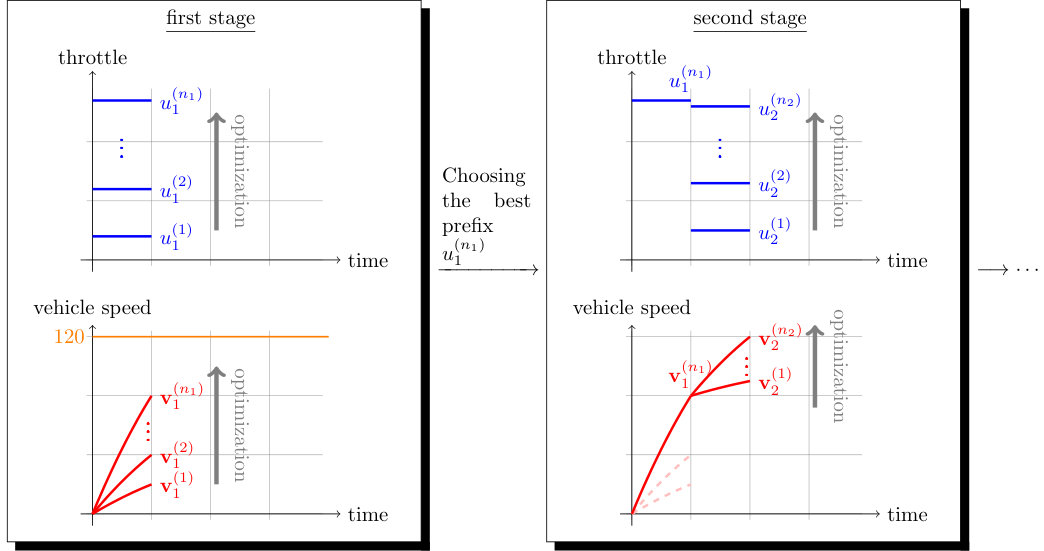

Our proposal of time staging consists of incrementally synthesizing a candidate input signal. We illustrate this in Fig. 5. In the first stage (left), we run a falsification algorithm and try to find an initial input segment that achieves low robustness (i.e. high peak speed). This first stage comprises running $n_{1}$ samplings, as illustrated in Fig. 5. This process will gradually improve candidates for the initial input segment, in the way the arrows $\uparrow$ on the left in Fig. 5 designate. Let us assume that the last candidate $u_{1}^{(n_{1})}$ is the (tentative) best, achieving the smallest robustness.

In the second stage (on the right in Fig. 5) we continue $u_{1}^{(n_{1})}$ and synthesize the second input segment. This is again by running a falsification algorithm, as depicted. Note that, in each stage (a box in Fig. 5), the whole iterated process in Fig. 5 is conducted. In this way we continue to the $K$-th stage, always starting with the input segment that performed the best in the previous stage, thus exploiting the time-causal structure.

While time staging is not difficult to implement, there is a challenge in using it effectively. An immediate question is whether choosing the single best input segment in each stage is the optimal approach. Our current strategy favors exploitation over exploration: it might miss a falsifying signal whose robustness must decrease slowly in the earlier segments and only quickly in the latter segments. Indeed we are working on an evolutionary variant of the above time-staged algorithm, where multiple segments are passed over from one stage to another, in order to maintain diversity and conduct exploration. That said, even under the current simple strategy of picking the best one, we observe significant performance enhancement in some falsification problems. See §6.

We can summarize this trade-off in terms of the size of search spaces. Let $U$ be the set of candidates for input segments, and $K$ be the number of stages. Then the size of the set of whole input signals is $|U|^{K}$, choosing one input segment for each stage. In our staged algorithm, in contrast, the search space for each stage is $U$ and overall our search space is $K\cdot|U|$. This reduction comes with the risk of missing some falsifying input signals. The experimental results in §6 suggest this risk is worth taking. Moreover, in §5 we present some theoretical conditions for the absence of such risk. They help users decide in practical applications when time staging will be effective.

3 Optimization-Based Falsification

From this section on we turn to the formal description and analysis of our algorithm. This section presents a review of existing works on optimization-based falsification.

System Models

Let us formalize our system models.

Definition 3.1** (time-bounded signal).**

Let $T\in{\mathbb{R}}_{>0}$ be a positive real. A (time-bounded) $m$-dimensional signal with a time horizon $T$ is a function $\mathbf{w}\colon[0,T]\to{\mathbb{R}}^{m}$.

Let $\mathbf{w}\colon[0,T]\to{\mathbb{R}}^{m}$ and $\mathbf{w}^{\prime}\colon[0,T^{\prime}]\to{\mathbb{R}}^{m}$ be (time-bounded) signals. Their concatenation $\mathbf{w}\cdot\mathbf{w}^{\prime}\colon[0,T+T^{\prime}]\to{\mathbb{R}}^{m}$ is defined by $(\mathbf{w}\cdot\mathbf{w}^{\prime})(t):=\mathbf{w}(t)$ if $t\in[0,T]$, and $\mathbf{w}^{\prime}(t-T)$ if $t\in(T,T+T^{\prime}]$.

Let $T_{1},T_{2}\in(0,T]$ such that $T_{1}<T_{2}$. The restriction $\mathbf{w}|_{[T_{1},T_{2}]}\colon[0,T_{2}-T_{1}]\to{\mathbb{R}}^{m}$ of $\mathbf{w}\colon[0,T]\to{\mathbb{R}}^{m}$ to the interval $[T_{1},T_{2}]$ is defined by $(\mathbf{w}|_{[T_{1},T_{2}]})(t):=\mathbf{w}(T_{1}+t)$.

Definition 3.2** (system model $\mathcal{M}$).**

A system model, with $M$-dimensional input, is a function $\mathcal{M}$ that takes an input signal $\mathbf{u}\colon[0,T]\to{\mathbb{R}}^{M}$ and returns $\mathcal{M}(\mathbf{u})\colon[0,T]\to{\mathbb{R}}^{N}$. Here the common time horizon $T\in{\mathbb{R}}_{>0}$ is arbitrary.

Furthermore, we impose the following causality condition on $\mathcal{M}$. For any time-bounded signals $\mathbf{u}\colon[0,T]\to{\mathbb{R}}^{M}$ and $\mathbf{u}^{\prime}$, we require that \mathcal{M}(\mathbf{u}\cdot\mathbf{u}^{\prime})\big{|}_{[0,T]}=\mathcal{M}(\mathbf{u}).

Note that $\mathcal{M}(\mathbf{u}\cdot\mathbf{u}^{\prime})=\mathcal{M}(\mathbf{u})\cdot\mathcal{M}(\mathbf{u}^{\prime})$ does not hold in general: feeding $\mathbf{u}$ can change the internal state of $\mathcal{M}$. This motivates the following definition.

Definition 3.3** (continuation $\mathcal{M}_{\mathbf{u}}$).**

Let $\mathcal{M}$ be a system model and $\mathbf{u}\colon[0,T]\to{\mathbb{R}}^{M}$ be a signal. The continuation of $\mathcal{M}$ after $\mathbf{u}$, denoted by $\mathcal{M}_{\mathbf{u}}$, is defined as follows. For an input signal $\mathbf{u}^{\prime}\colon[0,T^{\prime}]\to{\mathbb{R}}^{M}$: $\mathcal{M}_{\mathbf{u}}(\mathbf{u}^{\prime})(t):=\mathcal{M}(\mathbf{u}\cdot\mathbf{u}^{\prime})(T+t)$.

Signal Temporal Logic and Robust Semantics

We review signal temporal logic (STL) [22] and its robust semantics [15, 11]. $\mathbf{Var}$ is the set of variables, and let $N:=|\mathbf{Var}|$. Variables stand for physical quantities, control modes, etc. $\equiv$ denotes syntactic equality.

Definition 3.4** (syntax).**

In STL, atomic propositions and formulas are defined as follows, respectively: $\alpha\,::\equiv\,f(x_{1},\dots,x_{n})>0$, and $\varphi\,::\equiv\,\alpha\mid\bot\mid\neg\varphi\mid\varphi\wedge\varphi\mid\varphi\mathbin{\mathcal{U}_{I}}\varphi$. Here $f$ is an $n$-ary function $f:{\mathbb{R}}^{n}\to{\mathbb{R}}$, $x_{1},\dots,x_{n}\in\mathbf{Var}$, and $I$ is a closed non-singular interval in ${\mathbb{R}}_{\geq 0}$, i.e. $I=[a,b]$ or $[a,\infty)$ where $a,b\in{\mathbb{R}}$ and $a<b$.

We omit subscripts $I$ for temporal operators if $I=[0,\infty)$. Other common connectives like $\lor,\rightarrow,\top$, $\Box_{I}$ (always) and $\Diamond_{I}$ (eventually), are introduced as abbreviations: $\Diamond_{I}\varphi\equiv\top\mathbin{\mathcal{U}_{I}}\varphi$ and $\Box_{I}\varphi\equiv\lnot\Diamond_{I}\lnot\varphi$. Atomic formulas like $f(\vec{x})\leq c$, where $c\in{\mathbb{R}}$ is a constant, are also accommodated by using negation and the function $f^{\prime}(\vec{x}):=f(\vec{x})-c$.

Definition 3.5** (robust semantics [11, 10]).**

For an unbounded $n$-dimensional signal $\mathbf{w}\colon{\mathbb{R}}_{\geq 0}\to{\mathbb{R}}^{n}$ and $t\in{\mathbb{R}}_{\geq 0}$, $\mathbf{w}^{t}$ denotes the $t$-shift of $\mathbf{w}$, that is, $\mathbf{w}^{t}(t^{\prime}):=\mathbf{w}(t+t^{\prime})$.

Let $\mathbf{w}\colon{\mathbb{R}}_{\geq 0}\to{\mathbb{R}}^{N}$ be a signal (recall $N=|\mathbf{Var}|$), and $\varphi$ be an STL formula. We define the robustness ${\llbracket\mathbf{w},\varphi\rrbracket}\in{\mathbb{R}}\cup\{\infty,-\infty\}$ as follows, by induction. Here $\sqcap$ and $\sqcup$ denote infimums and supremums of real numbers, respectively.

[TABLE]

Here are some intuitions and consequences. The robustness ${\llbracket\mathbf{w},f(\vec{x})>c\rrbracket}$ stands for the vertical margin $f(\vec{x})-c$ for the signal $\mathbf{w}$ at time [math]. A negative robustness value indicates how far the formula is from being true. The robustness for the eventually modality is computed by ${\llbracket\mathbf{w},\Diamond_{[a,b]}(x>0)\rrbracket}={{\bigsqcup_{t\in[a,b]}}}\mathbf{w}(t)(x)$.

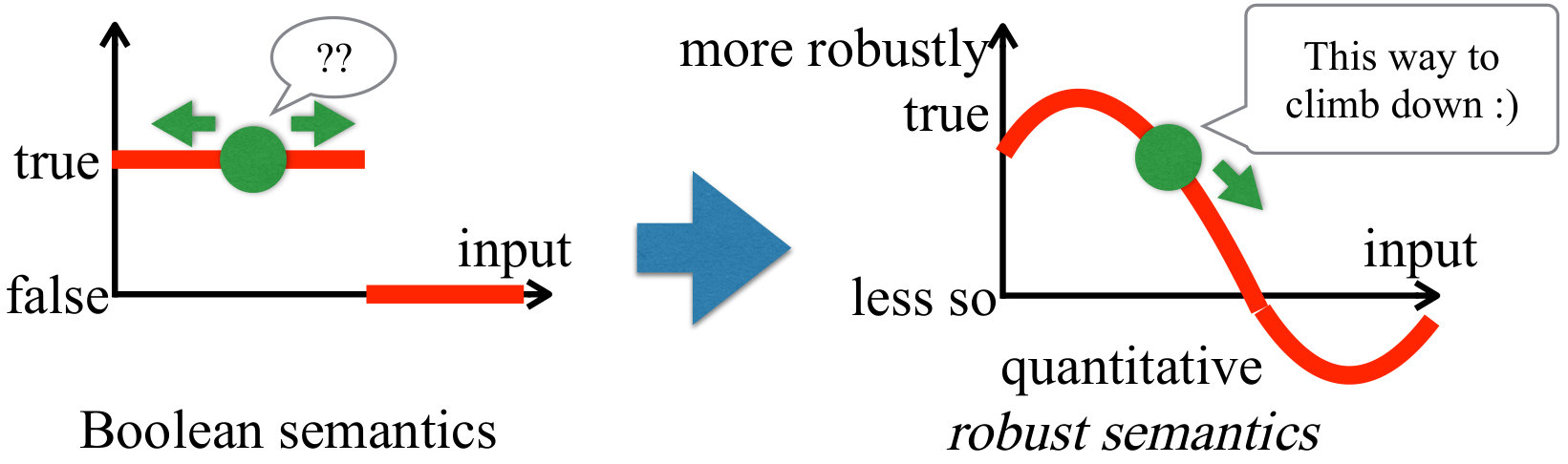

The original semantics of STL is Boolean, given by a binary relation $\models$ between signals and formulas. The robust semantics refines the Boolean one, in the sense that: $\llbracket\mathbf{w},\varphi\rrbracket>0$ implies $\mathbf{w}\models\varphi$, and $\llbracket\mathbf{w},\varphi\rrbracket<0$ implies $\mathbf{w}\not\models\varphi$. Optimization-based falsification via robust semantics [15] hinges on this refinement. See [11].

Although the definitions so far are for unbounded signals only, we note that the robust semantics $\llbracket\mathbf{w},\varphi\rrbracket$, as well as the Boolean satisfaction $\mathbf{w}\models\varphi$, allows straightforward adaptation to time-bounded signals (Def. 3.1). See Appendix A.

Falsification Solvers

In the next definition, a prototype of a score function $\rho$ is given by the robustness $\rho_{\varphi}$ of a given STL specification $\varphi$. The generality of allowing other $\rho$ is needed later in §4.

[TABLE]

Definition 3.6** (falsification solver).**

A falsification solver is a stochastic algorithm $\mathsf{Falsify}$ that takes, as input:

1. a system model $\mathcal{M}$ (Def. 3.2) with $M$-dimensional input;
2. a score function $\rho$ that takes an output signal $\mathbf{v}$ of $\mathcal{M}$ and returns a score $\rho(\mathbf{v})\in{\mathbb{R}}\cup\{-\infty,\infty\}$; and

a time horizon $T\in{\mathbb{R}}_{>0}$. The algorithm $\mathsf{Falsify}$ returns an $M$-dimensional signal $\mathbf{u}\colon[0,T]\to{\mathbb{R}}^{M}$.

Each invocation $\mathsf{Falsify}(\mathcal{M},\rho,T)$ of the solver is called a falsification trial. It is successful if the returned signal $\mathbf{u}$ satisfies $\rho(\mathcal{M}(\mathbf{u}))<0$. Note that the returned signal $\mathbf{u}$ can differ in every trial, since $\mathsf{Falsify}$ is a stochastic algorithm.

We further assume the internal structure of the solver $\mathsf{Falsify}$ follows the scheme in Algorithm 1. It consists of two phases. The first initial sampling phase collects some candidates for $\mathbf{u}\colon[0,T]\to{\mathbb{R}}^{M}$ regardless of the system model $\mathcal{M}$ or the score function $\rho$. In the second optimization sampling phase, a stochastic optimization algorithm is employed to sample a candidate $\mathbf{u}$ that is likely to make the score $\rho(\mathcal{M}(\mathbf{u}))$ small.

Implementation of Falsification Solvers

Both Breach [9] and S-Taliro [6] take industry-standard Simulink models as system models. For input signal candidates the tools focus on piecewise constant signals; they are represented by sequences $(u_{1},\dotsc,u_{K})$ of real numbers, much like in §2. Here $K$ is the number of control points; in our staged algorithm we use the same $K$ for the number of stages.

The tools offer multiple stochastic optimization algorithms for the optimization sampling phase, including CMA-ES [7], global Nelder-Mead and simulated annealing. The initial sampling phase is mostly by random sampling. Additionally, in Breach with global Nelder-Mead, so-called corner samples are added to the list $\mathsf{U}$. The number of corner samples grows exponentially as $K$ grows, i.e. as we have more control points.

4 Time Staging in Optimization-Based Falsification

Definition 4.1** (time-staged deployment of falsification solver).**

Let $\mathcal{M}$ be a system model, $\varphi$ be an STL formula, and $T\in{\mathbb{R}}_{>0}$ be a time horizon. Let $K\in{\mathbb{N}}$ be a parameter; it is the number of time stages. The time-staged deployment of a falsification solver $\mathsf{Falsify}$ is the procedure in Algorithm 2. On the line 4, the model $\mathcal{M}_{\mathbf{u}}$ is the continuation of $\mathcal{M}$ after $\mathbf{u}$ (Def. 3.3); the score function $\partial_{\mathbf{v}}\rho_{\varphi}$ is defined by

[TABLE]

The whole procedure is stochastic (since $\mathsf{Falsify}$ is); an invocation is called a time-staged falsification trial. It is successful if the returned signal $\mathbf{u}$ satisfies $\llbracket\mathcal{M}(\mathbf{u}),\varphi\rrbracket<0$.

A falsification trial (i.e. an invocation of Algorithm 1) is an iterative process: the more we sample, the more likely we obtain a falsifying input signal. Since we run multiple falsification trials in Algorithm 2 (one trial for each of the $K$ stages), an important question is how we distribute available time to different stages.

A simple strategy is to fix the number of samples in each phase of Algorithm 1. Then the predicates $\mathsf{InitialSamplingDone}(T,\mathsf{U})$ and $\mathsf{OptimizationSamplingDone}(\mathcal{M},\rho,T,\mathsf{U})$ are given by $|\mathsf{U}|>N_{\mathrm{max}}^{\mathrm{init}}$ and $|\mathsf{U}|>N_{\mathrm{max}}^{\mathrm{opt}}$, where $N_{\mathrm{max}}^{\mathrm{init}},N_{\mathrm{max}}^{\mathrm{opt}}$ are constants.

An adaptive strategy, that we also implemented for the optimization sampling phase, is to continue sampling until we stop seeing progress. Here we fix a parameter $N_{\mathrm{max}}^{\mathrm{stuck}}$, and we stop after $N_{\mathrm{max}}^{\mathrm{stuck}}$ consecutive samplings without reducing robustness. A similar strategy of adaptively choosing the number of samples can be introduced for random sampling in the initial sampling phase (the lines 3–5 of Algorithm 1).

4.1 Towards Efficient Implementation

A key to speedup of Algorithm 2 is in the line 4; more specifically, how we handle the previous input prefix $\mathbf{u}$. Here we discuss two directions, one on the model $\mathcal{M}_{\mathbf{u}}$ and the other on the score function $\partial_{\mathbf{v}}\rho_{\varphi}$. (We note that the suggested enhancements are not currently used in our implementation, because of performance reasons. See below.)

Continuation of Models

Optimization-based falsification has a very wide application domain. Since it only requires a black-box model $\mathcal{M}$, the concrete form of $\mathcal{M}$ can vary from a program to a Simulink model and even a system with hardware components (HILS). These models can be very big, and usually the bottleneck in falsification lies in simulation, that is, to compute $\mathcal{M}(\mathbf{u})$ given an input signal $\mathbf{u}$.

In the line 4 of Algorithm 2, therefore, using the definition $\mathcal{M}(\mathbf{u}\cdot\mathbf{u}^{\prime})(T+t)$ in Def. 3.3 is in principle not a good strategy: it requires simulation of $\mathcal{M}$ for the whole prefix $\mathbf{u}\cdot\mathbf{u}^{\prime}$, which can be avoided if we can directly simulate the continuation $\mathcal{M}_{\mathbf{u}}$. In Simulink this is possible by saving the snapshot of the model after a simulation, via the SaveFinalState model configuration parameter. In our implementation we do not do so, though, because the overhead of saving and loading snapshots is currently greater than the cost of simulating. This balance can become different, if we figure out a less expensive way to use snapshots, or if we study more complex models.

Derivative of Formulas

The situation is similar with the score function $\partial_{\mathcal{M}(\mathbf{u})}\rho_{\varphi}$ in the line 4 of Algorithm 2. Using the presentation $\rho_{\varphi}(\mathcal{M}(\mathbf{u})\cdot\mathbf{v}^{\prime})$ in (2) requires scanning the same prefix $\mathcal{M}(\mathbf{u})$ repeatedly. Desired here is a syntactic presentation of $\partial_{\mathcal{M}(\mathbf{u})}\rho_{\varphi}$, that will be given as an STL formula $\partial_{\mathcal{M}(\mathbf{u})}\varphi$ such that $\partial_{\mathcal{M}(\mathbf{u})}\rho_{\varphi}=\rho_{(\partial_{\mathcal{M}(\mathbf{u})}\varphi)}$. This would allow one to utilize available algorithms for computing robustness values $\llbracket\mathbf{v},\partial_{\mathcal{M}(\mathbf{u})}\varphi\rrbracket$.

Definition 4.2** (derivative of flat STL formulas).**

Let $T\in{\mathbb{R}}_{>0}$, and $\mathbf{v}\colon[0,T]\to{\mathbb{R}}^{N}$ be a signal. Given an STL formula $\varphi$ that is flat in the sense that it does not have nested temporal operators, the derivative $\partial_{\mathbf{v}}\varphi$ by $\mathbf{v}$ is defined inductively as follows.

[TABLE]

Here the interval $I-T$ is obtained by shifting endpoints, such as $[a,b]-T=[a-T,b-T]$. For each $r\in{\mathbb{R}}$, the notation $\mathsf{c}_{r}$ abbreviates the atomic formula $r>0$, where $r$ is thought of as a constant function. We use the fact that $\llbracket\mathbf{w},\mathsf{c}_{r}\rrbracket=r$.

Until formulas $\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2}$ are split into the evaluation on the signal prefix $\mathbf{v}$ (first disjunct), and a continuation (second disjunct). The constant $\mathsf{c}_{\llbracket\mathbf{v},\Box\varphi_{1}\rrbracket}$ injects the robustness of $\varphi_{1}$ seen so far into the residual formula (recall that both of $\Box$ and $\land$ take the infimum). It follows that \partial_{\mathbf{v}}\bigl{(}\Box_{I}~{}\varphi\bigr{)}\equiv\mathsf{c}_{\llbracket\mathbf{v},\Box\varphi\rrbracket}\land\Box_{I-T}~{}\varphi and \partial_{\mathbf{v}}\bigl{(}\Diamond~{}\varphi\bigr{)}\equiv\mathsf{c}_{\llbracket\mathbf{v},\Diamond\varphi\rrbracket}\lor\Diamond_{I-T}~{}\varphi.

Proposition 4.3**.**

Let $T\in{\mathbb{R}}_{>0}$, $\mathbf{v}\colon[0,T]\to{\mathbb{R}}^{N}$ be a signal, and $\varphi$ be a flat STL formula. We have, for any $\mathbf{v}^{\prime}\colon[0,T^{\prime}]\to{\mathbb{R}}^{N}$, $\llbracket\mathbf{v}^{\prime},\partial_{\mathbf{v}}\varphi\rrbracket=\llbracket\mathbf{v}\cdot\mathbf{v}^{\prime},\varphi\rrbracket$.

A proof is in Appendix B. Use of derivatives for timed specifications is also found e.g. in [23]. The settings are different, though: Boolean semantics in [23] while our semantics is quantitative. Our restriction to flat formulas comes mainly from this difference, and lifting the flatness restriction seems hard.

5 Sufficient Conditions for Time Staging

We present some theoretical analyses of the performance of time staging that indicate to which class of systems the time-staged approach can apply. We give some sufficient conditions under which the approach is guaranteed to work. However, it should be noted that it is not necessary that a concrete system satisfies these conditions strictly as these are rather restrictive. Nevertheless, we believe that users with expert domain knowledge can judge whether their models satisfy these conditions approximately. This way our results provide those users with “rules of thumb.”

As we discussed in the last paragraph of §2, the potential performance advantage by time staging comes from the reduction of search spaces from $|U|^{K}$ to $K\cdot|U|$. Here $U$ is the set of potential input segments for each stage, and $K$ is the number of stages. This advantage comes at the risk of missing out some error input signals. The following basic condition (3), that we call incremental falsification, ensures that there is no such risk. More precisely, we can decompose the “best” input signal $\mathbf{u}$ into a first stage $\mathbf{u}_{1}$ and its remainder $\mathbf{u}_{2}$ such that the entire falsification problem (left hand side) is solved by greedy optimization of the initial segment (inner $\operatorname*{arg\,min}_{\mathbf{u}_{1}}$), and subsequent optimization of the continuation (outer $\min_{\mathbf{u}_{2}}$). For all choices of $T_{1},T_{2}$ with ranges $\mathbf{u}\colon[0,T_{1}+T_{2}]\to{\mathbb{R}}^{m}$ and $\mathbf{u}_{i}\colon[0,T_{i}]\to{\mathbb{R}}^{m}$:

[TABLE]

Algorithm 2 repeatedly unfolds (3) by picking constant $T_{1}=T/K$ where $T$ is the time horizon and $K$ is the number of stages. The rest of this section is devoted to the search for concrete sufficient conditions for (3).

Monotone Systems and Ceiling Specifications

We formalize the time monotonicity property in §2. That it implies incremental falsification (3) can be easily proved.

Definition 5.1** (time-monotone falsification problem).**

A system model $\mathcal{M}$ and an STL formula $\varphi$ are said to constitute a time-monotone falsification problem if, for any input signals $\mathbf{u}_{1},\mathbf{u}^{\prime}_{1}\colon[0,T_{1}]\to{\mathbb{R}}^{m}$ and $\mathbf{u}_{2}\colon[0,T_{2}]\to{\mathbb{R}}^{m}$, $\llbracket\mathcal{M}(\mathbf{u}_{1}),\varphi\rrbracket\leq\llbracket\mathcal{M}(\mathbf{u}^{\prime}_{1}),\varphi\rrbracket$ implies $\llbracket\mathcal{M}(\mathbf{u}_{1}\cdot\mathbf{u}_{2}),\varphi\rrbracket\leq\llbracket\mathcal{M}(\mathbf{u}^{\prime}_{1}\cdot\mathbf{u}_{2}),\varphi\rrbracket$.

We investigate yet more concrete conditions that ensures time monotonicity. The following condition on system models is assumed in the example of §2.

Definition 5.2** (monotone system, ceiling specification).**

Let $x$ be a variable (for output). A system model $\mathcal{M}$ is said to be monotone in $x$ if, for each $\mathbf{u}_{1},\mathbf{u}_{1}^{\prime}\colon[0,T_{1}]\to{\mathbb{R}}^{M}$ and $\mathbf{u}_{2}\colon[0,T_{2}]\to{\mathbb{R}}^{M}$, $\mathcal{M}(\mathbf{u}_{1})(T_{1})(x)\leq\mathcal{M}(\mathbf{u}_{1}^{\prime})(T_{1})(x)$ implies $\mathcal{M}(\mathbf{u}_{1}\cdot\mathbf{u}_{2})(T_{1}+T_{2})(x)\leq\mathcal{M}(\mathbf{u}_{1}^{\prime}\cdot\mathbf{u}_{2})(T_{1}+T_{2})(x)$.

An STL formula of the form $\Box(x<c)$, where $x$ is a variable and $c\in{\mathbb{R}}$ is a constant, is called a ceiling formula.

One can speculate that a monotone system and a ceiling specification $\Box(x<c)$, like those in §2, constitute a time-monotone falsification problem. The speculation is not true, unfortunately; a counterexample is easily constructed using a model $\mathcal{M}$ whose output signal is not increasing. We can instead show the following weaker property.

Definition 5.3** (truncated time monotonicity).**

A system model $\mathcal{M}$ and an STL formula $\varphi$ constitute a truncated time-monotone falsification problem if, for any input $\mathbf{u}_{1},\mathbf{u}^{\prime}_{1}\colon[0,T_{1}]\to{\mathbb{R}}^{m}$ and $\mathbf{u}_{2}\colon[0,T_{2}]\to{\mathbb{R}}^{m}$, $\llbracket\mathcal{M}(\mathbf{u}_{1}),\varphi\rrbracket\leq\llbracket\mathcal{M}(\mathbf{u}^{\prime}_{1}),\varphi\rrbracket$ implies existence of $T\in(0,T_{1}]$ such that $\llbracket\mathcal{M}((\mathbf{u}_{1}|_{[0,T]})\cdot\mathbf{u}_{2}),\varphi\rrbracket\leq\llbracket\mathcal{M}((\mathbf{u}^{\prime}_{1}|_{[0,T]})\cdot\mathbf{u}_{2}),\varphi\rrbracket\enspace.$

Proposition 5.4**.**

Let $\mathcal{M}$ be a model monotone in $x$, and \varphi\equiv\bigl{(}\Box(x<c)\bigr{)}. Then $\mathcal{M}$ and $\varphi$ constitute a truncated time-monotone falsification problem.

The proof, in Appendix C.1, constructs a concrete choice of $T$ in Def. 5.3. Specifically it is the instant $T\in[0,T_{1}]$ in which the robustness $\llbracket\mathcal{M}(\mathbf{u}_{1}|_{[0,T]}),\varphi\rrbracket$ is minimum. In the scenario of §2 this is the instant that the vehicle speed is in its peak. Note that truncated time monotonicity does not guarantee incremental falsification as per (3), but it implies that the current rigid time staging at $0,\frac{T}{K},\frac{2T}{K},\dotsc,\frac{(K-1)T}{K}$ is not optimal. These theoretical considerations suggest potential improvement of the staged procedure in Def. 4.1 with adaptive choice of stages, which is left for future work.

Stateless Systems and Reachability Specifications

Here is another sufficient condition.

Definition 5.5** (stateless system, reachability formula).**

A system model $\mathcal{M}$ is said to be stateless if, for any input signals $\mathbf{u}_{1},\mathbf{u}_{1}^{\prime}\colon[0,T_{1}]\to{\mathbb{R}}^{m}$ and $\mathbf{u}_{2}\colon[0,T_{2}]\to{\mathbb{R}}^{m}$, we have $\mathcal{M}(\mathbf{u}_{1}\cdot\mathbf{u}_{2})|_{(T_{1},T_{2}]}=\mathcal{M}(\mathbf{u}^{\prime}_{1}\cdot\mathbf{u}_{2})|_{(T_{1},T_{2}]}$.

An STL formula $\Diamond\psi$, where $\psi$ is modality-free, is called a reachability formula.

Note that being stateless is a sufficient but not necessary condition for $\mathcal{M}(\mathbf{u}_{1}\cdot\mathbf{u}_{2})=\mathcal{M}(\mathbf{u}_{1})\cdot\mathcal{M}(\mathbf{u}_{2})$. Statelessness requires insensitivity to previous input prefixes, but a stateless system can still be sensitive to time.

Proposition 5.6**.**

Let $\mathcal{M}$ be a stateless system and $\varphi$ be a reachability specification $\varphi\equiv(\Diamond\psi)$. Then $\mathcal{M}$ and $\varphi$ satisfy the incremental falsification property (3).

A proof is easy. A typical situation in which we would appeal to Prop. 5.6 is when: the specification is $\Diamond(x<c_{1}\lor x>c_{2})$ (which can be hard to falsify if $c_{1}<c_{2}$ are close); and the system is already in its stable state (so that its behavior does not depend much on what happened during the transient phase). Our experiments in §6 demonstrate that time staging can drastically improve performance in such settings.

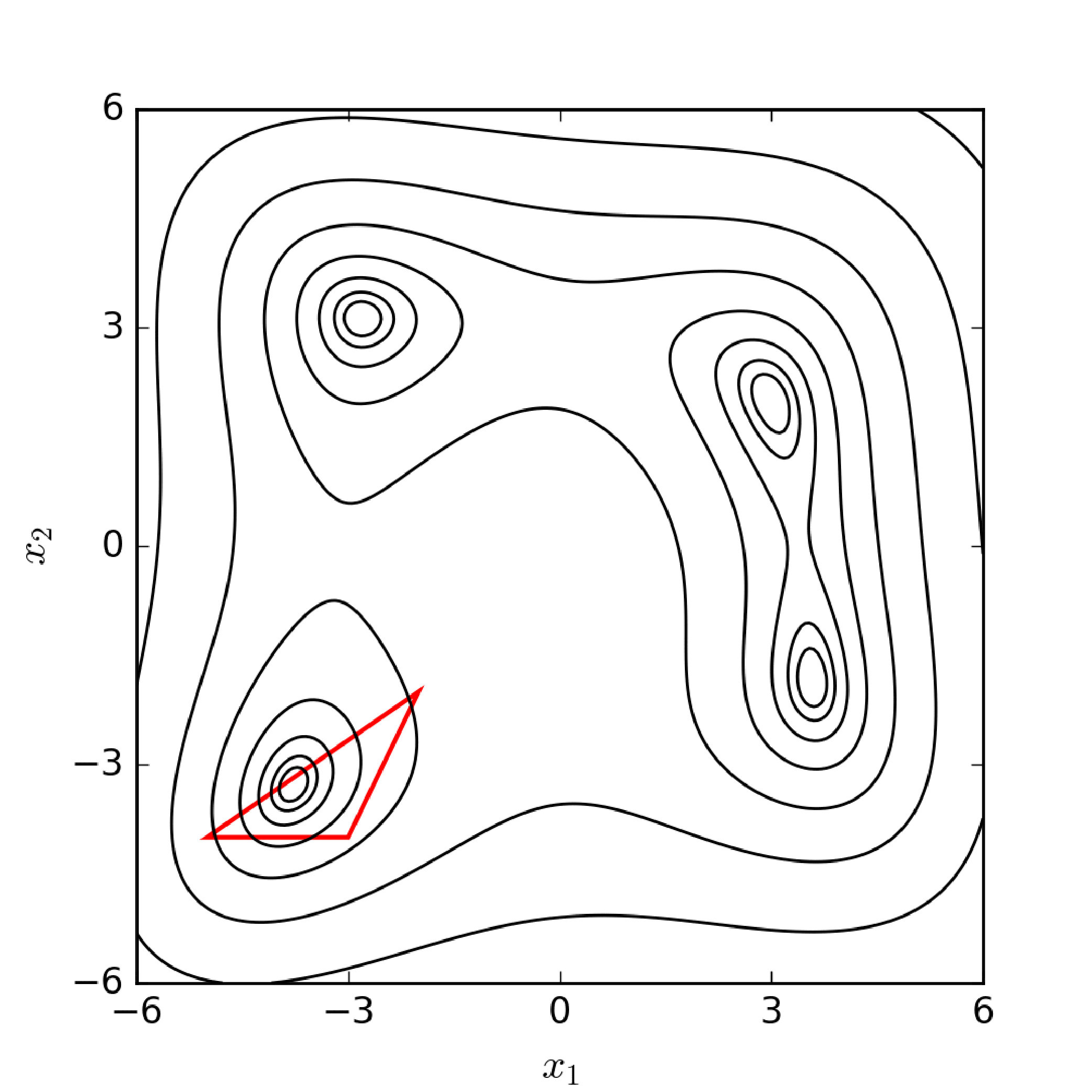

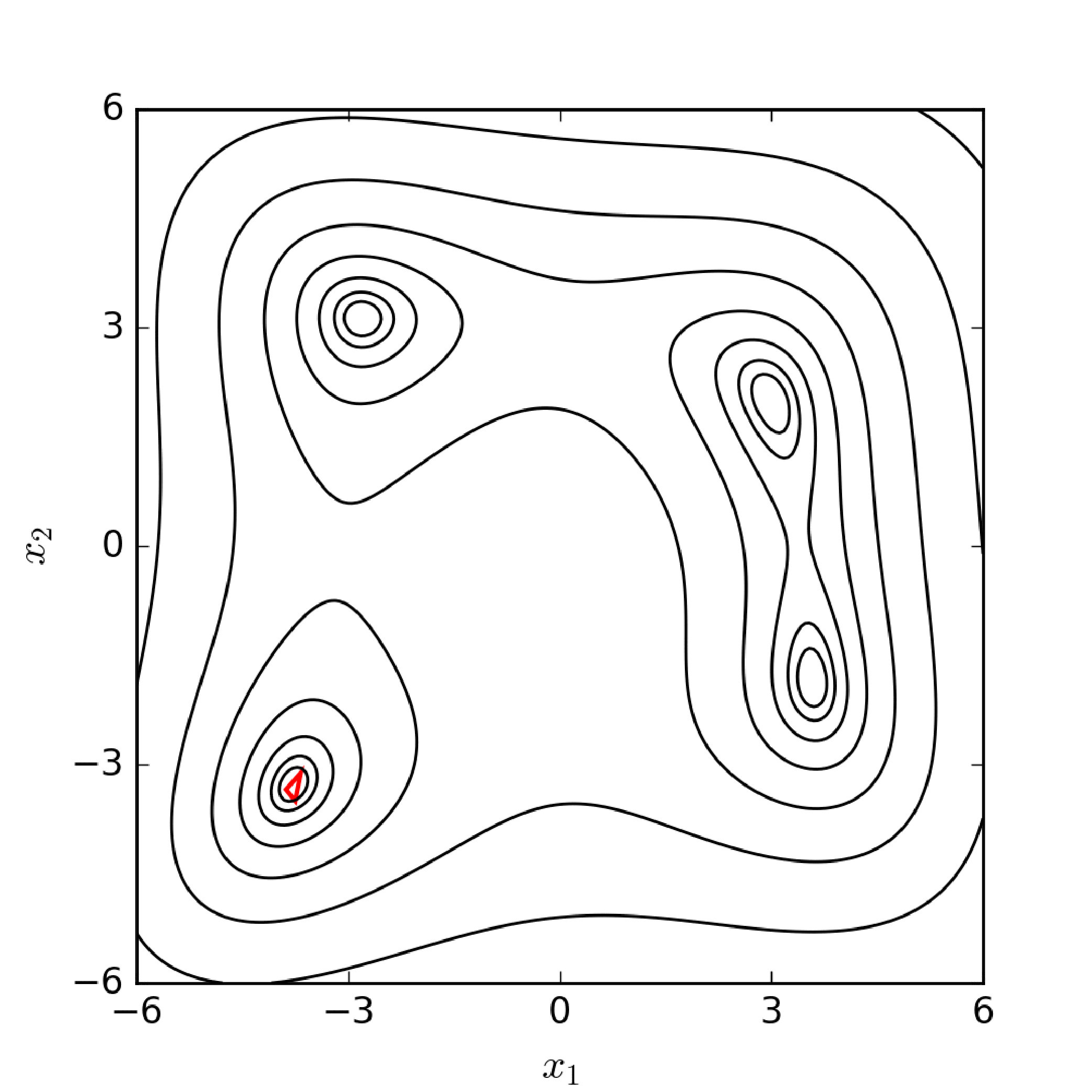

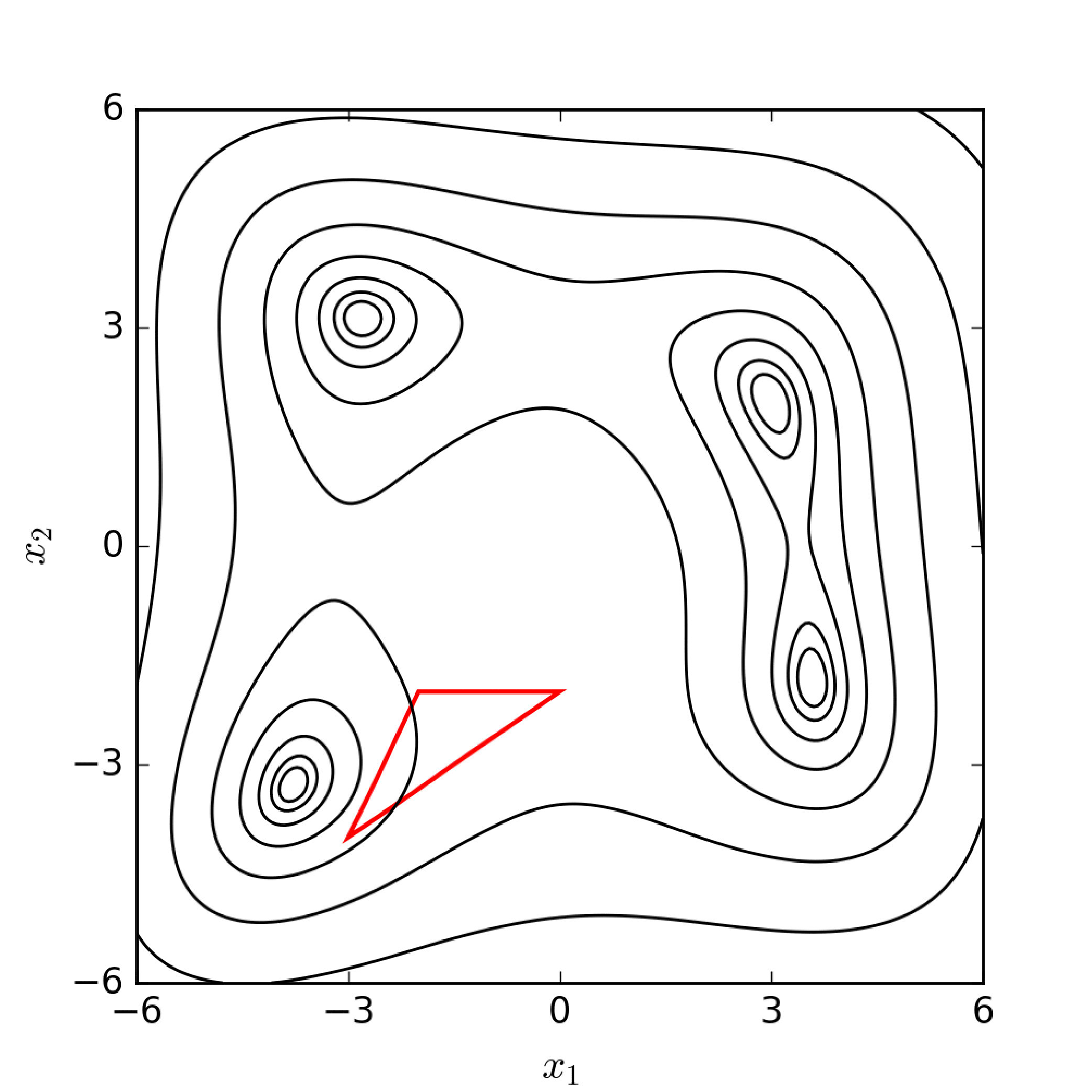

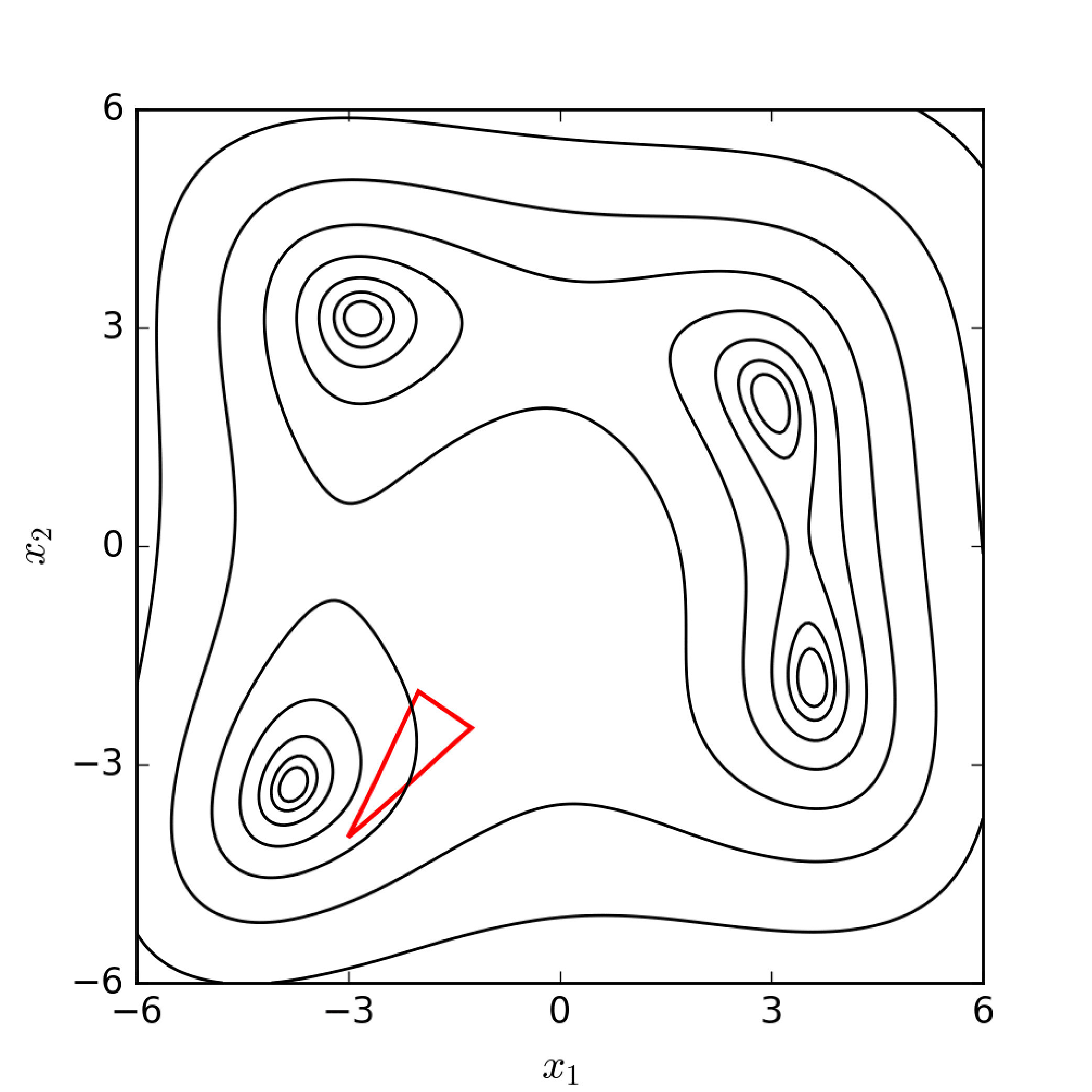

Corner Samples for Global Nelder-Mead

The reduction of search spaces from $|U|^{K}$ to $K\cdot|U|$ has its analogue in the number of corner samples in Breach with global Nelder-Mead (lines 3–5 of Algorithm 1, see the last paragraph of §3). Originally the number of corner samples is $2^{K\cdot M}$, where $K$ is the number of control points and $M$ is the number of input values. By introducing $K$ time stages, the total number of corner samples is reduced to $K\cdot 2^{M}$.

6 Experiments

We compare the success rate and time consumption of the proposed method. The benchmarks here use automotive Simulink models that are commonly used in the falsification literature. Specifications are chosen taking the deliberations of §5 into account, namely with ceiling specifications (Def. 5.2, including the example of §2), a reachability specification (Def. 5.5) and a combination thereof.

The base line is Algorithm 1 implemented by Breach [9]. The methods proposed in §4 are implemented on top of Breach: the time-staged Algorithm 2 (TS), and the adaptive strategy (A-TS, the one described after Def. 4.1). All three algorithms (plain, TS, A-TS) are combined with different optimization solvers: CMA-ES, simulated annealing (SA), global Nelder-Mead (GNM), obtaining a total of nine configurations.

The results in Table 1 indicate that both success rate and runtime performance are significantly improved by time staging, often finding counterexamples when non-staged Breach fails (e.g. columns S3 hard and S init). Furthermore, we see that while the adaptive algorithm (A-TS) does not necessarily lead to a higher success rate in comparison to the time-staged one (TS), it gives yet another runtime performance improvement. However, as discussed in detail in §6, there is no overall best algorithm, and time staging affects the optimization algorithms differently depending on the problem.

Benchmarks

Automatic Transmission is a Simulink model that was proposed as a benchmark for falsification in [16]. It has input values $\mathit{throttle}\in[0,100]$ and $\mathit{brake}\in[0,325]$, and outputs the car’s speed $v$, the engine rotation $\omega$, and the selected gear $g$.

With this model we consider five specifications S1–5. The first two are ceiling ones. Specification S1 $\Box_{[0,30]}~{}(v<120)$ (cf. the example in §2) states the speed be always below a threshold. This property is easily falsified with $\mathit{throttle}=100$. Specification S2 $\Box_{[0,30]}~{}(g=3\to v\geq 30)$ states that it is not possible to drive slowly in a high gear. A falsifying trajectory first has to speed up to reach this gear and subsequently roll out until speed falls below the threshold. This latter part of the trajectory can again be seen as a ceiling specification. Note that this property is interesting because the robustnes does not provide any guidance unless gear 3 has been entered by the system.

Specification S3 is a reachability problem, $\Diamond_{[10,30]}~{}(v\leq v_{\text{min}}\lor v\geq v_{\text{max}})$, that encodes the search for a trajectory that keeps the speed between a lower and upper bound. The falsification problem consists of two sub-challenges: 1) hitting this speed interval precisely after an initial acceleration up to 10s simulated time; and 2) maintaining a correct speed till the time horizon. This suggests that a natural decomposition of the problem can indeed be achieved by separating these two aspects in time.

Specification S4 $\Box_{[0,10]}(v_{\text{min}}<v)\lor\Diamond_{[0,30]}(\omega>\omega_{\text{max}})$ expresses that speed $v_{\text{min}}$ can only be reached with an engine rotation exceeding a threshold $\omega_{\text{max}}$. This specification is mentioned in [16] and evaluated in e.g., [5, 4], too. To falsify, a trajectory must be found that reaches speed $v$ early with an engine rotation lower than $\omega_{\text{max}}$. The difficulty increases with higher $v_{\text{min}}$ and lower $\omega_{\text{max}}$, respectively. The formula represents the mixture of ceiling and reachability specifications.

The second system model is Abstract Fuel Control from [18]. It takes two input values, pedal angle (from $[0,61.1]$) and engine speed (from $[0,1100]$); it outputs air-fuel ratio $\mathit{AF}$, which influences fuel efficiency and performance of the car. The value of $\mathit{AF}$ is expected to be close to a reference value $\mathit{AF}_{\text{ref}}$. According to [18], this setting corresponds to the so-called normal mode, where $\mathit{AF}_{\text{ref}}=14.7$ is constant.

We used the specification $\neg(\Diamond_{[t_{1},t_{2}]}{\square_{[0,t^{\prime}]}{(\mathit{AF}-\mathit{AF}_{\text{ref}}>\delta*14.7))}}$: the air-fuel ratio does not deviate from an acceptable range for more than $t^{\prime}$ seconds. We evaluated this specification with two parameter sets: the initial period with a larger error margin, and the stable period with a smaller margin. See Table 1 for parameter values.

Experimental Setup and Results

For the experiments with the Automatic Transmission model, the input signals were piecewise constant with 5 control points. The time horizon was $T=30$. The parameters outlined in §4 were as follows: the maximum number of samplings for each plain (non-staged) falsification trial was $150$ (initial and optimization samplings combined). In the time-staged (TS) trials, we make the number of stages coincide with that of control points. Analogously, the sampling budget per stage was set to $30$ for $K=5$ stages, resulting in overall 150 samplings. The adaptive algorithm (A-TS) ran with the threshold $N^{\mathrm{stall}}_{\max}=30/2=15$ per each of five stages. The experiments with the Abstract Fuel Control model were run up to the time horizon $T=t_{2}+t^{\prime}$ where $t_{2}$ and $t^{\prime}$ are as in Table 1. We used three and five stages, respectively, for the initial and stable specifications. These again coincide with the number of control points. The TS algorithms conducted 30 samplings in each stage.

The experiments ran Breach version 1.2.9 and MATLAB R2017b on an Amazon EC2 c4.8xlarge instance with a 36 core Intel(R) Xeon(R) CPU (2.90GHz) and 58G of main memory. However, we did not use the opportunity to parallelize, and the time reported is in the same order of magnitude as that of a modern desktop workstation.

The results are shown in Table 1. They are grouped by the underlying stochastic optimization algorithm: CMA-ES, simulated annealing (SA) and global Nelder-Mead (GNM). In each group, we compare plain (unstaged) Breach to the time-staged (TS) and the adaptive time-staged (A-TS) ones. We compare average runtimes (lower is better) and the success rate (higher is better), aggregated over 20 falsification trials for each configuration. Those good results which deserve attention are highlighted in bold. Note that the implementation of the global Nelder-Mead algorithm in Breach uses a deterministic source of quasi-randomness (Halton sequences), which implies that whether GNM finds a counterexample is consistent across all trials (marked with an asterisk $*$).

Discussion

Focusing on the Automatic Transmission model first, we see that CMA-ES works well for S1, although GNM performs even better (6s, supposedly because it uses corner samples, see §3). Time staging introduces overhead to CMA-ES and GNM, because each stage is optimized individually. In contrast, simulated annealing (SA) benefits from time staging for the two ceiling specifications S1–2. We presume that since SA emphasizes exploration, it benefits from exploitation added by time staging (cf. §2).

The second specification S2 is slightly more complex: before gear 3 is reached, there is no guidance from the robustness semantics, because $\llbracket\underline{\phantom{n}}\,,g=3\rrbracket=-\infty$ masks any quantitative information on $v$. Hence, falsifying this property needs some luck during the collection of initial samples in Algorithm 1. CMA-ES apparently exploits this, see top of column S2 of Table 1. Considering the other algorithms, SA and GNM, both benefit from time staging: exploitation of time causality prevents these good trajectory prefixes from being discarded accidentally once the required gear is reached (cf. Fig 5).

The results for S3 are evaluated with two different choices of parameters. The harder instance was falsified by the time-staged algorithms only, which can likely be attributed to the flattening of the search space from size $|U|^{K}$ to $K\cdot|U|$ (§5). S4 is evidently harder than the previous ones. Time staging improves performance in a general tendency but not in all cases (SA for S4 hard).

The results for the Abstract Fuel Control model (the last two columns in Table 1) show that the time-staged algorithms boost the ability to falsify some rare events. The specification for the initial stage where $\mathit{AF}$ is still unstable (S init) can be considered a rare event since all the three non-staged algorithms failed to falsify it. Time-staged SA and time-staged GNM managed to find error inputs. In the last column (stable period) is remarkable, too, where success rate and run time of SA and GNM significantly improved.

Overall, while the performance of the non-staged algorithms suffers from tightening the bounds, the time-staged versions are able to find falsifying trajectories with good success rates while at the same time exhibiting significantly shorter runtimes.

7 Related Work

Falsification is a special case of search-based testing, so considerable research efforts have been made towards coverage [4, 8, 21]. The benefits of coverage in falsification guarantees are twofold. Firstly, they indicate confidence for correctness in case no counterexamples are found. Paired with sound robustness estimates for simulations, one can cover a an infinite parameter space with finitely many simulations. C2CE [14] is a recent tool that computes approximations of reachable states using such an approach. Secondly, coverage can be utilized for a better balance between exploration and exploitation: stochastic optimization algorithms can be called in an interleaved manner, in which coverage guides further exploration. The approach based on Rapidly-Exploring Random Trees [12] puts an emphasis on exploration by achieving high coverage of the state space. In their algorithm, robustness-guided hill-climbing optimization plays a supplementary role. Compared to these works, our current results go in an orthogonal direction, by utilizing time causality to enhance exploitation. The so-called multiple-shooting approach to falsification [25] can be seen of a generalization of RRTs. It consists of: an upper layer that searches for an abstract error trace given by a succession of cells; and a lower layer where an abstract error trace is concretized to an actual error trace by picking points from cells. The approach can discover falsifying traces by backwards search from a goal region, but needs to concatenate partial traces with potential gaps, which can fail. Furthermore it is unclear how to extend it to general STL specifications. A survey of simulation based approaches has been done by Kapinski et al. [19].

Monotonicity has been exploited in different ways for falsification. Robust Neighborhood Descent [2, 3] (RED) searches for trajectories incrementally, restarting the search from points of low robustness. Descent computation of RED assumes explicit derivatives of the dynamics to guarantee convergence to (local) minima. It is the same principle underlying Prop. 5.4) and our experiments indicate that this principle is useful for black-box optimization, too. In [3], RED is paired with simulated annealing to combine local and global search and to account for more exploration. Doing so for our present work remains to be done in the future. In [17], Hoxha et al. mine parameters $\theta$ under which specifications $\phi[\theta]$ are satisfied or falsified by the system. They show that the robust semantics of formulas is monotone in $\theta$ and use that fact to tighten such parameters. This is orthogonal to this work as it does not use monotonicity of the system itself. Kim et al. [20] use an idea similar to [17] to partition specifications into upper bounds and lower ceilings. However, instead of robustness-guided optimization they use exhaustive exploration of the input space in a way that in turn requires that the system dynamics is monotone in the choice of each input at each time point. This is different from our Def 5.1 of time-monotonicity that aims at incrementally composing good partial choices.

The recent work [13] introduces a compositional falsification framework, focusing on those systems which include machine-learning (ML) components that perform tasks such as image recognition. While the current work aims at the orthogonal direction of finding rare counterexamples, we are interested in its combination with the results in [13], given the increasingly important roles of ML algorithms in CPS.

8 Conclusions and Future Work

We have introduced and evaluated the idea of time staging to enhance falsification for hybrid systems. The proposed method emphasizes exploitation over exploration as part of stochastic optimization. As there is no single algorithm that fits every problem (as a consequence of having no free lunch [24]), having a variety of methods at disposal permits the user of a system to choose the one suitable for the problem at hand. We have shown that the proposed approach is a good fit for problems that suitable exhibit time-causal structures, where it significantly outperforms non-staged algorithms.

Two obvious directions for future work have been pointed out already. Instead of just picking the best trajectory for each stage, it might be beneficial to retain a few, potentially diverse ones in the spirit of evolutionary algorithms (§2). For example, it would be interesting to explore the space between this work on one hand and coverage-driven rapidly-exploring random trees.

Another idea is to discover time stages adaptively (§5, the discussion after Prop. 5.4). For the experiments presented here, we chose to set uniformly fixed stages, which runs the risk of either being too coarse grained (missing some falsifying input), or being too fine grained (wasting analysis time).

Finally, another future direction is to explore variations of robust semantics to mitigate discrete propositions like $g=3$ (§6), for example using averaging modalities [5]. Other t-norms than min/max for the semantics of conjunction/disjunction could preserve more information from different subformulas.

Acknowledgement.

This work is supported by ERATO HASUO Metamathematics for Systems Design Project (No. JPMJER1603), Japan Science and Technology Agency.

Appendix A STL Semantics for Time-Bounded Signals

Definition A.1** (robust semantics for time-bounded signals).**

Let $T\in{\mathbb{R}}_{>0}$, $\mathbf{w}\colon[0,T]\to{\mathbb{R}}^{N}$ be a time-bounded signal, and $\varphi$ be an STL formula. We define the robustness ${\llbracket\mathbf{w},\varphi\rrbracket}^{T}\in{\mathbb{R}}\cup\{\infty,-\infty\}$ of $\mathbf{w}$ with respect to $\varphi$ as follows, by induction. Here the superscript $T$ is an annotation that designates the time horizon.

[TABLE]

The Boolean semantics $\models$, found e.g. in [11], allows a similar adaptation to time-bounded signals, too.

Appendix B Brzozowski Derivative of Flat STL Formulas

In the time-staged falsification procedure we often encounter the following situation: an STL formula $\varphi$ and a signal $\mathbf{v}\colon[0,T]\to{\mathbb{R}}^{N}$ are fixed; and we have to compute robustness $\llbracket\mathbf{v}\cdot\mathbf{v}^{\prime},\varphi\rrbracket$ for a number of different signals $\mathbf{v}^{\prime}\colon[0,T^{\prime}]\to{\mathbb{R}}^{N}$. To aid such computation, a natural idea is to use a syntactic construct $\partial_{\mathbf{v}}\varphi$ of (Brzozowski) derivative. It should be compatible with robust semantics in the sense that $\llbracket\mathbf{v}\cdot\mathbf{v}^{\prime},\varphi\rrbracket=\llbracket\mathbf{v}^{\prime},\partial_{\mathbf{v}}\varphi\rrbracket$, reducing the computation of the LHS to that of the RHS.

Similar use of derivatives is found e.g. in [23]. The settings are different, though: Boolean semantics is used in [23] while we use quantitative robust semantics. In fact, the definition of derivatives in this section focuses on flat formulas (i.e. free from nested modalities). This restriction is mandated by the quantitative semantics, as our proof later suggests. Anyway, the definitions and results in this section are new to the best of our knowledge.

We need the following extension of STL syntax.

Definition B.1** (extended STL).**

We extend the syntax of STL (Def. 3.4) by atomic propositions $\mathsf{c}_{r}$ for each $r\in{\mathbb{R}}$. The robust semantics in Def. 3.5 (and that in Def. A.1 in Appendix A) is extended accordingly: $\llbracket\mathbf{w},\mathsf{c}_{r}\rrbracket:=r$.

Intuitively $\mathsf{c}_{r}$ is an atomic proposition that constantly returns the robustness value $r$.

Definition B.2** (derivative).**

Let $T\in{\mathbb{R}}_{>0}$, and $\mathbf{v}\colon[0,T]\to{\mathbb{R}}^{N}$ be a time-bounded signal. For each extended STL formula $\varphi$, we define its derivative $\partial_{\mathbf{v}}\varphi$ by $\mathbf{v}$ by the following induction.

[TABLE]

Here the interval $I-T$ is obtained from $I$ by shifting both of its endpoints earlier by $T$, such as $[a,b]-T=[a-T,b-T]$.

Definition B.3** (flat STL formula).**

An STL formula $\varphi$ is flat if it does not have nested temporal modal operators. This means: if $\varphi_{1}\mathbin{\mathcal{U}_{I}}\varphi_{2}$ is a subformula of $\varphi$, then neither $\varphi_{1}$ nor $\varphi_{2}$ contains $\mathbin{\mathcal{U}}$.

Proposition B.4**.**

Let $T\in{\mathbb{R}}_{>0}$, $\mathbf{v}\colon[0,T]\to{\mathbb{R}}^{N}$ be a signal, and $\varphi$ be a flat STL formula. We have, for each $T^{\prime}\in{\mathbb{R}}_{>0}$ and $\mathbf{v}^{\prime}\colon[0,T^{\prime}]\to{\mathbb{R}}^{N}$, $\llbracket\mathbf{v}^{\prime},\partial_{\mathbf{v}}\varphi\rrbracket=\llbracket\mathbf{v}\cdot\mathbf{v}^{\prime},\varphi\rrbracket$.

Proof.

By induction on the construction of $\varphi$. Most equalities below follow from the definition of $\partial$ and that of $\llbracket\underline{\phantom{n}}\,\rrbracket$.

[TABLE]

Here is a nontrivial case.

[TABLE]

In $(*)$ we used the following facts. Firstly, for a formula $\psi$ without temporal operators, we have $\llbracket\mathbf{v},\psi\rrbracket=\llbracket\mathbf{v}\cdot\mathbf{v}^{\prime},\psi\rrbracket$. Secondly, if $\mathbf{v}$’s domain is $[0,T]$ and $t\in[0,T]$, then $\mathbf{v}^{t}\cdot\mathbf{v}^{\prime}=(\mathbf{v}\cdot\mathbf{v}^{\prime})^{t}$.

∎

Note that the flatness assumption on $\varphi$ is crucially used in the proof step. Modifying Def. 4.2 in order to accommodate nested modalities seems hard, after analyzing the proof step $(*)$.

Appendix C Omitted Proofs

C.1 Proof of Prop. 5.4

Proof.

By the definitions we have, for each input signal $\mathbf{u}\colon[0,T]\to{\mathbb{R}}^{M}$,

[TABLE]

Therefore the assumption $\llbracket\mathcal{M}(\mathbf{u}_{1}),\varphi\rrbracket\leq\llbracket\mathcal{M}(\mathbf{u}^{\prime}_{1}),\varphi\rrbracket$ expands to

[TABLE]

The first infimum in the above is taken over a compact domain $[0,T_{1}]$; therefore there exists $T\in[0,T_{1}]$ that achieves the infimum. Let $T$ be such a real number. The following is obvious.

[TABLE]

Another immediate consequence, derived using the causality of $\mathcal{M}$ (Def. 3.2), is

[TABLE]

Our goal is to show $\llbracket\mathcal{M}(\mathbf{u}_{1}|_{[0,T]}\cdot\mathbf{u}_{2}),\varphi\rrbracket\leq\llbracket\mathcal{M}(\mathbf{u}^{\prime}_{1}|_{[0,T]}\cdot\mathbf{u}_{2}),\varphi\rrbracket$.

[TABLE]

In the above we heavily used the causality of $\mathcal{M}$ (Def. 3.2). For example, in the step $(*)$ above, causality is used in deriving $\mathcal{M}(\mathbf{u}_{1}^{\prime}|_{[0,T]}\cdot\mathbf{u}_{2})(t)=\mathcal{M}(\mathbf{u}_{1}^{\prime})(t)$. In the step $(\dagger)$ we applied the monotonicity of $\mathcal{M}$ to the signals $\mathbf{u}_{1}|_{[0,T]}$, $\mathbf{u}^{\prime}_{1}|_{[0,T]}$ and $\mathbf{u}_{2}|_{[0,t-T]}$. Note that (6) allows to do so.

∎
