Chemistry of a newly detected circumbinary disk in Ophiuchus

TL;DR

This paper reports the first detection and analysis of a circumbinary disk around Oph-IRS67 using high-resolution ALMA observations, revealing its structure, kinematics, and chemical differentiation.

Contribution

It presents the discovery and detailed characterization of a circumbinary disk in Ophiuchus, including its size, kinematic profile, and chemical composition, using molecular line observations.

Findings

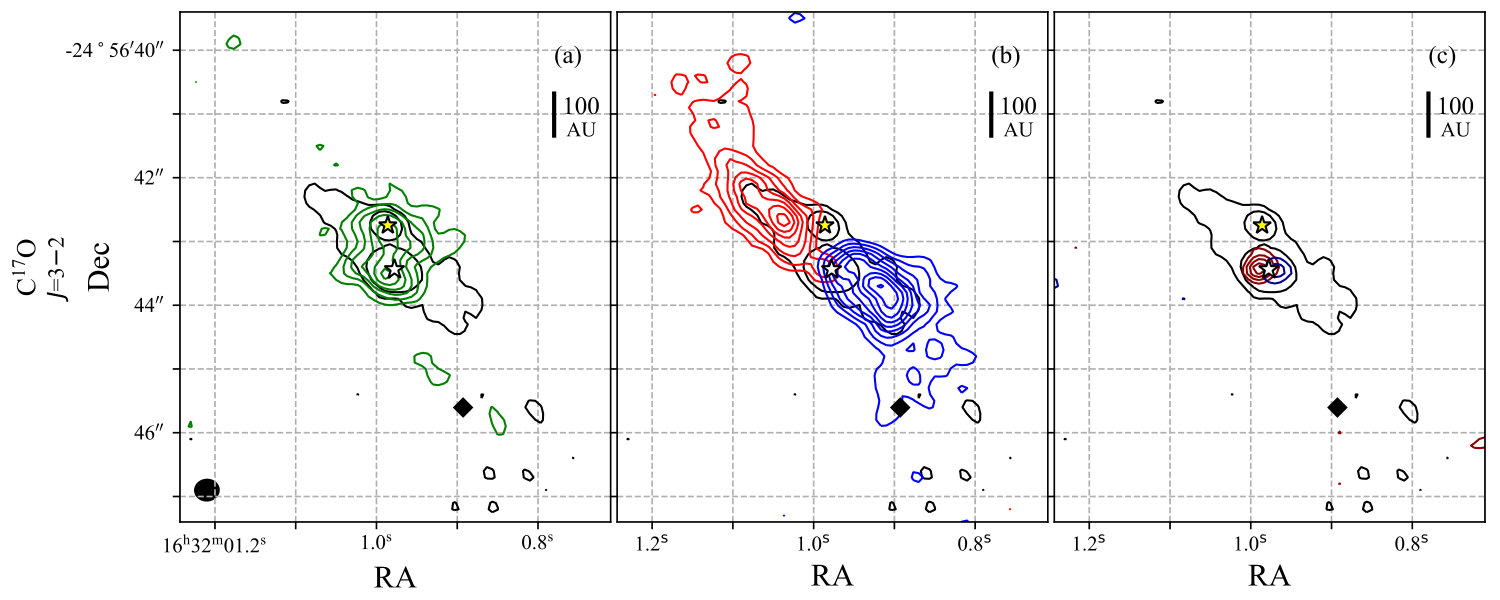

Disk diameter ~620 AU traced by C17O and H13CO+

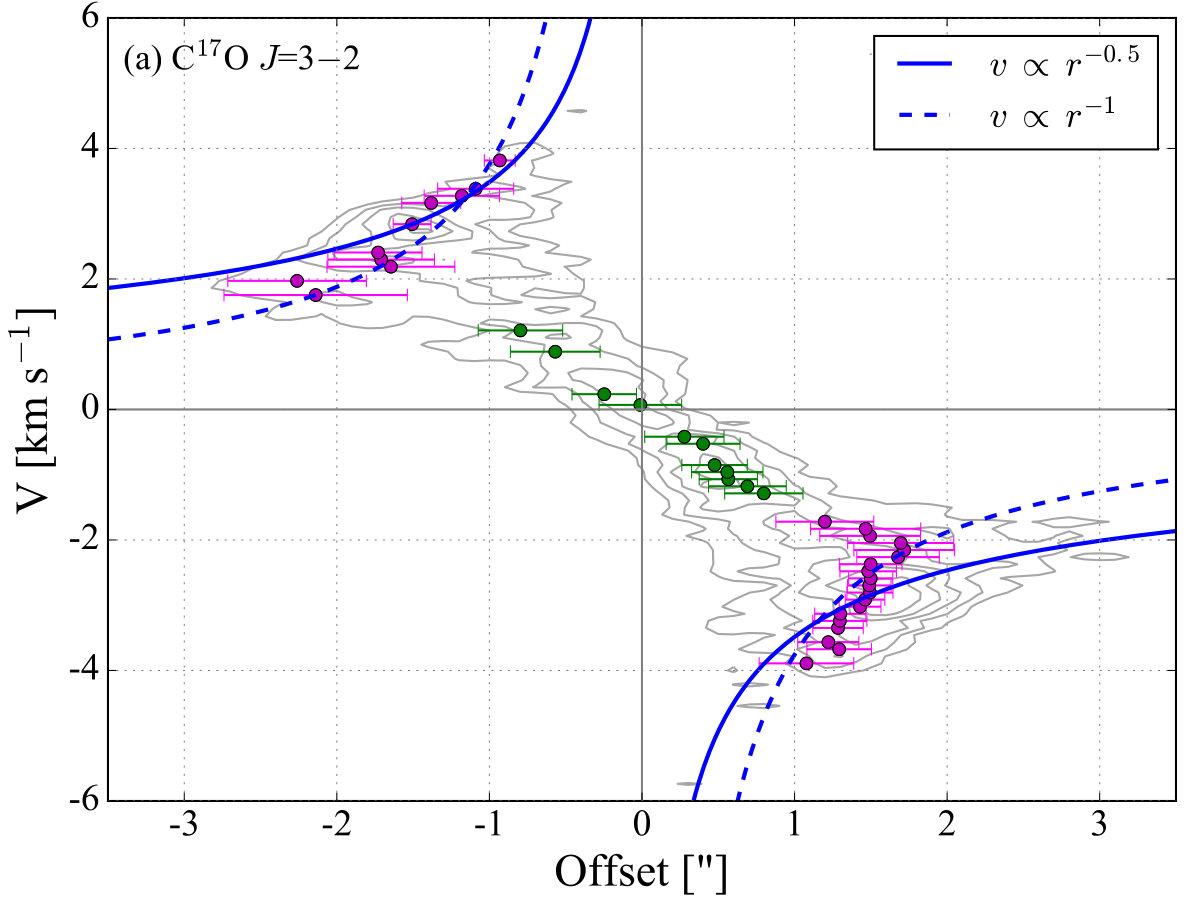

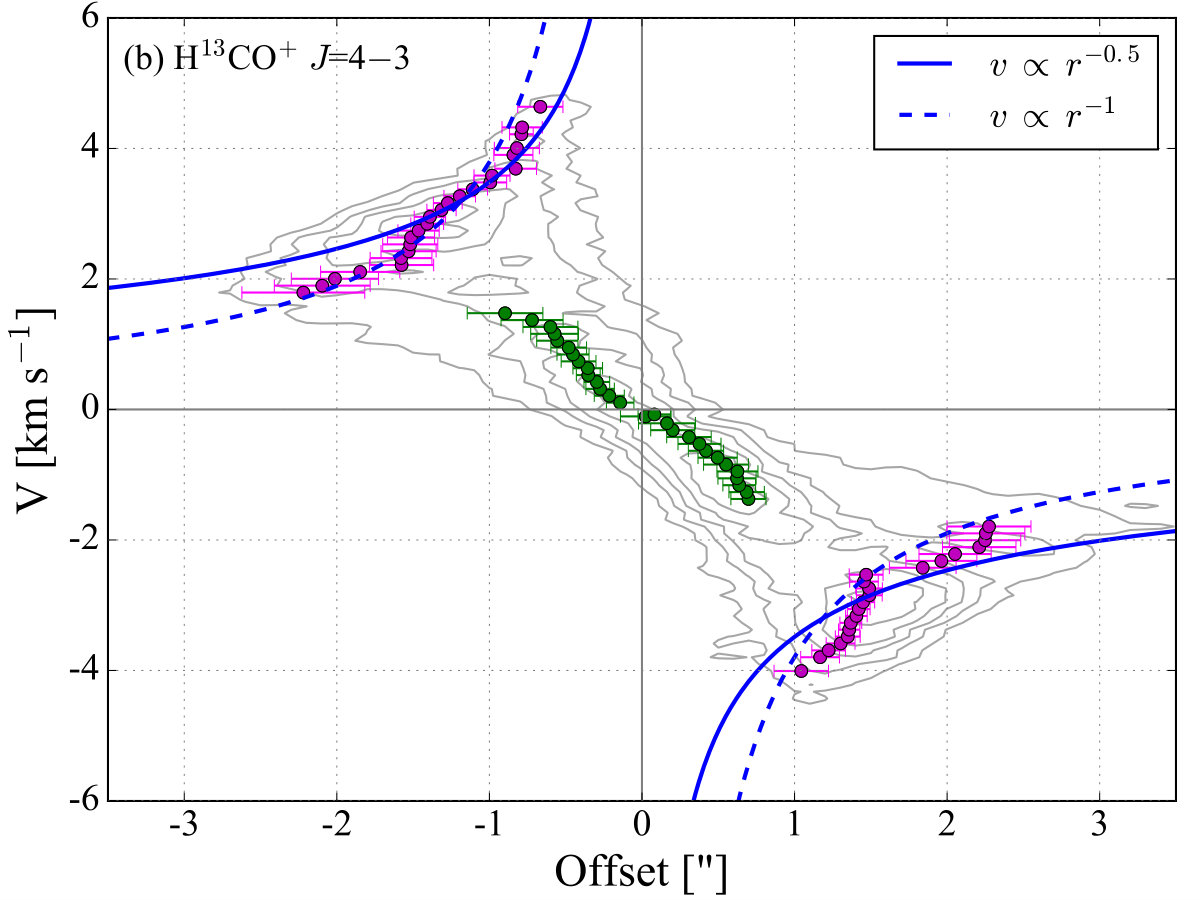

Keplerian rotation profile indicates a 2.2 Msun mass

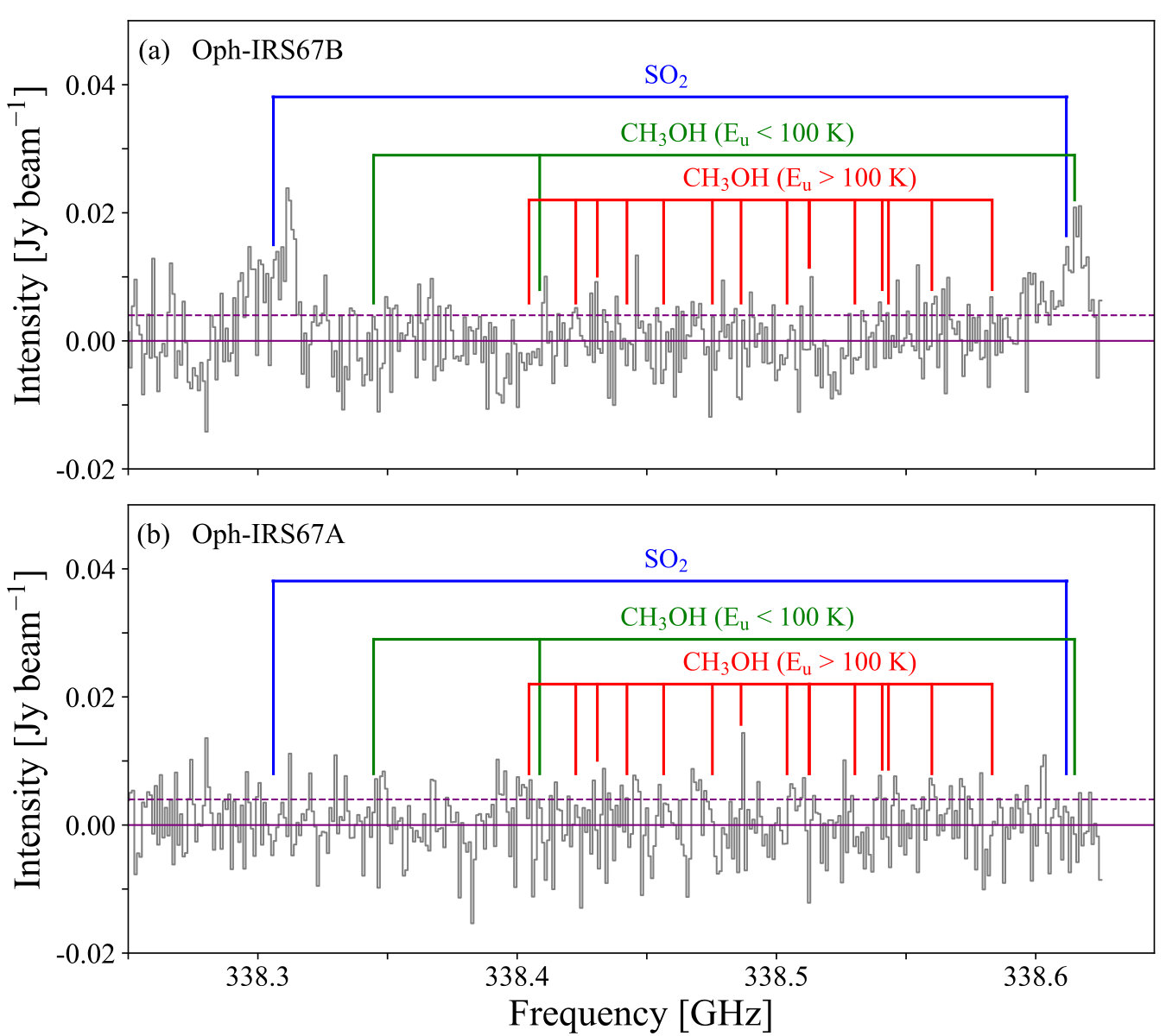

Chemical differentiation observed with complex molecules absent in the disk

Abstract

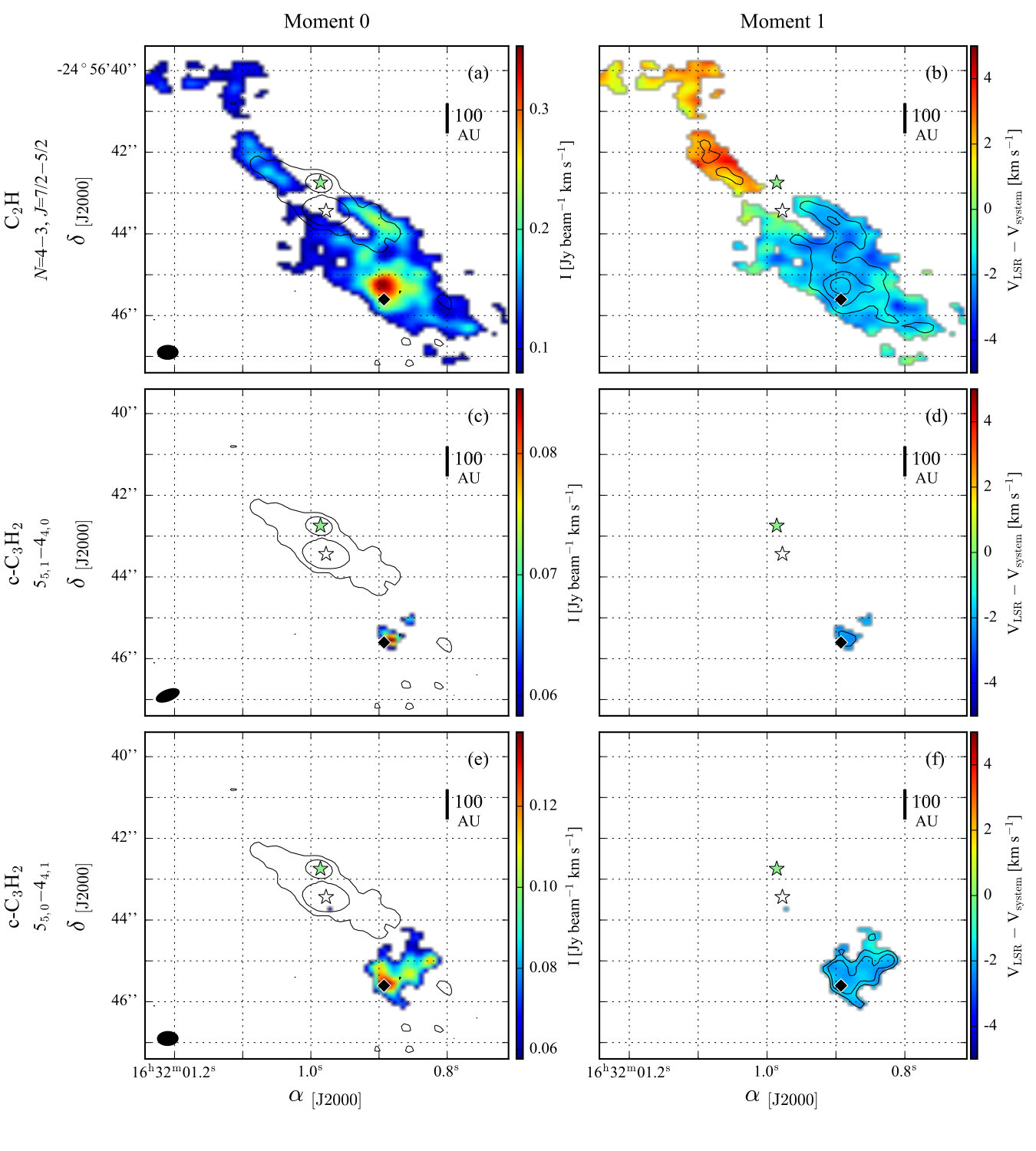

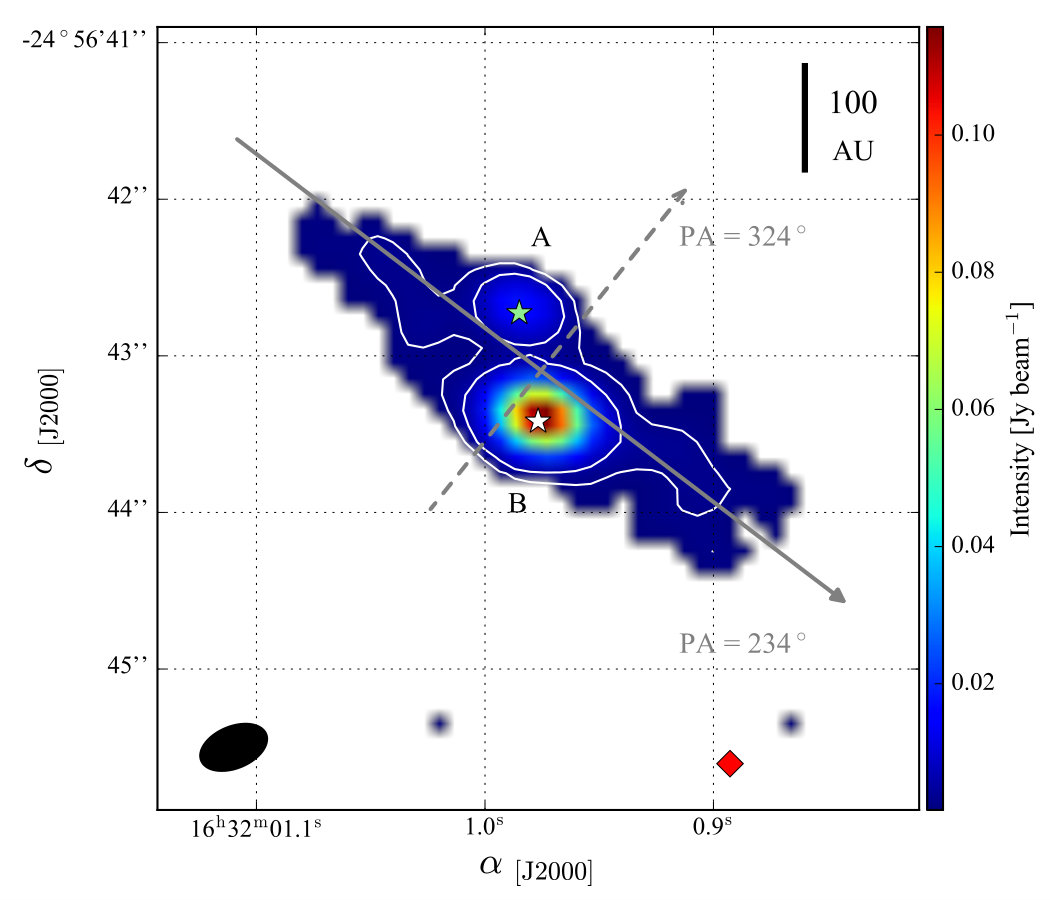

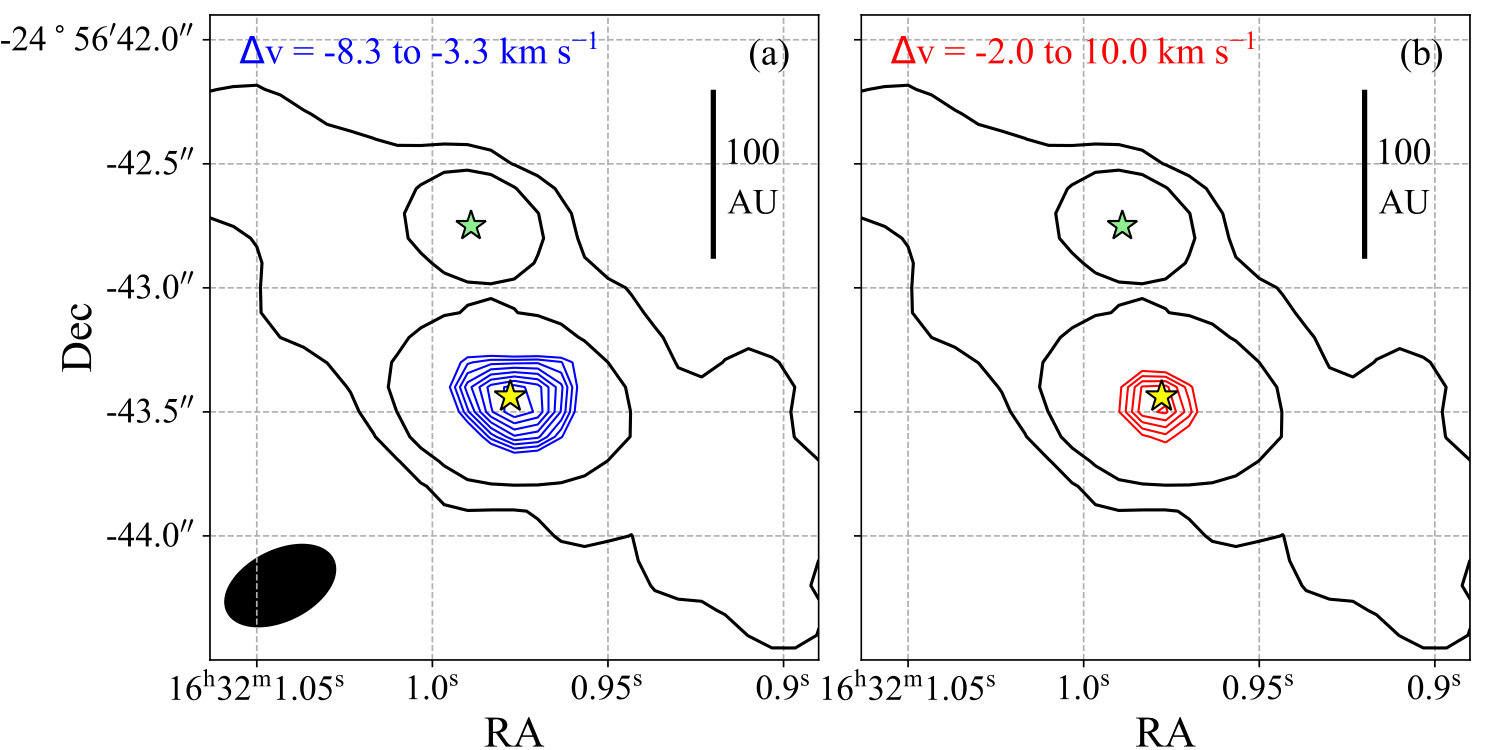

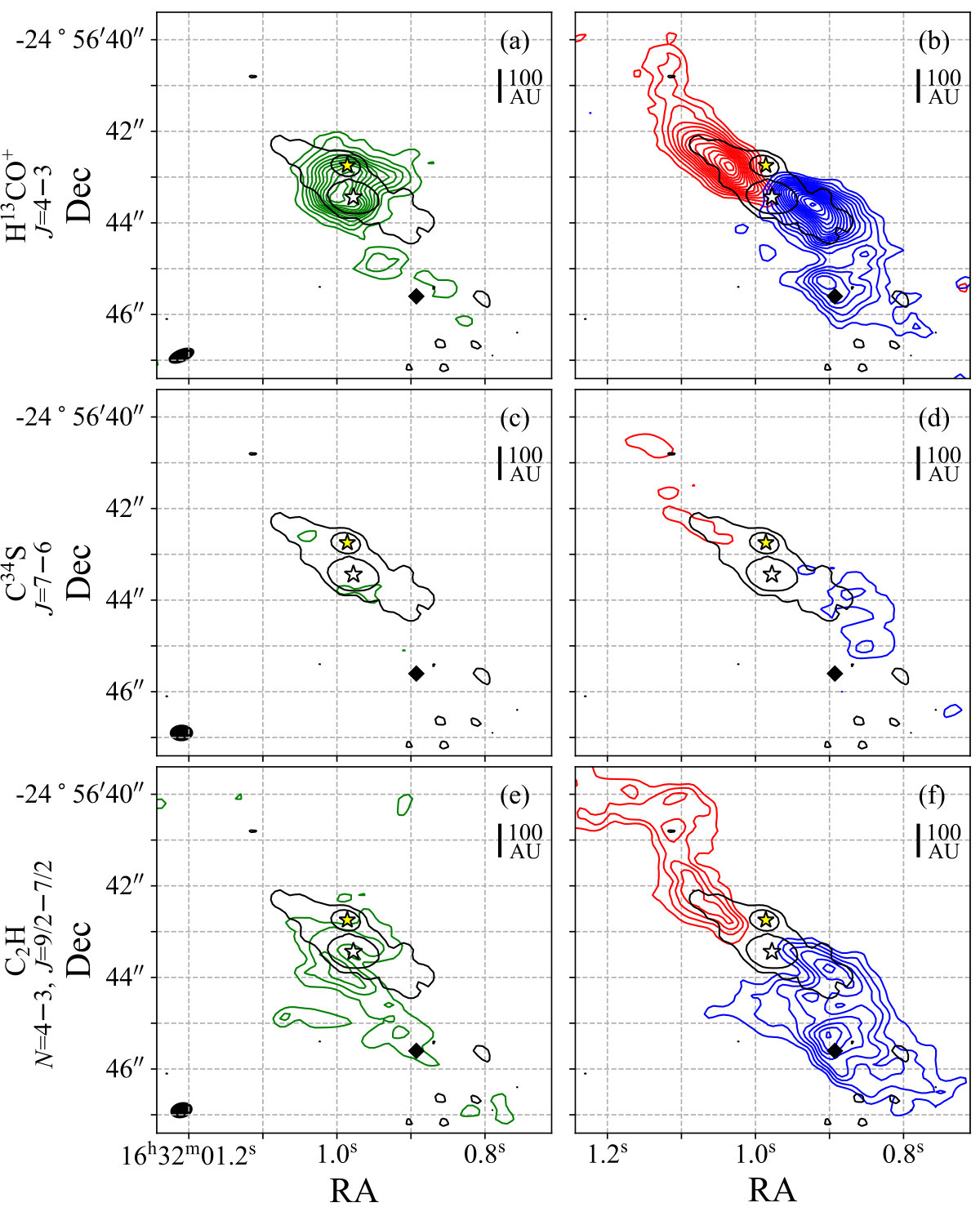

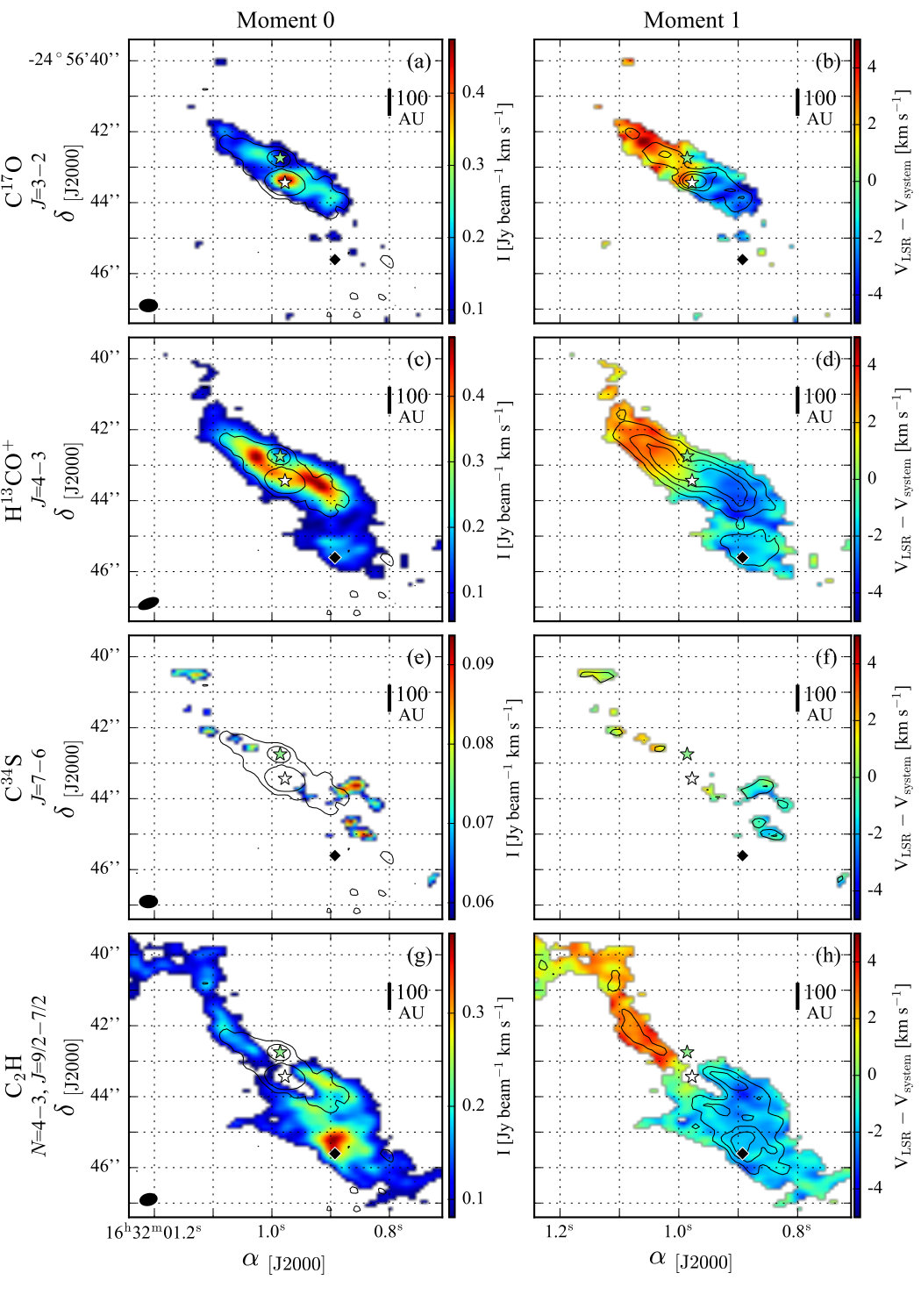

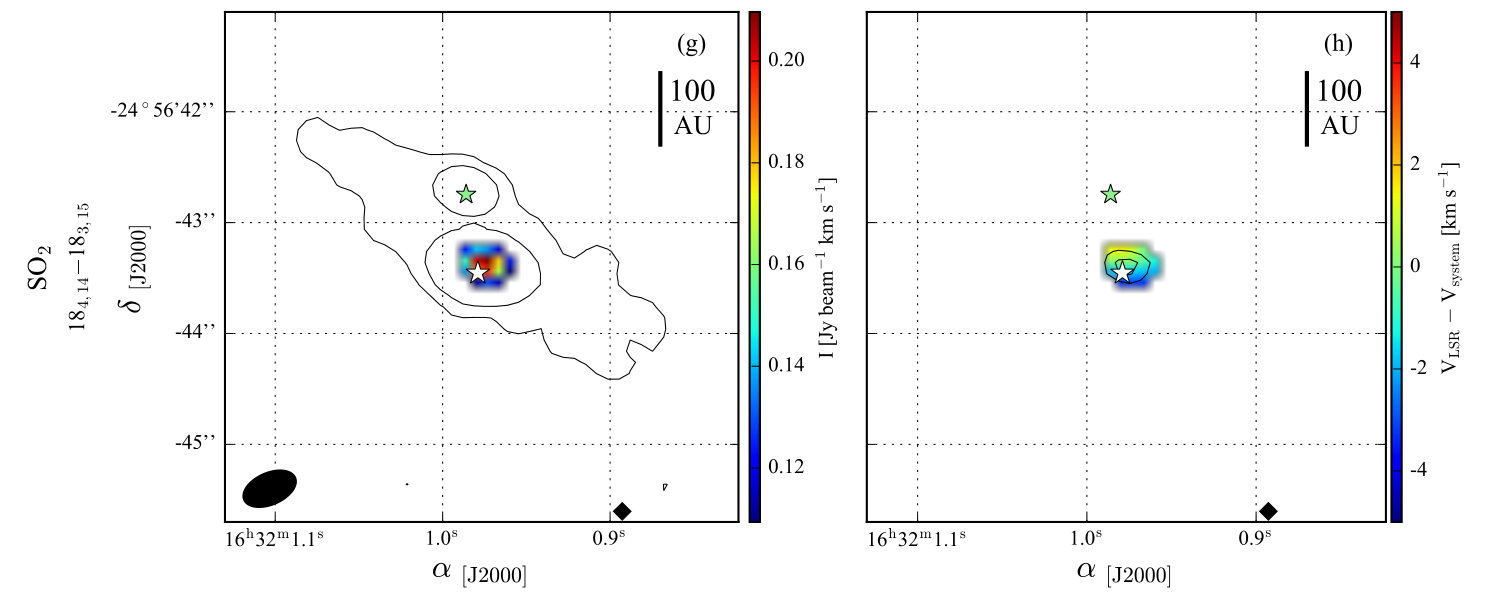

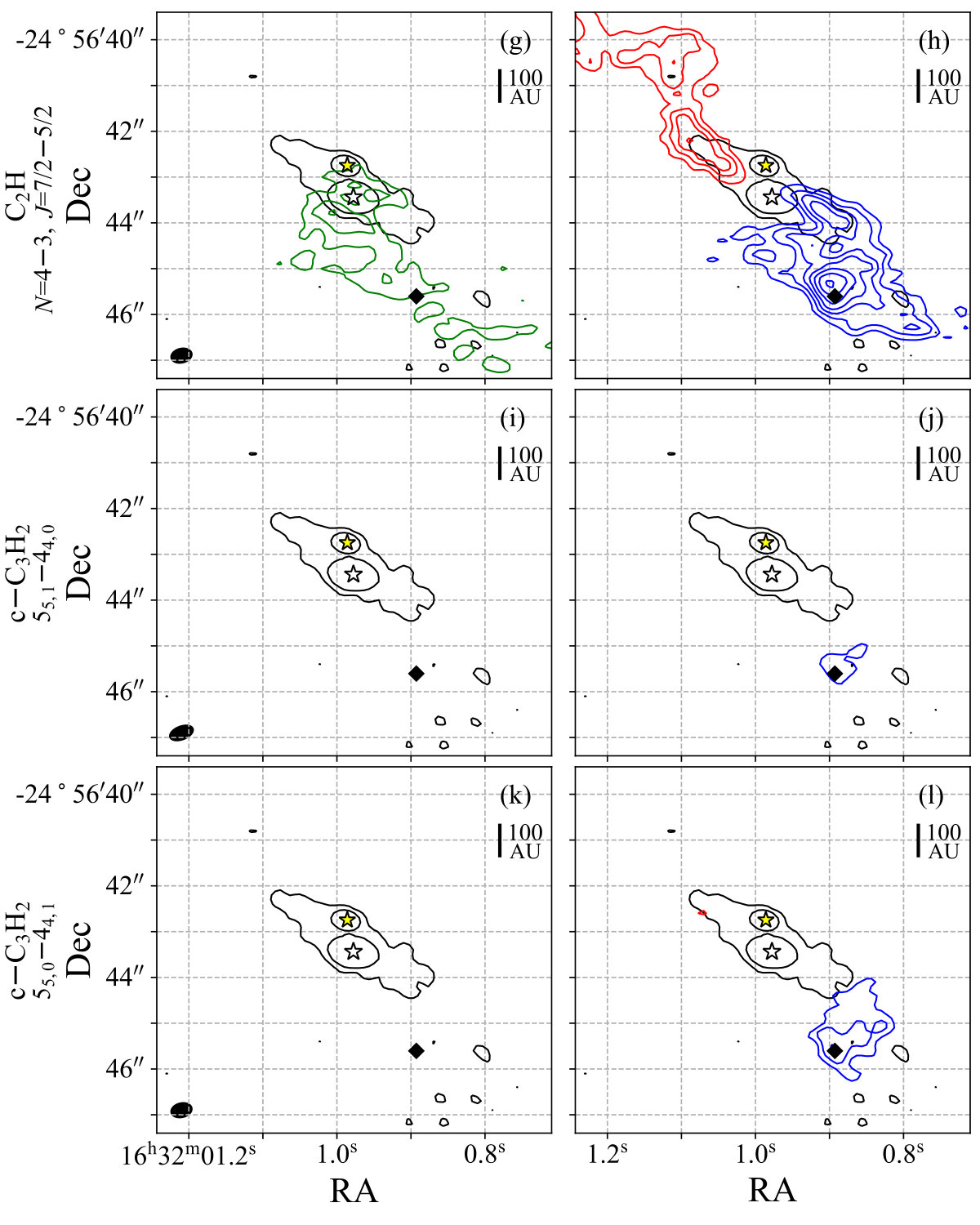

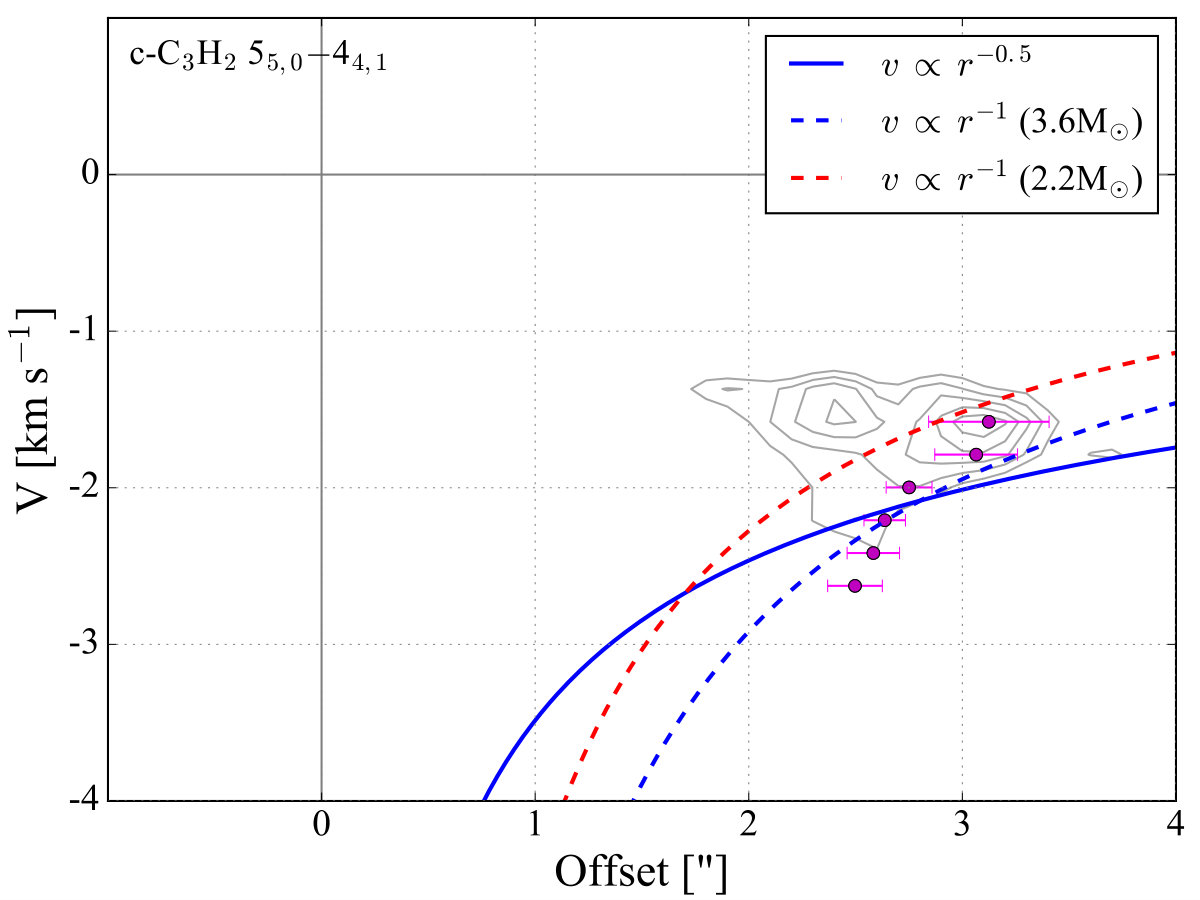

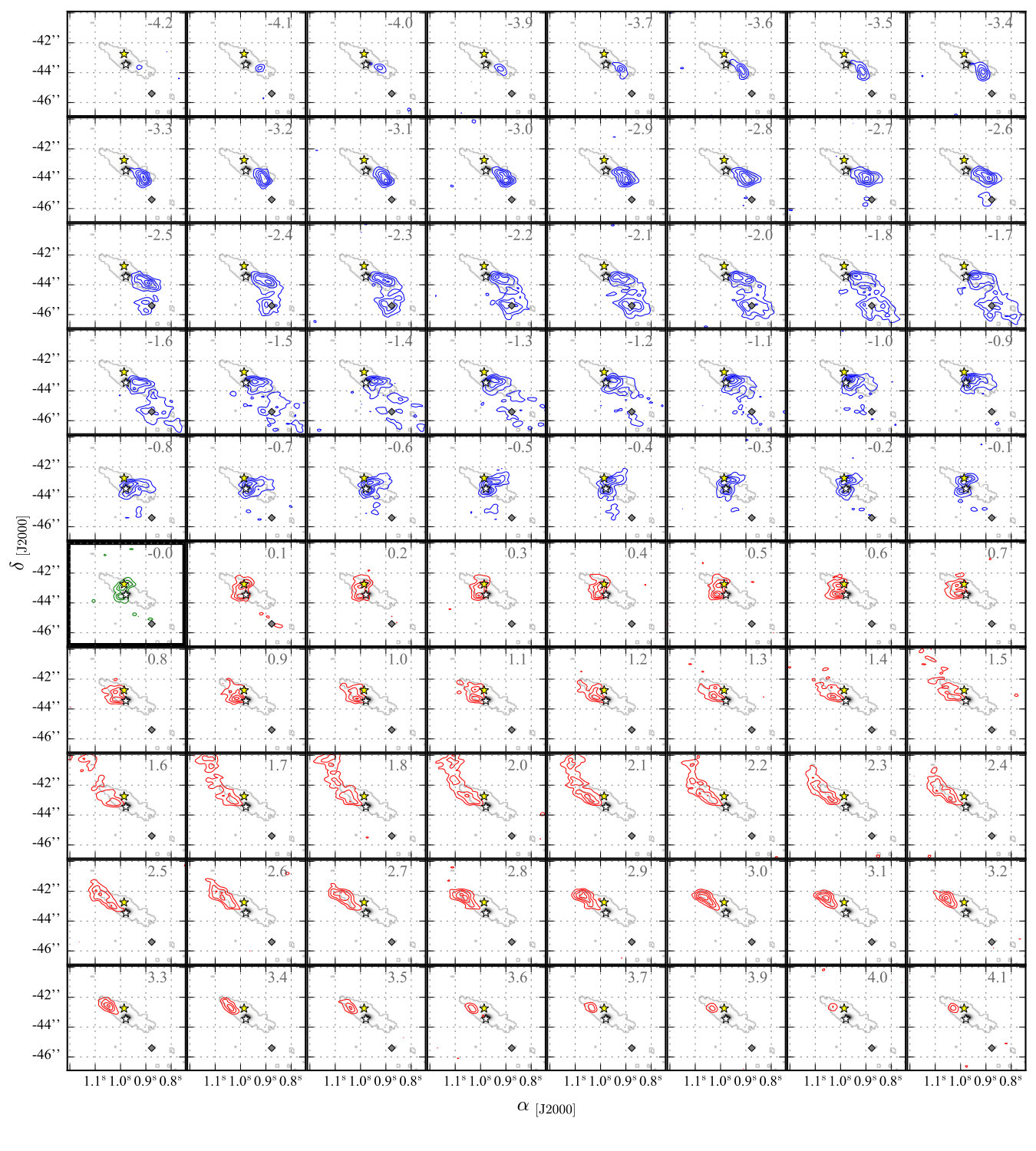

(Abridged) Astronomers recently started discovering exoplanets around binary systems. Therefore, understanding the formation and evolution of circumbinary disks is crucial for a complete scenario of planet formation. The aim of this paper is to present the detection of a circumbinary disk around Oph-IRS67 and analyse its structure. We present high-angular-resolution (0.4", 60 AU) observations of C17O, H13CO+ , C34S, SO2, C2H and c-C3H2 molecular transitions with ALMA at 0.8 mm. The spectrally and spatially resolved maps reveal the kinematics of the circumbinary disk as well as its chemistry. Molecular abundances are estimated using RADEX. The continuum emission reveals the presence of a circumbinary disk around the two sources. This disk has a diameter of ~620 AU and is well traced by C17O and H13CO+ emission. C2H and c-C3H2 trace a higher-density region which is spatially offset from the sources (~430 AU). Finally, SO2 shows compact emission around one of the sources, Oph-IRS67 B. The molecular transitions which trace the circumbinary disk are consistent with a Keplerian profile on disk scales (< 200 AU) and an infalling profile for envelope scales (> 200 AU). The Keplerian fit leads to a mass of 2.2 Msun. Inferred CO abundances w.r.t. H2 are comparable to the canonical ISM value of 2.7e-4. This study proves the first detection of the circumbinary disk associated with Oph-IRS67. The disk is chemically differentiated from the nearby high-density region. The lack of methanol emission suggests the extended disk dominates the mass budget in the inner- most regions of the protostellar envelope, generating a flat density profile where less material is exposed to high temperatures. Thus, complex organic molecules would be associated with lower column densities. Finally, Oph-IRS67 is a promising candidate for the detection of both circumstellar disks with higher-angular-resolution observations.
