On structural properties of trees with minimal atom-bond connectivity index IV: Solving a conjecture about the pendent paths of length three

TL;DR

This paper proves that for large trees (order > 415), the minimal atom-bond connectivity index trees cannot have pendent paths of length three, advancing understanding of their structural properties.

Contribution

It confirms a conjecture that trees with minimal ABC index lack pendent paths of length three when their order exceeds 415.

Findings

Trees with minimal ABC index have no pendent path of length three if order > 415.

Supports the conjecture that such paths are absent in large minimal-ABC trees.

Provides a strengthened version of the previous conjecture with a tighter bound.

Abstract

The atom-bond connectivity (ABC) index is one of the most investigated degree-based molecular structure descriptors with a variety of chemical applications. It is known that among all connected graphs, the trees minimize the ABC index. However, a full characterization of trees with a minimal ABC index is still an open problem. By now, one of the proved properties is that a tree with a minimal ABC index may have, at most, one pendent path of length $3$, with the conjecture that it cannot be a case if the order of a tree is larger than $1178$. Here, we provide an affirmative answer of a strengthened version of that conjecture, showing that a tree with minimal ABC index cannot contain a pendent path of length $3$ if its order is larger than $415$.

Figures

Tables

Table 1. Table 1: Pairs of values of the parameters d ​ ( x ) 𝑑 𝑥 d(x) and k 𝑘 k for which the change of the ABC index (the expression ( 2 )), after applying 𝒯 12 subscript 𝒯 12 \mathcal{T}_{12} in Case  2 . 2 2. , is negative.

$(d\left(x\right),k)$
($\ge 66,\ge 1$)	($\ge 65,\ge 2$)	($\ge 64,\ge 5$)	$\ge 63,\ge 7$)	($\ge 62,\ge 9$)	($\ge 61,\ge 11$)
($\ge 60,\ge 13$)	($\ge 59,\ge 15$)	($\ge 58,\ge 17$)	($\ge 57,\ge 19$)	($\ge 56,\ge 23$)	($\ge 55,\ge 29$)
($\ge 54,\ge 52$)

Table 2. Table 2: Pairs of values of the parameters d ​ ( x ) 𝑑 𝑥 d(x) and k 𝑘 k for which the change of the ABC index, after applying 𝒯 22 subscript 𝒯 22 \mathcal{T}_{22} in Subcase  2.2 . 2.2 2.2. is negative.

$(d\left(x\right),k)$
($\le 48$, $\le d\left(z\right)-3$)	($\le 49$, $\le d\left(z\right)-8$)	($\le 50$, $\le d\left(z\right)-17$)
($\le 51$, $\le d\left(z\right)-36$)	($\le 52$, $\le d\left(z\right)-87$)	($\le 53$, $\le d\left(z\right)-516$)

Equations

$$\mathrm{ABC}(G)=\sum _{uv\in E(G)}\sqrt{\frac{(d(u)+d(v)-2)}{d(u)d(v)}}=\sum _{uv\in E(G)}f(d(u),d(v)).$$

$$-f(d(z),d(x))+f(d(z),d(x)-1)$$

$$-f(d(z),d(y))+f(d(z),d(y)+1)$$

$$+(d(x)-2)(-f(d(x),4)+f(d(x))-1,4))$$

$$-f(d(x),4)+f(d(y)+1,4)$$

$$+(d(y)-1)(-f(d(y),4)+f(d(y)+1,4)),$$

$$g_1(d(z),\Delta ,d(y))$$

$$g_1(d(y)+2,2,d(y))=g_2(d(y))$$

$$g_1(d(x),d(y),d(x_i))=$$

$$g_{1o}(d(x),d(y))=$$

$${\hat{g}}_{1o}(d(x),d(y))=f\left(d(y)+1,\frac{d(x)}{2}+0.5\right)+\left(d(x)-1\right)\left(-f\left(d(x),4\right)+f\left(\frac{d(x)}{2}+0.5,4\right)\right).$$

$$\frac{\partial {\hat{g}}_{1o}(d(x),d(y))}{\partial d(x)}$$

$$g_{1e}(d(x),d(y))=$$

$$-f(d(y),d(y_p))+f(d(y)-1,d(y_p))$$

$$+\sum _{i=1}^{d(y)-3}(-f(d(y),d(x_i))+f(d(y)-1,d(x_i))$$

$$-f(d(y),d(x))+f(d(y)-1,d(x)+d(w)-1)$$

$$-f(d(y),d(w))+f(5,2)$$

$$-f(d(x),4)+f(d(x)+d(w)-1,5)$$

$$+(d(w)-1)(-f(d(w),4)+f(d(x)+d(w)-1,4))$$

$$+(d(x)-2)(-f(d(x),4)+f(d(x)+d(w)-1,4)).$$

$$g_2(d(x),d(y))=$$

$$g_{12}(d(x),d(z),d(x_i),k)$$

$$-f(d(z),d(x))+f\left(d(z)+1,\lceil \frac{d(x)-1}{2}\rceil +1\right)$$

$$-f(2,1)+f\left(d(z)+1,\lfloor \frac{d(x)-1}{2}\rfloor +1\right)$$

$$+(d(z)-1)(-f(d(z),4)+f(d(z)+1,4))$$

$$+\left(\lceil \frac{d(x)-1}{2}\rceil \right)\left(-f\left(d(x),4\right)+f\left(\lceil \frac{d(x)-1}{2}\rceil +1,4\right)\right)$$

$$+\left(\lfloor \frac{d(x)-1}{2}\rfloor \right)\left(-f\left(d(x),4\right)+f\left(\lfloor \frac{d(x)-1}{2}\rfloor +1,4\right)\right).$$

$$g_{22}(d(x),d(z),d(x_i),k)=$$

$$g_3(d(x),d(z))=$$

$$g_{41}(d(x),d(z))$$

$$g_{42}(d(x),d(z))$$

$$g_5(d(x),d(z))=$$

$$g_6(d(z))$$

$$\frac{\partial g(x)}{\partial x}$$

$$\left(-2+3x-x^2+x^3-x^4\right)\sqrt{\frac{1+x}{-1+x}}<-\left(x^2-x^3+x^4\right)\sqrt{\frac{2+x}{x}}.$$

$$4-4x-3x^2+2x^3-2x^4+8x^5-2x^6<0$$

Full text

Darko Dimitrov

*Hochschule für Technik und Wirtschaft Berlin, Germany &

Faculty of Information Studies, Novo Mesto, Slovenia*

E-mail: darko.dimitrov11@gmail.com

1 Preliminaries and related results

Let $G=(V,E)$ be a simple undirected graph of order $n=|V|$ and size $m=|E|$. For $v\in V(G)$, the degree of $v$, denoted by $d_{G}(v)$, is the number of edges incident to $v$. When it is clear from the context we will write $d(v)$, which will always assume $d_{G}(v)$. The atom-bond connectivity index of $G$ is defined as

[TABLE]

The ABC index was introduced in 1998 by Estrada, Torres, Rodríguez and Gutman [16] and is one of the most investigated degree-based molecular structure descriptors. More about the (degree-based) molecular structure descriptors can be found in [19, 25, 35] and in the references cited therein. In  [16] it was shown that the ABC index can be a valuable predictive tool in the study of the heat of formation in alkanes. Additional physico-chemical applicabilities of the ABC index were presented in few other works including [15, 9, 28]. These triggered a series of works that considered both mathematical and computational aspect of the ABC index [1, 2, 3, 4, 5, 8, 6, 10, 11, 12, 13, 7, 20, 18, 17, 21, 22, 23, 26, 24, 30, 31, 33, 34, 36, 39].

It is known that among all connected graphs with $n$ vertices, the graph with minimal ABC index is a tree [7, 4]. Although there is some significant progress in characterizing the trees with minimal ABC index (also refereed as minimal-ABC trees), the complete characterization is still open.

Before we state the main contribution of this paper, we first present some additional notation as used in the rest of the paper. A vertex of degree one is a pendent vertex. A vertex is big, if its degree is at least $3$ and it is not adjacent to a vertex of degree $2$. As in [27], a sequence of vertices of a graph $G$, $S_{k}=v_{0}\,v_{1}\dots v_{k}$, will be called a pendent path if each two consecutive vertices in $S_{k}$ are adjacent in $G$, $d(v_{0})>2$, $d(v_{i})=2$, for $i=1,\dots k-1$, and $d(v_{k})=1$. The length of the pendent path $S_{k}$ is $k$. If $d(v_{k})>2$, then $S_{k}$ is an internal path of length $k$. A proper Kragujevac tree [29] is a tree possessing a central vertex of degree at least $3$, to which branches $B_{k}$-branches, $k\geq 1$ are attached (see Figure for an illustration of $B_{k}$- and $B^{*}_{k}$-branches). By inserting a new vertex (of degree $2$) on a pendent edge in a $B_{k}$-branch, we obtain a $B^{*}_{k}$-branch. An improper Kragujevac tree is a tree obtained from a Kragujevac tree by replacing one $B_{k}$-branch with a $B^{*}_{k}$-branch.

In [37] Wang defined a greedy tree as follows.

Definition 1.1**.**

Suppose the degrees of the non-leaf vertices are given, the greedy tree is achieved by the following ‘greedy algorithm’:

Label the vertex with the largest degree as $v$ (the root). 2. 2.

Label the neighbors of $v$ as $v_{1},v_{2},\dots,$ assign the largest degree available to them such that $d(v_{1})\geq d(v_{2})\geq\dots$ 3. 3.

Label the neighbors of $v_{1}$ (except $v$) as $v_{11},v_{12},\dots$ such that they take all the largest degrees available and that $d(v_{11})\geq d(v_{12})\geq...$ then do the same for $v_{2},v_{3},\dots$ 4. 4.

Repeat 3. for all newly labeled vertices, always starting with the neighbors of the labeled vertex with largest whose neighbors are not labeled yet.

In the sequel few structural properties of the minimal-ABC trees relevant to the result of this work are presented. For all other known properties of the minimal-ABC trees, we referee to [1, 10, 11, 12, 13, 14, 26].

1.1 Related results

The following result characterizes the trees with minimal ABC index with prescribed degree sequences.

Theorem 1.1** ([27, 38]).**

Given the degree sequence, the greedy tree minimizes the ABC index.

The following three results reveal some properties of the paths in the minimal-ABC trees.

Theorem 1.2** ([27]).**

The $n$-vertex tree with minimal ABC index does not contain internal paths of any length $k\geq 1$.

Theorem 1.3** ([32]).**

Each pendent vertex of an $n$-vertex tree with minimal ABC index belongs to a pendent path of length $k$, $2\leq k\leq 3$.

Theorem 1.4** ([27]).**

The $n$-vertex tree with minimal ABC index contains at most one pendent path of length $3$.

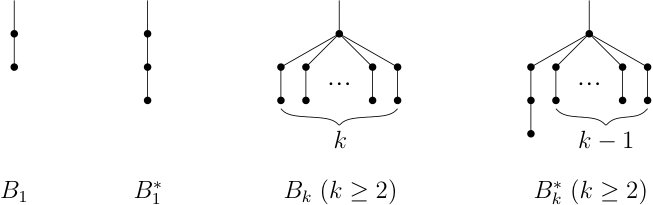

In the context of pendent paths, we assume the following level representation of a greedy tree: The root of a greedy tree belongs to the highest level $i$ of the tree. If so, the leaves of a greedy tree can belong to level $1$ or $2$, except the pendant vertex of a pendent path of length $3$ that may belong to levels [math] or $1$ (see the graph $G$ in Figure 3 for an illustration).

The next three results present some conditions on the occurrence of a pendent path of length $3$ in the minimal-ABC trees. Recall that a $B_{k}^{*}$-branch is obtained from a $B_{k}$-branch by replacing one pendent path of length $2$ with a pendent path of length $3$.

Lemma 1.5** ([14]).**

A minimal-ABC tree does not contain a $B_{k}^{*}$-branch, $k\geq 4$.

Theorem 1.6** ([13]).**

A minimal-ABC tree of order $n>18$ with a pendent path of length $3$ does not contain $B_{1}$-branch ($B_{1}^{*}$-branch).

Theorem 1.7** ([13]).**

A minimal-ABC tree of order $n>18$ with a pendent path of length $3$ may contain a $B_{2}$-branch if and only if it is of order $161$ or $168$. Moreover, in this case a minimal-ABC tree is comprised of single central vertex, $B_{3}$-branches and one $B_{2}$, including a pendent path of length $3$ that may belong to a $B_{3}^{*}$-branch or $B_{2}^{*}$-branch.

In [10] the following important conjecture was raised.

Conjecture 1.1**.**

A minimal ABC tree of order $n>1178$ does not contain a pendent path of length three.

In the next section, in Theorem 2.3, we prove a stronger version of the above conjecture by showing that a minimal-ABC tree of order $n>415$ does not contain a pendent path of length three. In the appendix we present some auxiliary results that will be used to prove the conjecture.

2 The proof of Conjecture 1.1

The following proposition will be used in the proof of the main result of this paper, Theorem 2.3.

Proposition 2.1**.**

Let $x$ und $y$ be vertices of a minimal-ABC tree $G$ that have a common parent vertex $z$, such that $d(x)\geq d(y)\geq 5$. If $x$ and $y$ have only $B_{3}$-branches as children, then either $d(y)=d(x)$ or $d(y)=d(x)-1$.

Proof.

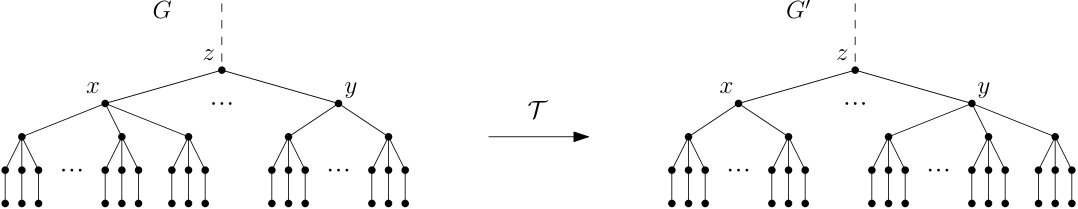

Assume that the proposition is false and that $d(x)+\Delta=d(y)$, where $\Delta\geq 2$. Apply the transformation $\mathcal{T}$ illustrated in Figure 2.

After applying $\mathcal{T}$ the degree of the vertex $x$ decreases by $1$, while the degree of $y$ increases by $1$. The rest of the vertices do not change their degrees. The change of the ABC index is then

[TABLE]

or, by setting $d(x)=d(y)+\Delta$, we obtain that the change of the ABC index is

[TABLE]

By Proposition 3.1 (see the appendix), the expression $-f(d(z),d(y)+\Delta)+f(d(z),d(y)+\Delta-1)$ increases in $d(z)$, while by Proposition 3.2, $-f(d(z),d(y)+1))+f(d(z),d(y))$ decreases in $d(z)$. It follows that for fixed $\Delta\geq 2$, $-f(d(z),d(y)+1))+f(d(z),d(y))$ increases faster in $d(z)$ than $-f(d(z),d(y)+\Delta)+f(d(z),d(y)+\Delta-1)$, or expressed alternatively, $-(-f(d(z),d(y)+1))+f(d(z),d(y)))=-f(d(z),d(y))+f(d(z),d(y)+1))$ decreases faster in $d(z)$ than $-f(d(z),d(y)+\Delta)+f(d(z),d(y)+\Delta-1))$ increases in $d(z)$. Consequently, $g_{1}(d(z),\Delta,d(y))$ decreases in $d(z)$, and it is maximal when $d(z)$ is minimal. By Theorem 1.1, it follows that the minimal possible value of $d(z)$ is $d(x)=d(y)+\Delta$.

Now, we show that $g_{1}(d(z),\Delta,d(y))$ decreases in $\Delta$. By Propositions 3.1 and 3.2, expressions $-f(d(z),d(y)+\Delta)+f(d(z),d(y)+\Delta-1)$ and $-f(d(y)+\Delta,4)+f(d(y)+1,4)$ decrease in $\Delta$. By Proposition 3.3 (see the appendix) it follows that $(d(y)+\Delta-2)(-f(d(y)+\Delta,4)+f(d(y)+\Delta-1,4))$ also decreases in $\Delta$. Therefore, $g_{1}(d(z),\Delta,d(y))$ too decreases in $\Delta$, and the upper bound on $g_{1}(d(z),\Delta,d(y))$ is obtained for $\Delta=2$ (which is the minimal value of $\Delta$ due to the assumptions of the proposition).

Bearing these in mind, we obtain that $g_{1}(d(z),\Delta,d(y))$ has the following upper bound

[TABLE]

The function $g_{2}(d(y))$, $d(y)>4$, has only one zero at $d(y)=4.04954$, and for $d(y)>4.04954$ is negative. Thus, for $d(y)\geq 5$, $\Delta\geq 2$, the change of the ABC index after applying the transformation $\mathcal{T}$ is negative, which is a contradiction to the initial assumption that $G$ is a minimal-ABC tree.

∎

Modifying the above proof by considering that $\Delta\geq 3$, the following result can be obtained.

Remark 2.1**.**

The function $g_{1}(d(z),\Delta,d(y))$ from Proposition 2.1 is negative for $\Delta\geq 3$ and $d(y)\geq 4$.

And, we can obtain a modified version of Proposition 2.1.

Proposition 2.2**.**

Let $x$ und $y$ be vertices of a minimal-ABC tree $G$ that have a common parent vertex $z$, such that $d(x)\geq d(y)\geq 4$. If $x$ and $y$ have only $B_{3}$-branches as children, then either $d(y)=d(x)$, $d(y)=d(x)-1$ or $d(y)=d(x)-2$.

Next, we present the main result of this paper, that gives an affirmative answer to Conjecture 1.1.

Theorem 2.3**.**

A minimal-ABC tree of order $n>415$ does not contain a pendent path of length three.

Proof.

Denote a minimal-ABC tree of order $n\geq 415$ by $G$ and its root vertex by $z$. Assume that the claim of the theorem is false and there is one $P_{3}$ path in $G$ (i.e., one $B^{*}_{3}$-branch). Assume also that the leaf of the only path of length $3$ belongs to level [math] of $G$. By Lemma 1.5 and Theorems 1.4, 1.6 and 1.7, it follows that the only type of branches that $G$ can have are $B_{3}$-branches and maybe one $B^{*}_{3}$-branch. We distinguish three main cases with respect to the maximal number of levels of $G$, or with other words, with respect to that to which level of $G$ the root vertex $z$ belongs.

Case $1.$ The root vertex $z$ of $G$ is at level $\geq 6$.

As consequence of Theorem 1.1, all vertices at level $5$ are big, and at least $d(z)-1$ of them do not have any $B_{3}$-branch as child. Denote this set with at least $d(z)-1$ vertices by $\mathcal{L}_{5}$. If $d(z)=4$ then, by the same theorem, all vertices at level $5$ have degree $4$. If $d(z)\geq 5$, then consider one vertex $y$ from $\mathcal{L}_{5}$. Let $x$ be child of $y$ with the smallest degree. We denote the other children of $y$ by $x_{i},i=1,\dots,d(y)-2$. Without loss of generality, we may assume that $x$ is a parent of a $B_{3}^{*}$-branch.

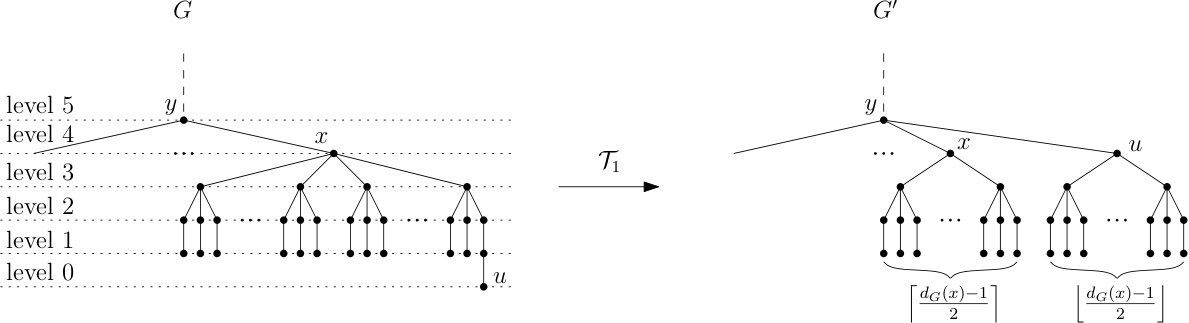

Here, we first apply the transformation $\mathcal{T}_{1}$ depicted in Figure 3.

After applying $\mathcal{T}_{1}$ the degree of the vertex $y$ increases by $1$, the degree of $x$ decreases to $\lceil(d(x)-1)/2)\rceil+1$ while the degree of $u$ increases form $1$ to $\lfloor(d(x)-1)/2)\rfloor+1$. The rest of the vertices do not change their degrees. The change of the ABC index is smaller than

[TABLE]

We would like to note that we slightly abuse the notation of a multivariable function in the case of the function $g_{1}$ (as well as in some later examples). Namely, instead of $g_{1}(d(x),d(y),d(x_{1}),$ $\dots,d(x_{d(y)-2}))$, we write $g_{1}(d(x),d(y),d(x_{i}))$.

By Proposition 3.1 $-f(d(y),d(x_{i}))+f(d(y)+1,d(x_{i})$ decreases in $d(x_{i})$. $d(x_{i})$ can be not smaller than $d(x)$, since $x$ is the child of $y$ with the smallest degree. So, by setting $d(x_{i})=d(x)$, we obtain the upper bound of $-f(d(y),d(x_{i}))+f(d(y)+1,d(x_{i})$. Together with the fact that $f(x,y)$ is a monotonically decreasing function in $x$ and $y$, and by Proposition 3.2, we have that for odd $d(x)$, $g_{1}(d(x),d(y),d(x_{i}))$ is bounded from above by

[TABLE]

Consider the function ${\hat{g}}_{1o}(d(x),d(y))$ comprised of two expressions of $g_{1o}(d(x),d(y))$:

[TABLE]

The first derivative of ${\hat{g}}_{1o}(d(x),d(y))$ with respect of $d(x)$ is

[TABLE]

The last expression in (2) decreases in $d(y)$, so $\partial{\hat{g}}_{1o}(d(x),d(y))/\partial d(x)$ is maximal for $d(y)=d(x)$ (the minimal value of $d(y)$). $\partial{\hat{g}}_{1o}(d(x),d(x))/\partial d(x)$ for $d(x)\geq 5$ is a negative function, from which follows that ${\hat{g}}_{1o}(d(x),d(y))$ for $d(x)\geq 5$ decreases in $d(x)$. By Proposition 3.2, the expressions $-f(d(y),d(x))+f\left(d(y)+1,\frac{d(x)}{2}+0.5\right)$ and $-f(d(y),d(x))+f(d(y)+1,d(x)-2$ also decrease in $d(x)$. Thus, it follows that $g_{1o}(d(x),d(y))$ decreases in $d(x)$ for $d(x)\geq 5$ and therefore $g_{1o}(d(x),d(y))$ is bounded from above by $g_{1o}(5,d(y))=\bar{g}_{1o}(d(y))$. The function $\bar{g}_{1o}((d(y))$ does not have real roots, it is positiv and has a horizontal asymptote at $0.215937$. Thus, we can conclude that $g_{1o}(d(x),d(y))$ increases in $d(y)$ and $\lim_{d(y)\to\infty}g_{1o}(d(x),d(y))$ is an upper bound of $g_{1o}(d(x),d(y))$. The first integer value of $d(x)$ for which $\lim_{d(y)\to\infty}g_{1o}(d(x),d(y))$ is $54$. Since $g_{1o}(d(x),d(y))$ decreases in $d(x)$, it follows that the change of the ABC index after apply $\mathcal{T}_{1}$, is negative for $d(x)\geq 54$, when $d(x)$ is odd.

For even $d(x)$, $g_{1}(d(x),d(y),d(x_{i}))$ is bounded from above by

[TABLE]

Almost an identical derivation, as in the case when $d(x)$ is odd, also here leads to the fact that after applying the transformation $\mathcal{T}_{1}$ the change of the ABC index is negative for $d(x)\geq 54$. Thus, the derivation for the case when $d(x)$ is even we will be omitted.

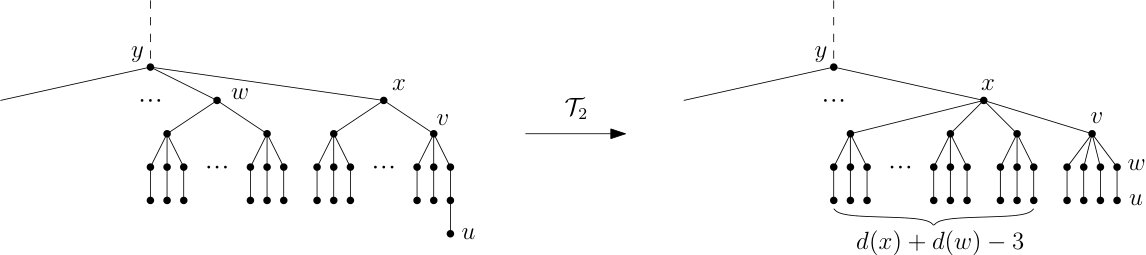

For $d(x)\leq 53$ we apply the transformation $\mathcal{T}_{2}$ illustrated in Figure 4. Let $w$ be a vertex that has the same parent as $x$. Recall that $x$ is vertex with smallest degree among all vertices that have same parent as $x$. If $d(x)=4$, then by Proposition 2.2 either $d(w)=d(x),d(w)=d(x)+1$ or $d(x)+2$. Otherwise, by Proposition 2.1 either $d(w)=d(x)$ or $d(w)=d(x)+1$. Let $y_{p}$ be the parent of $y$ and $x_{i},i=1,\dots,d(y)-3$, the children vertices of $y$ different than $x$ and $w$.

After applying $\mathcal{T}_{2}$ the degree of the vertex $x$ increases by $d(w)-1$, the degree of $v$ increases by $1$, the degree of $y$ decreases by $1$, while the degree of $w$ decreases to $2$. The rest of the vertices do not change their degrees. The change of the ABC index is bounded from above by

[TABLE]

First, we consider the case $d(x)>4$. By Proposition 3.2, $-f(d(y),d(y_{p}))+f(d(y)-1,d(y_{p}))$ increases in $y_{p}$, and it is bounded from above by $\lim_{d(y_{p})\to\infty}=-f(d(y),d(y_{p}))+f(d(y)-1,d(y_{p}))=-1/\sqrt{d(y)}+1/\sqrt{d(y)-1}$. By the same proposition, $-f(d(y),d(x_{i}))+f(d(y)-1,d(x_{i}))$ increases in $d(x_{i})$ and by Proposition 2.1, $d(x_{i})$ can be at most $d(x)+1$. Thus, $-f(d(y),d(x_{i}))+f(d(y)-1,d(x_{i}))$ has an upper bound for $d(x_{i})=d(x)+1$. By Proposition 3.4, $(d(w)-1)(-f(d(w),4)+f(d(x)+d(w)-1,4))$ decreases in $d(x)$, so it is maximal for $d(w)=d(x)$. The function $f(.,.)$ decrease in both variables. Together with the fact that $d(w)=d(x)$ or $d(w)=d(x)+1$, we obtain the following bound on (2):

[TABLE]

By Proposition 3.1, it follows that $-f(d(y),d(x)+1)+f(d(y)-1,d(x)+1)$, $-f(d(y),d(x))+f(d(y)-1,2d(x)-1)$, $-f(d(x),4)+f(2d(x)-1,5)$ and $-f(d(x),4)+f(2d(x)-1,4)$ increase in $d(x)$. The $-f(d(y),d(x)+1)$ also increases in $d(x)$, therfore $g_{2}(d(x),d(y))$ increases in $d(x)$, too. A verification shows that the largest $d(x)$, for which $g_{2}(d(x),d(y))$ is negative, is $d(x)=45$.

For the case $d(x)=4$, recall that $4\leq d(w)\leq 6$ holds. Similarly, as above, also for this particular case, we can show that the change of the ABC index after applying $\mathcal{T}_{2}$ is negative.

For $d(x)\in[46,53]$ we proceed as follows. We set $d(y_{p})\to\infty$, while then $g_{2}(d(x),d(y))$ is maximal and we consider the lower envelope of $g_{1e}(d(x),d(y))$ (resp. $g_{1o}(d(x),d(y)$) and $g_{2}(d(x),d(y))$. For $d(x)=46$, $g_{1e}(46,d(y))$ is negative for $d(y)\in[46,124]$, while $g_{2}(46,d(y))$ is negative for $d(y)\in[46,55]\cup[69,\infty)$. Thus, for $d(x)=46$, we can obtain always a negative change of the ABC index. Similarly, one can make the same conclusion for $d(x)=47,\dots,53$.

Case $2.$ The root vertex $z$ of $G$ is at level $5$.

The tree $G$ in Figure 5 illustrates this case.

The number of the children of the root $z$ that are big vertices (vertices $x_{1},x_{2},\dots,x_{k-1},x$) is denoted by $k$. We assume that $d(x_{1})\leq d(x_{2})\leq\dots\leq d(x_{k-1})\leq d(x)$.

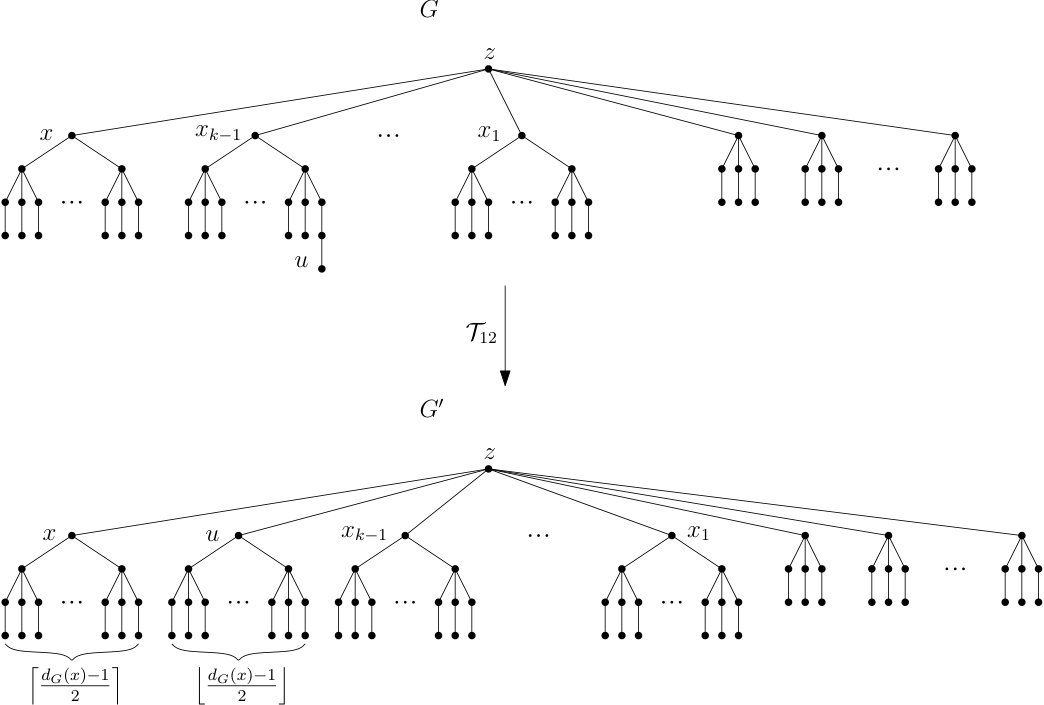

First, we apply the transformation $\mathcal{T}_{12}$ from Case $1.$ In this context, we denote it as $\mathcal{T}_{12}$. An illustration of $\mathcal{T}_{12}$ is given in Figure 5. In this case, the change of the ABC index is

[TABLE]

By Proposition 3.1, the expression $-f(d(z),d(x_{i}))+f(d(z)+1,d(x_{i})$ decreases in $d(x_{i})$. Since $d(x_{i})\geq 4$, it follows that $-f(d(z),d(x_{i}))+f(d(z)+1,d(x_{i})\leq-f(d(z),4)+f(d(z)+1,4)<0$, and consequently $g_{12}(d(x),d(z),d(x_{i}),k)$ is maximal when $k$ is minimal, i.e., $k=1$ and $g_{12}(d(x),d(z),d(x_{i}),k)$ is bounded from above by

[TABLE]

Analogous analysis as in Case $1.$ shows that (2) is negative for $d(x)\geq 66$. Similarly as for $k=1$, it can be derived that for $k=2$ the function $g_{12}(d(x),d(z),d(x_{i}),k)$ is negative for $d(x)\geq 65$. Because $g_{12}(d(x),d(z),d(x_{i}),k)$ is decreasing in $k$, it follows that it is negative for $d(x)\geq 65$ and $k\geq 2$. In Table 1 some pairs of values of parameters $d(x)$ and $k$ are given for which $g_{12}(d(x),d(z),d(x_{i}),k)$ is negative.

Further, we show, that a negative change of the ABC index for $d(x)\leq 65$ can be obtained. We distinguish two cases with respect to $k$: $k\geq 2$ and $k=1$. Note that if $k=0$, then $z$ is at level $4$, which is analyzed in Case $3.$

Subcase $2.1.$ $k\geq 2$.

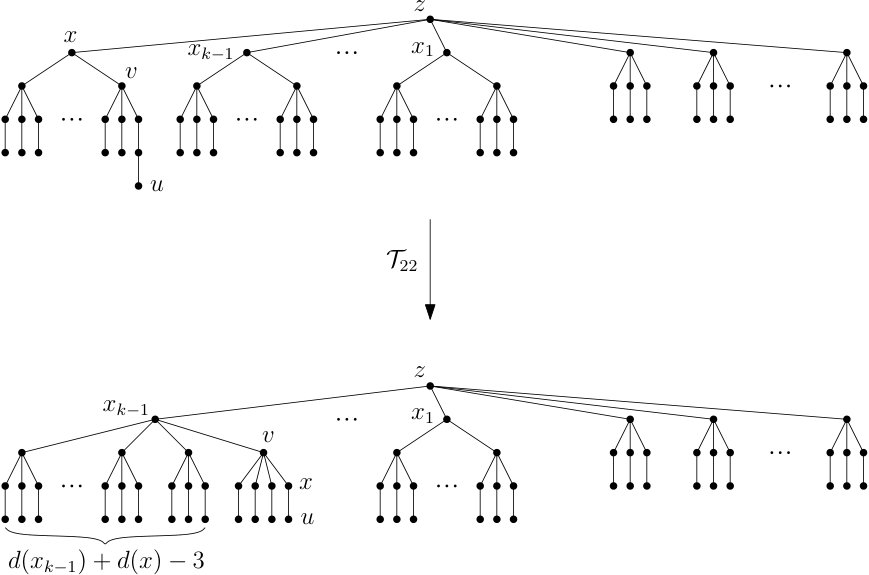

Here, we apply the transformation $\mathcal{T}_{2}$ from Case $1.$ For this subcase we denote it as $\mathcal{T}_{22}$ and illustrate it in Figure 6.

The change of the ABC index is

[TABLE]

By Proposition 2.2, we have that the possible values for $d(x_{k-1})$ are $d(x)$, $d(x)-1$ and $d(x)-2$. For each of these three possible values for $d(x)$, with almost identically analysis as for $g_{2}(d(x),d(y),d(y_{p}),d(x),k)$, we can show that $g_{22}(d(x),d(z),d(x_{i}),k)$ is largest for $d(x_{k-1})=d(x)$, it increases in $k$ and is negative for $d(x)\leq 47$. Also, we can obtain that for the values of parameters $d(x)$ and $k$ given in Table 2, $g_{22}(d(x),d(z),d(x_{i}),k)$ is negative.

Now, we consider the pairs of $d(x)$ and $k$ for which we did obtain that $g_{22}(d(x),d(z),d(x_{i}),k)$ is negative: $d(x)=48$, $k>d(z)-3$; $d(x)=49$, $k>d(z)-8$; $d(x)=50$, $k>d(z)-17$; $d(x)=51$, $k>d(z)-36$; $d(x)=52$, $k>d(z)-87$; $d(x)=53$, $k>d(z)-516$. In this case we take the lower envelope of $g_{22}(d(x),d(z),d(x_{i}),k)$ and $g_{12}(d(x),d(z),$ $d(x_{i}),k)$. Due to Proposition 2.1, in these cases the two different possibilities of $d(x_{i})$ are $d(x_{i})=d(x)$ and $d(x_{i})=d(x)-1$.

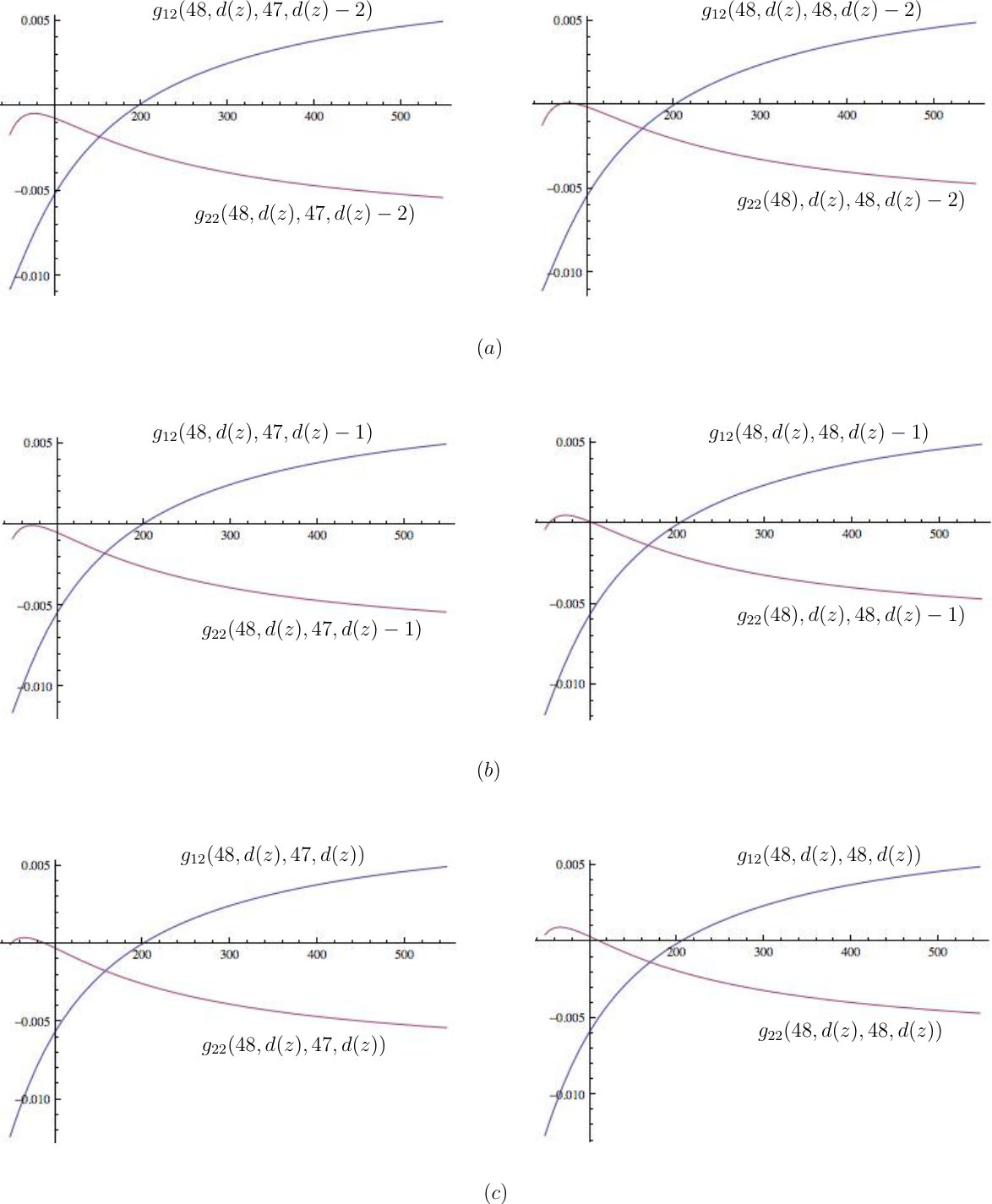

For $d(x)=48$ and $k>d(z)-3$, we consider first $k=d(z)-2$. The possible values for $d(x_{i})$ are $48$ and $47$. Functions $g_{22}(48,d(z),48,d(z)-2)$ and $g_{12}(48,d(z),48,d(z)-2)$, $g_{22}(48,d(z),47,d(z)-2)$ and $g_{12}(48,$ $d(z),47,d(z)-2)$ are depicted in Figure 7 $(a)$. Recall that $d(z)\geq d(x)$ Their lower envelope of of both function has always negative values. For $k=d(z)-1$ and $k=d(z)$, we proceed identically as for $k=d(z)-2$ and obtain that the corresponding lower envelopes of the functions $g_{22}(d(x),d(z),d(x_{i}),k)$ and $g_{12}(d(x,)d(z),d(x_{i}),k)$ are negative (Figure 7 $(b)$ and $(c)$).

Similarly, we obtain that lower envelops in the cases $d(x)=49$ and $k>d(z)-8$, $d(x)=50$ and $k>d(z)-17$, $d(x)=51$ and $k>d(z)-36$, $d(x)=52$ and $k>d(z)-87$, and $d(x)=53$ and $k>d(z)-516$ are negative. Observe that in the last two cases, $d(z)\geq 88$ (resp., $d(z)\geq 517$), since $k>1$. Since we apply the same argument, we omit the repetition of the analysis in these cases.

It remains to prove the theorem for $54\leq d(x)\leq 65$ and the values of the parameter $k$ for which $g_{22}(d(x),d(z),d(x_{i}),k)$ is not negative (see table Table 1). Again, by Proposition 2.2, we have that the possible values for $d(x_{k-1})$ are $d(x)$, $d(x)-1$ and $d(x)-2$. We consider the lower envelope of $g_{22}(d(x),d(z),d(x_{i}),k)$ and $g_{12}(d(x),d(z),d(x_{i}),k)$. For example, for $d(x)=54$ and $k<52$, we consider the functions $g_{22}(54,d(z),53,k)$ and $g_{12}(54,d(z),53,k)$, and $g_{22}(54,d(z),54,k)$ and $g_{12}(54,d(z),54,k)$, for $k=2,\dots,51$, whose lower envelope is negative. Similarly, we proceed with $d(x)=55,\dots,65$. Due to similarity with previous cases, we omit the details here.

Next, we show that the theorem is true for $k=1$ and $d(x)\leq 65$.

Subcase $2.2.$ $k=1$.

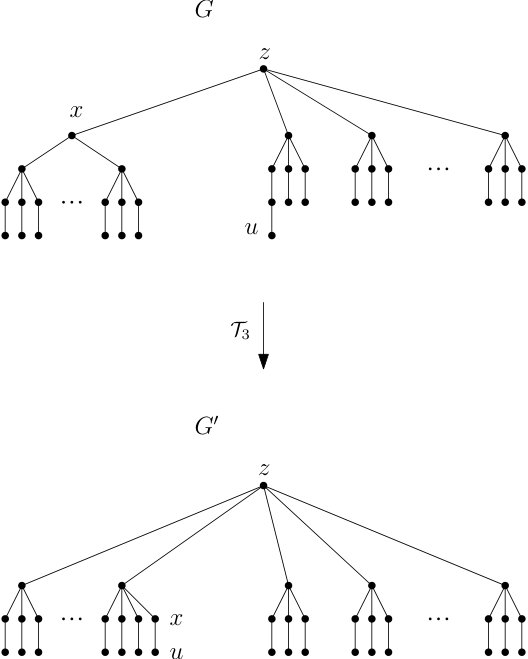

First, we apply the transformation $\mathcal{T}_{3}$ depicted in Figure 8. After applying $\mathcal{T}_{3}$ the degree of the vertex $z$ increases by $d(x)-2$, the degree of one child of $x$ increases by $1$, and the degree of $x$ decreases to $2$. The rest of the vertices do not change their degrees. The change of the ABC index is

[TABLE]

For any $d(x)\in[4,31]$ the function $g_{3}(d(x),d(z))$ does not have real roots and is negative. It follows that for $4\leq d(x)\leq 31$, there exists a tree with smaller ABC index than the assumed minimal one, which is a contradiction to the initial assumption that $G$ is a tree with minimal ABC index. It can be also verified that for any $d(x),d(z)$ that satisfy $4\leq d(x)\leq d(z)\leq 62$, the function $g_{3}(d(x),d(z))$ is negative.

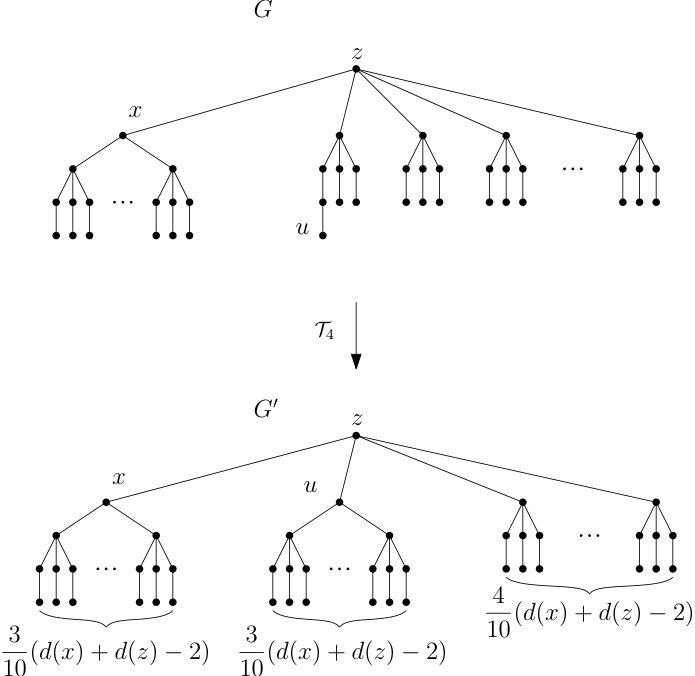

For $63\leq d(x)\leq 65$, we apply the transformation $\mathcal{T}_{4}$ depicted in Figure 9.

The change of the degrees of vertices in $G$, after applying $\mathcal{T}_{4}$, are as follows: $d_{G^{\prime}}(x)=3(d(x)+d(z)-2)/10+1$, $d_{G^{\prime}}(u)=3(d(x)+d(z)-2)/10+1$ and $d_{G^{\prime}}(z)=4(d(x)+d(z)-2)/10+2$. With respect to degree $d(x)$, we distinguish two cases: $d_{G^{\prime}}(x)<d(x)$ and $d_{G^{\prime}}(x)\geq d(x)$.

When $d_{G^{\prime}}(x)<d(x)$, the change of the ABC index is

[TABLE]

Recall that when the index of the degree is omitted, it is always assumed that it is $G$. From $3(d(x)+d(z)-2)/10+1<d(x)$, it follows that $d(z)<(7d(x)-4)/3$. Also, recall that $d(z)\geq d(x)$. It can be verified that for every $d(z)\in[d(x),(7d(x)-4)/3)$ and for $d(x)\in\{63,64,65\}$, the function $g_{41}(d(x),d(z))$ is negative and decreasing in $d(z)$.

When $d_{G^{\prime}}(x)\geq d(x)$, from which follows $d(z)>(7d(x)-4)/3)$, the change of the ABC index is

[TABLE]

For $d(z)>(7d(x)-4)/3)$ and for $d(x)\in\{63,64,65\}$ the function $g_{42}(d(x),d(z))$ does not have real roots and it is negative.

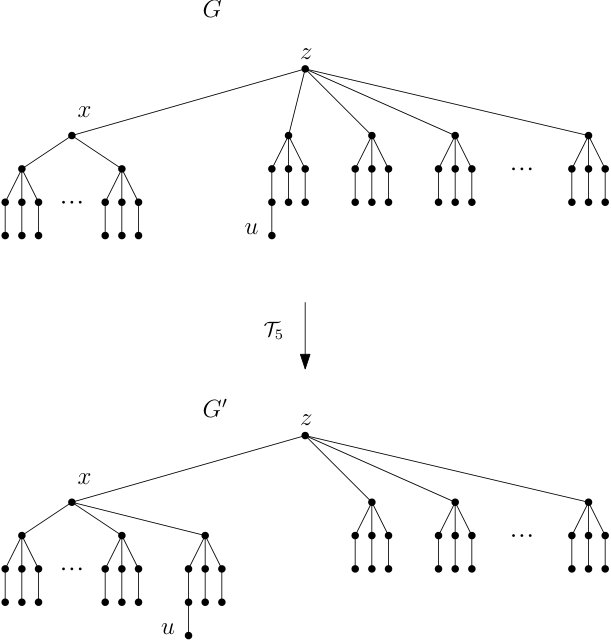

It remains to show that for $32\leq d(x)\leq 62$ the theorem holds. To show this, we apply the transformations $\mathcal{T}_{5}$, under the constrain that $d(z)>62$ (recall that for $d(z)\leq 62$, the function $g_{3}(d(x),d(z))$ is negative for any $d(x)>4$). The transformation $\mathcal{T}_{5}$ depicted in Figure 10.

After this transformation the only vertices that change there degrees are $z$ and $x$, namely, $z$ decreases its degree for $1$ and $x$ increases its degree for $1$. The change of the ABC index after applying $\mathcal{T}_{5}$ is

[TABLE]

Consider first the case $d(x)=32$. The function $g_{5}(32,d(z))$, for $d(z)>62$, does not have real roots and is negative. Similarly, we verify that $g_{5}(d(x),d(z))$ is negative for $d(x)=33,\dots,61$ and $d(z)>62$. For $d(x)=62$, $g_{5}(d(x),d(z))$ is negative for $d(z)>63$ and for $d(z)=63$ it is zero. Here, for $d(x)=62$ and $d(z)=63$ we apply the transformation $\mathcal{T}_{3}$. It holds that $g_{3}(62,63)=-0.0000277276$, and hence, we have shown that also for $32\leq d(x)\leq 62$ we can obtain a negative change of the ABC index, which concludes the proof of Case $2$.

Case $3.$ The root vertex $z$ of $G$ is at level $4$.

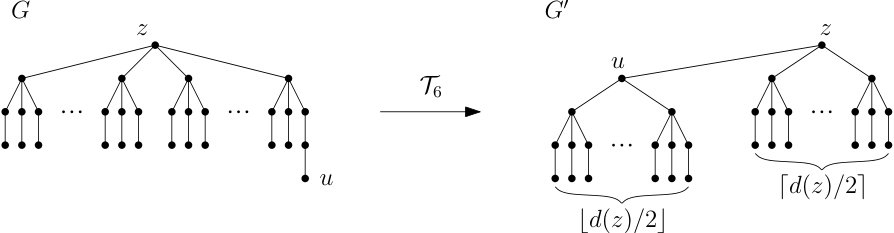

In this case $G$ is an improper Kragujevac tree. Here we apply the transformation $\mathcal{T}_{6}$ illustrated in Figure 11.

After applying $\mathcal{T}_{6}$ the degree of the vertex $z$ decreases to $\lfloor d(z)/2\rfloor$, while the degree of $u$ increases to $\lceil d(z)/2\rceil$. The rest of the vertices do not change their degrees. The change of the ABC index is

[TABLE]

For even $d(z)$, the function $g_{6}(d(z))$ has only one zero at $d(z)\approx 59.5903$, and for $d(z)>59.5903$ is negative. For odd $d(z)$, $g_{6}(d(z))$ has only one zero at $d(z)\approx 59.6067$, and it is negative for $d(z)>59.6067$. Since $d(z)$ is an integer, it follows that in this case the change of the $ABC$ index for $d(z)>59$ (or, $n>415$) is negative. This concludes the proof of the theorem.

∎

3 Appendix

The next propositions are used in the proofs of the previous section. The function $f(x,y)$ is defined as in (1).

Proposition 3.1** ([11]).**

Let $g(x,y)=-f(x,y)+f(x+\Delta x,y-\Delta y)$, with real numbers $x,y\geq 2$, $\Delta x\geq 0$, $0\leq\Delta y<y$. Then, $g(x,y)$ increases in $x$ and decreases in $y$.

Due to the symmetry of the function $f(.,.)$, Proposition 3.1 can be rewritten as follows.

Proposition 3.2** ([11]).**

Let $g(x,y)=-f(x,y)+f(x-\Delta x,y+\Delta y)$, with real numbers $x,y\geq 2$, $\Delta y\geq 0$, $0\leq\Delta x<x$. Then, $g(x,y)$ decreases in $x$ and increases in $y$.

Proposition 3.3**.**

Let $g(x)=(x-2)(-f(x,4)+f(x-1,4))$ with real number $x\geq 4$. Then, $g(x)$ decreases in $x$.

Proof.

The first derivative of $g(x)$ after simplification and rearranging is

[TABLE]

To show that $\partial g(x)/\partial x$ is negative, suffices to show

[TABLE]

Quadrating and simplifying the last expression gives

[TABLE]

which is satisfied for $x\geq 4$. ∎

The following result, Proposition 3.4, is similar to that in Proposition 3.3. Since, the proofs are very similar we omit the proof of Proposition 3.4.

Proposition 3.4**.**

Let $g(x)=(x-1)(-f(x,4)+f(x+c-1,4))$ with real number $x\geq 4$ und $c$ is a positive real constant. Then, $g(x)$ decreases in $x$.
