Relaxation and decoherence of qubits encoded in collective states of engineered magnetic structures

TL;DR

This paper investigates relaxation and decoherence timescales for qubits encoded in collective states of magnetic atoms on surfaces, highlighting the benefits of decoherence-free subspaces for quantum coherence preservation.

Contribution

It generalizes $T_{1}$ and $T_{2}$ definitions for collective atomic states and analyzes their behavior across various atomic configurations.

Findings

Decoherence-free subspaces enhance qubit coherence times.

Relaxation and decoherence rates vary with atomic structure.

Generalized $T_{1}$ and $T_{2}$ provide better understanding of quantum state stability.

Abstract

The quantum nature of a microscopic system can only be revealed when it is sufficiently decoupled from surroundings. Interactions with the environment induce relaxation and decoherence that turn the quantum state into a classical mixture. Here, we study the timescales of these processes for a qubit encoded in the collective state of a set of magnetic atoms deposited on a metallic surface. For that, we provide a generalization of the commonly used definitions of $T_{1}$ and $T_{2}$ characterizing relaxation and decoherence rates. We calculate these quantities for several atomic structures, including a collective spin, a setup implementing a decoherence-free subspace, and two examples of spin chains. Our work contributes to the comprehensive understanding of the relaxation and decoherence processes and shows the advantages of the implementation of a decoherence free subspace in these setups.

Figures

Equations

$$H_S$$

$$+\sum _{l{l}^{\prime }}{J}_{l{l}^{\prime }}{\mathbf{S}}_l\cdot {\mathbf{S}}_{l^{\prime }},$$

$$H_E=\sum _{\nu ks}{\epsilon }_{\nu ks}{c}_{\nu ks}^{†}{c}_{\nu ks}.$$

$${\varrho }_{\nu s}(\epsilon )=\frac{1}{2W}\left(1+p_{\nu }s\right)\Theta \left(|\epsilon |-W\right),$$

$$H_I$$

$$s_a^{\nu {\nu }^{\prime }}$$

$${\partial }_t\rho =\mathcal{L}\rho$$

$${\partial }_t\rho =-i\left[H_S^{\prime },\rho \right]+\sum _{la{a}^{\prime }}\left\{\left[{\Lambda }_{la{a}^{\prime }}\rho ,S_{la}\right]+\text{H.c.}\right\},$$

$${\Lambda }_{la{a}^{\prime }}$$

$$\times |\alpha ⟩⟨\alpha |S_{l{a}^{\prime }}|{\alpha }^{\prime }⟩⟨{\alpha }^{\prime }|,$$

$$u_{la{a}^{\prime }}^{\nu {\nu }^{\prime }}$$

$$\times \text{tr}\left[\left(1+p_{\nu }{\sigma }^z\right){\sigma }^a\left(1+p_{{\nu }^{\prime }}{\sigma }^z\right){\sigma }^{a^{\prime }}\right],$$

$$\kappa \left(\omega \right)$$

$$I=-e\text{leavevmode}\text{tr}\left(\mathcal{J}\rho \right)$$

$$\mathcal{J}\rho$$

$$J_{a{a}^{\prime }}$$

$$\times \left({\delta }_{\nu t}-{\delta }_{{\nu }^{\prime }t}\right)|\alpha ⟩⟨\alpha |S_{\tilde{l}{a}^{\prime }}|{\alpha }^{\prime }⟩⟨{\alpha }^{\prime }|.$$

$$\mathcal{J}$$

$$I_e$$

$$I_m$$

$$\rho$$

$$\mathbf{p}$$

$${\partial }_t\mathbf{p}=-\mathbf{\omega }\times \left(\mathbf{p}-{\mathbf{p}}_0\right)-\mathbf{R}.\left(\mathbf{p}-{\mathbf{p}}_0\right),$$

$$\mathbf{\omega }$$

$$\mathbf{R}.\mathbf{p}=\frac{1}{T_1}{\mathbf{p}}_{\parallel }+\frac{1}{T_2}{\mathbf{p}}_{\perp },$$

$$\frac{1}{T_1}$$

$$\frac{1}{T_2}$$

$${\lambda }_1$$

$${\lambda }_{2,3}$$

$$\frac{1}{T_1}$$

$$\frac{1}{T_2}$$

$$D\left(\mathbf{\Delta },t\right)$$

$${\rho }_{\mathbf{v}}\left(t\right)-{\rho }_{{\mathbf{v}}^{\prime }}\left(t\right)$$

$$\Vert {\rho }_{\mathbf{v}}\left(t\right)⟩-\Vert {\rho }_{{\mathbf{v}}^{\prime }}\left(t\right)⟩$$

$$||{\rho }_{\mathbf{v}}(t)-{\rho }_{{\mathbf{v}}^{\prime }}(t)||$$

$$M_{a{a}^{\prime }}\left(t\right)$$

Full text

I Introduction

Exploiting quantum dynamics for information processing, data storage, or sensing requires us to manipulate and measure quantum states before relaxation and decoherence processes set in. The characteristic timescales associated with the energy relaxation and the loss of quantum coherences depend crucially on the interaction with the local environment. In the case of single magnetic atoms or molecules in contact with a metallic surface Heinrich et al. (2004); Hirjibehedin et al. (2007); Tsukahara et al. (2009); Gauyacq et al. (2012), the most relevant interaction is the magnetic exchange with itinerant electrons in the substrate Delgado and Fernández-Rossier (2010); Delgado et al. (2014). Additionally, the magnetic degrees of freedom couple to substrate phonons and nuclear spins Delgado and Fernández-Rossier (2017).

The ability to manipulate and address individual atoms and to perform spin and time resolved measurements Stipe (1998); Meier et al. (2008); Wiesendanger (2009); Loth et al. (2010); Baumann et al. (2015); Krause et al. (2016); Paul et al. (2016); Lado et al. (2016); Yan et al. (2017) permitted us to engineer a number of prototype setups Hirjibehedin et al. (2006); Otte et al. (2009); Spinelli et al. (2014); Choi et al. (2016); Girovsky et al. (2017) and demonstrated the potential of these artificial magnetic structures for classical information processing Imre (2006); Khajetoorians et al. (2011). However, the proximity with the metallic substrate induces the creation of electron-hole pairs that rapidly decohere the magnetic state Gauyacq and Lorente (2015); Delgado et al. (2015) thus posing considerable limitations to the exploitation of the quantum regime Leuenberger and Loss (2001); Troiani et al. (2005); Bogani and Wernsdorfer (2008). For example, in 1D chains of Fe atoms coupled antiferromagnetically, experiments observe activated switching between the two doubly degenerate (classical) Néel states rather then the (quantum) nonmagnetic ground state Loth et al. (2012).

One strategy to protect the spin states is environment engineering. This route was explored in Ref. Heinrich et al. (2013), employing a superconductor substrate that forbids quasiparticle creation for energies below the superconducting gap. An alternative path is to engineer artificial structures with intrinsically large decoherence times. A systematic way to proceed is to design systems supporting so-called decoherence-free subspaces Bacon et al. (2001); Lidar and Whaley (2003); Lidar (2014) where quantum information can be stored without loss. A recently developed method, able to capture the coherent quantum dynamics of atomic magnets Shakirov et al. (2016) allows for the theoretical study of how to implement this strategy. In contrast to previous descriptions in terms of rate equations Fernández-Rossier (2009); Lorente and Gauyacq (2009); Delgado and Fernández-Rossier (2010); Ternes (2015) that only describe the dynamics of the populations, this approach also models the quantum coherences and allows us to access the current statistics measured by the STM tip.

In this paper we study relaxation and decoherence processes arising in engineered atomic spin structures due to the contact with the metallic surface and the STM tip. We show that the standard concepts of the timescales $T_{1}$ and $T_{2}$ introduced for two-level systems, such as a single atom with spin $1/2$, are not well-defined in the generic case. In particular, they do not work when dynamics of coherences and populations are coupled, e.g., due to the interaction with the polarized STM tip. The standard definitions are also not extendable to multilevel quantum systems, where the transitions from the states encoding a qubit to other eigenstates can contribute to the relaxation and decoherence. To characterize the quantum dynamics in the generic case, we propose new quantities that generalize the notions of $T_{1}$ and $T_{2}$ and that can extend to cases where a qubit is encoded in a subspace of a larger Hilbert space. This new approach enables us to determine the timescales for the degradation of stored quantum information in different engineered structures such as spin chains and collective spin models. In general, there are three such timescales, but in most of the studied examples two of them coincide, in which case one can associate the two different quantities with relaxation and decoherence processes. We study these timescales in several atomic structures including the proposed decoherence-free subspaces and investigate how these quantities depend on the temperature and bias voltage applied to the STM tip. Our work shows that the implementation of a decoherence free subspace based on four spin-$1/2$ atoms is realistic.

The paper is organized as follows. In Sec. II we describe the model and the method based on the effective master equation developed in Ref. Shakirov et al. (2016). In Sec. III.1 we identify the problem with the definition of $T_{1}$ and $T_{2}$ for a generic dissipative evolution and provide a suitable generalization. These quantities are studied for different atomic structures in Sec. III.2. In Sec. IV we discuss our results, provide conclusions and state some of the open questions. The Appendices are devoted to some technical aspects: Appendix A shows how to obtain the rate equations for the populations once coherences are disregarded, Appendix B addresses the comparison of the master equation used in this work with that of Ref. Shakirov et al. (2016) where additional simplifications were performed, and Appendix C shows how to obtain a Bloch-like equation for the evolution of the magnetization for the case of a single spin-$1/2$ atom.

II Model & Method

II.1 Model

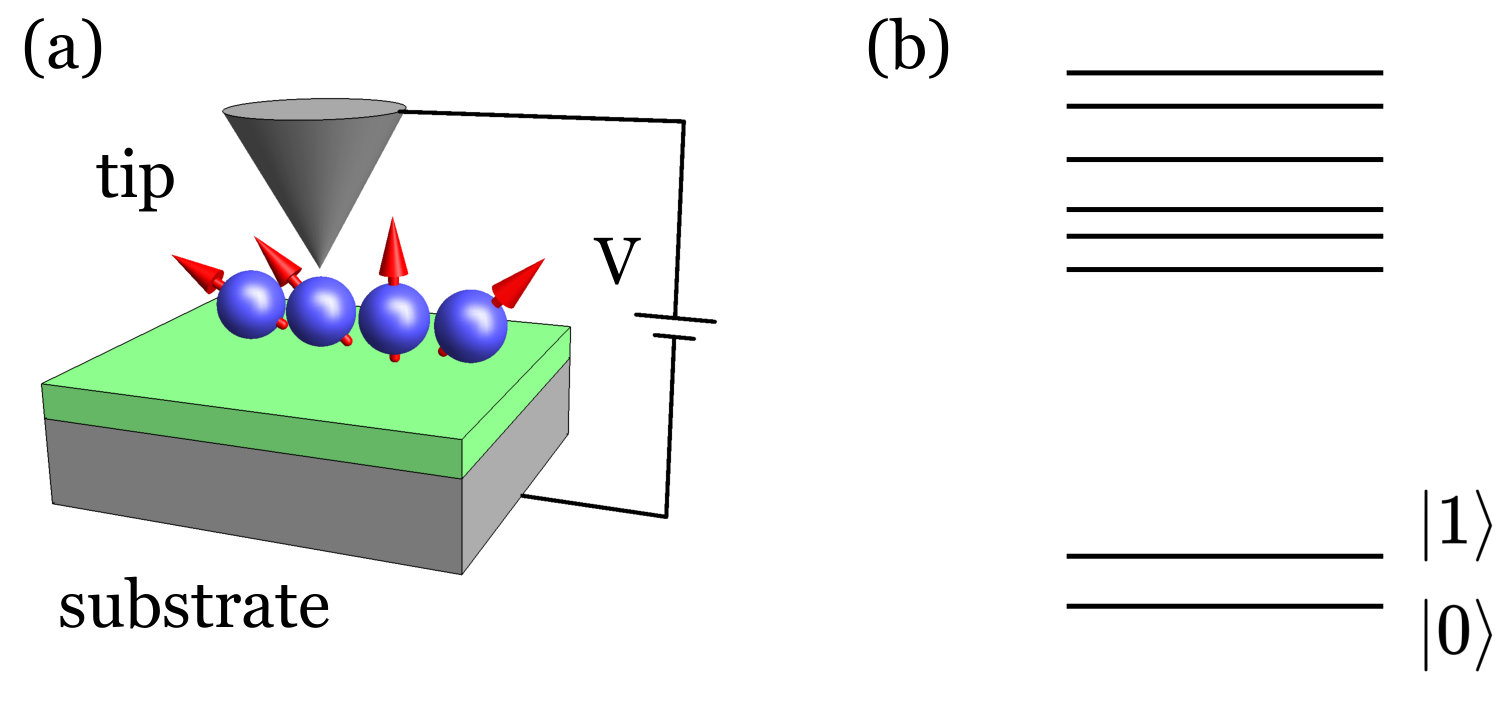

An engineered atomic spin device (EASD) consists of a cluster of magnetic atoms arranged on a metallic substrate coated by a thin insulating layer. Individual atomic degrees of freedom can be probed by placing a spin polarized STM tip on top of the respective atom, as schematically shown in Fig. 1. The entire system can be modeled by a Hamiltonian $H=H_{S}+H_{E}+H_{I}$ that consists of three terms, describing the atomic subsystem $H_{S}$, the electronic degrees of freedom of the metallic leads (including the substrate and tip) $H_{E}$, and the coupling between the atoms and these leads $H_{I}$.

The degrees of freedom of the atomic electrons reduce to those of effective spins $S_{l}$, where $l=1\ldots L$ labels the atom, whenever the Coulomb repulsion among electrons occupying localized orbitals induces a large charge gap Anderson (1966); Schrieffer and Wolff (1966). In the regime of weak hybridization between the localized atomic orbitals and those of the itinerant electrons in the leads, tunneling of electrons happens by virtual excitations of the atomic charge state. A suitable low energy description can be obtained in terms of isolated magnetic moments interacting with each other through an effective exchange Gatteschi et al. (2006). The interaction with the substrate further induces an anisotropy in the $\hat{z}$ direction Hirjibehedin et al. (2007); Otte et al. (2008); Tsukahara et al. (2009). Finally, an external magnetic field $\boldsymbol{B}$ can be applied to the system. The atomic Hamiltonian thus yields

[TABLE]

where $S_{lx^{\prime}}$, $S_{ly^{\prime}}$, and $S_{lz^{\prime}}$ are the atomic spin projections along the hard, intermediate, and easy axis of the substrate. The Zeeman terms with $\boldsymbol{h}=g\mu_{B}\boldsymbol{B}$ are proportional to the atomic $g$ factor and to the Bohr magneton $\mu_{B}$.

We model the substrate as a set of $L$ identical leads that couple independently to each atom. The tip is described as an extra lead coupled to one of the atoms $\tilde{l}$. The Hamiltonian of the leads is therefore given by

[TABLE]

where $\nu=1,\ldots,L,t$ labels the leads, and electronic states are characterized by momentum $k$ and spin $s$, quantized along the tip polarization $\boldsymbol{P}$. The leads are in thermal equilibrium with a common temperature $1/\beta$ (in energy units) and chemical potentials $\mu_{s}=0$, $\mu_{t}=-eV$, where $V$ is the applied voltage and $-e$ is the electron charge. They are further characterized by the spin-polarized local densities of states $\varrho_{\nu s}\left(\varepsilon\right)=\mathcal{V}_{\nu}^{-1}\sum_{k}\delta\left(\varepsilon-\varepsilon_{\nu ks}\right)$, where $\mathcal{V}_{\nu}$ is the corresponding volume. As the leads are good metals, their description should be independent on specific details, however, for definiteness, we use a density of states of the form

[TABLE]

where $W$ is the bandwidth, and $p_{\nu}$ is the polarization parameter of the lead $\nu$ that may take values from [math] to $1$. In the following we assume that the substrate is nonmagnetic, i.e., $p_{s}=0$, and the tip is polarized with $p_{t}=p$. We normalize the densities of states by the condition $\sum_{s}\int\varrho_{\nu s}(\varepsilon)d\varepsilon=2$ that helps us to eliminate the problems with the logarithmic terms in the master equation.

The coupling of the leads to the atoms is described by the Hamiltonian Appelbaum (1967); Kim and Kim (2004); Fernández-Rossier (2009)

[TABLE]

where $a=0,x,y,z$, the axis $z$ is aligned with the tip polarization, and $\sigma^{a}$ are the Pauli matrices (with $\sigma^{0}=I$). The terms with $a=0$ in Eq. (4) correspond to the elastic tunneling of electrons between the leads mediated by the atoms, while the terms with $a\neq 0$ describe the Kondo interaction of each atomic spin with the spin density created by the lead electrons. The coupling is assumed to be rotationally invariant, i.e., $J_{l\nu}^{a}=J_{l\nu}$ is the same for all $a\neq 0$, and the coupling energies $J_{l\nu}\simeq 2u_{l\nu}^{2}U_{l}\Delta_{l}^{-1}\left(\Delta_{l}+U_{l}\right)^{-1}$ are determined by the lead-atom hopping amplitudes $u_{l\nu}$, the intra-atomic Coulomb repulsion energies $U_{l}$, and the gaps $\Delta_{l}$ between the atomic levels and the Fermi energy of the leads Schrieffer and Wolff (1966). Since each lead is coupled to only one atom, we use $J_{ll^{\prime}}^{a}=J_{ls}^{a}\delta_{ll^{\prime}}$ for the coupling to the substrate and $J_{lt}^{a}=J_{t}^{a}\delta_{l\tilde{l}}$ for the coupling to the tip. In the following we use dimensionless parameters $\varGamma_{l\nu}^{a}=\pi J_{l\nu}^{a}\mathcal{V}_{\nu}/\left(2W\right)$ to characterize the strength of the lead-atom couplings.

II.2 Master equation

We investigate dynamics of an EASD by employing a master equation

[TABLE]

for the density matrix of the atomic spins $\rho$, that is well adapted to describe the regime of weak coupling between the atoms and the leads. The standard approach to the construction of the superoperator $\mathcal{L}$ invokes the Born and Markov approximations Breuer and Petruccione (2002). If additionally the rotating wave approximation (RWA) is employed, the superoperator $\mathcal{L}$ becomes of the Lindblad form. In case the Hamiltonian of the isolated atom has a nondegenerate spectrum, the latter approximation is equivalent to the neglect of the off-diagonal elements of $\rho$, i.e., quantum coherences. Such a description based on the rate equations for populations Delgado and Fernández-Rossier (2010); Ternes (2015) is suitable when decoherence in the system is much faster than relaxation which is often the case in experiments due to hyperfine coupling Le Gall et al. (2009). However, an account of coherences may become important in some situations Wichterich et al. (2007). In the context of EASDs, this happens for the case of nonparallel alignment of the tip polarization and the magnetic fields acting on the atoms Shakirov et al. (2016).

In this paper, we do not employ the RWA and consider the coherent dynamics of the setup given by the Redfield equation

[TABLE]

(the detailed derivation is given in Ref. Shakirov et al. (2016), with a minor difference discussed below), where the Hamiltonian $H^{\prime}_{S}=H_{S}+\Delta H_{S}$ is renormalized by terms $\Delta H_{S}=pJ_{t}S_{\tilde{l}z}-\frac{\ln 2}{2W}p^{2}J_{t}^{2}S_{\tilde{l}z}^{2}$ induced by the polarized tip. The dissipator is expressed through operators $\varLambda_{laa^{\prime}}$ given by

[TABLE]

where $\left|\alpha\right\rangle$ denotes the eigenstates of $H^{\prime}_{S}$ with energies $\omega_{\alpha}$, and

[TABLE]

[TABLE]

where $g\left(x\right)=x/\left(e^{x}-1\right)$, $f\left(x\right)=\frac{1}{\pi}P\int dy\left[g\left(y\right)+y\,\Theta\left(-y\right)\right]/\left(x-y\right)$. We note that the terms with $a=0$ or $a^{\prime}=0$ in Eq. (7) vanish, i.e., the elastic tunneling does not affect dynamics of the atoms.

The steady state $\rho_{\infty}$ of the system is determined by the eigenstate of $\mathcal{L}$ with zero eigenvalue, i.e., $\mathcal{L}\rho_{\infty}=0$. One may check that at zero voltage the steady state is given by the Boltzmann distribution $\rho_{\infty}\propto e^{-\beta H_{S}}$ and includes no coherences. At $V\neq 0$ the excitations induced by the current change the distribution, while the spin transfer torque Slonczewski (1996); Delgado et al. (2010) (in the case $p\neq 0$) results in $\rho_{\infty}$ that is not diagonal in the eigenbasis. The latter case cannot be captured by the standard approach based on rate equations for the populations Delgado and Fernández-Rossier (2010); Ternes (2015). These equations might be obtained from Eq. (7) by substituting $\rho_{\alpha\alpha^{\prime}}=p_{\alpha}\delta_{\alpha\alpha^{\prime}}$ and are given in Appendix A.

In the presence of a voltage, an electric current is generated between the tip and the substrate due to the coupling terms in Eq. (4). Its average value can be expressed through the atomic density matrix as

[TABLE]

(see Ref. Shakirov et al. (2016) for the detailed derivation) with the current superoperator $\mathcal{J}$ defined as

[TABLE]

This current superoperator can be split into three parts Fernández-Rossier (2009); Delgado and Fernández-Rossier (2010)

[TABLE]

where (i) $\mathcal{J}_{e}$ includes the terms of Eq. (12) with $a=a^{\prime}=0$ and corresponds to the elastic component of the current, (ii) $\mathcal{J}_{m}$ includes the terms of Eq. (12) with $a=0,\,a^{\prime}\neq 0$ and $a\neq 0,\,a^{\prime}=0$, and corresponds to the magnetoresistive component of the current, and (iii) $\mathcal{J}_{i}$ includes the terms of Eq. (12) with $a\neq 0,\,a^{\prime}\neq 0$, and corresponds to the inelastic component of the current. The average values of the first two components are given by

[TABLE]

where $\langle S_{\tilde{l}z}\rangle=\text{tr}\left(S_{\tilde{l}z}\rho\right)$, and we defined the elastic conductance $g_{e}=\frac{1}{\pi}e^{2}\varGamma_{\tilde{l}s}^{0}\varGamma_{t}^{0}$, the inelastic conductance $g_{i}=\frac{1}{\pi}e^{2}\varGamma_{\tilde{l}s}\varGamma_{t}$, and the magnetoresistive conductance $g_{m}=\sqrt{g_{e}g_{i}}$.

We note that the master equation (7) contains terms originating from the imaginary part of $\kappa\left(\omega\right)$, see Eq. (10), which were not considered in the previous work Shakirov et al. (2016). The corresponding part of the superoperator has eigenvalues with positive real part and may result in unphysical dynamics when the density matrix loses its positivity. The physical origin of this contribution is not fully understood, though it is known that logarithmic terms in the bandwidth induce an additional shift to the energy levels Breuer and Petruccione (2002); Uchiyama et al. (2009); Oberg et al. (2014); Delgado et al. (2014). It is tempting to interpret these logarithmic terms in the master equation as a weak coupling signature of Kondo physics. However, they vanish for the $V=0$ steady state described by the Boltzmann distribution and thus cannot be responsible for the Kondo effect. The results of the current spectra calculated with two master equations, with and without the imaginary part of $\kappa\left(\omega\right)$, are qualitatively similar, as shown in Appendix B.

III Results

In this section we study relaxation and decoherence in spin based qubits whose dynamics may be described by the introduced model. We pay special attention to the definitions of the corresponding timescales $T_{1}$ and $T_{2}$ and revise them for the case when the qubit is realized on quantum systems with more than two levels. We introduce the generalized definitions for the relaxation and decoherence timescales and use them to calculate $T_{1}$ and $T_{2}$ in some exemplary systems. The discussion is lead in the context of EASDs but is easily extendable to generic open quantum systems.

III.1 Generalized relaxation and decoherence times

The notions of relaxation and decoherence times were first introduced in the theory of nuclear magnetic resonance Bloch (1946) and have been applied to many open physical systems since then. In such systems the interaction with surroundings causes the thermal equilibration and loss of information. On a fundamental level, the first process described by the relaxation time $T_{1}$ is explained by the redistribution of the state populations due to the energy exchange with the surroundings. The second process has a different timescale $T_{2}$ (typically much shorter than $T_{1}$) and is due to the loss of quantum coherence. These timescales turned out to be especially relevant in the context of quantum information science where they are used to characterize the quality of qubits. For two level systems, the times $T_{1}$ and $T_{2}$ are uniquely defined. However, qubits are often realized on quantum systems which have more than two states. Though the quantum information in this case is still recorded in the subspace of two relevant states, the transitions to other states induced by the surroundings cannot be disregarded. Thus the notions of relaxation and decoherence times for such qubits have to be clarified.

In this subsection we first show how the timescales $T_{1}$ and $T_{2}$ arise for a single atom with spin $S=1/2$ (two-level system) and study their behavior as different parameters of the setup, such as the voltage and the tip polarization, are tuned. We then discuss possible generalized definitions for $T_{1}$ and $T_{2}$ that (i) work for systems with more than two levels, (ii) are physically justified, and (iii) recover the standard $T_{1}$ and $T_{2}$ for two-level systems.

III.1.1 Statement of the problem for spin $S=1/2$

A single atom with spin $S=1/2$ is a two level system whose density matrix has a standard geometrical representation as a Bloch vector. The connection between the Bloch vector $\boldsymbol{p}$ (with $\left|\boldsymbol{p}\right|\leqslant 1$ for physically meaningful states) and the density matrix $\rho$ (in the eigenbasis of $H_{S}=-\frac{1}{2}h\sigma^{z}$) is given by the relations

[TABLE]

where $I$ is the identity matrix and $\boldsymbol{\sigma}=\left\{\sigma^{x},\sigma^{y},\sigma^{z}\right\}$ is the Pauli vector. The Redfield equation (7) for $\rho$ maps to the Bloch equation of the form

[TABLE]

with explicit expressions for a vector $\boldsymbol{\omega}$, a real symmetric matrix $\boldsymbol{R}$ and the steady state $\boldsymbol{p}_{0}$ given in Appendix C.

We first consider the situation when the tip is not polarized and no voltage is applied across the system, i.e., $p=0$ and $V=0$. In this case the atom relaxes to the Boltzmann state with Bloch vector $\boldsymbol{p}_{0}=\tanh\left(\beta h/2\right)\hat{z}$, and

[TABLE]

where we introduced $T_{\varphi}=2\pi\beta/\left(\varGamma_{s}+\varGamma_{t}\right)^{2}$. The matrix $\boldsymbol{R}$ has the structure

[TABLE]

so that relaxation of the Bloch vector components $\boldsymbol{p}_{\parallel}$ and $\boldsymbol{p}_{\perp}$ perpendicular and parallel to $\hat{z}$ is decoupled. The timescales $T_{1}$ and $T_{2}$ characterize the processes of the population imbalance relaxation and the decoherence correspondingly and are given by

[TABLE]

where $g\left(x\right)$ is defined below Eq. (10). One can see that $1/T_{2}=1/(2T_{1})+1/T_{\varphi}$, so that $T_{\varphi}$ has physical meaning of the pure dephasing time Cohen-Tannoudji et al. (1992); Delgado and Fernández-Rossier (2017). Both timescales depend on the energy difference between two states $\omega_{1}-\omega_{0}=h$, reaching maximum for $h=0$. They might be associated with the eigenvalues of superoperator $\mathcal{L}$ from the master equation (6). For spin $S=1/2$ this superoperator has one zero eigenvalue, $\lambda_{0}=0$, corresponding to the steady state, and three nonzero eigenvalues $\lambda_{i=1,2,3}$, with $\lambda_{1}$ being real and two others forming a pair of conjugates $\lambda_{2}=\lambda_{3}^{*}$. They relate to the relaxation and decoherence times as

[TABLE]

If unpolarized current is driven through the atom, i.e., $p=0$ and $V\neq 0$, the steady state $\boldsymbol{p}_{0}$ and $\boldsymbol{\omega}$ remain aligned with $\hat{z}$ but depart from their equilibrium magnitudes. The relaxation matrix still has the structure (20), but the timescales $T_{1}$ and $T_{2}$ differ from the equilibrium ones (21) and (22) by

[TABLE]

where we used $\tilde{g}\left(h,V\right)=g\left(\beta\left(h+eV\right)\right)+g\left(\beta\left(h-eV\right)\right)-2g\left(\beta h\right)>0$. In this form it is evident that $T_{1}$ and $T_{2}$ decrease compared to their zero bias values.

If polarized current is driven through the atom, i.e., $p\neq 0$ and $V\neq 0$, both $\boldsymbol{\omega}$ and $\boldsymbol{p}_{0}$ are affected by the spin transfer torque and, as soon as $\boldsymbol{P}\nparallel\boldsymbol{B}$, are no longer aligned with $\hat{z}$ nor with each other. The dynamics of the components $\boldsymbol{p}_{\parallel}$ and $\boldsymbol{p}_{\perp}$ of the Bloch vector get coupled, i.e., the relaxation matrix does not have the form (20). In this case the standard concepts of timescales $T_{1}$ and $T_{2}$ become ill defined and have to be reconsidered. The possible solution is to define them through Eqs. (23) and (24). Thus introduced $T_{1}$ and $T_{2}$ are univocal for a two-level system whose superoperator $\mathcal{L}$ has one real nonzero eigenvalue and two eigenvalues forming a complex-conjugated pair. In this case the decay of the density matrix corresponding to the eigenvalue (23) mostly affects the populations, while the eigenvalues (24) correspond to the decay process mainly involving coherences. However, it might also happen that $\mathcal{L}$ has three distinct real eigenvalues Kimura (2002); Sudarshan (2003), in which case such clear demarcation between relaxation and decoherence is not possible.

III.1.2 Definition of generalized relaxation and decoherence times

Our ability to introduce relaxation and decoherence times in the previous subsection relied on the fact that the system had two levels, and one was able to uniquely express $T_{1}$ and $T_{2}$ through the eigenvalues of the superoperator $\mathcal{L}$. This is not possible for spin systems with more than two levels. If two distinct eigenstates of the system $\left|0\right\rangle$ and $\left|1\right\rangle$ are used to realize a qubit, the timescales $T_{1}$ and $T_{2}$, by their physical meaning, should be defined as decay times for $\rho_{00}-\rho_{11}$ and $\rho_{01}$ correspondingly. However, dynamics of these quantities is governed by multiple timescales determined by the eigenvalues of $\mathcal{L}$. This is due to the fact that transitions to other eigenstates may happen, so that the state of the system does not remain in the subspace spanned by $\left|0\right\rangle$ and $\left|1\right\rangle$, as was the case for two-level systems.

We now introduce generalized definitions for the relaxation and decoherence times given they must characterize the ability of a qubit to store information about the initial state. For a system with the Hilbert space of dimension $d$, the initial states are prepared within the subspace $\left\{\left|0\right\rangle,\left|1\right\rangle\right\}$ and can be written as $\rho_{\boldsymbol{v}}=\frac{1}{2}\left(I+\boldsymbol{v}\cdot\boldsymbol{\sigma}\right)$, where $I$ and $\sigma^{x,y,z}$ are $d\times d$ matrices obtained from corresponding $2\times 2$ matrices by filling missing elements with zeros. The distinguishability of two quantum states can be characterized by the Hilbert-Schmidt distance between their density matrices $||\rho-\rho^{\prime}||\equiv\sqrt{\text{tr}\left[\left(\rho-\rho^{\prime}\right)^{2}\right]}$. This distance does not change over time in isolated systems but decreases in open quantum systems whose density matrices evolve towards a steady state. Therefore we consider the quantity

[TABLE]

where $\boldsymbol{\Delta}=\boldsymbol{v}-\boldsymbol{v}^{\prime}$ and $\rho_{\boldsymbol{v}}(t)=e^{\mathcal{L}t}\rho_{\boldsymbol{v}}$ is the time evolved density matrix. Our goal is to associate the generalized $T_{1}$ and $T_{2}$ with the decay timescales of this quantity. We first note that

[TABLE]

depends only on the difference between vectors $\boldsymbol{v}$ and $\boldsymbol{v}^{\prime}$ which was used in Eq. (25). Treating matrices as vector states for the superoperator action and using the notation $\rho\rightarrow\left\|\rho\right\rangle$, one may decompose the master equation superoperator as $\mathcal{L}=\sum_{i}\lambda_{i}\left\|\rho_{i}\right\rangle\left\langle\tilde{\rho}_{i}\right\|$, where $\left\|\rho_{i}\right\rangle$ and $\left\langle\tilde{\rho}_{i}\right\|$ are eigenvectors of $\mathcal{L}$ with eigenvalue $\lambda_{i}$, obtaining

[TABLE]

where $a=x,y,z$. The distance between time evolved density matrices then reads

[TABLE]

where we introduced a time-dependent $3\times 3$ matrix $\boldsymbol{M}\left(t\right)$ with elements

[TABLE]

Equation (25) then transforms to

[TABLE]

From this expression one may see that the decay of $D\left(\boldsymbol{\Delta},t\right)$ has three timescales determined by the decay times of three eigenvalues of $M\left(t\right)$. We denote these eigenvalues as $m_{k}\left(t\right)$, $k=1,2,3$ and define timescales $T_{k}$ through the relations $\sqrt{m_{k}\left(T_{k}\right)}=1/e$, using a (quasi)monotonic decrease of $m_{k}\left(t\right)$ from $1$ at $t=0$ to [math] at $t=\infty$.

For most of the systems considered below, we found that two of these timescales form a pair of close values $T_{2}\simeq T_{3}$ (differing by less than 1$\%$) and the third one $T_{1}$ is different from them. In such cases we associate $T_{1}$ with relaxation and $T_{2}=T_{3}$ with decoherence, in analogy with two-level systems. As shown in Appendix D, the introduced relaxation and decoherence times coincide with the standard definitions for two-level systems when dynamics of populations and coherences are decoupled. In case all three timescales $T_{1}$, $T_{2}$, and $T_{3}$ are distinct from each other, a clear identification of relaxation and decoherence processes is not possible as these timescales generically correspond to rates of information loss that affect both diagonal and off-diagonal elements of the density matrix.

III.2 Relaxation and decoherence for different setups

In order to store and manipulate a qubit encoded in the quantum state of an assembly of interacting magnetic atoms, the system is required to have two low-lying energy states and relaxation and decoherence times much larger than storage and manipulation timescales of the qubit. In this subsection we use the introduced definitions to study the properties of $T_{1}$ and $T_{2}$ in several systems engineered to have two lowest energy states separated from the remaining part of the spectrum, as shown in Fig. 1. We consider (i) atomic systems that can be described by one spin variable and (ii) atomic chains coupled by spin-spin interactions. We study the dependence of the relaxation and decoherence times on the system size (spin $S$ for single atoms and length $L$ for spin chains) and on the parameters of the environment such as the voltage, the temperature, and the external magnetic field. We also discuss the strategies for decoherence suppression in such devices. For Ising chains with longitudinal coupling, we show three timescales $T_{1}$, $T_{2}$, and $T_{3}$ instead of two because the identification of a pair of close values is not possible in this case.

III.2.1 Collective spin models

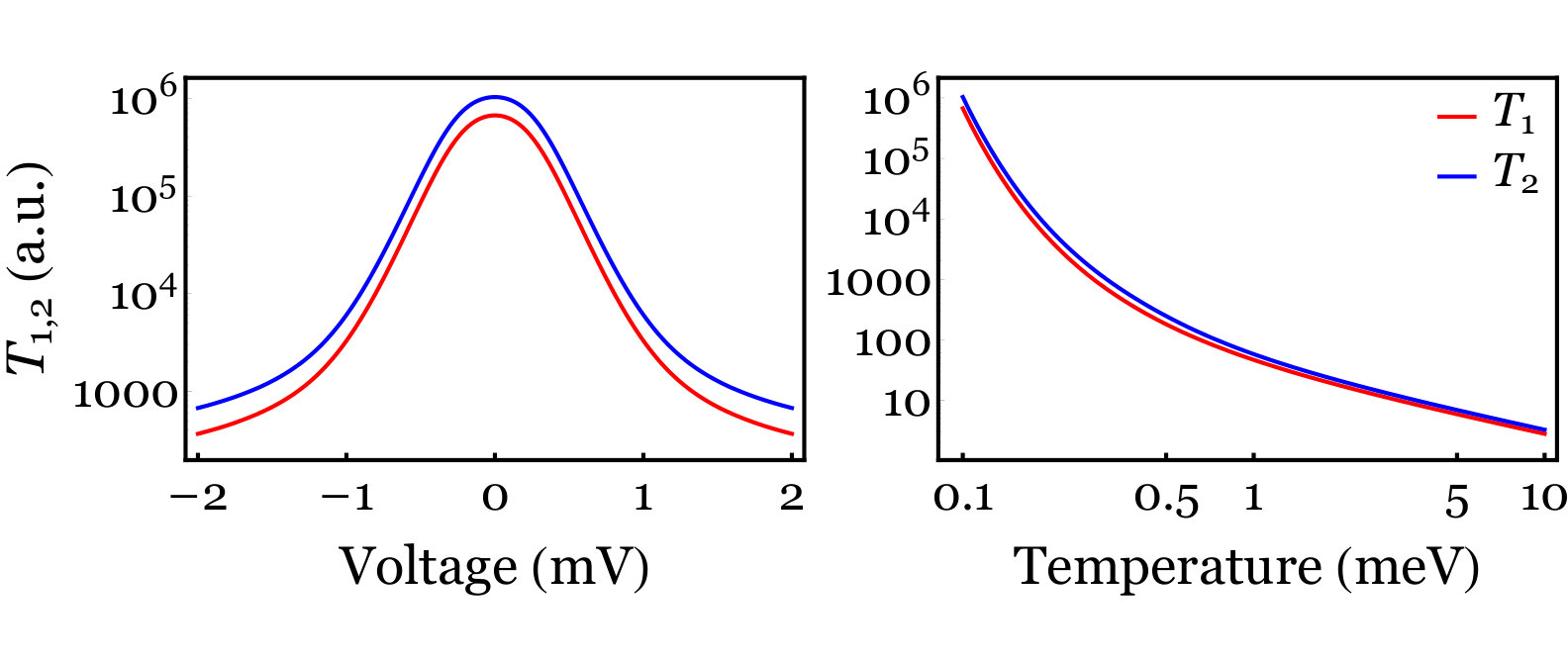

In many cases the Hamiltonian of the atomic structure commutes with the square of the total spin $\boldsymbol{S}=\sum_{l}\boldsymbol{S}_{l}$, and the ground state is either in the highest or lowest spin sector. Typically, the highest multiplicity is more energetically favorable due to the Hund’s rule. Even if $S^{2}$ does not commute with the dissipative terms in the Liouvilian, a description in terms of a collective spin-$S$ is possible, assuming that the other spin sectors are much higher in energy and cannot be excited by the environment.

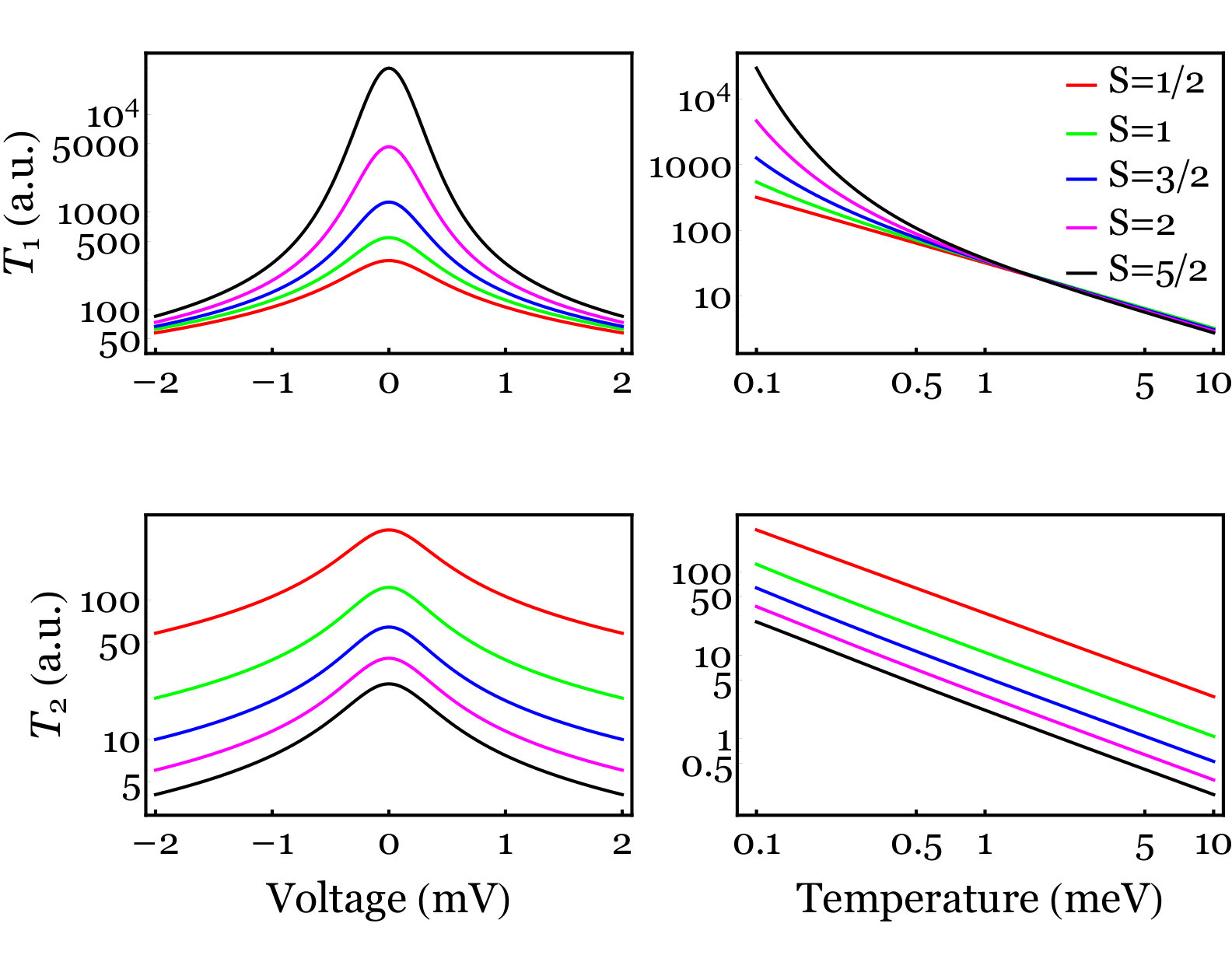

The situation described above amounts to consider a single spin-$S$ in Eq. (1). In order to have two low-lying states that can encode a qubit, we consider $D<0$ such as to obtain an inverted parabolic spectrum with a ground-state manifold spanned by $\left|0\right\rangle=\left|-S\right\rangle$ and $\left|1\right\rangle=\left|+S\right\rangle$ Khajetoorians et al. (2013); Miyamachi et al. (2013). For simplicity we consider the case $E=h=0$. The times $T_{1}$ and $T_{2}$ for the qubits realized on these states are presented in Fig. 2 as functions of the voltage and the temperature for different values of $S$. In the numerical calculations we assume an unpolarized tip and use the parameters $D=-0.1$ meV for the anisotropy, $J_{s}=J_{t}=1$ meV for the inelastic coupling to the leads, and $W=10$ meV for the bandwidth of the leads. One observes that the relaxation time $T_{1}$ increases with $S$, while the decoherence time $T_{2}$ shows the opposite behavior. This can be explained by the fact that the lowest order transitions induced by the environment can only change the atomic spin projection by 1. Switching between the two ground states thus requires a series of $2S$ transitions with the largest transition energy being $D\left(2S-1\right)$. Two effects then lead to an increase of $T_{1}$ as $S$ increases: More transitions are needed in the cascade, and the transition energy gets larger. At low temperatures, the Boltzmann weights account for the exponential growth of $T_{1}$, while at large $T$, the relaxation time is inversely proportional to the temperature. The decoherence time shows $1/T$ behavior in the whole temperature region. The dependence of $T_{2}$ on the atomic spin is explained by the fact that the two ground states have distinct magnetizations, and the larger they are, the more effectively spin fluctuations destroy the coherence between them. The effect of the voltage in the reduction of both $T_{1}$ and $T_{2}$ is explained by the fact that higher energy electrons, inducing faster transitions and larger spin fluctuations, become accessible by inelastic scattering. In the large voltage limit, both the relaxation and decoherence times decrease as $1/V$ which is simply explained by the asymptotic behavior of the function $\kappa\left(\omega\right)$ in Eq. (8).

Let us now consider a different situation where the Hund’s rule is not satisfied, and the lowest energy states are singlets. The first nontrivial case arises for a system of four $S=1/2$ atoms where the two singlets are formed. Since the matrix elements of these states with the environment coupling terms vanish, the evolution within the singlet subspace is purely unitary. Such decoherence-free subspace was exploited in Ref. Bacon et al. (2001) to realize a qubit robust to local decoherence. However, while the leading order decoherence effects of the considered system are suppressed, finite values of $T_{1}$ and $T_{2}$ are still expected due to the presence of the other spin sectors.

Such a system can be realized setting $J_{ll^{\prime}}=J>0$ in Eq. (1) with four $1/2$-spins, in which case the ground state is doubly degenerate and comprised of two singlets $\left|0\right\rangle$ and $\left|1\right\rangle$. One may realize such a Hamiltonian with four atoms coupled to each other pairwise with the same Heisenberg energy, i.e., in the tetrahedron geometry. The times $T_{1}$ and $T_{2}$ for the qubit encoded within the singlet states are shown in Fig. 3 as functions of the voltage and the temperature. In the calculations we assume the unpolarized tip and use the parameters $J=0.5$ meV for the Heisenberg energy, $J_{s}=J_{t}=1$ meV for the inelastic coupling to the leads, and $W=10$ meV for the bandwidth of the leads. Note that, in this system, the relaxation and decoherence times are of the same order in the whole region of parameters. This means that pure dephasing is absent, and the finite value of $T_{2}$ is only due to the transitions between the singlet states mediated by the higher spin sectors whose states have higher energy. Thus in the limit $T\to 0$, due to the Boltzmann factor, both relaxation and decoherence are exponentially suppressed. This should be contrasted with the case of a single spin where $T_{2}\propto 1/T$. The absence of pure dephasing can be explained by the fact that all matrix elements of local spin operators in the ground state subspace are zero, i.e., $\left\langle i\right|S_{la}\left|j\right\rangle=0$ for $i,j=\left|0\right\rangle,\left|1\right\rangle$, and the right hand side of the master equation projected onto this subspace vanishes identically.

III.2.2 Spin chains

We now study the properties of the relaxation and decoherence times for two types of $S=1/2$ spin chains: (i) Ising chains and (ii) transverse field Ising chains with longitudinal coupling. For both of them we assume that the tip is coupled to the atom at the end of the chain, i.e., $\tilde{l}=1$.

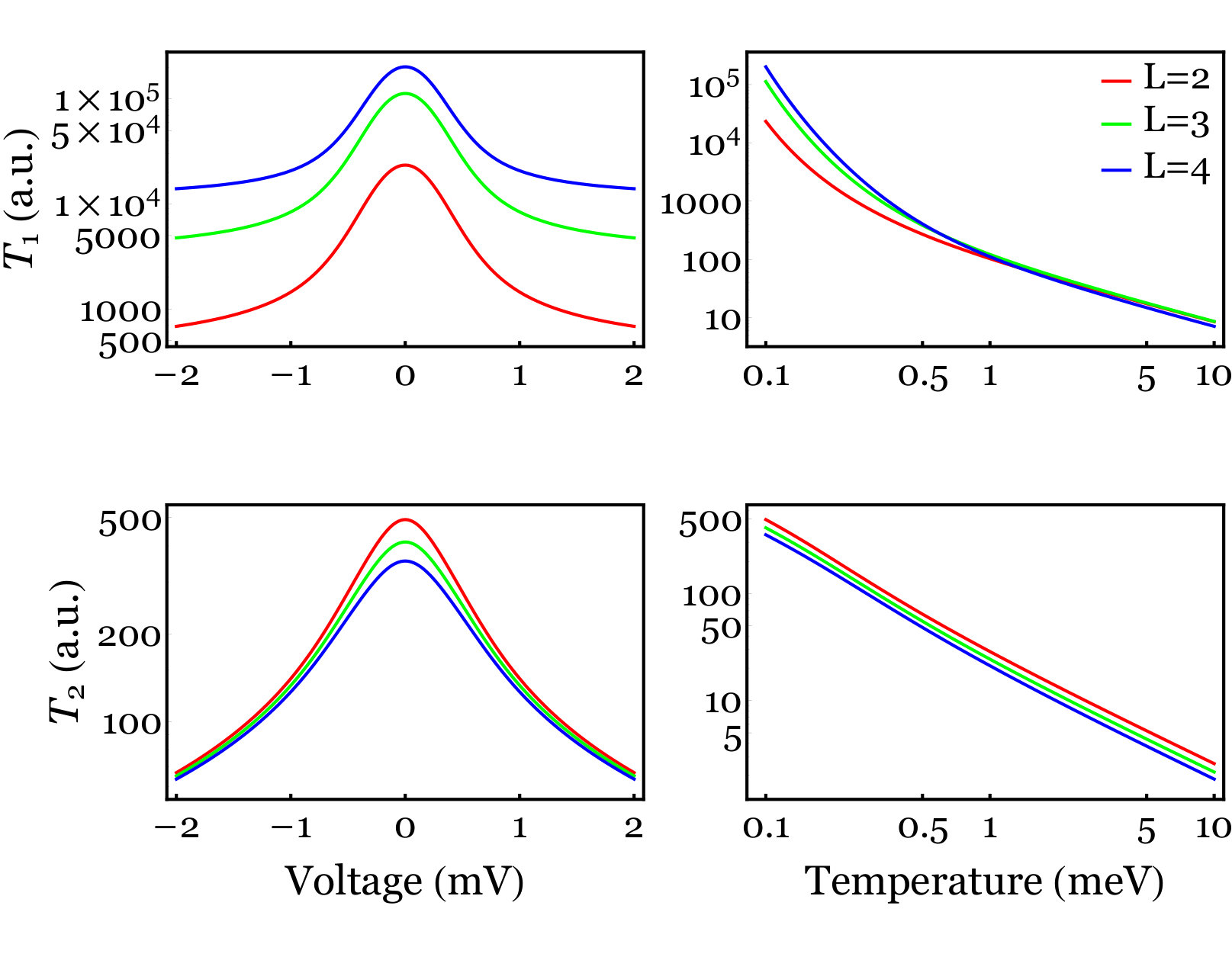

The Ising chain is described by the Hamiltonian

[TABLE]

where atoms have spin $1/2$ and $L$ is the chain length. The system has doubly degenerate ground states which are (anti)ferromagnetically ordered for $J<0$ ($J>0$). The relaxation and decoherence times for the qubit realized on these states are presented in Fig. 4 as functions of the voltage and the temperature for the chains of different length. In the calculations we assume the unpolarized tip and use the parameters $J=-1$ meV, $J_{s}=J_{t}=1$ meV for the inelastic coupling to the leads, and $W=10$ meV for the bandwidth of the leads. One can observe that $T_{1}$ increases with the chain length, while $T_{2}$ shows the opposite behavior. However, the dependence of the decoherence time on the system size is not as pronounced as in the case of single atoms of different total spin $S$ considered above. This is because the energy barriers for the excitation processes do not scale with $L$, and the transition between the two ground states is realized by the excitation of a spin at the chain edge and the diffusive propagation of the domain wall to the opposite edge. Applying a voltage or increasing the temperature results in the decrease of $T_{1}$ and $T_{2}$. Both timescales behave as $1/T$ and $1/V$ in the limits of large temperature and large voltage correspondingly. Similarly to the case of single atoms, the relaxation time shows the exponential growth at low temperature, while the decoherence time preserves $1/T$ behavior in the whole temperature region. The results are in qualitative accordance with experimental data from Ref. Loth et al. (2012) where the properties of the switching rate (we associate it with $1/T_{1}$) between two lowest energy states in spin chains were studied.

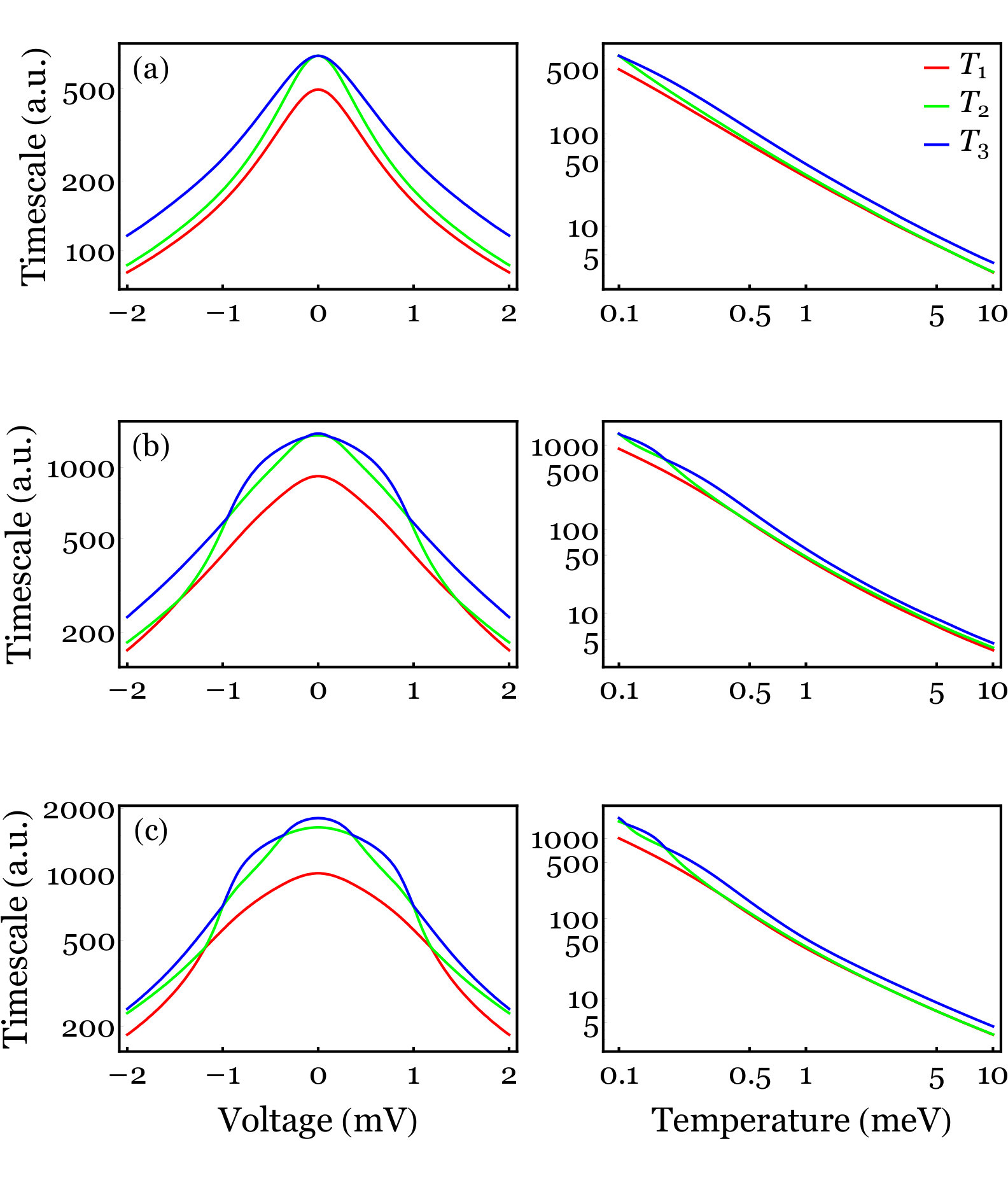

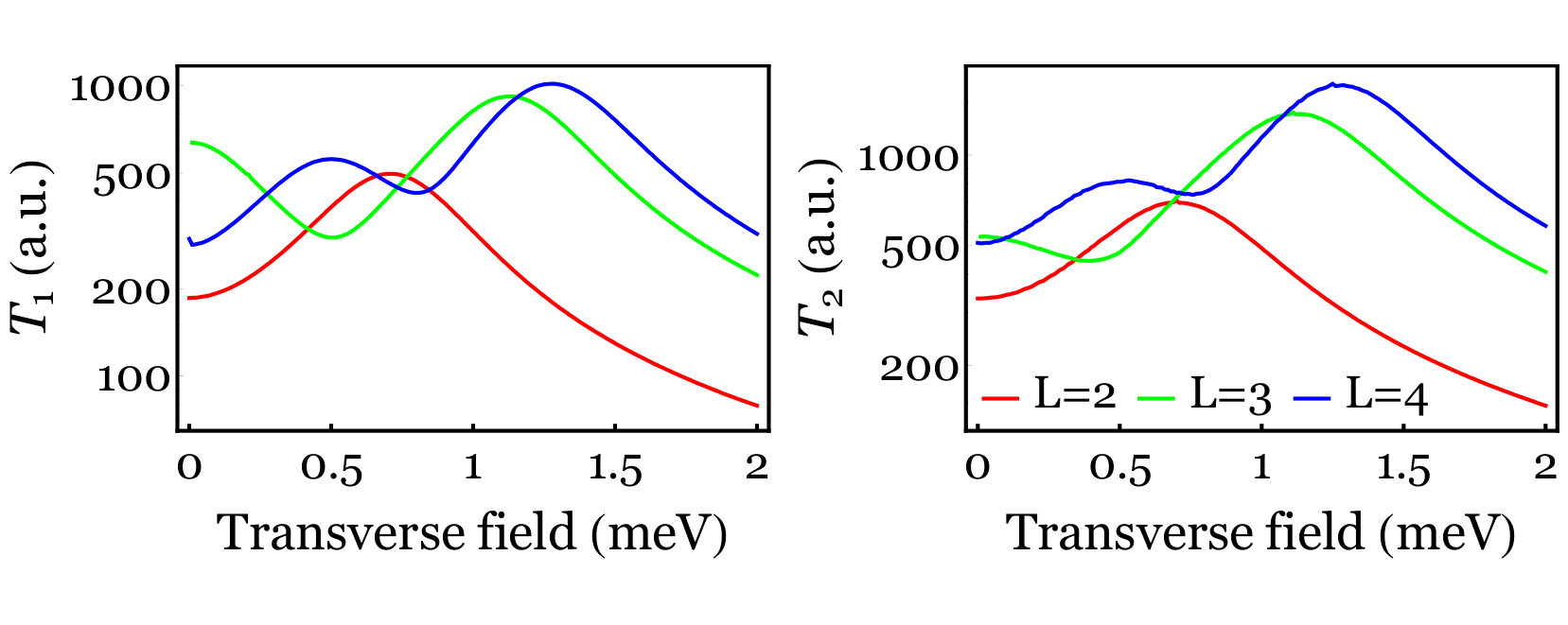

Finally, we study the properties of the relaxation and decoherence times when topological states are used for qubit realization. For this we consider the transverse field Ising chain with longitudinal coupling described by the Hamiltonian

[TABLE]

where we assume the parameters $J$, $g$, and $h$ to have positive values. In the thermodynamic limit $L\to\infty$ this model experiences a transition from paramagnetic to magnetically ordered phase upon tuning the field value $h$. In the paramagnetic phase, below the critical value of the field, the system has a twofold degenerate ground state which might be described in terms of the Majorana edge states Kitaev (2001). For finite chains the degeneracy is lifted but the topological order manifests itself in the level crossings of the two lowest energy states as the field value is changed Toskovic et al. (2016). Figure 5 shows the dependence of the times $T_{1}$ and $T_{2}$ for the qubit realized with these states on the field value $h$ for the chains of different length $L$. In the calculations we assume the unpolarized tip and use the parameters $J=1$ meV, $g=1$, $k_{B}T=0.1$ meV for the temperature, $J_{s}=J_{t}=1$ meV for the inelastic coupling to the leads, and $W=10$ meV for the bandwidth of the leads. One sees an increase in the relaxation and decoherence times at values of $h$ corresponding to the level crossings. This behavior can be explained by the dependence of the transition rates on the excitation energy, see Appendix A, and has nothing to do with the topological nature of the qubit states. Thus the topological order does not suppress environment induced decoherence in this case. If the field value is kept at its critical value, three timescales of the information loss associated with the decay of the quantity (25) do not contain a pair of close values, as was the case in all previous examples. The dependence of all three timescales on the voltage and the temperature is shown in Fig. 6, where the value of the field is chosen at the largest level crossing point for each $L$. One might see that $T_{1}$, $T_{2}$, and $T_{3}$ are of the same order and demonstrate similar behavior. At low temperatures, these timescales do not show an exponential growth because direct transitions between $\left|0\right\rangle$ and $\left|1\right\rangle$ are allowed, i.e., $\left\langle 0\right|S_{la}\left|1\right\rangle\neq 0$ in general.

IV Conclusion

In conclusion, we applied a master equation approach to study relaxation and decoherence in engineered atomic spin structures due to their interaction with electrons from surroundings. Our goal was to characterize these two processes by the corresponding timescales $T_{1}$ and $T_{2}$ for a qubit realized on the two lowest energy states of an atomic spin structure. We thus analyzed the dynamics of the corresponding $2\times 2$ subspace of the atomic density matrix. We encountered a problem with the usual association of the relaxation and decoherence times with the decay of the population imbalance and the off-diagonal matrix elements. The only case when the standard definition can be used is for a single atom with spin $S=1/2$ whose density matrix can be unequivocally mapped onto the Bloch vector. But even in this case, the standard definition has limited applicability since it implicitly assumes dynamics of coherences and populations to be decoupled. This condition is not fulfilled if the tip polarization is not parallel to the polarization of the qubit states. For systems with more than two states, the problem of defining $T_{1}$ and $T_{2}$ gets even more severe, as the dynamics of the populations and coherences within the qubit subspace couple to higher energy states. In the present paper, we generalize the concepts of the relaxation and decoherence times by introducing three timescales $T_{1}$, $T_{2}$, and $T_{3}$ that characterize the process of the information loss. These timescales match the standard relaxation and decoherence times, with $T_{2}=T_{3}$, whenever the latter two are well defined.

Equipped with the generalized definitions for the relaxation and decoherence times, we studied several classes of systems where the qubit states are identified with the two lowest energy states. We found that in most cases $T_{2}\simeq T_{3}$, and one can reduce three timescales to two, associating $T_{1}$ with relaxation and $T_{2,3}$ with decoherence. Analysis of single atoms of different spin and spin chains of different length showed that $T_{1}$ generically increases with the system size, while $T_{2}$ does the opposite. The growth of $T_{1}$ with system size is faster for the collective spin models where not only the number of cascade transitions, needed to pass from one low-lying energy state to another, increases, but the energies of the transitions also do. We found that both relaxation and decoherence times behave as $1/T$ and $1/V$ in the limits of large temperature and large voltage correspondingly. The low temperature behavior of $T_{1}$ depends on whether the environment is able to induce direct transitions between the qubit states. If not, the relaxation time grows exponentially as the temperature is decreased, due to the Boltzmann weight. Strategies to increase $T_{1}$ pass therefore by providing an energy barrier for transitions between the two states. The low temperature properties of $T_{2}$ are determined by the average polarizations of the atoms in the qubit states. If they are not zero, the environment causes dephasing and $T_{2}\propto 1/T$ behavior is preserved. If all the atoms are unpolarized in both qubit states, the dephasing is absent and the decoherence is fully due to transitions to higher energy states, i.e., $T_{2}$ behaves similarly to $T_{1}$ and might be exponentially suppressed as well by lowering the temperature. This situation was observed in the collective spin model where both qubit states are singlets.

In more complex systems, here illustrated by a transverse field Ising chain with longitudinal coupling tuned such that the ground state is degenerate, the three timescales are seen, i.e., $T_{2}\neq T_{3}$. In this case, the demarcation between the relaxation and decoherence processes is not possible since they are substantially coupled to each other.

This work gives specific directions towards the engineering of decoherence-free spin based qubits and shows that the implementation of this strategy in engineered atomic spin devices is realistic. We note that our model includes only leading order processes in the atom-lead coupling and assumes a decorated environment for each atom. At very low temperatures, higher order or nonperturbative effects may limit the exponential growth of $T_{2}$.

The sources of decoherence are not only limited to the electrons in the metallic surface, as the magnetic degrees of freedom also couple to substrate phonons and nuclear spins Delgado and Fernández-Rossier (2017). The present strategy will improve decoherence times as long as the leading coupling to the environment involves a magnetic exchange interaction, as in the case of nuclear spins.

Our work motivates several questions. One is the possibility of implementing a decoherence-free subspace for a single qubit whose $T_{1}$ and $T_{2}$ can be made larger by increasing the number of spins in the structure. This would permit us to improve the decoherence times arbitrarily by increasing the resources allocated to encode each qubit. The use of topologically protected states Dennis et al. (2002); Delgado et al. (2013); Nadj-Perge et al. (2014) and skyrmions Romming et al. (2013); Nagaosa and Tokura (2013) indeed goes in this direction, however it is hard to envision its implementation with EASDs. Another question is how to scale this strategy to multiple interacting qubits and how to perform current measurements that can distinguish the qubit states.

Acknowledgements.

We are thankful to L.-H. Frahm for fruitful discussions. This work was funded by RSF Grant No. 16-42-01057 and DFG Grant No. LI 1413/9-1. P.R. acknowledges support by FCT through the Investigador FCT contract IF/00347/2014 and Grant No. UID/CTM/04540/2013.

Appendix A Rate equations

The rate equations for the populations of spin states

[TABLE]

are obtained by substituting the density matrix of the form $\rho_{\alpha\beta}=p_{\alpha}\delta_{\alpha\beta}$ into the Redfield equation (7). The transition rates in Eq. (33) are given by

[TABLE]

and might be expressed as

[TABLE]

where $g\left(x\right)=x/\left(e^{x}-1\right)$. Note that this expression does not contain the imaginary part of $\kappa\left(\omega\right)$ defined in Eq. (10).

If the tip is absent, the transition rates are given by

[TABLE]

In the low temperature case, when transitions from the qubit states $\left|0\right\rangle$ and $\left|1\right\rangle$ to the higher energy states are exponentially suppressed, the relaxation time might be approximated by

[TABLE]

where $\Delta=\omega_{1}-\omega_{0}$ is the energy splitting between the qubit states. The function $T_{1}\left(\Delta\right)$ reaches its maximum at $\Delta=0$ which explains Fig. 5 discussed in Sec. III.2. One may also see that the relaxation time obtained from Eq. (37) is infinite if the matrix elements of all local spin operators $S_{la}$ between qubit states are zero, i.e., $\left\langle 0\right|S_{la}\left|1\right\rangle=0$. The real value of $T_{1}$ in this case is determined by transition rates to higher energy states which are exponentially small.

Appendix B Comparison of master equations

In this appendix we compare the results for the magnetoresistive and inelastic current spectra calculated with (i) rate equations, (ii) master equation with only real part of $\kappa\left(\omega\right)$, (iii) master equation with full $\kappa\left(\omega\right)$. We consider a single atom with spin $S=1/2$ in the magnetic field perpendicular to the polarization of the current, the simplest example where all three methods give different results.

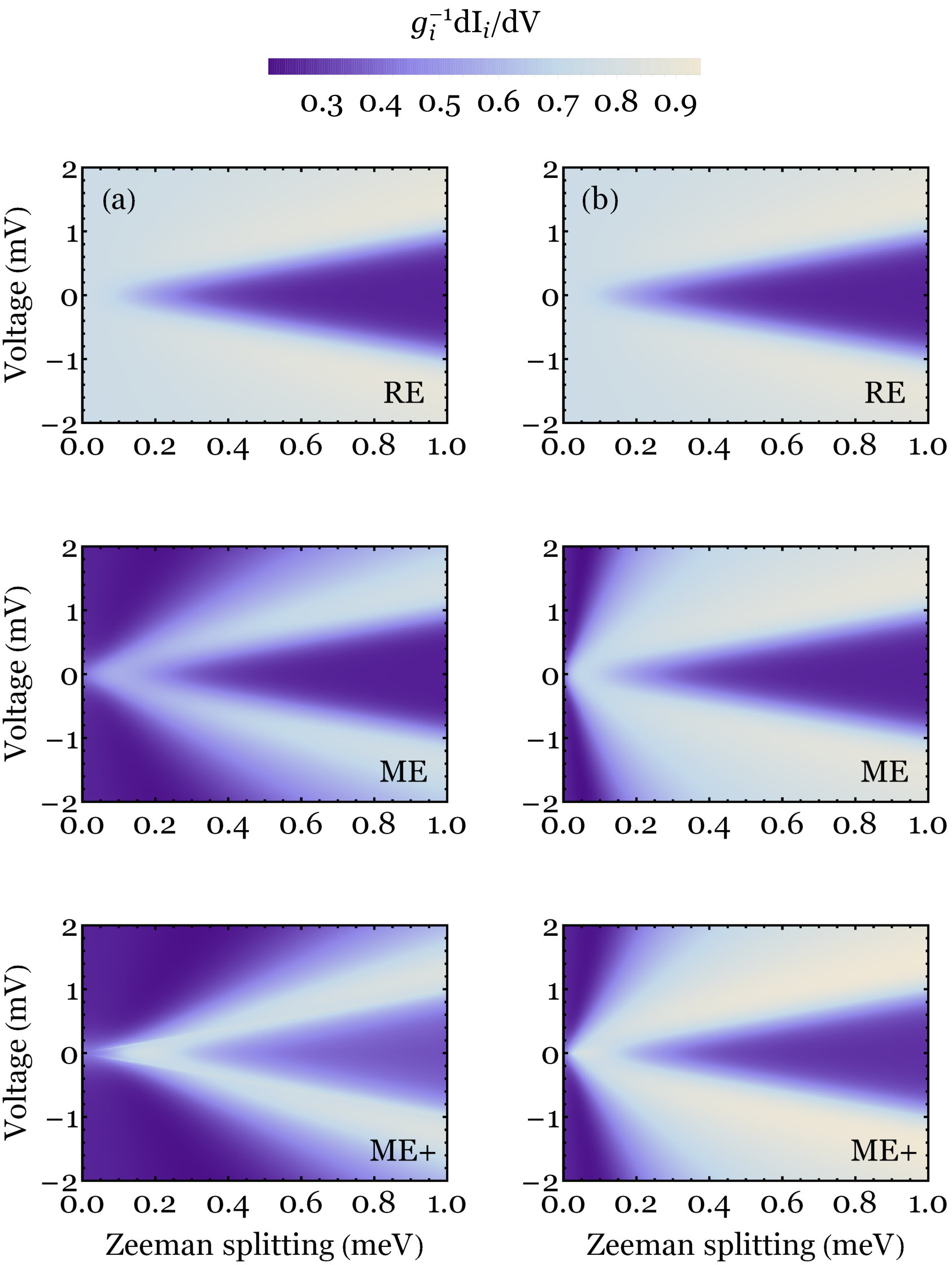

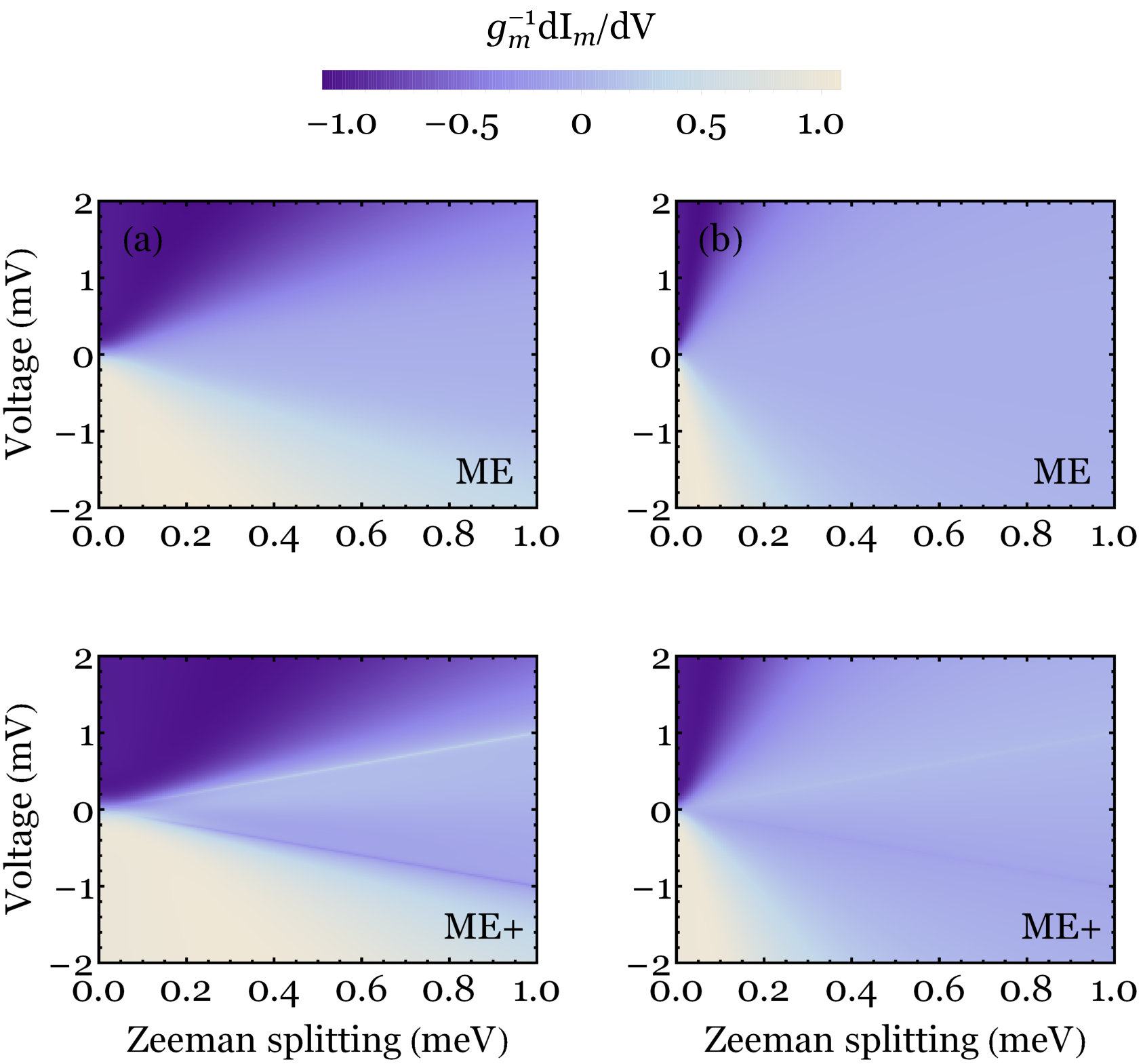

The spectra are presented in Figs. 7 and 8 where their dependence on the Zeeman splitting is shown. In the calculation we use the parameters $p=1$, $k_{B}T=0.1$ meV, $J_{t}=J_{s}=5$ meV, and vary the bandwidth $W=10,\,20$ meV. One might see that the results calculated with three methods are different from each other. However, the comparison of the plots for different bandwidth indicates the decrease of the discrepancy as the coupling gets smaller. In the large $W$ limit, the results of both master equation methods approach the results of the RE method. This behavior is explained by the vanishing of the spin transfer torque that is responsible for sustaining coherences in the steady state Shakirov et al. (2016). In the opposite case, when $W$ is decreased, the effect of coherences becomes more pronounced, and the terms originating from the imaginary part of $\kappa\left(\omega\right)$ come into play. However, for the bandwidths smaller than some critical value $W_{c}$, the steady state density matrix becomes unphysical. This shortcoming is due to the limited applicability of the master equation approach to open quantum systems strongly coupled to the surroundings.

Appendix C Bloch equation for $S=1/2$

To map Eq. (7) onto the Bloch equation for a single atom with spin $S=1/2$, we use the relations (16) and (17) connecting the density matrix and the Bloch vector. One obtains

[TABLE]

where all matrices are taken in the eigenbasis. With $H_{S}=-\frac{1}{2}h\sigma^{z}$, the unitary part of the Redfield equation becomes

[TABLE]

and Eqs. (38) may be rewritten in the form

[TABLE]

where $\boldsymbol{\omega}_{0}=h\hat{z}$, and we defined

[TABLE]

We split the matrix $\boldsymbol{R}_{0}$ into the symmetric part $\left(\boldsymbol{R}_{0}+\boldsymbol{R}_{0}^{T}\right)/2=\boldsymbol{R}$ and the antisymmetric one $\left(\boldsymbol{R}_{0}-\boldsymbol{R}_{0}^{T}\right)/2=\Delta\boldsymbol{\omega}\times$ to obtain the Bloch equation (18), where $\boldsymbol{\omega}=\boldsymbol{\omega}_{0}+\Delta\boldsymbol{\omega}$ and $\boldsymbol{p}_{0}=\left(\boldsymbol{\omega}\times+\boldsymbol{R}\right)^{-1}.\boldsymbol{F}$.

Appendix D Generalized timescales of relaxation and decoherence for $S=1/2$

In this appendix we apply the definitions for the generalized timescales of relaxation and decoherence introduced in Sec. III.1 to the case of a single atom with spin $S=1/2$ and compare them with the standard relaxation and decoherence times $T_{1}$ and $T_{2}$ from Eq. (20).

For an unpolarized tip, when dynamics of the populations and coherences are decoupled, the superoperator of the master equation has the matrix form

[TABLE]

We obtained it from the Bloch equation (18) using the relations (16), (17), (20), and the fact that $\boldsymbol{p}_{0}$ and $\boldsymbol{\omega}$ are aligned with $\hat{z}$. The right and left eigenvectors of the superoperator $\mathcal{L}$ are

[TABLE]

with the eigenvalues given by $\lambda_{0}=0$ and Eqs. (23) and (24). Substitution of the eigenvectors (44) into the matrix elements (29) results in

[TABLE]

One can see that two of three decay times of the eigenvalues of $\boldsymbol{M}\left(t\right)$ coincide with $T_{2}$, and the third is equal to $T_{1}$. Thus the definitions introduced in Sec. III.1 reproduce the standard relaxation and decoherence timescales for two-level systems.
