Spatial structure of correlations around a quantum impurity at the edge of a two-dimensional topological insulator

TL;DR

This study provides an exact real-space analysis of magnetic impurities at the edges of topological insulators, revealing how impurity position influences Kondo physics, spin correlations, and edge scattering in a realistic model.

Contribution

It offers a detailed real-space investigation of impurity effects at topological insulator edges using advanced numerical methods, highlighting the impact of impurity location and spin-orbit coupling.

Findings

Impurity position significantly affects Kondo state development.

Spin correlations are anisotropic due to Dzyaloshinskii-Moriya interaction.

Edge scattering patterns depend on impurity placement.

Abstract

We calculate exact zero-temperature real space properties of a substitutional magnetic impurity coupled to the edge of a zigzag silicene-like nanoribbon. Using a Lanczos transformation [Phys. Rev. B 91, 085101 (2015)] and the density matrix renormalization group method, we obtain a realistic description of stanene and germanene that includes the bulk and the edges as boundary one-dimensional helical metallic states. Our results for substitutional impurities indicate that the development of a Kondo state and the structure of the spin correlations between the impurity and the electron spins in the metallic edge state depend considerably on the location of the impurity. More specifically, our real space resolution allows us to conclude that there is a sharp distinction between the impurity being located at a crest or a trough site at the zigzag edge. We also observe, as expected, that the spin correlations are anisotropic due to an emerging Dzyaloshinskii-Moriya interaction with the conduction electrons, and that the edges scatter from the impurity and "snake" or circle around it. Our estimates for the Kondo temperature indicate that there is a very weak enhancement due to the presence of spin-orbit coupling.

Figures

Tables

Table 1. Table 1: The parameters characterizing graphene, silicene, germanene, and stanene. The Fermi velocity v F subscript 𝑣 F v_{\text{F}} is in units of 10 5 m/s, λ SO subscript 𝜆 SO \lambda_{\text{SO}} and λ R subscript 𝜆 R \lambda_{\text{R}} (Rashba SOI) in meV. θ 𝜃 \theta is the bond angle. Adapted from Ref.  Ezawa, 2015 (see also Ref.  Liu  et al. , 2011 ).

	$t$(eV)	$v_F$	$a$(Å$)$	${\lambda }_{\text{SO}}$	${\lambda }_{\text{R}}$	$\theta$
Graphene	2.8	9.8	2.46	10-3	0	90
Silicene	1.6	5.5	3.86	$3.9$	0.7	101.7
Germanene	1.3	4.6	4.02	$43$	10.7	106.5
Stanene	1.3	4.9	4.70	$100$	9.5	107.1

Equations

$$H_{\mathrm{band}}$$

$$H_{\mathrm{imp}}$$

$$H_{\mathrm{hyb}}$$

$$|E_j(k_x)⟩=\sum _{i,\sigma }{C}_{i\sigma ,j}(k_x)|i\sigma ⟩$$

$$E_{\mathrm{corr}}=E_0-E_{\mathrm{proj}},$$

$$E_{\mathrm{proj}}=\frac{⟨g.s.|S_{imp}^{-}H{S}_{imp}^{+}|g.s.⟩}{⟨g.s.|S_{imp}^{-}{S}_{imp}^{+}|g.s.⟩},$$

Full text

I Introduction

A revolution is underway in the study of two-dimensional (2d) materials. Since the mechanical exfoliation of graphene from graphite was achieved in 2004 Novoselov (2004) [see Ref. Castro Neto et al., 2009 for a detailed review on graphene properties], many resources have been invested in the synthesis of other monolayer systems. These efforts have been rewarded through the discovery of many new 2d compounds that are either stable in free-standing form or grown in a substrate platform [for a comprehensive review, see Ref. Butler et al., 2013]. Among these new 2d materials, a few raise additional possibilities linked to the presence of non-trivial topological phases such as silicene, germanene, and stanene. As a result of the spin-orbit interaction (SOI), they present bulk-gapped phases with metallic helical (spin-momentum locked) edge states [for a review, see Ref. Ezawa, 2015]. The locking of spin and momentum leads to suppression of elastic backscattering of the helical electrons in the absence of spin-flip processes. This, in turn, leads to the possibility of dissipationless spin polarized currents (see Refs. König et al., 2008; Hasan and Kane, 2010; Qi and Zhang, 2011 for comprehensive reviews).

Besides the interest in the basic physics associated to topological phases in condensed matter materials (either 2d or 3d), the recent explosion of work in this field is also due to possible applications of topological insulators (TIs) in spintronicsFan et al. (2014); Hoffmann and Bader (2015); Fong et al. (2016). For instance, strong spin-transfer-torque effects have recently been observed at room temperature in a 3d TI Mellnik et al. (2014).

The search for new paradigms in electronics has spurred interest in other quantum phenomena at the nanoscale: electron correlations offer the promise of new functionality in nanoelectronics related to the possible manipulation of many-body ground states in suitably produced nanostructures such as quantum dots and nanoribbons Andergassen et al. (2010); Brus (2014); Laird et al. (2015). An important example that has attracted a great deal of attention is the Kondo state, realized by coupling a magnetic impurity to conduction electrons [see, for example, section VII of Ref. Laird et al., 2015 for a recent review of the Kondo effect in carbon nanotubes]. In addition, Kondo physics offers the possibility of probing the spin-texture surrounding the magnetic moment, and to gain valuable information about the effect of magnetic interactions over the metallic surface state not (a).

A brief review of the Kondo effect in TIs (with a focus on quantum critical behavior) can be found in Ref. Vojta et al., 2015. Initial experimental work concentrated on bulk-doped 3d TIs Chen et al. (2010); Hor et al. (2010); Chang et al. (2013), but since many TI-based devices require the surface of the TI to be in contact with ferromagnets, experiments were also done involving surface deposition of magnetic impurities in 3d TIs Wray et al. (2011); Yu et al. (2014); Wang et al. (2015); Scholz et al. (2012); Honolka et al. (2012).

In a theoretical study of the Kondo effect at the surface of a 3d TI, Žitko Žitko (2010) found that the Hamiltonian of a quantum magnetic impurity coupled to metallic topological surface states maps into a conventional pseudogap single-channel Anderson impurity model with SU(2) symmetry. It was also pointed out that despite the relatively trivial nature of the low-energy Hamiltonian, the screening Kondo cloud should possibly display a rather complex structure, which would be reflected in non-trivial spatial dependencies of the spin correlations between the magnetic impurity and the topological surface states involved in the Kondo-singlet formation.

Motivated by Fourier-transform scanning tunneling spectroscopy measurements done in Iron-doped ${\rm Bi_{2}Te_{3}}$ Okada et al. (2011), which analyzed the energy-dependent spatial variations of the local density of surface states in terms of quasiparticle interference (QPI), Mitchell et al. Mitchell et al. (2013) conducted numerical simulations of a single Kondo impurity on the surface of a 3d TI to identify the signatures in QPI of the Kondo interaction between the helical metal and the impurity. The QPI simulation results were found to be markedly different from those obtained for nonmagnetic or static magnetic impurities.

The influence of the SOI on the Kondo effect in 2d TIs has been addressed in several numerical works Žitko and Bonča (2011); Zarea et al. (2012); Mastrogiuseppe et al. (2014); Wong et al. (2016); de Sousa et al. (2016), particularly focusing on the behavior of the Kondo temperature. In overall agreement with Ref. Žitko, 2010, Isaev et al. Isaev et al. (2015) demonstrated that strong SOI leads to an unconventional Kondo effect (despite being of the SU(2) kind) with an impurity spin screened by purely orbital motion of surface electrons. At low energies, the impurity spin forms a singlet state with the total electron angular momentum, and the system exhibits an emergent SU(2) symmetry, which is responsible for the Kondo resonance.

Quantum Monte Carlo (QMC) simulations Hu et al. (2013) applied to a single impurity Anderson model in a zigzag graphene edge analyzed the influence of spin-momentum locking over the Kondo state and found indications of a broken spin rotation symmetry in spin-spin correlation functions. A limitation of this effort, stemming from constraints associated to the QMC method, is the high value of the minimum temperature achieved ($\approx 1000~{}{\rm K}$ for graphene).

In this work, we present results for the spin correlations around a substitutional Anderson impurity at the edge of a silicene-like topological insulator (more specifically for germanene and stanene, see Table 1), with full spatial resolution of the lattice. To the best of our knowledge, a detailed study of these correlations in the Kondo ground state has not been attempted so far.

The structure of this article is as follows: In Sec. II we present the model and a very brief description of the numerical method used (for details the reader is referred to previous papers by the authors Büsser et al. (2013); Allerdt et al. (2015, 2016)). In Sec. III.1 we present the band structure for a zigzag nanoribbon (ZNRB) in the TI phase, focusing on the edge states. Section III.2 presents local density of states (LDOS) results for sites at the edge of the ZNRB, showing how it changes with SOI compared to the LDOS of bulk sites. Section III.3 shows results for spin correlations between the localized magnetic moment and the conduction spins. We analyze the cases of a substitutional impurity sitting at either crest or trough sites (as defined is Sec. II), and study the effects of spin orbit coupling. An analysis of the influence of the SOI on the Kondo temperature is performed in Sec. III.4. The paper closes with a summary and conclusions.

II Model

The independent electron Hamiltonian $H_{\rm band}$ describing the 2-dimensional topological insulator corresponds to a tight-binding band structure that is appropriate for silicene, germanene, and stanene Ezawa (2015):

[TABLE]

where $c_{i\sigma}^{\dagger}$ creates an electron in site $i$ with spin $\sigma$ (note that the letter $\sigma$ stands for $\sigma=\uparrow\downarrow$ when used as a subindex, and for $\sigma=\pm$ when used within equations). In addition, $\left\langle i,j\right\rangle$ runs over nearest-neighbor sites and $\left\langle\!\left\langle i,j\right\rangle\!\right\rangle$ runs over next-nearest-neighbor sites. The first term describes nearest-neighbor hoppings with transfer integral $t$. The second term is the effective spin-orbit interaction with coupling $\lambda_{\text{SO}}$, where $\nu_{ij}=+1$ if the next-nearest-neighbor hopping is anticlockwise and $\nu_{ij}=-1$ if it is clockwise (in relation to the positive $z$-axis). The parameter values for silicene, germanene, and stanene are given in Table 1, where the corresponding values for graphene are given for comparison (note that as graphene does not buckle, its $\lambda_{\text{SO}}$ value effectively vanishes, thus it is gapless and has no measurable topological properties, contrary to silicene, germanene, and stanene). In Table 1 we also list the Rashba spin-orbit interaction for each material. For the sake of simplicity (and given its small value) we omitted it from our calculations. The unit of energy for all results shown here is $t$.

In accordance with Table 1, the ratios $\lambda_{\text{SO}}/t$ for silicene, germanene, and stanene are $0.0024$, $0.033$, and $0.077$. We will use in our calculations (unless stated otherwise) a value three times larger than the one for germanene, i.e., $\lambda_{\text{SO}}=0.1$. Therefore, our results should describe the Kondo effect in germanene and stanene. Due to its much smaller SOI, silicene is expected to have a behavior (not shown) very similar to that of graphene.

The total Hamiltonian $H_{\mathrm{T}}=H_{\mathrm{band}}+H_{\mathrm{imp}}+H_{\mathrm{hyb}}$ includes, besides $H_{\mathrm{band}}$, also the impurity and its hybridization with the lattice:

[TABLE]

where $n_{\mathrm{imp},\sigma}=c_{\mathrm{imp},\sigma}^{\dagger}c_{\mathrm{imp},\sigma}$ and $c_{\mathrm{imp},\sigma}^{\dagger}$ ($c_{\mathrm{imp},\sigma}$) creates (annihilates) an electron at the impurity, which is described by a single impurity Anderson model (SIAM) with Coulomb interaction $U$ and orbital energy $\epsilon_{0}$.

As for the hybridization between the impurity and the lattice, $H_{\mathrm{hyb}}$, we will focus on a substitutional impurity, which replaces an atom from either sublattice and therefore has overlap integrals with more than one lattice site (from the opposite sublattice). Therefore, $c_{k\sigma}$ stands for a symmetric linear combination of two (or three, depending on which edge site we are considering) nearest-neighbors to the lattice site occupied by the impurity. In the case of a zigzag nanoribbon (studied in this work), with an edge geometry schematically represented as $\cdots/\backslash/\backslash\cdots$, which we denote as a sequence of sites $\cdots ABABA\cdots$, the choice is between $A$ sites (with coordination three) and $B$ sites (with coordination two). Our calculations show a wide variation in the results (mainly for the spin correlations) depending on what edge site the impurity replaces. In the following, we will refer to $A$ and $B$ sites in the zigzag profile as ‘trough’ and ‘crest’ sites, respectively. Our results clearly show that the metallic topologically nontrivial states that screen the magnetic impurity reside in the crest sites, while the trough sites and their immediate neighborhood, as our spin correlation results have shown, behave as small metallic “puddles”, which leak from the metallic edges, and are surrounded by the bulk.

In order to perform unbiased numerical simulations of the model just described to calculate spin-spin correlations, we use the so-called block Lanczos method recently introduced by the authors Allerdt et al. (2015, 2016) (see also Ref. Shirakawa and Yunoki, 2014 for an independent development of the same ideas). This approach enables one to study quantum impurity problems with a real space representation of the lattice, and in arbitrary dimensions, using the density matrix renormalization group method (DMRG)White (1992, 1993). By generalizing the ideas introduced in Ref. Büsser et al., 2013 for single impurity problems, we reduce a complex lattice geometry to a single chain, or a multi-leg ladder in the case of multiple impurities.

In order to measure spin-spin correlations in real space, we need to employ the multi-impurity formulation described in detail in Refs. Allerdt et al., 2015; Shirakawa and Yunoki, 2014. In this approach, we use two seed states corresponding to the impurity site and the orbital where the correlations will be measured. A block Lanczos recursion will generate a block tridiagonal matrix that can be interpreted as a single-particle Hamiltonian on a ladder geometry. This is illustrated schematically in Fig. 1(a), showing the case of one seed state at the edge, and the second one somewhere in the bulk. The typical equivalent problem we need to solve numerically is depicted in the panel Fig. 1(b). Due to the presence of spin-orbit coupling in the bulk, this geometry cannot be further simplified. Still, the Hamiltonian in the new basis will be one-dimensional, and local, i.e., the many-body terms are still the same as in the original Anderson impurity coupled to the original lattice.

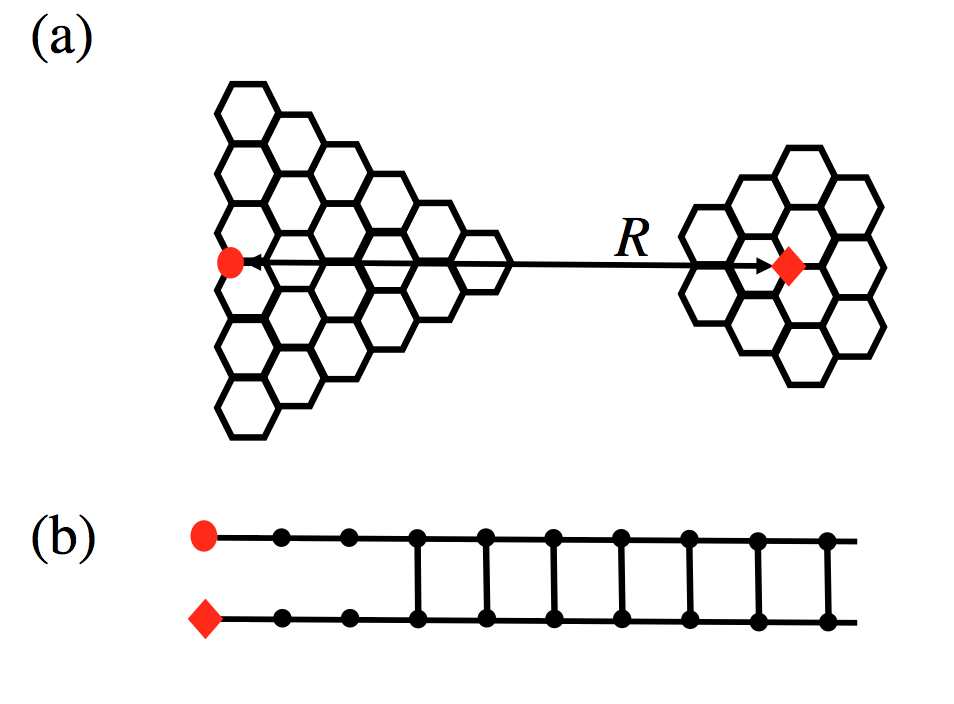

We want to emphasize that this mapping (see Fig. 1) is exact and both geometries are connected by a unitary transformation. The combination with the DMRG method allows us to obtain exact results with real space resolution and uncover the marked difference between crest and trough sites, as described above, which is inaccessible to the majority of other methods traditionally used to study magnetic impurity models. Results in this work were obtained by keeping up to 3000 DMRG states, which grants an accuracy of the order of $10^{-6}$ or better for the energy and correlations.

III Results

III.1 Zigzag nanoribbon band structure

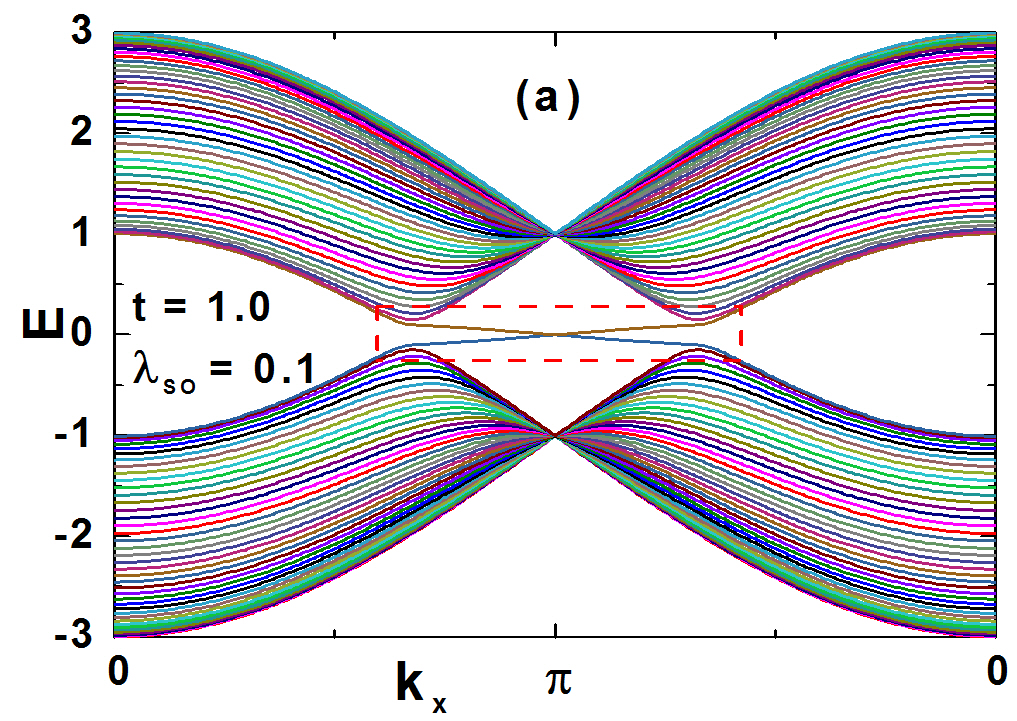

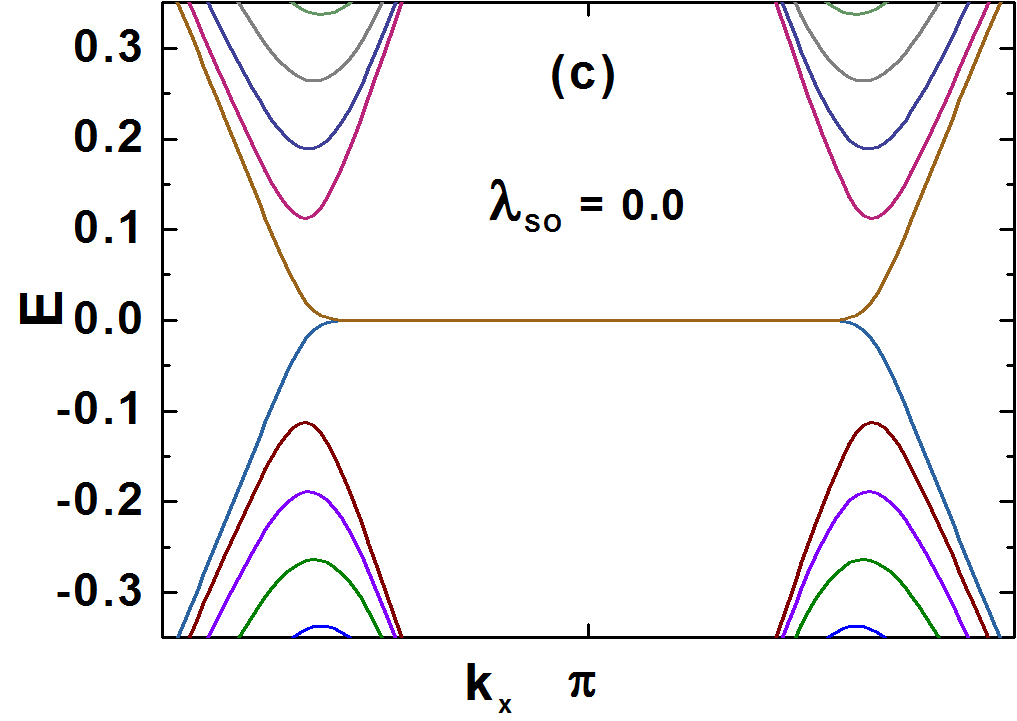

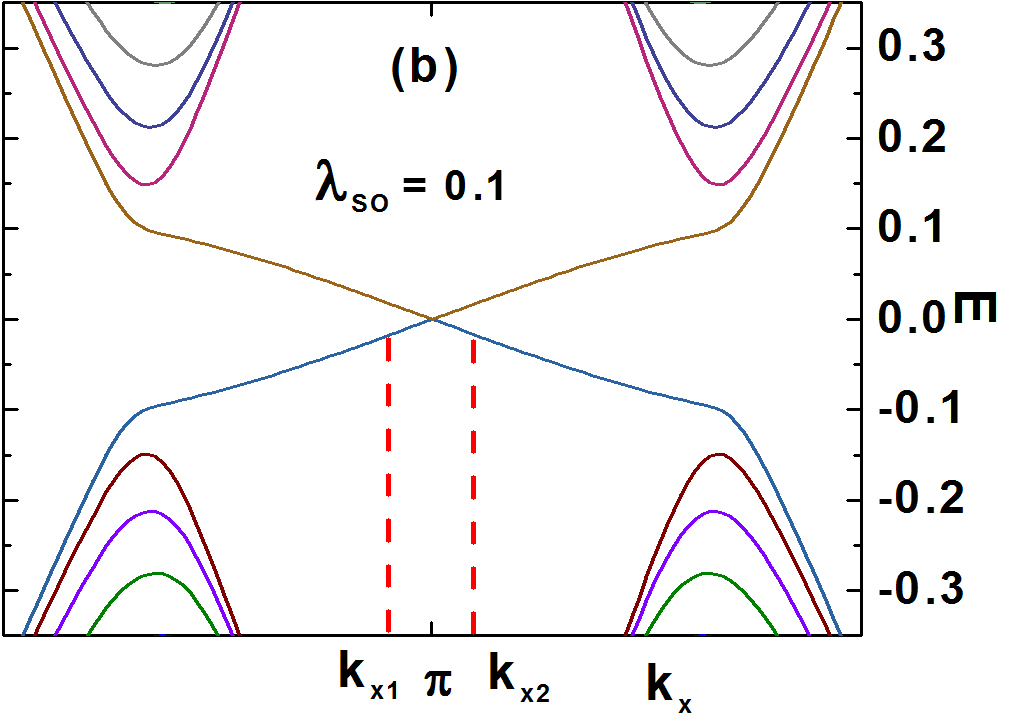

Fig. 2(a) shows the band structure obtained for $H_{{\rm band}}$ in a ZNRB with periodic boundary conditions (PBC) in the $x$-direction and open boundary conditions (OBC) in the $y$-direction. The SOI used was $\lambda_{\text{SO}}=0.1$ and the nanoribbon is $80$ sites across in the OBC direction. Each band is double degenerate, besides the Kramers $\omega(k_{x})=\omega(-k_{x})$ degeneracy, and the energy spectrum is particle-hole symmetric around $\omega=0$ (half-filling). In panel (b) we show a zoom into the dashed (red) box shown in panel (a), focusing on the bands that straddle across the valence and conduction bands. These bands host the 4 helical edge states (two in each edge). Panel (c) shows the same zoom, but for $\lambda_{\text{SO}}=0.0$ (appropriate for graphene), showing the well studied flat bands associated to the edge states present in a graphene ZNRB (see Ref. Castro Neto et al., 2006 for details).

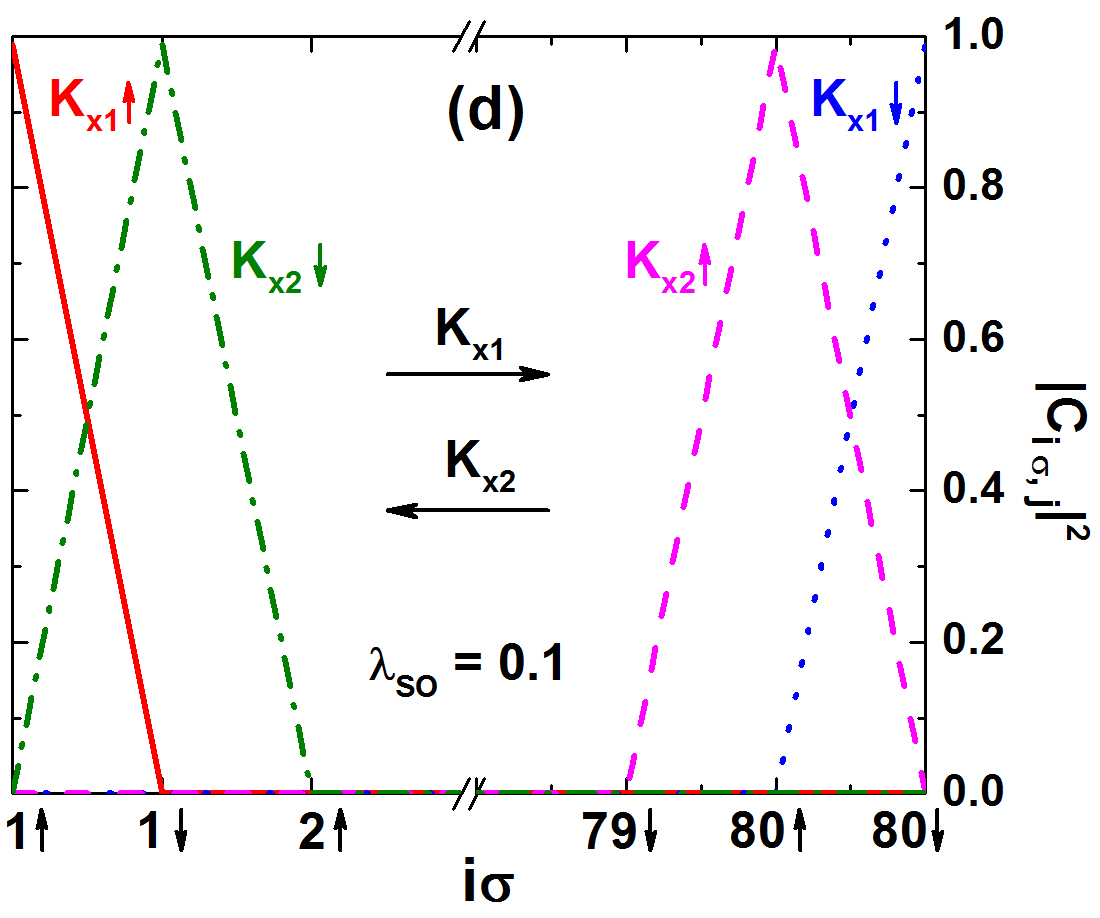

In Fig. 2(d) we see a plot of the coefficient squared, for each site across the ZNRB, for the four edge states that are located symmetrically around $k_{x}=\pi$, i.e., $k_{x1}=\pi-\delta$ and $k_{x2}=\pi+\delta\equiv-2\pi+k_{x2}=-k_{x1}$. Note that $k_{x1}$ and $k_{x2}$ are time reversed momenta (Kramers related), indicating propagation in opposite directions. The location of $k_{x1}$ and $k_{x2}$, and the associated edge states, are schematically indicated in panel (b). The results are for $\lambda_{\text{SO}}=0.1$ and $\delta=\pi/64$. For a ZNRB with width of $N=80$ sites, each state in the 160 bands (including spin) for an arbitrary value of $k_{x}$ can be written as

[TABLE]

where $i=1,\cdots,80$ runs through the sites across the OBC direction, $\sigma=\uparrow\downarrow$ indicates spin, $E_{j}(k_{x})$ (for $j=1,\cdots,160$) runs through all the eigen-energies for a specific $k_{x}$ value, and $|i\sigma\rangle$ is a localized orbital state on site $i$ with spin $\sigma$. Taking $k_{x}=k_{x1},k_{x2}$ as defined above and $j$ values corresponding to the double-degenerate bands connecting the valence and conduction bands ($j=79$ to $82$, i.e., the 4 edge states), we plot $|C_{i\sigma,j}(k_{x})|^{2}$ for each site $i\sigma$. In reality, we plot only the values for the edge sites (crest sites at each edge), since all the other coefficients vanish ($|C_{1\uparrow}|^{2}=0.99017$, for example). As indicated by the labels in Fig. 2(d) (k_{x1}$$\uparrow and k_{x2}$$\downarrow), states in the $i=1$ edge propagate in opposite directions, with opposite spin polarizations, and the reverse occurs (k_{x1}$$\downarrow and k_{x2}$$\uparrow) on the $i=80$ edge. Therefore, these helical edge states are very localized, propagating through what we dubbed as crest sites, presenting the characteristic locking of spin and momentum that is associated to the non-trivial topological phase created by the SOI Hasan and Kane (2010). In addition, narrower ZNRB have less localized states, the localization varying slightly with $k_{x}$ as we move away from $k_{x}=\pi$, and the states become (discontinuously) completely delocalized (becoming bulk states) once these two edge bands merge with either the conduction or the valence band.

To close this section, we make a few remarks on the effects of electronic interactions. These are typically too weak to introduce noticeable spin correlations in the bulk, especially due to the vanishing density of states at the Dirac points. However, theory has predicted that electronic repulsion causes a hybridization between edge states on opposite sides of a ZNRB, inducing edge ferromagnetism Son et al. (2006a, b); Yazyev and Katsnelson (2008); Tao et al. (2011); Schmidt et al. (2013); Magda et al. (2014). These effects depend on both the magnitude of the interactions and the width $W$ of the ribbon, and decay very rapidlyJung et al. (2009) as $W^{-2}$.

An analysis of the literature indicates that there is a great deal of controversy regarding the experimental verification of the theoretical prediction of ferromagnetic edge states at the edges of a ZNRB Makarova et al. (2015): for example, all the measurements intended to uncover them are constrained to either charge transport or scanning tunneling microscopy experiments, whose results are open to alternative interpretations. Therefore, the current consensus seems to be that the existence of the magnetic edge states has not been settled yet. Clearly, magnetism would break time reversal symmetry, compromising the existence of the topological edge states. Recent work by Lado and Fernández-Rossier Lado and Fernández-Rossier (2014) shows, through mean-field calculations, that a large enough SOI can suppress the magnetic moment of the edge states. Nonetheless, this problem falls beyond the scope of our work, which focuses on understanding the properties of the Kondo state in the absence of magnetism.

III.2 Zigzag nanoribbon local density of states

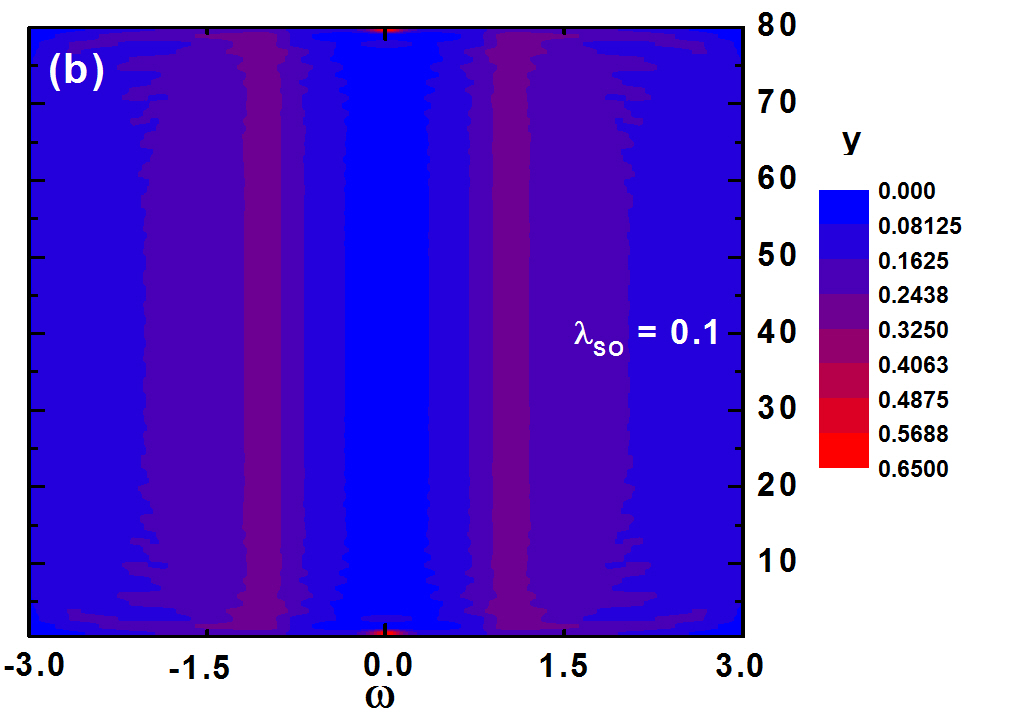

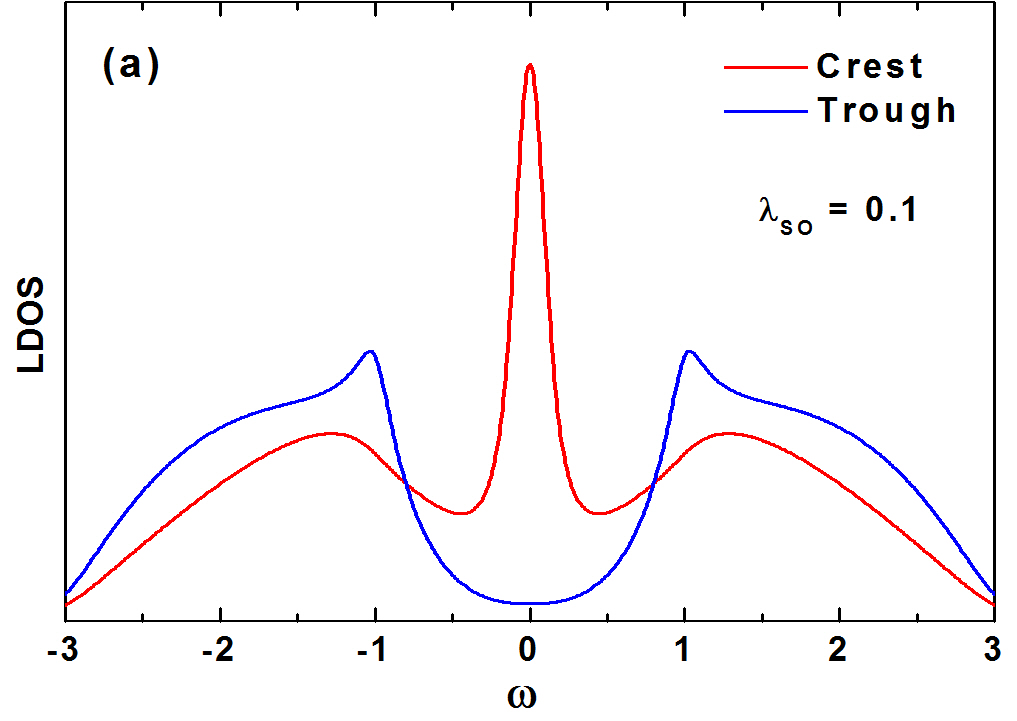

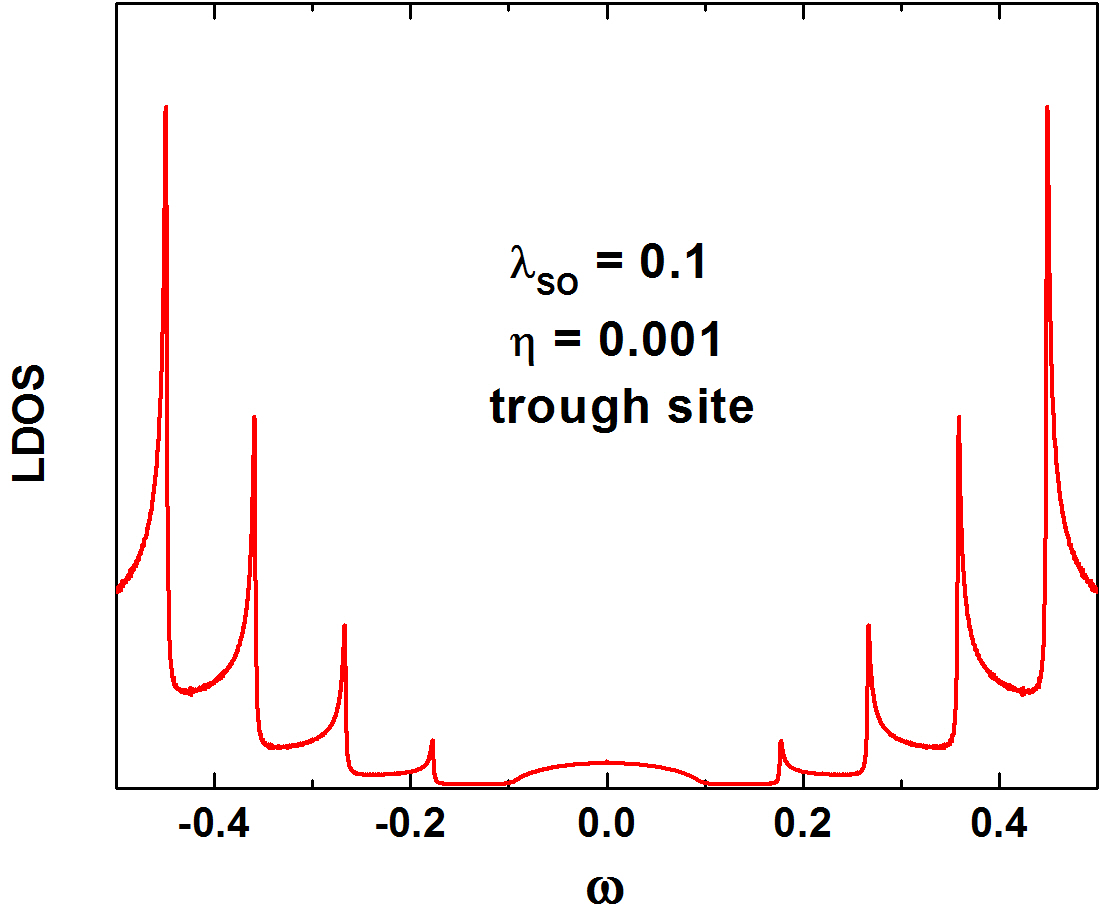

Figure 3(a) shows the LDOS for a crest [(red) dark gray curve] and for a trough [(blue) light gray] site at the edge of the ZNRB. In agreement with the results shown in Fig. 1(d), the conducting edge states [with spectral density at the Fermi energy ($\epsilon_{F}=0$)] are mostly located at crest sites. Panel (b) shows a contour plot of the LDOS for all sites in the OBC direction. The spectral density at the Fermi energy is restricted to the edge [primarily to a crest site, as shown in panel (a)] while all the sites away from the edge present an insulating spectra, where the size of the gap partially derives from the spin-orbit interaction and mostly from the confinement along the OBC direction (the wider the nanoribbon, the smaller is the energy gap). It is important to notice that, unlike the insulating bulk, the LDOS at the trough sites displays a small but finite LDOS at the Fermi energy (for a detailed view, with increased resolution, see Fig. 4), leaving room for the formation of a Kondo state.

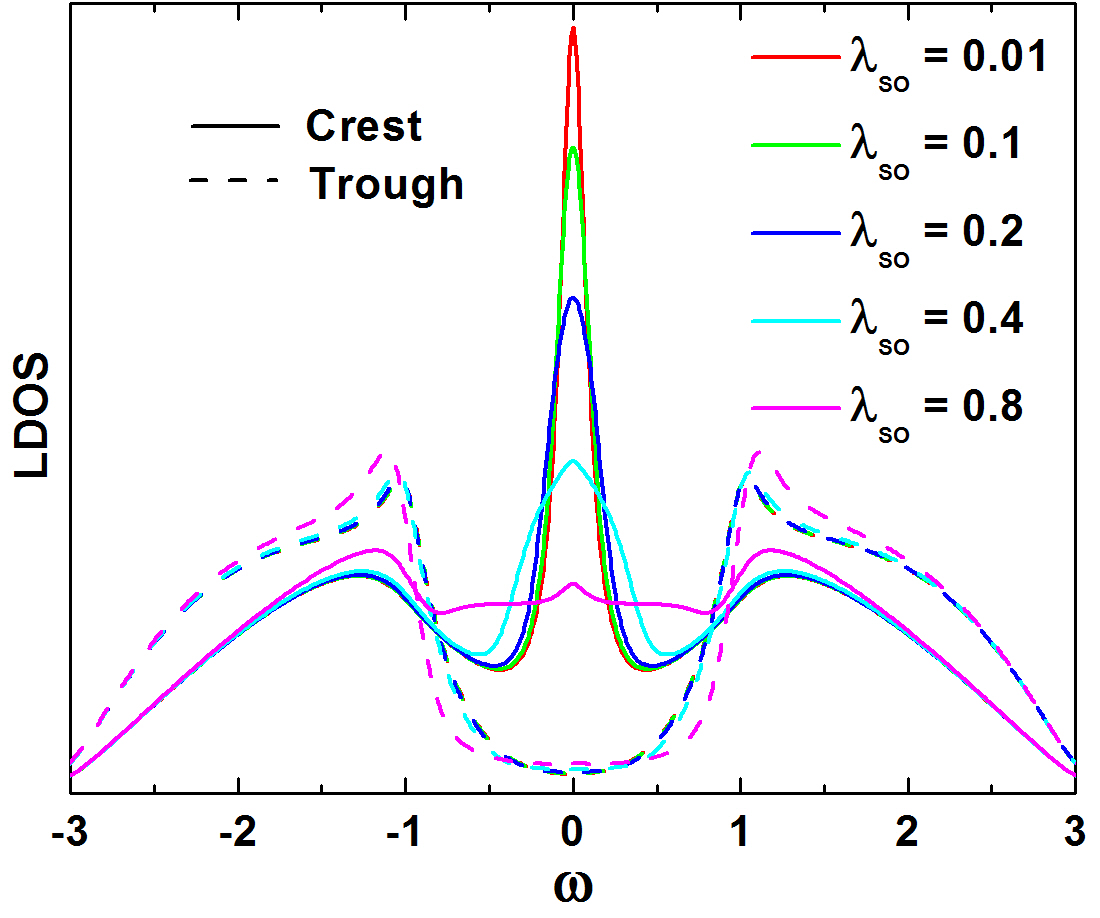

In Fig. 5 we report the effects of SOI in the LDOS. By increasing $\lambda_{\text{SO}}$ from $0.01$ to $0.8$ the spectral weight peak at the Fermi energy gradually broadens until a flat distribution closes the gap. The results for a trough site (dashed curves) show that aside from a slight increase of the LDOS at the edge of the gap and a slight increase of the gap itself, the LDOS changes only marginally. A contour plot for the LDOS across the nanoribbon for $\lambda_{\text{SO}}=0.8$ (not shown), similar to Fig. 3(a), shows that the bulk sites do not qualitatively change their LDOS, i.e., the gap in the bulk remains intact.

III.3 Spin correlations

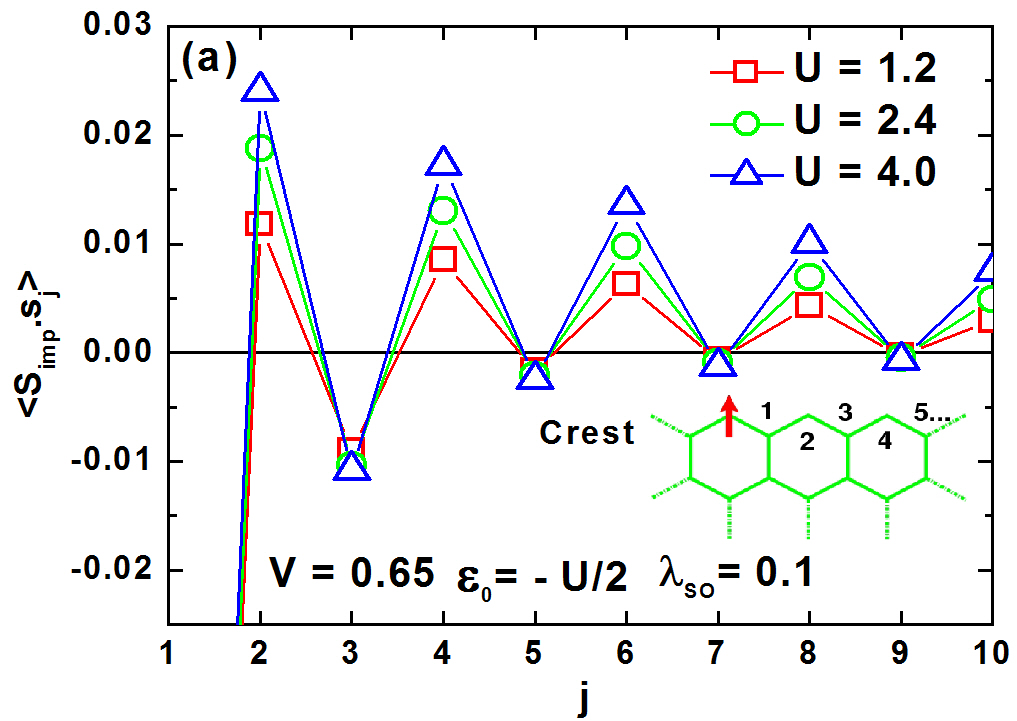

Our model takes into account a real-space description of the lattice. Due to the spatial dependence of the density of states, the physics of the magnetic impurity will vary accordingly, displaying important differences determined by its location. This will be clearly visible in the spin correlations results. Fig. 6 shows the spin correlations between the impurity and the surrounding conduction electrons for a substitutional impurity (replacing a silicon atom) sitting at crest and trough sites in panels (a) and (b), respectively. The spin correlations $\langle\vec{S}_{\mathrm{imp}}\cdot\vec{s}_{j}\rangle$ are calculated for sites $j$ along the edge, as indicated. Results correspond to three different values of $U=1.2$ [(red) squares], $2.4$ [(green) circles], and $4.0$ [(blue) triangles]. Correlations are strong at short distances, their magnitude falls away from the impurity, and their range increases with $U$. In addition, in both cases, correlations with sites in the opposite sublattice to the one where the impurity is located (odd sites) are antiferromagnetic, while they are ferromagnetic for same sublattice sites (even sites). These results are typical of those obtained for the Kondo effect for an $S=1/2$ impurity connected to a non-interacting chain (see, for example, Ref. Nuss et al., 2015). Ferromagnetic correlations dominate for crest site impurities, as opposed to trough site impurities, where antiferromagnetic correlations dominate. In addition, crest site correlations have larger magnitude and are longer ranged than those for trough sites.

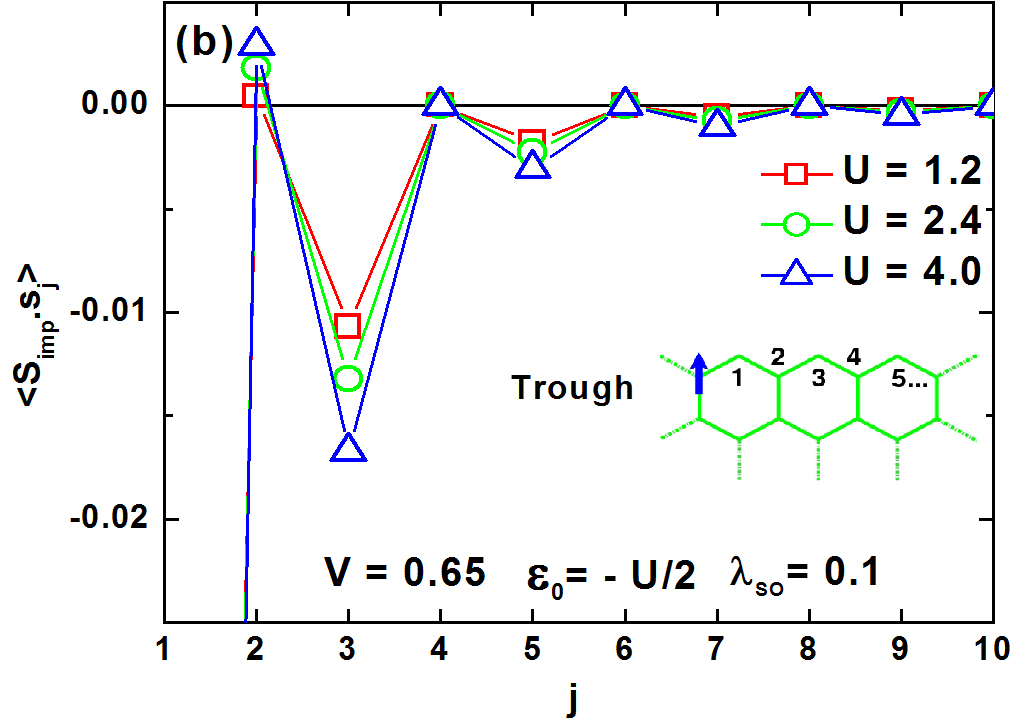

It is also interesting to note that an impurity located either in a crest or a trough site correlates much more strongly to crest sites along the edge. In contrast, the dominant (antiferromagnetic) correlations for a trough site impurity have very short range and are essentially independent of $U$, while the dominant (ferromagnetic) correlations for a crest site impurity decay slowly and increase slightly with $U$. The presence of ferro or antiferromagnetic correlations stems naturally from the expected structure of the RKKY interaction on a bi-partite lattice Saremi (2007); Brey et al. (2007); Allerdt et al. (2017). However, the vanishing of the correlations at even distances from the trough sites can be attributed to the nodal structure of the electronic wavefunctions near the Fermi level, that interfere destructively to yield a very small amplitude on those sites Allerdt et al. (2015).

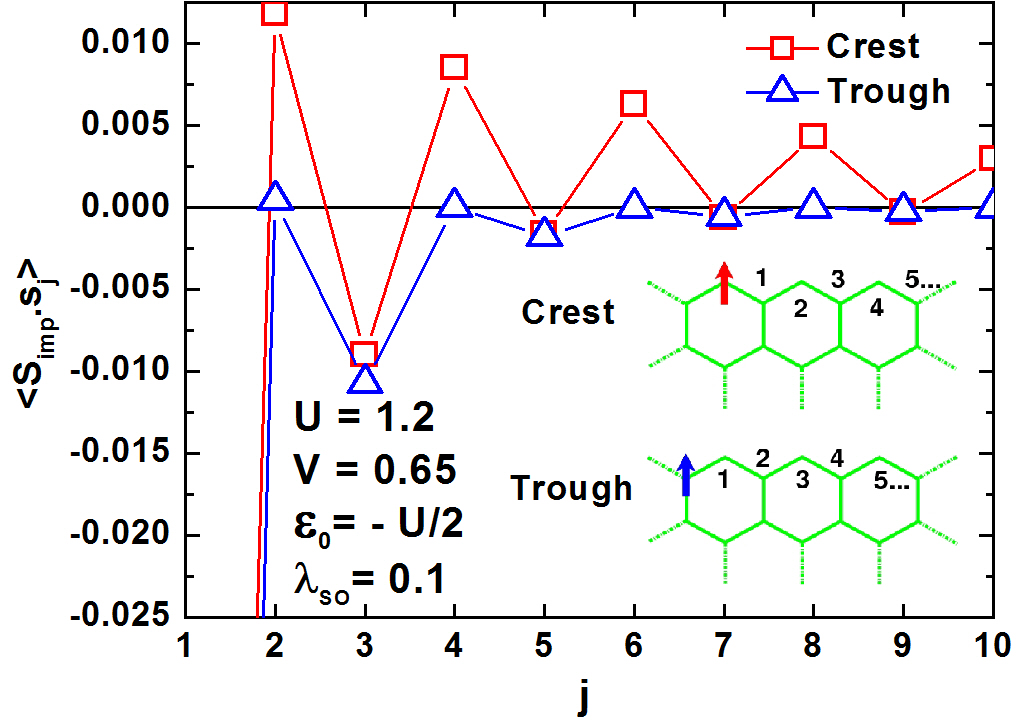

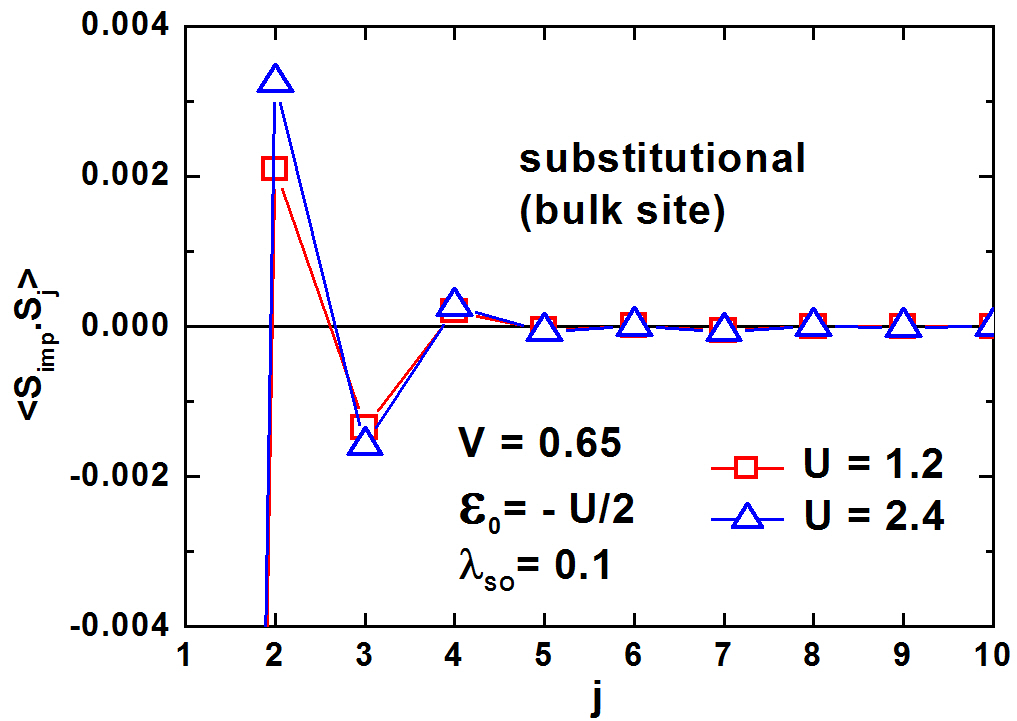

As seen in Fig. 7, impurities at crest sites induce large and slowly decaying hybridization clouds with dominant ferromagnetic correlations that decay algebraically with distance [(red) squares in Fig. 7]. This can be understood in terms of crest sites forming an effective one-dimensional channel Wu et al. (2006); Xu and Moore (2006). On the other hand, impurities at trough sites form very small clouds [(blue) triangles in Fig. 7], as if sitting in small metallic “puddles” that leak from the metallic edges, surrounded by the bulk. To illustrate that the results for a trough site are qualitatively different from those for a bulk site, Fig. 8 shows the correlations around a substitutional impurity in the bulk, five lattice spacings from the edge (note that the vertical axis scale in Fig. 8 is considerably smaller than that in Fig. 7). When located in a bulk site, the impurity forms a localized singlet with its three neighbors, completely decoupled from the bulk. Correlations in this case are practically identical to the two-site problem with an Anderson impurity connected to a single non-interacting site (not shown).

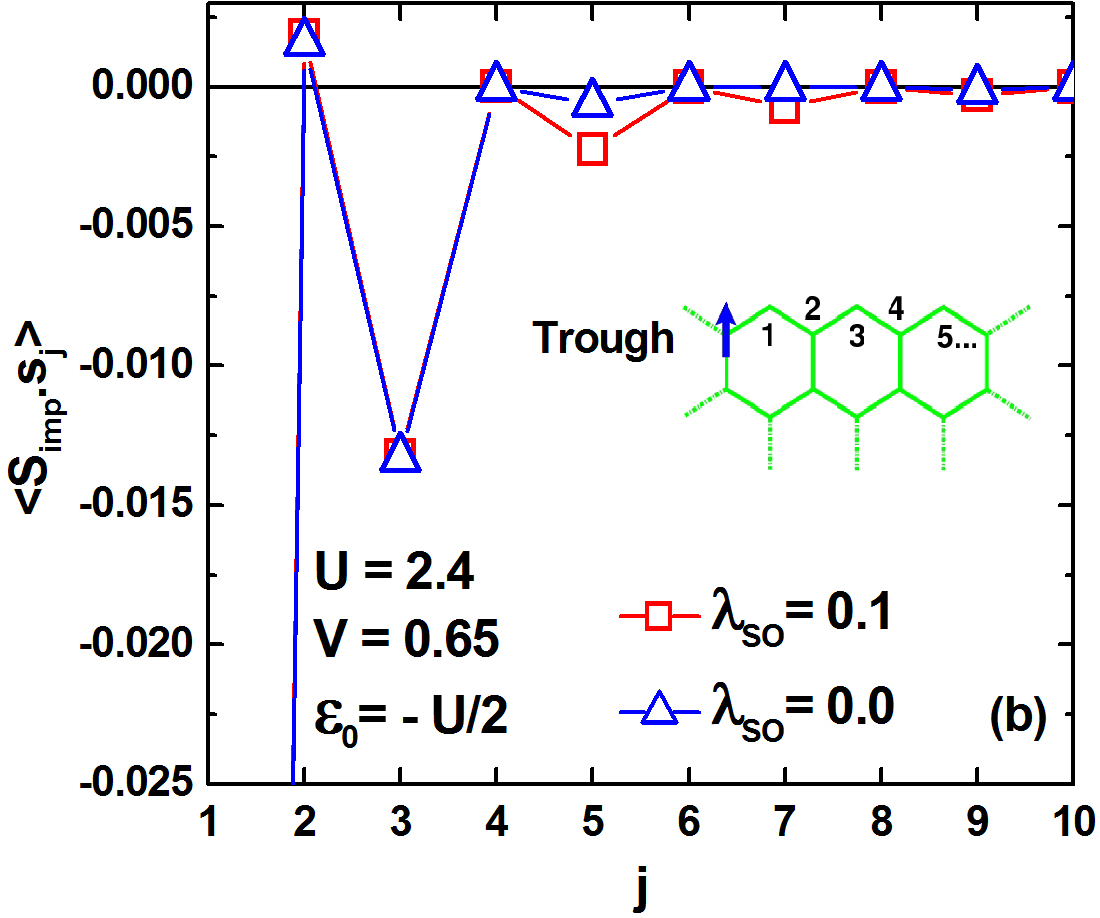

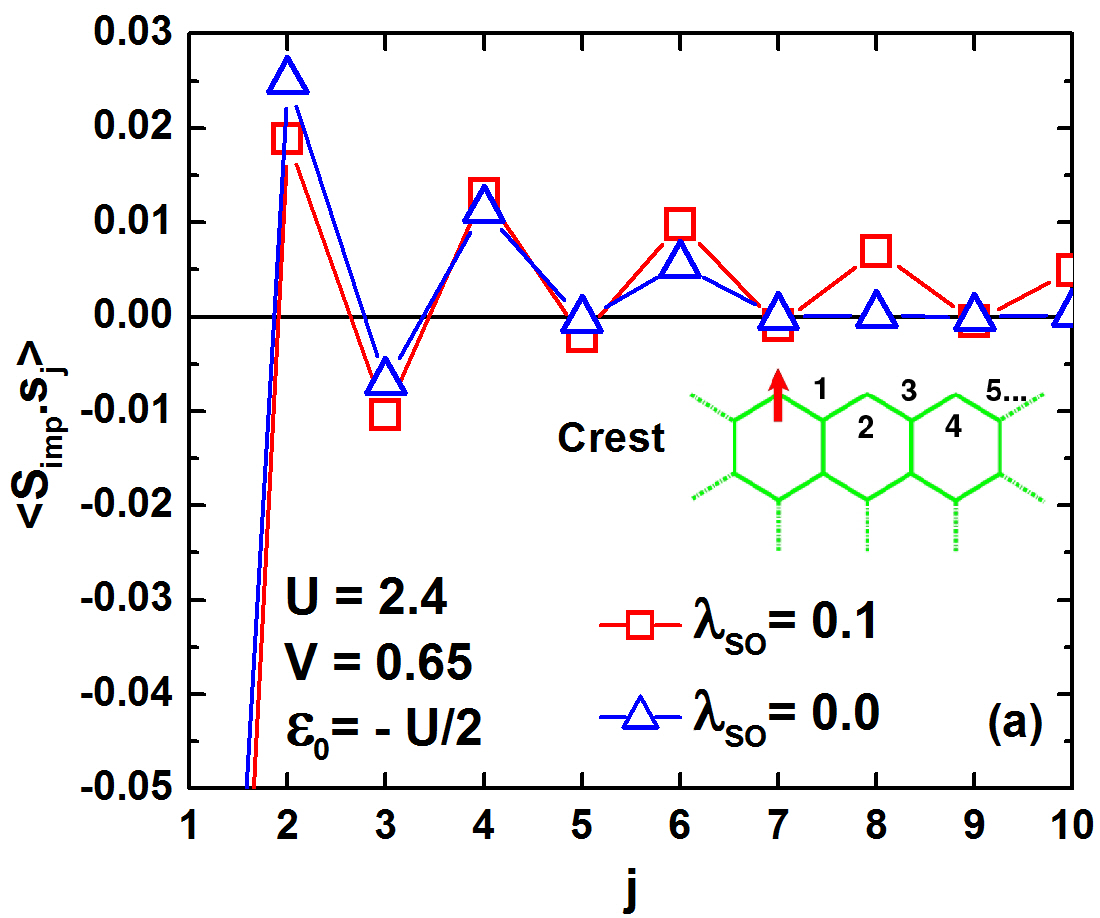

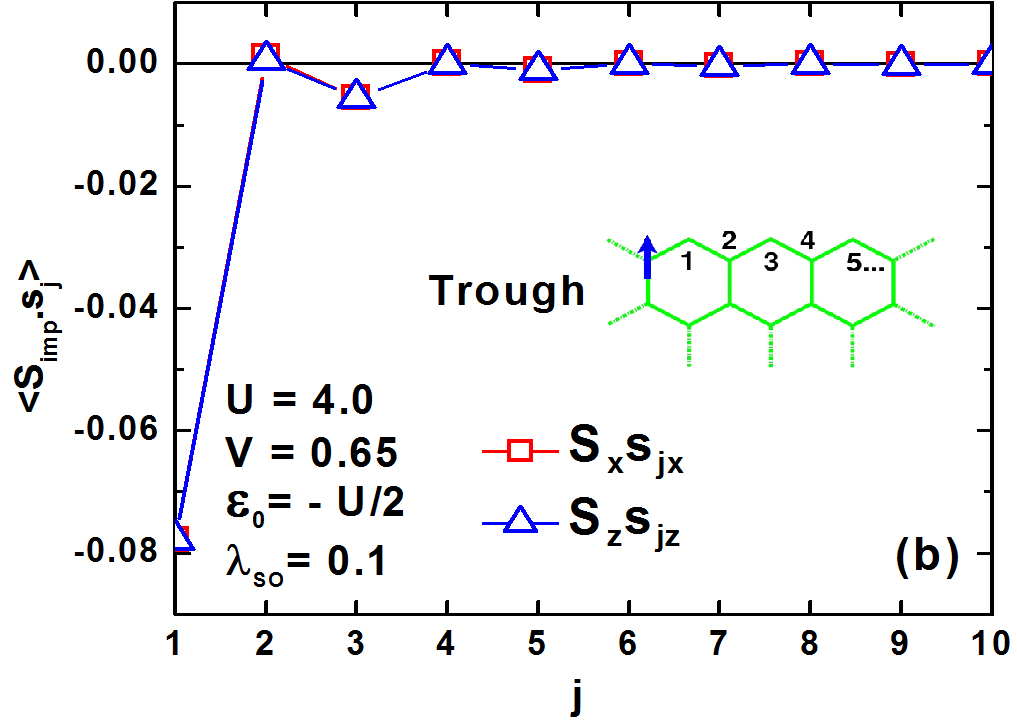

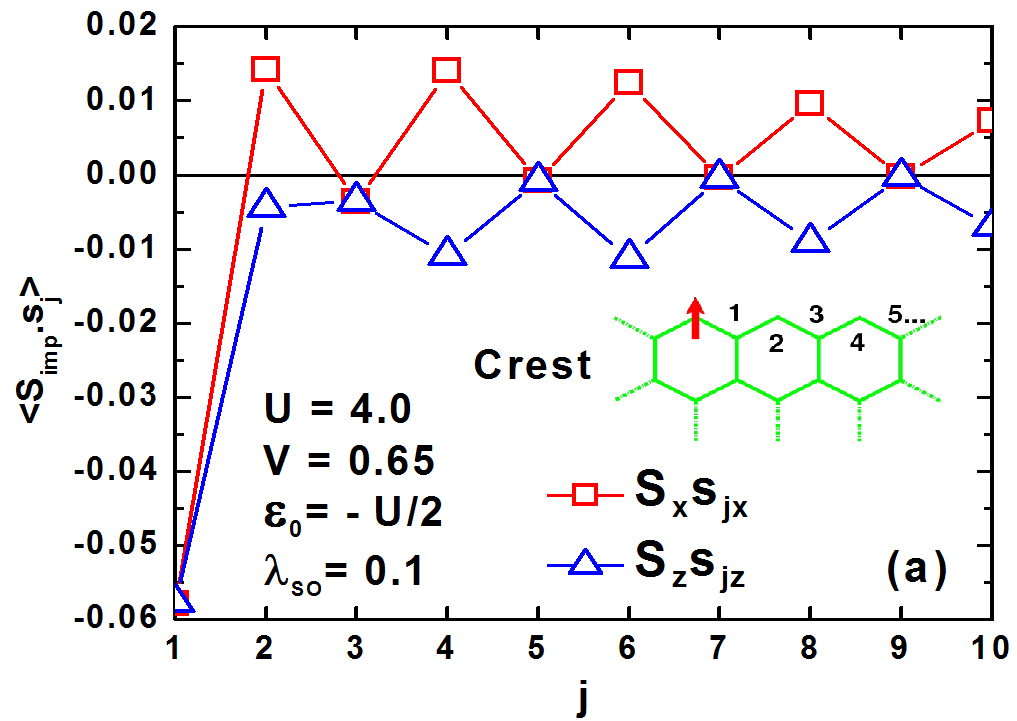

We proceed to compare spin correlations with and without SOI to understand how it changes the coupling of a magnetic impurity to the edge states. Fig. 9 shows results for a substitutional impurity, at both crest and trough sites, demonstrating an overall increase of the correlations when the SOI is introduced. At first sight, these results seem to indicate that the SOI does not change qualitatively the results. However, it is important to notice that the SOI induces an anisotropy in the spin correlations ($\langle S_{z}s_{jz}\rangle\neq\langle S_{x}s_{jx}\rangle$) that stems from an emergent Dzyaloshinskii-Moriya interaction between the impurity and the conduction electrons Zarea et al. (2012); de Sousa et al. (2016), as illustrated in Fig. 10. This effect is clearly visible for the case of impurities sitting at crest sites, with transverse $XY$ correlations [(red) squares] and along the $Z$ direction [(blue) circles] having opposite sign, indicating helical order. However, for impurities located at trough sites [Fig. 10(b)] this effect is very small or practically nonexistent.

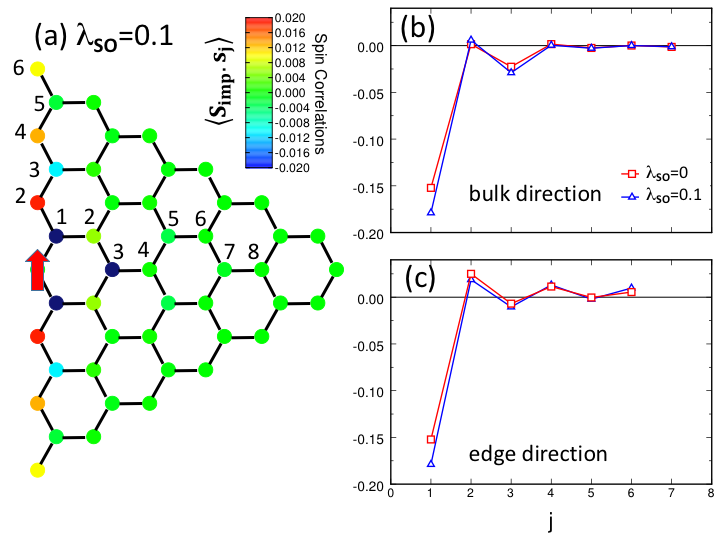

As demonstrated above, the spatial resolution of our calculations are instrumental at determining the full structure of the spin correlations and uncover the response of the edge states to the presence of substitutional magnetic impurities. Results for a crest-site impurity are summarized in Fig. 11. Panel (a) presents a color map of the impurity spin correlations in an extended region surrounding the substitutional atom. Details along the bulk and edge directions are shown in panel (b) and (c), respectively. The actual position of the $j$ sites for panels (b) and (c) are indicated in (a). From these results it emerges that the edge state is scattered and “snakes”, or circles around the impurityWu et al. (2006). This effect implies that the problem may not be trivially studied using a one-dimensional lead to represent the edge. This was already pointed out through a no-go theorem in Ref. Wu et al., 2006 stating that a helical liquid with an odd number of modes cannot emerge from a purely one-dimensional model. In addition, even though the impurity is substitutional, it appears as though it is side coupled to the edge de Sousa et al. (2016), and not embedded in it.

III.4 Kondo temperature

Anderson showed Anderson (1970), with his “Poor man’s scaling”, that the Kondo problem can be treated perturbatively at energies larger than the so-called Kondo temperature $T_{K}$, which is the only relevant energy scale, and does not depend on the high energy details. A renormalization group analysis shows that the system flows toward an attractive strong coupling fixed point, described by a tightly bound state formed by the impurity and the conduction electrons, the “Kondo singlet”. In this regime one can show that many quantities satisfy a universal scaling characterized precisely by $T_{K}$. This quantity has a strict universal meaning in the thermodynamic limit (or rather, in the universal scaling regime). In finite systems, like the one we presently discuss, one can define a similar energy scale as the energy gained by the system by forming a Kondo singlet, the correlation energy:

[TABLE]

where $E_{0}$ is the ground state energy, and

[TABLE]

with $|\mathrm{g.s.}\rangle$ being the ground state. The operators $S^{\pm}_{imp}$ act on the impurity site and project the ground state singlet onto a state where the impurity and the bulk are disentangled, thus forming a product state. This clearly is a variational estimate of the correlation energy, and comparisons to the dynamical spin correlations show that indeed it is an accurate measure of $T_{K}$ not (c). Notice that, even though the Hamiltonian is gapless, $E_{\mathrm{corr}}$ is finite.

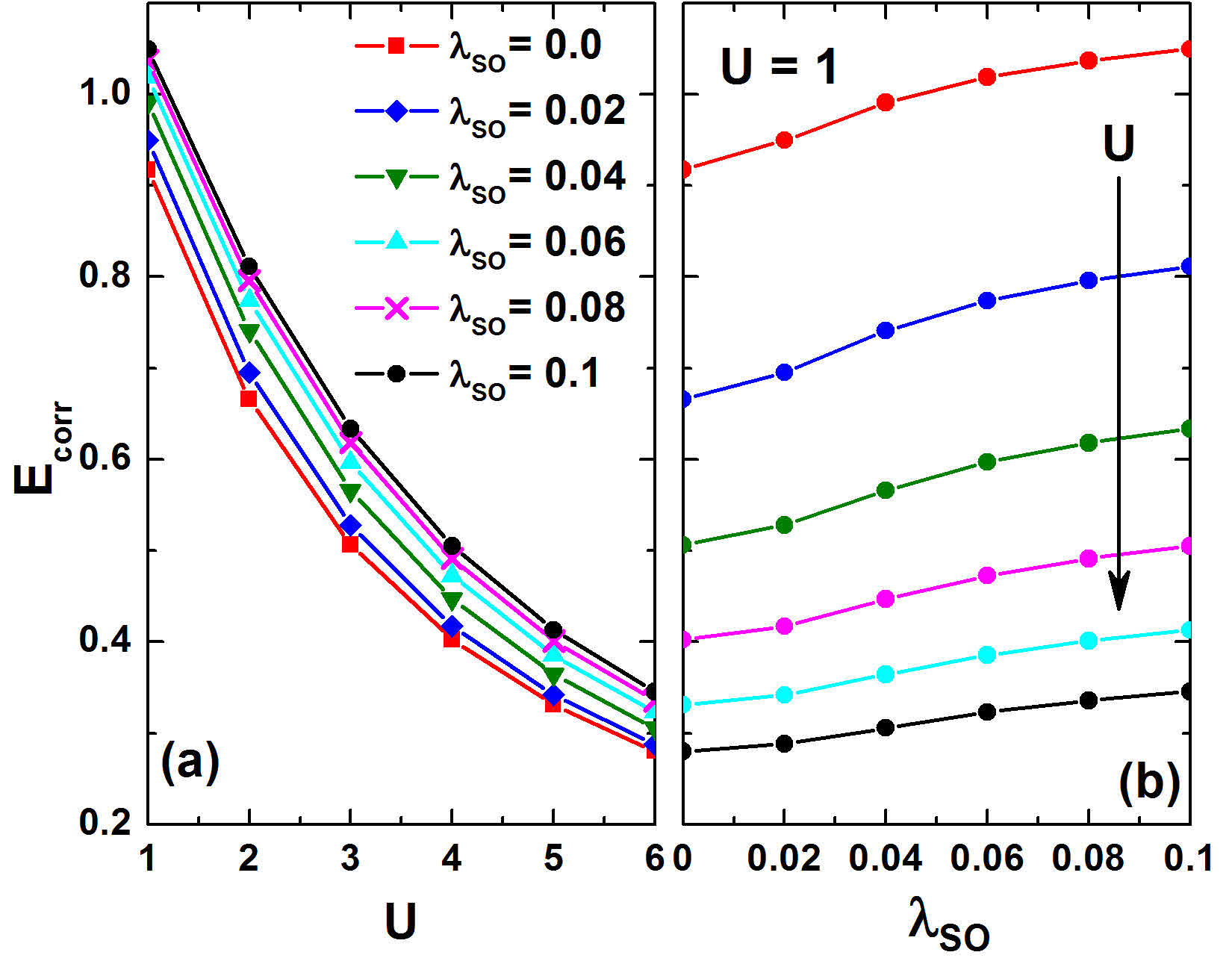

Our results for $E_{\mathrm{corr}}$, for an impurity at a crest site, are shown in Fig. 12(a) as a function of the interaction $U$ for different values of SOI ($0.0\leq\lambda_{\text{SO}}\leq 0.1$), and in panel (b) as a function of $\lambda_{\text{SO}}$ for different values of interaction $1\leq U\leq 6$ (varying in steps of 1). Unlike prior work by Zarea et at. Zarea et al. (2012) that predicts an exponential enhancement of the Kondo temperature in the presence of SOI, we find that this enhancement is very weak [see panel (b)], in agreement with numerical renormalization group treatments of this problem Žitko and Bonča (2011); Mastrogiuseppe et al. (2014).

IV Summary and Conclusions

We have applied the Lanczos transformation method combined with the DMRG Büsser et al. (2013); Allerdt et al. (2015, 2016), to study the many-body ground state of a quantum ($S=1/2$) impurity (modeled as an Anderson impurity) coupled to the edge of a zigzag nanoribbon of stanene, a slightly buckled (non-planar) honeycomb lattice of Sn atoms, which hosts a topologically protected metallic edge state. The main motivation was to study the detailed spatial structure of the spin correlations between the quantum impurity and the electrons in the host, which characterize the Kondo ground state. We identified marked differences between the results for the two distinct sites in the zigzag edge, namely an outermost and an innermost one, which we dubbed crest and trough sites, respectively.

The behavior observed through the spin correlations is quite complex and rich. For substitutional impurities located at either crest or trough sites, the spin correlates primarily with electrons along the edge, and decouples from the bulk. Furthermore, irrespective of the position of the impurity (crest or trough site), spin correlations with conduction electrons located at crest sites are larger than for trough sites. The sign of the spin correlations is determined by the spins belonging to the same or opposite sublattice. In addition, for impurities at crest sites, ferromagnetism dominates, while the opposite occurs for trough sites.

The effects of SOI in the TI phase are mostly present for impurities sitting at crest sites, increasing the range of the correlations and introducing helical order along the edge that originates from an effective Dzyaloshinskii-Moriya interaction. Remarkably, the SOI does not affect the spin symmetry for an impurity on a trough site, another indication that edge states reside mostly on crest sites.

Unlike previous calculations that consider the coupling of the impurity to one-dimensional effective modes Žitko (2010); de Sousa et al. (2016), in our formulation the helical liquid arises naturally as an edge effect of the 2d bulk. It has been observed that helical liquids with an odd number of modes cannot be obtained from one-dimensional lattice modelsWu et al. (2006). In our treatment, the edge has unequivocally a single mode contribution, even away from the particle-hole symmetric point.

From the real space picture obtained from our method we are able to resolve the structure of the correlations at different sites along the zigzag edge and into the bulk. We find that substitutional impurities sitting at a trough-site form a localized bound state with conduction electrons in a small metallic puddle that leaks out of the edge. On the other hand, a crest-site impurity scatters the edge state around it, resulting in the formation of a long range screening cloud along the edge.

Finally, we have used a variational estimate of the correlation energy to obtain a measure of $T_{K}$ in our finite system as a function of both $U$ and $\lambda_{\text{SO}}$. Our results show that the Kondo temperature for a substitutional impurity at a crest site is very weakly enhanced by the introduction of SOI, in agreement with numerical renormalizaton group calculations of a similar problemŽitko and Bonča (2011); Mastrogiuseppe et al. (2014).
