Boundary driven Heisenberg-chain in the long-range interacting regime: Robustness against far from equilibrium effects

TL;DR

This paper studies the transport properties of a long-range Heisenberg XXZ chain driven out of equilibrium, revealing nearly ballistic transport and robustness against disorder, contrasting with short-range models.

Contribution

It demonstrates that long-range interactions lead to robust ballistic transport and insensitivity to disorder under far-from-equilibrium conditions, unlike nearest-neighbor models.

Findings

Long-range XXZ chain exhibits nearly ballistic transport.

Transport in long-range chain is robust against disorder.

Nearest-neighbor chain shows negative differential conductivity.

Abstract

We investigate the Heisenberg XXZ-chain with long-range interactions in the Z-dimension. By applying two magnetic boundary reservoirs we drive the system out of equilibrium and induce a non-zero steady state current. The long-range coupled chain shows nearly ballistic transport and linear response for all potential differences of the external reservoirs. In contrast, the common isotropic nearest-neighbor coupling shows negative differential conductivity and a transition from diffusive to subdiffusive transport for a far from equilibrium driving. Adding disorder, the change in the transport for nearest neighbor coupling is therefore highly dependent on the driving. We find for the disordered long-range coupled XXZ-chain, any change in the transport behavior is independent of the potential difference and the coupling strengths of the external reservoirs.

Figures

Equations

$$\mathcal{H}=$$

$$+\frac{1}{4}\frac{J}{A}\sum _{i=0}^{N-2}\sum _{l>i}^{N-1}\frac{1}{|l-i{|}^{\alpha }}{\sigma }_i^z{\sigma }_l^z+\sum _{i=0}^{N-1}\frac{h_i}{2}{\sigma }_i^z$$

$$A=$$

$${\partial }_t\rho (t)=-i\left[\mathcal{H},\rho (t)\right]+\sum _{\begin{array}{c}j\in \{L,R\}\\ k\in \{+,-\}\end{array}}\mathcal{D}\left[L_k^j\right]\rho (t).$$

$$\mathcal{D}[\hat{x}]\rho =2\hat{x}\rho {\hat{x}}^{†}-\left\{{\hat{x}}^{†}\hat{x},\rho \right\},$$

$$L_{+}^L=\frac{1}{2}\sqrt{\Gamma (1+\mu )}{\sigma }_0^{+},L_{-}^L=\frac{1}{2}\sqrt{\Gamma (1-\mu )}{\sigma }_0^{-}$$

$$L_{+}^R=\frac{1}{2}\sqrt{\Gamma (1-\mu )}{\sigma }_{N-1}^{+},L_{-}^R=\frac{1}{2}\sqrt{\Gamma (1+\mu )}{\sigma }_{N-1}^{-}.$$

$$-\dot{{\sigma }_k^z}=\frac{j_k-j_{k-1}}{k-(k-1)}=j_{k-1}-j_k.$$

$$j_k=$$

Full text

The study of generic strongly-correlated quantum spin-models is of fundamental importance to understand underlying quantum phase transitions. Recently it became experimentally accessible to tune the interactions between spins such that long-range interactions can be investigated J. W. Britton et al. (2012); Islam et al. (2013); P. Richerme et al. (2014); P. Jurcevic et al. (2014); Neyenhuis et al. (2017); Jurcevic et al. (2017). Long-range interactions occur in real physical systems e.g. Coulomb interaction. A generalization of the well studied nearest-neighbor scenario to long-range interactions in spin-models provides a deeper understanding and has drawn a lot of interest in the recent years Sandvik (2010); Cevolani et al. (2015); Bermudez et al. (2017). One example for a phase transition is the many-body localization (MBL) transition Basko et al. (2006); Oganesyan and Huse (2007); Pal and Huse (2010); Serbyn et al. (2013); Nandkishore and Huse (2015); Altman and Vosk (2015); Schreiber et al. (2015); Bordia et al. (2016); J. Smith et al. (2016); Carmele et al. (2015), the generalization of Anderson localization Anderson (1958) for interacting systems, e.g. the disordered Heisenberg spin-chain. Recent publications provide a MBL transition in models with long-range interactions J. Smith et al. (2016); Hauke and Heyl (2015); Burin (2015); Yao et al. (2014). While it has been demonstrated that MBL exists in an isolated quantum system as the Heisenberg XXZ-chainŽnidarič et al. (2008); Luitz et al. (2015) it is still challenging in the presence of an external bath. Several approaches considered the existence of a thermalizing reservoir regarding the spectral properties Nandkishore et al. (2014); Johri et al. (2015), while others focused on the effect of dephasing referring to the measurement of optical lattice systemsLevi et al. (2016); Fischer et al. (2016); Medvedyeva et al. (2016).

One method to characterize MBL is the strictly zero conductivity in the localized phase, associated with a transition from metallic to insulating behavior Basko et al. (2006). Thus, vanishing current at a certain disorder strength indicates the MBL transition. A well studied approach to an open Heisenberg model is connecting the system to two magnetic reservoirs at the boundaries Saito (2003); Wichterich et al. (2007); Žnidarič (2011); Prosen (2011a); Karevski et al. (2013); Popkov et al. (2013); Landi and Karevski (2015); Monthus (2017). By keeping the reservoirs at different potentials, a spin current is induced. For nearest-neighbor coupling it has been demonstrated that such boundary driven spin-models provide non-equilibrium features such as negative differential conductivity (NDC) Benenti et al. (2009a, b) or anomalous transport Žnidarič (2011); Prosen (2011b). Dephasing enhances the transport Žnidarič (2010); Mendoza-Arenas et al. (2013a, b). If disorder is applied, it remains an open question whether MBL survives in these boundary driven systems. Still, the ergodic side with weak disorder contains a transition from diffusive to subdiffusive transport Žnidarič et al. (2016). For the isolated Heisenberg-chain different results were obtained with either a transition from diffusive transport to a subdiffusive regime close to the MBL transition Agarwal et al. (2015); Steinigeweg et al. (2016) or a subdiffusive regime up until zero disorder Bar Lev et al. (2015); Luitz et al. (2016); Khait et al. (2016). We capture the idea of ref. Žnidarič et al. (2016) but study the transport properties of the system being far from equilibrium, finding a subdiffusive regime all the way to zero disorder. Due to the far from equilibrium situation, the system builds up ferromagnetic domains at the boundaries (spin-blockade)Benenti et al. (2009b) leading to NDC Benenti et al. (2009a) which suppresses the transport already for zero disorder. We find that for a long-range interaction for the Ising-part, the system is robust against far from equilibrium effects and NDC is absent. The transport remains nearly ballistic for all investigated potential differences and reservoir coupling strengths. In case of disorder, long-range coupling shows a transition to subdiffusive transport at a disorder strength independent of the external reservoirs. This indicates a great difference between long-range coupling and nearest neighbor coupling for the far from equilibrium situation. Our findings propose that long-range coupling makes an ideal candidate to study many-body localization for the situation of two boundary reservoirs as the transport is not dependent on the bath induced localization at the boundaries.

I Model

We consider a Heisenberg quantum spin-chain consistent of $N$ spins. We focus on the isotropic case where all spin coupling constants $J$ are equal. We describe the Hamiltonian via Pauli spin-matrices $\left\{\sigma^{x},\sigma^{y},\sigma^{z}\right\}$, obtained from the Spin-operator $\bm{S}=\frac{\hbar}{2}\bm{\sigma}$. The Hamiltonian reads ($\hbar=1$)

[TABLE]

whereby the first two terms describe spin-flips between neighboring sites. The second term is an Ising-like interaction between the spins.

The Heisenberg spin-chain is equal to a model of spinless fermionsBenenti et al. (2009b), which is why we illustrate the spins as two-level systems with one fermion per site. Thus, the upper level is equal to spin up and and vice versa. Our model system is schematically shown in Fig. 1.

We apply a long-range coupling within the interaction term $\sigma^{z}_{i}\sigma^{z}_{i+1}$ where $\alpha$ differs between the coupling scenarios. If $\alpha\rightarrow\infty$ it reproduces the nearest neighbor coupling, leading to the standard disordered isotropic Heisenberg spin-chain. We assume $\alpha=1000$ as the nearest-neighbor case. The case $\alpha\rightarrow 0$ describes equal coupling with all other sites. All other values of $\alpha$ represent a decaying coupling with the distance. We consider the case $\alpha=0.5$ as long-range coupling, where the interaction decays with the square root of the distance. In order to compare the two different coupling-scenarios, we normalize the long-range coupling with weight on $\alpha$ as shown in Eq. (2). Thus, the limiting cases of $\alpha\rightarrow\infty$ yields $A=1$ and $\alpha=0$ defines $A=N/2$.

Within Sec. IV we investigate the effect of disorder which describes the last term in Eq. 1. We apply disorder via $h_{i}\in[-h,h]$ randomly at each site of the chain, shifting the on-site energies.

In order to induce and control spin transport, we apply two different reservoirs which act on the boundary spins $\{0,N-1\}$. We model the system-reservoir interaction with the Lindblad master equation and evaluate the full density-matrix dynamics via

[TABLE]

The Lindblad-terms describe a generic system-reservoir interaction within Born-Markov and secular approximation. The typical Lindblad-form with superoperator $\mathcal{D}$ reads

[TABLE]

with anticommutator brackets $\{a,a^{\dagger}\}=aa^{\dagger}+a^{\dagger}a$. At the left side of the chain we use for the operator $\hat{x}$ the LindbladiansŽnidarič et al. (2016)

[TABLE]

and for the right side the complex conjugate

[TABLE]

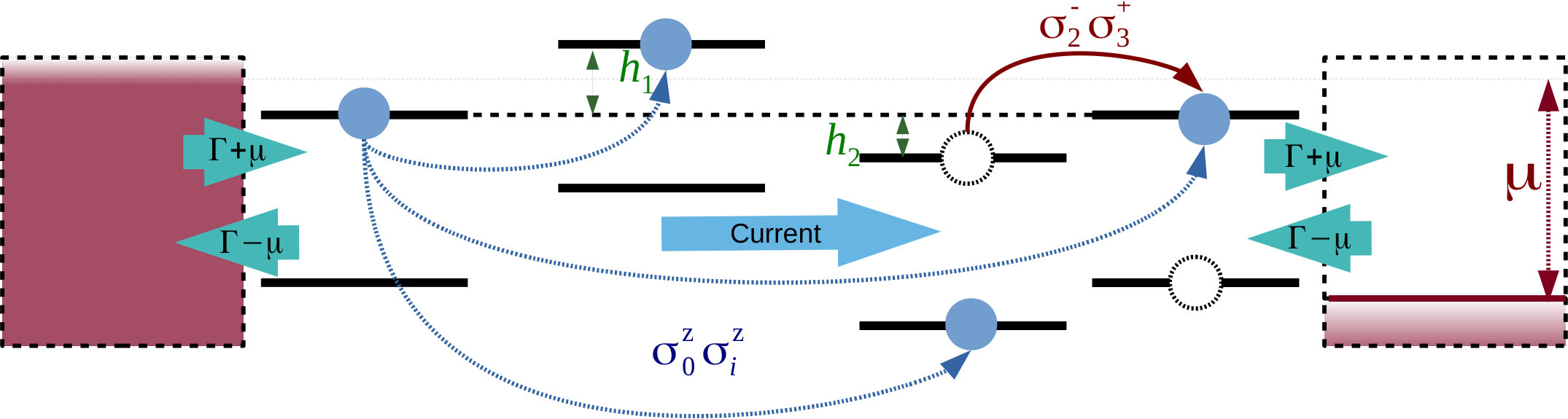

We introduce the driving parameter $\mu\geq 0$ phenomenologically as a potential difference between the two reservoirs as it can be seen in Fig. 1. Due to the different in- and outscattering for the left and the right boundary spin, $\mu>0$ induces a spin-current through the chain. For $\mu\ll 1$, the system acts within a linear response regime. Maximal driving is obtained for $\mu=1$ which describes just inscattering at the left and outscattering at the right side. Or in other words for the latter case, the left reservoir contains only spin-up magnetization while the right reservoir only includes magnetization of spin-down. We initialize all sites with spin-down $\rho(0)=|\downarrow\downarrow\downarrow...\rangle\langle\downarrow\downarrow\downarrow...|$. Due to the boundary reservoirs at different potentials, the system converges to a non-equilibrium steady state.

We focus on the spin-current which is derived via the continuity equation

[TABLE]

Calculating the time derivative with Heisenberg equation of motion $\dot{\sigma_{k}^{z}}=i\left[\sigma_{k}^{z},H\right]$, the spin-current reads

[TABLE]

Reaching the non-equilibrium steady state, the relative spin-current is independent of the site index and therefore $\left\langle j\right\rangle=\text{lim}_{t\rightarrow\infty}\text{Tr}\left(\rho(t)j_{k}\right)$.

II Characterizing Spin-transport

We investigate the transport of both models, either nearest-neighbor coupling ($\alpha=1000$) or long-range coupling ($\alpha=0.5$). Hereby we show that a long-range coupled chain still acts within a linear response regime for all kind of external driving in contrast to the nearest-neighbor scenario. For the following plots we set $J=\Gamma$.

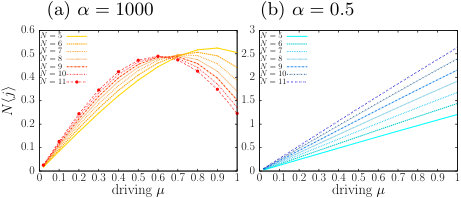

In Fig. 2 we show the absolute current $N\langle j\rangle$ versus the driving strength $\mu$. We compare the nearest neighbor case $\alpha=1000$ (a) (red) with a square root decaying coupling with the distance $\alpha=0.5$ (b) (blue). For the nearest-neighbor case, the system exhibits a NDC as already shown in ref. Benenti et al. (2009b, a). Surprisingly, for long-range coupling, the system still acts close to a linear response regime for strongest driving and do not show NDC. The reason for the NDC in chains with strong decaying coupling lies in a spin-blockade which is build up at the boundaries and counteract the inscattering process. Long-range coupling does not show NDC in analogy to the anisotropic Heisenberg-chain with $J_{z}<J_{x,y}$ Benenti et al. (2009a).

We highlight that for nearest-neighbor coupling there is a crossing of the curves at $\mu^{diff}\approx 0.6$, meaning that the absolute current is the same for all system sizes at that driving strength. $\mu^{diff}$ marks a driving strength, where the system obeys a phenomenological transport law $j=D\nabla\sigma^{z}$ with $D$ independent of the system size signifying diffusive transport. Note, that the intersection is only at a specific driving $\mu^{diff}$ for $N\geq 7$. We believe that for smaller systems, finite size effects dominate due to a smaller spin-blockade. For $\mu<\mu^{diff}$, the absolute current increases with the system size $N$ while for $\mu>\mu^{diff}$ it decreases with $N$. For long range coupling the absolute current is always increasing with $N$, also for maximal $\mu$ and shows linear response to all driving strengths.

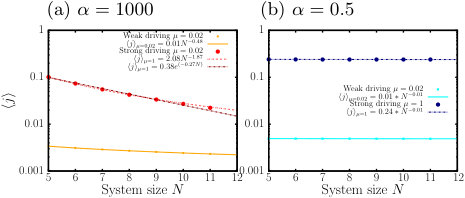

In order to quantify the transport, we investigate now the relative current $\langle j\rangle$ versus the system size $N$ which we show in Fig. 3. We assume the relative current to scale as $\langle j\rangle\sim 1/N^{\gamma}$, where the power-law exponent $\gamma$ differs between the transport scenario. $\gamma=1$ we call diffusive transport what is the case at $\mu^{diff}$. Any $\gamma<1$ we call superdiffusive with the case $\gamma=0$ signifying ballistic transport. If $\gamma>1$ the transport is called subdiffusive. We distinguish between the two relevant cases here, weak and strong driving in the following.

II.1 Weak driving

Analyzing the scaling for the weak driving regime with $\mu=0.02$ and system sizes up to $N=11$ (Fig. 3), we obtain $\langle j\rangle_{\mu=0.02}\sim 1/N^{0.48}$ for the nearest-neighbor case. This value agrees with $\gamma=0.5$ of Ref. Žnidarič (2011); Žnidarič et al. (2016) obtained for system sizes up to $N=250$. The transport of the clean case is therefore superdiffusive for nearest-neighbor coupling and weak driving within the linear response regime.

For the long-range scenario for the clean case, we obtain $\langle j\rangle_{\mu=0.02}\sim 1/N^{0.01}$ which is nearly ballistic transport. Thus, nearest-neighbor coupling and long-range coupling show already a difference in the transport for weak driving.

II.2 Maximal driving

Leaving the linear response regime by choosing strong driving, the nearest-neighbor scenario exhibits NDC. As mentioned before, the intersection at $\mu^{diff}\approx 0.6$ in Fig. 2 signifies diffusive transport. Increasing $\mu$, the power law exponent changes to $\gamma>1$. For maximal driving we obtain $\langle j\rangle_{\mu=1}\sim 1/N^{1.87}$ which signifies subdiffusive transport. In Fig. 3(a) we also show an exponential fit of the data which would indicate an insulating system. We remark that in Ref. Benenti et al. (2009b) an exponential fit was more adequate. Our data supports more a power law scaling but for our system sizes finite size effects still are non-negligible. Nevertheless, our purpose is to highlight the difference between nearest-neighbor and long-range coupling which is remarkably: For long-range coupling we obtain $\langle j\rangle_{\mu=1}\sim 1/N^{0.01}$ which is the same as for weak driving with nearly ballistic transport. Therefore, for long-range coupling, the transport is not influenced by the external driving $\mu$. To clarify this robustness, we now investigate the reservoir coupling strength $\Gamma$.

II.3 Reservoir dependency

By varying the external scattering rates, we show that the transport for long-range coupling remains the same for typical reservoirs characterized with $\Gamma,\mu$ while for nearest-neighbor coupling the transport behavior is changed remarkably.

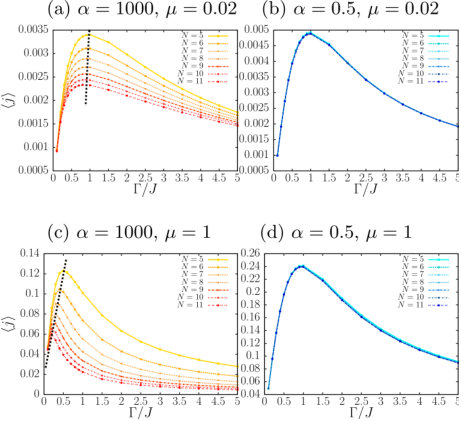

In Fig. 4 we again show the two cases: The weak driving regime by comparing nearest-neighbor (a) and long-range coupling (b) as well as the far from equilibrium situation with maximal driving (c) and (d). For weak driving, both, inscattering $\sigma^{+}$ (spin up) and outscattering $\sigma^{-}$ (spin down) is present at both sides of the chain with a small bias to spin up (left) or spin down (right) (Eq. (5) and (6)). For simplicity we restrict the explanation to the left side, where spin up magnetization ($\Gamma(1+\mu)$) dominates over spin down ($\Gamma(1-\mu)$) in the reservoir. The maximal current is obtained for nearest-neighbor and long-range coupling at reservoir coupling strength $\Gamma/J=1$. The reason is that the spin-flips to the right site dominate over the spin down magnetization of the reservoir $J>\Gamma(1-\mu)$ while the current is driven by $J<\Gamma(1+\mu)$. A decreasing of the scattering rate $\Gamma/J<1$ results in lesser inscattering and thus reduces the current to the right side. Increasing of the scattering $\Gamma/J>1$ results also in a higher probability of outscattering (spin down) at the left boundary spin due to $J<\Gamma(1-\mu)$. As a consequence, only the boundary spins are aligned with respect to the bath magnetization and no further spins are influenced and thus reducing the current. Now let us consider the transport of the nearest-neighbor scenario. At $\Gamma/J=1$ it is superdiffusive with $\gamma\approx 0.5$ as shown before. Either increasing or decreasing $\Gamma$ decreases the power law exponent $\gamma$ as it can be seen qualitatively in Fig. 4(a) that the curves for different system sizes converge. For $\Gamma/J<1$, the influence of the reservoir reduces and thus the polarizations of all spins vanish, becoming independent of the system size. For $\Gamma/J>1$, only the boundary spins polarize with respect to the reservoir due to $J<\Gamma(1-\mu)$. Therefore, it becomes more and more independent of the system size for increasing $\Gamma$ as the transport of polarization to further spins is reduced. However, for long-range coupling (Fig. 4(b)), all system sizes show the same current, even at the maximum. Independent of the bath magnetization, the transport always remains nearly ballistic. A change of the scattering rate $\Gamma$ only changes the value of the current and not the scaling with the system size.

At maximal driving, the left reservoir only contains spin up magnetization ($2\Gamma\sigma^{+}$) and no spin down. Any polarization has to be transported to the right side of the chain. Thus, the reason for the decreasing current is different in comparison to the weak driving regime and lies in the spin-blockade effect. A strong alignment of the boundary spin reduces the inscattering probability as the spin is already polarized. For this reason, the maximum is moving to smaller rates $\Gamma/J<1$ at maximal driving (Fig. 4(c)) for nearest-neighbor coupling. Due to the missing outscattering, the spins accumulate up to the central site and a smaller $\Gamma$ is in favor for the current. The number of sites to cross increases with the system size, which is why the maximum moves to smaller $\Gamma/J$ for a higher number of spins. For this reason, the scaling of the current with the system size (cp. Fig. 3(a)) at a specific $\Gamma$ changes dramatically to subdiffusive transport ($\gamma\approx 1.9$) or even exponential decay Benenti et al. (2009b). Higher scattering rates $\Gamma/J>1$ intensify the spin-blockade effect, which is why the current decreases, comparable to self-quenching in few emitter lasers. As for the weak driving regime $\Gamma/J\ll 1$ reduces the influence of the reservoir and the current becomes more independent of the system size.

In Fig. 3(b) we have shown that for long-range coupling the transport remains nearly ballistic for maximal driving at $\Gamma/J=1$ as it is the case for weak driving. For maximal driving one might expect, that an increasing scattering $\Gamma$ for maximal driving would increase the current as well, as there is maximal potential difference between both reservoirs and no NDC. But on the contrary, even for maximal driving, the maximal current is obtained as well at $\Gamma/J=1$ (Fig. 4(d)). This is surprising, the transport behavior does not change for strong driving due to a missing spin-blockade effect, but still the current for $\Gamma/J>1$ decreases. Also for long-range coupling, the boundary spin polarizes with respect to the bath magnetization. For strongest driving the boundary spin is driven to spin up and counteracts further inscattering. Still, the transport behavior does not change. This effect we explain more detailed in the following section. The maximal driving does not change the system response in comparison to the weak driving (Fig. 4(b)) but for the value of the current. Also for all other investigated $\Gamma$-values, the transport remains nearly ballistic. Therefore, the transport behavior for long-range coupling is completely independent of the potential difference or the reservoir coupling strengths.

III Absence of negative differential conductivity

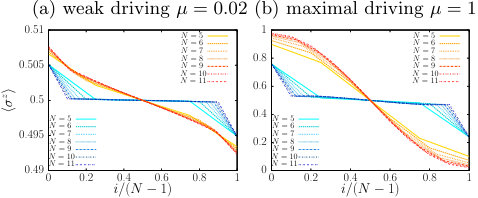

Now we investigate in more detail the reason for the absence of NDC in long-range coupled chains and the robustness of the transport behavior against changing reservoir parameters. We show the magnetization profile for nearest-neighbor (red) and long range coupling (blue) in Fig. 5. We again differentiate between the weak driving regime (a) and the far from equilibrium situation with maximal driving (b). Note that the range of the magnetization $\langle\sigma^{z}_{i}\rangle$ is different for (a) and (b). For weak driving all spins are not aligned in a specific direction. Even the boundary spins are close to $\langle\sigma^{z}_{0,N-1}\rangle\approx 0.5$ and are only aligned weakly with respect to the bath magnetization. Due to the different bath potentials, a small gradient from left to right is induced. We highlight that already in the weak driving regime this parameter set shows a difference between nearest-neighbor and long-range coupling, leading to superdiffusive transport for $\alpha=1000$ and nearly ballistic transport for $\alpha=0.5$ which we demonstrated in Sec. II. The reason for the different transport behavior is an increased gradient of the spins close to the center for nearest neighbor coupling. A linear gradient for all spins would indicate diffusive transport as the transport law $j=D\nabla\sigma^{z}$ is fulfilled with $D$ independent of the position and chain length. We remark that at $\mu^{diff}$ the magnetization profile for nearest-neighbor coupling shows a linear decrease with diffusive transport.

In contrast, for strong driving (b), the magnetization profile shows also a qualitative difference between nearest-neighbor and long-range coupling. For $\alpha=0.5$ only the boundary spins are polarized with respect to the bath magnetization while for $\alpha=1000$ also further spins are polarized. This is the spin-blockade which counteracts the inscattering at the left side of the chain, as spin polarizations accumulate up to the centered site. Therefore, the gradient is beyond the linear decrease, which is why the transport changes for strong driving in case of nearest-neighbor coupling. It is clearly visible that for long-range coupling the spins do not polarize except for the boundary spins. Therefore, the spin-blockade is not existent and NDC is absent which is why the transport remains the same for all driving strengths for long-range coupling.

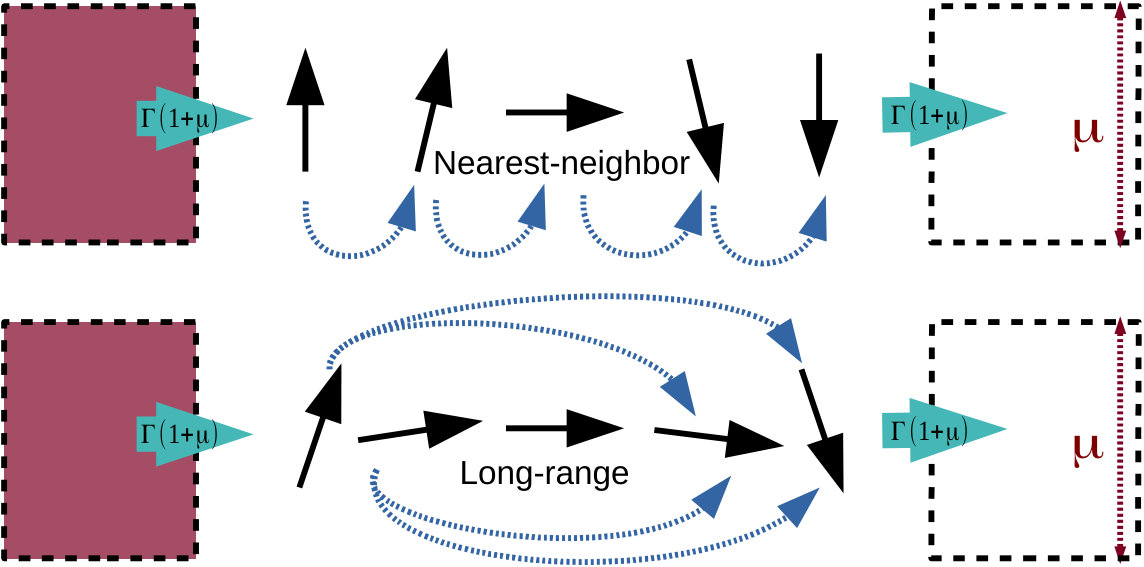

Long-range coupling enables interactions beyond the central site. The ferromagnetic domain at the left side interacts with its magnetic counterpart at the right side of the chain what we illustrate in Fig. 6. Due to the interaction between the two ferromagnetic domains, the respective polarization on both sides is reduced. However, the boundary spins are still affected by the external reservoirs and polarize, counteracting further inscattering. Therefore, the current also decreases for maximal driving if $\Gamma$ increases (cp. Fig. 4(d)). For nearest-neighbor coupling also further spins are affected by the respective bath polarization and build up a spin-blockade. This bottleneck reduces the current, resulting in NDC. Long-range coupling is robust against accumulation of polarizations and the transport remains nearly ballistic for all driving strengths and all investigated scattering rates $\Gamma$.

IV Effect of disorder

An increase of the external driving results in a change of the transport behavior from diffusive to subdiffusive transport or even exponential decay for nearest neighbor coupling. If disorder is applied, a change of the transport to an insulating exponential decay is of great interest regarding the many-body localization (MBL) transition. In case of weak driving, it was shown by ref. Žnidarič et al. (2016) that the boundary driven nearest-neighbor coupled XXZ-chain contains a transition from diffusive to subdiffusive transport with increasing disorder, before the system exhibits MBL, according to a Griffiths effect Agarwal et al. (2015); Vasseur and Moore (2016). We capture this point and show that this transition is highly dependent on the external reservoir for driving beyond the linear response regime. Furthermore, we show that the transport of a long-range coupled chain is not affected by the reservoir and any change in the transport is independent of the external drive.

For each data point in the following plots, the disorder is applied randomly at each site with $h_{i}\in[-h,h]$. For each disorder realization we evaluate the full density-matrix dynamics until the system converges to a non-equilibrium steady state. We repeat this procedure with new random disorder realizations until the current is well averaged as well as each averaged disorder $\bar{h}_{i}\approx 0$. It turns out that for 6000 averages both are well converged. We note that for increasing disorder, the time until the system converges to a non-equilibrium steady state is increasing significantly. Additionally, increasing disorder results in different on-site potentials, wherefore the step size has to be adapted as well.

Furthermore, for increasing system sizes not only the scaling of the density-matrix with $2^{2N}$ causes numerical effort but rather again an increase of the integration time and an adjustment of the step size. Due to this effort, in this approach we are limited to system sizes up to $N=8$, where we only apply 1000 disorder realizations for each data point. Therefore, our system sizes are significantly smaller than the thermodynamic limit (TDL). However, for the purpose of our study, already small system sizes are sufficient. We are interested in the impact of the spin-blockade on the transition from diffusive to subdiffusive transport, even if the exact point of the transition is not the correct value in the TDL. Especially, we compare qualitatively long-range coupling with the nearest-neighbor case, as the spin-blockade is non existent for long-range coupling.

In Sec. II, in the first graph, we have shown the absolute current $N\langle j\rangle$ in Fig. 2. For all other plots we showed instead the relative current $\langle j\rangle$, as the transport behavior is obtained from the scaling of the relative current. Now we again focus on the absolute current, because diffusive transport is clearly visible as an intersection of curves with different $N$ as it was the case at $\mu^{diff}$ in Fig. 2(a). Similar to $\mu^{diff}$, we find a specific disorder strength $h^{diff}$, where the absolute current does not change for the considered system sizes and an intersection of the curves for different $N$ occurs. Right at $h^{diff}$ the transport obeys a phenomenological transport law $j=D\nabla\sigma^{z}$ with $D$ independent of the system size. The regime $h<h^{diff}$, where the absolute current increases with the system size is superdiffusive. For $h>h^{diff}$, the absolute current decreases with the system size which is subdiffusive transport.

In case of a system without boundary reservoirs there exists a second transition at $h^{MBL}\approx 3.7$ Pal and Huse (2010); Luitz et al. (2015) where the current scaling with the system size should change from $j\sim 1/N^{\gamma}$ ($\gamma>1$) to $j\sim exp(-\kappa N)$ which is the many-body localization transition. Here we do not address the question if $h^{MBL}$ exists in such small boundary driven systems but hope these findings might help to characterize $h^{MBL}$ in comparable systems as ours, as long-range coupling shows no bath induced boundary localization (spin-blockade).

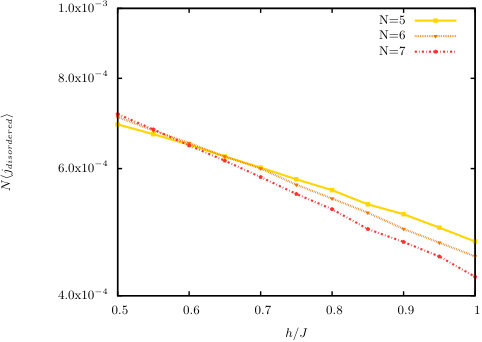

We start with a comparison to the findings of ref. Žnidarič et al. (2016), where they find a transition to subdiffusive transport at $h^{diff}\approx 0.55$. It was shown that there is a critical system size $N^{*}$ above which finite size effects are absent. We again remark that our investigated system sizes include finite size effect due to $N<N^{*}$. Still, we can predict with a maximal system size $N=7$, a transition to subdiffusive transport at $h^{diff}\approx 0.6$ what we show in Fig. 7. The resulting disorder strength is close to its value obtained for $N>N^{*}$ with $h^{diff}\approx 0.55$ Žnidarič et al. (2016). We note that we are not interested in the exact value of $h^{diff}$ in the TDL, obtained from the current scaling via $\langle j\rangle\sim 1/N^{\gamma}$ with $\gamma=1$ at $h^{diff}$. We determine $h^{diff}$ qualitatively from a certain disorder strength where the absolute current $N\langle j\rangle$ does not change for various system sizes $N$. This clarifies that our method to obtain $h^{diff}$ from an intersection of curves can predict a transition relatively close to the value of the TDL for weak driving and nearest-neighbor coupling. In contrast to ref. Žnidarič et al. (2016) we are investigating also the far from equilibrium current. We have shown in Sec. II that for nearest-neighbor coupling, the chain exhibits NDC resulting in subdiffusive transport already for zero disorder, whereas strong driving does not influence the transport within a long-range coupled chain. Although, we are studying small chains, greater systems show an even stronger NDC for nearest-neighbor coupling (Fig. 2), favoring subdiffusive transport for increasing $N$.

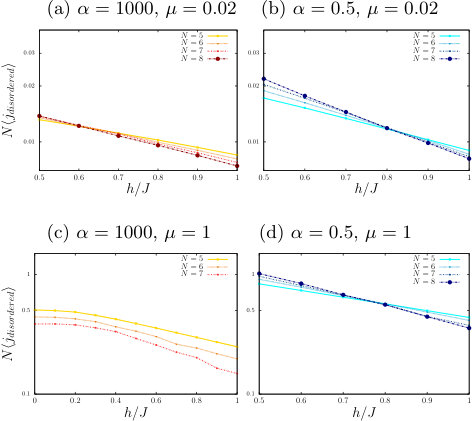

In Fig. 8 we compare the nearest-neighbor case with the long-range coupling in case of disorder. For weak driving, we observe that $h^{diff}$ is shifted to higher disorder strengths in case of long-range coupling (Fig. 8 (a) and (b)). The reason that the transition to subdiffusive transport takes place at a higher disorder strength for long-range coupling, is that long-range coupling shows nearly ballistic transport ($\gamma\approx 0.01$) in contrast to superdiffusive transport ($\gamma=0.5$) of the nearest-neighbor case. Thus, a higher disorder strengths is needed in order to suppress the transport for long-range coupling such that it becomes diffusive. If we increase the external driving strength $\mu$ to maximal driving, we see even a greater difference between both couplings: While for the long-range scenario $h^{diff}$ remains at nearly the same value (Fig. 8 (d)), the nearest-neighbor coupling shows transport beyond diffusivity for all investigated disorder strengths, even for $h=0$ (Fig. 8 (c)). The reason for this different qualitatively behavior lies in the spin-blockade for the nearest neighbor scenario and the absence of NDC for long-range coupling which we have shown in Sec. III.

These findings prove that if disorder is applied, the transition to subdiffusive transport is dependent on the external reservoirs for nearest-neighbor coupling. Far from equilibrium driving already suppresses the current due to a spin-blockade effect and it becomes difficult to unravel the effect of disorder from the spin-blockade. The transport for long-range coupling is unaffected by the external reservoir, even for the far from equilibrium situation. Thus, the transition to subdiffusive transport is a disorder effect, independent of the external drive. In our case with a high potential difference of the reservoirs, a possible MBL-transition would be a purely disorder induced effect in case of long-range coupling.

V Conclusion

We investigated the isotropic Heisenberg quantum spin-chain with either nearest-neighbor or long-range interaction. By calculating the non-equilibrium steady state current which is induced by two boundary reservoirs at different potentials, we saw that the transport of the long-range coupled chain is independent of the chosen reservoir parameters. For far from equilibrium driving, the nearest-neighbor scenario shows negative differential conductivity resulting in a change of the transport already for zero disorder with a specific driving $\mu^{diff}\approx 0.6$ with diffusive transport. We have shown that for long-range coupled chains, the negative differential conductivity is absent due to the scattering of the two magnetic counterparts beyond the central sites. Long-range coupling still acts close to a linear response regime for the far from equilibrium situation and the transport remains nearly ballistic with a power law exponent $\gamma=0.01$. This is also the case for all investigated system-reservoir interactions.

Adding disorder, we observed a specific disorder strength $h^{diff}$ with diffusive transport for both, nearest-neighbor and long range coupling in the weak driving regime. For the far from equilibrium situation, we observed diffusive transport for long-range coupling at nearly the same $h^{diff}$. In contrast, the nearest-neighbor case shows subdiffusive transport already for $h=0$ due to a spin-blockade effect. Long-range coupling is robust against the bath induced spin-blockade.

Thus, for nearest-neighbor coupling the transport is highly dependent on both, the external driving $\mu$ and the disorder $h$ in a boundary driven Heisenberg model. In order to distinguish many-body localization as an effect of disorder from the spin-blockade, long-range coupling provides a clear understanding of MBL for boundary driven systems as it is robust against far from equilibrium effects.
