Tree-ansatz percolation of hard spheres

TL;DR

This paper develops an analytical model for continuum percolation in suspensions of hard spheres, using a treelike approximation valid at small connectivity ranges, and derives an accurate expression for the percolation threshold.

Contribution

It introduces a novel analytic expression for the percolation threshold of hard spheres based on a treelike network approximation for small connectivity ranges.

Findings

Derived an analytic percolation threshold formula

Validated the formula's accuracy at small connectivity ranges

Extended the model's applicability through simple rescaling

Abstract

Suspensions of hard core spherical particles of diameter $D$ with inter-core connectivity range $\delta$ can be described in terms of random geometric graphs, where nodes represent the sphere centers and edges are assigned to any two particles separated by a distance smaller than $\delta$. By exploiting the property that closed loops of connected spheres becomes increasingly rare as the connectivity range diminishes, we study continuum percolation of hard spheres by treating the network of connected particles as having a treelike structure for small $\delta/D$. We derive an analytic expression of the percolation threshold which becomes increasingly accurate as $\delta/D$ diminishes, and whose validity can be extended to a broader range of connectivity distances by a simple rescaling.

Figures

Equations

$$p=\frac{1}{N(N-1)}⟨\sum _{i,j}^{\prime }\theta (\Delta -r_{ij})⟩,$$

$$C_3=\frac{⟨{\sum }_{i,j,k}^{\prime }\theta (\Delta -r_{ij})\theta (\Delta -r_{ik})\theta (\Delta -r_{jk})⟩}{⟨{\sum }_{i,j,k}^{\prime }\theta (\Delta -r_{ij})\theta (\Delta -r_{ik})⟩}.$$

$${\rho }^3{g}^{(3)}({\mathbf{r}}_1,{\mathbf{r}}_2,{\mathbf{r}}_3)=⟨\sum _{i,j,k}^{\prime }\delta ({\mathbf{r}}_1-{\mathbf{r}}_i)\delta ({\mathbf{r}}_2-{\mathbf{r}}_j)\delta ({\mathbf{r}}_3-{\mathbf{r}}_k)⟩,$$

$$C_3=$$

$$\times \frac{\theta (\Delta -r)\theta (\Delta -r^{\prime })\theta (\Delta -|\mathbf{r}-{\mathbf{r}}^{\prime }|))}{\int d\mathbf{r}\int d{\mathbf{r}}^{\prime }{g}^{(3)}(r,r^{\prime },|\mathbf{r}-{\mathbf{r}}^{\prime }|)\theta (\Delta -r)\theta (\Delta -r^{\prime })}.$$

$$C_3=\frac{\delta }{D}\frac{g^{(3)}(D,D,D)}{{\int }_{\pi /3}^{\pi }d\theta \sin \theta g^{(3)}(D,D,D\sqrt{2-2\cos \theta })},$$

$$g^{(3)}(D,D,D\sqrt{2-2\cos \theta })\simeq g^{(2)}(D{)}^2\frac{g^{(2)}(s(\theta ))+1}{2},$$

$$C_3\simeq \frac{\delta }{D}\frac{g^{(2)}(D)+1}{2I}\simeq \frac{5}{16}\frac{\delta }{D}\left[\frac{1-\varphi /2}{(1-\varphi {)}^3}+1\right],$$

$$P(k)=\left(\genfrac{}{}{0ex}{}{N-1}{k}\right)⟨\prod _{i=2}^{k+1}\theta (\Delta -r_{1i})\prod _{j=k+2}^N\theta (r_{1j}-\Delta )⟩,$$

$$S=1+\sum _{k}P(k)kT=1+⟨k⟩T,$$

$$T=1+\sum _{k}Q(k)(k-1)T,$$

$$\frac{⟨k^2⟩}{⟨k⟩}=2.$$

$$\frac{⟨{\sum }_{i,j,k}^{\prime }\theta (\Delta -r_{ij})\theta (\Delta -r_{ik})⟩}{⟨{\sum }_{i,j}^{\prime }\theta (\Delta -r_{ij})⟩}=1,$$

$$\frac{\rho \int d\mathbf{r}\int d{\mathbf{r}}^{\prime }{g}^{(3)}(r,r^{\prime },|\mathbf{r}-{\mathbf{r}}^{\prime }|)\theta ({\Delta }_c-r)\theta ({\Delta }_c-r^{\prime })}{\int d\mathbf{r}{g}^{(2)}(r)\theta ({\Delta }_c-r)}$$

$$\simeq \frac{2\pi \rho {\delta }_c{D}^2{\int }_{\pi /3}^{\pi }d\theta \sin \theta g^{(3)}(D,D,D\sqrt{2-2\cos \theta })}{g^{(2)}(D)}.$$

$$\frac{{\delta }_c}{D}\simeq \frac{1}{12I\varphi g^{(2)}(D)}\simeq \frac{5}{96}\frac{(1-\varphi {)}^3}{\varphi (1-\varphi /2)},$$

$$I={\int }_{\pi /3}^{\pi }d\theta \sin \theta \frac{1+g^{(2)}(s(\theta ))}{2},$$

$$G(x)=\sum _{k}P(k)x^k,$$

$$⟨k⟩=\sum _{k}kP(k)={\left[\frac{dG(x)}{dx}\right]}_{x=1},$$

$$⟨k^2⟩=\sum _k{k}^{2}P(k)={\left[\frac{dG(x)}{dx}\right]}_{x=1}+{\left[\frac{d^{2}G(x)}{d{x}^2}\right]}_{x=1}.$$

$$G(x)$$

$$=\frac{1}{N}⟨\sum _i\prod _{j\ne i}[x\theta (\Delta -r_{ij})+\theta (r_{ij}-\Delta )]⟩.$$

$$⟨k⟩=\frac{1}{N}⟨\sum _{i,j}^{\prime }\theta (\Delta -r_{ij})⟩,$$

$$⟨k^2⟩=⟨k⟩+\frac{1}{N}⟨\sum _{i,j,k}^{\prime }\theta (\Delta -r_{ij})\theta (\Delta -r_{ik})⟩,$$

Full text

I Introduction

In random multi-phase heterogeneous systems, in which objects or particles may be connected according to some connectedness criterion, the percolation threshold marks the occurrence of a macroscopic, system-spanning cluster or component of connected objects.Stauffer1994 ; Torquato2002 In most systems of practical interest, percolation is established among particles that occupy random positions in space and that are not constrained by an underlying regular lattice. In such continuum percolating systems, the critical threshold depends on the shape, orientation, and size distributions of the percolating objects as well as on the connectedness criterion.

While the influence of these factors on the critical threshold is mostly studied by means of numerical simulations of finite systems, and analytical approximate results exist for many models of heterogeneous systems,Torquato2002 exact analytical expressions for the percolation threshold have been found only for a few continuum percolation systems in some asymptotic limit. Notable examples are dispersions of isotropically oriented penetrable rods (or cylinders, spherocylinders) with asymptotically large aspect ratios,Bug1985 and penetrable hyperspheres and oriented hypercubes in the infinite dimensional limit.Penrose1996 ; Torquato2012 Exact results on the percolation threshold of these families of models have been found also for generalized case of particle size polydispersityOtten2009 ; Grimaldi2015a ; Chatterjee2015 and, for the case of rod dispersion, for hard-core impenetrability.Otten2009

The property that crucially makes these classes of models exactly tractable is the statistical irrelevance of the contribution of closed loops of connected particles to the incipient percolating cluster. This property allows the connectivity network to have a dendritic, treelike structure, which allows for a closed form solution for the percolation threshold.

In this article it is shown that the percolating network of hard spherical particles displays a similar property. Namely, the probability of finding closed loops becomes smaller as the connectivity distance between the hard spheres is reduced. This observation enables us to derive a theory of percolation of hard spherical particles in which the connectivity network is treated as having a treelike structure, while at the same time the many-body correlations of the hard-sphere fluid are fully preserved. The resulting percolation transition agrees well with existing numerical results in the limit of short connectivity distance, and an analytic expression of the critical threshold is derived which has a much broader range of validity.

II Clustering coefficient for hard spheres

We start by considering a random dispersion of $N$ hard-sphere particles of diameter $D$ which occupy a three dimensional region of volume $V$. The fractional volume occupied by the spheres is $\phi=\pi D^{3}\rho/6$, where $\rho=N/V$ is the number density. A pair of spheres centered at $\mathbf{r}_{i}$ and $\mathbf{r}_{j}$ are considered as connected to each other if the distance between their center, $r_{ij}=|\mathbf{r}_{i}-\mathbf{r}_{j}|$, is smaller than $\Delta=D+\delta$, where $\delta\geq 0$ is a given distance between the closest surfaces of the spheres. This connectivity criterion can be equivalently formulated by associating to each impenetrable sphere a concentric penetrable shell of thickness $\delta/2$. In the resulting system of composite particles, often referred to as the cherry-pit model,Torquato2002 ; Torquato1984 a pair of semi-penetrable spheres are therefore connected if their penetrable shells overlap.

Next, we construct a random geometric graph, or network, whose nodes (or vertices) are associated to the centers of the spheres, and edges (or links) between pairs of nodes are assigned according to the aforementioned connectivity criterion. The probability that two nodes are directly linked by an edge is therefore given by

[TABLE]

where $\left\langle\cdots\right\rangle$ denotes the ensemble average over the configurations of the $N$ hard-sphere system, $\theta(x)=1$ for $x\geq 0$ and $\theta(x)=0$ for $x<0$ is the Heaviside step function, and the prime symbol over the summation indicates that the terms with equal indexes must be omitted.

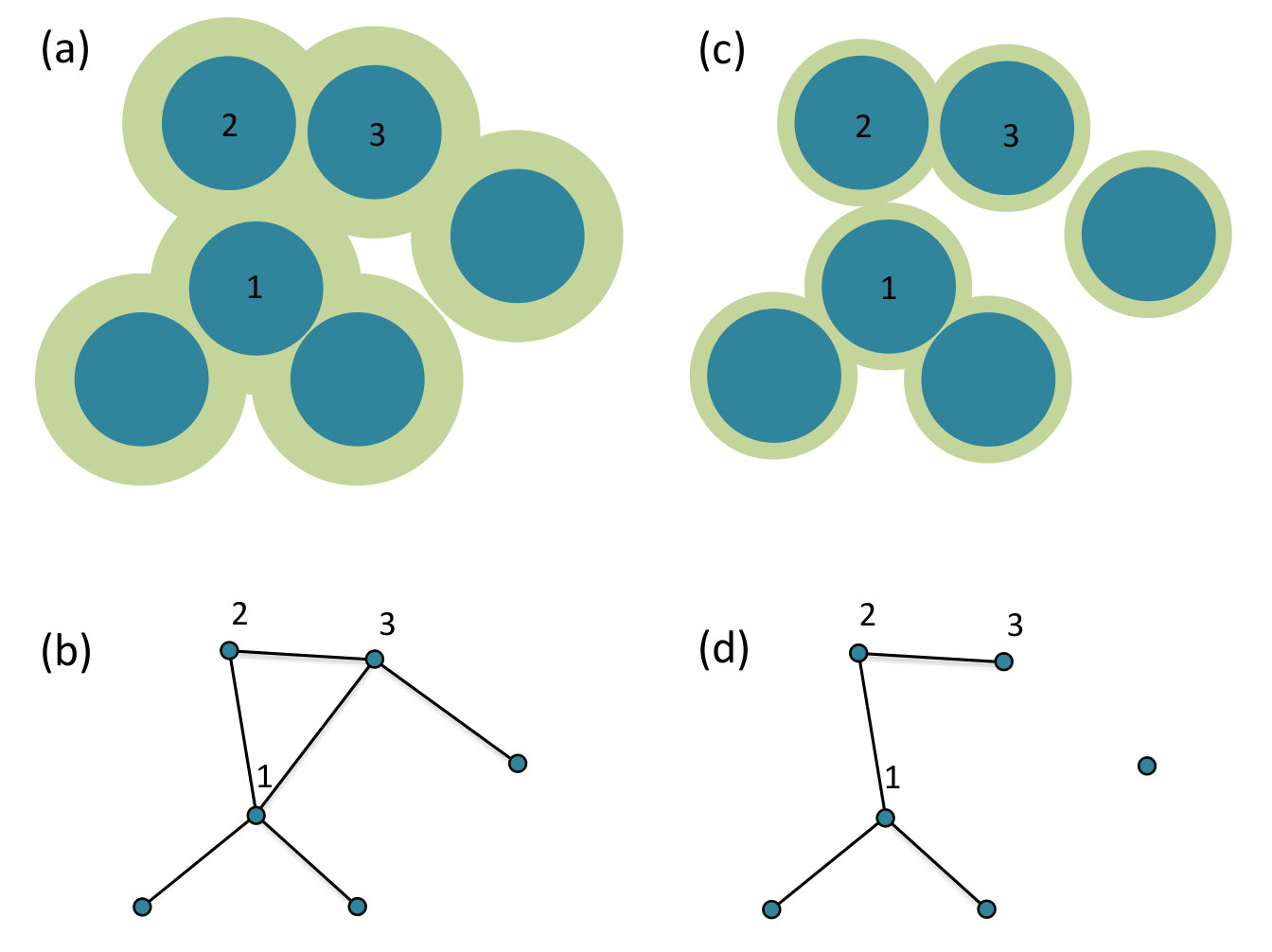

For a given volume fraction of the spheres, the structure of the network so constructed depends crucially on the connectivity range $\Delta$ as compared to the hard-core diameter $D$. To see this, let us consider the illustration of Fig. 1(a), where a set of six hard spheres with their concentric penetrable shells forms the graph shown in Fig. 1(b). The edges between nodes 1, 2, and 3 form a closed loop (a triangle in this case). The same configuration of the sphere centers with a smaller penetrable shell, Fig 1(c), gives rise to the graph of Fig. 1(d), in which the edge between nodes 1 and 3 is now missing, and the set of node 1, 2, and 3 no longer form a triangle. Overall, the 6-node graph has now a treelike structure, where closed loops of connected nodes are absent. The example of Fig. 1 illustrates the rather intuitive effect that the connectivity range has on the general structure of the network. Namely, the probability of finding closed loops of connected hard spheres decreases as the connectivity range diminishes.

This effect can be analyzed on more quantitative terms by considering the clustering coefficient $C_{3}$ (also denoted as the $3$-node cycle), which is defined as the conditional probability that two nodes are connected given that they are both connected to a third node:Dall2002 ; Kong2007

[TABLE]

By introducing the three-particle (or triplet) distribution function,Hansen2006

[TABLE]

and by assuming that the system is isotropic and translationally invariant, the cluster coefficient can equivalently be written as

[TABLE]

In the limit of vanishing hard-core size ($D/\Delta=0$) the system reduces to that of penetrable spheres of diameter $\Delta=\delta$, where the positions of the sphere centers (or nodes) are completely uncorrelated. In this case, $g^{(3)}=1$ and by Fourier transforming the Heaviside step functions in (II) we find $C_{3}=15/32=0.46875$.Kong2007 This means that a sizable fraction of triangles are present in the network, and that this fraction is independent of $\rho$. The same exercise can be done for closed loops of $n>3$ connected (penetrable) spheres. The corresponding $n$-node cycles $C_{n}$, with $n=4$, $5$, $\ldots$, are also independent of the node density and have sizable values. For example, $C_{4}=34/105\simeq 0.3238$, $C_{5}=40949/172032\simeq 0.2380$, $C_{6}=92377/500500\simeq 0.1846$.

Let us now consider the limit $\delta/D\ll 1$ (or equivalently $\Delta/D\simeq 1$). We expand the Heaviside step functions in (II) in powers of $\delta$ using $\theta(D+\delta-r)=\theta(D-r)+\delta_{d}(D-r)\delta+\mathcal{O}(\delta^{2})$, where $\delta_{d}$ is the Dirac-delta function. Since $g^{(3)}(r,r^{\prime},|\mathbf{r}-\mathbf{r}^{\prime}|)=0$ when $r,r^{\prime},|\mathbf{r}-\mathbf{r}^{\prime}|<D$, we find at the lowest order in $\delta/D$:

[TABLE]

where $\theta$ is the angle between the directions of $\mathbf{r}$ and $\mathbf{r}^{\prime}$. In the denominator of Eq. (5), $g^{(3)}$ is the triplet distribution function for spheres in the rolling contact configuration, in which two particles are allowed to glide in direct contact over the surface of the third sphere.

For suspensions of hard spheres at equilibrium, the value of the three-particle distribution function at contact, $g^{(3)}(D,D,D)$, increases for larger concentrations of spheres. It remains however finite as long as the volume fraction is smaller than the liquid-solid state transition point at $\phi^{*}\simeq 0.494$. For $\phi<\phi^{*}$ therefore the clustering coefficient becomes vanishingly small as $\delta/D\rightarrow 0$. To see in details the effect of $\phi$ on $C_{3}$, we adopt the Attard’s expression for the triplet distribution function of hard-spheres in the rolling contact configuration:Attard1991

[TABLE]

where $g^{(2)}$ is the pair distribution function and $s(\theta)=D(1+\theta-\pi/3)$. By substituting Eq. (6) in Eq. (5), and by denoting $I=\int_{\pi/3}^{\pi}\!d\theta\sin\theta[g^{(2)}(s(\theta))+1]/2$, we obtain:

[TABLE]

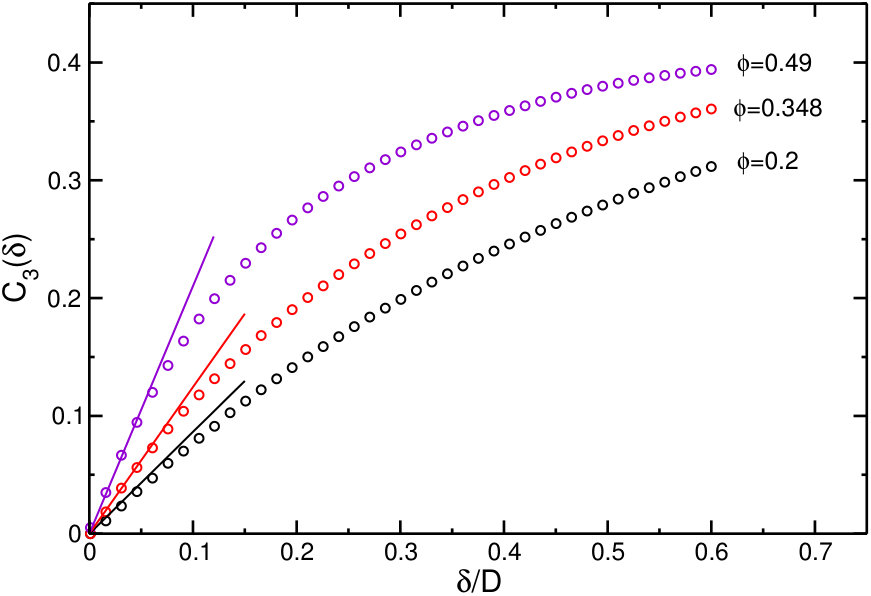

where in the last expression we have used the Carnahan-Starling approximation for $g^{(2)}(D)$ and we have set $I\simeq 8/5$ (see Appendix A). Despite its simplicity, Eq. (7) reproduces well the numerical results of the clustering coefficient in the $\delta/D\ll 1$ regime. This is shown in Fig. 2, where Eq.(7) (solid lines) is compared to the results of Monte Carlo calculations of Eq. (2) (open symbols). In performing the configurational averages, we have used the Metropolis algorithm to generate $300$ equilibrated configurations of $N=2000$ hard-spheres for each value of $\phi$.

Following the same steps that lead to Eq. (5), it is easy to show that for loops formed by $n$ particles, the corresponding $n$-cycle coefficient scales as $C_{n}\propto\delta/D$ for $\delta/D\ll 1$, indicating that closed loops of any $n$ become negligible in this limit.

III Tree-ansatz percolation

The result of the Sec.II implies that for sufficiently thin penetrable shells the network formed by connected hard spheres has essentially a treelike structure. This property can be exploited to calculate the percolation threshold of equilibrium distributions of hard spheres under the assumption that $\delta/D\ll 1$.

We start by defining the degree distribution of a node (or sphere) as the probability $P(k)$ that a randomly selected node is connected to exactly $k$ other nodes of the network. Let us assign the location of the randomly selected node at $\mathbf{r}_{1}$. Since a node located at, say, $\mathbf{r}_{j}$ is connected (not connected) to the selected node if the distance $r_{1j}=|\mathbf{r}_{1}-\mathbf{r}_{j}|$ is smaller (larger) than $\Delta$, the degree distribution $P(k)$ takes the following form:Bradonjic2008

[TABLE]

where the configurational average makes $P(k)$ independent of the node labels and the binomial factor gives the number of ways that $k$ unordered nodes are chosen from a total of $N-1$ nodes.

Knowledge of $P(k)$ allows us to calculate the mean size $S$ of a cluster (or component) to which a randomly selected node belongs. For infinite systems, and if there is no giant component in the graph, the divergence of $S$ marks the percolation transition, that is, the transition at which a giant cluster of connected nodes first appears.Newman2001 Under the assumption that the network is treelike, the component to which the selected node belongs is formed by branches attached to the node according to the degree distribution $P(k)$. Hence:

[TABLE]

where $\langle k\rangle=\sum_{k}kP(k)$ and $T$ is the mean size of one of the $k$ branches attached to the selected node. Owing to the treelike structure of the network, $T$ is given by the mass (unity) of one neighbor of the selected node plus the mean size of each of the remaining $k-1$ subbranches attached to the neighbor node:

[TABLE]

where $Q(k)$ is the degree distribution of a node that is a neighbor of the selected node. To find $Q(k)$ we note that if we select at random an edge directly connecting two nodes, and we follow the edge from one node to its neighbor, the node that we arrive at by following that edge will be $k$ times more likely to have degree $k$ than degree $1$. Its degree distribution will thus be proportional to $kP(k)$, which implies that, after suitable normalization, $Q(k)=kP(k)/\langle k\rangle$. Substituting this expression in Eq. (10), and defining $\langle k^{2}\rangle=\sum_{k}k^{2}P(k)$, we arrive at the condition for the divergence of $S$:Newman2001 ; Boccaletti2006

[TABLE]

From the degree distribution of Eq. (8), we express $\langle k\rangle$ and $\langle k^{2}\rangle$ in terms of configurational averages of the hard-sphere system as shown in Appendix B. In this way, the condition (11) reduces to:

[TABLE]

which identifies the percolation threshold in terms of the critical density $\rho_{c}$ for a given $\Delta$ or, equivalently, the critical distance $\Delta_{c}=\delta_{c}+D$ for a given $\rho$. We adopt the latter definition to calculate numerically $\delta_{c}/D$ as a function of the volume fraction $\phi$. The configuration averages in Eq. (12) are performed as described in Sec. II by choosing for a given $\phi$ an initial value $\delta_{\textrm{init}}$ within the interval $\Delta\delta=\delta_{\textrm{max}}-\delta_{\textrm{min}}$, where $\delta_{\textrm{min}}=0$ and $\delta_{\textrm{max}}$ is large enough so that the left-hand side of Eq. (12) is surely larger than $1$. The critical distance $\delta_{c}$ is then found by bisecting the interval $\Delta\delta$ until the condition (12) is satisfied. The resulting values of $\delta_{c}/D$ are plotted in Fig. 3 by filled circles and are compared with previously published Monte Carlo calculations of the percolation threshold reported by open symbols.Heyes2006 ; Miller2009 ; Ambrosetti2010a Figure 3 confirms our conjecture that the tree-ansatz approach is increasingly accurate as $\delta_{c}/D$ decreases. Note, however, that as the system approaches the liquid-solid phase transition, there is a residual discrepancy between the tree-ansatz percolation and the exact numerical results. This is due to the small but non-zero clustering coefficient at percolation, shown in the inset of Fig. 3, whose value is about $0.04$ for the density closest to the liquid-solid transition.

To find an analytic expression of $\delta_{c}/D$ within the tree-ansatz approximation, we express Eq. (12) in terms of the three- and two-particle distribution functions. At the lowest order in $\delta_{c}/D$, the left-hand side of Eq. (12) reduces to:

[TABLE]

We express $g^{(3)}$ as in Eq. (6) and approximate the remaining integration over $\theta$ by $I\simeq 8/5$, as done in Sec. II. We next equate the result to $1$ to find the following expression for the critical distance:

[TABLE]

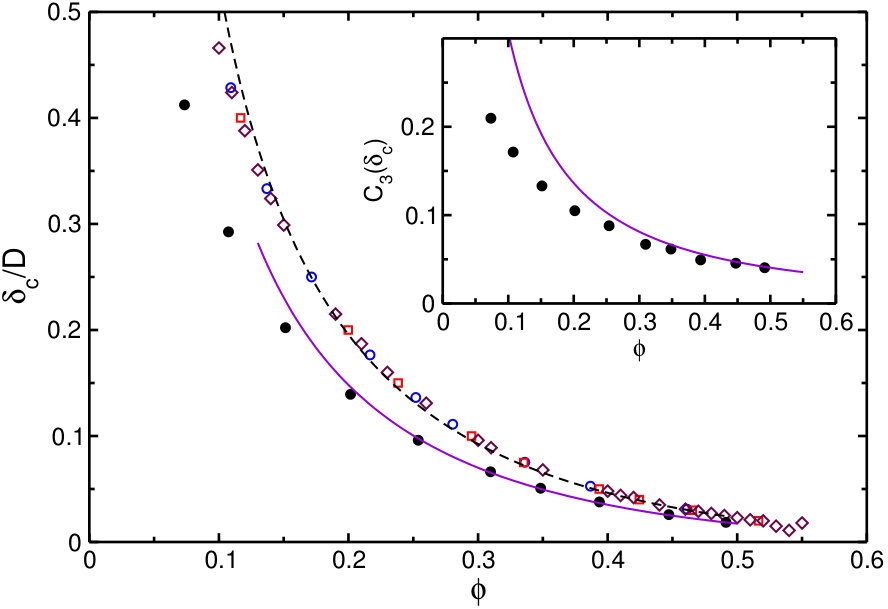

where we have again used the Carnhan-Starling approximation for $g^{(2)}(D)$. Equation (14) (solid line in Fig. 3) converges asymptotically to the numerical solution of Eq. (12) as $\phi$ increases towards the liquid-solid transition point, and it provides therefore an approximate analytical expression for the critical distance in that density region. By replacing in Eq. (14) the numerical prefactor $5/96\simeq 0.052$ by $1.65/24\simeq 0.06875$, we recover the expression that was used in Refs. Ambrosetti2010a, ; Grimaldi2015b, to approximate the critical distance for a much wider region of the hard sphere volume fraction (dashed line in Fig. 3). Equation (14) provides therefore a new interpretation of the approximation scheme adopted in Refs. Ambrosetti2010a, ; Grimaldi2015b, , which derived from the observation that $\delta_{c}$ is approximately proportional to the mean separation between nearest-neighbors hard spheres for $\phi\gtrsim 0.1$.

IV conclusions

Following the observation that the probability of finding closed loops in the network of connected hard spheres becomes smaller as the connectivity distance decreases, we have calculated the percolation threshold in the limit in which the percolating cluster has a tree-like structure. Our results agree well with Monte Carlo calculations of the critical threshold when the connectivity distance is sufficiently smaller than the hard core diameter. The tree-ansatz formalism presented here differs from other approximation schemes in that it takes into full account, in the pair and triplet distribution functions, the structural correlations of the percolating particles. We conclude by pointing out that the tree-ansatz approach could be extended to describe percolation also in systems of anisotropic particles like, e.g., rod and platelet particles. Suitable expressions for the pair and triplet distribution functions of anisotropic particles are however required to obtain explicit formulas for the percolation threshold.

Appendix A Calculation of $I$

Using the approximation given in Eq. (6) for the three-particle distribution function in the rolling contact configuration, the clustering coefficient and the percolation threshold within the tree-ansatz depend on the following integral:

[TABLE]

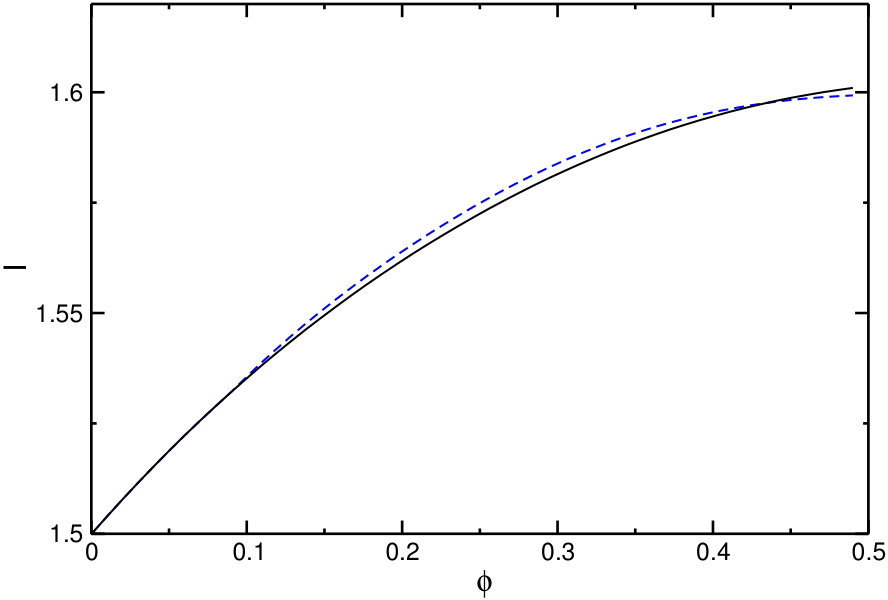

where $g^{(2)}$ is the pair distribution function and $s(\theta)=D(1+\theta-\pi/3)$. Figure 4 shows numerical calculations of $I$ with $g^{(2)}$ given by the Percus-Yevick approximation Hansen2006 ; PY (solid line) and by the empirical formula of Ref. Trokhymchuk2006, (dashed line). The integral $I$ depends very weakly on the volume fraction $\phi$, and it ranges from $I=3/2$ at $\phi=0$ to $I\simeq 1.6$ at $\phi=0.49$. For values of $\phi$ close to the liquid-solid phase transition, we adopt $I=1.6=8/5$.

Appendix B Evaluation of $\langle k\rangle$ and $\langle k^{2}\rangle$

We follow Ref. Newman2001, to calculate the first and second moments of the degree distribution $P(k)$ given in Eq. (8). To this end, we first introduce the generating function of $P(k)$ defined as:

[TABLE]

from which $\langle k\rangle$ and $\langle k^{2}\rangle$ are given by

[TABLE]

Using Eqs. (8) and (16), the generating function can be expressed as:

[TABLE]

Applying Eqs. (17) and (18) to Eq. (B) leads to:

[TABLE]

which when substituted in Eq. (11) give Eq. (12).
