Scalable quantum computing model in the circuit-QED lattice with circulator function

TL;DR

This paper introduces a scalable quantum computing model using circuit-QED in a Kagome lattice, leveraging a controllable circulator function to enable efficient two-qubit gates across the lattice.

Contribution

It presents a novel approach to scalable quantum computing by integrating circulator functions in a circuit-QED Kagome lattice for flexible qubit interactions.

Findings

Achieves selective pairwise qubit coupling via circulator control

Enables two-qubit gate operations between any qubits in the lattice

Demonstrates potential for scalable quantum computing architecture

Abstract

We propose a model for a scalable quantum computing in the circuit-quantum electrodynamics(QED) architecture. In the Kagome lattice of qubits three qubits are connected to each other through a superconducting three-junction flux qubit at the vertices of the lattice. By controlling one of the three Josephson junction energies of the intervening flux qubit we can achieve the circulator function that couples arbitrary pair of two qubits among three. This selective coupling enables the interaction between two nearest neighbor qubits in the Kagome lattice, and further the two-qubit gate operation between any pair of qubits in the whole lattice by performing consecutive nearest neighbor two-qubit gates.

Figures

Equations

$$\frac{1}{3}\left(1+\frac{L_s^{\prime }}{L_k^{\prime }}\right)(k_1^{\prime }+2k_2^{\prime })L^{\prime }=2\pi (m+f)-{\varphi }_1-{\varphi }_2-{\varphi }_3.$$

$$-(n_{c}A{q}_c/m_c)\hslash k_i^{\prime }=-I_{\mathrm{c}i}\sin {\varphi }_i-C_i^{\prime }({\Phi }_0/2\pi ){\ddot{\varphi }}_i$$

$${\left(\frac{{\Phi }_0}{2\pi }\right)}^2{C}_j^{\prime }{\ddot{\varphi }}_j$$

$$\mathcal{L}({\varphi }_i,{\dot{\varphi }}_i)$$

$$U_{\mathrm{eff}}(\{{\varphi }_i\})$$

$$U_{\mathrm{eff}}({\varphi }_{+},{\varphi }_{-})$$

$$I_j(t)=-i\sqrt{\frac{\hslash {\omega }_{rj}}{l_{s}L}}\sin \left(\frac{\pi d}{L}\right)[a_j(t)-a_j^{†}(t)].$$

$$\mathcal{H}$$

$$\left(1+\frac{L_s^{\prime }}{L_K^{\prime }}\right)\sum _{i=1}^n{k}_i^{\prime }\frac{L^{\prime }}{n}=2\pi (m+f)-\sum _{i=1}^n{\varphi }_i.$$

$${\left(\frac{{\Phi }_0}{2\pi }\right)}^2{C}_j^{\prime }{\ddot{\varphi }}_j$$

$$U_{\mathrm{eff}}(\{{\varphi }_i\})$$

$$U_{\mathrm{eff}}({\varphi }_{+},{\varphi }_{-})$$

$$-\frac{{\Phi }_0}{2\pi }{\varphi }_{+,\min }(I_1-I_2)$$

$$H$$

$$\mathcal{H}=\hslash \sum _{j=1}^3{\omega }_{rj}{a}_j^{†}{a}_j+\frac{1}{2}{\omega }_a{\sigma }_z+\frac{i}{2}g{\sigma }_x[(a_1-a_1^{†})-(a_2-a_2^{†})]$$

$$\tilde{\mathcal{H}}=\hslash \sum _{j=1}^3{\omega }_{rj}{a}_j^{†}{a}_j+\frac{1}{2}{\omega }_a{\sigma }_z+\frac{i}{2}g{\sigma }_x[(a_l-a_l^{†})-(a_m-a_m^{†})],$$

$$-\frac{{\Phi }_0}{4\pi }\varphi \sum _{i=1}^n[n-1-2((n-i+k)\mathrm{mod}n)]I_i.$$

Full text

1 Introduction

Owing to the remarkable advancements in the qubit (quantum bit) coherence and control the scalable and programmable quantum computing is expected to be realized in the near future Silva ; Streltsov ; Man ; Bromley ; Vedral ; Brunner ; Modi ; Haikka ; Franco ; Orieux ; D'Arrigo ; Mortezapour ; Aaronson . A large scale quantum computer consisting of many qubits integrated may perform quantum algorithms capable of carrying out tasks that are hard or impossible for ordinary classical computer. Such algorithms can accomplish, for example, factoring number of large digits Shor and searching a large data base Grover . These tasks require the controllability of coupling between two qubits in the scalable design, which is severely challenging. We, here, provide an approach to cope with this challenge by using the circuit-quantum electrodynamics (QED) architecture Blais ; Blais1 .

In the circuit-QED scheme scalable designs for one-dimensional array Nataf ; Tian ; Leib ; Leib2 ; Viehmann ; Kurcz ; Raftery and two-dimensional lattice system Houck ; Underwood ; Schmidt ; Peropadre have been proposed. There can be two possibilities to control the qubit-qubit interaction in scalable circuit-QED design. One is to control the resonator-resonator coupling by using a intervening dc-SQUID Peropadre , flux qubit Mariantoni ; Reuther ; Baust ; Wulschner , Josephson ring modulator Flurin , or transmon qubit bridge . On the other hand one can try to tune the coupling between qubit and transmission line resonator by controlling the qubit frequency Majer ; DiCarlo09 ; DiCarlo ; Steffen or a coupling element inserted between qubit and resonator Peropadre2 ; Romero ; Allman ; QIP .

For the universal quantum gate the two-qubit gate for an arbitrary pair of qubits among three is required. Hence we need the circulator function which enables selective coupling between arbitrary two resonators at the vertex point. Circulator is a nonreciprocal three-port device that routes a signal to the next port. Recently Josephson junction based microwave circulators have been proposed for the quantum information processing with superconducting devices Koch2 ; Sliwa .

In this study we construct the Kagome lattice where three resonators are coupled at each vertex through an intervening three-Josephson junction flux qubit. The Josephson junction of the flux qubit consists of dc-SQUID loop whose effective Josephson junction energy can be controlled by threading a magnetic flux into the dc-SQUID loop. By reducing one of three effective Josephson junction energies we are able to achieve the microwave circulator function and to control in situ the sense of circulation. We couple qubits to the resonators and then the selective resonator coupling enables the two-qubit gate between an arbitrary pair of qubits among three. Further the quantum gate operation between arbitrary pair of qubits in the whole lattice can be achieved through consecutive two-qubit gates with switching function.

2 Coupling two circuit-QED cavities

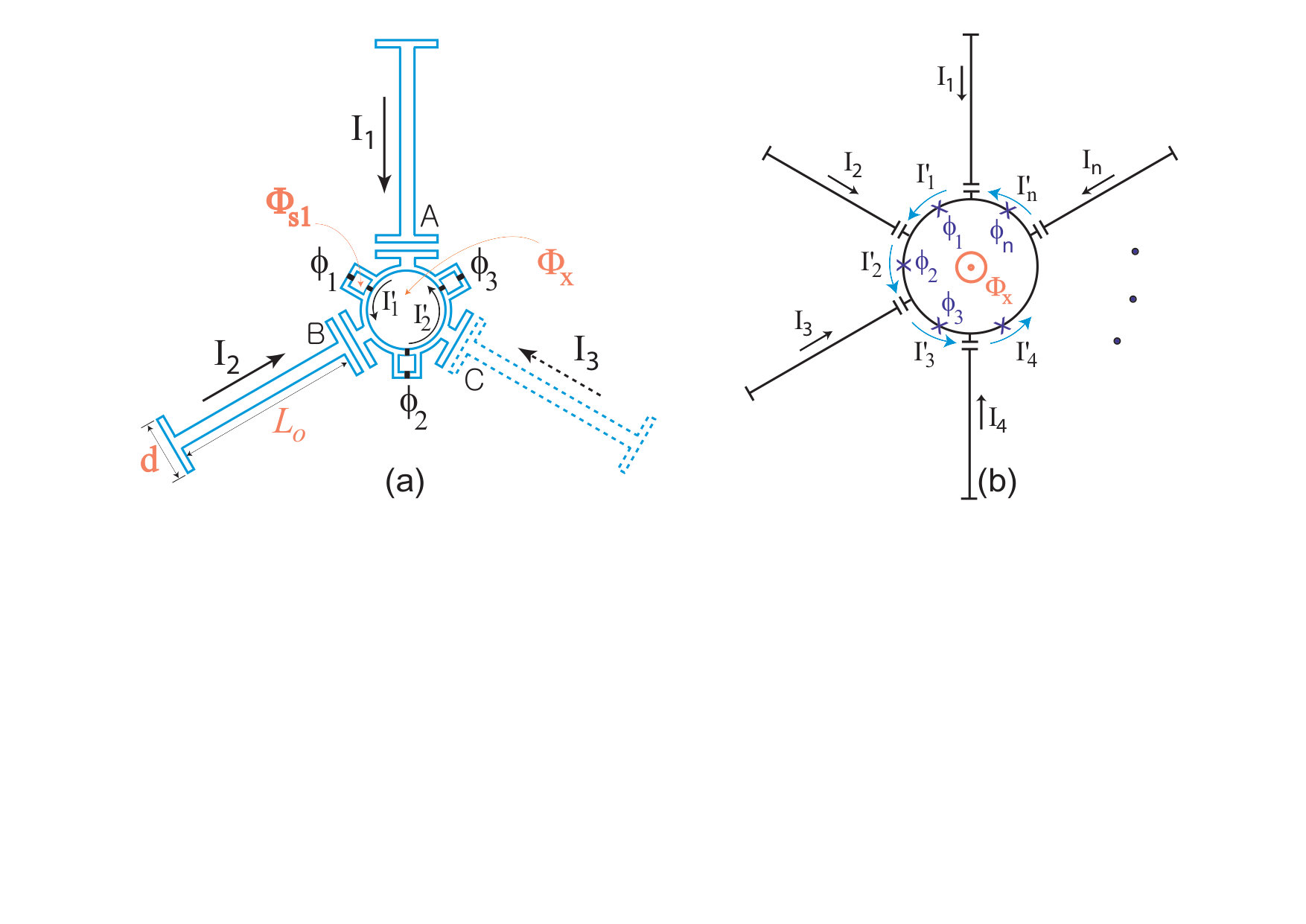

First, for simplicity, we consider the case that only two resonators are coupled through a three-Josephson junction flux qubit as shown in Fig. 1(a). There are three trisection points in the coupling flux qubit, among which two resonators are connected to the flux qubit at two points A and B. We will study the case that all three resonators are coupled to the trisection points A,B and C later. Here dc-SQUID loops are introduced to control the effective Josephson coupling energy $E_{Ji}=E_{J}\cos(\pi\Phi_{si}/\Phi_{0})$ with the Josephson coupling energy $E_{J}$ of the junctions in the dc-SQUIDs and the superconducting unit flux quantum $\Phi_{0}=h/2e$ by threading an external flux $\Phi_{si}$ into $i$-th dc-SQUID loop.

The periodic boundary condition around the flux qubit loop flux ; JKPS becomes $(1/3)\left(k^{\prime}_{1}+2k^{\prime}_{2}\right)L^{\prime}=2\pi(m+f_{t})-\phi_{1}-\phi_{2}-\phi_{3},$ where $m$ is an integer, $k^{\prime}_{i}$ the wave vector of the Cooper pair wavefunction in the flux qubit loop, $\phi_{i}$ the phase difference across the Josephson junction, $L^{\prime}$ the circumference of the loop, $f_{t}=f+f_{\rm ind}$, $f=\Phi_{\rm x}/\Phi_{0}$ and $f_{\rm ind}=\Phi_{\rm ind}/\Phi_{0}$ with the external magnetic flux $\Phi_{\rm x}$ and the induced magnetic flux $\Phi_{\rm ind}$. The induced magnetic flux is given by $\Phi_{\rm ind}=L^{\prime}_{s}(I^{\prime}_{1}+2I^{\prime}_{2})/3$, where $L^{\prime}_{s}$ is the loop self inductance and $I^{\prime}_{i}=-(n_{c}Aq_{c}/m_{c})\hbar k^{\prime}_{i}$ is the loop current of the flux qubit, and thus we have $f_{\rm ind}=-(L^{\prime}_{s}/L^{\prime}_{K})(L^{\prime}/3)(k^{\prime}_{1}+2k^{\prime}_{2})/2\pi$. Here, $L^{\prime}_{K}=m_{c}L^{\prime}/An_{c}q^{2}_{c}$ is the kinetic inductance flux , $A$ the cross section of loop, $q_{c}=2e$ and $m_{c}=2m_{e}$.

Including the induced flux effect the periodic boundary condition is written as

[TABLE]

Further we have the current conservation relations in Fig. 1(a) such that $I_{1}=I^{\prime}_{1}-I^{\prime}_{2}$ and $I_{2}=I^{\prime}_{2}-I^{\prime}_{1}$, that is, $k_{1}=k^{\prime}_{1}-k^{\prime}_{2}$ and $k_{2}=k^{\prime}_{2}-k^{\prime}_{1}$, and thus $k^{\prime}_{1}-k^{\prime}_{2}=(1/2)(k_{1}-k_{2})$, where $I_{i}=-(n_{c}Aq_{c}/m_{c})\hbar k_{i}$. On the other hand the current relation, $I^{\prime}_{i}=-I_{ci}\sin\phi_{i}+C^{\prime}_{i}{\dot{V}}_{i}$, of the capacitively-shunted model of Josephson junction can be represented as

[TABLE]

by using the Josephson voltage-current relation $V_{i}=-(\Phi_{0}/2\pi){\dot{\phi}}_{i}$ with $C^{\prime}_{i}$ being the capacitance of Josephson junction, $n_{c}$ the Cooper pair density and $I_{{\rm c}i}=2\pi E_{Ji}/\Phi_{0}$ the critical current of Josephson junction.

From these relations we can obtain the equation of motion for the phase variable $\phi_{j}$,

[TABLE]

where $p_{1}=-2$ and $p_{2}=p_{3}=1$. This equation of motion can be derived from the Lagrange equation, $(d/dt)\partial{\cal L}/\partial{\dot{\phi}}_{i}-\partial{\cal L}/\partial\phi_{i}=0$, with the Lagrangian

[TABLE]

Hence we can consider this Lagrangian describes the dynamics of the system in Fig. 1(a).

For the usual parameter regime for the three-Josephson junction flux qubit Chiorescu we can neglect $L^{\prime}_{K}$ because $L^{\prime}_{K}/L^{\prime}_{s}\sim 0.01$. Further, the inductive energy $\Phi^{2}_{0}/2L^{\prime}_{s}$ dominates over the other energy scales so that the first term in Eq. (5) can be removed leaving the usual flux quantization condition, $2\pi(m+f)-\sum^{3}_{i=1}\phi_{i}\approx 0$ at the minimum energy  Orlando . By using this constraint with $m=0$ and introducing the coordinate $\phi_{\pm}=(\phi_{2}\pm\phi_{3})/2$ the effective potential can be transformed to

[TABLE]

where we consider that one junction has smaller Josephson coupling energy while two junctions larger one such that $E_{J1}<E_{J2}=E_{J3}=E_{J}$.

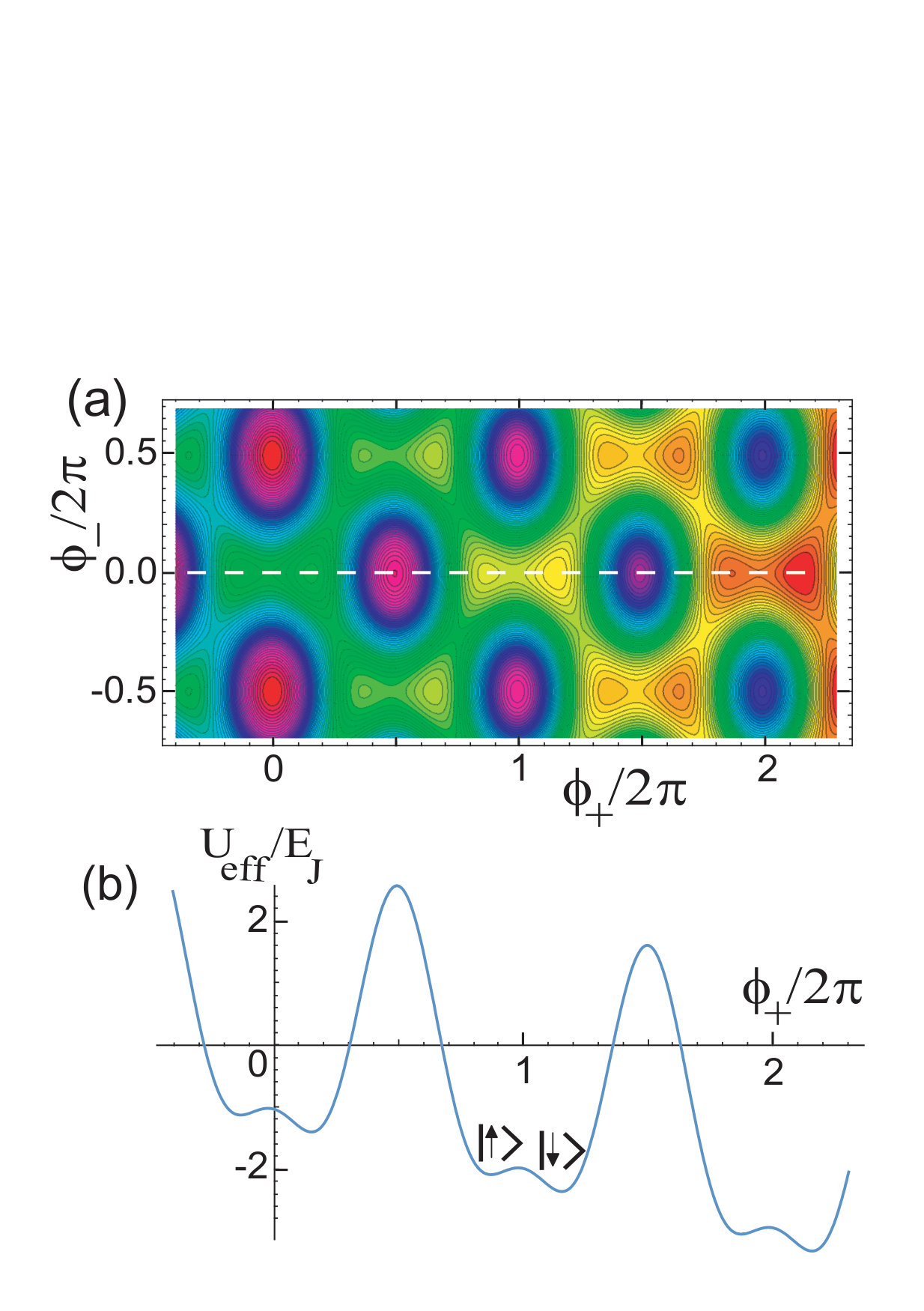

In Fig. 2(a) we show the effective potential $U_{\rm eff}(\phi_{+},\phi_{-})$. If there is no current from resonators, $I_{1}=I_{2}=0$, the effective potential $U_{\rm eff}(\phi_{+},\phi_{-})$ has local minima along $\phi_{-}=0$ and $\phi_{+}=\alpha(-\alpha)$ with $\alpha=|\phi_{\rm+,min}|$ at the local minima, corresponding to the counterclockwise (clockwise) current state, $|\downarrow\rangle$ ($|\uparrow\rangle$), of the flux qubit loop. In the tight-binding approximation the Hamiltonian can be written as $H=E_{\downarrow}|\downarrow\rangle\langle\downarrow|+E_{\uparrow}|\uparrow\rangle\langle\uparrow|-t_{q}(|\downarrow\rangle\langle\uparrow|+|\uparrow\rangle\langle\downarrow|)$ with $t_{q}$ being the tunneling amplitude between the potential local minima when two states, $|\downarrow\rangle$ and $|\uparrow\rangle$, are degenerate, $E_{\downarrow}=E_{\uparrow}$. If a finite dc-bias current $I_{1}-I_{2}$ is applied, the effective potential becomes tilted, whose profile along the dashed line in Fig. 2(a) is shown in Fig. 2(b). As a result, one of the two energy levels increases while the other decreases, and thus the degeneracy of the diagonal terms of the Hamiltonian $H$ become broken such as $(E_{\downarrow}-\Phi_{0}\alpha(I_{1}-I_{2})/2\pi)|\downarrow\rangle\langle\downarrow|+(E_{\uparrow}+\Phi_{0}\alpha(I_{1}-I_{2})/2\pi)|\uparrow\rangle\langle\uparrow|$. Since $E_{J1}<E_{J2}=E_{J3}=E_{J}$ and the junction with larger Josephson coupling energy has a smaller phase difference, we have $\alpha\lesssim\pi/3$ and $\phi_{2}=\phi_{3},{\it i.e.},\phi_{-}=0$ at the potential minima in the central part of Fig. 2(b).

Consider two resonators are coupled to the intervening flux qubit loop at the end of the resonators as shown in Fig. 1(a). In the design we introduce a large capacitance between two line segments of length $d$ through which the current flows between a resonator and the intervening qubit loop. In this study we consider the second harmonic mode of resonator for later purpose. The second harmonic mode of current in $j$-th resonator can be represented as ${\cal I}_{j}(x,t)=-i\sqrt{\hbar\omega_{rj}/l_{s}L}\sin(2\pi x/L)[a_{j}(t)-a^{\dagger}_{j}(t)]$  Blais ; JKPS in terms of the boson operator $a_{j}(t)$ with $\omega_{rj}$ being the frequency of resonator mode, $l_{s}$ the inductance density and $L=L_{0}+d$ the effective length of resonator. Here, the origin of x-coordinate is at the center of resonator.

The charge fluctuation in the resonator induces the current flowing into the flux qubit loop given by $I_{j}(t)=\int^{L/2}_{L_{0}/2}{\dot{q}}_{j}(x,t)dx$ which can be represented by the difference of currents at both ends of the interface, $I_{j}(t)={\cal I}_{j}(L/2,t)-{\cal I}_{j}(L_{0}/2,t)$ by using the current conservation ${\dot{q}}_{j}(x,t)=\partial{\cal I}_{j}(x,t)/\partial x$. Hence the current flowing from the $j$-th resonator can be written as

[TABLE]

We can put this ac-current of resonator into the effective potential of Eq. (6), and then the total Hamiltonian is represented in the basis of $|0\rangle=(|\downarrow\rangle+|\uparrow\rangle)/\sqrt{2}$ and $|1\rangle=(|\downarrow\rangle-|\uparrow\rangle)/\sqrt{2}$ as follows:

[TABLE]

with the coupling strength $g\approx\alpha\Phi_{0}\sqrt{\hbar\omega_{r}/l_{s}L}(d/L)$ and $\omega_{a}=2t_{q}$, where we set $\omega_{rj}=\omega_{r}$. This Hamiltonian describes the interaction between the resonator modes 1 and 2. The last term of Hamiltonian ${\cal H}$ shows that a photon in the resonator 1 excites the flux qubit state and then the flux qubit goes back to the ground state, generating a photon in resonator 2, and vice versa. Therefore, two resonators are coupled by using the flux qubit as an intervening qubit mediating the interaction bridge .

3 Two-qubit gate in the Kagome lattice of qubits

Now we consider the case that all three trisection points $A,B$, and $C$ are coupled to resonators in Fig. 1(a). Generally $n$ resonators can be coupled to the intervening flux qubit as shown in Fig. 1(b). Then the periodic boundary condition around the flux qubit loop is given by $(L^{\prime}/n)\sum^{n}_{i=1}k^{\prime}_{i}=2\pi(m+f_{t})-\sum^{n}_{i=1}\phi_{i}$. From the relations $\Phi_{\rm ind}=L^{\prime}_{s}\sum^{n}_{i=1}I^{\prime}_{i}/n$ and $I_{i}=-(n_{c}Aq_{c}/m_{c})\hbar k_{i}$, we have $f_{\rm ind}=-(L^{\prime}_{s}/L^{\prime}_{K})(L^{\prime}/n)\sum^{n}_{i=1}k^{\prime}_{i}/2\pi$, and thus

[TABLE]

By evaluating $k^{\prime}_{i}$ from this periodic boundary condition and the current conservation $I^{\prime}_{1}=I^{\prime}_{n}+I_{1},I^{\prime}_{2}=I^{\prime}_{1}+I_{2},I^{\prime}_{3}=I^{\prime}_{2}+I_{3},\cdots,I^{\prime}_{n}=I^{\prime}_{n-1}+I_{n}$, that is, $k^{\prime}_{1}=k^{\prime}_{n}+k_{1},k^{\prime}_{2}=k^{\prime}_{1}+k_{2},k^{\prime}_{3}=k^{\prime}_{2}+k_{3},\cdots,k^{\prime}_{n}=k^{\prime}_{n-1}+k_{n}$, and putting $k^{\prime}_{i}$ into the current relation of capacitively-shunted model of Josephson junction, $I^{\prime}_{i}=-I_{ci}\sin\phi_{i}+C^{\prime}_{i}{\dot{V}}_{i}$, we obtain an equation of motion for $\phi_{j}$,

[TABLE]

This equation of motion can be obtained from the Lagrange equation with the effective potential

[TABLE]

For $n=3$, specifically, the last term of the effective potential $U_{\rm eff}(\{\phi_{i}\})$ can be represented as $(\Phi_{0}/6\pi)[\phi_{1}(I_{2}-I_{3})+\phi_{2}(I_{3}-I_{1})+\phi_{3}(I_{1}-I_{2})].$ In Fig. 1(b) we consider that the junction with phase difference $\phi_{1}$ has smaller Josephson coupling energy while two junctions larger one such that $E_{J1}<E_{J2}=E_{J3}=E_{J}$. Then, from the analysis similar to that in the previous section with the boundary condition $\sum^{3}_{i=1}\phi_{i}-2\pi(m+f)=0$ the effective potential $U_{\rm eff}(\{\phi_{i}\})$ in Eq. (3) for $n=3$ can be rewritten in the transformed coordinate $\phi_{\pm}=(\phi_{2}\pm\phi_{3})/2$ as

[TABLE]

The sum of first two terms, which corresponds to the effective potential of the flux qubit, can have local minima for $\phi_{-}=0$ as shown in Fig. 2(a). Here we set $I_{1}$ as the input bias current and $I_{2}$ and $I_{3}$ as the output current so that $I_{1}=-I_{2}-I_{3}$. The rms value of the resonator current is estimated as ${\cal I}_{\rm rms}=(1/\sqrt{2})\sqrt{\hbar\omega_{rj}/l_{s}L}=V_{\rm rms}/Z\sim$20nA, where the impedance of the resonator $Z=50\Omega$ QIP and the $V_{\rm rms}=E_{\rm rms}b=1\mu$V with the electric field $E_{\rm rms}=0.2$V/m and the distance $b=5\mu$m Blais1 between the transmission resonator and the ground plane. Then the amplitude of bias current in Eq. (7) becomes $|I_{j}|=2\sqrt{\hbar\omega_{rj}/l_{s}L}\sin(\pi d/L)\approx 14$pA, where we set $L=25$mm and $d=2\mu$m. Though the bias currents $I_{j}$ are much smaller than the critical current of the flux qubit loop $I_{c}=2\pi E_{J1}/\Phi_{0}\sim 500$nA, the finite bias current may shift slightly the position of local minima of the total effective potential $U_{\rm eff}(\phi_{+},\phi_{-})$.

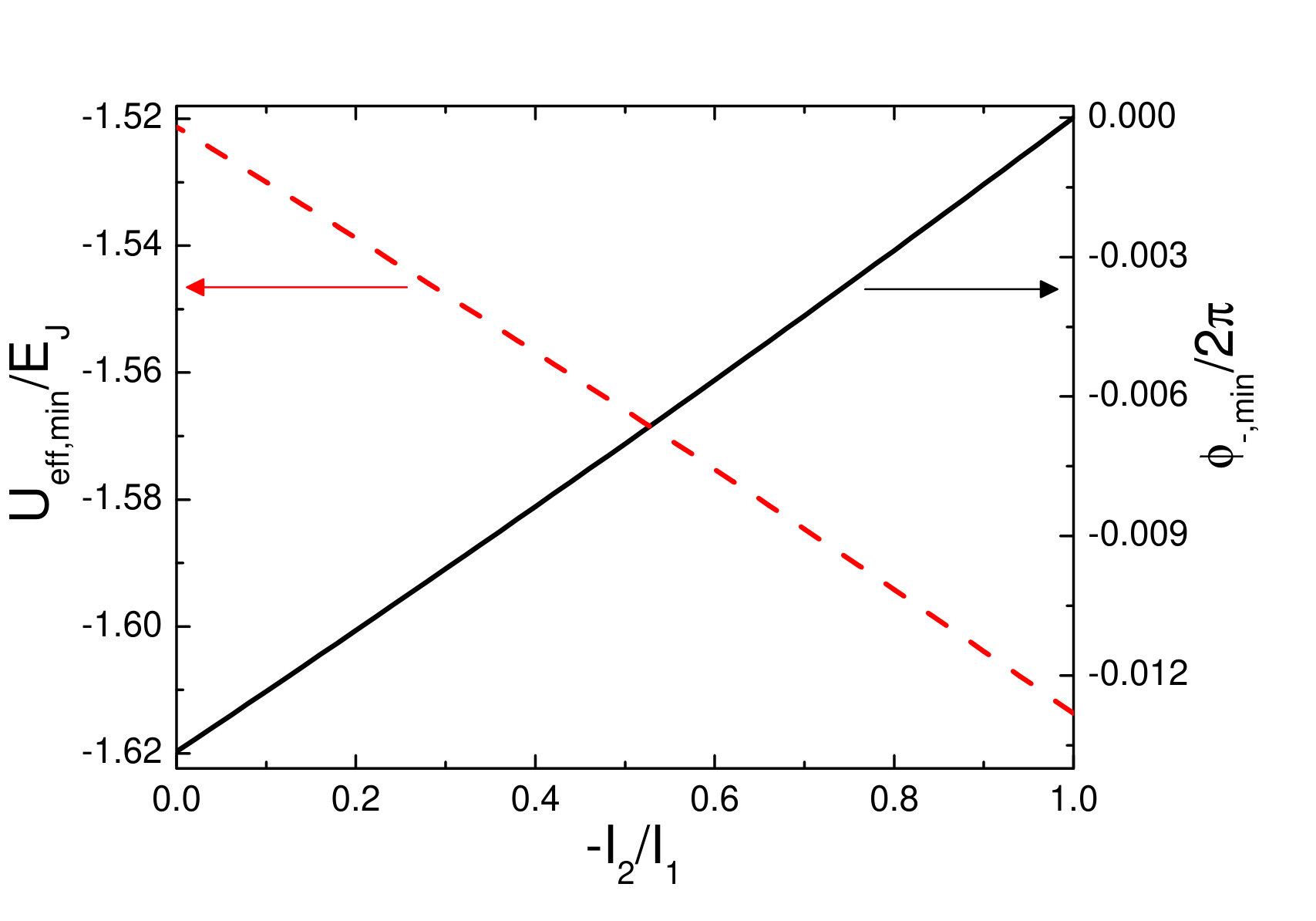

In Fig. 3 we show the numerical result for a local minimum, $U_{\rm eff,min}(I_{2})$, of the effective potential $U_{\rm eff}(\phi_{+},\phi_{-})$ as a function of $I_{2}/I_{1}$, where $\phi_{\rm+,min}\approx\pi/3$ and $\phi_{\rm-,min}\approx 0$ for $f=0.5$ at the local minimum. Here the effective potential minimum decreases until the output current $I_{2}$ reaches the maximum value, $-I_{1}$, which can also be seen from the relation $\partial U_{\rm eff,min}(I_{2})/\partial I_{2}=(\Phi_{0}/2\pi)(\phi_{\rm+,min}+\phi_{\rm-,min})\approx\Phi_{0}/6>0$ with the effective potential in Eq. (12). This means that the input current $I_{1}$ from the $j=1$ resonator flows through only $j=2$ resonator ($I_{2}=-I_{1}$) while there is no output current flowing through the $j=3$ resonator ($I_{3}=0$).

As a result, at the local minimum the last term of the effective potential $U_{\rm eff}(\phi_{+},\phi_{-})$ in Eq. (12) reduces to

[TABLE]

apart from the constant term independent of the phase variable $\phi_{+}$. This term shifts the value of $\phi_{\rm+,min}$, but we still have $\phi_{\rm-,min}=0$ for $I_{2}=-I_{1}$ at the local minimum of $U_{\rm eff}(\phi_{+},\phi_{-})$ as shown in Fig. 3. Here, we leave the term, $I_{1}-I_{2}$, in Eq. (13) which will be represented in boson operators, $a_{1}$ and $a_{2}$, later. The condition $\phi_{\rm-,min}=0$, i.e., $\phi_{2}=\phi_{3}$ means that the currents $I^{\prime}_{i}=-I_{ci}\sin\phi_{i}=-(2\pi E_{Ji}/\Phi_{0})\sin\phi_{i}$ flowing across two junctions are equal to each other, $I^{\prime}_{2}=I^{\prime}_{3}$, because $E_{J2}=E_{J3}$. Thus from the current conservation $I^{\prime}_{2}+I_{3}=I^{\prime}_{3}$ we have $I_{3}$=0. This is the reason why $I_{3}$ term in Eq. (12) disappears in Eq. (13). Therefore, by reducing one of the three Josephson junction energies with threading flux $\Phi_{si}$ we can determine the output current channel, which implements the current circulator function. Here the sense of circulation can be determined in situ by choosing a dc-SQUID loop to be threaded by the flux $\Phi_{si}$.

The main decoherence of flux qubit comes from the flux fluctuation, $\delta f$. Though we consider $f=0.5$ in Fig. 3, actually the relation $\partial U_{\rm eff,min}(I_{2})/\partial I_{2}\approx\Phi_{0}/6>0$ is satisfied around $f\approx 0.5$. Hence, the value of $\phi_{\rm-,min}=0$ in Fig. 3 is invariant and $I_{2}=-I_{1}$ at the local minimum even in the presence of small flux fluctuations so that the circulator function may be robust against the flux noise.

Similarly to the two-resonator case the Hamiltonian in the tight-binding approximation can be written with the effective potential in Eq. (12) and the term in Eq. (13) as

[TABLE]

where $\alpha=|\phi_{\rm+,min}|$. By using Eq. (7) this Hamiltonian can be transformed to

[TABLE]

with $g\approx\alpha\Phi_{0}\sqrt{\hbar\omega_{r}/l_{s}L}(d/L)$ in the basis of $|0\rangle$ and $|1\rangle$, where we set $\omega_{rj}=\omega_{r}$. The last term of this Hamiltonian enables a selective interaction between two resonators among three because there exits only the interaction between the current modes of $j=1$ and $j=2$ resonators other than $j=3$.

If arbitrary one junction has a smaller Josephson junction energy in Fig. 1(b) for $n=3$, the Hamiltonian is given by

[TABLE]

where $(l,m)$=(1,2) if the smaller Josephson junction energy is $E_{J1}$. If the smaller Josephson junction energy is $E_{J2}$ or $E_{J3}$, $(l,m)$=(2,3) or (3,1), respectively. Here, the chirality of the indices $(l,m)$ originates from the direction of the threading external flux $\Phi_{x}$. This Hamiltonian shows that only two resonators, $(l,m)$, interact with each other while the other resonator does not participate in the process. Hence one can decide the output channel for a given input, and select two-resonator interaction.

For the general case of $n$ resonators connected at a vertex we consider that the $k$-th Josephson junction energy is smaller than others such that $E_{Jk}<E_{Ji}$ ($i\neq k$). With the flux quantization condition $\phi_{k}=2\pi f-\sum^{n}_{i=1,i\neq k}\phi_{i}$ the condition $\partial U_{\rm eff}(\{\phi_{i}\})/\partial\phi_{i}=0$ for extremal point results in $\phi_{i}=\phi$ for all $i~{}(i\neq k)$ at the potential minima. Then the last term of the effective potential $U_{\rm eff}(\{\phi_{i}\})$ in Eq. (3) becomes

[TABLE]

When $n=3$ and $k=1$, we can recover the result in Eq. (13) which describes the interaction between two resonators. For $n>3$, however, this term contains more than two currents $I_{i}$ and thus we cannot obtain two resonator interaction any more. Hence in order to achieve interaction between arbitrary two resonators connected to the same vertex we should consider $n=3$ case.

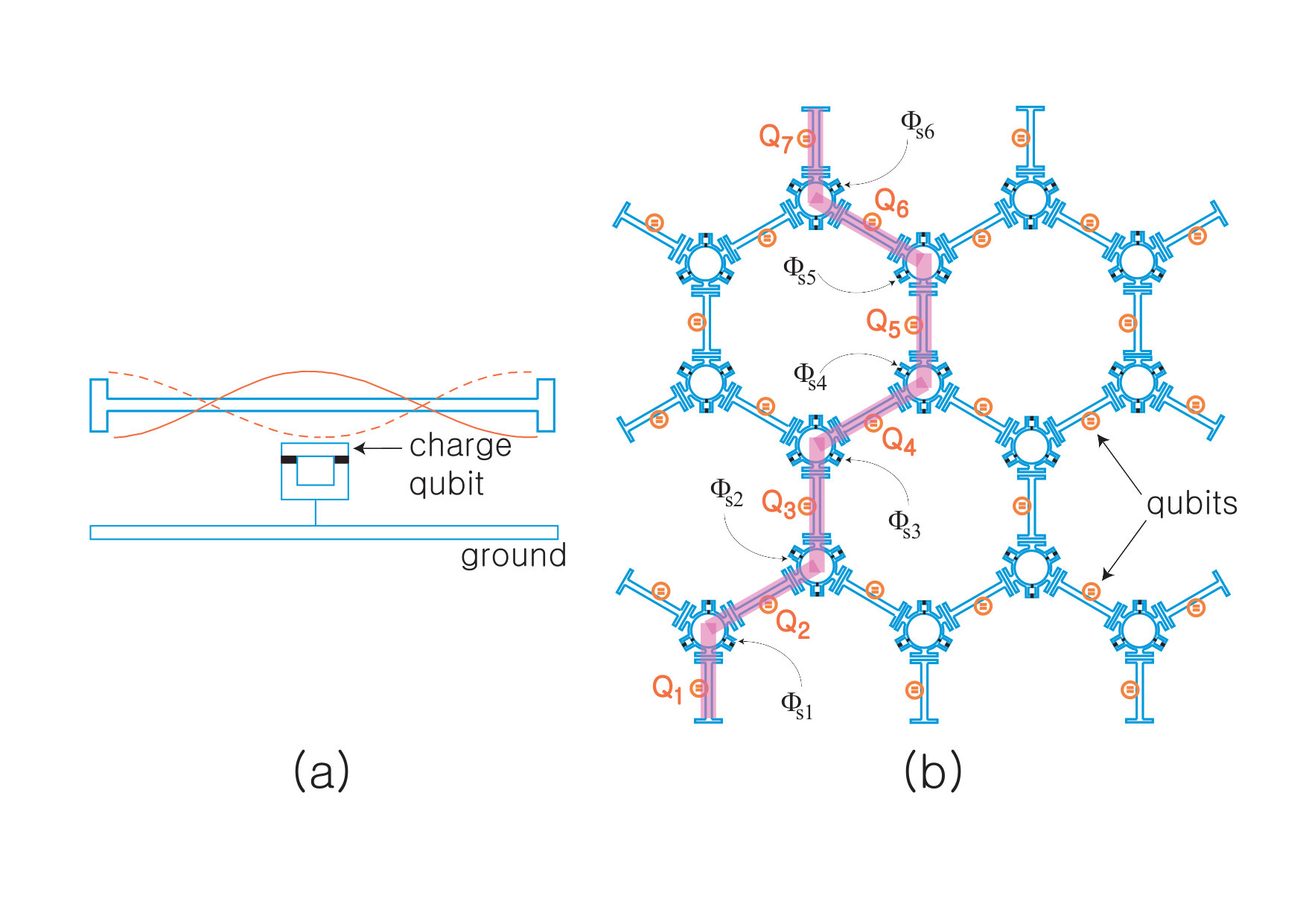

In order to describe the quantum gate operation between two qubits we introduce a qubit coupled to a resonator as shown in Fig. 4(a). Here, we consider, for example, a superconducting charge qubit capacitively coupled at the center of the superconducting transmission line resonator through the second harmonic voltage mode of resonator Blais . In Fig. 4(b) qubits $Q_{i}$ are introduced at each resonator of the lattice for n = 3, where we can perform a quantum gate operation between arbitrary two qubits among three qubits connected at a vertex of a lattice. These qubits interact with each other through the resonator-resonator coupling. Among three qubits connected at a vertex arbitrary pair of two qubits can interact with each other by threading a magnetic flux $\Phi_{si}$ into the dc-SQUID between the two resonators coupled with the qubits.

By extending the structure for $n=3$ we can have a lattice structure in two-dimensional space as shown in Fig. 4(b). The intervening flux qubits form the hexagonal lattice, but the qubits coupled to the resonators form the Kagome lattice. Two qubits $Q_{1}$ and $Q_{2}$, for example, can interact with each other by threading the flux $\Phi_{s1}$, and then two qubits $Q_{2}$ and $Q_{3}$ can interact with each other by threading the flux $\Phi_{s2}$ after switching off the coupling between qubits $Q_{1}$ and $Q_{2}$. Switch-off can be done by threading a flux $\Phi_{x}$ far away from $0.5\Phi_{0}$ into the intervening flux qubit between qubits $Q_{1}$ and $Q_{2}$. In this way arbitrary series of two-qubit gates with qubits, for example, $Q_{1}\cdots Q_{7}$ can be performed in the Kagome lattice shown in Fig. 4. As a result, we can achieve the effective interaction between two remote qubits, $Q_{1}$ and $Q_{7}$, which is the key ingredient for the scalable quantum computing.

4 Conclusion

We have proposed a model for a scalable quantum computing in the Kagome lattice based on the circuit-QED architecture. By controlling the flux threading one of the three dc-SQUID loops of intervening flux qubit the circulator function has been implemented in the superconducting circuit. Hence we can control in situ the sense of circulation, which is a key ingredient in the microwave quantum technology. A scalable quantum computing requires the selective interaction between two qubits among many qubits coupled at a vertex point of the qubit lattice. In this study, we have shown that by using the circulator function we can perform the selective two-qubit gate for the case that only three qubits are coupled at the vertex through an intervening qubit, where the qubit sites form the Kagome lattice. When more than three qubits are coupled at a vertex, we have shown that the selective two-qubit coupling cannot be achieved.

The two-qubit interaction between remote qubits are crucial for the scalable quantum computing. In our design we can perform the selective two-qubit gate between nearest neighbor qubits. Thus by performing these two-qubit gates consecutively with switching function we would achieve the quantum gate operation between arbitrary pair of qubits in the lattice. We also have discussed that the circulator function in this paper is robust against the flux fluctuations, which will enable the experimental realization of present scalable quantum computing model.
