Probing intrinsic properties of short gamma-ray bursts with gravitational waves

TL;DR

This paper introduces a Bayesian method to jointly analyze short gamma-ray bursts and gravitational waves, enabling precise estimation of burst luminosities without relying on host galaxy data, thus advancing understanding of their progenitors.

Contribution

The paper develops a novel Bayesian framework that combines gamma-ray and gravitational wave data to estimate short gamma-ray burst luminosities independently of host galaxy information.

Findings

90% of simulations have luminosity uncertainties within a factor of 2

Joint observations improve distance and inclination estimates

Third-generation detectors will enable luminosity estimates for most short gamma-ray bursts within z~1

Abstract

Progenitors of short gamma-ray bursts are thought to be neutron stars coalescing with their companion black hole or neutron star, which are one of the main gravitational wave sources. We have devised a Bayesian framework for combining gamma-ray burst and gravitational wave information that allows us to probe short gamma-ray burst luminosities. We show that combined short gamma-ray burst and gravitational wave observations not only improve progenitor distance and inclination angle estimates, they also allow the isotropic luminosities of short gamma-ray bursts to be determined without the need for host galaxy or light-curve information. We characterise our approach by simulating 1000 joint short gamma-ray burst and gravitational wave detections by Advanced LIGO and Advanced Virgo. We show that ${\sim}90\%$ of the simulations have uncertainties on short gamma-ray burst isotropic luminosity estimates that are within a factor of 2 of the ideal scenario, where the distance is known exactly. Therefore, isotropic luminosities can be confidently determined for short gamma-ray bursts observed jointly with gravitational wave detected by Advanced LIGO and Advanced Virgo. Planned enhancements to Advanced LIGO will extend its range and likely produce several joint detections of short gamma-ray bursts and gravitational waves. Third-generation gravitational wave detectors will allow for isotropic luminosity estimates for the majority of the short gamma-ray burst population within a redshift of $z{\sim}1$.

Figures

Equations

$$p(\mathbf{\theta }|\mathbf{S},\mathbf{D},I)=\frac{p(\mathbf{\gamma },\mathbf{\omega },\mathbf{\varphi }|I)p(\mathbf{D}|\mathbf{\gamma },\mathbf{\omega },I)p(\mathbf{S}|\mathbf{\gamma },\mathbf{\varphi },I)}{p(\mathbf{S},\mathbf{D}|I)}.$$

$$p(\mathbf{S}|\mathbf{\gamma },\mathbf{\varphi },I)=\frac{1}{{\sigma }_{f_{\gamma }}\sqrt{2\pi }}\exp \left(-\frac{{\left(f_{\gamma }-f_{\mathrm{th}}\right)}^2}{2{\sigma }_{f_{\gamma }}^2}\right)$$

$$f_{\text{th}}(d,L_{\mathrm{iso}},{\theta }_{\mathrm{jet}})=\frac{L_{\mathrm{iso}}}{4\pi d^2}.$$

$$p(\mathbf{\theta })=p(m_1|I)p(m_2|I)p(\psi |I)p(d|I)p(L|I)p({\theta }_{\mathrm{jet}},\iota |I)$$

$$p(L_{\mathrm{iso}}|I)=\frac{0.4}{L_{\min }}{\left(\frac{L_{\mathrm{iso}}}{L_{\min }}\right)}^{-1.4}.$$

$$p(L_{\mathrm{iso}}|\mathbf{S},\mathbf{D},I)=\int d{\mathbf{\theta }}^{(\ne L_{\mathrm{iso}})}p(\mathbf{\theta }|\mathbf{S},\mathbf{D},I).$$

$$p(L_{\mathrm{iso}}|\mathbf{S},d=d^{\prime },I)\propto \iint p(\mathbf{S}|\mathbf{\varphi },\mathbf{\gamma },I)p(\mathbf{\varphi },\mathbf{\gamma }|I)\delta (d-d^{\prime })d\mathbf{\varphi }d\mathbf{\gamma }.$$

Full text

gravitational waves, parameter estimation, multi-messenger astronomy, electromagnetic follow-ups, sky localisation, Bayesian analysis

Introduction— The most likely candidate for the progenitor of an short gamma-ray burst (sGRB) event is the merger of a binary neutron star (Eichler et al., 1989; Berger, 2014). In this scenario such an event will be accompanied by the emission of a characteristic gravitational-wave (GW) signal detectable by the Advanced LIGO-Virgo GW interferometers as they approach design sensitivity Abbott et al. (2013). A binary neutron star observation would follow the recent historic first detections of GWs from binary black hole mergers Abbott et al. (2016a, b); Abbott et al. (2017). These merger events, whilst not consisting of neutron star components, were actively followed-up via multiple electromagnetic (EM) channels Abbott et al. (2016c) including gamma-ray telescopes Ackermann et al. (2016); Bagoly et al. (2016); Connaughton et al. (2016).

Due to the moderately well constrained properties of sGRBs, they are observed for only a narrow range of source orientations relative to the observers line of sight. Since GWs from compact binary coalescence (CBC) events are emitted broadly isotropically the expected rate of joint sGRB–GW detections is relatively low. This event rate for coincident sGRB–GW events has been discussed in Kochanek and Piran (1993); Finn et al. (1999); Chen and Holz (2013); Kelley et al. (2013); Dietz et al. (2013); Coward et al. (2014); Clark et al. (2015); Chu et al. (2016); Li et al. (2016); Patricelli et al. (2016); Chen and Holz (2017).

Beyond rate estimates, there have also been a number of studies, including work presented in this paper, exploring how joint sGRB–GW detections can be used to enhance understanding of the underlying physical system. It has been shown by (Seto, 2007) that a three-dimensionally localized (sky direction and distance) sGRB in conjunction with the detection of the GW signal can improve the estimation of the inclination angle of the CBC. Also, although not truly a joint analysis, Arun et al. (2014) discusses how a multi-detector GW network alone can remove observational degeneracies in the inclination angle measurement allowing us to better understand off-axis sGRB events.

In this paper, we focus on what can we learn from a single sGRB–GW detection. We model the system as being described by a set of parameters common to both the sGRB and GW with additional parameters associated with each phenomenon exclusively. Due to strong correlations between parameters, the combination of information from each observation channel allows improvement in common and exclusive parameters  Fan et al. (2014). We specifically focus on the improved estimation of the GW inclination angle and the sGRB luminosity function in the likely scenario that there is a lack of an sGRB afterglow observation.

The statistical framework— We use the framework set out in Fan et al. (2014) to set up our analysis of joint EM–GW observations. Under this framework, for a given set of sGRB data, $\bm{S}$, and GW data, $\bm{D}$, we divide our observation parameters into three sets. The set of parameters common to both sets of observations is denoted by $\bm{\gamma}$, which for joint sGRB–GW observations are Right Ascension $\alpha$, declination $\delta$ and distance $d$. The parameters that are distinct to either only the EM or GW observations are denoted by $\bm{\phi}$ and $\bm{\omega}$ respectively.

Our initial aim is to compute the posterior distribution on all parameters $\bm{\theta}=(\bm{\gamma},\bm{\phi},\bm{\omega})$ conditional on both datasets $\bm{S}$, $\bm{D}$ and any other implicit model assumptions denoted by $I$. We start by using Bayes theorem to express the joint distribution on the complete parameters set as

[TABLE]

In Fan et al. (2014) a model dependency was included that allowed the EM parameters to govern the probability that the GW and EM events originated from the same source. In this analysis, we ignore this complexity and assume that all sGRB events have been uniquely associated with a GW event.

The exclusive unknown sGRB parameters $\bm{\phi}$ could contain many elements including the time of arrival of the sGRB in the detector frame, the duration of the burst, and spectral parameters for example. For simplicity, we include only the jet half opening angle $\theta_{\rm{jet}}$ and the isotropic sGRB luminosity $L_{\rm iso}$. Similarly, we have choices regarding the EM data itself and in this analysis we assume that our relevant measurement information is contained within the measured peak flux $f_{\gamma}$. Hence, our EM likelihood becomes

[TABLE]

where $f_{\text{th}}(d,L_{\rm iso},\theta_{\rm jet})$ is the expected value of the peak flux

[TABLE]

The GW likelihood is obtained from the standard parameter estimation output of Bayesian Monte-Carlo sampling algorithms. The input GW data consists of time series of strain data output from multiple detectors within a GW interferometer network. The parameter estimation information is available as a finite set of discrete samples drawn from the posterior $p(\bm{\gamma},\bm{\omega}|\bm{D},I)$. We note that in general this posterior therefore already contains an assumed prior on the common and exclusive GW parameters which must be accounted for when converting back to the GW likelihood. The specific parameters included within the exclusive GW parameter set consist only of the neutron star masses $m_{1},m_{2}$, the GW polarisation angle $\psi$, and the binary inclination angle $\iota$. Note that the inclination angle is linked to the jet half-opening angle since sGRBs are thought to be emitted perpendicular to the binary orbital plane (ie $\iota=0$). Though these two quantities are related, they describe different physical properties of the binary merger and are inferred from separate measurements. Thus, we do not listed them as one of the common parameters.

We assume all parameter priors to be independent with the exception of the jet half opening angle and the binary inclination angle. They can therefore be written as

[TABLE]

The correlation between the $\theta_{\rm jet}$ and $\iota$ priors is due to the fact that we assume that our sources have been jointly detected and therefore the jet half opening angle must therefore be greater than the inclination angle. We also adopt the belief that the prior for the isotropic luminosity follows a power law distribution Lloyd-Ronning et al. (2004) such that

[TABLE]

with a lower cut-off luminosity $L_{\rm min}=10^{49}$erg s*-1* .

Simulation— To characterise our method, we generated GW signals from binary neutron star (BNS) coalescences using lalapps_inspinj111https://www.lsc-group.phys.uwm.edu/daswg/projects/lalsuite.html. The signal parameters are drawn from the prior defined in Eq. 4 where masses are uniformly distributed on the range $(1.3,1.5)\,M_{\odot}$, the sky position is uniform on the sky, $\psi$ is uniform on the range $(0,2\pi)$ and distance is selected uniformly in volume out to a maximum distance of 460 Mpc, equal to the horizon distance of the Advanced LIGO-Virgo network. At such distances, the effect of cosmological redshift is minimal and we do not include such effects in our simulations. The joint distribution on $\theta_{\rm jet}$ and $\cos\iota$ is uniform under the constraints that $\cos\theta_{\rm jet}<\cos\iota$ and $5^{\circ}<\theta_{\rm jet}<30^{\circ}$ with values generated using rejection sampling. In total 1000 signals are generated and added to simulated noise from a three-detector network consisting of the two Advanced LIGO detectors (Hanford and Livingston) and Advanced Virgo at design sensitivity (see more details in Fan et al., 2014).

In order to construct an estimate of the GW likelihood, a kernel density estimation procedure222$\rm http://www.vicos.si/Research/Multivariate\_Online\_Kernel\_Density\_Estimation$ is used to compute the GW likelihood term $p(\bm{D}|\bm{\gamma},\bm{\omega},I)$ at any location in the $(\bm{\gamma},\bm{\omega})$ parameter space. The discrete samples used as input are those generated from the posterior distribution on the GW parameters obtained using lalinference (Aasi et al., 2013; Veitch and Vecchio, 2010). Since we require the likelihood, the prior distributions used in the generation of the posterior must be removed. Since the $\cos\iota$ prior is uniform the likelihood and posterior are directly proportional and no change is necessary. The distance prior used to generate the posterior samples is uniform in volume and hence $\propto d^{2}$. This is the same as that assumed for our general analysis as defined in Eq. 4 and so the GW posterior represents the combined terms $p(\bm{D}|\bm{\omega},\bm{\gamma},I)p(d|I)$.

The EM term $p(\bm{S}|\bm{\gamma},\bm{\phi},I)$ in the numerator of Eq. 1 is computed under the assumption that the sGRB skymap is both consistent with, and significantly more constraining than the GW skymap. This allows us to treat the sky position as known. As stated above, the jet half opening angle is drawn jointly with the binary inclination angle consistent with the prior. The sGRB luminosity value is drawn from a power law distribution according to Eq. 5. The measured flux $f_{\gamma}$ value is then drawn from a Gaussian distribution (consistent with our assumed likelihood, Eq. 2) with mean $f_{\rm th}$ given by Eq. 3 and a standard deviation equal to 30% of the mean.

The final joint posterior distribution on all signal parameters $p(\bm{\theta}|\bm{S},\bm{D},I)$ is obtained by computing the product of the estimated GW term and the analytic EM term multiplied by the priors on the all parameters according to Eq 1. From this we can compute marginalised posterior distributions on any parameter, for example, the isotropic luminosity posterior for a joint sGRB-GW detection is given by

[TABLE]

where we have integrated over all parameters excluding the luminosity (indicated by the superscript $\neq L_{\rm iso}$ on the $\bm{\theta}$ parameter set). Such a distribution represents the combined inference power of both the sGRB and GW observations.

Results— The improvements in the accuracy of sky location and trigger time via a joint GW-SGRB observation have already been discussed in Blackburn et al. (2015). Here, we focus on the inference of distance, inclination angle and sGRB isotropic luminosity.

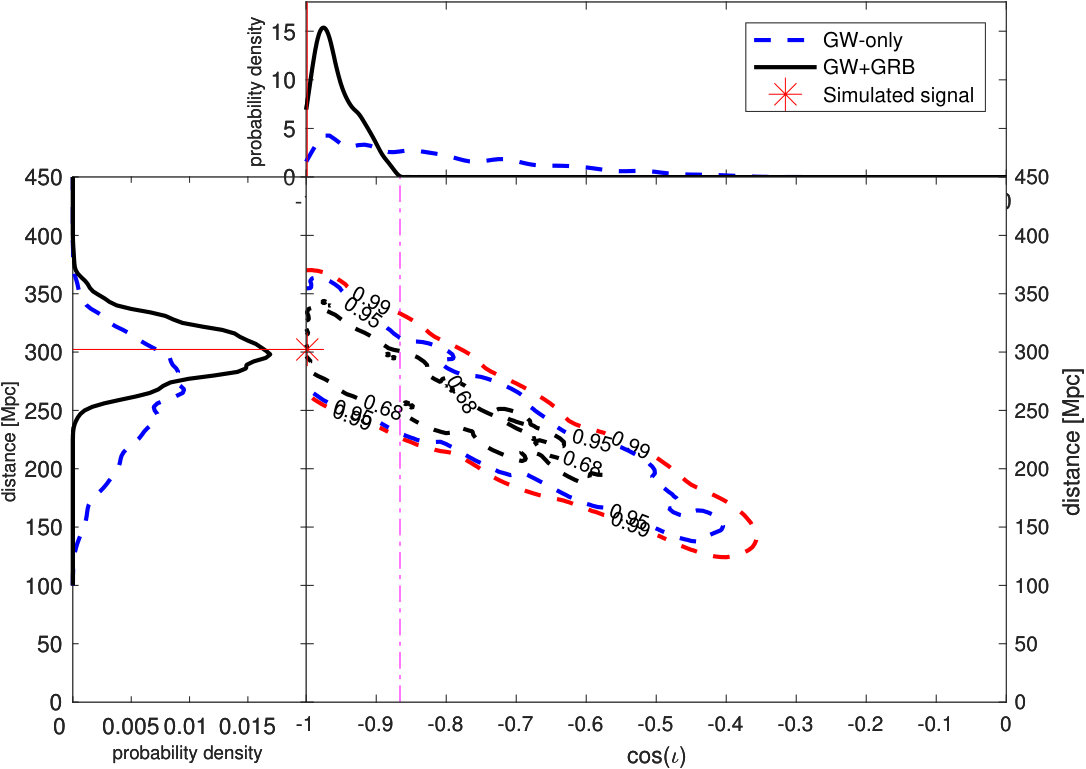

We select one of the simulations as a case study for illustrating the effects of the joint analysis (signal parameters given in Fig. 1). Contours representing the joint posterior on distance and $\cos\iota$ are plotted in Fig. 1 together with their marginalised distributions. The joint sGRB-GW analysis allows us to apply jet half opening angle priors which constrain the inclination angle and consequently significantly improves the distance estimate. The combined sGRB-GW posterior shown in Fig. 1 are produced by applying Eqs. 2-5 and are not obtained by the direct application of a threshold on the half opening angle posterior. For this particular case study, the 95$\%$ credible intervals for distance and $\cos\iota$ are improved by factors of $\sim$ 2.5 and 8, respectively.

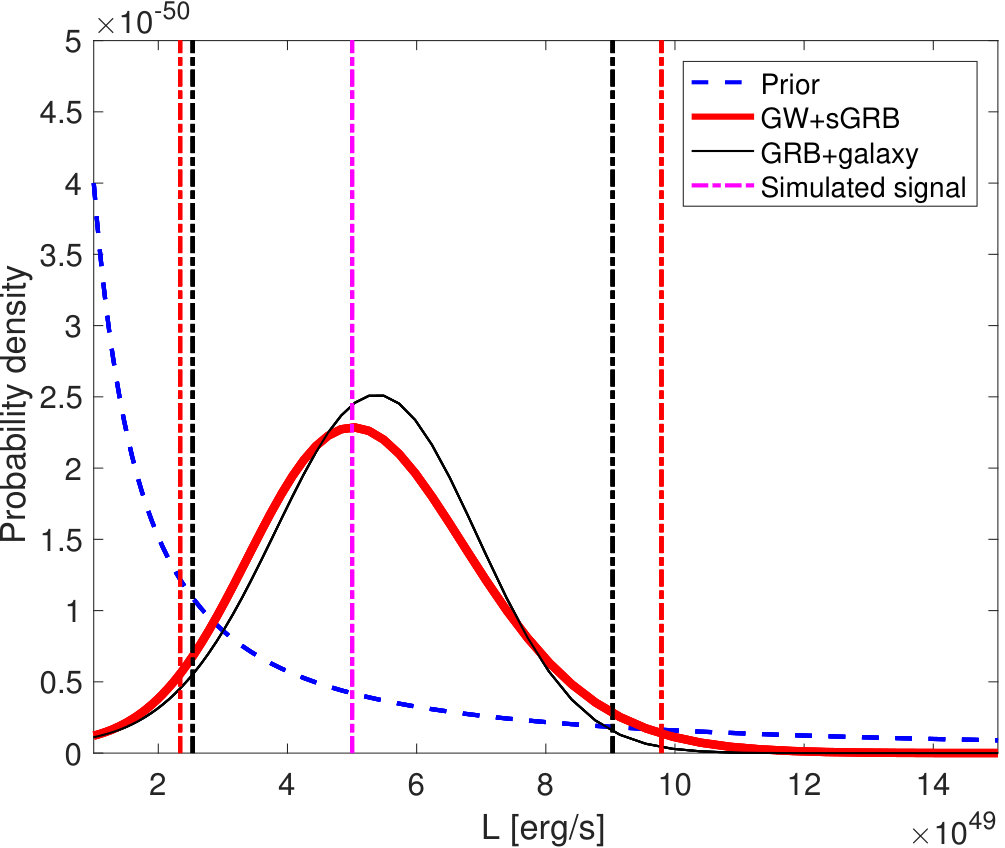

In Fig. 2 we show the marginalized probability density on the sGRB isotropic luminosity in our case study for 2 different scenarios. The first is the luminosity posterior assuming a joint sGRB-GW detection where we have marginalised all parameters excluding the luminosity using Eq. 6. The second curve is the posterior obtained using only an sGRB detection together with a correctly identified host galaxy at the true distance $d^{\prime}$. In this case the distance is then assumed known and the corresponding luminosity posterior is given by

[TABLE]

In this case study the 95$\%$ credible intervals show that the joint sGRB-GW luminosity estimation is comparable with that of the sGRB-host galaxy observation.

Currently, isotropic luminosity estimates for sGRBs rely on obtaining redshift measurements of their assumed host galaxies. Only $\sim 30\%$ of all detected sGRB have an identified host galaxy 333This percentage is also consistent with counting entries with redshift estimates at https://swift.gsfc.nasa.gov/archive/grb_table/. (Metzger and Berger (2012)), while all sGRBs observed in conjunction with GW counterparts will have a distance estimate directly from the GW observation. For sGRBs with identified host galaxies, the flux measurement uncertainty contributes to the spread in the isotropic luminosity posterior. For an sGRB-GW observation, all additional posterior width is due to the uncertainty remaining in the distance after the degeneracy between inclination angle and distance has been constrained by the joint sGRB-GW detection.

We examine the effectiveness of our proposed joint sGRB-GW analysis by examining the posterior credible intervals for the inferred source distance and sGRB isotropic luminosity using 1000 simulated signals as described previously.

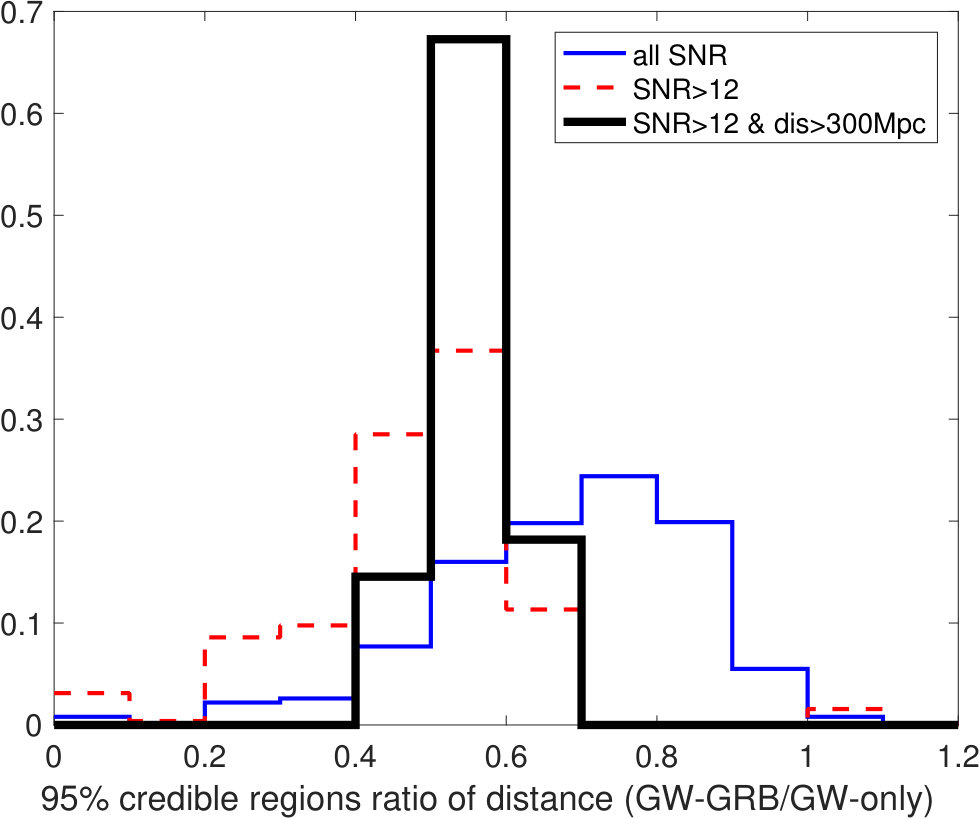

In Fig. 3, we compare the $95\%$ credible intervals on the distance posterior distributions obtained using joint sGRB-GW observations with those obtained for GW observations alone. Observing a sGRB in conjunction with a GW provides an additional constraints on the inclination angle which reduces the uncertainty in the source distance estimation. The $95\%$ credible regions can be as much as $\sim$ 10 times smaller for joint sGRB-GW analyses. In general, however, the median ratio is $0.65$. The fiducial detection threshold for ground based detectors is signal-to-noise ratio (SNR) ${\sim}12$ and if we restrict our analysis to only consider signals above this value then we find that the distance uncertainty reduction has a narrower range and shifts to lower values with a median ratio of $0.45$. The fact that it is most likely that a joint sGRB-GW observation will occur close to the horizon distance of the GW detector network is already accounted for in the distance prior. However, if we further restrict the analysis to detectable but distant signals such that the SNR $>12$ and the distances are $>300$ Mpc then the median ratio becomes $0.50$.

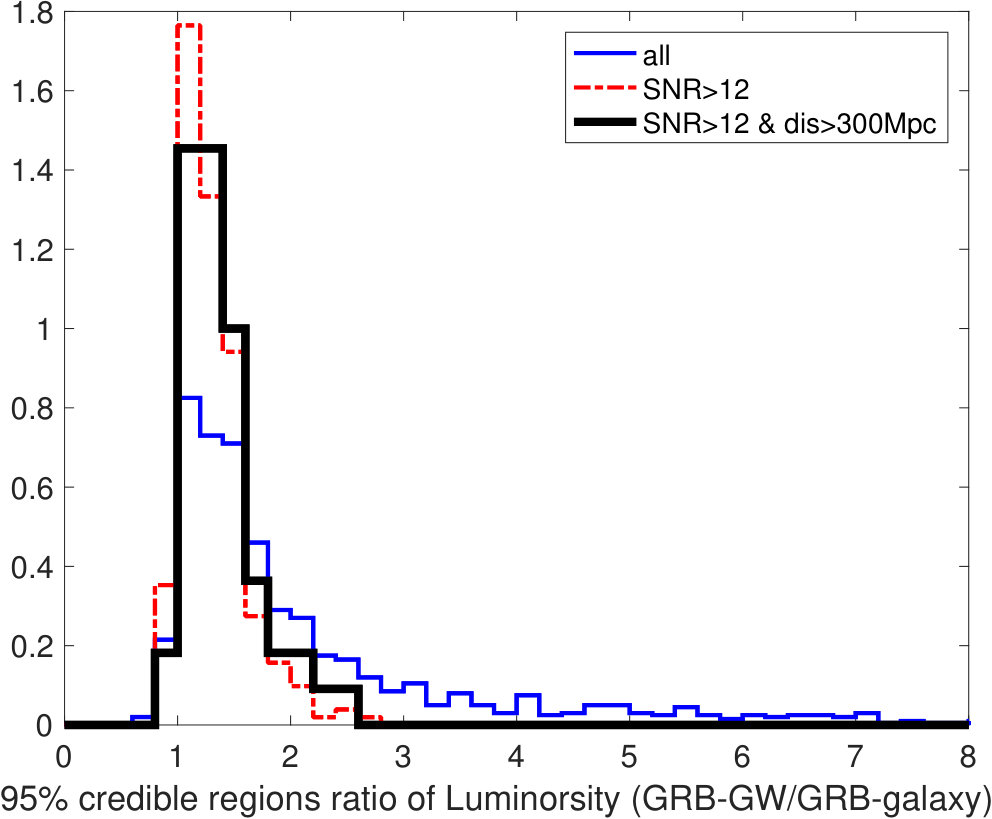

We also examine the ability of the joint sGRB-GW analysis to infer the sGRB isotropic luminosity and compare it to luminosities inferred using distances from identified sGRB host galaxies. We have assumed that all 1000 simulated signals have identified host galaxies and the host galaxy distances have been measured exactly. While this scenario is favorable for isotropic luminosity estimates obtained via host galaxy identification, we note that the host galaxy distance estimates can have a broad range of uncertainties (e.g. photometric redshifts would have greater uncertainty than spectroscopic redshifts, and host galaxies can be incorrectly identified) and can lead to considerable uncertainties in the corresponding luminosity estimate. However, to be conservative, we choose to compare scenarios that favour the sGRB host galaxy approach. With this in mind, in Fig. 3, we compare the $95\%$ credible intervals for the isotropic luminosity posterior distributions from the joint sGRB-GW analysis with that for source luminosities obtained via perfect galaxy host identification and corresponding error-free redshift measurements. We see that the credible intervals for the joint sGRB-GW analysis are typically within a factor of two of that obtained using the host galaxies. Given our optimistic assumptions regarding host galaxy identification, the relative level of uncertainty in the luminosity estimate achieved by the joint sGRB-GW analysis shows that we can obtain a reliable isotropic luminosity estimate for most sGRB-GW observations using our proposed method.

Discussion— We have proposed a general procedure for the parameter estimation of two independent observations and applying it to reveal the nature of sGRBs using joint sGRB–GW observations. We have quantified the level to which the distance–inclination angle degeneracy inherent to GW observations can be broken with the inclusion of sGRB data. In addition to this, we have shown that through this joint analysis and the distance–inclination angle degeneracy breaking we are able to estimate the isotropic luminosity of the sGRB. The precision with which we are able to do this is comparable with the precision possible for sGRB analyses without GW counterparts but with a well-defined host galaxy.

A unique feature of our approach is that it will provide isotropic luminosity estimate for every joint sGRB–GW detection. This is in contrast to the fact that only $\sim$30% of sGRB events have redshift estimates and hence an isotropic luminosity estimate. In the near term, the Advanced ground based GW detectors are likely to detect only a handful of joint events Clark et al. (2015) and hence only make a small contribution to the $O(100)$ that will be known via sGRB observations on the same timescale. However, 3rd generation GW detectors Sathyaprakash et al. (2012); The LIGO Scientific Collaboration (2016) will be sensitive to BNS systems out to redshift $z\sim 1$ and will therefore jointly detect $\sim$ all sGRB events out to this distance. Joint detections will therefore provide $\sim$twice as many luminosity measurements as are likely with sGRB events alone (assuming no improvement in redshift estimation).

By combining the information from EM and GW channels we have been able to quantify the improvements possible in the merger distance estimation. The spread in improvement ranges between a factor of 1–8 for all simulations and those detectable with SNR ${>}12$ showing improvements clustered around factors of $\sim 2$.

One possible extension to this work is to embed this analysis inside a hierarchical Bayesian model with the aim of inferring the sGRB isotropic luminosity distribution. In this work we have assumed a power-law prior distribution of the luminosity prior and the corresponding power-law index. A hierarchical procedure could be used to estimate this index and other parameters like the lower luminosity cut-off. It could also be used to perform model selection between, for example, single and broken power-law models. Additionally, non-parametric techniques such as Gaussian process modelling could provide estimates for the form of the isotropic luminosity distribution.

The method we have introduced in this paper is not just applicable to joint observations using sGRBs and GWs. The power of the joint inference we describe can be applied to any multi-messenger observations (2 or more and not necessarily including GW observations) and will naturally exploit the parameter correlations between common parameters. As shown here, such correlations can lead to improved inference on other system parameters, and could be applied to further astrophysical phenomena associated with GW events such as supernovae, kilonovae, or high energy neutrino observations.

Acknowledgements—We would like to acknowledge valuable input from M. Hendry, F. Pannarale, D. Holz and N. Tanvir. The authors also gratefully acknowledge the support of this research by the Royal Society, the Scottish Funding Council, the Scottish Universities Physics Alliance and and the Science and Technology Facilities Council of the United Kingdom. XF acknowledges financial support from National Natural Science Foundation of China (grant No. 11673008,11633001). CM and SH are supported by the Science and Technology Research Council (grant No. ST/ L000946/1).
