Constraints on the distance moduli, helium and metal abundances, and ages of globular clusters from their RR Lyrae and non-variable horizontal-branch stars. II. Multiple stellar populations in 47Tuc, M3, and M13

TL;DR

This study uses advanced stellar evolution models to analyze multiple stellar populations in globular clusters 47Tuc, M3, and M13, providing insights into their compositions, ages, and the role of helium variation.

Contribution

It introduces new HB models with gravitational settling and alpha-enhanced metals, successfully reproducing observed HB features and stellar populations in three globular clusters.

Findings

Good fit of models to 47Tuc HB with helium variation.

Estimated ages of 13.0 Gyr for 47Tuc, 12.6 Gyr for M3, and 12.9 Gyr for M13.

Mass loss and helium variation are key second parameters.

Abstract

We present a new set of horizontal-branch (HB) models computed with the MESA stellar evolution code. The models adopt $\alpha$-enhanced \cite{ags09} metals mixtures and include the gravitational settling of He. They are used in our HB population synthesis tool to generate theoretical distributions of HB stars in order to describe the multiple stellar populations in the globular clusters 47Tuc, M3, and M13. The observed HB in 47Tuc is reproduced very well by our simulations for [Fe/H] $= -0.70$ and [$\alpha$/Fe] $= +0.4$ if the initial helium mass fraction varies by $\Delta Y_0 \sim 0.03$ and approximately 21%, 37%, and 42% of the stars have $Y_0 = 0.257$, 0.270, and 0.287, respectively. These simulations yield $(m-M)_V = 13.27$, implying an age near 13.0 Gyr. In the case of M3 and M13, our synthetic HBs for [Fe/H] $= -1.55$ and [$\alpha$/Fe] $= 0.4$ match the observed ones quite well if M3 has $\Delta Y_0 \sim 0.01$ and $(m-M)_V = 15.02$, resulting in an age of 12.6 Gyr, whereas M13 has $\Delta Y_0 \sim 0.08$ and $(m-M)_V = 14.42$, implying an age of 12.9 Gyr. Mass loss during giant-branch evolution and $\Delta Y_0$ appear to be the primary second parameters for M3 and M13. New observations for 7 of the 9 known RR Lyrae in M13 are also reported. Surprisingly, periods predicted for the $c$-type variables tend to be too high (by up to $\sim 0.1$~d).

Figures

Tables

Table 1. Table 1 Mean Colors, Magnitudes, and Fundamental-Mode Pulsation Periods for Single Populations of Synthetic HB Stars

ID1	$t_{\mathrm{ZAHB}}\left(\mathrm{Gyr}\right)$	${ℳ}_{\mathrm{HB}}\left({ℳ}_{\odot }\right)$	$⟨C⟩=⟨m_{\mathrm{F606W}}-m_{\mathrm{F814W}}⟩$	$⟨M_{\mathrm{F606W}}⟩$	$⟨P_{\mathrm{ab}}⟩\left(d\right)$	$\frac{\Delta ⟨C⟩}{\Delta P}$	$\frac{\Delta ⟨M_{\mathrm{F606W}}⟩}{\Delta P}$	$\frac{\Delta t_{\mathrm{ZAHB}}}{\Delta P}$
TH	$12.67$	$0.675$	$0.4437$	$0.4486$	$0.5508$	$0$	$0$	$0$
TL	$12.67$	$0.6$	$-0.008251$	$1.079$	$0.6838$	$6.026$	$-8.405$	$0$
MH	$11.38$	$0.675$	$0.4484$	$0.4453$	$0.5672$	$0.1880$	$-0.1320$	$-51.6$
ML	$11.38$	$0.6$	$-0.006000$	$1.065$	$0.6962$	$6.059$	$-8.263$	$0$
OH	$12.76$	$0.675$	$0.5059$	$0.4379$	$0.5879$	$0.3110$	$-0.0535$	$0.45$
OL	$12.76$	$0.6$	$0.01769$	$0.9565$	$0.7039$	$6.509$	$-6.915$	$0$
FH	$12.37$	$0.675$	$0.3414$	$0.4485$	$0.5919$	$0.6820$	$0.0007$	$2$
FL	$12.37$	$0.6$	$-0.04936$	$1.310$	$-$	$5.210$	$-11.49$	$0$
YH	$11.18$	$0.675$	$0.4025$	$0.3868$	$0.6054$	$-2.060$	$-3.090$	$-74.5$
YL	$11.18$	$0.6$	$-0.09014$	$1.690$	$-$	$6.569$	$-17.38$	$0$
YAH	$12.66$	$0.675$	$0.4071$	$0.3842$	$0.6058$	$-1.830$	$-3.220$	$-0.5$
YAL	$12.66$	$0.6$	$-0.02635$	$1.099$	$0.6384$	$5.779$	$-9.531$	$0$

Table 2. Table 2 Fitted GC Parameters from our HB Population Synthesis Simulations

GC	Population ($i$)	$f_i$	$Y_{0,i}$	${ℳ}_i/{ℳ}_{\odot }$	$\Delta {ℳ}_i/{ℳ}_{\odot }$	${\sigma }_i/{ℳ}_{\odot }$
NGC 104 (47 Tuc)	$1$	$0.21$	$0.257$	$0.875$	$0.197$	$0.009$
…	$2$	$0.37$	$0.27$	$0.85$	$0.184$	$0.009$
…	$3$	$0.42$	$0.287$	$0.825$	$0.190$	$0.009$
NGC 6205 (M 13)	$1$	$0.45$	$0.25$	$0.8$	$0.193$	$0.010$
…	$2$	$0.22$	$0.285$	$0.75$	$0.207$	$0.010$
…	$3$	$0.33$	$0.33$	$0.695$	$0.2165$	$0.010$
NGC 5272 (M 3)	$1$	$0.45$	$0.25$	$0.8$	$0.126$	$0.008$
…	$2$	$0.10$	$0.255$	$0.792$	$0.157$	$0.009$
…	$3$	$0.45$	$0.26$	$0.785$	$0.160$	$0.010$

Table 3. Table 3 Mean B ​ V ​ I C 𝐵 𝑉 subscript 𝐼 C BVI_{\rm C} magnitudes and colors of RR Lyrae stars in M 13.

Var.	$⟨V⟩$	$\left(V\right)$	$⟨B$–$V⟩$	$(B$–$V)$	$⟨V$–$I_C⟩$	$(V$–$I_C)$
	[mag]	[mag]	[mag]	[mag]	[mag]	[mag]
V5	14.717	14.728	0.293	0.298	0.437	0.445
V7	14.895	14.900	0.247	0.250	0.352	0.355
V8	14.822	14.853	0.379	0.399	0.535	0.554
V9	14.786	14.797	0.302	0.307	0.430	0.437
V34	14.803	14.810	0.317	0.320	0.439	0.444
V36	14.782	14.783	0.271	0.271	0.362	0.363

Table 4. Table 4 Predicted Periods of V8 ( P obs = 0.750 subscript 𝑃 obs 0.750 P_{\rm obs}=0.750  d)

Y	$\delta \log T_{\mathrm{eff}}$	$P$	$\delta \log T_{\mathrm{eff}}$	$P$
	[from $⟨B-V⟩$]		[from $⟨V-I_C⟩$]
0.25	$+0.0000$	0.727	$+0.0000$	0.696
	$-0.0040$	0.750	$-0.0095$	0.750
	$-0.0075$	0.771	$-0.0075$	0.738
0.27	$+0.0000$	0.711	$+0.0000$	0.681
	$-0.0068$	0.750	$-0.0122$	0.750
	$-0.0075$	0.755	$-0.0075$	0.723

Table 5. Table 5 Differences Between the Periods of the RRc Stars in M 13, as Predicted by HB Models for Y 0 = 0.25 subscript 𝑌 0 0.25 Y_{0}=0.25 , 0.27, and 0.285, and their Observed Periods

Var.	$P_{\mathrm{obs}}$		$\Delta P_{Y25}$	$\Delta P_{Y27}$	$\Delta P_{Y285}$		$\Delta P_{Y25}$	$\Delta P_{Y27}$	$\Delta P_{Y285}$
	[days]		[from $⟨B-V⟩$]				[from $⟨V-I_C⟩$]
V5	0.382		0.101	0.094	0.086		0.105	0.098	0.091
V7	0.313		0.042	0.034	0.026		0.035	0.027	0.019
V9	0.393		0.074	0.066	0.057		0.059	0.051	0.043
V34	0.389		0.093	0.084	0.074		0.064	0.056	0.047
V36	0.316		0.108	0.101	0.093		0.077	0.070	0.064

Equations

$$D_{\mathrm{OS}}(r)=D_0\exp \left[\frac{-2(r-r_0)}{f_{\mathrm{OS}}{H}_P}\right],$$

$$\log$$

$$-(0.58\pm 0.02)\log (\mathcal{M}/{\mathcal{M}}_{\odot })-(3.43\pm 0.01)\log T_{\mathrm{eff}}$$

$$+(0.024\pm 0.002)\log Z$$

$$\log$$

$$-(0.56\pm 0.02)\log (\mathcal{M}/{\mathcal{M}}_{\odot })-(3.40\pm 0.03)\log T_{\mathrm{eff}}$$

$$+(0.013\pm 0.002)\log Z.$$

$$⟨m_{F606W}-m_{F814W}⟩=⟨C⟩([Fe/H],[\alpha /Fe],[O/Fe],$$

$$Y_0,\mathcal{M},{\mathcal{M}}_{\mathrm{HB}},\sigma ),$$

$$t_{\mathrm{ZAHB}}=t_{\mathrm{ZAHB}}([Fe/H],[\alpha /Fe],[O/Fe],Y_0,\mathcal{M});$$

$$⟨C⟩=⟨C⟩(Y_0,\mathcal{M},{\mathcal{M}}_{\mathrm{HB}}),$$

$$t_{\mathrm{ZAHB}}=t_{\mathrm{ZAHB}}(Y_0,\mathcal{M}),$$

$${\mathcal{M}}_{\mathrm{HB}}={\mathcal{M}}_{\mathrm{HB}}(Y_0,\mathcal{M}).$$

$${\left(\frac{\partial ⟨C⟩}{\partial Y_0}\right)}_{t_{\mathrm{ZAHB}}}={\left(\frac{\partial ⟨C⟩}{\partial {\mathcal{M}}_{\mathrm{HB}}}\right)}_{Y_0,\mathcal{M}}{\left(\frac{\partial {\mathcal{M}}_{\mathrm{HB}}}{\partial Y_0}\right)}_{\mathcal{M}}+$$

$${\left(\frac{\partial ⟨C⟩}{\partial Y_0}\right)}_{\mathcal{M},{\mathcal{M}}_{\mathrm{HB}}}-{\left(\frac{\partial ⟨C⟩}{\partial \mathcal{M}}\right)}_{Y_0,{\mathcal{M}}_{\mathrm{HB}}}\frac{{\left(\frac{\partial t_{\mathrm{ZAHB}}}{\partial Y_0}\right)}_{\mathcal{M}}}{{\left(\frac{\partial t_{\mathrm{ZAHB}}}{\partial \mathcal{M}}\right)}_{Y_0}}-$$

$${\left(\frac{\partial ⟨C⟩}{\partial {\mathcal{M}}_{\mathrm{HB}}}\right)}_{Y_0,\mathcal{M}}{\left(\frac{\partial {\mathcal{M}}_{\mathrm{HB}}}{\partial \mathcal{M}}\right)}_{Y_0}\frac{{\left(\frac{\partial t_{\mathrm{ZAHB}}}{\partial Y_0}\right)}_{\mathcal{M}}}{{\left(\frac{\partial t_{\mathrm{ZAHB}}}{\partial \mathcal{M}}\right)}_{Y_0}},$$

$${\left(\frac{\partial ⟨C⟩}{\partial t_{\mathrm{ZAHB}}}\right)}_{Y_0}=[{\left(\frac{\partial ⟨C⟩}{\partial \mathcal{M}}\right)}_{Y_0,{\mathcal{M}}_{\mathrm{HB}}}+$$

$$\displaystyle\left.\left(\frac{\partial\langle C\rangle}{\partial{\cal M}_{\mathrm{HB}}}\right)_{Y_{0},{\cal M}}\left(\frac{\partial{\cal M}_{\mathrm{HB}}}{\partial{\cal M}}\right)_{Y_{0}}\right]\Big{/}\left(\frac{\partial t_{\mathrm{ZAHB}}}{\partial{\cal M}}\right)_{Y_{0}}.$$

$$\Delta ⟨C⟩=-0.1661\Delta t_{\mathrm{ZAHB}}(\mathrm{Gyr}),$$

$$\Delta ⟨C⟩=-0.1079(\Delta Y_0/0.01).$$

$$\Delta ⟨C⟩=0.06723(\Delta [Fe/H]/0.1).$$

$$[\Delta (\Delta \mathcal{M}){]}_{t_{\mathrm{ZAHB}}}=[\Delta (\mathcal{M}){]}_{t_{\mathrm{ZAHB}}}-(\Delta {\mathcal{M}}_{\mathrm{HB}}{)}_{t_{\mathrm{ZAHB}}},$$

$${\left(\Delta {\mathcal{M}}_{\mathrm{HB}}\right)}_{t_{\mathrm{ZAHB}}}=[{\left(\frac{\partial {\mathcal{M}}_{\mathrm{HB}}}{\partial Y_0}\right)}_{\mathcal{M}}-{\left(\frac{\partial {\mathcal{M}}_{\mathrm{HB}}}{\partial \mathcal{M}}\right)}_{Y_0}\times$$

$$\frac{{\left(\frac{\partial t_{\mathrm{ZAHB}}}{\partial Y_0}\right)}_{\mathcal{M}}}{{\left(\frac{\partial t_{\mathrm{ZAHB}}}{\partial \mathcal{M}}\right)}_{Y_0}}]\Delta Y_0=-1.403\Delta Y_0,$$

$$[\Delta (\mathcal{M}){]}_{t_{\mathrm{ZAHB}}}={\left(\frac{\partial \mathcal{M}}{\partial Y_0}\right)}_{t_{\mathrm{ZAHB}}}\Delta Y_0=-1.4\Delta Y_0,$$

$$\begin{array}[]{rll}V-v&{}=-0.047\times(v-i)-0.753,&\hskip 19.91684pt\sigma=0.020,\\ B-V&{}=+1.235\times(b-v)-0.413,&\hskip 19.91684pt\sigma=0.014,\\ V-I_{\rm C}&{}=+0.945\times(v-i)+0.506,&\hskip 19.91684pt\sigma=0.012,\end{array}$$

Full text

1. Introduction

Based on his comparisons of the color-magnitudes diagrams (CMDs) of the globular clusters (GCs) M 3 and M 92, Sandage (1953) concluded that there must be cluster-to-cluster variations in some intrinsic property in order to explain the striking differences between them. He proposed, crediting M. Schwarzschild (private conversations) for the initial suggestion, that this property might be metal abundance; and indeed, subsequent studies (e.g., Sandage & Wallerstein, 1960; Feast & Thackeray, 1960; Arp, 1962) revealed that the metals-to-hydrogen ratio is a distinguishing characteristic of GCs. As the photometric data improved (see, e.g. Sandage, 1970), the increasingly well-defined turnoff (TO) luminosities and principal photometric sequences suggested that the stars in each cluster formed with the same metallicity at the same time. (It was known early on that $\omega$ Cen had an unusually broad giant branch (Woolley 1966), but this system appeared to be an exception to the rule.)

During the same period of time, van den Bergh (1967) and Sandage & Wildey (1967) independently deduced from the diversity in the horizontal branch (HB) morphologies of GCs with nearly the same metal abundance that at least two parameters, one being metallicity, are needed to describe them. Age and helium abundance were the most obvious candidates for the (primary) “second parameter” (e.g., Rood, 1973), though the abundance of nitrogen was also considered when Hartwick & McClure (1972) found that CN is much stronger in NGC 7006 than in either M 92 or M 3.

The first strong evidence of the presence of multiple stellar populations in GCs was the discovery by Norris & Freeman (1979) of the bimodal distribution of CN molecular band strengths in 142 red giants in 47 Tuc. These results were based on measurements of the photometric color index C(4142), the same one used by Hartwick & McClure (1972). At nearly the same time, analyses of low-resolution spectra showed that differences in CN band strengths could be traced down to upper main-sequence (MS) stars in 47 Tuc (Hesser, 1978; Hesser & Bell, 1980), pointing to a primordial origin of the N abundance variations.

Soon afterwards, the first spectroscopic data indicating strong star-to-star variations of the O, Na and Al abundances in red giants of the GCs M 13 and NGC 6725 were presented by Pilachowski et al. (1980), Peterson (1980) and Norris et al. (1981). However, what is arguably the most important result from chemical composition studies of GC stars during the last three decades was the discovery of correlations between the abundances of C, N, O, Na Mg, and Al (Pilachowski, 1988; Paltoglou & Norris, 1989; Kraft, 1994; Norris & Da Costa, 1995; Kraft et al., 1997; Carretta et al., 2005, 2009c), with the signs and magnitudes of the abundance variations in those correlations being indicative of their simultaneous origin in H-burning reactions of the CNO, NeNa, and MgAl cycles at T\mathrel{\hbox{\raise 2.58334pt\hbox{>}\kern-7.3194pt\lower 2.15277pt\hbox{\sim}}}70\times 10^{6} K (Langer et al., 1997; Denissenkov et al., 1998; Prantzos et al., 2007). This conclusion is further supported by the correlations between the Mg isotopic and Al abundances recently revealed in $\omega$ Cen and several other clusters (Da Costa et al., 2013; Denissenkov & Hartwick, 2014).

Both the indications in support of a high-temperature environment and the fact that most of the proton-capture element abundance anomalies (star-to-star variations and correlations between them) were found not only along the upper RGB in GCs, but also in other evolutionary phases of low-mass stars — including the MS, lower RGB, HB, (Briley et al., 1996, 2002, 2004; Gratton et al., 2001; Grundahl et al., 2002; Gratton et al., 2011, 2013), and even the asymptotic-giant branch (AGB) (Lapenna et al., 2016) — pointed to massive stars as the most probable origin of the observed abundance trends. (D’Antona et al., 1983, 2016; Decressin et al., 2007; de Mink et al., 2009; Denissenkov & Hartwick, 2014). This would also explain why the CN-weak and CN-strong stars in GCs define the same fiducial sequences in the turnoff regions of $(B-V,\,V)$ CMDs (see the study of 47 Tuc by Cannon et al. 1998), which suggests that they have the same age and C$+$N$+$O abundances.

Hydrogen burning should necessarily result in an enhancement of the He abundance and, indeed, increased He mass-fraction abundances by $\Delta Y\approx 0.04$ and $\Delta Y\approx 0.09$ from the value of $Y_{0}\approx 0.25$, which is usually assumed to represent the initial value of $Y$ in low- to intermediate-metallicity GCs (Salaris et al., 2004), were directly measured by spectroscopic methods in blue HB (BHB) stars of the GCs M 4 (Villanova et al., 2012) and NGC 2808 (Marino et al., 2014). Indirect methods based on a comparison of the observed distribution of HB stars in a GC with that simulated using an HB population synthesis tool confirm that HB stars in some GCs, especially in GCs with extended BHBs, have a varying He abundance (di Criscienzo et al., 2010a; Valcarce et al., 2016; Tailo et al., 2016), with $Y$ increasing towards the blue tails of HBs. The latter result is consistent with observational data which indicates that the anti-correlating deviations of the O and Na abundances from their initial values are stronger in the bluer HB stars (e.g., Gratton et al., 2013).

Significant progress in the splitting of CMDs of GCs, including the majority of those with the homogeneous Fe abundances, into sets of two to seven well distinguishable evolutionary sequences (MS, RGB and HB) has been made recently, when the optical photometry in the HST ACS (Hubble Space Telescope Advanced Camera for Surveys) filter $F435W$ was combined with the UV photometry in the HST ACS filters $F275W$ and $F336W$ (Piotto et al., 2015). These filters cover parts of stellar spectra that are strongly affected by the presence of CN+CH, NH and OH molecular bands, respectively (Sbordone et al., 2011; Milone et al., 2012); therefore, the photometric magnitudes and, especially, colors derived from them turn out to be very sensitive to the O depletion and its correlated N enhancement, i.e. they actually measure the relative amount of material processed in the CNO cycle that is present in the stellar atmosphere. Application of these tools has revealed that almost every GC hosts multiple populations with the fraction of the first-generation stars111We equate “first-generation stars” with “CN-weak stars that have the lowest helium abundance” since it is not yet known whether the chemically distinct multiple stellar populations formed in separate star formation epochs or at the same time (Charbonnel, 2016). varying from 8% to 67% (Milone et al., 2015a, c; Milone, 2015; Milone et al., 2017).

The goal of the present study is to use our new HB stellar evolution models in conjunction with an HB population synthesis tool to simulate the observed distributions of HB stars in 47 Tuc, M 3 and M 13. A comparison of the synthetic and observed HB populations, including the period distributions of their RR Lyrae variables, complemented with fits of isochrones to the MS, subgiant-branch (SGB) and RGB CMDs for each of these GCs, can constrain the basic parameters of its multiple populations, such as their shared age, metallicity ([Fe/H]222We use the standard spectroscopic notation [A/B] = $\log_{10}(N(\mathrm{A})/N(\mathrm{B}))-\log_{10}(N_{\odot}(\mathrm{A})/N_{\odot}(\mathrm{B}))$, where $N(\mathrm{A})$ and $N(\mathrm{B})$ are the mass fractions or number densities of the nuclides A and B.), distance modulus, and reddening, as well as their individual mean initial He abundances $Y_{0,i}$, fractions $f_{i}$, mean mass losses by the RGB stars $\Delta{\cal M}_{i}$, and their total number $N_{\mathrm{pops}}$.

The selection of 47 Tuc, M 3 and M 13 for this paper is motivated by the fact that multiple populations in these GCs have been extensively studied, using HB models and population synthesis tools, by other researchers (D’Antona et al., 2002; Caloi & D’Antona, 2005, 2008; D’Antona & Caloi, 2008; Valcarce & Catelan, 2008; di Criscienzo et al., 2010b; Dalessandro et al., 2013; Valcarce et al., 2016; Salaris et al., 2016) whose results can serve as tests of our computations. Besides, 47 Tuc is relatively metal rich and one of the most massive GCs, while M 3 and M 13 represent one of the most famous second-parameter pairs of intermediate-metallicity GCs, with M 13 showing the most extreme abundance anomalies of the $p$-capture elements. Consequently, they should be especially interesting targets for the first application of our new HB models and population synthesis tool.

The paper has the following structure. Section 2 summarizes the input physics and other options that have been chosen for the MESA stellar evolution code to compute our HB models. Section 3 describes the new HB population synthesis tool that we have used to simulate the distributions of HB stars, including RR Lyrae, in the selected GCs. In Section 4, we first analyze how the mean color and magnitude of a single generation of HB stars depend on various model parameters; then we compare our synthetic distributions of HB stars with those observed in the GCs 47 Tuc, M 3 and M 13 to estimate their distance moduli, reddenings and parameters of multiple stellar populations. The distance moduli are used in Section 5 to derive the ages of these GCs by fitting isochrones to their observed turn-off luminosities. As a consistency check, in Section 6 we compare the periods of RR Lyrae stars in M 3, M 13 and 47 Tuc with their values predicted by our HB models. In Section 7, we present a new model of a supermassive MS star that can reproduce both the O-Na anti-correlation and the correlations between the [Al/Fe] enhancement and the Mg isotopic ratios in 47 Tuc stars. The final Section 8 contains summary and discussion.

2. MESA HB evolution models

2.1. Input physics

In this work, we have used revision 7624 of the MESA stellar evolution code with the MESA default equation of state — see Section  4.2 and Fig. 1 in Paxton et al. (2011) and Section A.2 in Paxton et al. (2013). For the initial mixture of elements and isotopes, we have adopted the Solar System chemical composition given by Asplund et al. (2009), with the abundances of the $\alpha$ elements enhanced to [$\alpha$/Fe] $=+0.4$ and scaled to the [Fe/H] values that have been adopted for the three GCs considered in this investigation. As opacities for these abundances are not included in the MESA library, we had to generate OPAL opacity data (Iglesias & Rogers, 1993, 1996) without and with enhanced abundances of C and O (i.e., Type 1 and Type 2 tables, respectively),333missing in order to model both the H- and He-burning evolutionary phases of low-mass stars. For the same reason, new low-temperature molecular opacity tables (Ferguson et al., 2005) have been computed for the Asplund et al. (2009) mixture with [$\alpha$/Fe] $=+0.4$.

We have followed the nucleosynthesis of 30 isotopes from 1H to 28Si in H-burning reactions of the $pp$-chains, CNO, NeNa and MgAl cycles, as well as in the main He-burning reactions. The rates of those reactions were taken from the JINA Reaclib database (Cyburt et al., 2010).

To obtain a close match to the input physics of the Victoria code, we have selected the Krishna-Swamy atmospheric boundary condition (Krishna Swamy, 1966) and the MESA “Henyey” MLT option with its default parameters $y=0.333$ and $\nu=8$ (Henyey et al., 1965), along with the solar-model calibrated mixing length parameter, $\alpha_{\mathrm{MLT}}=2.0$ (in pressure-scale heights $H_{P}$). To reach the best agreement between the RGB tracks and ZAHB loci computed with the Victoria and MESA codes (see Figure 1 in VandenBerg et al. 2016, Paper I) we had to use higher-order (cubic) interpolation of the opacities in $Z$ and to include the gravitational settling of He during the MS and subgiant branch (SGB) stages of evolution. (The diffusion of the metals was not treated.)

The initial chemical composition for our MESA computations is prepared by executing a separate Fortran code that can use, as input data, lists of isotopic abundances corresponding to the solar compositions of Grevesse & Noels (1993), Grevesse & Sauval (1998) or Asplund et al. (2009). The solar-scaled initial abundances are calculated for specified values of $Y$, [Fe/H], [$\alpha$/Fe] and [O/$\alpha$]. The last parameter is useful for models with [O/Fe] $>$ [$\alpha$/Fe]. To be able to compute MESA models for the latter possibility, we have additionally generated Type 1 and Type 2 OPAL opacities for the Asplund et al. (2009) mixture with [O/Fe] $=0.6,0.7,0.8$ and $1.0$, assuming [$\alpha$/Fe] $=0.4$ for all of the other $\alpha$-elements. At low metallicities ([Fe/H] \mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}-1.3), low-mass stellar models with O-enhanced abundances can be computed with MESA using the same low-$T$ opacities that were generated for [O/Fe] $=$ [$\alpha$/Fe] $=0.4$, provided that they are interpolated for the (lower) value of $Z$ that corresponds to [O/Fe] $=0.4$. This ensures that all of the other heavy elements have the correct abundances and that their contributions to the low-$T$ opacities are properly treated, irrespective of the assumed oxygen abundance, which has no significant influence on the opacity at \log\,T\mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}4.0 in relatively warm, metal-deficient stars.

To reiterate: the correct O abundance was assumed in the equation of state, the nuclear reactions, etc. We have simply opted to use low-$T$ opacities from the existing set for [$\alpha$/Fe] $=0.4$ for the appropriate value of $Z$, when such data are essentially independent of the oxygen abundance. (Clearly, this strategy cannot be employed once molecules become important sources of opacity.) In fact, we have verified that O-enhanced MESA stellar evolutionary tracks that employ this approximation match their counterparts derived from the Victoria code, which does have low-$T$ opacity tables for O-enhanced mixtures, very well. Unfortunately, such data are not yet available in the format used by MESA.

It should be appreciated that there are significant differences in the input physics of our HB models compared with those adopted in published computations (e.g., the widely used BASTI models by Pietrinferni et al. 2004). In particular, our models are the first ones to assume the Asplund et al. (2009) metals mixture with [$\alpha$/Fe] $=0.4$, for which we have generated proper OPAL and low-$T$ opacity tables. They also incorporate improved nuclear reaction rates and the gravitational settling of He during the MS and SGB phases, together with sufficient extra mixing below convective envelopes to provide reasonable consistency between predicted and spectroscopically derived surface abundances. As these updates change the He and heavy-element mass-fraction abundances of our HB models for the same initial values of $Y$ and [Fe/H], it is important to investigate how they affect the derivation of such GC parameters as their distance moduli, ages, the predicted periods of their RR Lyrae stars, etc.

2.2. Mixing prescription for the core He burning

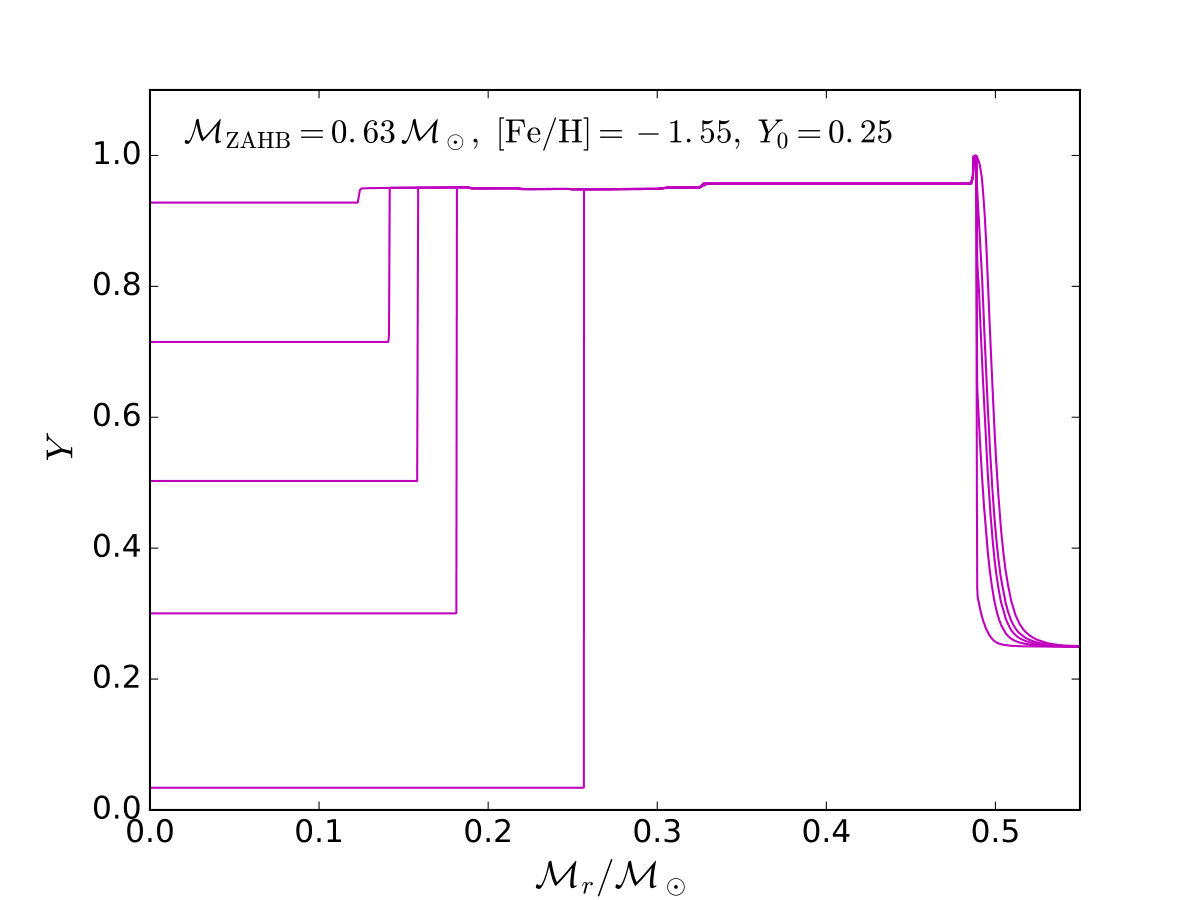

As an HB star burns He in its convective core, thereby producing C and O, the opacity of stellar material inside the convective core increases. Therefore, the ratio of the radiative and adiabatic temperature gradients (logarithmic and with respect to pressure), $\nabla_{\mathrm{rad}}/\nabla_{\mathrm{ad}}$, also increases at the convective core boundary, which, according to the Schwarzschild criterion for convective instability, prompts the boundary to advance outwards in mass. However, because the ratio $\nabla_{\mathrm{rad}}/\nabla_{\mathrm{ad}}$ remains below $1.0$ immediately outside the boundary, a stellar evolution code has to be instructed what to do in this ambiguous situation. Although there are several alternative instructions (algorithms) available in the literature (e.g., see the review of five mixing models for the core He burning phase in Section 2 of Straniero et al., 2003, and references therein), none of them has been tested in 3D hydrodynamical simulations yet.

Fortunately, Constantino et al. (2015) and Constantino et al. (2016) have used new observational data to constrain the mixing prescription for core He burning. In the first work, they found that the average period spacing for the asymptotic dipole $g$ modes inferred for HB stars in the Kepler field can only be reproduced by models that implement their proposed “maximal overshoot” mixing scheme. This algorithm models mixing outside the convective boundary, usually called “convective overshooting” (OS) or “convective boundary mixing” (CBM), with the following diffusion coefficient:

[TABLE]

where $r_{0}$ is the radius immediately below the convective core boundary, $D_{0}=D_{\mathrm{MLT}}(r_{0})$ is the MLT diffusion coefficient at $r=r_{0}$, and $f_{\mathrm{OS}}$ is a free parameter. This expression was originaly proposed for CBM by Herwig et al. (1997) and it is now implemented in MESA. If a large and constant value of $f_{\mathrm{OS}}$ is used, then the He convective core rapidly grows in mass and a minimum of the ratio $\nabla_{\mathrm{rad}}/\nabla_{\mathrm{ad}}$ in the core moves from its boundary inwards. When the minimum of $\nabla_{\mathrm{rad}}/\nabla_{\mathrm{ad}}$ inside the core drops below $1.0$, a convective shell detaches from the convective core. To avoid this situation, Constantino et al. (2015) assumed that the amount of mass added to the convective core at each time step was proportional to the minimum of $(\nabla_{\mathrm{rad}}/\nabla_{\mathrm{ad}}-1)$ in the core as long as that minimum remained larger than 0.002, otherwise it was zero. With this algorithm, they obtained the largest possible convective He core throughout the HB evolution, a result that is supported by the Kepler data.

When the helium abundance $Y_{\mathrm{c}}$ decreases below $\sim 0.1$ in the convective core, its boundary can occasionally move rapidly outward in mass, thus ingesting fresh He. This results in a brief rejuvination of the HB star, during which time its evolutionary track makes a loop. These so-called “breathing pulses” increase the lifetime of the HB evolution. In their second work, Constantino et al. (2016) have found that the number ratio of AGB to HB stars in 48 Galactic globular clusters favours the shorter evolutionary timescale without “breathing pulses”.

To comply with these results, we have designed the following mixing prescription for core He burning. We use the MESA implementation of Equation (1) in which $D_{0}$ is taken at a distance $0.001H_{P}$ below the Schwarzschild boundary with $f_{\mathrm{OS}}=0.0005$ for $Y_{\mathrm{c}}\geq 0.05$ and, to eliminate “breathing pulses”, $f_{\mathrm{OS}}=0.0005\,(Y_{\mathrm{c}}/0.05)$ for $Y_{\mathrm{c}}<0.05$. To avoid a possible splitting of the convective core, we replace $D_{\mathrm{MLT}}$ with $0.05\,K$ when $D_{\mathrm{MLT}}<K$, where $K$ is a thermal diffusivity. Our prescription results in the growth and maximal size of the He convective core (Fig. 1) that are both very similar to those shown by Constantino et al. (2015) in the bottom panel of their Fig. 2 for the “maximal overshoot” case.

3. HB population synthesis tool

3.1. The algorithm and its input parameters

The Monte Carlo algorithm that we have developed to simulate the distributions of HB stars in the CMDs of globular clusters is not very different from those used by other researchers (e.g., Valcarce & Catelan, 2008; Sollima et al., 2014; Salaris et al., 2016; Tailo et al., 2016). The input parameters for the algorithm are a total number of HB stars $N_{\mathrm{HB}}$, the number of different stellar populations in a studied GC $N_{\mathrm{pops}}$, where each population is specified with its own mean initial He abundance $Y_{0,i}$, relative fraction $f_{i}$, the mean mass $\Delta{\cal M}_{i}$ lost by the RGB stars, and its dispersion $\sigma_{i}$. The mean initial masses ${\cal M}_{i}$ of the $N_{\mathrm{pops}}$ populations, that along with $\Delta{\cal M}_{i}$ determine the mean masses of the ZAHB stars ${\cal M}_{\mathrm{HB},i}={\cal M}_{i}-\Delta{\cal M}_{i}$, are constrained by their shared age $t_{\mathrm{ZAHB}}$ and metallicity [Fe/H], but individual $Y_{0,i}$ values.

For each of the $N_{i}=f_{i}N_{\mathrm{HB}}$ stars of the $i$-th population, its (initial) mass on the ZAHB is randomly selected from a normal distribution with the mean value ${\cal M}_{\mathrm{HB},i}$ and dispersion $\sigma_{i}$. A set of HB evolutionary tracks, that was generated for the specified values of [Fe/H], $Y_{0,i}$ and for an age close to the one estimated for the GC independently, e.g. by an isochrone fitting method, is then interpolated in the selected ZAHB mass to identify the two tracks with the closest ZAHB masses. Then, an age of the synthetic HB star $t_{\mathrm{HB}}$ is randomly selected from an uniform distribution on the interval [$0,t_{\mathrm{HB,max}}$], and its location on a theoretical HR diagram $(\log_{10}T_{\mathrm{eff}},\log_{10}(L/L_{\odot}))$ is interpolated in the selected ZAHB mass444We assume that the stellar mass does not change during the HB evolution. and $t_{\mathrm{HB}}$, using the pair of HB evolutionary tracks with the nearest ZAHB masses. We adopt the value of $t_{\mathrm{HB,max}}=1.5\times 10^{8}$ yr that deliberately exceeds the maximum HB ages of the order of $1.3\times 10^{8}$ yr of our HB models to accomodate the standard assumption behind synthetic HBs that “the stars are being fed onto the HB at a constant rate” (Rood, 1973). If the selected age $t_{\mathrm{HB}}$ happens to be older than the maximum age of the two HB tracks used for the interpolation, we assume that the star has already left the HB and it is not included in the synthetic HB populations. The effective temperatures and luminosities of our stellar models are transformed to the $(m_{\mathrm{F606W}}-m_{\mathrm{F814W}})_{0}$ or $(B-V)_{0}$ colors and to the $M_{\mathrm{F606W}}$ or $M_{V}$ absolute magnitudes using the bolometric corrections from Casagrande & VandenBerg (2014) for ${T_{\rm eff}}$ values $\leq 8000$ K, and from S. Cassisi (private communication, but see Cassisi et al. 2004) for higher temperatures. Suitable zero-point adjustments were applied to the latter transformations in order to ensure continuity with those given by Casagrande & VandenBerg.

3.2. The synthetic RR Lyrae stars

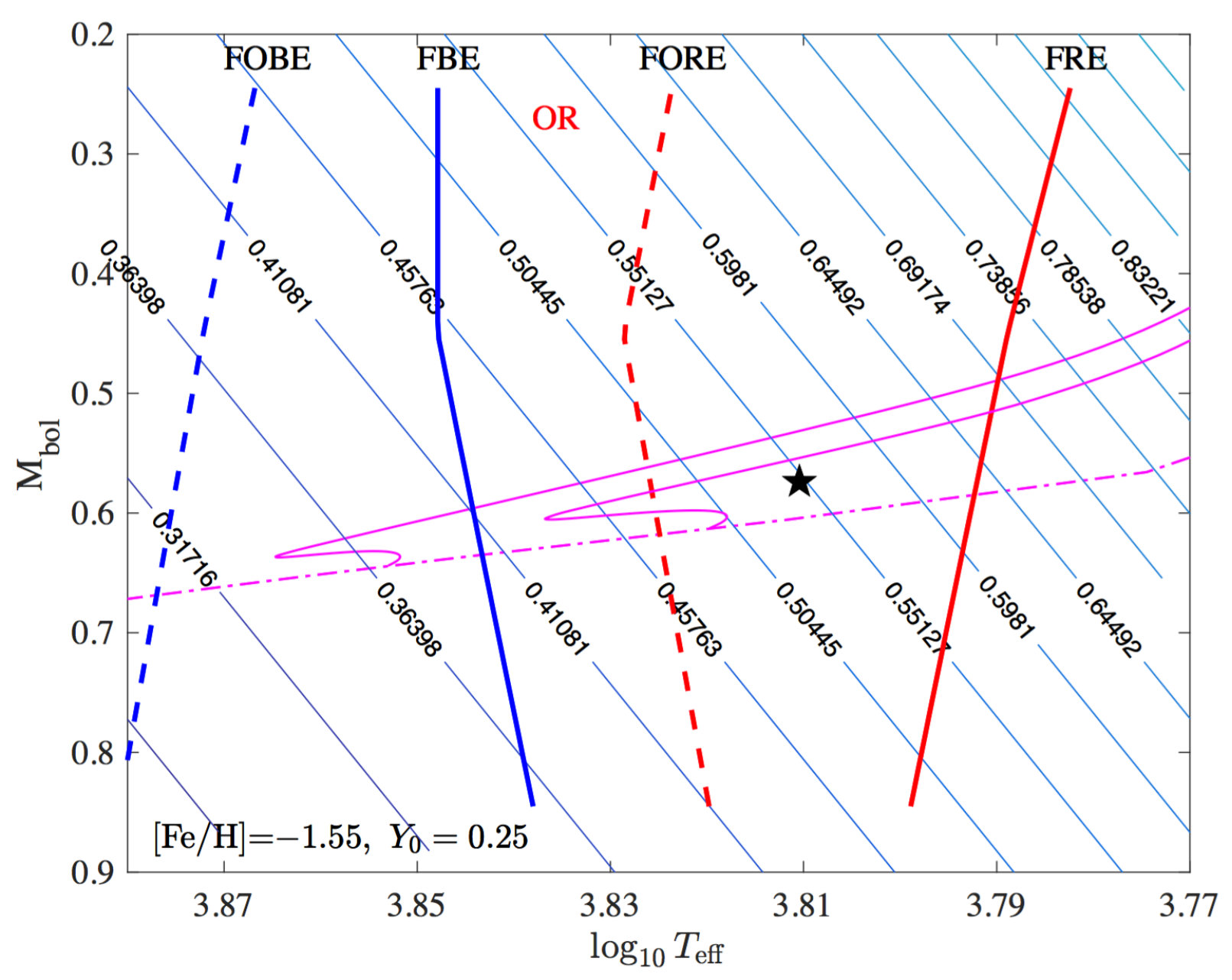

A more sophisticated algorithm is used to determine a pulsation mode of the synthetic HB star when its location happens to be inside the instability strip (IS), where the RR Lyrae stars are observed. The effective temperatures at the red and blue edges of the two overlapping instability strips in which the HB star is expected to pulsate either in the fundamental mode (FRE and FBE) or in the first overtone mode (FORE and FOBE) are interpolated in its mass and luminosity (Fig. 2) from the tables of Bono et al. (1995a) and Bono et al. (1997). We have found that, in order for all of the observed RR Lyrae stars in the globular cluster M 3 to fit inside the IS, both the interpolated values of $T_{\mathrm{eff}}^{\mathrm{FRE}}$ and $T_{\mathrm{eff}}^{\mathrm{FOBE}}$ have to be increased by $\approx 200$ K. We believe that our empirical adjustments of the theoretical data are within reasonable uncertainty limits, because their magnitudes are comparable to the corrections that have to be applied to the effective temperatures of the IS edges when $\alpha_{\mathrm{MLT}}=1.5$, as used in the models of Bono et al. (1995a) and Bono et al. (1997), is replaced with our value of $\alpha_{\mathrm{MLT}}=2.0$ (Marconi et al., 2003). We note that similar adjustments of the M 3 IS boundaries were made by Dalessandro et al. (2013) ($3.80\lesssim\log_{10}T_{\mathrm{eff}}\lesssim 3.88$, in good agreement with our Figure 2) and by Caloi & D’Antona (2008) ($0.14\lesssim(B-V)_{0}\lesssim 0.38$, which compares well with our results; see Section 4.2.3).

Just the locations of the IS boundaries have been adjusted — not the evolutionary tracks — as otherwise some of the RR Lyrae in M 3 would lie outside the IS. Other researchers have found such adjustments to be necessary, as we have noted. Thus the small $T_{\mathrm{eff}}$ shift of the tracks that may be necessary to obtain the best agreement between predicted and RR Lyrae periods is a separate issue. Note that the small $T_{\mathrm{eff}}$ offset could instead be due to the assumption of a reddening value or distance modulus that are not quite right, or small errors in the mean $\langle B\rangle-\langle V\rangle$ and $\langle V\rangle-\langle I_{C}\rangle$ colors that are assumed to represent the equivalent static colors of the RR Lyrae (as mentioned on page 19).

An ambiguity in the determining of the pulsation mode occurs when the synthetic HB star finds itself in the IS overlap (OR) region between $T_{\mathrm{eff}}^{\mathrm{FBE}}$ and $T_{\mathrm{eff}}^{\mathrm{FORE}}$. Following Sollima et al. (2014), we assume that the star belongs to the RRc (RR1) class of the first-overtone pulsators if it entered the overlap region crossing its blue boundary (FBE) and that it is of the RRab (RR0) type (the fundamental-mode pulsator) if it crossed the FORE before finding itself in the overlap region (Fig. 2). This “hysteresis” effect was originally proposed by van Albada & Baker (1973). A small number of synthetic HB stars that stay in the overlap region until they leave it, when they cross the FORE, are divided equally into the RRc and RRab types depending on what edge (FBE or FORE) was closest to their ZAHB locations.

Pulsation periods (in days) of our synthetic RR Lyrae stars are calculated using the following metallicity-dependent relations for the fundamental and first-overtone modes given by Marconi et al. (2015):

[TABLE]

and

[TABLE]

4. Synthetic HB populations

4.1. Parameters that affect the color and magnitude of an HB model star

4.1.1 The ZAHB stars

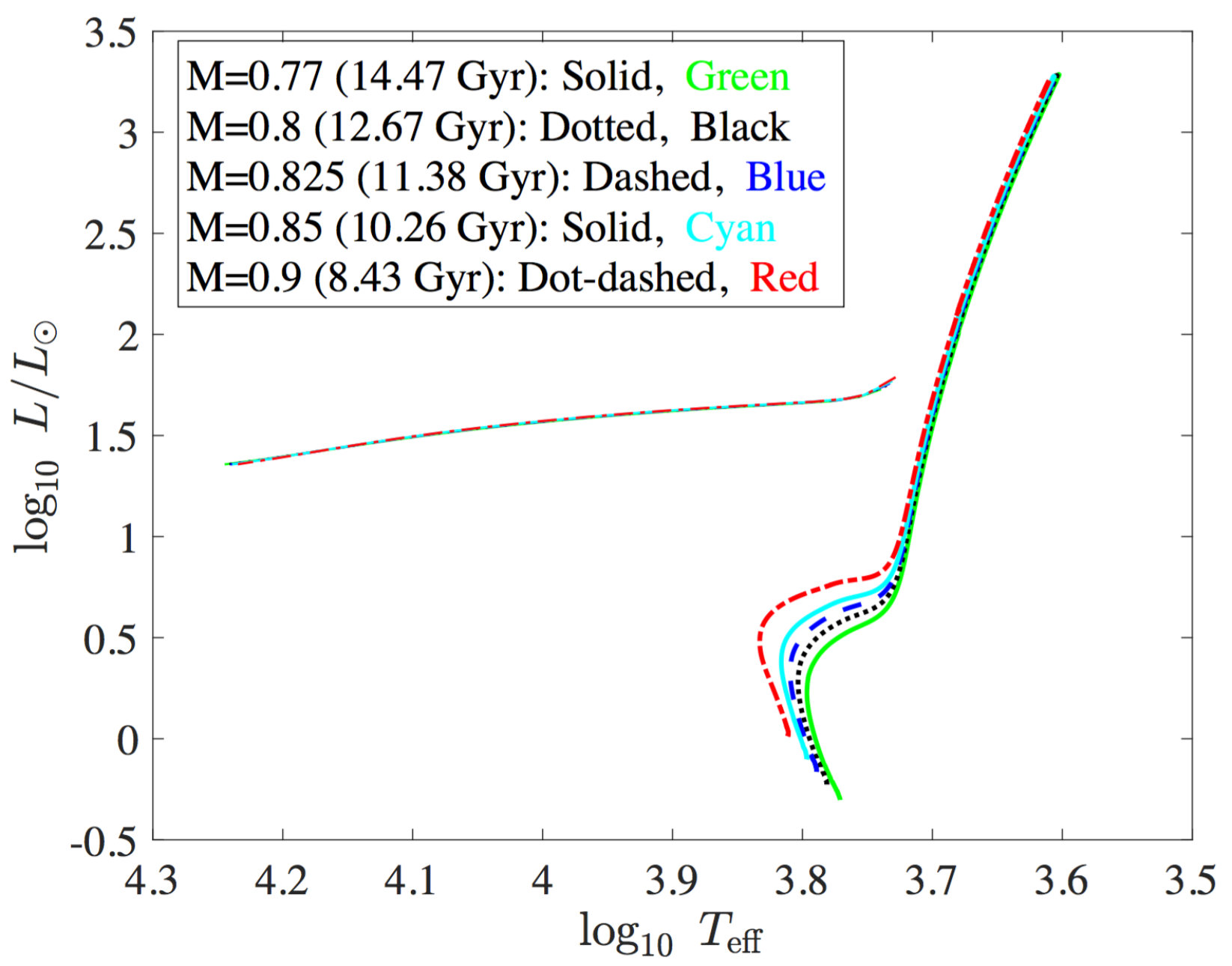

Fig. 3 demonstrates that the luminosity of ZAHB stars does not depend on their age for a fixed initial composition. Therefore, fitting a theoretical ZAHB to the bottom of an observed distribution of HB stars can be used to estimate the distance modulus of a GC without knowing its age. On the other hand, the luminosity of the MS turnoff (MSTO) is strongly dependent on age and the morphology of isochrones in the vicinity of the TO has little sensitivity to the effective temperature; consequently, these properties can be used to estimate GC ages in conjunction with distance moduli that are obtained from the ZAHB fits. This approach was used by VandenBerg et al. (2013, hereafter VBLC13) and Leaman et al. (2013) to determine the ages of 61 GCs, and a similar method is employed in the present work. The main difference is that the distance moduli of GCs will instead be based on the fitting of the entire distributions of observed HB stars by synthetic HB populations (i.e., not just ZAHBs) to take full advantage of our new tracks for the core He-burning phase.

When the [Fe/H] and [O/Fe] ratios and the helium mass fraction $Y_{0}$ in the initial chemical composition are allowed to change, within their observed or assumed limits appropriate for GCs, and when the age and RGB mass-loss rate are also varied, these changes all affect the location of an HB model star on a CMD as follows.

When the [Fe/H] value decreases, the ZAHB luminosity increases somewhat and the color of a ZAHB star becomes significantly bluer (Fig. 4, the top-left panel).

An increase in $Y_{0}$ makes a ZAHB model more luminous and it produces an extended blue loop during its evolution (Fig. 4, the bottom-left panel). For the same mass, a ZAHB star with a higher $Y_{0}$ has a slightly redder color. However, if two HB stars in the same GC belong to populations with different values of $Y_{0}$ (say, $Y_{0,1}=0.25$ and $Y_{0,2}=0.33$, as shown in the bottom-left panel), but they have nearly the same age, which is expected if the second-generation stars in GCs were formed from a mixture of pristine gas with ejecta from short-lived massive stars, including intermediate-mass and massive AGB stars, then the initial mass of the He-rich star has to be lower (${\cal M}_{2}=0.695\,{\cal M}_{\odot}$) than the initial mass of the star with the normal He abundance (${\cal M}_{1}=0.8\,{\cal M}_{\odot}$). When we apply the Reimers formula for the RGB mass-loss (Reimers, 1975) that is implemented in MESA, assuming that the same parameter $\eta_{\mathrm{R}}=0.5$ applies to both models, they arrive at the HB with the masses ${\cal M}_{\mathrm{HB},2}=0.507\,{\cal M}_{\odot}$ and ${\cal M}_{\mathrm{HB},1}=0.602\,{\cal M}_{\odot}$. This, according to Fig. 4, means that He-rich HB stars should be fainter and much bluer than their He-normal counterparts for the same age and RGB mass-loss.

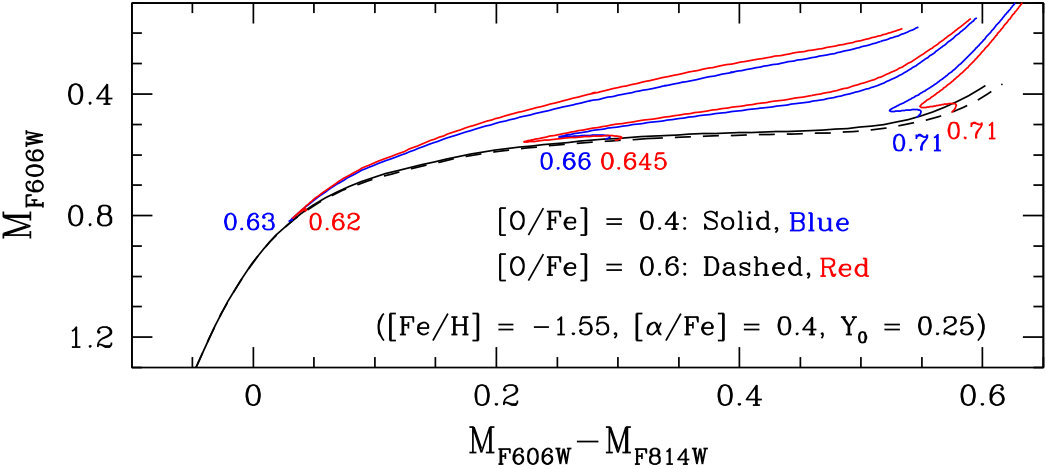

If the trend of increasing [O/Fe] with decreasing [Fe/H] that has been found for metal-poor field stars in the Galaxy (e.g., Amarsi et al., 2015; Dobrovolskas et al., 2015) is applicable to GCs, then stars in a GC with low [Fe/H] may have an excess of oxygen abundance relative to our assumed value of [$\alpha$/Fe] $=0.4$. The top-right panel of Fig. 4 shows that ZAHB stars with [O/Fe] $>0.4$ are shifted to the red compared to ZAHB stars with [O/Fe] $=0.4$. This is caused by an increase in the efficiency of the CNO-cycle in the H-burning shell where O plays a role of a catalyst.

Finally, the bottom-right panel of Fig. 4 highlights the effect of changing the initial mix of heavy elements on the location of HB stars. Replacing the GS98 mix with the As09 mix is equivalent to reducing the [Fe/H] ratio (compare these ZAHBs with those in the top-left panel), because the latter mix has a lower $Z_{\mathrm{As09}}=7.6\times 10^{-4}$ than the former $Z_{\mathrm{GS98}}=1.1\times 10^{-3}$ for the same metallicity [Fe/H] $=-1.55$.

4.1.2 The evolving HB stars

In order to take into account the evolutionary effects on the mean properties of HB stars, we need to synthesize HB populations. Some results of such simulations for single populations of HB stars are presented in Table 1. The parameters of the template case simulations (TH and TL) are representative of the first generations of stars in the GCs M 3 and M 13 that will be discussed in the next section. The black star symbol in Fig. 2 corresponds to the simulation TH. In other simulations, we have changed the value of only one parameter (two in the YA case) relative to the template case in order to calculate the partial derivatives of the mean color, magnitude, and age of the synthetic HB stars. These derivatives and the other data provided in Table 1 can be used to estimate changes in mean properties of HB stars resulting from variations of the parameters that determine the HB morphology and pulsation periods of RR Lyrae stars.

Here is an example of such an estimate. The mean color of a single population of synthetic HB stars is a function of the following seven parameters:

[TABLE]

where the mean ZAHB (and HB) mass ${\cal M}_{\mathrm{HB}}$ can be replaced with the mean RGB mass-loss $\Delta{\cal M}={\cal M}-{\cal M}_{\mathrm{HB}}$. It is very difficult to anticipate the reaction of the mean color to simultaneous changes of all of the parameters that it depends on, given that changes in some of the quantities can have the opposite effect and thereby partially compensate for changes in other quantities (Fig. 4). Therefore, it is desirable to first eliminate as many free parameters as possible in the above equation by fixing the most plausible values of them. For example, we assume that the first generations of stars in the GCs M 3 and M 13 both had [Fe/H] $=-1.55$, [$\alpha$/Fe] $=0.4$, [O/Fe] $=0.4$, and $Y_{0}=0.25$. (These values are close to the ones that have generally been adopted for M 3 and M 13 in the literature.)

The ZAHB age does not depend on ${\cal M}_{\mathrm{HB}}$ and $\sigma$

[TABLE]

therefore, once we have chosen the initial chemical composition, $t_{\mathrm{ZAHB}}$ depends only on the initial stellar mass. If we assume that the dispersion of the mean ZAHB mass (or of the mean RGB mass-loss) is nearly the same for all HB populations, then its value can also be considered fixed. We adopt $\sigma=0.01\,{\cal M}_{\odot}$ in Table 1.

The famous second parameter problem for a pair of GCs with the same metallicity, e.g. for M 3 and M 13, asks which of the other main parameters (i.e., besides [Fe/H]) is primarily responsbile for the difference in the HB morphologies (usually, in the mean color $\langle C\rangle$ of the HB stars) of these clusters (e.g., Dotter et al., 2010, and references therein). The most likely candidates for the second parameter are the age ($t_{\mathrm{ZAHB}}$) and the mean initial He mass fraction ($Y_{0}$). To answer this question using the data in Table 1, we will now allow $Y_{0}$ to vary along with ${\cal M}$ and ${\cal M}_{\mathrm{HB}}$, while keeping the other parameters fixed. Under these constraints, we have

[TABLE]

and

[TABLE]

We need to add Equation (8) to this system, because variations of both $Y_{0}$ and ${\cal M}$ lead to changes in $\Delta{\cal M}$ for fixed values of [Fe/H] and $\eta_{\mathrm{R}}$ (Fig. 5). Differentiating Equations (6-8), it is easy to show that

[TABLE]

and

[TABLE]

After substituting into Equations (9) and (10) the derivatives $\left(\partial{\cal M}_{\mathrm{HB}}/\partial{\cal M}\right)_{Y_{0}}=1.391$ and $\left(\partial{\cal M}_{\mathrm{HB}}/\partial Y_{0}\right)_{\cal M}=0.6050$, calculated using the data from Fig. 5 for $\eta_{\mathrm{R}}=0.45$, and other relevant derivatives from Table 1, we find that, at fixed [Fe/H] and $Y_{0}$,

[TABLE]

whereas, at fixed age and [Fe/H],

[TABLE]

For fixed $Y_{0}$ and $t_{\mathrm{ZAHB}}$, a similar analysis with $\left(\partial{\cal M}_{\mathrm{HB}}/\partial\mathrm{[Fe/H]}\right)_{\cal M}=-0.05673$ from Fig. 5 provides

[TABLE]

From Equations (11) and (12), we conclude that the mean initial helium mass-fraction abundance can be considered as the main second parameter if the ages of the second-parameter pair of GCs differ by less than 1 Gyr and their helium contents differ by \Delta Y_{0}\mathrel{\hbox{\raise 2.58334pt\hbox{>}\kern-7.3194pt\lower 2.15277pt\hbox{\sim}}}0.015, which is probably true in the case of M 3 and M 13 (see next section). It should be noted that the results presented in this example are valid only for narrow ranges of parameters centered on the values of [Fe/H] =$-1.55$, $Y_{0}=0.25$, ${\cal M}=0.8\,{\cal M}_{\odot}$, and $\eta_{\mathrm{R}}=0.45$, around which the partial derivatives were evaluated.

4.2. Main assumptions in our HB population synthesis simulations

In this work, we consider the mono-metallic GCs 47 Tuc (NGC 104), M 3 (NGC 5272) and M 13 (NGC 6205). Specific values of [Fe/H] for these clusters are chosen close to their spectroscopically measured values (see, e.g., Kraft & Ivans 2003, Carretta et al. 2009a). To be specific, we assume [Fe/H] $=-1.55$ for both M 3 and M 13, and [Fe/H] $=-0.7$ for 47 Tuc. (The latest analysis of the detached eclipsing binary in 47 Tuc favors a slightly higher metallicity than we have adopted for this GC; see Brogaard et al. 2017.) In addition, [$\alpha$/Fe] $=0.4$ (with [O/Fe] $=0.4$ as well) has been adopted for all three GCs, as this enhancement seems to be a common characteristic of such systems (e.g., Carney 1996, Carretta et al. 2009b). We also assume that the first generations of stars in M 3 and M 13 had $Y_{0,1}=0.25$, which is slightly higher than current Big Bang nucleosynthesis determinations of the primordial abundance ($Y_{P}\approx 0.248$; Komatsu et al. 2011, Planck Collaboration et al. 2014). In the case of 47 Tuc, we adopt $Y_{0}=0.257$ given the expectation that the gas out of which this relatively metal-rich system formed will have a somewhat higher He abundance due to chemical evolution effects.

When comparing the observed distributions of HB stars with their corresponding distributions of synthetic HB stars, we consider the reddening, $E(B-V)$, and the apparent distance modulus, $(m-M)_{V}$, to be additional free parameters, with initial estimates close to literature values, e.g. (Harris, 1996, 2010, edition), Schlafly & Finkbeiner (2011), and Schlegel et al. (1998). For 47 Tuc and M 13 we have selected 549 and 418 HB stars from the final-pass photometry of Ata Sarajedini555missing in the HST ACS filters $F606W$ and $F814W$. Given that M 3 has a large population of RR Lyrae stars, for which we use the $B$ and $V$ photometry of Cacciari et al. (2005), we have decided to investigate the distribution of HB stars in this cluster on the $(V,B-V)$ plane, for which 195 non-variable HB stars have been selected from Peter Stetson’s photometric standard fields666missing.

To take into account photometric errors, we assume that they have normal distributions with the standard deviations for the observed magnitude and color $\sigma_{\mathrm{phot}}=0.002$ for 47 Tuc and M 3, and $\sigma_{\mathrm{phot}}=0.01$ for M 13. To estimate the quality of our fits, we compare the magnitude and color histograms of the observed and synthetic distributions of HB stars using the Kolmogorov-Smirnov (K-S) test. The observational data on the histograms are shown with their Poisson error bars. Our goal is to obtain reasonable values for the free parameters that result in the highest possible K-S probabilities. When trying to find the best fits, we use a repeatable pseudo-random sequence of 6000 numbers in our MC simulations. After the best fits are found, we check that the K-S probabilities remain high when we switch to non-repeating pseudo-random number sequences and we normalize the number of synthetic HB stars to the number of observed HB stars in each GC.

From an analysis similar to that presented in the previous section, with the data used there, and from the relation $\Delta{\cal M}={\cal M}-{\cal M}_{\mathrm{HB}}$, we find that a variation of $Y_{0}$ at a constant age should be accompanied by the following change in the RGB mass-loss:

[TABLE]

where

[TABLE]

and

[TABLE]

the last number having been obtained by comparing the values of ${\cal M}$ and $Y_{0}$ in the T and YA raws of Table 1. From these estimates, we conclude that stellar populations with different $Y_{0}$ values in the same GC should have nearly the same mean RGB mass-loss, because $[\Delta(\Delta{\cal M})]_{t_{\mathrm{ZAHB}}}(\Delta Y_{0})\approx 0$, provided that their ages are not very different and the mass-loss experienced by their RGB stars obeys the same law — which, in our benchmark case that was used to derive Equations (9-14), is prescribed by the Reimers formula with $\eta_{\mathrm{R}}=0.45$. We will take this conclusion into account in our simulations, giving the preference to an enhancement of $Y_{0}$ over its compensating increase of $\Delta{\cal M}$, where it is required.

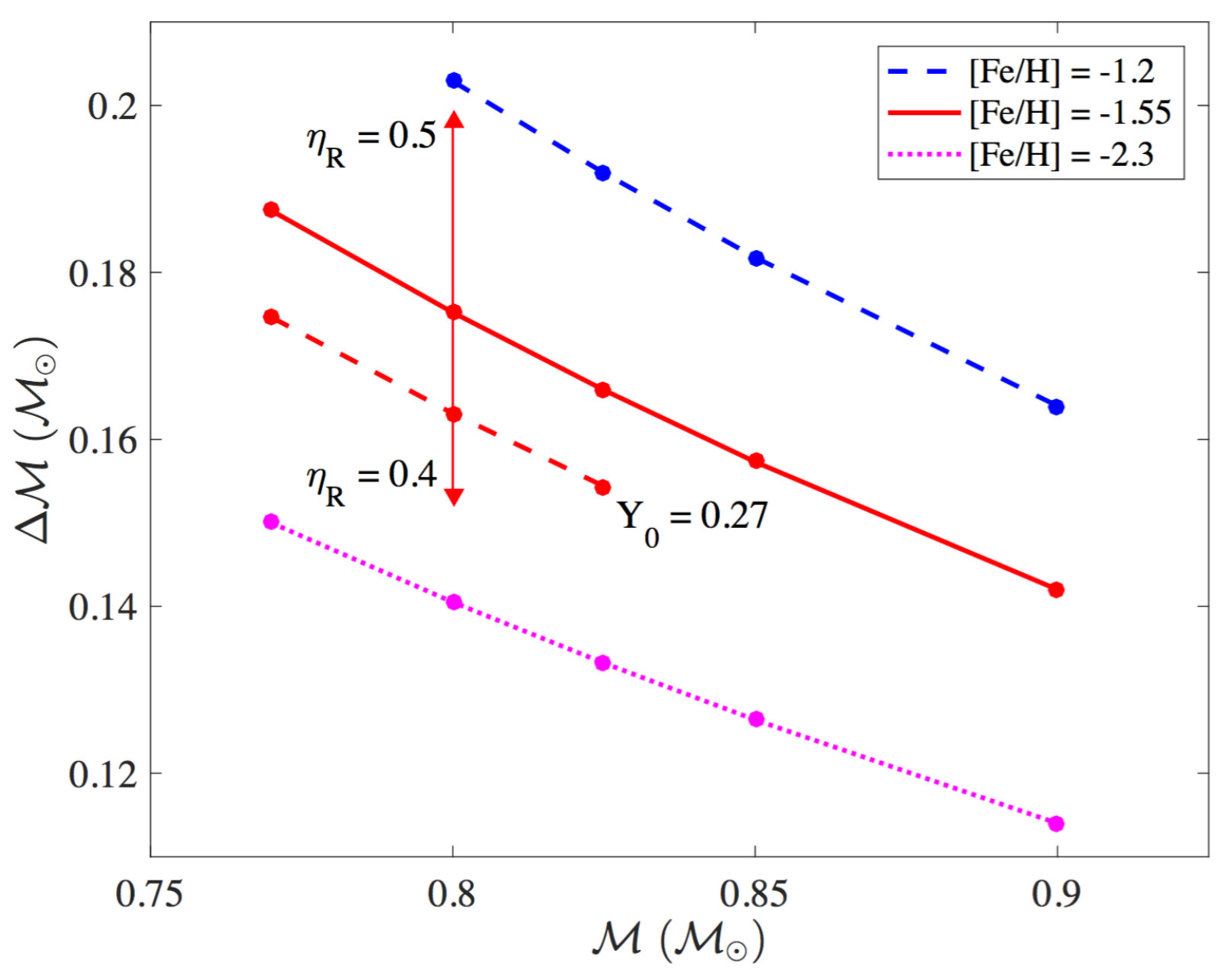

The assumptions we have made about the RGB mass-loss can be summarized as follows. We do not include any mass-loss in the computations of our basic ZAHB models that, therefore, have ${\cal M}_{\mathrm{HB}}={\cal M}$. The basic ZAHB models are used to generate sets of ZAHB models with ${\cal M}_{\mathrm{HB}}<{\cal M}$ and their HB evolutionary tracks. This allows us to vary the mass of our synthetic HB models assuming that the difference $\Delta{\cal M}={\cal M}-{\cal M}_{\mathrm{HB}}$ represents the mass lost on the RGB. By adjusting $\Delta{\cal M}$ and other parameters, we fit the observed distribution of HB stars. Then the adjusted mean values of $\Delta{\cal M}$ can be compared with those calculated for the benchmark ZAHB models that have the corresponding values of [Fe/H], $Y_{0}$ and ${\cal M}$ (Fig. 5) to see how close they are and, hence, how well the mass-loss law adopted for the benchmark ZAHB models reproduces the mean values of $\Delta{\cal M}$ used in our HB population synthesis simulations.

4.2.1 47 Tuc

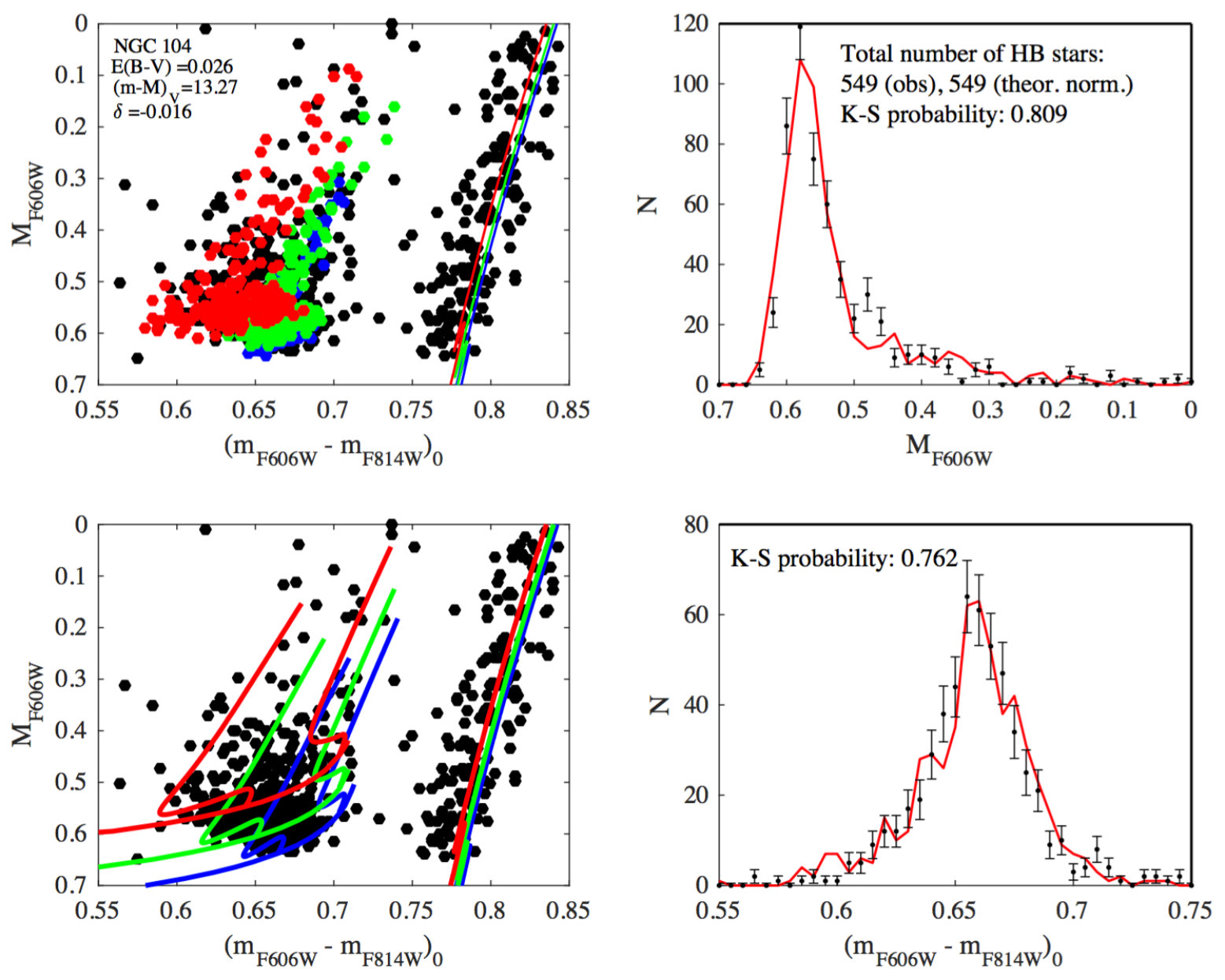

Fig. 6 and the first three raws of Table 2 show our best fit to the observed distribution of HB stars in the GC 47 Tuc and the values of the best-fit parameters. Because of its relatively high metallicity, all of the HB stars in 47 Tuc are clustered at the red side of the HB around $(m_{\mathrm{F606W}}-m_{\mathrm{F814W}})_{0}\approx 0.65$. It is impossible to fit all of them using HB evolutionary tracks with the same initial value of $Y_{0,1}=0.257$ for the stellar population that formed from pristine gas (the blue tracks in the bottom-left panel of Fig. 6 with the ZAHB masses $0.775\,{\cal M}_{\odot}$ (right) and $0.66\,{\cal M}_{\odot}$ (left)). The spread of the observed HB stars above the blue tracks is direct observational evidence that a significant fraction of them have enhanced He abundances. The wedge-like shape of the distribution of the 47 Tuc HB stars can be embraced if we add HB evolutionary tracks with $Y_{0,2}=0.27$ (the green tracks with the ZAHB masses $0.775\,{\cal M}_{\odot}$ (right) and $0.64\,{\cal M}_{\odot}$ (left)) and $Y_{0,3}=0.287$ (the red tracks with the ZAHB masses $0.775\,{\cal M}_{\odot}$ (right) and $0.63\,{\cal M}_{\odot}$ (left)) representing, respectively, the intermediate and extreme stellar populations in 47 Tuc.

The blue, green, and red circles in the top-left panel of Fig. 6 are the results of our HB population synthesis simulations that have used the same sets of HB evolutionary tracks from which the pairs of the blue, green, and red tracks shown in the bottom-left panel were selected. The positions of the synthetic HB stars have been interpolated in $Y_{0}$ assuming that this is a random quantity uniformly distributed between $Y_{0,1}$ and $Y_{0,3}$. The comparison of the observed and synthetic distributions of HB stars in the magnitude and color histograms are shown in the top- and bottom-right panels along with their corresponding K-S probabilities. The K-S probabilities are very sensitive to even small changes in $(m-M)_{V}$, therefore our estimate of the distance modulus for 47 Tuc $(m-M)_{V}=13.27$, which is used for its age estimate in Section 5, is quite a robust result (for the assumed chemical abundances).

The fitted reddening depends on the assumed age of the HB stars; therefore its estimate should be iterated with the age estimate. We have done one such iteration for 47 Tuc. First, we have taken the age of 11.75 Gyr for 47 Tuc from VBLC13 and generated HB evolutionary tracks with the initial masses $0.9\,{\cal M}_{\odot}$, $0.877\,{\cal M}_{\odot}$, and $0.848\,{\cal M}_{\odot}$ for the normal, intermediate, and extreme stellar populations having the aforementioned values of $Y_{0,i}$. Their respective ZAHB ages of 11.58 Gyr, 11.60 Gyr, and 11.61 Gyr are all sufficiently close to 11.75 Gyr. With these input data, our HB population synthesis tool has provided the best match between the observed and synthetic distributions of 47 Tuc HB stars for $E(B-V)=0.015$ and $(m-M)_{V}=13.28$, while the fitted sets of $(f_{i},\Delta{\cal M}_{i},\sigma_{i})$ have been very similar to those given in Table 2. However, the age of 47 Tuc estimated using isochrones with this distance modulus turns out to be close to 13 Gyr, which is inconsistent with the younger age of the HB models. Also, the inferred reddening is too small compared with dust-map values777missing of $0.0275$ (Schlafly & Finkbeiner, 2011) and $0.0320$ (Schlegel et al., 1998), though this might be the consequence of small errors in, e.g., the adopted color–$T_{\rm eff}$ relations or the photometric zero-points.

Therefore, for the second step, we generated HB evolutionary models with the lower initial masses $0.875\,{\cal M}_{\odot}$, $0.85\,{\cal M}_{\odot}$, and $0.825\,{\cal M}_{\odot}$ that have the older ages, in turn, of 12.80 Gyr, 12.96 Gyr, and 12.79 Gyr for the same three stellar populations. These input data have been used to obtain the results presented in Fig. 6 and in the first three raws of Table 2. Our final estimates of the reddening and distance modulus for 47 Tuc are $E(B-V)=0.026$ and $(m-M)_{V}=13.27$. (As alluded to above, this reddening determination could be in error by as much as $\sim 0.02$ mag because the predicted $T_{\rm eff}$ and color scales, as well as the adopted metallicity and the photometric data, all involve some uncertainties. The main points of this exercise is to illustrate the relationship between the cluster age and the value of $E(B-V)$ that is implied by our HB simulations. The inferred value of $(m-M)_{V}$ is clearly much more secure, as is the cluster age that is derived in Section 5, because they do not depend on the adopted reddening or the isochrone colors.) As explained in the previous section, it is not surprising, indeed it is expected, that the fitted RGB mass-loss is nearly the same for the populations with different He abundances. Furthermore, our results are in very good agreement with both the firm lower limit $\Delta{\cal M}\geq 0.17\,{\cal M}_{\odot}$ and the maximum value of $\Delta{\cal M}=0.21\,{\cal M}_{\odot}$ obtained for 47 Tuc RGB stars by Salaris et al. (2016).

4.2.2 M 13

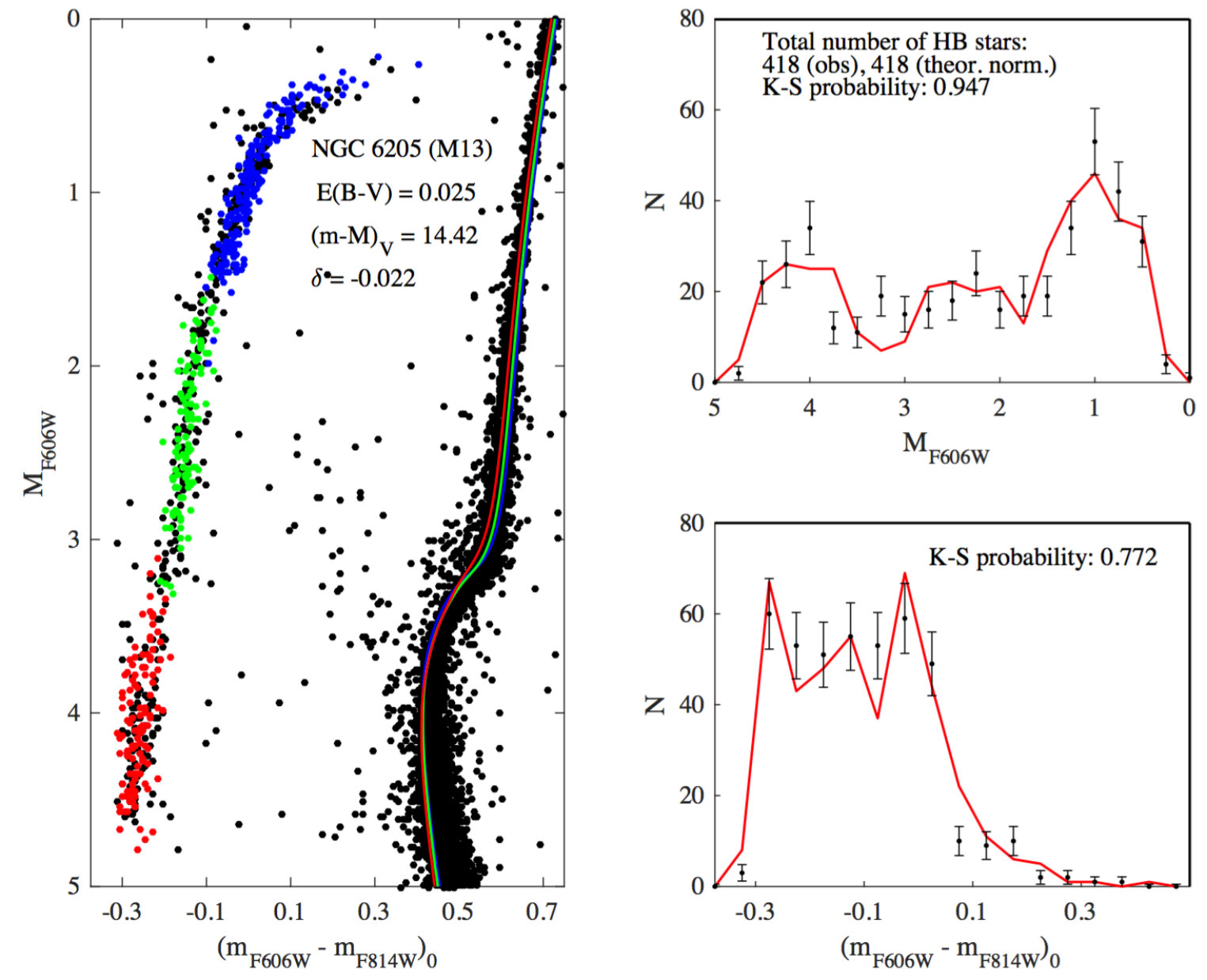

When the metallicity [Fe/H] decreases, HB stars move to the blue side of the HB (the top-left panel of Fig. 4). In addition, at intermediate and low metallicities, the effect of varying $Y_{0}$ on the mean color of a population of HB stars (Equation 12), and on their mean magnitude when they are located to the left of the HB “knee” at $(m_{\mathrm{F606W}}-m_{\mathrm{F814W}})_{0}\lesssim-0.05$, becomes more prominent than at a higher metallicity. Therefore, the HB morphology in the GC M 13 (the blue, green, and red circles in the left panel of Fig. 7) is similar to that of 47 Tuc, except that the normal, intermediate, and extreme stellar populations have unfolded along the entire HB due to the lower value of [Fe/H] for M 13. The large color split is the reason why we do not interpolate positions of HB stars in GCs with intermediate and low metallicities in $Y_{0}$ between the three populations, but instead plot them separately for each of the three values of $Y_{0,i}$. Another difference between 47 Tuc and M 13 is that the latter appears to have a wider range of the helium abundance $\Delta Y_{0}=Y_{0,3}-Y_{0,1}=0.08$ (the second three raws of Table 2) versus $\Delta Y_{0}=0.03$ in 47 Tuc, which is required to obtain the best fit of the observed and synthetic distributions of its HB stars (the right panels in Fig. 7), without making the assumption of a stronger RGB mass-loss for the extreme population of stars in M 13.

Similar to Dalessandro et al. (2013), we have found that the extremely blue extent of the HB in M 13 can be explained with a lower value of $Y_{0,3}\approx 0.3$, but only by assuming a significantly higher value of $\Delta{\cal M}_{3}\approx 0.26\,{\cal M}_{\odot}$, as compared to $\Delta{\cal M}_{1}$ and $\Delta{\cal M}_{2}$ (Table 2). As explained in the text associated with Equation (14), we think this is an improper solution, unless independent evidence is found in favour of higher RGB mass loss by the second-generation stars in GCs. Also, similar to Tailo et al. (2016), who studied the GC $\omega$ Cen, we have used the optical CMD of M 13 to simulate the distribution of its HB stars. Although, in both cases, ZAHBs and HB evolutionary tracks converge along the HB blue tails for different values of $Y_{0}$, it is the extension of the blue tail towards fainter absolute magnitudes (rather than its width) and its almost vertical shape that allow us to estimate with high accuracy the maximum value of $Y_{0,i}$ and reddening, respectively.

4.2.3 M 3

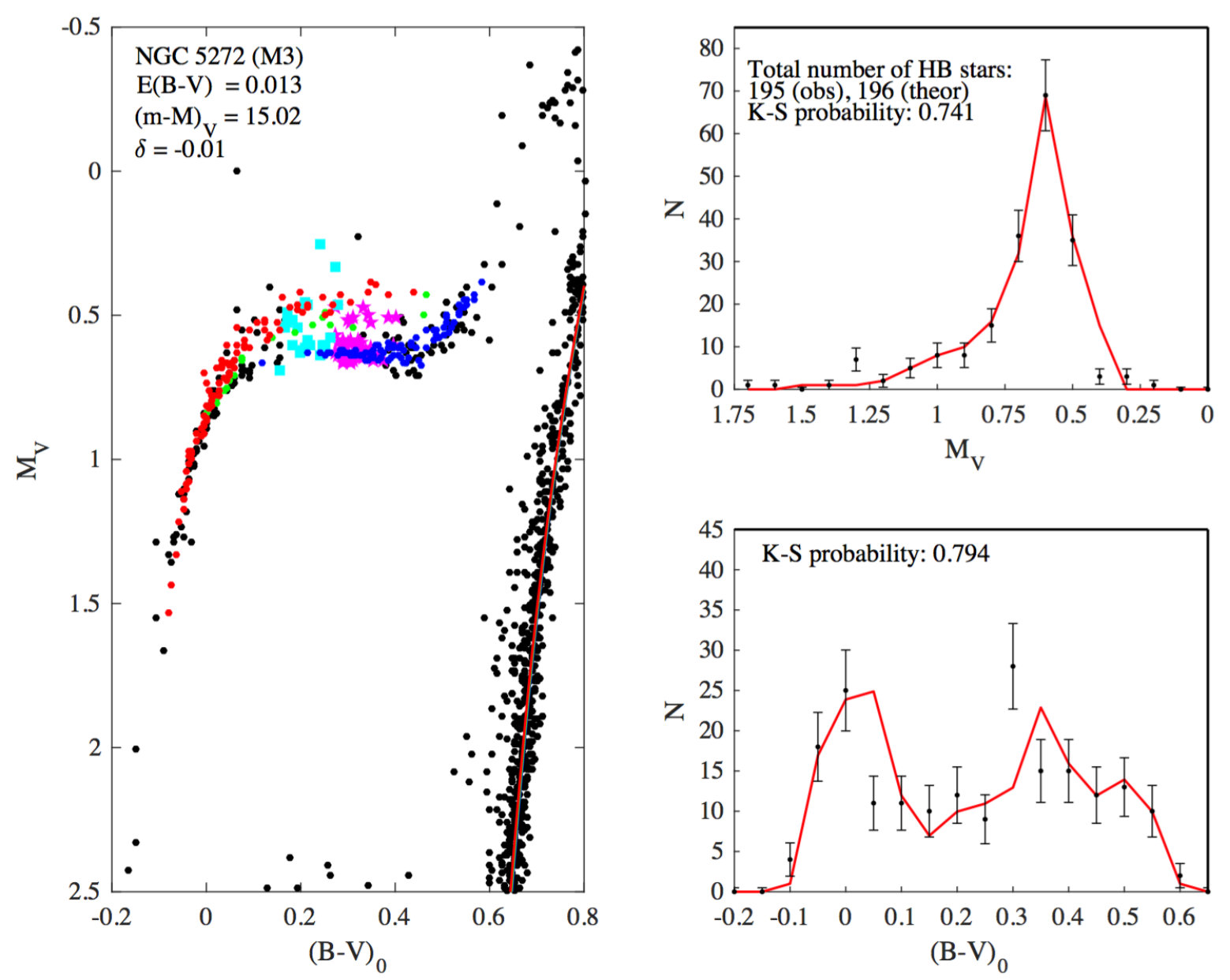

The HB morphology in the GC M 3 is very different from the one in M 13, in spite of the fact that, like M 13 and 47 Tuc, M 3 is one the most massive GCs (e.g., see Fig. 39 in VBLC13). Our best fit to the distribution of its HB stars assumes that the star-to-star variations of the He abundance in M 3 is close to $\Delta Y_{0}=0.01$ (see Fig. 8 and the last three raws of Table 2). This conclusion is supported by the less extreme abundance anomalies of the $p$-capture elements in M 3 stars compared to those observed in M 13 (Sneden et al., 2004). It is also surprising that, for our best fit, the RGB stars in M 3 are required to have lost less mass, $\Delta{\cal M}_{1}=0.13\,{\cal M}_{\odot}$ versus $\Delta{\cal M}_{1}=0.20\,{\cal M}_{\odot}$ in both M 13 and 47 Tuc. The direct signature of this is that the HB in M 3 extends to $(m_{\mathrm{F606W}}-m_{\mathrm{F814W}})_{0}\approx 0.6$ (the left panel of Fig. 8), while the normal population of HB stars in M 13 with the same initial values of ${\cal M}_{1}=0.8\,{\cal M}_{\odot}$ and $Y_{0,1}=0.25$ does not extend to redder colors than $(m_{\mathrm{F606W}}-m_{\mathrm{F814W}})_{0}\approx 0.4$. In fact, when we apply Equation (11) with the difference in the mean color between the normal ($Y_{0,1}=0.25$) HB populations in M 13 and M 3, it gives us the age difference of 2.6 Gyr between the two GCs, i.e. M 3 has to be 2.6 Gyr younger if its first-generation RGB stars have lost as much mass as their M 13 counterparts. As reported in the next section (also see VBLC13), the ages of these two GCs appear to differ by \mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}0.3 Gyr, which is very much less than the difference in age that would be needed to explain their very different HB populations if age were the sole second parameter. We note that our conclusion concerning the lower RGB mass-loss efficiency in M 3 agrees with the findings reported by McDonald & Zijlstra (2015).

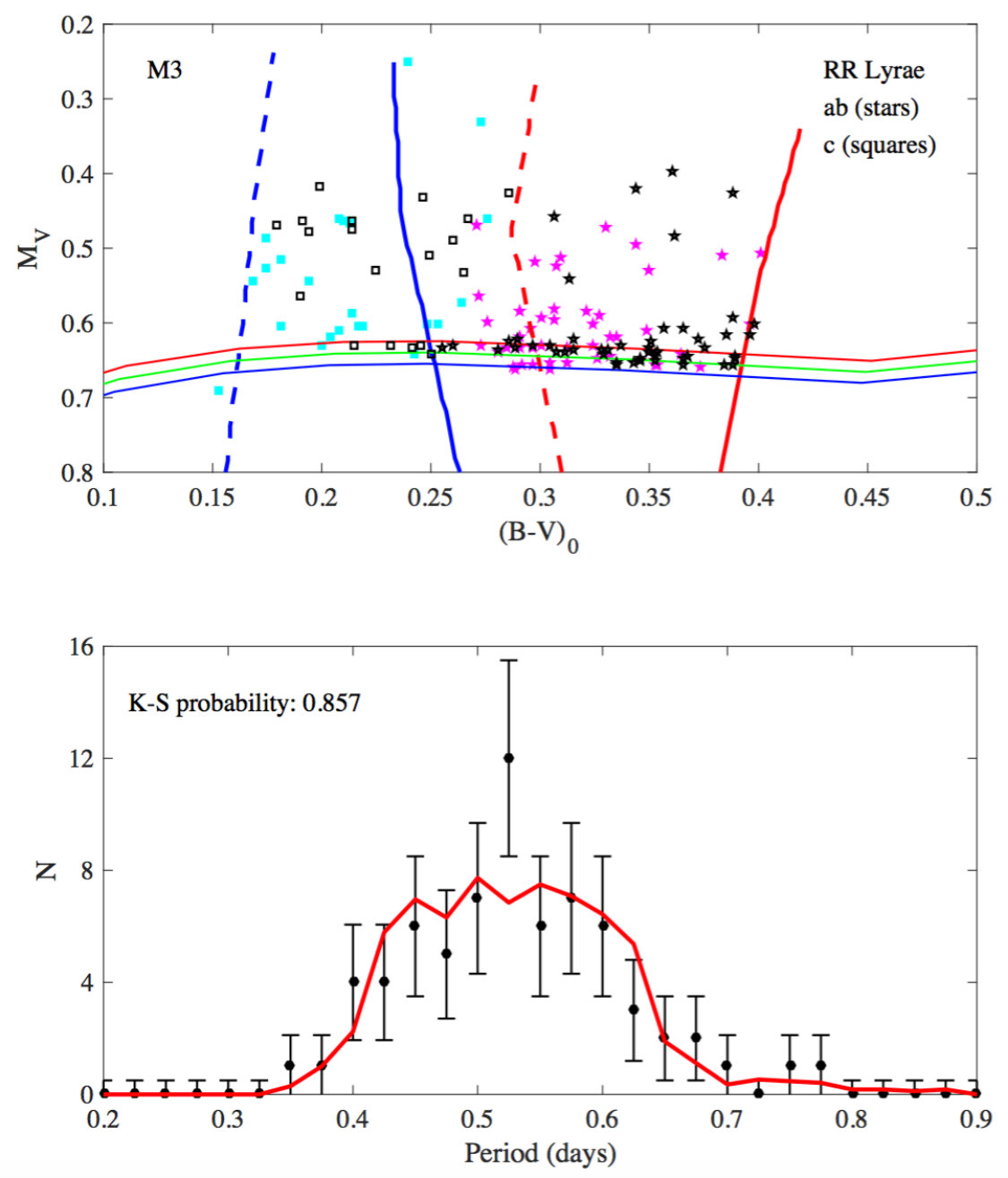

We have used Equations (2) and (3) to calculate the pulsation periods for those of our synthetic HB stars in M 3 that are inside the instability strip (the top panel of Fig. 9) and we have compared them with the observed period distribution of RR Lyrae stars in M 3 from Cacciari et al. (2005) (the bottom panel). When the periods of the first-overtone pulsators are fundamentalized using the classical relation between the periods of $ab$- and $c$-type variables (Marconi et al., 2015), there is no need to assume a very small dispersion of the RGB mass-loss, as Caloi & D’Antona (2008) did, to fit the observed period distribution of RR Lyrae stars in M 3 using our HB models. Note that we still get a relatively high K-S probability ($P_{\mathrm{K-S}}=0.36$) for the assumption that the observed and synthetic periods of M 3 RR Lyrae stars are drawn from the same distribution when we separate the fundamental and first-overtone pulsators. Encouragingly, our predictions for the mean period of the RRab Lyrae stars ($\langle P_{\mathrm{ab}}\rangle=0.558$ days), the HB type (${\cal L}=0.25$), and the proportions of the blue, variable, and red HB stars (${\cal B}:{\cal V}:{\cal R}=46:33:21$) in M 3 are very close to those reported by Catelan (2004).

A closer inspection of the left-hand panel of Fig 8 gives us a hint that we should adopt a slightly longer distance modulus for M 3, probably $(m-M)_{V}=15.04$, in which case our ZAHB models would provide a somewhat better fit to the bottom of the observed HB, especially at the reddest colors. The maximum K-S probabilities that we have been able to obtain with this value of the distance modulus are 0.36 and 0.84 for the magnitude and color histograms, respectively, while the other characteristics of the fitted synthetic HB have not changed by more than a few percent. This exercise indicates that the typical uncertainty of a distance modulus that is estimated using our method is $\sim 0.02$ mag, which translates into $\sim 1$% uncertainty in the actual distance.

5. Cluster Ages

Having determined the basic properties of 47 Tuc, M 3, and M 13 from comparisons of our synthetic HBs with the observed HB populations, their ages can be derived simply by identifying which isochrone for the adopted chemical abundances provides the best fit to the observed turnoff (TO) luminosity. The most objective way of doing this is to follow the procedure outlined by VBLC13, wherein isochrones for different ages are each shifted, as necessary, to match the observed TO color until one is found that simultaneously reproduces the location of the cluster subgiants just past the TO. Because the shapes of isochrones near the TO are essentially independent of age, any isochrone (within reason) will provide exactly the same fit to the observed TO morphology provided that the correct distance modulus for that isochrone is assumed. Conversely, for a given value of $(m-M)_{V}$, only one isochrone can provide a simultaneous fit to the TO color and to the stars immediately above (and below) the TO. (A very limited color range is considered in deriving the cluster age, rather than the entire color-magnitude diagram (CMD), because errors in, e.g., the adopted color transformations, the atmospheric boundary condition, and the treatment of convection can easily affect the location of the red-giant branch (RGB) relative to the turnoff as well as the predicted MS, SGB, and RGB slopes. Reference may be made to the VandenBerg et al. study for a full discussion of this method.) We have used the Victoria-Regina isochrones instead of generating and using MESA isochrones because, unlike the Victoria code, the MESA code has not implemented yet properly an algorithm taking into account the turbulent extra mixing that reduces the efficiency of atomic diffusion in stellar envelopes.

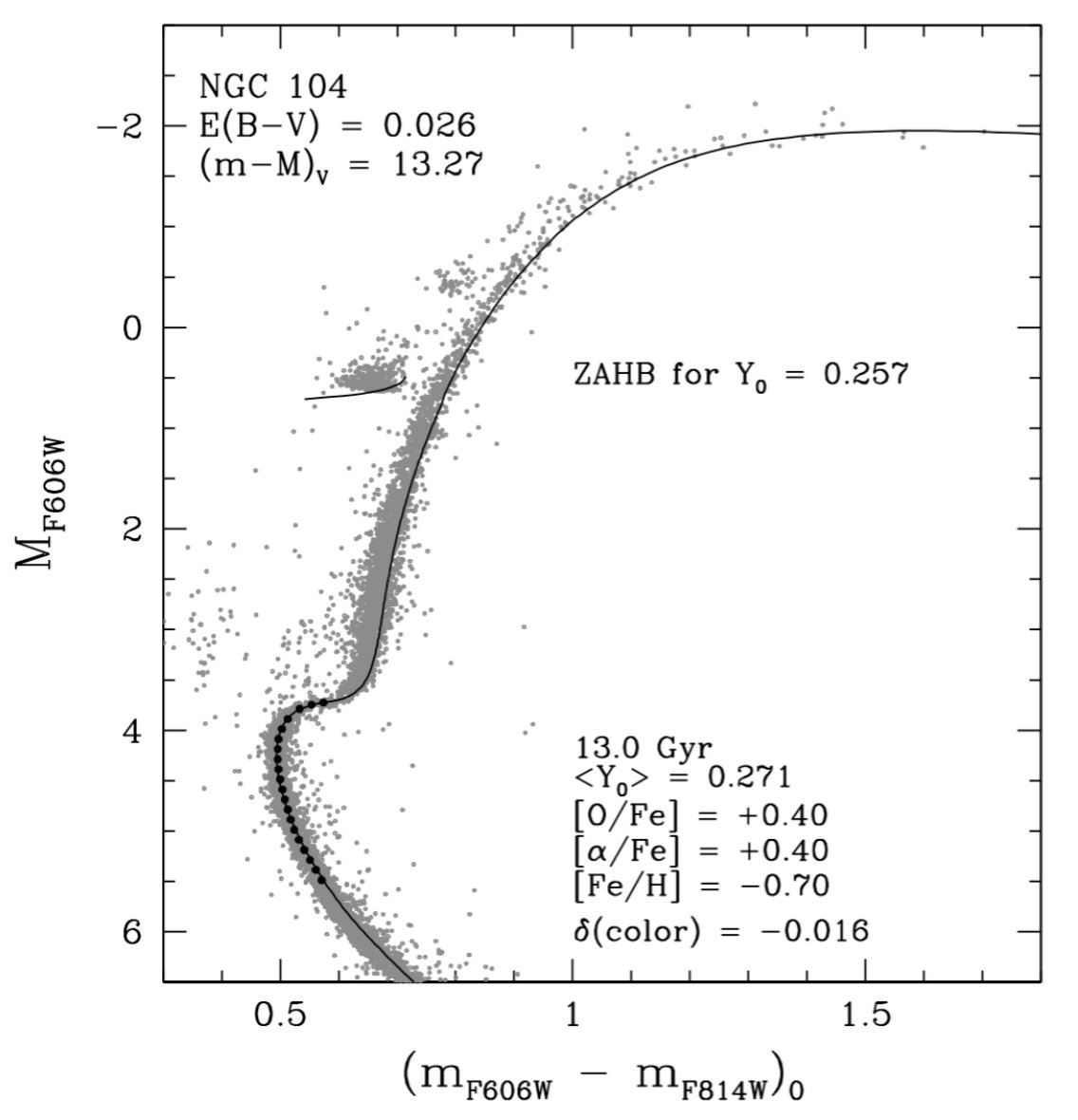

According to our HB simulations, stars in 47 Tuc had $0.257\leq Y_{0}\leq 0.287$, with a mean value $\langle Y_{0}\rangle=0.271$. We have therefore generated a set of isochrones from the grids made available by VandenBerg et al. (2014) for the mean He abundance and for metal abundances corresponding to [Fe/H] $=-0.70$ and [$\alpha$/Fe] $=+0.40$. As shown in Figure 10, the application of the isochrone-fitting procedure described above to the HST observations that were obtained by Sarajedini et al. (2007a) yields an age of 13.0 Gyr. The isochrone for this age clearly provides an excellent fit to the cluster SGB just past the TO, which is the primary age indicator, once it has been shifted horizontally in color by $-0.016$ mag in order to match the observed TO color. Note that the small black filled circles represent only part of the median fiducial sequence (just for the vicinity of the TO) that was obtained using the methods discussed in Section 3.3 of Paper I. Except along the SGB, median colors were derived for stars that were sorted into 0.1 mag bins in $F606W$. Each bin contained up to a maximum of 100 stars with the smallest photometric uncertainties. Because the transition from the TO to the RGB is so flat in 47 Tuc, approximately 3000 of the best observed subgiants (not plotted) were first sorted into 0.02 mag color bins and then the median magnitude in each bin was evaluated. Using this completely objective method resulted in very smooth fiducial sequences, not only for 47 Tuc, but also for the other two clusters considered in this investigation.

An age of 13.0 Gyr is 1.25 Gyr older than the age found by VBLC13 because of our adoption of a smaller value of $(m-M)_{V}$ by 0.08 mag, due in part to the assumption of a higher [Fe/H] value, and a significantly reduced oxygen abundance. (Rather than try to match a ZAHB to the HB population of 47 Tuc, which depends quite sensitively on color uncertainties, VandenBerg et al. decided to adopt the distance modulus that was derived by Thompson et al. 2010, $(m-M)_{V}=13.35\pm 0.08$, from their analysis of the eclipsing binary member known as V69. The problem with fitting ZAHBs to the faintest HB stars in relatively metal-rich GCs is that they follow a curve or sloped line, rather than a nearly horizontal line as in the case of more metal-deficient clusters like M 3. In 47 Tuc and other GCs of similar or higher metallicity, distance moduli are much better constrained by comparisons of simulated HB populations with the observed distributions of stars.) With regard to the oxygen abundance difference: the isochrones computed by VandenBerg et al. (2014), which are used in the present work, adopted the solar abundances reported by Asplund et al. (2009) as the reference mixture whereas the computations employed by VBLC13 assumed the solar mix of heavy elements given by Grevesse & Sauval (1998). As a consequence, the $\alpha$-element enhanced models plotted in Fig. 10 were generated for a lower absolute O abundance by $\Delta\log N_{\rm O}=0.18$ dex than those considered in the 2013 study. The differences in the apparent distance modulus and the adopted metallicity (primarily the oxygen abundance) are entirely responsible for the different age determinations. (Because both sets of stellar models were generated using exactly the same evolutionary code; the different age determinations can only be a consequence of differences in the assumed distances and chemical abundances.)

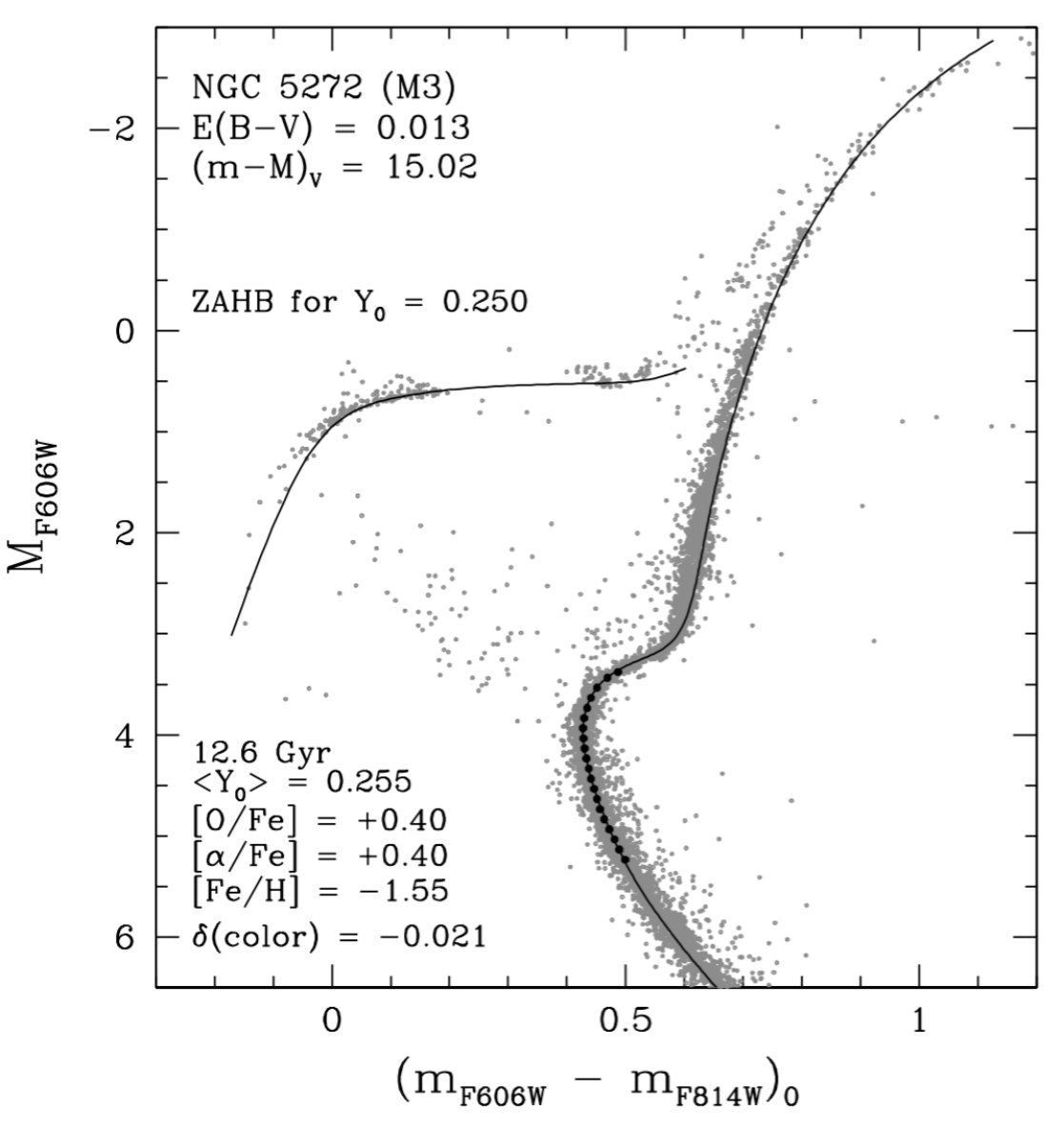

Figure 11 illustrates the fit of a ZAHB for $Y_{0}=0.250$, [Fe/H] $=-1.55$, and [$\alpha$/Fe] $=+0.4$ to the lower bound of the distribution of HB stars in M 3, assuming the value of $(m-M)_{V}$ favored by our HB simulations. This is 0.02 mag smaller than the ZAHB-based distance modulus derived in Paper I. A small difference can be expected because the modeling of an entire HB involves many assumptions that are constrained via standard Monte Carlo methods while the fit of a ZAHB for a single value of $Y_{0}$ will, in general, apply only to the faintest HB stars in a limited color range. As shown in § 4.2, our synthetic HB provides a good match to the observed HB population if M 3 has $0.250\leq Y_{0}\leq 0.260$, with a mean value $\langle Y_{0}\rangle=0.255$. A 12.6 Gyr isochrone for this He abundance and the aforementioned values of [Fe/H] and [$\alpha$/Fe] provides a very good fit to the median fiducial for cluster stars that lie close to the TO (see Fig. 11). To obtain this fit to the turnoff morphology, the predicted isochrone colors had to be adjusted by $-0.021$ mag, as indicated. It is worth mentioning that the age reported by VBLC13, 11.75 Gyr, is younger than our determination primarily because of their assumption of a higher oxygen abundance by $\Delta\log N_{\rm O}$ = 0.29 dex, which takes into account their adoption of a higher metallicity ([Fe/H] $=-1.50$), a higher value of [O/Fe] ($=0.50$), and the differences in the adopted solar mixtures that we have already described.

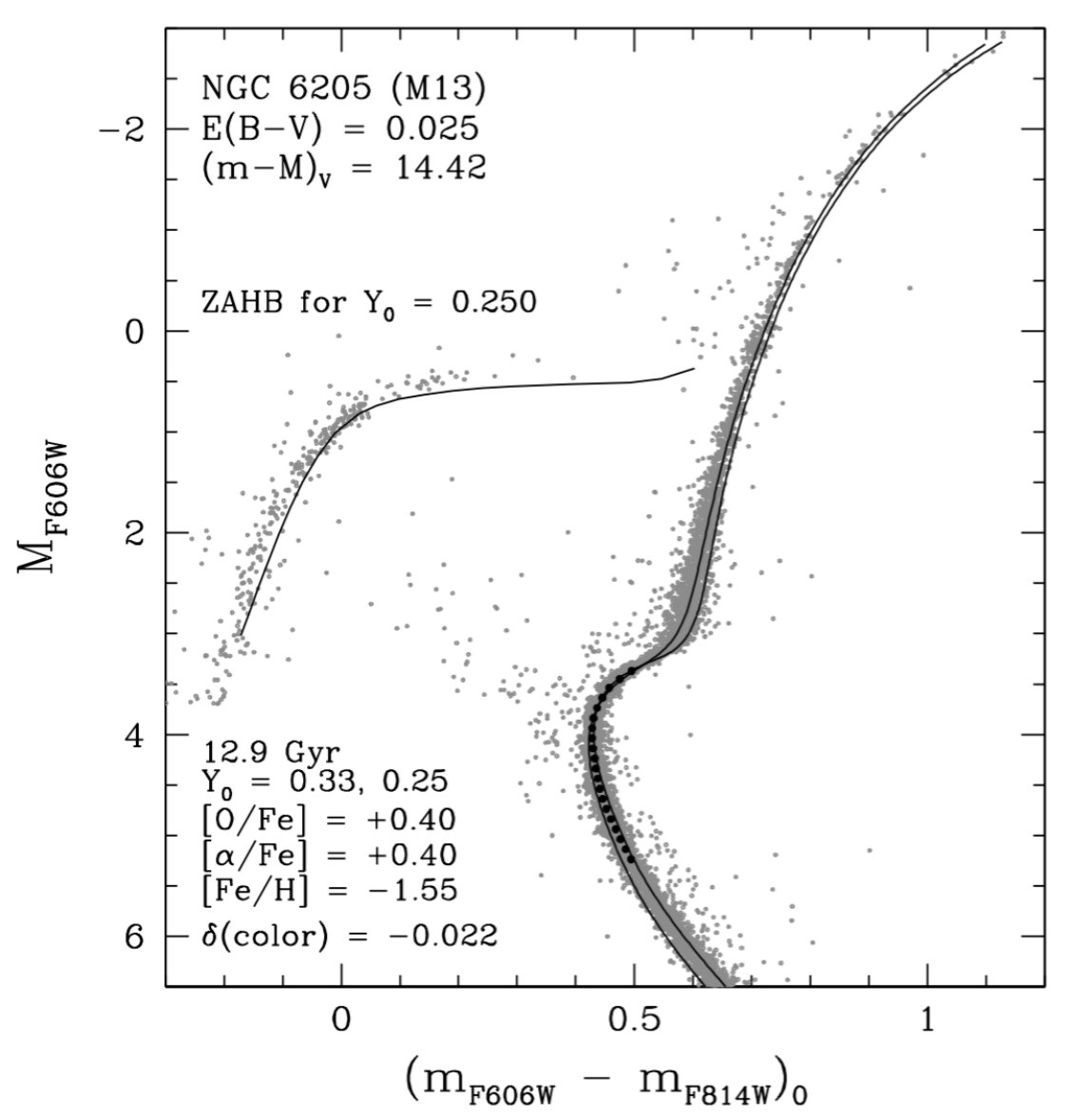

Figure 12 depicts a very similar fit of stellar models for the same chemical abundances to the CMD of M 13, which is predicted to be about 0.3 Gyr older than M 3 if the reddening and apparent distance modulus that are specified in the top left-hand corner are assumed. In this case, we have opted to plot isochrones for $Y_{0}=0.250$ and 0.330 that span the full range in He abundance that seems to be necessary to explain the observed HB (in particular, its extended blue tail) rather than a single isochrone for the mean value $\langle Y_{0}\rangle=0.287$ that is implied by our synthetic HB. In order for a $Y_{0}=0.287$ isochrone to match the median cluster fiducial for near turnoff stars, a color shift of $-0.022$ mag was needed. The same offset was applied to the isochrones for $Y_{0}=0.25$ and 0.33 so that their relative CMD locations are maintained. Thus, we see that the difference in color between these two isochrones, at a fixed magnitude along the MS, is \mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}} the observed MS width. In addition, the beginning of their SGB segments are essentially coincident, just as theory predicts for metal-poor isochrones of the same age but different $Y$ (see Valcarce et al. 2012, VandenBerg et al. 2014). As in the case of M 3, the younger age that was obtained by VBLC13, 12.0 Gyr, is mostly due to their assumption of a higher oxygen abundance.

The main purpose of this section is to evaluate the cluster ages when the helium and metal abundances, the reddenings, and the distance moduli that have been adopted in, or derived from, our HB simulations are assumed. It is clear from the above discussion that ages depend quite critically on the abundance of oxygen, which is generally derived for giants, rather than dwarf stars, in globular clusters due to their large distances (see, e.g., Cohen & Meléndez 2005a, Koch & McWilliam 2008). Such studies are complicated by the presence of the O–Na anticorrelation (see Carretta et al. 2009b), the occurrence of deep mixing (e.g., Denissenkov & VandenBerg 2003), and the uncertainties associated with the ${T_{\rm eff}}$ and [Fe/H] scales. However, the CN-weak populations in these systems appear to be chemically very similar to halo field stars (see the discussion by Cohen & Meléndez 2005b, for which recent non-LTE abundance analyses generally find [O/Fe] $=0.5$–0.6 for [Fe/H] values \mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}-0.8 (e.g., Ramírez et al. 2012, Zhao et al. 2016). Thus, it is quite possible, if not probable, that our age determinations are on the high side, since any increase in the assumed O abundance will cause a reduction in the age at a given TO luminosity. (In fact, if 47 Tuc has [Fe/H] $\leq-0.70$, it would be difficult to obtain a satisfactory match to the properties of the eclipsing binary, V69, unless it has [O/Fe] \mathrel{\hbox{\raise 2.58334pt\hbox{>}\kern-7.3194pt\lower 2.15277pt\hbox{\sim}}}0.6; see Brogaard et al. 2017.)

However, this uncertainty should not affect the results based on our HB simulations very much. As shown in Figure 13, the effect of higher oxygen on a ZAHB is to stretch it to somewhat redder colors and fainter magnitudes, especially at the red end. (The differences are more pronounced at lower [Fe/H] values than we have considered in this investigation.) Thus, HB models for [O/Fe] $=0.6$ would predict essentially the same distance moduli as those for [O/Fe] $=0.4$. Increasing the oxygen abundance by 0.2 dex does have minor consequences for the predicted masses along a ZAHB, since this leads to the displacement of a fixed mass to somewhat cooler temperatures and hence redder colors (see Fig. 13). In addition, core He-burning tracks at a given color are predicted to have somewhat longer, post-ZAHB blue loops if O is enhanced. For instance, the ZAHB location of a model for $0.645\,{\cal M_{\odot}}$ and [O/Fe] $=0.6$ is slightly redder than that of the $0.66\,{\cal M_{\odot}}$ model with [O/Fe] $=0.4$, but the evolutionary track for the former extends to bluer colors before reversing direction than the track for the latter. However, because the HB is far more dependent on $Y$ than on [O/Fe] (see Table 1 and the next section), it can be expected that He abundance variations that are derived from HB simulations will be quite similar regardless of whether they are based on tracks for [O/Fe] $=0.4$ or 0.6.

6. RR Lyrae Periods

The distance moduli derived in this study are based primarily on the evolutionary characteristics of our HB models. An important consistency check of these distances is afforded by the periods of individual RR Lyrae stars in clusters that contain such variables. If their mean magnitudes and colors (i.e., the properties of equivalent “static stars”) have been determined, interpolations can be performed within a relevant grid of HB tracks that is overlaid onto the observed HB populations to derive the luminosities, temperatures, and masses of the variables. These quantities, along with the value of $Z$ that was assumed in the model computations, can then be used to predict the periods, in units of days, of the fundamental ($ab$-type) and first-overtone ($c$-type) pulsators using equations (2) and (3). If the HB tracks provide good representations of the evolutionary paths that are followed by cluster stars, and the adopted distances and chemical abundances are reasonably accurate, the periods given by the above equations should reproduce the observed periods of individual RR Lyrae quite well. Indeed, this was found to be the case in Paper I, which analyzed the variable (and non-variable) HB stars in M 3, M 15, and M 92.

Since the RR Lyrae stars in M 3 have already been considered in Paper I, only a brief summary of those findings are provided in the next section, along with some discussion of the impact of a slightly decreased distance modulus, which is favored by our comparisons of synthetic and observed HB populations. This will be followed by an examination of how well our models are able to explain the observed periods of the M 13 and 47 Tuc RR Lyrae.

6.1. M 3

Paper I showed that periods calculated using equations (2) and (3) for the predicted properties of M 3 variables from HB models for $Y_{0}=0.25$, [Fe/H] $=-1.55$, and [$\alpha$/Fe] $=0.4$ agree with the measured periods to well within the uncertainties of the computed values of $\log\,P$. In fact, the predicted mean period of the sample of $c$-type variables that were considered reproduced the observed value, \langle P_{\mathrm{c}}\rangle$$=0.336 d, to three decimal places. Similar consistency was obtained for the $ab$-type pulsators in our sample, which have \langle P_{\mathrm{ab}}\rangle$$=0.568 d, but only if the model temperatures (the most uncertain of the stellar properties) are reduced by $\delta\log{T_{\rm eff}}=-0.0055$. However, this offset could easily be partly, or even mostly, due to errors in the color transformations that were used, or in the adopted mean colors for the equivalent static stars, $(B-V)_{S}$ (from Cacciari et al. 2005), rather than problems with the model ${T_{\rm eff}}$ scale. We have used $\delta\log{T_{\rm eff}}$ simply as a free parameter that can be adjusted in order to force the predicted and observed values of $\langle P_{\mathrm{ab}}\rangle$ to agree.

If the value of $(m-M)_{V}=15.04$ used in Paper I should be decreased by 0.02 mag, as suggested by the present work, the variables would have reduced luminosities by $\delta\log\,(L/L_{\odot})\approx 0.008$ (since the change in $M_{V}$ will be nearly identical to the change in $M_{\rm bol}$). Models that have lower luminosities by this amount would predict shorter periods, unless, e.g., their temperatures are decreased by 0.002 in $\log{T_{\rm eff}}$. (Note that the ratio of the luminosity and temperature coefficients in equations (2) and (3) is very close to 1:4.) In other words, one would recover the comparisons between the predicted and observed periods for the M 3 RR Lyrae, as well as the ensemble averages, that are reported in Paper I, but for $(m-M)_{V}=15.02$ instead of 15.04, if $\delta\log{T_{\rm eff}}=-0.0075$ and $-0.002$, for the $ab$- and $c$-type variables, respectively.

Given the uncertainties associated with the reddening, distance, [Fe/H], and ${T_{\rm eff}}$ scales, this level of consistency seems quite satisfactory. For instance, the above temperature offsets would be reduced in an absolute sense if a slightly lower reddening were adopted or if a lower metallicity, implying a brighter HB and therefore increased periods, were assumed. Although the HB simulations presented in this study argue for a variation in $\delta\,Y_{0}\approx 0.01$ in M 3, which was not taken into account in Paper I, this would have only very small effects on the predicted masses and periods of the variables, in view of the relatively weak dependence of $\log\,P$ on mass; see equations (2) and (3). Indeed, such effects are overwhelmed by the consequences of uncertainties in $(B-V)_{S}$ for the corresponding temperatures and periods.

6.2. M 13

The most extensive work to date on the variable stars in M 13 was carried out by Kopacki et al. (2003), whose paper provides quite a thorough review of the efforts made over the preceding century to discover such stars in this system; also see the latest version of the “Catalogue of Variable Stars in Globular Clusters” (Clement et al. 2001),888missing for updated information on some of the variables. The intensity-weighted mean magnitudes ($\langle V\rangle$) that were derived by Kopacki et al. for the 9 known RR Lyrae in M 13 are listed in this catalogue, as well as the best available determinations of their periods. Only one of them (V8) is an $ab$-type (fundamental mode) pulsator.

In 2014, new $BVI_{\rm C}$ CCD photometry of M 13 was obtained during the nights of July 1–7 at the Białków Observatory of the University of Wrocław using a 60-cm Cassegrain telescope equipped with an Andor DW432-BV back-illuminated CCD camera. The CCD frames were corrected for instrumental effects (bias, dark current) and flat-fielded in the usual way (see the description by Jerzykiewicz et al. 1996). Instrumental magnitudes were then computed for all stars in the observed field using the DAOPHOT profile-fitting software described by Stetson (1987). The differential photometry was derived on a frame-to-frame basis. In this approach, the instrumental photometry for each frame is shifted to the magnitude scale of a reference frame by the average offset in brightness between them. The average offset is determined from a large number of bright unsaturated stars.

Average differential magnitudes and colors were transformed to the standard system using the photometric data of M 13 taken from Stetson (2000) database. From 410 stars in common with Stetson (2000), we obtained the following transformation equations:

[TABLE]

where uppercase and lowercase letters denote standard and instrumental magnitudes, respectively, and $\sigma$ is the standard deviation of the fit. Individual instrumental $BVI_{\rm C}$ magnitudes of RR Lyrae stars were transformed to the standard system using the above relations, but with instantaneous instrumental colors derived from the phase diagrams for the appropriate passbands.

The new $BVI_{\rm C}$ observations of M 13 were supplemented with the $VI_{\rm C}$ data of Kopacki et al. (2003), which were taken at the same observatory but using different equipment. These older observations, obtained in 2001, were also tied to the standard system using Stetson’s data. The differences between the mean $VI_{\rm C}$ magnitudes that were derived for the RR Lyrae stars from both datasets were found to be small, amounting to about 0.03 mag. Therefore, we decided to merge the RR Lyrae light curves from these two sets.

Table 3 gives the mean magnitudes and colors for those RR Lyrae stars in M 13 for which reliable photometry could be derived. (Observations were not obtained for three of the known RRc variables; namely V25, V31, and V35.) For each star in this table, the mean $V$ magnitudes and the mean $B-V$ and $V-I_{C}$ colors are given as intensity-weighted, $\langle{}\rangle$, and magnitude-weighted, $({})$, averages. (This notation follows the convention that is often used; see, e.g., Bono et al. 1995b.) These mean values were determined from the fit of a truncated Fourier series to the light curves. Average colors are defined as the arithmetic difference between the appropriate mean magnitudes.

It should be noted that complete light curves in all passbands were obtained for the observed RRc stars, so their mean magnitudes should be very reliable, with the possible exceptions of those for V5 and V36. V5 exhibits some deviations from regularity in its $B$ light curve, which could be an indication of some instrumental problems (due perhaps to close stars) or possibly the Blazhko effect (e.g., Buchler & Kolláth 2011), whereas V36 appears to be undergoing multi-periodic non-radial pulsations (see the discussion by Kopacki et al. 2003). The only star of the RRab type is V8. Due to the short timespan of the 2014 observations, its $B$-filter light curve has a few gaps, but the maximum and minimum phases, and some intermediate phases, are very well covered. Although we believe that the tabulated mean $B$ magnitude and mean $B-V$ colors for V8 are accurate, they should nevertheless be used with caution.

Insofar as the colors of the equivalent static stars are concerned, the magnitude-weighted $B-V$ color has often been thought to be a better ${T_{\rm eff}}$ indicator than the intensity-weighted color (e.g., Sandage 1990). However, Bono et al. (1995b) found from their analysis of nonlinear, nonlocal, time-dependent convective models of RR Lyrae stars that static colors should be quite well approximated by $\langle B\rangle-\langle V\rangle$, especially in the case of $c$-type variables. (Their work also justifies the common practice of equating intensity-weighted mean $V$ magnitudes with static $V$ magnitudes.) The differences between the colors listed in fourth and fifth columns of Table 3, or between those in the sixth and seventh columns, are sufficiently small, in any case, that the choice of which color to use is inconsequential. In what follows, intensity-weighted mean magnitudes and colors have been adopted in CMDs that plot the locations of the M 13 RR Lyrae.

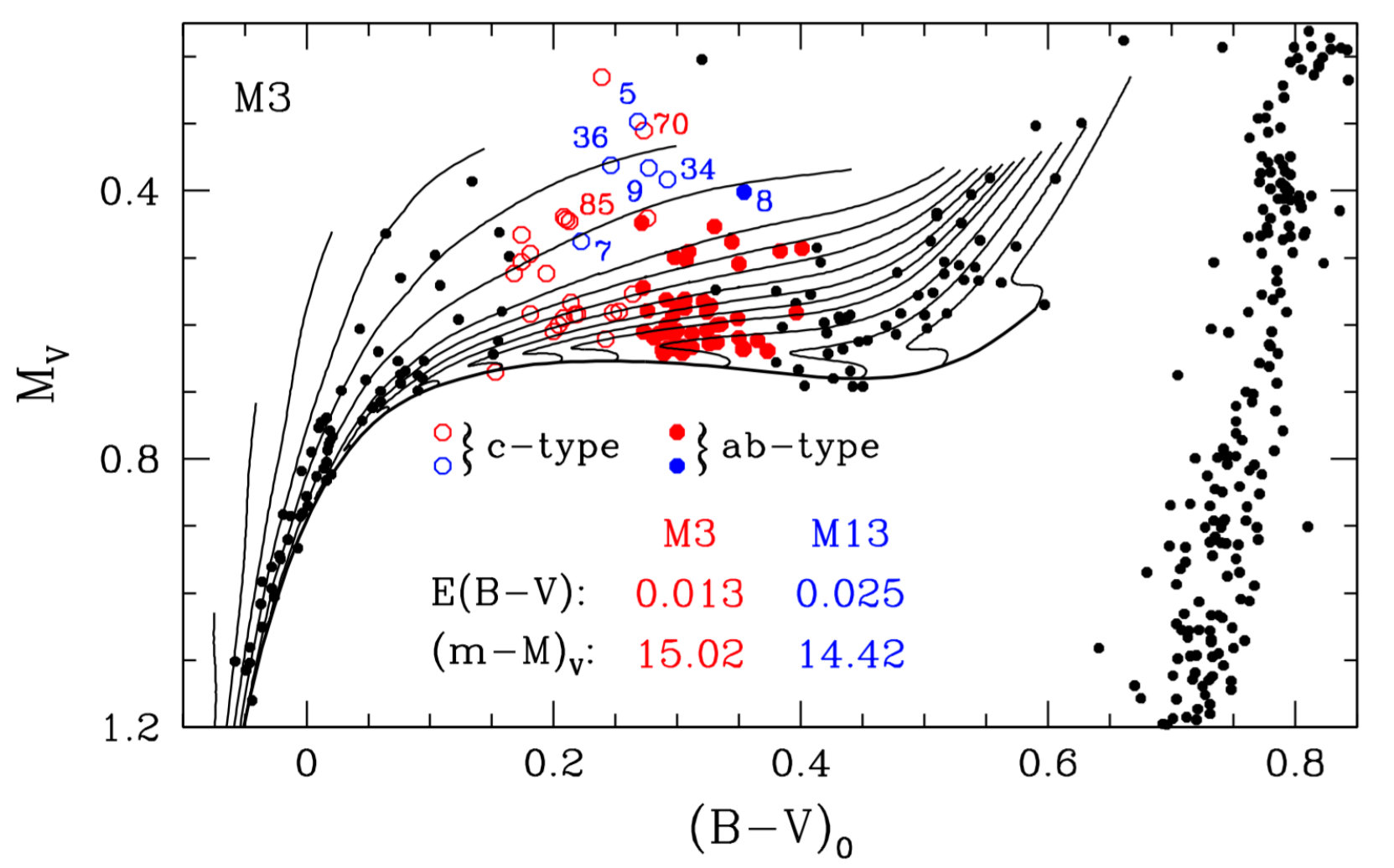

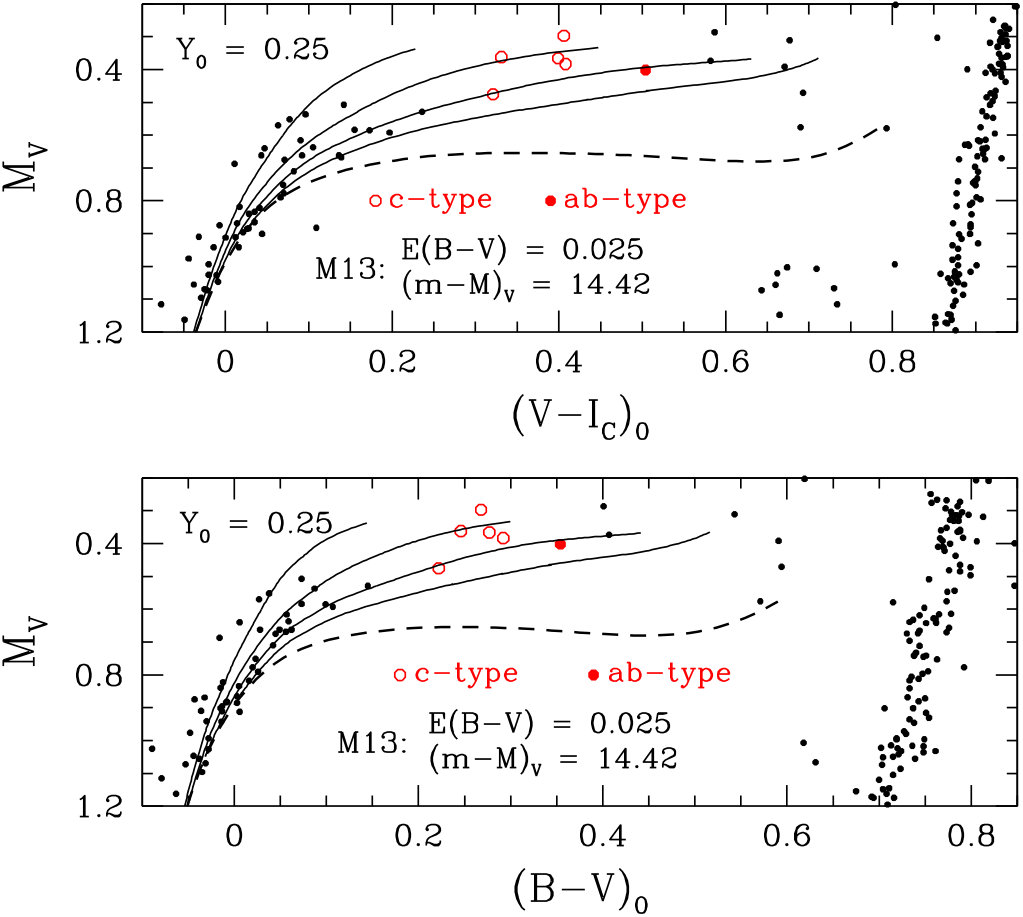

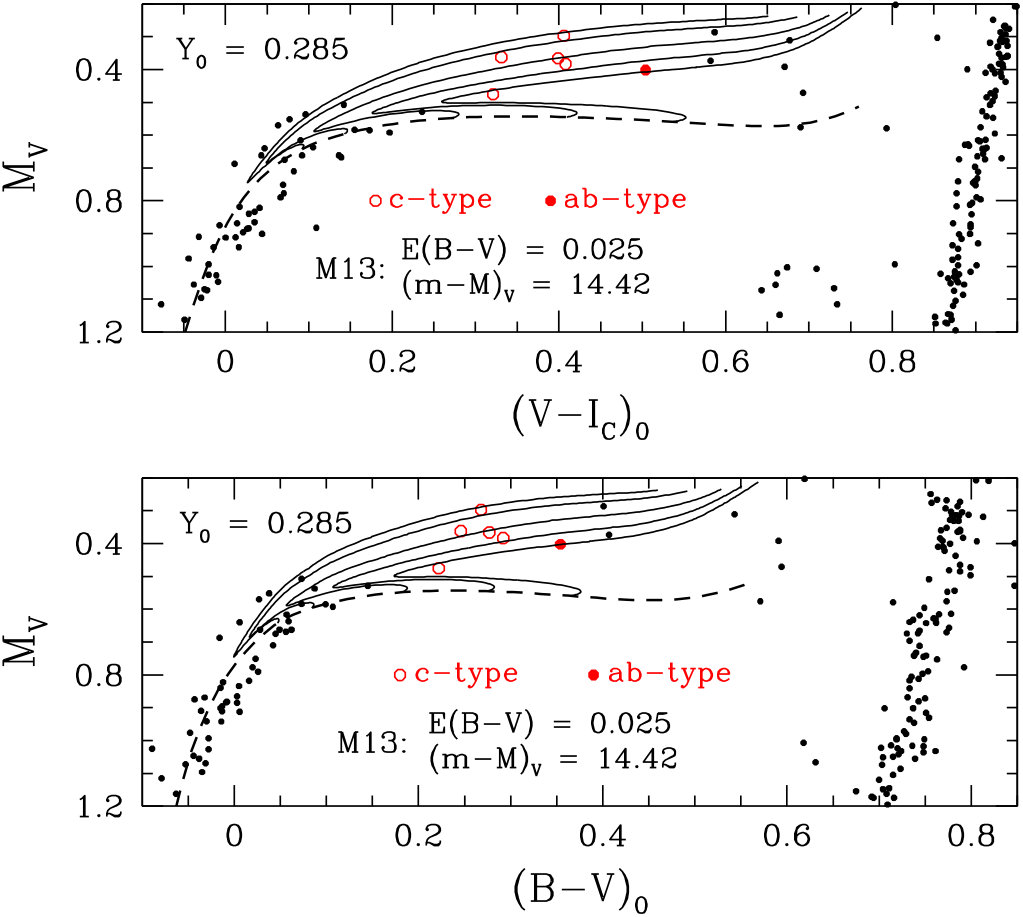

Figure 14 superimposes on the part of the M 13 CMD that contains its HB stars with $M_{V}\leq 1.2$ a subset of the same HB tracks (for [Fe/H] $=-1.55$, [$\alpha$/Fe] $=0.4$ and $Y_{0}=0.25$) that were compared with observations of M 3 in Paper I. (The $BVI_{C}$ photometry was taken from the “Photometric Standard Fields” archive developed and maintained by P. Stetson; see footnote 10.) According to these tracks, the RR Lyrae variables have masses in the range of 0.60 to $0.63\,{\cal M_{\odot}}$ and they evolved from ZAHB locations well to the blue of the instability strip where there are substantial numbers of non-variable HB stars. Each of these variables is \mathrel{\hbox{\raise 2.58334pt\hbox{>}\kern-7.3194pt\lower 2.15277pt\hbox{\sim}}}0.2 mag brighter than the ZAHB at the same color, in stark contrast with the M 3 RR Lyrae, which are mostly found in close proximity to the ZAHB, but with a few outliers at brighter magnitudes (see Paper I). Note that the locations of the M 13 variables relative to the evolutionary tracks are very similar on both the $[(V-I)_{0},\,M_{V}]$- and $[(B-V)_{0},\,M_{V}]$-diagrams, which indicates that there is good consistency between the predicted and observed colors.

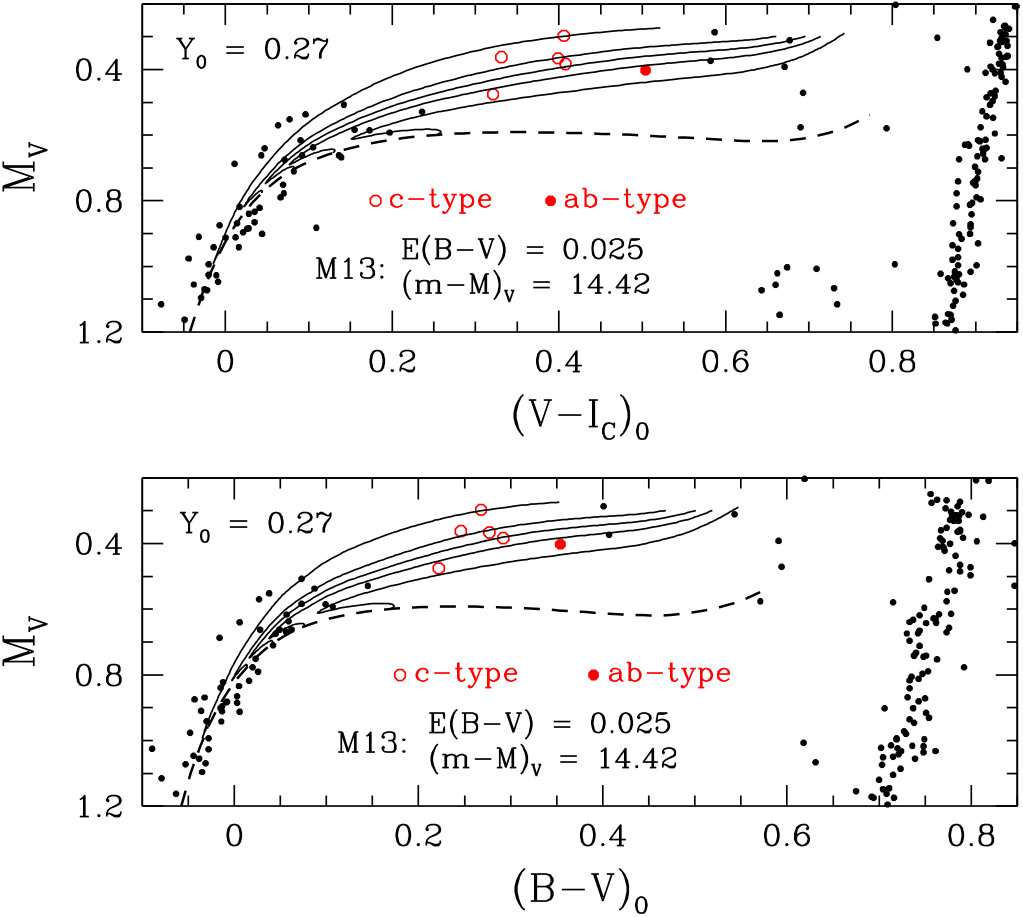

Very similar comparisons between theory and observations are shown in Figures 15 and 16, the only differences being the assumption of $Y_{0}=0.27$ and 0.285 in the stellar models that are compared with the observations (as indicated) and small adjustments to the masses that were assumed in the HB tracks. The higher the helium abundance, the higher the masses of the variable stars that are implied by the superposition of the evolutionary tracks onto their CMD locations. The variation in mass is not large; e.g., the brightest of the $c$-type RR Lyrae is predicted to have a mass near $0.60\,{\cal M_{\odot}}$, $0.62\,{\cal M_{\odot}}$, or $0.637\,{\cal M_{\odot}}$ if it has $Y_{0}=0.25$, 0.27, or 0.285, respectively.

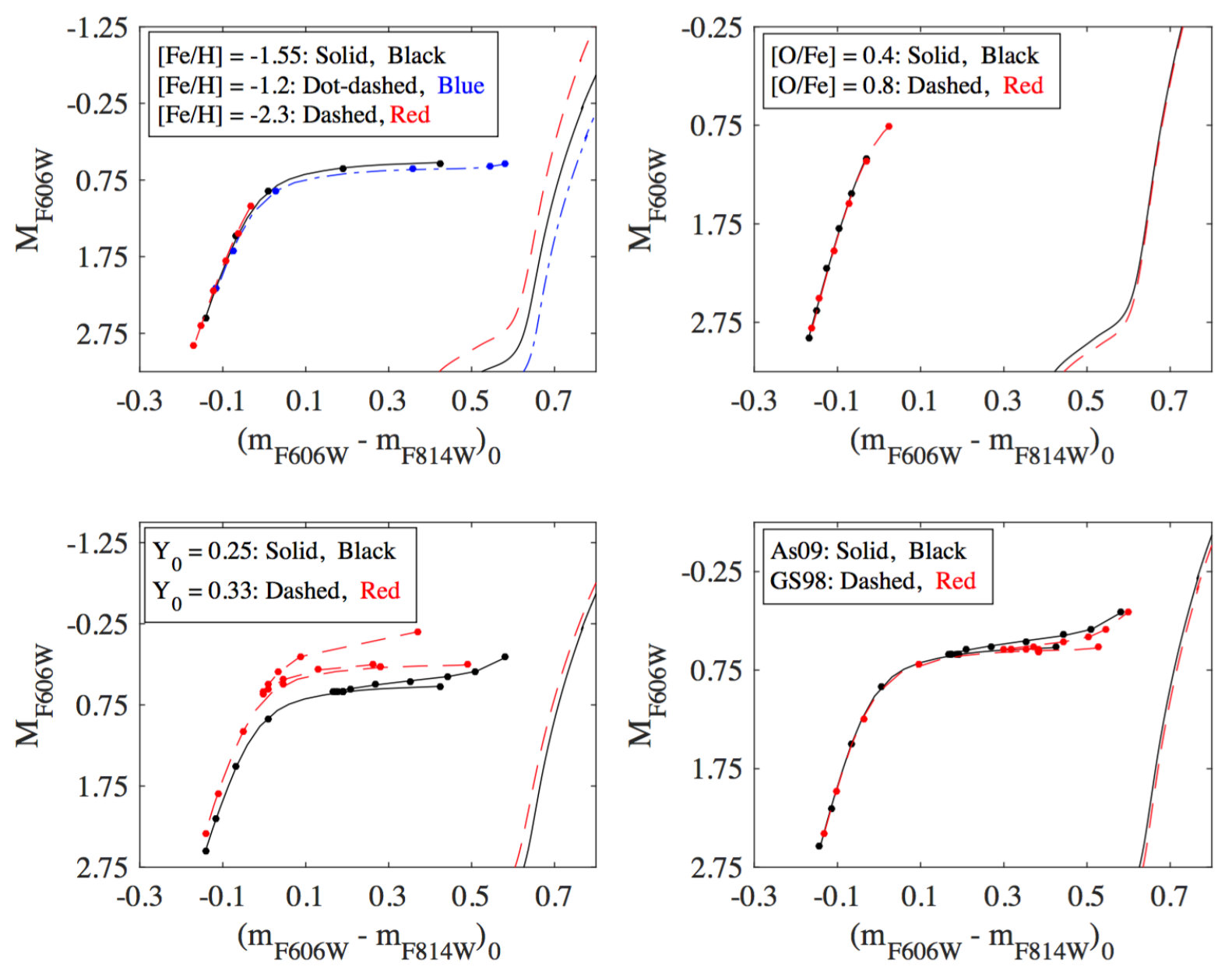

Figs. 14–16 also illustrate the strong sensitivity of the luminosities of the models to $Y$, as well as the increased prominence of blue loops in the post-ZAHB evolutionary tracks, which have important consequences for the interpretation of the data. For instance, the reddest track in Fig. 16, for a mass of $0.67\,{\cal M_{\odot}}$, makes an especially long excursion to the blue before bending back to the red and passing through the location of the one $ab$-type variable in M 13 (V8). The fact that M 13 does not contain any stars in the vicinity of the ZAHB location where this evolutionary sequence originates makes it unlikely that V8 has a helium abundance of $Y_{0}=0.285$ (or higher). The same can be said of the faintest $c$-type variable. Indeed, $Y_{0}=0.285$ would appear to be slightly too high for the next one or two (more luminous) first-overtone pulsators as well because there are no stars near the ZAHB in M 13 at colors where the high-$Y$ tracks most relevant to these RR Lyrae begin.

Due, in particular, to the strong dependence of $\log\,P$ on $\log\,{T_{\rm eff}}$, which is affected by errors in the photometry, the reddening, the determination of the colors of equivalent static stars, the adopted color transformations, and many physics ingredients of stellar models (such as the treatment of convection and the atmospheric boundary condition), the periods that are predicted for RR Lyrae stars necessarily involve fairly large uncertainties. If, e.g., the ${T_{\rm eff}}$ of a 6500 K fundamental-mode pulsator has an errorbar of $\pm 70$ K, the associated uncertainty in the value of $\log\,P_{\mathrm{ab}}$ given by equation (2) would be $\pm 0.016$, which corresponds to $\pm 0.023$ d if it has a 0.65 d period. As Victoria models satisfy empirical constraints on the temperatures of turnoff and subgiant stars by Casagrande et al. (2010) quite well (see VandenBerg et al. 2010), they should fare equally well, if not better, in matching the properties of warm HB stars. We conclude from these considerations that satisfactory consistency between the predicted and observed periods of a given RR Lyrae star is obtained if they agree to within $\sim\pm 0.03$ d.

Interpolations in the HB tracks yield the luminosities, temperatures, and masses at the CMD locations of the M 13 RR Lyrae variables. In the case of the models for $Y_{0}=0.25$, the mass-fraction metal abundance $Z=7.623\times 10^{-4}$. Using this information, we can calculate their periods, and in addition, we can determine how much the interpolated ${T_{\rm eff}}$ values would have to be adjusted in order for the predicted and measured periods to agree to, say, three decimal places (assuming that the discrepancies are primarily due to errors in the inferred temperatures).

A summary of our results for V8, the only RRab-type variable in M 13, is provided in Table 4. If no ${T_{\rm eff}}$ offset is applied to the models, the HB tracks for $Y_{0}=0.25$ predict periods that are too low by 0.023 d or by 0.054 d, depending on whether the $BV$ or $VI_{C}$ observations are considered. Not unexpectedly, the results from the two color planes are not in perfect agreement, likely due in errors in the derived static colors and/or in the adopted $(B-V)$–${T_{\rm eff}}$, $(V-I_{C})$–${T_{\rm eff}}$ relations (from Casagrande & VandenBerg 2014). In order to reproduce the observed period (0.750 d), the temperatures inferred from the $\langle B-V\rangle$ and $\langle V-I_{C}\rangle$ colors need to be revised, in turn, by $\delta\log{T_{\rm eff}}=-0.0040$ and $-0.0095$ (see the second row of numbers). Thus, the temperatures derived from $B-V$ colors are somewhat cooler than those based on $V-I_{C}$ colors. Finally, as discussed at the end of the preceding section, there is some justification for correcting the model temperatures by $\delta\log{T_{\rm eff}}=-0.0075$, which results in a period from $BV$ photometry that is too high by 0.021 d or one from $VI_{C}$ observations that is too low by 0.012 d.

For the most part, there is good consistency between the observed period of V8 and the periods based on the HB tracks for $Y_{0}=0.25$. Some reduction of the inferred ${T_{\rm eff}}$ of this star seems to be necessary, but this could be due, in part, to the assumption of a reddening that is somewhat too high or to the adoption of a distance modulus that is too low. Another possibility is that the $\langle B\rangle-\langle V\rangle$ and $\langle V\rangle-\langle I_{C}\rangle$ colors should be increased somewhat to better represent the equivalent static colors. Indeed, Bono et al. (1995b) predict that $(B-V)_{S}=\langle B\rangle-\langle V\rangle+0.008$ in the case of an $ab$-type variable with a pulsation amplitude $A(B)=1.06$ mag, as measured for V8. If we were to adopt this estimate of $(B-V)_{S}$, the predicted period would have been 0.745 d, assuming $Y=0.25$ and $\delta\log{T_{\rm eff}}=0.0$, instead of 0.727 d; see the first row of numbers in Table 4. (Unfortunately, Bono et al. do not consider $V-I_{C}$ colors.)

The remaining entries in Table 4 list the calculated periods of V8 when its mass, luminosity, and temperature have been obtained via interpolations in the HB tracks for $Y_{0}=0.27$. (If the assumed helium abundance is increased by $\Delta\,Y_{0}=0.02$, $Z$ must be reduced to $7.42\times 10^{-4}$ in order for the resultant mixture to have [Fe/H] $=-1.55$.) However, the models will necessarily predict nearly identical values of ${T_{\rm eff}}$ and $M_{\rm bol}$ for V8, independently of the assumed He abundance, because these properties depend almost entirely on the adopted reddening and distance modulus (which are unchanged). Consequently, the main effect of higher $Y$ is to increase the predicted mass of V8, and thereby to reduce the predicted period. This explains the $\approx 0.015$ d reduction in the period, compared to the corresponding results for $Y_{0}=0.25$, if $\delta\log{T_{\rm eff}}=0.0$ or $-0.0075$. Alternatively, to compensate for this effect, cooler temperatures must be adopted if the models for $Y_{0}=0.27$ are to reproduce the observed period. We conclude from the similarity of the results given in Table 4 for $Y_{0}=0.25$ and 0.27 that the helium abundance of V8 could have any value within the range 0.25\mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}Y\mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}0.27. (As already discussed, higher values of $Y$ are ruled out.)

It turns out that the periods of the RRc stars in M 13 are considerably more difficult to explain, which is unexpected given that we were quite successful in matching the periods of the $c$-type RR Lyrae in M 3 (see Paper I) using the same HB tracks as those employed in the present study. To be specific, periods derived for the M 13 variables are uniformly too high if, as in our analysis of M 3, no adjustments are applied to the inferred ${T_{\rm eff}}$ values. As shown in Table 5, the differences in the periods (in the sense “predicted minus observed”) are as much as $\sim 0.11$ d. The tabulated results clearly show that the assumed He abundance cannot be the main cause of the discrepancies because it has a relatively small influence on computed periods; higher helium by $\delta\,Y_{0}=0.035$ implies reduced periods by only $\sim 0.015$ d. Hence, either appreciably higher temperatures and/or the adoption of a significantly smaller distance modulus, implying lower luminosities, would seem to be the most likely ways of obtaining reduced periods that are in better agreement with the observed ones.

Figure 17 highlights some of the puzzling differences between the M 3 and M 13 RR Lyrae. It reproduces the fit of a ZAHB and several tracks to the HB population of M 3 that was given in Fig. 5 of Paper I, except that (i) the assumed value of $(m-M)_{V}$ has been reduced by 0.02 mag and (ii) the locations of the M 13 variables have been plotted (on the assumption of the indicated reddening and distance modulus). Whereas small black filled circles mark the CMD locations of non-variable HB stars and giants in M 3, filled and open circles (in red for M 3, and in blue for M 13) represent the cluster RRab and RRc stars, respectively. All of the M 13 RR Lyrae have been identified, but only V70 and V85 in M 3. The reason for focusing some attention on these two variables is that they are located very close to two of the M 13 RRc stars (V5 and V7). Due to their proximity, one would expect V5 and V70 to have nearly the same pulsation periods, but they actually differ by $\approx 0.10$ d. The measured period of V70 is 0.486 d, in excellent agreement with the predicted period (0.485 d if $Y_{0}=0.25$), but that of V5 is 0.382 d (as compared with predictions that are $\sim 0.1$ d higher, depending on the assumed helium abundance; see Table 5).

Somewhat better consistency is found for V7 in M 13 and V85 in M 3. Models for $Y_{0}=0.25$ reproduce the observed period of V85 (0.356 d) to within 0.003 d, whereas the difference between the predicted and observed periods of V7 is 0.02–0.04 d, according the results given in Table 5. In fact, V7 is the least problematic of the M 13 RRc stars. Models for $Y_{0}=0.285$ predict a period within 0.03 d of the observed value, and those for lower $Y$ would do so as well if V7 had a slightly bluer static color and/or the models predicted a somewhat higher ${T_{\rm eff}}$ for this star. In fact, M 3 has two other $c$-type variables at nearly the same location as V85 in Fig. 17 (namely, V29 and V140), and their observed periods are about 0.02 d less than those predicted by models for $Y_{0}=0.25$, in acceptable agreement with the period of V7 in M 13. (Higher helium would tend to reduce these differences, and since our HB simulations support only a small variation of $Y$ in M 3, it is possible that V29 and V140 are more helium-rich than V85.)

Near the beginning of this section, we expressed some concerns about the light curves of V5 and V36 as possibly being affected by the presence of companions or by the Blazhko effect, which may explain the large discrepancies between the predicted and observed periods of these two variables. The differences are within acceptable limits in the case of V7 and V8, and in fact, we would predict periods that are within 0.03 d of those observed for V9 and V34 if they have Y\mathrel{\hbox{\raise 2.58334pt\hbox{>}\kern-7.3194pt\lower 2.15277pt\hbox{\sim}}}0.28 and their temperatures were increased by only $\delta\log{T_{\rm eff}}\sim 0.007$ (or less, if the adopted static colors are somewhat too red). A small zero-point error in the model ${T_{\rm eff}}$ scale or in the observed colors is suggested by the fact that all of the predicted periods for the RRc stars are too high.

Curiously, the distribution in M 3 of the first-overtone pulsators as a function of $B-V$ color is quite different from that seen in M 13. As shown in Fig. 17, M 3 has many RRc stars with (B-V)_{0}\mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}0.22, whereas none of the M 13 variables have such blue colors. It is conceivable that this is simply the consequence of small number statistics, or perhaps this difference (and the difficulties discussed above) are telling us that the RR Lyrae in M 13 differ in some fundamental, yet unrecognized way from those in M 3. The fact that most of the M 13 variables are located very close to the boundary between RRab and RRc stars (see Fig. 17) may be relevant to an understanding of their apparently anomalous properties.

6.3. 47 Tuc

According to Carney et al. (1993), there appears to be only one bona fide RR Lyrae variable in 47 Tuc, as other candidates that lie inside or just outside the tidal radius have been found to be metallicity, proper-motion, or radial-velocity nonmembers. Observations of V9 obtained by these investigators have yielded $\langle V\rangle=13.725$, $\langle B-V\rangle=0.359$, $(B-V)_{\rm mag}=0.396$, and a period of 0.736852 days. If 47 Tuc has $(m-M)_{V}\approx 13.3$, as our HB simulations suggest, V9 has $M_{V}\approx 0.4$, which makes it much brighter than nearly all of the core He-burning stars in this cluster, in addition to being much bluer.

Since a variation in $Y\sim 0.03$ is implied by simulations of the observed morphology of the HB in 47 Tuc, the simplest explanation of V9 is that it is a member of the highest-$Y$ population (in order to explain its high luminosity), with a mass that is sufficiently low for its evolutionary track to enter the instability strip. In fact, this suggestion seems to work out remarkably well. In Figure 18, several evolutionary tracks for [Fe/H] $=-0.70$, [$\alpha$/Fe] $=0.4$, $Y_{0}=0.287$, and masses in the range $0.54\leq{\cal M}/{\cal M_{\odot}}\ \leq 0.795$ have been overlaid onto the part of the 47 Tuc CMD that contains its HB population and adjacent RGB stars (from Bergbusch & Stetson 2009999missing). The location of V9 is indicated by the red filled circle. For its static color, we have simply adopted the mean of the published $\langle B-V\rangle$ and $(B-V)$ colors, as it is not clear which of these colors provides the best approximation. Bono et al. (1995b) suggest that both possibilities will be bluer than $(B-V)_{S}$ by \mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}0.01 mag, which seems to be at odds with a difference of 0.037 mag in the measured values of $\langle B-V\rangle$ and $(B-V)$. (This difference has been plotted as the horizontal error bar that is attached to the red filled circle to represent the probable uncertainty in the color of V9.)

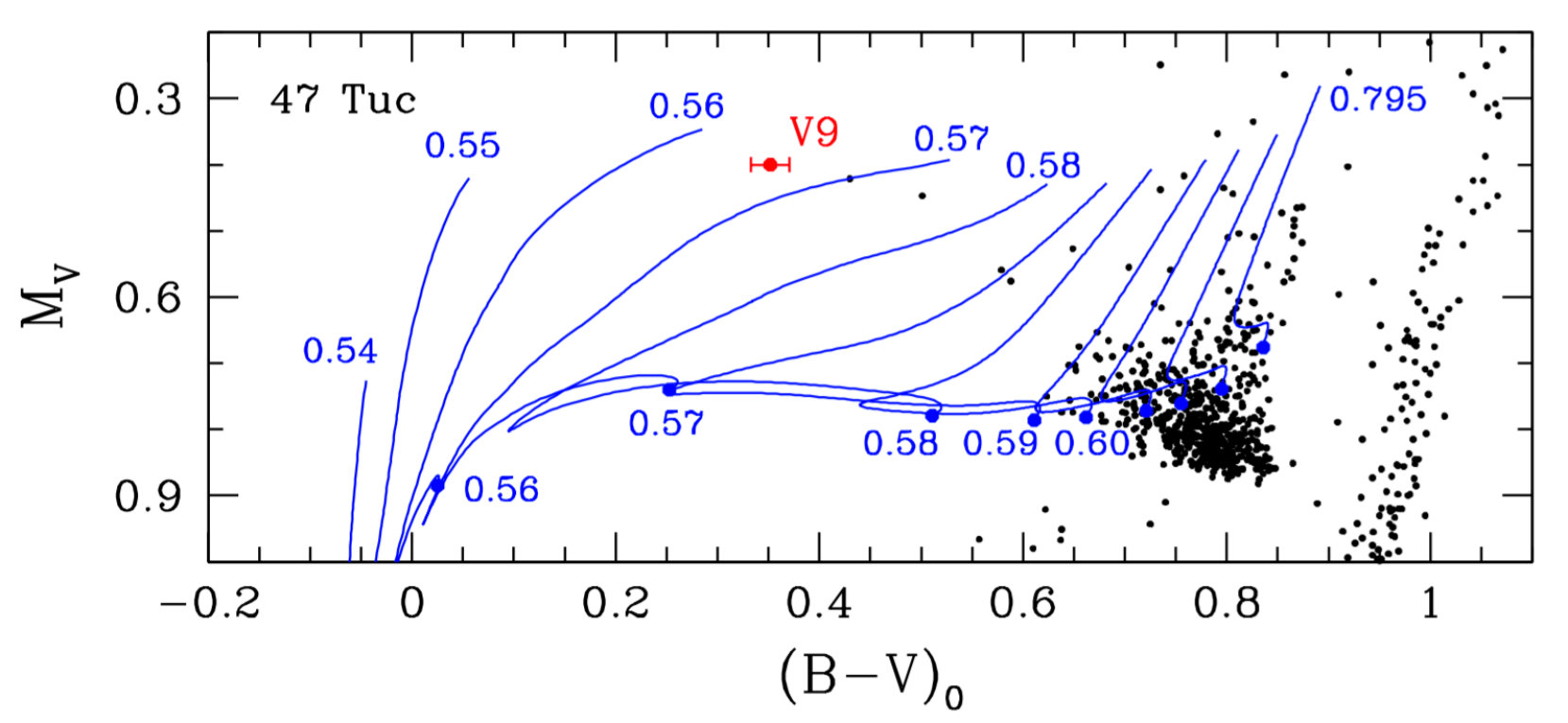

Fig. 18 illustrates the well-known prediction that, at relatively high metallicities, masses “pile up” at the red end of a ZAHB, which causes the HB in most metal-rich clusters to have a clump-like appearance. In the case of 47 Tuc, nearly the entire horizontal branch is contained within the color range 0.6\mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}(B-V)_{0}\mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}0.83, despite having masses that vary by \mathrel{\hbox{\raise 2.58334pt\hbox{>}\kern-7.3194pt\lower 2.15277pt\hbox{\sim}}}0.2\,{\cal M_{\odot}}, according to our HB tracks. However, as the mass decreases below $\sim 0.6\,{\cal M_{\odot}}$, each successive $0.01\,{\cal M_{\odot}}$ change in mass results in an ever larger shift to hotter temperatures and bluer colors. Thus, only a small decrease in mass ($\sim 0.035\,{\cal M_{\odot}}$) from the mass of the bluest stars in 47 Tuc’s HB clump, $\approx 0.60\,{\cal M_{\odot}}$, is needed to reach sufficiently blue colors where post-ZAHB tracks pass close to the location of V9.

Interpolations in the HB tracks, which have $Z=5.099\times 10^{-3}$, yield $M_{\rm bol}=0.384$, $\log{T_{\rm eff}}=3.814$, and a mass of $0.565\,{\cal M_{\odot}}$ for V9. Using equation (2), the predicted period of this variable is 0.717 d, which is within 0.02 d of the observed period. This surprisingly good agreement provides further support for our interpretation of the 47 Tuc CMD, particularly the results based on our HB simulations.

7. A supermassive star as a source of the $p$-capture abundance anomalies in 47 Tuc

Denissenkov & Hartwick (2014) have proposed that the ubiquitous abundance anomalies of the proton-capture elements and isotopes in GCs were produced by MS supermassive stars with ${\cal M}\sim 10^{4}\,{\cal M}_{\odot}$, which could have formed in the process of a runaway merger of massive stars during the first few million years of their lives. With the initial chemical composition scaled to the required value of [Fe/H] from the solar abundance mix of Grevesse & Sauval (1998), Denissenkov et al. (2015) have shown that the O-Na anticorrelation in M 13 as well as the correlations of the [Al/Fe] enhancement with the Mg isotopic ratios in M 13 and in four other GCs can all be reproduced by mixing pristine gas with core H-burning nucleosynthesis yields from MS stars with ${\cal M}\approx 6\times 10^{4}\,{\cal M}_{\odot}$. Since that publication, the Mg isotopic ratios have been measured along with the non-LTE-corrected [Al/Fe] ratios, also in the GC 47 Tuc, by Thygesen et al. (2016). They are plotted together with the O-Na anticorrelation in 47 Tuc RGB and HB stars from Gratton et al. (2013) in Fig. 19 (the green circles). By comparison, the black triangles represent the two M 13 RGB stars with the most extreme abundance anomalies.

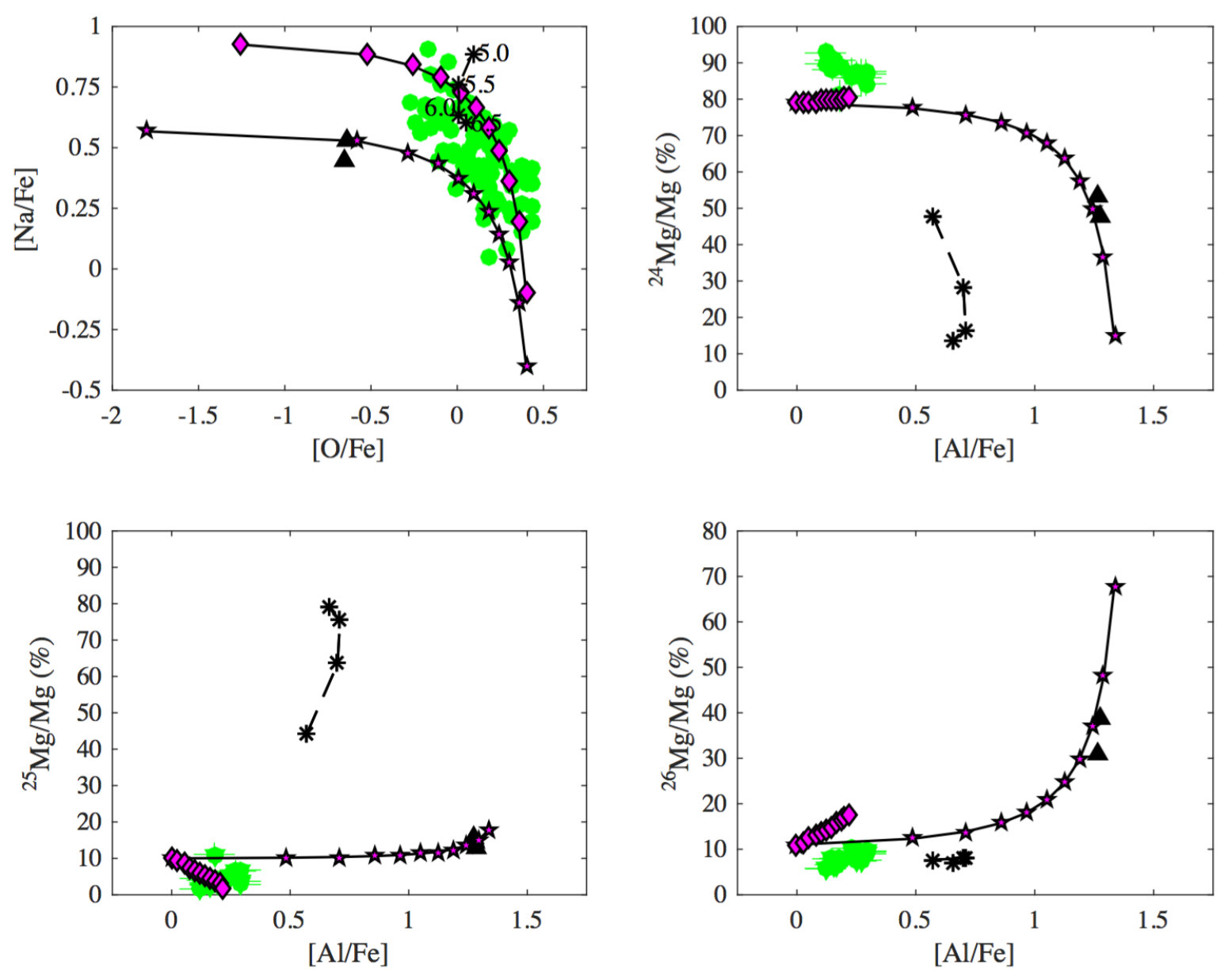

Similar success in matching the observed abundances can be obtained if models for supermassive stars assume the metals mixture given by Asplund et al. (2009), as adopted in this study, but for lower masses. As shown in Fig. 19, the O-Na anticorrelation and the correlations of the [Al/Fe] enhancement with the Mg isotopic ratios can be reproduced quite well by the H-burning yields from MS stars with ${\cal M}\approx 4.25\times 10^{4}\,{\cal M}_{\odot}$ for M 13 and ${\cal M}\approx 10^{4}\,{\cal M}_{\odot}$ for 47 Tuc (the magenta stars and diamonds, respectively). The reduction in mass for M 13 is caused by the lower mass-fraction abundance of the heavy elements in the As09 mix compared with that given by the GS98 mix at the same [Fe/H] value, which results in a higher central temperature of the core H burning at the same stellar mass. As before, the black asterisks show the theoretical results obtained with the yields from the massive AGB star models of Ventura & D’Antona (2009), with the initial masses of the stars indicated in the top-left panel. The variations of the Mg isotopic ratios with [Al/Fe] clearly present severe problems for the AGB scenario.

The theoretical solid black lines in Fig. 19 are dilution curves, along which the relative contributions to the predicted chemical composition from the pristine gas and supermassive star change from 100% to 0% for the former and in the opposite direction for the latter, beginning with the assumed initial abundances. The symbols (diamonds and stars) on the curves show the sequence of the dilution factor decreasing from 100% to 0% with the step of 10%. The good fits to the observed abundance correlations have been obtained assuming that H burning in the supermassive star models continued until the He mass fraction in these fully convective objects has reached the value of $Y=0.4$ in the case of M 13 and $Y=0.3$ for 47 Tuc. The difference in the final value of $Y$ for these GCs can be attributed to the fact that the star-to-star variation of $Y_{0}$ in M 13, $\Delta Y_{0}\approx 0.08$, is found to be larger than $\Delta Y_{0}\approx 0.03$ in 47 Tuc. In the case of 47 Tuc, the mixture of the pristine gas with the supermassive star yields reproduces really well not only its O-Na anti-correlation and the correlations between the Mg isotopic ratios and Al abundance (especially the observed range of [Al/Fe], small shifts to the assumed initial abundances of Al, 24Mg and 26Mg are probably required), but also our estimated maximum value of $Y_{0}\approx 0.287$ in 47 Tuc HB stars. Indeed, the 47 Tuc stars with the lowest [O/Fe] abundances should have the dilution factor (the pristine gas contribution with $Y_{0}\approx 0.257$) $\sim 20\%$ (the top-left panel in Fig. 19), which translates into $Y_{0}\approx 29$ for them when we use $Y=0.3$ for the supermassive star yileds. This is very close to $Y_{0}\approx 0.287$ for the extreme population of stars in 47 Tuc. The positions of the two M 13 stars relative to the predicted abundances show that approximately the same value, $\sim 10$–$20$%, of the dilution factor can be used to explain all of their abundance anomalies.

It is interesting that the possible presence of an intermediate-mass black hole with ${\cal M}\sim 2300\,{\cal M}_{\odot}$ in 47 Tuc has recently been claimed by Kızıltan et al. (2017) based on their analysis of the dynamical state of pulsars in this GC. This could be a remnant of a supermassive star whose short life left an imprint in the stellar populations that currently reside in this GC in the form of the $p$-capture abundance anomalies.

8. Summary and Discussion

We have generated a set of new ZAHB and HB evolutionary models101010The ZAHB and HB models used in this work are available at missing using revision 7624 of the MESA stellar evolution code supplemented with the new OPAL and low-temperature opacity tables for the Asplund et al. (2009) mix with [$\alpha$/Fe] $=0.4$ that have specially been prepared for this project. As shown in Paper I, stellar models produced by the MESA and Victoria codes are in excellent agreement when very close to the same physics is assumed. There are slight differences in the Victoria code that was used for this test and the one employed by VandenBerg et al. (2014) to generate the isochrones that we have fitted to the cluster CMDs. However, we examined how well ZAHBs based on the latter code are able to reproduce MESA computations, finding differences in M_{\mathrm{bol}}\mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}0.01 mag at all \log{T_{\rm eff}}\mathrel{\hbox{\raise 2.58334pt\hbox{<}\kern-7.74998pt\lower 2.15277pt\hbox{\sim}}}4.12, which shows that the respective models are highly consistent with one another. (Note that the best agreement is obtained when MESA employs cubic interpolation of the opacities with respect to $Z$ rather than the default quadratic option.) Importantly, we have chosen the same initial mix of elements from Asplund et al. (2009) for both the MESA and Victoria models.

In the computations of the HB evolutionary tracks, we have implemented a prescription for the convective He core mixing similar to that used in the preferred “maximal overshoot” scheme by Constantino et al. (2015) with which they obtained the best agreement between the predicted and observed periods of non-radial pulsations of the Kepler field HB stars. We have also taken care that the convective He core does not experience the so-called “breathing pulses” in our HB models, in the accordance with the results of the AGB to RGB star ratio counts in a large number of GCs recently reported by Constantino et al. (2016).

The new HB evolutionary tracks have been used as input data in our HB population synthesis tool to simulate the distributions of HB stars in the GCs 47 Tuc, M 13, and M 3. We have chosen these three clusters to test our new HB models and HB population synthesis tool because they have been extensively studied by other researchers who used similar methods. The results of our comparison of the observed and simulated distributions of HB stars in these GCs are presented in Figs. 6–8 and in Table 2. Neither the HB morphology in 47 Tuc nor the one in M 13 can be explained without assuming a spread in the initial He mass fraction that is found to be $\Delta Y_{0}\approx 0.03$ in 47 Tuc and as large as $\Delta Y_{0}\approx 0.08$ in M 13. On the other hand, in spite of being as massive as the first two GCs, M 3 has a distribution of HB stars that is reproduced assuming a very small variation of $\Delta Y_{0}\approx 0.01$. It is also surprising that, unlike 47 Tuc and M 13, which both require a mean RGB mass-loss $\Delta{\cal M}\approx 0.2\,{\cal M}_{\odot}$, the red HB stars in M 3 are distributed as if they had lost only $\Delta{\cal M}\approx 0.13\,{\cal M}_{\odot}$ on the RGB. These results are not new. They confirm the previous findings by Salaris et al. (2016), di Criscienzo et al. (2010a), Caloi & D’Antona (2005), Dalessandro et al. (2013), Valcarce et al. (2016), and McDonald & Zijlstra (2015).

The inclusion of the gravitational settling of He in our MS models results in lower luminosity HBs by $\sim 0.2$ mag (to be more specific, our HB models are fainter because they have lower envelope He abundances). Therefore, our distance moduli, which are based on best fits of the predicted distributions of HB stars to those observed, are systematically shorter, notably for GCs with substantial populations of stars along the horizontal part of the HB redward of its “knee”, than those estimated using MS models without the diffusion of He. Our distance moduli determinations seem to be very robust, because even a very small change (e.g., $\sim 0.02$ mag) in the best-fit value of $(m-M)_{V}$ leads to a significant drop in the K-S probability when the simulated and observed magnitude histograms are compared. In principle, the same is true for the reddening, except that the best-fit value of $E(B-V)$ turns out to depend on the selected color. For example, our best-fit value of $E(B-V)=0.026$ for 47 Tuc changes to $0.039$ and $0.058$ when we switch from the HST ACS color $(m_{\mathrm{F606W}}-m_{\mathrm{F814W}})_{0}$ to $(V-I)_{0}$ and $(B-V)_{0}$, respectively. Zero-point errors in the photometry or in the adopted color transformations could well be responsible for this lack of consistency.

The ages of M 3 and M 13 estimated using Victoria-Regina isochrones with the distance moduli best-fitted to the distributions of HB stars in these GCs are 12.6 Gyr and 12.9 Gyr, respectively (see Figs. 11–12). A very similar age, 13.0 Gyr, was found for 47 Tuc; i.e., all three clusters appear to be nearly coeval. Note that these age determinations would be reduced by $\sim 0.6$ Gyr if the clusters have higher oxygen abundances by $\approx 0.2$ dex than we have assumed. (Clearly, the relative ages of these GCs depend quite sensitively on whether or not there are cluster-to-cluster differences in [O/Fe], or more generally, [CNO/Fe].) In fact, the recent study by Brogaard et al. (2017) of the detached eclipsing binary in 47 Tuc, V69, found that stellar models for the same chemical abundances that we have adopted would provide a better match to the properties of V69 if they had increased [O/Fe] (or higher [Fe/H], or reduced $Y_{0}$, or some combination of these changes). Unfortunately, because suitable low-temperature opacities for enhanced O are not yet available, we are unable to produce synthetic HB populations to check into the implications of this possibility. (Although low-$T$ opacities for [O/Fe] $=0.4$ can be used to generate stellar models for [O/Fe] $>0.4$ at low metallicities, following the strategy described in Section 2, this approach cannot be used to model stars that are as cool and as metal-rich as those found in the HB of 47 Tuc.)

Nevertheless, the apparent distance modulus of 47 Tuc that was derived by Brogaard et al. (2017), $(m-M)_{V}=13.30\pm 0.06$(random) $\pm 0.03$(systematic), which is based solely on the binary, is in very good agreement with our determination, $(m-M)_{V}=13.27$. Encouragingly, Zoccali et al. (2001) obtained exactly the same modulus as we did, but with a relatively high uncertainty ($\pm 0.14$ mag), from a fit of the cluster white dwarfs (WDs) to a sequence of field WDs with measured trigonometric parallaxes. This gives us considerable confidence in our HB models for [Fe/H] $\sim-0.7$, just as the success of our simulations and the apparent consistency of the inferred distances with those implied by the RR Lyrae standard candle (see Paper I) supports our predictions for lower metallicities. Admittedly, synthetic HBs at relatively high [Fe/H] values do depend on the assumed mass loss to some extent, because the part of the ZAHB that is populated has a significant slope. For instance, if the RGB stars in 47 Tuc lost the same amount of mass as M 3 ($\Delta{\cal M}_{1}=0.13\,{\cal M_{\odot}}$, instead of $0.20\,{\cal M_{\odot}}$), we would obtain $(m-M)_{V}\approx 13.33$. However, HB tracks for higher masses have shorter blue loops, making it difficult to reproduce the locations of the stars along the blue edge of the observed HB. The assumption of higher $Y_{0}$ would not help to alleviate this problem because the models for higher helium abundances are more luminous, so the blueward extent of the tracks would shifted to brighter absolute magnitudes, thereby missing the faintest stars with the bluest colors. Based on these considerations, we consider it unlikely that our determination of the distance modulus of 47 Tuc is in error by more than $\pm 0.05$ mag.

In view of the small difference in the ages of M 3 and M 13, and the results of our analysis presented in Section 4.1.2, we conclude that, at least for this pair of GCs, the striking difference in the extension of their HBs to blue colors is caused by the larger spread of $Y_{0}$ in M 13 than in M 3. According to our simulations, there are significant populations of stars (\mathrel{\hbox{\raise 2.58334pt\hbox{>}\kern-7.3194pt\lower 2.15277pt\hbox{\sim}}}40%) in both clusters that have $Y_{0}\approx 0.250$, but the distribution of He abundances is much narrower in M 3 ($\Delta Y_{0}\sim 0.01$) than in M 13 ($\Delta Y_{0}\sim 0.08$). However, given that M 3 has an unusually long extension of its HB to red colors, a difference in the RGB mass-loss efficiency must play a role here as well. Therefore, we conclude that the main second parameters relevant to these GCs are $\Delta Y_{0}$ and mass loss along the giant branch.

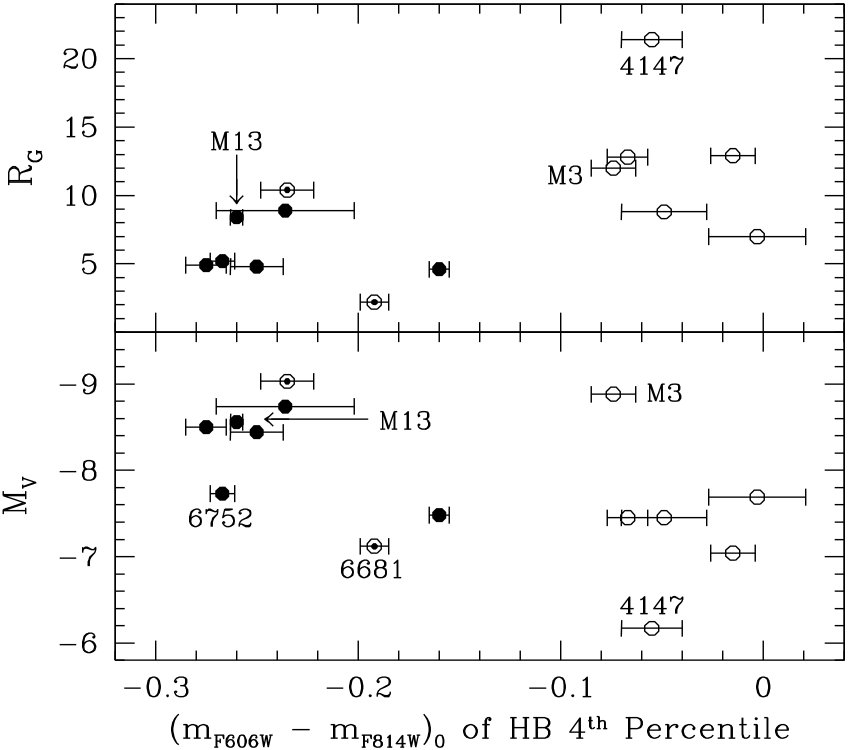

In fact, these are among the few second-parameter candidates that are viable possibilities for M 3 and M 13 since, as noted by many others (e.g., Ferraro et al., 1997), both clusters have similar masses and structural parameters (such as the concentration and central stellar density), as well as similar C$+$N$+$O abundances (Smith et al., 1996; Cohen & Meléndez, 2005b) and ages (this study and VBLC13). As pointed out by Johnson & Bolte (1998), the different morphologies of the M 3 and M 13 CMDs between the turnoff and the lower RGB are much easier to explain in terms of a difference in helium abundance (they suggested $\Delta Y\sim 0.05$) instead of age. On the other hand, it has been known for a long time that these clusters contain stars with normal oxygen abundances, both on their respective giant branches (Kraft et al., 1992) and their HBs (Peterson et al., 1995); so, as argued by Ferraro et al., it cannot be the case that all of the stars in M 13 are helium enhanced. Thus, $\Delta Y_{0}$ rather than $Y_{0}$ seems to be the relevant parameter, though a cluster with a larger spread in the initial helium content will generally also have a higher value of $\langle Y_{0}\rangle$. As D’Antona et al. (2002) proposed more than 15 years ago, a variation in $Y_{0}$ caused by some mechanism of self-enrichment could explain the extremely blue HBs in such GCs as M 13 (they suggested pollution by the ejecta of massive AGB stars, but recent studies of Mg isotopic abundance ratios are problematic for this scenario; see Section 7 and Denissenkov et al. 2015). This idea is now generally accepted, but precisely how this enrichment, and the accompanying light element correlations and anti-correlations, occurred is not yet understood.

In their analysis of the HST photometric data for 55 of the GCs that were observed by Sarajedini et al. (2007b), VBLC13 noticed that a large fraction of the most metal-deficient clusters could be divided into two groups based on differences in their SGB morphologies. They found that clusters with somewhat shallower SGB slopes, like that of M 3, tended to have fainter absolute magnitudes (and hence lower masses) and to have larger Galactocentric distances than those with steeper, M 13-like SGB slopes. Although a possible connection with HB type was not considered, it turns out that, as shown in Figure 20, the SGB slope is correlated with the blueward extent of an observed HB.

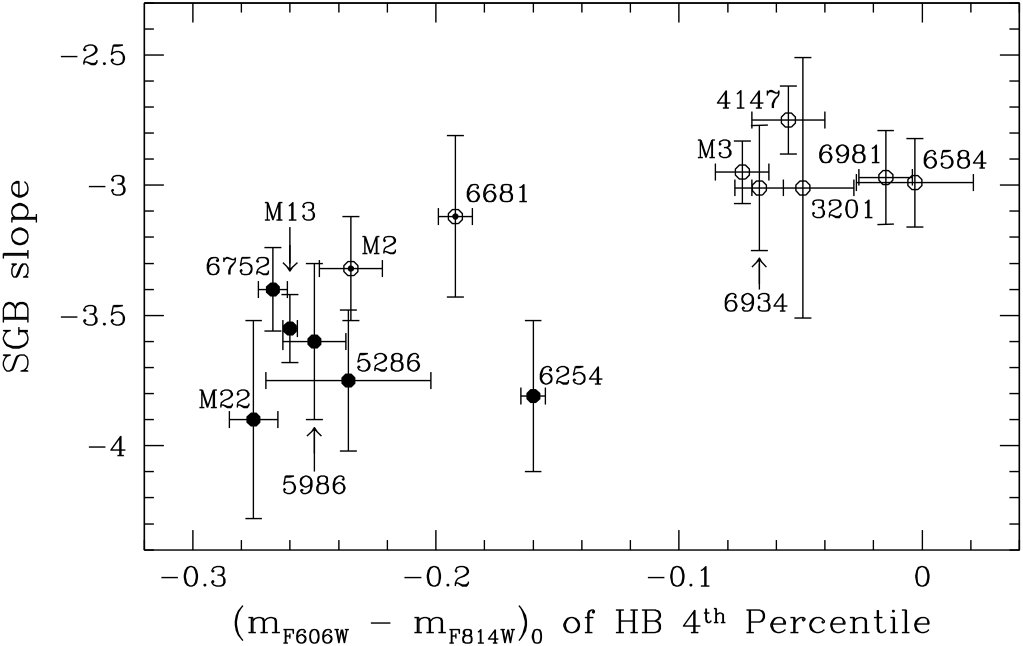

In this plot, the SGB slopes derived by VBLC13 (from their Table 1111111. We took this opportunity to check the published results and found that, in the case of NGC 6681, the objectively derived slope (i.e., from a linear least-squares fit to the subgiant observations) was not as steep as an eye-estimated fit to the data would suggest. By varying the color range over which the data were fitted, a visually much more agreeable slope was obtained; specifically, $-3.10\pm 0.31$, which has been adopted for NGC 6681 instead of the published value. (The small number of subgiants in the sample together with fluctuations in their distribution with color are likely responsible for this difficulty.) The revised slope and its large uncertainty have the consequence that it is not possible to assign NGC 6681 to either the M 3-like or the M 13-like group of clusters. Our examination also suggested that the SGB slopes of M 22 and NGC 6254 are probably closer to $-3.5$ than to the published values, but as this would not alter their identification as M 13-like GCs, we opted to plot the published slopes for both clusters.) for GCs with $-1.78\leq$ [Fe/H] $\leq-1.48$ (according to Carretta et al. 2009a) have been plotted as a function of the intrinsic color corresponding to the fourth percentile of the color distribution of the cluster HB stars. To obtain the numerical values along the abscissa, we have simply subtracted the reddenings adopted by VBLC13 from the observed colors of the fourth percentile given by Milone et al. (2014, i.e., the $P_{A}$ values listed in their Table 1). For most of the clusters, these reddenings are equivalent to the dust-map values of $E(B-V)$ from Schlegel et al. (1998), though some minor adjustments were needed in the case of highly reddened clusters in order to obtain satisfactory fits of ZAHB models to the bluest HB stars. Note that, as shown by VBLC13 (see their Fig. 29), there is some dependence of the SGB slope on metallicity, and it is for this reason that we have considered only those GCs with similar metallicities (specifically, the ones with $-1.78\leq$ [Fe/H] $\leq-1.48$).

Although the differences in the cluster SGB slopes are quite subtle, they are sufficiently different (except in the case of M 2 and NGC 6681, which have intermediate slopes) that it is possible to separate them into two groups that, as it turns out, have very different HB morphologies. Figure 21 shows that the M 13-like GCs tend to be inner-halo, intrinsically luminous (and hence massive) systems whereas the M 3-like clusters are typically lower mass objects located at larger Galactocentric distances, though with some overlap. Recent work has established that M 2 (Yong et al., 2014; Milone et al., 2015b), M 13 (Johnson & Pilachowski, 2012), M 22 (Marino et al., 2009), NGC 6752 (Milone et al., 2013), and NGC 5286 (Marino et al., 2015) are among the relatively few GCs that show wide variations in the abundances of the light elements (O, Na, etc.). Since these are the same clusters that have extremely blue HBs, it is a safe bet that their bluest HB stars have high He abundances and a substantial range in $Y_{0}$, in accordance with our simulations for M 13. Similarly, we suspect that all of the clusters that are located close to M 3 in Figs. 20 and 21 will be found to have $Y_{0}\sim 0.25$ and a small range in $\Delta Y_{0}$, just as we have determined for M 3. Further work to test this prediction is strongly encouraged.

Many others have deduced that mass loss differences are partly responsible for the dissimilarity of the M 3 and M 13 HBs (e.g., see Fusi Pecci et al. 1993; Catelan & de Freitas Pacheco 1995, and the review by Catelan et al. 2009), and it seems likely that this is a distinguishing characteristic of the two groups of clusters that have been plotted as filled and open circles in Figs 20 and 21. Why this should be the case is far from clear. Perhaps, as noted by Ferraro et al. (1997) (also see Fusi-Pecci & Renzini 1975), differences in rotational velocities affect the morphology of the HB since Peterson et al. (1995) have shown that a substantial fraction of the HB stars in M 13 rotate rapidly, whereas no rapid rotators have been found in M 3 (one of the few distinguishing characteristics of these two GCs). In fact, the data tabulated by van den Bergh (2011) indicate that the M 13-like group of clusters tend to have higher ellipticities than those that have M 3-like HBs, but with some exceptions.

We cannot help but wonder whether stellar rotation may help to explain why the observed periods of some of the $c$-type RR Lyrae in M 13 are shorter (by as much as $\sim 0.1$ d) than our models predict. In this investigation, we have presented new determinations of intensity-weighted mean $B$, $V$, and $I_{C}$ magnitudes for the only known RRab star, and 5 of the 7 known RRc variables, in M 13. Our models for $Y\sim 0.25$ predict very close to the observed period of the fundamental-mode pulsator, and models for higher $Y$ can potentially explain the periods of one (perhaps two) of the first-overtone pulsators. One of the remaining RRc stars seems to be multi-periodic, but we are unable to explain why the observed periods of the rest are in such poor agreement with the model predictions. What is particularly disconcerting is that the observed periods do not agree at all well with those of variables in M 3 that seem to have nearly the same intrinsic colors and absolute magnitudes. Presumably, this discrepancy is a reflection of some fundamental difference in the properties of these particular variables. Unfortunately, further studies of the M 13 RR Lyrae will be needed to obtain a resolution of this issue.

Returning to the second-parameter problem: age differences appear to be much too small to be the primary explanation of the diversity in HB types, though they may well be a contributing factor. Over the years, members of the astronomical community have either reached a similar conclusion (see, e.g. Fusi Pecci et al., 1993; Stetson et al., 1996; Buonanno et al., 1997; VandenBerg, 2000; VandenBerg et al., 2013), or else they have argued in support of age being the dominant second parameter (e.g., Lee et al., 1994; Gratton et al., 2010; Dotter et al., 2010; Milone et al., 2014). Insofar as the clusters that are identified in Fig. 20 are concerned, the mean age of the M 13-like GCs, including M 2 and NGC 6681 as members of this group given that their properties seem to resemble those of M 13 more so than M 3, is approximately 0.5 Gyr greater than the mean age of the M 3-like systems — if the absolute ages derived by VBLC13 are adopted. This is much less than the 2.6 Gyr age difference that, according to our simulations (see § 4.2.3), would be needed to explain the different HB morphologies of M 3 and M 13 on the assumption that age is the only distinguishing property of these two GCs.

Similarly, age seems to play no more than a minor role in explaining the wide variations in the HBs of M 5, M 12, NGC 288, and NGC 362, for which the metallicities tabulated by Carretta et al. (2009b) lie within the range $-1.33\leq$ [Fe/H] $\leq-1.30$. VBLC13 found that NGC 362 is $\approx 0.75$ Gyr younger than M 5, which is in the right sense to explain why the former has a significantly redder HB than the latter. However, using the horizontal method of determining relative GC ages (VandenBerg et al. 1990), VBLC13 (see their Fig. 24) concluded that M 5, which has an M 3-like HB, is coeval with NGC 288, which has an M 13-like HB. Interestingly, the same figure indicates that M 12 is much older than M 5, and therefore NGC 288, even though M 12 and NGC 288 both have extremely blue HBs. Other factors besides age need to be considered for these, and quite possibly most, GCs. (One would reach the same conclusion if, for the clusters highlighted in this discussion, we had adopted the relative GC ages derived by Marín-Franch et al. 2009.) In addition to the other second-parameter candidates mentioned above, the apparent correlation of chemical properties with mass (Recio-Blanco et al., 2006) and with $\sigma_{0}\,v_{e,0}$, where $\sigma_{0}$ is the surface density of stars at the cluster center and $v_{e,0}$ is the central escape velocity, which are related to the capability of clusters to retain gas and to resist ram-pressure stripping (see VBLC13) should be kept in mind.

In closing this investigation, it is worth mentioning that, so far, we have not considered more than three stellar populations with different values of $Y_{0,i}$ in our HB population synthesis models. However, this number is just a free parameter that can be increased to a larger value if required (e.g., see Tailo et al., 2016, who used seven populations in their model of $\omega$ Cen). In fact, all populations with $Y_{0,i}>Y_{0,1}$ can be considered as the second of just two generations of stars in GCs. This interpretation depends on the criterion that is used to distinguish multiple populations. For example, the SUMO project has revealed three populations in 47 Tuc and M 13 with the help of the photometric index $C_{U,B,I}=(U-B)-(B-I)$ (Monelli et al., 2013), while the “chromosome maps” of GCs, that use a more complex search criterion based on combinations of HST ACS colors, only distingush the fractions of the first generation stars (Milone et al., 2017). Therefore, it is not yet very meaningful to compare the fractions of stars belonging to different stellar populations and the number of the populations themselves in individual GCs that are obtained using different observational and theoretical methods.

The next paper in this series will focus on M 55 and NGC 6362, making use of both their RR Lyrae populations and member eclipsing binary stars to provide especially tight constraints on their absolute ages.

We are very grateful to Santi Cassisi for providing the color transformations that we have used for hot, horizontal-branch models. Financial support from the Natural Sciences and Engineering Research Council via a Discovery Grant to D.A.V. is acknowledged with gratitude. The work of P.A.D. was also supported in part by the National Science Foundation under Grant No. PHY-1430152 (JINA Center for the Evolution of the Elements).
