The Pseudosynchronization of Binary Stars Undergoing Strong Tidal Interactions

TL;DR

This study investigates the rotation periods of heartbeat binary stars experiencing strong tidal interactions, revealing that most are not pseudosynchronized and often rotate slightly slower than theoretical predictions, indicating additional physical influences.

Contribution

It provides observational measurements of stellar rotation in heartbeat binaries and compares them to tidal synchronization theory, highlighting discrepancies and potential new physical mechanisms.

Findings

Most heartbeat stars are not pseudosynchronized with their orbits.

Many stars rotate at about 3/2 times the predicted pseudosynchronization period.

Stars tend to reach a spin equilibrium slightly longer than theoretical predictions.

Abstract

Eccentric binaries known as heartbeat stars experience strong dynamical tides as the stars pass through periastron, providing a laboratory to study tidal interactions. We measure the rotation periods of 24 heartbeat systems, using the Kepler light curves to identify rotation peaks in the Fourier transform. Where possible, we compare the rotation period to the pseudosynchronization period derived by Hut 1981. Few of our heartbeat stars are pseudosynchronized with the orbital period. For four systems, we were able to identify two sets of rotation peaks, which we interpret as the rotation from both stars in the binary. The majority of the systems have a rotation period that is approximately 3/2 times the pseudosynchronization period predicted by Hut 1981, suggesting that other physical mechanisms influence the stars' rotation, or that stars typically reach tidal spin equilibrium at a rotation period slightly longer than predicted.

Figures

Tables

Table 1. Table 1: Parameters for Heartbeat Stars

KIC	Orbital Period	Rotation Period	Eccentricity	Temperature	Pseudosynchronization	References
	(d)	(d)		K	(d)
3547874 A	19.6921722 ( 765 )	8.8100 ( 26 )	0.648 0.050 0.050	6549	3.92 0.28 0.28	1
3547874 B	19.6921722 ( 765 )	9.05 ( 91 )	0.648 0.050 0.050	6549	3.92 0.28 0.28	1
4659476	58.9963737 ( 368 )	1.446 ( 14 )	0.745 0.0110 0.0110	6376	7.01 0.13 0.13	2
4949187	11.9773917 ( 380 )	5.194 ( 52 )	-	-	-
5017127	20.0064041 ( 780 )	9.34 ( 11 )	0.550 0.0050 0.0050	6443	5.96 0.05 0.05	2
5034333 A	6.9322800 ( 170 )	3.98 ( 60 )	0.570 0.050 0.050	8675	1.88 0.14 0.14	1
5034333 B	6.9322800 ( 170 )	15.2 ( 12 )	0.570 0.050 0.050	8675	1.88 0.14 0.14	1
5090937	8.8006929 ( 240 )	8.16 ( 51 )	0.241 0.0130 0.0130	8092	6.50 0.19 0.19	2
5790807 A	79.9962462 ( 543 )	9.9 ( 10 )	0.857 0.0031 0.0030	6582	3.84 0.01 0.01	2
5790807 B	79.9962462 ( 543 )	10.1 ( 11 )	0.857 0.0031 0.0030	6582	3.84 0.03 0.03	2
5818706	14.9599406 ( 514 )	9.29 ( 17 )	0.454 0.0038 0.0039	6378	6.21 0.03 0.03	2
5960989	50.7215338 ( 298 )	6.4 ( 15 )	0.813 0.0170 0.0150	6331	3.70 0.11 0.13	2
6775034 A	10.0285473 ( 294 )	3.185 ( 32 )	0.556 0.0470 0.0370	7187	2.92 0.17 0.21	2
6775034 B	10.0285473 ( 294 )	4.745 ( 31 )	0.556 0.0470 0.0370	7187	2.92 0.17 0.21	2
7041856	4.0006688 ( 771 )	1.7407 ( 17 )	-	-	-
7259722	9.6332256 ( 275 )	17.3 ( 94 )	-	-	-
7907688	4.3448368 ( 886 )	5.05 ( 25 )	-	-	-
8027591	24.2744321 ( 103 )	8.79 ( 43 )	0.586 0.0082 0.0083	6279	6.30 0.76 0.75	2
8164262	87.4571700 ( 638 )	2.99 ( 38 )	0.857 0.0260 0.0650	7700	4.22 0.79 0.31	2
8719324	10.2326979 ( 300 )	3.11 ( 19 )	0.640 0.050 0.050	7023	2.11 0.15 0.15	3
9965691	15.6831951 ( 553 )	12.32 ( 86 )	-	-	-
10162999	3.4292146 ( 622 )	2.086 ( 63 )	0.473 0.0032 0.0032	6335	1.25 0.01 0.01	2
11071278	55.8852250 ( 329 )	9.00 ( 13 )	0.755 0.0150 0.0130	6215	6.23 0.12 0.14	2
11240948	3.4019372 ( 615 )	1.554 ( 16 )	-	-	-
11403032	7.6316344 ( 197 )	14.89 ( 22 )	0.288 0.0130 0.0130	6657	5.05 0.15 0.15	2
11649962	10.5627371 ( 312 )	4.4 ( 73 )	0.521 0.0035 0.0035	6762	3.51 0.02 0.02	2
11923629	17.9732836 ( 673 )	15.79 ( 15 )	0.363 0.0058 0.0059	6293	9.77 0.12 0.11	2
12255108	9.1315263 ( 253 )	7.88 ( 35 )	0.296 0.0150 0.0160	7577	5.92 0.21 0.20	2

Equations

$${\Omega }_{\mathrm{ps}}=\frac{1+\frac{15}{2}{e}^2+\frac{45}{8}{e}^4+\frac{5}{16}{e}^6}{(1-e{)}^{\frac{3}{2}}\left(1+3e^3+\frac{3}{8}{e}^4\right)}\cdot \omega$$

Full text

\AuthorCallLimit

=8

33affiliationtext: NASA AMES Reasearch Center Moffett Blvd, Mountain View, CA 94035

55affiliationtext: Kavli Institute for Theoretical Physics, Kohn Hall, University of California, Santa Barbara, CA 93106, USA

1 Introduction

The Kepler Telescope, launched in 2009, has provided four years of near-continuous photometric data of over 150,000 stars in order to look for subtle changes in the brightness of stars (Koch et al., 2010). In addition to finding exoplanets (see e.g. Coughlin et al., 2016) and binary stars (Kirk et al., 2016), this mission’s data has yielded a type of eccentric binary system known as Heartbeat Binary Stars [HBs] (Thompson et al., 2012; Welsh et al., 2011). These binary stars undergo extreme dynamic tides, causing them to become tidally distorted and more oblate in shape as they pass through periastron. The dynamic tidal distortions, along with heating and Doppler boosting, cause their distinctive pulse-like variations (Welsh et al., 2011; Hambleton et al., 2015, 2016). Also, these stars show pulsations at frequencies which are harmonics of the orbital frequency, indicating these pulses are likely tidally driven (Willems & Aerts, 2002).

More than 150 heartbeat stars have been identified and cataloged in the Villanova Eclipsing Binary Catalog111 See also http://keplerebs.villanova.edu/ (Kirk et al., 2016). Accurate and unique models of the photometric variations, as that done for KOI-54 (Welsh et al., 2011) and KIC 3749404 (Hambleton et al., 2016), require radial velocity measurements to constrain the possible orbital solutions. From these RV measurements, combined with photometric data, a full orbital solution can be obtained, including the stellar masses, eccentricity and inclination of the system. Recently, radial velocity measurements have been obtained for more than 20 of these binary systems (Smullen & Kobulnicky, 2015; Shporer et al., 2016) making it possible to model a statistically interesting sample of these tidally active systems.

Because of the large tidal forces in these HBs, the rotation rates of these stars are expected to quickly pseudosynchronize with the orbital motion (Hut, 1981), i.e. the rotation period is comparable to the orbital motion at periastron such that there is no net torque over an orbital cycle. Pseudosynchronization should occur on a timescale approximately ten times faster than the circularization timescale, which is also rapid compared to the lifetime of the star. Many HBs may have reached this state and yet still have eccentric orbits. The precise value of the theoretically expected pseudosynchronous rotation frequency is dependent on both eccentricity and the mechanism of tidal dissipation, and therefore we can test tidal dissipation theories by measuring both orbital eccentricity and the stellar rotation rate. We investigate here if the rotations of the stars have pseudosynchronized with the orbits and whether they are consistent with standard tidal theories.

In this paper, we measure the rotation period of 24 HBs by examining the Fourier transform after removing the orbital heartbeat signal. We then use eccentricity measurements obtained from radial velocity orbital solutions recently reported by Shporer et al. (2016) to determine the pseudosynchronization period of the system. We use the pixel-level Kepler data to rule-out background sources as a likely source of the observed variations. Finally we compare the rotation and pseudosynchronization rates and discuss our results.

2 Observations

We selected HBs from the Villanova Eclipsing Binary Catalog (Kirk et al., 2016) and searched for signs of rotation. We particularly focused on those HBs reported in Thompson et al. (2012) and those with radial velocity measurements from Shporer et al. (2016) and Smullen & Kobulnicky (2015).

We used the Kepler photometric data from data release 24 (Coughlin et al., 2014). We created our light curves from all 17 Kepler quarters which spanning 1470.5 days, beginning on MJD 54 953.03 and ending on MJD 54 423.5 . We started with the Presearch Data Conditioning (PDC) light curves, which removed common systematic features from the time series light fluctuations using a Bayesian framework (Stumpe et al., 2012, 2014). We further detrended the data by dividing by low-order polynomials and removing single point outliers. With the mean-zeroed, relative flux time series we used a Fourier transform method to identify the rotation period of the star. We then looked for evidence of rotation in the residual light curve.

2.1 Rotation Measurements

McQuillan et al. (2013b, a) shows that the autocorrelation function (ACF) and a Periodogram give similar measurements of the rotation in most cases. Though the ACF is a more robust and reliable method, in the case of HB systems periodograms can allow to better identify the two sets of periodicities in the light curve, due to the orbit and the stellar rotation. For HB light curves, the ACF methods are confused by the dominant, periodic variations from the orbital motion. However, borrowing from the Periodogram methodology, we find that the Fourier transform can separate the orbital frequencies from those of potential rotation signals. Because the orbital signal is extremely regular, and not sinusoidal, it appears as a series of evenly spaced harmonic peaks in the Fourier transform. However, the rotation signals are not strictly periodic and are more sinusoidal. As a result they appear as a group of peaks in the Fourier transform near the same frequency. This is the same type of signal shown in the Periodograms of Kepler observations by McQuillan et al. (2013b). Using this method to measure the rotation rate of Kepler objects, we performed Fourier transforms on the photometric data of stars in our target list.

For each HB, we first removed the periodic pulse caused by the highly eccentric orbit by fitting and removing a sequence of equally spaced frequencies. We did this by using the tool Period04 (Lenz & Breger, 2005). We fit the light curve with a series of sine waves at exact harmonics of the orbital period, allowing the amplitude of phase of the harmonics to vary. We then remove these sine-waves from the light curve and visually inspect the residual Fourier transform for evidence of rotation, which would appear as groups of peaks, with at least one following harmonic group of peaks. We fit the largest peak of this group and report that as the rotation period in Table 1.

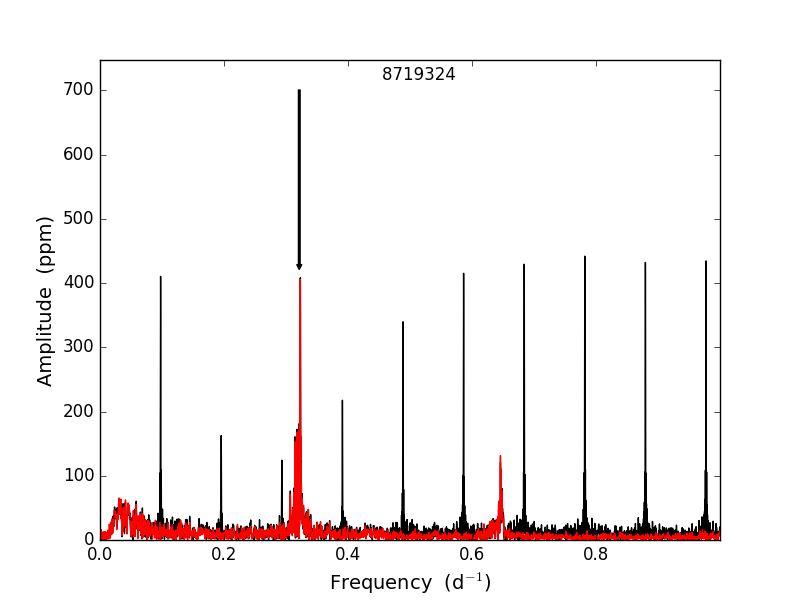

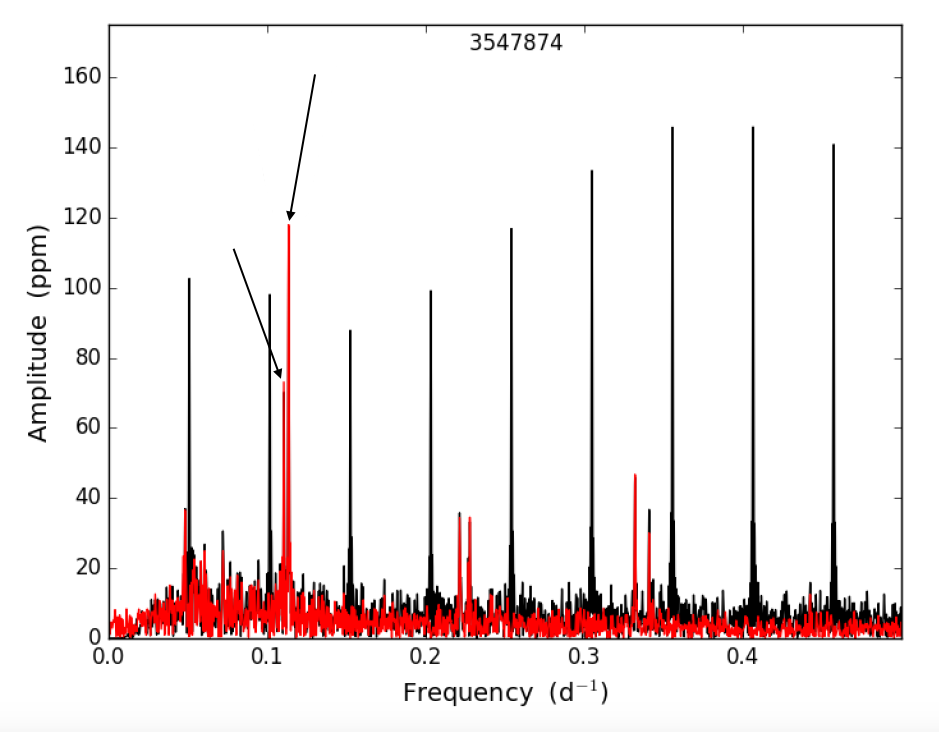

In Figure 1, we show several examples of HB Fourier transforms with the original frequency spectrum in black. The residuals after removing the harmonics is shown in red to highlight the peaks likely caused by spot modulation. The end result is the measured rotational frequencies. The orbital peaks usually show many distinct, discrete peaks while the rotation peaks are broader than their orbital counterparts but still have at least one harmonic. For four HBs, we found evidence of rotation for both stars in the binary. See, for example, KIC 3547874 and KIC 5034333 in Figure 1. In these cases we report both frequencies.

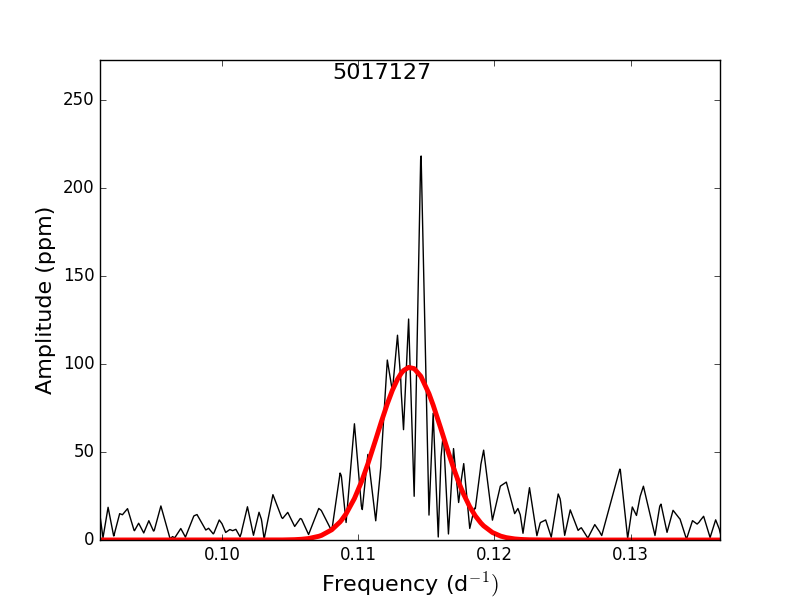

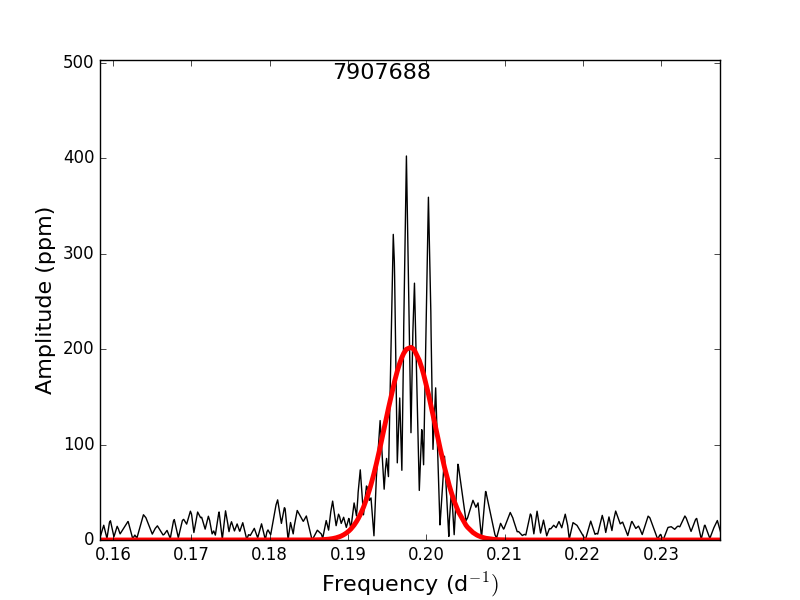

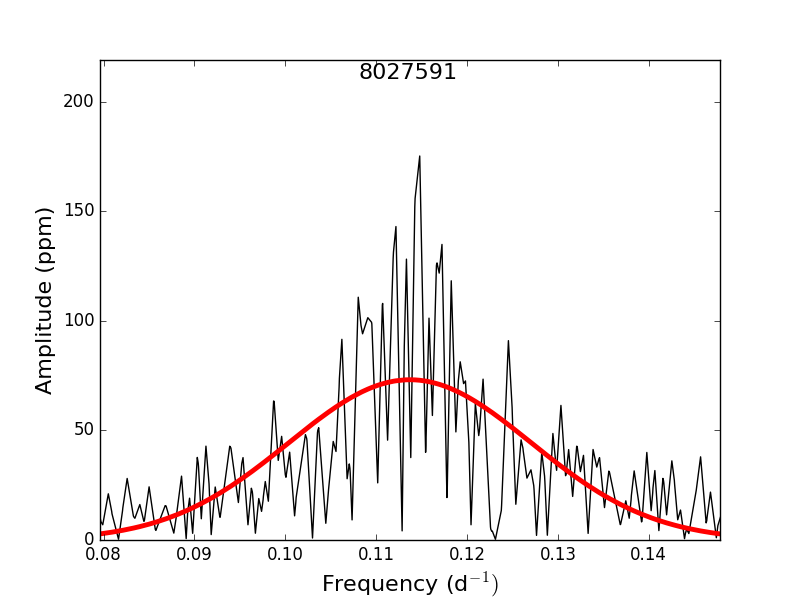

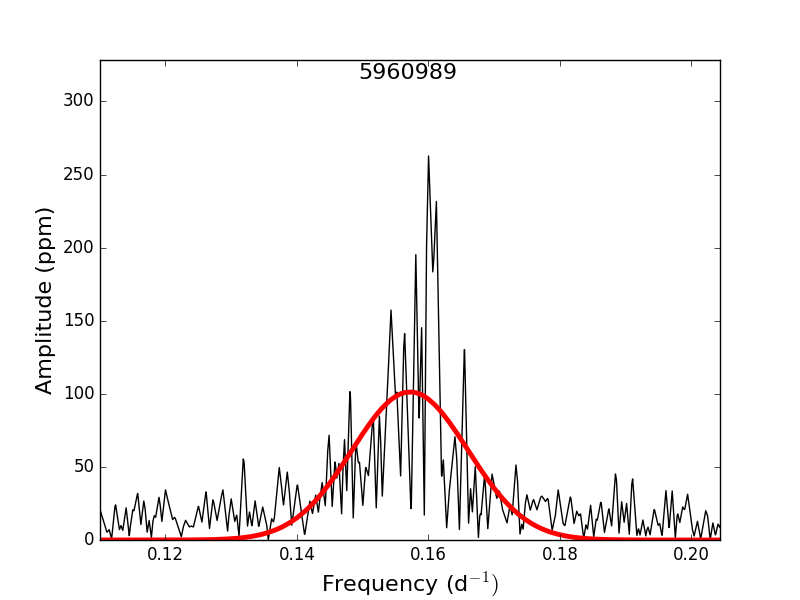

To provide a realistic measure of the error of the rotation period, we fit a Gaussian model to the envelope of peaks that surround the largest rotation peak in the Fourier transform using the package lmfit in Python (Newville et al., 2014). The script optimizes the width, height, and center of the Gaussian peak with least-squares fitting. We fixed the center of the Gaussian curve to the measured rotational frequency, while allowing the height and width of the peak to vary. The code returned the best fit parameters for the Gaussian width which we took as the error in the frequency of the rotation measurement. Examples of several Gaussian fits to the cluster of peaks in the Fourier transform can be seen in Figure 2.

2.2 Ruling-out Obvious Background Sources

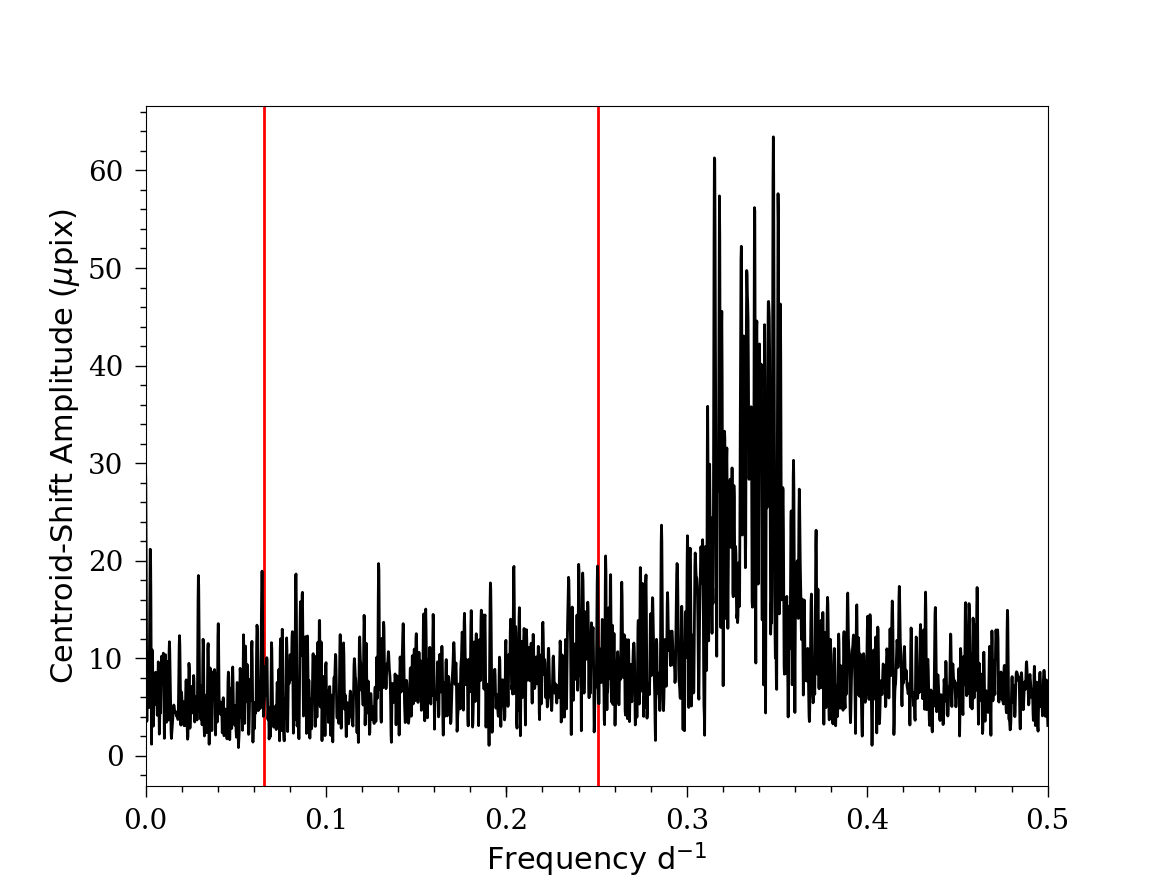

We use the measured centroids of our HBs to check for evidence that the star spot signal we see is coming from a nearby star whose pixel response function (PRF) leaks into the target aperture. Periodic changes in the photometric centroid shifts can be caused by periodic changes in the brightness of a nearby star, changes in the spacecraft pointing, or changes in the PRF due to the variations in the telescope focus. Fortunately these latter two occur for the most part on timescales substantially different than the observed stellar period, and can be removed or ignored. The impact of star spots on either the target or a background star can be treated in a similar manner to how Bryson et al. (2010) examined centroid shifts to search for false positive transit signals caused by background eclipsing binary stars. We emphasize two important points from that work: in a crowded field, a centroid shift can be caused by a change in flux in either the target or a background star. However, the lack of a centroid shift is strong evidence that the change in flux is happening on the target star. Therefore, if we see no periodicity in the centroid time-series matching the stellar rotation period, we can conclude the star spot signal is indeed on the target star.

Changes in centroid position due to focus changes over the course of a quarter dwarf all other signals in the centroid position, and we apply four steps to remove them before our analysis. We cut out 96 cadences (approximately 2 days) immediately after any cadence marked as earth-point, and 24 cadences before and after any cadence marked as safe mode, not-fine-point, exclude, or earth-point. The focus typically changes rapidly after an earth-point, leaving a strong signal in the centroid data. Other gaps in the data often show significant trends in the centroids immediately before and after that are also difficult to filter out. See Table 2-3 of the Kepler Archive Manual (Thompson et al., 2013)for more details on the meanings of the various data quality flags. We fit and remove the best fit quadratic to the remaining data in each quarter. We apply a high pass median detrending filter to the residuals, after filling gaps in the data with a cubic polynomial to mitigate edge effects in the filtering process. We sigma clip the remaining data to remove 5$\sigma$ outliers.

We apply this process to both the row and column centroid values to quarters 4, 5, 6, and 7 (four consecutive, and relatively well behaved, quarters). We take the FT of both the row and column time series, then plot the quadrature sum of the Fourier transforms. We show and example in Figure 3. The strongest signal in the resulting spectrum is due to the 3 day focus shift caused by the reaction wheel heater discussed in §5.2 of the Kepler Data Characteristics Handbook Van Cleve & Christiansen (2016). Three of our stars, KIC 8719324, KIC 8164262 and KIC 8775034, have a measured star spot period in this range. We cannot disentangle the reaction wheel heater cycling from possible background star contamination so we cannot eliminate this possible background star contamination. We conclude that there is no evidence in the centroid data that the star spot signal from any of our other stars is due to contamination from a background star.

3 The Pseudosynchronization Rate

We calculated the pseudosynchronous rotation frequency based on tidal synchronization theory Hut (1981), which assumes tidal dissipation of the equilibrium tide via a constant parameterized time lag $\tau$. In this theory the pseudosynchronous rotation rate is independent of $\tau$, and is a function of only eccentricity and orbital frequency. The pseudosynchronization rate is determined from a weighted average orbital velocity involving the eccentricity and orbital period. The following equation from Hut (1981) gives the pseudosynchronized rotation rate $\Omega_{ps}$ in terms of the eccentricity $e$ and the orbital frequency $\omega$:

[TABLE]

The errors in pseudosynchronization rate were obtained by propagating the error in the eccentricity. In all cases, because we have four years of Kepler data, the orbital frequency is known to a high enough precision to be a negligible portion of the error. Because this equation depends so heavily on eccentricity, we only calculate the pseudosynchronization period for those stars with measured eccentricities. Those from radial velocity measurements are used when available because they are more reliable (Smullen & Kobulnicky, 2015; Shporer et al., 2016). We expand our sample by including the less reliable eccentricities reported from purely photometric fits (Thompson et al., 2013) and use a 0.05 error on the eccentricities. The source of the eccentricity measurement is noted in the rightmost column of Table 1.

4 Results

Rotation periods were successfully measured for 24 highly eccentric systems with known heartbeat signals. For 18 of these targets we had eccentricity measurements and were able to compute the pseudosynchronization rate for comparison. See Table 1 for a tabulation of our results and Figure 4 for a plot of rotation rate vs pseudosynchronization rate.

Given the expectation that the rotation should tidally pseudosynchronize, we can split the population into three groups. 1) The majority of the systems have a rotation period that is $\approx 3/2$ times the pseudosychronization period. 2) Four systems have rotation periods significantly longer than that expected from Hut (1981). Two HBs show a rotation period that is shorter than the pseudosynchronization period. For 4 systems, KIC 3547874, KIC 5034333, KIC 5790807, and KIC 677504, we found two sets of rotation peaks. In all but one case, KIC  5034333, the rotation rates were approximately the same period.

When looking in the Fourier space for several of these systems, we note that not all peaks can be explained with only the heartbeat signal and the rotation of the stars, lending some doubt on our final interpretation of the Fourier peaks. Systems with unusual features are noted below.

KIC 4659476

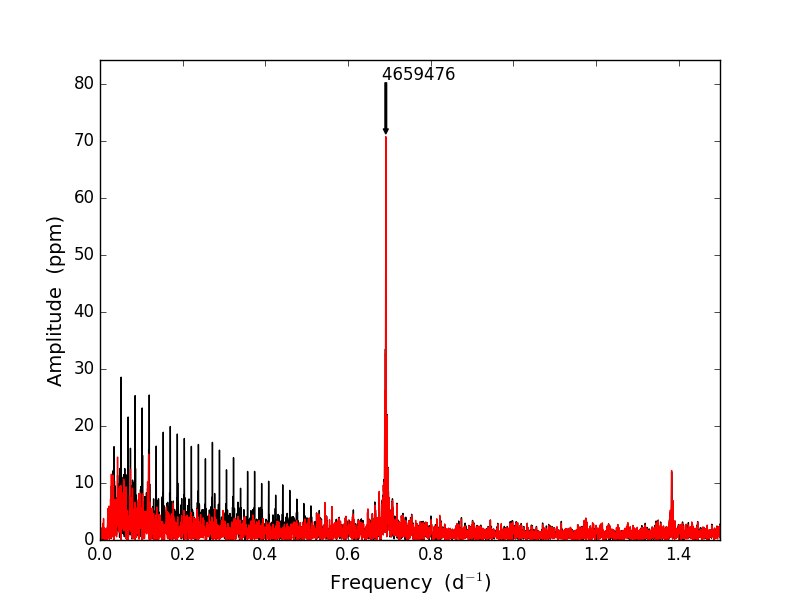

The rotation peak for this star has a very large amplitude, however the period is very small (1.446 d). It is possible that it has two symmetric spots, which would cause us to measure the rotation period at half the true period. However, even then the period is significantly shorter than the pseudosynchronization period. A long period excess exists in the residuals of the Fourier spectrum, but it does not have the typical harmonic signature of rotation.

KIC 5034333

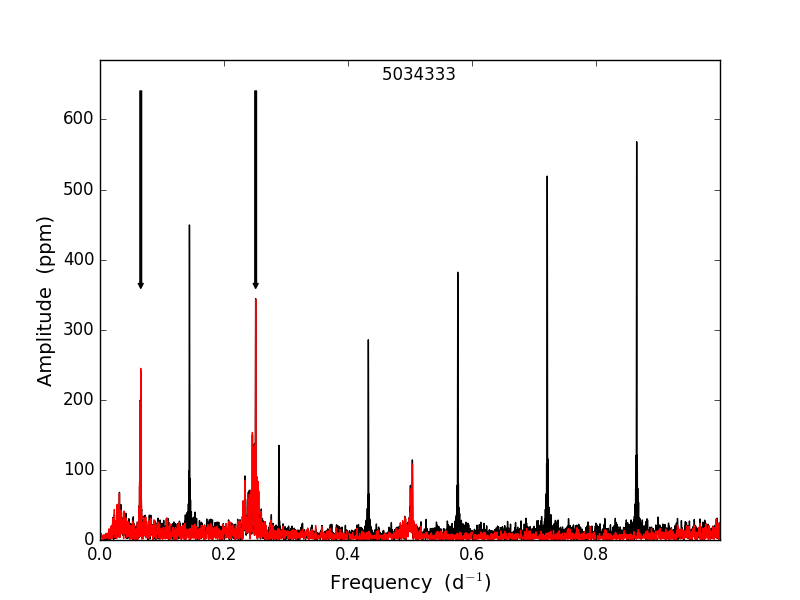

This star shows a strong typical rotation peak at 3.98 d. See Figure 1. There is also a significant set of peaks at 15.2 d, that has only a hint of a harmonic, that we interpret as a rotation peak due to its broad signature and second harmonic. If these are the rotation periods of the two stars in the HB, then one has almost reached pseudosynchronization while the other has not.

KIC 5790807

This star shows two sets of rotation peaks. The frequencies surrounding these peaks were somewhat discrete for a rotation signature, but we fit both peaks and their surrounding noise separately and got two different rotation signatures. These peaks also seem to grow in separation with the second harmonic and then revert to their primary separation at the third harmonic.

KIC 5818706

This star had two very close peaks in its Fourier transform. However, there were no harmonics associated with the second rotation peak, so we did not include that extra peak in our final measurements. If that peak is caused by spots on the secondary star, it would have a period equal to 9.17 d, similar to the rotation period we measured for the primary.

KIC 6775034

We found two sets of peaks that are likely due to the rotation of the two stars in the heartbeat star system. The larger amplitude signal has almost pseudosynchronized with the orbit while the lower amplitude signal is near to the 3:2 ratio. However, a third set of peaks with a harmonic is also visible in the Fourier transform. If this set of peaks was caused by spot rotation, it would indicate a rotation period of 16.29 d, significantly longer than indicated by the other peaks in this transform.

5 Discussion

We know from the Kepler stellar catalog (Mathur et al., 2017) and the spectroscopic follow-up of these stars (Shporer et al., 2016) that the primary star is usually classified as an AFG-type star. Since the majority of the light originates from the primary star, our measured rotation periods likely originate from the primary star. For stars in the 6,000 - 6,500 K range the typical rotation period measured by McQuillan et al. (2014) was measured to be in the range of 5 - 15 days. Thus, our measured rotation periods are not much different than in typical F and G type stars. However, none of these HBs, regardless of spectral type, have clearly reached pseudosynchronization.

Highly eccentric binary systems are expected to synchronize and circularize at a rapid rate because their tidal interactions are efficient at dissipating energy and angular momentum. The theory of this process is well described in Zahn (1977), Hut (1981) and later by Khaliullin & Khaliullina (2010) and Khaliullin & Khaliullina (2007). These papers agree that the pseudosynchronization of the rotation should occur well before the orbital circularization. Given that these systems have not circularized, it has been suggested that some other force, such as a third body, is maintaining this eccentric state in spite of the tidal forces. Evidence that this may be true for HBs can be seen in the rapid apsidal motion seen by Hambleton et al. (2016). The fact that the rotation has also not synchronized could place strong limits on how long the binary system has lived in this strongly tidal configuration.

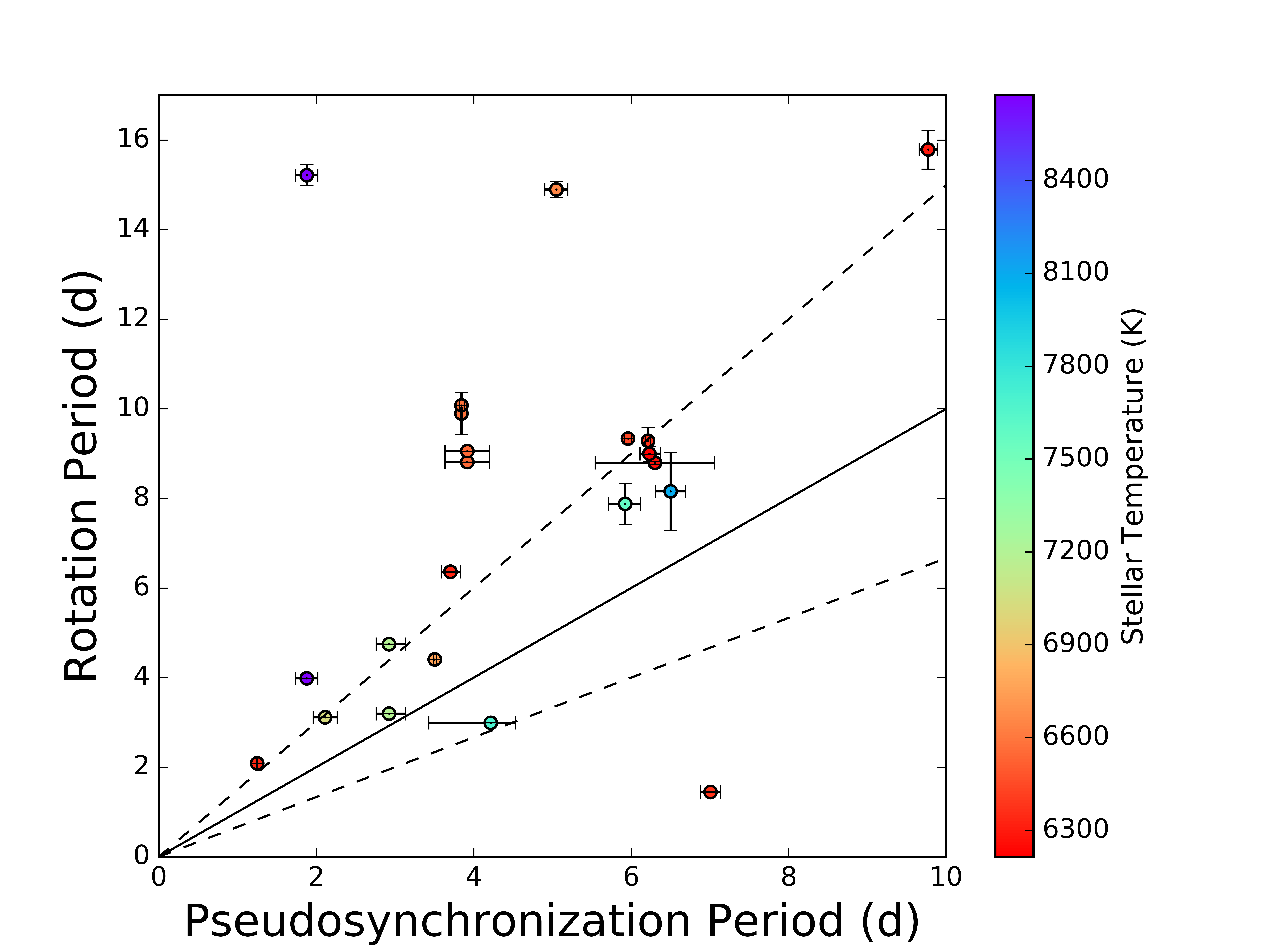

Our rotation period measurements show that the majority of the rotation periods do follow a trend. Most stars have a rotation period that is $\approx\frac{3}{2}$ times the pseudosynchronization period. Our rotation period measurements show that the majority of the rotation periods are slightly longer than predicted by the pseudosynchronous rotation rate Hut (1981). One possible reason is that the damping of the equilibrium tide according to the constant lag time model of Hut (1981) is not the dominant tidal torque in these systems. The rotation rate may instead be controlled by the action of dynamical tidal effects such as tidally excited gravity modes, which are indeed observed in some of these systems, e.g., KIC  3547874 and KIC  50343333. Another possibility is that additional non-tidal torques are important, such as magnetic braking that slows down Sun-like stars with convective envelopes. We expect some level of magnetic braking in our targets since their rotational modulation is presumably the result of magnetic spots created by an active magnetic dynamo (Havnes & Conti, 1971; Provencal et al., 2017). If the braking can compete with tidal pseudosynchronization, it could cause the stars to rotate at somewhat longer periods.

Though we interpret the peaks as primary star rotation, there are possible other physical effects that could be causing us to be measuring another property of the stellar system. Our rotational measurements could be of the secondary and not the primary star. Since the secondary should also be pseudosynchronous, this measurement is still useful and applicable to tidal theory. We could also be measuring the rotation of a third star, either bound or unbound in the HB system, on the same pixel. This would mean the third star contributes significant luminosity to the system, and its radial velocity. The third star would likely have magnetically braked to longer periods, so this would give a measurement much longer than the expected pseudosynchronization (Havnes & Conti, 1971). Another binary in the same Kepler pixel could cause us to measure ellipsoidal variations in another binary system other than the HB system. The non-HB binary would have to be much fainter than the HB. This is a reasonable possibility for the rotation measurement KIC   4659476, given its unusually short rotation period. In this case, the second binary may be quite faint compared to the primary. Since ellipsoidal modulation tends to be larger for shorter period binaries, this would likely cause our measurements to be shorter than expected.

For targets with RV measurements(Shporer et al., 2016; Smullen & Kobulnicky, 2015), we know that the spectral lines were not broadened by very rapid rotation. This could indicate that the primary star does not rotate rapidly, so the peaks in its Fourier transform do not correspond to the primary’s rotation. Narrow Fourier peaks with larger amplitude compared to the orbital peakswould point towards indicate a measurement of a source other than rotation. Instead, we could be measuring rotation of a different star, or a close binary on the same Kepler pixel.

Additionally, the surface of the stars may be differentially rotating. In this case, long-lived spots at different latitudes could produce rotational signals at multiple periods, which would create two or more peaks in the Fourier transform. The discrete peaks in KIC   3547874 could be indicative of this differential rotation. In binaries, it is theorized that the tidal friction plays a key role in the efficient synchronization of the system (Giuricin et al., 1984); however, the role must be further examined, given that these HB stars clearly have large dynamic tidal forces but still have not pseudosynchronized. The tidal interactions in these systems can also be affected by the nature and evolution of the star: in stars with convective envelopes, turbulent tidal friction can affect the equilibrium tide, while in stars with radiative convective envelopes, radiative damping can also be responsible for slowing the tidal dynamics (Zahn, 1977).

Those systems that lie much above the synchronization line are a bit of a mystery. They suggest that either the strong tidal forces are insufficient to change to rotation periods, or that they have been in this eccentric configuration for too little time to allow for the tides to synchronize the rotation. The tidally induced pulsations in these stars can also play a role in affecting the orbital and rotational dynamics (Hambleton et al., 2013).

The odd star KIC 4659476 has an unexpected unusually short rotation rate. While in most cases, this could also be caused by contamination or a background source, it is unusual for stars to rotate at such a short period, so contamination from another source is less likely, though still a reasonable possibility. The stellar parameters for this star indicate that it is a subgiant: the Kepler stellar catalog (Mathur et al., 2017), using the granulation driven light curve method called ’flicker’ (Bastien et al., 2016) to obtain an accurate log(g), gives a stellar temperature of 6384 K, log(g) of 3.972 and a mass of 1.31 solar masses. One type of rapidly rotating subgiant is known as an FK Comae variable and is believed to be caused by merging a W UMa contact binary system (Bopp & Stencel, 1981). If this system was previously a triple star system and is now an FK Comae variable in an eccentric binary, we may expect this target to be X-ray bright or show chromospheric activity (Howell et al., 2016).

6 Conclusions

We successfully measured rotation for 24 HBs; for 18 HBs we also found the predicted pseudosynchronization rate using tidal synchronization theory (Hut, 1981). As is seen in Figure 4, the rotation of these noteworthy stars do not follow the expected pattern. Instead, these stars are clustered around roughly $\frac{3}{2}$ times the predicted rotation rate, indicating that they have plateaued prematurely in their synchronization. This could also indicate that the pseudosynchronous rotation rate predicted by the constant time lag model of Hut (1981) does not hold true for HB systems, perhaps because other effects, such as dynamical tides or magnetic braking, more greatly influence the star’s evolution.

As more HBs with photometrically determined rotation periods are found with survey missions like K2 (Howell et al., 2014), TESS [Transiting Exoplanet Survey Satellite] (Ricker et al., 2014), and PLATO [PLAnetary Transits and Oscillations of stars] (Rauer et al., 2014) we will be able to further explore the strong dynamic tidal forces that are influencing the evolution of these binary systems.
