Spreading of non-motile bacteria on a hard agar plate: Comparison between agent-based and stochastic simulations

TL;DR

This study compares agent-based and stochastic continuum models to understand how non-motile bacteria colonies spread on agar, revealing how nutrient levels and noise influence colony morphology.

Contribution

It introduces a combined analysis of agent-based and stochastic models to explain bacterial colony spreading and morphology transitions.

Findings

Population fluctuations are inherent in agent-based models.

Decreasing nutrient concentration causes a transition from DLA to Eden-like morphology.

Intrinsic noise and non-linear diffusivity drive morphology changes.

Abstract

We study spreading of a non-motile bacteria colony on a hard agar plate by using agent-based and continuum models. We show that the spreading dynamics depends on the initial nutrient concentration, the motility and the inherent demographic noise. Population fluctuations are inherent in an agent based model whereas, for the continuum model we model them by using a stochastic Langevin equation. We show that the intrinsic population fluctuations coupled with non-linear diffusivity lead to a transition from Diffusion Limited Aggregation (DLA) type morphology to an Eden-like morphology on decreasing the initial nutrient concentration.

Figures

Tables

Table 1. Table 1: Parameters and constants used in the agent-based model

Parameter	Symbol	Simulations
Maximum length	$l_{max}$	$3.0\mu$m
Diameter of cell	$d_0$	$1.0\mu$m
Linear growth rate	$\varphi$	$1.5\mu m$ $h{r}^{-1}$
Cell-division rate	$k_{div}$	$0.1h{r}^{-1}$
Elastic modulus of alive cells	$E$	$3\times {10}^{5}Pa$
Friction coefficient	$\zeta$	$200Pa.hr$
Nutrient consumption rate	$k_c$	$6.0h{r}^{-1}$
Diffusion rate of nutrient	$D$	$1\mu m^{2}h{r}^{-1}$

Equations

$${\partial }_t\rho$$

$$\frac{\partial c}{\partial t}=D\left(\frac{{\partial }^{2}c}{\partial x^2}+\frac{{\partial }^{2}c}{\partial y^2}\right)-k_c\sum A_{i}f(c(x_i,y_i)),$$

$$\dot{\mathbf{r}}$$

$$\omega$$

$${\partial }_{t}c$$

$${\partial }_t{\rho }_B$$

$${\partial }_t\rho$$

$${\partial }_t{\rho }_B$$

$${\partial }_t\rho$$

$${\partial }_t{\rho }_B$$

$$V\equiv\frac{d}{dt}\Big{<}\frac{1}{L}\int_{\Omega}\,\frac{\rho_{B}(\bm{x},t)}{\rho(\bm{x},t)}\,d\Omega\Big{>}.$$

$$\frac{d\rho }{dt}=\sigma \sqrt{\rho (1-\rho )}\eta (x,t)$$

$$\frac{d\rho }{dt}=\sigma \sqrt{\rho }\eta (x,t)$$

$${\partial }_{t}P(\rho ,t)$$

$$P(\rho ,t)$$

Full text

Bacteria growth; pattern formation; population fluctuations

I Introduction

Pattern formation is perhaps one of the most fascinating aspect in a broad range of natural phenomena Cross and Hohenberg (1993); Marchetti et al. (2013); Kondo and Miura (2010). Bacteria in a Petri dish environment exhibit a large variety of complex spatial patterns ranging from compact circular growth, concentric rings to long branched patterns Wakita et al. (1994); Woodward et al. (1995); Shapiro (1995); Ben-Jacob (1997); Ben-Jacob et al. (1998); Verstraeten et al. (2008); Korolev et al. (2010); Deng et al. (2014). The colony morphology depends upon various factors such as nutrient concentration, cell motility, growth-proliferation and death dynamics, and other chemical and physical variables Mitchell and Wimpenny (1997); Harshey (2003); Shimada et al. (2004); Kaito and Sekimizu (2007); Fauvart et al. (2012); Kumar and Libchaber (2013); Deforet et al. (2014); Giverso et al. (2015); Wu (2015). In a classic experiment, Wakita et al. Wakita et al. (1994) obtained the phase-diagram of Bacillus subtilis colony morphology as a function of nutrient concentration and solidity of agar medium and identified five basic morphologies: (A) diffusion limited aggregation (DLA), (B) Eden-like, (C) concentric ring-like, (D) homogeneous spreading, and (E) dense branching morphology (DBM). Similar morphological patterns have also been observed in growing yeast colonies Sams et al. (1997). Several studies Ben-Jacob et al. (1994); Kawasaki et al. (1997); Golding et al. (1998); Ben-Jacob et al. (2000); Ghosh et al. (2013); Patra et al. (2016); Schwarcz et al. (2016a), since then, have proposed mathematical models to investigate the phase-diagram of Ref. Kawasaki et al. (1997). These models can be broadly classified into two categories:

1. (i)

Agent based models — In these models each bacteria is treated as an entity and the collective spatiotemporal behavior largely depends upon the local interactions among them. These interactions can arise from mechanical forces exerted by bacteria as they grow, divide and push each other and spread on a hard substrate. How individual interactions turn out to be significant in forming collective orders, have been explored successfully by using agent based models in some of the earlier studies Korolev et al. (2011); Farrell et al. (2013); Ghosh et al. (2015). Ref.Korolev et al. (2011) utilized an agent-based model of spatial population genetics to explore the role of demographic noise and genetic drifts in bacteria population. Farrell and co-workers  Farrell et al. (2013) have used an agent-based model to explore mechanically-driven growth of non-motile rod-like bacteria in an expanding colony which undergoes transitions from circular to branched morphologies with varying nutrient consumption rate or nutrient concentration. Recently, in Ref.(Ghosh et al., 2015) mechanical-driven spontaneous phase-segregation of nonmotile, rodshaped bacteria and in presence of self-secreted extracellular polymeric substances in a growing biofilm has been explored using an agent-based model. 2. (ii)

Reaction diffusion equations — Here we treat bacteria colony density and nutrient concentration as fields and write continuum equations for them. The bacteria motility and the nutrient spreading is modeled by a diffusive term and the birth and death is modeled with a reaction term. Perhaps the most widely used reaction-diffusion equation is the Fisher equation Fisher (1937) [Eq. (1)] which has been successfully used to model homogeneous spreading (type-D morphology) of bacteria on a soft-agar plate and in a nutrient rich environment.

[TABLE]

where $\rho$ is the bacteria colony density and $Z$ is its carrying capacity. Several studies have incorporated the effect of the nutrient concentration and bacteria motility by coupling Eq. (1) with an additional equation for each of these variables to obtain different morphological patterns that were discussed above Wakita et al. (1994); Woodward et al. (1995); Shapiro (1995); Ben-Jacob (1997); Ben-Jacob et al. (1997, 1998); Lega and Passot (2004); Verstraeten et al. (2008); Korolev et al. (2010); Deng et al. (2014); Chatterjee et al. (2016). Studies designed to investigate the role of demographic noise use the stochastic variants of Eq. (1) Kolmogorov et al. (1937); Doering et al. (2003); Korolev et al. (2010); Perlekar et al. (2011); Benzi et al. (2012); Pigolotti et al. (2013).

However, how and to what extent nutrient concentration, nutrient diffusivity, growth-proliferation and inherent population fluctuations altogether govern the microbial growth dynamics, morphological trends are yet to be explored in details. In this paper, we explore the morphological spatial dynamics of non motile bacteria growing on a hard agar plate with varying initial nutrient concentration and diffusivity. Our numerical investigation using agent based and continuum models are designed to mimic the experiments of Wakita et al. Wakita et al. (1994) which show a transition from branching to an Eden like pattern. Our approach is different than earlier studies Lacasta et al. (1999); Ben-Jacob (1997); Ben-Jacob et al. (1997, 1998); Schwarcz et al. (2016b) where the bacterial morphological patterns were attributed to substrate properties such as irregularities on the agar substrate Lacasta et al. (1999), substrate hardness that depends on the agar concentration and local lubrication created by bacteria Schwarcz et al. (2016b), and nutrient concentration. However, these models ignore the role of population fluctuations that have been shown Kessler and Levine (1998); Korolev et al. (2010); Nesic et al. (2014) to play a crucial rule in determining the growth, competition and cooperation in bacterial colonies under nutrient rich conditions.

In Section  II we utilize an agent-based model to investigate the growth dynamics and morphological trends of non motile rod-shaped bacteria growing and spreading by consuming a diffusive nutrient on a hard agar surface. The substrate is assumed to be uniform and frictionless. This agent-based model automatically takes care of finite-size and particle nature of the organisms. Unlike in Ref Farrell et al. (2013), the nutrient resource is limited and initially kept fixed and uniform in our model in a Petri-dish like set up. We find that growth and morphological dynamics of growing colony depends upon the interplay of local nutrient availability, nutrient diffusivity and mechanical interactions. Colonies growing on a nutrient rich substrate show a rapid growth and a smooth front (type-B) morphology whereas, those growing on a nutrient deficient substrate show slower growth and branched or finger-like structures (type-A) at the front. In contrast to Ref Farrell et al. (2013), we also find that nutrient diffusivity can affect bacteria growth dynamics. For fixed resources, reducing nutrient diffusion leads to a slowly growing colony with larger final size whereas high nutrient diffusivity leads to rapidly growing small colonies.

Motivated by the results from our agent-based model, in Section III we present a continuum model to study the role of nutrient concentration on spreading of bacteria colony. We assume substrate to be uniform and without inhomogeneities and do not consider substrate-bacteria interaction. Our numerical experiments show that population fluctuations and nutrient dependent bacterial diffusivity destabilize the front and leads to formation of finger-like patterns in nutrient deprived conditions. Similar to the agent based model, we find that increasing initial nutrient concentration leads to a faster growing colony. We show that the front speed follows the mean field predictions. The front structure undergoes a transition from a branching pattern to an Eden pattern on increasing the initial nutrient condition. We conclude by contrasting the similarities and the differences between the agent-based and the continuum-model.

II Agent based model

We consider an agent-based model Farrell et al. (2013); Ghosh et al. (2015) of nonmotile bacterial cells to study colony growth on a hard agar plate. Individual cells are represented by a growing sphero-cylinder of constant diameter ($d_{0}=1\mu m$) and variable length $l$. We consider a two dimensional semi-solid square surface of length $L\equiv 200\mu$m (unless otherwise stated in the text), for colony growth. The location of bacterial cell is represented by a two dimensional spatial coordinate ${\bm{r}}=(x,y)$ and the orientation of its major axis is determined by two unit vectors $(u_{x},u_{y})$. In our model, the growth of a cell depends on its size and the local concentration of the diffusing nutrient. The initial nutrient concentration is fixed to $C_{0}$ on all grid points. Bacteria consumes nutrients proportional to it’s area and grows which leads to the governing equation for nutrient concentration,

[TABLE]

where $A_{i}=\pi r_{0}^{2}+2r_{0}l_{i}$ is the area of ith individual, $r_{0}=d_{0}/2$ is the radius of end-caps, $l$ is the length of the cell and $x_{i},y_{i}$ are its spatial coordinates. The nutrient is utilized by the microbial cells at a constant rate $k_{c}f(c)$ per unit biomass density where $f(c)$ is a monotonically increasing dimensionless function. We choose $f(c)=c/(1+c)$, a monod function with half-saturation constant equal to one, i.e. concentrations are measured in units of half-saturation constant. In our model individual bacteria grows along it’s major axis as per the relation ${dl_{i}}/{dt}=\phi(A_{i}/\bar{A})f[c(x_{i},y_{i})]$ where $\phi$ is the constant growth parameter and $\bar{A}=\pi r_{0}^{2}+\frac{3}{2}r_{0}l_{max}$ is the average area Farrell et al. (2013); Ghosh et al. (2015). Once a cell reaches a critical length $l_{max}$, it stops growing further and divides at a rate $k_{div}$ into two independent daughter cells. The orientation each of daughter cell can be different than that of the mother cell because of various environmental factors like slight bending of the cells, elastic forces between cells etc. To achieve this, we give small random kicks to the orientations of daughter cells, after the division. This also prevents the cells from growing in long filament like structures. The length of the daughter cells is chosen such that the combined length of the two daughter cells is equal to the length of the mother cell. This criterion fixes the length of the daughter cell to $l_{d}=(l_{max}-d_{0})/2$. This represents symmetric division which occurs in most bacteria. However, there are scenarios where asymmetric division can occur in some bacteria Kieser and Rubin (2014), which we do not consider in the present study.

In our model, individual cells interact directly by mechanical interaction in accordance with the Hertzian theory of elastic contact Volfson et al. (2008) by repulsive forces with neighbouring cells in case of spatial overlap. In a dense colony of nonmotile bacteria, inertial forces can be neglected and we consider only the over-damped dynamics as given by the equation of motion (Farrell et al., 2013):

[TABLE]

where $\zeta$ is the friction per unit length of cell. Bacterium position and the angular velocity are represented by ${\bm{r}}$ and $\omega$ respectively. The corresponding linear forces and torques are ${\bm{F}}$ and $\tau$. The force between two spherocylinders is approximated by the force between two spheres placed along the major axis of the rods at such positions that their distance is minimal Farrell et al. (2013); Ghosh et al. (2015). If the closest distance of approach between the two nearby spherocylinders is $r$, such that $h=d_{0}-r$ is the overlap, then the force magnitude is assumed to be ${F}=Ed_{0}^{1/2}h^{3/2}$, where $E$ parametrizes the strength of the repulsive interaction proportional to the elastic modulus of the cell. $E\longrightarrow\infty$ implies perfectly hard cells but in reality we use a finite value of $E$ (see Table 1) in our simulations, allowing for some deformation of the cells. In addition to the direct mechanical cell-cell interaction there is a competition for the local nutrient which can be considered as an indirect interaction between microbial cells mediated by the environment. All the agent-based simulations are performed in two-dimensional square box with periodic boundary conditions. As initialization, a few number ($N=300$) of bacteria cells of same aspect ratio and random orientations are placed in a 1D inoculation along the line between the two points $(0,L/2)$ and ($L,L/2$), in a narrow strip of about $l_{max}$ in $y$-direction. We use a simple Euler method for the time-evolution of the equations of motion i.e. Eq(2.2) and (2.3) and a central finite-difference scheme to solve the nutrient diffusion in Eq(2.1).

II.1 Results: Morphology and Speed

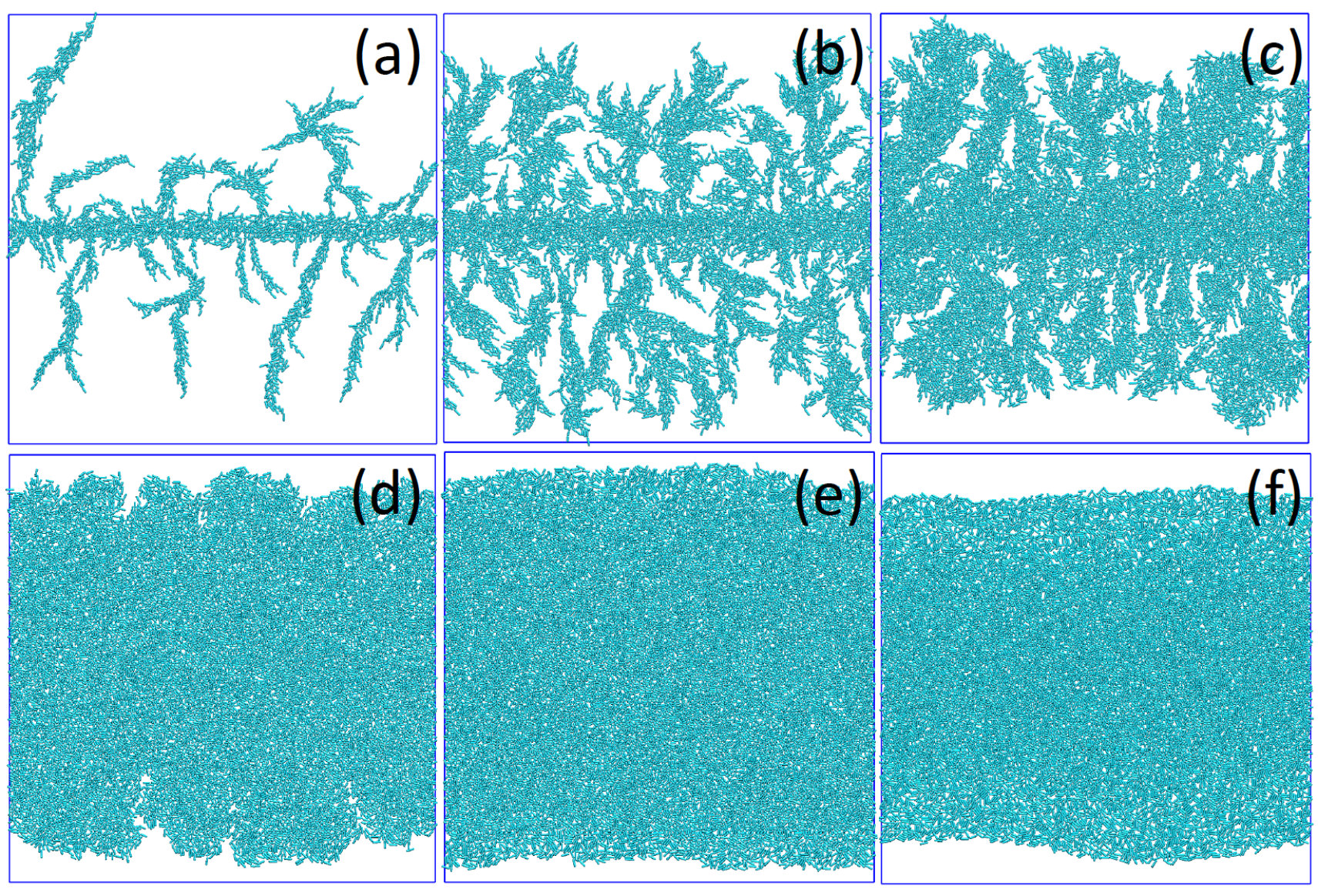

The major focus of the present study is to understand the role of initial nutrient concentration and nutrient diffusivity on the growth dynamics and morphology of a colony. We begin our study by placing a few number ($\sim 300$) of cells in a 1D inoculation along the line formed by joining the points $(0,L/2)$ and $(L,L/2)$. We vary the initial nutrient concentrations $C_{0}$ from very low $C_{0}=10$ to very high $C_{0}=400$ values while keeping all the other parameters fixed as given in the Table-1. Fig. 1 demonstrates different morphologies of growing colonies with the variation of $C_{0}$. We find that for small $C_{0}=10$, the colony front develops finger-like patterns. As we increase the initial nutrient concentration from $C_{0}=50$ to $C_{0}=200$, finger-like patterns are replaced by branched structures. On further increase of initial nutrient concentration to very high values $C_{0}>250$, the rough branched fronts are replaced by smoother colony fronts. Note that for all the cases simulated above, the cells at the front grow by consuming nutrients while the rest of the cells behind the front stop their growth due to complete depletion of nutrient and become frozen.

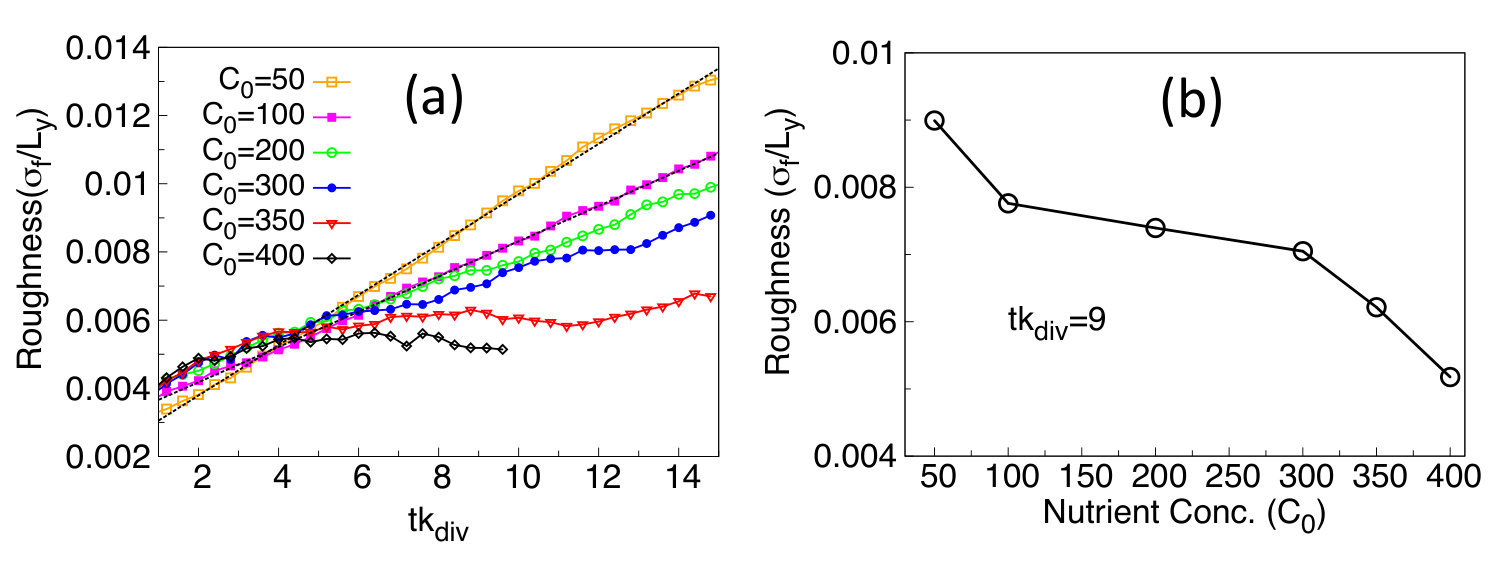

To quantify the changes in the growth dynamics and the colony morphology we calculate a roughness parameter $\sigma_{f}$ which is the ensemble averaged standard deviation of height of the colony front.The front height is determined as follows. We discretize the simulation domain along the X-direction into equal bins of size comparable to the length of daughter cell($l_{d}$), and find out an individual $i$ whose $x_{i}$ belongs to the bin and $y_{i}$ is maximum, then the height of the front at the bin is set to $y_{i}$. In Fig. 2(a), we plot roughness versus time for different values of $C_{0}$. For large values of $C_{0}\geq 350$, $\sigma_{f}$ is very small and almost constant in time whereas, it increases in time for $C_{0}<350$ indicating formation of finger or branched structures. For smaller values of $C_{0}\leq 200$, we find a linear variation of $\sigma_{f}$ with respect to time. To further quantify the variation in the front thickness in well-developed colonies, in Fig. 2(b), we plot $\sigma_{f}$ after nine generations ($tk_{div}=9$). We find that the front roughness increases with decreasing $C_{0}$ in agreement with the morphological trends shown in Fig. 1.

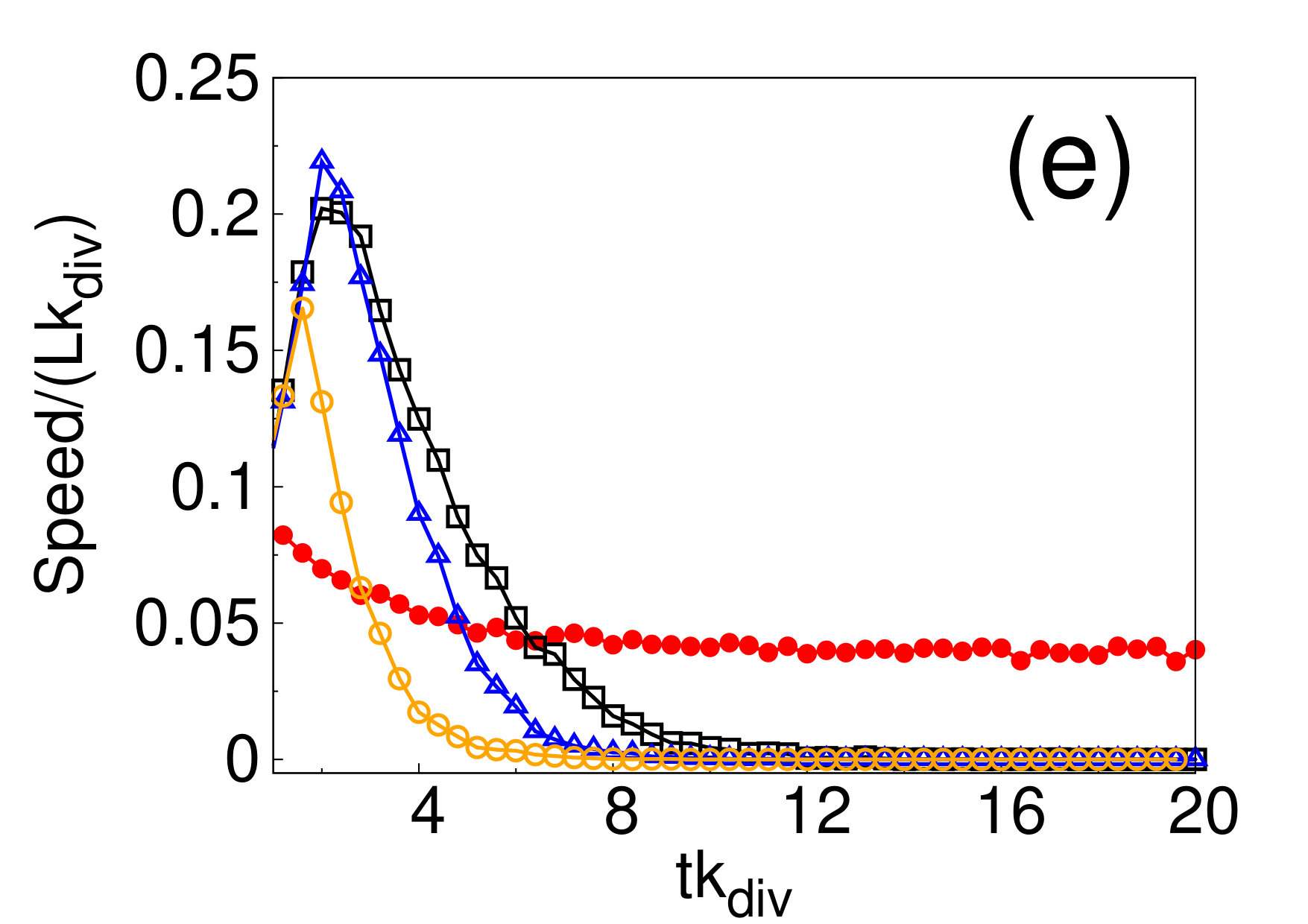

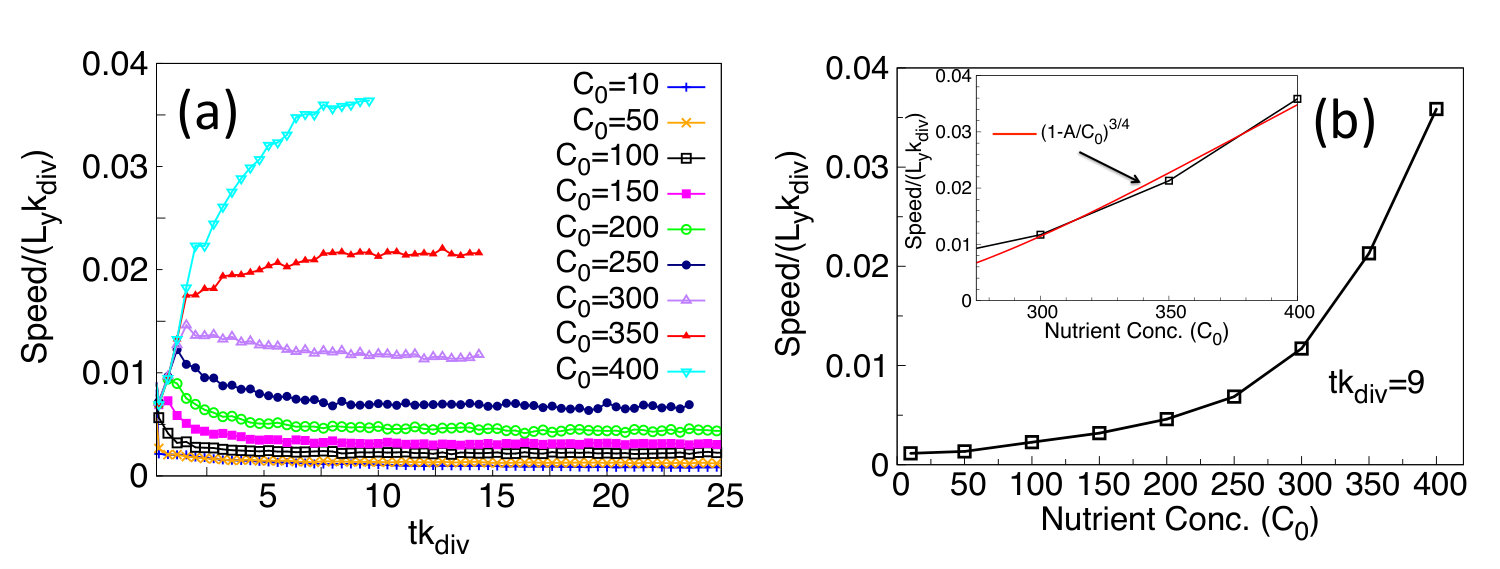

We now investigate how nutrient limitation influences the speed at which a colony spreads. The front speed is calculated as ensemble average of the rate of change of the covered area $A_{C}$ over the box length ($L_{y}$) in the spreading direction Y, i.e. speed $V=\frac{1}{L_{y}}\langle dA_{C}/dt\rangle$ where $\langle\rangle$ denote ensemble averaging. The plot in Fig. 3(a) shows that the asymptotic front speed of the colony increases with increasing $C_{0}$. For large $C_{0}$, the initial increase in speed is because of abundance of nutrients at $t=0$ which leads to rapid cell divisions both in the bulk as well as the colony front. The front speed achieves the asymptotic value when the nutrient consumption balances the diffusion. In Fig. 3(b), we plot the asymptotic spreading speed at ninth generation ($tk_{div}=9$) for different values of $C_{0}$ and observe that colonies on nutrient rich substrate spread faster. We also observe that for $C_{0}>C_{\star}$, $V\sim\alpha[1-C_{\star}/C_{0}]^{3/4}$ Farrell et al. (2013) where $\alpha$ is a fitting parameter and $C_{\star}=192$ is the approximate value of the concentration at which we observe colony morphology transition from branched to uniform.

II.2 Results: Nutrient diffusivity

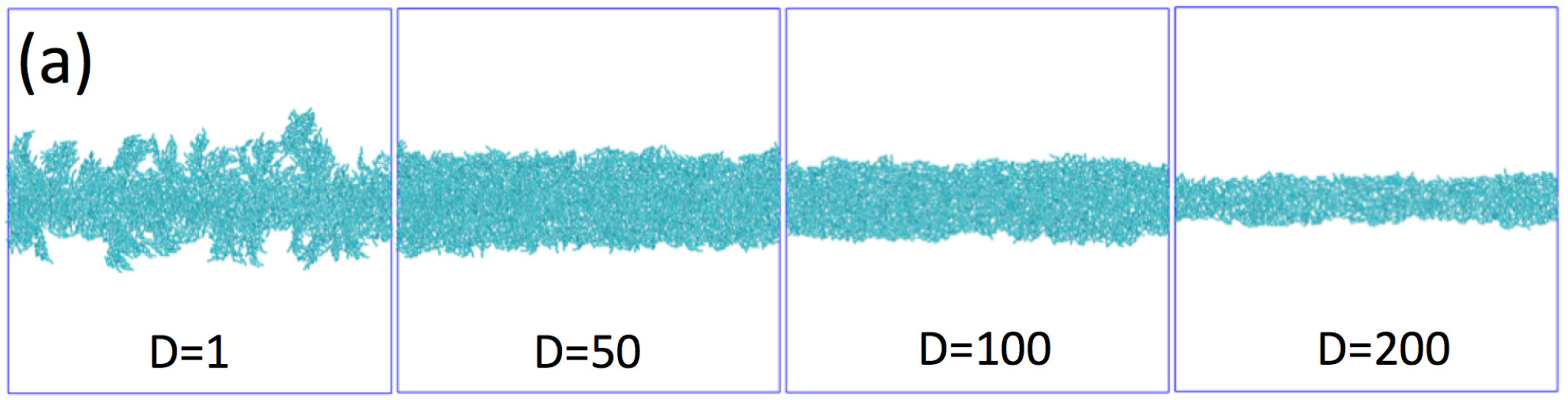

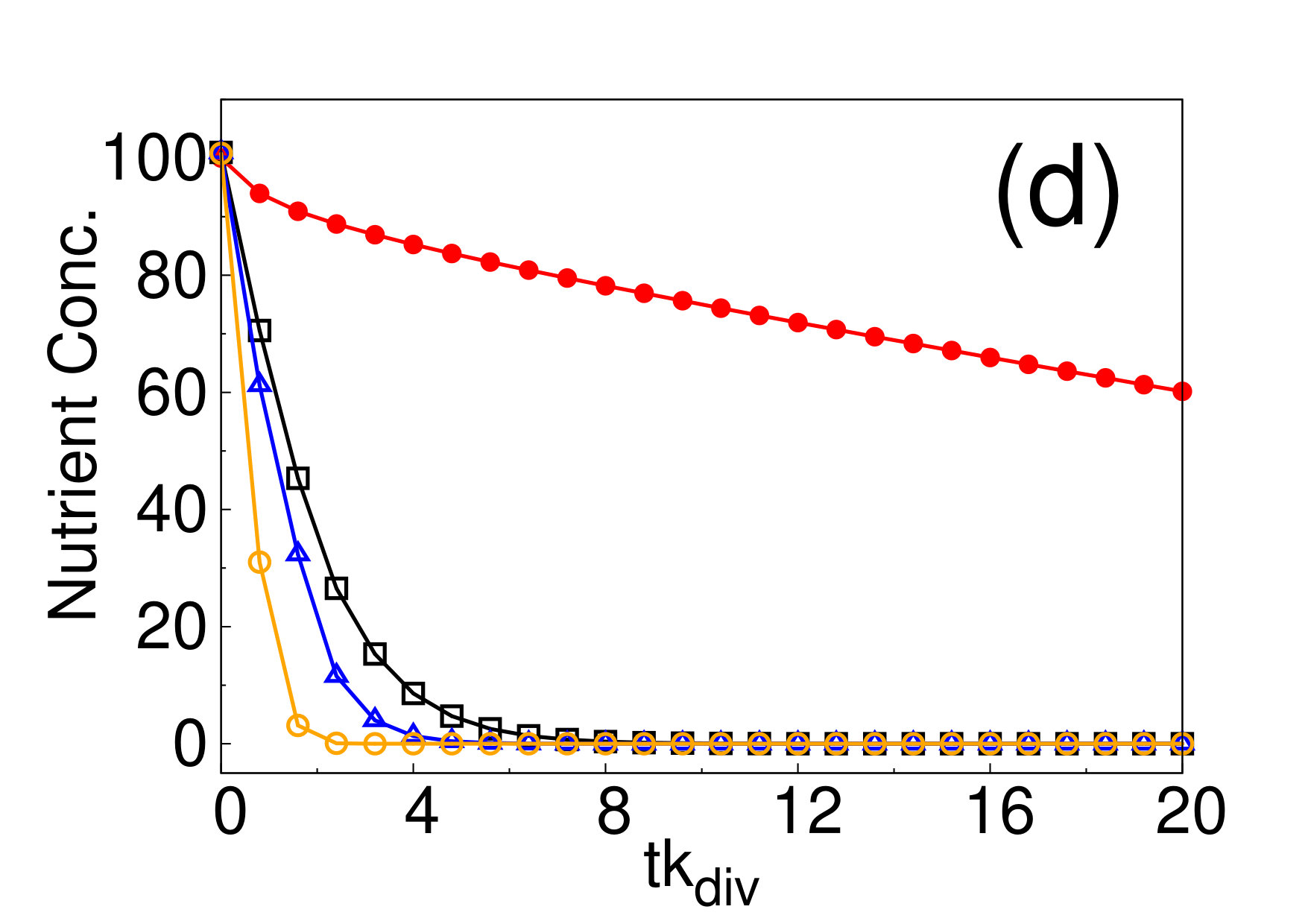

To gain further insight on the role of nutrients in colony growth and its morphology, we now vary the value of diffusion coefficient $D$ for a fixed initial nutrient concentration $C_{0}=100$. We find that the colony morphology changes from branched to smoother fronts as we increase the diffusion coefficient from $D=1$ to $D=200$ [see Fig. 4(a)]. For small values of nutrient diffusivity $D=1$ only the cells at the frontier get nutrients and thereby grow and divide. On the other hand, for large values of $D\geq 50$, the local nutrients utilized by cells are quickly replenished from the surrounding regions because of high diffusivity. The cells in the interior as well as the front keeps on multiplying filling up densely the entire space until the overall nutrient concentration becomes negligible.

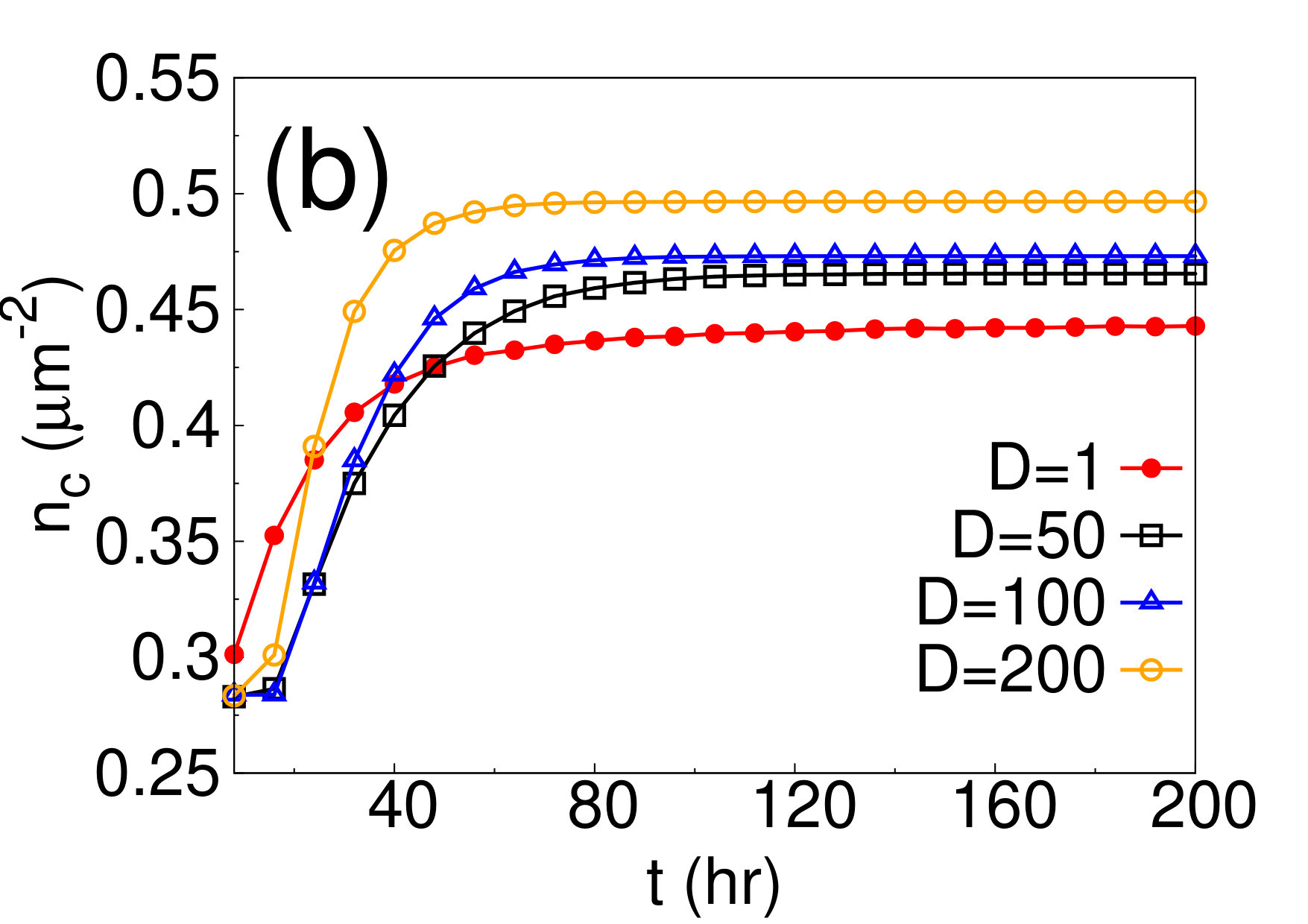

We find that the cell number density $n_{c}$, where $n_{c}$ = (total number of cells/covered area by the cells) initially increases and reaches a steady-state over long times [see Fig. 4(b)]. The growth in $n_{c}$ is fastest for higher $D$ as the nutrients are replenished faster. The slight variation $\sim 5\%$ in the steady state cell-density is attributed to the variation in the bacterial sizes of the population.

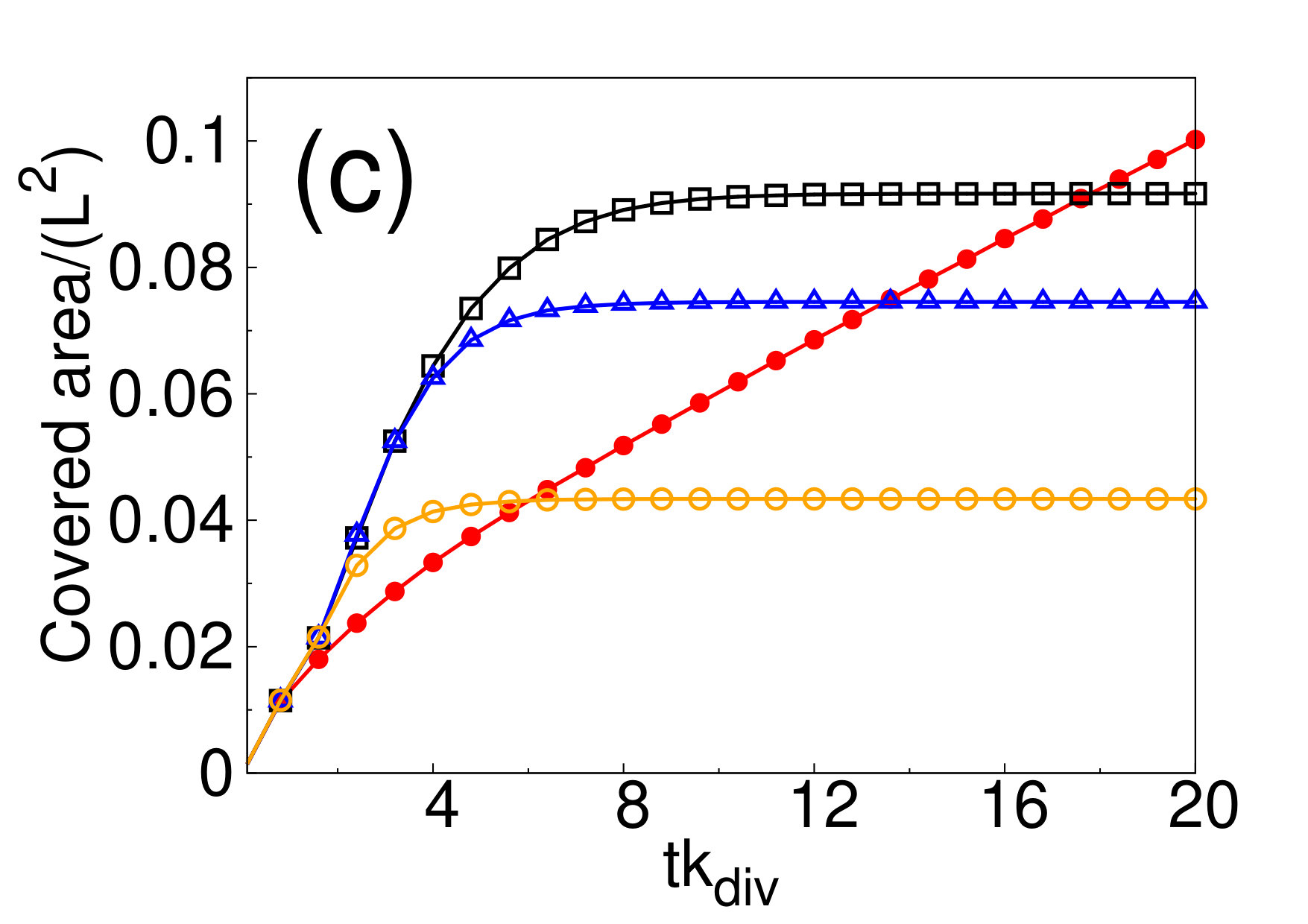

More intriguingly, the plot of the covered area by the cells versus time [Fig.4(c)] shows that for the case of high $D$, as mentioned earlier, the colony spreads exponentially fast until it reaches saturation. On the other hand the colony growing under low diffusion coefficient grows slowly but spreads to a much larger area. This is because, as mentioned earlier, only the cells at the frontier get nutrients to grow and divide and the number of inactive cells increases in the bulk and keeps on growing with time. To further validate our explanation, in Fig.4(d) we show that nutrients are rapidly depleted in colonies with high $D$. The rapid consumption of nutrients leads to a dramatic rise in the front speed for colonies with large $D$ [Fig.4(e)] on the other hand, for the colony with $D=1$ the front speed attains a near constant speed because of balance in nutrient consumption by the cells at the frontiers and their reproduction.

As mentioned earlier, we will now present a continuum model where we incorporate population fluctuations, to further study the role of nutrient concentration and population fluctuations in bacterial colony growth.

III Continuum Model

We now consider a nutrient-bacteria (NB) model in which bacteria consumes nutrient and divides at a rate $\gamma$ per unit biomass while diffusing through space. In the mean-field setting, the bacteria-nutrient dynamics can be described by the diffusive Fisher-Kolmogorov equations Kolmogorov et al. (1937); Fisher (1937); Golding et al. (1998):

[TABLE]

Here, $\rho_{B}(\bm{x},t)$ is the bacterial number density and $c(\bm{x},t)$ is the nutrient concentration at position ${\bm{x}}$ and time $t$, $D_{B}$ and $D$ are diffusion coefficient of bacteria and nutrient, and total number density over the entire domain i.e. $\rho_{T}\equiv\int[\rho_{B}({\bm{x}},t)+c({\bm{x}},t)]dxdy/L^{2}$ remains conserved. Variants of NB model ($Eq.~{}\ref{mean-field}$) but with more complicated reaction and diffusion terms have been used earlier to investigate the transition from type-A to type-B Fisher (1937); Golding et al. (1998); Schwarcz et al. (2016a). However, these mean-field models ignore the role of population fluctuations in the system. However, recent studies have shown that population fluctuations cannot be ignored and are crucial in determining the statistics of growth front Doering et al. (2003); Korolev et al. (2010); Nesic et al. (2014). In particular, Kessler et al. Kessler and Levine (1998) using particle based simulation had indicated that population fluctuations can lead to destabilisation of bacterial colony front spreading by consuming nutrients.

We incorporate population fluctuations in the NB model by adding to it a multiplicative noise term similar to stochastic Fisher-Kolmogorov-Piscunoff-Petrovsky equation Doering et al. (2003); Pigolotti et al. (2013, 2014). We show that population fluctuations, inherent to any agent-based model (see Section II), can lead to a transition from type-A to type-B colony morphology. The stochastic NB (sNB) model that we use, written in terms of the total density $\rho({\bm{x}},t)$ and the bacterial number density $\rho_{B}({\bm{x}},t)$, are

[TABLE]

where $\eta(\bm{x},t)$ is a Gaussian white noise with $\langle\eta({\bm{x}},t)\rangle=0$, $\langle\eta({\bm{x}},t)\eta({\bm{x}}^{\prime},0)\rangle={\bm{\delta}}({\bm{x}-{\bm{x}}^{\prime}})\delta(t)$, $\mu$ controls the noise strength, and $\langle\rangle$ indicate averaging over noise realizations.

In the above discussion we have assumed that the motion of the bacteria is independent of nutrient concentration. However in a more realistic case – similar to the earlier discussed agent-based model – the motility of the colony might depend upon food as well, wherein scarce food conditions will lead to very less or no movement at all. Following Ref. Golding et al. (1998), we incorporate this effect by replacing bacterial diffusivity term in sNB model (Eq. (7)) by a non-linear food dependent diffusivity to get sNBNL model,

[TABLE]

In what follows, we present a systematic study of how bacterial front speed and morphology is modified because of nutrient concentration, population fluctuations, bacterial diffusivity, and nutrient diffusivity using direct numerical simulations (DNS) of sNB- and sNBNL-model [Eqs. (7) and (8)].

III.1 Numerical Simulations

We perform simulations for Eq.(7) and Eq.(8) in a square domain of length $L$ and discretize it using $N^{2}$ collocation points. All the spatial derivatives are evaluated using a second order centered finite-difference scheme. For time marching, we use a variant of the operator splitting scheme proposed in Refs. Dornic et al. (2005); Pechenik and Levine (1999) (see Appendix IV.1). We initialize the bacterial number density as $\rho_{B}(\bm{x},0)=\frac{1}{2}[1-\tanh\{a(y-b)\}]$ and the initial nutrient concentration as $c(\bm{x},0)=C_{0}[1-\rho_{B}(\bm{x},0)]$. The constants $a$ and $b$ prescribe the width and the position of the colony front and $C_{0}$ fixes the initial nutrient concentration. We impose Neumann Boundary conditions on all sides of the simulation domain for both $\rho_{B}(\bm{x},t)$ and $c(\bm{x},t)$. Since in the macroscopic experiments the number of bacteria that constitute to the colony are large, we fix the strength of population noise to a small value $\mu=5\times 10^{-2}$ in all our simulations.

III.2 Simulation Results

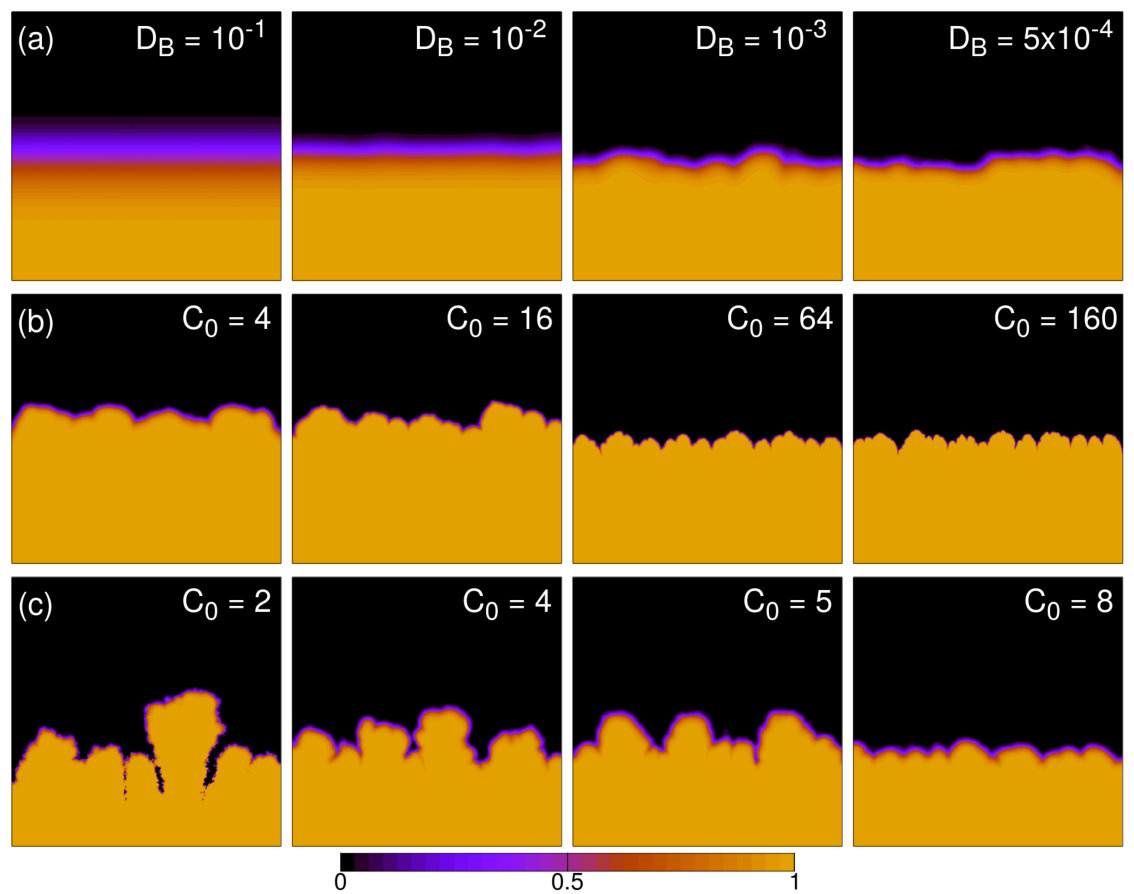

The plot in Fig. 5 shows a representative snapshot highlighting the changes in the front morphologies for different values of initial nutrient concentration $C_{0}$ and $D_{B}$. In the following sections, we present a systematic study to quantify these morphological patterns.

III.2.1 Front Speed

An initial linear innoculation of bacteria $\rho_{B}({\bm{x}},0)$ spreads outward in Y-direction by consuming nutrients. The speed of this growing colony can be calculated as

[TABLE]

For Eq. (5), using the marginal stability principle we expect the front speed $V\sim 2\sqrt{\gamma D_{B}{C_{0}}}$ Kessler and Levine (1998). We now investigate how the front propagates for sNB- and sNBNL-model.

• •

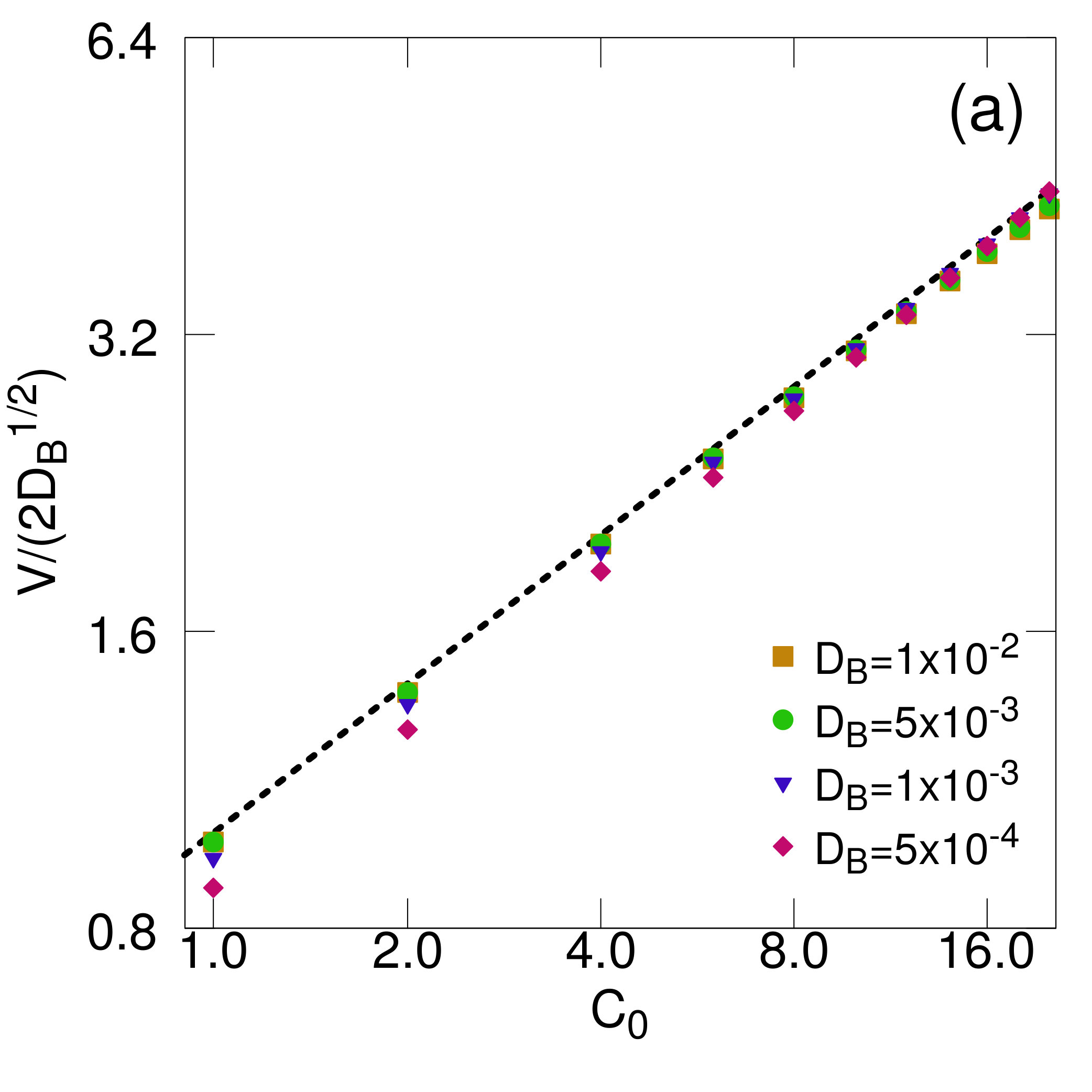

sNB model, Eq. (7) – In Fig. 6(a), we plot front speed versus concentration for fixed $D_{B}=5\times 10^{-4},D=10^{-1},\mu=5^{-2},$ and $\gamma=1$. Although the colony morphology changes on changing $C_{0}$ and $D_{B}$, we find that the mean-field prediction of front-velocity is in excellent prediction with numerics i.e., $V\sim\sqrt{C_{0}}$.

• •

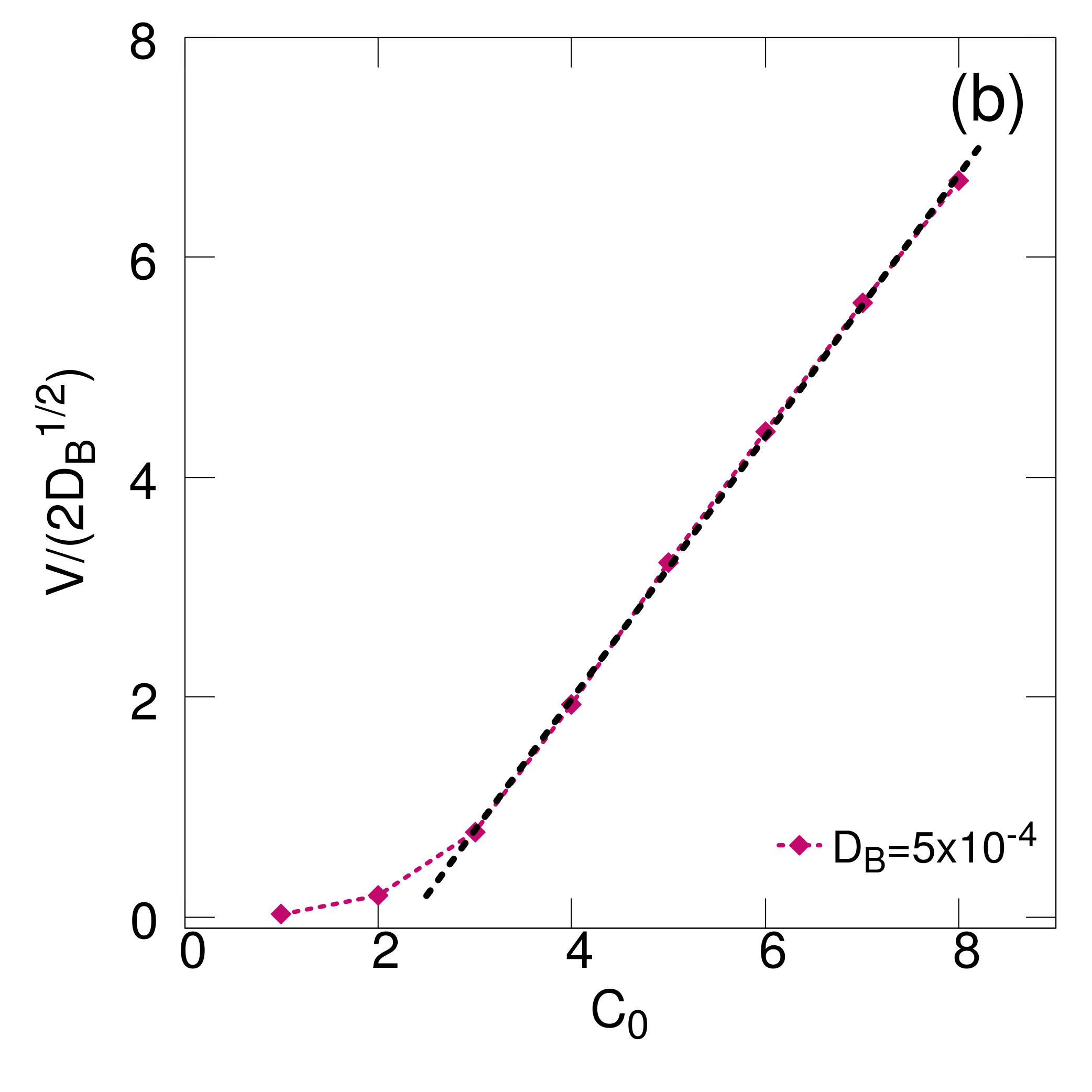

sNBNL model, Eq. (8) – The plot in Fig. 6(b) shows that the front speed scales linearly with the initial nutrient concentration for $C_{0}\geq 3$. At leading order, we can approximate the nonlinear diffusion term $D_{B}\nabla\cdot c\nabla\rho_{B}$ as $D_{B}C_{0}\nabla^{2}\rho_{B}$. Thus by making an analogy with Eq. 7 we expect $V\sim C_{0}$.

III.2.2 Morphological behavior

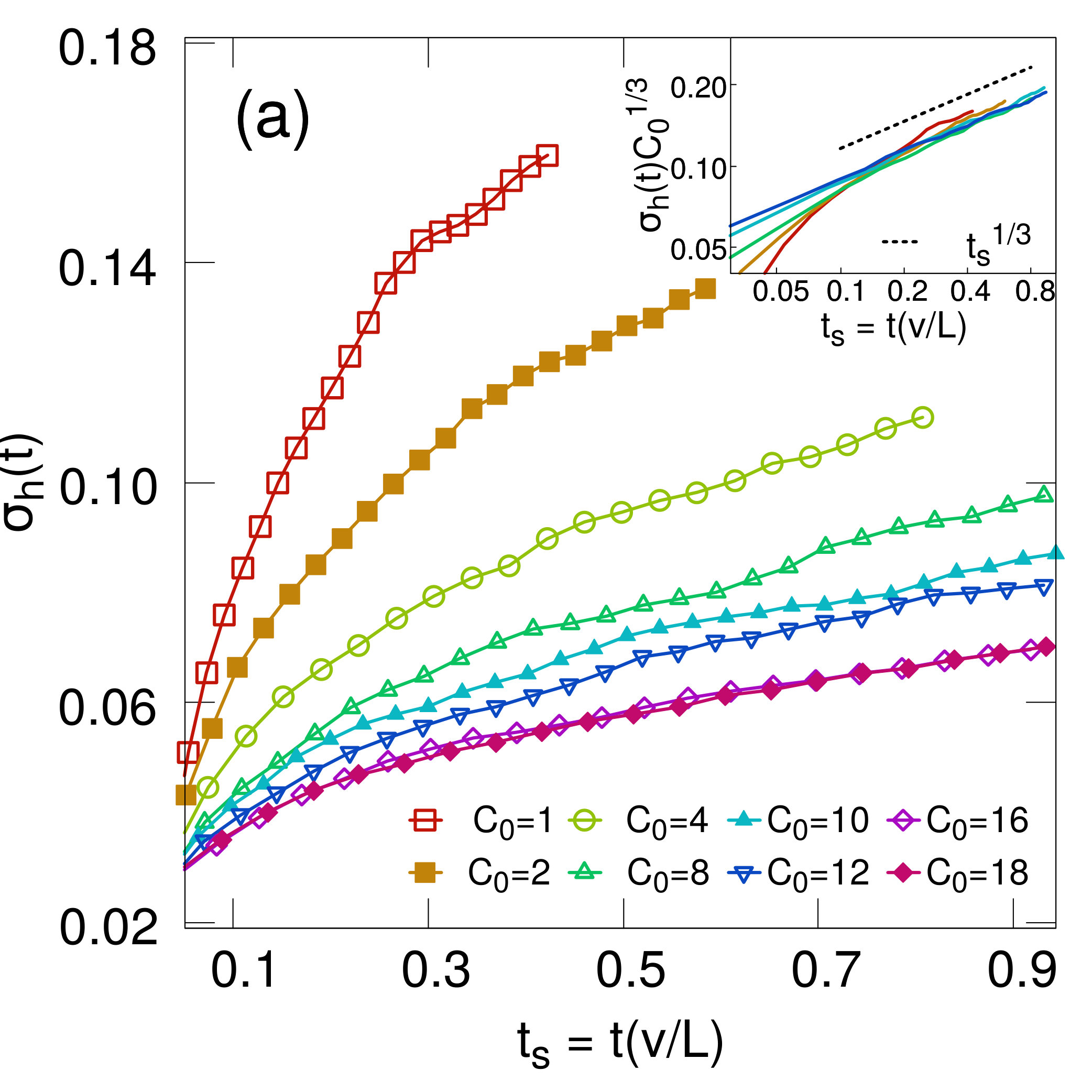

Our numerical simulations show that population fluctuations give rise to diffusive instabilities in the propagating front Kessler and Levine (1998) which lead to different kinds of morphological behavior that are absent in mean-field equations (NB model). Fig.5(a) shows the colony morphology with varying bacterial diffusivity, where the front width decreases with decreasing $D_{B}$, with rough front appearing at smaller $D_{B}$.

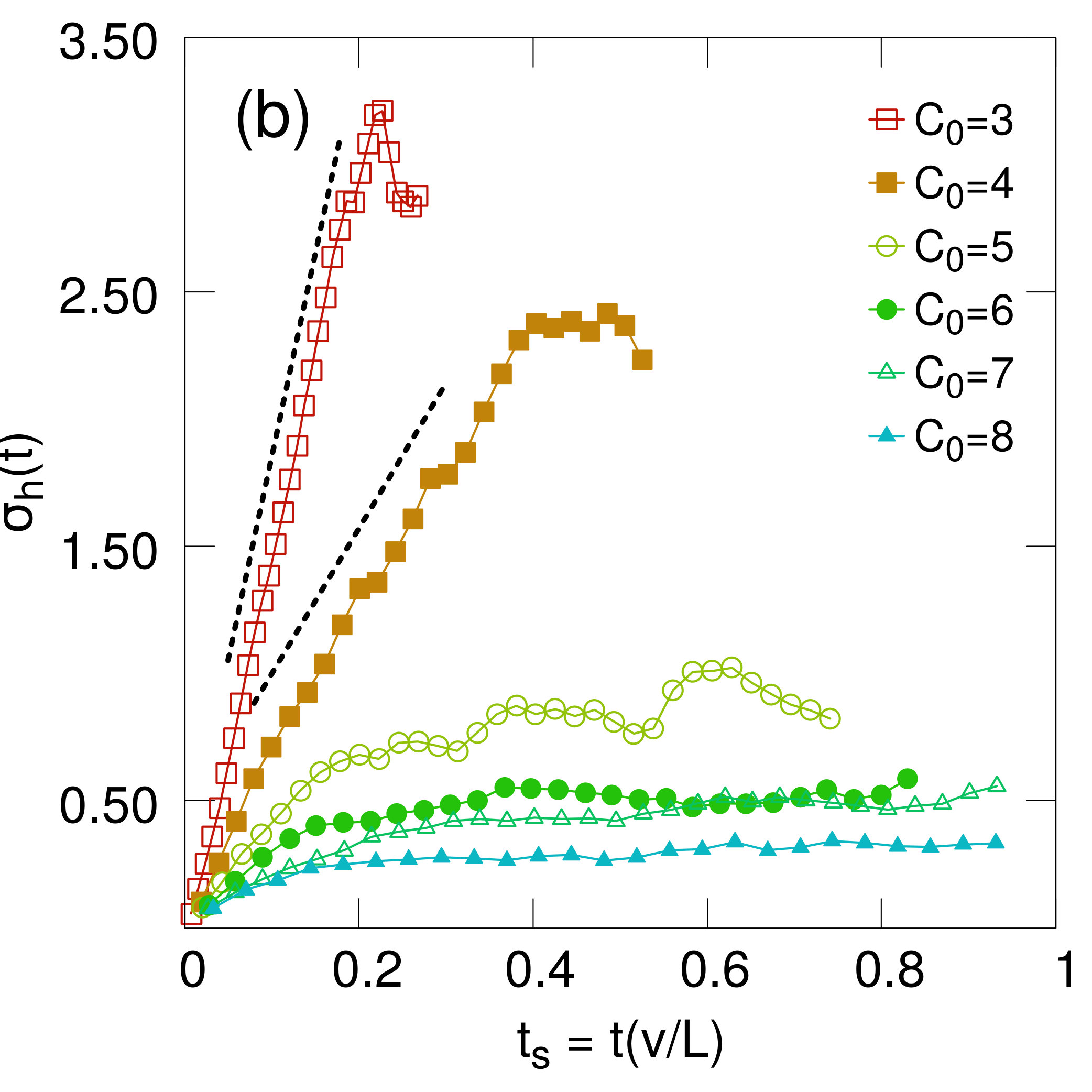

The plot in Fig. 5(b) shows the role of nutrient concentration on growth dynamics for sNB model. We find that the front undulations decrease on increasing $C_{0}$. We quantify the front undulations by plotting \sigma_{h}(t)={\Big{<}\overline{[h(x,t)-\overline{h}]^{2}}\Big{>}}^{1/2} Farrell et al. (2013); Bonachela et al. (2011); Barabási and Stanley (1995) where $h(x,t)$ is the height of the front, the bar means spatial average in $x$ direction and angular brackets denote ensemble average. As expected, we find that $\sigma_{h}$ increases with decreasing $C_{0}$ [see Fig. 7]. For the sNB model, similar to Ref. Nesic, we find that $\sigma_{h}(t)\sim t^{1/3}$. On the other hand in the sNBNL model, similar to the agent-based model, the dynamics of the front structure dramatically alters on varying the nutrient concentration. Small values of $C_{0}$ gives rise to more prominent finger like patterns and $\sigma_{h}(t)\sim t$ [see Fig. 5(c)]. On further increasing $C_{0}$, finger like growth transitions into a smooth and compact front [see Fig.  7(b)].

Our results are in qualitative agreement with agent-based simulations. Our results show that the population noise along with non-linear diffusion (sNBNL model) is sufficient to show the morphological transition from finger/branched fronts to smooth fronts.

IV Conclusions

We studied the role of nutrients and population fluctuations on the spreading of bacterial colony on a hard agar plate using both agent based and continuum simulations. We find a qualitative agreement between the two methodologies. The main conclusions of our study are:

1. (i)

Initial nutrient concentration has profound effect on colony growth leading to morphological changes. A systematic change of initial nutrient concentrations from lower to higher values causes transition of the colony periphery leading to the formation of finger-like to branched-like structure to smoother front, 2. (ii)

Roughness of the colony front decreases with increase in initial nutrient concentration. In particular, for small values of $C_{0}$, both agent based simulations and sNBNL model shows that $\sigma_{h}\propto t$. 3. (iii)

Front speed of the colony increases as a function of initial nutrient concentration and follows the mean field prediction for the sNB model $V\sim\sqrt{C_{0}}$ Kessler and Levine (1998) and sNBNL model $V\sim C_{0}$. These predictions are in qualitative agreement with the agent based model. 4. (iv)

Our continuum simulations indicate that population fluctuations, inherent to agent based models, play crucial role in the formation of various morphological patterns.

Although our present model only considers bacterial growth in a monolayer on surface, there is a definite scope to extend our model in three-dimensions to study the growth dynamics of bacteria forming biofilm-like structures. Bacteria growth and development in three-dimensions might lead to complex morphologies as an outcome of interactions of bacteria with surface and extracellular matrix Asally et al. (2012). Moreover, it would also be interesting to investigate the spatiotemporal dynamics of coexisting species using the ideas we present here.

Acknowledgement: We thank Jagannath Mondal for discussions. This work is partially supported by DST-INSPIRE Faculty Award[Pushpita Ghosh/DST/INSPIRE/04/2015/002495].

Appendix

IV.1 Numerical Integration of Stochastic Part

We follow the algorithm suggested in Ref.Dornic et al. (2005) to numerically integrate Eq.(7) and Eq.(8). We use operator-splitting scheme to first solve the stochastic part i.e.

[TABLE]

Here $\eta(x,t)$ is a random normal deviate. We approximate $\rho(1-\rho)$ as $\Theta(1/2-\rho)\times\sqrt{\rho}$ + ($\rho\leftrightarrow 1-\rho$) Dornic et al. (2005). The effective equation to be solved then is

[TABLE]

for which the associated Fokker-Planck equation and it’s solution are

[TABLE]

Thus we have $\rho(t+dt)=\rho^{*}$ where $\rho^{*}$ is random number from the distribution $\rho^{*}=\textrm{Gamma}[\textrm{Poisson}[\lambda\rho(t))]]/\lambda$ where $\lambda=\frac{2}{\sigma^{2}dt}$. The deterministic part is then solved using Euler’s Method for Eq.(7) and Adam-Bashford scheme for Eq.(8).
