Two- and three-cluster decays of light nuclei with the hyperspherical harmonics

TL;DR

This paper investigates the effectiveness of hyperspherical harmonics in modeling two- and three-cluster decay processes in light nuclei, demonstrating their capability to describe bound and scattering states with a limited basis.

Contribution

It evaluates the applicability of hyperspherical harmonics for describing two-body and three-body continuum states in light nuclear systems with at least one binary decay channel.

Findings

Hyperspherical harmonics can describe bound states in three-cluster systems.

A restricted set of hyperspherical harmonics suffices for two-body continuum states.

The method's applicability depends on the system's specific decay channels.

Abstract

We consider a set of three-cluster systems ($^{4}$He, $^{7}$Li, $^{7}$Be, $^{8}$Be, $^{10}$Be) within a microscopic model which involves the hyperspherical harmonics to represent intercluster motion. We selected such three-cluster systems which have at least one binary channel. Our aim is to study whether the hyperspherical harmonics are able and under what conditions to describe two-body channel(s) (nondemocratic motion) or they are suitable for describing three-cluster continuum only (democratic motion). It is demonstrated that a rather restricted number of the hyperspherical harmonics allows us to describe bound states and scattering states in two-body continuum for a three-cluster system.

Figures

Tables

Table 1. Table 1: List of nuclei, their dominant three-cluster configurations and dominant two-body decay channels.

Nucleus	3CC	2CC 1	2CC 2	2CC 3	Paper
4He	$d+p+n$	3H$+p$	3He$+n$	$d+d$
7Li	$\alpha +d+n$	$\alpha +t$	6Li$+n$		Nesterov et al. (2009)
7Be	$\alpha +d+p$	$\alpha {+}^3$He	6Li$+p$		Vasilevsky et al. (2009)
8Be	$\alpha {+}^3$H$+p$	7Li$+p$	$\alpha +\alpha$
10Be	$\alpha +\alpha {+}^{2}n$	6He$+\alpha$	8Be${+}^{2}n$		Lashko et al. (2017)

Table 2. Table 2: Input parameters of calculations for each nucleus.

Nucleus	3CC	$b$, fm	$u$
4He	$d+\left(p+n\right)$	1.489	0.9600
7Li	$\alpha +d+n$	1.311	0.9255
7Be	$\alpha +d+p$	1.311	0.9255
8Be	$\alpha {+}^{3}H+p$	1.311	0.9560
10Be	$\alpha +\alpha {+}^{2}n$	1.356	0.9570

Table 3. Table 3: Average distances between clusters for the ground and excited 3 / 2 − 3 superscript 2 3/2^{-} states in 7 Li.

Tree	$\alpha +\left(n+d\right)$		$n+\left(d+\alpha \right)$
$E$, MeV	$R_1$	$R_2$	$R_1$	$R_2$
-8.688	2.88	2.46	2.70	2.99
$E_{th}\left({}_{}{}^{3}H+\alpha \right)$=-6.654
-3.939	8.13	3.12	5.81	8.03
-1.644	9.68	4.19	6.69	9.19
$E_{th}\left(n{+}^{6}Li\right)$=-1.475
-0.439	6.85	18.06	17.38	4.42
1.263	8.80	10.20	16.05	4.71

Table 4. Table 4: The energy and average distances between clusters in the 7/2 - states of 7 Li calculated with K max subscript 𝐾 K_{\max} =9, K max subscript 𝐾 K_{\max} =11, and K max subscript 𝐾 K_{\max} =13.

$K_{\max }$	$E$, MeV	$R_1$, fm	$R_2$, fm
9	-3.911	2.813	2.657
11	-3.993	2.976	2.664
13	-4.049	3.224	2.684

Table 5. Table 5: Average distances between clusters for 0 + superscript 0 0^{+} states in 8 Be.

Tree	$\alpha +\left(t+p\right)$		$p+\left(t+\alpha \right)$
$E$, MeV	$R_1$	$R_2$	$R_1$	$R_2$
-22.298	2.168	2.49	2.67	2.13
-17.648	4.71	3.07	3.98	4.68
-15.042	5.89	3.72	4.89	5.84
-11.561	5.97	3.81	4.96	5.94
-6.993	5.80	2.93	4.24	5.82
$E_{th}\left(p{+}^{7}Li\right)$=-2.134
-1.396	5.66	2.82	4.21	5.70
-0.634	5.13	15.38	15.19	4.00

Table 6. Table 6: Average distances between clusters for 0 + superscript 0 0^{+} states in 4 He

Tree	$p+\left(d+n\right)$		$n+\left(d+p\right)$		$d+\left(n+p\right)$
$E$, MeV	$R_1$	$R_2$	$R_1$	$R_2$	$R_1$	$R_2$
-28.089	1.08	1.26	1.07	1.27	1.13	1.15
$E_{th}\left(d+n\right)=$-5.732
-5.738	5.13	4.42	4.42	5.21	3.74	6.13
$E_{th}\left(d+p\right)=$-5.077
-3.873	8.40	6.36	6.78	8.25	5.35	10.12
-2.958	7.72	8.79	9.00	7.29	5.85	11.13
$E_{th}\left(n+p\right)=$-2.202
-1.090	8.99	7.83	8.19	8.76	6.05	11.40
-0.732	6.56	9.24	6.85	9.00	8.79	4.89

Table 7. Table 7: Energies of the ground and the lowest excited 0 + superscript 0 0^{+} states in 10 Be. Dominant two-body channels and their threshold energies E t ​ h subscript 𝐸 𝑡 ℎ E_{th} are also presented.

2Cluster threshold	$E$, MeV
	-9.162
	-2.197
6He+$\alpha$	$E_{th}=$-1.745
	-0.343
8Be+${}_{}{}^{2}n$	$E_{th}=$-0.023
	0.561
	1.162

Equations

$${\Psi }_{E,L{M}_L}=\hat{\mathcal{A}}\left\{{\Phi }_1\left(A_1\right){\Phi }_2\left(A_2\right){\Phi }_3\left(A_3\right){\psi }_{E,L{M}_L}\left(\mathbf{x},\mathbf{y}\right)\right\}.$$

$${\psi }_{E,L{M}_L}\left(\mathbf{x},\mathbf{y}\right)\Rightarrow \sum _{\lambda ,l}{\psi }_{E;\lambda ,l;L}\left(x,y\right){\left\{Y_{\lambda }\left(\hat{\mathbf{x}}\right)Y_l\left(\hat{\mathbf{y}}\right)\right\}}_{L{M}_L},$$

$$\rho =\sqrt{x^2+y^2}$$

$$\theta =\arctan \left(\frac{x}{y}\right).$$

$$x=\rho \cos \theta ,y=\rho \sin \theta ,\theta \in \left[0,\pi /2\right].$$

$${\psi }_{E,L{M}_L}\Rightarrow \sum _c{\varphi }_{E,c}\left(\rho \right){\mathcal{Y}}_c\left({\Omega }_5\right),$$

$${\mathcal{Y}}_c\left({\Omega }_5\right)={\chi }_K^{\left(\lambda ,l\right)}\left(\theta \right){\left\{Y_{\lambda }\left(\hat{\mathbf{x}}\right)Y_l\left(\hat{\mathbf{y}}\right)\right\}}_{L{M}_L}$$

$$c=\left\{K,\lambda ,l,L\right\}.$$

$$\sum _{\tilde{c}}\left[{\delta }_{c,\tilde{c}}{\hat{T}}_K{\varphi }_{E,c}\left(\rho \right)+\int d\tilde{\rho }{\tilde{\rho }}^5{V}_{c,\tilde{c}}\left(\rho ,\tilde{\rho }\right){\varphi }_{E,\tilde{c}}\left(\tilde{\rho }\right)\right]=E\sum _{\tilde{c}}\int d\tilde{\rho }{\tilde{\rho }}^5{\mathcal{N}}_{c,\tilde{c}}\left(\rho ,\tilde{\rho }\right){\varphi }_{E,\tilde{c}}\left(\tilde{\rho }\right),$$

$${\hat{T}}_K=-\frac{{\hslash }^2}{2m}\left[\frac{{\partial }^2}{\partial {\rho }^2}+\frac{5}{\rho }\frac{\partial }{\partial \rho }-\frac{K\left(K+4\right)}{{\rho }^2}\right].$$

$${\psi }_{E,L{M}_L}=\sum _{n_{\rho },c}{C}_{E;n_{\rho },c}|n_{\rho },c⟩.$$

$$\sum _{{\tilde{n}}_{\rho },\tilde{c}}\left[⟨n_{\rho },c\left|{\mathcal{H}}_{c,\tilde{c}}\right|{\tilde{n}}_{\rho },\tilde{c}⟩-E⟨n_{\rho },c\left|{\mathcal{N}}_{c,\tilde{c}}\right|{\tilde{n}}_{\rho },\tilde{c}⟩\right]C_{E;{\tilde{n}}_{\rho },\tilde{c}}=0,$$

$${\mathcal{H}}_{c,\tilde{c}}={\mathcal{H}}_{c,\tilde{c}}\left(\rho ,\tilde{\rho }\right)={\delta }_{c,\tilde{c}}{\hat{T}}_K\delta \left(\rho -\tilde{\rho }\right)+V_{c,\tilde{c}}\left(\rho ,\tilde{\rho }\right).$$

$$|n_{\rho },c⟩=|n_{\rho },K;\lambda ,l;L⟩=R_{n_{\rho }K}\left(\rho ,b\right){\mathcal{Y}}_c\left({\Omega }_5\right),$$

$$R_{n_{\rho },K}\left(\rho ,b\right)$$

$$r$$

$$N_{os}=2n_{\rho }+K=2N_{sh}+K_{\min },$$

$$2n_{\rho }+K=2{\tilde{n}}_{\rho }+\tilde{K}$$

$$|N_{sh},\alpha ⟩=\sum _{n_{\rho },c\in N_{sh}}{O}_{n_{\rho },c}^{N_{sh},\alpha }|n_{\rho },c⟩.$$

$${\Psi }_{E,L{M}_L}$$

$${\mathbf{x}}_{\alpha }$$

$${\mathbf{y}}_{\alpha }$$

$${\mathbf{R}}_{\sigma }$$

$${\psi }_{E,{\lambda }_{\alpha },l_{\alpha };L}^{\left(\alpha \right)}\left(x_{\alpha },y_{\alpha }\right)\approx \sum _{{\lambda }_{\alpha },l_{\alpha }}{g}_{{\lambda }_{\alpha },{\mathcal{E}}_{\alpha }}\left(x_{\alpha }\right)$$

$${\psi }_{E,{\lambda }_{\alpha },l_{\alpha };L}^{\left(\alpha \right)}\left(x_{\alpha },y_{\alpha }\right)$$

$${\psi }_{k_{\alpha },l_{\alpha }}^{\left(\pm \right)}\left(k_{\alpha }{y}_{\alpha }\right)$$

$$k_{\alpha }$$

$${\eta }_{\alpha }$$

$${\psi }_{E,{\lambda }_{\alpha },l_{\alpha };L}^{\left(\alpha \right)}\left(x_{\alpha },y_{\alpha }\right)$$

$$k_0=\sqrt{\frac{2m\left(E-{\mathcal{E}}_0\right)}{{\hslash }^2}},{\kappa }_0=\sqrt{\frac{2m\left|E-{\mathcal{E}}_0\right|}{{\hslash }^2}},$$

$$\sum _{n=0}^N{\left|C_n^{\left(\nu \right)}\right|}^2=1$$

Full text

I Introduction

The hyperspherical harmonics (HH) method is a powerful tool for solving many-body problems in different branches of quantum physics, namely atomic, molecular and nuclear physics. In the orthodox realization of the method, a many-body problem is reduced to a finite or an infinite set of coupled channel problems, representing the many-body Schrödinger equation as a set of coupled one-dimensional differential equations. Efficiency of the method has been repeatedly demonstrated by numerous investigations of few-body problems. Besides, this method has been constantly advanced by creating a more reliable and universal technique for description of the discrete and continuous spectra of many-body systems.

One of the direction for the HH method development is to use a full set of oscillator functions which are labelled by quantum numbers of the hyperspherical harmonics method. We will call them hyperspherical oscillator functions.

In the present paper, we study different channels of decay of three-cluster systems  and ability of the hyperspherical oscillator functions to describe democratic and nondemocratic decay channels. In literature (see, for instance, Refs. Aguila and Doncel (1980); Bochkarev et al. (1989); Charity et al. (2007)) a democratic decay is a synonym for three-body decay or full disintegration of a three-body system. This type of the decay is also called a ”true” Jibuti and Keserashvili (1980) or ”truly” Gerjuoy (1971) three–body scattering. Contrary to the  democratic decay, a nondemocratic decay stands for a decay of compound system into two fragments provided that one of the fragments is represented by a bound state of a two-body subsystem. In what follows we will consider only the dominant three-body configurations of light atomic nuclei.

Note that an oscillator basis is a conventional set of functions which are involved in many nuclear models, such as a traditional many-body shell model, the resonating group method, novel ab initio No-Core Shell Model and many others.

One of the advantages of the basis of hyperspherical oscillator functions that it allows to circumvent the problems enforced by the Pauli principle. The basis simplifies numerical solving of coupled channel differential equations by reducing them to an algebraic matrix form.

Let us consider the following nuclei and appropriate (dominant) three-cluster configurations (3CC), as well as binary decay channels (2CC) (see Table 1). In Table 1 we indicated only those two-cluster decay channels of the three-cluster systems which have a bound state in the corresponding two-cluster subsystem. For instance, for 7Li we take into account channels $\alpha+t$ and 6Li$+n$, and we omit channel 5He$+d$ because there are no bound states in 5He subsystem. In other words, we disregard those binary channels whose threshold energy exceeds the three-cluster threshold. In Table 1 we also made references to our papers where the corresponding nucleus has been investigated.

We are going to study the eigenspectrum of a microscopic hamiltonian of the above-mentioned three-cluster systems. For this aim we will construct matrix elements of the hamiltonian between many-particle oscillator functions. Diagonalization of the matrix yields eigenvalues and the corresponding eigenfunctions. Some of the obtained eigenvalues represent bound states of the compound system, however the largest part of the eigenvalues are discretized states in two- or three-cluster continuum. The number of the eigenvalues and their density in the energy range in question depend on the number of oscillator functions involved in calculation and naturally on the properties of nucleus under consideration.

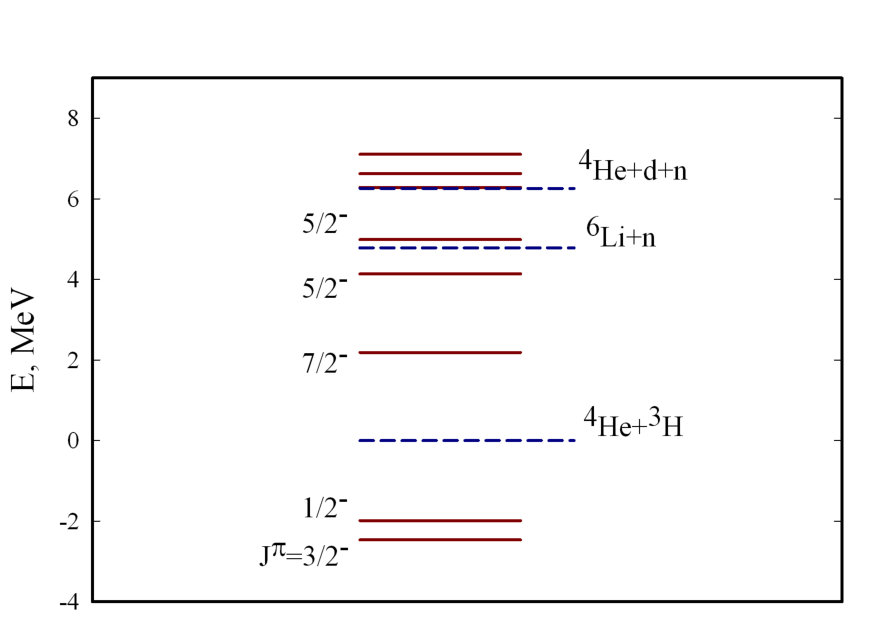

To formulate more clearly our aim, let us consider experimental spectrum of 7Li (see Ref. Tilley et al. (2002)), one of the nuclei we plan to investigate. In Fig. 1 we display not only the well-known bound and resonance states in 7Li, but also the energy of the  lowest two-body decay thresholds (4He$+^{3}$H and 6Li$+n$) and one three-body decay threshold ($\alpha+d+n$). Within the present paper we will study if the hyperspherical harmonics are able to reproduce the bound states of 7Li, which have dominant two-cluster structure 4He$+^{3}$H, and how many hyperspherical harmonic have to be involved in calculations to achieve this goal. It is also very interesting to examine whether hyperspherical harmonics allow one to study continuous spectrum between 4He$+^{3}$H and 6Li$+n$ threshold, and also between two-body 6Li$+n$ and three-body $\alpha+d+n$ thresholds. If so, then what is the required number of hyperspherical harmonics to solve this problem.

The problem, we are going to tackle in this paper, have been addressed in other way in Das et al. (1982); Ballot et al. (1982); Nielsen et al. (2001); Daily et al. (2015) within the so-called the hyperspherical adiabatic approximation. This approximation works perfectly for a system of three structureless particles and allows one to determine correctly effective potentials for three-body system and the energies of two- and three-body decay thresholds. However, this approximation is not suitable for three interacting clusters, as the Pauli principle generates nonlocal and energy dependent potentials.

The method, which we are going to employ, was formulated in Ref. Vasilevsky et al. (2001a). It was successfully applied to study of bound and resonance states of the Borromean nuclei (such as 6He, 9Be, 12C) and resonance states of nuclei with prominent three-cluster features (such as 5H, 6Be, 9B). All these nuclei were considered as three-cluster systems. The present paper may be considered as a step forward in creating of an unified microscopic model for describing both binary and three-cluster channels.

In this paper we will study wave functions of the deeply- and weakly-bound states accounted both from two- and three-cluster threshold. As for the weakly-bound states, we will demonstrate that a binary structure is revealed in the three-cluster wave function of the pseudo-bound states whose energy is close to the corresponding binary decay threshold. Despite the fact that to obtain convergent results for the energies of resonance states lying between the lowest binary decay threshold and three-cluster decay threshold of a three-cluster system one needs a large basis of hyperspherical harmonics, it is possible to see the evidence of two-cluster structure in the three-cluster wave function of a pseudo-bound state yet with a rather restricted set of hyperspherical harmonics.

This article is organized as follows. In Section II we present a brief review of a microscopic three-cluster model which exploits the hyperspherical harmonics. Main attention in this section is paid to the asymptotic form of three-cluster wave functions describing two- and three-cluster decay of a compound system. In Section III, we analyze convergence of spectrum of three-cluster systems and study peculiarities of wave functions of bound and pseudo-bound states in different asymptotic regimes. Brief conclusions are presented in Section IV.

II Method

First of all we need to introduce coordinates which determine relative position of clusters in coordinate space. The most suitable variables we believe are the Jacobi vectors $\mathbf{x}$ and $\mathbf{y}$. One can introduce three different sets (or different trees) of Jacobi vectors. Within the Faddeev formalism for three particles or within coupled channel formalism for three clusters, one has to use all three sets of Jacobi vectors. In what follows we stick to one tree of the Jacobi vectors. We will discuss latter why only one set of the Jacobi vectors is sufficient for our purposes in the hyperspherical harmonics formalism.

We start model formulation with an explicit form of wave function for a system consisting of three $s$-clusters

[TABLE]

This is a traditional form of a wave function of the resonating group method for systems, when at least one cluster consists of two and more nucleons. The internal structure of clusters ($\alpha$= 1, 2, 3) is described by the antisymmetric and translationally invariant wave functions $\Phi_{\alpha}\left(A_{\alpha}\right)$. Function $\Phi_{\alpha}\left(A_{\alpha}\right)$ is a wave function of the many-particle shell model with the most compact configuration of nucleons. These functions are selected in such way to provide in the most economical manner a fairly good description of  the main internal properties (bound state energy, cluster size) of each cluster. The antisymmetrization operator $\widehat{\mathcal{A}}$ makes antisymmetric the wave function of the compound three-cluster system, which is of paramount importance for the energy region under consideration. Since all functions $\Phi_{\alpha}\left(A_{\alpha}\right)$ are fixed, to calculate a spectrum and wave functions of the compound system one has to determine a wave function of intercluster motion $\psi_{LM_{L}}\left(\mathbf{x},\mathbf{y}\right)$. This function is also translationally invariant and depends on two Jacobi vectors $\mathbf{x}$ and $\mathbf{y}$, locating relative position of clusters in the space. By using angular orbital momentum reduction, we represent this function as an infinite series

[TABLE]

where $\widehat{\mathbf{x}}$ and $\widehat{\mathbf{y}}$ are unit vectors, and $\lambda$ and $l$ are the partial angular momenta associated with vectors $\mathbf{x}$ and $\mathbf{y}$ respectively.

Note that the form of Eq. (1) implies that the total orbital momentum $L$ is a good quantum number. It also means that in what follows we disregard the noncentral components of nucleon-nucleon interaction (for the sake of simplicity).

II.1 Hyperspherical coordinates and basis

Wave functions of intercluster motion $\psi_{\lambda,l;L}\left(x,y\right)$ obey an infinite set of the two dimension (in terms of variables x\and $y$) integro-differential equations. To solve this equation we make use of the hyperspherical coordinates and hyperspherical harmonics. There are several schemes for introducing hyperspherical coordinates or more exactly  - hyperspherical angles $\Omega_{5}$, as hyperspherical radius is determined uniquely. Each choices of the hyperspherical angles invokes a certain set of five quantum numbers numerating hyperspherical harmonics. Different sets of the hyperspherical angles, however, have three common quantum numbers: the hypermomentum $K$, the total orbital momentum $L$ and its projection $M_{L}$ on $z$ axis.

We make use of the hyperspherical harmonics in the form suggested by Zernike and Brinkman in Ref. Zernike and Brinkman (1935), because this form is very simple, it does not involve bulky calculations and the quantum numbers  have clear physical meaning. To introduce the Zernike - Brinkman hyperspherical harmonics, we need to determine the hyperspherical coordinates. Instead of six variables $\mathbf{x}$ and $\mathbf{y}$ or $x$, $y$, and two unit vectors $\widehat{\mathbf{x}}$ and $\widehat{\mathbf{y}}$ we introduce a hyperspherical radius

[TABLE]

and a hyperspherical angle

[TABLE]

At a given value of $\rho$, this angle determines relative length of the vectors $\mathbf{x}$ and $\mathbf{y}$

[TABLE]

For small values of $\theta$, the length of vector $y$ is close to zero, and vector $x$ has maximal value $x\approx\rho$. When the hyperspherical angle $\theta$ is close to $\pi/2$, the length of vector $x$ is very small and vector $y$ is at its maximum.

The represented set of the hyperspherical angles is very popular scheme of the hyperspherical coordinates for investigating three-body Zhukov et al. (1993); Viviani et al. (2001); Chen et al. (2001), and three-cluster systems Vasilevsky et al. (2001a, b); Nesterov et al. (2010); Korennov and Descouvemont (2004).

In new coordinates

[TABLE]

where $\mathcal{Y}_{c}\left(\Omega_{5}\right)$ stands for the product

[TABLE]

and represents a hyperspherical harmonic for a three-cluster channel

[TABLE]

The hyperspherical harmonic $Y_{c}\left(\Omega_{5}\right)$ is a function of five angular variables $\theta,\theta_{1},\phi_{1},\theta_{2},\phi_{2}$. Definition of all components of the hyperspherical harmonic $Y_{c}\left(\Omega_{5}\right)$ can be found, for instance, in Ref. Vasilevsky et al. (2001a). Being a complete basis, the hyperspherical harmonics account for any shape of the three-cluster triangle and its orientation. Thus they account for all possible modes of relative motion of  three interacting clusters.

As for the hyperradial wave functions $\phi_{E,c}\left(\rho\right)$, they obey a system of differential equations with local effective potentials for three structureless particles,  or a set of integro-differential equations with nonlocal effective potentials for three clusters. The latter can be represented as

[TABLE]

where $\mathcal{N}_{c,\widetilde{c}}\left(\rho,\widetilde{\rho}\right)$ is a norm kernel and

[TABLE]

As one can see, the Pauli principle leads to appearance of the energy dependent part in the effective potential (the right-hand side of equations (8)). To simplify solving a set of equations (8), we invoke a full set of oscillator functions to expand the sought wave function

[TABLE]

This reduces a set of integro-differential equations (8) to an algebraic form, i.e. to the system of linear algebraic equations

[TABLE]

where $\mathcal{H}_{c,\widetilde{c}}$ is a hamiltonian kernel

[TABLE]

Oscillator functions for three-cluster configuration are determined as

[TABLE]

where $R_{n_{\rho},K}\left(\rho,b\right)$ is an oscillator function

[TABLE]

and $b$ is an oscillator length.

System of equations (10) can be solved numerically by imposing restrictions on the number of hyperradial excitations $n_{\rho}$ and on the number of hyperspherical channels $c_{1}$, $c_{2}$, …, $c_{N_{ch}}$. The diagonalization procedure may be used to determine energies and wave functions of the bound states. However, the proper boundary conditions have to be implemented to calculate elements of the scattering $S$-matrix and corresponding functions of continuous spectrum.  Boundary conditions or asymptotic behaviour of wave functions for democratic and nondemocratic decay of a compound three-cluster system will be considered in Section II.3.

Wave function (11) belongs to the oscillator shell with the number of oscillator quanta $N_{os}=2n_{\rho}+K$. It is convenient to numerate the oscillator shells by $N_{sh}$ ( = 0, 1, 2, …), which we determine as

[TABLE]

where $K_{\min}=L$ for normal parity states $\pi=\left(-1\right)^{L}$ and $K_{\min}=L+1$ for abnormal parity states $\pi=\left(-1\right)^{L+1}$. Thus we account oscillator shells starting from a ”vacuum” shell ($N_{sh}=0$) with minimal value of the hypermomentum $K_{\min}$ compatible with a given total orbital momentum $L$.

It is worthwhile noticing that Eq. (10) contains the norm kernel matrix $\left\|\left\langle n_{\rho},c\left|\mathcal{N}_{c,\widetilde{c}}\right|\widetilde{n}_{\rho},\widetilde{c}\right\rangle\right\|$, which is also called the matrix of the antisymmetrization operator. Appearance of this matrix in the equation means that the oscillator basis functions (11) are not orthonormal due to the Pauli principle. Moreover, these functions may be linear dependent which leads to appearance of the Pauli forbidden states. This problem has been numeriously addressed in the past, see, for example, Refs. Vasilevsky et al. (1997), Vasilevsky et al. (2001).

Existence of the Pauli forbidden states requires that the system of equations (10) to be solved in two steps. In the first step, one needs to diagonalize the norm kernel matrix $\left\|\left\langle n_{\rho},c\left|\mathcal{N}_{c,\widetilde{c}}\right|\widetilde{n}_{\rho},\widetilde{c}\right\rangle\right\|$. This matrix has a block structure. Matrix $\left\|\left\langle n_{\rho},c\left|\mathcal{N}_{c,\widetilde{c}}\right|\widetilde{n}_{\rho},\widetilde{c}\right\rangle\right\|$ has a very large number of zero matrix elements. Nonvanishing matrix elements of this matrix are overlaps of basis functions of the same oscillator shell. This statement can be expressed as the following condition:

[TABLE]

Such block structure of the overlap matrix significantly simplifies calculations of its eigenstates $\Lambda_{N_{sh},\alpha}$ ($\alpha$ = 1, 2, …) and corresponding eigenfunctions $O_{n_{\rho},c}^{N_{sh},\alpha}$. These eigenfunctions form an orthogonal matrix which transform the original basis functions $\left|n_{\rho},c\right\rangle$ to a new set of functions

[TABLE]

We check whether a particular eigenvalue $\Lambda_{N_{sh},\alpha}$ equals to zero. If so, this eigenvalue is the Pauli forbidden state and has to be eliminated from our Hilbert space. Otherwise, this eigenstate belongs to the part of the total three-cluster Hilbert space spanned by the Pauli allowed states. The first stage of solving a set of Eqs. (10) is completed by constructing the normalized Pauli allowed states $\left|N_{sh},c_{a}\right\rangle=$ $\left|N_{sh},\alpha\right\rangle/\sqrt{\Lambda_{N_{sh},\alpha}}$, where index $c_{a}$ numerates the Pauli allowed states on the oscillator shell $N_{sh}$.

In the second step, one needs to transform the matrix of hamiltonian from original basis of functions $\left|n_{\rho},c\right\rangle$ to the basis of the normalized Pauli allowed states $\left|N_{sh},c_{a}\right\rangle$.

For numerical solution of Eq. (10) one has to construct matrix elements of a microscopic hamiltonian with a selected nucleon-nucleon potential and the norm kernel matrix. We do not dwell on this problem since the appropriate method of constructing such matrices was formulated in Ref. Vasilevsky et al. (2001a).

II.2 Strategy of investigation

To achieve the goals formulated above we carry out our investigations in the following steps:

• •

We calculate matrix elements of a hamiltonian between three-cluster oscillator functions

• •

By solving an eigenvalue problem, we obtain spectrum of bound and pseudo-bound states, and the corresponding wave functions in discrete representation.

• •

To study the nature of the obtained solutions, we construct correlation functions and calculate the weight of different oscillator shells in wave functions of bound and pseudo-bound states

• •

Finally, we analyse the structure of the wave functions in discrete and coordinate representations and study their asymptotic behaviour.

Some remarks should be made to explain and justify this strategy. First, such way of investigating a three-cluster system allows us to avoid the application of the necessary boundary conditions which leads to the very bulky and time-consuming calculations. Diagonalization procedure enables us in a rather simple way to obtain wave functions of bound and scattering states in the internal region where effects of cluster-cluster interaction are very strong. By increasing the number of oscillator functions we obtain more correct description of the bound states; gradually approaching to the exact value of the energy and to the correct shape of a wave function, mainly improving its asymptotic tail.

Meanwhile, we have got a different situation for continuous spectrum states. The extension of oscillator basis allows one to scan the continuous spectrum and to study the internal part of wave functions for different energies of the spectrum. The internal part of wave functions represents the exact wave function with a specific “boundary condition”. This will be latter discussed in more detail. By concluding we note, that the digonalization procedure of a huge but restricted hamiltonian matrix is very often used to study spectra of light nuclei with the ab initio no-core shell model.

II.3 Asymptotic behaviour of the wave functions

Let us consider an asymptotic behaviour of wave function (1). It is more appropriate to introduce an analog of the Faddeev amplitudes $\psi_{L}^{\left(\alpha\right)}\left(\mathbf{x}_{\alpha},\mathbf{y}_{\alpha}\right)$

[TABLE]

to study the asymptotic properties of three-cluster systems. In Eq. (II.3), $\mathbf{x}_{\alpha}$ is the Jacobi vector, determining the distance between $\beta$ and $\gamma$ clusters, while $\mathbf{y}_{\alpha}$ is a Jacobi vector linking the $\alpha$th cluster with the center of mass of the $\beta$ and $\gamma$ clusters:

[TABLE]

The indexes $\alpha$, $\beta$ and $\gamma$ form a cyclic permutation of 1, 2 and 3.

In general, there are four different asymptotic regions in a three-cluster system. The asymptotic properties of three-body functions in these regions are thoroughly discussed in Refs. Merkuriev et al. (1976); Faddeev and Merkuriev (1993); Friar and Payne (1996). We follow notations of Ref. Faddeev and Merkuriev (1993) (see pages 134-136) and denote these asymptotic regions as $\Omega_{\alpha}$ ($\alpha$= 1, 2, 3) and $\Omega_{0}$. In the asymptotic regions $\Omega_{\alpha}$ the distance between clusters with indexes $\beta$ and $\gamma$ is much smaller than the distance of the third cluster (with index $\alpha$) to the center of mass of clusters $\beta$ and $\gamma$ ($\left|\mathbf{x}_{\alpha}\right|\ll\left|\mathbf{y}_{\alpha}\right|$). This region describes scattering of a cluster with index $\alpha$ on a bound state of clusters $\beta$ and $\gamma$.  The asymptotic region $\Omega_{0}$ describes situation when all clusters are well separated, i.e. when intercluster distances $\left|\mathbf{x}_{\alpha}\right|\gg a$ ($\alpha$= 1, 2, 3) are larger then the radius $a$ of a short range interaction.

Consider the asymptotic region $\Omega_{\alpha}$. In this region, the Faddeev amplitude $\psi_{E,L}^{\left(\alpha\right)}\left(\mathbf{x}_{\alpha},\mathbf{y}_{\alpha}\right)$ has the following ”two-body” asymptotic form

[TABLE]

for scattering states (when the total energy $E\geq\mathcal{E}_{\alpha}$) and

[TABLE]

for bound states (when the total energy $E<\mathcal{E}_{\alpha}$). Here $\psi_{k_{\alpha},l_{\alpha}}^{\left(-\right)}\left(k_{\alpha}y_{\alpha}\right)$ and $\psi_{k_{\alpha},l_{\alpha}}^{\left(+\right)}\left(k_{\alpha}y_{\alpha}\right)$ are incoming and outgoing waves, respectively, determined in terms of the well-known regular $F_{l_{\alpha}}\left(k_{\alpha}y_{\alpha};\eta_{\alpha}\right)$ and irregular $G_{l_{\alpha}}\left(k_{\alpha}y_{\alpha};\eta_{\alpha}\right)$ Coulomb functions:

[TABLE]

and $W_{-\eta_{\alpha},l_{\alpha}+1/2}\left(2k_{\alpha}y_{\alpha}\right)$ is the Whittaker function. In Eqs. (16) and (II.3), index $c=\left\{\lambda_{\alpha},\mathcal{E}_{\alpha},l_{\alpha}\right\}$ numerates the current channel, $c_{0}$ indicates the incoming channel, $\mathcal{E}_{\alpha}$ and $g_{\lambda_{\alpha},\mathcal{E}_{\alpha}}\left(x_{\alpha}\right)$ denote energy of the two-cluster bound state and its wave function, and

[TABLE]

Let us turn our attention to the asymptotic region $\Omega_{0}$. We present an asymptotic form only for neutral clusters (or by neglecting the Coulomb interaction in asymptotic region). In this case an asymptotic form of three-cluster wave function is well and unambiguously established. For a bound state of three-cluster system the wave function $\psi_{E,\lambda_{\alpha},l_{\alpha};L}^{\left(\alpha\right)}\left(x_{\alpha},y_{\alpha}\right)$ is

[TABLE]

and for scattering state (full disintegration or breakup)

[TABLE]

where $A_{c_{0},c}\left(\theta_{\alpha}\right)$ is a breakup amplitude and

[TABLE]

$\mathcal{E}_{0}$ is the three-cluster threshold energy.

As we see the hyperspherical coordinates are involved to express an asymptotic form of wave functions for the democratic decay of three-cluster system or its bound state (see Eqs. (II.3) and (II.3)). They can be also used to express an asymptotic behaviour of three-cluster wave functions in all asymptotic regions by using relations (4).

So far, we discussed the asymptotic behaviour of three-cluster wave functions for different scenario of two- and three-body decays in coordinate representations. Similar relations can be written in the discrete representation by using the correspondence between the expansion coefficients and the wave functions in coordinate space.

Let us assume that we arranged all binary channels in such an order that $\mathcal{E}_{1}<\mathcal{E}_{2}<\mathcal{E}_{3}$. Besides, we also assume that all energies are measured from the three-cluster threshold and thus $\mathcal{E}_{0}=0$. With such definitions, an asymptotic part of bound state wave functions will be mainly represented by wave function from Eq. of the first channel (II.3). Contribution of other binary channels and three-cluster channel depends on how far is this state from the corresponding decay threshold as well. The larger is difference $\left|E-\mathcal{E}_{\sigma}\right|$ ($\sigma$ = 0, 1, 2, 3), the smaller is contribution of the corresponding channel to the asymptotic part of the bound state wave function. It is obvious that to obtain the deeply bound state (with respect to the three-cluster threshold), a very small number of the hyperspherical harmonics is required. For a weakly bound state, the large number of the hyperspherical harmonics should be involved to reach a necessary precision for the energy of this state. Wave function of continuous spectrum state with energy $\mathcal{E}_{1}<E<\mathcal{E}_{2}$ is expected to be mainly represented by the wave function of the first channel of the form (16). When the energy of this state approaches energy of the second binary channels, it is natural to expect a substantial contribution of the second closed channel. More intrigue situation can be observed for continuous spectrum states when two binary channels are open, i.e. for the states with energy $\mathcal{E}_{2}<E<\mathcal{E}_{3}$.  Wave function of such state can be represented either by the first or by the second channels, or by a combination of both channels. More complicated situation can be observed for continuous spectrum states when all binary channels are open ($\mathcal{E}_{3}<E<0$).

II.4 Oscillator basis

Note that the first two steps in the strategy mentioned in Section II.2 are common for many microscopic and semi-microscopic model calculations, since many models used a square-integrable basis to obtain information about bound and scattering states.  Oscillator basis is the most used one among others. Two main merits of the basis make it popular. First, these basis functions are orthonormal, they do not create any problem with overfullness or linear dependence of basis functions. Second, due to the specific properties of oscillator functions, there is a simple relationship between expansion coefficients and an original wave function. It makes more transparent physical interpretation of the obtained results.

Now we consider other two advantages of the basis which will be exploited in what follows. First, oscillator basis allows one to implement correct boundary conditions in discrete oscillator representation Filippov and Okhrimenko (1981); Filippov (1981). Second, diagonalization of matrix of a microscopic hamiltonian, constructed with the oscillator basis, reveals eigenfunctions with the clear physical properties. To explain the second advantage  of oscillator basis we consider a single-channel approximation for two-cluster or two-body system. Suppose we constructed the matrix elements of hamiltonian $\widehat{H}$ between oscillator functions $\left|n\right\rangle$ and $\left|m\right\rangle$. By diagonalizing matrix $\left\|\left\langle n\left|\widehat{H}\right|m\right\rangle\right\|$ with dimension of $N\times N$, we obtain eigenvalues $E_{\nu}$ ($\nu$=0,1, 2, …, $N-1$) and the corresponding eigenfunctions $\left\{C_{n}^{\left(\nu\right)}\right\}$. Eigenvalues $E_{\alpha}$ present bound states if $E_{\nu}<0$, and pseudo-bound states with positive energy $E_{\nu}>0$. It was shown in Refs. Heller and Yamani (1974); Filippov et al. (1983); Filippov and Lashko (2005), that pseudo-bound states are the states of continuous spectrum states selected from infinite set through the diagonalization procedure by the condition $C_{N+1}^{\left(\nu\right)}=0$. In other words, these states have the node at a given point. This condition can be also used to determine phase shifts at these discrete points. Interesting feature of the pseudo-bound states is that without imposing any boundary condition one can obtain a set of discrete or selected states in two-cluster continuum. Very important feature of the pseudo-bound states, is that the wave function of a pseudo-bound state differs by a factor from the normalized to delta function wave function of continuous spectrum with the same energy.

To confirm the aforementioned properties of wave functions in the oscillator representation, we show the following illustration. In Fig. 2 we display eigenfunctions of two-cluster $\alpha+t$ hamiltonian for the 3/2*-* state in 7Li. These functions are determined with 100 oscillator functions. The first eigenfunction describes the 7Li ground state, other five functions represent states of two-cluster continuum. One can see explicitly that the wave functions of these states indeed have a node at the end of an interval $n=N+1$. The same is true for the ground state, however it is not so evident in Fig. 2. We do not dwell on the details of such calculations as they can be found, for instance, in Ref. Lashko et al. (2017).

To prove shortly that eigenstates of a two-cluster hamiltonian have clear physical meaning, we consider wave functions of four 3/2*-* pseudo-bound states in 7Li. These state are obtained with the different number $N$ of oscillator functions. We selected and displayed in Fig. 3 those pseudo-bound states which have approximately the same energy. Thus one can expect that wave functions of these states have the same structure (shape). Indeed, we see that the selected wave functions have maxima and nodes at the same points of the discrete space. They differ only by the normalization condition

[TABLE]

and represent the corresponding state in different oscillator spaces $0\leq\nu\leq N$ ($N$ = 39, 100, 188, 301). In Fig. 3 we indicated the number of the displayed eigenstate $\nu$ and its energy $E_{\nu}$. If we normalize four wave functions in the same fashion (for instance, as the wave function with the minimal value of oscillator functions $N$ = 39), we will obtain four quite close wave functions in the interval $0\leq\nu\leq 39$, three quite close functions in the interval $0\leq\nu\leq 100$ and two quite close wave functions in the interval $0\leq\nu\leq 188$. Note that these wave functions, obtained with the diagonalization procedure, coincide within a simple normalization factor with the exact wave function of the continuous spectrum state obtained for the same energy and with the corresponding boundary conditions. This is demonstrated in Fig. 4, where we display the exact wave function, obtained for the energy $E$ = 2.186 MeV by imposing the correct boundary condition, and the renormalized wave function, determined for the same energy with 100 oscillator functions. One can see that both exact and approximate functions coincide in the range $0\leq n\leq 100$. It is important to note that the exact wave function is determined in the whole oscillator space ($0\leq n<\infty$) and normalized by the condition

[TABLE]

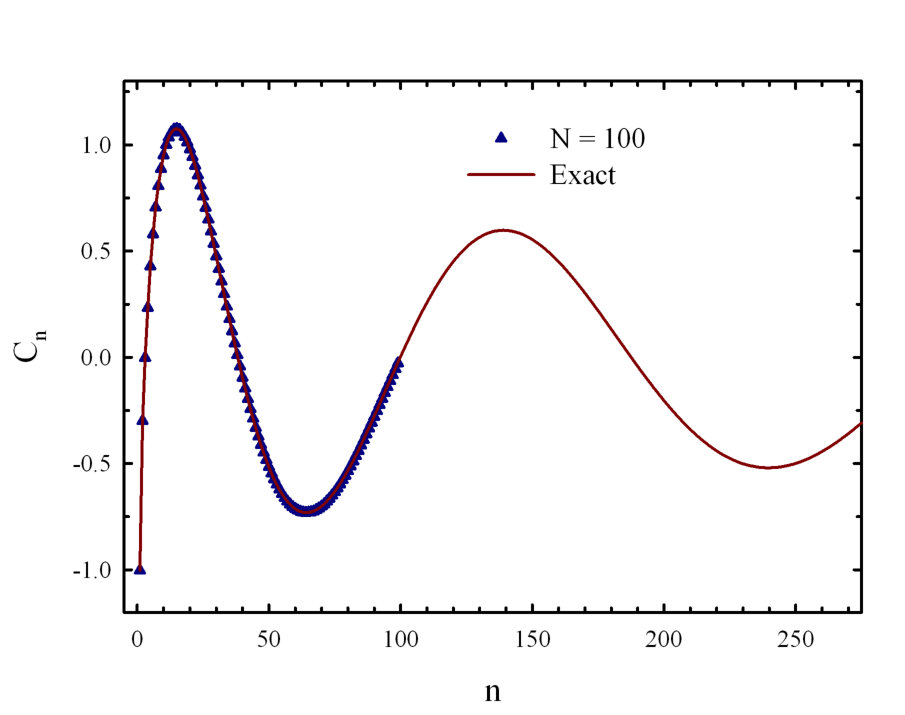

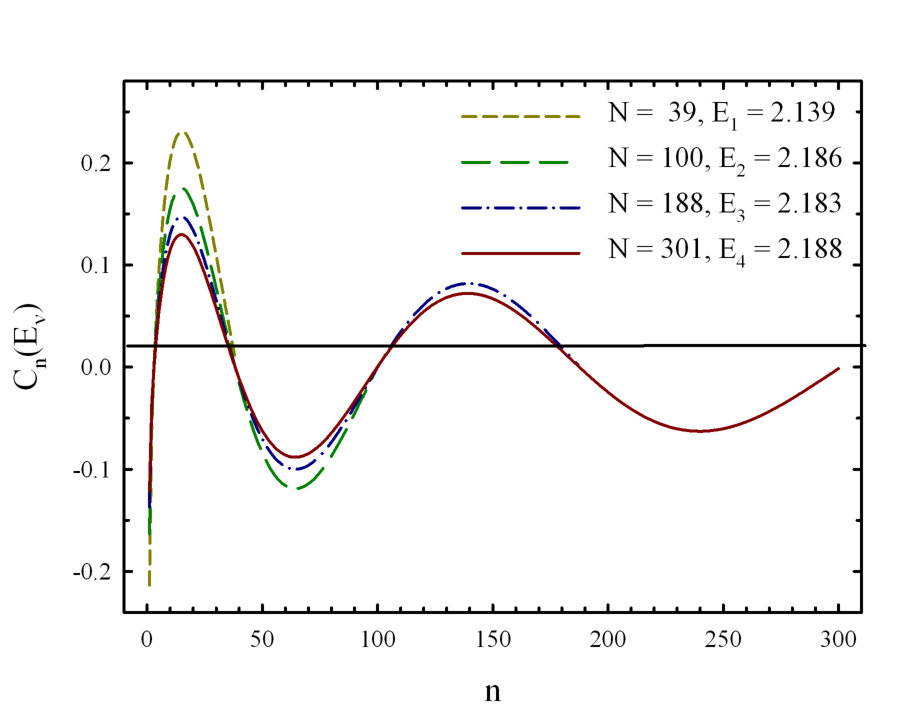

To this end, yet another visual confirmation that the diagonalization procedure reveals states with clear physical meaning is presented in Ref. Filippov and Lashko (2005). Fig. 1 (p. 714) of Ref. Filippov and Lashko (2005) demonstrates an approximation of the wave function of the continuum spectrum by expansion in the discrete basis with different numbers of basis functions. The above-mentioned figure clearly shows that the larger is the number of basis functions involved, the larger is the region of good approximation of the exact wave function by partial sum. However, the behavior of the wave function in the inner region is well reproduced even with a rather restricted set of basis functions.

Thereby, the wave functions obtained by the diagonalization of the hamiltonian have the same physical meaning as the wave functions obtained with the proper boundary conditions. The only difference is that the former are known only up to a finite point of coordinate space, while the latter are known in the whole region.

We will not dwell on this subject as more details on the J-matrix methods can be found in the book of articles Alhaidari et al. (2008).

It is also important to note that the methods which use the oscillator basis are similar to the well-known R-matrix model of nuclear reactions. In these methods eigenvalues $E_{\nu}$ and eigenfunctions $\left\{C_{n}^{\left(\nu\right)}\right\}$ are important blocks for construction of the elements of the scattering matrix and wave functions of single- and many-channel systems for an arbitrary value of the energy $E$. The explicit formulae relating elements of the $S$-matrix with eigenvalues $E_{\nu}$ and eigenfunctions $\left\{C_{n}^{\left(\nu\right)}\right\}$ can be found in Refs. Heller and Yamani (1974); Yamani and Fishman (1975). In Refs. Mikhelashvili et al. (1990); Zaitsev et al. (1998), these formulae were extended to the case of many-channel systems described with the hyperspherical basis. Besides, investigations of eigenvalues $E_{\nu}$ and eigenfunctions $\left\{C_{n}^{\left(\nu\right)}\right\}$ can be considered as a simple case of the complex scaling method (see basic definitions of the method and its recent progress in applications to many-cluster systems in Refs. Myo et al. (2014); Horiuchi et al. (2012)), when the rotational angle equals zero.

III Results and discussion

We involve the Minnesota potential (MP) Thompson et al. (1977); Reichstein and Tang (1970) as a nucleon-nucleon potential in our calculations. We use a common oscillator length for all clusters. Its value is selected to minimize the energy of three-cluster threshold. To construct a wave function of two-cluster relative motion and to determine the energy of a two-cluster bound state, we employ oscillator basis. Details of two-cluster calculations can be found in Ref. Lashko et al. (2017). We make use of 50 oscillator functions to calculate the ground state energies of two-cluster systems. This number of functions provides correct value of bound state energies and their parameters (for instance, r.m.s. proton and mass radii and so on).

In Table 2 we show input parameters of our calculations. It includes oscillator length $b$ and exchange parameters $u$ of the selected NN potential.

As in Refs. Vasilevsky et al. (2001); Broeckhove et al. (2007); Vasilevsky et al. (2012, 2017), in the present paper we will vary the hyperspherical momentum in the range $L\leq K\leq K_{\max}$, where $K_{\max}$ = 14 for the positive parity states and $K_{\max}$ = 13 for the negative parity states. The number of oscillator shells, involved in our calculations, is running from zero to $N_{sh,\max}$ = 70. These values of $K_{\max}$ and $N_{sh,\max}$, as was shown in Refs. Vasilevsky et al. (2001); Broeckhove et al. (2007); Vasilevsky et al. (2012, 2017), provided fairly good description of bound states and resonance states, generated by a three-cluster continuum.

III.1 7Li and 7Be

Consider evolution of 7Li spectrum when we involve more and more hyperspherical harmonics. We consider  the 3/2*-* state in both nuclei. This state is mainly represented by the total orbital momentum $L$ =1. We restrict ourselves by the only value of the total spin $S$=1/2, and neglect contribution of negative parity state with total orbital momentum $L$ =2. For the total orbital momentum $L$ =1, we have only odd values of the hypermomentum $K$=1, 3, 5…. Thus we represent results with $K$= 1, $K$=3 and so on up to $K_{\max}$=13.

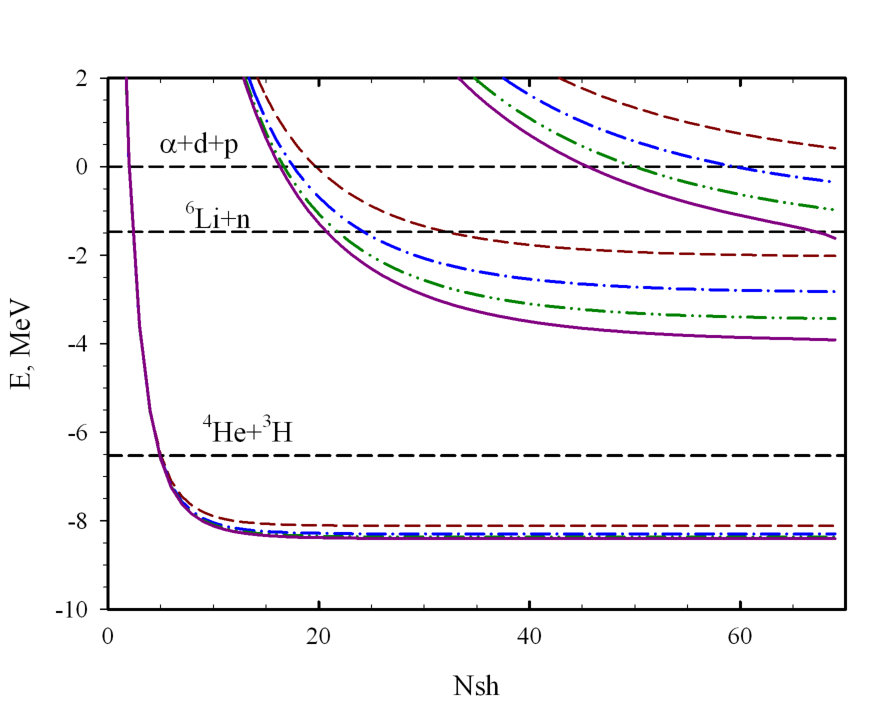

Dependence of energy of the 3/2*-* states in 7Li on quantum number $N_{sh}$ is displayed in Fig. 5. Here we presented trajectories of eigenvalues for 7Li calculated with the hyperspherical harmonics $K_{\max}$=7, $K_{\max}$=9, $K_{\max}$=11 and $K_{\max}$=13. Fig. 5 demonstrates rather fast convergence of the 7Li ground state energy. For the sake of convenience in Fig. 5 we connected all discrete points by lines, however the results are relevant only for discrete values of $N_{sh}$. Thus we need only restricted number of the hyperspherical harmonics ($K_{\max}$=7) and small number of hyperradial excitations (or oscillator shells $N_{sh}\leq 30$) to obtain the bound state in 7Li, i.e. an eigenstate of three-cluster compound system which lies below the lowest two-cluster threshold 4He+3H. The first eigenvalue for all values of $K_{\max}$ ”scans” two-cluster continuous spectrum with small values of $N_{sh}$ ($\leq$5) and thus represents continuous spectrum states in the 6Li+n channel and in the 4He+3H channel. The second eigenvalue of the three-cluster hamiltonian for $7\leq K_{\max}\leq 13$ is able to describe continuous spectrum states in three-cluster continuum and in binary channels continuum. The larger is the number of the hyperspherical harmonics involved in calculations, the larger region of two-cluster 4He+3H continuum can be achieved with these basis functions.

It is important to note that the spectrum of 7Li and other nuclei, which will be considered bellow, is obtained by solving the generalized eigenvalue problem represented by Eq. (10). By solving this problem we obtain those states of the compound system which obey the following ”boundary conditions”

[TABLE]

which are similar to the two-cluster case, considered above. It is demonstrated in Fig. 6, where we display three wave functions of the 3/2*-* states in 7Li calculated with $K_{\max}$=13. For each value of $N_{sh}\geq 7$, there are 56 channels which are involved in construction of all the functions. As we can see, the expansion coefficients tend to zero as $N_{sh}$ approaches its maximal value. We conjecture some important conclusions from this figure. First, we involve the large number of the channels $c$, however only a few of them dominate in the wave functions of bound and pseudo-bound states. This result is an agreement with the previous results of the model for the wave functions of three-cluster continuum (see Refs. Vasilevsky et al. (2001); Broeckhove et al. (2007); Vasilevsky et al. (2012, 2017)). In the latter case, such conclusion was formulated by analyzing the asymptotic part of wave functions. Second, there is an apparent similarity between the wave functions of two- and three-cluster models, which, for example, exhibits in the number of nodes and in the shape of the wave functions.

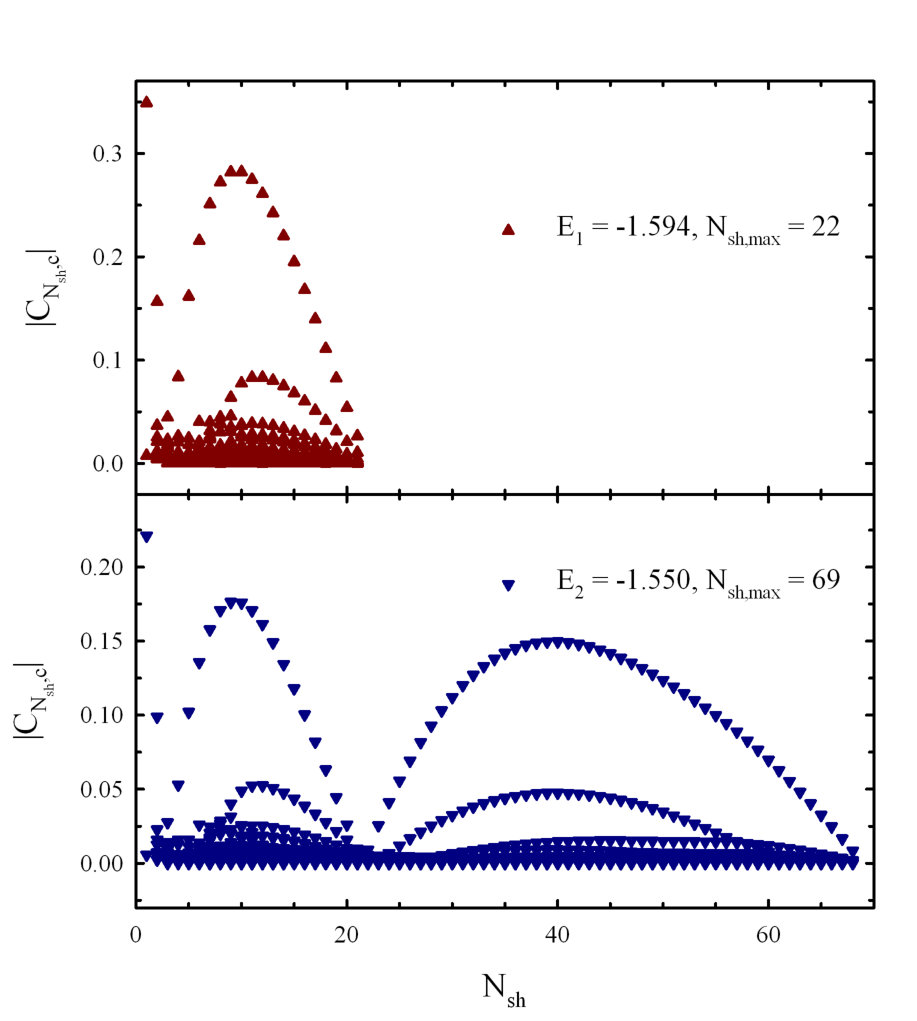

Fig. 7 demonstrates that wave functions with the same energy but obtained with the different number of oscillator functions are similar to each other in the range of smaller value of $N_{sh}$ and differ only by normalization factor. These wave functions represent 3/2*-* states of 7Li and are calculated with $K_{\max}$=13. Note that 982 oscillator functions participate in the construction of the first wave function (upper panel), while 3614 oscillator functions are involved in the expansion of the second wave function (lower panel). It is noteworthy, that when we use oscillator functions up to $N_{sh,\max}$, it allows us to describe and to analyze wave functions and intercluster distance in the range $0\leq\rho\leq b\sqrt{4N_{sh,\max}+2L+6}$. This inequality reflects very important feature of oscillator functions. As easy to see, the second wave function repeats the behaviour of the first wave function in the range $0\leq N_{sh}\leq 22$, and presents new part of the wave function for larger values of $N_{sh}$: $22<N_{sh}\leq 69$.

In Table 3 we present average distances between clusters in 7Li ground and excited 3/2*-* states, calculated with $K_{\max}$=13. These quantities determine the most probable shape of a triangle joining the centers of mass of interacting clusters. How to calculate the average distances is explained in Refs. Vasilevsky (2013); Nesterov et al. (2014). For each tree, $R_{2}$ stands for the average distance between a pair of clusters indicated in brackets, and $R_{1}$ determines mean distance between the first cluster and the center of mass of the two-cluster subsystem. One can see that the ground state is a compact state in all threes of the Jacobi coordinates. The first excited state, as expected, has dominant 4He+3H structure, since 3H nuclei as a binary subsystem 3H=$n+d$ is very compact and is located far away (8.13 fm) from 4He. Quite similar structure is observed for the second excited state. This state, as one can see in Fig. 5, lies below the $n+^{6}$Li threshold. In this state, the size of 3H is slightly increased to 4.19 fm compared to the ground and the first excited states, and distance between 3H and 4He exceeds 9 fm. The third excited state is of different nature. It is located between two-cluster ($n+^{6}$Li) and the three-cluster thresholds, and thus has very distinguished two-cluster $n+^{6}$Li structure. Indeed, in this state the spacing between clusters d and 4He, comprising 6Li, is 4.42 fm, slightly more than in the ground state ($\approx$3 fm); and the distance from neutron to the center of mass 6Li is very large - more than 17 fm. It is important to recall that the first, second and other excited states belong to two- or three-cluster continua. The wave functions of these states, as was pointed out earlier, are normalized to unity within the selected size of a ”discrete  box”. Thus, Table 3 presents not absolute values of intercluster distances, but their relative values.

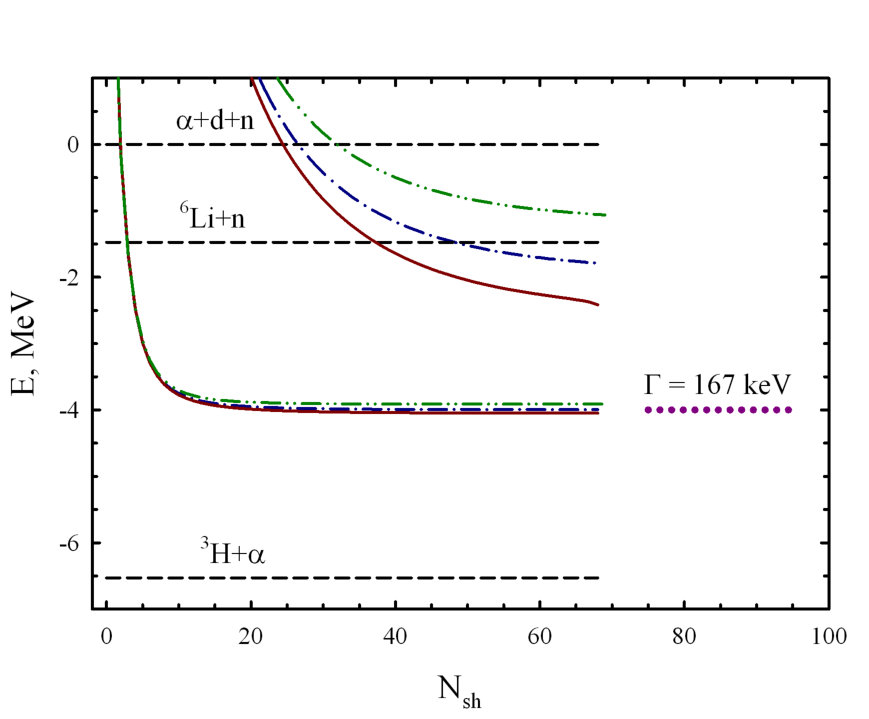

In Figure 8 we display trajectories of eigenenergies of 7Li for the 7/2*-* state. These trajectories are calculated with $K_{\max}$=9, $K_{\max}$=11 and $K_{\max}$=13. One can see that the lowest eigenstates have a plateau at energy $E$= -3.91 MeV ($K_{\max}$=11), $E$= -3.99 MeV ($K_{\max}$=11) and $E$= -4.05 MeV ($K_{\max}$=13). These energies are practically stable when we change $N_{sh}$ from 45 to 70. Such a plateau may indicate that there is a narrow resonance states at this energy. This is a very simple but reliable way for locating a position of a narrow resonance state which is used in the Stabilization Method Hazi and Taylor (1970). To be sure, we made use of an alternative method to calculate the energy and width of the resonance state in two-body continuum. We refer to this method as AM GOB (Algebraic Model for scattering which involves Gaussian and Oscillator Basis to describe relative motion of three clusters), it imposes proper boundary conditions for scattering of the third cluster on a bound state of two-cluster subsystem. This method was formulated in Ref. Vasilevsky et al. (2009) and applied to study bound and resonance states in 7Be. Investigation of discrete and continuous spectrum in 7Li within the AM GOB method was carried out in Ref. Nesterov et al. (2009). We adopted this model to study resonance states in 7Li with the same input parameters which are used in the AM HHB model. Results of these calculations are shown in Figure 8 by a dashed line indicating energy of the 7/2*-* resonance state. We observe a very good agreement between these two methods. Thus our method (AM HHB), even with a rather restricted basis of hyperspherical functions, correctly predicts position of the 7/2*-* resonance state. It is worthwhile underlying that the stabilization method works perfectly only for the narrow resonance states. This the case for the 7/2*-* resonance state as its total width is equal to 167 keV.

To understand the essence of the method used and to determine the impact of $K_{\max}$ and $N_{sh}$ on the obtained results, we consider the geometry of the three-cluster system $\alpha+d+n$ in the 7/2*-* states of 7Li. As it was demonstrated, three approximations $K_{\max}$=9 , $K_{\max}$=11 and $K_{\max}$=13 give a very close energies of the lowest 7/2*-* states. In these cases one can see explicitly and unambiguously the role $K_{\max}$ and $N_{sh}$ in description of  three-cluster nuclei with the hyperspherical harmonics. For this aim, in Table 4 we show the energy and average distances between clusters for the 7/2*-* states of 7Li calculated with $K_{\max}$=9, $K_{\max}$=11 and $K_{\max}$=13 and $N_{sh}=70$.  We use the same notations as in Table 3, however here we restricted ourselves with $\alpha+d+n$ tree, which represents the lowest two-body channel $\alpha+t$. Note that difference of the plateau energies, calculated with $K_{\max}$=9 and $K_{\max}$=13 is 138 keV which is less than the width ($\Gamma$=167 keV) of the 7/2*-* resonance state. By increasing the number of channels from $K_{\max}$=9 to $K_{\max}$=13, we slightly improve the description of the $t=d+n$ subsystem as the average distance $R_{2}$ between a deuteron and a neutron is somewhat increased. When we increase $N_{sh}$ from minimal to maximal value, we allow a three-cluster system to have more larger distance between all clusters or between the third cluster and a compact (i.e. bound) state of two-cluster subsystem.

From the presented Figures and Tables, and from the analysis of wave functions of the states in two-body continuum we conjecture that the more channels of the hyperspherical harmonics (or larger values of $K_{\max}$) are involved, the more precise is the description of two-cluster bound states. By increasing $N_{sh}$ with a fixed value of $K_{\max}$, we allow the third cluster to move far away from the bound two-cluster subsystem.

The conclusions, we made by analysing Tables 3 and 4, can be confirmed by considering wave functions of the ground and excited states in the coordinate or oscillator representations.

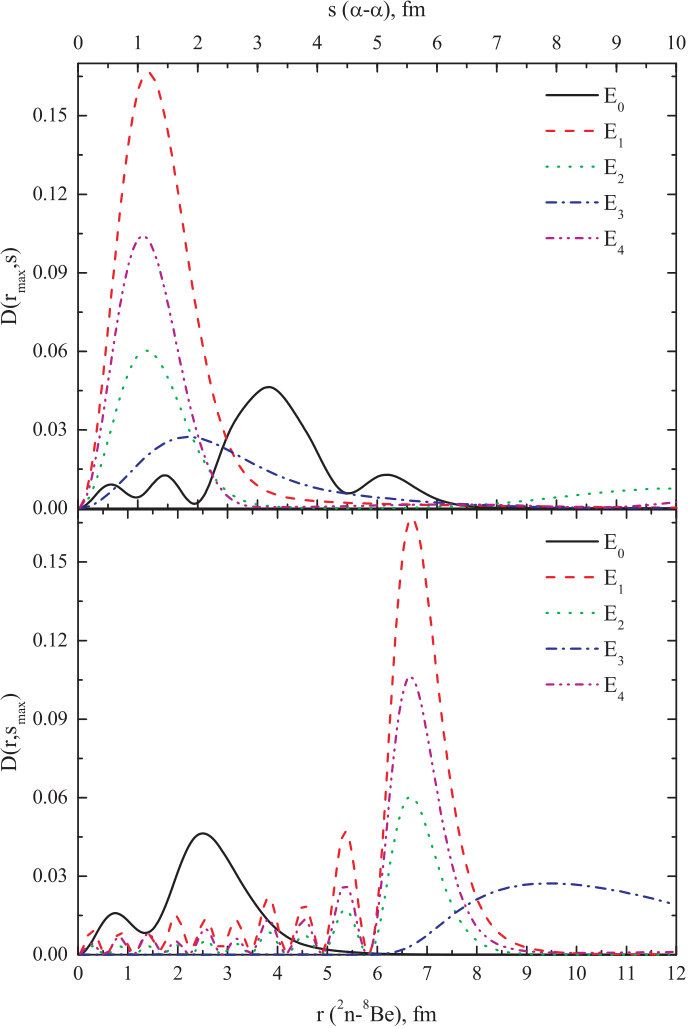

Let us consider the correlation functions,  which we define as

[TABLE]

For an adequate physical interpretation of the correlation function, we introduce $s_{\alpha},r_{\alpha}$ distances between clusters instead of the Jacobi coordinates $x_{\alpha},y_{\alpha}$

[TABLE]

We will show correlation functions $D_{E_{\nu}}\left(s_{\alpha},r_{\alpha}\right)$ for bound and pseudo-bound states.  We will also display sections of the correlation functions $D_{E_{\nu}}\left(s_{\alpha},r_{\alpha,\max}\right)$ and $D_{E_{\nu}}\left(s_{\alpha,\max},r_{\alpha}\right)$, where ($s_{\alpha,\max},r_{\alpha,\max}$) is a point in two-dimensional plane ($s_{\alpha},r_{\alpha}$) determining a principal maximum of the correlation function for an eigenstate of three-cluster hamiltonian with energy $E_{\nu}$. Coordinates ($s_{\alpha},r_{\alpha}$) of the principal and local maxima of the correlation function determine maximal probability to find a three-cluster system at this point, thus we will call them as dominant distances between clusters and we will refer to the quantity $s_{\alpha}$ as to a dominant size of a two-cluster subsystem.

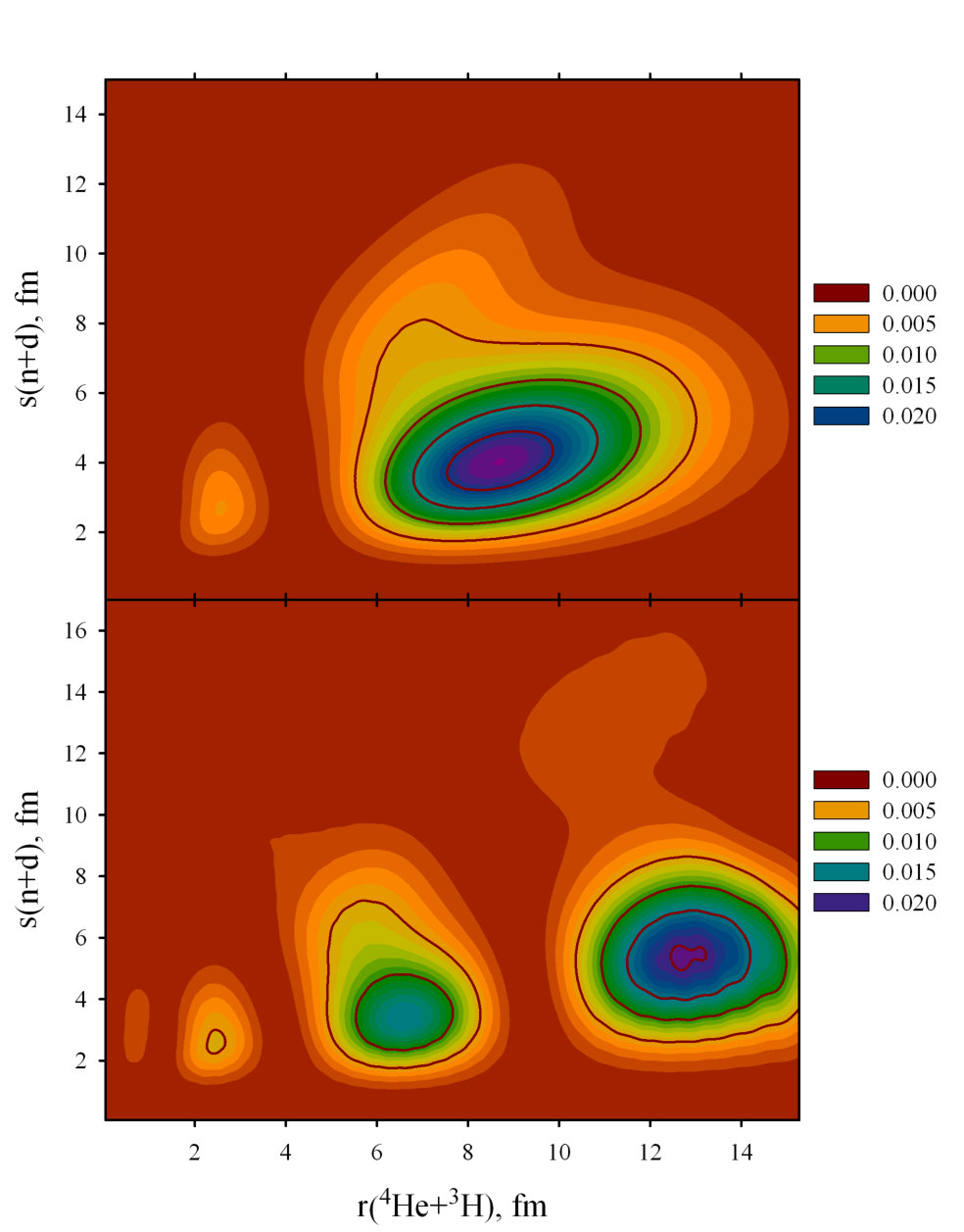

The contour plots of the correlation functions for the first and second excited states in 7Li are presented in Fig. 9. This figure is constructed for the first Jacobi tree, where $\mathbf{s}_{1}$ determines distance between neutron and deuteron while vector $\mathbf{r}_{1}$ represents distance between an alpha particle and 3H nucleus. It is important to recall that both states belong to the 4He+3H continuum. One may notice that the larger is the energy of the excited state, the more oscillations of the correlation functions are observed along the distance $r_{1}$ within the presented range. One may also see that the larger is the distance between an alpha particle and 3H, the larger is the dominant size of 3H or, in other words, the larger is the distance between deuteron and neutron comprising nucleus 3H. Such behaviour of the correlation functions indicates the polarizability of 3H as a two-cluster subsystem when the distance between 3H and alpha particle is changed. These results are in  accordance with the results of Refs. Vasilevsky et al. (2009); Nesterov et al. (2009), where the cluster polarizability of two-cluster subsystems in 7Be and 7Li were investigated with the model designed to study effects of cluster polarization on the structure of bound and resonance states in compound systems.

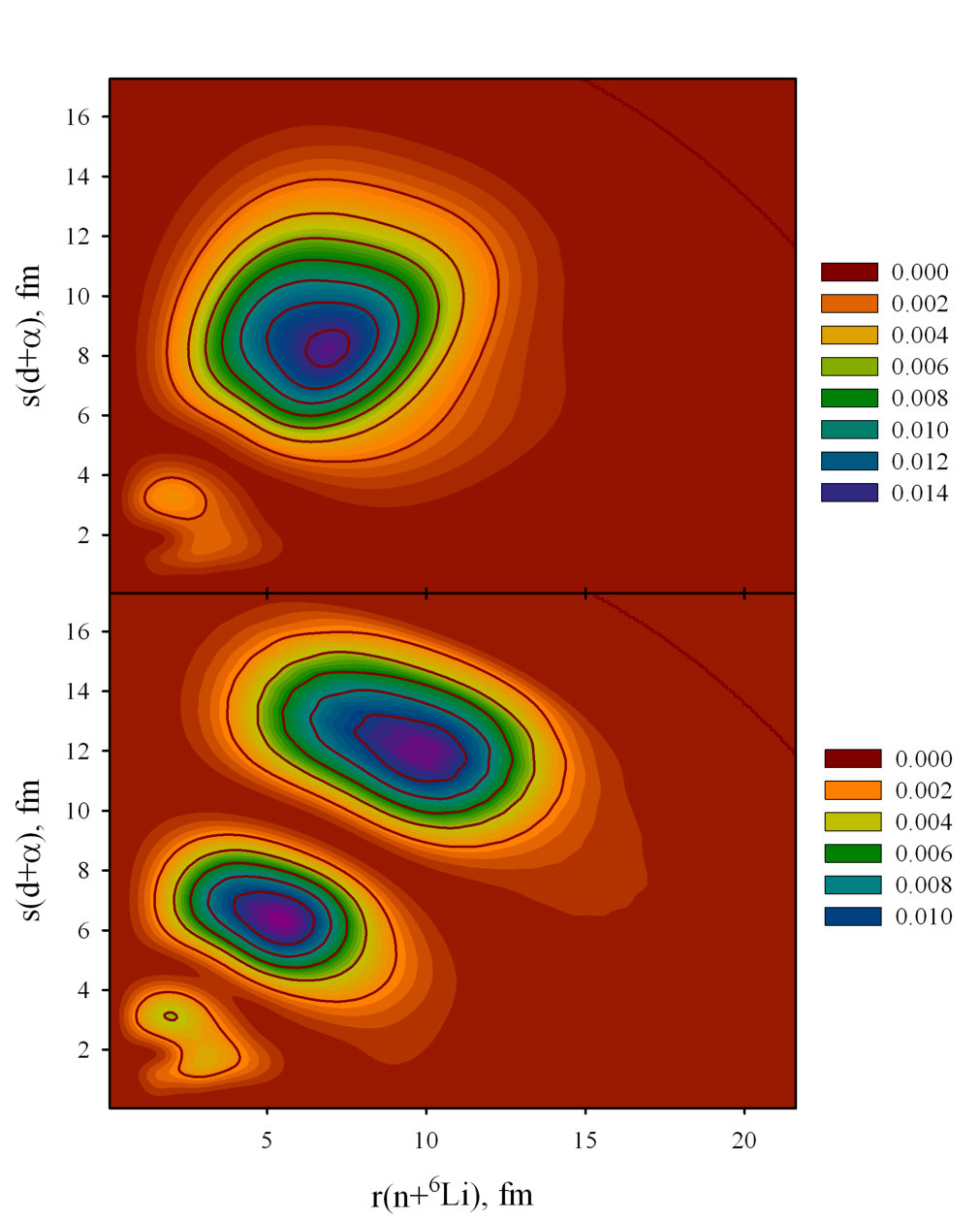

In the second Jacobi tree with the dominant two-cluster configuration $n+^{6}$Li, we obtain rather different view (Fig. 10) of the correlations functions for the same excited states in 7Li. In this representation, the size of 6Li and distance between neutron and 6Li nucleus are very large. This is in a compliance with Fig. 9, where the dominant distance between deuteron and neutron is small, however the dominant distances between neutron and alpha particle and between deuteron and alpha particle are very large.

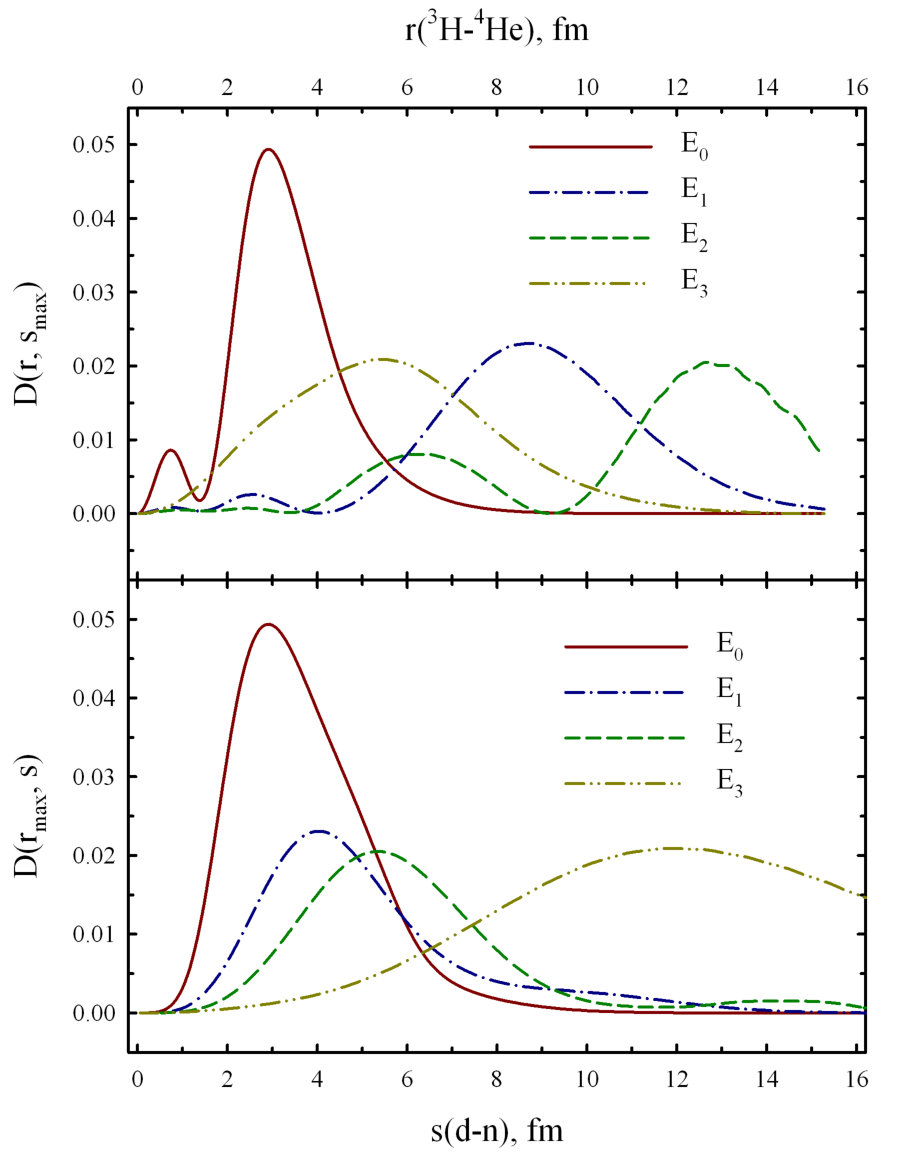

In Fig. 11 we display sections $D_{E_{\nu}}\left(s_{\alpha},r_{\alpha,\max}\right)$ and $D_{E_{\nu}}\left(s_{\alpha,\max},r_{\alpha}\right)$ of the correlation functions for the lowest states of 7Li with the total angular momentum $J^{\pi}$=3/2*-*.  The lower part of Fig. 11 shows that nucleus 3H, comprised of a deuteron and a neutron, is confined in states $E_{0}$, $E_{1}$ and $E_{2}$. With increasing energy, the distance between deuteron and neutron is increased from 3 to 5.5 fm. As in Fig. 9, such behaviour of wave functions of 3H in $E_{0}$, $E_{1}$ and $E_{2}$ states more explicitly shows a polarization of 3H cluster when it interacts with an alpha-particle. The upper part of Fig. 11  demonstrates that 7Li is a compact object in its ground state, since the dominant distance between clusters 3H and 4He is approximately 3 fm. Wave functions and correlation functions of the excited states $E_{1}$ and $E_{2}$ have an oscillatory behaviour along coordinate $r_{1}$, determining distance between clusters 3H and 4He. As one can see in Fig. 5, these states belong to the 3H+4He continuous spectrum.

Fig. 11 completely confirms the conclusions which were made by analysing the results presented in Table 3.

The behaviour of the presented correlations functions is totally in agreement with the asymptotic forms of three-cluster wave functions, discussed above in Eqs. (16)-(II.3). Indeed, for the bound state we observe the exponential tails of the correlation functions along the vectors $\mathbf{s}_{\alpha}$ and $\mathbf{r}_{\alpha}$, while for the states in the two-body continuum the exponential tail is observed along the vector $\mathbf{s}_{\alpha}$ and the oscillating tail is seen along the vector $\mathbf{r}_{\alpha}$. These conclusions are correct not only for 7Li but also for all other nuclei considered in this paper.

Concluding this section we note that we have carried out similar investigations for a mirror nucleus 7Be as three-cluster configuration 7Be=$\alpha+d+p$. The Coulomb interaction, which is more stronger in 7Be, slightly changes energy of the two-cluster threshold 4He+3He and reduces the energy of the 7Be ground state with respect to two- and three-cluster thresholds. Therefore, all results and conclusions deduced for 7Li nucleus are valued for the mirror nucleus. For the lack of room in the present paper, we will not dwell on the results for 7Be.

III.2 8Be=4He+3H+$p$

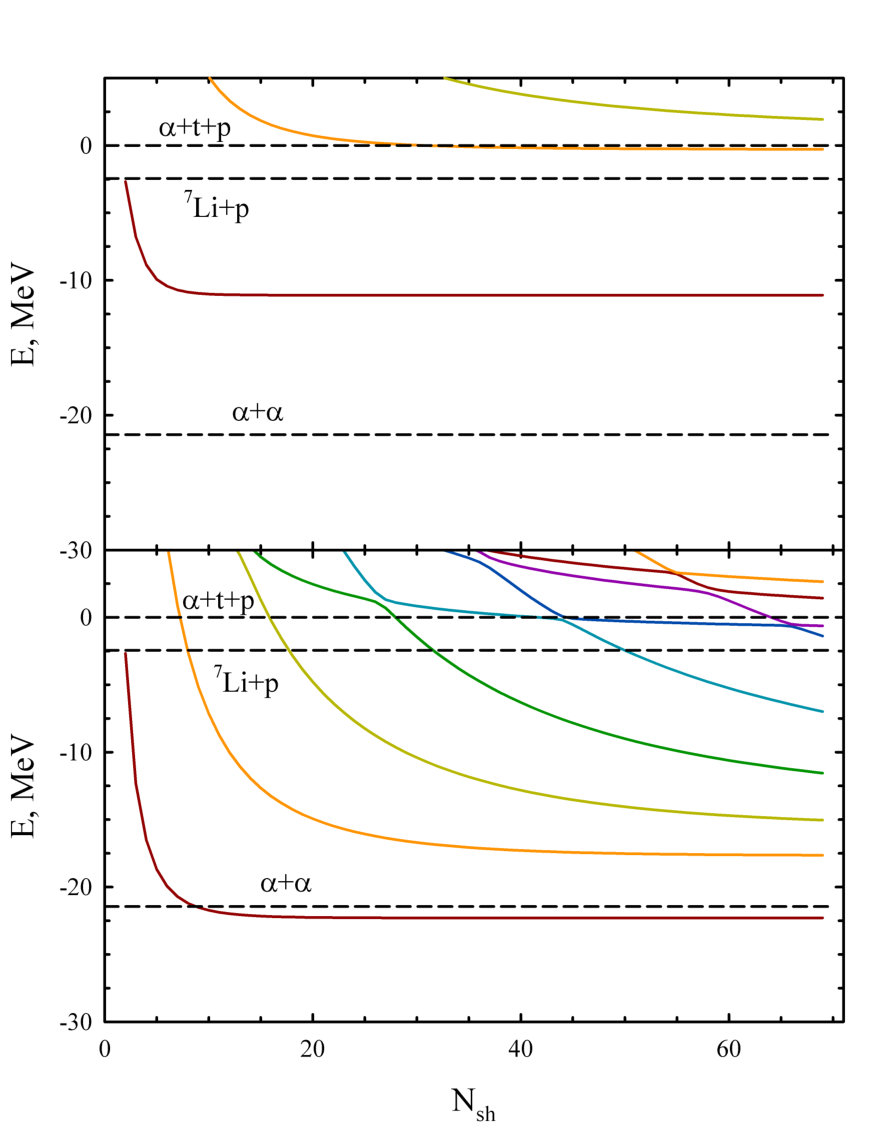

Now we consider spectrum and wave functions of the $0^{+}$ state in 8Be. With the three-cluster configuration 4He+3H+$p$ we have got the following binary channels: 4He+4He and 7Li+$p$. We do not consider the binary channel 5Li+3H as its threshold energy exceeds the three-cluster threshold. The energy of $0^{+}$ states in 8Be, calculated with only one hyperspherical harmonic $K=0$ and with $K_{\max}=$14, as a function of $N_{sh}$ is displayed in Fig. 12. The first and important result is that only one hyperspherical harmonic ($K$=0) is able to produce one state in the 4He+4He continuum and one state above the 7Li+$p$ threshold but below the three-cluster 4He+3H+$p$ threshold. Besides, the ”ground” $0^{+}$ state appears in the two-cluster 4He+4He continuum starting with $N_{sh}=$2, while the first excited state needs more than $N_{sh}=$30 oscillator shells to appear in the the 7Li+$p$ continuum. It is interesting to note (see the lower part of Fig. 12), that hyperspherical harmonics with $K_{\max}=$14 generate one bound state (below the 4He+4He threshold) and four states in two-cluster 4He+4He continuum and also two states in the 7Li+$p$ continuum. Thus this number of hyperspherical harmonics (i.e. all harmonics with 0$\leq K\leq$14 or 36 channels) is able to describe some states of elastic 4He+4He and 7Li+$p$ scattering and the reaction 4He+4He $\Longleftrightarrow$ 7Li+$p$ at two discrete energy points. It should be stressed that these results are obtained without imposing the boundary conditions.

Average distances between clusters in 8Be are shown in Table 5. They are calculated with $K_{\max}=$14.We can see that the binary channel 4He+4He dominates in pseudo-bound states within energy range from -17.648 to -1.396  MeV (energy of these states are measured from the three-cluster threshold). In all these states, cluster 4He comprised of triton and proton is very compact. The last state, listed in Table 5, has the dominant 7Li+$p$ structure. Note that the energy of the 7Li+$p$ threshold is -2.45 MeV. Thus states with energies $E$=-1.396 MeV and $E$=-0.634 MeV lie above the 7Li+$p$ threshold, the first of them has 4He+4He as a dominant structure, while the second one is mainly represented by the 7Li+$p$ structure.

III.3 4He=$d+p+n$

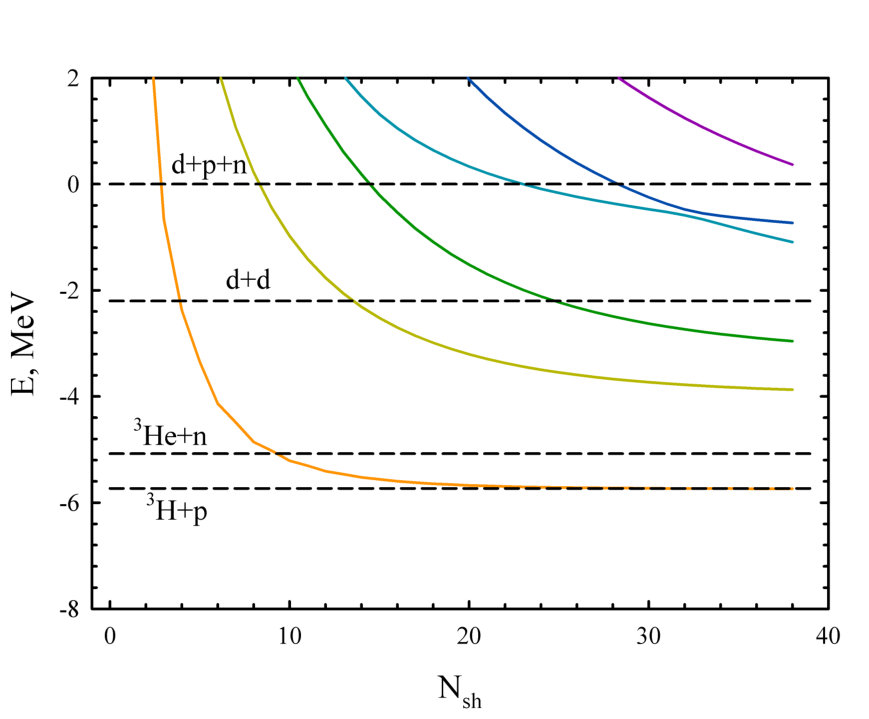

We consider 4He as a three-cluster configuration 4He=$d+p+n$. This configuration allows us to take into account all binary channels of 4He, namely, 3H+$p$, 3He+$n$ and $d+d$. In Table 6 we show spectrum of 4He and average distance between clusters, obtained with $K_{\max}=$14. The first state is the ground state in 4He, and it is very compact structure being a deeply bound state. All excited states belong to different two-cluster continua. Positions of these states with respect to two-body thresholds are shown in Fig. 13. One can see in Table 6 that all excited states are very dispersed.

III.4 10Be

Let us consider spectrum of 10Be, provided that 10Be is treated as a $\alpha+\alpha+^{2}n$ three-cluster configuration, and analyze what is the most probable geometry of this three-cluster structure. In Table 7 we show the the ground and the first excited $0^{+}$ states in 10Be. The results are obtained with the MP. In Ref. Lashko et al. (2017) the exchange parameter $u$ of the potential was selected so to reproduce the energy of the 10Be ground state with respect to the binary threshold 6He$+\alpha.$ We use the same value of this parameter. With this value of the parameter $u$ we obtained the relative position of the threshold energies of the binary 6He$+\alpha$ and  8Be$+^{2}n$ channels indicated in Table 7.

As can be seen from Table 7, the ground state and the first excited $0^{+}$ state are below the lowest binary decay threshold of 10Be. The second excited state lies between 6He+$\alpha$ and 8Be+${}^{2}n$ thresholds, while the rest of the states belong to three-cluster continuum.

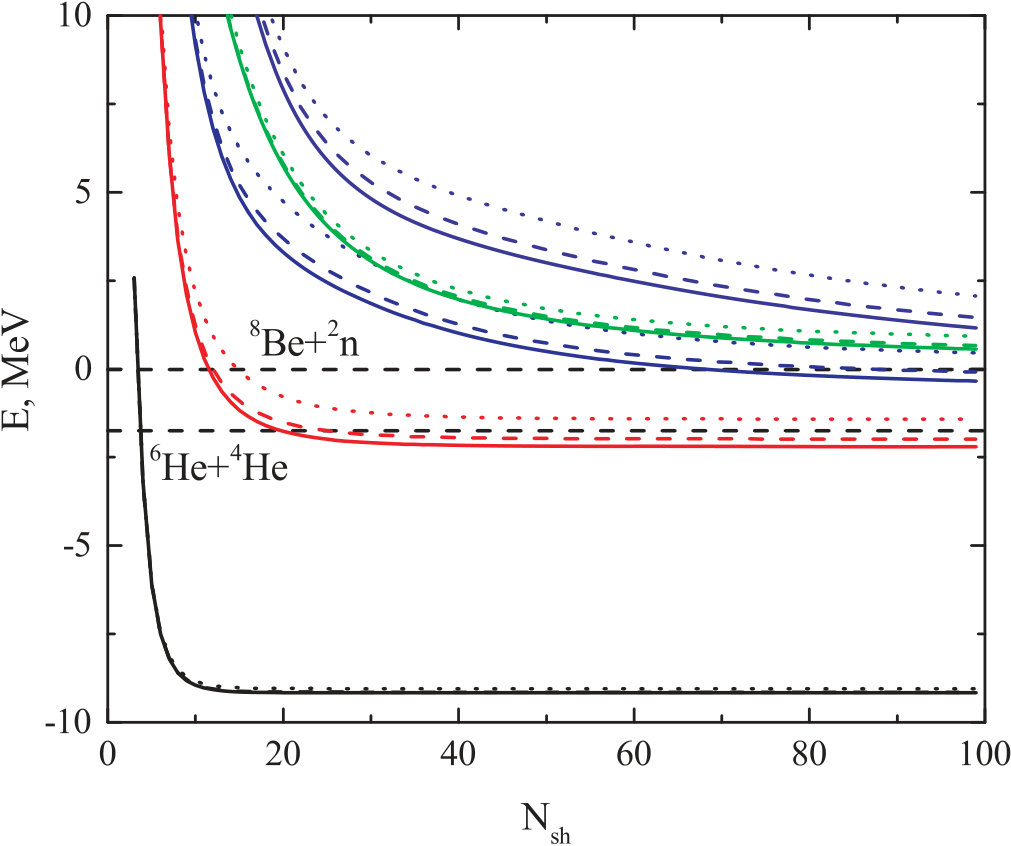

Spectrum of the 0*+* states in 10Be as a function of the number of oscillator shells and maximum value of hypermomentum involved in the calculations is plotted in Fig. 14.

As evident from Fig. 14, to reproduce the energy of the ground state it is sufficient to invoke basis functions with $N_{sh}=20$ and $K_{\max}=6$. The higher is the energy of the state, the larger value of the number of oscillator shells and hypermomentum should be used to reach the convergence. However, the third excited state with energy $E=0.56$ MeV above the three-cluster decay threshold of 10Be somewhat differs from the other states presented in Fig. 14. Hyperharmonics with $K_{\max}\geq 10$ slightly contribute to the energy of this state as opposed to the neighbouring excited states.

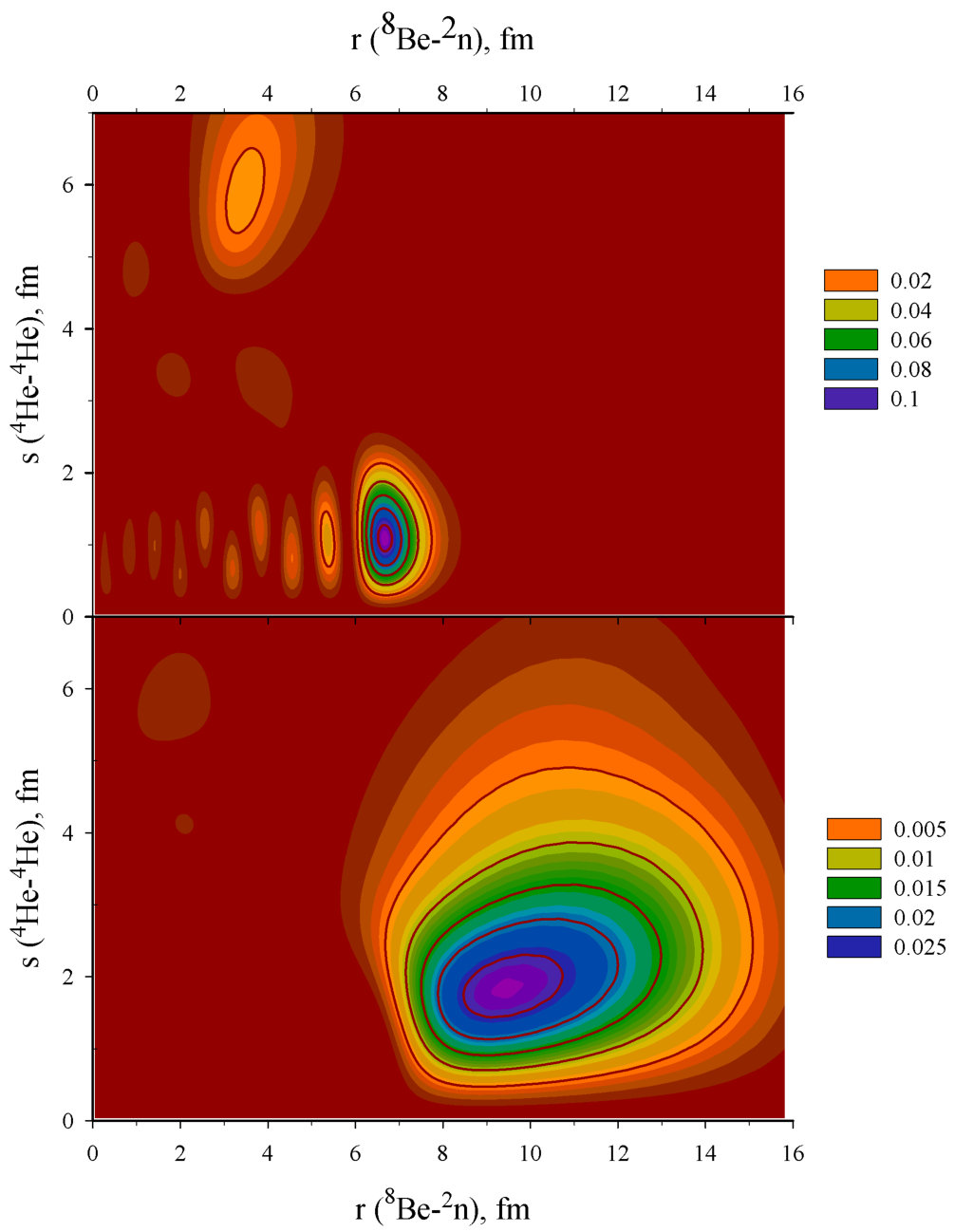

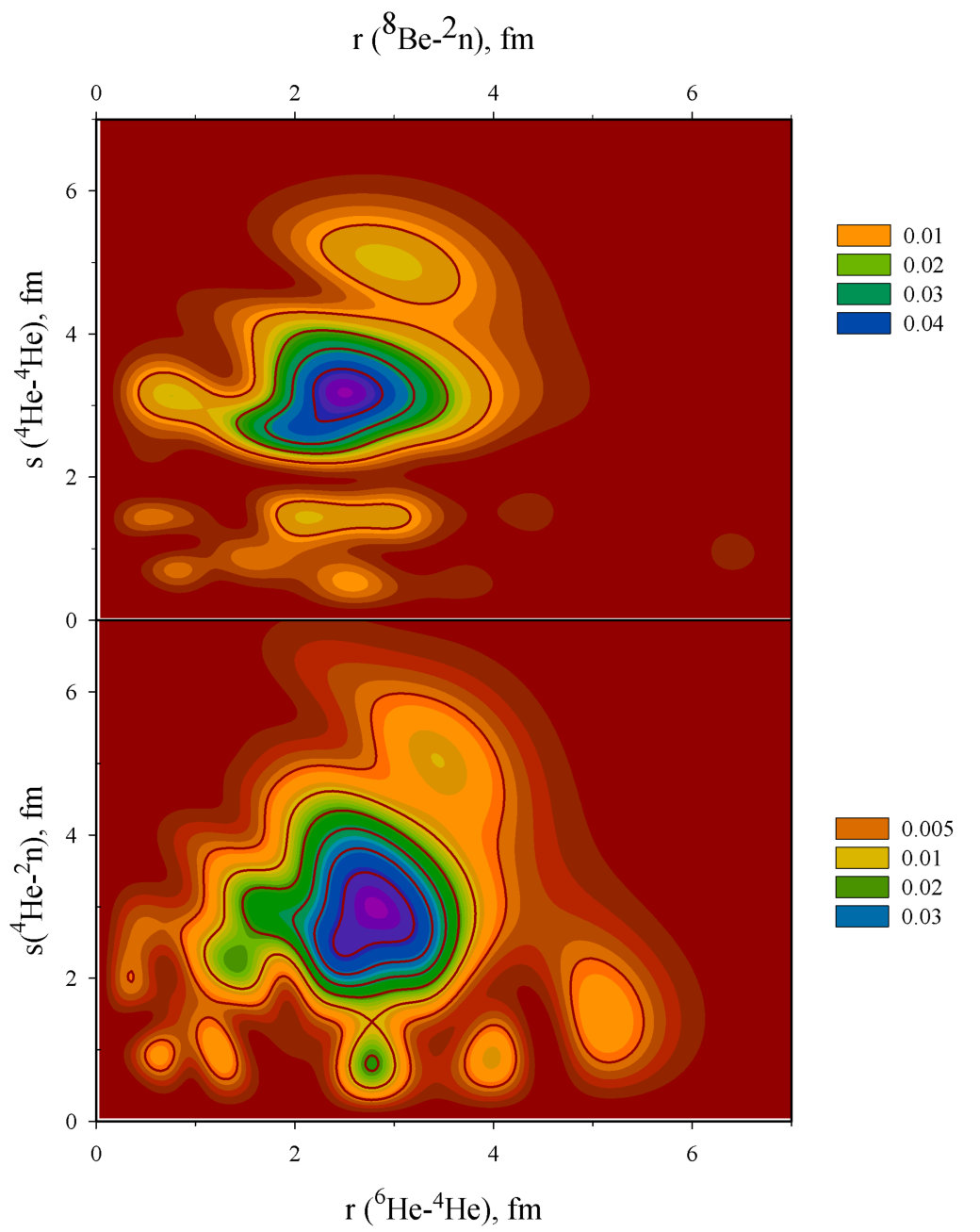

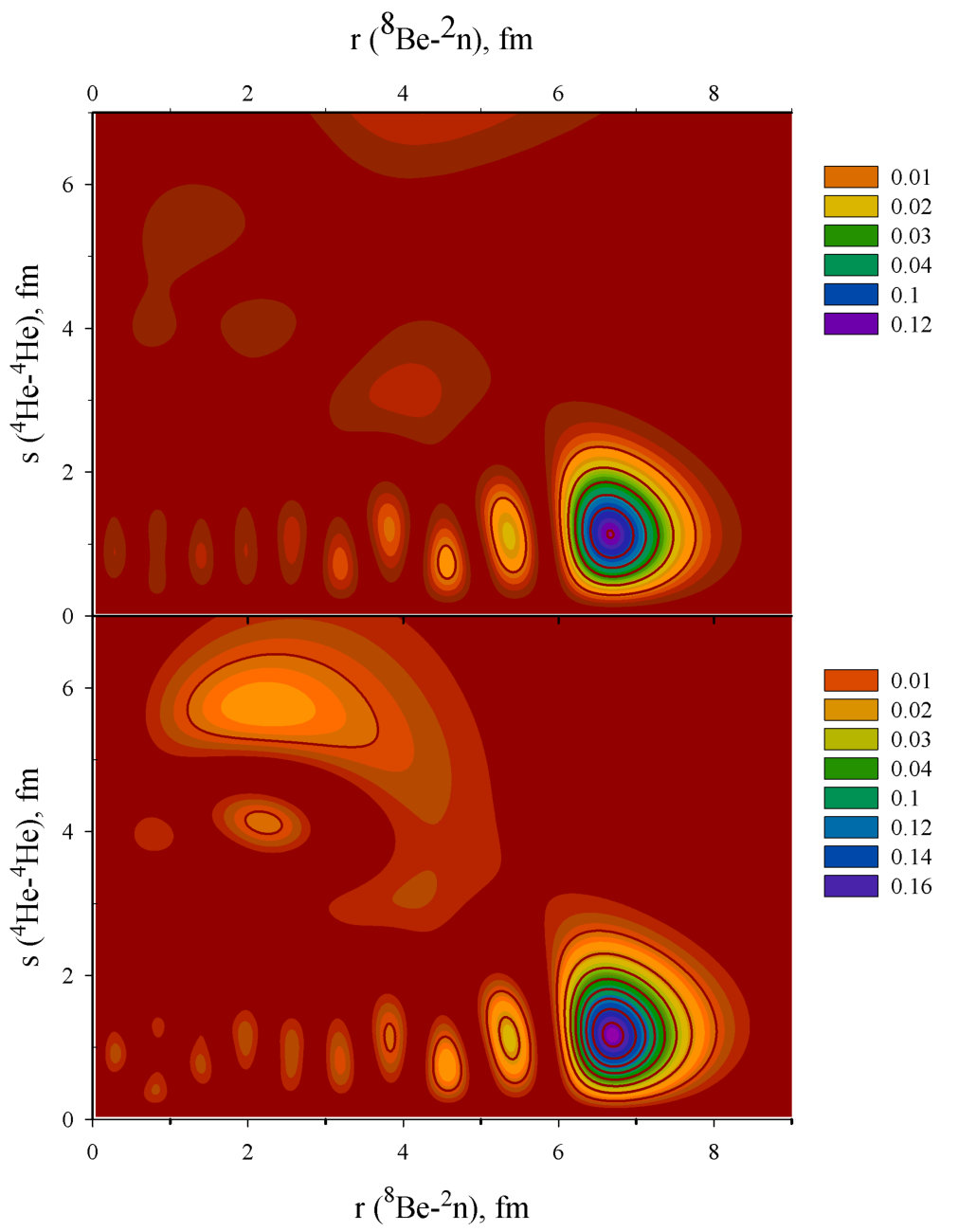

Figs. 15, 16, 17 display the contour plots of the correlation functions for the ground and excited states in 10Be tabulated in Table 7. Referring to Fig. 15, we can conclude that 10Be in its ground state is a system of three equally spaced clusters (two $\alpha$-particles and a dineutron). The other four excited states, contrastingly, have prominent 8Be$+^{2}$n structure, as is clear from Figs. 16 and 17. 6He$+\alpha$ configuration reveals itself only at higher energies.

Sections of the correlation functions, presented in Figs. 15, 16, 17, are shown in Fig. 18. As may be inferred from Fig. 18, in three low-lying states of the 10Be the 8Be subsystem is rather compact as compared to the distance between 8Be and a dineutron. As for the first state which is above the three-cluster decay threshold, it is characterized by somewhat more dilute 8Be subsystem, but 8Be$+^{2}$n configuration still dominates in this state.

We did not consider in detail the convergence which the present model provides for the bound states in the selected nuclei. However, some conclusions can be made from Fig. 5, where we display the spectrum of the 3/2- states in 7Li calculated with the different values of $K_{\max}$ and $N_{sh}$. To demonstrate that the present model provides us with a satisfactory description of the bound states, in Fig. 19 we show the ground state energy of 7Li and 7Be and the energies of the ground and first excited 0+ states in 10Be. We compare results of the present model with the corresponding results of the AM GOB model mentioned above. The AM GOB model involves a little larger part of the total Hilbert space to describe the discrete and continuous spectrum of a three-cluster system, which is reduced to a set of the binary channels. In Refs. Nesterov et al. (2009), Vasilevsky et al. (2009) and Lashko et al. (2017) the AM GOB model have been applied to study nuclei 7Li, 7Be and 10Be with the same input parameters, which we use in the present model. Therefore, we will consider results of the model as “exact”. In Fig. 19 we also display by dashed lines both the three-cluster and the lowest two-cluster thresholds. We can see that all ground states are deeply bound states with respect to the three-cluster threshold, however their convergence strongly depends on how far these states lie with respect to the lowest two-cluster channel. The latter, as we pointed above, determines the shape of the asymptotic part of the bound state wave function. As one could expect, the Coulomb interaction reduces the bound state energy in 7Be (comparing to 7Li) and slows down the convergence of this state. By concluding, the presented results show that our model is able to reproduce the bound state energy of the considered nuclei with a satisfactory precision.

IV Conclusion

Within a microscopic three-cluster model we have considered spectra of a set of light nuclei: 4He, 7Li, 7Be, 8Be, 10Be. We selected those nuclei which have a dominant three-cluster channel and one or more two-body channels below the three-cluster decay threshold. We considered tree kinds of nuclei. Two of these nuclei are deeply bound (4He and 10Be), as their ground states lie below -8 MeV with respect to the lowest two-cluster threshold. Two other nuclei (7Li and 7Be) are weekly bound, since their binding energy does not exceed -2.6 MeV. The last nucleus 8Be has no bound states. A full set of the antisymmetric three-cluster oscillator functions was constructed. These functions were labelled by the quantum numbers of the hyperspherical harmonics method. Matrix elements of a hamiltonian, consisting of central nucleon-nucleon forces and the Coulomb potential, between the oscillator functions were constructed and eigenvalues and corresponding eigenfunctions were calculated. We analysed dependence of the eigenvalues on the number of oscillator functions involved in calculations. It was demonstrated that some of the eigenvalues are the discrete states in two-cluster continuum. Analysis of the wave functions in coordinate and oscillator representations showed that these functions have a correct asymptotic behaviour peculiar to the two-cluster continuous spectrum.

The main result of the present investigations is that it is possible to see the evidence of two-cluster structure in the three-cluster wave function of a pseudo-bound state yet with a rather restricted set of the hyperspherical harmonics and hyperradial excitations as well. It was demonstrated that the eigenstates of the three-cluster hamiltonian have correct asymptotic behaviour both for bound states below two-cluster threshold and states in two-cluster continuum. Analysis of the correlation functions in different Jacobi trees reveals polarizability of two-cluster bound states when the distance between the third cluster and two-cluster subsystem is relatively small.

Acknowledgment

This work was supported in part by the Program of Fundamental Research of the Physics and Astronomy Department of the National Academy of Sciences of Ukraine (Project No. 0117U000239) and by the Ministry of Education and Science of the Republic of Kazakhstan, Research Grant No. IPS 3106/GF4.
