Collapsed Tetragonal Phase Transition in LaRu$_2$P$_2$

TL;DR

This study investigates the pressure-induced phase transition in LaRu₂P₂, revealing a collapsed tetragonal phase at high pressure, with implications for understanding structural and superconducting properties under external pressure.

Contribution

The paper provides the first detailed high-pressure x-ray diffraction analysis of LaRu₂P₂, identifying a second-order collapsed tetragonal phase transition and comparing effects of physical and chemical pressure.

Findings

LaRu₂P₂ transitions to a collapsed tetragonal phase above ~2 GPa.

The cT phase exhibits a higher bulk modulus of 175 GPa.

The phase transition is temperature-dependent, occurring at slightly higher pressures at room temperature.

Abstract

The structural properties of LaRu$_2$P$_2$ under external pressure have been studied up to 14 GPa, employing high-energy x-ray diffraction in a diamond-anvil pressure cell. At ambient conditions, LaRu$_2$P$_2$ (I4/mmm) has a tetragonal structure with a bulk modulus of $B=105(2)$ GPa and exhibits superconductivity at $T_c= 4.1$ K. With the application of pressure, LaRu$_2$P$_2$ undergoes a phase transition to a collapsed tetragonal (cT) state with a bulk modulus of $B=175(5)$ GPa. At the transition, the c-lattice parameter exhibits a sharp decrease with a concurrent increase of the a-lattice parameter. The cT phase transition in LaRu$_2$P$_2$ is consistent with a second order transition, and was found to be temperature dependent, increasing from $P=3.9(3)$ GPa at 160 K to $P=4.6(3)$ GPa at 300 K. In total, our data are consistent with the cT transition being near, but slightly above 2 GPa at 5 K. Finally, we compare the effect of physical and chemical pressure in the RRu$_2$P$_2$ (R = Y, La-Er, Yb) isostructural series of compounds and find them to be analogous.

Figures

Full text

I Introduction

Compounds with the ThCr2Si2 structure have generated a lot of interest over the years, most recently, the discovery of high-temperature superconductivity (SC) in the AeFe2As2 (Ae=Ba, Sr, Ca) family.Canfield and Bud’ko (2010); Johnston (2010) The physical properties in this family of superconductors can be tuned typically via chemical substitution, or by external pressure, from a magnetic/orthorhombic phase to SC.Rotter et al. (2008); Alireza et al. (2008); Colombier et al. (2009); Paglione and Greene (2010); Stewart (2011); Canfield and Bud’ko (2010) At large enough applied pressures, a collapsed tetragonal (cT) phase transition occurs, in which the c-lattice parameter can decreases by up to 10% in CaFe2As2.Kreyssig et al. (2008); Canfield et al. (2009) The critical pressure for this transition ranges from 0.4 GPa in CaFe2As2 Kreyssig et al. (2008); Yu et al. (2009) to 10 GPa and 17 GPa for SrFe2As2 Kasinathan et al. (2011) and BaFe2As2 Uhoya et al. (2010), respectively. However, the cT phase transition is not unique to the AeFe2As2 family and was predicted in compounds with the AB2X2 (B = transition metal, X = group 14 or 15 element) structure in which the X-X contact varies over the range of bonding between no bond and a fully formed X-X single bond. Hoffmann and Zheng (1985) Indeed, the cT phase has been observed in many compounds with the ThCr2Si2 structure Huhnt et al. (1998); Bishop et al. (2010); Yu et al. (2014); Naumov et al. (2017) as well as in the recently discovered CaKFe4As4 superconductor which may even host a two-step cT transition.Kaluarachchi et al. (2017a)

The electronic properties of the cT phase are vastly different than of the un-collapsed tetragonal (TET) phase due to the abrupt change of the electronic band-structure, associated with the structural change Dhaka et al. (2014), e.g., the transition into the cT phase often leads to the loss of magnetism or SC.Kreyssig et al. (2008); Canfield et al. (2009); Ran et al. (2012); Gati et al. (2012); Furukawa et al. (2014); Zhang et al. (2016) Therefore, studying the pressure-temperature phase diagrams and the different ground states is fundamental for understanding SC this family of materials. Some compounds with ThCr2Si2 structure can support conventional superconductivity while still exhibiting intriguing ground states. One example is the compound LaRu2P2, in which it had been shown that SC in LaRu2P2 is enhanced under external pressure, but then either vanishes Foroozani et al. (2014) or diminishes for pressures greater than $P=2.1$ GPa, at which a cT transition has been predicted by band-structure calculations.Li et al. (2016)

LaRu2P2 is part of the RRu2P2 (R = Y, La$\textendash$Er, Yb) series of compounds which crystallize in the ThCr2Si2 type structure (space group I4/mmm), with lattice parameters $a=4.031\AA$ and $c=10.675\AA$.  Jeitschko et al. (1987) It goes through a superconducting transition at $T_{c}=4.1$ K [Fig. 1(b)]. LaRu2P2 is isostructural to the AeFe2As2, however Ru is not moment bearing in this compound. SC in LaRu2P2 has a different origin with respect to the AeFe2As2 family of superconductors.Razzoli et al. (2012) In this compound, the superconducting properties are isotropic, with higher carrier density than in the iron-based superconductors.Ying et al. (2010) Band-structure calculations show that the electronic properties of LaRu2P2 exhibit three-dimensional rather than two-dimensional characteristics found in the AeFe2As2 family, and that $T_{c}$ can be well estimated from the size of electron-phonon coupling using BCS theory.Karaca et al. (2016) The effect of hydrostatic pressures on the SC properties of LaRu2P2 were previously explored by extensive magnetization Foroozani et al. (2014) and electrical transport measurements together with band-structure calculations Li et al. (2016). They find an initial increase in the $T_{c}$ up to $P=2.1$ GPa followed by an abrupt disappearing of the Meissner response accompanied by a broadening of the transition in resistivity.

In this work, we applied hydrostatic pressure up to 14 GPa, using a diamond-anvil cell, on a single crystal of LaRu2P2 and studied its structural properties using high-energy x-ray diffraction. This allowed us to address the reports showing a change of superconducting properties around $P=2.1$ GPa Foroozani et al. (2014); Li et al. (2016) and to compare the effect of hydrostatic (physical) to chemical pressure upon substitution of different rare-earth elements, R, in RRu2P2, associated with the reduction of ionic radii, i.e., lanthanide contraction.Goldschmidt and Barth (1925)

II Experimental

Single crystals of LaRu2P2 were grown out of a high-temperature solution rich in Sn. Stoichiometric quantities of pieces of elemental La, Ru and P were mixed with Sn in molar ratios between 1:10 to 1:80 (LaRu2P2 to Sn).Canfield and Fisher (2001); Canfield and Fisk (1992) Different dilution levels were attempted in order to optimize the planar size of grown crystals for the diamond-anvil pressure cell requirements ($<60\mu$m). Small crystals of that approximate size were abundant in the most dilute growth (1:80). The initial elements were placed into the bottom 2 ml alumina crucible of a Canfield Crucible SetCanfield et al. (2016), and sealed in amorphous silica ampules under a partial argon atmosphere. The ampules were heated to 300 ∘C in 3 hours and dwelled there for 6 hours, in order to allow the phosphorous and tin to react, therefore reducing the risk of explosions upon further heating. Subsequently, the ampules were heated over 10 hours to 1190 ∘C where they dwelled for 3 additional hours, then cooled, over 250 hours to 780 ∘C. At that point, the excess molten Sn-rich solution was decanted by a modified centrifuge. Canfield and Fisk (1992); Canfield et al. (2016) The grown crystals had square plate-like morphology with the c-axis perpendicular to the plate surface with dimensions ranging from 40 to 200 $\mu$m.

To confirm that the grown crystals are in fact superconducting, DC magnetization was measured in a Quantum Design Magnetic Property Measurement System (MPMS), SQUID magnetometer, on several LaRu2P2 crystals. In Fig. 1(b) we show zero-field cooled magnetization data measured under an applied magnetic field of $H=10$ Oe. The magnetization exhibits a superconducting transition at $T_{c}=4.1(2)$ K (mid-point of the transition), which is consistent with previously reported values.Jeitschko et al. (1987); Foroozani et al. (2014); Li et al. (2016)

High-energy x-ray diffraction measurements were performed on the six-circle diffractometer at the 6-ID-D station at the Advanced Photon Source, using 100.32 keV x-rays and a beam size of $100\times 100$  $\mu$m2. A double-membrane-driven Sinogeikin et al. (2015) copper-beryllium diamond-anvil cell (DAC) with 600 $\mu$m culet anvils was used to generate high pressures. A steel gasket was pre-indented to 65 $\mu$m thickness and a hole of diameter 260 $\mu$m was laser-drilled Hrubiak et al. (2015) to serve as sample chamber. A single crystal with dimensions of $52\times 52\times 22$ $\mu$m3 was placed in the sample chamber together with ruby spheres and silver foil for pressure calibration as shown in Fig. 1(a). Helium gas, loaded at $P=1.1$ GPa, was used as the pressure-transmitting medium. The pressure was initially determined from fluorescence lines of the ruby spheres at ambient temperature. During the diffraction measurements, the pressure was determined in-situ by analyzing selected Bragg peaks from the silver foil. The DAC was mounted on the cold finger of a He closed-cycle cryostat and temperature-dependent measurements were performed between $T=5$ and 300 K for various pressures.

The x-ray diffraction patterns of the (HK0) plane, from which the a-axis parameter was determined, were recorded using a MAR345 image plate detector positioned at 1.486 m behind the sample, as the DAC was rocked by up to $\pm 3.6^{\circ}$ about two independent axes perpendicular to the incident x-ray beam. Kreyssig et al. (2007) High-resolution diffraction patterns of the (66L) Bragg reflections, from which the c-axis parameter was obtained, were recorded by a Pixirad-1 detector positioned 1.397 m behind the sample, at the appropriate diffraction angle, while rocking around one of the two axes perpendicular to the x-ray beam. The lattice parameters were determined by fitting the Bragg peak positions after integrating the data over the transverse scattering directions. This procedure was used for both the data recorded by the Pixirad-1 detector and the MAR345 image plate system.

III Results

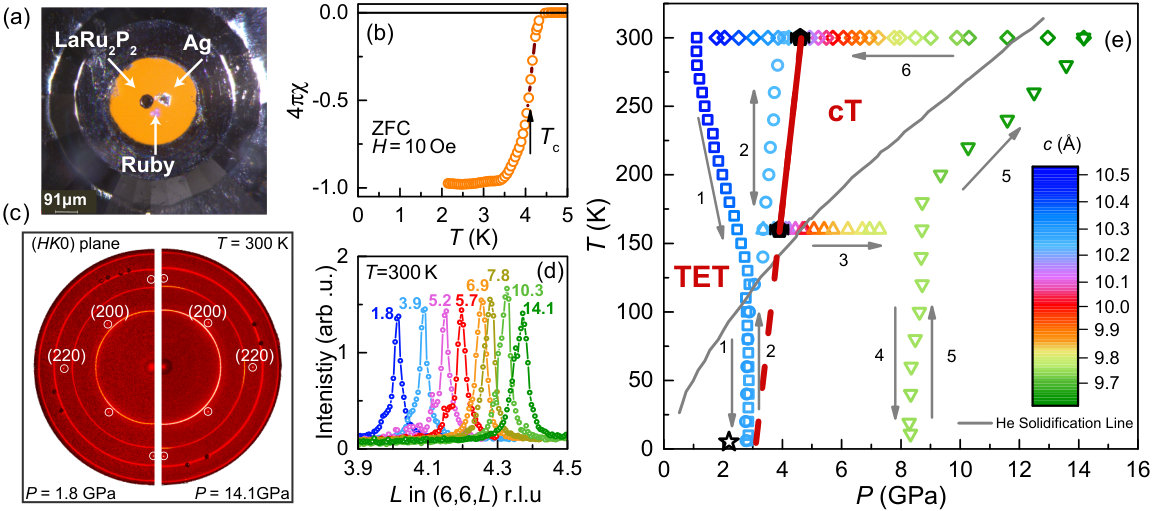

In Fig. 1(c) we present raw x-ray diffraction patterns of the (HK0) plane, acquired at $T=300$ K for $P=1.8$ GPa and $P=14.7$ GPa. The a-lattice was determined from the (220) peak position for all the temperatures and pressures. Together with the measurements of the three-dimensional reciprocal space on the line between the (660) and (664) Bragg peaks and their surroundings, can be concluded that the symmetry and space group of the structure is the same for all studied (P,T) combinations, based on the lack of changes in peak shape, peak splitting, as well as the lack of potential additional peaks.

In Fig. 1(d) we present raw x-ray diffraction data of the (664) Bragg peaks for different applied pressures measured at 300 K. The c-lattice was determined from the difference between the (664) and (660) peak positions for all the temperatures and pressures. The data are color-coded with the c-lattice parameter value [as discussed below for Fig. 1(e)]. The foot like feature on the left of the (664) Bragg peak is associated with the crystalline mosaicity which slightly changes for higher pressures.

Figure 1(e) shows the temperature-pressure paths during the experiment. Their order is indicated by the numbers and arrows. At every point, data were collected from which the a- and c-lattice parameters were inferred. The open symbols indicate the temperatures/pressures at which data were taken and are color-coded with the c-lattice parameter value. The pressure cell was gas-loaded at $P=1.1$ GPa which increased to $P=2.8$ GPa while cooling to base temperature (path 1). The sample was then warmed up to 300 K while taking data and cooled back down to 160 K (path 2), at which point the compression membrane was engaged, and the pressure was gradually increased to $P=7$ GPa (path 3). The sample was then cooled down to base temperature (path 4) and warmed to 300 K with pressure staying roughly constant up to 170 K and then reaching $P=14$ GPa upon warming to 300 K (path 5). Finally, at 300 K, the pressure was gradually decreased down to $P=1.7$ GPa, by using the de-compression membrane (path 6).

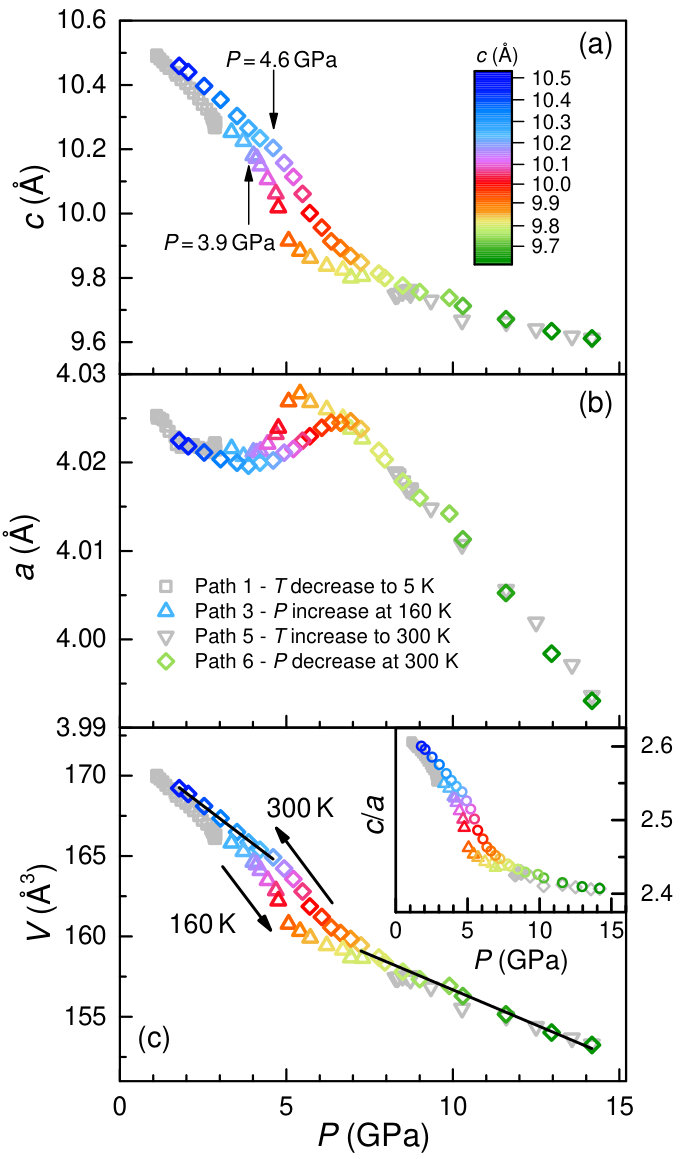

Figure 2(a) shows the c-lattice parameter versus applied pressure. During the initial cooling from 300 to 5 K (light grey squares), the sample remained in the TET phase [path 1 in Fig. 1(e)]. The c-lattice measured in path 1 also allows us to appreciate the relative (larger) change due to pressure compared to thermal contraction. Upon application of pressure at 160 K, the sample is compressed up to the transition in to the cT phase at $P=3.9(3)$ GPa (determined from the kink beyond the linear slope) which is clearly evident in the c-lattice parameter size decrease (path 3). With reduction of pressure at 300 K, from $P=14$ to 1.8 GPa, the sample exhibits a transition back to the TET phase at $P=4.6(3)$ GPa (path 5). The arrows represent the pressure at which the cT transition occurs for the two isothermal paths. No change in the symmetry of the (HK0) Bragg peaks nor additional peaks were observed when crossing the cT transition [see Fig. 1(c)].

In Fig. 2(b) the a-lattice parameter is shown versus applied pressure. Initially, the a-lattice parameter decreases until it flattens at the pressure corresponding to the cT transition, peaks and then linearly decreases with increasing pressure beyond the cT transition. A similar pressure dependence for the a-lattice parameter was observed in LaFe2P2.Huhnt et al. (1998) Figure 2(c) shows the unit cell volume of LaRu2P2 vs. applied pressure, and demonstrates a volume collapse expected for a cT transition. In the inset of Fig. 2(c), the c/a ratio of LaRu2P2 is shown vs. applied pressure.

IV Discussion

The continuous change in the unit cell volume shown in Fig. 2(c), suggests that the cT transition is consistent with a second order transition, similar to the one observed in LaFe2P2, and predicted for LaRu2P2.Huhnt et al. (1998) In addition, for a first-order transition one would expect coexistence of the cT/TET phases which would manifest as splitting or broadening of Bragg peaks Huhnt et al. (1998); Jayasekara et al. (2015); Kaluarachchi et al. (2017b) which is not evident from the diffraction data in this work [Figs. 1(c) and (d)]. Moreover, band-structure calculations predict a continuous change in the lattice parameters Li et al. (2016). Thus, we do not expect hysteresis for the cT transition in LaRu2P2 and can define the TET/cT phase boundary between $T=160$ and 300 K, shown in Fig. 1(e). The extrapolated TET/cT phase boundary suggests that at $T=0$, one can expect the cT transition to occur near 3 GPa. In addition, recent measurements of the elastic properties of LaRu2P2 have shown a characteristic behavior consistent with a cT transition. Sypek et al. (2017). Moreover, although the sample undergoes an approximately 3% change in volume at the cT transition, it remains single-crystalline across the volume collapse. This is clearly demonstrated in the raw diffraction data in Fig. 1(c), below and above the cT transition, as there are no evidence for the sample breaking into multiple crystallites which would result in the Bragg peaks radially smearing into Bragg rings.

The previously reported pressure dependence of the superconducting properties Foroozani et al. (2014); Li et al. (2016) can be explained by the proximity to the cT phase; namely, the increase and decrease of $T_{c}$, broadening of the superconducting transition Li et al. (2016), and reported loss of the Meissner response above $P=2.1$ GPaForoozani et al. (2014). The cT transition extrapolates to 3 GPa at $T=0$. At first glance data measure in path 1 [Fig. 1(e))] seems to preclude the cT phase for $P<2.8$ GPa, however the onset criteria may make it hard to detect. Even if $P_{\mathrm{cT}}>2.1$ GPa at 5 K, the loss of SC can be related to the proximity of SC to a structural instability promoted by the cT phase, which initially enhances the electron-phonon coupling and leads to an enhancement of $T_{c}$ with pressure. Closer to the cT phase, P-P bond fluctuations may alter the electronic density of states Hoffmann and Zheng (1985) and ultimately the cT transition will lead to a new band-structure and phonon spectrum that may not support the SC state. Either way, our data are consistent with the disappearance of SC close to, or at the cT phase transition.

From the volume change with pressure, the isothermal compressibility (and bulk modulus B) of LaRu2P2 can be inferred, by linear fitting the unit cell volume shown in Fig. 2(c) (black lines), below and above the cT transition. They were found to be $\beta_{T}=9.5(2)\times 10^{-3}~{}\mathrm{GPa}^{-1}$ [$B=105(2)$ GPa] and $\beta_{T}=5.7(2)\times 10^{-3}~{}\mathrm{GPa}^{-1}$ [$B=175(5)$ GPa] for pressures below and above the $P_{CT}$ for the CT transition, respectively. A doubling of the bulk modulus at pressures above the cT transition had been also reported in EuCo2As2. Bishop et al. (2010)

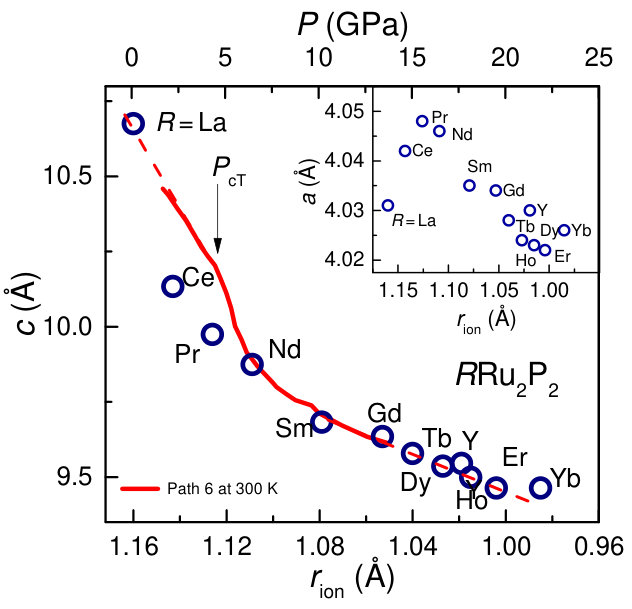

The pressure dependence of the c-lattice parameters of LaRu2P2 at 300 K can be related to the reported size of c-lattice parameters of the RRu2P2 (R = Y, La$\textendash$Er, Yb) series Jeitschko et al. (1987) and the effect of external and chemical pressure associated with the lanthanide contraction. Figure 3 shows the c-lattice parameters of the RRu2P2 Jeitschko et al. (1987) as a function of ionic radii ($r_{\mathrm{ion}}$) for a coordination number 8 of the R ions Shannon (1976). We plot the c-lattice parameter measured in path 6 ($T=300$ K) vs P on the top axis. The x-axes are scaled so that R = La is set as $P=0$ and the measured data were linearly extrapolated through the end members of the series. The c-lattice parameter change with rare-earth substitution exhibits the same trend as with external pressure applied on LaRu2P2. Moving from R = La to R = Sm, the unit cell undergoes a cT transition, between R = La and Nd. Assuming linear scaling between the chemical pressure associated with the lanthanide contraction and change in ionic radii from R = La to R = Er, we can estimate that $\frac{{\mathrm{d}{P_{\mathrm{chemical}}}}}{{\mathrm{d}{r_{\mathrm{ion}}}}}\approx-125$ GPa/$\AA$. We note that scaling between external and chemical pressure works well on both sides and while going through the isostructural cT phase transition. In the inset of Fig. 3 we show the a-lattice parameters of the RRu2P2 series. Similarly to external pressure, the a-lattice parameter vs. $r_{\mathrm{ion}}$ peaks at R = Pr, after which it decreases linearly, which strongly supports the analogous effect of chemical and physical pressure in the RRu2P2 series.

V Conclusion

In summary, we studied the structural properties of LaRu2P2 under applied external pressures up to 14 GPa, using high-energy x-ray diffraction. We find that LaRu2P2 undergoes a cT phase transition, consistent with a second order transition, which is temperature dependent, increasing from $P=3.9(3)$ GPa at 160 K to $P=4.6(3)$ GPa at 300 K. We find that the reported change in the high-pressure superconducting properties in LaRu2P2 is likely driven by the transition to the cT phase. We also determined the bulk modulus of LaRu2P2 to be $B=105(2)$ GPa and $B=175(5)$ GPa, for pressures below and above the $P_{CT}$ for the CT transition, respectively. Finally, we compared the effect of physical and chemical pressure on the lattice parameters of the RRu2P2 (R = Y, La$\textendash$Er, Yb) isostructural series of compounds, and found that physical pressure is analogues to the chemical pressure associated with the lanthanide contraction.
