Absence of Marginal Stability in a Structural Glass

TL;DR

This paper investigates whether marginal stability, characterized by diverging timescales and lengthscales, exists in structural glasses, combining theoretical predictions and simulations, and finds no evidence for it in three dimensions.

Contribution

The study challenges the mean-field prediction of a Gardner transition in structural glasses by showing the absence of marginal stability in finite dimensions through simulations.

Findings

No diverging timescales or lengthscales observed in 3D simulations.

Presence of sparse localized defects instead of marginal stability.

Finite dimensional fluctuations significantly alter mean-field predictions.

Abstract

Marginally stable solids have peculiar physical properties that were discovered and analyzed in the context of the jamming transition. We theoretically investigate the existence of marginal stability in a prototypical model for structural glass-formers, combining analytical calculations in infinite dimensions to computer simulations in three dimensions. While mean-field theory predicts the existence of a Gardner phase transition towards a marginally stable glass phase at low temperatures, simulations show no hint of diverging timescales or lengthscales, but reveal instead the presence of sparse localized defects. Our results suggest that the Gardner transition is deeply affected by finite dimensional fluctuations, and raise issues about the relevance of marginal stability in structural glasses far away from jamming.

Figures

Equations

$$\begin{array}{rl}\Delta (t,t_w)& =\frac{1}{N^{\prime }}\sum _{i=1}^{N^{\prime }}⟨|{\mathbf{r}}_i(t+t_w)-{\mathbf{r}}_i(t_w){|}^2⟩,\\ {\Delta }_{AB}(t)& =\frac{1}{N^{\prime }}\sum _{i=1}^{N^{\prime }}⟨|{\mathbf{r}}_i^A(t)-{\mathbf{r}}_i^B(t){|}^2⟩,\end{array}$$

Full text

Many types of fluids (molecular, colloidal, metallic) transform into amorphous glasses Cavagna (2009); Berthier and Biroli (2011). In the glass phase, they present thermodynamic Zeller and Pohl (1971), transport Phillips (1987), vibrational Malinovsky and Sokolov (1986) and mechanical Malandro and Lacks (1999) properties that are not observed in crystals. These “low-temperature anomalies” are observed in a wide range of systems with very different particle types or interactions, and several theoretical approaches were developed to understand them Anderson et al. (1972); Phillips (1987); Schirmacher et al. (1998); Lubchenko and Wolynes (2001, 2007), making specific assumptions about the nature of the excitations responsible for the anomalies.

A different proposal recently emerged from the convergence of two lines of research, based on the idea that collective excitations associated to marginal stability could be the key concept underlying these properties. First, it was realized that systems close to a jamming transition are marginally stable, in the sense that the number of mechanical interactions in the system is precisely tuned Liu et al. (2011). It was later proposed that marginal stability persists away from jamming Wyart et al. (2005); Xu et al. (2007); DeGiuli et al. (2014). Second, an extension of the random first order transition theory Kirkpatrick and Wolynes (1987); Kirkpatrick and Thirumalai (1987); Lubchenko and Wolynes (2012) to amorphous hard spheres in large dimensions was obtained Charbonneau et al. (2017). It predicts a Gardner phase transition Gross et al. (1985); Gardner (1985) between a normal glass phase and a marginally stable one characterized by an excess of low-frequency modes Franz et al. (2015) and unusual rheological properties Biroli and Urbani (2016); Franz and Spigler (2017); Jin and Yoshino (2017). The marginal stability of the Gardner phase could provide a universal explanation for glass anomalies Müller and Wyart (2015); Charbonneau et al. (2017). Marginal stability implies that the system responds in a strong and system-spanning way to a weak, localized perturbation Wyart et al. (2005), implying the existence of delocalized soft modes Franz et al. (2015), and diverging susceptibilities Hentschel et al. (2011); Biroli and Urbani (2016).

These recent results provide new opportunities to explain the properties of amorphous materials, motivating ongoing efforts to understand whether marginal stability holds generally in these materials. Hard Berthier et al. (2016); Seguin and Dauchot (2016); Brito and Wyart (2007) and soft DeGiuli et al. (2014) spheres very close to the jamming transition have been analyzed, showing that marginal stability and the Gardner transition may be relevant in colloidal and granular glasses. However, molecular and metallic glasses are usually modeled by longer-ranged, continuous pair interactions for which no jamming transition takes place Cavagna (2009); Berthier and Biroli (2011). In this context, much less is known about the role of marginal stability Kooij and Lerner (2017), and the existence of a Gardner phase has not been established. Therefore, it is not known whether marginal stability can be used to understand the low-temperature anomalies in generic structural glasses.

To address this important question, we combined theoretical and numerical analysis of the low-temperature vibrational properties of a standard model for atomic glasses. At the mean-field level, a marginally stable Gardner phase is predicted, which is then conceptually unrelated to jamming. However, our numerical simulations of the same model in three dimensions contrast with these predictions. We find no sign of a phase transition within the entire glass phase. We detect instead sparse localized defects at low temperature, but they do not give rise to growing timescales and lengthscales that would accompany the emergence of marginal stability at a Gardner phase transition.

Mean-field theory – We consider a monodisperse system of $d$-dimensional particles interacting through a continuous pair potential $v(r)=\epsilon(\sigma/r)^{4d}$. This is the repulsive part of the Lennard-Jones potential, generalized to an arbitrary dimension $d$. The exponent for the inverse power law is larger than $d$ to ensure that the virial coefficients remain finite in any dimension. We use $\sigma$ and $\epsilon$ as our unit length and energy, respectively. The state of the system is uniquely controlled by $\Gamma=\widehat{\varphi}/T^{1/4}$, where $T$ is the temperature and $\widehat{\varphi}=\rho V_{d}2^{d}/d$ is the rescaled packing fraction ($\rho$ is the number density, and $V_{d}$ the volume of a $d$-dimensional sphere of diameter unity). We fix the packing fraction $\widehat{\varphi}=1$ and vary the temperature, thus exploring the entire phase diagram.

In the limit $d\rightarrow\infty$, the thermodynamic properties of the liquid and glass can be computed exactly Kirkpatrick and Wolynes (1987); Charbonneau et al. (2017). In this limit, the system exhibits a sharp dynamical transition of the mode-coupling type Götze (2009); Charbonneau et al. (2017) at a temperature $T_{d}$ at which the relaxation time of the liquid diverges. Below $T_{d}$, the system is trapped in one of the exponentially-many minima of the free-energy landscape. We compute the properties of a typical equilibrium liquid at a temperature $T_{g}\leq T_{d}$. As temperature decreases, the glass is confined near the state selected at $T_{g}$ in a “restricted” equilibrium, and thus follows an equation of state different from the liquid. We compute exactly the free energy of this glass $f_{g}(T,T_{g};\Delta,\Delta_{r})$ at the replica symmetric level Rainone et al. (2015) thanks to a state-following construction Silvio Franz and Giorgio Parisi (1995); Rainone et al. (2015); Charbonneau et al. (2017). It depends on two parameters: $\Delta$ is the long-time limit of the mean-squared displacement within the followed glass state, and $\Delta_{r}$ is the relative mean-squared displacement between the original equilibrium configuration at $T_{g}$ and the one followed to $T$. The free energy $f_{g}$ is stationary with respect to $\Delta$ and $\Delta_{r}$. The average pressure and energy of glasses are obtained by taking derivatives of $f_{g}$ with respect to density and temperature, respectively.

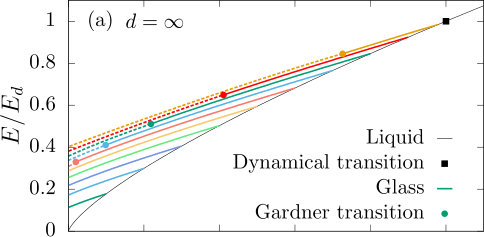

We solve the resulting set of coupled integro-differential equations given in Ref. Rainone et al. (2015) to obtain the phase diagram in Fig. 1a. First, we compute the potential energy $E$ of the equilibrium liquid and the dynamical transition temperature, $T_{d}=0.002914$. We then compute the energy of glasses prepared at different $T_{g}\leq T_{d}$ as a function of temperature. A Gardner transition is detected when the replica symmetric solution becomes unstable Rainone et al. (2015), signaling the transformation of the simple glass into a marginally stable one. The low-temperature Gardner phase is described by breaking the replica symmetry Gardner (1985); Rainone and Urbani (2016), and the transition belongs to the same universality class of the spin-glass transition in a magnetic field Montanari and Ricci-Tersenghi (2003); Urbani and Biroli (2015). The presence of a Gardner transition is in general not a universal result Montanari and Ricci-Tersenghi (2003); Rizzo (2013). In our model, over a large temperature window $0.5\lesssim T_{g}/T_{d}<1$, a marginally stable Gardner phase exists, while for $T_{g}\lesssim 0.5T_{d}$ no Gardner transition is found. Because our model does not possess a jamming transition, our results show that mean-field theory predicts that marginal stability is not restricted to the vicinity of jamming, but should be broadly relevant for generic structural glasses with continuous interactions.

Numerical simulations – There is no clear consensus on the influence of finite dimensional fluctuations on the Gardner transition Larson et al. (2013); Baity-Jesi et al. (2014); Angelini and Biroli (2015); Urbani and Biroli (2015); Aspelmeier et al. (2016); Charbonneau and Yaida (2017). Contradictory results were reported in numerical works. The existence of a transition was suggested in $d=4$ Baity-Jesi et al. (2014), but opposite claims were also made Larson et al. (2013); Aspelmeier et al. (2016). A renormalization group approach Charbonneau and Yaida (2017) found a fixed point in all dimensions $d\geq 3$, while other works found different results Moore and Bray (2011); Urbani and Biroli (2015). Thus, we must confront our theoretical predictions to a direct numerical investigation of the $3d$ version of the above model. Because the putative transition occurs deep inside the glass phase, it is crucial to prepare well-thermalized glasses, such that the structural relaxation time is larger than the duration of the simulation. This is now possible thanks to the development of an efficient swap Monte Carlo technique Grigera and Parisi (2001); Gutiérrez et al. (2015); Ninarello et al. (2017).

We simulate a continuously-polydisperse system composed of $N=1500$ particles at number density $\rho=1$. We perform selected simulations with $N=12000$ to analyze finite size effects. Particles interact via the repulsive pair potential $v(r_{ij})=\epsilon(\sigma_{ij}/r_{ij})^{12}~{}+~{}F(r_{ij})$, where $F(r_{ij})$ guarantees the continuity of the potential up to the second derivative at the numerical cutoff distance $r_{cut}=1.25~{}\sigma_{ij}$, beyond which $v=0$ Ninarello et al. (2017). The particle diameters are drawn from the normalized continuous distribution $P(\sigma_{m}\leq\sigma\leq\sigma_{M})\sim 1/\sigma^{3}$. The size ratio of $\sigma_{m}/\sigma_{M}=0.45$ was optimized to provide an excellent glass-forming ability. Similarly, we use a non-additive interaction rule for the cross diameters $\sigma_{ij}=\frac{\sigma_{i}+\sigma_{j}}{2}(1-\eta|\sigma_{i}-\sigma_{j}|)$, with $\eta=0.2$. Length, time and energy are respectively expressed in units of $\overline{\sigma}=\int\sigma P(\sigma)d\sigma$, $\sqrt{\epsilon/m\overline{\sigma}^{2}}$ and $\epsilon$. The mode-coupling crossover temperature $T_{d}\approx 0.1$ is determined by fitting the relaxation time $\tau$ measured with standard dynamics to $\tau\sim(T-T_{d})^{-\gamma}$ Ninarello et al. (2017). Using swap Monte Carlo, equilibrium can be ensured (using standard criteria Ninarello et al. (2017)) down to $T\approx 0.6T_{d}$.

To numerically mimic the state following scheme, swap Monte Carlo is used to produce $N_{s}=50$ independent equilibrium configurations at each $T_{g}~{}(0.062$, 0.07, 0.075, 0.082, 0.092). We then generate $N_{\rm th}=10$ copies of each configuration, that differ only by the initial velocities of particles (two such copies are referred to as $A$ and $B$). Each of the $N_{s}\times N_{\rm th}$ samples is simulated at $T_{g}$ in the $NVE$ ensemble during a time $t_{q}$, depending on $T_{g}$ ($t_{q}=1000$ for $T_{g}=0.062,0.07$; $t_{q}=100$ for $T_{g}=0.075$; $t_{q}=0$ for $T_{g}=0.085$). The time $t_{q}$ is chosen such that particles in different copies have time to explore their cages without diffusing. After $t_{q}$, the glass is instantaneously cooled to a temperature $T<T_{g}$ with a Berendsen thermostat (coupling parameter $\tau_{T}=10$) Berendsen et al. (1984). Waiting times $t_{w}$ are measured since the quench. We find that after $t_{w}\approx 100$, the temperature stabilizes to the desired value. For the highest $T_{g}=0.092$ studied, diffusion is not totally suppressed at equilibrium. Glasses were first cooled down to $T=0.07$ with a cooling rate $\gamma=10^{-7}$ before making copies. We then used the same protocol as for $T_{g}=0.07$ to obtain the data.

The Gardner transition is a second-order phase transition accompanied by diverging timescales and lengthscales characterizing vibrational dynamics. The transition signals profound changes in the structure of the landscape and the emergence of marginal stability. Mean-squared displacements (MSD) represent therefore the central observables for such investigation Charbonneau et al. (2015); Berthier et al. (2016):

[TABLE]

where the brackets indicate averages over thermal fluctuations and disorder. They respectively represent the standard MSD and the relative MSD between two copies of the same glass. Since smaller particles may escape their cage more easily, we concentrate on the $N^{\prime}=N/2$ larger particles.

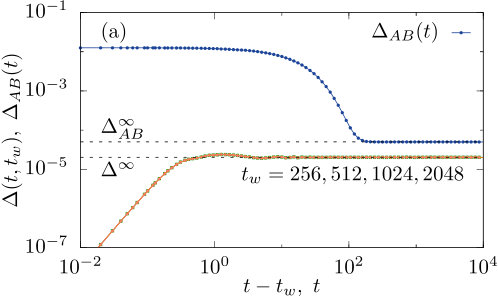

The typical behavior of the MSDs after a quench is shown in Fig. 2a. Both quantities converge to their long-time limits, $\Delta_{AB}^{\infty}$, $\Delta^{\infty}$ after a time of order 100 (set by the thermostat). No sign of slower relaxation or aging behavior is detected at any state point, which indicates that the time dependence of the observables is not pertinent. The absence of slow relaxation contrasts dramatically with hard sphere simulations Berthier et al. (2016), and directly reveals the absence of marginal stability throughout the glass phase.

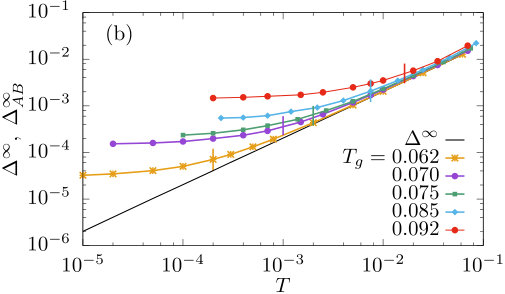

We gather the results for $\Delta_{AB}^{\infty}$ and $\Delta^{\infty}$ in Fig. 2b. The standard MSD changes linearly with $T$, as expected. The behavior of the relative distance is qualitatively the same for all $T_{g}$. The equality $\Delta_{AB}^{\infty}\approx\Delta^{\infty}$ holds at high enough $T$, meaning that the structure of the basin is relatively simple. There is a crossover temperature $T^{*}(T_{g})$ (vertical segments), below which $\Delta_{AB}^{\infty}>\Delta^{\infty}$. The distance between two copies is then much larger than the vibrations they can perform individually, suggesting that the copies get quenched in distinct minima. This splitting of MSDs was observed in hard spheres Berthier et al. (2016); Seguin and Dauchot (2016) and identified as a Gardner transition. We report in Fig. 1b the crossover temperatures and the glass energy. The similarity between the two phase diagrams in Fig. 1 is obvious.

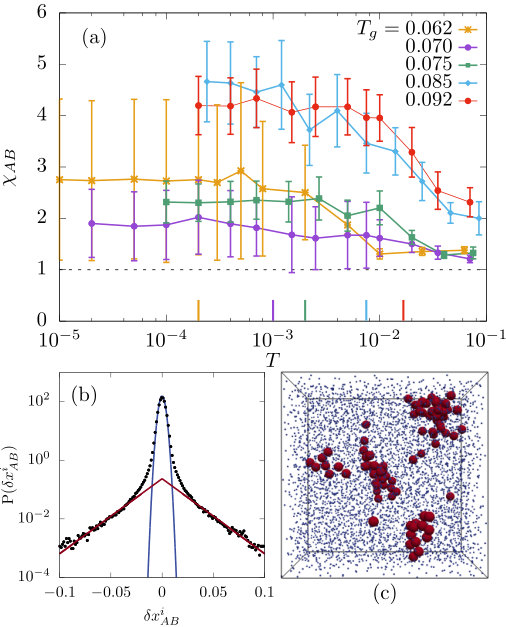

The absence of slow relaxation in Fig. 2b reveals the lack of a growing timescale. To address lengthscales, we study the global fluctuations of the relative MSD. The variance of these fluctuations defines the susceptibility $\chi_{AB}=N[\langle\tilde{\Delta}_{AB}^{2}\rangle-\langle\tilde{\Delta}_{AB}\rangle^{2}]/[\langle\Delta_{AB}^{i~{}~{}~{}2}\rangle-\langle\Delta_{AB}^{i}\rangle^{2}]$, where $\tilde{\Delta}_{AB}$ is the plateau value of the relative MSD for a given pair $AB$, and $\Delta^{i}_{AB}$ its single particle version. The normalization in $\chi_{AB}$ ensures that $\chi_{AB}=1$ for spatially uncorrelated motion and that $\chi_{AB}$ is a direct measure of the correlation volume. If the crossover at $T^{*}$ corresponded to a Gardner transition, the susceptibility would diverge near $T^{*}$. The results in Fig. 3a are very similar for all $T_{g}$ values: the susceptibility increases very weakly as temperature decreases. Within our error bars, there is actually very little global fluctuations above the floor level. This directly demonstrates that spatial correlations between particle motion remain microscopic across the crossover $T^{*}$, which is thus not accompanied by a growing correlation length. This is consistent with the absence of slow dynamics in Fig. 2a. A similar value of $\chi_{AB}$ was observed in larger systems of $N=12000$ particles at specific state points. We studied the spatial correlation function for the relative MSD Berthier et al. (2016), of which the volume integral is $\chi_{AB}$, and did not find hints of a growing length scale at any temperature. We conclude that $T^{*}$ does not coincide with the emergence of a marginally stable phase.

To understand the origin of the crossover observed in Fig. 2b, we resolve the vibrational dynamics at the particle scale. We measure the distribution of relative particle displacements, $P(\delta x_{AB}^{i})$, where $\delta x_{AB}^{i}=x_{A}^{i}-x_{B}^{i}$ is the relative motion of particle $i$ between copies $A$ and $B$ along the $x$-direction. We average over the three directions of space. The van-Hove function is nearly Gaussian when $T^{*}<T<T_{g}$ with a width controlled by $\Delta^{\infty}$. Close to $T^{*}$ and below, the distribution remains Gaussian in its core, but exhibits tails that are well-fitted by an exponential, as shown in Fig. 3b. We evaluate the statistical weight of the particles contributing to the tails by integrating the exponential fit. It varies between 1% and 3% for all state points and typically increases with $T_{g}$. This corresponds to a small subset of particles that get frozen in slightly distinct positions below $T^{*}$ in two copies. The error bars for $\chi_{AB}$ are large because the number of particles in the tails is small, and fluctuates significantly from one pair $AB$ to another. We have checked that these mobile particles encompass all particles, not only small ones that are more mobile. To gather spatial information on these few mobile particles, we select particles with a relative displacement $\delta x_{AB}^{i}$ outside of the Gaussian core of the distribution, and visualize them in snapshots. A typical snapshot obtained for $N=12000$ is shown in Fig. 3c. We represent the vast majority of particles with Gaussian displacements as small points and highlight particles contributing to the tails with larger red spheres. Strikingly, these mobile particles are clustered into sparse localized defects. When $T_{g}$ increases, the number of mobile particles as well as their characteristic displacement $\Delta^{i}_{AB}$ increase weakly. This directly accounts for the shift of $T^{*}$ with $T_{g}$. These few localized clusters thus dominate the behavior of the relative displacement $\Delta_{AB}^{\infty}$ which is averaged over particles, and are responsible for its separation from $\Delta^{\infty}$ in Fig. 2b. Our key conclusion is that the emergence of these localized clusters at $T^{*}$ does not correspond to a Gardner phase transition, and glasses below $T^{*}$ are not marginally stable.

In our system, the marginal stability described within mean-field approaches is strongly suppressed by finite-dimensional fluctuations. Our results differ dramatically from previous work on hard sphere systems Berthier et al. (2016); Seguin and Dauchot (2016). This surprising lack of universality contrasts with the universality of glass formation Berthier and Biroli (2011). One possible explanation for this difference is that structural glasses may generically become marginal only when pushed towards specific “critical” transitions, such as jamming Biroli and P.Urbani (2017). The jamming transition appears robust down to $2d$, with the same critical properties as in $d=\infty$ Goodrich et al. (2012). This could explain why a Gardner transition is observed in finite-dimensional hard sphere glasses near jamming, whereas glass-formers with continuous interactions reach non-marginal inherent structures at zero temperature. After this work was completed, two other works appeared reporting consistent findings Hicks et al. (2017); Seoane et al. (2017).

Our results raise two types of questions. First, the presence of a marginally stable glass phase seems highly dependent on the details of the particle interactions and on dimensionality. To better understand the nature of the Gardner transition, one should investigate better the crossover between continuous and discontinuous interactions, using for instance well-chosen particle interactions Andersen et al. (1971); Berthier and Tarjus (2011). One should also investigate the crossover towards non-mean-field behavior by using either dimensionality Charbonneau et al. (2017) or the interaction range Mari and Kurchan (2011); Charbonneau et al. (2015) as tuning parameters. Second, it would be interesting to connect the present results with other observations of localized defects Lubchenko and Wolynes (2007), such as soft localized modes controlling the low-frequency part of the vibrational spectrum in amorphous solids Lerner et al. (2016); Mizuno et al. (2017), localized defects controlling relaxation in supercooled liquids Keys et al. (2011); Candelier et al. (2010); Cubuk et al. (2015); Jack and Garrahan (2016), or the shear-transformation-zones Falk and Langer (1998); Schall et al. (2007); Hentschel et al. (2010); Puosi et al. (2016) controlling the mechanical behavior of amorphous solids.

Acknowledgments –

We thank G. Biroli, D. Coslovich, B. Seoane, P. Urbani for useful exchanges about this work, and A. Ninarello for providing initial configurations. The research leading to these results has received funding from the European Research Council under the European Unions Seventh Framework Programme (FP7/2007-2013)/ERC Grant Agreement No. 306845. This work was supported by a grant from the Simons Foundation (#454933, Ludovic Berthier; #454955, Francesco Zamponi).
