Dynamical ion transfer between coupled Coulomb crystals in a double well potential

TL;DR

This paper explores the complex non-equilibrium ion transfer dynamics between coupled Coulomb crystals in a double well potential, revealing how quench amplitude and structure influence ion reordering and transfer processes.

Contribution

It provides a detailed analysis of ion transfer mechanisms across various crystalline configurations following a potential barrier quench, offering new insights into structural disorder and dynamics.

Findings

Ion transfer depends on quench amplitude and crystal structure

Structural disorder increases with barrier quench

Ion reordering occurs across different dimensional configurations

Abstract

We investigate the non-equilibrium dynamics of coupled Coulomb crystals of different sizes trapped in a double well potential. The dynamics is induced by an instantaneous quench of the potential barrier separating the two crystals. Due to the intra- and inter-crystal Coulomb interactions and the asymmetric population of the potential wells we observe a complex reordering of ions within the two crystals as well as ion transfer processes from one well to the other. The study and analysis of the latter processes constitutes the main focus of this work. In particular we examine the dependence of the observed ion transfers on the quench amplitude performing an analysis for different crystalline configurations ranging from one-dimensional ion chains via two-dimensional zig-zag chains and ring structures to three-dimensional spherical structures. Such an analysis provides us with the means to extract the general principles governing the ion transfer dynamics and we gain some insight on the structural disorder caused by the quench of the barrier height.

Figures

Equations

$$\Phi (x,y,t)=\frac{U_{\mathrm{dc}}}{2}(c{x}^2+c{y}^2)+\frac{U_{rf}}{2}\cos ({\omega }_{\mathrm{rf}}t)(c{x}^2-c{y}^2).$$

$$V_{\mathrm{d}}(z)=\frac{m}{2}{\omega }_z^2{z}_0^2+\frac{m}{2}{\omega }_z^2{z}^2-\frac{m}{2}\sqrt{4C^2+4{\omega }_z^4{z}^2{z}_0^2}$$

$$B=\frac{m}{2}({\omega }_z^2{z}_0^2+\frac{C^2}{{\omega }_z^2{z}_0^2})-mC\text{with}C\in (0,{\omega }_z^2{z}_0^2]$$

$$H(\{{\mathbf{r}}_i,{\mathbf{p}}_i\})=$$

$$+\sum _{i=1,j<i}^n\frac{Q^2}{4\pi {ϵ}_0{r}_{ij}}$$

$$t^{\ast }={\omega }_{z}t;x^{\ast }=\frac{x}{K};y^{\ast }=\frac{y}{K};z^{\ast }=\frac{z}{K};z_0^{\ast }=\frac{z_0}{K};r_{ij}^{\ast }=\frac{r_{ij}}{K};$$

$$C^{\ast }=\frac{C}{K^2{\omega }_z^2};\alpha =\frac{{\omega }_x}{{\omega }_z};\beta =\frac{{\omega }_y}{{\omega }_z}.$$

$$\Omega(t)=\gamma\frac{1}{N}\sum_{i}\Biggl{(}\frac{r_{ij}(t)}{2}\Biggr{)}^{d}$$

Full text

I Introduction

Since their development many decades ago Paul and Steinwedel (1953); Penning (1936); Dehmelt (1990), ion traps have established themselves as a powerful tool in physics with applications ranging from mass spectroscopy Dawson (1976); March and Todd (1995) to high precision tests for quantum electrodynamics Kreuter et al. (2004); Steiner et al. (2013); Guthohriein et al. (2001) and quantum information processing Cirac and Zoller (1995); Wineland et al. (1998); Kielpinski et al. (2002a).

The development of new trapping techniques, such as optical trapping Schneider et al. (2010) and the miniaturization of ion traps on chip technologies (microfabrication) Hughes et al. (2011); Wilpers et al. (2012) opens new possibilities for controlling the ions and accessing physically interesting and yet unexplored trapping conditions. Consequently, the experimental and theoretical understanding of the behavior of ions (both single species and mixtures) in different traps has become the focus of many recent studies Härter and Denschlag (2013); Smith et al. (2005); Grier et al. (2009); Champenois (2009).

A particular example is the study of Coulomb crystals. Using several cooling techniques such as Doppler cooling Wineland and Itano (1979); Neuhauser et al. (1978), electromagnetically induced-transparency (EIT) Morigi et al. (2000); Morigi (2003) or sympathetic cooling Morigi et al. (2000) it is possible to reduce the kinetic energy of the trapped particles to the regime of $\mu$K where the ions self-organize to the so-called Wigner crystals Wigner (1934). The structures of such crystals depend on the trap parameters and range from concentric rings (2D), shells (3D) Bollinger et al. (1994); Dubin and O’Neil (1999); Bonitz et al. (2008) and string-of-disks configurations Kjærgaard and Drewsen (2003) to two-component Coulomb bicrystals Hornekær et al. (2001). By tuning the parameters of the trap potential, such as the amplitude of the AC and the amplitude and frequency of the DC potential in the case of a Paul trap or the number of ions, Wigner crystals can undergo various transitions from one structure to another Birkl et al. (1992); Dubin and O’Neil (1999). Special attention has been given in the literature to the case of the second order phase transition from the linear to the zigzag chain of ions Morigi and Fishman (2004a, b); Baltrusch et al. (2012) which results in structures with Mielenz et al. (2013); Pyka et al. (2013); Ulm et al. (2013) or without Dubin (1993); Shmuel Fishman and Morigi (2008) topological defects (so-called kinks). In such a way the structural transitions of trapped ions serve among others as a playground for studying fundamental processes in physics, an example being that of the Kibble-Zurek mechanism introduced originally in the field of cosmology Pyka et al. (2013).

Given the wealth of effects resulting from a trapping of ions in an ordinary Paul trap Paul and Steinwedel (1953) it is natural to ask for the effects stemming from a more involved trapping potential. Such a potential can be provided for ions through microfabrication, where for example segmentation can be added to the standard Paul trap Schulz et al. (2008); Tanaka et al. (2014) giving rise to a plethora of new possibilities for trapping potentials Kielpinski et al. (2002b) like a double well with tunable positions of minima used for studying ion transport Huber et al. (2008) or for splitting small ion crystals Ruster et al. (2014); Kaufmann et al. (2014a); Barrett et al. (2004); Beall et al. .

Focusing on the case of the double-well trapping potential, the long-range inter- and intra-well interactions among the Wigner crystals occupying each potential well give rise to a very complex non-equilibrium dynamics. In particular for a symmetric population of the two wells, we have recently shown Klumpp et al. (2016) that a quench in the barrier height induces interesting nonlinear dynamics, involving both regular and irregular phases of motion. Here we extend this study to the case of an asymmetric population of the double well potential. This asymmetry results in an even richer dynamics involving ion transfers between the two wells, scattering processes and crystal melting. A special focus is on the ion transfer mechanisms. We observe a non-smooth (step-like) dependence of the time instant at which an arbitrary ion passes above the barrier on the quench amplitude, relating to the oscillation frequencies of the ion closest to the barrier, as well as to the collective center-of-mass motion of both crystals. After an ion transfer the smaller crystal melts due to the mass and energy excess a fact depicted nicely in the behaviour of the so-called Voronoi measure Klumpp et al. (2016); Preparata and Shamo (1985) of the crystal.

The paper is structured as follows. In section II we present the general Hamiltonian of trapped ions in the effective potential of a Paul trap, introduce our setup and describe its ground state configurations. Section III is divided into two parts: we first present and analyze the ion transfer processes for crystalline structures of different dimensionality and then discuss their effects on the order of the two crystals, quantified by the Voronoi measure. At the end of section III we comment briefly on the possibility of realizing our setup experimentally. Finally, in the last section IV we summarize our results and give a short outlook for further possible investigations.

II Setup, Hamiltonian and ground state

II.1 General Hamiltonian

We consider $N$ ions, modeled as classical point particles with mass $m$ and charge $Q$, confined along the radial direction ($x,y$) to a linear quadrupole Paul trap and along the axial direction $z$ to a double well potential (segmented trap)111The combination of the linear quadrupole trap potential and a double well potential is not allowed by the Laplace equation. Therefore it would be necessary to compensate for it by a complex form of the dc part in the radial direction. In recent experiments with segmented Paul traps (e.g. Brown et al. (2011); Harlander et al. (2011)) this combination was realized, giving rise to a potential similar to the one we have chosen here as well as to a Mexican hat like potential..

The general expression for the radially confining potential $\Phi(x,y,t)$ (in the ($x,y$)-plane) reads

[TABLE]

where $U_{\rm dc}$ and $U_{\rm rf}$ are the applied constant and radiofrequency (rf) voltages respectively; $\omega_{\rm rf}$ denotes the (radio)frequency and $c$ is a parameter specifying the geometry of the trap.

The ion dynamics in the radial rf trap is composed of a fast motion, the so-called micro-motion, and a comparatively slow average motion ruled by an effective harmonic potential Gerlich (1992) $V(x,y)=\frac{m}{2}(\omega_{x}^{2}x^{2}+\omega_{y}^{2}y^{2})$. Here, $\omega_{x}=\frac{\omega_{rf}}{2}\sqrt{a-q^{2}/2}$ and $\omega_{y}=\frac{\omega_{rf}}{2}\sqrt{a+q^{2}/2}$ are the effective trapping frequencies with $a=\frac{4QU_{dc}}{m\omega^{2}_{rf}}c$ and $q=\frac{2QU_{rf}}{m\omega_{rf}^{2}}c$ being dimensionless parameters. In the following we will neglect the fast micro-motion, for reasons of simplicity, being less relevant for the averaged system dynamics.

For the confinement in the $z$-direction we assume the following phenomenological double-well potential Streltsov et al. (2006):

[TABLE]

with wells centered at $\approx\pm z_{0}$ and separated by a barrier of height

[TABLE]

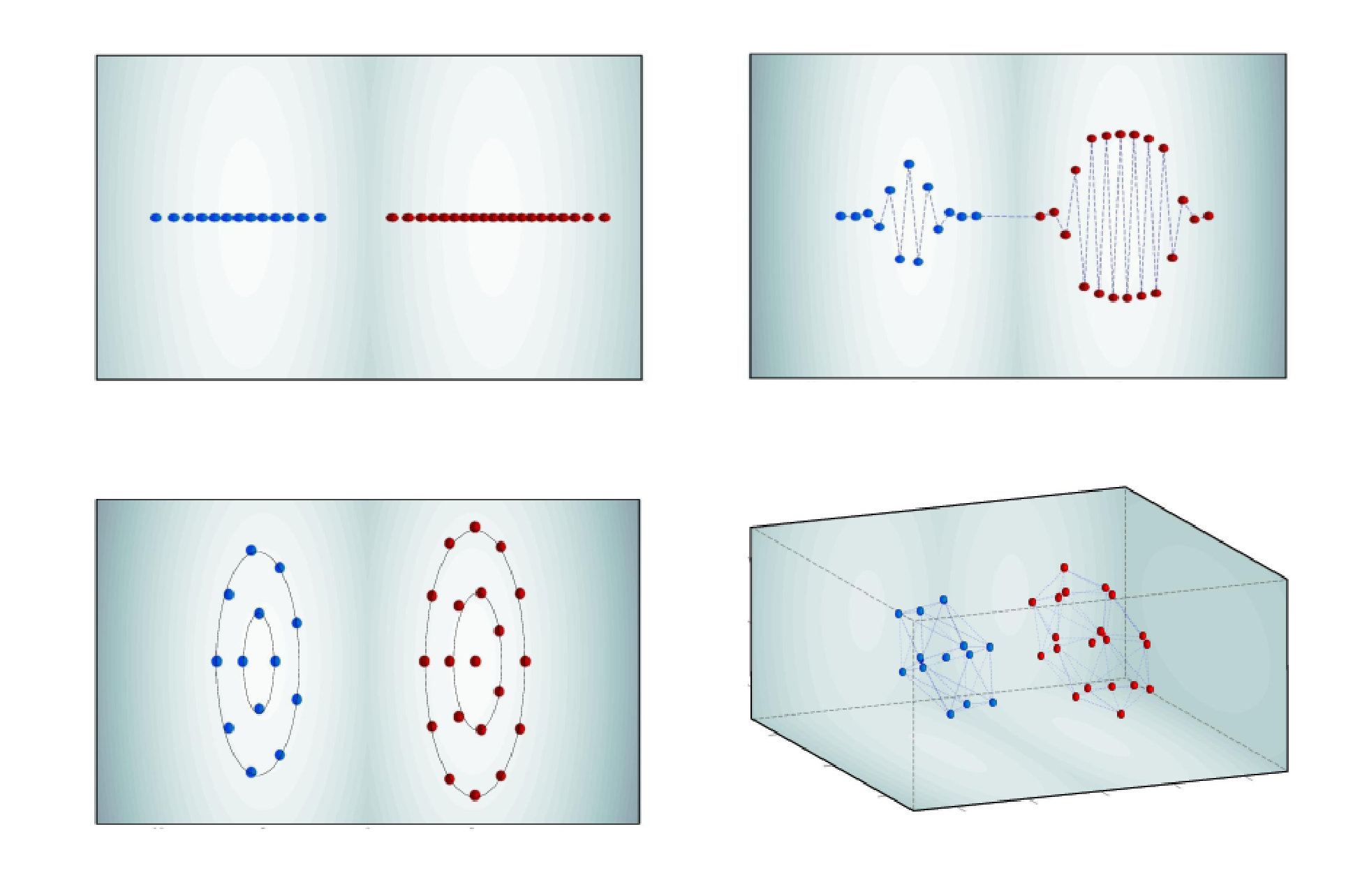

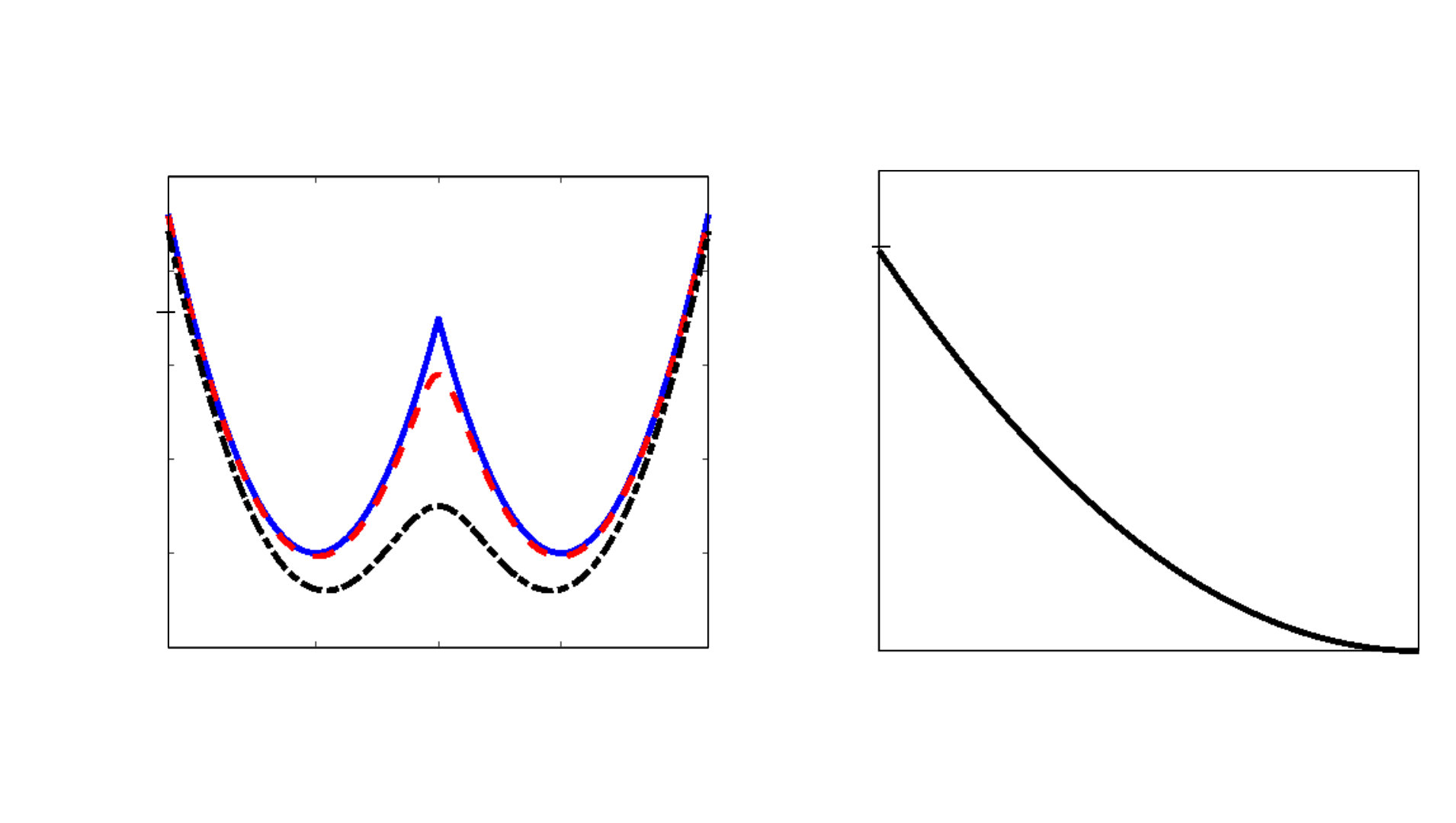

illustrated in Fig. 1 (a),(b). It can be shown that such a potential leads to individual approximately harmonic wells centered at $\approx\pm z_{0}$, up to terms proportional to $C^{2}$.

Under the aforementioned assumptions, the total Hamiltonian of our system, including the radial $V(x,y)$ and the axial $V_{\rm d}(z)$ trapping potentials as well as the Coulomb interactions among the ions reads

[TABLE]

with ${\bf r}_{i}=(x_{i},y_{i},z_{i})$, $r_{ij}=\sqrt{(x_{i}-x_{j})^{2}+(y_{i}-y_{j})^{2}+(z_{i}-z_{j})^{2}}$ and ${\bf p}=(p_{x},p_{y},p_{z})$. We arrive then at the dimensionless Hamiltonian $H^{*}$ by introducing rescaled time $t_{u}=1/\omega_{z}$ and space $x_{u}=K\equiv[Q^{2}/(4\pi\epsilon_{0}m\omega_{z}^{2})]^{1/3}$ units and defining

[TABLE]

Note that in the following we omit the star for simplicity and we present all our results in these dimensionless units.

II.2 Specific setup parameters and ground state configurations

Having the dimensionless Hamiltonian we proceed to find its ground state (GS) configuration. Finding the global minimum of a many-ion potential is generally a highly nontrivial task. In our case, however, and for large enough values of the potential barrier $B$ (low values of $C$, Fig. 1 (b)) it turns out that we can find the GS configuration by using a root-finding algorithm Galassi et al. (2009) given as an initial guess the GS of the ions in two individual harmonic wells (approximating the double well potential) which is known in the literature Dubin (1993); Hornekær et al. (2001); Drewsen et al. (2003); Bedanov and Peeters (1994); P. Ludwig and Bonitz (2005).

Using this GS configuration as the initial state of the system, we then perform a quench in the barrier height. In order to analyze the non-equilibrium dynamics of the system following the quench we integrate the resulting Newtonian equations of motion (EOM) employing an implicit Gaussian 4th order Runge-Kutta algorithm Galassi et al. (2009).

In this paper we study a system of $N=33$ ions confined in a combined trap with a harmonic potential in the radial direction and a double-well potential in the axial direction, described by eq. (4). Initially the barrier height in the axial direction has a large value corresponding to $C_{i}=0.02$ (eq. (2), fig.  1(a)) leading to well-separated potential wells which are asymmetrically filled with ions, i.e. the right potential well contains $N_{R}=20$ ions, whereas the left potential well contains $N_{L}=13<N_{R}$ ions. Regarding the radial confinement, we examine here four qualitatively different cases corresponding to different aspect ratios $\alpha=\frac{\omega_{x}}{\omega_{z}}$ and $\beta=\frac{\omega_{y}}{\omega_{z}}$ and allowing for GS configurations of different dimensionality, ranging from linear to zig-zag, circular and spherical crystals (Fig. 2). In order to take into account also the effect of a finite (low) temperature, we add a small random initial velocity to the ions leading to small oscillations around their GS positions.

III Ion dynamics

Having described our setup allowing for a variety of equilibrium configurations (see Fig. 2), we now proceed to investigate the resulting dynamics, induced here by a change of the barrier height. In particular we are interested in the transfer dynamics of the ions following a sudden quench of the barrier height which is characterized by the parameter $C$, i.e. a quench of the axial potential $V_{\rm d}$ from $C=C_{i}$ to $C=C_{f}$. We investigate therefore in the following the non-equilibrium dynamics of the Coulomb crystals in different confining potentials (Fig. 2) as a function of $C_{f}$.

With all the necessary information about the properties of our system at hand, let us now briefly introduce some of the basic features of its non-equilibrium dynamics. After a sudden quench of the barrier height, due to the energy excess, the ions constituting the Coulomb crystals start to move. Their dynamics is complex, involving among others a rather regular center of mass (CM) motion of the crystals, shock waves, multiple scattering processes and transfer of ions over the barrier caused by the asymmetric population of the two potential wells. Especially for the cases of the circular and spherical GS configurations also rotations and reordering of the crystals occur.

We first proceed in analyzing the ion transfer process between the two potential wells and then discuss its effects on the structure of the two Coulomb crystals.

III.1 Ion transfer

Among the features characterizing the ion transfer following a quench of the barrier height we are particularly interested in two aspects, to be analyzed below: the time instant at which an arbitrary ion passes above the barrier for the first time and the number of times each ion in the Coulomb crystal travels back and forth between the two wells.

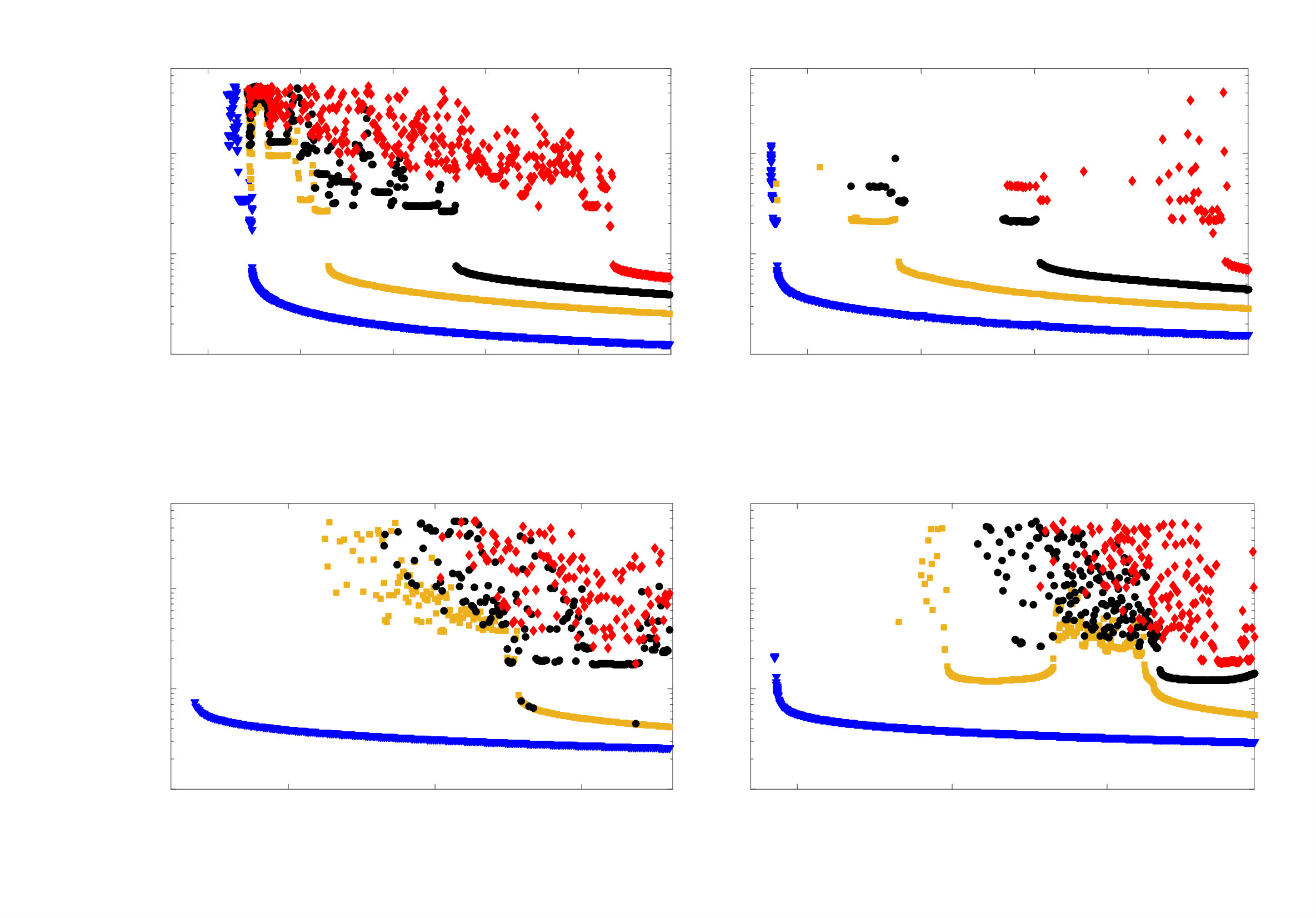

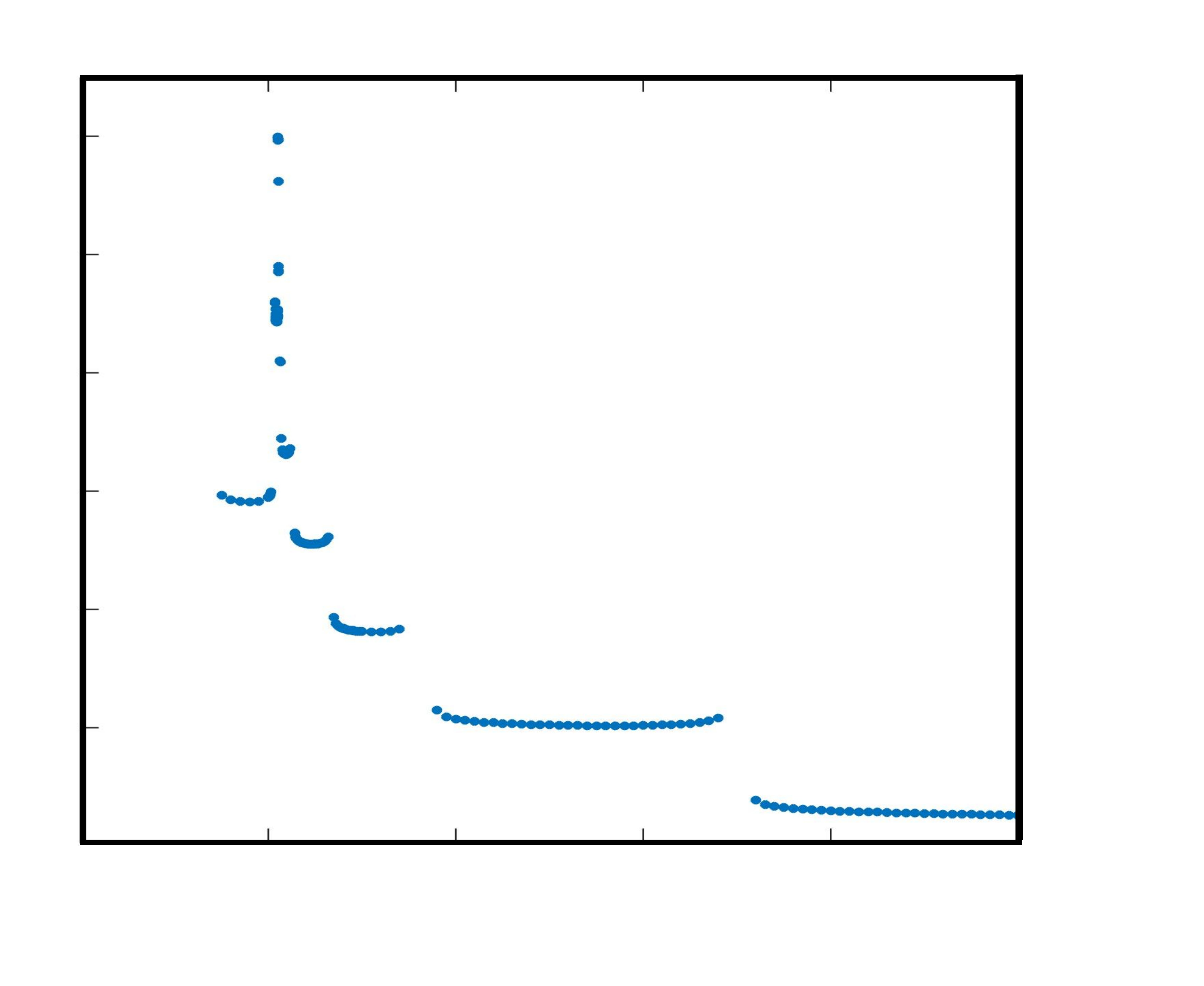

Our results for the time instant of the first transfer of an arbitrary ion leaving the large crystal as a function of the final quench value $C_{f}$ are presented in Fig. 3 for the different trapping geometries depicted in Fig. 2. For the facility of inspection we show only the first four traveling ions. In all the cases one can distinguish between two qualitatively different regions.

The first one occupying the upper part of the plots (large transfer times $t>10$) shows a step-like behaviour (with varying $C_{f}$) consisting of small smooth regions separated by gaps, whereas the lower part (small transfer times $t<10$) exhibits a continuous behaviour. We see that depending on the value of $C_{f}$ more than one ion can be transferred. Each individual ion transfer follows the same qualitative behaviour with respect to its time scale. For small quench amplitudes and subsequently large transfer times the time instant of the first transfer of each ion has a step-like character, whereas beyond a certain quench amplitude the transfer time continuously decreases as a function of the final value $C_{f}$.

As a characteristic example of this behaviour, without loss of generality in the remaining part of this subsection, we focus on the case of the zig-zag configuration (Fig. 3 (b)) and consider only the transfer of the first ion (Fig. 4). The first necessary condition for the transfer of an ion above the barrier is obviously that this ion lies close to the barrier. To examine therefore the possibility of transfer it is instructive to analyze the dynamics of the ion of the bigger crystal lying closest to the barrier, which we will refer to in the following as the innermost ion. Such an analysis can be facilitated by examining a case in which ion transfer although energetically possible does not occur, i.e. corresponding to a quench value inside a gap of Fig. 4. A case satisfying these criteria and consequently allowing for an analysis of the long-time dynamics of the innermost ion without interruptions by ion transfer processes is that of a final quench value $C_{f}=3.3403$.

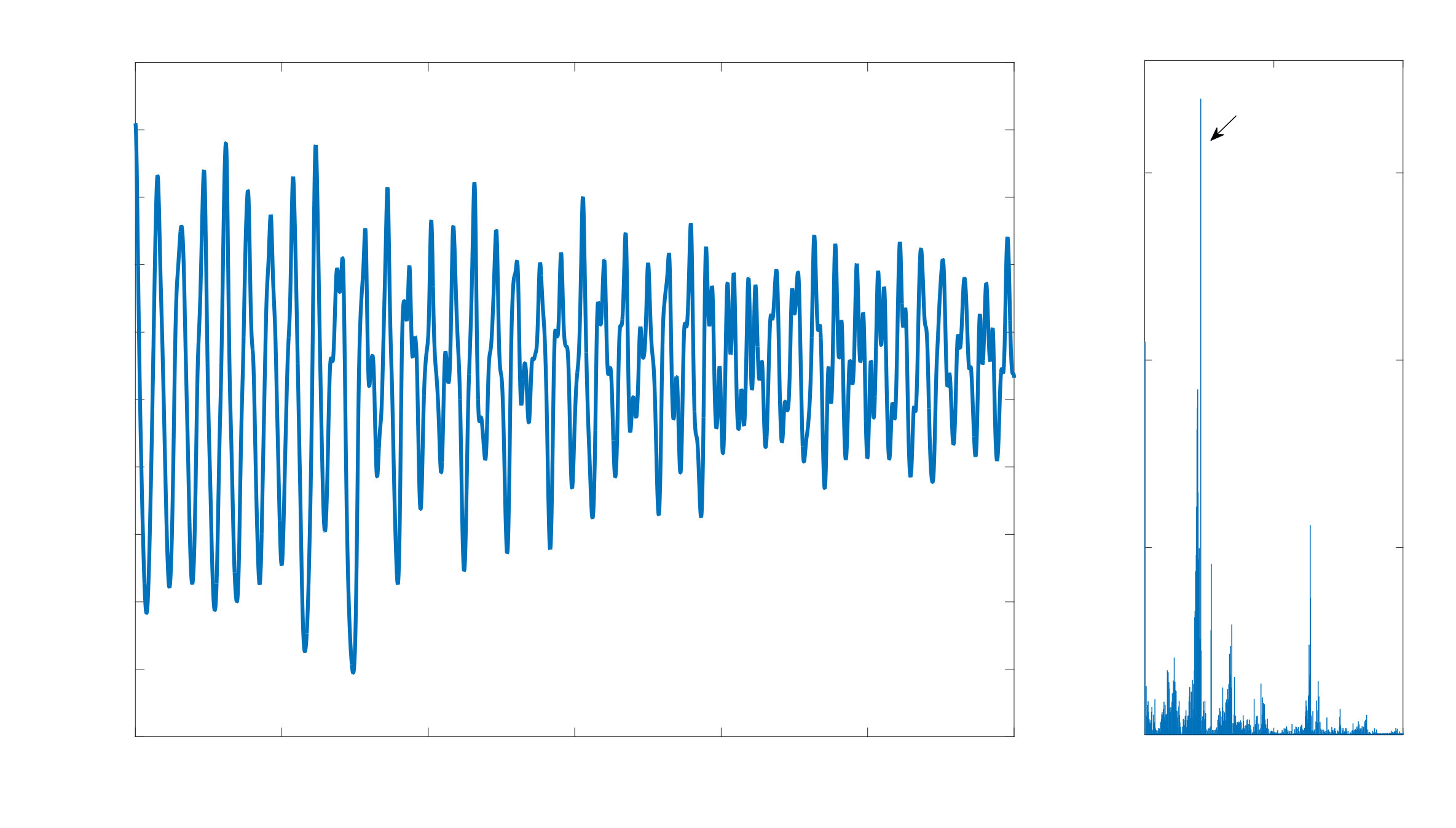

The time evolution of the axial position of the innermost ion of the large crystal for $C_{f}=3.3403$, as well as its Fourier spectrum are shown in Fig. 5. The motion appears to be oscillatory and quite regular with one dominant frequency, a fact supported also by the Fourier spectrum which shows essentially the contribution of three frequencies, with one of them possessing a dominant role (largest amplitude). In order to test whether this frequency is generic for our system, we have investigated the Fourier spectra of the innermost ion motion for four different values of $C_{f}$ which do not lead to transfer.

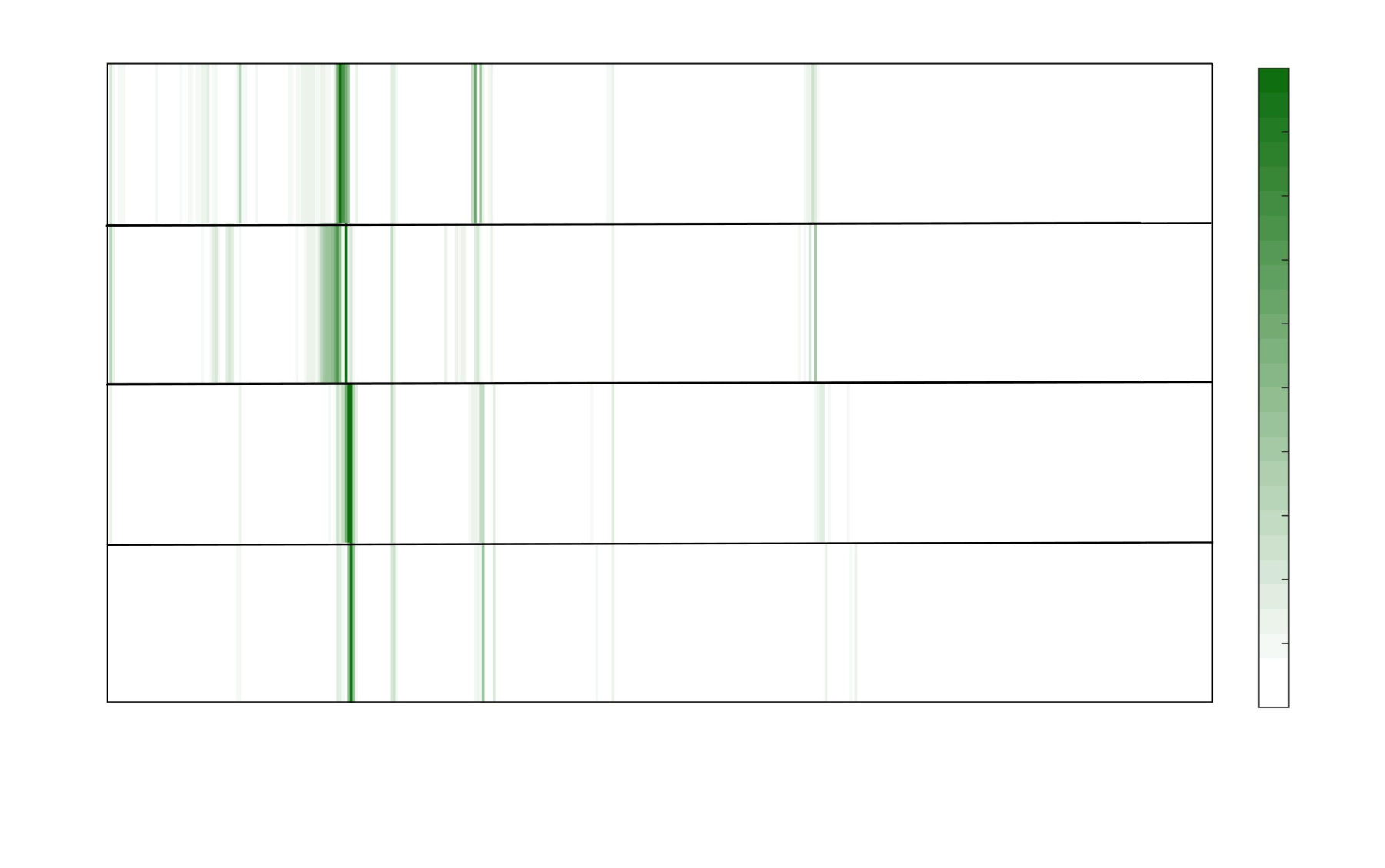

The results are depicted in Fig. 6. Obviously in all the cases there is one predominant frequency in the range of $\omega\approx 0.84$ to $0.88$, which in turn yields a period $T$ ranging approximately from $7.1$ to $7.4$. A comparison of this period with the time between the subsequent steps in Fig. 4 leads to the conclusion that the latter is equal to one or two times the period $T$ (Fig. 7) within a range of $3.5\%$. This fact explains the existence of the steps in the ion transfer process as a direct consequence of a preferred oscillation phase (closest to the barrier) of the innermost ion. What remains to be answered is why not every time separation equal to the period $T$ leads to transfer and why some time separations between the steps are two times the period $T$, i.e. some steps are absent.

To provide an answer to this question it is essential to take into account also the dynamics of the other ions constituting the Coulomb crystals.

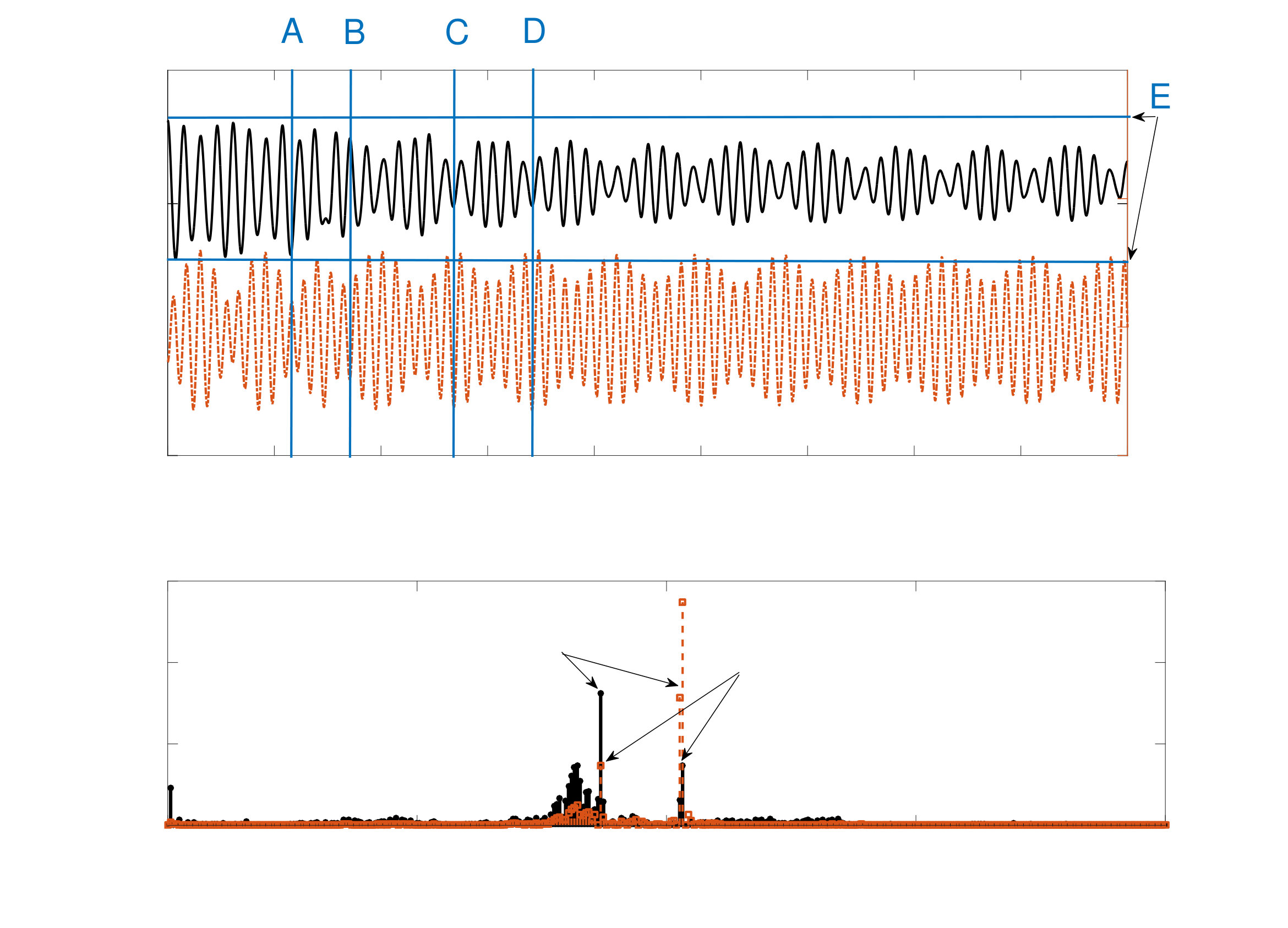

After the quench all ions constituting the two Coulomb crystals move towards the barrier, as it can be seen by inspecting their CM motion (Fig. 8 (a)). Since the two crystals interact via repulsive Coulomb forces, the repulsion exerted by the small crystal hinders the transfer of the innermost ion of the large crystal. If the energy introduced by the quench is high enough to overcome the Coulomb interaction and the barrier, the innermost ion travels, otherwise the two crystals start to oscillate without any ion transfer, as depicted in their CM dynamics (Fig. 8 (a)). The Fourier analysis of this CM motion shows that the frequencies of the left and right crystals differ (Fig. 8 (b)) due to their different sizes. Therefore there is a variety of possibilities for the position of the two crystals during the time evolution (see Fig. 8(a)): (i) they can both be close to the barrier (line A in Fig. 8(a)),(ii) both can be far away from the barrier (line B in Fig. 8(a)),(iii) the large crystal can be close to the barrier and the small far away (line C in Fig. 8(a)) or (iv) the opposite of (iii) (line D in Fig. 8(a)). Obviously the case, with the small crystal being far and the large crystal being close to the barrier (case C) is optimal for the transfer, both in terms of energy and spatial configuration.

It turns out that the two CM frequencies depend also on the value of the barrier height, thus the time instant when the optimal conditions are fulfilled changes slightly with $C_{f}$, leading to different times for ion transfer appearing as different steps in Fig. 7. In the same line of arguments, it is possible, depending on $C_{f}$ that the innermost ion is close to the barrier when the CM of the larger crystal is not and thus due to the lack of energy the ion transfer is prohibited, leading to some steps being skipped and the subsequent steps appearing after a time $2T$ (Fig. 7). In Fig. 8 (b) we also see, that apart from the main frequencies $\omega_{p}$ for the two crystals, there also exist additional beating frequencies $\omega_{b}$. This results in an amplitude modulation (see Fig. 8 (a)) which also influences the transfer dynamics.Interestingly enough the pairs of $\omega_{p},\omega_{b}$ frequencies for the small and the large crystal are approximately degenerate, a fact that could be attributed to their Coulomb coupling.

Another feature of the CM dynamics is the damping of the oscillations of the big crystal with time (Fig. 8(a) lines E) limiting the time available for ion transfer and giving rise to the observed gaps of Figs. 3,4. The origins of this damping are the repulsive interactions between the two crystals, the transfer of energy in the radial directions (here especially in the less confining direction) and the mode coupling between the CM modes and other modes, due to the inherent nonlinearity of the system.

In contrast to the above discussion, if the energy introduced by the quench is large enough, the details of the dynamics of the CM motion seize to rule the transfer process of an ion, resulting in a smooth behaviour of the time instant for an ion to cross the barrier as a function of $C_{f}$ (Fig. 3).

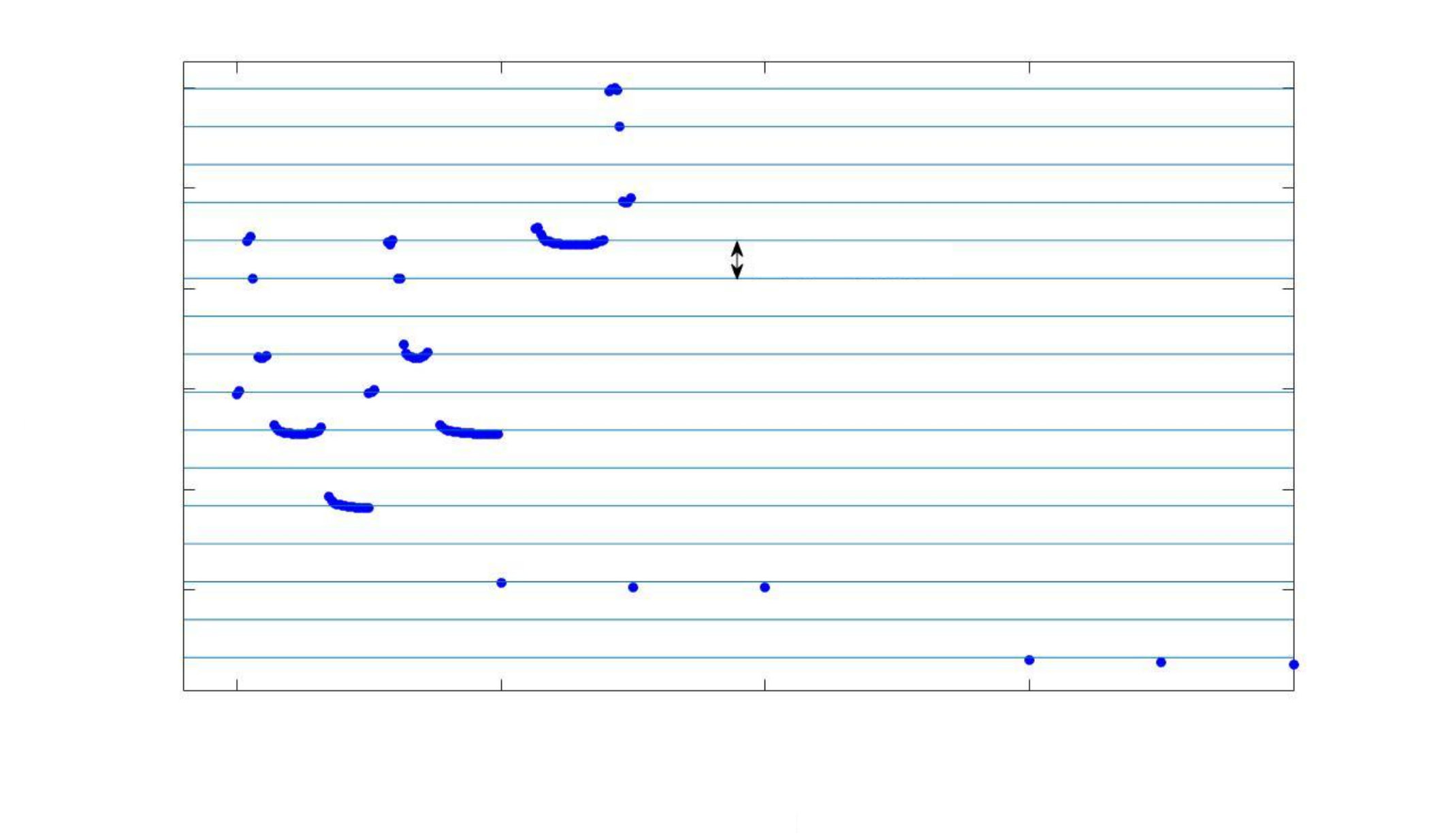

So far we have focused on the first time instant at which an ion is transferred from one well to the other. But as already mentioned an ion can travel back and forth thereby passing the potential barrier several times. To extract information on the number of transfers per ion, we have sorted the ions in their initial GS configuration according to their positions in the axial direction in increasing order and we have counted for each one the number of transfers occurring in the time interval considered for the dynamical evolution. Using this convention, the first 13 ions are at $t=0$ in the small and the next 20 in the big crystal. In Fig. 9 the results for the different initial configurations (Fig. 2) are shown.

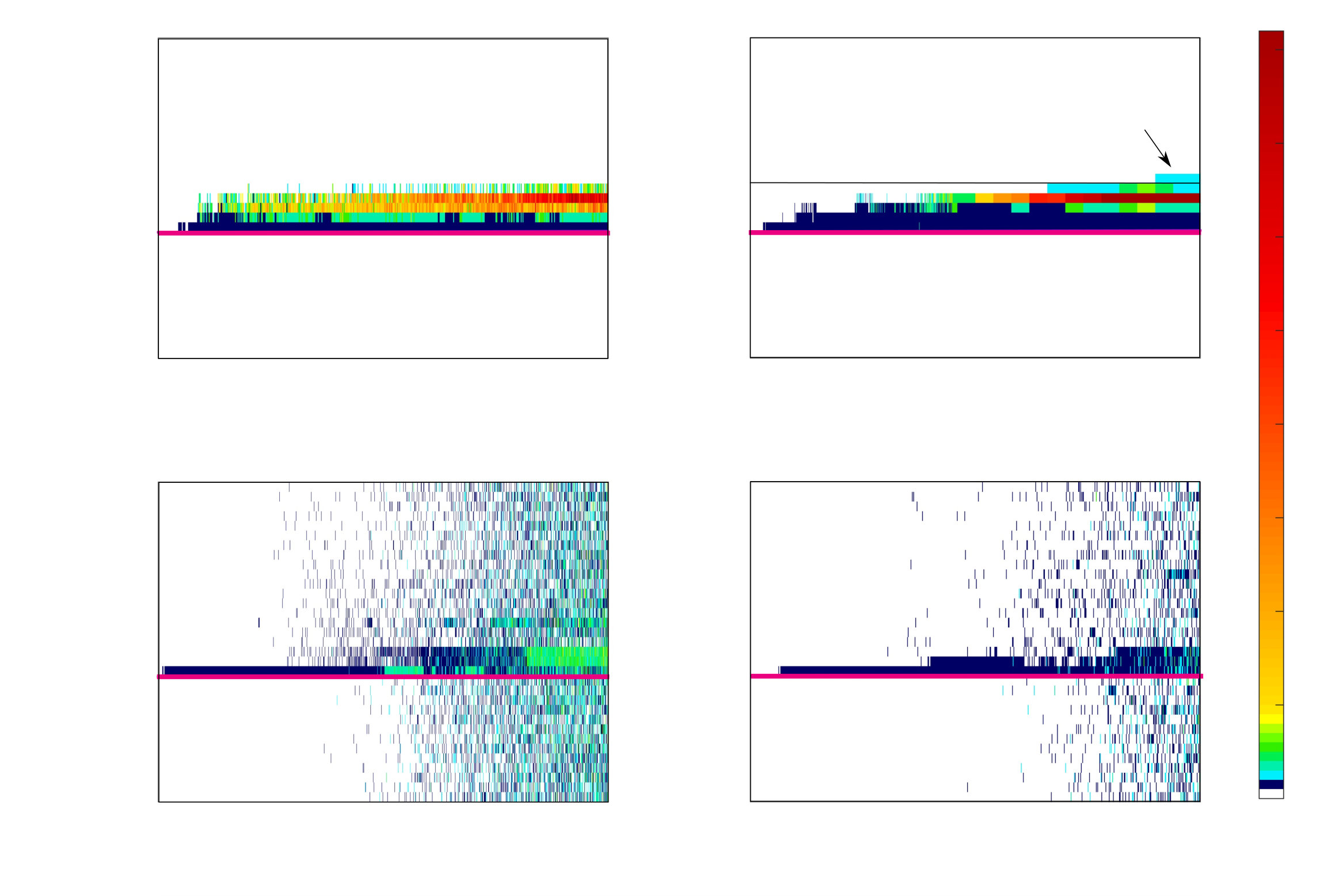

We have already seen (Fig. 3) that for the linear and the zig-zag configurations, in the considered region of $C_{f}$, only five ions travel. These are the ions which are located in the big crystal closest to the barrier (ion numbers 14 to 19). As we observe (Fig. 9 (a), (b)) these 5 ions travel several times forth and back over the barrier during our simulation time, whereas none of the other ions in the two crystals ever crosses the barrier. The reason for this is the strict confinement in the radial direction for these two cases which is especially true for the linear chains. For the zig-zag case, as long as the ion order in the axial direction is preserved the exclusive transfer of only 5 ions also holds, but for larger values of $C_{f}>6.5$ (where the strict axial order is destroyed) further ions do also get the possibility of being transferred (compare fig. 9 (b)).

In contrast to the above, for the cases of the circle and sphere configurations (Fig. 9 (c), (d)) all ions can be transferred. The low aspect ratios ($\alpha=1$) of the radial confining potentials of the circle and the spherical configurations enable rotations of the whole crystals, as well as rearrangements with respect to the order of the ions constituting them. Thus in the course of the dynamics, the order of the ions in the axial direction changes and different ions are located at different times closer to barrier, resulting for larger $C_{f}$ in a nearly uniform distribution of the number of transfers among the ions of the two crystals. Having understood the basic features of the ion transfer processes, let us now examine how these do affect the order and the structure of the two involved Coulomb crystals.

III.2 Crystalline order

The ion transfer processes discussed above yield a complex non-equilibrium dynamics of the two resulting Coulomb crystals involving reordering processes and the emergence of structural disorder. In order to characterize and analyze the order of the resulting crystals we make use of a measure based on the Voronoi diagrams introduced in Preparata and Shamo (1985); Klumpp et al. (2016). The time evolution of this measure has been proven to capture well the change in the crystalline order during the dynamics Klumpp et al. (2016).

The two Coulomb crystals have different sizes causing them to behave differently. For each crystal located in a certain well we determine its Voronoi measure value, taking also into account that the number of ions per well (crystal) changes in time due to the ion transfer processes. Considering also the factor of dimensionality we arrive at the following definition of our Voronoi measure $\Omega$

[TABLE]

where $N$ is the number of ions in the well and $r_{ij}$ is the distance of each particle $i$ from its nearest neighbor $j$. This measure corresponds to the sum of the areas of circles centered in each ion $i$, with a diameter equal to $r_{ij}$, i.e. the sum of areas in which only one ion can be found. The variables $d$ and $\gamma$ depend on the dimensionality of the configurations. For the linear chains (1D) we have that $d=1$ and $\gamma=1$, for the zig-zag chains and the circular structures (2D) $d=2$ and $\gamma=\pi$ and for the spherical configurations $d=3$ and $\gamma=4\pi/3$.

In the course of the dynamics the system of ions alternates between regular and irregular ion configurations resulting in an alternating Voronoi measure. The regular structures which give visually the impression of order lead to distinct minima in the time evolution of the Voronoi measure, whereas irregular structures lead to larger values of $\Omega(t)$ Klumpp et al. (2016).

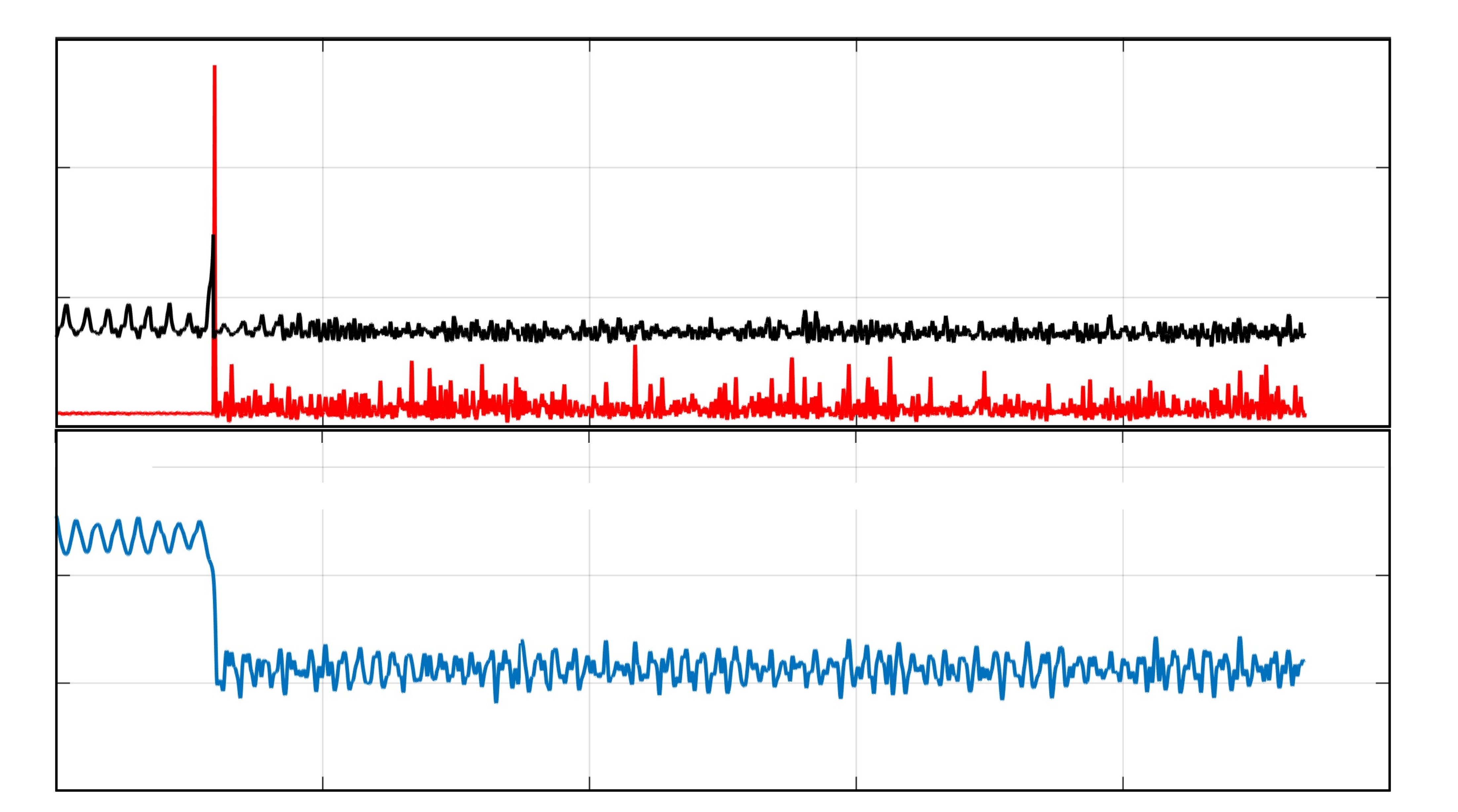

An example of the time evolution of the Voronoi measure $\Omega(t)$ after the quench of the barrier height is shown in Fig. 10 (a) for the zig-zag Coulomb crystals (Fig. 2 (b)) and for the final quench value $C_{f}=3.34$ for which a single ion is transfered at $t\approx 59$ (Figs. 3 (b), 4). For comparison we also present the time evolution of the axial coordinate of the traveling ion (Fig. 10 (b)). We observe that initially (i.e. before the ion transfer) the Voronoi measure exhibits regular oscillations with a much larger amplitude for the large crystal compared to the smaller one. This can be attributed to the larger shell diameter of the former which allows for larger deformations (i.e. compressions and expansions).

At the time instant when the ion crosses the barrier (Fig. 10 (b)) the Voronoi values of both the large and the small crystal exhibit a prominent peak (Fig. 10 (a)) resulting from the change in the number of ions per crystal and the fact that the distance of the traveling ion from its nearest neighbors maximizes when it crosses the barrier. After the ion transfer the Voronoi measure of the small crystal performs highly irregular oscillations with an increased amplitude, pointing to the irregular and disordered dynamics of the ions constituting the crystal (crystal melting). In contrast, the oscillation amplitude of the Voronoi measure for the large crystal decreases after the ion transfer due to the increment of available space for the ion dynamics and the substantial loss of energy caused by the loss of the highly energetic traveling ion. Similarly to the case of the smaller crystal the oscillations after the transfer become more irregular involving multiple frequencies.

These results suggest that the Voronoi measure $\Omega(t)$ and especially its oscillation amplitude encapsulates substantial information on the out-of-equilibrium many-body ion dynamics following the quench of the barrier height. Nevertheless, in order to proceed to an analysis of the crystalline order as a function of the final quench parameter $C_{f}$ we would like to have a single value characterizing each time series. A measure related closely to the average oscillation amplitude of $\Omega(t)$ (i.e. capturing well the average dynamics of the crystals) is its standard deviation $\Delta\Omega$ in time.

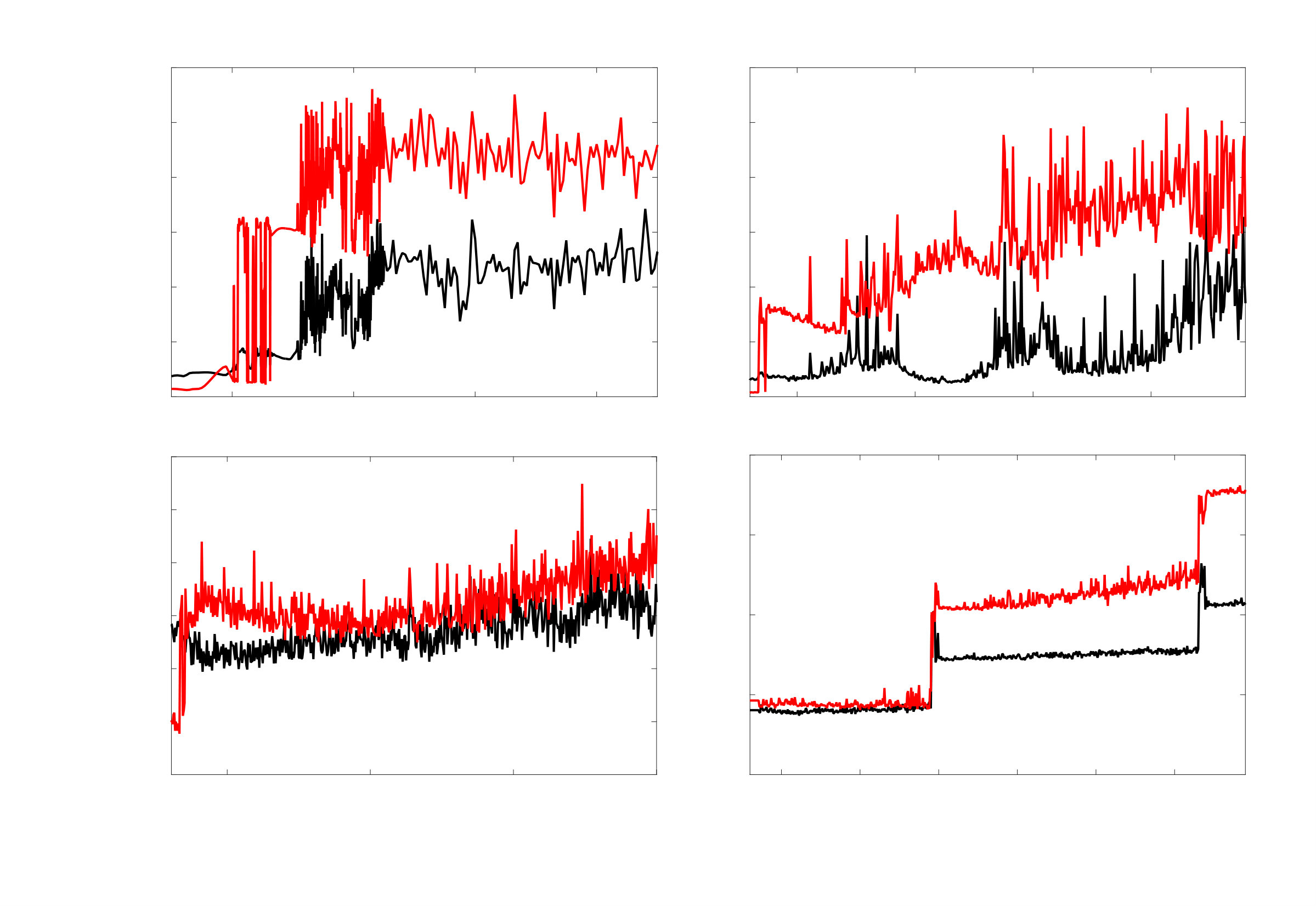

The resulting values for the standard deviations $\Delta\Omega$ as a function of $C_{f}$ are shown in Fig.  11 for the different trapping potentials examined (Fig. 2). The standard deviation $\Delta\Omega$ for the one (Fig. 11 (a)) and two-dimensional (Figs. 11 (b),(c)) ion configurations are highly irregular but for the three-dimensional configuration (Fig. 11 (d)) it is rather well structured, giving immediate access to relevant information.

Focusing on the noisy character encountered for example in the case of the linear chain, it turns out that many ion transfer processes occur. This can be inferred by an inspection of Fig. 12, where the behaviour of $\Delta\Omega$ is compared to that of the number of transfers per ion as a function of $C_{f}$ in the interval $C_{f}\in[2.6,2.85]$. Clearly every small change in the transfer dynamics results in a substantial change in the standard deviation of the Voronoi measure $\Delta\Omega$, yielding the highly irregular pattern of the latter.

For the zig-zag and the circle configurations (Figs. 11 (b), (c)) although there are intervals of $\Delta\Omega$ exhibiting a smooth behaviour as a function of $C_{f}$ (especially for lower values of $C_{f}$) the overall pattern is quite noisy as well resembling the case of the linear chain (Figs.  11 (a), 12). In direct contrast, in the case of the spherical configuration (Fig. 11 (d)) we observe a rather regular behaviour of $\Delta\Omega$ as a function $C_{f}$, allowing for extracting more directly information regarding the order of the Coulomb crystals involved.

Note here that among others the Voronoi measure and its standard deviation depend also on the dimensionality of the configurations (eq. 6) and the space available for motion. Therefore, as it is obvious (Fig. 11 (d)) the values of $\Delta\Omega$ for the three-dimensional configuration (spheres), where the available volume for the corresponding motion is much more enhanced, are orders of magnitude larger than that for the cases of lower dimensionality (Fig. 11 (a)-(c)). This results in the former being less sensitive to small deviations yielding the overall regular pattern of $\Delta\Omega$ for the case of spheres.

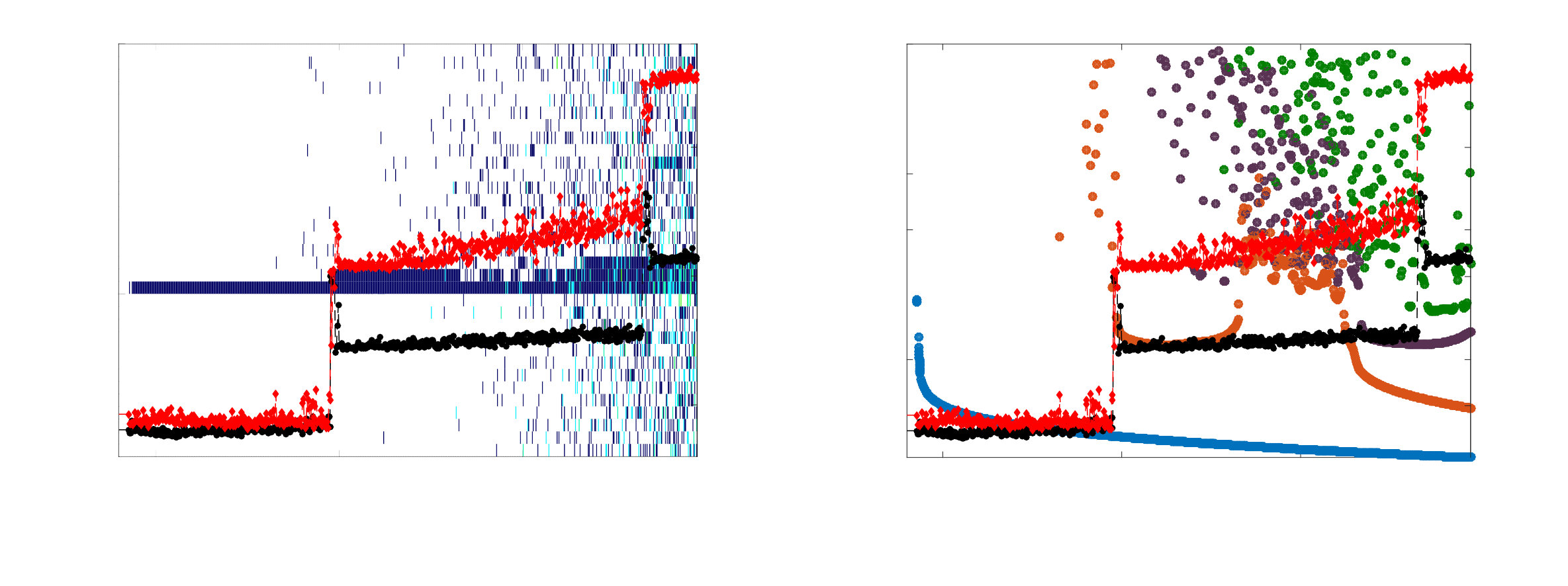

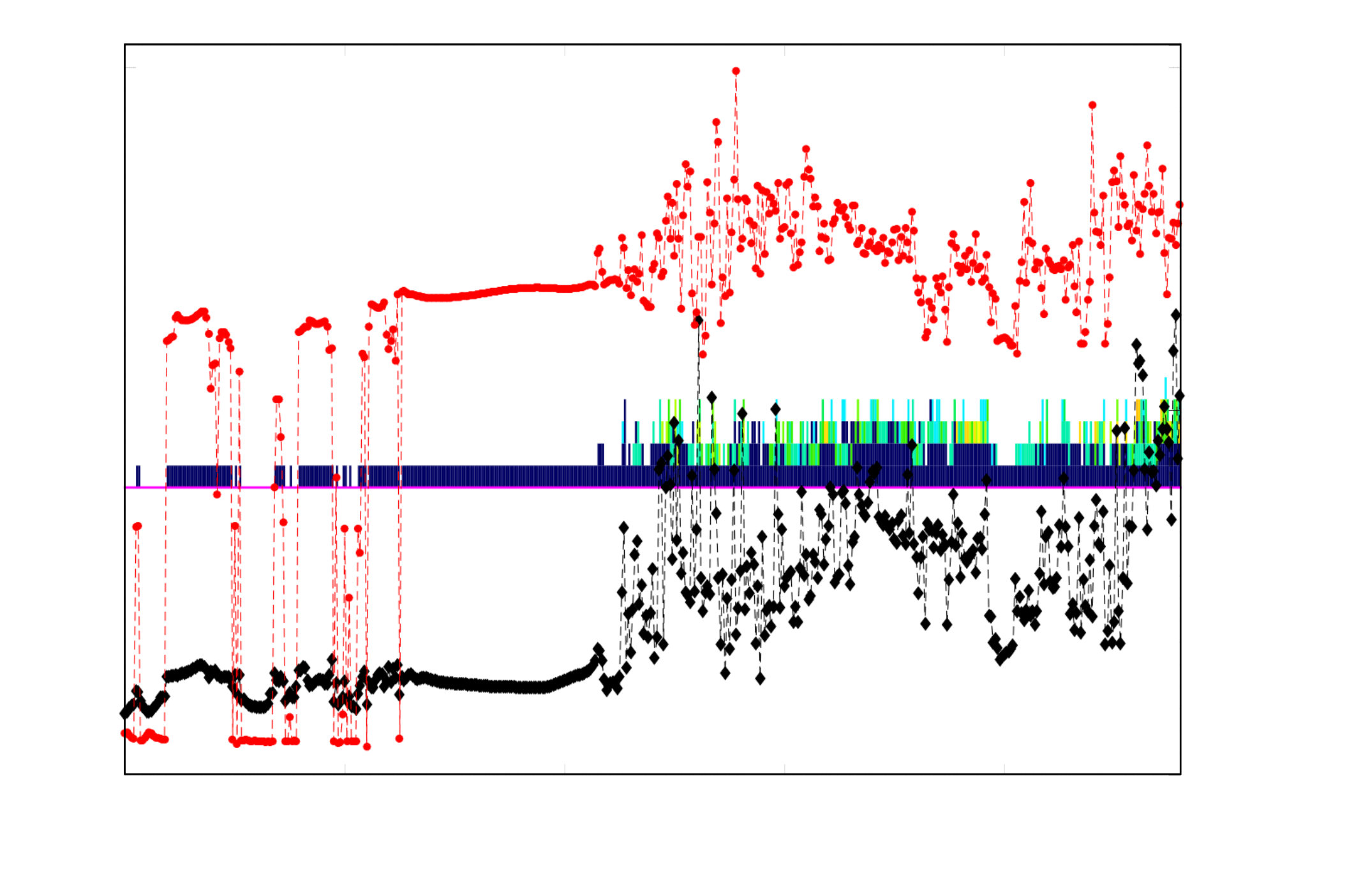

In particular we observe that $\Delta\Omega$ exhibits a quite smooth step-like behaviour interrupted by pronounced peaks as $C_{f}$ increases. In order to understand this behaviour we compare it to the $C_{f}$ dependence of the two quantities characterizing the ion transfer: the number of times each ion in the Coulomb crystal travels back and forth between the two potential wells (Fig. 13 (a)) and the time instant at which an arbitrary ion passes above the barrier for the first time (Fig. 13 (b)). We observe that at most $C_{f}$ values for which an additional ion transfer occurs the standard deviation of the Voronoi measure $\Delta\Omega$ possesses a peak, followed thereafter by the step-like behaviour of the other quantities (Figs. 13 (a) and (b)). This can be interpreted as an increment of the structural disorder in the two crystals induced by the increasing amount of ion transfer processes and maximized each time a new ion gets transferred.

III.3 Possible experimental realization

Let us finally address the experimental realization of our setup, employing state of the art ion technology. Typical experimental parameters for segmented Paul traps are $\omega_{rf}/2\pi=4.2-50\text{MHz}$ and $U_{rf}=8-350\text{V}$ with applied DC voltages in the axial direction up to $10\text{V}$ Kaufmann et al. (2014b); Hensinger et al. (2006). Depending on the ion species and trap design these result in a radial confinement frequency $\omega/2\pi=1-5\text{MHz}$ and in an axial confinement frequency $\omega_{z}/2\pi=0-5\text{MHz}$. For the ion dynamics only the frequency ratio $\alpha=\frac{\omega}{\omega_{z}}$ matters and given the aforementioned frequency ranges the scenario studied in this work of $\alpha=8.25$ could be in principle realized ( choosing e.g $\omega/2\pi=4.5\text{MHz}$ and $\omega_{z}/2\pi=0.545\text{MHz}$). The parameters $z_{0}$ and $C$, determining the well positions and the barrier height respectively, depend on the axial DC voltage and the trap geometry, thus realistic values for the former are of the order of $30\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and for the latter up to $$300\text{,}\mathrm{\SIUnitSymbolMicro m}$^{2}\cdot\text{MHz}^{2}$. Regarding the imaging of the ion configurations during their non-equilibrium dynamics, this could be achieved by the use of fluorescence light detected by CCD cameras Mielenz et al. (2013); Kaufmann et al. (2014b).

IV Conclusions

We have explored the non-equilibrium dynamics of two Coulomb crystals of different sizes occupying the individual wells of a double-well potential, following a quench of the potential barrier height. The resulting complex dynamics is governed by ion transfer processes from one well to the other, depending on the quench amplitude.

The time instant at which an arbitrary ion passes the barrier for the first time shows an interesting step-like behaviour as a function of the quench amplitude. By analyzing the crystal dynamics we were able to explain the main features of this dependence. It turns out that the most crucial quantities determining whether ion transfer finally occurs are the center of mass motions of both crystals and the oscillation frequencies of the innermost ion.

Following the ion transfer the dynamics of the two crystals becomes rather irregular and characterized by structural disorder as well as reordering of the particles. A good quantity to characterize the crystalline order is the so-called Voronoi measure. Its standard deviation in time reflects well the degree of the structural disorder resulting from the quench and serves as a good indicator for the ion transfer processes.

A future work could investigate the case of two Coulomb crystals (with or without kinks), separated by a potential barrier, and aim at achieving a transport of medium-sized crystals (i.e. 10-100 ions). Another promising direction for future research is the non-equilibrium dynamics of Coulomb crystals in multiple-well potentials resembling the optical lattices used in studies of ultracold atoms.

Acknowledgments

We thank Benno Liebchen for useful discussions and suggestions. A.K. thanks Stephan Klumpp for scientific discussions and support.
