Tuning the Drude weight of Dirac-Weyl fermions in one-dimensional ring traps

TL;DR

This paper investigates how interactions in a 1D ring of Dirac-Weyl fermions can tune the Drude weight, revealing conditions for its enhancement or suppression, with potential experimental tests in ultracold atom systems.

Contribution

It demonstrates how asymmetric and symmetric interactions uniquely affect the Drude weight in a 1D Dirac-Weyl fermion system, combining analytical and numerical methods.

Findings

Asymmetric interactions enhance the Drude weight.

Symmetric interactions suppress the Drude weight.

Predictions applicable to ultracold fermion experiments.

Abstract

We study the response to an applied flux of an interacting system of Dirac-Weyl fermions confined in a one-dimensional (1D) ring. Combining analytical calculations with density-matrix renormalization group results, we show that tuning of interactions leads to a unique many-body system that displays either a suppression or an enhancement of the Drude weight - the zero-frequency peak in the ac conductivity - with respect to the non-interacting value. An asymmetry in the interaction strength between same- and different-pseudospin Dirac-Weyl fermions leads to Drude weight enhancement. Viceversa, symmetric interactions lead to Drude weight suppression. Our predictions can be tested in mixtures of ultracold fermions in 1D ring traps.

Figures

Equations

$${\mathcal{H}}_0=\frac{1}{2}\sum _{j=1}^L\left[c_j^{†}(it{\sigma }_3-g{\sigma }_1)c_{j-1}+c_j^{†}m{\sigma }_1{c}_j\right]+\text{H.c.}.$$

$${\mathcal{H}}_0=t\sum _k{c}_k^{†}\left\{{\sigma }_3\sin (a\tilde{k})+[1-\cos (a\tilde{k})]{\sigma }_1\right\}{c}_k.$$

$$v_{ij}^{\sigma ,{\sigma }^{\prime }}=\frac{1}{2}(U{\delta }_{i,j}{\delta }_{\bar{\sigma },{\sigma }^{\prime }}+V{\delta }_{j,i\pm 1}{\delta }_{\sigma ,{\sigma }^{\prime }}+\tilde{V}{\delta }_{j,i\pm 1}{\delta }_{\bar{\sigma },{\sigma }^{\prime }}).$$

$${\mathcal{H}}_1$$

$$D=\frac{L}{2\pi }{\frac{{\partial }^{2}E}{\partial {\Phi }^2}|}_{\Phi =0}.$$

$$D_0(\rho )=\frac{\pi t}{L}\cos \left(\frac{\pi }{2}(1-\rho )\right)\text{cot}\left(\frac{\pi }{2L}\right),$$

$$D_1=\frac{\pi }{2L^2}\sum _{k,k^{\prime }}(g_k{g}_{k^{\prime }}-f_k{f}_{k^{\prime }})\left(v_{k-k^{\prime }}^{\sigma ,\bar{\sigma }}-v_{k-k^{\prime }}^{\sigma ,\sigma }+v_0^{\sigma ,\sigma }-v_0^{\sigma ,\bar{\sigma }}\right).$$

$$D_1$$

$$E_2^{(1)}=\frac{1}{L^2}\sum _{k,k^{\prime },q}\frac{1}{{\epsilon }_{-}({\tilde{k}}^{\prime })-{\epsilon }_{+}({\tilde{k}}^{\prime })}[(k_{-},k_{+}^{\prime }|v|k_{-},k_{-}^{\prime })-(k_{-},k_{+}^{\prime }|v|k_{-}^{\prime },k_{-})][(k_{-}^{\prime },q_{-}|v|k_{+}^{\prime },q_{-})-(k_{-}^{\prime },q_{-}|v|q_{-},k_{+}^{\prime })]$$

$$E_2^{(2)}=-\frac{1}{4L^2}\sum _{k,k^{\prime },q}\frac{(k_{-},k_{-}^{\prime }|v|{\bar{k}}_{+},{\overline{k^{\prime }}}_{+})-(k_{-},k_{-}^{\prime }|v|{\overline{k^{\prime }}}_{+},{\bar{k}}_{+})}{{\epsilon }_{-}(\tilde{k})-{\epsilon }_{+}(\bar{k})+{\epsilon }_{-}({\tilde{k}}^{\prime })-{\epsilon }_{+}(\overline{k^{\prime }}+2\phi )}[({\bar{k}}_{+},{\overline{k^{\prime }}}_{+}|v|k_{-},k_{-}^{\prime })-({\bar{k}}_{+},{\overline{k^{\prime }}}_{+}|v|k_{-}^{\prime },k_{-})],$$

$$(k_s,k_{s^{\prime }}^{\prime }|v|q_r,q_{r^{\prime }}^{\prime })=\frac{U}{2}\sum _{\sigma }{N}_{\tilde{k},s}^{\sigma }{N}_{{\tilde{k}}^{\prime }{s}^{\prime }}^{\bar{\sigma }}{N}_{\tilde{q},r}^{\sigma }{N}_{{\tilde{q}}^{\prime }{r}^{\prime }}^{\bar{\sigma }},$$

$$(k_s,k_{s^{\prime }}^{\prime }|v|$$

$$E_2=E_2^{(1)}=-\frac{1}{32L^{2}t}\sum _{k^{\prime }}\frac{1}{g_{\widetilde{k^{\prime }}}}$$

Full text

*Introduction.—*Quantum many-particle systems confined in one-dimensional (1D) ring geometries have attracted a great deal of attention since Büttiker, Imry, and Landauer buttiker_physlett_1983 showed that they can support persistent currents (PCs) akin to those flowing in superconductors Viefers04 . Although they lead to tiny signals, which are extremely susceptible to the environment, PCs have been observed in resistive metallic rings bleszynski_science_2009 .

Ultracold atoms confined in ring-shaped traps Sauer01 ; Gupta05 ; Ryu07 ; Lesanovsky07 offer an entirely new class of quantum many-body systems where the orbital response to an applied flux can be studied as a function of temperature, statistics, and interactions, in the absence of extrinsic effects. In these setups, PCs can be launched by rotating a localized barrier Ramanathan11 ; Wright13 or imprinting a suitable artificial gauge field by optical means Cooper10 ; Dalibard11 ; Goldman14 . Intriguing phenomena such as quantization Eckel14a , hysteresis Eckel14b , and decay Beattie13 of PCs have already been observed in single or multi-component gases. Applications to high-precision measurements, atom interferometry, and quantum information can be envisioned and have spurred the field of “atomtronics” Ryu13 ; Aghamalyan15 . Noticeably, recent advances have made it possible to move towards a strictly 1D regime SinucoLeon14 , with optical lattices that can, at least in principle, be added along the ring Amico05 ; Lacki16 , for achieving strong correlations.

These studies have focused on the orbital response of ordinary Schrödinger (massive, non-relativistic) fermions and bosons. It is however well known that systems behaving as ultra-relativistic Dirac-Weyl fermions harbor an intriguing orbital response MCClure56 ; MCClure60 ; MCClure74 ; Koshino10 ; principi_prl_2010 ; gomez_prl_2011 ; raoux_prl_2014 ; piechon_prb_2016 ; gutierrez_prb_2016 , which is sensitive to many-body effects principi_prl_2010 even in the absence of impurities because of the intrinsic lack of Galilean invariance abedinpour_prb_2011 . In the case of two-dimensional (2D) Dirac-Weyl fermions, which can be found e.g. in graphene geim_naturemater_2007 and 2D artificial honeycomb lattices polini_naturenano_2013 , McClure predicted long-time ago a very large diamagnetic response at half filling MCClure56 ; MCClure60 ; MCClure74 ; Koshino10 . Away from half filling the situation is delicate and “high-energy” lattice effects gomez_prl_2011 together with many-body effects principi_prl_2010 provide interesting scenarios and, possibly, a many-body paramagnetic response principi_prl_2010 .

Leaving aside graphene geim_naturemater_2007 , its artificial analogues polini_naturenano_2013 , and recently discovered Weyl semimetals Hasan_2017 ; Yan_2017 , Dirac-Weyl fermions are also available in cold atom setups tarruell_nature_2012 ; jotzu_nature_2014 and 1D edge states of two-dimensional topological insulators hasan_rmp_2010 ; qi_rmp_2011 . Motivated by this body of literature, we here present a theoretical study of the orbital response of 1D Dirac-Weyl fermions. Specifically, we present extensive calculations of the Drude weight $D$ of 1D Dirac-Weyl fermions in a ring geometry. This quantity controls Kohn64 ; Fye91 ; Scalapino92 the behavior of the real and imaginary parts of the ac conductivity $\sigma(\omega)$ in the low-frequency $\omega\to 0$ regime. Kohn Kohn64 was the first to understand that, for 1D systems with periodic boundary conditions (PBCs), $D$ can be calculated from the dependence of the ground-state energy $E$ on the flux $\Phi$ threading the ring. Our approach treats on equal footing low-energy Dirac-Weyl physics, high-energy lattice effects, and inter-particle interactions. The latter, in particular, are handled in a non-perturbative fashion via a tensor-network generalization of the density-matrix renormalization group (DMRG) approach DMRG ; cominotti_prl_2014 . We employ binary-tree tensor networks, since they can handle PBCs as efficiently as open boundary conditions Gerster14 ; Gerster16 . These numerical calculations are complemented by diagrammatic many-body perturbation theory. We find that tuning the asymmetry between same- and different-(pseudo)spin Dirac-Weyl fermion interactions can result in qualitative changes of the Drude weight with respect to the non-interacting value $D_{0}$. Asymmetric (symmetric) interactions lead to Drude weight enhancement (suppression). We argue that ultracold 1D Dirac-Weyl fermions in ring traps allow for the observation of our predictions. In passing, we note that the authors of Ref. sticlet_prb_2013, calculated $D_{0}$ for 1D Dirac-Weyl fermions, while first-order interaction corrections were calculated abedinpour_prb_2011 for the case of graphene.

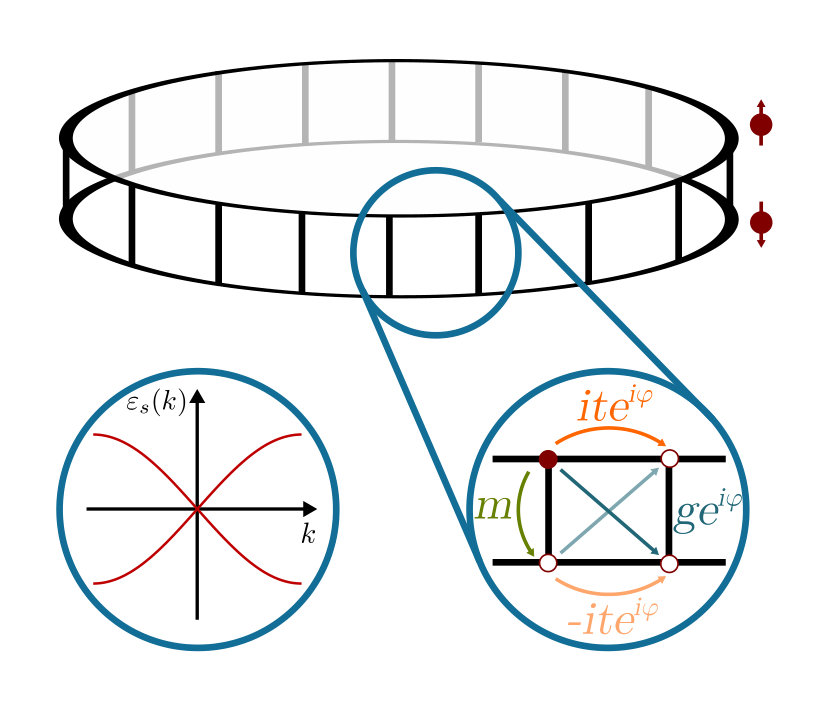

*Interacting Creutz ladder models.—*In order to model 1D fermions with a Dirac-Weyl crossing, we use the Creutz ladder Hamiltonian Creutz99 :

[TABLE]

Here, $L$ denotes the number of lattice sites, which we assume to be even throughout this work, $\sigma_{1}$ and $\sigma_{3}$ are ordinary $2\times 2$ Pauli matrices, and the fermionic operators are two-component spinors $c_{j}=(c_{j,\uparrow},c_{j,\downarrow})^{\rm T}$, where $\sigma=\uparrow,\downarrow$ refers to any two-valued pseudospin degree of freedom. The model consists of two chains, each representing one of the two pseudospins, with different nearest-neighbor (intra-chain $t$ and inter-chain $g$) hopping parameters and a local spin-flip term ($m$)—see Fig. 1. For $t=m=g$, the energy-quasimomentum dispersion shows a single Dirac-Weyl crossing ($\hbar=1$ throughout this manuscript) $\varepsilon(k)=\pm v_{\rm F}k$ located at $k=0$—see Fig. 1—i.e. it does not suffer from the fermion doubling problem.

We consider PBCs, which can be realized by closing the 1D system in a ring geometry. We introduce the Fourier transform of the fermionic operators, $c_{k}=1/\sqrt{L}\sum_{j=1}^{L}e^{-ikaj}c_{j}$, where $a$ is the lattice constant. The values of $k$ are bound to lie in the first Brillouin zone (BZ), $k=2\pi m/(La)$ where $m\in[-L/2,L/2-1]$ is an integer. A magnetic flux $\Phi$ threading the ring results in a twist of the boundary conditions or—gauge-equivalently—in a uniform vector potential along the ring. This appears as a Peierls phase $\varphi=(2\pi/L)(\Phi/\Phi_{0})$ with $0\leq\Phi\leq\Phi_{0}$ picked up by the fermions hopping from one site to a neighboring one. Here, $\Phi_{0}$ is the flux quantum, and we set henceforth $a=\Phi_{0}=1$. The phase $\varphi$ results in a shift $\tilde{k}=k+\varphi$ of the momenta of the Hamiltonian:

[TABLE]

In order to diagonalize ${\cal H}_{0}$, we introduce the operators $d^{\dagger}_{k,s}=\sum_{\sigma}N^{\sigma}_{\tilde{k},s}c^{\dagger}_{k,\sigma}$ and $d_{k,s}=\sum_{\sigma}N^{\sigma}_{\tilde{k},s}c_{k,\sigma}$, where $s=\pm$ is a band index ($s=-$ for the valence band, $s=+$ for the conduction band) and the form factors $N^{\uparrow}_{k,s}=sg_{k}/\sqrt{2(1-sf_{k})}$ and $N^{\downarrow}_{k,s}=(1-sf_{k})/\sqrt{2(1-sf_{k})}$, with $g_{k}=\text{sgn}(k)\sin(k/2)$ and $f_{k}=\text{sgn}(k)\cos(k/2)$. In this basis we find ${\cal H}_{0}=-2t\sum_{k,s}sg_{\tilde{k}}~{}d^{\dagger}_{k,s}d_{k,s}$. The resulting energy dispersion $\varepsilon_{s}(k)=-2tsg_{\tilde{k}}$ for $s=\pm$, $\Phi=0$, and $t=m=g$ is shown in Fig. 1.

We now add inter-particle interactions to the free model (1). These are usually written in the form ${\cal H}_{1}=\sum_{\sigma,\sigma^{\prime}}\sum_{i,j}v^{\sigma,\sigma^{\prime}}_{ij}n_{i,\sigma}n_{j,\sigma^{\prime}}$, where $n_{i,\sigma}=c^{\dagger}_{i,\sigma}c_{i,\sigma}$ is the density operator at site $i$, for pseudospin flavor $\sigma$. In this work we consider the following interactions:

[TABLE]

Here, $\bar{\sigma}$ is the opposite of $\sigma$. The first term in round brackets on the right-hand side of Eq. (3) is an on-site Hubbard-$U$ interaction term acting only between different-pseudospin fermions. The second and third terms are nearest-neighbor interactions acting between same- and different-pseudospin fermions, respectively. The Fourier transform of the interaction $v^{\sigma,\sigma^{\prime}}_{ij}=(1/L)\sum_{k}v^{\sigma,\sigma^{\prime}}_{q}\text{e}^{-iq(i-j)}$ is $v^{\sigma,\sigma^{\prime}}_{q}=[U\delta_{\bar{\sigma},\sigma^{\prime}}/2+V\cos(q)\delta_{\sigma,\sigma^{\prime}}+\tilde{V}\cos(q)\delta_{\bar{\sigma},\sigma^{\prime}}]$.

In the band representation, we find

[TABLE]

where $s,s^{\prime},r$, and $r^{\prime}$ are band indices and $W^{srr^{\prime}s^{\prime}}_{kk^{\prime}q}=\sum_{\sigma,\sigma^{\prime}}v^{\sigma,\sigma^{\prime}}_{q}N^{\sigma}_{k+q,s}N^{\sigma^{\prime}}_{k^{\prime}-q,r}N^{\sigma^{\prime}}_{k^{\prime},r^{\prime}}N^{\sigma}_{k,s^{\prime}}$. Results for the Drude weight in the presence of interactions qualitatively depend on: 1) finiteness of nearest-neighbor interactions and 2) asymmetry between same- and different-pseudospin nearest-neighbor interactions, which is quantified by the difference $V-\tilde{V}$.

*Drude weight, many-body perturbation theory, and non-perturbative numerical analysis.—*The Drude weight $D$ is formally defined by ${\rm Re}[\sigma(\omega)]=D\delta(\omega)+\sigma_{\rm s}(\omega)$, where $\sigma(\omega)$ is the ac conductivity Pines_and_Nozieres and $\sigma_{\rm s}(\omega)$ is a smooth contribution at $\omega\neq 0$. In 1D systems, $D$ is given by the second derivative of the ground-state energy $E(\Phi)$ with respect to the applied flux Kohn64 ; paritynote ,

[TABLE]

For the Creutz ladder model (1) in the absence of inter-particle interactions straightforward calculations yield

[TABLE]

where $\rho=N/L$ is the filling, $N$ being the particle number. In the following we calculate $D$ for the interacting Creutz ladder model, ${\cal H}_{0}+{\cal H}_{1}$, by using many-body diagrammatic perturbation theory first and an essentially exact numerical approach later.

The first-order contribution $E_{1}$ to the ground-state energy due to interactions is given by the Hartree and Fock diagrams Pines_and_Nozieres ; Giuliani_and_Vignale in Fig. 2a) and b): $E_{1}(\Phi)=L^{-1}\sum_{\sigma,k,k^{\prime}}(W^{----}_{k,k^{\prime},0}-W^{----}_{k,k^{\prime},k^{\prime}-k})$. After straightforward calculations, we find the first-order correction $D_{1}\equiv(L/2\pi)\left.(\partial^{2}E_{1}/\partial\Phi^{2})\right|_{\Phi=0}$ to the Drude weight:

[TABLE]

In writing Eq. (7) we have assumed that $v^{\sigma,\bar{\sigma}}_{q}$ and $v^{\sigma,\sigma}_{q}$ do not depend on $\sigma$ explicitly but just on the relative “alignment”, as in the case of Eq. (3). In general, the first-order contribution $D_{1}$ may yield an enhancement of the Drude weight, i.e. $D_{0}+D_{1}>D_{0}$  NegeleOrland . The second-order contribution to the ground-state energy and associated Drude weight are instead negative definite. Direct inspection of Eq. (7) reveals that an interacting Creutz ladder model with on-site Hubbard-$U$ interactions only displays $D_{1}=0$. The same occurs for the case with $U=0$ and finite nearest-neighbor interactions, when same- and different-pseudospin fermions interact identically, i.e. $D_{1}=0$ for $U=0$ and $v^{\sigma,\sigma}_{q}\equiv v^{\sigma,\bar{\sigma}}_{q}$. On the contrary, for $U=0$ and finite $V\neq\tilde{V}$, we find

[TABLE]

It is easy to check that $D_{1}>0$ for $V>\tilde{V}$.

A brief summary of our second-order perturbation theory results is presented in Ref. SOM, . We emphasize that the first-order correction $D_{1}$ vanishes for non-relativistic 1D lattice models, for arbitrary interactions. For the Hubbard model, $f_{k}=g_{k}=$ constant, implying $D_{1}=0$. A positive first-order correction $D_{1}$ to the Drude weight is a peculiarity of Dirac-Weyl fermions and seems directly linked to the “spin-velocity locking” occurring around the Fermi level. Indeed, the form factors $N^{\sigma}_{k,s}$ are such that the spin of the eigenstates couples to their propagation direction. Conversely, the Su-Schrieffer-Heeger model, which displays the same dispersion (i.e. hosts a single massless Dirac fermion mode), does not have this feature and displays $D_{1}=0$.

Guided by these analytical results, we now turn to a non-perturbative numerical analysis based on a tensor-network generalization of the DMRG approach DMRG ; cominotti_prl_2014 . Our main numerical results are summarized in Figs. 3-4.

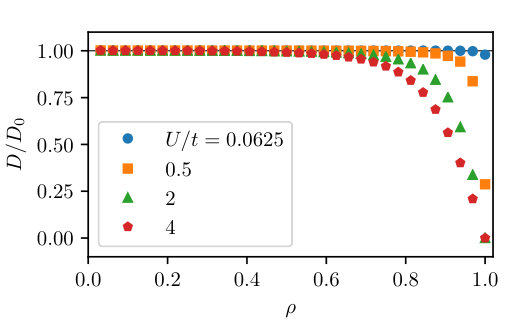

We start by illustrating the dependence of $D$ on $\rho$ for a 1D Creutz ladder model with Hubbard-$U$ interactions only—see Fig. 3a). Results in this figure have been obtained by setting $m=g=t$, $V=\tilde{V}=0$, and finite $U$. Despite the Dirac-Weyl crossing in the single-particle band structure, this choice of parameters results in the usual scenario for non-relativistic Hubbard rings Fye91 ; Scalapino92 , in which the Drude weight is suppressed by interactions, i.e. $D/D_{0}<1$ for all fillings and coupling constants.

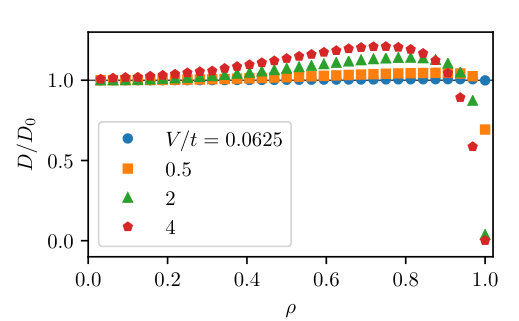

In stark contrast with the results in Fig. 3a), we cleary see that the Drude weight can display an entirely different qualitative behavior for finite nearest-neighbor interactions—see Fig. 3b). In this figure we show numerical results for the same system size ($L=32$), $m=g=t$, $U=0$, and $V=2\tilde{V}$. In this case, the Drude weight is enhanced (rather than suppressed) away from half filling, as expected on the basis of our analytical many-body perturbation theory analysis. The enhancement exceeds $20\%$ for $V/t=4$. At half filling, the usual Drude weight suppression takes place Fye91 ; Scalapino92 , despite the different nature of inter-particle interactions. Of course, we have checked SOM that our numerical results in Figs. 3 agree quantitatively with the many-body perturbation theory analysis for weak interaction strengths SOM .

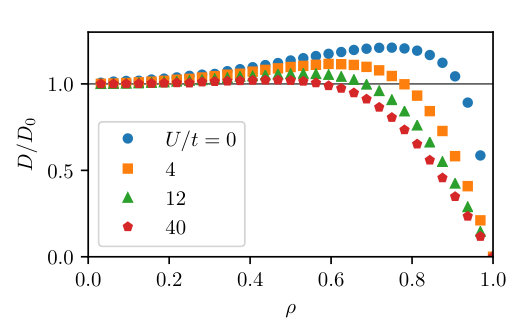

*Stability of the Drude weight enhancement.—*Before concluding, we discuss the stability of the surprising result $D/D_{0}>1$ shown in Fig. 3b) with respect to finite values of $U/t$ and system size. Fig. 4 shows the robustness of the Drude weight enhancement with respect to increasing values of $U/t$ and for a 1D ring with $L=64$ sites. We see that the enhancement persists at intermediate fillings for $U/t\neq 0$, disappearing only for $U\gg V,\tilde{V}$. Regarding the scaling of our results with respect to the system size $L$, we have checked that, away from half filling, the numerical data shown in Fig. 4 are converged up to the second decimal digit.

Scaling towards the thermodynamic limit is slower at half filling. A finite-size scaling analysis of the ratio $D/D_{0}$ for this filling and rings with up to $L=128$ sites yields that even for $U/t=0$ and asymmetric nearest-neighbor interactions ($V=2\tilde{V}$) the Drude weight tends to zero in the thermodynamic limit SOM . This signals an interaction-induced metal-insulator transition, which is independent of the presence of the Dirac-Weyl crossing and range of inter-particle interactions. In this work, we restricted our studies to the zero-temperature case. For the case of finite temperatures, while the stability of the Drude weight in the thermodynamic limit $L\rightarrow\infty$ is still subject of debate Sirker11 , signatures thereof should be anyway observable for finite systems in the low-frequency conductivity Zotos2004 .

*Discussion.—*The realization of Dirac-Weyl crossings in 1D cold atom setups via the Creutz ladder model can be achieved by using available schemes Mazza12 ; Juenemann16 . Given the crucial role of nearest-neighbour couplings, the natural systems to test our findings are dipolar atoms or molecules Lahaye09 ; Carr09 ; Baranov12 ; Moses17 . Recently, indeed, evidence for a long-range spin-exchange term Yan13 , a deformation of the Fermi surface Aikawa14 , and even of the realization of an extended Hubbard model Baier16 , have been put forward. Long-range interactions can also be achieved by dressing the natural ones via cavity resonances Landig16 or lattice shaking Eckardt16 . A precise scheme design goes however behind the scope of this work, and may be subject of future investigations. Incidentally, we note that previous theoretical studies of dipolar and Rydberg atoms on a ring Olmos09 ; Zoellner11 ; Lim13 have focused on other aspects of their rich physics. Our study therefore constitutes an additional motivation for the realization of such setups. We also stress here that our findings are not limited to atoms loaded in ring traps. The tunability of the Drude weight in the presence of Dirac-Weyl crossings is a much more general phenomenon, which can also be tested in transport experiments in cold atom wires, like the pioneering ones carried out at ETH Brantut12 . Another alternative could be to look at the long-time asymptotic behaviour of current-current correlation functions, via tailored quenches Karrasch17 .

Supplemental Material for “Tuning the Drude Weight of Dirac-Weyl Fermions in One-Dimensional Ring Traps”

In this Supplemental Material file we present explicit calculations of the Drude weight of an interacting Creutz ladder model (with both on-site and nearest-neighbor interactions) based on second-order perturbation theory. The analytical predictions are compared with essentially exact numerical results, obtained by tensor networks simulations.

Second-order Perturbation Theory

In the weak-coupling limit, we can use perturbation theory to approximate the ground-state energy of the interacting many-body system described by Eqs. (1) and (4) in the main text.

The Hugenholtz diagrams that contribute to the energy $E_{2}=E^{(1)}_{2}+E^{(2)}_{2}$ at second-order in the inter-particle interactions are shown in panels c) and d) of Fig. 2 in the main text.

These two diagrams can be calculated by using the Hugenholtz diagram rules (NegeleOrland in main text). The Drude weight can then be obtained by differentiating the resulting energy expression twice with respect to the applied flux as in Eq. (5) in the main text. We find

[TABLE]

and

[TABLE]

where $\bar{k}\equiv k-q$ and $\bar{k^{\prime}}\equiv k+q$. For Hubbard-$U$ on-site interactions only, we have

[TABLE]

where the form factors $N^{\sigma}_{k,s}$ have been introduced in the main text.

For nearest-neighbor interactions, we find

[TABLE]

After some algebraic manipulations, we find that the second Hugenholtz contribution, Eq. (10), always vanishes, $E^{(2)}_{2}=0$. The second-order correction to the ground-state energy is finally

[TABLE]

where contributions of the different types of interactions are transparent. Since $g_{\tilde{k}}=\text{sign}(\tilde{k})\sin(\tilde{k}/2)\geq 0$, the second-order contribution to the energy is evidently always negative for any choice of the interaction strengths, as expected.

For purely on-site Hubbard-$U$ ($V=\tilde{V}=0$) or pseudospin-symmetric interactions, $V=\tilde{V}$ ($U=0$), the only dependence of Eq. (13) on the flux $\varphi$ is via $g_{\tilde{k}}$. Therefore, by elementary differentiation, it is evident that the second-order contribution to the Drude weight due to such interactions is also always negative. This is confirmed by direct calculation, see Fig. 2(a). Recalling that the first-order correction vanishes identically for these two cases, $D_{1}=0$, we conclude that the Drude weight of a 1D Creutz ladder model is suppressed by on-site Hubbard-$U$ interactions and symmetric nearest-neighbour interactions, $V=\tilde{V}$.

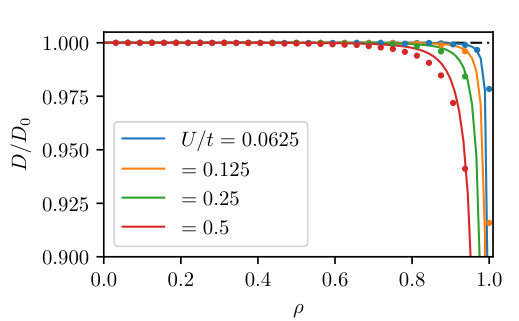

Analytical results of second-order perturbation theory and numerical DMRG results for the Drude weight for the case of Hubbard-$U$ on-site interactions only are compared in Fig. 2(a). (Plots for $V=\tilde{V}$ look qualitatively similar.) This is the standard result: repulsive on-site interactions suppress the Drude weight in comparison with the non-interacting value.

Perturbation theory and numerical DMRG results for the Drude weight of the 1D Creutz ladder model with repulsive asymmetric nearest-neighbor interactions are shown in Fig. 2(b).

Finite-size scaling

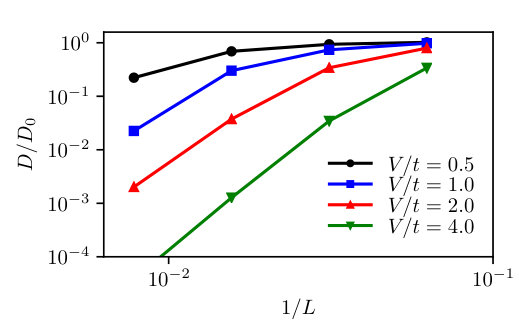

A finite-size scaling analysis of the ratio $D/D_{0}$ for this filling and rings with up to $L=128$ sites is shown in Fig. 3. Even for $U/t=0$ and asymmetric nearest-neighbor interactions ($V=2\tilde{V}$) the Drude weight tends to zero in the thermodynamic limit. This signals an interaction-induced metal-insulator transition, which is independent of the presence of the Dirac-Weyl crossing and range of inter-particle interactions.
