Chiral Flat Bands: Existence, Engineering and Stability

TL;DR

This paper investigates the existence, design principles, and stability of chiral flat bands in bipartite lattice networks, revealing their robustness under various perturbations and proposing new realizations across different dimensions.

Contribution

It introduces a simple generating principle for chiral flat bands and identifies new potentially realizable lattice configurations with these features.

Findings

Chiral flat bands host compact localized states at zero energy.

Chiral symmetry-preserving perturbations do not destroy flat bands.

Flat bands are protected by spectral gaps and pseudogaps under disorder.

Abstract

We study flat bands in bipartite tight-binding networks with discrete translational invariance. Chiral flat bands with chiral symmetry eigenenergy E = 0 and host compact localized eigenstates for finite range hopping. For a bipartite network with a majority sublattice chiral flat bands emerge. We present a simple generating principle of chiral flat band networks and as a showcase add to the previously observed cases a number of new potentially realizable chiral flat bands in various lattice dimensions. Chiral symmetry respecting network perturbations - including disorder and synthetic magnetic fields - preserve both the flatband and the modified compact localized states. Chiral flatbands are spectrally protected by gaps, and pseudogaps in the presence of disorder due to Griffiths effects.

Figures

Equations

$$\displaystyle H(k)=\left(\begin{array}[]{ccc}\mathcal{D}_{1}(k)&\mathcal{Q}(k)&0\\ \mathcal{Q}^{\dagger}(k)&\mathcal{D}_{2}(k)&0\\ 0&0&E_{FB}\end{array}\right).$$

Full text

Hermitian tight binding translationally invariant lattices with the eigenvalue problem $E\Psi_{l}=-\sum_{m}t_{lm}\Psi_{m}$ and certain local symmetries have been shown to sustain one or a few completely dispersionless bands, called flat bands (FB) in their band structure Derzhko et al. (2015). Flat bands with finite range hoppings rely on the existence of a macroscopic number of degenerate compact localized eigenstates (CLS) $\{\Psi_{l}\}$ at the FB energy $E_{FB}$ which have strictly zero amplitudes outside a finite region of the lattice due to destructive interference Flach et al. (2014). Flat band networks have been proposed in one, two, and three dimensions and various flat band generators were identified Mielke (1991); Tasaki (1992), which harvest on local symmetries. A recent systematic attempt to classify flat band networks through the properties of CLS was used to obtain a systematic flat band network generator for one-dimensional two-band networks Maimaiti et al. (2017). Experimental observations of FBs and CLS are reported in photonic waveguide networks Guzmán-Silva et al. (2014); Vicencio et al. (2015); Mukherjee et al. (2015); Mukherjee and Thomson (2015); Weimann et al. (2016); Xia et al. (2016), exciton-polariton condensates Masumoto et al. (2012); Baboux et al. (2016); Whittaker et al. (2017), and ultracold atomic condensates Taie et al. (2015); Jo et al. (2012). FBs are obtained through a proper fine-tuning of the network parameters. For experimental realizations, the understanding and usage of FB protecting symmetries is therefore of high priority.

The interplay of flat bands and additional symmetries was discussed in a few publications. Sutherland reported on a chiral flat band in the dice lattice Sutherland (1986). Bergman et. al. Bergman et al. (2008) studied topological protection of band touching which is not protected by any symmetry (i.e. accidental) in FB lattices. Green et. al. Green et al. (2010) reported on the possibility of opening a gap between a flatband and the other bands by breaking the time-reversal symmetry. As we will show below, gapped chiral FBs do not require broken time-reversal symmetry. Chiral bound states in the continuum were studied by Mur-Petit et. al. Mur-Petit and Molina (2014). Poli et. al. Poli et al. (2017) examined the effect of breaking chiral symmetry in a two-dimensional Lieb lattice, which destroyed the flat band. They experimentally investigated a microwave realization of this partial chiral dimerized Lieb lattice. Leykam et. al. Leykam et al. (2017a) studied hopping disorder - which by itself may preserve chiral symmetry - in a one-dimensional diamond chain with already broken chiral symmetry and therefore observed a finite localization length for states at the flatband energy, as opposed to strict compact localization for preserved chiral symmetry (see below). Recently, Read analyzed general topological winding properties of CLS using algebraic K-theory Read (2017).

Bipartite lattices separate into two $A,B$ sublattices such that $E\Psi_{l}^{A,B}=-\sum_{m}t_{lm}\Psi_{m}^{B,A}$ and possess chiral symmetry (CS): if $\{\Psi^{A},\Psi^{B}\}$ is an eigenvector to eigenenergy $E$, then $\{\mp\Psi^{A},\pm\Psi^{B}\}$ is an eigenvector to eigenenergy $-E$. We study chiral flat bands (CFB) with $E_{FB}=0$ in such systems, and the ways the chiral symmetry is protecting them. Lieb theorem Lieb (1989) implies that chiral lattices with an odd number of bands always possess at least one chiral flat band, and we present a general method to compute the total number of CFBs. This allows us to derive a simple CFB network generating principle in various lattice dimensions. Disorder (or other perturbations) which preserve CS also preserve the CFB, and we show that CLS survive up to modifications. CFBs are generically gapped away from other spectral parts, however, the gap is replaced by a pseudogap in case of hopping disorder due to Griffiths effects Griffiths (1969).

We start with reminding of a well-known theorem on the existence of zero-energy states for bipartite lattices Sutherland (1986); Lieb (1989). It states that if the number $N_{A}$ of the majority $A$-sublattice sites is larger than the corresponding number $N_{B}$ of the minority $B$-sublattice, then there are at least $\Delta N=|N_{A}-N_{B}|$ states $\{\Psi^{A},0\}$ at energy $E=0$ Sutherland (1986); Lieb (1989), which occupy the majority sublattice only.

Our first result concerns a translationally invariant $d$-dimensional lattice with CS, odd number $\nu$ of sites per unit cells and $1\leq\mu_{B}<\mu_{A}<\nu$. The $\mu_{A}$ $A$-sites in any unit cell are only connected with non-zero hopping terms $t_{lm}$ to the remaining $\mu_{B}$ $B$-sites (possibly belonging to other unit cells). The general band structure is given by dispersion relations $E_{\mu}(\vec{k})$ with the band index $\mu=1,...,\nu$ and $\vec{k}$ a $d$-component Bloch vector scanning the Brillouin zone. It follows already by general CS that at least one of the bands must either cross $E=0$ (finite number of zero energy states) or be a FB at $E=0$ (macroscopic number of zero energy states), since any band which does not cross $E=0$ is either positive or negative valued, and has a symmetry related partner band. Due to the odd number of bands, there is at least one unpaired band which therefore must transform into itself under CS action. In the following we focus on Hermitian system, but the concepts can be carried over to non-Hermitian systems as well. Further, since $\nu$ is odd, the difference in the number of sites on the $A$ and $B$ sublattices $\Delta N=N_{uc}(2\mu_{A}-\nu)\neq 0$, where $N_{uc}\sim L^{d}$ is the number of unit cells, and $L$ is the linear dimension. This implies a macroscopic degeneracy at $E=0$, which is only possible with precisely $(2\mu_{A}-\nu)$ FBs at $E=0$. This observation suggests a natural classification of CFB by the imbalance of minority and majority sites, and will be used for a CFB generator as we illustrate below.

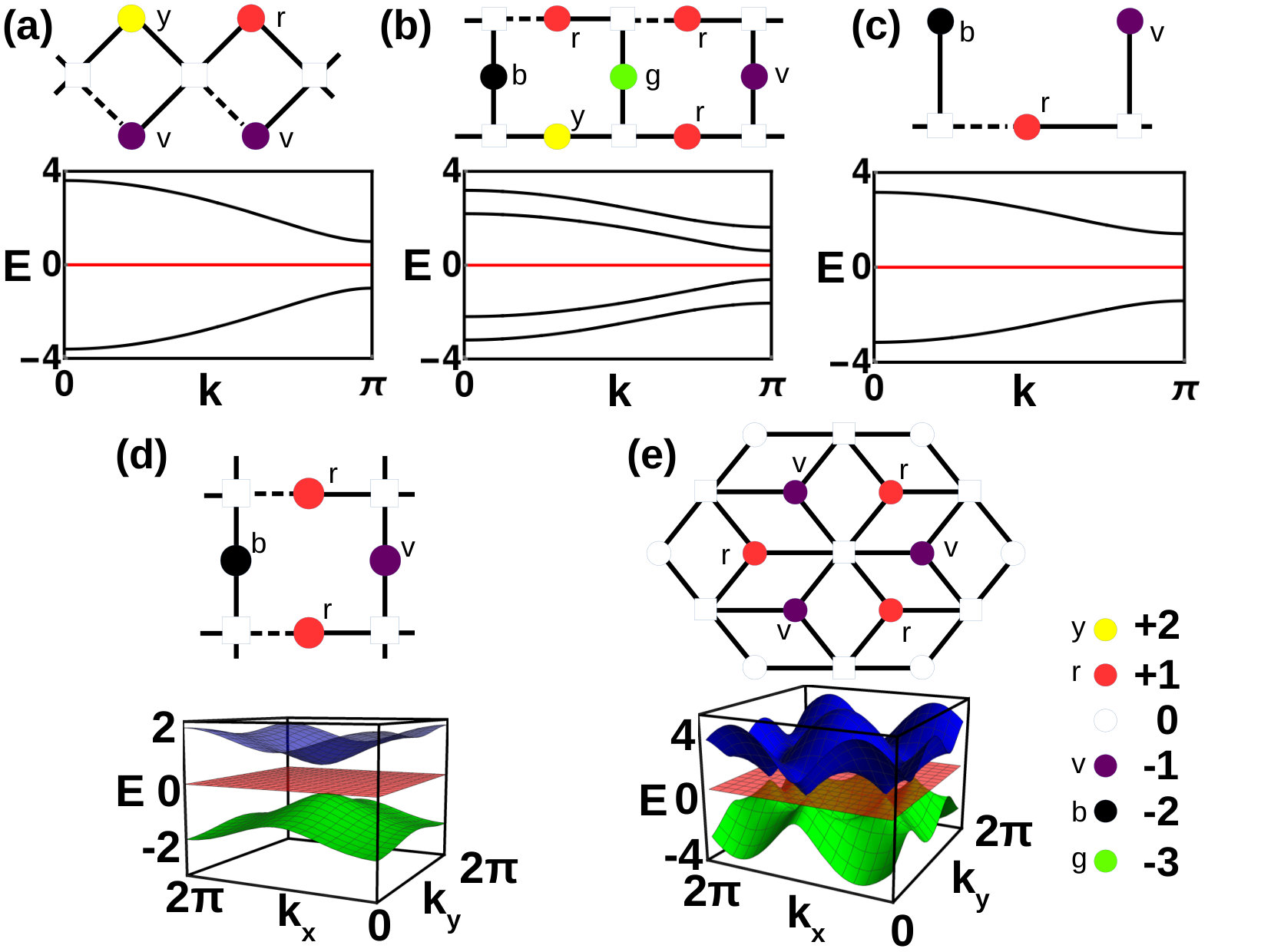

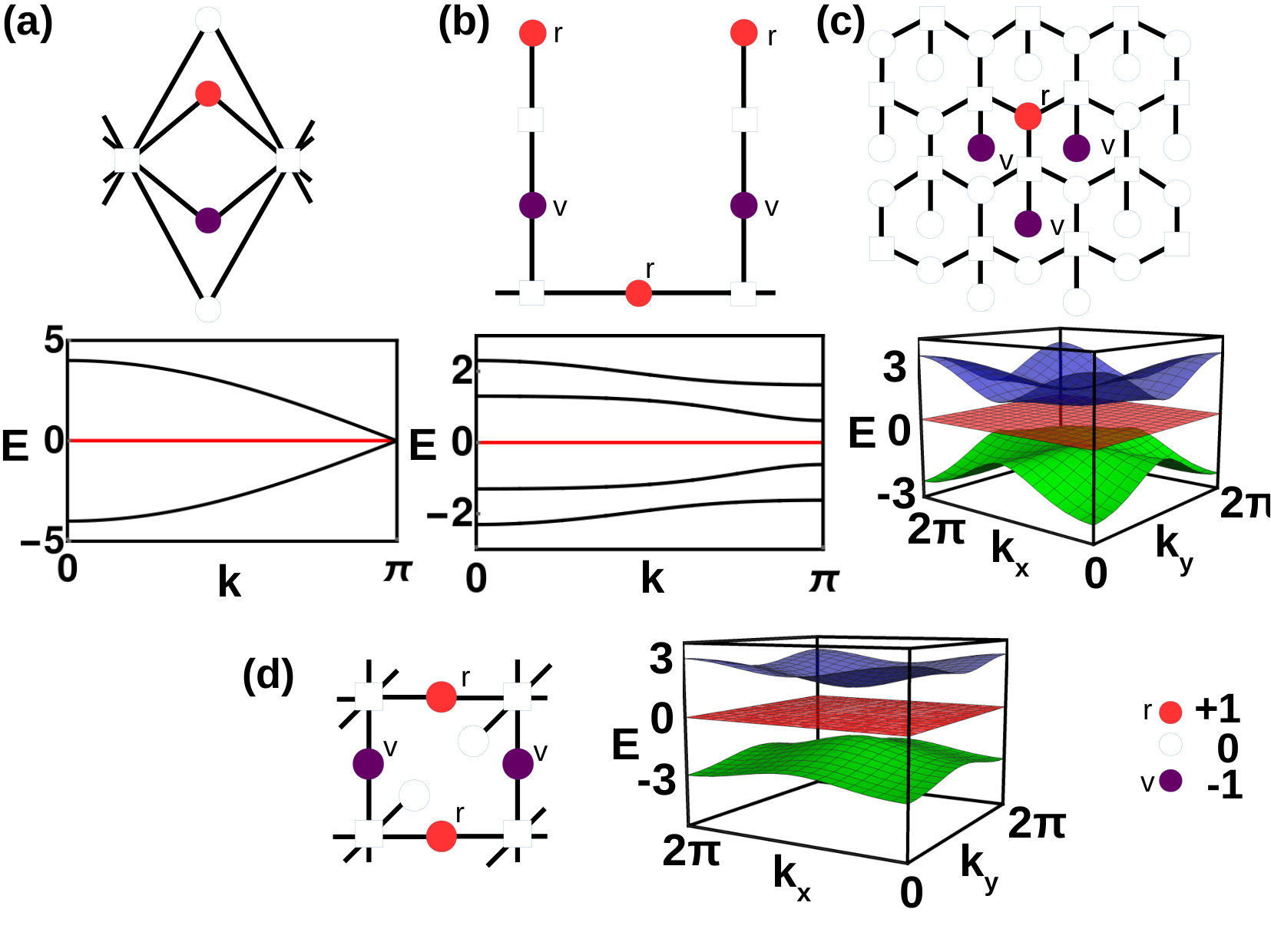

Let us first discuss $d=1$. For $\nu=3$ there is only one possibility $\mu_{A}=2$. A known example is the diamond chain structure shown in Fig. 1(a). The cutting of one bond leads to the stub structure Fig. 1(c). For $\nu=5$ there are two possibilities - $\mu_{A}=3,4$. The case $\mu_{A}=3$ leads to a generalized Lieb structure Fig. 1(b). Cutting a bond produces a generalized stub3 lattice Fig. 2(b). The second case $\mu_{A}=4$ arrives at a new network structure which we coin double diamond chain Fig. 2(a).

For $d=2$ and $\nu=3$ case the only partitioning is again $\mu_{A}=2$, yet there are different choices of Bravais lattices. For the tetragonal Bravais lattice we find a generalized 2d Lieb structure Fig. 1(d). The hexagonal Bravais lattice yields e.g. the $\mathcal{T}_{3}$ or dice lattice Sutherland (1986); Vidal et al. (1998, 2001) Fig. 1(e). Cutting two bonds in each unit cell of the $\mathcal{T}_{3}$ lattice yields a novel 2d stub lattice Fig. 2(c). For $\nu=5$, there are again two partitionings $\mu_{A}=3,4$. The case $\mu_{A}=3$ leads to an edge centered honeycomb lattice Lan et al. (2012). In the second case $\mu_{A}=4$ with three CFBs and two dispersive bands (decorated Lieb lattice, Fig.  2(d)).

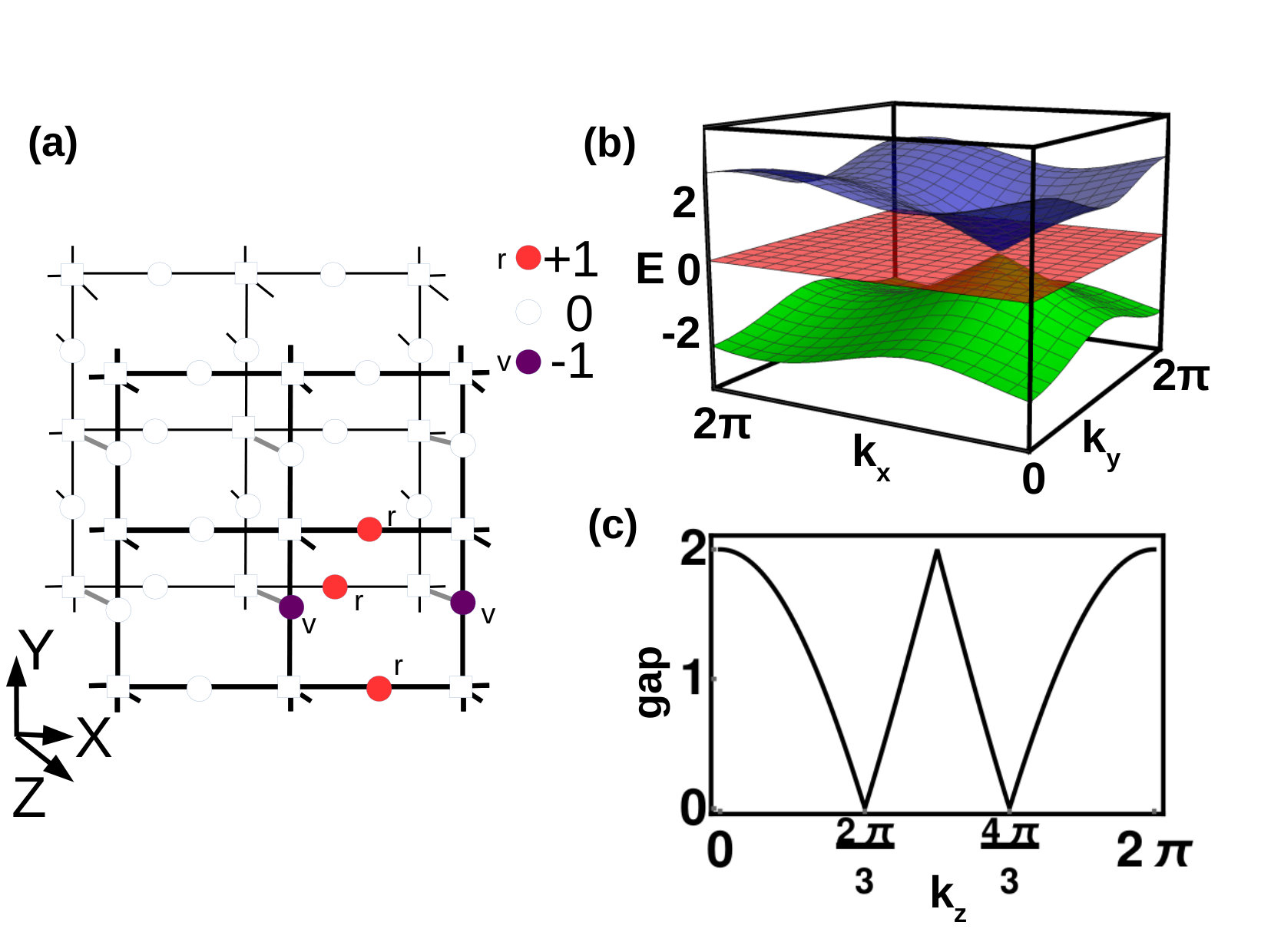

For $d=3$ and $\nu=3$ we obtain a novel generalized 3d Lieb structure Fig. 3.

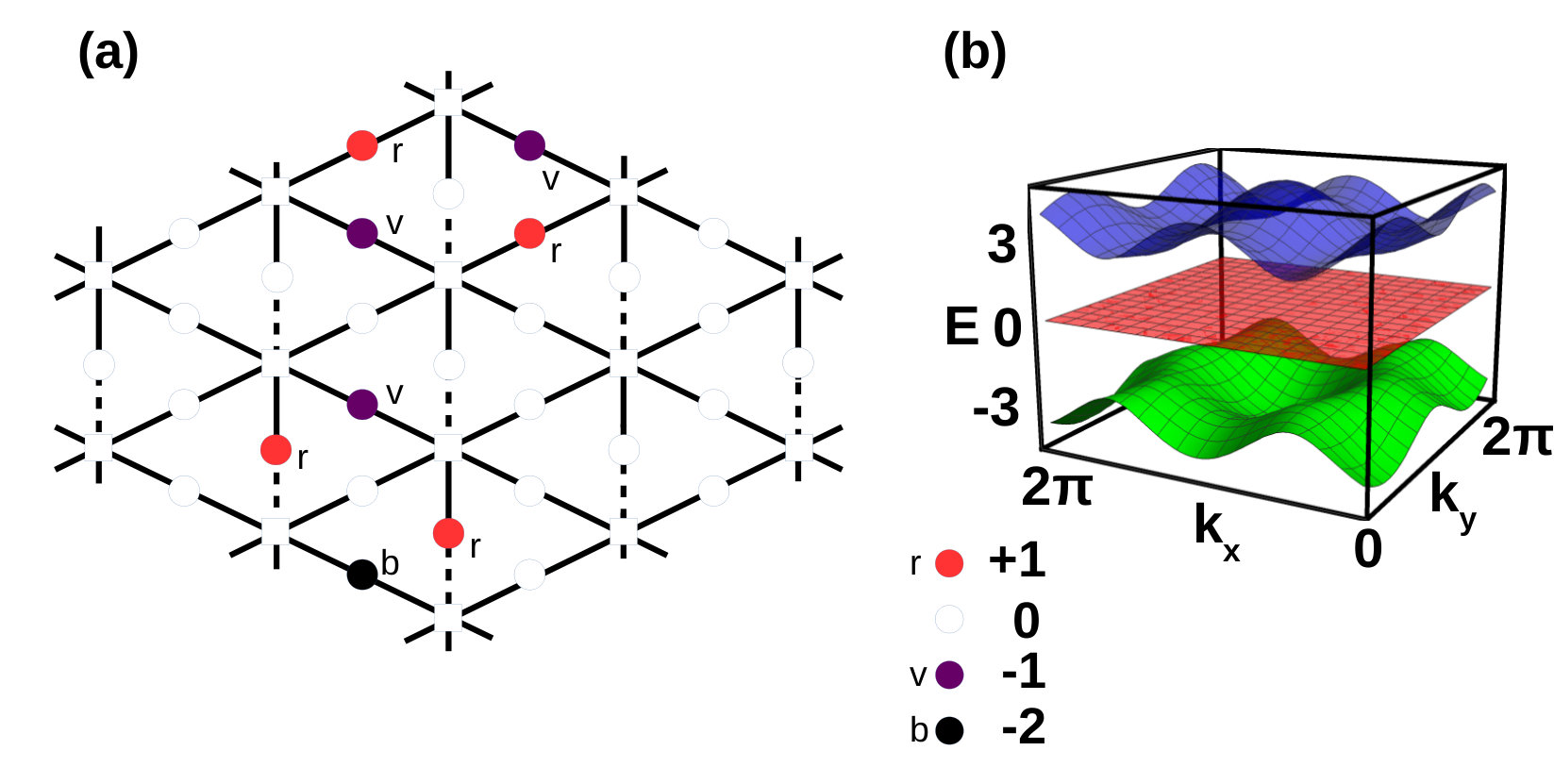

The above approach can be extended to larger odd band numbers. Further, the approach is not restricted to odd band numbers only. Any even band number $\nu\geq 4$ is working as well, as long as $\mu_{A}>\mu_{B}$. For instance $\mu_{A}=3$ and $\mu_{B}=1$ is the first nontrivial CFB case with the smallest number of four bands, with two degenerated CFBs. A two-dimensional realization of such a structure is the 2d RAF (or bond-centered triangular) structure in Fig. 4.

The most general way to generate CBFs is to simply set the numbers $\nu$, $\mu_{A}$, $d$ and to pick a Bravais lattice. Any values of hoppings between majority and minority sublattices are allowed. The hopping range can be anything, from compact (or nearest neighbour) as chosen in the above examples, to exponentially decaying, or algebraic decaying, or not decaying at all in the lattice space. For non-compact hoppings, CLS states are not expected to persist in general and turn into exponentially, algebraically or completely extended flat band eigenstates, since the number of equations to be satisfied turns macroscopic. Our generator therefore provides a straightforward path of generating flat bands which lack compact localized state support.

For compact or nearest-neighbour hopping it is always possible to construct a suitably sized CLS for a CFB, as follows from a simple counting of equations and variables. The nonzero CLS amplitudes must be always located on the majority sublattice and are the variables to be identified. The embedded and surrounding minority sites have amplitude zero and constitute the set of equations to be satisfied. This immediately gives an estimate of the number $n_{e}$ of lattice equations to be satisfied by the CLS: $n_{e}=v_{e}L_{cls}^{d}+s_{e}L_{cls}^{d-1}$ and the number of variables $n_{v}=v_{v}L_{cls}^{d}$. Both numbers scale proportionally to the volume $L_{cls}^{d}$ of the CLS, with $v_{v}>v_{e}$, and an equation surface contribution with some proportionality factor $s_{e}$. For large enough volume $L_{cls}^{d}$ the number of equations will always be less than the number of variables, and the CLS can be constructed. It would be interesting to combine the chiral generator with the generic CLS generator Maimaiti et al. (2017).

The above examples of periodic CFB structures show that in general the CFB is gapped away from dispersive bands. While for some cases we observe conical intersections at $E=0$ and zero gaps, this happens for highly symmetric hopping parameter sets (e.g. like all hoppings equal). We checked, that all models discussed above show gap openings upon changing the hopping values in the corresponding sets (without destroying the network class and periodicity). This is due to removal of accidental degeneracy of states from dispersive bands. Dispersive bands in CS networks are symmetry related, and can touch at zero energy only for discrete sets of wavevector values. These touchings (not crossings) are additional degeneracies which are removed by perturbations, even those that respect CS. The CFB however remains at zero energy.

Conical intersection points in two dimensional chiral networks without majority sublattices ($\mu_{A}=\mu_{B}$) are known to be protected by the very chiral symmetry. Indeed, in this case the Hamiltonian in $k$ space is taking the form H(k)=\left(\begin{array}[]{cc}0&\mathcal{T}(k)\\ \mathcal{T}^{\dagger}(k)&0\\ \end{array}\right) where $\mathcal{T}(k)$ is a square matrix of rank $\mu_{A}=\mu_{B}$. Conical intersections points in $H(K)$ are protected since the zeros of the analytical function det $T(k)$ (and hence the zero modes of $T(k)$) survive under small perturbations of the hoppings.

However, in the case of CFBs $\mu_{A}\neq\mu_{B}$ and therefore $\mathcal{T}(k)$ is a rectangular matrix. Yet we can always represent a CFB Hamiltonian in the form

[TABLE]

In order to have a symmetry protected conical intersection point, we have to request bipartite symmetry in the subsystem of the dispersive states, i.e. $\mathcal{D}_{1,2}(k)=0$. That results in $\mu_{B}$ functions of $k$ which have to vanish, with only a finite number of variables (the hopping set) at hand. Therefore the conical intersections observed for CFB are not protected by symmetry, although they might be preserved upon perturbations along a subset of the hopping control parameter space.

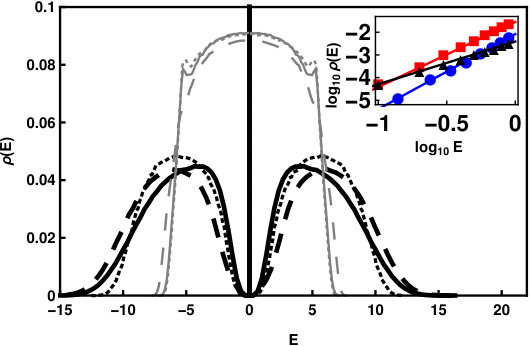

The CFB is protected even when destroying translational invariance while keeping CS. This can be easily done by randomizing the hoppings, e.g. using random uncorrelated and uniformly distributed variables $\epsilon_{ij}\in[-W/2,W/2]$ such that $t_{ij}\rightarrow t_{ij}(1+\epsilon_{ij})$. We first consider the 1d diamond chain from Fig. 1(a) with $W=10$, which is much larger than the gap of the ordered case, and would be expected to smear out the gap completely. Figure 5 shows the density of states for this case. We clearly observe a persistent and protected CFB with $\rho(0)=\infty$ due to flatbands and pseudogap behavior $\rho(E\to 0)\to E^{\alpha}$ with model dependent exponent $\alpha$. The CLS persist and have a structure similar to the clean case shown on Fig. (1 and 2) but with amplitudes which are derived from the random hopping values $t_{ij}$ which are connecting CLS sites with the minority sublattice. Consequently CLS are now different in different parts of the chain. In figure  5 we show the analogous results for the 2d Lieb lattice. Again the CFB is protected by a gap, and CLS states persist, which have a structure similar to the one shown in Fig. 1(d). Finally in Fig. 5 we show the density of states for the disordered $\mathcal{T}_{3}$ lattice. Clearly in all above cases the CFB persists symmetry preserving hopping disorder, and is protected from other states.

Notably the gap is smeared and replaced by a pseudogap due to Griffiths effects, due to rare regions that are almost translationally invariant or contain conical intersections. The pseudogap scaling close to $E=0$ is shown in the inset in Fig. 5.

In order to demonstrate the importance of the the chiral symmetry protection, we computed densities of states for the modified eigenvalue problem - $(E-\epsilon_{l})\Psi_{l}=-\sum_{m}t_{lm}\Psi_{m}$

• with diagonal (onsite) disorder. The random uncorrelated onsite energies $\epsilon_{l}$ break the CS and the CFB is destroyed, and the pseudogap and $\delta$-peak at E=0 are smeared. (Fig. 5).

Finally let’s discuss the possibility of linear dependence of the CLS. To enforce linear dependence of the set of all CLS, we need to zero at least one linear combination of them, which leads to $N\mu_{A}$ equations with only $N$ variables (coefficients) available. This is in general impossible, unless additional constraints are met. Therefore the set of all CLS is generically linearly independent and spans the entire Hilbert space of the CFB.

That is at variance with flat bands in systems lacking chiral symmetries, e.g. for the kagome and 2d pyrochlore (checkerboard) lattices Leykam et al. (2017a). In these cases, the CLS set is linearly dependent Bergman et al. (2008). The search for one missing state leads to the existence of two different compact localized lines. The unexpected additional state at the flat band energy is therefore due to band touching. A similar linear dependence of the CLS set happens also for non-gapped CFBs, e.g. for the 2d Lieb lattice with all hoppings being equal, or for the dice lattice in Fig. 1. Reducing the symmetry in the hopping network $\{t_{lm}\}$ while keeping the chiral symmetry preserves the flat band, opens a gap, and turns the CLS set into a linearly independent one. It is an interesting question whether similar reductions of the symmetry of the hopping networks for non-chiral systems with band touchings will preserve the flat band, gap it away from dispersive states, and make the CLS set complete.

Turning the hopping matrix elements complex will destroy time reversal symmetry, and may correspond to the introduction of synthetic magnetic fields in the context of Bose-Einstein condensates Lin et al. (2009a, b); Aidelsburger et al. (2013); Miyake et al. (2013); Aidelsburger et al. (2015); Bloch et al. (2012); Struck et al. (2012); Celi et al. (2014), and of light propagation in waveguide networks Golshani et al. (2014); Longhi (2013). These changes preserve CS and therefore, the CFB persists also together with the CLS. This has been shown for the one-dimensional diamond chain in Ref. Khomeriki and Flach (2016), where a magnetic field preserves the CFB, the CLS, and opens a gap. Further, we can even leave Hermitian grounds and consider dissipative couplings Leykam et al. (2017b). Still the CFB will be protected due to the above reasoning of having a majority sublattice. Therefore CFBs can be realized even in dissipative nonHermitian settings.

To conclude, we presented the theory of chiral flat bands. We study flat bands in chiral bipartite tight-binding networks with discrete translational invariance. Chiral flat bands are located at the chiral symmetry eigenenergy $E=0$ and host compact localized eigenstates. For a bipartite network with a majority sublattice degenerated chiral flat bands exist. We derived a simple generating principle of chiral flat band networks and illustrated the method by adding to the previously observed cases a number of new potentially realizable chiral flat bands in various lattice dimensions. We have also pointed out the possible constructions of flatband models with no CLS. Chiral symmetry respecting network perturbations - including disorder, synthetic magnetic fields, and even nonHermitian extensions - preserve the flat band and compact localized states, which are only modified. Chiral flat bands are thus protected and however the gaps are replaced by pseudogaps in presence of disorder, due to the contribution of rare regions.
