Optimal entrainment of circadian clocks in the presence of noise

TL;DR

This paper investigates how circadian clocks optimally synchronize with day-night cycles despite noise, by analyzing phase oscillator models and identifying optimal coupling, frequency, and response curve shapes through stochastic simulations.

Contribution

It introduces a comprehensive analysis of noise effects on circadian entrainment, revealing non-monotonic changes in phase-response curve shape and providing analytic approximations for different noise regimes.

Findings

Optimal coupling strength increases with noise.

Phase-response curve shape varies non-monotonically with noise.

Three analytic methods accurately describe different noise regimes.

Abstract

Circadian clocks are biochemical oscillators that allow organisms to estimate the time of the day. These oscillators are inherently noisy due to the discrete nature of the reactants and the stochastic character of their interactions. To keep these oscillators in sync with the daily day-night rhythm in the presence of noise, circadian clocks must be coupled to the dark-light cycle. In this manuscript, we study the entrainment of phase oscillators as a function of the intrinsic noise in the system. Using stochastic simulations, we compute the optimal coupling strength, intrinsic frequency and shape of the phase-response curve, that maximize the mutual information between the phase of the clock and time. We show that the optimal coupling strength and intrinsic frequency increase with the noise, but that the shape of the phase-response curve varies non-monotonically with the noise: in the low-noise regime, it features a deadzone that increases in width as the noise increases, while in the high-noise regime, the width decreases with the noise. These results arise from a trade-off between maximizing stability -noise suppression - and maximizing linearity of the input-output, i.e. time- phase, relation. We also show that three analytic approximations -the linear-noise approximation, the phase-averaging method, and linear-response theory- accurately describe different regimes of the coupling strength and the noise.

Figures

Equations

$$\frac{d\mathbf{n}}{dt}$$

$$I(\mathbf{n};t)$$

$$I\mathbf{n};t)$$

$$=H(\mathbf{n})-⟨H(\mathbf{n}|t){⟩}_t,$$

$$I(\mathbf{n},t)=I(\mathbf{x},t).$$

$$I(R,\varphi ;t)\le I(\mathbf{x};t).$$

$$I(\mathbf{n};t)\ge I(R,\varphi ;t)$$

$$I(\mathbf{n};t)\ge I(R,\varphi ;t)\ge I(\varphi ;t).$$

$$\frac{d\varphi (\mathbf{n})}{dt}={\omega }_0,$$

$$\frac{d\varphi (\mathbf{n})}{dt}=\sum _i\frac{\partial \varphi }{\partial n_i}\frac{d{n}_i}{dt}.$$

$${\omega }_0=\sum _i\frac{\partial \varphi }{\partial n_i}{A}_i(\mathbf{n}).$$

$$\frac{d\varphi (\mathbf{n})}{dt}$$

$$={\omega }_0+\xi (\mathbf{n}),$$

$$\xi (\mathbf{n})=\sum _i\frac{\partial \varphi }{\partial n_i}{\eta }_i(\mathbf{n}).$$

$$\xi (\varphi )=\sum _i\frac{\partial \varphi ({\mathbf{n}}_0)}{\partial n_i}{\eta }_i({\mathbf{n}}_0).$$

$$⟨\xi (\varphi (t))\xi (\varphi (t^{\prime }))⟩$$

$$\equiv 2D(\varphi )\delta (t-t^{\prime }).$$

$$\frac{d\varphi (\mathbf{n})}{dt}$$

$$\frac{d\varphi }{dt}={\omega }_0+Q(\varphi ,t)+\xi (\varphi ),$$

$$Q(\varphi ,t)=ϵ\sum _i\frac{\partial \varphi ({\mathbf{n}}_0(\varphi ))}{\partial n_i}{p}_i({\mathbf{n}}_0(\varphi ),t).$$

$$\frac{d\varphi }{dt}={\omega }_0+Z(\varphi )L(t)+\xi (t),$$

$$Z(\phi)=\left\{\begin{array}[]{cc}\epsilon_{+}&0<\phi<\phi_{1}\\ 0&\phi_{1}<\phi<\phi_{2}\\ -\epsilon_{-}&\phi_{2}<\phi<\phi_{3}\\ \epsilon_{+}&\phi_{3}<\phi<2\pi\end{array}\right.$$

$${\varphi }_s+({ϵ}_{+}+{\omega }_0)t_1+{\omega }_0(t_2-t_1)$$

$$+(-{ϵ}_{-}+{\omega }_0)(T/2-t_2)+{\omega }_{0}T/2={\varphi }_s+2\pi .$$

$$t_1$$

$$t_2$$

$$t_3$$

$${\varphi }_s$$

$$T$$

Full text

I Introduction

Many organisms possess a circadian clock to anticipate the changes between day and night. Circadian clocks are biochemical oscillators that can tick without any external driving with an intrinsic, free-running period of about 24 hrs. In uni-cellular organisms these oscillations are formed by chemical reactions and physical interactions between molecules inside the cell, while in multi-cellular organisms these oscillations are typically shaped by a combination of intra- and inter-cellular interactions, which are, however, both mediated by molecular interactions. Due to the discreteness of molecules and the stochastic nature of chemical and physical interactions, circadian oscillations are inherently stochastic, which means that they have an intrinsic tendency to run out of phase with the day-night cycle. To keep the circadian oscillations in phase with the day-night rhythm, the oscillations must be coupled to daily cues from the environment, such as daily changes in light-intensity or temperature. This coupling makes it possible to lock the clock to, i.e. synchronize with, the daily rhythm. However, how the circadian clock should be coupled to entrainment cues is a question that is still wide open. It is neither clear what the natural performance measure for entrainment is, nor is it fully understood how this depends on the strength and form of the coupling, the characteristics of the entrainment signal, and the properties of the clock.

The function that is most commonly used to describe the coupling of the clock to the entrainment signal is called the phase-response curve Pikovsky2003 . It gives the shift of the phase of the clock as induced by a perturbation (a small change in, e.g., light intensity), as a function of the phase at which the perturbation was given. The phase-response curve has been measured for a wide variety of organisms, ranging from cyanobacteria, to fungi, plants, flies, and mammals Pfeuty2011 . Interestingly, these phase-response curves share a number of characteristic features: they typically consist of a positive and a negative lobe, and often possess a deadzone of no coupling during the subjective day (see Fig. 1). Yet, the width of the deadzone can vary significantly, and also the negative and positive lobe are not always equal in magnitude.

These observations naturally raise the question of what the best shape is for a phase-response curve. To answer this, a measure that quantifies the performance of the system is needed. Several measures have been put forward. A key characteristic of any locking scheme is the Arnold Tongue Pikovsky2003 , which describes the range of system parameters over which the deterministic system is locked to the driving signal. In general, this range tends to increase with the strength of the driving signal, and one performance measure that has been presented is how the range – the width of the Arnold Tongue – increases with the magnitude of the driving; this derivative has been called the “entrainability” of the clock Hasegawa:2013es ; Hasegawa:2014kf . Another hallmark of any stochastic system is its robustness against noise, and, in general, the stability of an entrained clock depends not only on its intrinsic noise, but also on the strength and shape of the coupling function; one way to quantify clock stability is the so-called “regularity”, which is defined as the variance of the clock period Hasegawa:2013es ; Hasegawa:2014kf . Another important property of any locked system, is its sensitivity to fluctuations in the driving signal. To quantify this, Pfeuty et al. have defined two sensitivity measures, one that describes the change in the phase difference between the signal and the clock due to a change in the input, and another that quantifies the change in the stability of the fixed point (the slope of the phase-response curve) in response to a change in the input signal Pfeuty2011 .

These performance measures make it possible to make predictions on the optimal shape of the phase-response curve. Pfeuty et al. argued that the shape of the phase-responce curve is determined by the requirement that the clock should respond to changes in light intensity that are informative on the day-night rhythm, namely light-intensitiy changes during dawn and dusk, but should ignore uninformative fluctuations in light intensity during the day, arising, e.g., from clouds Pfeuty2011 . This naturally gives rise to a deadzone in the phase-response curve, which allows the clock to ignore the input fluctuations during the day. Hasegawa and Arita argued that the shape of the phase-resopnse curve is determined by a trade-off between regularity (stability) and entrainability Hasegawa:2013es ; Hasegawa:2014kf . Entrainability requires not only changes in light intensity, but also that a change in the copy number $n_{i}$ of a component $i$, as induced by the changing light signal, leads to a change in the phase $\phi$ of the clock: the gain $d\phi/dn_{i}$ should be large. However, a higher gain also means that the evolution of the phase becomes more susceptible to noise in $n_{i}$. Maximizing entrainibility for a given total noise strength integrated over 24 hrs then yields a phase-response curve with a deadzone: During the day, when informative variations in light intensity are low, a high gain will not significantly enhance entrainability but will increase the integrated noise, implying that the gain should be as low as possible during the middle of the day.

In this manuscript, we introduce another measure to quantify the performance of the system, the mutual information Shannon1948 . The mutual information quantifies the number of signals that can be transmitted uniquely through a communication channel. As such it is arguably the most powerful measure for quantifying information transmission, and in recent years the mutual information has indeed been used increasingly to quantify the quality of information transmission in cellular signaling systems Ziv2007 ; Tostevin2009 ; Mehta2009 ; Tkacik:2009ta ; tostevin10 ; DeRonde2010 ; Tkacik2010 ; Walczak:2010cv ; DeRonde2011 ; Cheong:2011jp ; deRonde:2012fs ; Dubuis2013 ; Bowsher:2013jh ; Selimkhanov:2014gd ; DeRonde:2014fq ; Govern:2014ez ; Sokolowski:2015km ; Becker2015 ; Monti2016 . In the context studied here, the central idea is that the cell needs to infer from a variable of the clock, e.g. its phase $\phi$, the time of the day $t$. The mutual information then makes it possible to quantify the number of distinct time points that can be inferred uniquely from the phase of the clock. Importantly, how many time states can be inferred reliably, depends not only on the noise in the system, but also on the shape of the input-output curve, $\overline{\phi}(t)$, i.e. the average phase $\overline{\phi}(t)$ at time $t$.

We study how the mutual information between the clock phase and the time depends on the shape and magnitude of the phase response curve in the presence of intrinsic noise in the system; we thus do not consider fluctuations in the input signal. The clock is modeled as a phase oscillator and the phase-resopnse curve is described via a piecewise linear function (see Fig. 1), which allows for optimization and analytical results. We find that for a given amount of noise in the system there exists an optimal coupling strength that maximizes the mutual information: Increasing the coupling strength too much will decrease the mutual information. However, as the noise in the system increases, the optimal coupling strength increases. Moreover, for a given shape of the phase-response curve featuring a deadzone, the optimal intrinsic (free running) period of the clock is non-monotonic: as the noise is increased, the optimal period first becomes larger than 24 hrs, but then decreases to become smaller than 24 hrs. Optimizing over not only the coupling strength and the intrinsic period, but also over the shape of the phase response curve, reveals that the optimal width of the deadzone is also non-monotonic. As the noise is increased, the width first increases, but then decreases. We show that all of these results can be understood as a trade-off between linearity and stability. At low noise, it is paramount to make the input-output relation $\overline{\phi}(t)$ as linear as possible, because this maximizes the mutual information; this is enhanced by a large deadzone and weak coupling. However, for large noise strengths, stability becomes key, which favors a small deadzone, a stronger coupling, and a smaller intrinsic period.

In the next section, we first briefly present the Chemical Langevin Description of a biochemical network, because this is important for understanding not only the phase-reduction method that reduces the system to a phase-oscillator model, but also for unstanding some important characteristics of the mutual information. In the subsequent section, we then introduce the mutual information. We emphasize that the mutual information is insensitive to a coordinate transformation and that the mutual information between all degrees of freedom of the system (i.e. copy numbers of all components) and the input (i.e. time $t$) is always larger than that between one degree of freedom and the input. This means that the mutual information that we will compute between the phase of the clock and the time will provide a firm lower bound on the actual mutual information. We then briefly describe our phase-oscillator model and how we model the phase-response curve.

In the results section, we first present the results of stochastic simulations of our phase-oscillator model. By performing very extensive simulations we find the system parameters that maximize the mutual information, and by explicitly computing the linearity and stability as a function of parameters, we show that the optimal design as a function of the noise arises from the trade-off mentioned above between linearity and stability.

Finally, we present and apply three different analytic approximations (or “theories”), and show that each recapitulates the simulations in a different parameter regime. The linear-noise approximation accurately describes the regime of low noise and strong coupling. The phase-averaging method Pikovsky2003 captures the regime of low noise and weak coupling. Finally, the linear-response theory accurately describes the mutual information in the regime of high noise and weak coupling. Whereas the first two approximations are valid in the vicinity of the optimal coupling for an appropriate range of noise strengths, the third turns out to hold only far from optimality.

II Model

II.1 Chemical Langevin Description

We consider a self-sustained oscillator of $M$ components with copy numbers $n_{1},n_{2},\dots,n_{M}$, denoted by the vector ${\bf n}$. Its dynamics is given by

[TABLE]

where ${\bf A}({\bf n})$ is determined by the propensity functions of the chemical reactions that constitute the network. The limit cycle of the free-running oscillator is the stable periodic solution of this equation, ${\bf n}(t)={\bf n}(t+T_{0})$, where $T_{0}$ is the intrinsic period of the oscillator.

Due to the stochasticity of the chemical reactions and the discreteness of the molecules, the evolution of the network is stochastic. When the copy numbers are sufficiently large such that there exists a macroscopic time interval $dt$ during which the propensity functions remain constant and the Poissonian distribution of reaction events can be approximated as a Gaussian, then the dynamics is described by the chemical Langevin equation Gillespie:2000vv ,

[TABLE]

where the vector $\underline{\eta}(t)$ describes the Gaussian white noise, characterized by the noise matrix with elements $\langle\eta_{i}({\bf n}(t))\eta_{j}({\bf n}(t^{\prime}))\rangle=D_{ij}({\bf n})\delta(t-t^{\prime})$.

A clock is only a useful timing device if it has a stable and precise phase relationship with the daily rhythm. Biochemical noise tends to disrupt this relationship. To keep the clock in sync with the day-night rhythm in the presence of noise, the clock must be coupled to the light signal:

[TABLE]

Here ${\bf p}({\bf n},t)$ describes the coupling to the light signal and $\epsilon$ the strength of the coupling. The coupling force ${\bf p}({\bf n},t)={\bf p}({\bf n},t+T)$ has a period $T$ and frequency $\omega=2\pi/T$, which in general is different from the intrinsic period $T_{0}$ and intrinsic frequency $\omega_{0}=2\pi/T_{0}$, respectively, of the free-running oscillator. In this manuscript, we will assume that the light signal is deterministic. We thus only consider the biochemical noise in the clock.

II.2 Mutual information

The organism needs to infer the time $t$ from the concentrations of the clock components. This inference will be imprecise, because of the noise in the clock. We will quantify the accuracy of information transmission via the mutual information, which is a measure for how many distinct time states can be resolved from the concentrations of the clock components Shannon1948 .

The mutual information $I({\bf n};t)=I(\{n_{1},\dots,n_{M}\};t)$ between the copy numbers of all components and the time is given by

[TABLE]

where $P({\bf n};t)$ is the probability that copy numbers ${\bf n}$ are found at time $t$. $I({\bf n};t)$ measures the reduction in uncertainty about $t$ upon measuring $\{n_{1},\dots,n_{M}\}$, or vice versa. The quantity is indeed symmetric in ${\bf n}$ and $t$:

[TABLE]

where $H({\bf a})=-\int d{\bf a}P({\bf a})\log_{2}P({\bf a})$, with $P({\bf a})$ the probability distribution of ${\bf a}$, is the entropy of ${\bf a}$; $H({\bf a}|{\bf b})=-\int d{\bf a}P({\bf a}|{\bf b})\log_{2}P({\bf a}|{\bf b})$ is the information entropy of ${\bf a}$ given ${\bf b}$, with $P({\bf a}|{\bf b})$ the conditional probability distribution of ${\bf a}$ given ${\bf b}$; $\langle f(c)\rangle_{c}$ denotes an average of $f(c)$ over the distribution $P(c)$.

A key point worthy of note is that the mutual information is invariant under a coordinate transformation, which allows us to put a firm lower bound on the mutual information between time and the clock components. Specifically, we can first make a non-linear transformation from ${\bf n}$ to some other set of variables ${\bf x}$, of which two components are the amplitude $R$ of the clock and its phase $\phi$. Because the mutual information is invariant under this transformation,

[TABLE]

Secondly, if the time is inferred not from all the components of ${\bf x}$, but rather from $R$ and $\phi$, then, in general

[TABLE]

By combining this expression with Eq. 7, we find that

[TABLE]

Hence, once we have defined a mapping between ${\bf n}$ and ${\bf x}$ and hence $(R,\phi)$, the mutual information $I(R,\phi;t)$ between the combination of the amplitude and phase of the clock $(R,\phi)$ and time $t$, puts a lower bound on the mutual information $I({\bf n};t)$. A weaker lower bound is provided by the mutual information between the phase of the clock and time:

[TABLE]

However, we expect this bound to be rather tight, since a reasonable, natural, mapping between ${\bf n}$ and $(R,\phi)$ should put the information on time in the phase of the clock.

II.3 Phase oscillator

The bound of Eq. 10 makes it natural to develop a description of the clock in terms of the phase. Here, we review the derivation of such a description, largely following the standard arguments in Pikovsky2003 , but paying special attention to the appropriate form of the effective noise on the phase variable. In the absence of any coupling and noise, the temporal evolution of the phase is given by

[TABLE]

where $\omega_{0}=2\pi/T_{0}$ is the intrinsic frequency of the clock, with $T_{0}$ the intrinsic period. As the phase is a smooth function of ${\bf n}$, the evolution of $\phi$ is also given by

[TABLE]

Combining the above two equations with Eq. 1 yields the following expression for the intrinsic frequency

[TABLE]

This equation defines a mapping $\phi({\bf n})$. This mapping is defined such that for each point ${\bf n}$ in state space, the time derivative $d\phi({\bf n})/dt=d\phi/dt$ of the phase is constant and equal to $\omega_{0}$. The surfaces of constant $\phi({\bf n})$, defined according to this mapping, are called isochrones.

In the presence of noise, the phase dynamics is, combining Eqs. 2 and 12,

[TABLE]

which yields for the noise on the phase variable

[TABLE]

In general, the variance of $\xi$ thus depends on all of the state variables ${\bf n}$, not just on the phase $\phi$, and Eq. 15 does not give a closed description in terms only of $\phi$. However, when the deviations from the limit cycle are small compared to the scale over which the noise strength changes as a function of distance from the limit cycle, we can estimate the noise by evaluating it at the limit cycle, ${\bf n}_{0}$:

[TABLE]

with Gaussian white noise statistics

[TABLE]

When the system is coupled to light, the phase evolution becomes, from Eqs. 3 and 12,

[TABLE]

The force depends explicitly on time. This impedes a unique definition of the isochrones $\phi({\bf n})$, because how the phase evolves at a particular point in phase space depends not only on ${\bf n}$ but also on $t$. Of course, one could still adopt the mapping of the free running system, in which case the evolution of the phase is given by

[TABLE]

The problem is that, because along the surface $\phi({\bf n})$ the light-coupling term is not constant, $d\phi({\bf n})/dt$ will depend on ${\bf n}$. One can then not reduce the dynamics to that of a single phase variable.

However, if $\epsilon$ is small and the force only leads to small deviations from the limit cycle of the free-running system, then one may approximate the effect of the forcing by evaluating the corresponding term at the limit cycle, ${\bf n}_{0}$. We then have

[TABLE]

In this case the evolution of the phase no longer explicitly depends on ${\bf n}$:

[TABLE]

with

[TABLE]

How a circadian clock responds to a given light signal $L(t)$ depends on its phase $\phi$; it does not explicitly depend on time. The coupling term can then be written as $Q(\phi,t)=Z(\phi)L(t)$, where $Z(\phi)$ is the instantaneous phase response curve, which describes how the clock responds to the light signal as a function of its phase $\phi$. In addition, while in general the noise strength depends on the phase, we will, motivated by the experimental observations of Mihalecescu and Leibler on the S. elongatus clockMihalcescu:2004ch , assume it is constant. We then finally arrive at the equation that describes the evolution of the phase in our model:

[TABLE]

with $\langle\xi(t)\xi(t^{\prime})\rangle=2D\delta(t-t^{\prime})$.

In what follows, we will study entrainment using the above equation not only when $Z(\phi)L(t)$ and $D$ are much smaller than $\omega_{0}$, so that the weak coupling assumptions necessary for the reduction to a phase oscillator clearly hold, but also when $Z(\phi)L(t)$ or $D$ are of order $\omega_{0}$ or larger. As we discuss in more detail in Section V, however, this does not present any contradiction, because it is perfectly possible for the noise and the external driving to be small compared to restoring forces orthogonal to the limit cycle, so that the system always stays near the limit cycle and the phase is the only relevant variable, while simultaneously strongly perturbing motion along the limit cycle. We also note that $\epsilon$ can be varied independently of the noise strength. What is perhaps less obvious is whether $Z(\phi)$ and $D$ can be varied independently. When the size of the system, e.g. the volume of the living cell, is changed, as was done for Bacillus subtilus Liu:2007dm , then the noise strength $D$ will change, but the coupling strength $Z(\phi)$ will, to first order, not change because the concentrations remain constant. Moreover, typically the system is coupled to light only via a relatively small number of reactions, while the noise is determined by all reactions. Also in this case, it seems natural to assume that $Z(\phi)$ and $D$ can be varied independently. We note that the arguments of Hasegawa and Arita do not contradict our arguments that $Z(\phi)$ and $D$ can be varied independently: the fact that changing the gain $\partial\phi/\partial n_{i}$ affects both the coupling to light (entrainability) and the phase noise Hasegawa:2013es ; Hasegawa:2014kf , does not mean that the noise and the coupling cannot be varied independently if other parameters are changed (and vice versa). We thus imagine that $p_{i}({\bf n})$ can be tuned (by evolution) independently of the $D_{ij}({\bf n})$. We do not change the mapping $\phi({\bf n})$, determined by the properties of the uncoupled system.

II.4 The system

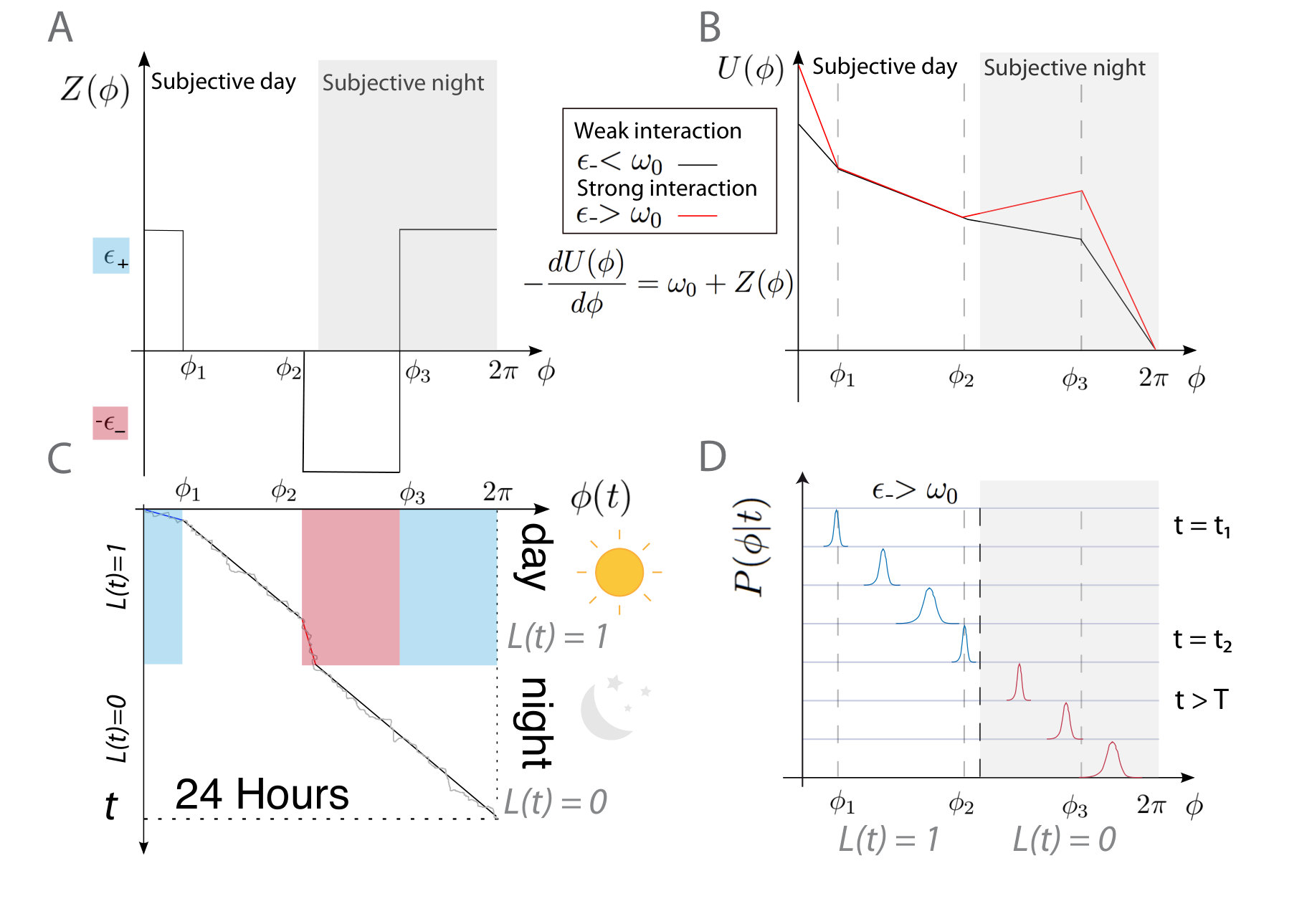

We will approximate $Z(\phi)$ and $L(t)$ as step functions, shown in Fig. 1. This makes it possible to analytically obtain the Arnold tongue, i.e. the range of parameters for which the deterministic system locks to the day-night rhythm in the absence of noise. The light-dark function $L(t)$ is unity for $0<t<T/2$ and zero for $T/2<t<T$. The shape of the instantaneous phase response curve $Z(\phi)$ is inspired by experimentally characterized response curves, featuring a positive lobe, a dead-zone in which $Z(\phi)$ is essentially zero, a negative lobe, followed by a positve lobe again Pfeuty2011 . It is characterized by five variables, the coupling strengths $\epsilon_{+}$ and $\epsilon_{-}$, and the phases $\phi_{1},\phi_{2},\phi_{3}$:

[TABLE]

where $\epsilon_{+}$ and $\epsilon_{-}$ are greater than 0. With these 5 variables, a wide range of experimentally characterized phase response curves can be described.

III Results

III.1 Arnold Tongue of the deterministic system

Motivated by the observation that circadian clocks typically lock 1:1 to the day-night rhythm, we will focus on this locking scenario, although we will also see that this system can exhibit higher order locking, especially when the intrinsic period of the clock deviates markedly from that of the day-night rhythm. To derive the Arnold tongue, we first note that when the clock is locked to the light-dark cycle, it will have a characteristic phase $\phi_{s}$ at the beginning of the light-dark cycle, $t_{s}=0$. In the case of 1:1 locking, the phase of the clock will then cross phase $\phi_{1}$ at time $t_{1}$, $\phi_{2}$ at time $t_{2}$, and $\phi_{3}$ at time $t_{3}$. To obtain the Arnold tongue, we have to recognize that there are in total 12 possible locking scenarios: 3 for $\phi_{s}$ and 4 for $t_{1},t_{2},t_{3}$. The scenarios for $\phi_{s}$ are: 1: $\phi_{3}-2\pi<\phi_{s}<\phi_{1}$; 2: $\phi_{1}<\phi_{s}<\phi_{2}$; 3: $\phi_{2}<\phi_{s}<\phi_{3}$. The 4 scenarios for $t_{1},t_{2},t_{3}$ are defined by where $T/2$ falls with respect to these times: 1: $T/2<t_{1}<t_{2}<t_{3}$; 2: $t_{1}<T/2<t_{2}<t_{3}$; 3: $t_{1}<t_{2}<T/2<t_{3}$; 4: $t_{1}<t_{2}<t_{3}<T/2$. For each of these 12 scenarios, we can analytically determine $\phi_{s}$ and $t_{1},t_{2},t_{3}$, which then uniquely specify $\phi(t)$. The 4 unknowns, $\phi_{s},t_{1},t_{2},t_{3}$, give each an inequality for $T$, and the range of $T$ that satisfies all 4 inequalities determines the width of the Arnold tongue. For each of the 12 scenarios for the given $\epsilon_{+},\epsilon_{-}$, we have an Arnold tongue, and those 12 tongues together give “the” Arnold tongue for those values of $\epsilon_{+},\epsilon_{-}$. We now derive the tongue for scenario 1, which is also the most important one, as we will see: in this regime, the mutual information between time and the phase of the lcock is the largest.

Scenario 1 is characterized by: $\phi_{3}-2\pi<\phi_{s}<\phi_{1}$; $0<t_{1}<t_{2}<T/2<t_{3}$. The solution depends on whether $\epsilon_{-}$ is larger or smaller than $\omega_{0}$. If $\epsilon_{-}<\omega_{0}$, then the deterministic system locks 1:1 to the driving signal when

[TABLE]

To solve this, we note that $\phi_{1}=\phi_{s}+(\omega_{0}+\epsilon_{+})t_{1}$, $\Delta\phi_{12}\equiv\phi_{2}-\phi_{1}=\omega_{0}(t_{2}-t_{1})$. The solution is

[TABLE]

where $\Delta\phi_{23}\equiv\phi_{3}-\phi_{2}$. The above inequalities lead to the following inequalities for the period $T$, respectively:

[TABLE]

where $\Delta\phi_{13}\equiv\phi_{3}-\phi_{1}=\Delta\phi_{12}+\Delta\phi_{23}$. The width of the Arnold tongue is given by the range of $T$ that satisfies all inequalities.

If $\epsilon_{-}>\omega_{0}$, then the equation to solve is:

[TABLE]

The solution is

[TABLE]

The third inequality, for $t_{3}$ does not contribute, if the other inequalities are satisfied. We thus have 3 inequalities:

[TABLE]

It is seen that the locking region does not depend on the absolute values of $\phi_{1},\phi_{2},\phi_{3}$, but only on the separation between them, leaving only two independent parameters that are related to the phase: $\Delta\phi_{12}=\phi_{2}-\phi_{1}$ and $\Delta\phi_{23}=\phi_{3}-\phi_{2}$; the remaining interval is given by $2\pi-\Delta\phi_{13}=2\pi-(\Delta\phi_{12}+\Delta\phi_{23})$. Shifting the absolute values of $\phi_{1},\phi_{2},\phi_{3}$ only changes the definition of the phase of the clock, not the moments of the day—$t_{1},t_{2},t_{3}$—at which $Z(\phi)$ changes. The system thus has 5 independent parameters, 4 related to $Z(\phi)$—$\Delta\phi_{12},\Delta\phi_{23},\epsilon_{+},\epsilon_{-}$—and one being the intrinsic frequency $\omega_{0}$.

In the appendix, we derive the Arnold Tongues for the other scenarios. It turns out that only scenarios 1 - 4 yield stable solutions; the solutions of the other scenarios are unstable.

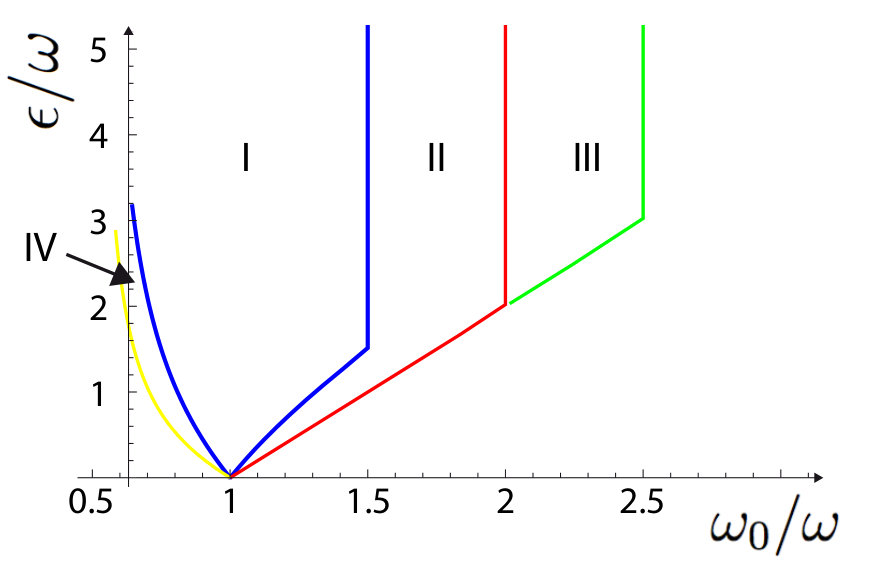

Fig. 2 shows the Arnold Tongues for the 4 scenarios. Since we imagine that the period of the light-day cycle is fixed while the clock can adjust its intrinsic frequency $\omega_{0}$, we plot the range of $\epsilon=\epsilon_{+}=\epsilon_{-}$ over which the system exhibits a stable deterministic solution, as a function of $\omega_{0}/\omega$; $\Delta\phi_{12}=\Delta\phi_{23}=\pi/2$. The different colors correspond to the different scenarios. Clearly, the Arnold Tongues of the respective scenarios are adjoining. The region in the middle, around $\omega_{0}=\omega$, bounded by the blue lines, corresponds to our natural scenario, i.e. scenario 1, discussed above. The green lines bound the Arnold Tongue of scenario 3. This is an unnatural scenario, because in this scenario the clock is driven backwards when the light comes up. Moreover, for $\omega_{0}/\omega>2$, the system can also exhibit higher-order locking, which is biologically irrelevant. We will therefore focus on the regime $0.5<\omega_{0}<2.$

Fig. 2 shows that for $\epsilon<1$ the Arnold Tongue exhibits the characteristic increase in its width as the coupling strength is increased: coupling increases the range of frequencies over which the clock can be entrained. However, for $\epsilon>1$, the width does not change significantly; in fact, it does not change at all when $\omega_{0}>\omega$. This is because a) during the day, for $\epsilon_{-}=\epsilon=\epsilon_{+}>1$, the phase evolution comes to a halt at $\phi_{3}$—the particle sits in the potential well of Fig. 1B and b) during the night the system evolves with a fixed speed $\omega_{0}$, independent of $\epsilon$.

III.2 Optimal coupling strength and intrinsic frequency in

presence of noise

While the Arnold Tongue shows the range of parameters over which the deterministic system can exhibit stable 1:1 locking, it does not tell us how reliably the time can be inferred from the phase in the presence of noise. To address this question, we have computed the mutual information $I(\phi;t)$ between the phase of the clock, $\phi(t)$, and the time $t$, by performing long stochastic simulations of the system, i.e. stochastically propagating Eq. 25.

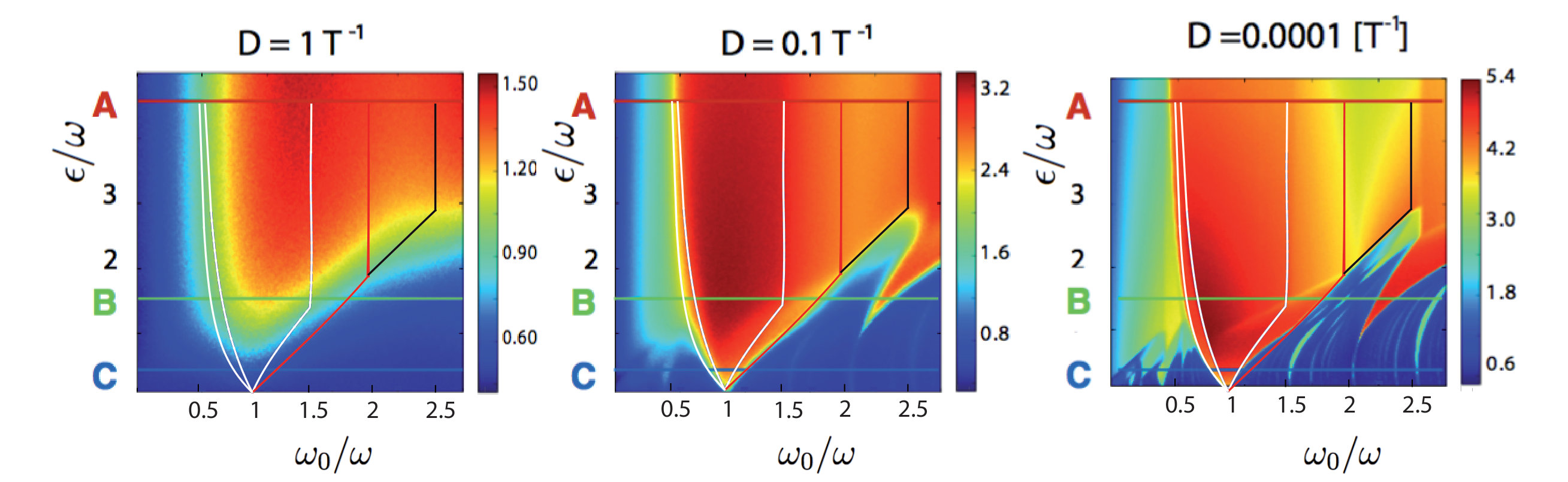

Fig. 3A shows a heatmap of the mutual information as a function $\epsilon_{+}=\epsilon_{-}=\epsilon$ and $\omega_{0}/\omega$, for $\Delta\phi_{12}=\Delta\phi_{23}=0.5\pi$ and $D=0.1/T$. Superimposed over the heatmap are the deterministic Arnold Tongues for scenarios 1–4, which are also shown in Fig. 2. It is seen that the mutual information is highest in the region bounded by the Arnold Tongue of 1:1 locking in scenario 1. Interestingly, however, the figure does also show that the mutual information can be large outside of the 1:1 locking regimes, especially when $\omega_{0}/\omega>2$. This is the result of higher order locking.

The results of Fig. 3A are further elucidated in panels B-D, which show the mutual information as a function of $\omega_{0}/\omega$ for different values of the diffusion constant $D$, and for three different values of $\epsilon/\omega$, respectively; the results for $D=0.1/T$ in the panels B-D correspond to three different cuts through the heatmap of panel A. The following points are worthy of note. First, it can be seen that for each value of $\epsilon/\omega$ and $\omega_{0}/\omega$ the mutual information always increases with decreasing $D$. Decreasing the noise makes the mapping from the time to the phase of the clock more deterministic, which means that the time can be more accurately inferred from the phase of the clock. Secondly, it is seen that the mutual information exhibits very characteristic peaks, which result from higher order locking. For example, the peak at $\omega_{0}/\omega\approx 2.3$ for $\epsilon=1.5\omega$, corresponds to 2:1 locking.

Fig. 3 also shows that, for a given $\omega_{0}$ and $D$, the mutual information initially increases with $\epsilon$. This is not sursurprising, and is consistent with the observation that increasing the coupling strength $\epsilon$ tends to widen the Arnold Tongue; locking is enhanced by increasing the coupling strength. However, a closer examination of the different panels of Fig. 3 suggests that the mutual information not only saturates as $\epsilon$ is increased further, but even goes down. The second surprising observation is that the optimal intrinsic frequency $\omega_{0}$ that maximizes the mutual information is not equal to $\omega$. In fact, it seems to be smaller than $\omega$ when $D$ is small, but then becomes larger than $\omega$ as $D$ is increased (panel D).

To elucidate the optimal design of the clock that maximizes the mutual information further, we show in Fig. 4A the mutual information $I_{\omega_{0}^{\rm opt}}(\phi;t)$ that has been obtained by maximizing $I(\phi;t)$ over $\omega_{0}$ as a function of $\epsilon$, for different values of $D$. It is seen that for all values of $D$, $I_{\omega_{0}^{\rm opt}}(\phi;t)$ first rises with $\epsilon$, as expected. However, $I_{\omega_{0}^{\rm opt}}(\phi;t)$ then reaches a maximum, after which it comes down: there exists an optimal coupling strength $\epsilon_{\rm opt}$ that maximizes $I_{\omega_{0}^{\rm opt}}(\phi;t)$; increasing the coupling too much will actually decrease the mutual information. Fig. 4A also shows, however, that the optimal coupling $\epsilon_{\rm opt}$ does increase with the diffusion constant. This is more clearly shown in panel B: $\epsilon_{\rm opt}$ increases monotonically with $D$. This panel also shows the optimal intrinsic frequency $\omega_{0}^{\rm opt}$ obtained by maximizing the mutual information over both $\omega_{0}$ and $\epsilon$, as a function of $D$. For $D\to 0$, $\epsilon_{\rm opt}$ goes to zero, and $\omega_{0}$ to $\omega$—this is the free running clock. As $D$ is increased, however, $\omega_{0}$ first decreases, but then increases again to become larger than $\omega$ for higher diffusion constants. The optimal intrinsic period that maximizes the mutual information depends in a non-trivial, non-monotonic, manner on the noise in the clock.

III.3 Optimal design arises from trade-off between linearity and stability

To understand the optimal design of the clock, we have to recognize that, in general, the amount of information that is transmitted through a communication channel depends on the input distribution, the input-output relation, and on the noise that is propagated to the output. For a given amount of noise, the optimal shape of the input-output relation that maximizes the mutual information is determined by the shape of the input distribution. However, the shape that optimally matches the input-output curve to the input distribution, is not necessarily the design that minimizes the noise in the output. Our system provides a clear demonstration of this general principle, and, as we will see, the optimal design of the clock can be understood as arising from a trade-off between stability, i.e. noise minimization, and linearity, i.e. optimally matching the input-output curve to the statistics of the input.

When the noise is very weak, noise minimization is not important, and optimally matching the input-output curve to the input distribution is paramount. Since the input distribution $p(t)$ is flat, the optimal input-output curve is linear: the average phase $\overline{\phi}(t)$ should increase linearly with time $t$. This is indeed the solution of the free running clock, $\phi(t)=\omega_{0}t$, and it explains why in the low-noise limit the optimal design is that of an essentially free running system that is only very weakly coupled to the input.

However, as the noise level is increased, the reliability by which each input signal is relayed, becomes increasingly important. Here, a trade-off could emerge: while increasing the coupling strength $\epsilon$ could reduce the noise at the output, which tends to enhance information transmission, it may also distort the input-output curve, pushing it away from its optimal linear-shape, decreasing information transmission. Can we capture this trade-off quantitatively?

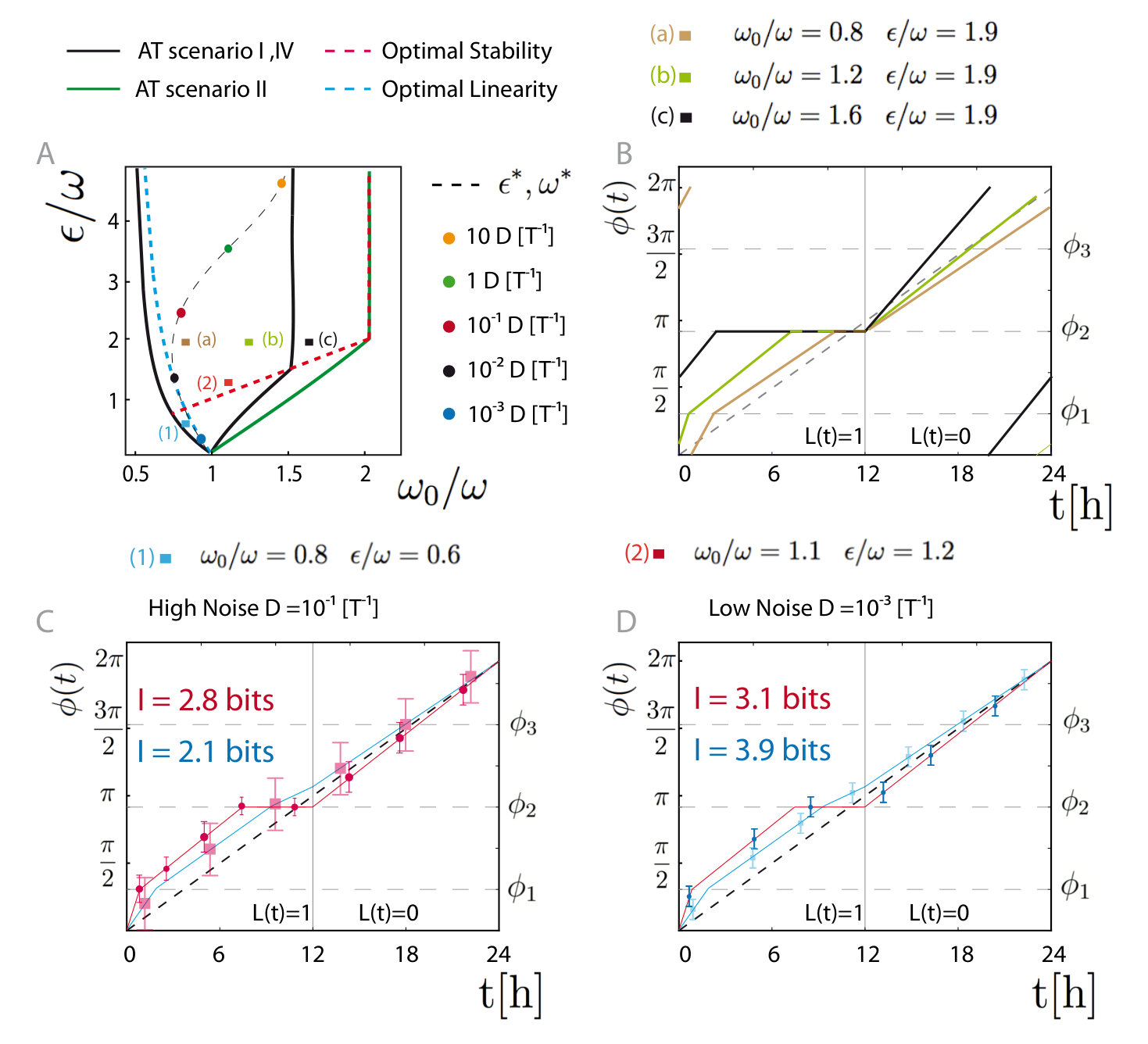

To study the trade-off between linearity and stability, we have computed for each value of $\epsilon$, the value of $\omega_{0}$ that makes the average input-output relation $\overline{\phi}(t)$ most linear, i.e. minimizes $\int_{0}^{T}dt(\overline{\phi}(t)-\omega t)^{2}$. The result is the blue line in Fig. 5A, which lies in the Arnold tongue of scenario I. Along this line of maximal linearity, $\omega_{0}$ decreases as $\epsilon$ increases, which can be understood intuitively by noting that increasing $\epsilon$ introduces a curvature in the input-output relation, leading to a deviation away from the straight line $\omega t$: at the beginning of the day, till the time $t_{1}$ at which the system crosses $\phi_{1}$, the phase evolves with a speed $\omega_{0}+\epsilon$, whereas between the time $t_{2}$ at which the system crosses $\phi_{2}$ and the end of the day at $T/2$, the phase evolves either follows $\phi_{2}$ when $\epsilon=\epsilon_{-}>\omega_{0}$ or evolves with a speed $\omega_{0}-\epsilon$ when $\epsilon=\epsilon_{-}<\omega_{0}$. While increasing $\epsilon$ tends to increase the curvature, this effect can be counteracted by decreasing $\omega_{0}$.

To quantify the stability, we define the return map $F_{t}(\phi)$:

[TABLE]

where the subscript $t$ for $F$ indicates that the return map depends on time; this subscript will be suppressed in what follows below when there is no ambguity, in order to simplify notation. The deterministic solution $\phi^{*}(t)$ is given by $\phi^{*}(t)=\phi^{*}(t+T)=F(\phi^{*}(t))$. We now expand $F(\phi)$ around $\phi^{*}(t)$:

[TABLE]

where $\delta\phi=\phi-\phi^{*}$ and we have dropped the subscript $t$ because $F^{\prime}(\phi)$, which gives the rate of exponential relaxation back to the limit cycle over many cycles, must be independent of $t$. Indeed, by exploiting that $F(\phi^{*}(t))=\phi^{*}(t+T)$, we find that

[TABLE]

The quantity $F^{\prime}(\phi^{*})\equiv\partial F(\phi)/\partial\phi|_{\phi^{*}}=\partial\phi(t+T)/\partial\phi(t)|_{\phi^{*}(t)}$ determines the linear stability of the system, with $F^{\prime}<1$ meaning that the system is stable. The quantity can be directly obtained from the deterministic solutions. We first note that, since $L(t)=0$ during the dark, $F^{\prime}(\phi^{*}(t=0))=\partial\phi(T)/\partial\phi(0)=\partial\phi(T/2)/\partial\phi(0)$. For scenario 1, when $\epsilon_{-}<\omega_{0}$, $\phi(T/2)=\phi_{2}+(\omega_{0}-\epsilon_{-})(T/2-t_{2})$. We then find that, exploiting Eqs. 38 and 40, $F^{\prime}(\phi^{*}(t=0)=\partial\phi(T/2)/\partial\phi(0)=\partial\phi(T/2)/\partial\phi_{s}=(\partial\phi(T/2)/\partial t_{2})(\partial t_{2}/\partial t_{1})(\partial t_{1}/\partial\phi_{s})=(\omega_{0}-\epsilon_{-})/(\omega_{0}+\epsilon_{+})$. Similarly, for scenario 2 we find that, for $\epsilon_{-}<\omega_{0}$, $F^{\prime}(\phi^{*}(t=0)=(\omega_{0}-\epsilon_{-})/\omega_{0}$. Here, we consider the case that $\epsilon_{-}=\epsilon_{+}=\epsilon$. Clearly, in both scenarios the stability is maximized when $\epsilon$ approaches $\omega_{0}$ and $F^{\prime}(\phi^{*})$ becomes zero. This defines the line $\epsilon=\omega_{0}$, along which $F^{\prime}(\phi^{*})=0$; it is the part of the red dashed line of maximal stability in Fig. 5A that corresponds to $\epsilon<2\omega$.

For $\epsilon=\epsilon_{-}>\omega_{0}$, $F^{\prime}(\phi^{*})=0$ for both scenarios I and II, because during the day the phase evolution of the system comes to a standstill at $\phi_{2}$; any perturbation in $\phi$ will fully relax during one period. Can we nonetheless differentiate in the stability strength, even though the linear stability $F^{\prime}(\phi^{*})=0$ for all points $(\epsilon,\omega)$ above the line $\epsilon=\omega_{0}$? To answer this question, we turn to a global stability measure, which is defined by the amount of time the deterministic system spends at $\phi_{2}$, which is the bottom of the potential well when $\epsilon=\epsilon_{-}\geq\omega_{0}$ (see Fig. 1). The value of $\omega_{0}$ that maximizes the stability for a given $\epsilon$ according to this measure, is $\omega_{0}=\epsilon$ when $\epsilon\leq 2\omega$ and $\omega_{0}=2\omega$ when $\epsilon\geq 2\omega$. This fully specifies the line of maximum stability shown in Fig. 5A. The reason why the stability is maximized along this line, is illustrated in Fig. 5B. During the night, the trajectories evolve freely, and because of noise they will arrive at the beginning of the day with a distribution of phases. Along the line of maximum stability, the stochastic trajectories are most likely to reach the bottom of the potential well at $\phi_{2}$ during the day (see Fig. 1), where they will be confined, before they are released again during the night. Indeed, along this stability line the variance in the phase, $\langle\delta\phi^{2}\rangle$, will be lowest which tends to increase information transmission. However, the input-output relation $\overline{\phi}(t)$ is then higly non-linear. In fact, the globally most stable solution, for all possible values of $\epsilon$ and $\omega_{0}$, is

[TABLE]

which is the most stable solution for any $\epsilon\geq 2\omega$. It is shown in Fig. 5B—it is the solution at the high-frequency boundary of the AT tongue of scenario 2. This solution maximizes the probability that trajectories that start of the limit cycle at the beginning of the day, will return to the limit cycle $\phi_{2}$ before the end of the day. While this solution is maximally stable, no time points $t$ can be inferred from $\phi(t)$ during the day, because $\overline{\phi}(t)$ is completely flat. This dramatically reduces information transmission.

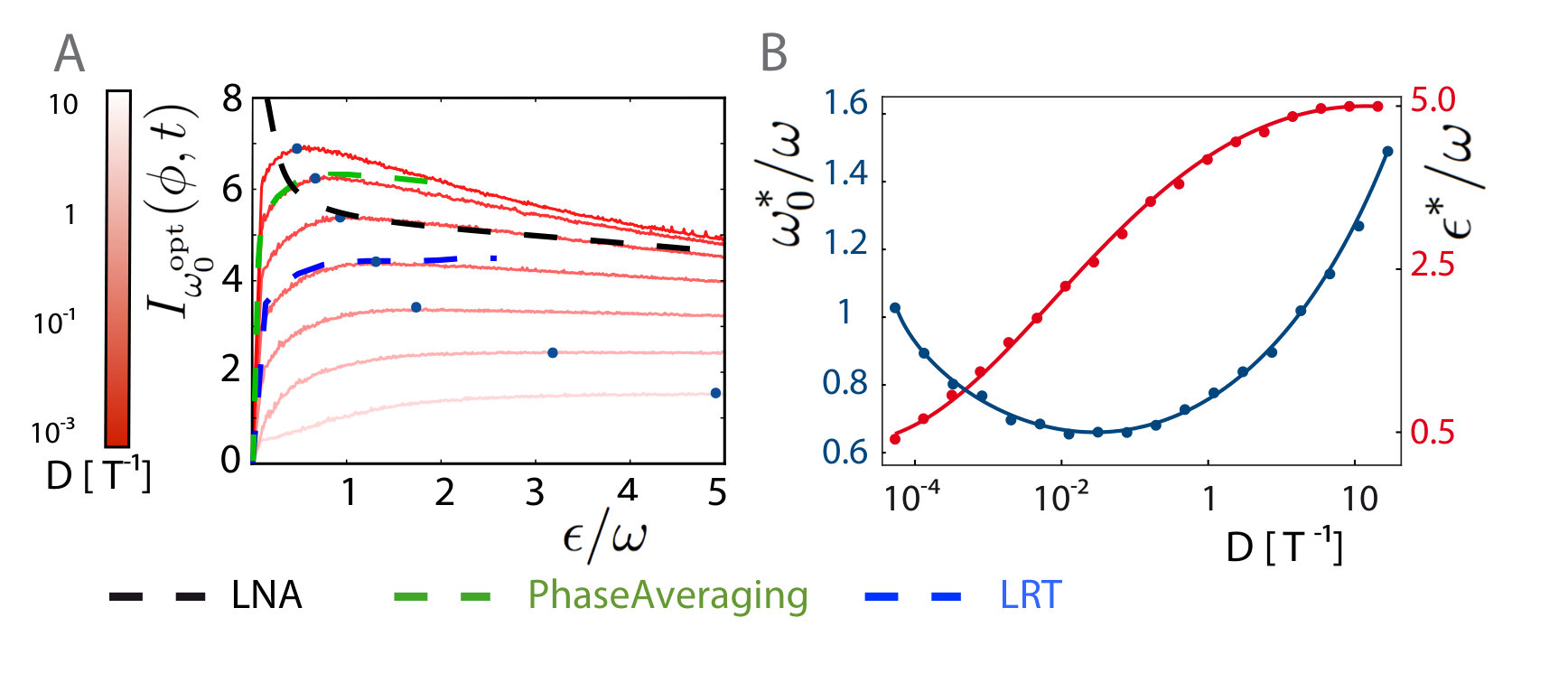

The optimal values of $\omega_{0}$ and $\epsilon$ that maximize the mutual information as a function of the noise in the system can now be understood as a trade-off between linearity and stability. This trade-off is illustrated in the bottom panels of Fig. 5, which show the average input-output curves, together with their output noise, for the two points 1 and 2 in the map of panel A, both for a high diffusion constant (panel C) and a low diffusion constant (panel D). When the diffusion constant is low (panel D), the noise in the more stable but more non-linear system (red line, corresponding to point 2) is hardly lower than that in the more linear but less stable system (blue line, corresponding to point 1), which means that the benefit of linearity dominates and the mutual information is maximized in the more linear system. In contrast, when the noise is larger (panel C), the output noise in the more stable but more non-linear system (red line) is so much smaller than that in the less stable but more linear system (blue line) that it outweighs the cost of higher non-linearity, thus maximizing mutual information.

Finally, panel A also shows a parametric plot of the optimal $(\epsilon,\omega_{0})$ that maximizes the mutual information, with the noise $D$ the parameter that is being varied (dashed black line; the colors of circles denote values of the diffusion constant). It is seen that for low $D$ the optimal system traces the dashed blue line of maximal linearity, but then at a higher $D$ makes a transition towards the dashed red line line of maximal stability.

III.4 The optimal shape of the phase response curve

In the previous section, we showed how the optimal values of the coupling strength $\epsilon$ and the intrinsic frequency $\omega_{0}$ depend on the noise $D$ in the system, while keeping the shape of the coupling function $Z(\phi)$ constant. In this section, we will relax this restriction.

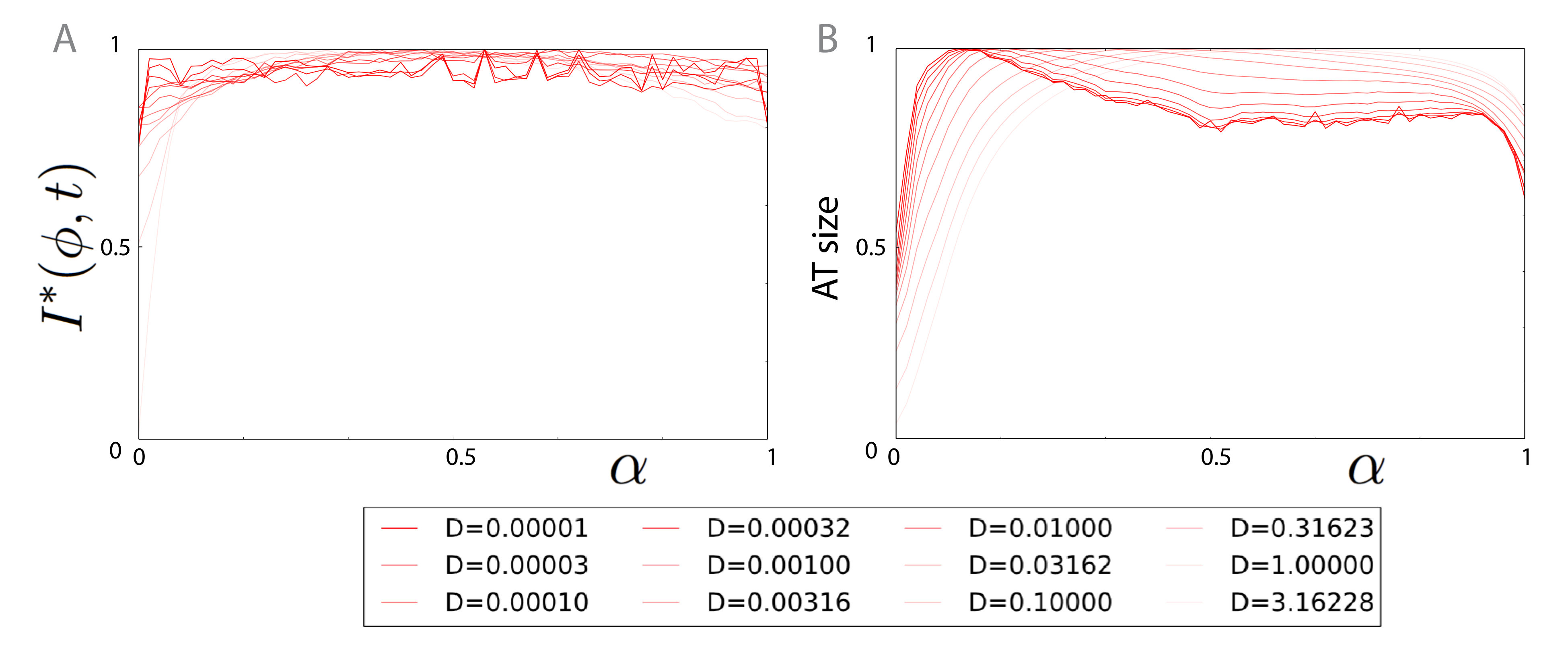

We first checked the effect of changing the magnitude of the positive and negative lobe of the coupling function $Z(\phi)$ as characterized by $\epsilon_{+}$ and $\epsilon_{-}$, respectively (see Fig. 1), keeping $\Delta\phi_{12}=\Delta\phi_{23}=\pi/2$ constant. We varied $\epsilon_{+}$ and $\epsilon_{-}$ via a parameter $\alpha$, defined as $\epsilon_{+}=(1-\alpha)\epsilon$ and $\epsilon_{-}=\alpha\epsilon$; changing $\alpha$ thus keeps the total absolute coupling strength (the integrated modulus) constant. We found, however, that the results are not very sensitive to the precise values of $\epsilon_{+}$ and $\epsilon_{-}$ (see Appendix D).

We then decided to compute the mutual information $I(\phi,t)$ as a function of $\Delta\phi_{12}$ and $\Delta\phi_{23}$ for different values of $\epsilon$, $\omega_{0}$, and $D$, keeping $\epsilon_{+}=\epsilon_{-}=\epsilon$. We found that the mutual information is essentially independent of $\Delta\phi_{23}$. This can be understood as follows: The deterministic Arnold tongue and, to a good approximation, the dynamics of the stochastic system, does not depend on the absolute values of $\phi_{1},\phi_{2},\phi_{3}$, but only on $\Delta\phi_{12}$ and $\Delta\phi_{23}$ (see section III.1). Moreover, as long as $\phi_{3}$ is crossed during the night (see Fig. 1), we can change $\phi_{3}$ at will, because during the night, when $L(t)=0$, the clock is not coupled to light (see Eq. 25), meaning that the clock runs with its intrinsic frequency $\omega_{0}$. Changing $\Delta\phi_{23}$ by changing $\phi_{3}$ will thus have no effect. Changing $\Delta\phi_{23}$ by changing $\phi_{2}$ will also have no effect when $\phi_{1}$ is simultaneously changed such that $\Delta\phi_{12}$ remains constant: while changing $\phi_{2}$ and $\phi_{1}$ keeping $\Delta\phi_{12}$ and $\phi_{3}$ constant will alter $\Delta\phi_{23}$, we can always change $\phi_{3}$ such that $\Delta\phi_{23}$ remains unchanged. In short, as long as $\phi_{3}$ is crossed during the night (which it will for most values of $\phi_{1}$ and $\phi_{2}$), changing $\phi_{1}$ and $\phi_{2}$ keeping $\Delta\phi_{12}$ constant, does not change the dynamics; the times $t_{1}$ and $t_{2}$ at which $\phi_{1}$ and $\phi_{2}$ are crossed, respectively, do not change.

Because $\phi_{23}$ is not critical, we kept $\Delta\phi_{23}=\pi/2$, and then performed very extensive simulations to determine the optimal coupling strength $\epsilon^{*}$, speed $\omega_{0}^{*}$ and optimal deadzone $\Delta\phi_{12}^{*}$ that maximize the mutual information, as a function of $D$. Fig. 6 shows a parametric plot of $\epsilon^{*}(D),\omega_{0}^{*}(D)$ and $\Delta\phi_{12}^{*}(D)$, with $D$ being the parameter that is varied. It is seen that for very low $D$, the optimal coupling strength $\epsilon^{*}$ is small, the optimal intrinsic frequency $\omega_{0}^{*}$ is close to $\omega$, and the optimal value of $\Delta\phi_{12}^{*}$ is small. As the diffusion constant is increased, $\epsilon^{*}$ rises but $\omega_{0}^{*}$ initially remains close to $\omega$ and then increases too. The optimal value of $\Delta\phi_{12}$, however, first rises and then falls again.

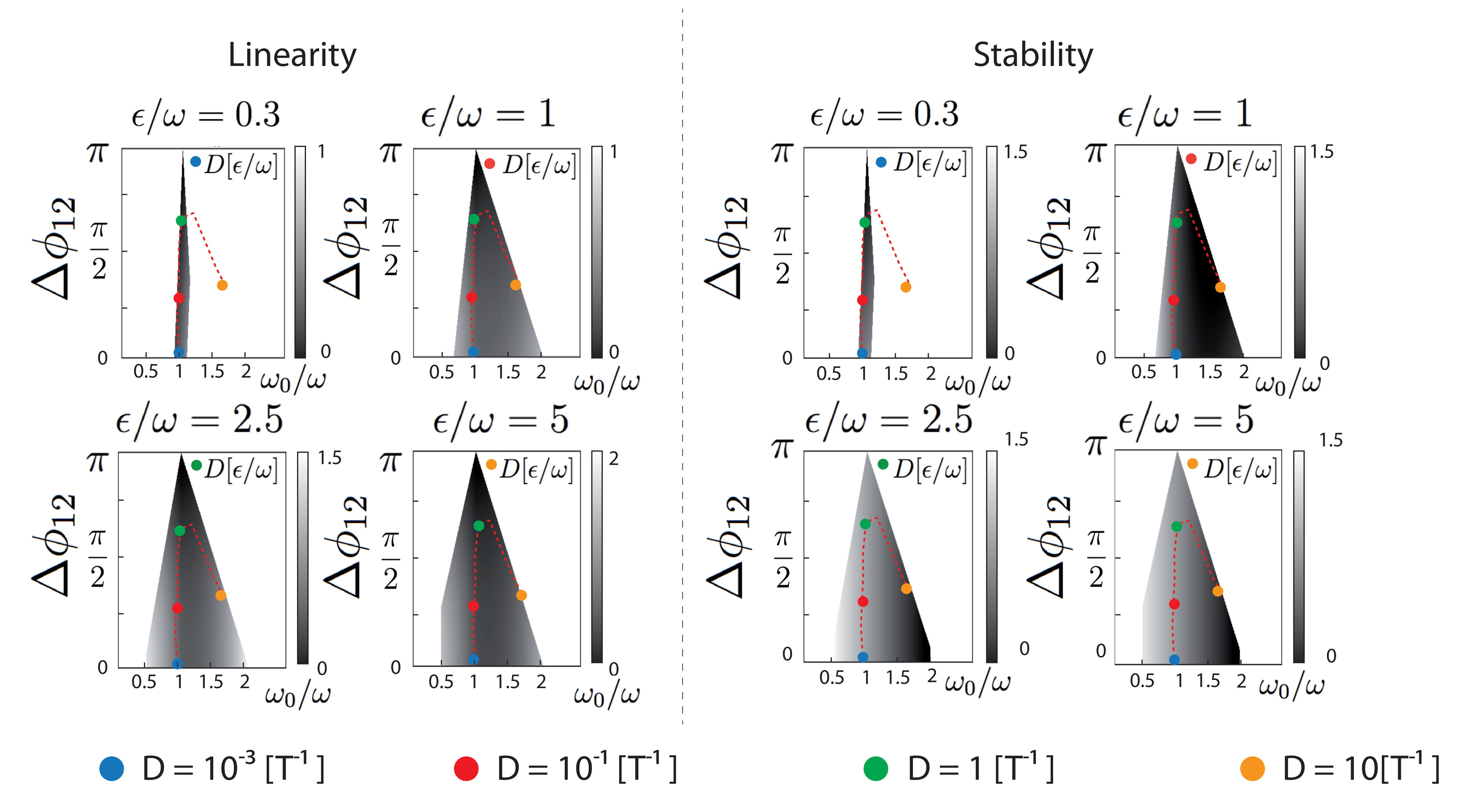

The behavior of $\Delta\phi_{12}^{*}$ can again be understood as a trade-off between linearity and stability. This is illustrated in Fig. 7. The figure shows for different values of $\epsilon$ the linearity and the stability of the input-output relation $\overline{\phi}(t)$ as a function of $\Delta\phi_{12}$ and $\omega_{0}$, computed within the deterministic Arnold tongue of scenario 1 (where the mutual information is highest). The linearity of $\overline{\phi}(t)$ is quantified via $\int_{0}^{T}dt(\overline{\phi}(t)-\phi^{\rm lin}(t))^{2}$, which is the average deviation of $\overline{\phi}(t)$ away from the most linear input-output relation, $\phi^{\rm lin}(t)=\omega t$. The stability of $\overline{\phi}(t)$ is quantified via $\int_{0}^{T}dt(\overline{\phi}(t)-\phi^{\rm stab}(t))^{2}$, which is the average deviation of $\overline{\phi}(t)$ away from the most stable input-output relation $\phi^{\rm stab}(t)$, given by Eq. 47.

The following observations can be made. First, the width of the Arnold tongue (the range of $\omega_{0}$ that permits a deterministic solution) decreases as $\Delta\phi_{12}$ increases. Secondly, the linearity is maximal in the range $1<\omega_{0}/\omega<1.5$, and tends to increase with $\Delta\phi_{12}$: in the deadzone $\Delta\phi_{12}$ the system evolves freely with speed $\omega_{0}$, which makes $\overline{\phi}(t)$ more linear, especially when $\omega_{0}\sim\omega$. In contrast, the stability is highest when $\omega_{0}/\omega$ is large and $\Delta\phi_{12}$ is small, particularly for higher values of $\epsilon$. The large magnitudes of $\omega_{0}$ and $\epsilon$ mean that at the beginning of the day the system is strongly driven, $\langle\dot{\phi}\rangle\approx\epsilon+\omega_{0}$, and the small deadzone $\Delta\phi_{12}$ means that after the system has crossed $\phi_{1}$, it quickly reaches $\phi_{2}$, where, with $\epsilon=\epsilon_{-}>\omega_{0}$, the system is then confined (see Fig. 1).

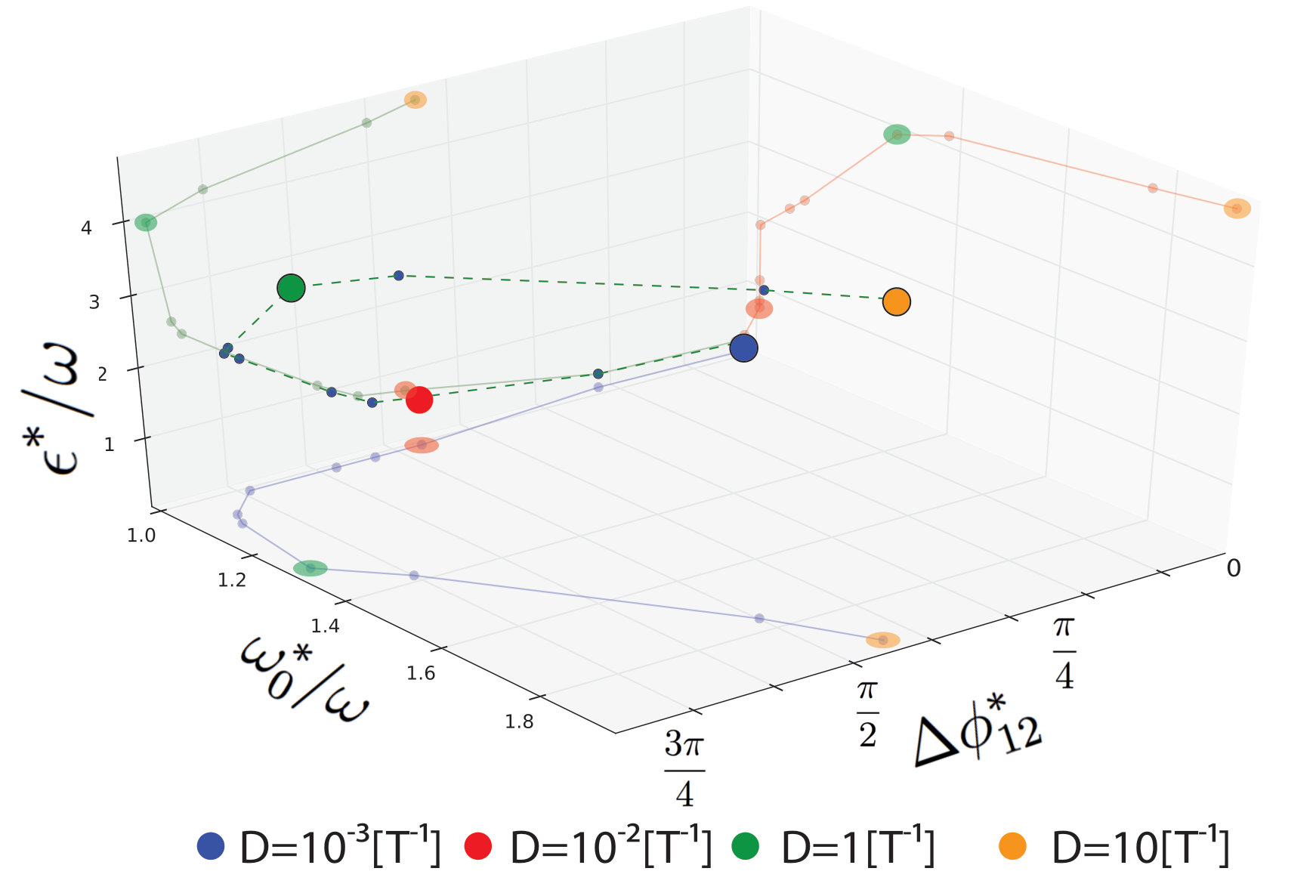

Fig. 7 also shows superimposed a parametric plot of the optimal $\Delta\phi_{12}^{*}(D)$ against the optimal $\omega_{0}^{*}(D)$. The colored dots denote the diffusion constants for which $(\omega_{0}^{*},\Delta\phi_{12}^{*})$ are optimal; the diffusion constant for which the $\epsilon$ of a panel is the optimal coupling strength $\epsilon^{*}$ is shown near the top of the Arnold tongue. It is seen that for very small $D$, the optimal system parameters $(\omega_{0}^{*},\Delta\phi_{12}^{*},\epsilon^{*})$ put the system in the regime where $\phi(t)$ is linear (top left panel A); increasing $\Delta\phi_{12}^{*}$ would not make the system significantly more linear, since $\epsilon^{*}$ is still very small. Increasing $D$ raises $\epsilon^{*}$, while $\omega^{*}$ remains close to $\omega$. The optimal width of the deadzone $\Delta\phi_{12}^{*}$ now increases, because for the higher value of $\epsilon^{*}$ the system becomes significantly more linear when $\Delta\phi_{12}^{*}$ is increased. Beyond $D=1/T$, however, linearity is sacrificed for stability. The optimal coupling strength $\epsilon^{*}$ and intrinsic frequency $\omega^{*}$ increase, while the optimal size of the deadzone decreases, to maximize stability. Indeed, when the noise is even larger still, the width of the deadzone reduces to zero and the coupling strength and intrinsic frequency become even larger: during the day the system is rapidly driven to $\phi_{2}$, where it then remains strongly confined till the beginning of the night (see Fig. 1 and also Fig. 5C). In this limit, the clock transmits one bit of information, and the system can only distinguish between day and night.

Fig. 6 thus generalises the finding of Fig. 5 that corresponds to a fixed deadzone and shows that the optimal shape of the instantaneous phase response curve can be understood as a trade-off between linearity and stability.

IV Theory

The simulation results can be described quantitatively via three different theories, which each accurately describe a particular regime of parameters: The linear-noise approximation (LNA) describes the regime of strong coupling and low diffusion; the phase-averaging method (PAM) holds in the low diffusion, weak coupling regime; and the linear-response theory (LRT) applies in the regime of high noise and weak coupling. Here, we have borrowed the terminology LNA from the name of the theory to describe biochemical networks that is based on the same underlying principles: indeed, rather than linearizing the Chemical Langevin Equation around the fixed point given by the mean-field chemical rate equations and taking the noise at that fixed point, we here linearize the return map $F(\phi)$ around its fixed point, and compute the noise at that fixed point. The results of the respective theories in their regime of validity are shown in Fig. 4. A more detailed comparison between the simulation results and the theoretical predictions, discussed below, is shown in Fig. 8, where $\epsilon$ and $D$ are varied for two different values of $\omega_{0}$.

IV.1 Linear-Noise Approximation

The linear-noise approximation (LNA) is expected to be accurate when the driving is strong compared to the diffusion constant, so that the system closely follows the deterministic solution $\phi^{*}(t)$, which is given by the return map of Eq. 44: $\phi^{*}(t)=\phi^{*}(t+T)=F(\phi^{*}(t))$. Because in this regime the deviations from the deterministic solution are small, we can expand $F(\phi)$ up to linear order in $\delta\phi=\phi-\phi^{*}$ to obtain $F(\phi^{*}+\delta\phi)$, see Eq. 45. This makes it possible to derive how a deviation from the deterministic solution at time $t$ will relax to the limit cycle at time $t+T$: $\delta\phi(t+T)=F^{\prime}(\phi^{*})\delta\phi(t)$ (see Eq. 46). The quantity $F^{\prime}(\phi^{*})$ thus determines the stability of the system near the deterministic fixed point. It can be readily obtained from the deterministic solutions.

Given a variance at time $t$, $\langle\delta\phi(t)^{2}\rangle$, the variance at time $t+T$, $\langle\delta\phi(t+T)^{2}\rangle$, is given by two contributions:

[TABLE]

The first contribution is a deterministic contritbution, which is determined by how a deviation $\delta\phi(t)=\phi(t)-\phi^{*}(t)$ at time $t$ regresses deterministically to the mean at time $t+T$: $\delta\phi(t+T)=F^{\prime}(\phi^{*})\delta\phi(t)$. The second contribution describes the variance of the distribution $P(\phi(t+T)|\phi^{*}(t))$ of $\phi(t+T)$ at time $t+T$, given that at time $t$ the system was at the deterministic solution $\phi^{*}(t)$; in general, we should instead compute the variance at $t+T$ for an arbitrary initial $\phi(t)=\delta\phi(t)+\phi^{*}(t)$, but to leading order in small $\delta\phi$ it is sufficient to evaluate the noise at the deterministic solution $\phi^{*}$. It is important to note that the variance $V\left[\phi(t+T)|\phi^{*}(t))\right]$ depends not only on the diffusion constant, but also on the deterministic force, as in a canonical LNA description: For example, in the simplest possible noisy dynamics, $\dot{\delta x}=-k\delta x(t)+\eta(t)$, with $\langle\eta(t)\eta(t^{\prime})\rangle=2D\delta(t-t^{\prime})$, the deterministic contribution to the variance $\langle\delta x(t+T)^{2}\rangle$ at time $t+T$, given the variance $\langle\delta x(t)^{2}\rangle$ at time $t$, is $\langle\delta x(t)^{2}\rangle e^{-2kT}$, while the stochastic contribution to the variance at time $t+T$ is $V[\delta x(t+T)|x^{*}(t)]=(D/k)(1-e^{-2kT})$, which indeed depends on the force constant $k$. However, in the limit that the force is weak, the stochastic contribution is given by the variance of free diffusion: $V[\delta x(t+T)|x^{*}(t)]=2DT$. We assume, and subsequently verify numerically, that a similar simplification applies for our phase oscillator model. Indeed, except at the boundaries $\phi_{1}$, $\phi_{2}$, and $\phi_{3}$, our phase dynamics reduces to diffusion with a constant drift, for which it is rigorously true that $V\left[\phi(t+T)|\phi^{*}(t))\right]=2DT$; our assumption hence amounts to neglecting any corrections to the integrated noise due to the brief “kicks” at these boundaries. Eq. 48 then reduces to

[TABLE]

This expression constitutes the fluctuation-dissipation relation for this system. In steady state, $\langle\delta\phi(t+T)^{2}\rangle=\langle\delta\phi(t)^{2}\rangle$, from which it follows that

[TABLE]

Clearly, the variance depends not only on the diffusion constant, but also on the stability, which increases with the coupling strength; as derived below Eq. 46, for scenario 1, $F^{\prime}(\phi^{*})=(\omega_{0}-\epsilon_{-})/(\omega_{0}+\epsilon_{+})$ decreases (meaning the system becomes more stable) as $\epsilon_{-}$ and $\epsilon_{+}$ increase.

In this linear-noise approximation, the distribution of the phase at time $t$ is a simple Gaussian with a mean $\overline{\phi}(t)$ that is given by the deterministic solution, $\overline{\phi}(t)=\phi^{*}(t)$, and a variance that is given by Eq. 50:

[TABLE]

where $\sigma_{\phi}\equiv\sqrt{\langle\delta\phi^{2}\rangle}$. This variance is, in this approximation, independent of the phase.

To derive the mutual information, it is conventient to invert the problem and look for the distribution of possible times $t$, given $\phi$. This can be obtained from Bayes’ rule:

[TABLE]

where $P(t)=1/T$ is the uniform prior probability of having a certain time and $P(\phi)$ is the steady state distribution of $\phi$, which in the small noise limit can be computed via $P(t)dt=P(\phi)d\phi$. If the noise $\xi$ is small compared to the mean, then $P(t|\phi)$ will be a Gaussian distribution that is peaked around $t^{*}(\phi)$, which is the best estimate of the time given the phase Tkacik2011 ; Dubuis2013 ; Monti2016 :

[TABLE]

Here $\sigma^{2}_{t}=\sigma^{2}_{t}(t^{*})$ is the variance in the estimate of the time, and it is given by Dubuis2013

[TABLE]

We note that $\sigma^{2}_{t}$ does depend on $t$ because the slope $d\overline{\phi}/dt$ depends on $t$. Indeed, while the LNA assumes that $\sigma^{2}_{\phi}$ is independent of $\phi$, it does capture the fact that changing $\epsilon$ and $\omega_{0}$ can affect the mutual information not only by changing the noise $\sigma^{2}_{\phi}$ but also via the slope $d\overline{\phi}/dt$ of the input-output relation $\overline{\phi}(t)$.

The mutual information can now be obtained from:

[TABLE]

where $\langle\dots\rangle_{\phi}$ denotes an average over $P(\phi)$, and we have exploited that in the LNA the variance $\sigma^{2}_{\phi}$ is independent of $\phi$. For the model presented here, $\overline{\phi}(t)=\phi^{*}(t)$ is piecewise linear, and the second integral can be obtained analytically, for each of the scenarios; for scenario 1, for example, the second term is 1/T\left(t_{1}\log(\omega_{0}+\epsilon_{+})+(t_{2}-t_{1})\log\omega_{0}+\right.$$\left.(T/2-t_{2})\log(\omega_{0}-\epsilon_{-})+T/2\log\omega_{0}\right).

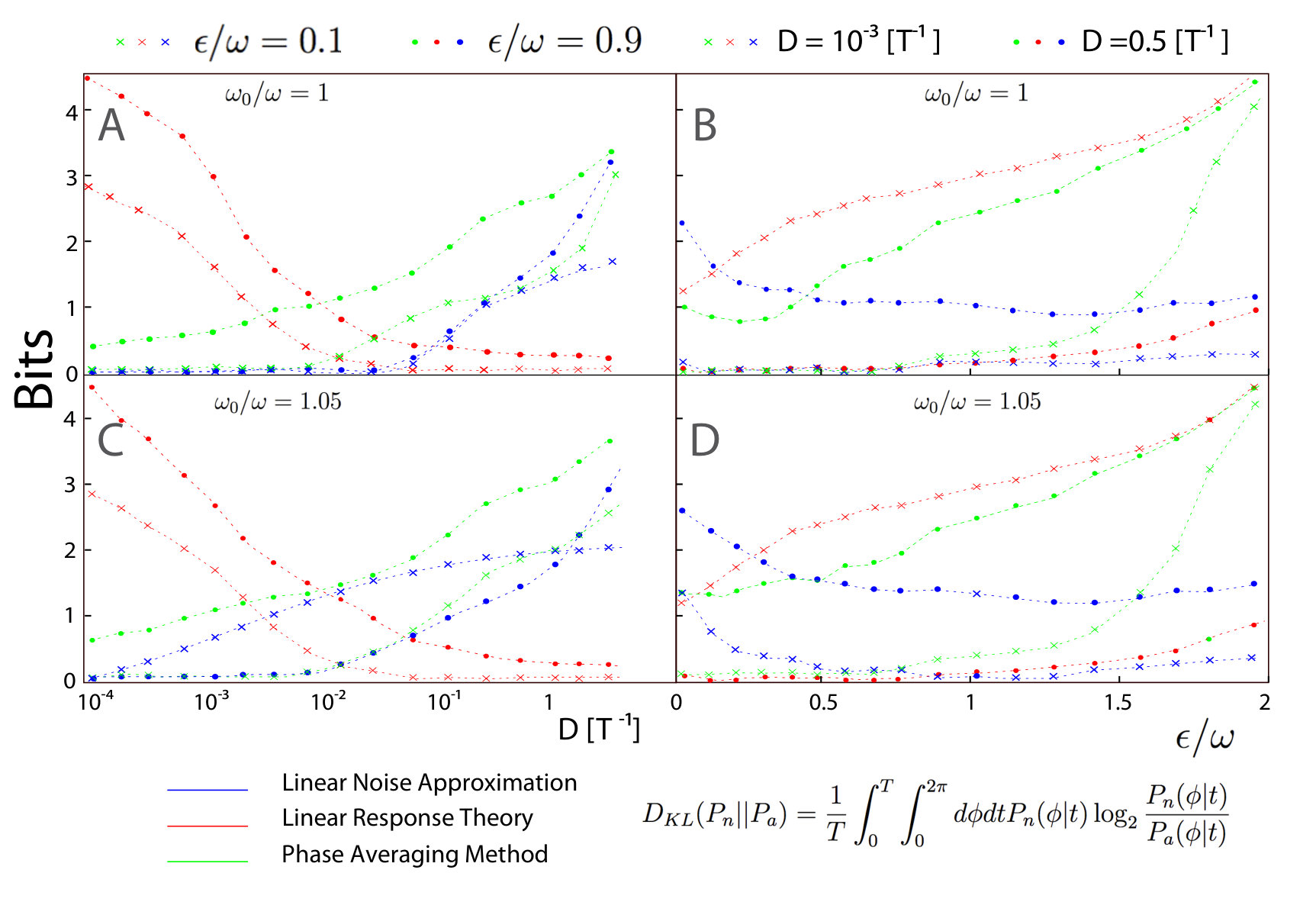

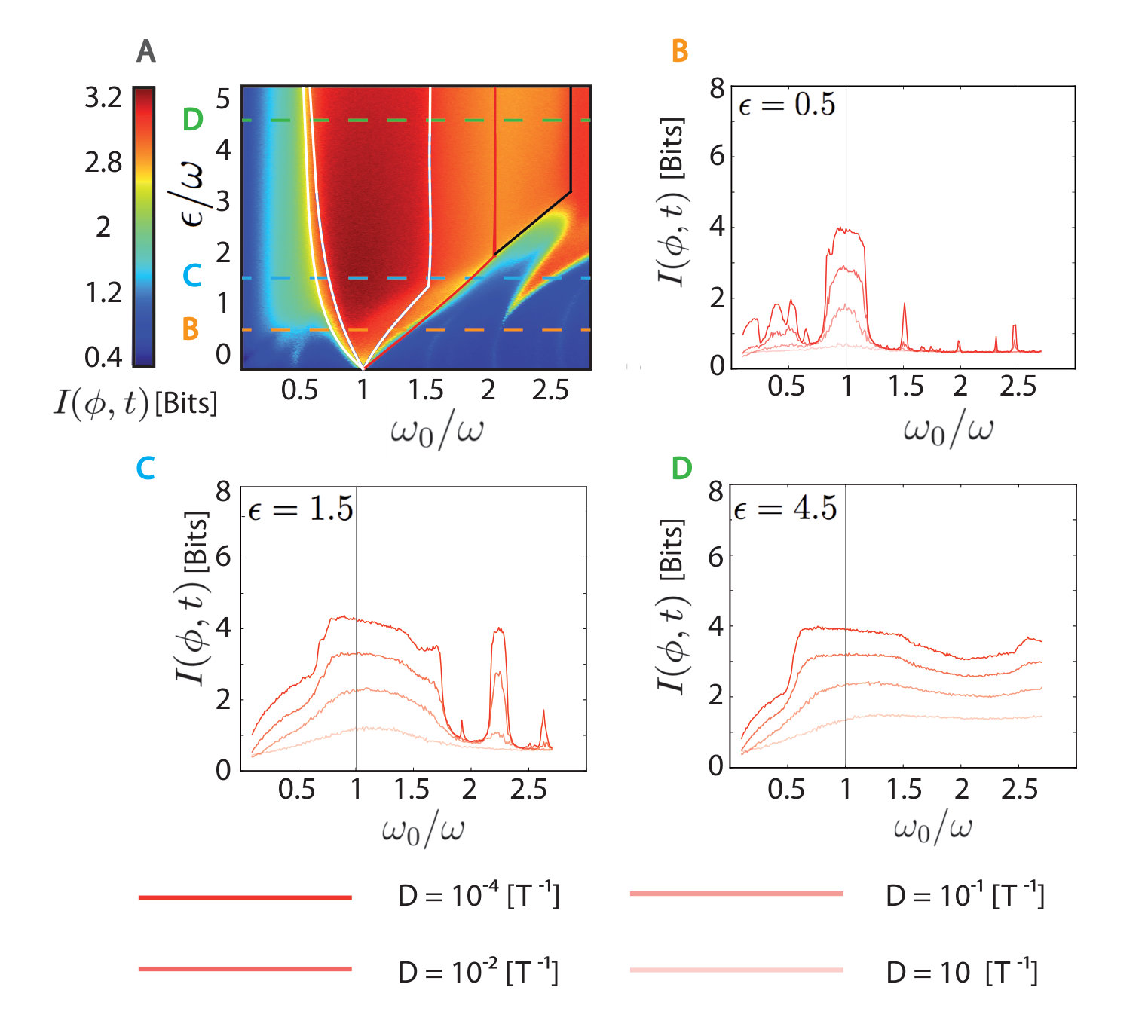

Fig. 4 shows that the LNA accurately predicts the mutual information $I_{\omega_{0}^{\rm opt}}(\phi;t)$ in the regime that the coupling strength $\epsilon$ is large and the diffusion constant $D$ is small. A more detailed comparison is shown in Fig. 8, which shows the Kullback-Leibler divergence $D_{KL}(P_{n}||P_{a})$ between the distribution $P_{n}=P_{n}(\phi|t)$ obtained in the simulations and $P_{a}=P_{a}(\phi|t)$ as predicted by LNA. Panels A and B show the result for $\omega_{0}/\omega=1$, while panels C and D show the results for $\omega_{0}/\omega=1.05$. Moreover, panels A and C show the results as a function of $D$ for two values of $\epsilon$, while panels B and D show the results as a function of $\epsilon$ for two values of $D$.

Panels A and C show that as $D$ is decreased at fixed $\epsilon$, the LNA becomes accurate for small $D$, as expected. Panels B and D show that for large $D$, the LNA never becomes accurate, even for large $\epsilon$. However, for large values of $\epsilon$, the assumption that the stochastic contribution to the variance is given by that of free diffusion, $V[\delta\phi(t+T)|\phi^{*}(t)]\simeq 2DT$, breaks down. This is also the reason why for the smaller value of $D$ (crosses in panels B and D), the LNA works very well for low values of $\epsilon$, but then becomes slighly less accurate for higher values of $\epsilon$. Indeed, for $\epsilon=\epsilon_{-}>\omega_{0}$, $F^{\prime}=0$, and the key assumption of LNA—namely that the dynamics can be expanded to linear order around the deterministic fixed point—breaks down.

Comparing panel C against panel A and panel D against panel B shows that LNA is less accurate in the small $D/\epsilon$ regime when $\omega_{0}/\omega=1.05$ (panels C/D) than when $\omega_{0}/\omega=1.0$ (panels A/B). More specifically, while LNA is very accurate for $D<10^{-2}/T$ for both values of $\epsilon$ when $\omega_{0}/\omega=1.0$ (panel A), LNA becomes less accurate for $D<10^{-2}/T$ when $\omega_{0}/\omega=1.05$ and $\epsilon$ is small, i.e. $\epsilon/\omega=0.1$ (panel C); only for $\epsilon/\omega=0.9$ is LNA still accurate in this regime. Similarly, while LNA is very accurate for $\epsilon/\omega<1$ when $D=10^{-3}/T$ and $\omega_{0}/\omega=1.0$ (panel B), LNA becomes less accurate for $\epsilon/\omega<0.5$ when $D=10^{-3}/T$ yet $\omega_{0}/\omega=1.05$ (panel D). This observation can be understood by noting that when $\omega_{0}$ is increased, the system moves to the boundary of the Arnold Tongue of scenario I, especially when $\epsilon$ is small (see Fig. 2). The system then switches under the influence of noise between the solution of scenario I and that of scenario II, meaning that the response becomes non-linear and LNA breaks down. Interestingly, however, another method, described in the next section, accurately describes this regime.

IV.2 Phase-Averaging Method

In the limit that the coupling $\epsilon$ is weak, the diffusion constant $D$ is small, and the intrinsic frequency $\omega_{0}$ is close to the driving frequency $\omega$, we expect that the evolution of $\phi$ is close to that of the free-running oscillator, $\phi_{0}(t)=\omega_{0}t+\phi_{0}$. In this regime the phase will exhibit fluctuations that are slow, occurring on time scales much larger than the intrinsic period $T_{0}$. The detailed coupling within a clock cycle becomes irrelevant, and only the average coupling over a clock period matters. This leads to the notion of phase averaging, in which $P(\phi(t)-\omega t|t)$ no longer depends on $t$: $P(\phi(t)-\omega t|t)=P(\phi(t)-\omega t)\equiv P(\psi)$, with $\psi\equiv\phi(t)-\omega t$.

Following Pikovsky Pikovsky2003 , we now make this intuitive notion concrete by rewriting the coupling term as

[TABLE]

If the coupling and the noise are weak, $\epsilon\to 0,D\to 0$, we may expect that $\phi\simeq\omega_{0}t+\phi_{0}$ for all times $t$. If we substitute this into Eq. 59, we find

[TABLE]

When $\omega\approx\omega_{0}$, the terms $k=-l$ contribute most strongly to the integral. These terms correspond to variations in the force on long time scales. We thus expect that in the regime that $\epsilon,D\to 0$ and $\omega\approx\omega_{0}$, where the phase is expected to follow $\phi\approx\omega_{0}t+\phi_{0}$, the terms $k=-l$ yield the strongest contributions to the force:

[TABLE]

where in Eq. Eq. 62 we have introduced the new phase variable $\psi\equiv\phi-\omega t$. The force $Q(\psi)$ is commonly referred to as the phase-response curve; it is thus a convolution of the instantaneous phase-response curve $Z(\phi)$ and the light-signal $L(t)$.

The temporal evolution of $\psi$, $\dot{\psi}=\dot{\phi}-\omega$, is, using Eq. 25:

[TABLE]

with $\nu=\omega-\omega_{0}$. The first two terms on the right-hand side are the deterministic force, which can be written as the derivative of a potential $V(\psi)$

[TABLE]

with the potential given by

[TABLE]

Indeed, the evolution of $\psi$ can be described as that of a particle in a potential $V(\psi)$, which is a $2\pi$-periodic potential with a slope given by $\nu=\omega-\omega_{0}$.

The evolution of the probability density $P(\psi,t)$ is given by the Fokker-Planck equation corresponding to Eq. 65:

[TABLE]

where we have defined the probability current

[TABLE]

In steady state, $\partial P(\psi,t)/\partial t=0$, which yields the following stationary solution that is $2\pi$-periodic in $\psi$:

[TABLE]

Here, $C$ is the normalization constant.

Fig. 4 shows that the phase-averaging method (PAM) accurately predicts the mutual information $I(\phi;t)$ in the regime that both the coupling strength $\epsilon$ and the diffusion constant $D$ are small. The more detailed comparison based on the Kullback-Leibler divergence $D_{KL}(P_{n}||P_{a})$ between the distribution $P_{n}=P_{n}(\phi|t)$ obtained in the simulations and $P_{a}=P_{a}(\phi|t)$ as predicted by PAM confirms this interpretation: as shown in panel B of Fig. 8, when $\omega_{0}/\omega=1.05$, PAM is accurate for $D<10^{-2}/T$ when $\epsilon/\omega=0.1$ (green crosses), while LNA breaks down in this regime (blue crosses). Similarly, as illustrated in panel D, when $\omega_{0}/\omega=1.05$, PAM is accurate for $\epsilon/\omega<0.7$ when $D=10^{-3}/T$ (green crosses), whereas LNA again breaks down in this regime (blue crosses).

While the LNA breaks down when the distribution $P(\phi|t)$ becomes non-Gaussian as the coupling becomes too weak, the PAM accurately describes $P(\phi|t)$ in the low-coupling, low-noise regime, as it allows for non-Gaussian distributions. However, the PAM does assume that $\phi(t)$ follows $\omega t$. As a result it breaks down when the coupling becomes large, causing the average input-output relation $\overline{\phi}(t)$ to deviate markedly from $\omega t$, an effect that can be captured by the LNA. PAM also breaks down when $\epsilon$ is small and $\omega\approx\omega_{0}$, yet $D$ is large: now the large diffusion constant causes the instantaneous $\phi(t)$ to deviate markedly from $\omega t$. This regime can, however, be described by linear-response theory.

IV.3 Linear response theory

When the coupling strength is weak yet the diffusion constant is large, $\phi(t)$ at any moment in time will tend to deviate strongly from $\omega_{0}t$, but the steady-state distribution will be close to that of a noisy, free running oscillator, $P_{0}(\phi)=1/(2\pi)$. The full distribution can then be obtained as a perturbation to this distribution. This is the central idea of linear-response theory (LRT).

We start with the Fokker-Planck equation for the evolution of $P(\phi,t)$:

[TABLE]

We now consider the external signal $L(t)Z(\phi)$ to be a weak perturbation of the free-running system. To this end, we rewrite the above equation as:

[TABLE]

where $\mathcal{F}_{0}$ is the operator that defines the time evolution of the unperterburted system and $\mathcal{F}_{1}$ that due to the perturbation:

[TABLE]

Furthermore, we expand $P(\phi,t)$ as:

[TABLE]

Substituting this expression into Eq. 73, and keeping only terms up to order $\epsilon$, we find:

[TABLE]

We are interested in the solutions that satisfy the periodic boundary conditions:

[TABLE]

for both $i=0,1$. Moreover, in steady state, for $t\to\infty$, it must hold that

[TABLE]

Eq. 77 describes the diffusion of a particle with drift. The steady-state solution, which obeys Eqs. 79-81, is

[TABLE]

Clearly, $p_{0}(\phi,t)$ in steady state is flat, which means that any deviation in the steady-state solution for $P(\phi,t)$ from the flat distribution must be contained in $p_{1}(\phi,t)$. Since $p_{1}(\phi,t)$ is, by construction, a small perturbation, this approach will be accurate only when the full distribution is sufficiently flat, which means that the diffusion constant cannot be too small.

To obtain $p_{1}(\phi,t)$, we proceed by substituting the solution for $p_{0}(\phi,t)$, Eq. 82, into Eq. 78, yielding

[TABLE]

The solution to this non-homogeneous heat equation is given by

[TABLE]

where $f(\phi)$ is the initial condition, $G(\phi-\omega_{0}t,\phi_{0},t,t_{0})$ is the Green’s function of the unperturbed diffusion operator with drift, and $A(\phi,t)\equiv L(t)p_{0}(\phi,t)\partial_{\phi}Z(\phi)$. This expression holds for any $t$, not only for the steady-state solution.

To obtain the steady-state solution, we aim to find the initial condition $P(\phi,t)=f(\phi)$ that folds back onto it self after a time $T$: $P(\phi,t+T)=P(\phi,t)=f(\phi)$. To this end, we evaluate Eq. 84 for $t=T$, to arrive at the Fredholm equation of the second kind:

[TABLE]

where $Q(\phi)$ is given by Eq. 183. The above equation can be solved analytically, see Appendix C.

Fig. 8 and Fig. 4 show, respectively, that the LRT accurately describes $P(\phi,t)$ and hence the mutual information in the regime that the coupling is weak and the diffusion constant is large. In contrast to the phase-averaging method, the LRT breaks down for smaller diffusion constant. The reason is that then $P(\phi,t)$ deviates increasingly from the uniform distribution, $p_{0}(\phi,t)=1/(2\pi)$, and the full solution $P(\phi,t)$ can no longer be treated as a weak perturbation to $p_{0}$.

V Discussion

The phase-response curves that have been measured experimentally often have a positive lobe and a negative one, separated by a deadzone where the coupling strength is zero Pfeuty2011 . However, the width of the deadzone varies considerably from organism to organism. Here, we asked how the optimal phase-response curve depends on the intrinsic noise in the system, using the mutual information as a performance measure.

Information theory predicts that the number of signals that can be transmitted reliably through a communication channel depends on the shape of the input distribution, the input-output relation, and the noise in the system. These arguments apply to any signaling system and the circadian clock is no exception.

When the input distribution is flat and the noise is low, then, in general, the optimal input-output relation is linear. The phase-oscillator model of the clock obeys this rule: the input distribution $p(t)=1/T$ is flat, and the optimal input-output relation $\phi(t)$ is indeed linear in the low-noise regime (Fig. 5B,C). Such a linear input-output relation is obtained for an intrinsic period that is close to 24 hrs and for a deadzone that is relatively large (Figs. 6 and 7). Our analysis thus predicts that less-noisy circadian clocks exhibit a relatively large deadzone. Interestingly, the rule also explains why for a constant deadzone, in the low-noise limit, the optimal intrinsic frequency decreases as the coupling strength increases (see Fig. 5A).

In the large-noise regime, containment of noise becomes paramount. This inivetably requires a large coupling strength. While a strong coupling distorts the input-output relation, which tends to reduce information transmission, it also reduces the noise, enhancing information transmission (Fig. 5B,C). The stability is further enhanced by increasing the intrinsic frequency and reducing the width of the deadzone (Fig. 7). Indeed, our results predict that noisy circadian systems feature a smaller deadzone and a higher intrinsic frequency.

These results have been obtained by reducing the circadian clock to a phase-oscillator model. It is useful to briefly review the generality and limitations of this approach. The mutual information obeys $I({\bf n};t)\geq I(R,\phi;t)\geq I(\phi;t)$. Hence, any mapping of ${\bf n}$ to $\phi$ makes it possible to put a lower bound on the mutual information. The bound will be tight when the phase, according to this mapping, contains most of the information on time.

Another question is whether the model that we use to describe the evolution of the phase is accurate. Phase-oscillator models have commonly been employed to describe oscillatory systems, yet they are typically described as being valid in the limits of weak driving and low noise: this ensures that the coupled system stays close to the limit cycle of the unperturbed, deterministic system, so that the coupling function and the diffusion constant can be approximated by their values on that limit cycle Pikovsky2003 . Here, having derived the phase oscillator description in the weak coupling limit, we then proceed to study it for arbitrary values of $\epsilon$ and $D$. This might at first glance seem self-contradictory. It should be realized, however, that biochemical noise and coupling can have two distinct effects: they can affect the dynamics along the limit cycle, i.e. of $\phi$, and/or they can cause the system to move away from the limit cycle. Only perturbations in the latter direction, orthogonal to the limit cycle, need be small for the phase oscillator description to apply. Moreover, $\epsilon$ and $D$ are dimensionful parameters that can only be meaningfully be said to be large or small in comparison to another parameter, and the appropriate parameter for comparison is different for perturbations along and orthogonal to the limit cycle. Thus, it is entirely possible for $\epsilon$ and $D$ to be small compared to the rate of relaxation to the limit cycle, implying that neither the external driving nor the noise can force the system far from the limit cycle and that the phase oscillator model is a good approximation, but simultaneously for one or both of $\epsilon$ and $D$ to be large compared to $\omega_{0}$, so that perturbations to the phase dynamics are not weak. We imagine that just such a situation holds here: $D$ and $\epsilon$ can become bigger than $\omega_{0}$—meaning that the noise and the coupling can induce large changes in $\phi$—but, even for large $D/\omega_{0}$ and $\epsilon/\omega_{0}$, the system in our model does not significantly move off the limit cycle. It remains an open question how for a given, particular clock biochemical noise and strong coupling to an entrainment signal affect the dynamics: how far does the system move away from its limit cycle, and how much do the diffusion constant and the coupling function then change? The detailed and minimal biochemical network models that have been developed for the cyanobacterium Synechococcus elongatus would make it possible to investigate this question in detail VanZon2007 ; Rust2007 ; Zwicker2010 ; Phong2012 ; Paijmans:2016fd ; Paijmans:2017gx ; Paijmans:2017jm ; Paijmans:2016uh

Our work shows that the behavior of the coupled phase oscillator can be accurately described by three different theories, which each work best in a different parameter regime. In the regime of weak coupling, low noise, and intrinsic frequency close to the driving frequency, the phase-averaging method is very accurate. In the regime that the driving is strong compared to the diffusion constant, the linear-noise approximation is most accurate. These are the two most relevant regimes for understanding the design of circadian clocks. There is also another regime, however, namely that of weak coupling and high noise, and in this regime linear-response theory is very accurate. That linear-response theory can describe any regime at all is perhaps surprising, since it has been argued that this theory should be applied to phase oscillators only with the greatest care Pikovsky2003 . The argument is that small but resonant forcing can have effects on $\phi$ that build up over time, meaning that the effect of perturbations that are nominally of order $\epsilon$, and thus small, will eventually become large with time. However, noise can pre-empt this accumulation of resonant perturbations by effectively randomizing the phase and erasing the memory of earlier perturbations before they are able to accumulate over time. As a result, the full distribution of the phase can be written as a small perturbation around the uniform distribution, and this does make it possible to apply linear-response theory. While this regime is probably less relevant for understanding biological clocks, this approach may be useful in other contexts.

Finally, we have focused on the optimal design of the clock as a function of the intrinsic noise in the system. As Pfeuty et al. have shown, fluctuations in the input signal are an important consideration for understanding the design of circadian clocks Pfeuty2011 . It will be interesting to see whether maximizing the mutual information will reveal new design principles for clocks driven by fluctuating signals.

Acknowledgements: We thank Jeroen van Zon for a critical reading of the manuscript. This work is supported by the research programme of the Foundation for Fundamental Research on Matter (FOM), which is part of the Netherlands Organisation for Scientific Research (NWO), and by NSF grant DMR-1056456 (DKL).

Appendix A Arnold tongue of the deterministic model

For completeness, we give here the inequalities for all scenarios. Scenario 1: As discussed in the main text: $\phi_{3}-2\pi<\phi_{s}<\phi_{1}$; $t_{2}<T/2<t_{3}$. If $\epsilon_{-}\leq\omega_{0}$, then

[TABLE]

If $\epsilon_{-}>\omega_{0}$ then

[TABLE]

Scenario 2: $\phi_{1}<\phi_{s}<\phi_{2}$; $0<t_{2}<T/2<t_{3}<t_{1}<T$. For $\epsilon_{-}<\omega_{0}$, the evolution of $\phi(t)$ is given by

[TABLE]

This yields:

[TABLE]

This yields the following inequalities:

[TABLE]

If $\epsilon_{-}>\omega_{0}$, the equation to solve is

[TABLE]

The solution is

[TABLE]

This yields the following inequalities

[TABLE]

This scenario is stable, because $\phi(t)$ between $t=0$ and $t=t_{2}$ is steeper than $\phi(t)$ between $t_{2}$ and $T/2$.

Scenario 3: $\phi_{2}<\phi_{s}<\phi_{3}$; $0<t_{2}<T/2$. If $\epsilon_{-}<\omega_{0}$ then

[TABLE]

This equation does not depend on $t_{i}$. There is only one period that fits the solution:

[TABLE]

This period is on the boundary of the Arnold tongue of scenario 2. This solution seems degenerate, being neither stable nor unstable.

If $\epsilon_{-}>\omega_{0}$, the equation that solves $\phi(t)$ is

[TABLE]

The solution is

[TABLE]

The requirement that $t_{2}>0$, yields the inequality

[TABLE]

because the denominator of Eq. 113 is negative. The requirement that $t_{2}<T/2$ yields

[TABLE]

Since the denominator is negative for $\epsilon_{-}>\omega_{0}$, this means that $(2\pi-T(\omega_{0}-\epsilon_{-}/2))>0$. When $\epsilon_{-}>2\omega_{0}$, this is true for any $T$. When $\epsilon_{-}<2\omega_{0}$ (but still larger than $\omega_{0}$ because otherwise there is no solution at all, see above), then

[TABLE]

The constraints $\phi_{2}<\phi_{s}<\phi_{3}$ yield

[TABLE]

This solution is rather strange. When the light comes up, the clock is being driven backwards. The solution seems stable, though. In fact, it seems extremely stable: after one period, the system is back on its limit cycle.

Scenario 4: $\phi_{3}-2\pi<\phi_{s}<\phi_{1}$; $0<t_{1}<T/2<t_{2}$. The equation that determines the steady state is

[TABLE]

The solution is

[TABLE]

The conditions for $T$ are

[TABLE]

Scenario 5: $\phi_{3}-2\pi<\phi_{s}<\phi_{1}$; $t_{1}>T/2$. The governing equation is

[TABLE]

This means that

[TABLE]

Clearly, for each $\epsilon_{+}$ there is only one period, not a range of periods. Since $\phi(T/2)=\phi_{s}+(\epsilon_{+}+\omega)T/2$, which must be smaller than $\phi_{1}$, and $\phi_{s}>\phi_{3}-2\pi$, we find that there exists only a solution if $\Delta\phi_{13}<2\pi\omega_{0}/(\epsilon_{+}+2\omega_{0})$. Hence, for given $\phi_{1}$ and $\phi_{3}$, this puts an upper bound on $\epsilon_{+}$. If a solution exists, the starting phase $\phi_{s}$, must lie in the range $\phi_{3}-2\pi<\phi_{s}<\phi_{1}-\pi(\epsilon_{+}+\omega_{0})/(\epsilon_{+}/2+\omega_{0})$. Moreover, the solution is neutral; it does not relax back to a unique $\phi_{s}$. In fact, this is a very general observation: if the solution is neutral, it means that there can only be locking for one value of the period. Being able to locking over a range of periods of the driving signal, means that the clock should be able to adjust its period by changing the phase; but a neutral solution means that changing the phase does not lead to a change in its period.

Scenario 6: $\phi_{3}-2\pi<\phi_{s}<\phi_{1}$; $0<t_{1}<t_{2}<t_{3}<T/2$. This scenario can only arise when $\epsilon_{-}<\omega_{0}$, because otherwise the system never makes it to $\phi_{3}$ before the sun sets. The equation to be solved is then:

[TABLE]

This equation can be solved by noting that $\Delta\phi_{12}=\omega_{0}(t_{2}-t_{1})$ and $\Delta\phi_{23}=(-\epsilon_{-}+\omega_{0})(t_{3}-t_{2})$. It follows that there is only one period that satisfies the above equation:

[TABLE]

Clearly, for a given $\epsilon_{-}$ and $\epsilon_{+}$ there is only one period, not a range of periods to which the system can entrain. This means that the solution is neutral, which can indeed be understood by noting that the initial slope at $t=0$, $\omega_{0}+\epsilon_{+}$, is the same as that $t=T/2$. The condition for the solution to exist is that $\phi(T/2)=2\pi+\phi_{s}-\omega_{0}T/2>\phi_{3}$. This yields for $\phi_{s}$:

[TABLE]

There is thus only a solution when

[TABLE]

One could use this condition to determine the range of $\epsilon_{+/-}$ over which there is a solution, given $\phi_{1},\phi_{2},\phi_{3}$. But since this scenario only yields one line in the phase diagram, we do not pursue this further.

Scenario 7: $\phi_{1}<\phi_{s}<\phi_{2}$; $0<T/2<t_{2}<t_{3}<t_{1}$. The governing equation is

[TABLE]

This indeed yields only one solution

[TABLE]

Indeed, there only exists a solution when the driving frequency equals the intrinsic frequency, which is to be expected, since with this solution the system does not see the driving. The solution exists only if $\Delta\phi_{12}>\pi$. This solution is neutral, in that all solutions $\phi_{1}<\phi_{s}<\phi_{2}$ are valid, for all values of $\epsilon_{-/+}$. One may wonder what that implies for the dynamics. If one would perform a simulation for $\epsilon_{-/+}>0$ and $\omega=\omega_{0}$, and if one would then start with $\phi_{1}<\phi_{s}<\phi_{2}$, then due to the noise the simulation would initially perform a random walk where initially, at the beginning of each day, the phase of the clock would fluctuate between $\phi_{1}$ and $\phi_{2}$. However, once the oscillator due to noise would cross the boundary $\phi_{1}$, then the system will be driven to a solution that is described under scenario 1.

Scenario 8: $\phi_{1}<\phi_{s}<\phi_{2}$; $0<t_{2}<t_{3}<T_{2}<t_{1}$. There can only be a solution, if it exists, when $\epsilon_{-}<\omega_{0}$. For $\epsilon_{-}>\omega_{0}$ the system never makes it to $\phi_{3}$ before $T/2$. The governing equation is

[TABLE]

To solve this, we note that

[TABLE]

This yields:

[TABLE]

We further have

[TABLE]

The condition $t_{2}>0$ yields

[TABLE]

The condition $t_{3}<T/2$ yields

[TABLE]

The condition $\phi_{1}<\phi_{s}=\phi_{2}-\omega_{0}t_{2}$ yields

[TABLE]

The Arnold tongue of this scenario is embedded in those of scenarios 1 and 2. The solution corresponding to this scenario is indeed unstable: the system either converges to the solution of scenario 1 or 2. This can be easily proven by noting that the time it takes to cross $\Delta\phi_{23}$ is constant, as is the time to cross the night. The change in the phase a period later is then the change in the phase at $\phi(T/2)$. This is given by $\delta\phi(T/2)=\partial\phi(T/2)/\partial t_{3}\delta t_{1}=\partial\phi(T/2)/\partial t_{3}\delta\phi_{s}/\omega_{0}=(\epsilon_{+}+\omega_{0})/\omega_{0}\delta\phi_{s}$, where we have noted that $\delta t_{1}=-\delta\phi_{s}/\omega_{0}$ and $\partial\phi(T/2)/\partial t_{3}=-(\epsilon_{+}+\omega_{0})$. Because $(\epsilon_{+}+\omega_{0})/\omega_{0}>1$, the change in the phase after a full period is larger than the initial change in the phase: $\delta\phi(T)=\delta\phi(T/2)>\delta\phi_{s}$. The solution is unstable.

Scenario 9: $\phi_{1}<\phi_{s}<\phi_{2}$; $t_{2}<t_{3}<t_{1}<T_{2}$. There can only be a solution if $\epsilon_{-}<\omega_{0}$. The equation to be solved is

[TABLE]

which gives

[TABLE]

We further have

[TABLE]

Hence,

[TABLE]

which we could have written down right away upon somewhat more careful thinking. We can obtain a bound on the parameters that allow a solution by noting that $0<t_{1}-t_{2}<T/2$. Combining with Eq. 144 yields $\Delta\phi_{12}/\omega_{0}<T<2\Delta\phi_{12}/\omega_{0}$. Combing this with Eq. 146 yields

[TABLE]

A visual inspection illustrates this containt very clearly. The parameter $\epsilon_{-}$ should be small, that is not close to unity. A large $\epsilon_{+}$ also helps.

Scenario 10: $\phi_{2}<\phi_{s}<\phi_{3}$; $0<T_{2}<t_{3},t_{1},t_{2}$. Both for $\epsilon_{-}<\omega_{0}$ and $\epsilon_{-}>\omega_{0}$, the scenario corresponds to that of scenario 3, but with $\epsilon_{-}<\omega_{0}$) in that scenario. There is only a solution for

[TABLE]

Scenario 11: $\phi_{2}<\phi_{s}\phi_{3}$; $0<t_{3}<T/2<t_{1},t_{2}$. Only if $\epsilon_{-}<\omega_{0}$ may a solution exist: if $\epsilon_{-}>\omega_{0}$, we are back to scenario 3 or 10. The governing equation is

[TABLE]

The solution is

[TABLE]

The condition $t_{3}>0$ yields

[TABLE]

The condition $t_{3}<T/2$ yields the inequality

[TABLE]

The condition $\phi_{s}>\phi_{2}$ yields

[TABLE]

The condition $t_{1}>T/2$ yields the inequality

[TABLE]

The solution space overlaps with those of scenarios 1 - 3. Interestingly, we find again that this solution is unstable: $\delta\phi(T)=\delta\phi(T/2)=\partial\phi(T/2)/\partial t_{3}\delta t_{3}=-(\omega_{0}+\epsilon_{+})\delta t_{3}=-(\omega_{0}+\epsilon_{+})\partial t_{3}/\partial\phi_{s}\delta\phi_{s}=(\omega_{0}+\epsilon_{+})/(\omega_{0}-\epsilon_{-})\delta\phi_{s}>\delta\phi_{s}$. We thus can see that when $\phi(t)$ is convex for $0<t<T/2$, the solution tends to be unstable.

Scenario 12: $\phi_{2}<\phi_{s}<\phi_{3}$; $t_{3},t_{1}<T/2<t_{2}$. Only if $\epsilon_{-}<\omega_{0}$ may a solution exist. The governing equation is

[TABLE]

Exploiting that $t_{1}=t_{3}+(2\pi-\Delta\phi_{13})/(\epsilon_{+}+\omega_{0})$, the solution is

[TABLE]

The condition $t_{3}>0$ yields the inequality

[TABLE]

The condition $t_{1}<T/2$ gives

[TABLE]

The condition $t_{2}=t_{1}+\Delta\phi_{12}/\omega_{0}>T/2$ yields

[TABLE]

The condition $\phi_{s}>\phi_{2}$ yields the inequality

[TABLE]

This curve is convex, that is the part of $\phi(t)$ that really matters is convex: the initial slope near $t=0$, $\omega_{0}-\epsilon_{-}$, is smaller than the slope near $t=T/2$, which is $\omega$. This gives an unstable solution.

Scenario 13: $\phi_{2}<\phi_{s}<\phi_{3}$; $t_{3},t_{1},t_{2}<T/2$. Again, a solution may only exist if $\epsilon_{-}<\omega_{0}$. The central equation is

[TABLE]

The solution is

[TABLE]

The time difference is

[TABLE]

which gives for the period

[TABLE]

Appendix B Heat maps mutual information as a function of coupling

strength and intrinsic frequency

Fig. 3A shows the mutual information as a function of the coupling strength $\epsilon=\epsilon_{+}=\epsilon_{-}$ and intrinsic frequency $\omega_{0}$, for one value of the diffusion constant, $D=0.1/T$. Fig. 9 shows the same plot, but then also for $D=1/T$ and $D=10^{-4}/T$. For $D=10^{-4}/T$, the mutual information shows very rich behavior, corresponding to intrincate locking behavior.

Appendix C Linear-response theory

As shown in the main text, the evolution of $p_{1}(\phi,t)$ is given by

[TABLE]

The solution to this non-homogeneous heat equation is:

[TABLE]

where $f(\phi)$ is the initial condition, $G(\phi-\omega_{0}t,\phi_{0},t,t_{0})$ is the Green’s function of the unperturbed diffusion operator, and $A(\phi,t)\equiv L(t)p_{0}(\phi,t)\partial_{\phi}Z(\phi)=L(t)/(2\pi)\left(-\delta(\phi-\phi_{1})-\delta(\phi-\phi_{2})+2\delta(\phi-\phi_{3})\right)$.

The Green’s function is given by

[TABLE]

with

[TABLE]

This yields:

[TABLE]

Substituting this expression into Eq. 167 and Eq. 168 gives

[TABLE]

where

[TABLE]

We can integrate the second term of Eq. 176 by parts. Calling the primitive of $\Delta G$,

[TABLE]

we find

[TABLE]

Since $L(\tau)$ is a sequence of step functions,

[TABLE]

which yields

[TABLE]

Eq. 167 was derived assuming that the system is in steady state, and $p(\phi,t)=p(\phi,t+T)$. This means that we only have to consider times $0<t<T$, in which case only the first two terms in the last sum on the right-hand side remain. More specifically, in steady state, the initial condition $f(\phi)$ equals the steady-state distribution, and $f(\phi)=p(\phi,t=0)=p(\phi,t=T)$, meaning that the above expression reduces to

[TABLE]

where $Q(\phi)$ is defined as

[TABLE]

Eq. 182 an integral equation, more specifically an Fredholm equation of the second type. The integration kernel $G(\phi,\xi,T)$ has the form

[TABLE]

We define $G^{*}(\phi,\xi)=G(\phi,\xi)-1/(2\pi)$, and rewrite Eq. 182 as:

[TABLE]

where in going from the first to the second line we have exploited that $f(\phi)$ is normalized, and in the last line we have defined $Q^{*}(\phi)\equiv Q(\phi)-1/(2\pi)$. The kernel $G^{*}(\phi,\xi,T)$ is separable, and we can rewrite Eq. 182 as

[TABLE]

with $Q^{*}(\phi)=\sum_{j}Q^{*}_{j}(\phi)$.

To solve this integral equation, we define

[TABLE]

so that

[TABLE]

We now multiply both sides, once with $e^{-j^{2}DT}\cos(j\phi)$ and once with $e^{-j^{2}DT}\sin(j\phi)$, and integrate from [math] to $2\pi$. On the left-hand side, this gives $c_{1j}$ and $c_{2j}$, respectively. We then arrive at the following set of linear equations:

[TABLE]

where

[TABLE]

We can define the vectors ${\bf c}_{1}$ and ${\bf c}_{2}$ with elements $c_{1j}$ and $c_{2j}$, respectively, as well as the matrices ${\bf A}$, ${\bf B}$, ${\bf C}$, ${\bf D}$, with elements $A_{jk},B_{jk},C_{jk},D_{jk}$, respectively, and the vectors ${\bf q}_{1}$ and ${\bf q}_{2}$ with elements $Q^{*}_{1j}$ and $Q^{*}_{2j}$, respectively. This allows us to define the vectors ${\bf c}^{T}\equiv({\bf c}_{1}^{T}:{\bf c}_{2}^{T})$ and ${\bf q}^{T}\equiv({\bf q}_{1}^{T}:{\bf q}_{2}^{T})$, where $T$ denotes the transpose, and the matrix

[TABLE]

We can then rewrite Eqs. 192 and 193 as

[TABLE]

which has as its solution

[TABLE]

with ${\bf I}$ the identity matrix. With the coefficients $c_{1j}$ and $c_{2j}$ thus found, $f(\phi)$ can be obtained from Eq. 191, yielding, finally, the steady-state solution $p_{\rm ss}(\phi)=1/(2\pi)+f(\phi)$.

Appendix D Mutual information as a function of $\epsilon_{+}$ and $\epsilon_{-}$

Fig. 10 addresses how the mutual information depends on $\epsilon_{+}$ and $\epsilon_{-}$. To this end, the parameters are varied as $\epsilon_{+}=(1-\alpha)\epsilon$ and $\epsilon_{-}=\alpha\epsilon$; varying $\alpha$ thus keeps the total absolute coupling strength $\epsilon$ constant. The figure shows that the mutual information is rather insensitive to the relative values of $\epsilon_{+}$ and $\epsilon_{-}$.
