Partial local density of states from scanning gate microscopy

TL;DR

This paper analytically demonstrates how partial local density of states can be extracted from scanning gate microscopy near quantum point contacts, highlighting the effects of transmission imperfections and tip parameters.

Contribution

It provides a perturbative analytical framework for extracting partial local density of states from weakly invasive scanning gate microscopy measurements in quantum point contacts.

Findings

Partial local density of states can be extracted on conductance plateaus.

Deviations from perfect transmission significantly affect the extraction.

Tip radius influences the accuracy of the local density of states measurement.

Abstract

Scanning gate microscopy images from measurements made in the vicinity of quantum point contacts were originally interpreted in terms of current flow. Some recent work has analytically connected the local density of states to conductance changes in cases of perfect transmission, and at least qualitatively for a broader range of circumstances. In the present paper, we show analytically that in any time-reversal invariant system there are important deviations that are highly sensitive to imperfect transmission. Nevertheless, the unperturbed partial local density of states can be extracted from a weakly invasive scanning gate microscopy experiment, provided the quantum point contact is tuned anywhere on a conductance plateau. A perturbative treatment in the reflection coefficient shows just how sensitive this correspondence is to the departure from the quantized conductance value and reveals the necessity of local averaging over the tip position. It is also shown that the quality of the extracted partial local density of states decreases with increasing tip radius.

Figures

Equations

$${\rho }_{l\epsilon }(\mathbf{r})=2\pi \sum _{a=1}^N|{\Psi }_{l,\epsilon ,a}(\mathbf{r}){|}^2,$$

$${\rho }_{\epsilon }(\mathbf{r})={\rho }_{1\epsilon }(\mathbf{r})+{\rho }_{2\epsilon }(\mathbf{r}),$$

$${\rho }_{1\epsilon }(\mathbf{r})=2\pi \sum _{m=1}^M|{\chi }_{1,\epsilon ,m}(\mathbf{r}){|}^2,x>0,$$

$${\rho }_{2\epsilon }(\mathbf{r})=2\pi \sum _{m=1}^M|{\chi }_{2,\epsilon ,m}(\mathbf{r}){|}^2,x<0.$$

$$g({\mathbf{r}}_{\mathrm{T}})=g^{(0)}+\delta g({\mathbf{r}}_{\mathrm{T}}),$$

$$\delta g(\mathbf{r})=v_{\mathrm{T}}{g}^{(1)}(\mathbf{r})+v_{\mathrm{T}}^2{g}^{(2)}(\mathbf{r})+O[v_{\mathrm{T}}^3].$$

$$g^{(0)}=\mathrm{Tr}[t^{†}t]=\sum _{m=1}^M{\mathcal{T}}_m^2$$

$$g^{(1)}=\frac{4\pi }{v_{\mathrm{T}}}\mathrm{Tr}\left[\mathcal{R}\mathcal{T}\mathrm{Im}\left\{{\mathcal{U}}^{21}\right\}\right],$$

$$g^{(2)}=$$

$$-\frac{4\pi }{v_{\mathrm{T}}^2}\sum _{\bar{l}=1}^2\mathcal{P}{\int }_{{\epsilon }_1^{\mathrm{t}}}^{\infty }\frac{\mathrm{d}\bar{\epsilon }}{\bar{\epsilon }-{\epsilon }_{\mathrm{F}}}\mathrm{Tr}\left[\mathcal{R}\mathcal{T}\mathrm{Im}\left\{{\mathcal{U}}^{2\bar{l}}({\epsilon }_{\mathrm{F}},\bar{\epsilon }){\mathcal{U}}^{\bar{l}1}(\bar{\epsilon },{\epsilon }_{\mathrm{F}})\right\}\right].$$

$${\mathcal{U}}_{\bar{m},m}^{\bar{l}l}(\bar{\epsilon },\epsilon )=\int {\chi }_{\bar{l},\bar{\epsilon },\bar{m}}^{\ast }(\mathbf{r})V_{\mathrm{T}}(\mathbf{r}){\chi }_{l,\epsilon ,m}^{}(\mathbf{r})\mathrm{d}\mathbf{r}$$

$$g^{(1)}({\mathbf{r}}_{\mathrm{T}})=4\pi \sum _{m=1}^M{\mathcal{R}}_m{\mathcal{T}}_m\mathrm{Im}\left\{{\chi }_{2,{\epsilon }_{\mathrm{F}},m}^{\ast }({\mathbf{r}}_{\mathrm{T}}){\chi }_{1,{\epsilon }_{\mathrm{F}},m}({\mathbf{r}}_{\mathrm{T}})\right\},$$

$$g^{(2)}({\mathbf{r}}_{\mathrm{T}})=-4{\pi }^2\sum _{m,\bar{m}=1}^M|{\chi }_{2,{\epsilon }_{\mathrm{F}},\bar{m}}({\mathbf{r}}_{\mathrm{T}}){|}^2|{\chi }_{1,{\epsilon }_{\mathrm{F}},m}({\mathbf{r}}_{\mathrm{T}}){|}^2,$$

$${\chi }_{2,\epsilon ,m}^{\ast }(\mathbf{r}){\chi }_{1,\epsilon ,m}^{}(\mathbf{r})$$

$$={\mathcal{T}}_m\left\{{\varrho }_{2,\epsilon ,m}^{(+)2}(\mathbf{r})+{\mathcal{R}}_m{\varrho }_{2,\epsilon ,m}^{(+)}(\mathbf{r}){\varrho }_{2,\epsilon ,m}^{(-)}(\mathbf{r})\right\}.$$

$$\mathrm{Im}\left\{{\chi }_{2,\epsilon ,m}^{\ast }(\mathbf{r}){\chi }_{1,\epsilon ,m}^{}(\mathbf{r})\right\}={\mathcal{T}}_m\mathrm{Im}\left\{{\varrho }_{2,\epsilon ,m}^{(+)2}(\mathbf{r})\right\}.$$

$$g^{(1)}({\mathbf{r}}_{\mathrm{T}})=4\pi \sum _{m=1}^M{\mathcal{R}}_m\mathrm{Im}\left\{{\chi }_{1,{\epsilon }_{\mathrm{F}},m}^2({\mathbf{r}}_{\mathrm{T}})\right\}.$$

$$g^{(1)}({\mathbf{r}}_{\mathrm{T}})=4\pi \sum _{m=1}^M{\mathcal{R}}_m\sin [2{\alpha }_{1,{\epsilon }_{\mathrm{F}},m}({\mathbf{r}}_{\mathrm{T}})]|{\chi }_{1,{\epsilon }_{\mathrm{F}},m}({\mathbf{r}}_{\mathrm{T}}){|}^2.$$

$$g^{(1)}({\mathbf{r}}_{\mathrm{T}})=2{\mathcal{R}}_1\sin [2{\alpha }_{1,{\epsilon }_{\mathrm{F}},1}({\mathbf{r}}_{\mathrm{T}})]{\rho }_{1{\epsilon }_{\mathrm{F}}}({\mathbf{r}}_{\mathrm{T}}).$$

$${\chi }_{2,\epsilon ,m}^{}(\mathbf{r})={\chi }_{1,\epsilon ,m}^{\ast }(\mathbf{r})$$

$$g^{(2)}({\mathbf{r}}_{\mathrm{T}})=-{\rho }_{1{\epsilon }_{\mathrm{F}}}^2({\mathbf{r}}_{\mathrm{T}}),$$

$${\chi }_{2,\epsilon ,m}^{}(\mathbf{r})=\frac{1}{{\mathcal{T}}_m}\left(1+{\mathcal{R}}_m{e}^{2i{\alpha }_{1,\epsilon ,m}(\mathbf{r})}\right){\chi }_{1,\epsilon ,m}^{\ast }(\mathbf{r})$$

$$g^{(2)}({\mathbf{r}}_{\mathrm{T}})=-2\pi {\rho }_{1{\epsilon }_{\mathrm{F}}}\sum _{m=1}^M|{\chi }_{1,{\epsilon }_{\mathrm{F}},m}({\mathbf{r}}_{\mathrm{T}}){|}^2\left(1+2{\mathcal{R}}_m\left\{\cos \left[2{\alpha }_{1,{\epsilon }_{\mathrm{F}},m}({\mathbf{r}}_{\mathrm{T}})\right]+{\eta }_{{\epsilon }_{\mathrm{F}}}({\mathbf{r}}_{\mathrm{T}})\sin \left[2{\alpha }_{1,{\epsilon }_{\mathrm{F}},m}({\mathbf{r}}_{\mathrm{T}})\right]\right\}\right),$$

$${\eta }_{{\epsilon }_{\mathrm{F}}}(\mathbf{r})=\frac{1}{\pi }\mathcal{P}{\int }_{{\epsilon }_1^{\mathrm{t}}}^{\infty }\frac{\mathrm{d}\bar{\epsilon }}{\bar{\epsilon }-{\epsilon }_{\mathrm{F}}}\frac{{\rho }_{\bar{\epsilon }}(\mathbf{r})}{2{\rho }_{1{\epsilon }_{\mathrm{F}}}(\mathbf{r})}$$

$$g^{(2)}({\mathbf{r}}_{\mathrm{T}})=-{\rho }_{1{\epsilon }_{\mathrm{F}}}^2-4\pi {\mathcal{R}}_M{\rho }_{1{\epsilon }_{\mathrm{F}}}|{\chi }_{1,{\epsilon }_{\mathrm{F}},M}({\mathbf{r}}_{\mathrm{T}}){|}^2\left\{\cos \left[2{\alpha }_{1,{\epsilon }_{\mathrm{F}},M}({\mathbf{r}}_{\mathrm{T}})\right]+{\eta }_{{\epsilon }_{\mathrm{F}}}({\mathbf{r}}_{\mathrm{T}})\sin \left[2{\alpha }_{1,{\epsilon }_{\mathrm{F}},M}({\mathbf{r}}_{\mathrm{T}})\right]\right\},$$

$$g^{(1)}({\mathbf{r}}_{\mathrm{T}})=4\pi {\mathcal{R}}_M|{\chi }_{1,{\epsilon }_{\mathrm{F}},M}({\mathbf{r}}_{\mathrm{T}}){|}^2\sin [2{\alpha }_{1,\epsilon ,M}({\mathbf{r}}_{\mathrm{T}})],$$

$$g^{(2)}({\mathbf{r}}_{\mathrm{T}})$$

$$\kappa ({\mathbf{r}}_{\mathrm{T}})=-\frac{g^{(2)}({\mathbf{r}}_{\mathrm{T}})}{{\rho }_{1{\epsilon }_{\mathrm{F}}}^2({\mathbf{r}}_{\mathrm{T}})}.$$

$$\kappa (\mathbf{r})=1+2\sqrt{\Delta g}\left\{\cos \left[2\alpha (\mathbf{r})\right]+\eta (\mathbf{r})\sin \left[2\alpha (\mathbf{r})\right]\right\}.$$

$$|\kappa -1|\le 2\sqrt{\Delta g}\sqrt{1+{\eta }_{\max }^2},$$

$${\sigma }^2=2\Delta g(1+\overline{{\eta }^2}),$$

$$C=\frac{|\overline{(⟨\delta g⟩-\overline{\delta g})(⟨{\rho }^2⟩-\overline{{\rho }^2})}|}{{\sigma }_{\delta g}{\sigma }_{{\rho }^2}}.$$

Full text

I Introduction

Since its development 20 years ago,Eriksson et al. (1996) scanning gate microscopy (SGM) has revealed fascinating phenomena in transport processes and has been considered as a powerful tool to probe local properties.Topinka et al. (2000, 2002) In this technique the conductance of an electronic device is measured while the tip of an atomic force microscope (AFM) is scanned above its surface. The AFM tip acts as a movable gate that scatters the electrons leading to a spatially dependent modulation of the conductance.Sellier et al. (2011)

One of the most investigated nanostructures is the quantum point contact (QPC)van Wees et al. (1988); Wharam et al. (1988) defined in a two dimensional electron gas (2DEG). When the tip is raster-scanned over the surface of the system, electrons are back-scattered to the QPC giving rise to a conductance map that exhibits a branched pattern. In the case of a QPC opening into an unconstrained 2DEG these patterns have been interpreted as a signature of the electron flow in the disordered potential resulting from the ionized donor atoms.Topinka et al. (2001); Jura et al. (2007) Thus, a link is presumed to exist between SGM measurements and local properties (local densities of states [LDOS] and current densities) of the unperturbed devices.

Typically, the tip voltages used to study QPC setups operating in the regime of conductance quantization are strong enough to create a large depletion disk (much bigger than the Fermi wavelength) in the 2DEG underneath the tip. The connection with local properties has been argued to concern the classical turning point of the electron trajectories with the Fermi energy that leave the QPC and encounter the tip potential.Heller and Shaw (2003)

In order to address this problem, the paradigmatic case of a QPC perturbed by a weakly invasive tip has been considered in the linear Jalabert et al. (2010); Gorini et al. (2013) and non-linear Gorini et al. (2014) regimes (in source-drain bias voltage). In particular, in the regime of conductance quantization of clean 2DEGs, spatial and time-reversal symmetries have been shown to play a key role in establishing a correspondence of the SGM response with the LDOS and the current density on both sides of the QPC.

The SGM technique has also been used to study systems with a variety of electronic confinements, including open quantum dots Crook et al. (2003); Burke et al. (2010); Kozikov et al. (2013); Steinacher et al. (2015); Pöltl et al. (2016); Kozikov et al. (2016) and Aharonov-Bohm rings built in high-mobility semiconductor heterostructures, Hackens et al. (2006); Martins et al. (2007); Pala et al. (2008, 2009) as well as carbon nanotubes Woodside and McEuen (2002) and graphene-based microstructures. Schnez et al. (2011); Cabosart et al. (2014) For systems with sufficient electronic confinement charging effects are relevant, and for very small quantum dots a biased SGM tip mainly acts as a gate that modifies the number of electrons in the dot and affects the conductance via the Coulomb-blockade phenomenon. Pioda et al. (2004); Fallahi et al. (2005); Woodside and McEuen (2002); Bleszynski et al. (2007); Schnez et al. (2011)

For relatively large and open quantum dots, the charging effects are not crucial and, as in the case of QPC setups, the connection between the SGM measurements and local properties has been pursued. In these systems, qualitative similarity between conductance changes and LDOS has been noted whenever the LDOS exhibits some localized structure. For instance, minima of the SGM response appear where the LDOS vanishes.Pala et al. (2008, 2009) Furthermore, numerical simulations for rectangular resonant cavities Kolasiński and Szafran (2013) indicated that the conductance terms derived in Ref. Jalabert et al., 2010 are correlated with the LDOS when the Fermi energy is close to a resonance with a cavity state. For one-dimensional systems, a perturbative approach has revealed that the first-order conductance change in the presence of a $\delta$-tip is related to the Hilbert transform of the LDOS. Gasparian et al. (1996); Pala et al. (2008)

It is important to note that electronic confinement is associated with a change in the interpretation of SGM maps with respect to the case of a QPC. Specifically tailored experiments have shown the need of such a change of interpretation when the QPC setup is modified by electronic confinement guiding the electron transport.Steinacher et al. (2016); Kozikov et al. (2016) The need of different interpretations for setups with and without electronic confinement can be traced, in the case of weakly invasive probes, to special features of conductance quantization characterizing QPCs in the absence of confinement, where the transmission channels are either completely open or closed.Jalabert et al. (2010)

The issue of whether the transmission channels are completely open (and otherwise completely closed), i.e. the perfect transmission case, turns out to play a crucial role in the interpretation of measurements and their relationships to local properties. It has been shown that in the case of perfect transmission, the second order conductance change is the first non-vanishing term in a perturbation seriesJalabert et al. (2010) and it is proportional to the square of the LDOS.Gorini et al. (2013) However, the analytic relationship between conductance changes and local properties becomes more complicated for imperfect transmission.

In this paper analytical and numerical approaches are developed to study the connection between SGM measurements and local properties for the case of a QPC in which the tip potentials can be perturbative or non-perturbative, local or extended, etc. In addition, cases where the 2DEG surrounding the QPC can be disordered or clean are treated. First, in the perturbative regime and on a perfect conductance plateau (i.e. at perfect transmission), the SGM on one side of the QPC is unambiguously related to the partial LDOS (PLDOS, defined in the next section) of scattering states impinging from the other side, with no requirement of spatial symmetry. Thus, the PLDOS plays a more fundamental role than the LDOS. Next, it turns out that there are significant deviations from the PLDOS that are highly sensitive to how far one is from a perfect transmission case. Nevertheless, averaging over the tip position allows one to develop a quantitative method for extracting the PLDOS even in this regime. Finally, it is shown that increasing the width of the tip reduces the quality of the PLDOS one can extract.

In Sec. III the main results of the existing analytic perturbation theoryJalabert et al. (2010); Gorini et al. (2013) are summarized. The analytical derivation of the relationship between SGM and PLDOS for weak local tips is presented in Sec. IV for the case of conductance steps and in Sec. V for the case of perfect unit conductance. The corrections for non-perfect unit conductance are treated perturbatively in Sec. VI. A method for extracting the PLDOS and effectively disentangling first and second order contributions to the conductance response for imperfect transmission are given. Numerical simulations of the second-order conductance correction dominant in the perfect transmission case are presented in Sec. VII for the case of local tips and the full conductance correction is shown in Sec. VIII. The case of extended tips is discussed in Sec. IX. Some technical aspects related with the scattering states are relegated to Appendix A, and Appendix B establishes the link of a particular contribution to the SGM response with the LDOS.

II Partial local density of states in the scattering formalism

The spinless partial local density of states (PLDOS) for electrons impinging into the scatterer from lead $l$ can be defined byBüttiker and Christen (1996); Gramespacher and Büttiker (1999)

[TABLE]

using the sub-ensemble of the basis of outgoing scattering states (33) incoming from lead $l$. $N$ is the number of propagating modes in the lead at the energy $\varepsilon$.

The decomposition of the spinless local density of states (LDOS) $\rho_{\varepsilon}(\mathbf{r})$ as

[TABLE]

valid for the two-lead case, naturally appears in scattering problems in which one is concerned with the response of the system to a small perturbation of the confining potential.Gasparian et al. (1996) Such is the case of the SGM response, as well as that of the self-consistent treatment of electrical a.c. transport in mesoscopic systems.Gramespacher and Büttiker (1999) The definition (1) corresponds to an injectivity, Gasparian et al. (1996); Büttiker and Christen (1996); Gramespacher and Büttiker (1999) where the preselection of carriers is done by the incident lead $l$ from where they impinge into the scatterer.

Denoting by $M$ the number of open transmitting eigenchannels, the basis of scattering eigenfunctions (39) gives the expressions for the PLDOS on the right and left, respectively, of the scatterer as

[TABLE]

Since quite generally, $M\ll N$, and the transmitted parts of the scattering eigenstates (39) are proportional to the diagonal elements of the transmission submatrices, the expressions (3) are considerably easier to evaluate than (1). However, it is important to keep in mind that the expressions (3a) and (3b) only describe the region opposite to the lead determining their PLDOS, and are not appropriate for obtaining the LDOS using Eq. (2) since they refer to different regions of space. For instance, for a QPC embedded in a clean 2DEG, $\rho_{1\varepsilon}(\mathbf{r})\propto 1/|\mathbf{r}|$ far away from the QPC Abbout et al. (2011), while the LDOS is independent of $\mathbf{r}$.

III Perturbative results

An analytical description of SGM in the presence of a strong tip is a challenging theoretical task. However, a perturbative approachJalabert et al. (2010) is tractable in the weakly invasive case, where the tip-induced potential constitutes a small perturbation of the electrostatic potential seen by the electrons. To begin, consider a weak tip potential $V_{\mathrm{T}}(\mathbf{r})=v_{\mathrm{T}}f(\mathbf{r}-\mathbf{r}_{\mathrm{T}})$, where $f(\mathbf{r})$ is a normalized function with $\int\mathrm{d}\mathbf{r}f(\mathbf{r})=1$, which perturbs the system. The change in the dimensionless (in units of $2e^{2}/h$) tip-position dependent conductance can be written as

[TABLE]

with

[TABLE]

The unperturbed conductance $g^{(0)}$ is given by the Landauer-Büttiker formula as the total transmission probability. It can be expressed as a trace over the propagating modes

[TABLE]

in terms of the transmission submatrix $t$ of the unperturbed scattering matrix $S$ at the Fermi energy $\varepsilon_{\mathrm{F}}$ or the transmission eigenvalues ${\cal T}_{m}$ of the $M$ open eigenchannels (see Appendix A).

The basis of the transmission eigenmodes is particularly suited to express the SGM conductance corrections. Assuming time-reversal invariance from here on, the two lowest-order corrections Jalabert et al. (2010); Gorini et al. (2013) are

[TABLE]

[TABLE]

$\mathcal{R}$ and $\mathcal{T}$ are real diagonal reflection and transmission submatrices appearing in the polar decomposition (34) of $S$. The matrix elements

[TABLE]

are those of the tip potential between two scattering eigenfunctions, where $l$, $m$ and $\varepsilon$ label the incoming lead, the channel number, and the electron energy of the scattering eigenfunction, respectively. If the arguments of $\mathcal{U}^{\bar{l}l}$ are omitted, it is understood that both are taken at $\varepsilon_{\mathrm{F}}$, and the necessary matrix element tip position dependence on $\mathbf{r}_{\mathrm{T}}$ is assumed. The limiting integration energy $\varepsilon^{\mathrm{t}}_{1}$ is that of the lowest transverse energy and $\mathcal{P}$ stands for the principal part of the integral. The traces over the $N$ propagating modes in the leads in Eqs.  (7) and (8) are dominated by the contribution from the subspace of the $M$ open eigenmodes.

On a conductance plateau where the transmission is perfect, $\mathcal{R}_{m}\mathcal{T}_{m}=0$ for all eigenmodes $m$. There, the first order contribution (7) vanishes Jalabert et al. (2010); Gorini et al. (2013) and the SGM response is given by $v_{\mathrm{T}}^{2}g^{(2)}$; note that only one term above of $v_{\mathrm{T}}^{2}g^{(2)}$ survives as well. The relative importance of the linear and the quadratic SGM responses when moving between conductance plateaus and conductance steps of the QPC can also be affected by temperature, which mixes the two regimes, and can lead to an increase of the SGM response with increasing temperature as it was obtained in Ref. Abbout et al., 2011.

Although it is not of direct experimental relevance, the case of a local tip $f(\mathbf{r})=\delta(\mathbf{r})$ is an interesting study case. In particular, the first-order conductance correction reduces to

[TABLE]

and the second-order correction for perfect transmission reduces to

[TABLE]

where $M$ stands for the number of the partially open eigenchannels of the QPC in Eq. (10) and perfectly open channels in Eq. (11). These expressions can be further simplified in cases exhibiting various kinds of symmetries and/or where the geometry allows for the evaluation of the scattering wave-functions.Jalabert et al. (2010); Gorini et al. (2013)

IV $g^{(1)}(\mathbf{r}_{\mathrm{T}})$ versus PLDOS in the conductance steps

Focusing first on a QPC setup without disorder, the asymptotic form of the scattering eigenfunctions can be used everywhere in the 2DEG, except in and very close to the constriction. The form (39) enables expressing the product of scattering eigenfunctions impinging from different leads, in the first order correction (10) due to a weak $\delta$-potential scanned in the right of the QPC, as

[TABLE]

Recalling $\varrho_{2,\varepsilon,m}^{(-)}(\mathbf{r})=\varrho_{2,\varepsilon,m}^{(+)\,*}(\mathbf{r})$, leads to

[TABLE]

From (39c) we have $\varrho_{2,\varepsilon,m}^{(+)}(\mathbf{r})=\chi_{1,\varepsilon,m}(\mathbf{r})/\mathcal{T}_{m}$ for $x>0$ in the case of open modes ($\mathcal{T}_{m}\neq 0$). Thus, Eq. (10) simplifies to

[TABLE]

Denoting $\alpha_{l,\varepsilon,m}(\mathbf{r})$ as the argument of $\chi_{l,\varepsilon,m}(\mathbf{r})$, Eq. (14) can be written

[TABLE]

The sum over eigenmodes reduces to the contribution of the last one ($m=M$), which is the only partially open channel having $R_{m}>0$.

In the case of a single open channel ($M=1$) there is a direct relation between the first-order conductance change and the PLDOS since, according to (3),

[TABLE]

However, in the case of $M>1$, the structure of the $m$-sum in Eq. (15) does not reduce to a simple relationship with $\rho_{1\varepsilon_{\mathrm{F}}}(\mathbf{r})$.

In a disorder-free 2DEG, the prefactor $\sin(2\alpha_{1,\varepsilon_{\mathrm{F}},1})$ of the SGM response (16) is simply $\sin(2k_{\mathrm{F}}r+\alpha_{0})$ with a constant phase $\alpha_{0}$, thus generating half Fermi wavelength, $\lambda_{\mathrm{F}}/2$, oscillations and a proportionality factor $2\mathcal{R}_{1}$ between the spatial oscillation amplitude of the first order conductance correction in the first step and the PLDOS.

In the case of a disordered structure, Eq. (16) does not apply inside the disordered region, nevertheless if the disorder is weak and leads to small-angle forward scattering only, one can expect the structure of Eq. (16) to mostly remain. For example, the phase oscillation cannot have such a simple position-dependence strictly speaking, but a paraxial optical approximation Brown et al. (2003) holds and a fairly regular radial phase behavior of nearly the same wavelength persists in the eigenfunctions. In these circumstances, the explicit dependence of the SGM response on the phase of the scattering eigenfunction might be helpful in characterizing properties of the fluctuating potential in the 2DEG with further analysis.

In general, the first-order conductance correction in tip-strength is not proportional to the PLDOS, even for the case of a $\delta$-tip. In fact, $g^{(1)}(\mathbf{r}_{\mathrm{T}})$ is only local in the sense that $\mathrm{Im}\left\{\chi_{1,\varepsilon_{\mathrm{F}},m}^{2}(\mathbf{r}_{\mathrm{T}})\right\}$ is the local information about the eigenfunction of the unperturbed system. However, in the case of a single partial mode the PLDOS provides an upper bound for the absolute value of the former, and the sinusoid term creates a fringing effect.

For one-dimensional tight-binding systems the SGM response has been expressed in terms of the real part of the local Green function Gasparian et al. (1996); Pala et al. (2008) and thereby related to the LDOS. We have checked that in the case of a one-dimensional chain the first-order conductance correction (10) (and therefore also the relation (16)) is consistent with the result of Refs. Gasparian et al., 1996; Pala et al., 2008. However, (10) is more general and (16) is expected to be valid whenever there is only one single partially open mode of the QPC, without being limited to strictly one-dimensional systems.

V Correspondence between $g^{(2)}(\mathbf{r}_{\mathrm{T}})$

and PLDOS for perfect transmission

Symmetries have been shown to play a key role in the quest of identifying SGM maps with local properties.Gorini et al. (2013) In particular, for a four-fold symmetric QPC operating in the regime of perfect transmission, the conductance change induced by a weak local tip in the absence of magnetic field has been shown to be proportional to the square of the LDOS, and also proportional to the local current density. In the same framework, it has been pointed out Szewc (2013) that the correspondence with the PLDOS holds even for asymmetric QPCs, provided that the conductance is set to the first plateau, as long as the system remains time reversal invariant.

An important task, undertaken in this section, is the generalization of previous results to any conductance plateau of an arbitrary QPC under the sole assumptions of time-reversal symmetry and a local tip. To describe transport within the Landauer formalism, the QPC can be treated as a scatterer centered at the origin $\mathbf{r}=0$. With the definitions of Appendix A, $\varphi^{(-)*}_{l,\varepsilon,m}(\mathbf{r})=\varphi^{(+)}_{l,\varepsilon,m}(\mathbf{r})$, and $\varrho^{(-)*}_{l,\varepsilon,m}(\mathbf{r})=\varrho^{(+)}_{l,\varepsilon,m}(\mathbf{r})$. Therefore, on the $m$-th conductance plateau, where ${\cal{R}}_{m}=0$,

[TABLE]

in the 2DEG on both sides of the QPC. Using this relationship in the second order correction (11) leads to

[TABLE]

for $\mathbf{r}_{\mathrm{T}}$ at the right of the QPC.

Unlike the relation for the first step, which is linear in the PLDOS and fringed in space, perfect transmission on any plateau leads to a quadratic dependence on the PLDOS without fringing. Interestingly, no spatial symmetry is required for the correspondence (18) in the considered regime of conductance quantization. Nevertheless, a perfect conductance quantization with exact unit transmission is a regime difficult to reach in experiments with real QPCs.

VI $g^{(2)}(\mathbf{r}_{\mathrm{T}})$ versus PLDOS near perfect transmission

In Sec. V perfect transmission is assumed in order to establish the correspondence between the second order conductance correction and the PLDOS. Here that condition is relaxed. Beyond the unity case of perfect conductance quantization where all $\mathcal{R}_{m}=0$, the first-order correction (15) is nonzero, and all terms of the second-order correction $g^{(2)}$ in Eq. (8) must be considered.

Begin with the situation of transmission slightly below the unity case on the $M$th conductance plateau, where the transmission of the highest open channel $M$ is not perfect. The expressions of the scattering eigenstates (39c) and (39f) can be used to find that

[TABLE]

for an open mode at the right of a generic QPC. By inserting (19) into Eq. (8) (where the last term is related to a Hilbert transform of the density of states [see Appendix B]), and only keeping the lowest order terms in $\mathcal{R}_{m}$, $g^{(2)}$ reads

[TABLE]

where

[TABLE]

for positions $\mathbf{r}$ to the right of the QPC. Notice that the relation of the LDOS to the imaginary part of the diagonal Green function $\mathcal{G}_{\varepsilon}(\mathbf{r},\mathbf{r})$ implies $\eta_{\varepsilon_{\mathrm{F}}}(\mathbf{r})=-\mathrm{Re}\mathcal{G}_{\varepsilon_{\mathrm{F}}}(\mathbf{r},\mathbf{r})/(2\pi\rho_{1\varepsilon_{\mathrm{F}}}(\mathbf{r}))$. Taking $\mathcal{R}_{m}=0$ for all $m<M$ gives

[TABLE]

and the small reflection amplitude is linked to the deviation from unit conductance by $\Delta g=\mathcal{R}_{M}^{2}$, where $\Delta g=M-g^{(0)}$ quantifies the departure from unit transmission on the $M$th plateau. In the case of unit transmission one has $\mathcal{R}_{M}=0$, and (22) reduces to (18). For completeness, in the same regime Eq. (16) can be rewritten as

[TABLE]

which has similarities in its form with respect to the correction terms for $g^{(2)}(\mathbf{r}_{\mathrm{T}})$. Recall however, the corresponding conductance correction varies linearly with the strength of the tip potential unlike for $g^{(2)}(\mathbf{r}_{\mathrm{T}})$.

In the case of transmission just above the unity case with low transmission $\mathcal{T}_{M+1}$ through the QPC mode $M+1$, a similar procedure, assuming $\mathcal{R}_{m}=0$ for all $m\leq M$ and keeping only the lowest terms in $\mathcal{T}_{M+1}$ yields

[TABLE]

The small transmission in the QPC channel $M+1$ causes departures from (18) that are expected to be proportional to $\mathcal{T}_{M+1}^{2}$.

However, in a real system slightly above integer dimensionless conductance, the small transmission of the $M+1$st channel can coexist with an imperfect transmission of the $M$th channel, $\Delta g=\mathcal{R}_{M}^{2}-\mathcal{T}_{M+1}^{2}$, and the departure from (18) has contributions from both channels, which are difficult to separate in the numerical work. To avoid this complication, we concentrate in the following on the case of positive $\Delta g$, at positions on the conductance plateau where the opening of the next channel is exponentially suppressed and thus negligible.

It is worth emphasizing a few features of the expressions contained in Eqs. (22, 23). The scale of the deviations from the square of the PLDOS is greatly magnified by being proportional to the square root of $\Delta g$ as opposed to being linear. In other words the approach to the perfect transmission case is rather slow with respect to the limit $\Delta g\rightarrow 0$, and even tiny imperfections produce highly visible deviations. Nevertheless, all the deviations oscillate about zero with a wavelength on the order of $\lambda_{F}/2$, and a spatial averaging over a region $\lambda_{F}/2\times\lambda_{F}/2$ results in a near uniform distribution of angles $\alpha$ over $2\pi$, giving a means for the near elimination of the correction terms in (22). Thus, though with reduced spatial resolution, it is still possible to cleanly extract the PLDOS. The PLDOS is not proportional to the LDOS in this case, and the distinction matters.

Furthermore, since the contribution of $g^{(1)}(\mathbf{r}_{\mathrm{T}})$ to $\delta g(\mathbf{r}_{\mathrm{T}})$ is linearly proportional to the tip strength $v_{\mathrm{T}}$ and the contribution of $g^{(2)}(\mathbf{r}_{\mathrm{T}})$ quadratic, measurements with two well chosen values of $v_{\mathrm{T}}$ would be sufficient to separate out the contributions from Eqs. (22) and (23); with a few more tip strength measurements per tip site, noise and other inaccuracies could be overcome in the separation as well. In the event that $|\chi_{1,\varepsilon_{\mathrm{F}},M}(\mathbf{r}_{\mathrm{T}})|^{2}$ mostly varies slowly on the scale of $\lambda_{F}$, then probability densities due to individual eigenstates and the spatial behavior of $\alpha$ could be extracted as well. Given that $\eta(\mathbf{r})$ is related to the phase of the real part of the diagonal Green function, in an ideal situation, it could be extracted also.

In order to quantify the departures of $g^{(2)}(\mathbf{r}_{\mathrm{T}})$ from the perfect case, introduce the ratio between the coefficient of the second order SGM correction and the square of the PLDOS

[TABLE]

If the unperturbed conductance $g^{(0)}$ is just below that of $M=1$, and the sum over QPC eigenmodes is restricted to $m=1$, then

[TABLE]

The indices of $\alpha$ and $\eta$ are omitted; it is understood that $\alpha=\alpha_{1,\varepsilon_{\mathrm{F}},1}$ and $\eta=\eta_{\varepsilon_{\mathrm{F}}}$.

As mentioned above, even fairly local spatial averaging approximately yields $\overline{\kappa}=\langle\kappa(\mathbf{r})\rangle=1$. Interest is therefore in the quantity $\kappa-1$. Similar to the case of the first-order SGM correction at a conductance step, discussed in Sec. IV, the above relationship provides bounds for the possible values of the ratio $\kappa$,

[TABLE]

where $\eta_{\mathrm{max}}$ is the maximum value of $|\eta(\mathbf{r})|$. A priori, $\eta_{\mathrm{max}}$ is not known, but if not extracted as described, it can be obtained by direct numerical computation of the scattering wavefunctions (see Sec. VII) or estimated from simple setups, like that of an abrupt QPC, where the analytical form of the scattering wave-functions is known. Gorini et al. (2013) The maximum value of $\eta$ occurs in regions where the PLDOS is weak, and can in general approach infinity. It’s actual value depends on the problem and region under consideration. In one numerical example given ahead, its maximum is of the order of $60$.

Another interesting quantity is the variance of $\kappa-1$ given by

[TABLE]

where $\overline{\eta^{2}}$ is the average value of $\eta^{2}$ in the scan region.

VII $g^{(2)}(\mathbf{r}_{\mathrm{T}})$ versus PLDOS for local tips : simulations

In order to test our analytical approach and go beyond the above described perturbation theory we performed numerical simulations using the quantum transport package kwant Groth et al. (2014) that is based on the recursive Green function method. Lee and Fisher (1981) It can be used to calculate $\delta g(\mathbf{r})$ as a direct subtraction, and $g^{(1)}(\mathbf{r}_{\mathrm{T}})$ or $g^{(2)}(\mathbf{r}_{\mathrm{T}})$ by constructing numerical derivatives with respect to $v_{\mathrm{T}}$.

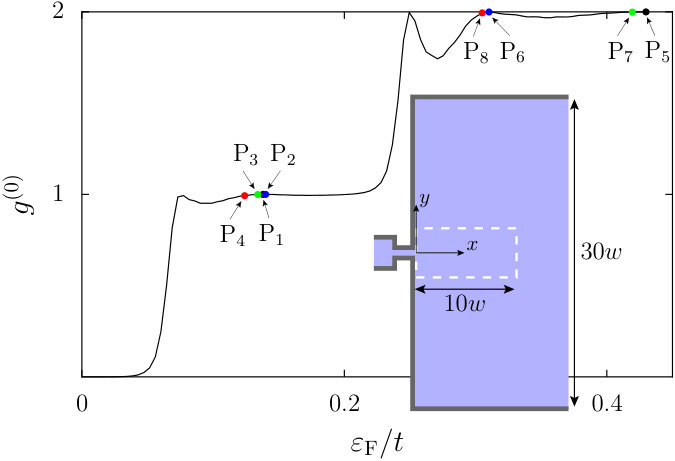

In our simulations the 2DEG is discretized on a tight binding network with lattice parameter $a$ and a hopping integral $t=\hbar^{2}/(2{m^{*}}a^{2})$, $m^{*}$ being the electron’s effective mass. We chose an abrupt constriction defined by a hard-walled square well of width $w=11a$ and length $L=19a$ attached to two semi-infinite leads, sketched in the inset of Fig. 1. In order to optimize the computational time the left lead is narrowed. Figure 1 shows the dimensionless conductance through the QPC as a function of the Fermi energy of the incoming electrons. As the latter is increased the QPC’s conductance increases in steps of unit height. The structures on the plateaus are due to the abruptness of the QPC that lead to Fabry-Perot like oscillations within the constriction. Szafer and Stone (1989)

VII.1 Local correspondence for perfect transmission

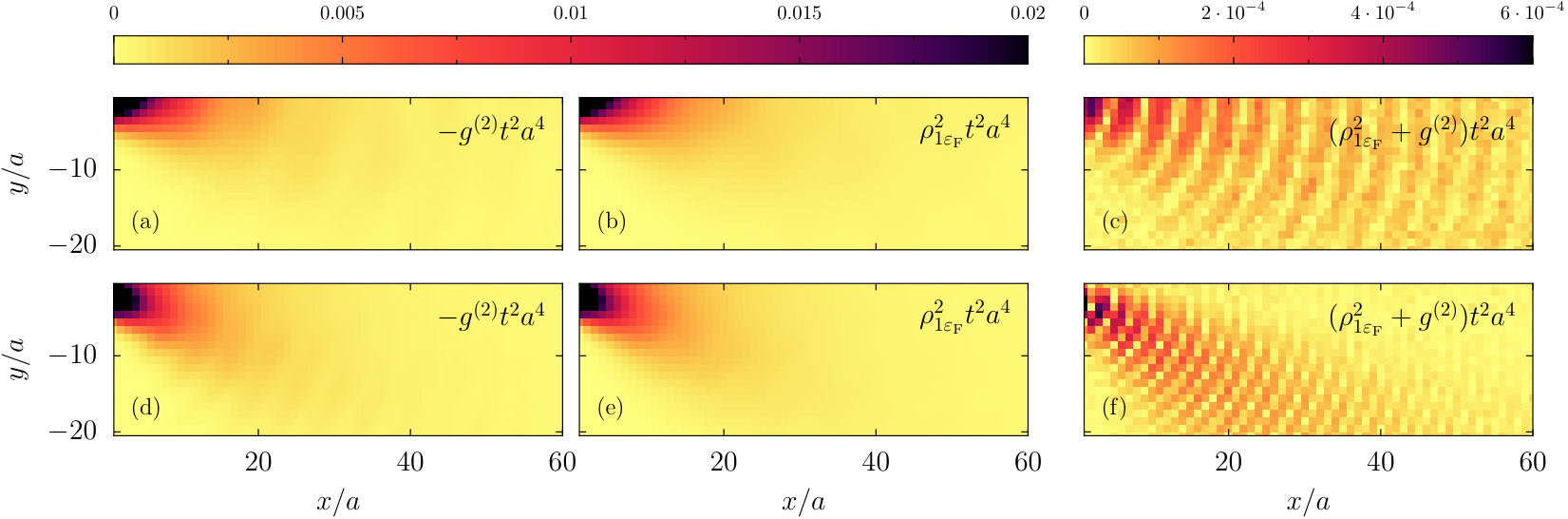

In order to address this regime, consider the analytically predicted relationship (18) between the second-order conductance correction $g^{(2)}(\mathbf{r}_{\mathrm{T}})$ for a $\delta$-tip and the PLDOS for perfect conductance. On the tight binding lattice, the $\delta$-tip is modeled as an additional on-site energy $\varepsilon_{\mathrm{T}}$ on a single site, corresponding to a tip area of $a^{2}$ and thus $v_{\mathrm{T}}=\varepsilon_{\mathrm{T}}a^{2}$. This strength is varied so as to extract $g^{(2)}(\mathbf{r}_{\mathrm{T}})$. The Fermi energies are chosen on the first and second plateaus for which the values of the unperturbed conductances $g^{(0)}$ are very close to perfect transmission with $|\Delta g|<10^{-5}$ (points $\mathrm{P}_{1}$ and $\mathrm{P}_{5}$ in Fig. 1). The corresponding Fermi wavelengths are $\lambda_{\mathrm{F}}=16.8a$ and $\lambda_{\mathrm{F}}=9.4a$, respectively. The resultant conductance responses are shown in Fig. 2, where $g^{(2)}(\mathbf{r}_{\mathrm{T}})$ is compared to $-\rho_{1\varepsilon_{\mathrm{F}}}^{2}$ for the first plateau case in panels (a) and (b) and likewise for the second plateau case in panels (d) and (e). The correspondence is excellent as expected given the regime of the calculation. This is illustrated in panels (c) and (f), which show the differences,$\left[\rho_{1\varepsilon_{\mathrm{F}}}^{2}+g^{(2)}(\mathbf{r}_{\mathrm{T}})\right]$, respectively, for the two plateaus. The differences are quite small as is expected and they show the $\lambda_{\mathrm{F}}/2$ oscillations, which are characteristic of the correction terms for imperfect transmission.

VII.2 Departures from local correspondence for imperfect transmission

It is shown in Sec. VI that the precise local correspondence between the second-order SGM correction and the PLDOS squared degrades away from perfect transmission. We now present a quantitative numerical analysis of the departure from local correspondence for the example of the second conductance plateau of the QPC. Similar results can be obtained on other plateaus. Figure 3 presents the values of $g^{(2)}(\mathbf{r}_{\mathrm{T}})$ and $\rho_{1\varepsilon_{\mathrm{F}}}^{2}$

at different points of the scanned region inside the white dashed rectangle shown in the inset of Fig. 1. The region of length $10w$ has been chosen so as to contain points close to the QPC and at larger distances. This region width is small as compared to the width of the 2DEG ($30w$), and additional lateral leads on the full length at the right of the QPC are used in order to avoid finite size effects.

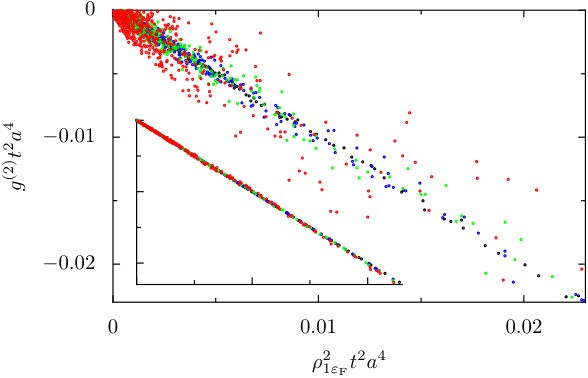

The data shown in Fig. 3 confirm that the exact point-by-point local correspondence is progressively broken as $|\Delta g|$ increases. Close to the perfect transmission condition, for the case with $\Delta g=8\times 10^{-6}$ ($\mathrm{P}_{5}$ in Fig. 1 with scans depicted in the lower panels of Fig. 2), the equivalence between $-g^{(2)}(\mathbf{r}_{\mathrm{T}})$ and the square of the PLDOS is attained (black dots). For other points of the unperturbed conductance shown in Fig. 1, $\mathrm{P}_{6}$ with $\Delta g=5\times 10^{-4}$ (blue), $\mathrm{P}_{7}$ with $10^{-3}$ (green) and $\mathrm{P}_{8}$ with $6\times 10^{-3}$ (red), the sampled points exhibit progressively wider distributions around the equivalence (18). The distributions are displayed in Fig. 4, where $\kappa-1$ is plotted for different Fermi energies on the first plateau ($\mathrm{P}_{1}$, $\mathrm{P}_{2}$, $\mathrm{P}_{3}$, and $\mathrm{P}_{4}$ in Fig. 1), labeled by the value of $\Delta g$. In agreement with our analytical findings of the previous section, the average value of $\kappa$ remains equal to one, but the width of the distribution drastically increases with $\Delta g$ within the bounds $\kappa_{\pm}$ established in Eq. (27) (solid lines) using the value $\eta_{\mathrm{max}}=60$ of the abrupt QPC.

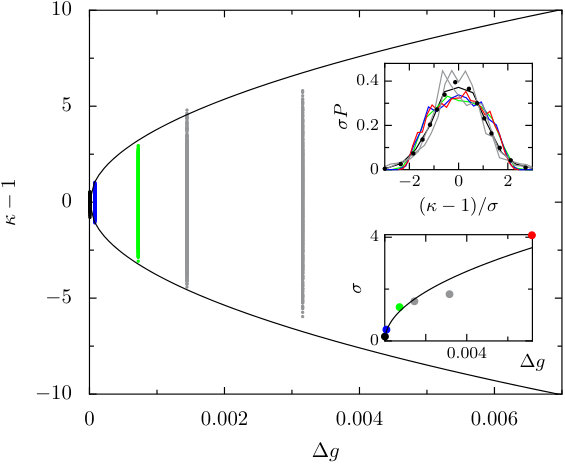

The probability density of $(\kappa-1)/\sigma$ is shown in the upper inset of Fig. 4, for the same positions on the first conductance plateau. The rescaling by the variance collapses the probability densities for all the values of $\Delta g$ to approximately a universal Gaussian form (dotted line). The analytical result of (28) for the standard deviation $\sigma$ of the ratio $\kappa$ from its mean value ($\kappa=1$), is evaluated using the assumption $\overline{\eta^{2}}=(\eta_{\mathrm{max}}/2)^{2}$, and is shown to agree with the numerical results (lower inset of Fig. 4).

The possible connection of SGM response with local properties needs to be extended to the realistic situation where the QPC is surrounded by a disordered 2DEG. Though it is difficult to treat this case analytically because the asymptotic form of the scattering wave-functions is attained only beyond the region of disorder far from the QPC, the incorporation of disorder in the numerically tackled model is straightforward. We assume the disorder to be due to randomly distributed donor atoms in a plane situated at a distance $z=10a$, with a concentration of $N_{d}=4\times 10^{-4}a^{-2}$. By taking $a=5\,\mathrm{nm}$, $N_{d}$ is equal to $10^{12}\,\mathrm{{cm}^{-2}}$, which is a realistic value for a high mobility 2DEG, and corresponds to elastic and transport mean free paths of $1$ and $52\,\mathrm{\mu m}$, respectively. The two vertical gray lines in Fig. 4 correspond to samplings of different disorder configurations, resulting in small departures from unit transmission, which are quantified by the values of $\Delta g$. Thus, disordered QPCs, as well as clean ones, have departures from the local relation between $-g^{(2)}(\mathbf{r}_{\mathrm{T}})$ and the PLDOS squared that are uniquely governed by the crucial parameter $\Delta g$.

VII.3 Locally averaged correspondence for local tips

Sections VI and VII.2 show that even small deviations from perfect conductance drastically alter the SGM-PLDOS correspondence. However, according to Eq. (26) and the calculations of the (Fig. 3) inset, the average of $\kappa$ is equal to unity. The precise $\kappa$ values though should fluctuate in a quasi-random way with a standard deviation scaling as the square root of $\Delta g$. Such a behavior is the signature of the $\lambda_{\mathrm{F}}/2$-wavelength oscillations in the SGM response occurring in the clean case, which is modified in the presence of disorder. Nevertheless, as discussed in Sect. VI, the oscillations should self cancel once averaged over a domain of length scale as short as $\lambda_{\mathrm{F}}/2$ in both directions of the plane. In order to verify this interpretation, the numerically obtained values are averaged over a disk of radius of $\lambda_{\mathrm{F}}/2$. As illustrated in the inset of Fig. 3, the averaging results in a data collapse yielding the equivalence between $\langle-g^{(2)}(\mathbf{r}_{\mathrm{T}})\rangle$ and $\langle\rho_{1\varepsilon_{\mathrm{F}}}^{2}(\mathbf{r}_{\mathrm{T}})\rangle$, even in the case of imperfect unit transmission. The recovery of the SGM-PLDOS correspondence upon averaging shows that there is a global structural correspondence with a characteristic length scale given by the Fermi wavelength. However, this correspondence is found for a local tip and only between the PLDOS squared and the second order correction.

A finite temperature also has a tendency to reduce the fringes with period $\lambda_{\mathrm{F}}/2$ that are the main deviations from the SGM-PLDOS correspondence. Though the related mechanism is an energy average, very different from the spatial average proposed above, it might still be possible that a moderate temperature helps to improve the extraction of the PLDOS from SGM data.

VIII Full SGM response for local tips

A priori, from an experimental point of view, the relationship between the various order terms and the full conductance change is not obvious. Even for weakly imperfect transmission somewhere on a plateau, depending on the tip strength, the full SGM response may depend not just on the leading second order term, but also crucially on the first and the other higher order terms. Thus, $\delta g(\mathbf{r}_{\mathrm{T}})$ can vary considerably as a function of the tip strength for less than perfect transmission cases, which would most often be the case in experiments. This is illustrated in Fig. 5, where $\delta g(\mathbf{r}_{\mathrm{T}}),g^{(1)}(\mathbf{r}_{\mathrm{T}}),g^{(2)}(\mathbf{r}_{\mathrm{T}})$ are plotted for two different tip strengths. The longer system treated here, in comparison with the simulations of Fig. 2, is numerically more demanding and thus the width of the 2DEG at the right of the QPC is limited to $20w$. The specific example illustrated is on the second plateau of the quantized conductance where $\Delta g=1.3\times 10^{-4}$ using tip strengths of $v_{\mathrm{T}}=\varepsilon_{\mathrm{F}}a^{2}/4$ and $v_{\mathrm{T}}=3\varepsilon_{\mathrm{F}}a^{2}$. The characteristic branching behavior of the fringes due to disorderTopinka et al. (2001) is observed. The changing nature of the full SGM response and its relationships with the linear and quadratic parts of the response are clearly seen.

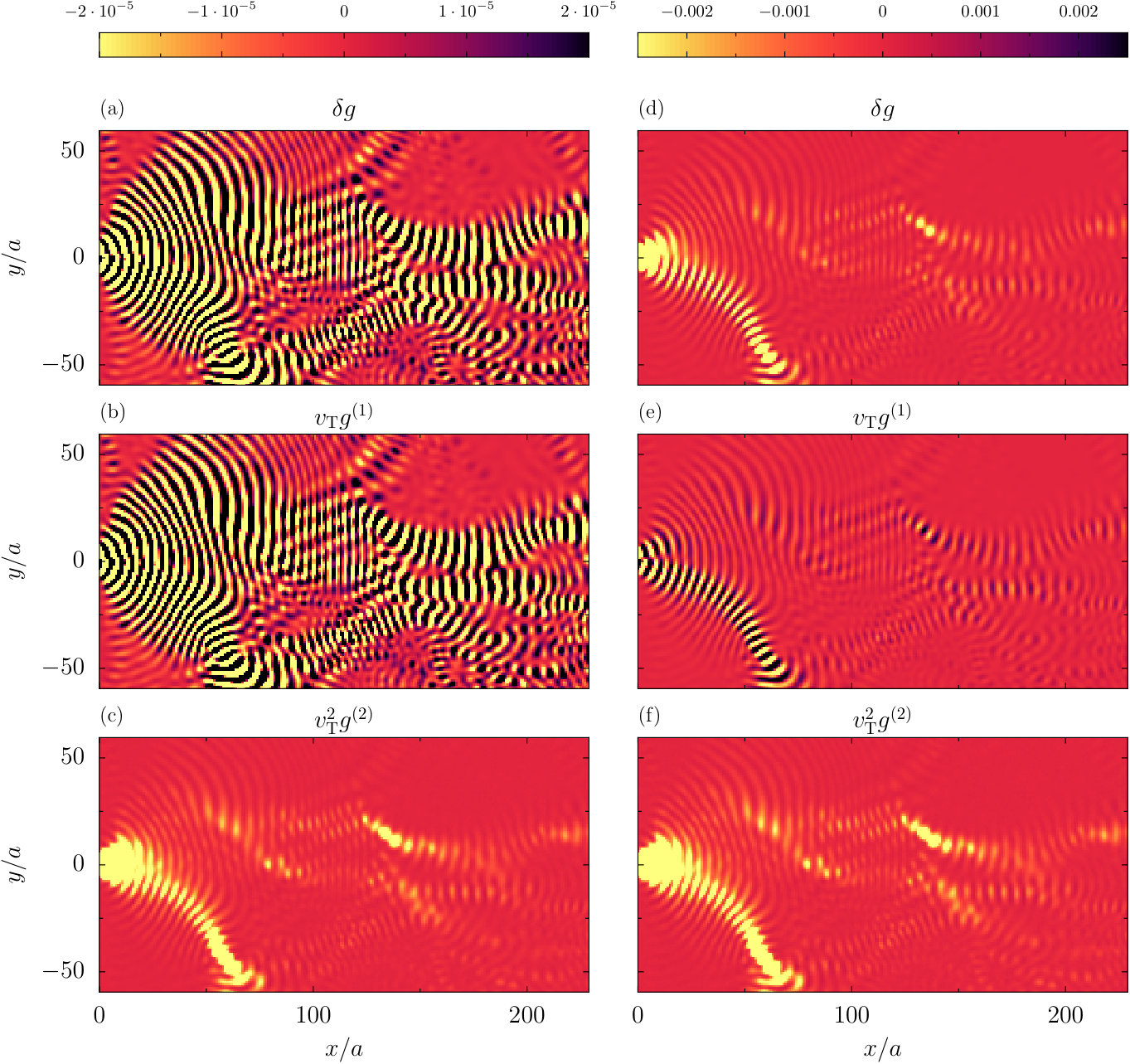

Continuing to restrict ourselves to the weakly invasive regime, if the goal were to extract a local quantity, in this case, the square of the PLDOS, two operations would greatly enhance the quality of the analysis. The first is to make a few measurements with different tip strengths. Depending on the accuracy of the measurements or ambient noise, this would allow one to separate linear, quadratic, or even higher order variations with respect to tip strength. The quadratic dependent response is the one related to the PLDOS squared; see Eq. (22). Second, one would average the data over a region of sidelength or radius $\lambda_{\mathrm{F}}/2$. Consider the weak tip strength case illustrated in Fig. 5. There, the first order term dominates the full SGM response $\delta g(\mathbf{r}_{\mathrm{T}})$. Nevertheless, extracting first the quadratic tip dependent part of the full response before averaging leads to a much more accurate extraction of the PLDOS squared. This is illustrated in Fig. 6. In the first row, $\delta g(\mathbf{r}_{\mathrm{T}})$ is shown with its locally averaged image to the right. In the next row, the quadratic tip dependence is deduced first, and then averaged. Finally in the bottom row, the negative of the squared PLDOS is plotted along with its average. The improvement in the correspondence of the quadratic portion of $\delta g(\mathbf{r}_{\mathrm{T}})$ relative to the full response to the average PLDOS is quite striking.

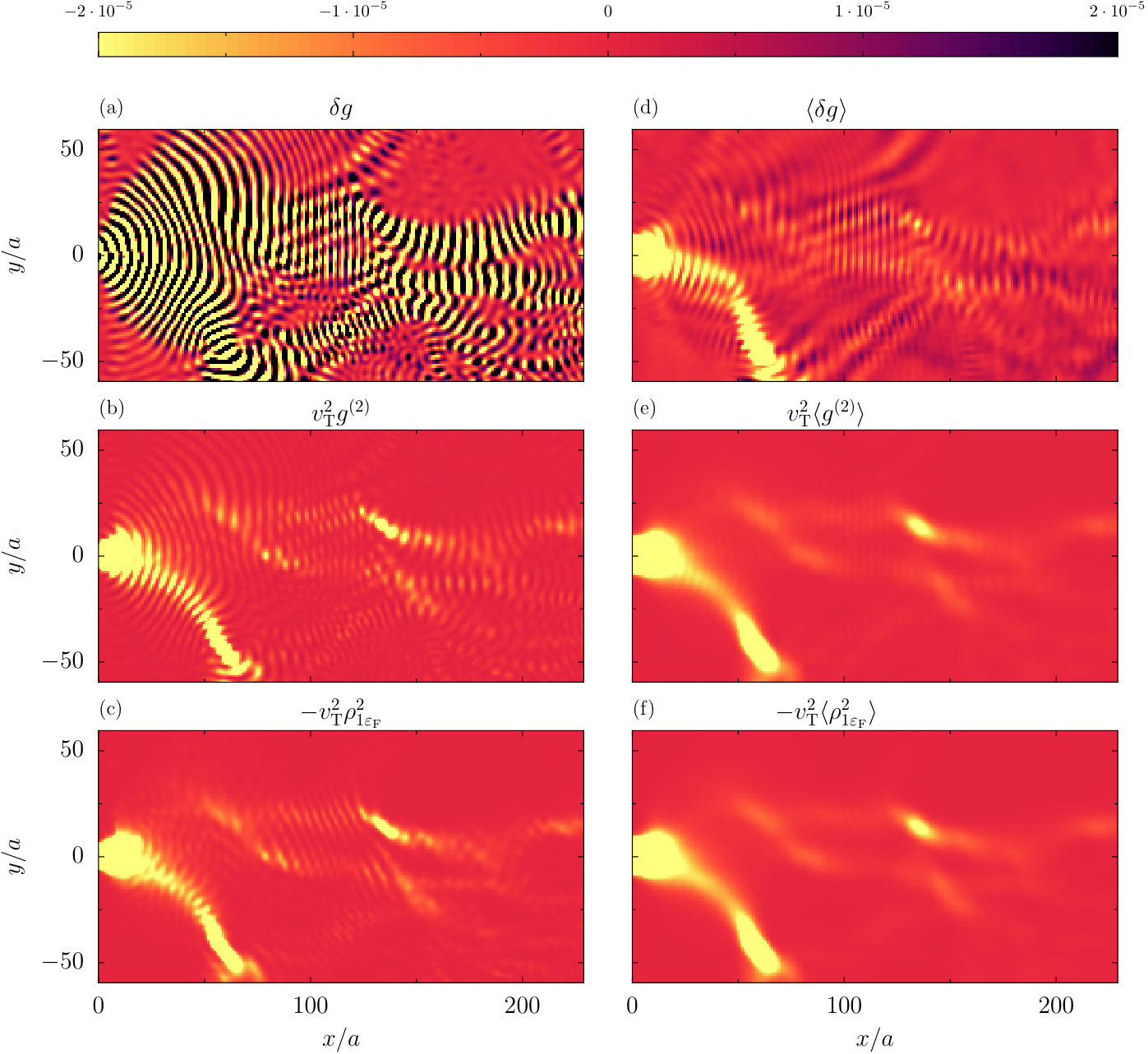

The results shown in Fig. 6 demonstrate that the combined operations of extracting the quadratic tip dependence of $\delta g(\mathbf{r}_{\mathrm{T}})$ and $\lambda_{\mathrm{F}}/2$-averaging result in nearly perfect extraction of the PLDOS squared. Still, it is valuable to have a quantitative measure of the quality of this process to answer how well this works as a function of the imperfection of transmission on or near a plateau, and how well it works as a function of tip strength if one chooses just to use $\delta g(\mathbf{r}_{\mathrm{T}})$ without extracting the quadratic tip-dependence first. A good measure is given by the cross-correlation factor Kolasiński and Szafran (2013)

[TABLE]

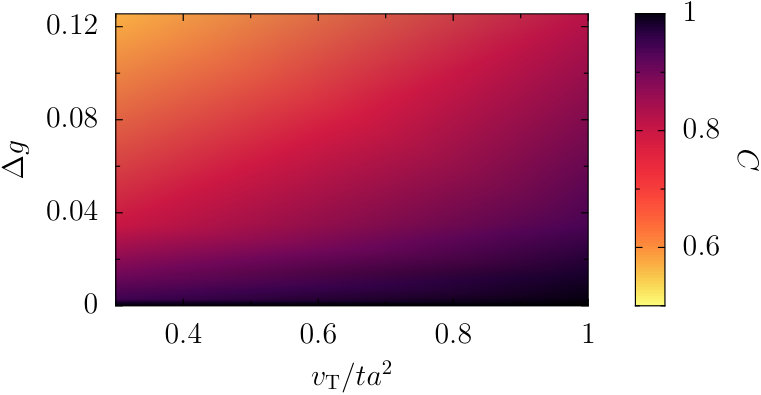

The averages, symbolized by the overlines, are taken over the scanned area in the right of the QPC (in contradistinction to the local $O(\lambda_{\mathrm{F}}/2)$ averages, $\langle...\rangle$, defined in Sec. VII). The standard deviations of the two quantities are the usual normalization factors of a properly normalized correlation function. Applied to $\delta g(\mathbf{r}_{\mathrm{T}})$ for a range of tip strengths and $\Delta g$’s gives the results shown in Fig. 7. It shows two correlated trends. The correlation coefficient decreases with decreasing tip strength and with increasing $\Delta g$. The value of $v_{\mathrm{T}}$ for which near perfect correlation is achieved depends on the departure $\Delta g$ from perfect transmission. Figure 8 shows an example for the case of the disordered system and tip strengths used in Fig. 5, where the saturation is reached rather quickly as $v_{\mathrm{T}}/a^{2}$ increases beyond the Fermi energy.

Interestingly, the above dependence of $\delta g(\mathbf{r}_{\mathrm{T}})$ on the tip strength generates a criterion for the validity of perturbation theory.Jalabert et al. (2010) Note that the criterion for the Born approximation in a one-dimensional scattering problem Landau and Lifshitz (1991) $v_{\mathrm{T}}\ll\varepsilon_{\mathrm{F}}\lambda_{\mathrm{F}}$ is consistent with our numerical results since the linear extension of the local tip in our tight-binding model $a$ is much smaller than $\lambda_{\mathrm{F}}$. In this regime, close to the perfect transmission, the second order contribution prevails, and the full SGM response to a local tip is highly correlated to the PLDOS squared even for tip strengths larger than the Fermi energy.

IX Full SGM response for non-local tips

The case of a local tip, discussed up to this point, is the simplest to analyze, but the existing experimental implementations of SGM setups involve extended tips. Considering the tip as a point charge at a distance $d$ from the 2DEG, the tip profile in the plane of the 2DEG is of the form

[TABLE]

Numerical calculations of the electrostatic problem, treating screening within the Thomas–Fermi scheme, result in an approximately Lorentzian (Gaussian) profile when the tip-induced potential does not (does) deplete the 2DEG is Eriksson et al. (1996); Pala et al. (2008); Steinacher et al. (2015). Notwithstanding, for tip strengths strong enough to produce depletion, it is observed that the main feature determining the SGM response is the diameter $D$ of the depletion disk, and the details of the tip profile are of lesser importance. Therefore, in our numerical simulations, we adopt the tip profile (30) for all regimes, and express our results in terms of $D=2d[\{v_{\mathrm{T}}/(2\pi d^{2}\varepsilon_{\mathrm{F}})\}^{2/3}-1]^{1/2}$.

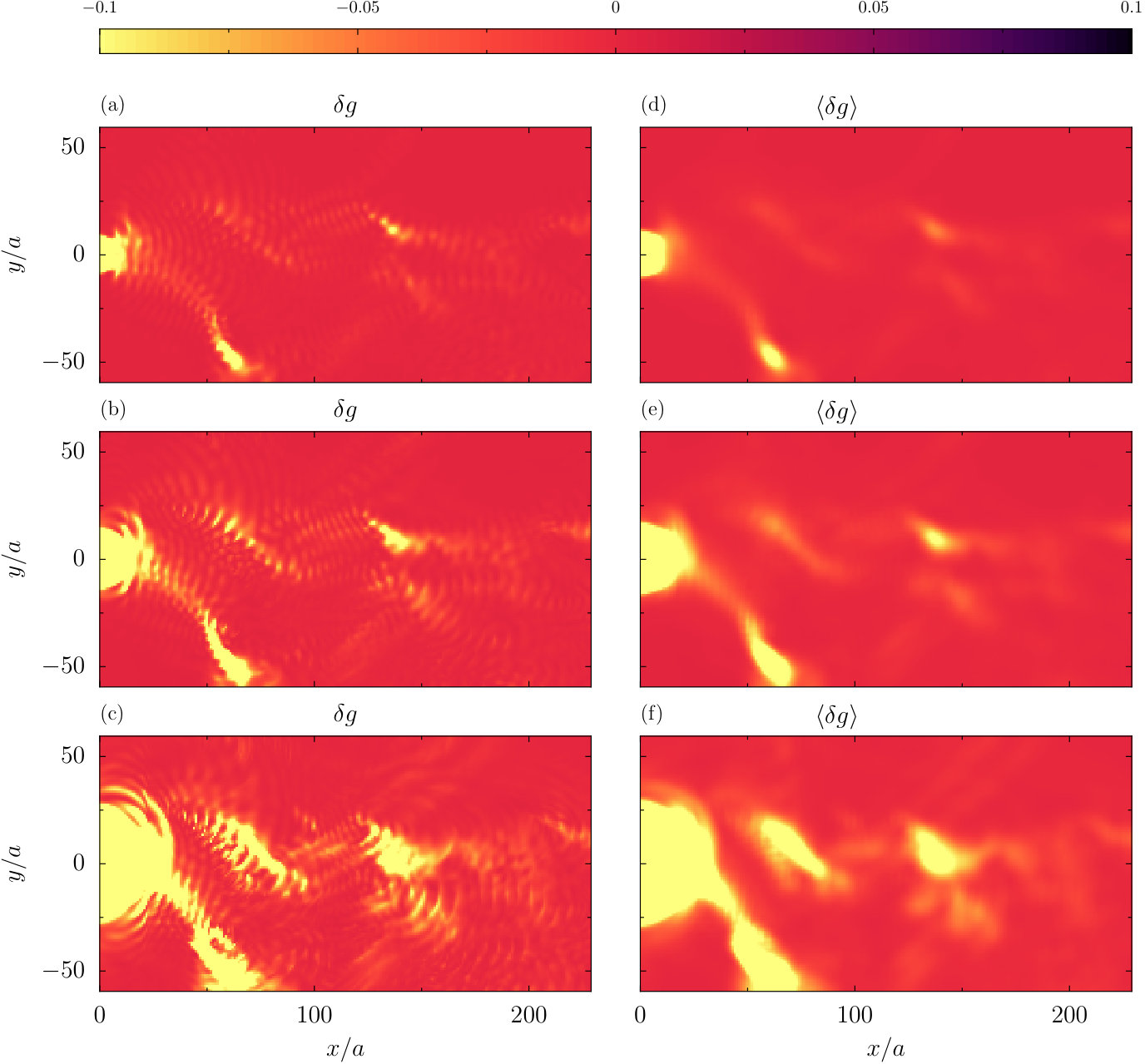

Working in the previously established regime of strong tip strength (maximum tip potential $V_{\mathrm{T}}(\mathbf{r}_{\mathrm{T}})=v_{\mathrm{T}}/(2\pi d^{2})=2\varepsilon_{\mathrm{F}}$) the SGM response $\delta g(\mathbf{r}_{\mathrm{T}})$ for varying tip width $d$ and thus different depletion diameters $D$ is present in Fig. 9, where the unperturbed conductance and the disorder configuration is the same as in Fig. 5 (second conductance plateau with $\Delta g=1.3\times 10^{-4}$).

For $D=\lambda_{\mathrm{F}}/2$ (panel (a)), the SGM scan resembles that of the $\delta$-tip (panel (d) of Fig. 5), but with values of $\delta g(\mathbf{r}_{\mathrm{T}})$ that are one order of magnitude larger due to the tip extension. For larger tip extensions, $D=\lambda_{\mathrm{F}}$ (panel b) and $D=2\lambda_{\mathrm{F}}$ (panel c), the SGM image gets more blurred and some resolution is lost. This blurring effect is more pronounced on the averaged conductance changes, as depicted in the right column panels of Fig. 9.

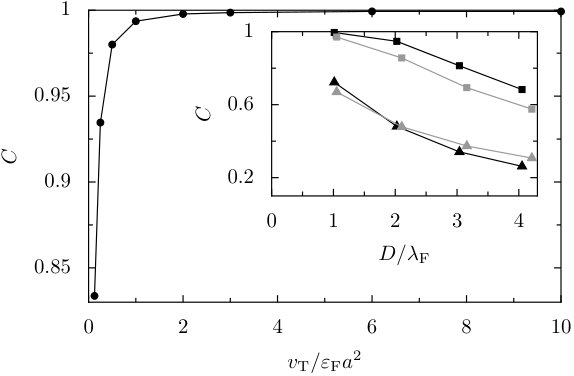

The inset of Fig. 8 shows the cross-correlation $C$ between the non-local SGM and the squared unperturbed PLDOS as a function of the depletion diameter $D$. Gray symbols correspond to the case of a tip shape of the form (30), the black ones to the case of a hard wall potential of diameter $D$. The squares represent cross-correlations of the SGM response with the PLDOS at the tip center, while triangles depict the results obtained when the PLDOS is taken at the classical turning points situated at the edge of the depletion disk. Since the classical turning point is not determined uniquely in the presence of disorder, the data in this inset are for the disorder-free structure. We have checked that including disorder does not change significantly the results when the tip center is taken as the reference point for the PLDOS. For both tip shapes, (30) and hard wall, and independent of where the PLDOS is taken, the cross-correlation decreases with increasing depletion diameter $D$.

If the PLDOS is taken at the classical turning point (triangles) instead of the tip center (squares), the SGM response becomes less correlated with the PLDOS. The classical argument of Ref. Heller and Shaw, 2003 that predicts that a large circular hard-wall tip does image the local properties of the unperturbed structures by reflecting back the classical trajectories that hit the tip with normal incidence does not appear as a limiting case of our results. One reason could be that our numerics did not reach sufficiently large depletion disks with $D\gg\lambda_{\mathrm{F}}$ to observe such a behavior. Jalabert and Weinmann (2015) Another reason could be that the SGM response in the classical limit is not well correlated with the squared PLDOS as in the case of local tips, though another link to the PLDOS at the classical turning point of a large disk cannot be excluded from our study.

X Conclusions

With regards to the quest of extracting information about local electronic properties in phase-coherent devices from SGM measurements, we have investigated the correspondence between the SGM response in the vicinity of a QPC and the unperturbed PLDOS. Only on the first conductance step could the PLDOS be shown to settle an upper bound for the magnitude of the first-order SGM correction. We have shown analytically that the unperturbed PLDOS squared is unambiguously related to the second-order conductance correction induced by a local tip, provided that the system is time-reversal symmetric and the QPC is tuned to perfect transmission. The second-order correction dominates the SGM response on a “perfect” conductance plateau if the tip strength is not too strong. If the QPC transmission is imperfect, the exact correspondence is broken, and the departures are quantified with a perturbation theory. It does not depend on fine details of the setup, but rather on the scale of the unperturbed conductance’s deviation from perfection, $\Delta g$.

We have demonstrated that a correspondence between the locally averaged second-order SGM response and the PLDOS survives for imperfect transmission obtained when the highest propagating eigenchannel is not completely open. Numerical simulations within a recursive Green function approach have confirmed our analytical findings and shown that they also hold in the case of disordered systems.

Moreover, we found that in the case of a local tip, and sufficiently small $\Delta g$, the full SGM response is related to the PLDOS once the tip is strong enough such that the second-order conductance correction dominates.

In the case of non-local tips, where the depletion disk created by the tip exceeds half the Fermi wavelength, the correspondence between the SGM response and the PLDOS established for weak local tips degrades with increasing depletion disk radius.

Most SGM experiments are performed in high mobility 2DEGs in which the Fermi wavelength is smaller than the depletion disk under the tip. In that case the relationship between the SGM response and the PLDOS squared degrades and beyond a large enough radius cannot be used directly to and unambiguously extract local electronic properties. For experiments in the weakly invasive regime, the resolution of the SGM response is also limited by the width of the tip potential.Steinacher et al. (2017) One way to approach the regime where the direct link is valid would be to use systems with lower Fermi energy and thus larger Fermi wavelength.

In a very recent SGM experiment Häusler et al. (2017) performed using ultracold atom gases, a tightly focused laser beam played the role of the tip and could be scanned in the neighborhood of a QPC attached to two atom reservoirs. In this case a resolution better than 10 nm with a tip size well below $\lambda_{\mathrm{F}}$ was obtained. In this regime, we expect that the relationship established between the SGM response and the LDOS is applicable.

Acknowledgements.

The authors are grateful to B. Braem, B. Brun, K. Ensslin, C. Gold, C. Gorini, T. Ihn, C. Pöltl, R. Steinacher, and G. Weick for useful discussions. Financial support from the French National Research Agency ANR through Projects No. ANR-14-CE36-0007-01 (SGM-Bal) and No. ANR-11-LABX-0058_NIE (Labex NIE within ANR-10-IDEX-0002-02) is gratefully acknowledged.

Appendix A Scattering wave-functions

In this Appendix we recall the main concepts of scattering theory for quantum transport in view of the application to the SGM setups implemented through the text. The incoming lead modes $\varphi_{1(2),\varepsilon,a}^{(-)}(\mathbf{r})$ are given by

[TABLE]

where $\phi_{a}(y)$ is the wave-function of the $a$th transverse channel along the lead and $k_{a}^{-}$ the longitudinal wave number $k_{a}$ with an infinitesimal imaginary part necessary for incoming modes. We note $c=[m^{*}/(2\pi\hbar^{2})]^{1/2}$, with $m^{*}$ the effective electron mass. In writing $x<0$ and $x>0$ we mean the asymptotic condition in the left and right leads, respectively (see Fig. 1).

In the basis of the $2N$ incoming modes the scattering matrix is defined by

[TABLE]

The incoming modes give rise to outgoing scattering states, which in the asymptotic regions can be expressed as,

[TABLE]

in terms of the matrix elements of the reflection $r$ ($r^{\prime}$) and transmission $t$ ($t^{\prime}$) submatrices for electrons impinging from the left (right) lead.

The scattering matrix is conveniently expressed in the polar decomposition Mello and Kumar (2004), which in the case of time-reversal symmetry takes the form

[TABLE]

${\cal R}$ and ${\cal T}$ are diagonal reflexion and transmission submatrices, while $u_{1}$ and $u_{2}$ are unitary matrices. The transmission eigenmodes take the form Gorini et al. (2013)

[TABLE]

Identifying (32) and (34), the transmission and reflexion submatrices can be expressed as $t=u_{2}^{T}{\cal T}u_{1}$, $t^{\prime}=u_{1}^{T}{\cal T}u_{2}$, $r=-u_{1}^{T}{\cal R}u_{1}$, and $r^{\prime}=u_{2}^{T}{\cal R}u_{2}$. Thus, $t^{\dagger}t=u_{1}^{\dagger}{\cal T}^{2}u_{1}$ and $t^{\prime\dagger}t^{\prime}=u_{2}^{\dagger}{\cal T}^{2}u_{2}$.

Considering the vector of coefficients $C_{1(2)m}=([u_{1(2)}^{*}]_{m1},[u_{1(2)}^{*}]_{m2},...)^{T}$ of the transmission eigenmode $\varrho_{1,\varepsilon,m}^{(-)}(\mathbf{r})$, one can write

[TABLE]

The second equality stems from the definition of $C_{1m}$ and implies that $C_{1m}$ is an eigenvector of $t^{\dagger}t$ with the eigenvalue ${\cal T}_{m}^{2}$. In the same way, one finds that $C_{2m}$ is an eigenvector of $t^{\prime\dagger}t^{\prime}$ with the same eigenvalue.

The scattering eigenstates in the region $x>0$ for an incoming transmission eigenmode $\varrho_{1,\varepsilon,m}^{(-)}(\mathbf{r})$ are obtained as $tC_{1m}=u_{2}^{T}{\cal{T}}u_{1}C_{1m}$. Using again the definition of $C_{1(2)m}$ and the unitarity of $u_{1}$ we find

[TABLE]

and similarly

[TABLE]

Thus, the basis of scattering eigenfunctions is asymptotically given by

[TABLE]

The PLDOS (3), as well as the conductance corrections (7) and (8) are conveniently discussed when expressed in the basis of scattering eigenfunctions.

Appendix B Hilbert transform of LDOS

In this Appendix the term of Eq. (8) containing the principal part is related with the LDOS.

For a $\delta$-tip, we can write

[TABLE]

and therefore

[TABLE]

Since the LDOS vanishes for $\bar{\varepsilon}<\varepsilon_{1}^{(\mathrm{t})}$, the lower limit of the integral can be taken as $-\infty$. Given that the LDOS is proportional to the imaginary part of the diagonal Green function $\mathcal{G}_{\varepsilon}(\mathbf{r},\mathbf{r})$, the curly bracket at the right-hand-side represents a Hilbert transform (with respect to the energy variable) leading to the real part of $\mathcal{G}_{\varepsilon}(\mathbf{r},\mathbf{r})$, as indicated in the discussion following Eq. (21). The term (41) contributing to $g^{(2)}$ and fulfilling a Kramers-Kronig relation with the LDOS, is dominated by the contribution of the latter close to the Fermi energy.

The emergence of the Hilbert transform of the LDOS has been signaled for the first-order SGM correction of a one-dimensional system. Pala et al. (2008) In our case it appears in the contribution (41) to the second-order correction (8), and it is not restricted to a one-dimensional setup. Such a contribution, also proportional to the first-order correction $g^{(1)}(\mathbf{r}_{\mathrm{T}})$, is necessarily very small when the QPC operates close to the condition of conductance quantization.
