Theoretical predictions for dark matter detection in dwarf irregular galaxies with gamma rays

TL;DR

This paper explores dwarf irregular galaxies as new targets for dark matter detection via gamma rays, showing their potential despite current limitations and comparing them to dwarf spheroidal galaxies.

Contribution

It introduces a method to estimate dark matter content in dwarf irregular galaxies and assesses their viability as gamma-ray targets for dark matter searches.

Findings

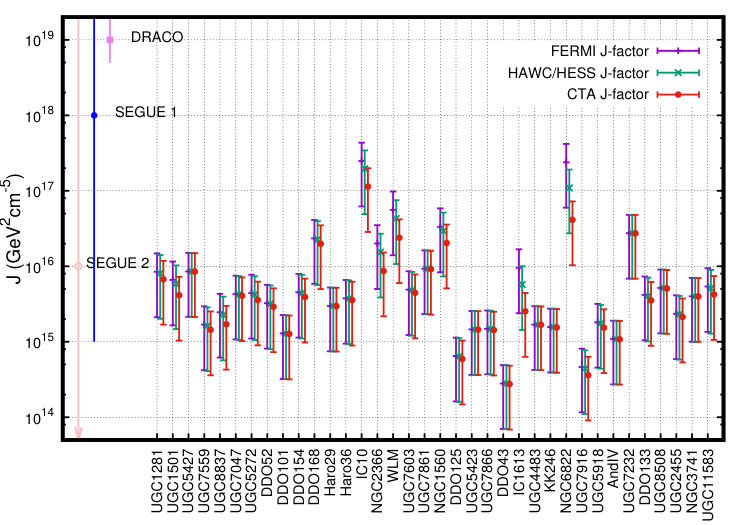

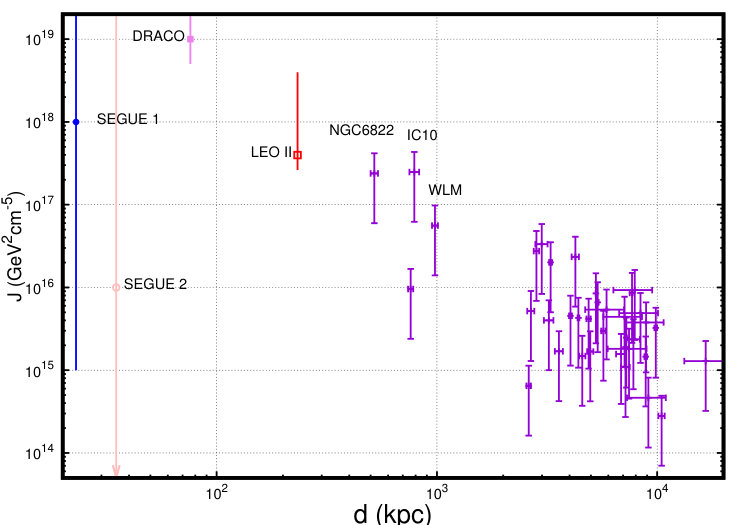

J-factors of dIrrs are comparable to dSphs.

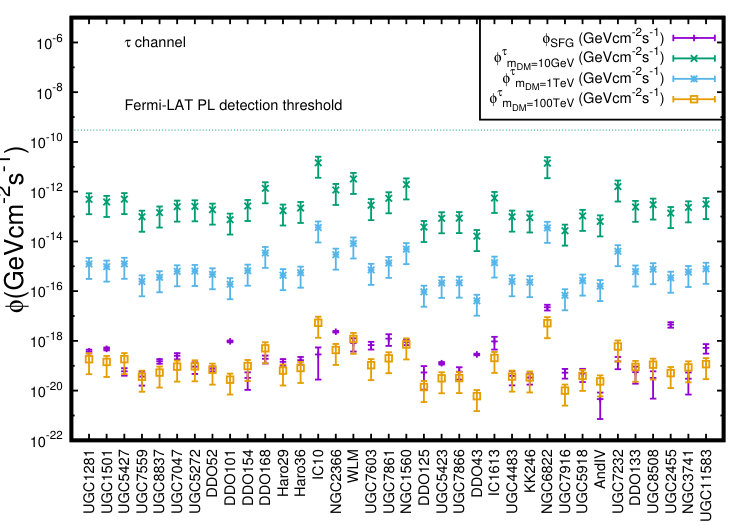

Astrophysical gamma-ray background in dIrrs is negligible.

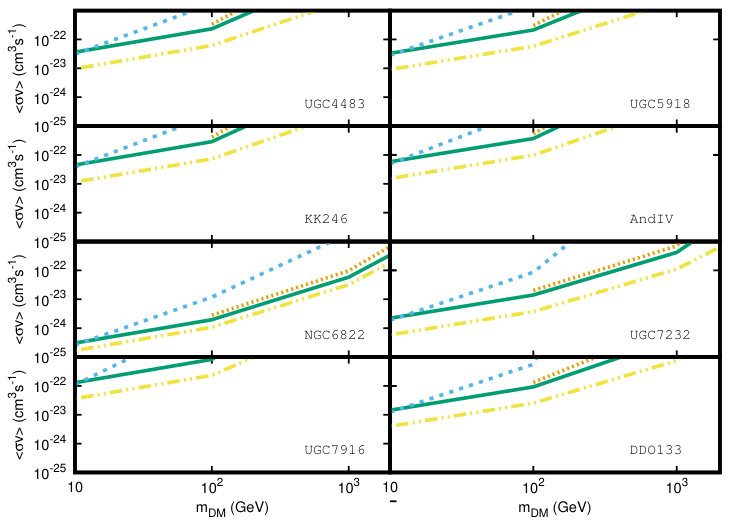

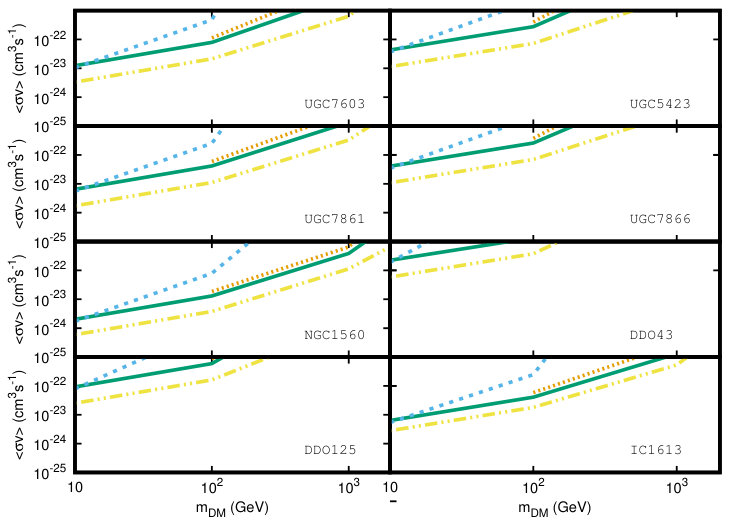

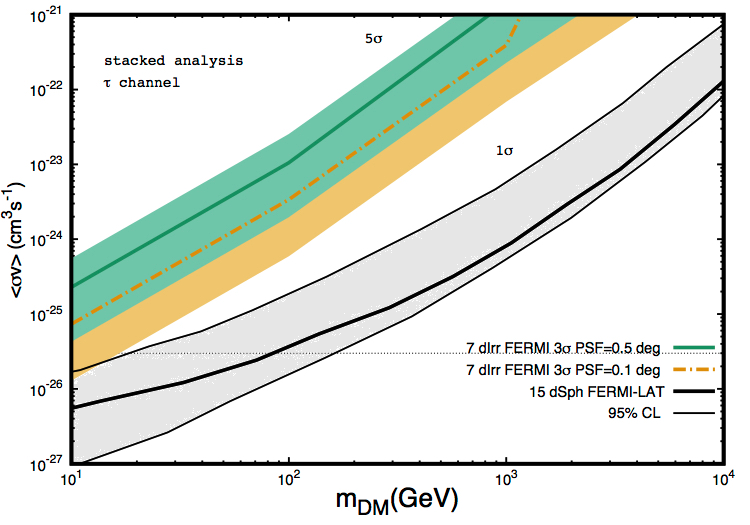

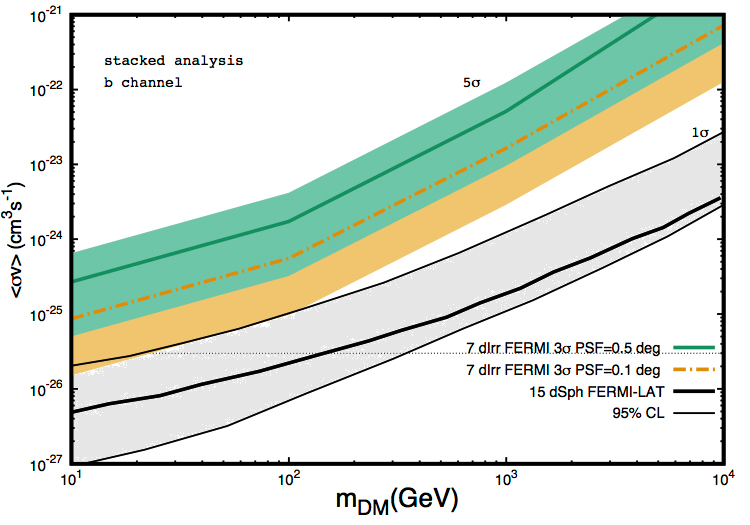

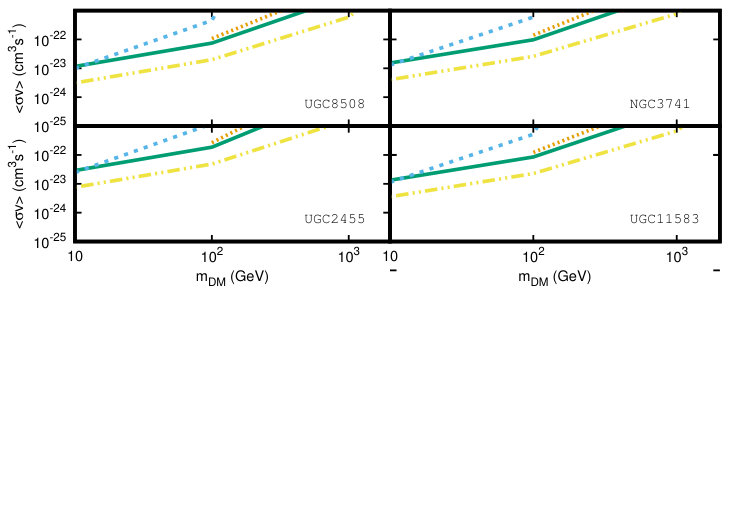

Constraints on dark matter properties are derived from Fermi-LAT data.

Abstract

We investigate dwarf irregular(dIrr) galaxies as a new category of targets for indirect Dark Matter(DM) searches with gamma-rays. In the framework of point-like analysis, dwarf spheroidal(dSph) galaxies are usually considered as one of the best category of targets for indirect DM searches. Nonetheless, as a result of their uncertain kinematics, the DM content and astrophysical J-factors of dSphs are usually affected by significant errors. In this paper, we study a sample of 36 dIrrs as prospective targets of interest. In the framework of the universal rotation curve, the kinematics of dIrr galaxies provides a good estimation of their DM halo density distribution and, consequently, of their astrophysical J-factors. We calculate the J-factors for these 36 dIrr galaxies. We find a range of values comparable with the J-factors of dSph galaxies. However, differently from dSphs an extra astrophysical gamma-ray background component is expected in dIrrs, that is due to their star-formation activity. In this paper, we show via a theoretical approach that for galaxies in our sample the extra astrophysical background component is negligible. Therefore, we conclude that dIrr galaxies can be potentially considered as additional point-like targets for DM searches with gamma-rays. As a first application of this study, we show the sensitivity limits of the Fermi-LAT telescope to these objects and we calculate constraints on the DM particle mass and annihilation cross-section. We conclude that the results of the individual study of several dIrr galaxies are not yet competitive with respect to the analysis of one of the most promising dSph galaxies, ie SEGUE1. However, taking into account SEGUE1's symmetry-related uncertainties in the J-factor calculation might alter this conclusion. Additionally, we calculate constraints for the combined analysis of the 7 most promising dIrr galaxies of our sample.

Figures

Tables

Table 1. Table 1: Sample of 36 dwarf irregular galaxies.

Name	$l$	$b$	d	$\Delta$d	$R_{\mathrm{opt}}$	$r_0$	${\rho }_0$	$M_{\mathrm{halo}}$	$R_{\mathrm{vir}}$	incl	$M_{\mathrm{disk}}$	MC	BCD
	(deg)	(deg)	(Mpc)	(Mpc)	(kpc)	(kpc)	(${10}^7\frac{M_{\odot }}{kp{c}^3}$)	(${10}^{10}{M}_{\odot }$)	(kpc)	(deg)	(${10}^8{M}_{\odot }$)	—	boh
UGC1281	136.9	-28.7	5.27	0.02	3.39	3.20	3.5	3.7	86.0	90	1.4	Sdm	—
UGC1501	140.9	-31	5.37	0.05	4.55	4.80	1.7	5.4	97.9	75	1.8	SBdm	—
UGC5427	-160.6	53.4	7.69	0.18	1.31	0.86	36.4	1.0	55.8	55	0.5	Sdm	—
UGC7559	148.6	78.7	4.97	0.16	2.85	2.52	2.1	1.0	55.6	65	0.5	IBm	—
UGC8837	103.7	60.8	7.24	0.03	5.12	5.65	1.1	5.3	97.3	91.9	1.7	IB(s)m	—
UGC7047	138.9	63.0	4.39	0.04	1.82	1.36	7.5	0.7	48.7	44	0.3	IAm/BCD	1
UGC5272	-164.6	50.6	7.11	1.42	4.09	4.14	2.3	4.9	94.8	59	1.7	Im	—
DDO52	179.1	35.2	9.86	0.14	4.16	4.24	2.6	6.1	102.2	43	2.1	Im	—
DDO101	-170.3	77.1	16.60	3.32	3.10	2.71	5.1	3.9	87.8	51	1.5	Im	—
DDO154	35.1	89.4	4.04	0.06	2.40	1.98	4.0	1.0	56.1	68.2	0.5	IB(s)m	—
DDO168	110.7	70.7	4.25	0.16	2.59	2.20	8.2	3.2	82.1	46.5	1.3	IBm	—
Haro29	134.1	68.1	5.70	0.13	0.90	0.51	34.2	0.2	32.7	67	0.1	S/BCD	2
Haro36	124.6	65.5	8.91	1.78	3.11	2.84	4.7	3.6	85.3	70	1.4	Im/BCD	3
IC10	119.0	-3.3	0.79	0.04	1.44	0.98	16.6	0.6	47.4	47	0.3	IBm/BCD	2
NGC2366	146.4	28.5	3.28	0.05	4.20	4.30	2.2	5.1	96.0	68	1.7	IB(s)m	—
WLM	75.9	-73.6	0.98	0.03	1.76	1.29	6.5	0.5	44.0	74	0.3	IB(s)m	—
UGC7603	-108.4	83.3	8.40	1.68	3.56	3.42	3.8	5.0	95.4	78	1.8	SB(s)d	—
UGC7861	130.2	75.7	7.91	1.58	1.98	1.52	16.5	2.3	73.5	47	1.0	SAB(rs)m	—
NGC1560	138.4	16.0	2.99	0.19	3.04	2.75	4.9	3.4	84.0	82	1.3	SA(s)d	—
DDO125	137.7	73.0	2.61	0.06	1.50	1.04	2.6	0.1	24.8	63	0.1	Im	—
UGC5423	140.0	40.8	8.87	0.12	1.69	1.22	10.3	0.7	49.5	56	0.4	Im/BCD	1
UGC7866	131.9	78.5	4.57	0.15	1.74	1.27	5.1	0.4	39.4	44	0.2	IAB(s)m	—
DDO43	177.8	23.9	10.47	0.34	2.62	2.24	2.1	0.7	49.9	40.6	0.3	Im	—
IC1613	129.7	-60.6	0.76	0.02	1.92	1.46	1.7	0.2	30.0	48	0.1	IB(s)m	—
UGC4483	145.0	34.4	3.58	0.15	0.67	0.34	30.6	0.1	20.7	58	0.04	Im/BCD	2
KK246*	9.7	-28.4	6.86	0.35	1.57	1.11	9.5	0.5	43.4	25	0.3	Ir	—
NGC6822	25.3	-18.4	0.52	0.02	1.79	1.32	7.0	0.6	46.3	58	0.3	IB(s)m	—
UGC7916	134.2	82.6	9.12	1.82	5.22	5.80	0.6	2.7	77.6	74	1.0	Im	—
UGC5918	140.9	47.1	7.45	1.49	3.90	3.88	1.7	2.9	79.5	46	1.1	Im	—
AndIV*	121.1	-22.3	7.18	0.33	1.52	1.06	8.9	0.4	40.5	62	0.2	Ir	—
UGC7232	160.6	77.6	2.83	0.08	0.68	0.35	93.4	0.2	31.9	59	0.1	Im	—
DDO133	164.3	84.0	4.88	0.11	2.88	2.55	3.2	1.7	66.2	43.4	0.7	Im	—
UGC8508	111.1	61.3	2.67	0.10	0.89	0.51	22.0	0.1	27.1	82.5	0.1	IAm	—
UGC2455	156.3	-29.2	7.80	0.54	3.4	3.21	2.7	2.8	78.5	51	1.1	IB(s)m	—
NGC3741	157.6	66.4	3.22	0.16	0.60	0.29	52.8	0.1	21.8	64	0.1	Im	—
UGC11583*	095.6	12.3	5.89	1.18	3.75	3.67	2.5	3.8	87.5	80	1.4	Ir	—

Table 2. Table 2: \centerlastline Energy range, energy resolution ( Δ Δ \Delta E), field of view (FoV), angular resolution θ PSF subscript 𝜃 PSF \theta_{\mathrm{PSF}} , effective area A Eff subscript 𝐴 Eff A_{\mathrm{Eff}} and the expected observation time t exp subscript 𝑡 exp t_{\mathrm{exp}} for the Fermi-LAT satellite, the air and water Cherenkov observatories HESS, HAWC (Abeysekara  et al. , 2013 ; Proper  et al. , 2016 ; Lauer, 2015 ) and the future CTA telescopes, respectively. The angular resolution in Fermi-LAT strongly depends on the energy.

Experiment	Fermi-LAT	HESS I (II)	HAWC	CTA North/South
E range	20 MeV - 300 GeV	0.03- 100 TeV	0.1-100 TeV	0.02-200 TeV
$\Delta$ E	$10\%$	$15\%$	$50\%$	$10\%$
FoV (deg)	$>50$	5 (3.2)	wide	10
${\theta }_{\mathrm{PSF}}$ (deg)	$0.1-0.5$	$0.1$	$0.1$	$0.05$
$A_{\mathrm{eff}}\left({\mathrm{cm}}^2\right)$	${10}^4$	$1\left(6\right)\times {10}^6$	${10}^5$	${10}^{10}$
$t_{\exp }$	$10$yr	100 h	5 yr	1000 h

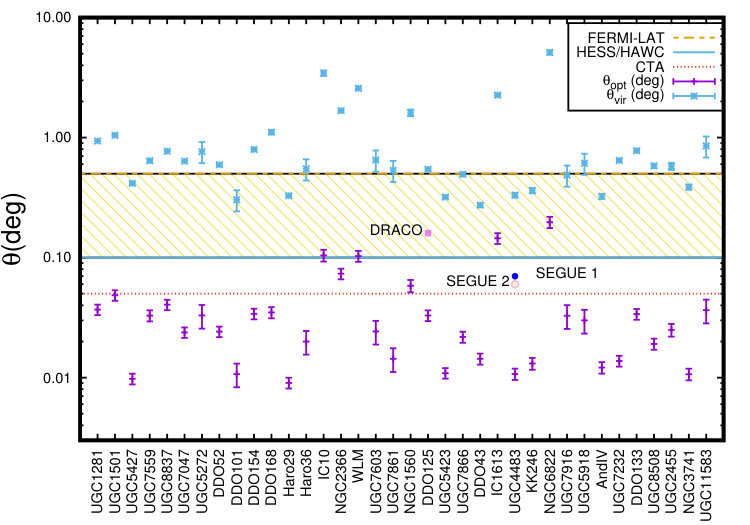

Table 3. Table 3: \centerlastline Projected angles and the associated uncertainties correspond to the optical ( θ opt subscript 𝜃 opt \theta_{\mathrm{opt}} ) and the virial ( θ vir subscript 𝜃 vir \theta_{\mathrm{vir}} ) radii for each dIrr galaxy (see text for details). Astrophysical J-factors calculated as J = ⟨ J ⟩ Δ ​ Ω ​ Δ ​ Ω 𝐽 subscript delimited-⟨⟩ 𝐽 Δ Ω Δ Ω J=\langle J\rangle_{\Delta\Omega}\Delta\Omega , where ⟨ J ⟩ Δ ​ Ω subscript delimited-⟨⟩ 𝐽 Δ Ω \langle J\rangle_{\Delta\Omega} is presented in Eq. ( 6 ). We perform this calculation for several angular resolution associated with different experiments: 0.05 ∘ superscript 0.05 0.05^{\circ} for the next CTA, 0.1 ∘ superscript 0.1 0.1^{\circ} for HESS, HAWC and Fermi-LAT higher energies, 0.5 ∘ superscript 0.5 0.5^{\circ} Fermi-LAT. The J-factors ideally calculated on the virial angular dimensions are also shown for comparison (details are given in Appendix  B ). dIrrs marked with "x" are included in the combined analysis of 7 best galaxies in the sample.

Name	${\theta }_{\mathrm{opt}}$ (deg)	${\theta }_{\mathrm{vir}}$ (deg)	${\theta }_{\mathrm{vir}}-{\theta }_{\mathrm{opt}}$	$J_{{0.05}^{\circ }}$ (${\mathrm{GeV}}^2{\mathrm{cm}}^{-5}$)	$J_{{0.1}^{\circ }}$ (${\mathrm{GeV}}^2{\mathrm{cm}}^{-5}$)	$J_{{0.5}^{\circ }}$ (${\mathrm{GeV}}^2{\mathrm{cm}}^{-5}$)	$J_{\mathrm{vir}}$ (${\mathrm{GeV}}^2{\mathrm{cm}}^{-5}$)
UGC1281	$0.037\pm 0.004$	$0.936\pm 0.003$	$0.90\pm 0.01$	$6.74\times {10}^{15}$	$8.08\times {10}^{15}$	$8.46\times {10}^{15}$	$8.46\times {10}^{15}$
UGC1501	$0.048\pm 0.005$	$1.04\pm 0.01$	$1.00\pm 0.01$	$4.14\times {10}^{15}$	$5.88\times {10}^{15}$	$6.60\times {10}^{15}$	$6.60\times {10}^{15}$
UGC5427	<0.01	$0.42\pm 0.01$	$0.41\pm 0.01$	$8.52\times {10}^{15}$	$8.56\times {10}^{15}$	$8.56\times {10}^{15}$	$8.56\times {10}^{15}$
UGC7559	$0.033\pm 0.003$	$0.64\pm 0.02$	$0.61\pm 0.02$	$1.44\times {10}^{15}$	$1.63\times {10}^{15}$	$1.68\times {10}^{15}$	$1.68\times {10}^{15}$
UGC8837	$0.040\pm 0.004$	$0.771\pm 0.003$	$0.73\pm 0.01$	$1.71\times {10}^{15}$	$2.27\times {10}^{15}$	$2.47\times {10}^{15}$	$2.47\times {10}^{15}$
UGC7047	$0.023\pm 0.002$	$0.64\pm 0.01$	$0.61\pm 0.01$	$4.08\times {10}^{15}$	$4.25\times {10}^{15}$	$4.29\times {10}^{15}$	$4.29\times {10}^{15}$
UGC5272	$0.03\pm 0.01$	$0.7\pm 0.2$	$0.7\pm 0.2$	$3.58\times {10}^{15}$	$4.23\times {10}^{15}$	$4.41\times {10}^{15}$	$4.42\times {10}^{15}$
DDO52	$0.024\pm 0.002$	$0.59\pm 0.01$	$0.57\pm 0.01$	$2.91\times {10}^{15}$	$3.15\times {10}^{15}$	$3.25\times {10}^{15}$	$3.25\times {10}^{15}$
DDO101	<0.01	$0.30\pm 0.06$	$0.29\pm 0.06$	$1.27\times {10}^{15}$	$1.29\times {10}^{15}$	$1.29\times {10}^{15}$	$1.29\times {10}^{15}$
DDO154	$0.034\pm 0.003$	$0.8\pm 0.1$	$0.8\pm 0.1$	$3.92\times {10}^{15}$	$4.42\times {10}^{15}$	$4.54\times {10}^{15}$	$4.54\times {10}^{15}$
DDO168	$0.035\pm 0.004$	$1.11\pm 0.04$	$1.07\pm 0.04$	$1.99\times {10}^{16}$	$2.27\times {10}^{16}$	$2.34\times {10}^{16}$	$2.34\times {10}^{16}$	x
Haro29	<0.01	$0.33\pm 0.01$	$0.32\pm 0.01$	$2.97\times {10}^{15}$	$2.98\times {10}^{15}$	$2.99\times {10}^{15}$	$2.99\times {10}^{15}$
Haro36	$0.020\pm 0.004$	$0.5\pm 0.1$	$0.5\pm 0.1$	$3.57\times {10}^{15}$	$3.73\times {10}^{15}$	$3.77\times {10}^{15}$	$3.77\times {10}^{15}$
IC10	$0.10\pm 0.1$	$3.4\pm 0.2$	$3.3\pm 0.2$	$1.14\times {10}^{17}$	$1.97\times {10}^{17}$	$2.48\times {10}^{17}$	$2.49\times {10}^{17}$	x
NGC2366	$0.07\pm 0.01$	$1.68\pm 0.03$	$1.60\pm 0.03$	$8.68\times {10}^{15}$	$1.55\times {10}^{16}$	$2.01\times {10}^{16}$	$2.02\times {10}^{16}$	x
WLM	$0.10\pm 0.01$	$2.6\pm 0.1$	$2.5\pm 0.1$	$2.40\times {10}^{16}$	$4.30\times {10}^{16}$	$5.59\times {10}^{16}$	$5.62\times {10}^{16}$	x
UGC7603	$0.024\pm 0.005$	$0.6\pm 0.1$	$0.6\pm 0.1$	$4.52\times {10}^{15}$	$4.82\times {10}^{15}$	$4.90\times {10}^{15}$	$4.90\times {10}^{15}$
UGC7861	<0.01	$0.5\pm 0.1$	$0.5\pm 0.1$	$9.16\times {10}^{15}$	$9.27\times {10}^{15}$	$9.30\times {10}^{15}$	$9.30\times {10}^{15}$
NGC1560	$0.06\pm 0.01$	$1.6\pm 0.1$	$1.5\pm 0.1$	$2.03\times {10}^{16}$	$2.95\times {10}^{16}$	$3.34\times {10}^{16}$	$3.34\times {10}^{16}$	x
DDO125	$0.033\pm 0.003$	$0.54\pm 0.01$	$0.51\pm 0.02$	$5.91\times {10}^{14}$	$6.38\times {10}^{14}$	$6.48\times {10}^{14}$	$6.48\times {10}^{14}$
UGC5423	<0.01	$0.320\pm 0.004$	$0.310\pm 0.005$	$1.45\times {10}^{15}$	$1.46\times {10}^{15}$	$1.46\times {10}^{15}$	$1.46\times {10}^{15}$
UGC7866	$0.022\pm 0.002$	$0.49\pm 0.02$	$0.5\pm 0.2$	$1.43\times {10}^{15}$	$1.45\times {10}^{15}$	$1.49\times {10}^{15}$	$1.49\times {10}^{15}$
DDO43	<0.01	$0.27\pm 0.01$	$0.3\pm 0.1$	$2.75\times {10}^{14}$	$2.80\times {10}^{14}$	$2.80\times {10}^{14}$	$2.80\times {10}^{14}$
IC1613	$0.14\pm 0.02$	$2.26\pm 0.06$	$2.11\pm 0.07$	$2.53\times {10}^{15}$	$2.73\times {10}^{15}$	$9.57\times {10}^{15}$	$9.70\times {10}^{15}$
UGC4483	<0.01	$0.33\pm 0.01$	$0.32\pm 0.01$	$1.68\times {10}^{15}$	$1.69\times {10}^{15}$	$1.69\times {10}^{15}$	$1.69\times {10}^{15}$
KK246	<0.01	$0.36\pm 0.02$	$0.35\pm 0.02$	$1.55\times {10}^{15}$	$1.56\times {10}^{15}$	$1.57\times {10}^{15}$	$1.57\times {10}^{15}$
NGC6822	$0.20\pm 0.02$	$5.1\pm 0.2$	$4.9\pm 0.2$	$4.13\times {10}^{16}$	$1.09\times {10}^{17}$	$2.39\times {10}^{17}$	$2.46\times {10}^{17}$	x
UGC7916	$0.03\pm 0.01$	$0.5\pm 0.1$	$0.4\pm 0.1$	$3.61\times {10}^{14}$	$4.41\times {10}^{14}$	$4.64\times {10}^{14}$	$4.64\times {10}^{14}$
UGC5918	$0.03\pm 0.01$	$0.6\pm 0.1$	$0.5\pm 0.1$	$1.53\times {10}^{15}$	$1.75\times {10}^{15}$	$1.81\times {10}^{15}$	$1.81\times {10}^{15}$
AndIV	<0.01	$0.32\pm 0.1$	$0.31\pm 0.02$	$1.08\times {10}^{15}$	$1.09\times {10}^{15}$	$1.09\times {10}^{15}$	$1.09\times {10}^{15}$
UGC7232	<0.01	$0.64\pm 0.02$	$0.63\pm 0.02$	$2.73\times {10}^{16}$	$2.75\times {10}^{16}$	$2.75\times {10}^{16}$	$2.75\times {10}^{16}$	x
DDO133	$0.034\pm 0.003$	$0.78\pm 0.01$	$0.74\pm 0.02$	$3.53\times {10}^{15}$	$4.05\times {10}^{15}$	$4.18\times {10}^{15}$	$4.18\times {10}^{15}$
UGC8508	$0.020\pm 0.002$	$0.58\pm 0.02$	$0.56\pm 0.02$	$5.09\times {10}^{15}$	$5.16\times {10}^{15}$	$5.17\times {10}^{15}$	$5.17\times {10}^{15}$
UGC2455	$0.025\pm 0.003$	$0.58\pm 0.04$	$0.55\pm 0.04$	$2.13\times {10}^{15}$	$2.32\times {10}^{15}$	$2.36\times {10}^{15}$	$2.36\times {10}^{15}$
NGC3741	<0.01	$0.38\pm 0.02$	$0.38\pm 0.02$	$3.99\times {10}^{15}$	$4.00\times {10}^{15}$	$4.00\times {10}^{15}$	$4.00\times {10}^{15}$
UGC11583	$0.04\pm 0.01$	$0.8\pm 0.2$	$0.8\pm 0.2$	$4.24\times {10}^{15}$	$5.14\times {10}^{15}$	$5.40\times {10}^{15}$	$5.40\times {10}^{15}$

Table 4. Table 4: \centerlastline Infrared luminosities L IR subscript L IR \mathrm{L_{IR}} , L IR subscript L IR \mathrm{L_{IR}} reference, gamma-ray luminosity L γ subscript L 𝛾 \mathrm{L_{\gamma}} , gamma-ray fluxes ϕ SFG γ subscript superscript italic-ϕ 𝛾 SFG \mathrm{\phi^{\gamma}_{\mathrm{SFG}}} and diffuse background flux contribution ϕ diff γ subscript superscript italic-ϕ 𝛾 diff \mathrm{\phi^{\gamma}_{\mathrm{diff}}} . L IR subscript L IR \mathrm{L_{IR}} references: 1 -  Dale  et al. ( 2009 ) , 2 -  Brauher  et al. ( 2008 ) , 3 -  Moshir  et al. ( 2008 ) , 4 -  Lisenfeld  et al. ( 2006 ) , 5 -  Sanders  et al. ( 2003 ) , 6 -  Abrahamyan  et al. ( 2015 ) , 7 - predicted using the luminosity in K-band (see text for the details).

Name	$L_{\mathrm{IR}}$	ref	$L_{\gamma }$	${\varphi }_{\mathrm{SFG}}^{\gamma }$	${\varphi }_{\mathrm{diff}}^{\gamma }$
	($L_{\odot }$)	$L_{\mathrm{IR}}$	($\mathrm{erg}{s}^{-1}$)	$\left(\mathrm{GeV}{\mathrm{cm}}^{-2}{s}^{-1}\right)$	(cm${}^{-2}$s${}^{-1}$sr-1)
UGC1281	$6.3\times {10}^7$	3	$7.8\times {10}^{35}$	$3.8\times {10}^{-19}$	$9.3\times {10}^{-8}$
UGC1501	$7.9\times {10}^7$	1	$1.0\times {10}^{36}$	$4.8\times {10}^{-19}$	$1.0\times {10}^{-7}$
UGC5427	$2.5\times {10}^7$	7	$2.6\times {10}^{35}$	$6.0\times {10}^{-20}$	$5.8\times {10}^{-8}$
UGC7559	$7.9\times {10}^6$	1	$6.8\times {10}^{34}$	$3.7\times {10}^{-20}$	$5.0\times {10}^{-8}$
UGC8837	$5.0\times {10}^7$	1	$6.0\times {10}^{35}$	$1.5\times {10}^{-19}$	$5.5\times {10}^{-8}$
UGC7047	$3.2\times {10}^7$	1	$3.5\times {10}^{35}$	$2.5\times {10}^{-19}$	$5.6\times {10}^{-8}$
UGC5272	$3.2\times {10}^7$	1	$3.5\times {10}^{35}$	$9.2\times {10}^{-20}$	$5.9\times {10}^{-8}$
DDO52	$5.0\times {10}^7$	1	$6.0\times {10}^{35}$	$7.6\times {10}^{-20}$	$8.0\times {10}^{-8}$
DDO101	$2.5\times {10}^8$	1	$4.0\times {10}^{36}$	$9.6\times {10}^{-19}$	$5.5\times {10}^{-8}$
DDO154	$5.0\times {10}^6$	1	$4.0\times {10}^{34}$	$3.2\times {10}^{-20}$	$4.8\times {10}^{-8}$
DDO168	$2.5\times {10}^7$	1	$2.6\times {10}^{35}$	$1.9\times {10}^{-19}$	$5.1\times {10}^{-8}$
Haro29	$3.2\times {10}^7$	1	$3.5\times {10}^{35}$	$1.4\times {10}^{-19}$	$5.0\times {10}^{-8}$
Haro36	$6.3\times {10}^7$	1	$7.8\times {10}^{35}$	$1.7\times {10}^{-19}$	$5.1\times {10}^{-8}$
IC10	$2.0\times {10}^6$	2	$1.3\times {10}^{34}$	$2.9\times {10}^{-19}$	$7.7\times {10}^{-7}$
NGC2366	$1.3\times {10}^8$	1	$1.8\times {10}^{36}$	$2.3\times {10}^{-18}$	$9.0\times {10}^{-8}$
WLM	$6.3\times {10}^6$	1	$5.2\times {10}^{34}$	$8.2\times {10}^{-19}$	$7.2\times {10}^{-8}$
UGC7603	$2.0\times {10}^8$	1	$3.1\times {10}^{36}$	$6.8\times {10}^{-19}$	$5.5\times {10}^{-8}$
UGC7861	$4.0\times {10}^8$	1	$6.9\times {10}^{36}$	$1.2\times {10}^{-18}$	$5.7\times {10}^{-8}$
NGC1560	$5.0\times {10}^7$	3	$6.0\times {10}^{35}$	$9.0\times {10}^{-19}$	$2.1\times {10}^{-7}$
DDO125	$4.0\times {10}^6$	1	$3.0\times {10}^{34}$	$5.4\times {10}^{-20}$	$5.3\times {10}^{-8}$
UGC5423	$2.5\times {10}^7$	1	$2.6\times {10}^{35}$	$1.3\times {10}^{-19}$	$1.1\times {10}^{-7}$
UGC7866	$1.0\times {10}^7$	1	$8.9\times {10}^{34}$	$5.7\times {10}^{-20}$	$5.6\times {10}^{-8}$
DDO43	$1.6\times {10}^8$	4	$2.3\times {10}^{36}$	$2.8\times {10}^{-19}$	$1.0\times {10}^{-7}$
IC1613	$4.0\times {10}^6$	1	$3.0\times {10}^{34}$	$9.5\times {10}^{-19}$	$6.3\times {10}^{-8}$
UGC4483	$4.0\times {10}^6$	1	$3.0\times {10}^{34}$	$3.9\times {10}^{-20}$	$7.7\times {10}^{-8}$
KK246	$1.3\times {10}^7$	7	$1.2\times {10}^{35}$	$3.3\times {10}^{-20}$	$2.8\times {10}^{-7}$
NGC6822	$4.0\times {10}^7$	5	$4.6\times {10}^{35}$	$2.3\times {10}^{-17}$	$3.4\times {10}^{-7}$
UGC7916	$2.5\times {10}^7$	1	$2.6\times {10}^{35}$	$5.3\times {10}^{-20}$	$5.3\times {10}^{-8}$
UGC5918	$2.0\times {10}^7$	1	$2.0\times {10}^{35}$	$4.9\times {10}^{-20}$	$5.1\times {10}^{-8}$
AndIV	$2.5\times {10}^6$	7	$1.8\times {10}^{34}$	$4.5\times {10}^{-21}$	$1.1\times {10}^{-7}$
UGC7232	$1.0\times {10}^7$	1	$8.9\times {10}^{34}$	$1.5\times {10}^{-19}$	$6.1\times {10}^{-8}$
DDO133	$1.6\times {10}^7$	1	$1.5\times {10}^{35}$	$5.5\times {10}^{-20}$	$5.2\times {10}^{-8}$
UGC8508	$2.5\times {10}^6$	1	$1.8\times {10}^{34}$	$3.2\times {10}^{-20}$	$5.4\times {10}^{-8}$
UGC2455	$1.0\times {10}^9$	5	$2.0\times {10}^{37}$	$4.5\times {10}^{-18}$	$2.2\times {10}^{-7}$
NGC3741	$3.2\times {10}^6$	1	$2.3\times {10}^{34}$	$3.0\times {10}^{-20}$	$6.5\times {10}^{-8}$
UGC11583	$1.0\times {10}^8$	6	$1.4\times {10}^{36}$	$5.2\times {10}^{-19}$	$3.1\times {10}^{-7}$

Table 5. Table 5: P-part ( GeV − 1 ​ cm 3 ​ s − 1 superscript GeV 1 superscript cm 3 superscript s 1 \mathrm{GeV}^{-1}\mathrm{cm}^{3}\mathrm{s}^{-1} ) for annihilation events in a thermal WIMP scenario ( < σ ​ v > = 3 × 10 − 26 ​ cm − 3 ​ s − 1 expectation 𝜎 𝑣 3 superscript 10 26 superscript cm 3 superscript s 1 <\sigma v>=3\times 10^{-26}\mathrm{cm}^{-3}\mathrm{s}^{-1} ).

$m_{\mathrm{DM}}$	10 GeV	100 GeV	1 TeV	10 TeV	100 TeV
$P^{{\tau }^{+}{\tau }^{-}}$	$5.8\times {10}^{-29}$	$7.4\times {10}^{-30}$	$1.5\times {10}^{-31}$	$1.1\times {10}^{-33}$	$2.1\times {10}^{-35}$
$P^{b\overline{b}}$	$3.2\times {10}^{-29}$	$1.1\times {10}^{-29}$	$1.1\times {10}^{-30}$	$4.0\times {10}^{-32}$	$9.2\times {10}^{-34}$
$P^{W^{+}{W}^{-}}$	$-$	$8.0\times {10}^{-30}$	$7.5\times {10}^{-31}$	$2.4\times {10}^{-32}$	$4.9\times {10}^{-34}$

Equations

$${\rho }_{\mathrm{Burkert}}(r)=\frac{{\rho }_0{r}_0^3}{(r+r_0)(r^2+r_0^2)},$$

$$R_{\mathrm{vir}}={\left(\frac{3M_{\mathrm{halo}}}{4\pi {\Delta }_{\mathrm{cr}}{\rho }_{\mathrm{cr}}}\right)}^{\frac{1}{3}},$$

$$R_{\mathrm{vir}}=259{\left(\frac{M_{\mathrm{halo}}}{10^{12}{\mathrm{M}}_{\odot }}\right)}^{1/3},$$

$$\frac{\mathrm{d}{\varphi }_{\gamma }^{\mathrm{DM}}}{\mathrm{d}{E}_{\gamma }}=\frac{dP}{dE}<J{>}_{\Delta \Omega }.$$

$$\frac{dP}{dE}=\frac{1}{8\pi {\mathrm{m}}_{\mathrm{DM}}^2}\sum _i⟨{\sigma }_{i}v⟩\frac{\mathrm{d}{N}_{\gamma }^i({\mathrm{m}}_{\mathrm{DM}})}{\mathrm{d}{E}_{\gamma }},$$

$$<J{>}_{\Delta \Omega }=\frac{1}{\Delta \Omega }{\int }_{\Delta \Omega }\mathrm{d}\Omega {\int }_{l.o.s.}{\rho }^2(s)\mathrm{d}s$$

$$\Delta\theta_{\mathrm{vir}}=\left(\sum_{x_{n}=d,R_{\mathrm{vir}}}\left(\frac{\partial\theta_{\mathrm{vir}}(x_{n})}{\partial x_{n}}\bigg{|}_{x_{n}}\Delta x_{n}\right)^{2}\right)^{1/2}.$$

$${\log }_{10}\left(\frac{L_{\gamma }}{{\mathrm{ergs}}^{-1}}\right)=\alpha {\log }_{10}\left(\frac{L_{\mathrm{IR}}}{10^{10}{L}_{\odot }}\right)+\beta ,$$

$${\varphi }_{\mathrm{SFG}}^{\gamma }=\frac{L_{\gamma }}{4\pi d^2},$$

$$\chi =\frac{{\varphi }_{\gamma }^{\mathrm{DM}}\sqrt{\Delta {\Omega }_{\mathrm{PSF}}{A}_{\mathrm{eff}}{t}_{\exp }}}{\sqrt{{\varphi }_{\gamma }^{\mathrm{DM}}+{\varphi }_{\mathrm{Bg}}}}>5,3,1.$$

$${\varphi }_{\mathrm{Bg}}^k={\varphi }_{\mathrm{diff}}^k+{\varphi }_{\mathrm{iso}},$$

$${\varphi }_{\gamma }^{\mathrm{stack}-\mathrm{DM}}=\sum _{k=1}^7<J{>}_{\Delta \Omega }^k\Delta {\Omega }^{\mathrm{PSF}}P$$

$${\varphi }_{\mathrm{Bg}}^{\mathrm{stack}}=\sum _{k=1}^7{\varphi }_{\mathrm{Bg}}^k.$$

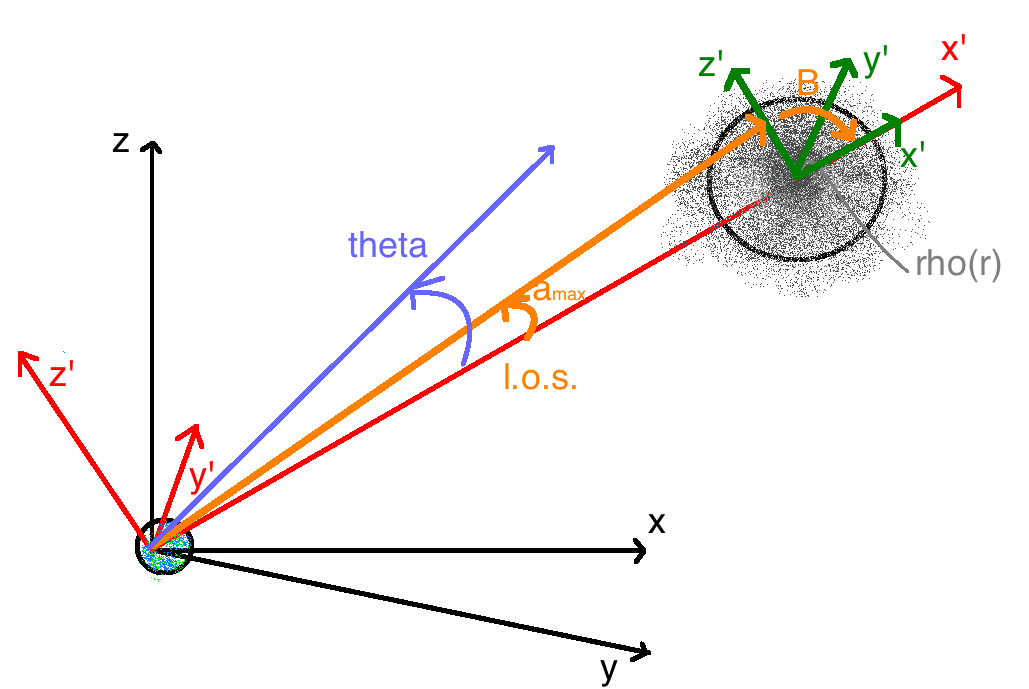

$$\rho (r)\equiv \rho (x^{\prime },y^{\prime },z^{\prime })\equiv \rho (x^{\prime }-d,y^{\prime },z^{\prime })\equiv \rho (l,\alpha ,\beta ).$$

$$(x^{\prime },y^{\prime },z^{\prime }{)}_{\mathrm{target}}\equiv (x^{\prime }-d,y^{\prime },z^{\prime }{)}_{\odot }\equiv$$

$$\equiv (l\cos \alpha -d,l\sin \alpha \sin \beta ,l\sin \alpha \cos \beta )$$

$$r^2=x^{\prime 2}+y^{\prime 2}+z^{\prime 2}=d^2-2dl\cos \alpha +l^2.$$

$$l_{min/max}(r,d,\alpha )=d\cos \alpha \pm \sqrt{r^2-d^2{\sin }^2\alpha }.$$

Full text

PACS numbers

††preprint: APS/123-QED

I Introduction

Astrophysical and cosmological evidences suggest that non-baryonic cold dark matter (DM) constitutes $84\%$ of the matter density of the Universe (Ade et al., 2016). Many well-motivated DM candidates are predicted to annihilate or decay into Standard Model (SM) particles and to produce secondary cosmic rays, such as gamma rays (Bertone and Merritt, 2005). Galaxy clusters, dwarf spheroidal (dSph) galaxies as well as the Galactic Center are principal astrophysical targets for indirect DM searches. Among other targets, the Milky Way dSph galaxies are considered to be especially promising objects due to their relatively close position and their appearance as point-like or marginally extended sources in gamma-ray telescopes. Moreover, the contamination from intrinsic astrophysical sources is negligible in these objects. In fact, they host an old stellar population of low-luminosity and do not possess gas. However, the high uncertainties in the kinematics of these pressure-supported galaxies and the total absence of gas in the periphery do not allow us to well constrain their DM profiles (see, e.g., Battaglia et al., 2013). The effective determination of the latter is very crucial for the estimation of the astrophysical factor (or J-factor), that depends on the DM density distribution profile. Besides, due to the uncertainty on the geometry of dSphs, the astrophysical factor is affected by the errors up to six orders of magnitude (Hayashi et al., 2016). In spite of that, the study of dSph galaxies sets the most stringent constraints on the particle DM mass and the annihilation cross-section so far. In particular, the stacked analysis of several dSphs allows to exclude the thermal DM particle of the mass below 100 GeV (Ackermann et al., 2015).

In this paper, driven by the intent of reducing the uncertainty on the astrophysical J-factor for DM indirect searches, we investigate a sample of 36 dwarf irregular (dIrr) galaxies of the Local Volume catalog (Karachentsev et al., 2013), that is within a sphere of $\sim 11$ Mpc centred on our Galaxy and within redshift z\mathrel{\mathop{\kern 0.0pt\hbox to0.0pt{\raise 0.86108pt\hbox{<}\hss}}\lower 3.87495pt\hbox{\kern-1.90002pt\sim}}10^{-3}. Their distances obtained by means of primary distance indicators, are comparable with that of many dSph galaxies. Unlike pressure supported dSph galaxies, dIrrs are rotationally supported star-forming dwarf galaxies, that are considered to be DM dominated objects at all radii (Oh et al., 2015, 2011; Gentile et al., 2007). Their kinematics is rather simple and points to the existence of cored DM density profiles with halos much larger than the enclosed star-forming regions (Salucci et al., 2007). These relevant properties and the increasing number of dIrr galaxies that has been recently detected and studied in their kinematics, make them interesting targets for DM searches.

Nonetheless and unlike dSphs, an astrophysical gamma-ray contamination is expected due to the star-forming activity of these objects (Martin, 2014). Assuming that the main contribution is enclosed in the optical regions of these galaxies, in this paper we study the possibility of considering the big halos of dIrr galaxies as targets of interest, in the framework of point-like analysis for DM indirect searches with gamma-ray telescopes.

The paper is organized as follows. In Section II we briefly review the DM density distribution profiles of our sample of dIrr galaxies. Details on gamma-ray detectors are given in Section III. In Section IV, we briefly review the fundamentals of DM searches with gamma rays. We discuss and calculate the astrophysical J-factors of the dIrr galaxies in our sample and the associated uncertainties in Section V, including details on the baryon and DM distribution in dIrrs. In Section VI we theoretically estimate two contributions to the gamma-ray emission in dIrr, both from astrophysics and DM. As a result of the sensitivity study, we present the constraints on the DM particle mass and annihilation cross-section by means of both the individual and combined analysis of galaxies in the sample in Section VII. In Sections VIII and IX we discuss the results and summarise the main conclusions of this work. Further information about the rotation curves of our galaxy sample, details on the astrophysical J-factor and the sensitivity study for each individual galaxy are given in Appendices A , B and C, respectively.

II Dwarf Irregular Galaxies and Burkert profile

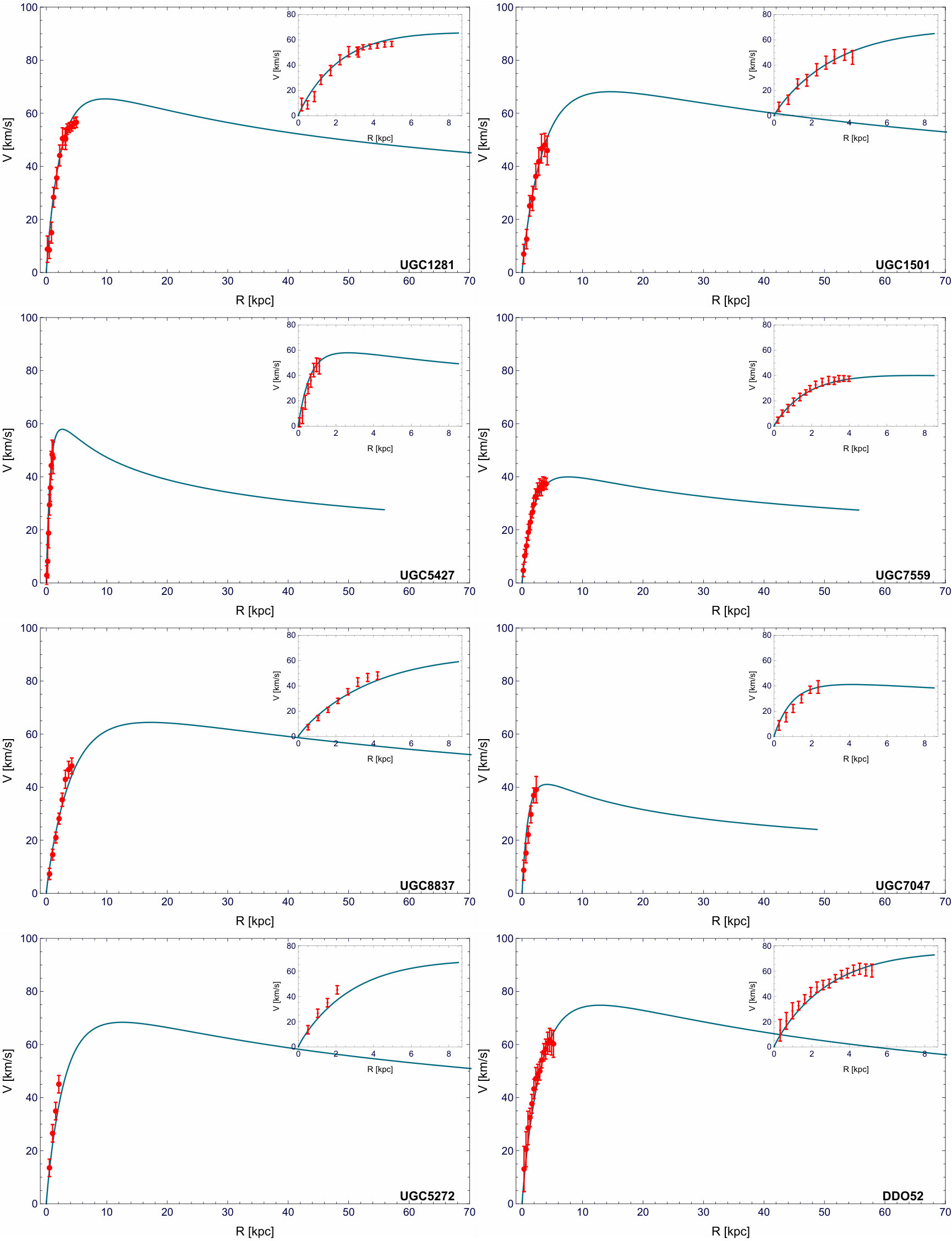

The sample of 36 dIrr galaxies was presented and analysed in Karukes and Salucci (2017), where the concept of rotation curve universality is applied. This concept is based on the systematic study of the rotation curves of more than 1100 spiral galaxies (Persic et al., 1996; Salucci et al., 2007). The Universal Rotation Curve (URC) allows to describe the structural parameters of luminous and dark components in galaxies without individual mass modelling, and at the same time reduces the uncertainties on the estimation of the DM density distribution profile. As shown in Karukes and Salucci (2017) and in Appendix A of this paper, the URC model allows to well fit the rotation curve for this class of objects, for which the few kinematical data do not allow an individual mass modelling. The DM distribution in these galaxies is well described by the Burkert profile:

[TABLE]

where $\rho_{0}$ is the central density and $r_{0}$ is the core radius. Let us notice, that the cuspy NFW profile (Navarro et al., 1996) does not fit well the kinematics of dIrr galaxies (de Blok, 2010; Karukes and Salucci, 2017). Instead, the URC model and the Burkert profile are able to well recover the observed kinematics of most of the galaxies in the sample. The uncertainties on the estimated inclinations or disk length scales of the objects could justify the three cases (NGC6822, AndIV and UGC8508) in which the URC model does not reproduce the outer kinematics. For this reason, we do not apply any selection to the sample, but we keep in mind that their observed kinematics should be farther checked. In Fig. 11 of Appendix A, we show the observed and modelled rotation curves of the full sample of 36 dIrrs galaxies. The DM halo parameters for the galaxies in the sample are listed in Table 1111The DM parameters listed in Table 1 are slightly different from the ones in Karukes and Salucci (2017) due to the fact that for some of the galaxies the values of the inclination were updated. Additionally, distances are also slightly different from the ones cited in Karachentsev et al. (2013) due to the recent updates in the catalog http://www.sao.ru/lv/lvgdb. We then use the definition of the virial radius at redshift z=0 in the spherically symmetric halo:

[TABLE]

where $\mathrm{\rho_{cr}}$ is the critical mean density of the Universe, $\Delta_{\mathrm{cr}}$ is a factor that defines over-densities and $M_{\mathrm{vir}}$ is the halo mass. Common values for $\Delta_{\mathrm{cr}}$ range from 100 to 500 (or even higher) (see Chapter 2.1 of Coe, , for more details about different values of $\Delta_{\mathrm{cr}}$). If we assume that $\rho_{\mathrm{cr}}=137\hskip 2.84544pt\mathrm{M_{\odot}/kpc}$ and $\Delta_{\mathrm{cr}}=100$, then we have:

[TABLE]

where the masses of the DM halos $M_{\mathrm{halo}}$ of galaxies in our sample are given in Table 1. In this table and in Fig. 1 we also report the distance $d$, its error $\Delta d$, the optical radius $R_{\mathrm{opt}}$, structural parameters of the DM halo ($r_{\mathrm{0}}$, $\rho_{\mathrm{0}}$, $R_{\mathrm{vir}}$), the inclination, the stellar disk mass $M_{\mathrm{disk}}$ and the morphological classification (MC).

III Gamma-ray telescopes

Detectors on satellites as well as ground-based air and water Cherenkov arrays are dedicated to the detection and study of gamma-ray sources. Different instruments cover different regions of the sky, energy range, resolution angle and field-of-view. We consider a selection of gamma-ray telescopes and we report their main characteristics in Table 2. In Fig. 2 we show the position of our sample of galaxies (as given in Table II) with respect to the sky coverage of several instruments. Both the Fermi Large Area Telescope (Fermi-LAT) and the combination of the Cherenkov Telescope Array (CTA) South and North are expected to cover the whole sky. The Major Atmospheric Gamma Imaging Cherenkov Telescopes (MAGIC), The High Energy Stereoscopic System (HESS) and the High-Altitude Water Cherenkov Observatory (HAWC) instruments have limited sky coverage. Most of the galaxies of our sample are in the sky region covered by Fermi-LAT, HAWC, MAGIC and future CTA-North telescope. A minority of them are also observable with the HESS or the future CTA-South telescope, but not by MAGIC (see Fig. 2).

IV Gamma-ray flux from dark matter annihilation

Gamma-ray astronomy represents one of the most promising methods to search for the DM indirectly (Gammaldi et al., 2015; Gammaldi, 2016; Cembranos et al., 2014, 2013a). Since the properties of large scale structures observed in our Universe imply that DM is fairly cold and its particles are relatively slow moving, the Weakly Interacting Massive Particles (WIMPs) are one plausible DM candidates so far (Bergstrom et al., 1998; Feng et al., 2001). In the generic WIMP scenario, two massive DM particles can annihilate producing two lighter SM particles. In this framework, the differential gamma-ray flux from two annihilating DM particles in galactic sources is:

[TABLE]

The first term on the r.h.s. is the particle physics dependent part:

[TABLE]

that depends on the DM particle mass $\mathrm{m}_{\mathrm{DM}}$ and the averaged annihilation cross-section $\langle\sigma_{i}v\rangle$ of two DM particles into two SM particles (labeled by the subindex $i$). After the main DM annihilation event, the chain of subsequent hadronization and decay events of SM particles, such as quarks and leptons, produce secondary fluxes of cosmic rays, such as gamma rays, neutrinos, antimatter etc. Due to the non-perturbative quantum chromodynamic effects, the analytical calculation of these decay chains is a hard task to be accomplished and therefore it requires Monte Carlo events generators such as PYTHIA (Sjostrand et al., 2006) or HERWIG (Bellm et al., 2017) particle physics software. Here, we use Cirelli’s code (Cirelli et al., 2011) and we include electro weak corrections (Ciafaloni et al., 2011). The uncertainty related to the choice of the Monte Carlo events generator software that produces the simulated gamma-ray flux was studied, among others, in Cembranos et al. (2013b). We assume here that the DM particle is a Majorana fermion. An extra factor of 1/2 would appear in Eq. 5 in the case of symmetric Dirac fermion dark matter.

The second term on the r.h.s. of Eq. 4 represents the astrophysical factor:

[TABLE]

i.e, the integral of the DM mass density profile, $\rho(r)$, along the path (line of sight, $l.o.s.$) between the gamma-ray detector and the source divided by the solid angle $\Delta\Omega=2\pi(1-\cos{\theta})$. The allowed range of values for $\theta$ in the framework of point-like analysis is given by the Point Spread Function (PSF) of the instrument, as we will discuss in the following.

V The astrophysical factor

In this section we will focus on the astrophysical J-factor of the galaxies in the sample. The J-factor depends on the DM density distribution profile, the angular resolution of the telescope and the distance to the target. Instead, as we will discuss in Section VI, given a thermal WIMP candidate, the particle physics dependent part $P(\mathrm{m}_{\mathrm{DM}},\langle\sigma_{i}v\rangle)$ introduced in Eq. (4), is totally independent of the astrophysical context. The DM density distribution parameters for our sample of 36 galaxies are listed in Table 1 and shown on Fig. 1, while the angular resolution of different telescopes are summarized in Table 2. The interested reader can find the details on the calculation of the astrophysical J-factor in the Appendix B. The J-factor calculation gives a first order estimation on the competitiveness of dIrrs with respect to dSphs for DM searches. In the following we present two different approximations in order to calculate the J-factor in our sample, that is (i) fixing the telescope PSF and (ii) ideally accounting for the whole dIrr virial radius.

(i) Point-like J-factors - Following Eq. (6) we calculate the J-factors for the sample of 36 dIrr galaxies in light of a point-like source analysis, where the angular resolution is set by the PSF of the instrument. In details, we assume different values of the solid angles (or integration angles) $\Delta\Omega$ that correspond to the angular resolutions (or PSF) of various gamma-ray telescopes: $\theta=0.05^{\circ},0.1^{\circ},0.5^{\circ}$, that are CTA, HESS/HAWC and Fermi-LAT, respectively. The J-factors and their uncertainties are shown in Fig. 3. Here the error bars represent the uncertainties of the DM density profile. Then, the $15\%$ error on the DM density distribution parameters $\rho_{0}$ and $r_{0}$ introduces an uncertainty of $20\%-60\%$ on the density distribution itself, that is $75\%$ of the astrophysical J-factor. We neglect the uncertainties on both the extreme limits of integration along the $l.o.s.$ and the solid angle since these contributions are expected to be negligible. Let us notice that the J-factor of NGC6822 decreases of almost one order of magnitude ($83\%$) decreasing the integration angle form $0.5^{\circ}$ (Fermi-LAT) to $0.05^{\circ}$ (CTA). We also notice that for the most galaxies of our sample the J-factors calculated for the PSF of $0.5^{\circ}$ are identical to that calculated using their virial dimensions (see the discussion in the next paragraph and Table 3).

(ii) Virial J-factors - In Eq. (6) the solid angle $\mathrm{\Delta\Omega}$, instead of being fixed by the PSF of the instrument, is varying with the dimension of the source. The virial J-factors are listed in Table 3 and plotted as a function of the projected angular dimensions $\theta_{\mathrm{vir}}$ in Fig. 4. This angle depends on the virial radius and the distance to the source as: $R_{\mathrm{vir}}^{2}=d^{2}\sin^{2}{\theta_{\mathrm{vir}}}$ (see Appendix B for details). In Fig. 4 it is evident that the virial J-factor increases with the angle $\theta_{\mathrm{vir}}$. However, comparing Fig. 3 with Fig. 4, it becomes clear that taking into account the full DM halo up to $R_{\mathrm{vir}}$ or just the radius corresponding to the PSF of an instrument, does not affect much the resulting value of the J-factor. Let us notice that the J-factor of NGC6822 increases of only $4\%$ when we move from the integration angle of $0.5^{\circ}$ to $5^{\circ}$. The latter corresponds to the angular dimension of the virial radius. The uncertainties on the virial J-factors in Fig. 4 are calculated as for the point-like analysis. Instead, the error on $\theta_{\mathrm{vir}}$ is obtained by taking into account that the value of the virial radius $R_{\mathrm{vir}}$ in galaxies is independent of the distance to them. Therefore, we can calculate the maximum error on $\theta_{\mathrm{vir}}$ for each galaxy as:

[TABLE]

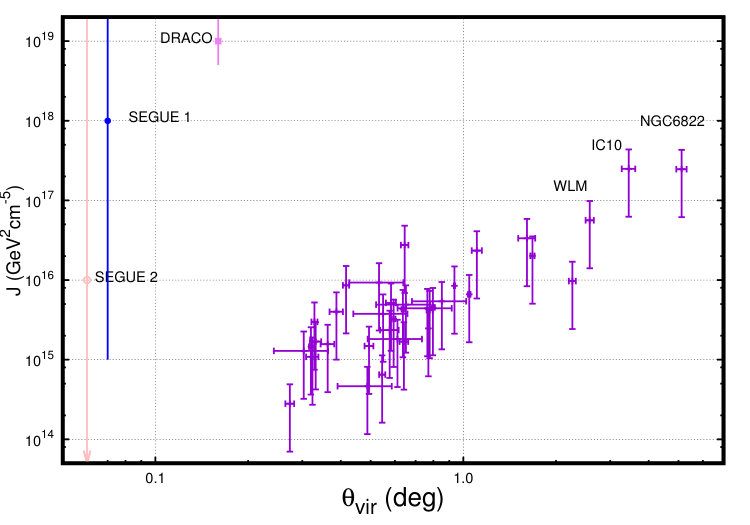

The error bars on the $\theta_{\mathrm{vir}}$ are listed in Table 3 and shown on Fig. 4.

In both cases of the point-like and the virial J-factors, the highest values are obtained for NGC6822, IC10, WLM, that are the closest objects in the sample, with distances of 520 kpc, 790, kpc and 980 kpc respectively (Panel (a) of Fig. 1), central densities of $10^{7}-10^{8}M_{\odot}$ (Panel (c) of Fig. 1) and halo mass of $\sim 10^{10}M_{\odot}$ (see Table 1). In fact, the PSF of Fermi-LAT ($\theta\approx 0.5^{\circ}$) corresponds to a radius of $\sim$ 4.5 kpc, $\sim$6.9 kpc and $\sim$8.5 kpc for the NGC6822, IC10 and WLM galaxy respectively. Let us notice that the average total DM halo mass in the spatial region of dIrrs enclosed within the Fermi-LAT PSF is $\sim 10^{9}M_{\odot}$. This mass is two orders of magnitude bigger than the mass enclosed in the tidal radius of a typical dSph galaxy ($\sim 10^{7}M_{\odot}$).

Finally, on Fig. 5 we plot the J-factors for a PSF of $0.5^{\circ}$ versus the distance to the dIrrs of our sample and several dSphs. It appears clearly that dIrr galaxies although staying at higher distances, in some cases having similar values of the J-factors to that of some dSphs. It is also clear that there is some kind of dependence of the value of the J-factor on the distance to the object. This fact has been already addressed previously for the Milky Way satellites (see e.g. (Albert et al., 2017)). Therefore, it is important to notice that there are certainly more dIrrs galaxies at the distance less than $\sim$ 2  Mpc than presented here. However, not all of them have been detected yet and not all the detected dIrrs have available kinematics so far (see the discussion section).

V.1 Baryon and dark matter spatial distribution

In this section we will discuss the extra astrophysical contribution to the gamma-ray flux expected from the DM annihilation events in dIrr galaxies. We further assume that this extra astrophysical background is enclosed in the corresponding star-forming region. The latter is associated with their optical radii, that are several times smaller than the corresponding virial radii.

A comparison of the optical and the virial projected angles of dIrr galaxies on the sky (or angular dimensions) with the PSF of several instruments is given in Table 3 and Fig. 6. This figure illustrates that the star-forming regions of most of our galaxies are not resolved and they may contribute to the diffuse Isotropic Gamma-Ray Background (IGRB) observed by Fermi-LAT (Fornasa and Sánchez-Conde, 2015; Fornasa et al., 2016; Linden, 2016; Di Mauro, 2015), that is the residual gamma-ray emission after subtraction of the emission from resolved sources and the Galactic diffuse foreground induced by cosmic rays. Four galaxies of our sample (NGC6822, IC10, WLM and IC1613) have optical regions of $\sim 0.1^{\circ}-0.2^{\circ}$, thus they could be potentially resolved by several devices. However, in the next section we will show that they still remain undetected. In fact, their estimated star-forming gamma-ray luminosity is lower than the Fermi-LAT point-like detection threshold. Most of the 36 galaxies has optical angular dimension smaller than $\sim 0.05^{\circ}$, staying unresolved also for the next-generation of gamma-ray telescopes. On the contrary, their DM virial halos are bigger than \mathrel{\mathop{\kern 0.0pt\hbox to0.0pt{\raise 0.86108pt\hbox{>}\hss}}\lower 3.87495pt\hbox{\kern-1.90002pt\sim}}0.2^{\circ}, and could potentially appear as marginally-extended sources (see Table 3 and Fig. 6). However, also in the case of any detection, distinguishing between a point-like or marginally extended source would not be possible, because of the convolution with the PSF of the instrument. For this reason, we need a model for the extra astrophysical background component in dIrrs. We will show that this component is negligible with respect to both the gamma-ray flux expected from DM annihilation events and the diffuse and isotropic gamma-ray background components adopted in the analysis of classical dSph galaxies. This fact allows to set constraints on the DM particle via the point-like analysis of dIrr galaxies.

VI The gamma-ray emission

As previously introduced, in order to search for the secondary gamma-ray DM signature in dIrrs, we need to take into account the extra gamma-ray contamination, associated with their star-forming regions. Notice, that this gamma-ray background we call extra because it is absent or considered negligible in classical dSph galaxies. Even if the difference in the distribution of baryons and DM in these objects may favour the DM detection in the extended halo with respect to the unresolved star-forming region, the mask can not be applied due to the limited PSF of the current generation of gamma-ray telescopes. Therefore, identifying and modelling the possible astrophysical gamma-ray emission in dIrrs is essential before searching for the DM annihilation signal.

VI.1 The astrophysical gamma-ray luminosity

In the star-forming galaxies (hereafter SFGs), the spectral energy distribution is dominated by the IR emission, that is a robust indicator of the Star Formation Rates (SFRs). Pulsars with nebula and supernovae remnants are believed to be the main accelerators of cosmic-rays that contribute to the diffuse gamma-ray emission via the interaction with gas (bremsstrahlung) or the galactic magnetic field (inverse Compton scattering). It is therefore natural to look for a correlation between the IR luminosity (then SFR) also in the star-forming regions of dIrrs, even if their luminosity is of course expected to be lower than that of starburst galaxies, but higher than that of dSphs (Tosi et al., 1989). In starburst galaxies the gamma-ray luminosity as function of SFR was studied by several authors, see e.g. Martin (2014) for galaxies with SFR$\sim 1$ - $10^{2}\hskip 2.84544pt\mathrm{M_{\odot}yr^{-1}}$ and for SFR $\sim 10^{-2}-10^{2}\hskip 2.84544pt\mathrm{M_{\odot}yr^{-1}}$ see Ackermann et al. (2012). These models are suited to better simulate normal spiral galaxies than strongly irregular ones, however it can provide insights into the effects of star formation conditions of non-thermal emissions in dIrrs. Since our dIrr galaxies have lower SFRs (e.g. WLM SFR$\sim 10^{-3}\hskip 2.84544pt\mathrm{M_{\odot}yr^{-1}}$, see Tosi et al., 1989) their astrophysical gamma-ray emission is also expected to be lower. In fact, only bright in infrared starburst galaxies were firmly detected in gamma-rays (Acero, 2009; Ohm, 2016; Rojas-Bravo and Araya, 2016). Recently, seven external SFGs have been detected in gamma rays by the Fermi-LAT. Six of them are rotationally supported galaxies (see for references Abdo, 2010a; Abdo et al., 2010; Abdo, 2010b; Tang et al., 2014; Peng et al., 2016; Griffin et al., 2016; Ackermann et al., 2016). Instead, fainter SFGs are most likely contributing to the IGRB (Linden, 2016). The gamma-ray luminosity $L_{\gamma}$ of the SFGs can be expressed as a function of their far infrared (IR) luminosity $L_{\mathrm{IR}}$ as:

[TABLE]

where the values of $\alpha$ and $\beta$ are $1.18\pm 0.14$, $38.49\pm 0.24$, respectively. These best-fit values are obtained by analyzing the gamma-ray signal that is coincident with 584 SFGs with L_{\mathrm{IR}}\leavevmode\nobreak\ \mathrel{\mathop{\kern 0.0pt\hbox to0.0pt{\raise 0.86108pt\hbox{>}\hss}}\lower 3.87495pt\hbox{\kern-1.90002pt\sim}}\leavevmode\nobreak\ 10^{8}\hskip 2.84544pt\mathrm{L_{\odot}} selected from the IRAS sample (see Linden, 2016, and references therein). We extrapolate this relation down to the dimmest galaxies of our sample with $L_{\mathrm{IR}}\sim\mathrm{few}\times 10^{6}\hskip 2.84544pt\mathrm{L_{\odot}}$. The values of $L_{\mathrm{IR}}$ for the population of 36 galaxies in our sample along with the corresponded references are listed in Table 4. We note that three dIrrs of our sample do not have the measured infrared luminosity. Therefore, in order to determine it we use galaxies in our sample with available IR luminosities and we build a power-low relation between that and the corresponding luminosities in K-band. Where the K-band luminosities of galaxies in our sample can be found in the catalog by Karachentsev et al. (2013).

In Table 4 we also provide the values of $L_{\gamma}$ calculated by using Eq. 8 and the gamma-ray fluxes of each dIrr galaxy calculated as:

[TABLE]

where $d$ is the distance to the target, given in Table 1.

In Fig. 7 we show the astrophysical gamma-ray emission and the Fermi-LAT detection threshold. The gamma-ray fluxes $\phi^{\gamma}_{SFG}$ associated with the star-forming regions of dIrrs in our sample are smaller than $10^{-17}\mathrm{ph}\,\mathrm{cm}^{-2}\,\mathrm{s}^{-1}$ resulting largely compatible with the zero background hypothesis. Their uncertainties are obtained as a combination of both the uncertainties on the distance of the target and of the $\alpha$, $\beta$ parameters in Eq. 8.

VI.2 The dark matter gamma-ray luminosity

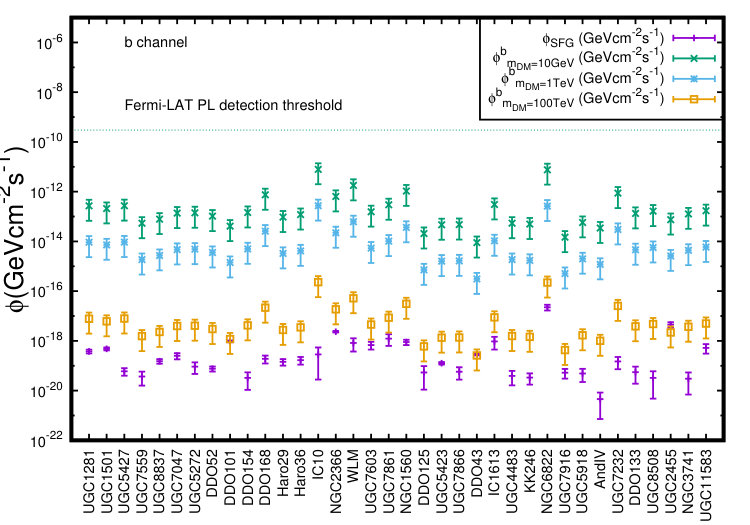

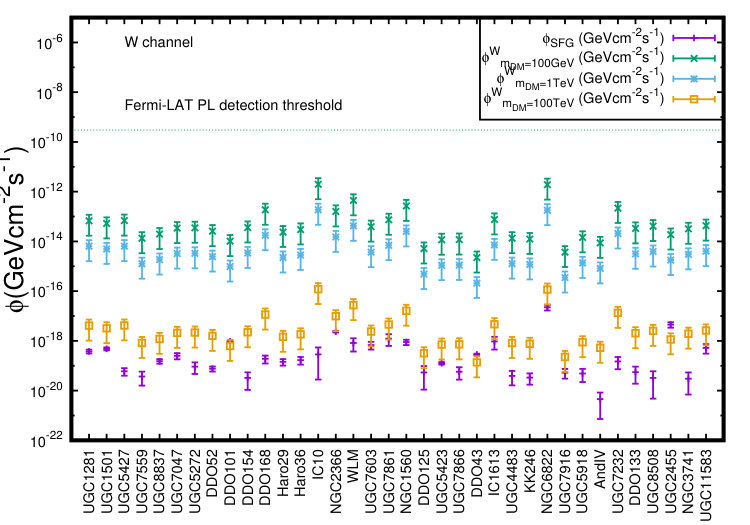

In this section we will focus on the particle physics P-part of Eq. 4. Within the hypothesis of a thermal WIMP candidate ($<\sigma v>=3\times 10^{-26}\mathrm{cm}^{3}\mathrm{s}^{-1}$), the P-part only depends on the DM particle mass and the annihilation channel. Therefore, we calculate the P-part in Eq. 5 for three different annihilation channels ($\tau^{+}\tau^{-},b\bar{b}$ and $W^{+}W^{-}$) and five values of DM mass ($10,100,10^{3},10^{4},10^{5}$ GeV) integrated on the energy range of interest (1-100 GeV). This energy range is in agreement with the estimated astrophysical gamma-ray flux $\phi^{\gamma}_{SFG}$ of the star-forming region, as discussed above. The P-part is given in Table 5. We adopt the J-factors for the Fermi-LAT PSF, that is $\theta\approx 0.5^{\circ}$, given in Table 3. For each dIrrs, the maximum (minimum) value of the DM-related integrated flux is given by the $\tau^{+}\tau^{-}$ annihilation channel and the $10$ GeV ($100$ TeV) DM particle mass. On Fig. 7 we compare the expected gamma-ray fluxes that originate from the star-forming regions of dIrrs with that expected from the annihilation of thermal WIMP particles for a given channel and a DM particle mass. The uncertainty on $\phi^{\gamma}_{DM}$ includes the $75\%$ error on the J-factor. The Fermi-LAT detection threshold in Fig. 7 is given by Linden (2016). We can then conclude: (i) the estimated emission of the DM-related gamma-ray flux $\phi^{\gamma}_{DM}$ enclosed in Fermi-LAT PSF can be up to 8 orders of magnitude higher, depending on the DM mass, than the astrophysical gamma-ray flux $\phi^{\gamma}_{SFG}$ associated with the star-forming region of the same dIrr. Therefore, the extra astrophysical gamma-ray background is negligible in these objects, and we can apply to dIrrs the same analysis used to study classical dSphs galaxies; (ii) the secondary $\phi^{\gamma}_{DM}$ emitted by the annihilation events of the thermal DM particles in dIrrs remain below the Fermi-LAT detector sensitivity threshold. In the following section we will set upper limits on the DM particle mass and annihilation cross-section via the first analysis of dIrr galaxies.

We conclude that the astrophysical gamma-ray emission in dIrr galaxies can be considered negligible similar to what is assumed in dSphs. The latter statement is valid for, at least, a DM particle mass of $10-10^{4}$ GeV and the energy range studied in this work. For this limited energy range, the expected signal from a DM particle candidate of 10-100 TeV would in fact be contaminated by the astrophysical gamma-ray contribution.

VII Sensitivity analysis

In the previous sections we have theoretically demonstrated that dIrrs could be considered as objects with approximately zero astrophysical gamma-ray background and with the DM halo that appears as a point-like or a marginally extended source for gamma-ray telescopes. As a first application of such a theoretical rationale, we are going to place constraints on the DM particle mass and annihilation cross-section with our sample of galaxies and by means of the sensitivity study of the Fermi-LAT detector. We ask for detection of secondary gamma rays produced in the DM halo of dIrr galaxies with statistical significance of $5\sigma,3\sigma$ and $1\sigma$:

[TABLE]

The effective area $A_{\mathrm{eff}}$ and exposition time $t_{\mathrm{exp}}$ for the Fermi-LAT detector used in this analysis are given in Table 2. We fix the exposition time $t_{\text{exp}}$ and, as first approximation, we keep constant the effective area $A_{\text{eff}}$, although the latter also depends on the energy range, the incidence angle and the azimuthal angle Atwood et al. (2013). These dependences would affect a proper data analysis with respect to these first results. Notice that, the solid angle $\Delta\Omega_{\mathrm{PSF}}=2.4\times 10^{-4}\mathrm{sr}$ corresponding to the Fermi-LAT PSF of $0.5^{\circ}$, allows to include the biggest parts of galaxies’ DM halos in more than 70% of galaxies in the sample. In fact, the J-factors calculated on the Fermi-LAT PSF are identical to those calculated on the whole virial angular dimensions of the associated DM haloes. However, we will show that assuming $\Delta\Omega_{\mathrm{PSF}}=10^{-5}\mathrm{sr}$ (PSF of $0.1^{\circ}$) we get an improvement in the results by almost a factor of 8, depending on the particular source (see next subsection and Appendix C for details).

Showing that the astrophysical gamma-ray contamination in dIrr is negligible, we estimate the gamma-ray background $\phi_{\mathrm{Bg}}$ in Eq. 10 taking into account both the galactic interstellar diffuse emission model designed to be used for point source analysis ($gll\_iem\_v06.fits$) and the isotropic spectral template ($ISO\_P8R2\_SOURCE\_V6\_v06.txt$). The latter includes both extragalactic diffuse gamma rays and the remaining residual (misclassified) cosmic-ray emission from a fit to the all-sky emission with |b|>30 deg, that are not represented in the Galactic diffuse model. In particular the SOURCE class provides good sensitivity for analysing the point sources and moderately extended sources. Therefore, for each k-dIrr galaxy in the sample we assume:

[TABLE]

although the diffuse emission above $10$ GeV is considered to be sub-dominant with respect to the isotropic contribution (Abdo, 2009). We then calculate the diffuse emission background contribution between $1-100$ GeV for the position of each dIrr in the sky. These values are given in Table 4 and the integrated isotropic contribution is estimated to be $\phi_{\mathrm{iso}}=5.0\times 10^{-7}\mathrm{cm}^{-2}\mathrm{s}^{-1}\mathrm{sr}^{-1}$ between $1-100$ GeV. We also check the Fermi-LAT 3FGL Catalog (Acero et al., 2015) and we exclude Haro36 dIrr that is spatially coincident with the 3FGLJ1248.0+5130 BL LAC object within $0.5^{\circ}$ degrees in the Fermi-LAT sky. In what follows we show the results of a single galaxy study as well as of the stacked analysis.

VII.1 Individual limits

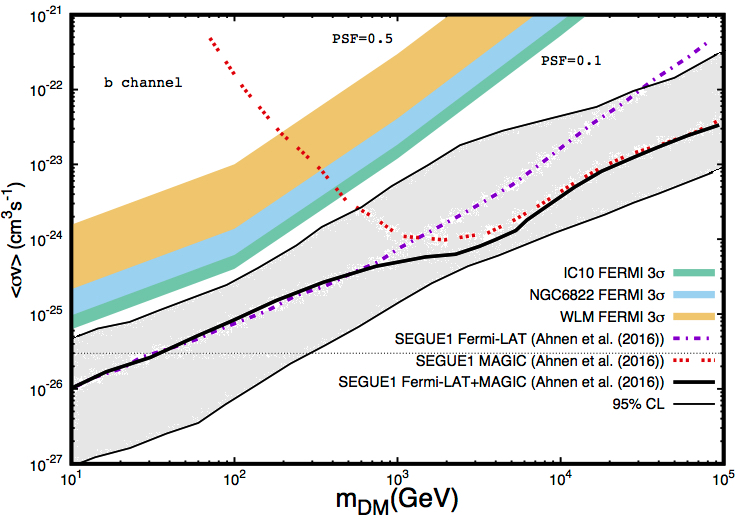

In Fig. 8 we show the best results obtained within our sample of galaxies, that are given by the study of NGC6822, IC10 and WLM dIrrs. Notice that NGC6822 galaxy group is excluded in Lisanti et al. (2018) because of its location that is less than $2^{\circ}$ from the center of another galaxy group. Here, instead, we keep it since we are only considering the central galaxy which does not overlap with any source in the $0.1/0.5$ degrees of interest in our analysis. Whereas the Fermi-LAT PSF is strongly energy dependent, we show, as shadowed regions, the improvement on the upper limits when we switch the point-like analysis from an angular resolution of $0.5^{\circ}$ to $0.1^{\circ}$ with the statistical significance of $3\sigma$, in both cases. This can help to graphically visualize the possible inaccuracy that could affect the sensitivity study with respect to a proper data analysis.

In the same Fig. 8 we also show the upper limit within $95\%$ of confidence level (hereafter denoted as CL) (gray region) obtained for the SEGUE1 dSph galaxy with the combined analysis of 6-years of Fermi-LAT and 158 hours of MAGIC observations (Ahnen et al., 2016). Let us notice that the most stringent upper limits we get are in the case of IC10 dIrr galaxy. Although, these limits are still weaker, by a factor of a few, than that of SEGUE1 dSph galaxy, the assumed value for the SEGUE1 J-factor ($\sim 10^{19.5\pm 0.29}\,\mathrm{GeV}^{2}\mathrm{cm}^{-5}$ on $0.5^{\circ}$) is largely higher than the lower limit ($\sim 10^{15}\,\mathrm{GeV}^{2}\mathrm{cm}^{-5}$) when accounting for the systematical uncertainties on its triaxiality (Hayashi et al., 2016), as shown in Fig. 3-4. In other words, the SEGUE1 constraints based on the lower bound of the J-factor value would be comparable with the limits of this work. On the contrary, the 3$\sigma$ uncertainties of the dIrrs’ upper limits do include $43\%$ of uncertainties related with the corresponding uncertainties on the J-factors (see Eq. (10)). In Appendix C we show the upper limits on the DM particle mass and annihilation cross-section for each galaxy in our sample.

VII.2 Stacked limits

In this Section we illustrate the predictions for the upper limits on the DM annihilation cross-section from the combined/stacked analysis of sub-sample of galaxies. We notice that the most promising combination is given by a sub-sample of 7 targets, that are: DD0168, IC10, NGC2366, WLM, NGC1560, NGC6822, UGC7232. Then we define:

[TABLE]

where $P$ is the particle physics factor defined in Eq. (5). The backgrounds are defined as:

[TABLE]

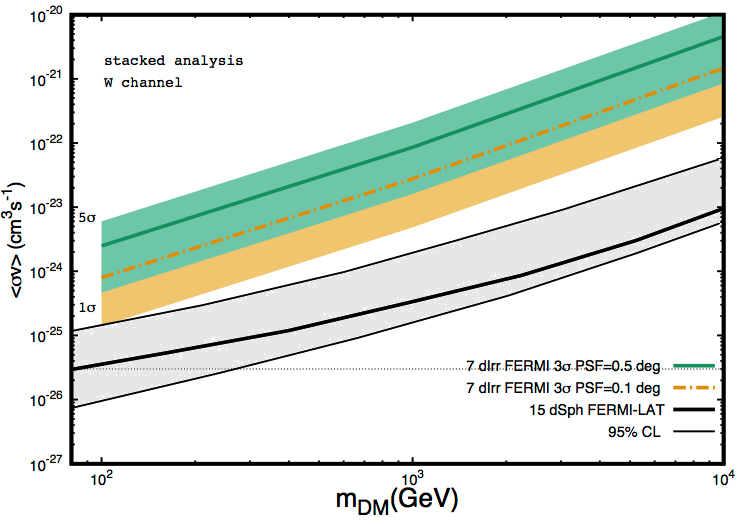

The resulting exclusion limits are shown in Fig. 9. In order to take into account the PSF variability with the energy, we show the results of the point-like analysis for both a PSF of $0.5^{\circ}$ (green band ($5\sigma-1\sigma$ region) and line ($3\sigma$)) and $0.1^{\circ}$ (orange band ($5\sigma-1\sigma$ region) and line ($3\sigma$)). In the same figure, we also show the $2\sigma$ significance limits within the $95\%$ of CL obtained by the analysis of 15 dSph galaxies by the Fermi-LAT collaboration (Ackermann et al., 2015). We note that although our upper limits are not necessary better than that obtained by the analysis of dSph galaxies, they could be improved by the discovery of promising dIrr targets.

VIII Discussion

The purpose of this paper is to analyze dIrr galaxies as new targets for indirect DM searches and estimate the constraints that can be set on the DM particle mass and annihilation cross-section by new prospective experimental data analysis for such class of objects. Although our results show that dIrr are of one order of magnitude less competitive with respect to dSph galaxies, we would like to stress that the number of detected dIrr galaxies in the Local Volume is greatly increasing with time (see Karachentsev et al., 2013). In Fig. 10 we plot histograms that show the distribution of dSphs and dIrrs according to their absolute K-band magnitude for 3 distance bins (data are taken from Karachentsev et al., 2013). The well-studied Milky Way dSph galaxies are enclosed in a radius of \mathrel{\mathop{\kern 0.0pt\hbox to0.0pt{\raise 0.86108pt\hbox{<}\hss}}\lower 3.87495pt\hbox{\kern-1.90002pt\sim}}300 kpc Albert et al. (2017), and within $d<1$ Mpc the number of dSphs is almost $20\%$ bigger than that of dIrrs (upper panel in Fig. 10). Starting from the distance of $\sim 4$ Mpc (middle panel in Fig10) dIrrs start to outnumber dSphs. The 7 dIrrs included in the selected sub-sample for the combined study reach a distance of $\sim 5$ Mpc, but the sample only includes galaxies of a particular region of the sky (see the sky map in Fig. 2). Therefore, the increasing number of dIrr detected and studied in their kinematics may result in placing competitive bounds with respect to those derived from the stacked analysis of the limited number of dSph galaxies. In fact, the total number of dIrrs in the Local Volume is expected to be $\sim 200\%$ of that of dSphs (bottom panel in Fig.10). Moreover, the kinematics of closer and fainter rotationally-supported galaxies, such as Low Surface Brightness (LSB) galaxies have been recently studied Di Paolo and Salucci (2018) and they are also expected to occupy massive DM halos.

IX Conclusions

In this paper, we analyze a sample of 36 dIrr galaxies as new point-like targets for indirect DM searches with gamma-ray telescopes. These DM dominated rotationally supported galaxies, differently from pressure supported dSphs, allow us to well constrain their DM density distribution profiles by means of the accurate kinematics and the universality in the DM distribution. The kinematics of these galaxies points to the existence of the DM core profiles with DM halos extending far beyond their optical star-forming regions. Although a gamma-ray background contribution of astrophysical origins is expected in these regions, it is assumed to be localized in a very inner region that stays unresolved by the current generation of gamma-ray telescopes. First of all, we calculate the astrophysical factors for a sample of 36 dIrr galaxies in the Local Volume ($<11$ Mpc) and we show that the uncertainties on the J-factors, although estimated to be bigger than $75\%$, are, in most cases, better than that of the classical dSph galaxies. Two galaxies in the sample (NGC6822 and IC10) have J-factors \mathrel{\mathop{\kern 0.0pt\hbox to0.0pt{\raise 0.86108pt\hbox{>}\hss}}\lower 3.87495pt\hbox{\kern-1.90002pt\sim}}\mathrm{few}\times 10^{17}\hskip 2.84544pt\mathrm{GeV}^{2}\mathrm{cm}^{-5} and five more (DD0168, NGC2366, WLM, NGC1560 and NGC7232) bigger than $\mathrm{few}\times 10^{16}\hskip 2.84544pt\mathrm{GeV}^{2}\mathrm{cm}^{-5}$. Secondly, we show that the spatially localized astrophysical background contribution is expected to remain unresolved, therefore negligible with respect to the diffuse and isotropic gamma-ray background in the 1-100 GeV energy range. On the other hand, the DM halo in dIrrs could appear as point-like or marginally extended for gamma-ray telescopes (Fig. 6). We study the possibility to set competitive constraints on the DM particle mass and annihilation cross-section via the study of this category of galaxies. The upper limits for each individual galaxy are less stringent than that of the analysis of the SEGUE1 dSph performed by the Fermi-LAT and MAGIC collaborations. However, notice that the last statement is true within a certain assumption on the value of the SEGUE1 J-factor, where its lower J-factor bound can be up to 4 orders of magnitude smaller than the commonly assumed value. Additionally, let us notice that the claim for a $2\sigma$ detection of the DM signal in ultra-faint dwarf Indus II ($\mathrm{m}_{\mathrm{DM}}\approx 100$ GeV, $<\sigma v>\approx 10^{-23}$, 6 years, $2.4\sigma$) (Albert et al., 2017) should be confirmed by the analysis of at least three galaxies in our sample, that are NGC6822, IC10, and the WLM galaxy. On the other hand, the claim for the DM detection in Tucana III ($\mathrm{m}_{\mathrm{DM}}\approx 100$ GeV, $<\sigma v>\approx 10^{-26}$, 7 years, $2.4\sigma$) (Li et al., 2016) cannot be confirmed, following our results. We also show the upper limits for the stacked analysis of a selection of 7 dIrr galaxies and a PSF of $0.5^{\circ}$ and $0.1^{\circ}$, that starts to approach the constraints given by the analysis of 15 dSphs with Fermi-LAT. Considering that this analysis makes use only of the Fermi-LAT background models, the comparison with the constraints obtained through the proper data analysis of the classical dSphs is not straightforward (Drlica-Wagner et al., 2015; Ackermann et al., 2015) and further investigation is needed.

Altogether, in this paper, by means of a theoretical approach, we reconsider dIrr galaxies as new point-like targets for DM searches. This proof of concept could open new avenues concerning the data analysis of promising dIrrs. These galaxies could potentially represent complementary targets for DM searches because of their different kinematics, morphology and cosmological evolution, that result in density profiles that are different from that of dSphs. We would like to mention that the next generation large-area HI surveys, including SKA, will help to increase the number of the detected late-type galaxies in the Local Universe, as well as it will improve the kinematical measurements of their HI content (see e.g. (Acosta-Pulido et al., 2015)). Therefore, the increasing number of dIrr galaxies with measured kinematics could improve the significance of the results. Moreover, further investigation will be addressed to the study of this class of galaxies at higher energy scale. In fact, because AGN are not observed in dIrr galaxies, the astrophysical gamma-ray background is expected to be negligible even at very high energy. Preliminary results for these objects with two-years data of the HAWC observatory have been already obtained for the TeV energy scale (see Cadena et al., 2017, for more details).

Acknowledgements.

This work has been supported by QGSKY, by the Agencia Estatal de Investigación (AEI) y al Fondo Europeo de Desarrollo Regional (FEDER) FIS2016-78859-P(AEI/FEDER, UE), by the MINECO (Spain) project FIS2014-52837-P and Consolider-Ingenio MULTIDARK CSD2009-00064, and partially by the H2020 CSA Twinning project No.692194 ORBI-T-WINNINGO. The authors are grateful to the anonymous referee for useful comments and suggestions. VG thanks the support of the Spanish Red Consolider MultiDark FPA2017-90566-REDC and she is also grateful to P. Ullio, A. Urbano, M. A. Sanchez-Conde, N. Fornengo, G. Gomez-Vargas, G. Zaharijas, R. Alfaro and S. Hernandez, for useful discussions, and to V. Avila-Reese, A.G.X. Gonzalez-Morales and O. Valenzuela for interesting considerations related with the Appendix Details on the J-factor. EK work was supported by the São Paulo Research Foundation (FAPESP) under the grant #2016/26288 - 9.

Appendix A Rotation curves

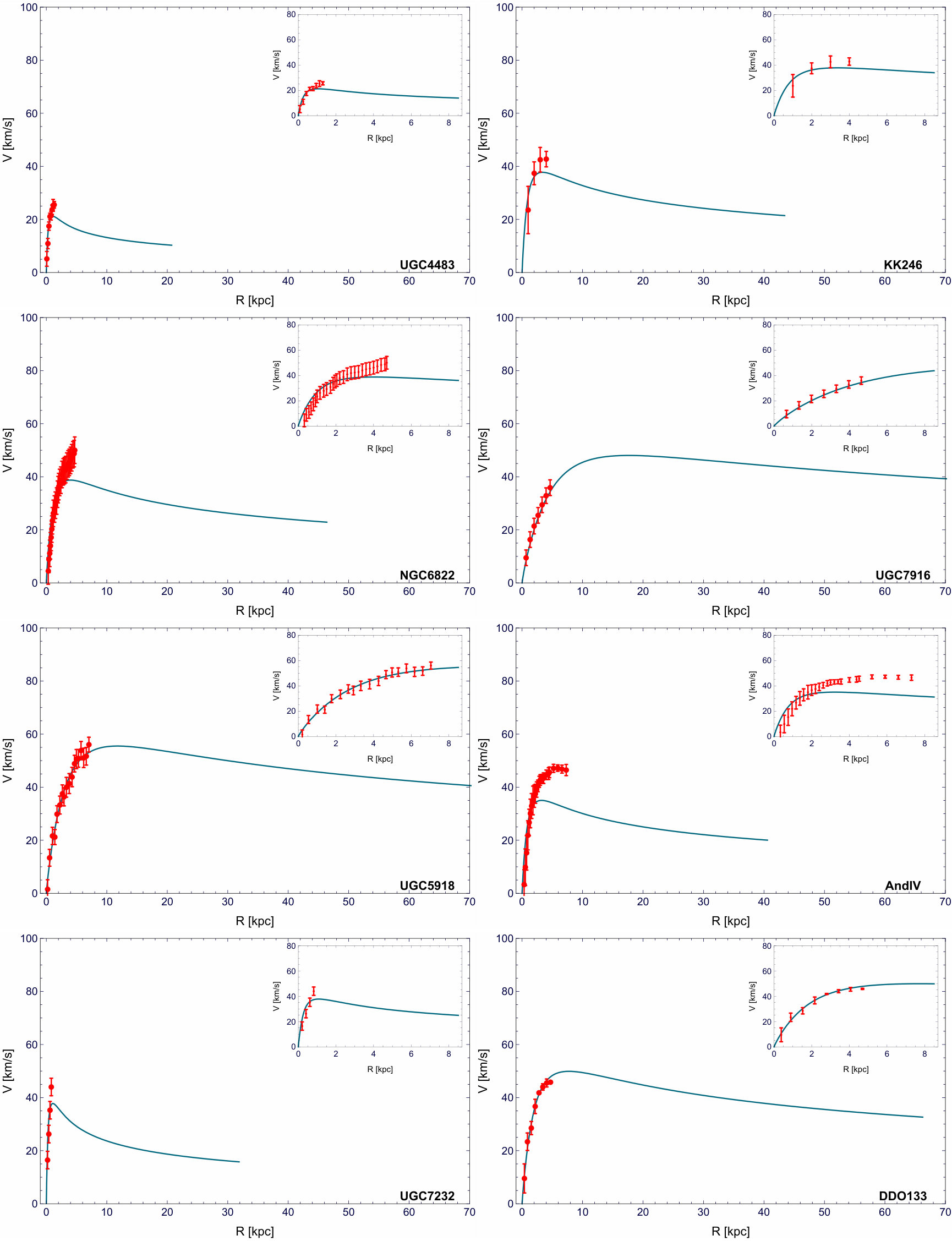

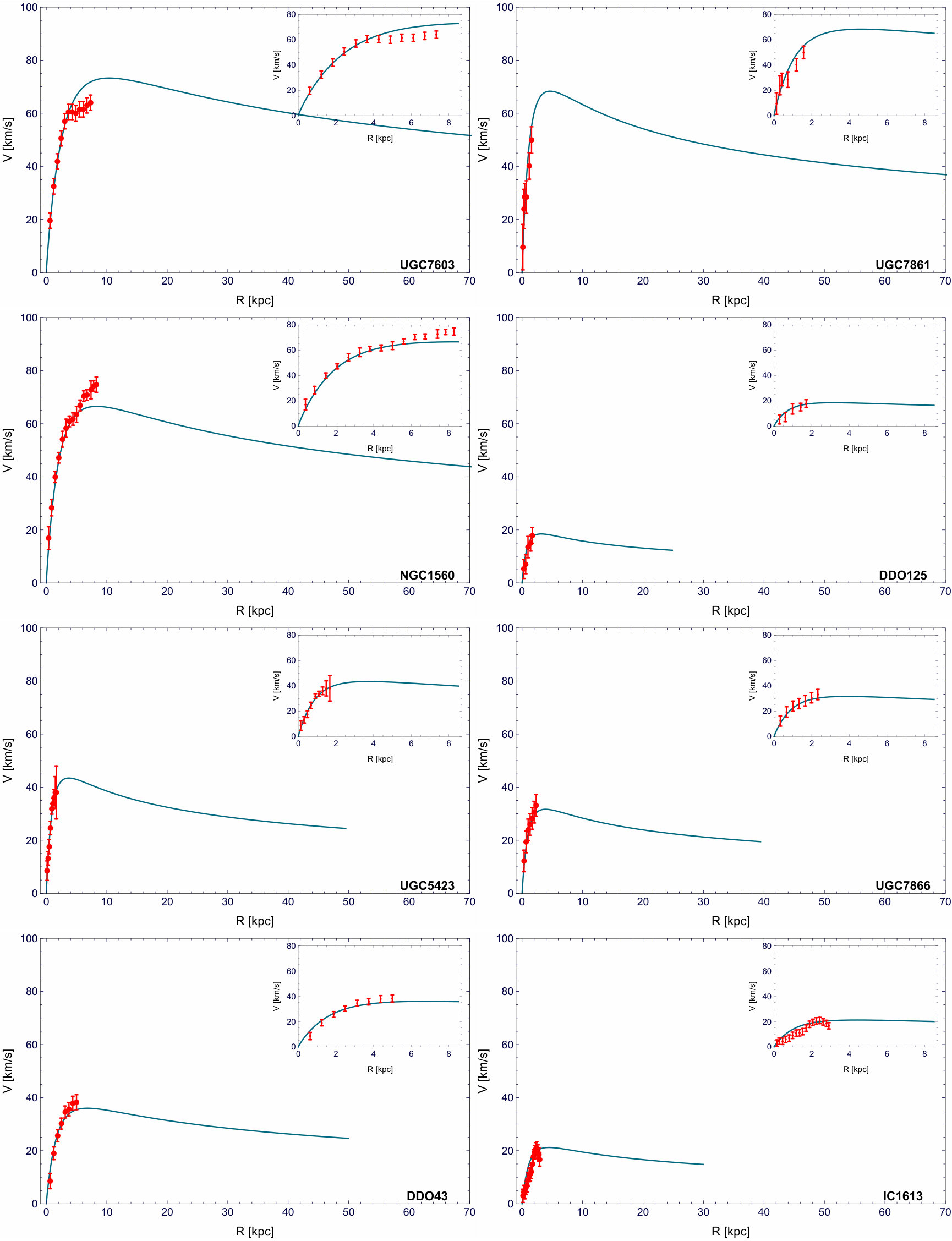

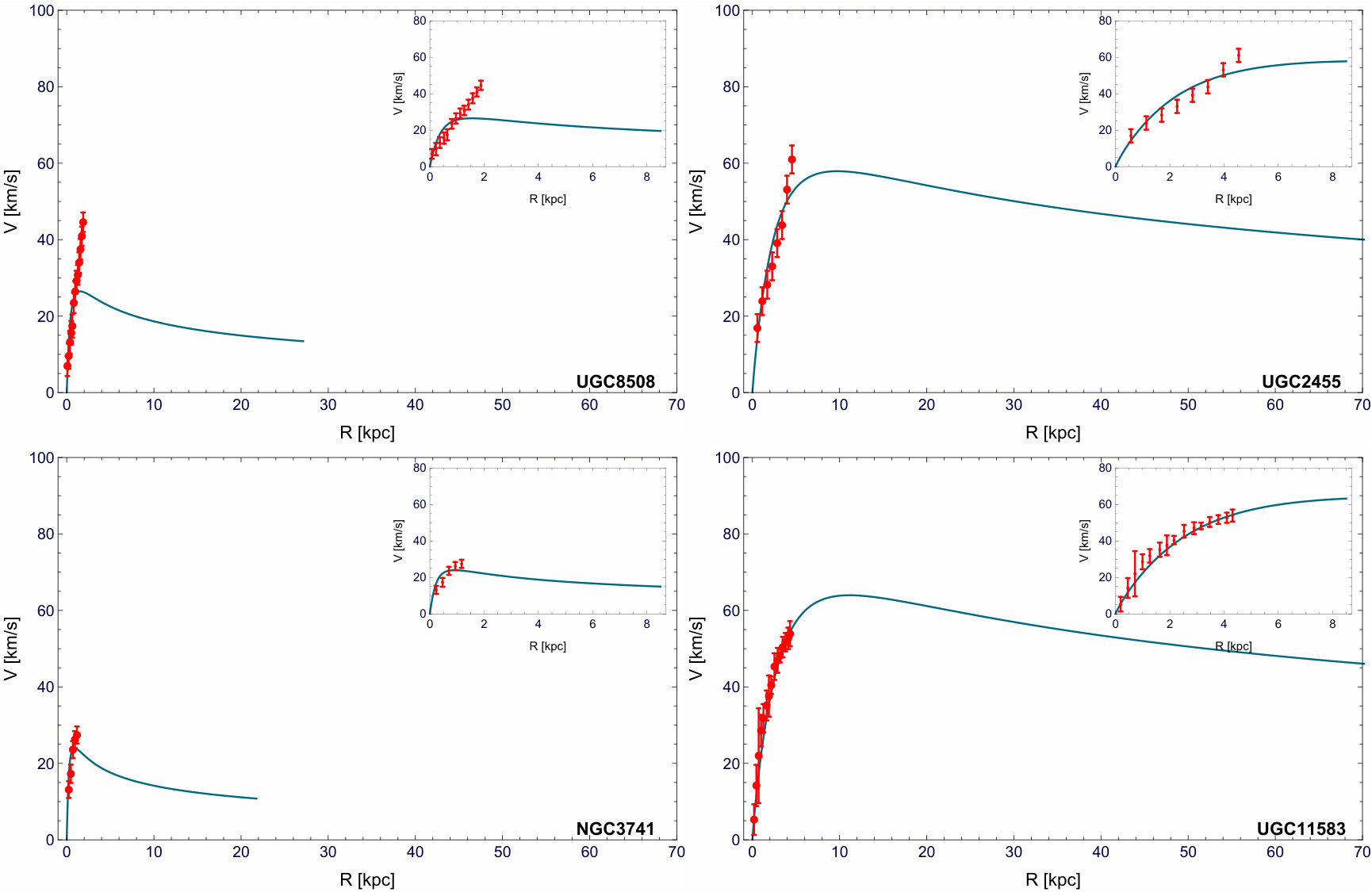

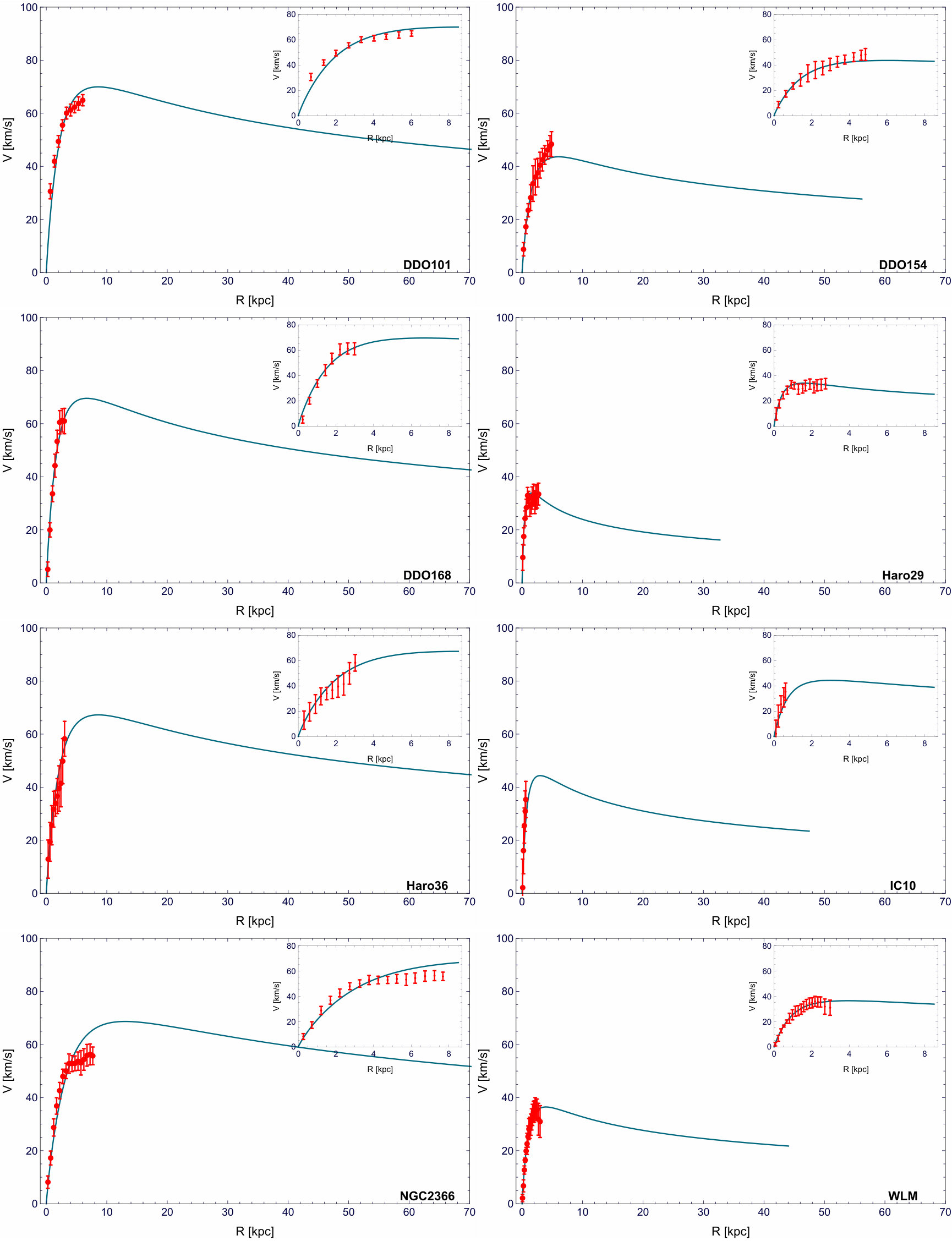

As it was mentioned in Section II the URC in most of the cases is able to fit the individual rotation curves of galaxies in our sample. On Fig. 11 we plot the prediction for the DM density distribution profile for each galaxy (as obtained by the URC studies) over kinematical measurements of each. The difficulty for three galaxies of the sample (NGC6822, AndIV and UGC8508) to reproduce the outer rotation curves may be due to the uncertainties on the estimated inclinations or disk length scales of the objects.

Appendix B Details on the astrophysical factor

Although the astrophysical J-factor is extensively used in indirect DM searches, estimating its value is sometimes not straightforward, unless to spend a time to well understand it. Typically, the DM density distribution in the selected source is given by the spherical coordinates $\rho(r)$, in the target reference frame. Calculating the J-factor requires to move from the source to the observer reference system. Then, it is straightforward to recover the required coordinate reference system along the $l.o.s.$ as follows:

[TABLE]

Here, $r$ and $(x^{\prime},y^{\prime},z^{\prime})$ are the radial and the cartesian coordinates, respectively, in the reference system centred on the target. On the other hand, $(x,y,z)\equiv(x^{\prime}-d,y^{\prime},z^{\prime})$ and $(l,\alpha,\beta)$ represent the cartesian and the $l.o.s.$ coordinates in the observer reference frame. Changing the reference system as:

[TABLE]

the radius as a function of the l.o.s. coordinates is given by:

[TABLE]

Then, the integration limits are:

[TABLE]

If $\alpha=0$, then $l_{\mathrm{min/max}}=d\pm r$. Here, $r=r_{\mathrm{max}}$ is the virial (rotationally-supported objects) or tidal (pressure-supported objects) radius, depending on the kind of galaxy that has been previously selected as a target. If $\alpha\neq 0$, then r^{2}\mathrel{\mathop{\kern 0.0pt\hbox to0.0pt{\raise 0.86108pt\hbox{>}\hss}}\lower 3.87495pt\hbox{\kern-1.90002pt\sim}}d^{2}\sin^{2}\alpha. This also gives the angular versus the radial dimensions of the source in the sky as $\alpha=\arcsin(r/d)$. As discussed in the main text, if $r_{\mathrm{max}}=R_{\mathrm{vir}}$, the projected virial angular dimension of the source in sky is $\alpha_{\mathrm{vir}}$. Geometrically speaking, if the angular resolution of the instrument is \theta_{\mathrm{PSF}}\mathrel{\mathop{\kern 0.0pt\hbox to0.0pt{\raise 0.86108pt\hbox{<}\hss}}\lower 3.87495pt\hbox{\kern-1.90002pt\sim}}\alpha_{\mathrm{target}} the source can be resolved by the instrument. Otherwise, if \theta_{\mathrm{PSF}}\mathrel{\mathop{\kern 0.0pt\hbox to0.0pt{\raise 0.86108pt\hbox{>}\hss}}\lower 3.87495pt\hbox{\kern-1.90002pt\sim}}\alpha_{\mathrm{target}}, the source is unresolved.

Appendix C Individual galaxy analysis

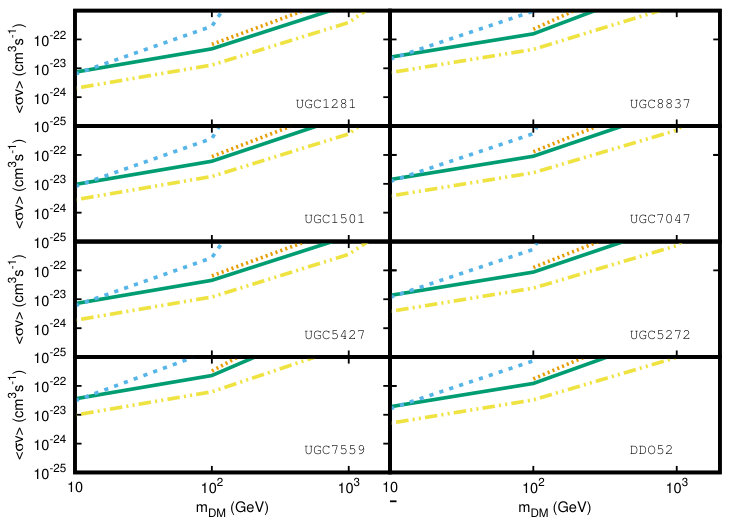

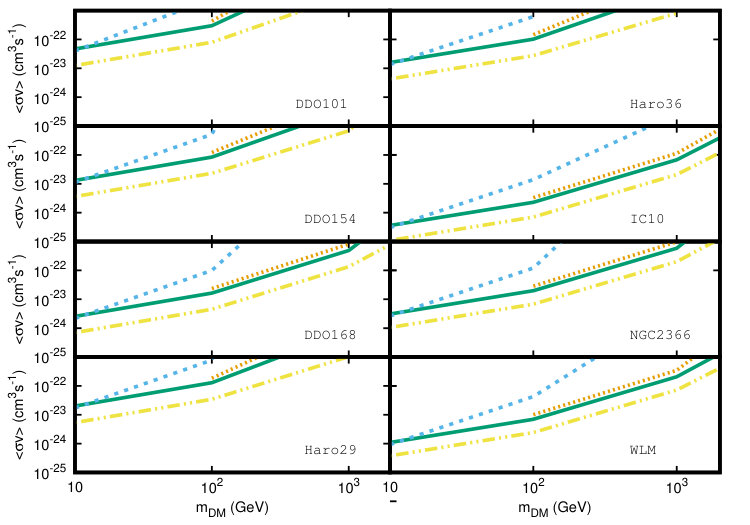

Upper limits on the DM particle mass and annihilation cross-section from the analysis of the individual 36 dIrr galaxies.
