Disantangling the effects of Doppler velocity and primordial non-Gaussianity in galaxy power spectra

TL;DR

This paper investigates how large-scale velocity effects influence galaxy clustering measurements, demonstrating that multi-tracer analysis can detect these effects and distinguishing them from primordial non-Gaussianity signatures.

Contribution

It introduces a simulation-based approach to disentangle velocity effects from primordial non-Gaussianity in galaxy power spectra using multi-tracer techniques.

Findings

Velocity effects detectable at >3 sigma with multi-tracer analysis.

Ratios of monopoles of different tracers contain key information.

Large-scale velocity effects can mimic primordial non-Gaussianity signals.

Abstract

We study the detectability of large-scale velocity effects on galaxy clustering, by simulating galaxy surveys and combining the clustering of different types of tracers of large-scale structure. We employ a set of lognormal mocks that simulate a $20.000$ deg$^2$ near-complete survey up to $z=0.8$, in which each galaxy mock traces the spatial distribution of dark matter of that mock with a realistic bias prescription. We find that the ratios of the monopoles of the power spectra of different types of tracers carry most of the information that can be extracted from a multi-tracer analysis. In particular, we show that with a multi-tracer technique it will be possible to detect velocity effects with $\gtrsim 3 \sigma$. Finally, we investigate the degeneracy of these effects with the (local) non-Gaussianity parameter $f_{\rm NL}$, and how large-scale velocity contributions could be mistaken for the signatures of primordial non-Gaussianity.

Figures

Tables

Table 1. Table 1: Left: redshift slices, volumes in each slice (assuming an area of 20.000 20.000 20.000 deg 2 ), mean comoving distance to the slices, and matter growth rate f 𝑓 f (assumed constant inside each slice). Right: mean number densities of the three tracers. The biases ( b 1 = 1.0 subscript 𝑏 1 1.0 b_{1}=1.0 , b 2 = 2.0 subscript 𝑏 2 2.0 b_{2}=2.0 ) and amplitudes of the Doppler ( α 1 = 4.0 subscript 𝛼 1 4.0 \alpha_{1}=4.0 , α 2 = 2.0 subscript 𝛼 2 2.0 \alpha_{2}=2.0 ) of each tracer are kept fixed on all slices.

Slice	$z_{min}-z_{max}$	$V\left(h^{-3}{\mathrm{Gpc}}^3\right)$	$r_{central}\left(h^{-1}\mathrm{Mpc}\right)$	$f={\Omega }_m^{0.55}\left(z\right)$	${\overline{n}}_1\left(h^3{\mathrm{Mpc}}^{-3}\right)$	${\overline{n}}_2\left(h^3{\mathrm{Mpc}}^{-3}\right)$
$z_1$	0.0-0.2	0.39	293	0.543	0.11	0.02
$z_2$	0.2-0.4	2.24	839	0.643	0.05	0.01
$z_3$	0.4-0.6	4.9	1328	0.724	0.015	0.003
$z_4$	0.6-0.8	7.3	1765	0.786	0.012	0.002

Table 2. Table 2: Uncertainties in the parameters when different combinations of the Fisher information and priors are taken into account. We only include the information from modes up to k = 0.1 ​ h ​ Mpc − 1 𝑘 0.1 ℎ superscript Mpc 1 k=0.1\,h\,{\rm Mpc}^{-1} in order to limit ourselves to the linear regime. Rows 1-14 correspond to the case when we take galaxy bias and the matter growth rate index γ 𝛾 \gamma to be free parameters, but with a single value for all redshift slices. On row 15 we allow the biases to assume values on each redshift slice, and on row (16) we assume, in addition, that the value of γ 𝛾 \gamma is independent on each slice. As one can see from rows 11-14 of the table, most of the information about the Doppler is in fact coming from the first redshift slice – although the higher-redshift slices help to determine bias and the matter growth rate, which helps breaking degeneracies. It is also interesting to notice that, although the multi-tracer ratios (MT) of monopoles are much better at detecting the Doppler, the direct comparison of the quadrupole with the monopole (PW) for individual tracers performs better at detecting the matter growth rate, expressed through the parameter γ 𝛾 \gamma . This is because the monopole inherits contributions from both the bias and from matter growth rate f 𝑓 f , while the amplitude of the quadrupole is directly proportional to f 𝑓 f .

	Fiducial values	$b_1=1.0$	$b_2=2.0$	${\alpha }_1=4.0$	${\alpha }_2=2.0$	$\gamma =0.55$	$f_{\mathrm{NL}}=0.0$
Case/row	Fisher Information	$\sigma \left(b_1\right)$	$\sigma \left(b_2\right)$	$\sigma \left({\alpha }_1\right)$	$\sigma \left({\alpha }_2\right)$	$\sigma \left(\gamma \right)$	$\sigma \left(f_{\mathrm{NL}}\right)$
(1)	$F^{PW}$	0.069	0.17	9.7	25.9	0.13	138
(2)	$F^{MT}$	0.83	1.37	8.3	40.3	0.58	7.0
(3)	$F^{All}$	0.027	0.055	3.9	22.9	0.05	5.8
	Prior ($\Pi$)	1.0	1.0	8.0	4.0	1.0	10.0
(4)	$F^{PW}$ + $\Pi$	0.065	0.15	5.84	3.94	0.12	9.97
(5)	$F^{MT}$ + $\Pi$	0.41	0.67	2.2	3.97	0.28	5.6
(6)	$F^{All}$ + $\Pi$	0.025	0.051	1.21	3.93	0.046	5.0
(7)	$F^{All}$ + $\Pi$ + fixed ($\gamma$, $f_{\mathrm{NL}}$)	0.013	0.022	1.05	3.93	–	–
(8)	$F^{All}$ + $\Pi$ + fixed ($b_1$, $b_2$)	–	–	1.08	3.93	0.016	2.53
(9)	$F^{All}$ + $\Pi$ + fixed ($b_1$, ${\alpha }_1$)	–	0.0046	–	3.29	0.022	3.7
(10)	$F^{All}$ + $\Pi$ + fixed ($b_2$, ${\alpha }_2$)	0.0024	–	0.94	–	0.020	3.8
(11)	$F_{z_1}^{All}$ + $\Pi$	0.41	0.82	1.61	3.95	0.41	10.0
(12)	$F_{z_1+z_2}^{All}$ + $\Pi$	0.12	0.25	1.29	3.94	0.15	9.4
(13)	$F_{z_1+z_2+z_3}^{All}$ + $\Pi$	0.049	0.098	1.24	3.93	0.075	7.2
(14)	$F_{z_1+z_2+z_3+z_4}^{All}$ + $\Pi$ = $F^{All}$ + $\Pi$	0.025	0.051	1.21	3.93	0.046	5.0
(15)	$F^{All}$ + $\Pi$ [$b_i\left(z\right)$ ]	–	–	1.31	3.86	0.92	5.1
(16)	$F^{All}$ + $\Pi$ [$b_i\left(z\right)$, $\gamma \left(z\right)]$	–	–	1.76	3.86	–	6.0

Equations

$${\delta }_g^{(r_s)}=\frac{n_g^{(s)}-{\bar{n}}_g^{(s)}}{{\bar{n}}_g^{(s)}}={\delta }_g+\frac{\partial v_r}{\partial r}+\frac{\alpha v_r}{r},$$

$${\alpha }_{\mathrm{Newt}}=2+\frac{d\ln {\bar{n}}_g}{d\ln r}.$$

$$\alpha_{\rm GR}=-r(z)\frac{H(z)}{(1+z)}\left[b_{e}(z)-1-2\mathcal{Q}(z)+\frac{3}{2}\Omega_{m}(z)-\frac{2}{r(z)}\big{[}1-\mathcal{Q}(z)\big{]}\frac{(1+z)}{H(z)}\right]\;,$$

$$b_e(z)=-(1+z)\frac{d\ln {\bar{n}}_g^{(s)}}{dz}$$

$$\mathcal{Q}=-{d\ln\bar{n}_{g}^{(s)}(L)\over d\ln L}\bigg{|}_{L=L_{\rm lim}}\;,$$

$$P_i^s(k,\mu )=\left[{\left(b_i+f{\mu }^2\right)}^2+{\left(\frac{f{\alpha }_i}{kr}\mu \right)}^2\right]P_m(k)$$

$$P_i^s(k,\mu )=\sum _{\ell =0,2,4}{P}_m^r(k)A_i^{(\ell )}(k){\mathcal{L}}_{\ell }(\mu ),$$

$$A_i^{(0)}$$

$$A_i^{(2)}$$

$$\frac{{\sigma }^2[P_i(\vec{k})]}{P_i^2(\vec{k})}\ge \frac{2}{V{\tilde{V}}_{\vec{k}}}{\left[\frac{1+{\bar{n}}_i{P}_i(\vec{k})}{{\bar{n}}_i{P}_i(\vec{k})}\right]}^2,$$

$${\chi }_{i(\ell )}^2=\sum _k{\left[\frac{\Delta P_i^{(\ell )}(k)}{\sigma (P_i^{(\ell )})}\right]}^2.$$

$$\frac{{\sigma }^2[f_{12}(\vec{k})]}{f_{12}^2(\vec{k})}\ge \frac{4}{V{\tilde{V}}_{\vec{k}}}\frac{1+{\bar{n}}_1{P}_1(\vec{k})+{\bar{n}}_2{P}_2(\vec{k})}{{\bar{n}}_1{P}_1(\vec{k}){\bar{n}}_2{P}_2(\vec{k})},$$

$$w_{ij}={\bar{n}}_i{b}_i{\delta }_{ij}-\frac{{\bar{n}}_i{P}_i{\bar{n}}_j{b}_j}{1+{\mathcal{P}}_{eff}}.$$

$$\frac{P_i^{(2)}(k)}{P_i^{(0)}(k)}=\frac{\frac{4}{3}{b}_{i}f+\frac{4}{7}{f}^2+\frac{2{\alpha }_i^2{f}^2}{3k^2{r}^2}}{b_i^2+\frac{2}{3}{b}_{i}f+\frac{1}{5}{f}^2+\frac{{\alpha }_i^2{f}^2}{3k^2{r}^2}}.$$

$$t_1=\frac{{\bar{n}}_2{P}_2}{{\bar{n}}_1{P}_1}$$

$$t_2=\frac{{\bar{n}}_3{P}_3}{{\bar{n}}_1{P}_1+{\bar{n}}_2{P}_2}$$

$$R_{\mu }(k)=\left\{\frac{P_1^{(0)}}{P_2^{(0)}},\frac{P_1^{(2)}}{P_2^{(2)}},\frac{P_1^{(2)}}{P_1^{(0)}},\frac{P_2^{(2)}}{P_2^{(0)}}\right\}$$

$$b_i\to b_i+\Delta b_i^{nG}(k)\mathrm{where}\Delta b_i^{nG}(k)=3f_{\mathrm{NL}}(b_i-1)\frac{{\Omega }_m{H}_0^2{\delta }_c}{c^2{k}^{2}T(k)D(z)}.$$

$$F_{ij}=\sum _{\mu ,k}\sum _{\nu ,k^{\prime }}\frac{\partial R_{\mu }(k)}{\partial {\theta }^i}F(\mu ,k;\nu ,k^{\prime })\frac{\partial R_{\nu }(k^{\prime })}{\partial {\theta }^j},$$

Full text

I Introduction

Modern cosmology is counting on galaxy surveys to resolve many outstanding questions, from the origin of cosmic acceleration to neutrino masses and inflationary parameters. In order to answer those questions, high accuracy and precision must be achieved, both in theory and in observations, especially on the largest scales probed by our past light-cone. At low redshifts, where observations are cleanest, this means not only large distances, but large angles as well Bertacca et al. (2012); Raccanelli et al. (2016a); Borzyszkowski et al. (2017). In this case, there is the need to include corrections to the modeling of galaxy clustering to include geometrical wide-angle effects and other effects that are suppressed under common assumptions, namely, the flat-sky (distant observer) approximation, and the approximation that galaxies in a given map are at the same redshift (see Szalay et al. (1998); Matsubara (1999); Szapudi (2004); Papai and Szapudi (2008); Raccanelli et al. (2010, 2014)).

One such effect is sometimes called, in the flat-sky limit, the Doppler term Jeong et al. (2012); Raccanelli et al. (2016a). This term is a consequence of the $v/r$ term in the Jacobian relating the real- to redshift-space matter density field, and is manifested through a combination of the so-called “mode-coupling”, volume distortions and “Doppler lensing” effects. This additional contribution to RSDs was in fact already present in the seminal paper by Kaiser Kaiser (1987), but was first investigated by Szalay et al. (1998); Hamilton (1997); Papai and Szapudi (2008).

Another well-known large-scale effect comes from the primordial non-Gaussianities (pNG) that are imprinted at the end of the inflationary era, which leads to a correction to the linear galaxy power spectrum on large scales via the halo bias. Namely, during the formation of dark matter halos, small scales are modulated by the long-wavelength modes, leading to a scale-dependent bias on very large scales. This corresponds to adding a scale-dependent correction to the bias which is proportional to the local non-linear parameter $f_{\rm NL}$ – see, e.g.,  Matarrese et al. (2000); Dalal et al. (2008); Matarrese and Verde (2008); Slosar et al. (2008); McDonald (2008); Desjacques and Seljak (2010); Matsubara (2012); Tellarini et al. (2016), as well as the recent review Desjacques et al. (2016) and references therein.

It is well-known that the bias correction from pNG leads to a distortion of the galaxy power spectrum that scales roughly as $\sim k^{-2}$ Dalal et al. (2008). Recently It has been shown that, in the flat sky limit, the Doppler term also induces a $\sim k^{-2}$ dependence in the Fourier-space power spectrum Jeong et al. (2012); Raccanelli et al. (2016a), which can be degenerate with, and hence potentially a contaminant for, pNG searches. As pointed by Jeong et al. (2012), who studied the Doppler and relativistic terms contributing to the redshift-space power spectrum, these contributions lead to an effective non-Gaussian bias. However, the scale and redshift dependence of this effective bias has a particular signature which is distinct from pNGs, which, as we will see, enable us to distinguish the $f_{\rm NL}$ from the Doppler dipole.

The main contribution of this paper is to show how the data of low- and intermediate-redshift surveys of different types of galaxies (or, more generally, different tracers) can be combined in a way that improves the accuracy of measurements of the dipole feature and help disentangle its degeneracy with the non-Gaussianity parameter $f_{\rm NL}$.

This paper is organized as follows: In Section II we present the usual prescription for transforming from real space to redshift space, beginning with the standard scenario Kaiser (1987); Hamilton (1997) and including the series of local terms such as the Doppler term111Here we are not considering local terms proportional to the gravitational potential, nor, for simplicity, non-local (i.e. integrated along the line of sight) corrections., assuming the flat-sky limit and in Fourier space. In section III, with the help of mock catalogs of galaxies, we illustrate how the contributions of the Doppler term can be detected. In Section IV, using the multi-tracer technique, we estimate the redshift-space power spectra for two tracers and isolate the Doppler contribution. Section V is devoted to breaking the degeneracy between Doppler effects and pNG. In Section VI we compute the Fisher matrix using all the information in our mock survey to extract constraints on the Doppler terms, $f_{\rm NL}$, as well as other parameters. We conclude in Section VII. Our fiducial model is flat $\Lambda$CDM with $\Omega_{m}=0.26$ and $h=0.7$.

II Large-scale features in the redshift-space galaxy-galaxy 2-point functions

In linear theory, the transformation between real space and redshift space is realized by means of a Jacobian matrix generated by the mapping between radial distances in the two frames. For each individual galaxy, this mapping can be interpreted as an apparent shift – depending on local and intervening matter distributions – of that galaxy projected along the line of sight. In the standard Newtonian picture, the position of a galaxy becomes then $\vec{r}_{s}=\vec{r}+v_{r}\hat{r}$, where $r_{s}$ and $r$ indicate the radial coordinate along the line of sight in redshift- and real-space, respectively, and the shift is proportional to the radial component of the peculiar velocity of the galaxy222More accurately, it is related with the radial displacement $v_{r}=\hat{r}\hat{v}/\mathcal{H}$, where $\hat{v}$ is the peculiar velocity of the galaxy.. In a fully general relativistic picture, this shift also depends on the contributions from time delay, lensing convergence and magnification. Conservation of the number of galaxies per unit volume means that the mapping must preserve the counts in a volume element, $r^{2}\,dr\,d^{2}\Omega\,n_{g}(\vec{r})=r_{s}^{2}\,dr_{s}\,d^{2}\Omega\,n_{g}^{(s)}(\vec{r}_{s})$. As a consequence, in the linear approximation, the fluctuation of the galaxy counts in redshift space inherits a correction that was first studied in Kaiser (1987),

[TABLE]

where $\bar{n}_{g}$ is the mean number density of galaxies. This expression has been widely investigated and used in cosmological analyses – for a review, see e.g. Hamilton (1997). Since the velocity term is a gradient, the last term in Eq. (1) leads to a Doppler, which is usually neglected. This term is proportional to $\alpha$, which accounts for local variations of matter density and volume-lensing distortions. In the standard Newtonian framework we have Kaiser (1987); Hamilton (1997):

[TABLE]

The full Jacobian including the velocity ($\alpha$) term was first investigated in Zaroubi and Hoffman (1993); Szalay et al. (1998); Hamilton (1997) and later included in simulation and data analyses in Papai and Szapudi (2008); Raccanelli et al. (2010); Samushia et al. (2012). Given that future galaxy surveys will probe scales comparable to the cosmological horizon, it has been more recently realized that galaxy clustering modeling needs to be based on gauge-invariant quantities, and therefore a general relativistic formalism has been developed (see e.g. Yoo et al. (2009); Challinor and Lewis (2011); Bonvin and Durrer (2011); Jeong et al. (2012); Bertacca et al. (2012)). In this context, the real-space position of a galaxy is modified to an observed one by not only peculiar velocity and Doppler terms, but also lensing, magnification, time-delay and ISW-like effects; for a general investigation of the impact of these terms, see Raccanelli et al. (2016b), and in particular Reimberg et al. (2016) for the case of wide angular separations.

In a fully relativistic framework the $\alpha$ term can be written as Bertacca et al. (2012):

[TABLE]

where $r(z)$ is the comoving distance333More accurately, in Bertacca et al. (2012) $\alpha_{\rm GR}$ depends on $r_{s}$, but considering that $|r_{s}-r|/r\ll 1$, and assuming only the linear redshift space distortions, we can take $r_{s}\simeq r$. and

[TABLE]

is the evolutionary bias parameter. The magnification bias parameter ${\cal Q}$ for a magnitude-limited survey is Jeong et al. (2012):

[TABLE]

where $\bar{n}_{g}^{(s)}(L)$ is the mean redshift-space comoving number density of galaxies with luminosities $L>L_{\rm lim}$ Liu et al. (2014). It is worth noting that in literature the magnification bias is sometimes denoted $s(z)$, and our magnification bias parameter is $\mathcal{Q}=5s/2$.

The general expression for $\alpha$ was derived444See also Jeong et al. (2012) where the authors defined $\mathcal{B}=\alpha f$. by Bertacca et al. (2012) and, recently, has been analyzed in Raccanelli et al. (2016a), where, through modeling in configuration, Fourier and $\ell$-space, it was shown that, for low-redshift maps over large fractions of the sky, the Doppler term can become important.

However, these terms are artificially suppressed in the Fourier space power spectrum, due to the combination of the flat-sky (plane-parallel) approximation and the reality condition of the Fourier transform, which remove any mode-coupling effects. A redshift-space dipole $D$ introduces a distortion in the density contrast of the form $\delta^{(s)}(\vec{r})=(1+D\,\hat{r}\cdot\vec{\nabla})\delta^{(r)}(\vec{r})$, which in Fourier space (using the plane-parallel approximation) becomes $\tilde{\delta}^{(s)}(\vec{k})=(1+D\,i\,\mu)\tilde{\delta}^{(r)}(\vec{k})$. Since $|\tilde{\delta}^{(s)}|^{2}=(1+D^{2}\mu^{2})|\tilde{\delta}^{(r)}|^{2}$, the dipole is only manifested in the power spectrum through a quadrupole $\propto D^{2}$. Therefore, the power spectrum analysis presented in this paper represents a conservative lower bound for detection compared with techniques which keep the direct contribution of the dipole. Additional reasons for working in $k$-space are the simplicity of covariance matrix calculation, and the immediate comparison with local non-Gaussianity effects on large scales, which we will show to be partially degenerate with velocity effects.

In a full treatment of the 2-point galaxy correlation function (i.e., including all wide-angle effects), the odd Legendre multipoles can serve to distinguish between corrections induced by relativistic effects and pNG Raccanelli et al. (2014); Bonvin et al. (2014, 2016); Gaztanaga et al. (2017). Interestingly, this complete treatment of redshift-space distortions can be extended to Fourier space, without the assumption of the plane-parallel approximation – see Reimberg et al. (2016).

We start with the full expression at linear order Challinor and Lewis (2011); Jeong et al. (2012) (which includes relativistic effects and magnification bias), and neglect both non-local terms (which, in principle, could contaminate the signal through, e.g., the convergence term) as well as local potential terms (which are subdominant compared with velocity terms for distances small compared with the horizon scale $1/H_{0}$). The result is the Fourier transform of the density contrast (in the flat-sky limit) in redshift-space, which turns out to be proportional to the so-called Kaiser term. Hence, in these approximations the redshift-space power spectrum of a galaxy type $i$ can be written as:

[TABLE]

where $b_{i}$ is the bias, $f(z)$ is the matter growth rate, $\mu=\hat{k}\cdot\hat{r}$ is the cosine with the line of sight, and $P_{m}(k)$ is the configuration-space matter power spectrum. The velocity term $f\alpha_{i}/kr$ is the Fourier space manifestation of the velocity term $\alpha_{i}v_{r}/r$ of Eq. (1), with $r(z)$ the (comoving) distance between the observer and the observed volume Raccanelli et al. (2016a).

We should stress once again the point that many potentially interesting effects have been neglected in this expression: e.g., non-linearities (through scale-dependent bias, mode coupling, intra-halo velocity dispersion), relativistic potential terms, as well as line-of-sight integrated effects Raccanelli et al. (2016c). In addition, by virtue of the flat sky approximation, all odd-parity multipoles vanish by definition (from the power spectrum, not necessarily from the Fourier transform of the density contrasts), while they are in principle non-zero in a full 3D analysis Raccanelli et al. (2014).

The power spectrum of a galaxy type $i$ can be expanded as a sum of multipoles:

[TABLE]

where $\mathcal{L}_{\ell}$ are Legendre polynomials. For different tracers of large-scale structure, the bias of each tracer is different, but the velocity field (manifested through the matter growth rate) is the same. In addition, the Doppler term can also be different for each tracer. Hence, the monopole and quadrupole amplitudes are given by:

[TABLE]

where $b_{i}$ and $\alpha_{i}$ are, respectively, the bias and the Doppler amplitude of the tracer species $i$.

In general, the bias of each tracer species can be any function of scale, or redshift. Assuming the bias and the growth factor to be scale-independent, and in the absence of pNG, the $\alpha$ term is the only part that induces a scale-dependence. It is immediately apparent that this scale-dependence has the same behavior of the one induced by primordial non-Gaussianities (pNG) through the squeezed limit of the bispectrum. We will investigate this issue in more detail in Section V.

Here we investigate the detectability of velocity terms by using simulations of nearly complete, low- and intermediate-redshift, very large-area galaxy surveys such as the future J-PAS Benitez et al. (2014) and SPHEREx Doré et al. (2016) surveys. The best possible accuracy for a measurement of the power spectrum in some Fourier bin is given by Feldman et al. (1994); Abramo (2011):

[TABLE]

where $\vec{k}$ is a bin in Fourier space, $\bar{n}_{i}$ is the mean number density of the tracer, $V$ is the survey volume, and $\tilde{V}_{k}$ is the volume of the bin in Fourier space. E.g., a spherical Fourier bin of radius $k$ and width $\Delta k$ has a volume $\tilde{V}_{k}=(2\pi)^{-3}\,4\pi\,k^{2}\,\Delta k$, while a Fourier bin with azimuthal symmetry $\{k,\mu\}$ has volume $\tilde{V}_{k,\mu}=(2\pi)^{-3}2\pi\,\Delta\mu\,k^{2}\,\Delta k$, and so on and so forth. Since the term inside square brackets in Eq. (9) is always greater than one, the relative uncertainty in the measurement of the spectrum in a bandpower, for a fixed (finite) survey volume, is bounded from below – a consequence of cosmic variance.

Let us point out that Eq. (9) follows from the assumption that the covariance of the power spectrum is Gaussian and diagonal in the wavebands. However, the survey window and other systematics, which couple different wavelengths and are therefore particularly important for the large scales we are interested in, are not taken into account in this approximation. In order to take proper care of these real-life issues we have simulated full mock maps which reproduce approximately the geometry of each redshift slice of the survey. The power spectra are derived from the simulated data just as they would be for real data, hence the sample variance we obtain for our mock spectra should be suitable to represent the data covariance of a large-area galaxy survey.

III Mocks

In order to illustrate how the contributions of the Doppler term can be detected (and disentangled from pNGs) we have simulated a large area ($20.000$ deg2) galaxy survey up to $z=0.8$. We generate mock catalogs for two different types of tracers: “blue” galaxies (type=1), with bias $b_{1}=1.0$ and “red” galaxies (type=2), with bias $b_{2}=2.0$. Since we use a linear biasing model, it would be more accurate to characterize these tracers as halos of two different mass ranges – say, field galaxies (blue galaxies), and groups and clusters (red galaxies).

We split the survey into four redshift slices, centered on $z=0.1$, 0.3, 0.5 and 0.7, with widths $\Delta z=0.2$. Each slice is replicated by a box with a different geometry, corresponding approximately to the transverse areas and radial distances of each slice – e.g., the second redshift slice is a $156\times 156\times 92$ box with cubic cells of volume $\Delta V=(10\,h^{-1}\,{\rm Mpc})^{3}$, yielding a total volume for that slice of $V_{2}=2.24\times 10^{9}$ Mpc3. Each redshift slice is also assigned a mean comoving distance $r_{central,\,i}$, in order to implement the Doppler dipole for that slice – see Eq. (6). The main properties of the tracers, along with the physical characteristics of the redshift slices, are presented in Table I.

Each redshift slice was simulated $300$ times through mock galaxy maps based on lognormal density fields Coles and Jones (1991). Lognormal mocks with galaxies assigned by means of a Poisson random process are a fast, empirical way to replicate the statistical properties of the galaxy distribution on large scales Kayo et al. (2001); Xavier et al. (2016). Each mock corresponds to a different realization of Gaussian initial conditions, with a variance that was calibrated such that the underlying matter power spectrum of the mocks reproduce (on average) the spectrum corresponding to the Planck satellite’s best-fit parameters Ade et al. (2016), as well as the RSD model of Eq. (6). The density contrast of each galaxy mock is defined in terms of (biased) Gaussian fields $\delta_{G,i}$, by $\delta_{{\rm LN},i}(\vec{x})=\exp{[\delta_{G,i}(\vec{x})-\sigma_{G,i}^{2}/2]}-1$, where $\sigma_{G,i}^{2}=\langle\delta_{G,i}^{2}\rangle$ are the variances computed over the cells of the grid where the mocks are defined. This assignement ensures that the lognormal density fields are bounded from below by $\rho_{{\rm LN},i}\geq 0$ (since $\delta_{{\rm LN},i}\geq-1$). The procedure is also designed in such a way that the lognormal density contrast is endowed with correlations inherited through the constraint that $\tilde{\delta}_{LN,i}(\vec{k})=(b_{i}+f\mu+if\alpha_{i}\mu/kr)\tilde{\delta}_{m}(\vec{k})$, with $\langle\tilde{\delta}_{m}(\vec{k})\tilde{\delta}_{m}(\vec{k}{\,}^{\prime})\rangle=(2\pi)^{3}\delta_{D}(\vec{k}-\vec{k}{\,}^{\prime})P_{m}(k)$. Galaxies are introduced at the last stage, by assigning each cell on the grid with a random number of galaxies taken from a Poisson distribution with expectation value $\bar{N}[1+\delta_{LN}(\vec{x})]$, where $\bar{N}$ is the mean number of galaxies per cell.

A clarification is in order at this point. As was outlined in Section II, we plan to study redshift-space distortions in simulated galaxy maps. However, on large scales we should be careful to apply the general-relativistic approach Yoo et al. (2009); Challinor and Lewis (2011); Bonvin and Durrer (2011); Jeong et al. (2012); Bertacca et al. (2012). With that in mind, the correct definition of bias, i.e. the gauge-invariant bias, is equal to the linear bias relation between $\delta_{g}$ and $\delta_{m}$ in the synchronous comoving gauge Jeong et al. (2012). But the matter density contrast in the synchronous comoving gauge is equivalent to the comoving contrast in terms of number counts (if we neglect the late-time effects of radiation perturbations – see, e.g. see Chisari and Zaldarriaga (2011); Borzyszkowski et al. (2017)), which is in the prescription used both in Newtonian N-Body simulations and in our lognormal mocks.

We extract the power spectra from each mock, and deconvolve the window function from the estimation in order to obtain the “observed” power spectra – see Section IV for details. The multipoles of the power spectra were computed using the method proposed in Scoccimarro (2015), which employs the physical multipoles of the maps (computed in configuration space). In contrast, the usual approach assumes a fixed line-of-sight to the center of the survey (e.g., $\hat{r}\to\hat{z}$), which is then used to define the orientation of the Fourier modes ($\mu\to\hat{k}\cdot\hat{z}$). For large-angle effects in large-area surveys, fixing a line-of-sight is particularly problematic and could lead to large systematic effects – which is the reason we prefer to follow Scoccimarro (2015).

In addition to the 1200 mocks including the dipole contributions ($\alpha_{1}=4.0$, $\alpha_{2}=2.0$), we also created 1200 mocks without the dipole contribution, so we could run a simple null test for a first check of the detectability of the dipole term by computing $\Delta P_{i}^{(\ell)}=P^{(\ell)}_{i,{\rm dip}}-P^{(\ell)}_{i,{\rm No\,dip}}$. Since the sample covariance of the power spectra with and without the dipole term are nearly identical, and the dipole term is a small correction to the power spectra (even on the largest scales), it is a good approximation to employ that sample covariance as the uncertainty for $\Delta P_{i}^{(\ell)}$. This means that we can estimate the detectability of the Doppler term by computing the inverse signal-to-noise ratio $\Delta P_{i}^{(\ell)}/\sigma(P_{i}^{(\ell)})$.

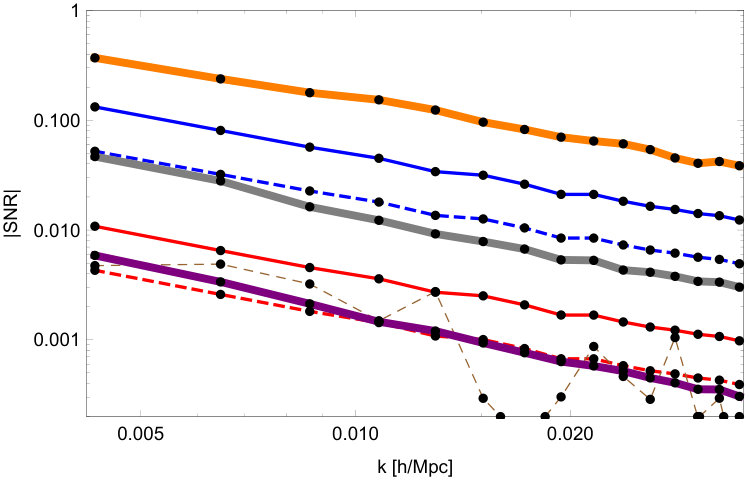

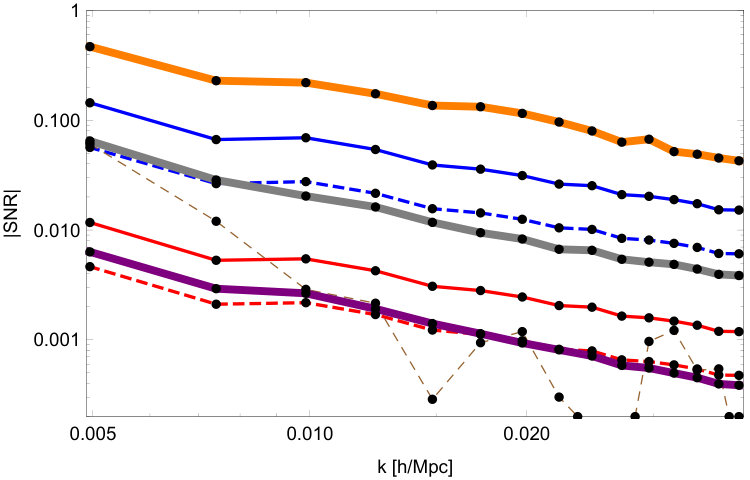

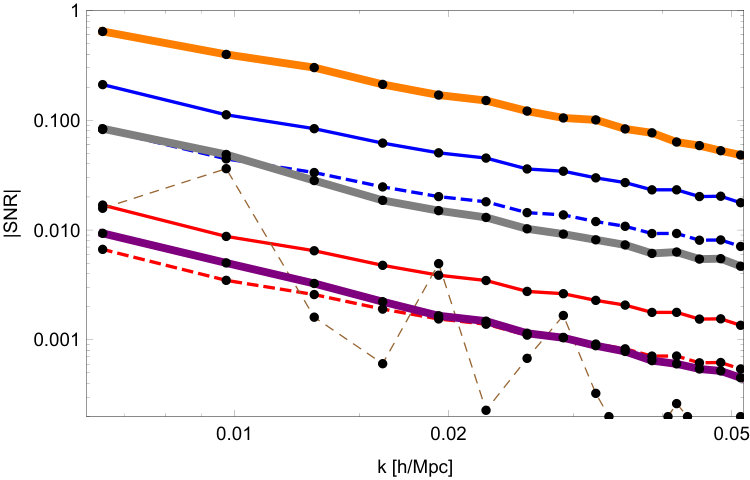

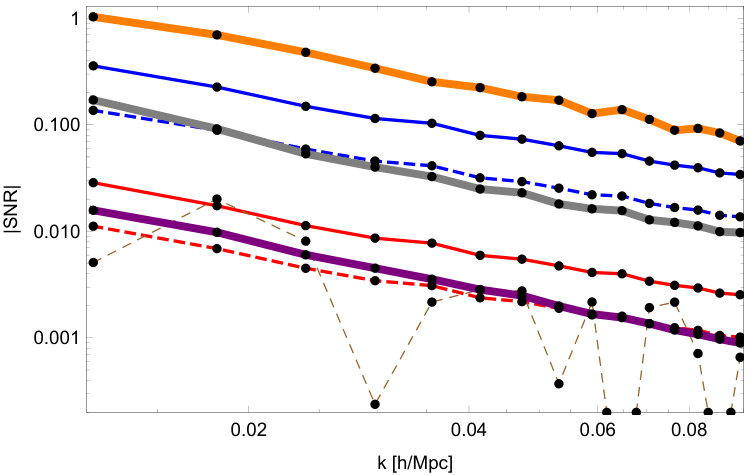

In Fig. 1 we show the signal-to-noise ratios (SNRs) for the detectability of the Doppler term, for a variety of observables, in a limited range of bandpowers. Thin lines (solid for the monopoles; dashed for the quadrupoles) indicate the SNRs for the monopole and quadrupole of the galaxy populations $1$ (blue in color version) and $2$ (red in color version), i.e., $\left|\sigma[P^{(\ell)}_{i}(k)]/P^{(\ell)}_{i}(k)\right|$. The thick lines, from top to bottom, correspond to the ratios $P^{(0)}_{1}/P^{(0)}_{2}$ (orange in color version), $P^{(2)}_{1}/P^{(0)}_{1}$ (gray in color version), and $P^{(2)}_{2}/P^{(0)}_{2}$ (purple in color version). The ratio of the quadrupoles of the two tracers (thin dashed line) is also shown for completeness, but its SNR is very small and strongly affected by sample variance. Apart from the ratio of quadrupoles, the distributions of the observables shown in this figure are very nearly Gaussian.

We can also compute a “null test” for the detectability of the dipole term by means of a chi-squared:

[TABLE]

For the lowest-redshift slice ($z=0.1$), using only the monopole of the spectrum of the first tracer (“blue galaxies”) results in a $\chi^{2}_{1(0)}=0.26$, while using only the monopole of the second tracer results in an almost insignificant signal at $\chi^{2}_{2(0)}=0.03$. The quadrupoles of either tracers lead to even lower significance.

Hence, the $p$-value for rejecting the null test using only the amplitudes of the power spectra is at best around 0.39 (the cumulant for a $\chi^{2}=0.26$ with a single degree of freedom). However, it is clear from Fig. 1 that the ratio of the monopoles of the two tracers has a much higher significance, which should translate in an improved potential for detecting the effects of the Doppler. We will show in the following sections how it will be possible to make this detection, and how it can be disentangled from pNGs.

IV Estimation of the Doppler dipole term

IV.1 The multi-tracer technique

In any given cosmic volume the tracers of the large-scale structure are bound to follow the same dark matter distribution in that particular volume. Different galaxies may have different biases, but in the linear approximation their velocities are driven by the same gravitational potential, hence their power spectra must be proportional to $P_{m}(k)$. It was first pointed out by Seljak (2009); McDonald and Seljak (2009) that cosmic variance, which is a key source of variance for the matter power spectrum, should cancel out when taking ratios of the power spectra of different tracers. Hence, surveys that distinguish different types of tracers (i.e., tracers with different biases) allow us to measure ratios of the clustering properties of those tracers, to an accuracy which is not limited by cosmic variance Abramo (2011); Abramo and Leonard (2013).

Whereas the amplitude of the galaxy power spectrum has an uncertainty which is at best the one given in Eq. (9), a measurement of the ratio of the power spectra of two different tracers, $f_{12}(\vec{k})=P_{1}(\vec{k})/P_{2}(\vec{k})$, has an uncertainty which is bound by:

[TABLE]

and similar expressions when there are more than two tracers Abramo and Leonard (2013); Abramo et al. (2016). This means that, in contrast to the uncertainties that apply for the amplitudes of the individual power spectra, ratios of spectra can be measured to an arbitrarily high precision, as long as the tracers are sufficiently abudant ($\bar{n}_{i}P_{i}\gg 1$). For many physical observables, in particular those related to RSDs, this means an enhancement of the constraining power coming from measuring the ratios of the power spectra of different types of tracers. Moreover, since the power spectrum peaks around $k\sim 0.02\,h\,{\rm Mpc}^{-1}$, this condition is more easily satisfied on large scales, which is indeed where we will look for the imprints left by the Doppler term and by pNG.

Cosmic variance does not apply for ratios of spectra because, in the absence of mode-coupling, the random process which sets the initial conditions for the cosmic density field cancels out for observables such as $P_{i}(k,\mu)/P_{j}(k,\mu)$. In other words: even though the power spectrum which is realized inside any given (finite) volume is subject to the statistical fluctuations which follow from the (nearly Gaussian) random nature of the density field, the ratio of two spectra is not. Indeed, physical processes which affect different objects moving in this density field, and which are not degenerate with the statistical fluctuations of the density field, should be determined to an accuracy that has nothing to do with cosmic variance. Hence, galaxy bias, the peculiar velocity field, as well as any other physical effects which are manifested by means of different relative clustering strengths for different tracers (such as the Doppler and pNG), can be measured to an accuracy that is only limited by the numbers of those tracers which can be effectively detected Seljak (2009); McDonald and Seljak (2009); Abramo and Leonard (2013).

In particular Abramo and Leonard (2013) showed explicitly, by using the multi-tracer Fisher information matrix, that ratios of spectra (combined in a certain way) constitute physical observables that are uncorrelated with the matter power spectrum itself. Given $N$ different tracers of large-scale structure, there is only one observable which gives the highest signal-to-noise ratio for the power spectrum (the “effective power spectrum” of the survey, also found by Percival et al. (2004)), and $N-1$ observables which are ratios of spectra of the different tracers – all uncorrelated with each other.

The main limitation of the multi-tracer technique is the biasing of the tracers. Although redshift and scale dependences $b(z,k)$ can be easily included and do not change Eq. (11), mixing tracers of different biases results in a degradation of the signal. E.g., in the Halo Model Cooray and Sheth (2002), galaxies with a certain halo occupation distribution (HOD) appear randomly in a range of halos of different masses, and therefore their bias reflects the halo biases which correspond to that range. Unless the ranges of halo masses spanned by the HODs of the two galaxy types considered here do not overlap, this stochasticity can smear out the information of the original set of tracers with deterministic biases Abramo et al. (2016).

An important step towards realizing the multi-tracer technique was obtained in Abramo et al. (2016), who obtained the optimal weights that should be used to estimate the individual auto-power spectra in a multi-tracer survey. These multi-tracer weights generalize the traditional weights of Feldman et al. (1994) (FKP, which are optimal only for a single tracer), as well as those found by Percival et al. (2004) for multiple tracers, but which only optimize the estimation of the effective power spectrum of the survey, ${\cal P}_{eff}(k)=\sum_{i}\bar{n}_{i}P_{i}(k)$. In Abramo et al. (2016) it was shown that the covariance of the multi-tracer power spectrum estimators is always either equal to, or smaller than, the covariance matrix obtained through the use of the FKP estimator.

IV.2 Estimation of the power spectra

Given a galaxy survey, the power spectrum can be computed basically in three steps: (i) take the density contrast of galaxies, $\delta_{i}=(n_{i}-\bar{n}_{i})/n_{i}$, and up-weight the denser regions of the survey, creating a weighted density field $F_{i}(\vec{x})$; (ii) take the Fourier transform of the weighted density contrast, $\tilde{F}_{i}(\vec{k})$; and (iii) compute the averages $\langle|\tilde{F}_{i}|^{2}\rangle_{\vec{k}}\sim P_{i}(\vec{k})$, where $\vec{k}$ here stands for a bin in Fourier space (a bandpower).

In a seminal paper, Feldman, Kaiser & Peacock Feldman et al. (1994) showed that there are certain weights (the FKP weights) which minimize the covariance of the estimated power spectra, such that, under ideal conditions, that covariance is equal to the inverse of the Fisher information matrix of the power spectra. Since this is the Crámer-Rao bound, no estimator has a lower variance compared with the one that employs the FKP weights – which are optimal, in that sense.

However, the FKP weights are only optimal under the assumption that there is a single type of tracer in the survey, with a single bias and a single shape of RSDs. This is never the case: galaxies comes in many different types and biases, at different redshifts, and, more fundamentally, they occupy different dark matter halos.

This problem was first tackled by Percival, Verde & Peacock Percival et al. (2004), who showed that, under similar assumptions as the ones necessary to derive the FKP weights, the optimal estimator for the matter power spectrum in a multi-tracer survey necessitates a different weighting scheme. However, the PVP weights were designed to optimize the estimation of a single parameter: the survey’s effective power spectrum ${\cal P}_{eff}(k)=\sum_{i}\bar{n}_{i}P_{i}(k)$ – not the redshift-space power spectra of each individual tracer.

This issue was solved by Abramo et al. (2016), who obtained multi-tracer weights that are optimal for the estimation of the redshift-space power spectra of an arbitrary number of tracers which share the same cosmic volume. Both the FKP and PVP weights are, in fact, projections of the multi-tracer weights, which result from combining the individual power spectra of the tracers to produce aggregate observables such as the effective power spectrum of the survey. In particular, it was shown in Abramo et al. (2016) that the multi-tracer weights are always superior to the FKP weights for the estimation of the individual auto-power spectra of two or more different types of tracers of large-scale structure.

The multi-tracer weighted fields are defined as $F_{i}=\sum_{j}w_{ij}\delta_{j}$, where the weights are Abramo et al. (2016):

[TABLE]

For a single tracer species this reduces to the FKP weights for the density contrast, $w\to\bar{n}b/(1+\bar{n}P(k))$. For two or more distinct tracer species, the weights have the effect of mixing the different tracers, such that the auto-correlations of the weighted fields $F_{i}$ include not only the auto-correlations of the tracers, but their cross-correlations as well. The multi-tracer weights combine the different tracers in a manner that optimizes the measurement of the auto-power spectra $P_{i}(\vec{k})$, subject to the constraint that any auto- or cross-spectra are related to the underlying matter power spectrum by a multiplicative biasing and RSD model, namely $\langle\tilde{\delta}_{i}(\vec{k})\tilde{\delta}_{j}^{*}(\vec{k}{\,}^{\prime})\rangle=(2\pi)^{3}\delta_{D}(\vec{k}-\vec{k}{\,}^{\prime})B_{i}(\vec{k})B_{j}(\vec{k})P_{m}(k)$ Abramo et al. (2016).

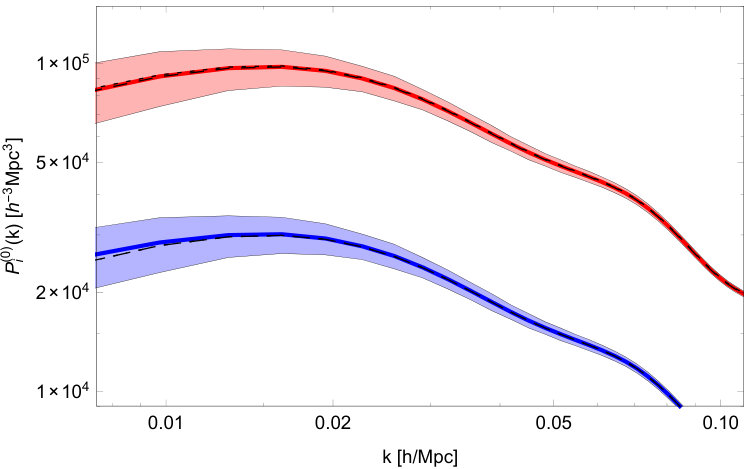

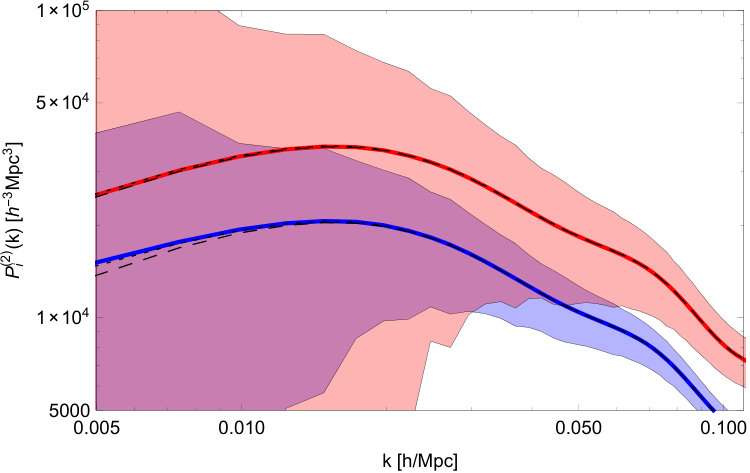

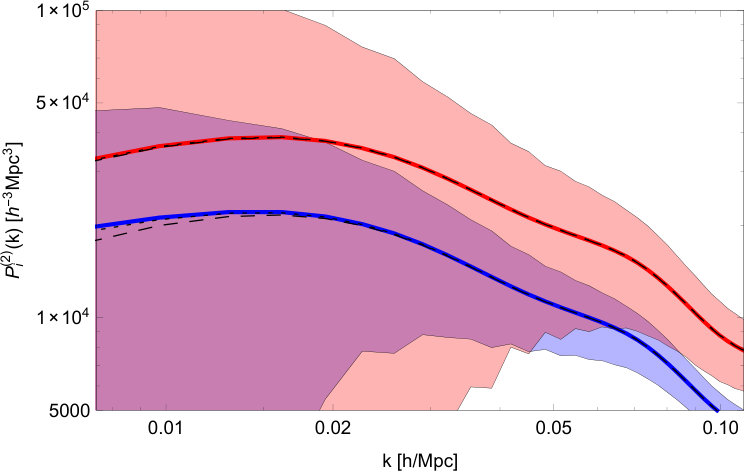

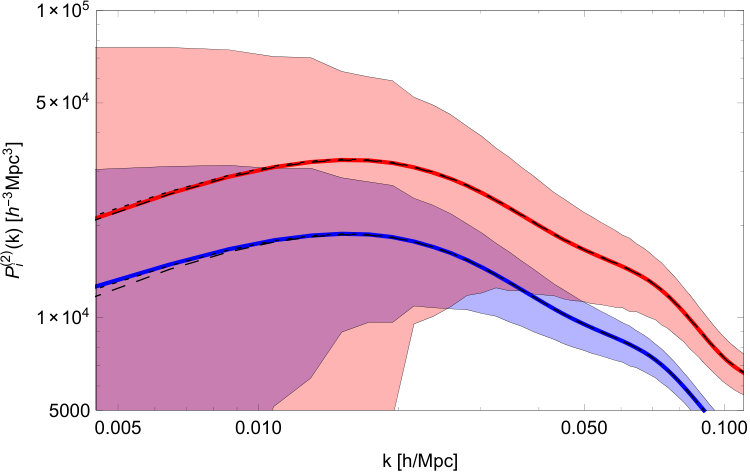

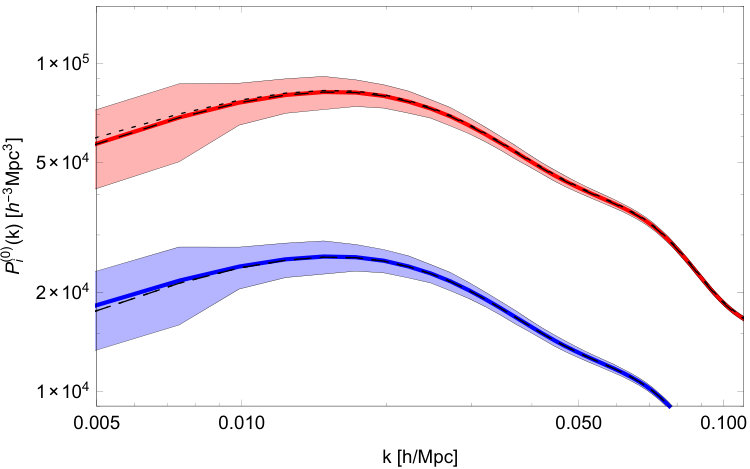

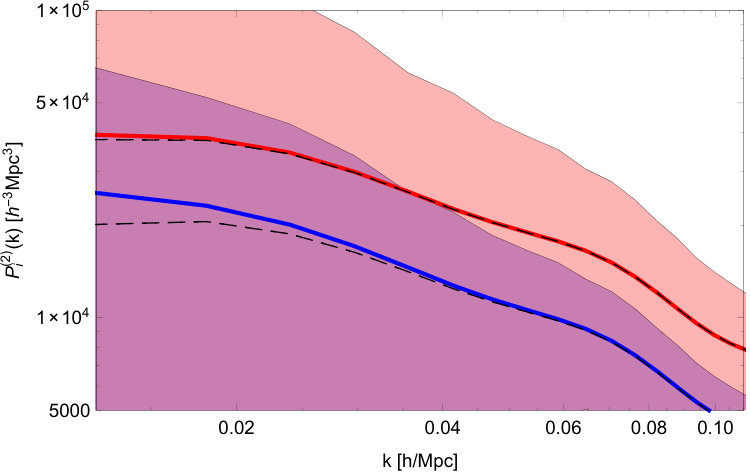

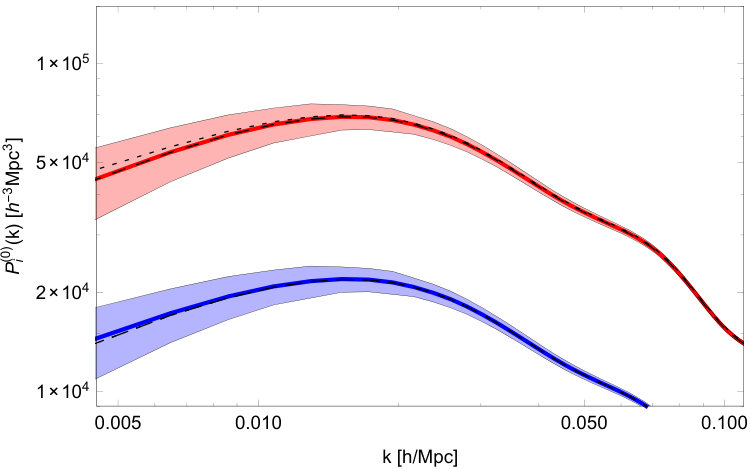

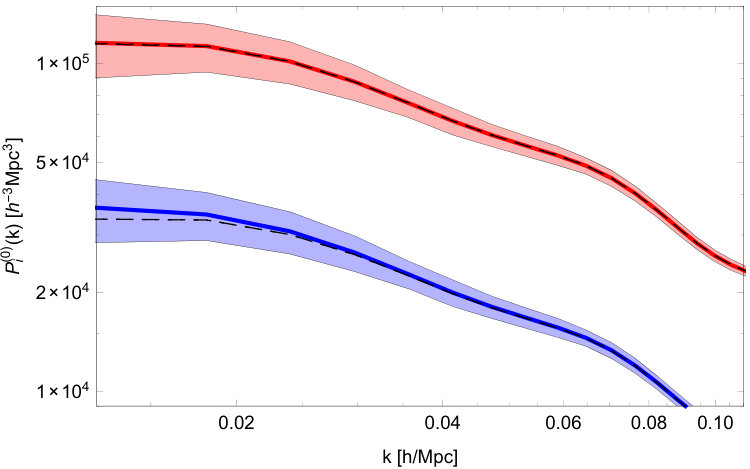

In Fig. 2 we show the monopoles [$P_{i}^{(0)}(k)$], and in Fig. 3 the quadrupoles [$P_{i}^{(2)}(k)$], of tracer 1 (blue galaxies, lower lines) and of tracer 2 (red galaxies, upper lines), obtained using the multi-tracer weights. From top to bottom, left to right, the panels correspond to the four redshift slices (see Table II). Thick lines are the sample mean, and shaded areas indicate sample variances. We also show both multipoles without the Doppler term (dashed lines), as well as the multipoles without the Doppler term but with a level of pNGs of $f_{\rm NL}=10$ (dotted lines). We have found that the set of multipoles of our sample is very well described by a multivariate Gaussian, so from now on we only consider their covariance in order to describe the likelihood of the data.

IV.3 Large-angle effects estimators

Percival and White (2009, henceforth PW) suggested an estimator for the Doppler term which is a linear combination of the three multipoles ($\ell=0,2$ and 4). Since the SNR of the $\ell=4$ multipole is negligible, one can think of using just the monopole, $P^{(0)}_{i}(k)$, and the quadrupole, $P^{(2)}_{i}(k)$. In particular, one can estimate the ratios:

[TABLE]

However, in a survey with two (or more) tracers of large-scale structure, other estimators can be constructed, which make use of the different redshift-space power spectra of the tracers. Indeed, it was first suggested by Seljak (2009); McDonald and Seljak (2009) that ratios of power spectra could be measured to an accuracy which is not limited by cosmic variance. In Abramo and Leonard (2013) it was shown how the diagonalization of the multi-tracer Fisher matrix leads to these ratios, which represent the statistically independent, uncorrelated observables for a multi-tracer cosmological survey.

The derivation of these ratios of power spectra is rather simple: given the original redshift-space power spectra for the $N$ tracers, we first write these spectra in units of shot noise ($1/\bar{n}_{i}$): ${\cal{P}}_{i}\equiv\bar{n}_{i}P_{i}$. These variables can be regarded as coordinates in an $N$-dimensional space (or, in this case, since the ${\cal{P}}_{i}>0$, a wedge), where the multi-tracer Fisher matrix plays the role of a metric for the information Abramo and Leonard (2013) 555In fact, that space has $N\times N_{\vec{k}}$ dimensions, where $N_{\vec{k}}$ is the number of Fourier bins (bandpowers). However, for large enough bins, there are no correlations between different bins, and the multi-tracer Fisher matrix becomes block-diagonal Abramo (2011).. Now, identify the spectra with (squared) Cartesian coordinates in this space, ${\cal{P}}_{i}\to x_{i}^{2}$. The coordinate transformation that diagonalizes the multi-tracer Fisher matrix consists in changing from Cartesian to spherical coordinates, with the radial coordinate being $r^{2}=\sum_{i}x_{i}^{2}$, and the $N-1$ angles given by the usual formulas for their tangents Abramo and Leonard (2013). It is irrelevant which tracer species plays the role of the $z$ direction (the polar axis): any choice results in a valid spherical coordinate system, and results in the diagonalization of the Fisher matrix.

As an example, in a survey with three galaxy types we could choose ${\cal{P}}_{1}\to x^{2}$, ${\cal{P}}_{2}\to y^{2}$ and ${\cal{P}}_{3}\to z^{2}$, which leads to the two ratios of spectra corresponding to the tangents of the azimuthal and polar angles, as in:

[TABLE]

Together with ${\cal{P}}_{eff}={\cal{P}}_{1}+{\cal{P}}_{2}+{\cal{P}}_{3}$ (the radial variable), the observables $t_{1}$ and $t_{2}$ form a complete and uncorrelated set of physical observables for a survey consisting of three tracers of large-scale structure. In 3D Fourier space, the two observables $t_{1}(k,\mu)$ and $t_{2}(k,\mu)$ carry all the information that can be extracted from the ratios of the spectra of the three tracers, while ${\cal{P}}$ (which is precisely the survey’s effective power spectrum of Percival et al. (2004)) carry all the information about the matter power spectrum.

In the case of the simulated survey we consider in this paper, with two tracers, the situation is much simpler, and there is only one ratio of spectra that can be constructed (equivalent to $t_{1}$ defined above). Moreover, in practice the anisotropic redshift-space power spectra reduce to only two degrees of freedom: the monopole and quadrupole (the $\ell\geq 4$ components are almost always too noisy and can be neglected).

Hence, with two tracers there are in total four possible ratios $P^{(\ell)}_{i}(k)/P^{(m)}_{j}(k)$, which we can organize in the following way:

[TABLE]

In the Appendix we show the correlation matrix for these four ratios, obtained by means of our lognormal mock catalogs – see Fig. 9.

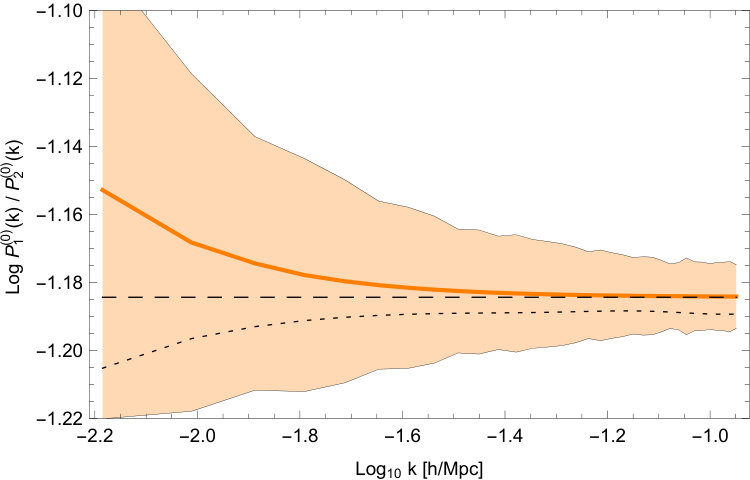

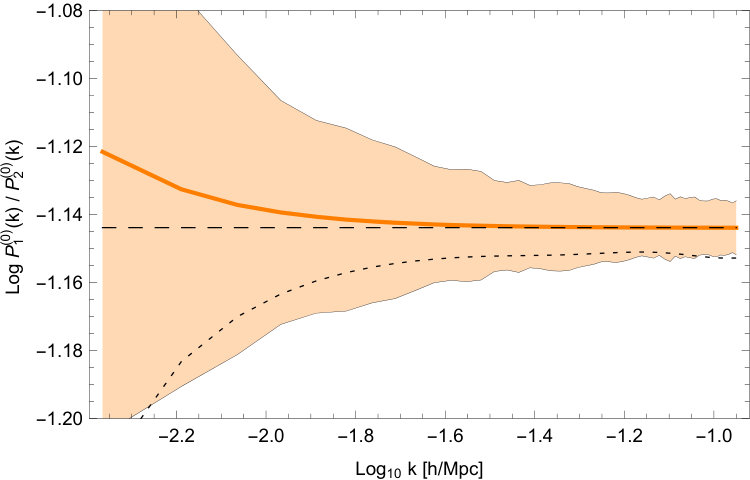

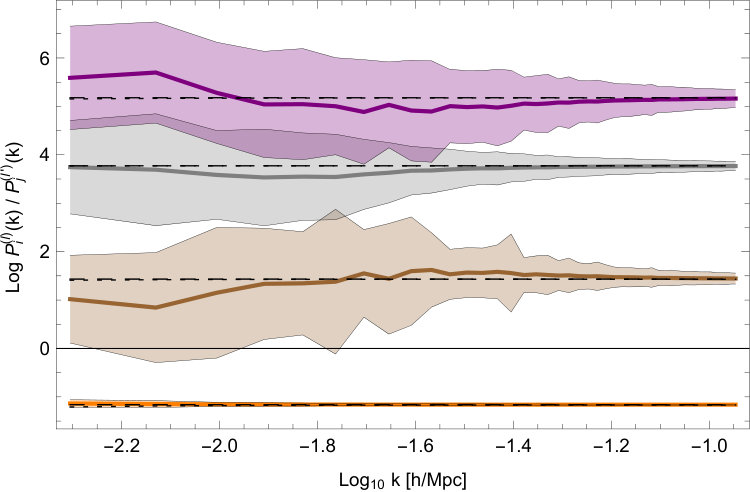

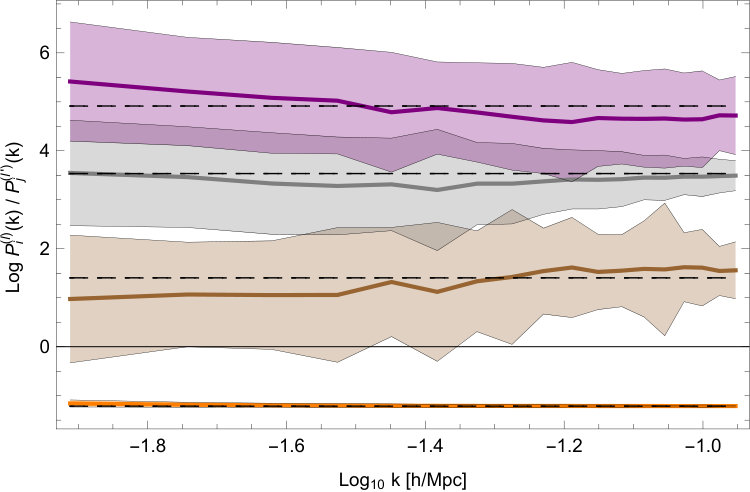

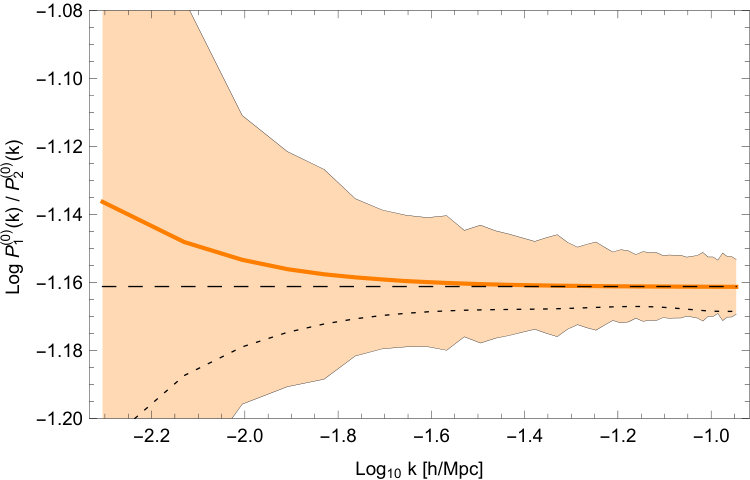

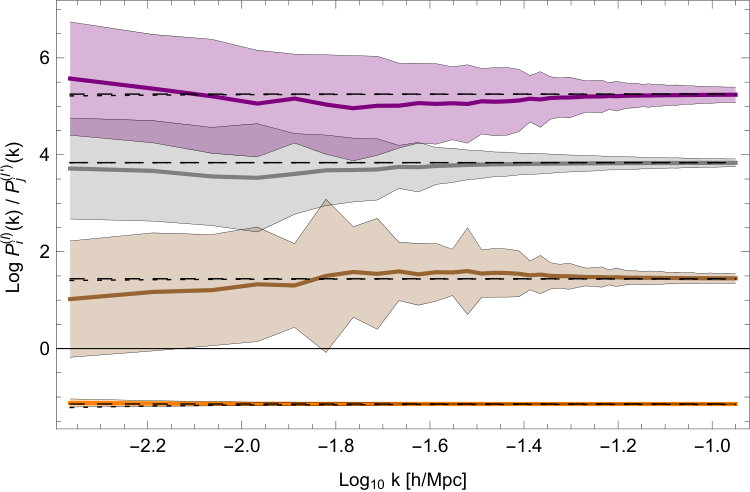

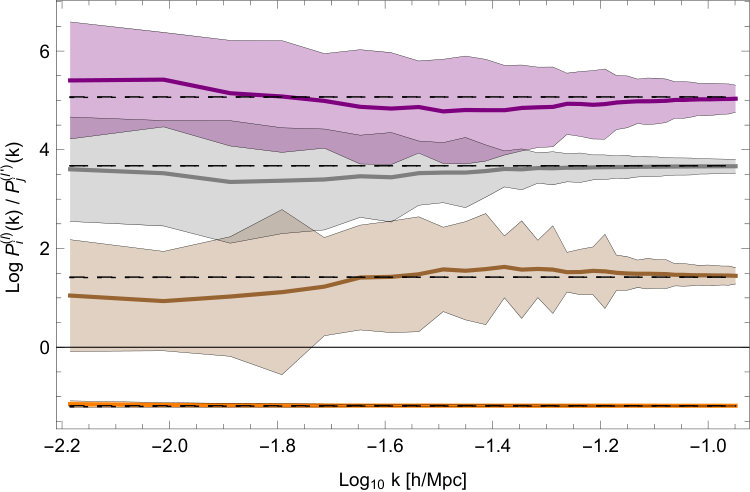

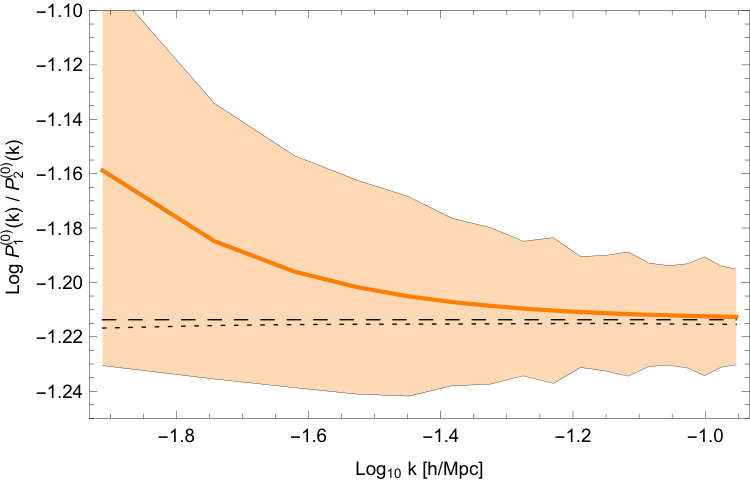

In Fig. 4 we show the sample means and variances of $\log R_{\mu}$ for the four redshift slices (left panels). From bottom to top on each of the left panels, the lines correspond, respectively, to the (log of) ratios $R_{1}$ (orange in color version), $R_{2}$ (brown), $R_{3}$ (gray), and $R_{4}$ (purple). In order to improve the visualization we have displaced the $\log R_{2}$ by 2, $\log R_{3}$ by 4, and $\log R_{4}$ by 6. Moreover, since $\log R_{1}$ (ratios of the monopoles of the two tracers) has much lower variance compared with the other ratios, we also show it separately, in Fig. 5.

Notice, in particular, the dashed lines in Figs. 4-5, which denote the expected ratios without the Doppler, and the dotted lines, which denote the case without the Doppler term, but including pNG with an amplitude of $f_{\rm NL}=10$ . Using the ratios of monopoles of the two tracers (Fig. 5) these features have an improved chance of detection, compared with either the direct measurements of the amplitudes of the spectra, or with the ratios of the quadrupoles to the monopoles of each spectra – upper lines in Fig. 4.

The fact that the ratio of monopoles increases with the inclusion of the Doppler term (dashed lines denote no Doppler term) is due to the fact that more highly biased tracers (in our scenario, the red galaxies) are relatively less sensitive to RSDs in general. In particular, if the two galaxies had the same bias, that ratio would be 1, with or without the Doppler term or pNG, meaning that the ratio of spectra carries no information in that case. Notice also that the ratio of monopoles decreases when we include a positive value of $f_{\rm NL}$, due to the fact that pNGs are sensitive to $b-1$, which vanishes for the blue galaxies, but not for red galaxies.

We should again stress that it is not sufficient to simply employ ratios of tracers, without proper weighting of the different galaxy types and accounting for the fact that the two galaxy types share the same amount of cosmic variance. In that regard, the multi-tracer weights improve dramatically the measurements of ratios of spectra of different tracers, compared with the traditional (FKP) weights. In Fig. 6 we exemplify the noise suppression that follows from using the multi-tracer weights, compared with the FKP weights, for the simulated redshift slice centered on $z=0.1$ (see Table II). The black solid dots denote the sample variances (diagonal part of the covariance) for the ratios of monopoles of the two different tracers using the multi-tracer weights, while the red crosses show the same variance, but obtained using the FKP weights. Blue dots denote the variance of the ratios of the quadrupoles of the two tracers using the multi-tracer weights, while the green $+$ symbols denote the same variance, but obtained using the FKP weights.

V Local primordial non-Gaussianity

As evident from Eq. (6), Doppler effects are in general degenerate with any scale-dependence that could arise from modifications of gravity, neutrino effects, or non-Gaussianity. In fact, there is a particular scale-dependent bias correction on large scales which is induced by primordial non-Gaussianity (pNG) through the squeezed limit of the bispectrum. These non-Gaussianity distort halo bias, and that in turn implies in a scale-dependent galaxy bias (see e.g.  Matarrese et al. (2000); Dalal et al. (2008); Matarrese and Verde (2008); Slosar et al. (2008); Desjacques et al. (2016)), i.e.

[TABLE]

Here $f_{\rm NL}$ is the local-type amplitude of non-Gaussianity, $T(k)$ is the transfer function (normalized to unity on large scales), and $D(z)$ is the growth function normalized to $D(0)=1$ (we take the critical density $\delta_{c}=1.7$). Since the transfer function is nearly constant on large scales ($k\leq k_{\rm eq}\ll 0.1\,h\,{\rm Mpc}^{-1}$), in that limit the pNG bias correction and the Doppler one both scale in the same way, as $\sim k^{-2}$. However, whereas the redshift dependence of the Doppler term scales as $\sim f(z)/r(z)$, the pNG bias scales as $\sim 1/D(z)$, which means that measurements taken at different redshifts can distinguish between the two effects.

A few key physical parameters can be probed through galaxy surveys only on the largest observable scales: primordial non-Gaussianity and relativistic effects, in particular, are only manifested through features on scales of the order of the Hubble radius. Measurements of the CMB already constrained the non-Gaussianity parameter $f_{\rm NL}$ to be $\lesssim 10$ Planck Collaboration et al. (2016), and future large-scale galaxy surveys aims to measure it with a sub-unity precision Alvarez et al. (2014); Raccanelli et al. (2015a, b); de Putter and Doré (2014) (see also Camera et al. (2015a, b) where local and non-local projection corrections are taken into account). Measuring such percent-level distortions on galaxy power spectra, on top of cosmic variance and systematics, is a major challenge. One of the ways to reach such target is to make use of the multi-tracer technique Ferramacho et al. (2014) introduced in Section IV.

The additional contribution to the RSD operator introduced in Section II induces large-scale modifications to the galaxy power spectrum (through the $k^{-2}$ dependence), so it will be somewhat degenerate with local pNG effects. In Fig. 5 the dotted lines denote the theoretical expectation for the ratio of the monopoles of the two types of galaxies, at the four redshift slices, for the case $f_{\rm NL}=10$. The lower left plot, in particular, shows that for the third redshift slice (centered on $z=0.5$) the Doppler effect has a signature approximately opposite to that of pNG – in fact, an $f_{\rm NL}\simeq-10$ would produce a signature not unlike that of the Doppler dipole term in the case under study, at that redshift. Hence, it makes sense to investigate the impact of these corrections on parameter estimation; we focus on measurements of the pNG parameter $f_{\rm NL}$ in the local, or squeezed, limit.

While a careful analysis including the $\alpha$ term with its angular and redshift dependence can disentangle the two effects, a naive analysis (neglecting the velocity terms) could mistake Doppler effects for pNG (or vice-versa). Therefore, when computing our results, after investigating the detectability of such effects, we will include the $f_{\rm NL}$ parameter in our analysis, and study how its constraints change due to the inclusion or not of Doppler effects.

VI Fisher matrix

We would now like to use all the information in our mock survey to extract constraints on the Doppler terms, on pNGs, as well as other parameters with whom they can be degenerate. In addition to the ratios of quadrupoles to monopoles, $P^{(2)}_{i}/P^{(0)}_{i}$, proposed by Percival & White, we will also employ the ratios of the monopoles and quadrupoles of different tracers – see Fig. 4. The correlation between these four ratios is shown in the Appendix (see Fig. 9).

In this Section we will compute the Fisher matrix for a set of parameters, and derive the constraints for those parameters by inverting that Fisher matrix. The procedure can be summarized as follows: first, the data covariance is effectively inverted, generating the data Fisher matrix; next we project the data Fisher matrix into the Fisher matrix for the parameters, using the derivatives of the multipoles of the power spectra with respect to the parameters (these derivatives are computed analytically); finally, the parameter-space Fisher matrix is combined with priors, and that matrix is inverted to produce the covariance matrix for the parameters.

In order to show how the different ratios contribute to the constraints, we show results corresponding to the use of three combinations of these observables:

• •

(i) the ratios $R_{3}$ and $R_{4}$ (“PW”);

• •

(ii) the multi-tracer ratios $R_{1}$ and $R_{2}$ (“MT”);

• •

(iii) the four ratios above (“All”).

In each case, the data (sample) covariance matrix is inverted to obtain the data Fisher matrix, $F^{a}(\mu,k;\nu,k^{\prime})=\{{\rm Cov}[R_{\mu}(k),R_{\nu}(k^{\prime})]\}^{-1}$, with $a=$ PW ($\mu,\nu=\{3,4\}$), MT ($\mu,\nu=\{1,2\}$), or All ($\mu,\nu=\{1,2,3,4\}$). With $n_{k}$ Fourier bins in a given redshift slice, the covariance and data Fisher matrix has dimensions $N\times N$, where $N=2n_{k}$ in the PW and MT cases, and $N=4n_{k}$ when all four ratios are considered. In order to keep the contamination from non-linear scales limited to a minimum, we cut-off the information above $k=0.1\,h$ Mpc*-1* on all redshift slices.

Once the data Fisher matrices have been computed, they can be projected into Fisher matrices for the parameters, $\theta^{i}$. We have considered the following set of parameters: the biases ($b_{i}$), the amplitudes of the Doppler terms ($\alpha_{i}$), the matter growth rate ($f$), and the amplitude of pNGs ($f_{\rm NL}$). We model the matter growth rate, as a function is redshift, in terms of the parametrization $f(z)=\Omega_{m}(z)^{\gamma}$, where $\gamma$ is a free parameter ($\gamma\simeq 0.55$ for $\Lambda$CDM).

The most optimistic scenario, the biases are a single parameter, for all redshift slices, and the matter growth rate is also determined by a single parameter ($\gamma$). In this case, there are six parameters in the Fisher matrix, given by $\theta^{i}=\{b_{1},b_{2},\alpha_{1},\alpha_{2},\gamma,f_{\rm NL}\}$. However, a more realistic approach is to take the biases of the two galaxy types to be unknown on each redshift slice, in which case we would have 12 parameters: $\theta^{i}=\{b_{1}(z),b_{2}(z),\alpha_{1},\alpha_{2},\gamma,f_{\rm NL}\}$. Finally, an even more conservative approach is to take as free parameters not only the biases, but the matter growh rate on each redshift slice, in which case we would have 15 parameters: $\theta^{i}=\{b_{1}(z),b_{2}(z),\alpha_{1},\alpha_{2},\gamma(z),f_{\rm NL}\}$.

The final Fisher matrices are then given by:

[TABLE]

We compute the Fisher matrices on each individual slice, and add the information from different slices in order to obtain constraints for the survey volume as a whole.

It is important to notice that, since our observables are ratios of spectra, there is a basic degeneracy in the space of parameters: one can scale the parameters by a constant, and the ratios will be invariant under such a transformation. The only variable which breaks this degeneracy is the matter growth rate, which we have assumed given by the fit in terms of $\gamma$. However, our resulting Fisher matrices are still very nearly singular due to this basic degeneracy. This can be fixed by adding any extra information (a prior) that breaks the scale invariance – e.g., an interval for the bias, or theoretical limits for $\alpha$. For this reason we have adopted weak priors on the biases ($\sigma_{b_{1}}^{\Pi}=\sigma_{b_{2}}^{\Pi}=1$), on the Doppler terms ($\sigma_{\alpha_{1}}^{\Pi}=8,\sigma_{\alpha_{2}}^{\Pi}=4$), on the matter growth rate power index ($\sigma_{\gamma}^{\Pi}=1$) and on the amplitude of pNGs ($\sigma_{f_{\rm NL}}^{\Pi}=10$), through a prior $\Pi={\rm diag}[(\sigma_{b_{1}}^{\Pi})^{-2},(\sigma_{b_{2}}^{\Pi})^{-2},(\sigma_{\alpha_{1}}^{\Pi})^{-2},(\sigma_{\alpha_{2}}^{\Pi})^{-2},(\sigma_{\gamma}^{\Pi})^{-2},(\sigma_{f_{\rm NL}}^{\Pi})^{-2}]$.

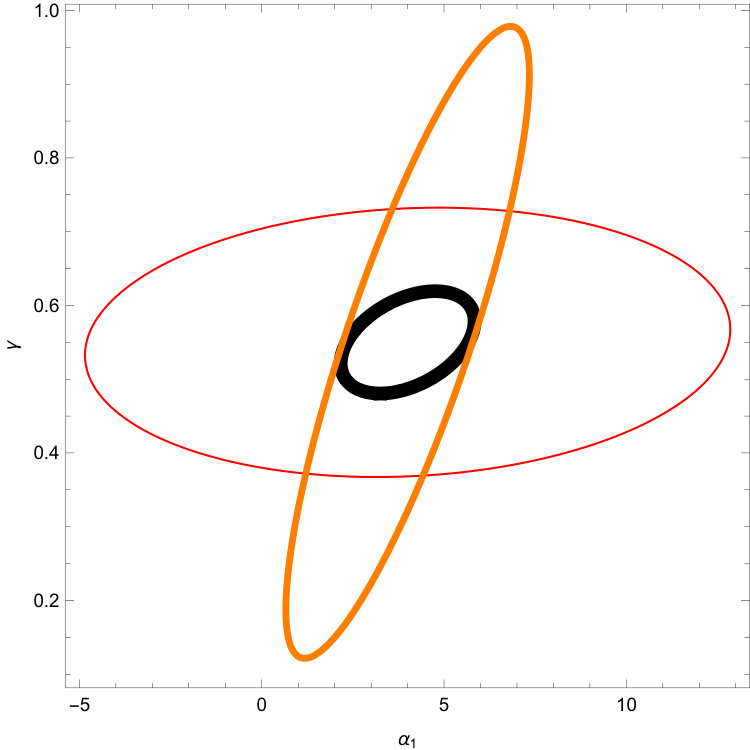

Table II shows the uncertainties in the six parameters which result from different combinations of the information contained in the ratios of tracers. The uncertainty on any given parameter is, as usual, obtained by marginalizing over every other variable – i.e., by inverting the Fisher information, $\sigma^{2}(\theta^{i})=(F^{-1})_{ii}$.

In our simulations, the ratios of the quadrupoles and monopoles of the same tracers (the PW observables) perform slightly better at constraining galaxy bias and the matter growth rate, compared the ratios of spectra of different tracers (the MT observables). The multi-tracer information, on the other hand, is more powerful to constrain the Doppler and $f_{\rm NL}$ terms. In particular, as shown in Fig. 7, the $PW$ ratios are better at measuring the matter growth rate index $\gamma$, while the $MT$ ratios are more sensitive to the Doppler term. When the two types of observables are combined ($All$), the strengths of both approaches help break the internal degeneracies, and we obtain a $\sim 3.3\,\sigma$ detection of $\alpha_{1}$ in the optimist case (row 6), a $\sim 3.0\,\sigma$ detection in the conservative case (row 15), and a $\sim 2.3\,\sigma$ limit in the ultra-conservative case (row 16). The constraints on $f_{\rm NL}$, on the other hand, seem less sensitive to our assumptions about bias and the matter growth rate compared with the constraints for the Doppler term. Notice that there is no scenario in which there are hints of $\alpha_{2}$: this is partly due to the higher bias of the second tracer species (red galaxies, $b_{2}=2.0$), which makes the relative effect of the Doppler weaker for that tracer.

The remaining entries of Table II show several cases where we fix some parameters, and marginalize against others. By comparing the rows 1-3 with rows 5-7, we are able to see how the constraints are affected by the prior: in particular, it can be seen that even a weak prior on $\alpha_{2}$ helps pin down both $\alpha_{1}$ and $f_{\rm NL}$, especially when all the ratios of spectra are taken into account.

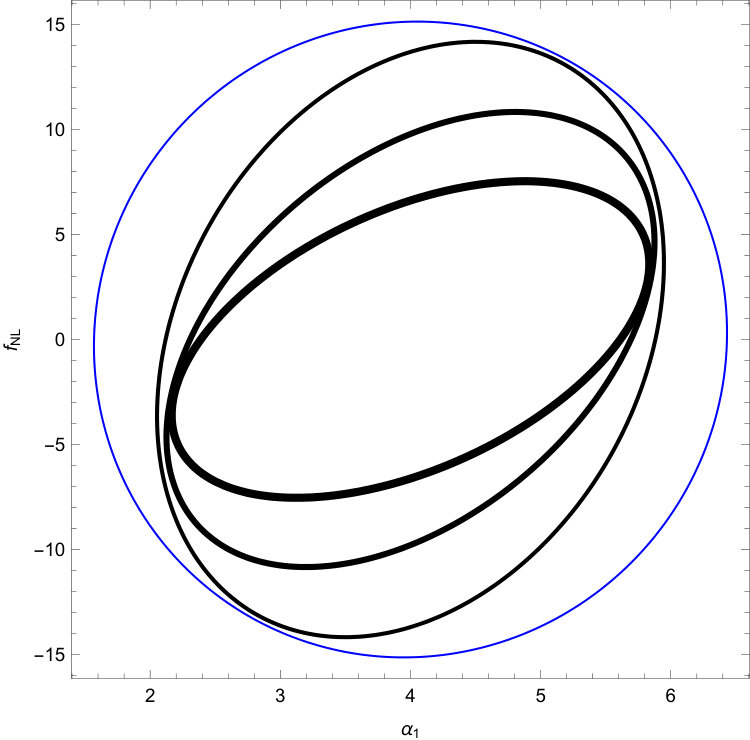

Rows 11-14 of Table II show the cumulative information as we add the redshift slices. Although most of the information about the Doppler term comes from the first redshift slice (for which the observables are most sensitive to $\alpha$ due to the $1/r$ scaling), the other slices play an important role in breaking degeneracies with the bias and with the matter growth rate. The way in which the different redshift slices are sensitive to each parameter is shown in Fig. 8, where on the left panel we show how each slice constrains $\alpha_{1}$ and $f_{\rm NL}$, and on the right panel we show the cumulative effect of combining the information from the slices.

VII Discussion and conclusions

We have investigated the detectability of the velocity terms in galaxy clustering, as well as their degeneracy with primordial non-Gaussianity. The velocity effects are the combination of local peculiar velocity, mode-coupling, Doppler lensing and lightcone volume effects, which are often neglected in galaxy clustering analyses. Although present in the original Kaiser (1987) formulation of RSD, as well as the review Hamilton (1997), their influence were first investigated in Szalay et al. (1998); Papai and Szapudi (2008); Raccanelli et al. (2010), and more recently Jeong et al. (2012); Raccanelli et al. (2016a). Here we propose to measure these two effects using a mock survey of two galaxy types (blue galaxies, with $\alpha_{1}=4.0$ and bias $b_{1}=1.0$, and red galaxies, with $\alpha_{2}=2.0$ and bias $b_{2}=2.0$).

It was pointed out by Raccanelli et al. (2016a) that these effects induce a $k^{-2}$ scale-dependence in the galaxy power spectrum, making them potentially degenerate with primordial non-Gaussianity (see also Jeong et al. (2012)). Fig. 8 shows the nature of the degeneracy between the Doppler effects (parametrized in that case by $\alpha_{1}$) and $f_{\rm NL}$. The direction of this degeneracy means that a small increase in $\alpha_{1}$ can be partially compensated by a small increment in $f_{\rm NL}$. This is in fact already visible from the right panels of Fig. 4, which show the ratio $P^{(0)}_{1}(k)/P^{(0)}_{2}(k)$. The fact that this ratio increases with respect to the case of no Doppler term (dashed lines) is due to the fact that more highly-biased tracers (in our scenario, the red galaxies, type=2) are relatively less sensitive to RSDs in general. On the other hand, this ratio decreases when we include a positive value of $f_{\rm NL}$ (in the example shown in those plots, $f_{\rm NL}=10$), due to the fact that pNGs are sensitive to $b-1$, which vanishes for the blue galaxies ($b_{1}=1$), but not for red galaxies ($b_{2}=2$).

Despite this degeneracy, the fact that the Doppler and pNG effects evolve differently with redshift means that we can use galaxy maps at several redshifts to help break those degeneracies. Fig. 8 shows that the combining low-redshift surveys with intermediate- or high-redshift galaxy surveys will help to disentangle the Doppler effect from pNGs.

Our final results indicate that, in principle, a $\sim 3\sigma$ measurement of a value of $\alpha=4$ is possible from a very large-area, low- and intermediate-redshift galaxy survey that distinguishes betwen different tracers of large-scale structure. If, on the other hand, one employs a galaxy sample for which $\alpha=3$, that measurement would be at $\sim 2\sigma$. We also showed that it is possible to constrain, at the same time as the Doppler term, local-type pNG, by up to $|f_{\rm NL}|\lesssim 5$. The future prospect of very complete photometric samples over large areas means it should be possible to select sub-samples of galaxies in such a way that the Doppler term is enhanced, thus helping confirm the signal of those effects on galaxy clustering and limiting the scope of degeneracies with pNG.

In conclusion, we have shown that with very large-area surveys the Doppler terms are in principle detectable and can be distinguished from local-type primordial non-Gaussianities, and should therefore be included in future forecasts for precise measurements of galaxy clustering.

**Acknowledgments:

**We would like to thank Alvise Raccanelli for many useful discussions and a critical reading of the drafts. We also thank Donghui Jeong and Licia Verde for comments. We both grateful for the Galileo Galilei Institute for Theoretical Physics (GGI), where this project was initiated, for its hospitality. LRA thanks FAPESP (grant 2015/17199-0) and CNPq for financial support. During the preparation of this work DB was supported by the Deutsche Forschungsgemeinschaft through the Transregio 33, The Dark Universe.

Appendix: correlations and covariances

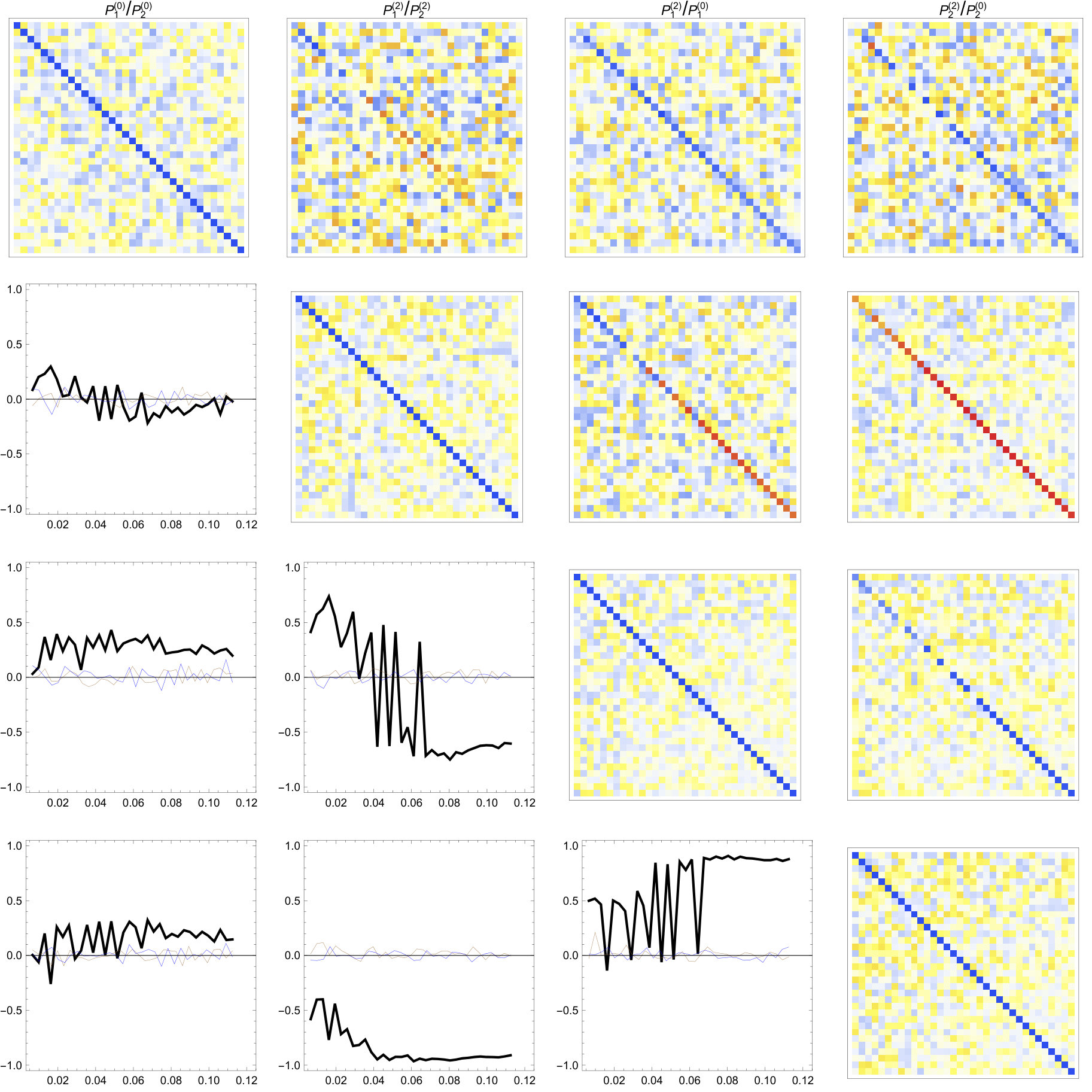

In Figure 9 we show the correlations between the four ratios used as observables. The upper triangle shows the actual correlation matrices, and the lower triangles show the diagonal of the cross-correlation matrices, as well as the second and third sub-diagonals ($c_{i,i+1}$ and $c_{i,i+2}$), for comparison. The first column shows that the ratio of monopoles is almost completely uncorrelated with the other ratios. The ratio of the quadrupoles has a significant correlation with the remaining two ratios ($P^{(2)}_{1}/P^{(0)}_{1}$ and $P^{(2)}_{2}/P^{(0)}_{2}$) – however, the signal-to-noise of the ratio of quadrupoles is insignificant, which means that these correlations are irrelevant. It should be noted that all these cross-correlations (whether relevant or irrelevant) were taken into account when we inverted the data Fisher matrix in Section VI.
