Information Bottleneck in Control Tasks with Recurrent Spiking Neural Networks

TL;DR

This paper investigates how recurrent spiking neural networks encode information during control tasks, revealing deviations from the established Information Bottleneck principle observed in static, feed-forward networks.

Contribution

It provides the first mutual information analysis of recurrent spiking neural networks in control tasks, highlighting differences from traditional information bottleneck expectations.

Findings

Recurrent spiking networks deviate from the Information Bottleneck principle.

Analysis was performed on networks evolved for pole-balancing.

Results suggest different information processing dynamics in recurrent spiking networks.

Abstract

The nervous system encodes continuous information from the environment in the form of discrete spikes, and then decodes these to produce smooth motor actions. Understanding how spikes integrate, represent, and process information to produce behavior is one of the greatest challenges in neuroscience. Information theory has the potential to help us address this challenge. Informational analyses of deep and feed-forward artificial neural networks solving static input-output tasks, have led to the proposal of the \emph{Information Bottleneck} principle, which states that deeper layers encode more relevant yet minimal information about the inputs. Such an analyses on networks that are recurrent, spiking, and perform control tasks is relatively unexplored. Here, we present results from a Mutual Information analysis of a recurrent spiking neural network that was evolved to perform the classic pole-balancing task. Our results show that these networks deviate from the \emph{Information Bottleneck} principle prescribed for feed-forward networks.

Figures

Equations

$$S_i+I_i=\sum _{j=1}^7{w}_{ji}^s{s}_j+\sum _{j=1}^N{w}_{ji}^i{o}_i$$

$${\tau }_m\dot{m_i}=-m_i+\sum _{j=1}^N{w}_{ji}^m{\bar{o}}_{j}i=1,2$$

$${\bar{o}}_j(t)=\frac{1}{h_j}\sum _{k=0}^{h_j}{o}_j(t-k)$$

$$MI(N,X)=\sum _{n\in N}\sum _{x\in X}p(x,n)log\frac{p(x,n)}{p(x)p(n)}$$

Full text

1 Introduction

Deep Learning systems have surpassed other algorithms and even humans at several tasks [1, 2, 3, 4]. While their applications continue to grow, deep learning systems are still considered black-box optimization methods. One of the most vital features behind their success is their ability to extract relevant yet minimal information as it progresses into deeper and deeper layers [5]. This is an extension of Rate Coding Theory [6] presented as the Information Bottleneck principle [5, 7]. The information bottleneck principle has been primarily focused on systems that are (a) feedforward, and (b) in an open-loop, decoupled from their environment.

Neuroscientists, on the other hand, have long been studying the principles behind encoding and representation of environmental information in neural activity using principles of information theory [9] and rate distortion theory [8]. Continuous variables from the environment are encoded as discrete spikes in the brain, which are then decoded to produce smooth continuous movement. Due to experimental limitations, an informational analysis of a closed-loop brain-body-environment behaviour system is not yet feasible.

We take a radically different approach to understanding information flow in a behaviorally-functional agent. We artificially evolve embodied agents controlled by recurrent spiking neural networks to perform a task. For this paper, we focus on a non-Markovian version of the classical pole balancing task. Pole balancing has been explored quite extensively as a benchmark for control using neural networks [10, 11]. With continuous states and actions, this task serves as an ideal setting to study the transformation of the continuous input information into spikes and then back to continuous action. While the typical task is Markovian, and thus too trivial for an informational analysis, it can easily be transformed into a non-Markovian task by making the available information to the agent limited. Our approach to pole balancing incorporates an agent-centric “visual” interface to the pole. Therefore, information that is typically available, like the pole’s angle and angular velocity, the agent’s position and velocity, are not fed directly to the network. Ultimately, the minimal nature of the task makes it tractable for an investigation of a recurrent network in a closed-loop task.

The parameters of the recurrent spiking neural network that balances the pole were optimized using an evolutionary algorithm. Evolving neural networks as opposed to hand-designing them allows maximum flexibility for exploring the parameter space. While evolutionary algorithms have been very commonly used in several fields [16], recently, they have been proven to be efficient for optimizing deep neural networks as well [14, 15]. Moreover, due to the stochastic nature of the optimization, running the algorithm several times provides us with an ensemble of solutions that solve the problem. This allows the analysis of not just one solution but several to evaluate consistency of results.

The paper is organized as follows. In the first section we report on the agent, task, optimization technique, and analysis method. The section that follows presents an informational analysis for the best and top performing agents. In the last section we summarize the results.

2 Methods

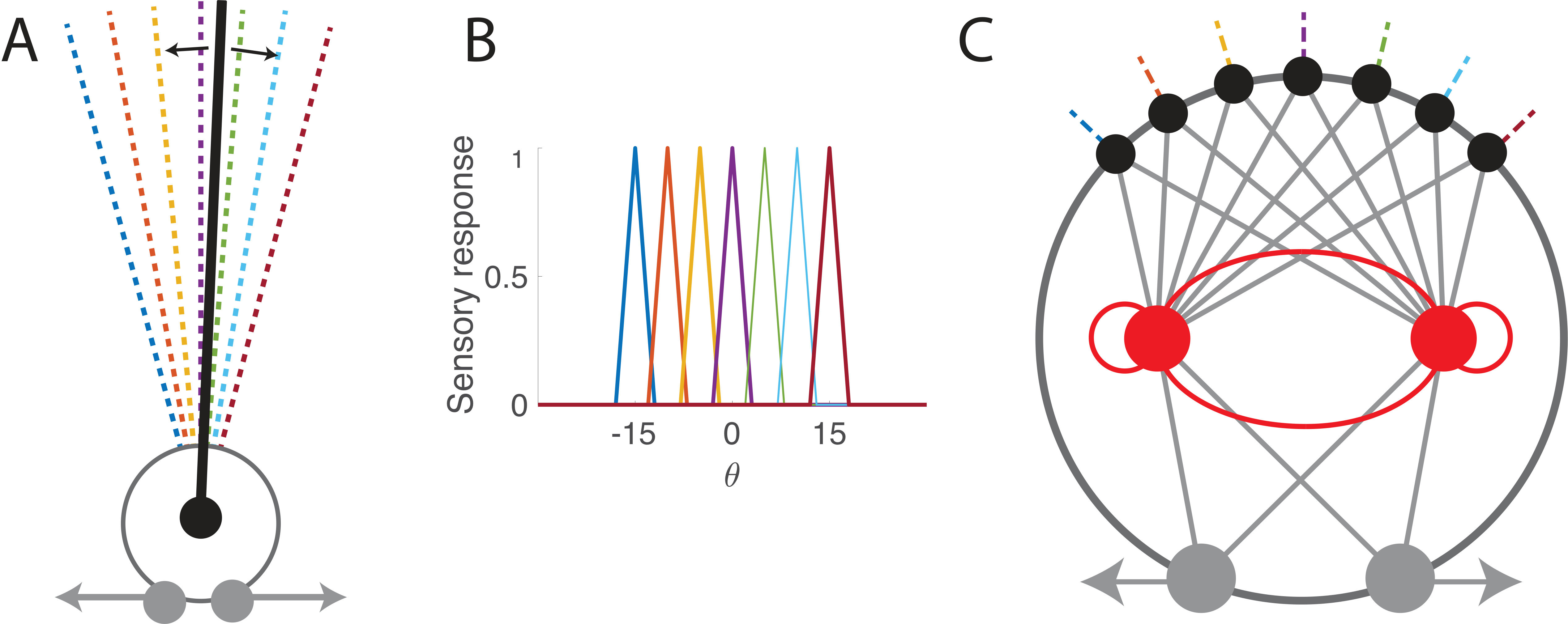

Agent design. The agent lives in a 1-dimensional world with the pole attached to its center. Seven equidistant rays of “vision” with overlapping receptive fields spanning 36°provide it with sensory stimuli (Fig. 1A,B). The control network of the agent has three primary components: sensory units, spiking interneurons, and motor units. There is one sensory units per ray, which merely pass on the signal received from the rays. Sensory units are fully connected to $N$ interneurons (here $N=2$), modeled by Izhikevich spiking neuron model [13]. The model has 4 parameters per neuron and is governed by a two-dimensional system of ordinary differential equations [13]. Interneurons are recurrently connected (Fig. 1C). Therefore, each interneuron receives weighted input from each sensory unit, $S_{i}$, and from other spiking interneurons, $I_{i}$, as follows:

[TABLE]

where $s_{j}$ is the input at the $j^{\text{\tiny th}}$ sensory unit, $w_{ji}^{s}$ is the strength of the connection from the $j^{\text{\tiny th}}$ sensory unit to the $i^{\text{\tiny th}}$ spiking interneuron, $w_{ji}^{i}$ is the strength of the recurrent connections from the $j^{\text{\tiny th}}$ to the $i^{\text{\tiny th}}$ spiking neuron, and $o_{i}$ is the output of the neuron. The sign of all outgoing connections from an interneuron depends on its excitatory or inhibitory nature, as identified by a binary parameter. Finally, the layer of interneurons feeds into the two motor neurons, that has the following state equation:

[TABLE]

[TABLE]

where $m_{i}$ represents the motor neuron state, $w_{ji}^{m}$ is the strength of the connection from the $j^{\text{\tiny th}}$ spiking interneuron to the $i^{\text{\tiny th}}$ motor neuron, $\bar{o}_{j}$ represents the firing rate code, the moving average over a window of length $h_{j}$ for the output of spiking interneuron $j$. Finally, the difference in output between the motor neurons results in a net force that acts upon the agent, moving it along the track. The network was simulated using Euler integration with step size 0.01.

Pole Balancing Task Design. The agent can move left/right to balance a pole for as long as possible. The pole-balancing task was implemented based on published descriptions [12]. The force from the agent, computed as the difference between motor unit outputs, affects the angular acceleration of the pole and acceleration of the agent. The physical parameters such as mass, length and coefficient of friction were all set as per the same reference. While typically pole-balancers receive as input the angle of the pole ($\theta$), its angular velocity ($\omega$), the agent’s position ($x$) and velocity ($v$), our implementation was modified to only sense the pole through the sensory rays.

Evolutionary Algorithm. The network was optimized using a real valued evolutionary algorithm. A solution was encoded by 38 parameters, including the intrinsic parameters of the Izhikevich neurons, the neuron-specific size of the window for estimating rate code, all connection weights (sensory-interneuron, interneuron-interneuron, interneuron-motor), and the time constant, bias and gain for the motor units. Parameters were constrained to certain ranges: connection strengths $\in$ $[-50,50]$; motor unit biases $\in$ $[-4,4]$; time-constants $\in$ $[1,2]$. The range of intrinsic parameters and the polarity of the outgoing weights from the inter-neuron depended on a binary inhibitory/excitatory neuron flag parameter in the genotype [13]. The population consisted of 100 individuals.

Fitness Function. Performance was estimated by averaging over 16 trials, starting at pole angles $\theta_{0}$ between $\pm 12\degree$, in increments of 3°, and two initial angular velocities, $\omega_{0}=\pm 0.001$. The fitness function to be maximized was $f=(\sum_{t=1}^{T}cos(\theta_{t}))/T$, where $T=500s$ is the maximum duration of the run. The pole was considered balanced if it was within the sensory range of the agent. Also, the track length was fixed at $45$ units, beyond which the trial was terminated.

Mutual Information. The amount of information contained in one variable about another was estimated using Mutual Information (MI). We quantified the information that neurons contain about pole angle ($\theta$), angular velocity ($\omega$), agent position ($x$) and agent velocity ($v$) by calculating their probability distributions (using a binning method with each bin of width 0.01):

[TABLE]

3 Results

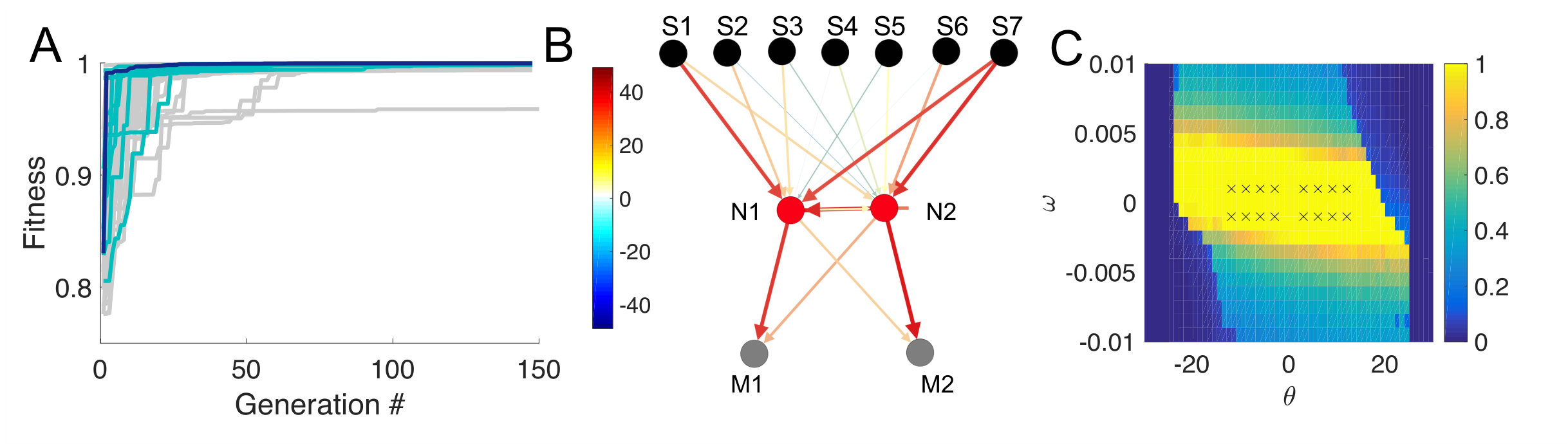

Performance of evolutionary optimization. While pole balancing is a well-known benchmark, it was also a relatively easy task to optimize. The evolutionary algorithm found fairly good solutions (around 75% performance) at the very first random draw of the population. Fig. 2A shows the performance of the best agent in every generation over time. Out of the $100$ evolutionary runs, $99$ converged to over $99\%$ fitness with only two spiking interneurons.

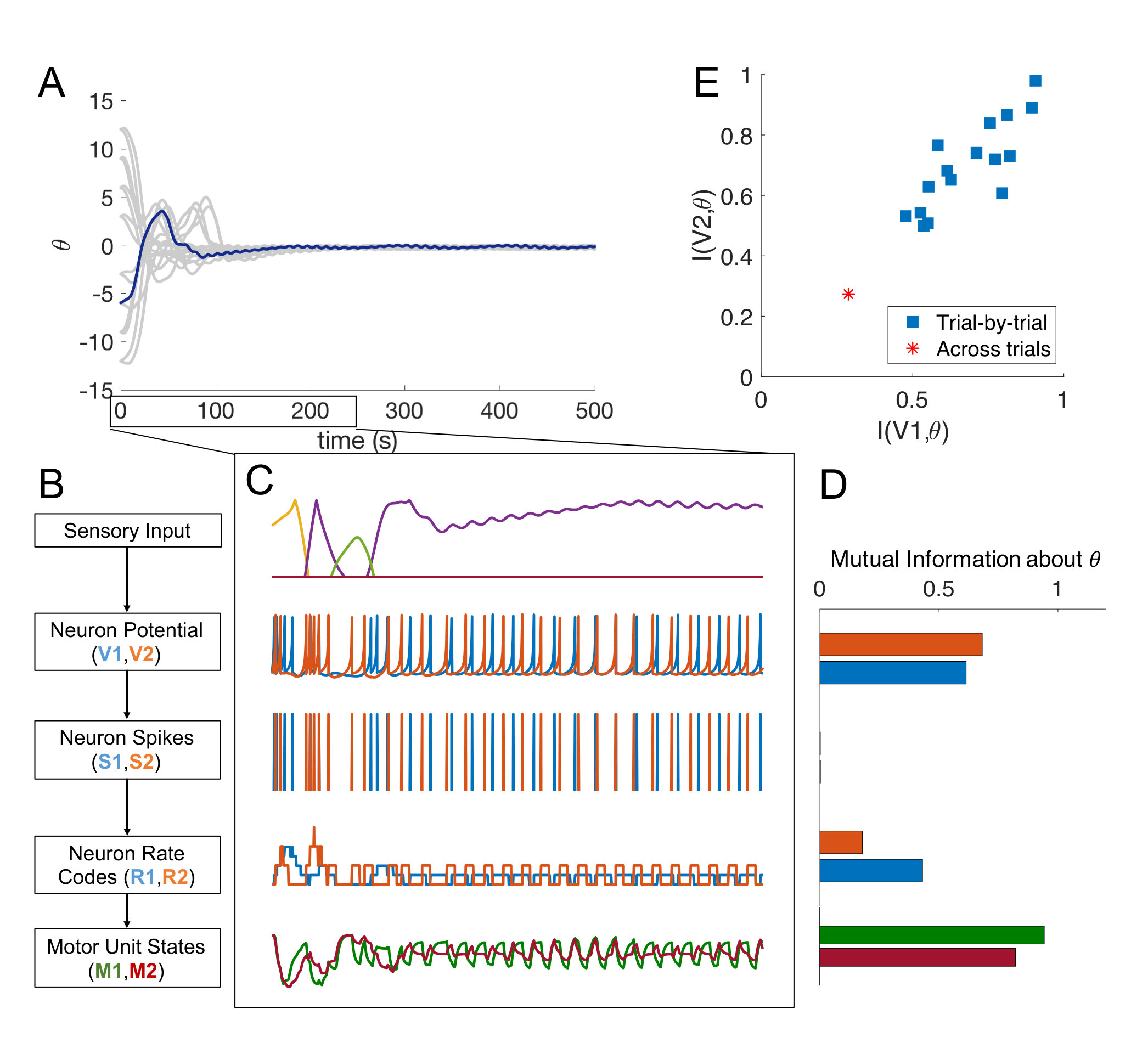

Network structure and performance of the best agent. The network structure of the best agent from the $100$ runs is shown in Fig. 2B. The behavioral traces of this agent on the 16 trials specified in the previous section are shown in Fig. 3A. This agent achieved a fitness of $99.4\%$. To test for generalization, its performance was evaluated on a finer and broader range of conditions, post-optimization (Fig. 2C): initial pole angle $\theta_{0}$ in the range $[-45,45]$ and initial pole angular velocity $\omega_{0}$ in the range $[-0.01,0.01]$. As can be seen, the agent generalizes well within and outside the region it was evolved on. Note that $\theta_{0}$ that are beyond $18\degree$ on either side are beyond the range of the sensory rays.

Encoding of environmental variables. The different network elements that manipulate the input are shown in Fig. 3B. Sensory signals first act on neurons’ potential. The neuron fires based on dynamics in its potential, which is then interpreted by its rate. The motor units then convert this discrete spike rate to smooth continuous movement. Note that a single neuron has three levels of informational content - continuous valued potential, binary spikes, and discrete spike rate codes. Fig. 3C shows traces for the highlighted trial in Fig. 3A of the best agent. Although $\theta$ is the most directly available information, unlike the standard practice of directly providing it, the sensory rays provide an agent-centric perspective of $\theta$. MI between each of the network elements with $\theta$, see Fig. 3D, revealed that internal potential of neurons have relatively more information about $\theta$ than the spike rate and so does the motor units. Albeit only for one trial in one agent, this shows that the bottleneck does not always become narrow in control tasks. MI also reveals that indirect encoding of $\omega$, $x$ and $v$ all happen in the very first stage of the network, neuron potential (black bars in Fig. 4). This can be attributed to the recurrent nature of connections between the interneurons and also their rather complex non-linear internal dynamics.

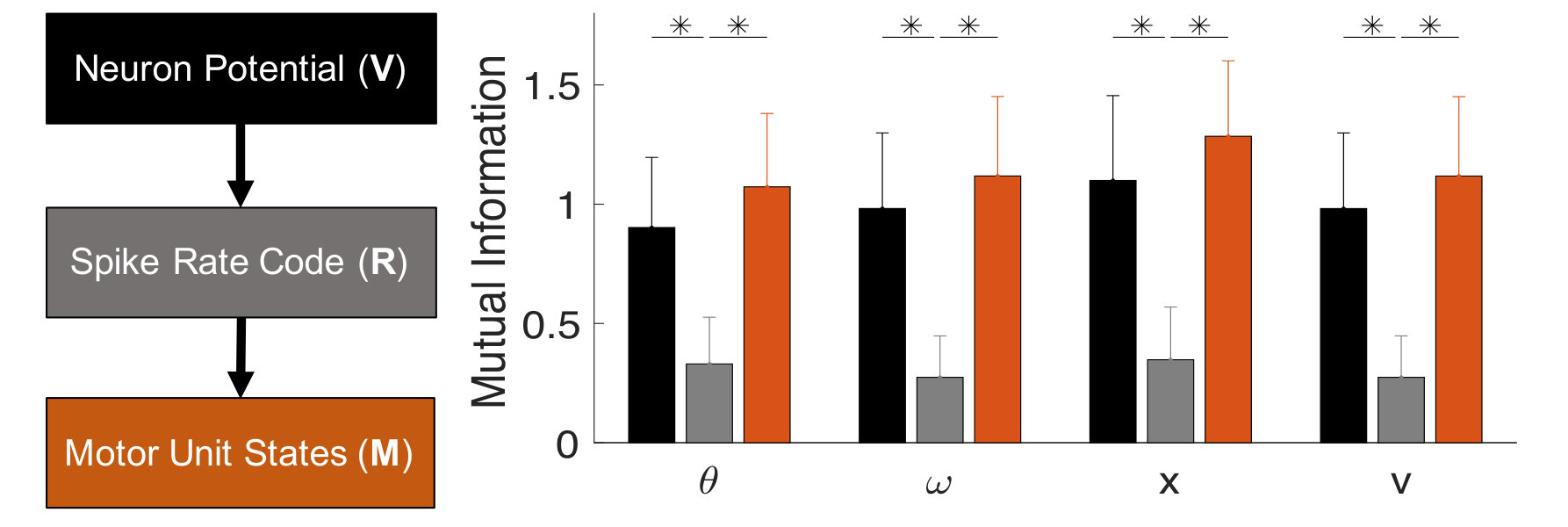

Analysis of the Information Bottleneck. All available information, as shown by MI in $V$, is not necessarily used in controlling movement, as shown by relatively lower information in $R$. To further study the bottleneck, we compared the amount of information contained in neuron potentials, $V$, versus the rate coded outputs of the neurons, $R$. Note that the spikes themselves do not have any information about the environment but, in fact, encode them in its rate. For each of the environmental variables a paired samples t-test was conducted with a significance threshold of $p<0.05$. This revealed that there is a significant drop in the amount of information between $V$ and $R$ (Fig. 4) robustly across the top ten agents. This can be attributed to the loss due to the discretization of information available in $V$ as spikes. However, the information in $R$ is sufficient to perform the behavior with great accuracy and so this is in fact an efficient encoding of information. The minimal yet relevant information that is encoded in $R$ is interpreted by the motor units. They integrate $R$ from the interneurons and their outputs directly impact $\theta$, $\omega$, $x$ and $v$ and so this is where a deviation from the IB principle is expected. Statistical analyses of the MI between $R$ and the motor units state, $M$, using the paired samples t-test yielded highly significant ($p\ll 0.05$) increase in information about all environmental variables in $M$ (Fig. 4). This shows that the IB for control tasks is not always a filtering of information but is rather filtering followed by an expansion at the control layer.

Context sensitive information encoding. From previous analysis, we know that components of the network encode information about the environment. But what information do they encode? Typically, when a neuron is said to encode information about a feature of the environment it is thought to be a consistent, context-independent code. To explore this idea further, we compared the MI the neuron potential has about the pole’s angle $I(V,\theta)$ on a trial by trial basis to the information that same neuron has across all trials about the same feature of the environment on the best agent (Fig. 3E) and the top 10 agents. A one-sample t-test of the combined MI with the distribution of trial-by-trial MI values yielded a highly significant difference ($p\ll 0.05$). This means that the combined information is significantly lower than trial-by-trial information, and therefore that encoding is highly context-dependent across all evolved pole-balancers.

4 Discussion

In this paper, we have presented results from an information theoretic analysis of recurrent spiking neural networks that were evolved to perform a continuous control task: agent-centric non-Markovian pole balancing. Our results can be summarized as follows. First, networks with as few as two spiking neurons could be evolved to perform this task. Second, through the use of MI, we show that the spiking network encoded environmental variables of interest that were directly and indirectly available. Third, we show that the information bottleneck from the neuron potential to its firing rate is an efficient filtering/compression, which was followed by an increase in information at the control layer on account of their causal effect on the environment. This is a phenomenon that we expect to arise in control tasks in general, and plan to explore further with different tasks and types of networks. Perhaps, this can develop into an optimization method for neural network control. Finally, we show that the information encoded in the spiking neurons vary across trials, causing the across-trial combined information to be significantly lower. This can mean either that the same stimuli are encoded in different ways (redundancy) or that different stimuli are mapped on to the same encoding (generalization) or both. This warrants further analysis to understand the encoding in more detail and more interestingly, to understand how the context helps disambiguate the generalized representations during a trial.
