On the universality of anomalous scaling exponents of structure functions in turbulent flows

TL;DR

This study measures velocity structure functions in a closed turbulent flow without Taylor-hypothesis and finds scaling exponents consistent with open flows, supporting the universality of turbulent scaling laws.

Contribution

It provides new measurements of structure functions in a closed flow without Taylor-hypothesis, challenging previous non-universal findings.

Findings

Scaling exponents up to 9th order match open flow values

Supports the universality of turbulent structure function exponents

Uses Stereo PIV to span a wide inertial range

Abstract

All previous experiments in open turbulent flows (e.g. downstream of grids, jet and atmospheric boundary layer) have produced quantitatively consistent values for the scaling exponents of velocity structure functions. The only measurement in closed turbulent flow (von K\'arm\'an swirling flow) using Taylor-hypothesis, however, produced scaling exponents that are significantly smaller, suggesting that the universality of these exponents are broken with respect to change of large scale geometry of the flow. Here, we report measurements of longitudinal structure functions of velocity in a von K\'arm\'an setup without the use of Taylor-hypothesis. The measurements are made using Stereo Particle Image Velocimetry at 4 different ranges of spatial scales, in order to observe a combined inertial subrange spanning roughly one and a half order of magnitude. We found scaling exponents (up to 9th order) that are consistent with values from open turbulent flows, suggesting that they might be in fact universal.

Figures

Tables

Table 1. Table 1: Parameter space describing the cases considered in this paper. Δ ​ x Δ 𝑥 \Delta x is the spatial resolution of our measurements. ϵ g subscript italic-ϵ 𝑔 \epsilon_{g} is the global non-dimensional energy dissipation (non-dimensionalized using radius of tank ( R 𝑅 R ) and 2 ​ π ​ F 2 𝜋 𝐹 2\pi F , where F is the frequency of the impellers) measured through torques, while ϵ v subscript italic-ϵ 𝑣 \epsilon_{v} is the local non-dimensional energy dissipation estimated via the second order structure function (see the text on how they are estimated). η 𝜂 \eta is the Kolmogorov scale (estimated using ν 𝜈 \nu and ϵ v subscript italic-ϵ 𝑣 \epsilon_{v} ). Liquid temperature is at 20 o superscript 20 𝑜 20^{o} C unless otherwise specified.

Case	F (Hz)	Glycerol content	$Re$	$\eta$ (mm)	$\Delta x$ (mm)	${ϵ}_g$	${ϵ}_v$
A	1.2	$59\%$	$6\times {10}^3$	$0.37$	$0.24$	$0.045$	$0.0275$
B	1	$0\%$ (at $5^o$C)	$6\times {10}^4$	$0.0775$	$0.48$	$0.045$	$0.0413$
C	5	$0\%$	$3\times {10}^5$	$0.0162$	$0.24$	$0.045$	$0.0502$
D	5	$0\%$	$3\times {10}^5$	$0.0193$	$2.4$	$0.045$	$0.0254$

Table 2. Table 2: Comparison of measured scaling exponents between this paper and previous experiments. Arneodo ESS: results from various open turbulent flows in Arneodo et al. ( 1996 ) . This paper, ESS: results from this paper using ESS. This paper, global: results from this paper based on conjoined structures functions obtained at different Reynolds numbers. The values at highest orders marked with“ ∗ * ” are likely unreliable due to stark inconsistency with local scalings of the corresponding structure functions (details in text). The values of ζ 3 subscript 𝜁 3 \zeta_{3} in not shown since it is by assumption of the methodologies equals to unity in all cases.

	${\zeta }_1$	${\zeta }_2$	${\zeta }_4$	${\zeta }_5$	${\zeta }_6$
Arneodo ESS	$0.35\pm 0.03$	$0.7\pm 0.03$	$1.28\pm 0.03$	$1.55\pm 0.05$	$1.77\pm 0.05$
This paper, ESS	$0.36\begin{array}{c}+0.005\\ -0.005\end{array}$	$0.69\begin{array}{c}+0.005\\ -0.005\end{array}$	$1.29\begin{array}{c}+0.005\\ -0.005\end{array}$	$1.55\begin{array}{c}+0.01\\ -0.01\end{array}$	$1.80\begin{array}{c}+0.02\\ -0.02\end{array}$
This paper, global	$0.35\begin{array}{c}+0.03\\ -0.04\end{array}$	$0.68\begin{array}{c}+0.03\\ -0.03\end{array}$	$1.30\begin{array}{c}+0.03\\ -0.04\end{array}$	$1.58\begin{array}{c}+0.03\\ -0.04\end{array}$	$1.83\begin{array}{c}+0.03\\ -0.04\end{array}$
	${\zeta }_7$	${\zeta }_8$	${\zeta }_9$
Arneodo ESS	$2.03\pm 0.05$	$2.2\pm 0.08$	$2.38\pm 0.05$
This paper, ESS	$2.02\begin{array}{c}+0.03\\ -0.03\end{array}$	$2.23\begin{array}{c}+0.03\\ -0.04\end{array}$	$2.41\begin{array}{c}+0.05\\ -0.05\end{array}$
This paper, global	$2.05\begin{array}{c}+0.03\\ -0.03\end{array}$	${}_{}{}^{\ast }2.35\begin{array}{c}+0.04\\ -0.05\end{array}$	${}_{}{}^{\ast }2.57\begin{array}{c}+0.04\\ -0.05\end{array}$

Table 3. Table 3: Scaling exponents of the transversal structure functions of velocity. ζ n T subscript superscript 𝜁 𝑇 𝑛 \zeta^{T}_{n} values that are not presented as a ranges imply uncertainties of ± 0.005 plus-or-minus 0.005 \pm 0.005 , except the last column (Average) which are simple averages of the mid-values of each row.

Case	A	B	C	D	Average
$Re$	$6\times {10}^3$	$6\times {10}^4$	$3\times {10}^5$	$3\times {10}^5$
${\zeta }_1^T$	$0.40$	$0.38$	$0.39$	$0.39$	$0.39$
${\zeta }_2^T$	$0.73$	$0.71$	$0.72$	$0.72$	$0.72$
${\zeta }_4^T$	$1.22$	$1.25$	$1.24$	$1.23-1.24$	$1.24$
${\zeta }_5^T$	$1.40-1.41$	$1.45$	$1.43-1.44$	$1.43$	$1.43$
${\zeta }_6^T$	$1.54-155$	$1.62$	$1.59-1.60$	$1.58-1.60$	$1.59$
${\zeta }_7^T$	$1.64-1.67$	$1.76$	$1.73-1.74$	$1.69-1.73$	$1.72$
${\zeta }_8^T$	$1.72-1.75$	$1.85-1.86$	$1.83-1.86$	$1.77-1.84$	$1.81$
${\zeta }_9^T$	$1.78-1.81$	$1.90-1.92$	$1.92-1.95$	$1.80-1.93$	$1.88$

Equations

$$S_n(r)=⟨(\delta u_L{)}^n⟩,$$

Full text

1 Introduction

In the classical Kolmogorov-Richardson picture of turbulence, a turbulent flow is characterized by a hierarchy of self-similar scales. This picture becomes increasingly inaccurate at smaller and smaller scales, where intermittent burst of energy dissipation and transfers take place (Kolmogorov, 1962). A classical quantification of such intermittency is via the scaling properties of the structure functions, built as successive moments $S_{n}(r)=<|\delta u_{r}|^{n}>$ of $\delta u_{r}={\bf r}\cdot({\bf u}(x+r)-{\bf u}(x))/r$ the longitudinal velocity increments over a distance $r$. In numerical simulations, the longitudinal increments are easily accessible over the whole range of scale of the simulations, but the scaling ranges and the maximal order $n$ are limited by numerical resources. In experiments, large Reynolds numbers and large statistics are easily accessible, but the computation of $S_{n}(r)$ faces practical challenges. One point velocity measurements based e.g. on hot wire or LDV techniques- provide time-resolved measurements over 3 or 4 decades, that can be used to compute the structure functions only via the so-called Taylor’s frozen flow hypothesis $r=U\Delta t$, where $U$ is the mean flow velocity at the probe location. This rules out the use of this method in ideal homogeneous isotropic turbulence, where $U=0$. Most of the experimental reports on structure function scalings relied on this method and not surprisingly most of these results are from turbulent flows with open geometry (e.g. turbulence dowmstream of grids, jets and atmospheric boundary layer) where there is a strong mean flow. The common practice is to keep the ratio $u^{\prime}/U$ small, preferably less than $10\%$ ($u^{\prime}$ being the standard deviation of the velocity). A summary of these results could be found in e.g. (Arneodo et al., 1996). For closed turbulent flows such as the von Kármán swirling flows, the best attempts (Maurer et al., 1994; Belin et al., 1996) were to place the point measurement probe at locations where $U$ is strongest, specifically where $U$ has a substantial azimuthal component. Even then, one had to resort to measurements with ratio of $u^{\prime}/U$ up to $38\%$. At the same time, it is not understood how the curve geometry of the mean flow profile affects the validity of Taylor-hypothesis (this concern does not appear in open flows where $\vec{U}$ is predominantly rectilinear). Nevertheless, these experiments discerned power laws regime of the velocity structure functions of comparable quality with the results from open turbulence. When the various results on the scaling exponents were compared by Arneodo et al. (1996), the result from von Kármán flows gave values distinctly lower than those of open turbulence (which are among them selves consistent). This difference, among other reasons, had prompt suggestion that different classes of flows possess different sets of exponent (Sreenivasan & Antonia, 1997). Besides, von Kármán flow, another branch of results on closed turbulent flow of the type Couette-Taylor was carried out, also utilizing Taylor’s hypothesis, by Lewis & Swinney (1999) and Huisman et al. (2013). Remarkably Lewis et al.’s results on the exponents beyond order-6 were also consistently lower than the open flow results and their highest Reynolds number measurements were remarkably close to that of Belin et al. (1996). Huisman et al. reported results up to order-6 that suggested universality of the exponents with respect to changing large scale symmetry (by changing ratio of rotation of the cylinders) and to Reynolds number. Here using a technique that does not rely on Taylor-hypothesis, we report scaling exponents from von Kármán flows that are consistent with results from open flows (Arneodo et al., 1996; Stolovitzky et al., 1993; Anselmet et al., 1984), as well as results from numerical simulations (Gotoh et al., 2002; Ishihara et al., 2000) and the theory of She & Leveque (1994). We close this section by noting that Pinton & Labbé (1994) had attempted to apply their original “local Taylor-hypothesis” on a von Kármán experiment but only reported scaling exponent of up to sixth order which they concluded as being consistent with other results of the open flows and thus also with our results.

2 Overview of methods

Direct measurement of spatial increments of velocity can be obtained via Particle Image Velocimetry method (PIV). A detailed description of the setup has been previously provided in (Saw et al., 2016), here we provide a concise description. The fluid is seeded with hollow glass particles (Dantec Dynamics) with mass density of $1.4gcm^{-3}$ and size $10-30\mu m$, giving particle Kolmogorov scale Stokes number, in order of increasing flow Reynolds numbers, of the order of $10^{-4}$ to $10^{-2}$, while the settling parameter i.e. ratio of Stokes to Froude number of the order of $10^{-3}$ or smaller. The particles are illuminated by a thin laser sheet ($1mm$ thick) in center of the cylindrical tank (see Figure 1 for a sketch). Two cameras, viewing at oblique angle from either side of the laser sheet, take successive snapshots of the flow. The velocity field is then reconstructed across the quasi-two-dimensional laser sheet using peak correlation performed over small interrogation windows. This methods provides measurements of 3 velocity components on a two dimensional grid. However, limited width of the measured velocity field (due to finite camera sensor size), coarse-graining of the reconstruction methods and optical noises usually limit the range of accessible scales, making the determination of the power law regime ambiguous, thus limiting the accuracy of measured scaling properties of the structure functions. As we discuss in the present communication, these limitations can be overcame by combining multi-scale imaging and a universality hypothesis. In the original Kolmogorov self-similar theory (K41), for any $r$ in the inertial range, $S_{n}(r)=C_{n}\epsilon^{n/3}r^{n/3}$, where $\epsilon$ is the (global) average energy dissipation and $C_{n}$ is a $n$-dependent constant. In such a case, the function $S_{n}(r)/(\epsilon\eta)^{n/3}$ is a universal function (a power-law) of $r/\eta$, where $\eta=(\nu^{3}/\epsilon)^{1/4}$ is the Kolmogorov scale and $\nu$ is the liquid’s kinematic viscosity. Such scaling is the only one compatible with the hypothesis that $r$ and $\epsilon$ are the only characteristic quantities in the inertial range. Following Kolmogorov (1962), one can take into account possible breaking of the global self-similarity by assuming that there exists an additional characteristic scale $\ell_{0}$ that matters in the inertial range, so that $S_{n}(r)=C_{n}\epsilon^{n/3}r^{n/3}F_{n}(r/\ell_{0})$. If there exists a range of scale where $F_{n}(x)\sim x^{\alpha_{n}}$, then one can write $S_{n}(r)=C_{n}\epsilon^{n/3}\ell_{0}^{-(\zeta_{n}-n/3)}r^{\zeta_{n}}$, where $\zeta_{n}=n/3+\alpha_{n}$. In such a case, $G_{n}(r)=S_{n}(r)/(\epsilon\eta)^{n/3}(\ell_{0}/\eta)^{\zeta_{n}-n/3}$ is a universal function (a power-law) of $r/\eta$. Here, we use this to rescale our measurements taken in the same geometry, but with different $\epsilon$ and $\eta$. We may then collapse them in the inertial range into a single (universal) structure function by considering $G_{n}(r)$ as a function of $r/\eta$. The quality of the collapse depends crucially on the intermittency parameter $(\alpha_{n}=\zeta_{n}-n/3)$ for large value of $n$ , as $\alpha_{n}$ increases with $n$: a bad choice of $\alpha_{n}$ results in a strong mismatch of two measurements taken at same $r/\eta$ but different $\eta$. Moreover, the global slope (in a log-log plot) of the collapsed data representing $G_{n}(r/\eta)$ can also be used to compute the effective scaling exponent $\zeta_{n}$ (and also $\alpha_{n}$), therefore providing a strong consistency check for the estimated value of $\zeta_{n}$. The bonus with the computation of the global slope is that by a proper choice of $\epsilon$ (which gives $\eta$ via $(\nu^{3}/\epsilon)^{1/4}$ ) and $\ell_{0}$, it can be performed over a wider inertial range, therefore allowing a more precise estimate of $\zeta_{n}$. In the sequel, we examine the effectiveness of this approach.

3 Experimental flow field

We use an experimental von Kármán set-up that has been especially designed to allow for long time (up to hours) measurement of flow velocity to accumulate enough statistics for reliable data analysis. Turbulence is generated by two counter rotating impellers, in a cylindrical vessel of radius $R=10\,cm$ filled with water-glycerol mixtures (see Saw et al., 2016, for a detailed description) . We perform our measurements in the center region of the flow, with area of views of $4\times 4\,cm^{2}$ (except in one case $20\times 20\,cm^{2}$, i.e. case D in Table 1), located on a meridian plane, around the symmetry point of the experimental set-up (see Fig. 1 ). At this location, a shear-layer induced by the differential rotation produces strong turbulent motions. Previous study of intermittency in such a set-up has been performed via one-point velocity measurements (hot-wire method) located above the shear layer or near the outer cylinder, where the mean velocity is non-zero (Maurer et al., 1994; Belin et al., 1996). The scaling properties of structure functions up to $n=6$ were performed by measuring the scaling exponents $\zeta_{n}$ via $S_{n}(r)\sim r^{\zeta_{n}}$, using assumption of Taylor’s frozen turbulence hypothesis and the extended self-similarity (ESS) technique (Benzi et al., 1993). These resulting $\zeta_{n}$ values were significantly lower than those from open turbulent flows (Arneodo et al., 1996). The $\zeta_{n}$ values from open turbulence flows summarized in Arneodo et al. (1996) are reproduced here (in the next section) for comparison. Here, we use SPIV measurements of velocities to compute longitudinal structure function up to the ninth order without using Taylor-hypothesis (only velocity components in the measurement plane are used). Our multi-scale imaging provides the possibility to access scales of the order (or smaller than) the dissipative scale, in a fully developed turbulent flow. The dissipative scale $\eta$ is proportional to the experiment size, and decreases with increasing Reynolds number. Tuning of the dissipative scale is achieved through viscosity variation, using different fluid mixtures of glycerol and water. Combined with variable optical magnifications, we may then adjust our resolution, to span a range of scale between $\eta$ to almost $10^{4}$ $\eta$, achieving roughly 1.5 decades of inertial range. Table 1 summarizes the parameters corresponding to the different cases. All cases are characterized by the same value of non-dimensional global energy dissipation $\epsilon_{g}=0.045$ (non-dimensionalized using radius of tank $R$ and $2\pi F$, where F is the frequency of the impellers), measured through independent torque acquisitions. However, since the von Kármán flow is globally inhomogeneous, the local non-dimensional energy dissipation may vary from cases to cases (Kuzzay, 2015), and has to be estimated using local measurements, as we detail below.

4 Results

4.1 Velocity increments and structure functions

Local velocity measurements are performed using SPIV, providing the radial, axial and azimuthal velocity components on a meridional plane of the flow through a time series of $30,000$ independent time samples. In the sequel, we work with dimensionless quantities, using $R$ as the unit of length, and $(2\pi F)^{-1}$ as the unit of time, $F$ being the rotational frequency of the impellers. Formally, since we use $50\%$ overlapping interrogation box, the spatial resolution of our measurement is twice the grid spacing $\delta x$, which depends on the cameras resolution, the field of view and the size of the windows used for velocity reconstruction. In the sequel, we use 2M-pixels cameras at two different optical magnifications, to get one set of measurements with field of view covering the whole space between the impellers with area of roughly $20\times 20$ cm2 ($\delta x=3.4$ mm, $32\times 32$ pixels interrogation windows), and three sets with field of view of $4\times 4$ cm2 centered at the center of the experiment (case A and C with $16\times 16$ pixels windows, $\delta x=0.24mm$, and case B with $32\times 32$ pixels windows, $\delta x=0.48mm$). The velocities measured using PIV have uncertainties due to random fluctuations (fluctuating number of particles in each interrogation window, optical noise etc) and averaging error (velocities are smoothed over interrogation window, thickness of laser sheet). These may result in unreliable calculation of velocity differences at the smallest distances. Thus velocity difference at the smallest distances are removed from further analysis (more on this the sequel). Since we are interested only in statistics of the velocity field in the inertial subrange of turbulence, we remove the large scale inhomogeneous artifact of the swirling flow by subtracting the long time average from each instantaneous velocity field. Using the in-plane components of the velocities and spatial separations, we then compute the velocity increments as $\delta\bm{u}(\bm{r})=\bm{u}(\bm{x}+\bm{r})-\bm{u}(\bm{x})$, $\bm{x}$ and $\bm{r}$ being the position and spatial increment vectors in our measurement plane. From this, we obtain the longitudinal structure functions via the longitudinal velocity increment $\delta u_{L}(r)=\delta\bm{u}(\bm{r})\cdot\bm{r}/{r}$:

[TABLE]

where $\langle\rangle$ means average over time, all directions and the whole view area. Our statistics therefore includes around $10^{9}$ to $10^{10}$ samples (depending on the increment length), allowing convergence of structure functions up to $n=9$ in the inertial ranges (more details below). The structure functions ($S_{n}$) are shown in Fig. 2, where we have conjoined the four case (A through D) by rescaling the structure function in each case as $S_{n}\times{\ell_{0}}^{\zeta_{n}-\nicefrac{{n}}{{3}}}/({\epsilon_{v}}^{\nicefrac{{n}}{{3}}}\,\eta^{\zeta_{n}})$ and the abscissa as $r/\eta$ where $\zeta_{n}$ is the corresponding scaling exponents of the structure functions in the manner: $S_{n}(r)=C_{n}(\epsilon r)^{n/3}(r/\ell_{0})^{\zeta_{n}-n/3}$ , with $\ell_{0}$ the characteristic large scale of the flow which we take as equals to the radius of the impellers (more on the computation of $\zeta_{n}$ and the choice of $\ell_{0}$ in Section 4.3). We note that in doing so, we have used the more general form of scaling relation for the structure functions that takes into account turbulent intermittency (as described earlier), with the K41 theory recovered if $\zeta_{n}=n/3$. As illustrated in Fig. 2a, in each segment of the $S_{n}$ curve represented by a single color, the behavior of $S_{n}$ at its large scale limit is altered by finite size effects, while at the small scale ends they are polluted by measurement uncertainties or lacks statistical convergence. We thus remove these limits and keep only the intermediate power-law-like segments for the analysis of scaling exponents in the sequel, the results are displayed in Fig. 2b and 2c (note: for illustrative purpose here we also show the dissipative scales of case A and largest scales of case D which would correspond to large eddy scale). Specifically, data cropping is done by inspecting the, albeit noisy, local slopes plots i.e. $\Delta log_{10}(S_{n})/\Delta log_{10}(r)$ versus $log_{10}(r)$ as exemplify by Figure 2d. We remove the strongly varying or fluctuating parts at small and large $r$ (based on smoothed data). However in case B and C, further removal of points at small $r$ were peformed in view of unsatisfactory statistical convergence (see Discussions for details on data convergence). The retained ranges are respectively for case A to D, $log_{10}(r/\eta)\in(1.5,1.87),(2.02,2.63),(2.75,3.35),(3.2,3.35).$

In the sequel, we discuss the computations of the kinetic energy dissipation rates and scaling exponents ($\zeta_{n}$) used in Fig. 2.

4.2 Determination of local energy dissipation rates

We use the local average kinetic energy dissipation rates, $\epsilon_{v}$, to rescale the structure functions. For this, we need accurate measurements of $\epsilon_{v}$. We determine $\epsilon_{v}$ for the four cases in two steps. In step one, we first determine $\epsilon_{v}$ in case A, where our data span both the dissipative and the lower inertial scales of turbulence, by constraining the value of $\epsilon_{v}$ such that both scaling laws of the second order structure function in the inertial subrange (K41) i.e. $S_{2}(r)=C_{2}(\epsilon r)^{2/3}$ and the dissipative scale i.e. $S_{2}(r)=(\epsilon/15\nu)r^{2}$ are well satisfied. $C_{2}$ is the universal Kolmogorov constant with a nominally measured value of $C_{2}=2$ (see e.g. Pope, 2000). We note that the dissipative scaling formula implicitly assumes that the average dissipation rate can be replaced by its one-dimensional surrogates, which is expected to be accurate when at least local statistical isotropy is satisfied by the turbulent flow as in our case.

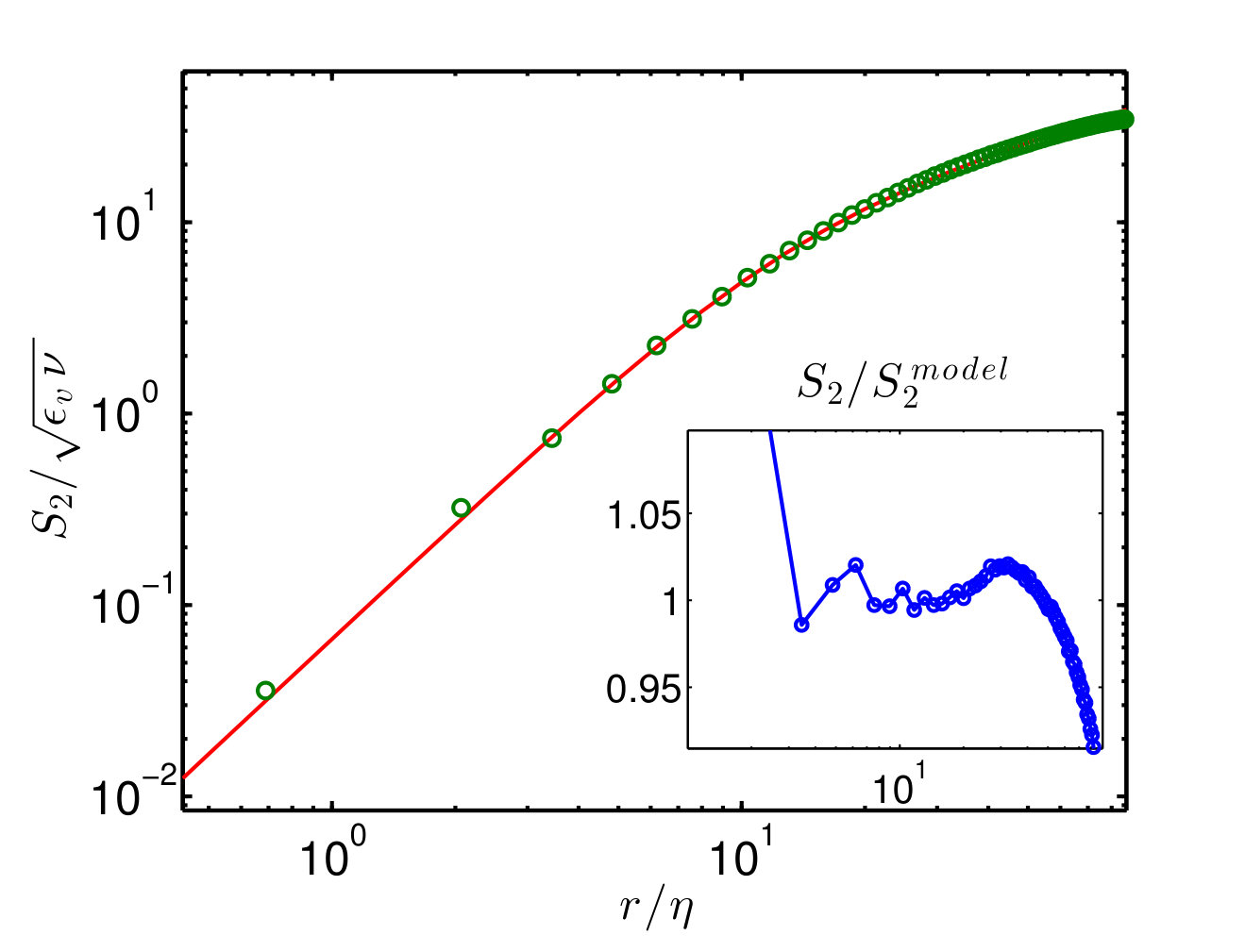

A convenient way to achieve this is by tuning value of $\epsilon_{v}$ in order to match our $S_{2}$ against the form $S_{2}=\alpha\,r^{2/3}/[1+(r/r_{c})^{-2}]^{2/3}$ that contains the correct asymptotic both in the inertial and dissipative limits (this would be stronger than e.g. estimating $\epsilon_{v}$ using inertial sub-range data alone). This form was originally obtained by Sirovich et al. (1994) using Kolmogorov relation for third order structure function (Kolmogorov, 1941) ( 4/5-law with exact viscous correction). The constants are further determined by asymptotically matching to the above scalings laws, giving $\alpha=\epsilon^{2/3}C_{2}$ and $r_{c}=(15C_{2}\nu/\epsilon^{1/3})^{3/4}\equiv(15C_{2})^{3/4}\eta$. Figure 3 shows the non-dimensionalized second order structure function of case A, $S_{2}/(\epsilon_{v}\nu)^{1/2}$ as function of $(r/\eta)$ compared the Sirovich form (similarly non-dimensionalized, with $C_{2}=2$) for comparison. One can see a good agreement between the two curves in both dissipative and inertial range as well as at the transition regime, with discrepancies below $5\%$ excluding the far ends where data is affected by measurement uncertainties and view volume edges. This gives us confidence with regard to the estimation of $\epsilon_{v}$ for case A.

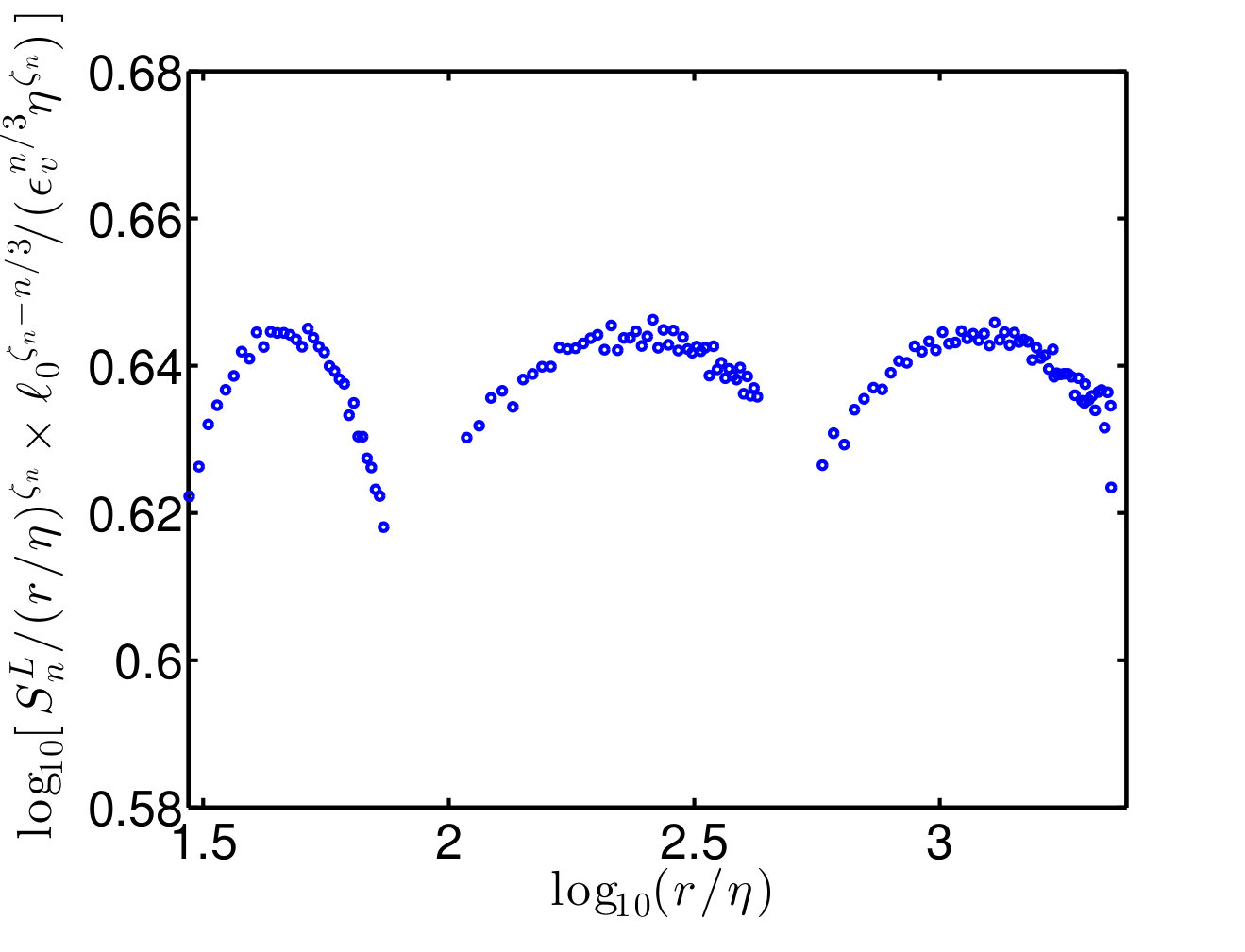

In step two, knowing the value of $\epsilon_{v}$ for case A, we determined $\epsilon_{v}$ of the other cases by constraining (assuming) that the conjoined 3rd order structure function of all cases, should globally scales (determined by curve fitting) as a power law with exponent $\zeta_{3}=1$, as is predicted by K41 and supported by experiments (e.g. Anselmet et al., 1984) and numerical simulations (e.g. Ishihara et al., 2000). As such, we have made the same assumption as in the extended self similarity method of (Benzi et al., 1993). Figure 3-right panel shows the conjoined $S_{3}$ rescaled using the resulting $\epsilon_{v}$.

4.3 Determination of scaling exponents: ESS and global conjoin method

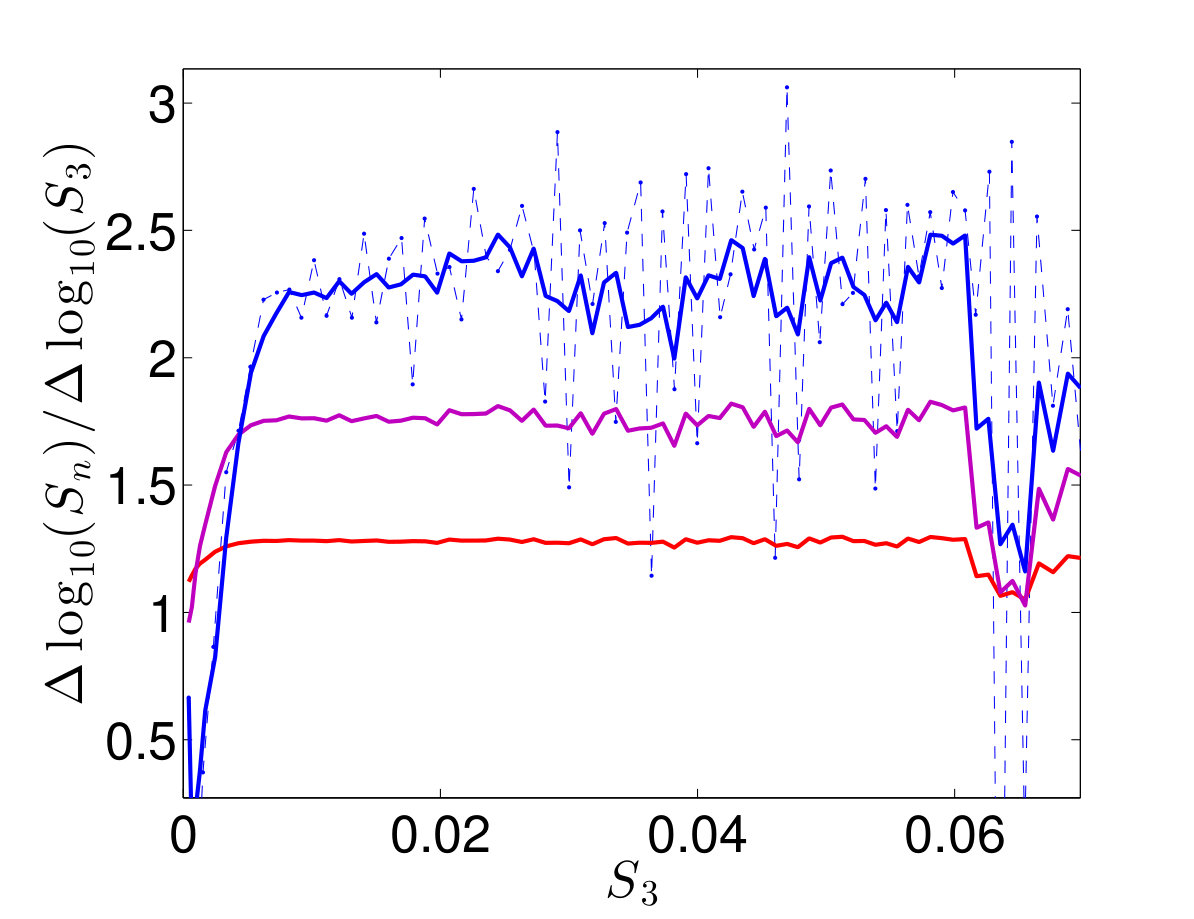

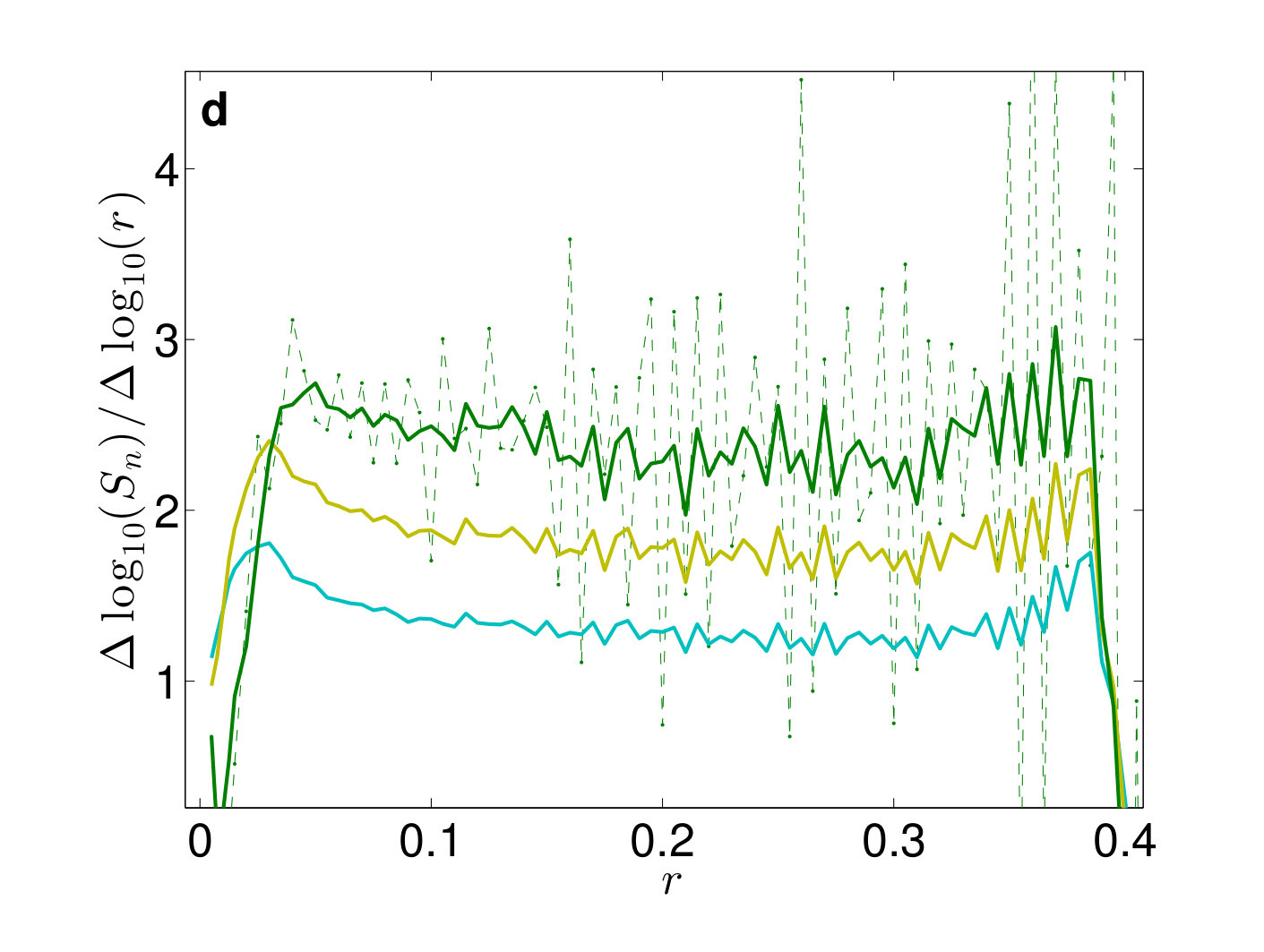

In Table 2, we report the scaling exponents ($\zeta_{n}$) of the structure functions by two different methods. Firstly, we apply the extended self similarity (ESS) method (Benzi et al., 1993) to each of the four experimental cases (A through D). This essentially involves plotting $S_{n}(r)$ versus $S_{3}(r)$ in logarithmic axes followed by curve fitting. The uncertainty of each $\zeta_{n}$ is given as the $95\%$ confidence interval of the least-square fitting algorithm. The fitted ranges are chosen by inspection of the, albeit noisy, local slopes plots i.e. $\Delta log_{10}(S_{n})/\Delta log_{10}(S_{3})$ versus $log_{10}(S_{3})$ as exemplify by Figure 4-right. In general, the range is selected as the intermediate part by removing the strongly varying or fluctuating parts at small and large $S_{3}$. However in case B and C, further removal points small $S_{3}$ are prompted by unsatisfactory statistical convergence (see Discussions for details on data convergence). Numerically the ranges are, respectively for case A to D, $log_{10}(S_{3})\in(-1.88,-1.5),(-2.0,-1.2),(-1.9,-1.1),(-1.67,-1.21).$ Since this produces four independent measurements of $\zeta_{n}$ for each order (owing to the 4 cases), we report their averages in Table 2.

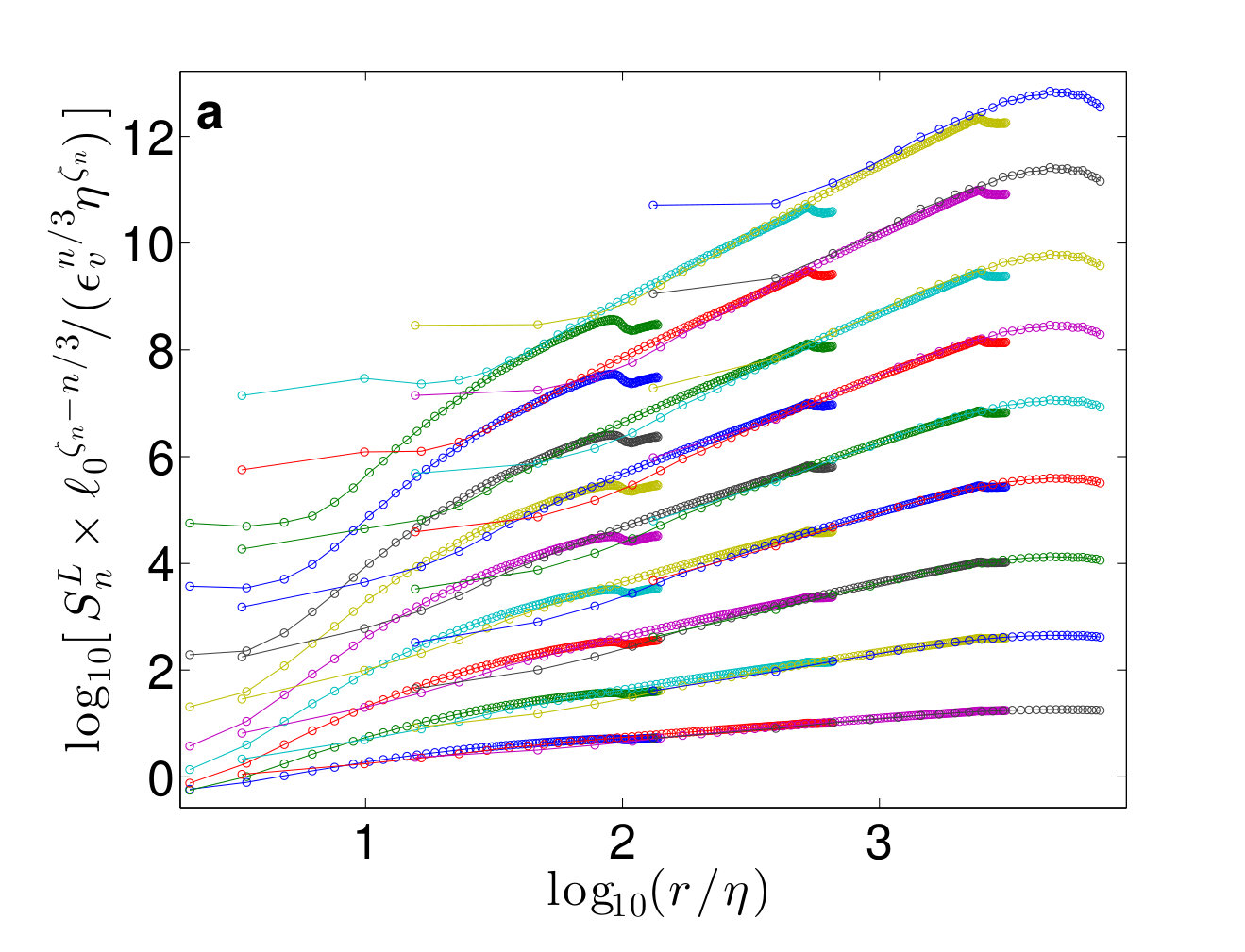

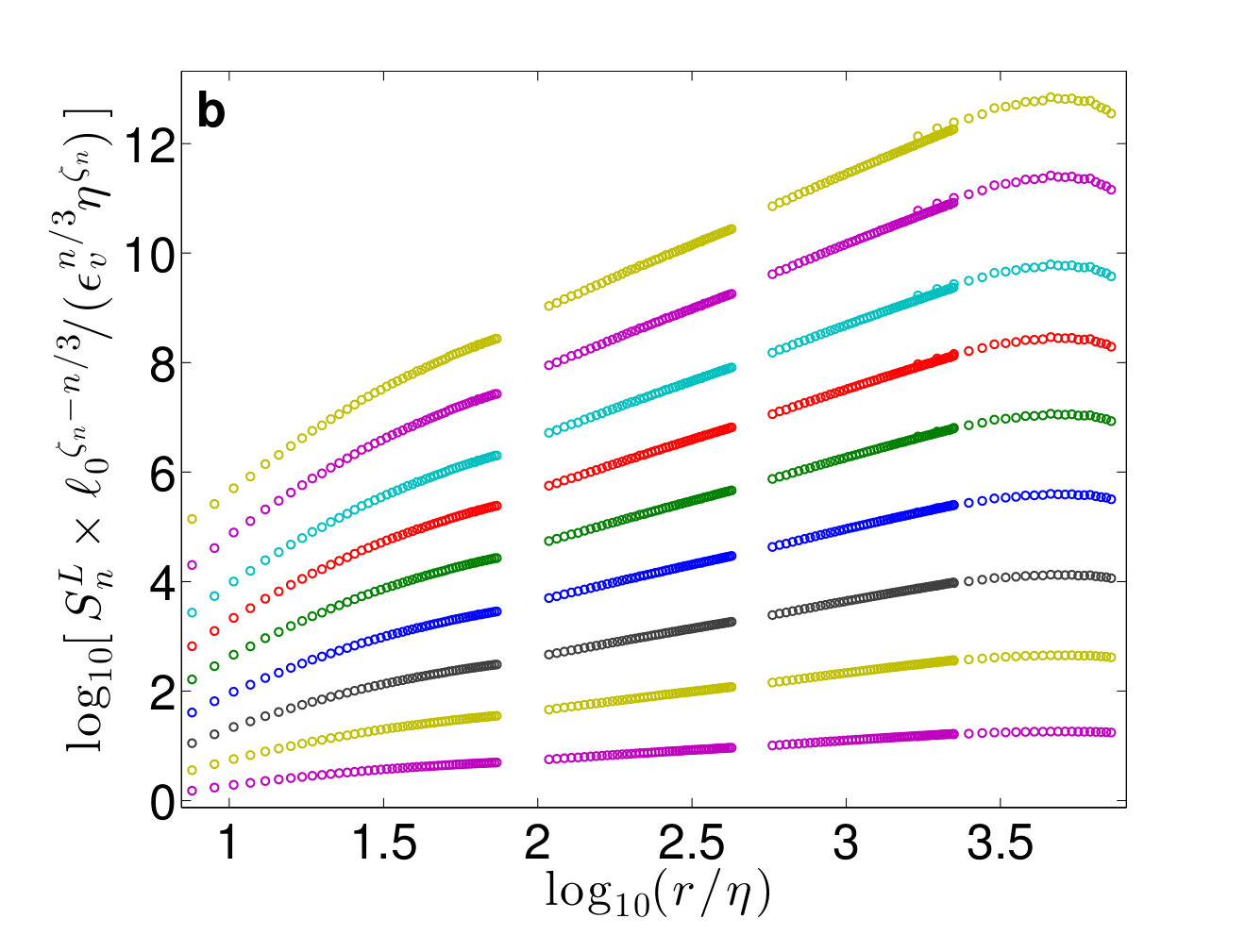

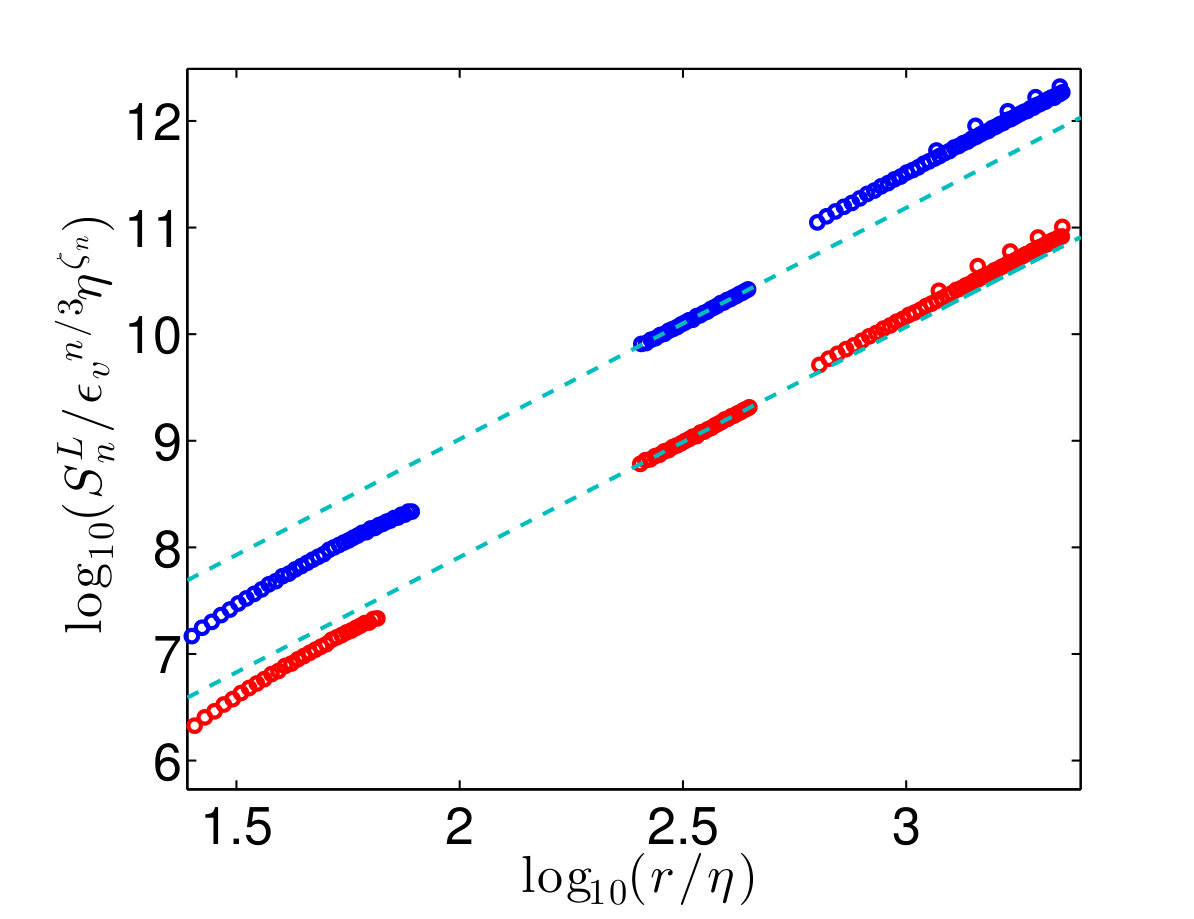

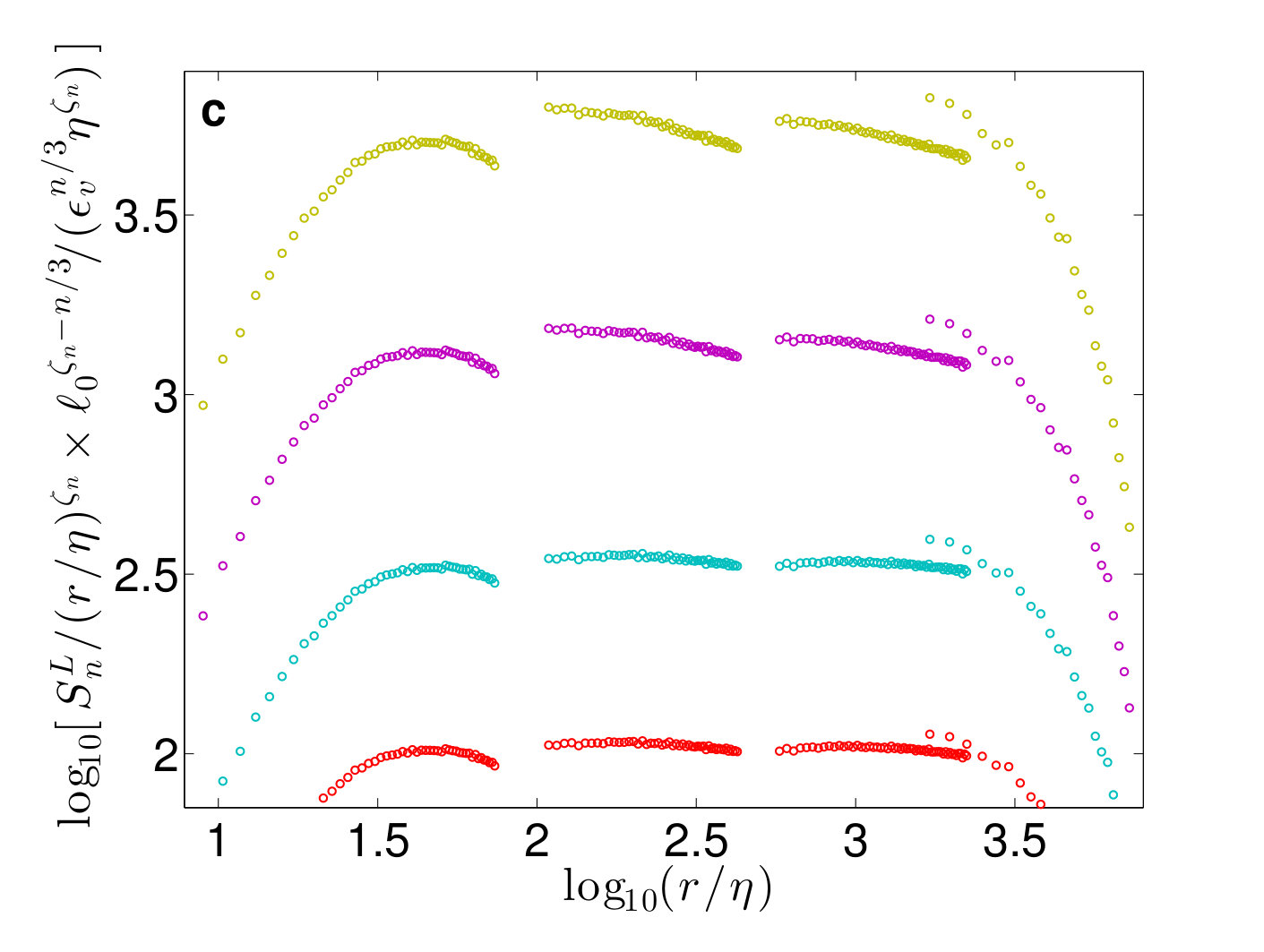

Secondly, we conjoin the non-dimensionalized structure functions (using $\epsilon_{v}$ and $\eta$) from the four cases and apply curve-fitting to the combined structure functions to obtain the global estimates of $\zeta_{n}$. As shown in Fig. 4-left, we found that structure functions join significantly better when they are rescaled based on the scaling relation that takes into account intermittency, namely: $S_{n}\times{\ell_{0}}^{\zeta_{n}-\nicefrac{{n}}{{3}}}/({\epsilon_{v}}^{\nicefrac{{n}}{{3}}}\,\eta^{\zeta_{n}})$ versus $r/\eta$ (as discussed above). We take $\ell_{0}=R$ (equals the impeller radius) in the current analysis, any global refinement in the magnitude of $\ell_{0}$ will not affect our estimate of $\zeta_{n}$, as it only multiply all $S_{n}$ by a constant factor. Specifically, the combined structure functions thus rescaled, exhibit significantly better continuity as compared to their K41 scaled counterparts. The non-dimensional structure functions $S_{n}(\hat{r})\times{\ell_{0}}^{\zeta_{n}-\nicefrac{{n}}{{3}}}/({\epsilon_{v}}^{\nicefrac{{n}}{{3}}}\,\eta^{\zeta_{n}})$, as such are dependent on values of $\zeta_{n}$, thus in order to improve accuracy, we iterate between rescaling and curve fitting to arrive at a set of self consistent $\zeta_{n}$. However, we observe that the self-consistency of this method gradually deteriorate at higher orders, essentially giving global iterated $\zeta_{n}$ values that are highly inconsistent with their piecewise estimates. One plausible cause of this could be the possibility that the relevant external scale $\ell_{0}$ varies between the different set of experiments. We, unfortunately, do not have way to independently measure $\ell_{0}$, but we note that allowing $\ell_{0}$ to vary up to 20$\%$ could remove such inconsistency. In view of this, for the 8th and 9th order, such self-iterative results are less reliable, hence our best estimates for $\zeta_{8}$ and $\zeta_{9}$ should still be the EES results.

4.4 Transversal scaling exponents

While the main focus of the current paper is on the comparison of longitudinal structure functions, we briefly present the results on transversal structure functions here. Unlike their longitudinal counterparts, past results on scaling exponents of the transversal structure functions ($\zeta^{T}_{n}$) do not inspire strong consensus. There were conflicting results on whether they are equivalent to the longitudinal ones and some works suggested that they might depend significantly on large scale shear (for details see e.g. discussion by Iyer et al. (2017) and reference therein). However, the recent results of Iyer et al. (2017) strongly suggests that, when large scales inhomogeneities are absent, the two sets of exponents (longitudinal and transversal) are equivalent and subject to a single similarity hypothesis. Their findings also implies that previous conflicting results could be explained by the relatively much slower approach of the higher order transversal exponents to their ultimate large Reynolds number limits and possibly by presence of large scale shear. It remains for more works to substantiate this important finding. In view of this, here we present only the ESS results on the transversal exponents, as their strong dependence on Reynolds precludes any attempts to conjoin them using our global method described previously. The ESS results is shown in Table 3. The values for $\zeta^{T}_{n}$ at higher orders are lower than their longitudinal counterparts, consistent with some previous experiments e.g. (Dhruva97 et al., 1993; Shen & Warhaft, 2002). Our results shows weak evidence that $\zeta^{T}_{n}$ increases with Reynolds number for $n>6$.

5 Discussions

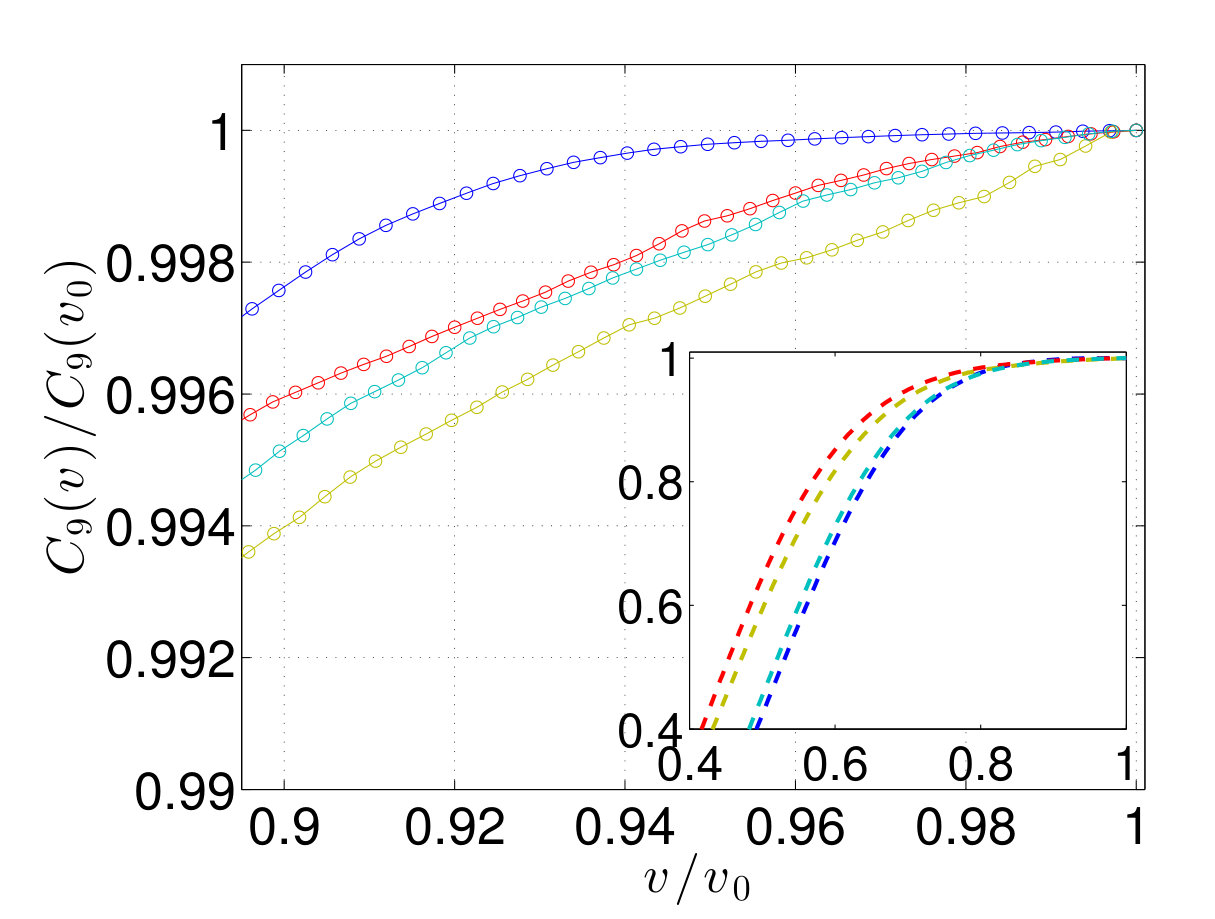

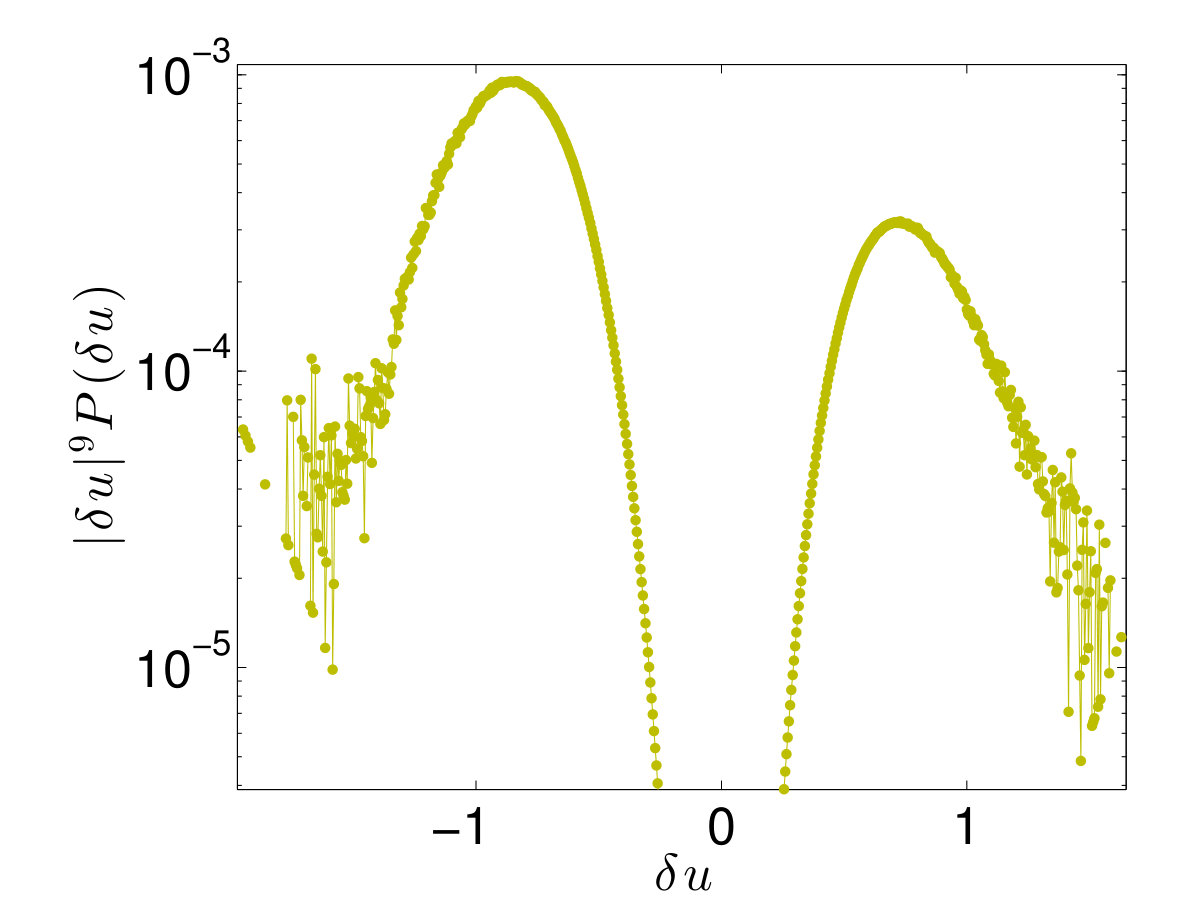

*Statistical convergence of data. There exist various ways of characterizing statistical convergence of structure functions. We follow the method used in (Gotoh et al., 2002), as it reveals directly the possible rate of change of the moments with respect to increasing statistics. This involves plotting $C_{n}(v)\int^{v}_{0}v^{\prime n}P(v^{\prime})dz^{\prime}$ where $v$ and $v^{\prime}$ are modulus of velocity differences and $P$ the corresponding PDF. Figure 5 represents $C_{9}(v)/C_{9}(v_{0})$ as function of $v/v_{0}$, where $v_{0}$ is the 1st value of $v$ at which $P(v)=0$ in our data. The four curves represent the least converged points in each case (A to D) used in our calculation of $\zeta_{n}$ and are respectively at $log_{10}(r/\eta)=1.51,2.04,2.76,3.23$. They are also points of smallest $r$ retained in each cases, since convergence improves with $r$. To ease comparison with other works, we define our criterion for convergence as: $C_{n}(v)$ should not vary more than $1\%$ when $v_{0}$ is extended by $10\%$, consistent with what is shown in Figure 5. *

Flow inhomogeneity. In this work, we attempt to minimize the influence of large scale inhomogeneity and anisotropy by subtracting the mean flow pattern from our data and average over all directions in the region near the symmetric center of the flow where the flow is roughly homogeneous. This however could not guarantee that all influence of inhomogeneity and isotropy has been removed, especially for case D where the view area is large. A full analysis of this issue will be the subject of future work.

6 Conclusion

We use SPIV measurements of velocities in a turbulent von Kármán flow to compute longitudinal structure function up to order nine without using Taylor-hypothesis. Our multi-scale imaging provides the possibility to access scales of the order (or even smaller than) the dissipative scale, in a fully turbulent flow. Using magnifying lenses and mixtures of different composition, we adjust our resolution, to achieve velocity increment measurements spanning a range of scale between one Kolmogorov scale, to almost $10^{3.5}$ Kolmogorov scale, with clear inertial subrange spanning about 1.5 decades. Thanks to our large range of scale, we can compute the global scaling exponents by analyzing conjoined data of different resolutions to complement the analysis of extended self-similarity. Our results on the scaling exponents ($\zeta_{n}$), where reliable, are found to match the values observed in turbulent flows experiments with open geometries (Anselmet et al., 1984; Stolovitzky et al., 1993; Arneodo et al., 1996), numerical simulations (Gotoh et al., 2002; Ishihara et al., 2000) and the theory of She & Leveque (1994), in contrast with previous measurement in von Kármán swirling flow using Taylor-hypothesis, that reported scaling exponents that are significantly smaller (Maurer et al., 1994; Belin et al., 1996), which raised the possibility that the universality of the scaling exponents are broken with respect to change of large scale geometry of the flow. Our new measurements, that do not rely on Taylor-hypothesis, suggest that the previously observed discrepancy could be due to a pitfall in the application of Taylor-hypothesis on closed, non-rectilinear geometry and that the scaling exponents might be in fact universal, regardless of the large scale flow geometry.

Acknowledgement This work has been supported by EuHIT, a project funded by the European Community Framework Programme 7, grant agreement no. 312778.
