Pressure Profile Calculation with Mesh Ewald Methods

TL;DR

This paper introduces an efficient mesh Ewald method for calculating local pressure profiles in charged systems, maintaining N log N scaling, and applies it to water/vapor interfaces to compare pressure distributions.

Contribution

It presents a novel mesh Ewald approach for pressure profile calculation that is faster and more scalable than previous methods.

Findings

The new method retains N log N scaling for large systems.

Pressure profiles across water/vapor interfaces are accurately computed.

Stress distributions from different methods are consistent within 0.05 nm.

Abstract

The importance of calculating pressure profiles across liquid interfaces is increasingly gaining recognition, and efficient methods for the calculation of long-range contributions are fundamental in addressing systems with a large number of charges. Here, we show how to compute the local pressure contribution for mesh-based Ewald methods, retaining the typical N log N scaling as a function of the lattice nodes N. This is a considerable improvement on existing methods, which include approximating the electrostatic contribution using a large cut-off and the, much slower, Ewald calculation. As an application, we calculate the contribution to the pressure profile across the water/vapour interface, coming from different molecular layers, both including and removing the effect of thermal capillary waves. We compare the total pressure profile with the one obtained using the cutoff approximation for the calculation of the stresses, showing that the stress distribution obtained by the Harasima and Irving-Kirkwood are quite similar and shifted with respect to each other at most 0.05~nm.

Figures

Tables

Table 1. Table 1: Surface tension (bar nm) as derived from the integral of the surface tension profile ( γ † superscript 𝛾 † \gamma^{\dagger} ) and from the global pressure tensor components ( γ 𝛾 \gamma ), position of the surface of tension z s subscript 𝑧 𝑠 z_{s} (nm), and Tolman length δ 𝛿 \delta (nm). The quantities have been calculated using the Irving-Kirkwood (I-K) and Harasima (H) paths, for different values of the cutoff radius r c subscript 𝑟 𝑐 r_{c} .

	$r_c$	${\gamma }^{†}$	$\gamma$	$z_s$	$\delta$
I-K	1.5	565	588$\pm 3$	2.40	0.03$\pm 0.05$
I-K	2.0	577	611$\pm 5$	2.38	0.02$\pm 0.05$
H	1.5	588	588$\pm 3$	2.30	0.10$\pm 0.05$
Ref34	1.3	-	602	-	-
Ref35	0.98	-	567	-	-

Equations

$$\mathbf{P}V=\sum _i{m}_i{\mathbf{v}}_i\otimes {\mathbf{v}}_i-2\mathbf{\Xi }$$

$$\gamma (z)=P_{\mathrm{N}}-P_{\mathrm{T}}(z),$$

$$U^{\mathrm{rec}}$$

$${\Xi }_{\mu \nu }^{\mathrm{rec}}$$

$$f({\mathbf{m}}^2)$$

$$g_{\mu \nu }(\mathbf{m})$$

$$S(\mathbf{m})=\sum _i{q}_i{e}^{2\pi i\mathbf{m}\cdot {\mathbf{r}}_i}.$$

$$\tilde{\rho }({\mathbf{r}}_p)=\frac{1}{h^3}\sum _{i}W({\mathbf{r}}_p-{\mathbf{r}}_i),$$

$$A({\mathbf{r}}_i)=\sum _{{\mathbf{r}}_p}A({\mathbf{r}}_p)W({\mathbf{r}}_i-{\mathbf{r}}_p).$$

$${\Xi }_{\mu \nu }^{\mathrm{rec},\mathrm{i}}=\frac{q_i}{V}\sum _{\mathbf{m}\ne 0}\mathrm{Re}\left\{\frac{e^{-i\mathbf{m}\cdot {\mathbf{r}}_i}}{2\pi V}S(\mathbf{m})\right\}f({\mathbf{m}}^2)g_{\mu \nu }(\mathbf{m}).$$

$${\tilde{\Xi }}_{\mu \mu }^{\mathrm{rec},\mathrm{i}}=\frac{q_i}{V}\sum _{{\mathrm{r}}_p}{\tilde{\Xi }}_{\mu \mu }^{\mathrm{rec}}({\mathrm{r}}_p)W({\mathbf{r}}_i-{\mathbf{r}}_p),$$

$${\tilde{\Xi }}_{\mu \mu }^{\mathrm{rec}}({\mathrm{r}}_p)={\mathrm{FFT}}^{-1}\left[B(\mathbf{m})\mathrm{FFT}[\tilde{\rho }]f({\mathbf{m}}^2)g_{\mu \mu }(\mathbf{m})\right].$$

$$\Delta P=\sqrt{\frac{1}{N}\sum _i\sum _{\mu }{\left(P_{\mu \mu }^i-{\hat{P}}_{\mu \mu }^i\right)}^2},$$

$${\rho }_I(z)=\frac{1}{A}⟨\sum _i\delta \left(z-z_i+\xi (x_i,y_i)\right)⟩,$$

$${\gamma }_I(z)=P_N-\frac{V}{A}⟨\sum _i{P}_T^i\delta \left(z-z_i+\xi (x_i,y_i)\right)⟩.$$

Full text

1 Introduction

Calculating the profiles of various physical quantities such as mass, charge, or electrostatic potential, is a standard approach used in computer simulations in order to characterize inhomogeneous systems including fluid (soft) interfaces, like the water/vapour one depicted in Fig.1, membranes, micelles or other self-associates. While some of these profiles have been routinely calculated in the past decades, the importance of determining pressure profiles is only recently being recognized, for example, for the calculation of the mechanical properties of macromolecules 1, 2, 3, 4. Conjectures related to pressure profiles also play a key role in the possible explanations of several phenomena. Thus, for instance, it was proposed by Cantor that the molecular mechanism of anesthesia is related to the alteration of the lateral pressure profile inside the cell membrane5; Imre et al. claimed that the spinodal pressure of a liquid phase can be extracted from the lateral pressure profile obtained at the liquid-vapour interface of the same system at the same temperature6. Experimental verification or falsification of these conjectures is an extremely challenging task as it requires the measurement of the mean lateral pressure across interfaces, or macromolecules at atomic resolution, a task that is rarely accomplished (see, for example Ref. 7).

The calculation of pressure profiles in computer simulations, on the other hand, is complicated by the fact that it requires the local determination of a quantity that is inherently non-local. More precisely, a local pressure tensor cannot, in general, be uniquely defined. Instead, it can only be given up to a divergence-free second rank tensor in a path dependent form. Several integration paths, such as the Irving-Kirkwood8 and Harasima9 paths, were shown to provide comparable profiles10. Besides its conceptual simplicity, the Irving-Kirkwood path has the advantage of leading to a formula for the local pressure that gives access to both the normal and lateral components of the virial, distributed homogeneously along the paths connecting pairs of particles. On the other hand, while the Harasima path allows one to calculate only the lateral components of the pressure tensor, these are concentrated at the particles’ positions. In other words, a certain amount of the total lateral pressure is associated with each particle, making the calculation of the lateral pressure profile straightforward and computationally efficient11, 12.

Another serious technical problem in calculating pressure profiles in charged systems is how to take into account the long range correction term of the electrostatic interaction. It is now well-established that neglecting this correction to the energy and forces can lead to important systematic errors. The method of reaction field correction13, which uses the dielectric constant of the continuum beyond a suitably chosen cutoff sphere, is unsuitable for strongly inhomogeneous systems. The Ewald summation14 can, in principle, be used in such systems; the contribution of its correction term to the pressure profile was derived by Sonne and coworkers for the Harasima path11. They also showed that potentials that are not strictly pairwise additive, such as the correction term of the Ewald summation, cannot be used in combination with the Irving-Kirkwood profile. However, because of its poor scaling properties, the use of the Ewald summation is prohibitive for systems with a large number of charges.

In theory, this problem can be overcome using a method based on the Fast Fourier Transform (FFT), such as mesh Ewald methods15, 16, 17. However, the local pressure from the reciprocal space contribution of mesh Ewald methods has not, to the best of our knowledge, been derived yet.

For approaches based on the Irving-Kirkwood path, as it is not possible to take into account non-pair additive potentials, several authors have opted for running the simulations using their method of choice for the evaluation of long range contributions, but considering cutoff electrostatics for the purpose of evaluating the local pressure (see, for example, Refs.1, 18, 19). This is usually done by re-running the simulation and using cutoff values that are larger than usual, thus reducing the artifacts. However, in order to reach a precision of the order of 1 bar, cutoff values larger than 2.5 nm must be used (see Fig. 7 in Ref. 20). Sonne and collaborators 11 showed that the pressure profile calculated using the Irving–Kirkwood approach and a cutoff radius of 2 nm is qualitatively similar to the one calculated using the Harasima path with long-range electrostatic contributions, although with an indetermination of roughly 100 to 200 bar, which makes it only a qualitative test.

In this paper we show how the correction term of the smooth Particle Mesh Ewald16 (sPME) method can be taken into account in calculating lateral pressure profiles using the Harasima path in an efficient way that does not alter the scaling of the long-range correction calculation. We describe the method itself in Sec. 2 and compare the pressure contributions associated to particles with those obtained with a reference, simple Ewald calculation. In Sec. 3 we apply the method to the case of the water/vapour interface, and in Sec. 4 we describe the scaling properties of the algorithm. Finally, in Sec. 5, we summarize the results presented in this article.

2 The reciprocal space contribution

We start by decomposing the instantaneous pressure tensor $\mathbf{P}$, as customary, in the ideal gas and virial ($\mathbf{\Xi}$) contributions,

[TABLE]

The difference between lateral and normal components of the pressure tensor plays an important role for interfaces, as it describes the surface tension, and its local variant can be written as

[TABLE]

where we have chosen $P_{\mathrm{N}}=P_{zz}$ and $P_{\mathrm{T}}=(P_{xx}+P_{yy})/2$. This formula applies only to planar interfaces and we will assume, as it is customary, that it applies also in the presence of capillary waves, as long as the surface remains macroscopically flat. The presence of curved interfaces introduces additional difficulties in the definition and calculation of the surface tension21, 10, 22. Here we note that while $P_{\mathrm{N}}$ is constant through the system to ensure mechanical stability21, $\Xi_{zz}$ is not.

In the Ewald sum, the reciprocal space contributions to energy and virial are expressed as sums over the reciprocal lattice vectors $\mathbf{m}$

[TABLE]

where the functions $f$ and $g_{\mu\nu}$ are defined as

[TABLE]

and the structure factor is

[TABLE]

In mesh-based algorithms, the reciprocal space term in the Ewald sum is calculated with the aid of the FFT23 by replacing the point charges, located in the continuum at positions $\mathbf{r}_{i}$, with a discretized distribution on a lattice with nodes at positions $\mathbf{r}_{p}$

[TABLE]

where $h$ is the lattice spacing and $W(\mathbf{r}_{p}-\mathbf{r}_{i})$ is a suitable charge assignment function. The structure factor $S(\mathbf{m})$ is then replaced in Eqs.(3) by its estimate $\tilde{S}(\mathbf{m})=B(\mathbf{m})\mathrm{FFT}[\tilde{\rho}]$, which is now evaluated on the points of the reciprocal lattice, and where the function $B(\mathbf{m})$ depends on the specific interpolation scheme16, 24.

The choice of the assignment function for the discrete charge distribution is not unique, a fact that has led to the appearance of families of methods such as the Particle-Particle-Particle-Mesh (P3M) of Hockney and Eastwood17, and the Particle Mesh Ewald (PME) in its original variant15 that uses Lagrange interpolation or in its “smooth” version16 (sPME) based on cardinal B-splines. Once a physical quantity pertaining to single particles has been calculated on the lattice, it has to be interpolated back from the lattice to the real position of the particles. This is usually done by the same assignment function used to generate the distribution on the lattice24. If a function $A(\mathbf{r}_{p})$ is known at the lattice nodes, it can be distributed back to the atomic positions using

[TABLE]

The reciprocal space term of the virial in the Ewald sum can be easily written in a form that is suitable for the Harasima path formulation, which associates to particle $i$ the contribution11

[TABLE]

As we are interested in the diagonal elements of the tensor only, $\mu=\nu$, the real part operator in Eq.(9) is superfluous because the $f$ and $g_{\mu\nu}$ are even functions of $\mathbf{m}$. Another approach has been previously used in literature to take into account the reciprocal space contribution to the local pressure for the plain Ewald method25, but consisted of distributing the reciprocal space virial contribution equally to each particle, which is not a justified assumption, as the reciprocal space force contribution is different for each particle.

Note that, because the contribution in reciprocal space is not pairwise additive, it is not possible to use an Irving-Kirkwood formulation either for the Ewald sum, or for its mesh-based approximations11.

We now proceed to extending the reciprocal space contribution to mesh-based algorithms, by noting that Eq.(9) is, for $\mu=\nu$, the discrete inverse Fourier transform of the complex function $S(\mathbf{m})f(\mathbf{m}^{2})g_{\mu\nu}(\mathbf{m})$, evaluated at the particles’ positions, and scaled by the factor $q_{i}$. On the lattice, this expression is replaced by the inverse FFT of the function $\tilde{S}(\mathbf{m})f(\mathbf{m}^{2})g_{\mu\nu}(\mathbf{m})$. This quantity is eventually interpolated back to the real positions using Eq.(8), leading to the approximate expression for the reciprocal space contribution

[TABLE]

with

[TABLE]

Notice that in order to be consistent with the sum Eq.(3), the argument of the inverse FFT in Eq.(11) for $m=0$ must be set explicitly to zero. The correction and exclusion terms in real space16 are expressed as sum of pair contributions and, thus, must be taken into account similarly to other pairwise, short range interactions.

We would like to stress once more that, thanks to the use of the Harasima formulation, it is possible to associate a virial contribution to each particle, and the local stresses are thus distributed in the continuum. In the present case, a grid is used only for the mesh-Ewald charge spreading procedure and, once the back-interpolation is performed, the reciprocal space contribution is associated to each of the particles.

We implemented this approach in our development version (available free of charge at github.com/Marcello-Sega/gromacs/tree/virial) of the popular GROMACS molecular simulation package26, 27, 12, version 5.0, which extends the trajectory files (usually containing positions, velocities and forces) to include also the local virial components $\Xi_{xx},\Xi_{yy}$ and $\Xi_{zz}$.

In order to check for the correctness and proper implementation of the algorithm, we tested it on a system of point charges (in absence of any other type of interaction but the electrostatic one). As a first step, we checked that the sum of the pressure terms associated to the atoms indeed yields the global virial up to roundoff errors. Subsequently, we computed the root mean square error $\Delta P$ per particle, following Holm and Deserno24, as

[TABLE]

where $N$ is the number of charges and $\hat{P}_{\mu\mu}^{i}$ is a reference value, namely the pressure contribution of particle $i$ calculated on the same configurations using the plain Ewald method, with a large number of reciprocal space contributions (12 along $x$ and $y$ direction, 36 along $z$ direction), and a relative accuracy at the cutoff (1.5 nm) of $10^{-5}$. In Fig. 2 and Fig. 3 we report, respectively, the relative root mean square error $\Delta P/\sqrt{\langle P^{2}\rangle}$ per particle, as a function of the mesh spacing and of the charge interpolation order, where $\langle P^{2}\rangle=\frac{1}{N}\sum_{i}\sum_{\mu}{\hat{P}^{i2}_{\mu\mu}}$.

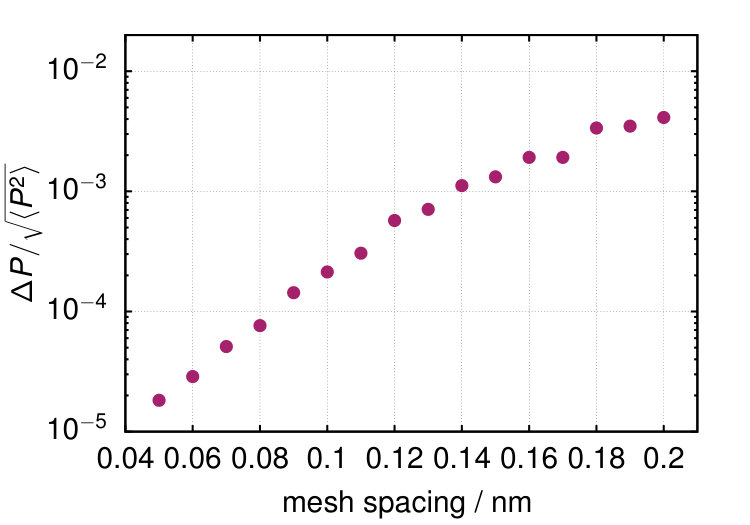

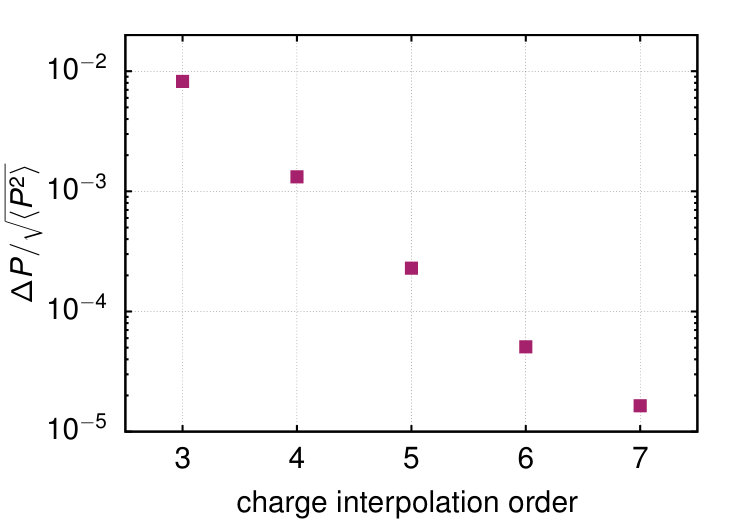

The average error that is made in estimating the pressure contribution is less than $0.5\%$ for all choices of parameters and decreases monotonically with decreasing mesh spacing and increasing interpolation order, down to $0.001\%$. Similarly, we computed the root means square relative error on the pressure per particle introduced by using a simple cut-off scheme, of course always calculated on the same set of configurations. If the electrostatic force is truncated at 1.5 nm, the root mean square error on the pressure per particle is about $200\%$.

3 The pressure profile of water/vapour interface

We proceeded to run a simulation of the water/vapour interface, modeling water molecules with the SPC/E28 potential. While other models compare better with several experimentally known quantities29, 30, the SPC/E model represents an optimal choice for testing new methods, thanks to its modest computational requirements.

The initial configuration was generated simply by increasing the $z$ box edge of a $5\times{}5\times{}5$ nm3 equilibrated water simulation box to 15 nm. To integrate the equations of motion we used an integration step of 1 fs, constraining all bonds by means of the SHAKE algorithm31 (the local pressure contribution of the constraints were being also taken into account), and keeping the temperature at the constant value of 300 K by means of the Nosé–Hoover thermostat32, 33. The short-range part of the potentials were cut off either at 1.5 or at 2.0 nm and, at that distance, the relative accuracy of the direct space contribution to the electrostatic potential was set to $10^{-5}$. The long-range correction to the electrostatic potential was calculated using sPME for all trajectories, with a target lattice spacing of 0.15 nm. No long-range corrections were used for the van der Waals potential. Configurations, including atomic positions and virial contributions, were saved to disk every 0.1 ps. The contributions to the lateral virial stemming from the Lennard-Jones interaction and from constraint forces18 were taken into account as usual with the expression of the virial for the Harasima path $\Xi^{i}_{\mu\mu}=-1/2\sum_{j\neq{}i}f^{ij}_{\mu}r^{ij}_{\mu}$ , where $f^{ij}_{\mu}$ and $r^{ij}_{\mu}$ are the components of the pair forces and of the vectors connecting the two interacting atoms, respectively.

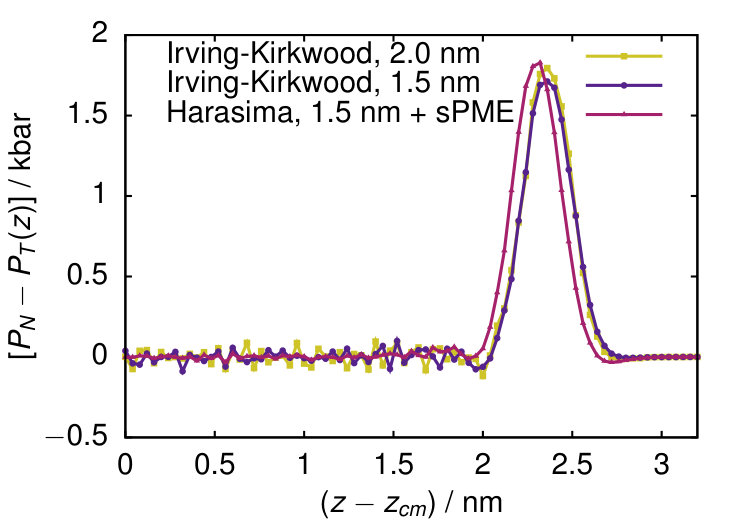

We calculated the surface tension profile with the Harasima path, including the full sPME contributions and Lennard-Jones interactions cut off at $r_{c}=1.5$ nm, and compared it to the profile calculated using the procedure of Vanegas and coworkers20 using the Irving-Kirkwood path and cut-off values of 1.5 and 2.0 nm, respectively. The resulting profiles are reported in Fig.4. The two profiles calculated using the Irving-Kirkwood path are qualitatively similar, differing only in the peak height. On the other hand, the profile calculated with the Harasima path is shifted by about 0.05 nm towards the center of the fluid slab. From the surface tension profiles $\gamma(z)$ it is possible to calculate both the surface tension $\gamma=(1/2)\int{\gamma(z)}dz$ as well as the position of the surface of tension21 $z_{s}=(1/2\gamma)\int{\gamma(z)|z|dz}$. The values of the surface tension $\gamma$ as computed from the integral of the profile (thus neglecting the long-range contributions in the Irving-Kirkwood case) and from the global pressure tensor are reported in Tab. 1, together with the values of $z_{s}$ and of its distance $\delta=z_{e}-z_{s}$ (the Tolman length) from the location of the equimolar surface $z_{e}$. The equimolar surface is defined as the one that divides a volume $V$ in two regions (liquid and vapour) of volumes $V_{l}$ and $V_{v}$, respectively, such that $\rho V=\rho_{v}V_{v}+\rho_{l}V_{l}$, with $\rho_{v}$ and $\rho_{l}$ the densities of the two phases as measured far from the interface21. Since we have two interfaces, we apply this criterion to half of the simulation box (the liquid phase being centerd in the box), and obtain that $\rho_{l}z_{e}+\rho_{v}(L/2-z_{e})=\rho L/2$, or $z_{e}=L(\rho-\rho_{v})/2(\rho_{l}-\rho_{v})$. Since in our case $\rho_{v}/\rho\simeq\rho_{v}/\rho_{l}\simeq 10^{-5}$, we can safely use the approximation $z_{e}\simeq\rho L/(2\rho_{l})$.

The equimolar surface was found to be located at $z_{e}=2.43\pm 0.01$ and $2.40\pm 0.01$ nm for the 1.5 and 2.0 nm cutoff cases, respectively.

For the sake of comparison, in Tab. 1 we report some data from the literature, obtained with different mesh parameters and cutoff treatment, for the surface tension of the SPC/E model at 300 K. The values reported here are those which do not include analytical tail corrections, as in the present work.

It is interesting to note that analytical results estimate the value of $\delta$ to be in the range of the molecular size $r_{m}$ (at least, for pair potentials). More precisely, $\delta\simeq r_{m}/3$ and $r_{m}/4$ for the Irving-Kirkwood and Harasima paths, respectively21. This means, in the case of water, $\delta\simeq 0.1$ and 0.08 nm for the two paths, respectively. These values are not incompatible with those obtained, to the best of our knowledge for the first time in this work, by numerical simulation.

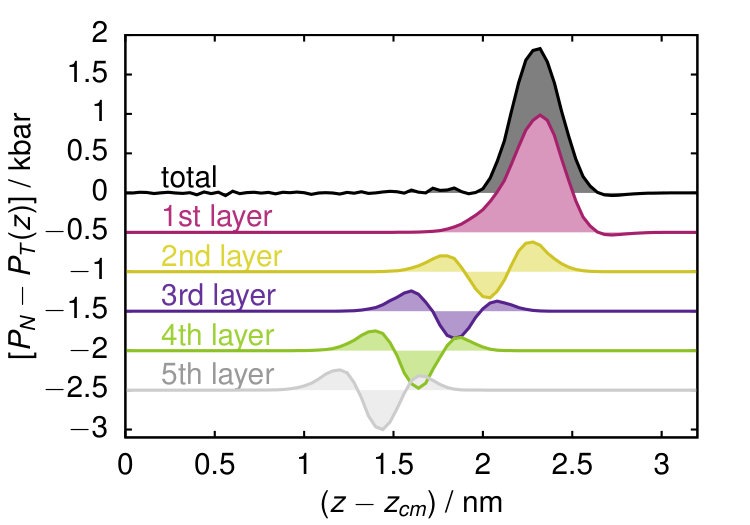

In order to show the possibilities opened by using the Harasima path and its feature of associating a pressure contribution to each particle, we performed a decomposition of the lateral pressure profile in the contributions coming from successive molecular layers, starting from the surface one. To perform the layer-by-layer analysis, we used the ITIM algorithm36, 37, extending its analysis capabilities to the extended GROMACS trajectory format that includes virial contributions (this software is also freely available, at marcello-sega.github.io/gitim/). The interfacial analysis was performed on a molecular basis (i.e. if at least one atom in the molecule is at the interface, the complete molecule is considered to be an interfacial one) using a probe sphere radius of 0.2 nm. Vapour phase molecules were identified using a neighbor list cluster-search algorithm based on a simple oxygen-oxygen distance cutoff of 0.35 nm (corresponding to the first minimum of the oxygen-oxygen radial distribution function of water). A simulation snapshot, with molecules from different molecular layers highlighted in different colors, as well as molecules in the vapour phase as identified by the cluster-search, is reported in Fig.1.

The presence of successive layers below the surface one is not just a feature encountered in solids, but is also present in liquids, and can be clearly seen by calculating the density profile in a local reference frame located at the interface, effectively removing the smearing introduced by the presence of capillary waves (which is more important the larger the allowed wavelengths in the simulation box are)21, 38. If the interface position is $z=\xi(x,y)$, the intrinsic density profile can then be defined in terms of the position $(x_{i},y_{i},z_{i})$ of the $i$-th particle as

[TABLE]

where $A$ is the simulation box cross-sectional area along the macroscopic interface normal vector. Similarly, we define the intrinsic pressure profile as

[TABLE]

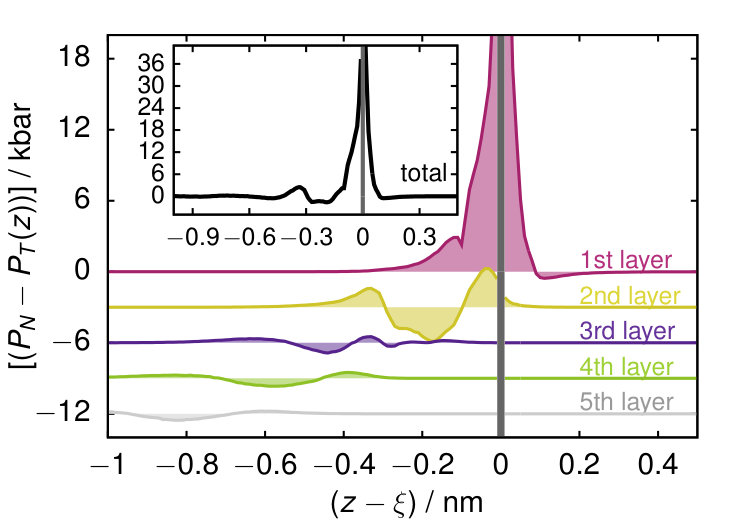

Having access to the virial contribution of all particles, it is straightforward to compute the pressure profile, both with respect to the distance from the center of mass, (non-intrinsic profile) and with respect to the local position of the interface (intrinsic profile). In Fig.5, the total (top curve) value of the profile of $\gamma(z)$ is reported, together with its decomposition into the successive layers contributions, up to the fifth layer. It is important to notice that while the total normal pressure profile must be a constant to ensure mechanical stability, this is not true for the separate layer contributions. As we do not have direct access to the normal component using the Harasima path, the layer decomposition has to be understood, strictly speaking, as that of the lateral pressure, which we offset by the value $P_{N}$ for convenience. Nevertheless, this decomposition is still instructive, as one can find that the first layer profile contributes the most to the total profile, even though the latter is more narrowly distributed than the former. The net contribution of each of the layers far from the interface (i.e., the integral of the surface tension distribution) is close to zero, consistently with the fact that in this region the fluid is homogeneous and isotropic. The distribution itself, however, is far from being identically zero, and reflects the fact that in the oscillating layer, atoms are undergoing different stresses depending on their distance from the average position.

The width of the contribution of the different layers is, on the other hand, quite constant and rather close to the size of the first water coordination shell (of radius 0.35 nm). Note that the distribution is normalized such that its integral, from the center of the liquid slab ($z=0$) up to the box edge length, yields the surface tension. The intrinsic profile $\gamma_{I}(z)$, Fig. 6, gives another point of view on the pressure profile distribution. The intrinsic profile is calculated as a function of the distance from the local surface position, $\xi(x,y)$, according to Eq.(14). In this way, the effect of thermal capillary waves, which are corrugating the surface, is removed. Note that the delta-like contribution at the surface has been removed, and the corresponding bin blanked. From a comparison between the two plots, one can appreciate the considerable narrowing of the pressure distribution, which decreases from 0.5 nm in the non-intrinsic case, to 0.3 nm in the intrinsic case, clearly showing the smearing effect of capillary waves. A striking difference between the pressure profile (both intrinsic and not) of a molecular liquid such as water, and that of an atomic liquid like argon12, is that the layers’ contributions are much less separated. Since the kissing condition between the probe sphere and a surface atom takes into account the atomic radius, some (point-like) hydrogen atoms in the second layer will be located further than an oxygen atom of the first layer, contributing to the enhanced layer interpenetration. In addition, since we are considering molecular layers, the contribution to the first layer comes also from atoms that are not right at the surface and, therefore, the first layer contribution is not just a delta function, as it is typical for simple liquids38. The second, qualitative difference with respect to simple liquids, is that the major part of the lateral tension arises from atoms located in a narrow interval of 0.3 nm around the interfacial centres, a range which is comparable with one molecular diameter. The first molecular layer, in particular, contributes to more than 90% of the total surface tension. In simple liquids, the distribution of the lateral pressure extends to almost two atomic diameters, and the contribution of the first layer is slightly less than 80%.

4 Computational Complexity

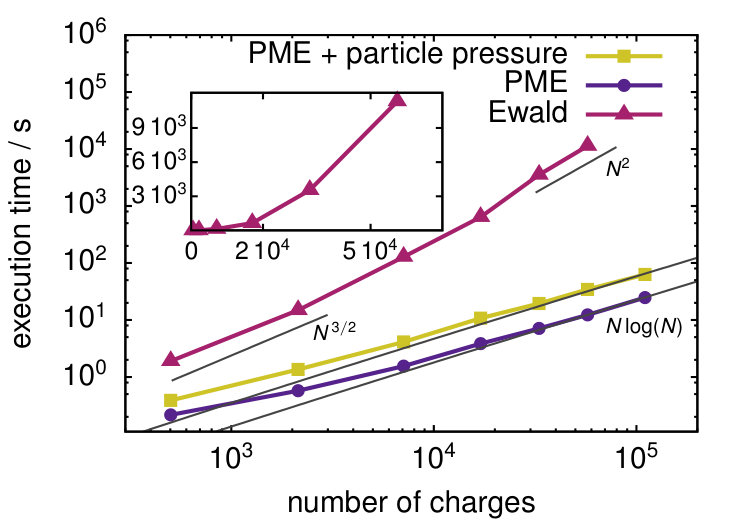

The present algorithm for the calculation of the reciprocal space virial contributions follows closely that of the calculation of forces in mesh-Ewald methods. Therefore, the scaling is of the type $N\log(N)$. Regarding the prefactor, it is easy to make an estimate of the relative computational load with respect to the case where only forces are being computed. The functions $f(\mathbf{m}^{2})$ and $g_{\mu\nu}(\mathbf{m})$ are usually being pre-calculated in order to provide energy and forces, and this fact means that for the pressure profile computation, the additional calculations that need to be performed are one additional inverse FFT per tensor element, and the corresponding back-interpolation. In terms of computational cost, the calculation of each of the tensor elements has the same load as the force calculation in the sPME method (which requires only one FFT, at a difference with the PME method, which requires three). Since we calculate only the diagonal elements of the virial tensor, the theoretical prefactor is precisely 4 times larger than for a standard sPME calculation. This is, however, the scaling one would expect for the reciprocal part of the mesh-based algorithm alone. As a matter of fact, van der Waals interactions, as well as the short-range part of the electrostatic potential, are always present in a typical simulation, with the result that in a real simulation setup, this factor of four represents only an upper limit of the measured scaling. To test the actual performance of the code, we ran a series of simulations of bulk water at a density of about 1 g / cm3 with different box sizes, with a water content ranging from about 500 to more than $10^{5}$ water molecules, with the simulation protocol and parameters already used for producing the pressure profiles, but a cut-off radius of 0.9 nm. In Fig.7, we report the time required to perform 10 integration timesteps, with and without calculating the local pressure contribution. For comparison, the timings of runs using the plain Ewald method are also reported. The result of a fit to a $N\log(N)$ scaling gives, in the large $N$ limit, the prefactors are $5.1$ and $1.9$ $\mu$s/timestep, with and without pressure calculation, respectively. The simulations including the calculation of the local pressure with sPME are in this case 2.7 times slower than without including the pressure calculation. It should be noted, however, that in most practical cases it is not necessary to compute the local pressure at every timestep and, therefore, the method would introduce only a little overhead with respect to a regular simulation.

5 Conclusions

We presented a method to calculate the long-range contribution of the electrostatic interaction to the local pressure tensor, based on mesh-based algorithms. We implemented our approach in the GROMACS molecular simulation package and have tested it on a model of water/vapour interface. We have calculated the lateral pressure profile with our approach, and compared it to the one computed using the Irving-Kirkwood path, reporting also the location of the surface of tension for the different models. We have also shown how it is possible to take advantage of the Harasima path decomposition to calculate the layer-by-layer contribution to the intrinsic and non-intrinsic lateral pressure profile. The present method is particularly efficient, as it displays the same scaling (in this case, $N\log(N)$) of the algorithm used to compute long-range correction to forces and energy.

This project is supported by the Hungarian OTKA Foundation under project No. 109732, by the Action Austria Hungary Foundation under project No. 93öu3104 and through ETN COLLDENSE, Grant H2020-MSCA-ITN-2014 No. 642774. The computational results presented have been achieved in using the Vienna Scientific Cluster (VSC). We thank M. McCaffrey for proofreading the manuscript.
