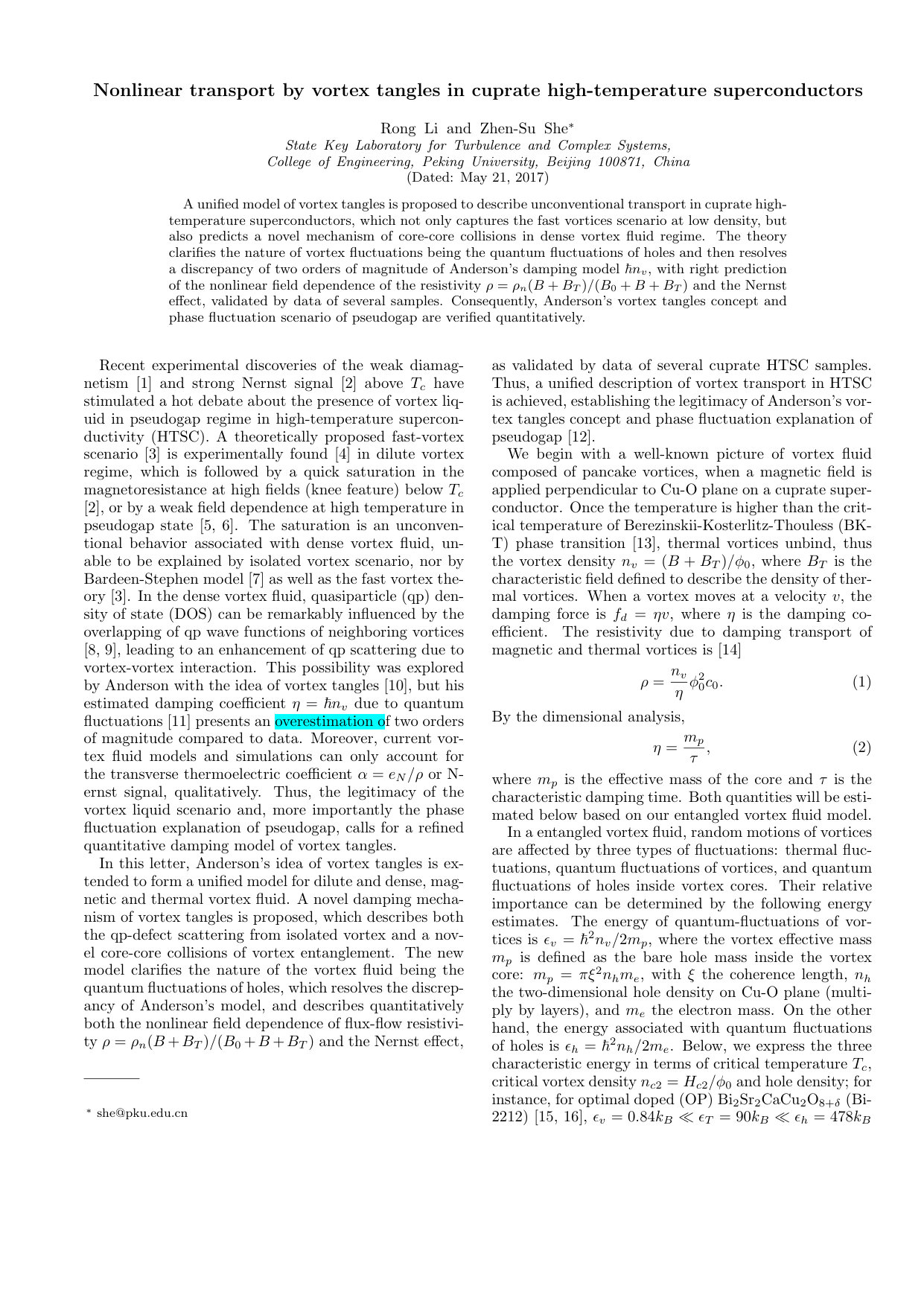

Nonlinear transport by vortex tangles in cuprate high-temperature superconductors

TL;DR

This paper introduces a unified vortex tangle model for cuprate superconductors, explaining nonlinear transport phenomena and validating key theoretical concepts with experimental data.

Contribution

It presents a novel unified model that captures both low-density vortex dynamics and dense vortex core collisions, resolving previous discrepancies in vortex fluctuation theories.

Findings

Accurately predicts nonlinear resistivity dependence on magnetic field.

Validates vortex tangle concept and phase fluctuation scenario of pseudogap.

Matches experimental data across multiple samples.

Abstract

A unified model of vortex tangles is proposed to describe unconventional transport in cuprate high-temperature superconductors, which not only captures the fast vortices scenario at low density, but also predicts a novel mechanism of core-core collisions in dense vortex fluid regime. The theory clarifies the nature of vortex fluctuations being the quantum fluctuations of holes and then resolves a discrepancy of two orders of magnitude of Anderson's damping model $\hbar n_v$, with right prediction of the nonlinear field dependence of the resistivity $\rho=\rho_n(B+B_T)/(B_0+B+B_T)$ and the Nernst effect, validated by data of several samples. Consequently, Anderson's vortex tangles concept and phase fluctuation scenario of pseudogap are verified quantitatively.

Figures

Equations

$$\rho =\frac{n_v}{\eta }{\varphi }_0^2{c}_0.$$

$$\eta =\frac{m_p}{\tau },$$

$$v_R=\frac{\hslash }{m_e\xi }.$$

$$l_c=1/2\sqrt{2\pi }{n}_v\xi ,$$

$${\tau }_c=\frac{l_c}{v_R}=\frac{m_e}{2\sqrt{2\pi }\hslash n_v}.$$

$${\eta }_c=(2\pi {)}^{3/2}{n}_h{\xi }^2\hslash n_v.$$

$${\rho }_n=\sqrt{\frac{\pi }{2}}\frac{c_0{H}_{c2}}{e{n}_h}.$$

$$\eta ={\eta }_0+{\eta }_c+{\eta }_{pin},$$

$${\eta }_0=B_0{\varphi }_0{c}_0/{\rho }_n.$$

$$\rho ={\rho }_n\frac{B+B_T}{B_0+B+B_T}.$$

$$e_N=C\frac{{\rho }_n{n}_s}{T}\frac{B\ln (H_{c2}/B)}{B_0+B+B_T}.$$

Full text

high temperature superconductor, magnetoresistance, vortex tangles

††preprint: APS/123-QED

Recent experimental discoveries of the weak diamagnetism Li2010 and strong Nernst signal Wang2006 above $T_{c}$ have stimulated a hot debate about the presence of vortex liquid in pseudogap regime in high-temperature superconductivity (HTSC). A theoretically proposed fast-vortex scenario Ioffe2002 is experimentally found Bilbro2011 in dilute vortex regime, which is followed by a quick saturation in the magnetoresistance at high fields ( knee feature) below $T_{c}$ Wang2006 , or by a weak field dependence at high temperature in pseudogap state Usui2014 ; Lee2006 . The saturation is an unconventional behavior associated with dense vortex fluid, unable to be explained by isolated vortex scenario, nor by Bardeen-Stephen model Bardeen1965 as well as the fast vortex theory Ioffe2002 . In the dense vortex fluid, quasiparticle (qp) density of state (DOS) can be remarkably influenced by the overlapping of qp wave functions of neighboring vortices Melnikov2006 ; Canel1965 , leading to an enhancement of qp scattering due to vortex-vortex interaction. This possibility was explored by Anderson with the idea of vortex tangles Anderson0607 , but his estimated damping coefficient $\eta=\hbar n_{v}$ due to quantum fluctuations Anderson06 presents an overestimation of two orders of magnitude compared to data. Moreover, current vortex fluid models and simulations can only account for the transverse thermoelectric coefficient $\alpha=e_{N}/\rho$ or Nernst signal, qualitatively. Thus, the legitimacy of the vortex liquid scenario and, more importantly the phase fluctuation explanation of pseudogap, calls for a refined quantitative damping model of vortex tangles.

In this letter, Anderson’s idea of vortex tangles is extended to form a unified model for dilute and dense, magnetic and thermal vortex fluid. A novel damping mechanism of vortex tangles is proposed, which describes both the qp-defect scattering from isolated vortex and a novel core-core collisions of vortex entanglement. The new model clarifies the nature of the vortex fluid being the quantum fluctuations of holes, which resolves the discrepancy of Anderson’s model, and describes quantitatively both the nonlinear field dependence of flux-flow resistivity $\rho=\rho_{n}(B+B_{T})/(B_{0}+B+B_{T})$ and the Nernst effect, as validated by data of several cuprate HTSC samples. Thus, a unified description of vortex transport in HTSC is achieved, establishing the legitimacy of Anderson’s vortex tangles concept and phase fluctuation explanation of pseudogap Emery1995 .

We begin with a well-known picture of vortex fluid composed of pancake vortices, when a magnetic field is applied perpendicular to Cu-O plane on a cuprate superconductor. Once the temperature is higher than the critical temperature of Berezinskii-Kosterlitz-Thouless (BKT) phase transition BKT , thermal vortices unbind, thus the vortex density $n_{v}=(B+B_{T})/\phi_{0}$, where $B_{T}$ is the characteristic field defined to describe the density of thermal vortices. When a vortex moves at a velocity $v$, the damping force is $f_{d}=\eta v$, where $\eta$ is the damping coefficient. The resistivity due to damping transport of magnetic and thermal vortices is Halperin1979

[TABLE]

By the dimensional analysis,

[TABLE]

where $m_{p}$ is the effective mass of the core and $\tau$ is the characteristic damping time. Both quantities will be estimated below based on our entangled vortex fluid model.

In a entangled vortex fluid, random motions of vortices are affected by three types of fluctuations: thermal fluctuations, quantum fluctuations of vortices, and quantum fluctuations of holes inside vortex cores. Their relative importance can be determined by the following energy estimates. The energy of quantum-fluctuations of vortices is $\epsilon_{v}=\hbar^{2}n_{v}/2m_{p}$, where the vortex effective mass $m_{p}$ is defined as the bare hole mass inside the vortex core: $m_{p}=\pi\xi^{2}n_{h}m_{e}$, with $\xi$ the coherence length, $n_{h}$ the two-dimensional hole density on Cu-O plane (multiply by layers), and $m_{e}$ the electron mass. On the other hand, the energy associated with quantum fluctuations of holes is $\epsilon_{h}=\hbar^{2}n_{h}/2m_{e}$. Below, we express the three characteristic energy in terms of critical temperature $T_{c}$, critical vortex density $n_{c2}=H_{c2}/\phi_{0}$ and hole density; for instance, for optimal doped (OP) Bi2Sr2CaCu2O8+δ (Bi-2212) Wang2003 ; Zhou1999 , $\epsilon_{v}=0.84k_{B}\ll\epsilon_{T}=90k_{B}\ll\epsilon_{h}=478k_{B}$ (in Joule unit). This indicates that the fluctuations are dominated by quantum fluctuations of holes inside vortex cores. Using $\pi\epsilon_{h}$ in which a geometric factor $\pi$ is considered, the random velocity is then found to be

[TABLE]

We propose that this speed controls the core-core collisions. Fig. 1 schematically shows the process of core-core collision: two vortex cores approach each other and merge into a bigger core due to qp wave-functions overlapping, leading to a decrease of intervals between the qp energy levels and the increase of low-energy DOS, as well as the enhancement of the qp-defect scattering inside the bigger core. Subsequently, the bigger core decompose into two cores which separate from each other. The critical vortex distance at which qp wave functions of neighboring vortices merge together is $\sqrt{2\pi}\xi$, i.e., at $B=H_{c2}$, but not the penetration depth $\lambda$ according to the modified London equation Tinkham1996 . The reason is that when the vortex distance $l_{v}$ is much larger than $\sqrt{2\pi}\xi$, the influence of one vortex on the other do not change the qp wave functions inside vortex cores, and so do not contribute to dissipation. Thus, we define $\sqrt{2\pi}\xi$ as the core-core scattering length, below which the core-core collision takes place. This yields an estimate of the mean-free-path for a core-core collision as

[TABLE]

where we assume that the dissipation is similar for thermal and magnetic vortex. The characteristic time of core-core collision is then

[TABLE]

The momentum loss of two colliding vortices in one core-core collision determines the damping force, thus the damping coefficient $\eta_{c}$. Cuprate superconductors are doped Mott insulators in which plenty of defects (e.g., oxygen vacancies) exist on Cu-O plane Blatter1994 , thus the relaxation time of qp scattering $\tau_{q}=m_{e}c_{0}/n_{h}e^{2}\rho_{n}$ is less than the core-core collision time $\tau_{c}$ in most regimes of vortex fluid phase except near $H_{c2}$, where $c_{0}$ is the lattice constant of c axis. For example, in OP Bi-2212, $\tau_{q}=7.6\times 10^{-14}$ s, and $\tau_{c}=B^{-1}3.6\times 10^{-12}$ s, indicating $\tau_{q}\leq\tau_{c}$ at $B\leq 47$ T. Therefore, it is reasonable to assume the transport momentum of two vortices totally disappear after one collision. This yields $\eta_{c}=m_{p}/\tau_{c}$. Eq. (3) and (5) yields

[TABLE]

A comparison between Eq. (6) and Anderson’s original model reveals the true physics of vortex tangles. Anderson proposed a vortex-vortex collision picture driven by quantum fluctuations of vortices (i. e. $\epsilon_{v}$), predicting a damping coefficient $\eta=\hbar n_{v}$ with a random velocity $\hbar/m_{p}l_{v}$ and mean-free-path $l_{v}$ Anderson06 . Substitute it into the resistivity formula Eq. (1), this yields $\rho=\rho_{n}=\hbar\phi_{0}^{2}c_{0}$, independent of magnetic field, temperature and doping. A huge deficit arises since the predicted $\rho_{n}$ (e. g., 126 $\mu\Omega$m for any doping of Bi-2212) is nearly two orders of magnitude higher than experimental data (of Bi-2212) Usui2014 , see the red suqares in Fig. 2. This discrepancy is now resolved in Eq.(6): a numerical factor $(2\pi)^{3/2}n_{h}\xi^{2}$ (equals 82 for OP Bi-2212) Wang2006 is recovered due to the fact that the damping mechanism of vortex tangles is not driven by quantum fluctuations of vortices (as a whole) but by quantum fluctuations of holes inside the vortex cores.

At the dense vortices limit, core-core collisions dominate the damping coefficient, and $\rho$ approaches the normal state resistivity,

[TABLE]

Qualitatively, $H_{c2}$ shows a weak $T$ dependence below and near $T_{c}$ in HTSC Wang2006 , thus Eq. (7) predicts a constant $\rho_{n}$ in this regime, which is consistent with data Zhang2000 ; Ando1996 . Fig.2 shows the comparisons between theoretical predictions of Eq. (7) (taking $H_{c2}$ reported in Wang2003 ; Li2010 ; Ando1996 ) and the experimental data of $\rho_{n}$ at the onset temperature at different doping Usui2014 ; Ri1994 ; Zhang2000 ; Ando1996 . In making the prediction, the hole density $n_{h}$ is set by $n_{h}=n*p*(a_{0}*b_{0})^{-1}$ with the layer number $n$, lattice constants $a_{0}$ and $b_{0}$ of the Cu-O plane Zhou1999 , and hole concentration $p$ which is estimated from the empirical formula ${T_{c}}(p)=T_{c,\max}[1-82.6{(p-0.16)^{2}}]$, where $T_{c,\max}$ is the maximum $T_{c}$ in one material Obertelli1992 . The agreement is very satisfactory with errors of the same order as the experimental uncertainty ($\pm 10\%$) of $\rho_{n}$ and $H_{c2}$; thus, the damping model of core-core collisions Eq. (6) is reliably verified. By the way, a more precise comparison requires the specification of the temperature dependence of $H_{c2}$ and of the damping time $\tau$ (from $\tau_{c}$), which will be discussed elsewhere.

Now, let us make a specific model for $\eta$. Generally speaking, three sources contribute to damping force, namely qp scattering from isolated vortex, the core-core collisions, and the pinning Li2017 . Therefore, $\eta$ can be expressed as

[TABLE]

where $\eta_{0}$ represents qp-defect scattering from isolated vortex and is a material parameter independent of temperature and fields, $\eta_{c}$ core-core collisions, and $\eta_{pin}$ the pinning effect which is negligible in dense vortex fluid (e.g strong field or high temperature). Since $\eta_{0}$ is a constant, one can define an effective field $B_{0}$ so that

[TABLE]

According to Eq. (6) and (7), $\eta_{c}=n_{v}\phi_{0}^{2}c_{0}/\rho_{n}$. Combining Eq. (8) and (9) and neglecting the pinning effect, one can obtain

[TABLE]

Comparing to BS model Bardeen1965 , the extra terms $B+B_{T}$ in the denominator represent the damping effects due to core-core collisions of magnatic and thermal vortices, thus $\rho$ nonlinearly depends on vortex density. In Fig. 3, predictions of Eq. (10) (solid lines) are compared with the magnetoresistance data of overdoped (OD, p=0.2) La2-xSrxCuO4 (LSCO) below $T_{c}$ and OP Bi-2212 in the pseudogap state Wang2006 ; Ri1994 . $\rho_{n}$ used here is predicted with Eq. (7), and it is 0.68 $\mu\Omega$m for LSCO and 1.48 $\mu\Omega$m for OP Bi-2212. Since there is residual pinning effect indicated by melting field $H_{m}=1.8$ T in OD LSCO, we assume that some vortices with a density $H_{m}/\phi_{0}$ are pinned and can be simply subtracted, which leads to a substitution of $B+B_{T}$ with $B-H_{m}$ in Eq. (10).

As shown in Fig. 3, both the low-field steep rise and high-field rapid saturation of $\rho$ are well captured by Eq. (10). In OD LSCO, since $\eta_{0}=B_{0}\phi_{0}c_{0}/\rho_{n}$, which is estimated to be only 1/38 of the BS model (taking $H_{c2}\approx 46$ T) Wang2006 , the fast vortices scenario is verified at low fields. The comparison also indicates that $\rho$ saturates at high fields where $\eta$ increases linearly and where the fast vortices scenario breaks down. Besides, data (circles) in pseudogap state of OP Bi-2212 Ri1994 show two behaviors of field dependence of $\rho$ corresponding to the dilute and dense thermal vortices limit. In the dilute thermal vortex limit, $\rho\approx\rho_{n}B/B_{0}$, the signal increases linearly with a large slope, from which $B_{0}$ can be determined. After $B_{0}$ is measured with the low-field signal, $B_{T}$ can be determined from the zero-field signal with Eq. (10). Near $T_{c}$ (where $B_{T}=0$), $\rho$ is determined by magnetic vortices only, thus sharply rises at low field. At $T=105$ K ($>T_{c}\approx 85$ K, with $B_{T}\approx 45$ T), thermal vortices become dense and $B_{T}\gg B_{0}$, which leads to a saturation of $\rho$, thus the sample behaves metallic-like. This yields a complete picture of the vortex fluid in pseudogap state of HTSC, giving rise to the unconventional field dependence of $\rho$ by Eq. (10), unifying both the fast vortices scenario and the vortex tangles with core-core collisions. In other words, the magnetoresistance signal in the phase fluctuations regime can be completely described by the current model of vortex tangles; no extra element is needed.

The damping model of vortex tangles, Eq. (6) and (8), can be applied to describe other anomalous transport phenomena in HTSC due to vortex motions. In the absence of a sound damping model in previous studies of Nernst signal in HTSC, only the transverse thermoelectric coefficient $\alpha_{xy}=e_{N}/\rho$ can be described Ussishkin2002 . The current damping model enables one to predict the Nernst signal quantitatively if a model of transport entropy is introduced. Using Anderson’s proposal Anderson06 and neglecting the pinning effect, we obtain Li2017

[TABLE]

where $C=\pi\hbar^{2}/8m_{e}\phi_{0}c_{0}$, $n_{s}$ is the two-dimensional superfluid density on Cu-O plane and can be estimated from a linear model $n_{s}=n_{s0}(1-T/T_{v})$ where $n_{s0}$ is the superfluid density at zero temperature, $T_{v}$ is the onset temperature of vortex Nernst signal. Near and below $T_{c}$, $H_{c2}$ is approximately constant, and $B_{T}=H_{c2}\exp[-2b(T/T_{c}-1)^{-1/2}]$ as predicted by Korsterlitz Kosterlitz1974 . As shown in Fig. 4, the magnitude of the Nernst signals in OD Bi-2212 Wang2003 are quantitatively described by Eq. (11) for a range of $B$ and $T$. In addition, Eq. (11) predicts correctly the peak shift from low to high fields when temperature increases, which is generated by the increase of thermal vortex density (by $B_{T}$ in Eq.(11)). On the other hard, using the damping model of Anderson or the measurements based on fast vortices scenario Anderson06 ; Bilbro2011 , the prediction will be two orders of magnitude higher than the data at high fields. We conclude that Nernst signal is also controlled by a damping increase from low to high fields due to vortex tangles, for which our damping model, i.e., Eq. (8), is suitable for quantitative descriptions.

In summary, Anderson’s vortex tangles concept and phase fluctuation explanation of psedugap are verified in a quantitative manner. We go beyond the picture of isolated vortices Bardeen1965 ; Halperin1979 with a novel model of vortex tangles, predicting both flux-flow resistivity and Nernst signal in cuprate superconductors. Since vortex damping mechanism is the key factor of vortex transport, the current model opens several new avenues for further studies. First, the model can be extended to describe Fe-based HTSC due to a similar dirty metal nature. Secondly, distinct from the static calculation with Bogoliubov-de Gennes (BdG) equations Canel1965 ; Melnikov2006 , the new scenario of core-core collision is a dynamic mechanism, which has implications for the further development of microscopic theories, such as the collision enhancement of qp DOS with a model of vortex-distance fluctuations in qp tunneling calculation. Thirdly, this work suggests that a realistic simulation of vortex fluid at arbitrary $T$ and $B$ by a time-dependent Ginzburg-Landau (TDGL) equation Machida1993 ; Kwok2016 ; Mukerjee2004 is feasible, if a field and temperature dependent relaxation time is introduced to capture the dissipation of vortex tangles. Finally, vortex entanglement may yield exotic transport phenomena such as heat transfer in Ettingshausen effects Palstra1990 and anomalous thermal conductivity in HTSC Gris2014 .
