Topological Weyl and Node-Line Semimetals in Ferromagnetic Vanadium-Phosphorous-Oxide $\beta$-V$_2$OPO$_4$ Compound

TL;DR

This paper predicts that the ferromagnetic vanadium-phosphorous-oxide compound $eta$-V$_2$OPO$_4$ hosts topological semimetal phases, with magnetization direction controlling the transition between node-line and Weyl semimetals, confirmed by first-principles calculations.

Contribution

It demonstrates that $eta$-V$_2$OPO$_4$ can exhibit tunable topological semimetal phases with magnetic control, a novel finding in magnetic topological materials.

Findings

Magnetization direction switches between node-line and Weyl phases.

Weyl points are protected by rotational symmetry and are well separated.

Surface states confirm non-trivial topological properties.

Abstract

We propose that the topological semimetal features can co-exist with ferromagnetic ground state in vanadium-phosphorous-oxide $\beta$-V$_2$OPO$_4$ compound from first-principles calculations. In this magnetic system with inversion symmetry, the direction of magnetization is able to manipulate the symmetric protected band structures from a node-line type to a Weyl one in the presence of spin-orbital-coupling. The node-line semimetal phase is protected by the mirror symmetry with the reflection-invariant plane perpendicular to magnetic order. Within mirror symmetry breaking due to the magnetization along other directions, the gapless node-line loop will degenerate to only one pair of Weyl points protected by the rotational symmetry along the magnetic axis, which are largely separated in momentum space. Such Weyl semimetal phase provides a nice candidate with the minimum number of Weyl points in a condensed matter system. The results of surface band calculations confirm the non-trivial topology of this proposed compound. This findings provide a realistic candidate for the investigation of topological semimetals with time-reversal symmetry breaking, particularly towards the realization of quantum anomalous Hall effect in Weyl semimetals.

Figures

Equations

$$H=\sum _{i=x,y,z}{d}_i(\mathbf{k}){\sigma }_i,$$

$$\sigma_{x}=\left(\begin{array}[]{cc}0&1\\ 1&0\\ \end{array}\right),\sigma_{y}=\left(\begin{array}[]{cc}0&-i\\ i&0\\ \end{array}\right),\sigma_{z}=\left(\begin{array}[]{cc}1&0\\ 0&-1\\ \end{array}\right)$$

$$u(\alpha,\beta,\gamma)=\left(\begin{array}[]{cc}e^{-i\frac{\alpha+\gamma}{2}}\cos\frac{\beta}{2}&-e^{-i\frac{\alpha-\gamma}{2}}\sin\frac{\beta}{2}\\ e^{i\frac{\alpha-\gamma}{2}}\sin\frac{\beta}{2}&e^{i\frac{\alpha+\gamma}{2}}\cos\frac{\beta}{2}\\ \end{array}\right),$$

$$C_{2}^{z}\cdot I=\left(\begin{array}[]{cc}e^{i\frac{\pi}{2}}&0\\ 0&e^{-i\frac{\pi}{2}}\\ \end{array}\right)=i\sigma_{z}.$$

$$H(k_x,k_y,0)={\sigma }_{z}H(k_x,k_y,0){\sigma }_z$$

$$\begin{array}{rl}& d_x(k_x,k_y,0)=-d_x(k_x,k_y,0)\equiv 0,\\ & d_y(k_x,k_y,0)=-d_y(k_x,k_y,0)\equiv 0,\end{array}$$

$$E=\pm |d_z(k_x,k_y,0)|.$$

$$\begin{split}C_{2}^{z}\cdot T&=i\left(\begin{array}[]{cc}e^{-i\frac{\pi}{2}}&0\\ 0&e^{i\frac{\pi}{2}}\\ \end{array}\right)\left(\begin{array}[]{cc}0&-i\\ i&0\\ \end{array}\right)K\\ &=i\sigma_{x}K,\end{split}$$

$$[H,C_2^z\cdot T]=[H,i{\sigma }_{x}K]=0,$$

$$\begin{array}{rl}& d_x(k_x,k_y,0)[{\sigma }_x,i{\sigma }_{x}K]+d_y(k_x,k_y,0)[{\sigma }_y,i{\sigma }_{x}K]\\ & +d_z(k_x,k_y,0)[{\sigma }_z,i{\sigma }_{x}K]=0,\end{array}$$

$$d_z(k_x,k_y,k_z)\equiv 0.$$

$$H=d_x(k_x,k_y,0){\sigma }_x+d_y(k_x,k_y,0){\sigma }_y.$$

$$[H,C_2^{100}]=0.$$

$$C_{2}^{100}=\left(\begin{array}[]{cc}0&i\\ i&0\\ \end{array}\right)=i\sigma_{x}.$$

$$H(k_x,k_y,0)={\sigma }_{x}H(k_x,-k_y,0){\sigma }_x$$

$$\begin{array}{rl}& d_x(k_x,k_y,0)=d_x(k_x,-k_y,0),\\ & d_y(k_x,k_y,0)=-d_y(k_x,-k_y,0).\end{array}$$

$$d_y(k_x,0,0)\equiv 0.$$

$$\begin{array}{rl}E& =\pm \sqrt{d_x(k_x,k_y,0{)}^2+d_y(k_x,k_y,0{)}^2}\\ & =\pm |d_x(k_x,0,0)|.\end{array}$$

$$d_x(k_x,0,0)=A+B{k}_x+C{k}_x^2+\dots ,$$

Full text

Quantum-Hall-effect (QHE) offered us a different pathway to achieve dissipationless current beyond superconductors Hall1879 . However, the potential applications of QHE are strongly limited by the required external high-intensity magnetic fields Klitzing1980 ; Tsui1982 . An alternative option is the Quantum-spin-Hall (QSH) insulators that works independently with respect to external magnetic fields but, unfortunately, will be suppressed when the sample size become larger than a critical value due to the existence of non-elastic scattering between states with opposite directions in helical edge states Murakami2003 ; Bernevig2006 ; Konig2007 . The most promising solution of these challenges is the proposed quantum-anomalous-Hall (QAH) materials with intrinsic long-rang magnetic order that are able to be free for any sample-size or external field Qi2006 ; Yu2010 ; Chang2013 .

To achieve this, magnetic topological materials, including topological insulators (TIs) Qi2006 ; Yu2010 ; Chang2013 ; Fang2014 ; Chang2015 and topological semimetals (TSMs)Xu2011 in their quantum-well structure with time-reversal (TR) symmetry breaking, have attracted intensive attention recently. Distinguished from gaped magnetic TIs, magnetic TSMs, i.e. spin polarized Weyl and node-line semimetals, host finite numbers (Weyl) or continues distributed (node-line) band crossing points near the Fermi level in momentum space. Such crystal symmetry protected features lead exotic conductive surface states, which are Fermi arcs in Wely semimetals (WSMs) Wan2011 and drumhead states in node-line semimetals (NLSs) Burkov2011 . Accomplishing these robust spin dependent surface states is the key step of achieving several unusual spectroscopic and transport phenomena especially the QAH in their quantum-well structure experimentally.

Up to now, the non-magnetic TSMs have been studied intensively Weng2015 ; Huang2015 ; Ruan2016nc ; Ruan2016prl ; Autes2016 ; Wang2016prl2 ; Xu2017prl ; Xu2015 ; Lv2015 ; Yang2015 ; Tamai2016 , but only a few magnetic TSMs have been proposed. For instance, magnetic HgCr2Se4 has been predicted to host only two nodal points Xu2011 which is defined as a Chern semimetal, not fully fit the WSM features since each crossing points possessing chiral charge of 2. So far, nontrivial properties in HgCr2Se4 have not been verified experimentally due to the requirement of large magnetic domains Liu2014 ; Bulmash2014 . Very recently, Co-based magnetic Heusler alloys were also predicted to host the topology of WSMs Wang2016prl1 . However, the energy of Weyl points is much higher above the Fermi level ($\sim$0.6 eV). Therefore, additional tuning of the energy of Weyl points relative to Fermi level is necessary Wang2016prl1 for future applications.

In this work, we propose that the ferromagnetic (FM) vanadium-phosphorous-oxide $\beta$-V2OPO4, a potential material for lithium-ion battery Benser2007 ; Satyanarayana2017 , presents either NL or WSM features that can be easily switched by different magnetization directions. The node-line band structures, in $D_{4h}$($C_{4h}$) magnetic group with spin-orbital coupling (SOC), are protected by the mirror reflection symmetry with the reflection-invariant plane perpendicular to the spin-polarized direction. This gapless node-line loop, which lies in the reflection-invariant plane and very close to the Fermi level, will degenerate to two large separated Weyl points protected by rotational symmetry in the same plane once mirror reflection symmetry is broken due to the magnetization along other directions. In these cases, the system host the minimum number of Weyl points. Based on our first-principles calculations, this non-trivial FM $\beta$-V2OPO4 is a promising candidate of experimentally studying on magnetic TSMs.

We perform the first-principles calculations using the Vienna ab initio Simulation Package (VASP) Kresse2 ; Kressecom based on density functional theory Hohenberg ; Kohn . For the exchange-correlation potential we choose the generalized gradient approximation (GGA) with the Perdew-Burke-Ernzerhof (PBE) formalism Perdew1 ; Perdew2 . The core-valence interactions are treated by the projector augmented wave (PAW) method Blochl ; Kresse4 ; Ceperley1980 . A plane-wave-basis set with kinetic-energy cutoff of 600 eV has been used. The full Brillouin zone(BZ) is sampled by $21\times 21\times 21$ Monkhorst-Pack grid to simulate the electronic behaviors Monkhorst . Due to the strongly correlated effects of $3d$ electrons in vanadium, GGA+U calculations is nessesary to describe the on-site Coulomb repulsion beyond the GGA pictures Liechtenstein1995 ; Korotin1998 . We notice that the band inversion has been confirmed in a large range of U in $\beta$-V2OPO4 from 1.5 eV to 10.0 eV. In this work, the effective on-site Coulomb energy U is chosen to be 3.0 eV to illustrate the band topology, which works well in fitting the properties of vanadium-oxide system Liebsch2005 . To calculate the surface states and Fermi arcs, the tight-binding Hamiltonian is constructed by projecting the Bloch states into maximally localized Wannier functions Marzari2012 ; Mostofi2008 .

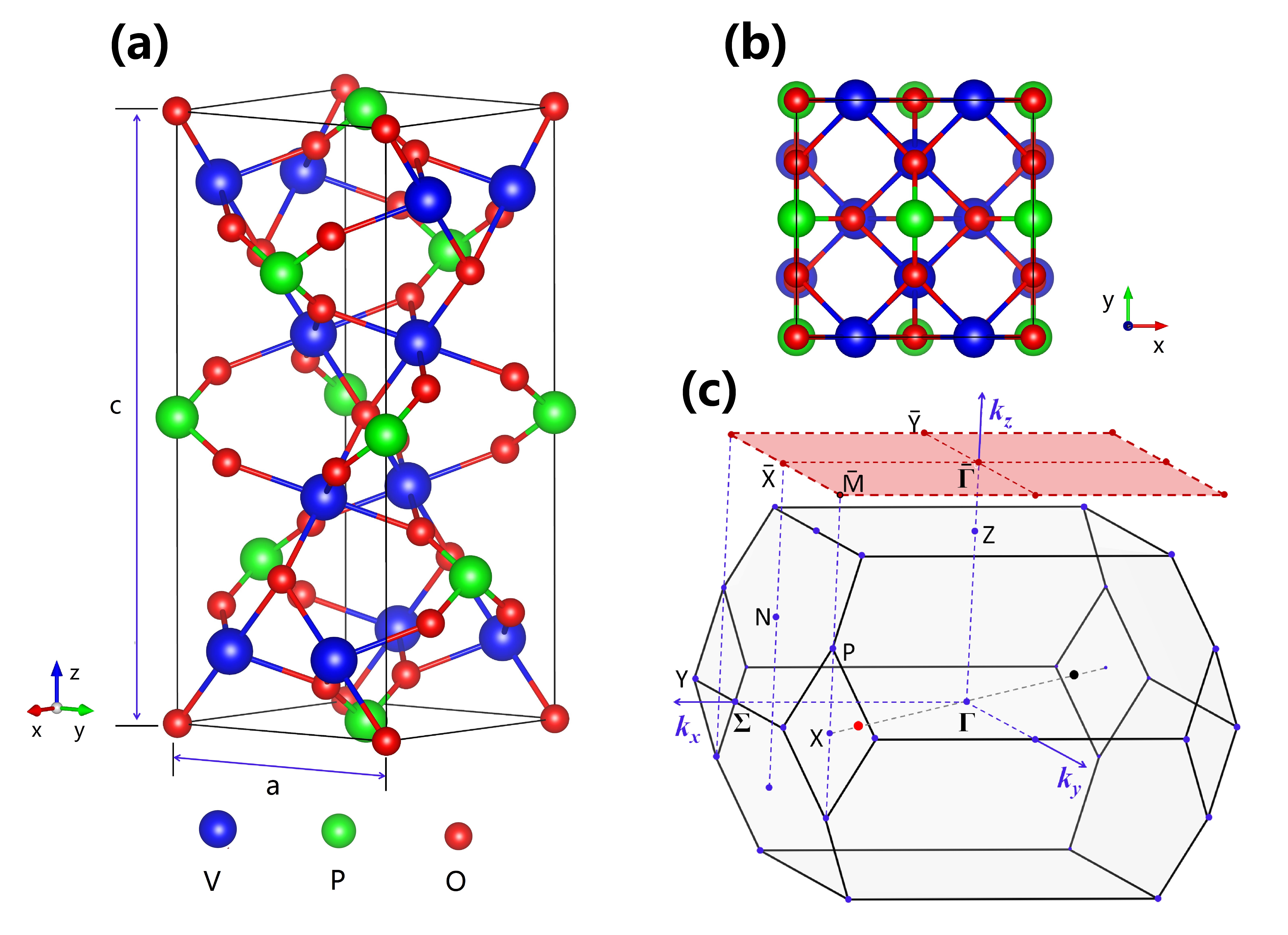

As it is illustrated in Figs. 1(a) and (b), the vanadium-phosphorous-oxide $\beta$-V2OPO4 compound crystalizes in body-centered-tetragonal (BCT) structure with a space group $I4_{1}amd$ (No. 141). Structural optimization obtains the calculated lattice constants which are $a=5.465$ Å and $c=12.544$ Å, in nice agreement with experimental values $a=5.362$ Å and $c=12.378$ Å Glaum1989 . The O atoms take two Wyckoff positions $4a$ (0.0, 0.0, 0.0) and $16h$ (0.00000, 0.23762, 0.43299). The P and V atoms are located at Wyckoff positions $4b$ (0.0, 0.0, 0.5) and $8c$ (0.250, 0.000 0.875), respectively. The BCT BZ and corresponding (001) surface BZ are shown in Fig. 1(c), in which high-symmetry points are marked.

Our results confirm the FM groundstate of $\beta$-V2OPO4, which is about 86 meV lower than the antiferromagnetic state per unit cell, with magnetic moment $\sim$2.5 $\mu_{B}$ per V atom. The electronic band structures in the absence of SOC [see Fig. 2(a)] show that the spins and orbitals are independent and two spin channels are decoupled around the Fermi level. These two spin channels present different electronic states, i.e. a $\sim$3.68 eV band gap of the minority spin states and the semimetallic features of majority spin states, indicating the half-metallic properties of the system. The band crossings reveals around $\Gamma$ point in the $k_{z}=0$ plane, giving rise to a symmetry protected nodal-line loop. These two crossing bands belong to the states that has opposite eigenvalues $\pm$1 of mirror reflection symmetry operation $M_{z}$, respectively, which protects the nodal ring in $k_{x}$-$k_{y}$ plane with $k_{z}=0$ Weng2015 . The spin-polarized nodal ring shows a tiny dispersion, the maximum and minimum of which are in the $\Gamma$-X and $\Gamma$-$\Sigma$ directions, respectively, i.e. $\sim$12 meV higher and $\sim$36 meV lower than the Fermi level $E_{F}$.

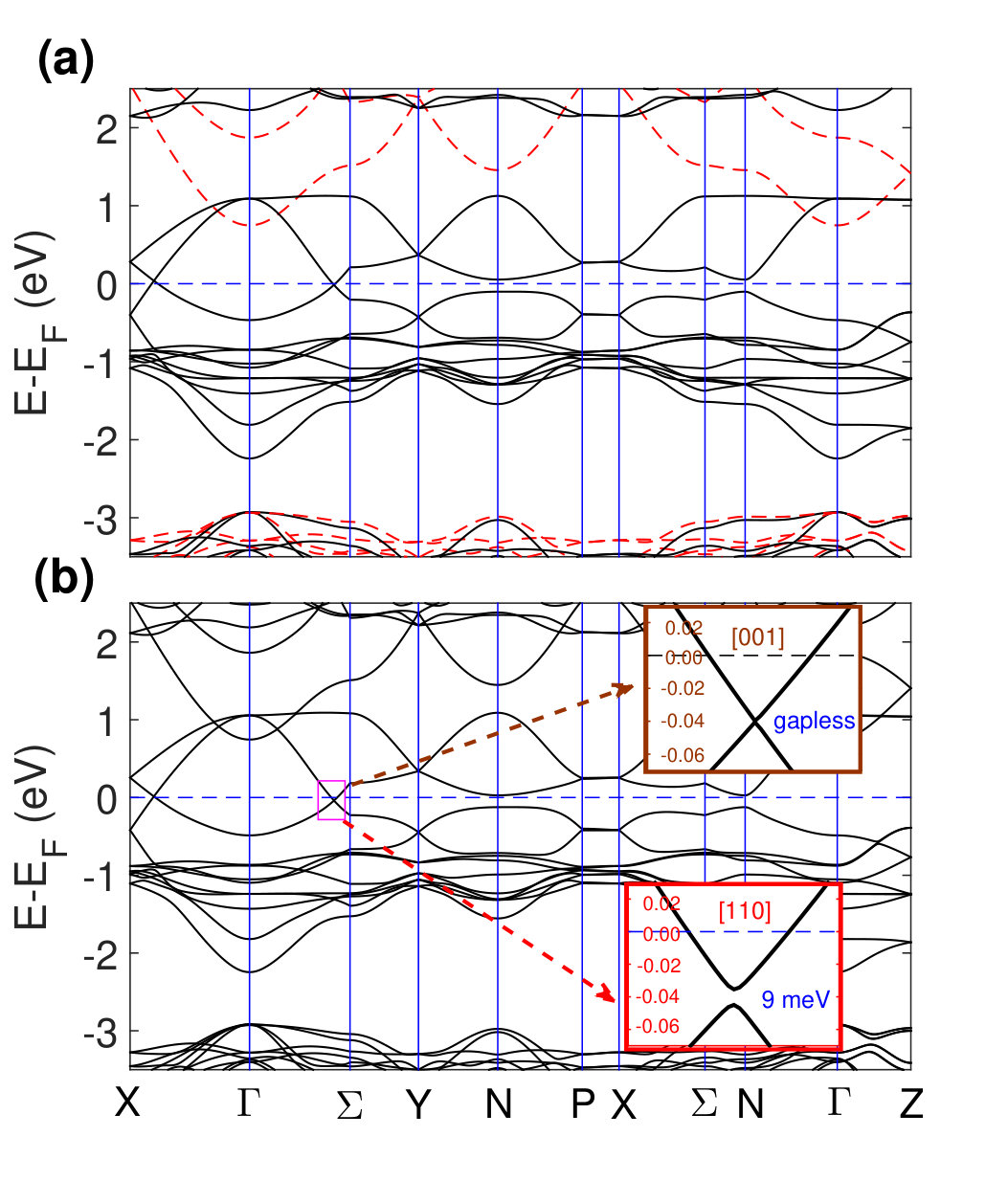

As we report in Fig. 2(b), the SOC little influences on the band structures in which the half-metallic ferromagnetism remains. The spontaneous magnetization direction is determined by studying the total energy of system with magnetization along different high symmetry axis. The [001] axis is found to be the energetically most favorable magnetization direction. It is worth to mention that, results show very small energy differences, below 0.3 meV, among all magnetic configurations. This implies that the switching between each configurations by external magnetic field would be easy. In the presence of SOC, the magnetic symmetry is dependent on the direction of magnetization. We will respectively present the topological features of the two typical [001] and [110] magnetisms in the following.

When magnetization is polarized along [001] direction, the system reduces to point group $C_{4h}$, the subgroup of $D_{4h}$, in which the fourfold rotation $C_{4}^{z}$ is tensored by the inversion $I$, namely $C_{4}^{z}\otimes I$. This magnetic group contains eight irreducible symmetry operators: inversion $I$, fourfold rotation $C_{4}^{z}$, the product of time reversal $T$, twofold rotations of $C_{2}$ symmetry axes [100], [010], [110], [$1\bar{1}0$], and the product ($IC_{2}^{z}$) of inversion and rotation $C_{2}^{z}$. The group element $IC_{2}^{z}$ is equivalent to the mirror reflection symmetry corresponding to the $x-y$ plane, which can protect the existence of gapless nodal ring in $k_{z}=0$ plane with respect to SOC Weng2015 ; Wang2016prl1 [see Fig. 2(b)]. The topological invariant of the nodal ring can be viewed as the variation of the quantized Berry phase with respect to the mirror plane Vanderbilt1993 , which is related to the change at the end of the one-dimensional system along a line across the ring in $k_{z}=0$ plane. As shown in Fig. 3(a), the Berry phase of $\beta$-V2OPO4 shows the jump across the ring, further confirming the topological features of the nodal ring perpendicular to the [001] magnetization direction.

Our calculations suggest that the magnetization along other directions is energetically very close to the [001]. When the magnetization is deviated from [001] direction, the mirror reflection symmetry is broken. Here, we take the case of [110] magnetization as an example since the symmetry analysis for the rest cases are essentially the same. The group elements of the corresponding magnetic space group $C_{2h}$ remains: $I$, $C_{2}^{110}$ and $TC_{2}^{z}$, $TC_{2}^{1\bar{1}0}$. The vanishing of mirror reflection symmetry makes nodal line gapped. However, the anti-unitary symmetry $TC_{2}^{z}$ allows the existence of Weyl points in $k_{z}=0$ plane. A pair of Weyl points protected by the $C_{2}^{110}$ rotation is present on $k_{x}$=$k_{y}$ axis.

We also calculate the parities of inversion eigenvalues at time reversal invariant momenta (TRIM) points. The product of the occupied bands running over all TRIM points is -1, confirming the presence of odd number of pairs of Weyl points Hughes . As shown in Fig. 2(b), the two crossing bands along $\Gamma$-X (or [110]) belong to eigenvalues $\pm i$ of $C_{2}^{110}$, respectively. The chirality of Weyl point can be determined by the evolution of the average position of Wannier centers, and the Wilson-loop method applied on a sphere around a Weyl point is used Yu2011 ; Soluyanov2011 [see Fig. 3(b)]. The Weyl point with Chern number $C=+1$ is located at (0.46Å*-1*, 0.46Å*-1*, 0) in momentum space, while the Weyl point with Chern number $C=-1$ related by $I$ symmetry located at same axis [see Fig. 1(c)]. The Weyl points only existed on $k_{x}$=$k_{y}$ axis can be further verified by the Berry curvature. As shown in Fig. 3(c), the Weyl points with positive and negative chirality are regarded as the ”source” and ”sink” of Berry curvature in momentum space.

As it is discussed above, our results indicate the existence of either the topological NLs or WSMs in FM $\beta$-V2OPO4 compound, depending on the magnetization direction. The NL features are protected by the mirror reflection symmetry in the case of [001] magnetization, while the WSM features can arise with magnetization direction along other high symmetry axis. The Weyl points would be protected by $C_{2}^{m}$ rotational symmetry, where $m$ represents a symmetry axis in $x-y$ plane. In the cases of which only a pair of Weyl points, the minimum number of Weyl points in condensed matter systems, with large separation in momentum. Considering the energy of Weyl points in FM $\beta$-V2OPO4 is very close to Fermi level, e.g. $\thicksim$12 meV when [110] magnetization, we would suggest $\beta$-VOPO4 compound to be a excellent experimental candidates for the observation of the nontrivial properties in FM WSMs.

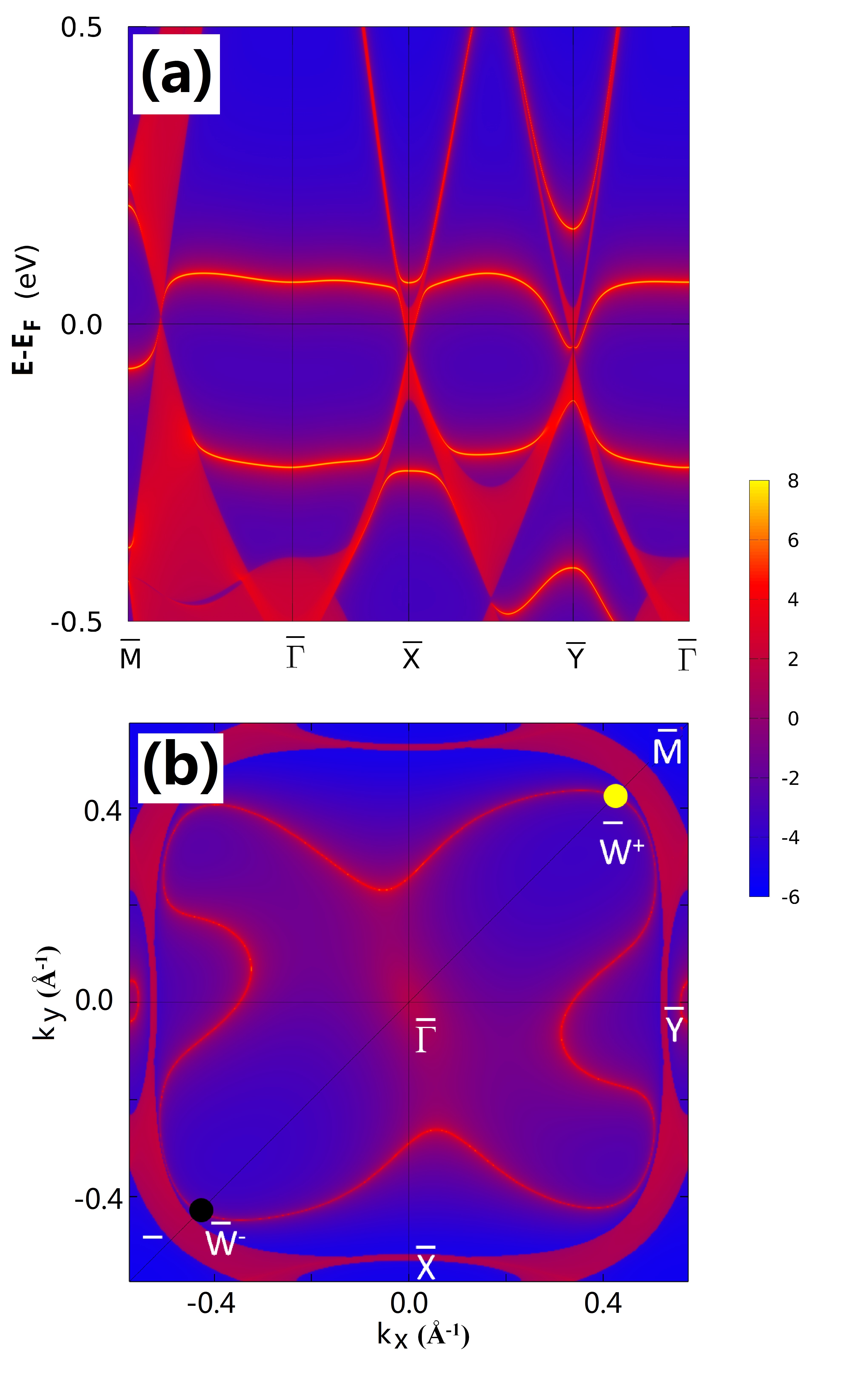

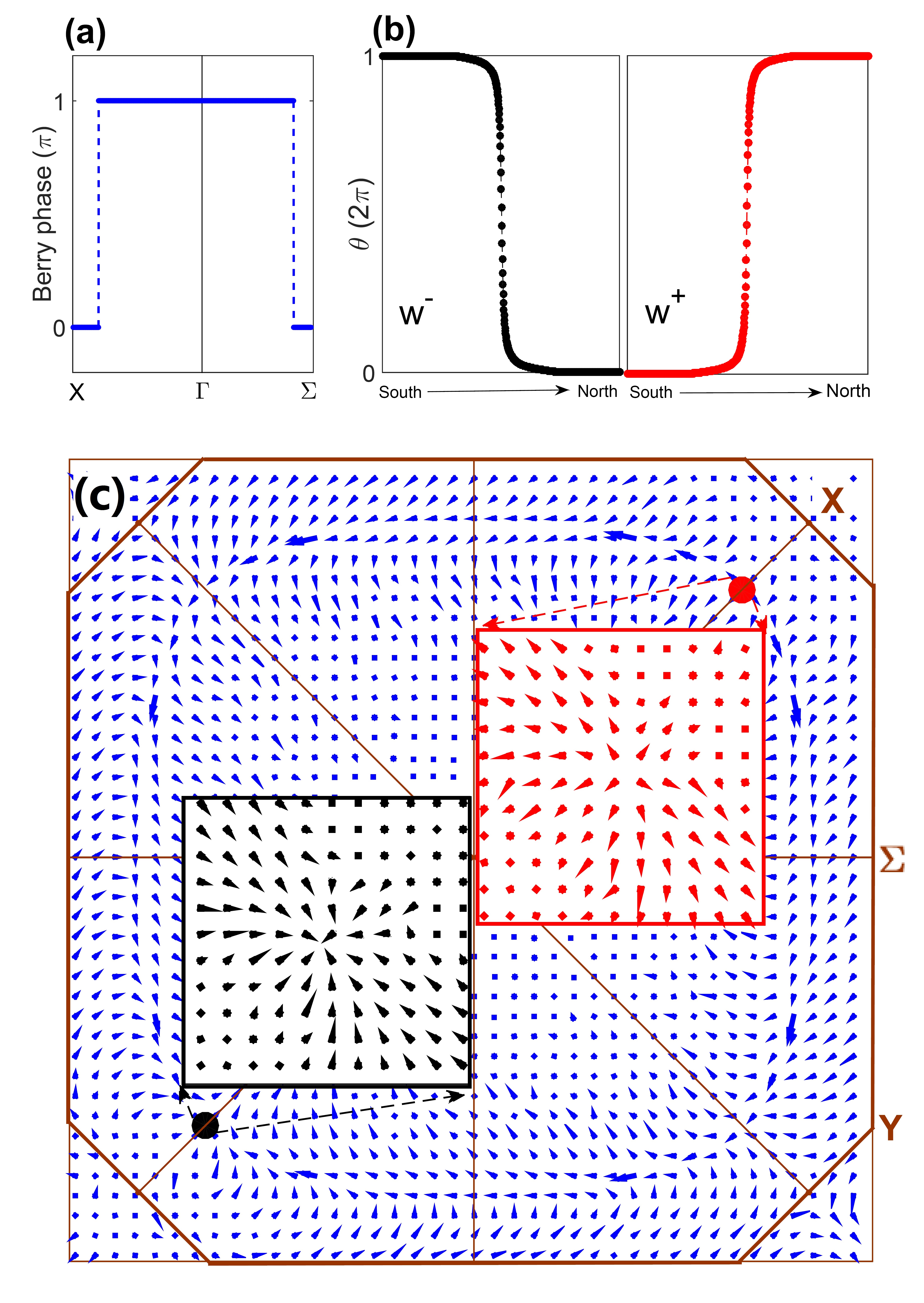

One hallmark of nontrivial semimetals is the existence of topologically protected surface state, which arises from the inversion of TRIM parities. In the WSM states, topological surface bands connect the valence and conduction bands. The drumhead surface states of NLSs will appear when the gap of bulk band is closed forming a nodal ring. Since the gap size of WSM state is very small, which make only tiny difference of surface states between NL and WSM phases. Here, we only present the surface states and Fermi arcs in the [110] magnetic configuration. To obtain the surface states, we constructed a tight-binding (TB) Hamiltonian with basis of maximally localized Wannier functions Marzari2012 ; Mostofi2008 in which the Green’s function method Sancho1985 is employed. The calculated local density of states (LDOS) and Fermi surface projected on (001) surface are shown in Figs. 4(a) and (b), respectively. The surface states are clearly observed in Fig. 4(a). On the (001) surface, the anti-unitary magnetic symmetry $TC_{2}$ leads to different behavior for the surface bands around the $\bar{X}$ and $\bar{Y}$. Although some trivially residual bands would project on (001) surface of this compound, the Fermi arc states are quite clear as it is shown in Fig. 4(b).

In conclusion, using first-principles calculations, we proposed that FM vanadium-phosphorous-oxide $\beta$-V2OPO4 can possess the nontrivial properties of TSMs, either NLs or WSMs, that can be switched between each other by different magnetization directions. When the spin is polarized along [001] direction, system belongs to $D_{4h}(C_{4h})$ point group and present the gapless nodal ring, protected by the mirror reflection symmetry, close to the Fermi level at $k_{x}-k_{y}$ plane with $k_{z}=0$ in momentum space. When the magnetization directions deviate from [001], the nodal ring will degenerate to a pair of Weyl points due to the vanishing of mirror reflection symmetry. These two Weyl points, protected by twofold rotational symmetry along magnetization directions, lie in $k_{x}-k_{y}$ plane with $k_{z}=0$, which are largely separated in momentum. All the non-trivial band-crossing points are very close to the Fermi level. The topology of the system is confirmed by the existence of non-trivial surface states. Since $\beta$-V2OPO4 has been fabricated for years Glaum1989 , our proposition provides a realistic and promising candidate for the investigation of magnetic TSMs in experiments, particularly towards the realization of quantum anomalous Hall effect condensed matter systems.
