A simplicial decomposition framework for large scale convex quadratic programming

TL;DR

This paper introduces a simplicial decomposition framework tailored for large-scale convex quadratic programming, enhancing solution efficiency and robustness through specialized strategies and techniques, with extensive empirical validation.

Contribution

It presents novel tailored strategies for the master problem and techniques to accelerate the pricing problem within a simplicial decomposition framework for quadratic programming.

Findings

Outperforms Cplex in efficiency and robustness

Effective for real portfolio optimization problems

Demonstrates scalability for large-scale problems

Abstract

In this paper, we analyze in depth a simplicial decomposition like algorithmic framework for large scale convex quadratic programming. In particular, we first propose two tailored strategies for handling the master problem. Then, we describe a few techniques for speeding up the solution of the pricing problem. We report extensive numerical experiments on both real portfolio optimization and general quadratic programming problems, showing the efficiency and robustness of the method when compared to Cplex.

Figures

Tables

Table 1. Table 1: Comparison among the different Cplex optimizers

$n$	Default	Primal	Dual	Network	Barrier	Sifting	Concurrent
$2000$	$72.2$	$1.6$	$1.6$	$1.6$	$84.2$	$2.0$	$89.0$
$4000$	$641.8$ (2)	$12.7$	$13.9$	$13.9$	$618.0$ (2)	$11.5$	$689.4$ (2)
$6000$	$1000.0$ (18)	$31.5$	$30.7$	$30.5$	$1000.0$ (18)	$26.3$	$1000.0$ (18)

Table 2. Table 2: Comparison for the three different choices of master solver (with Cplex we indicate the results obtained with sifting optimizer).

Solver	Tol	T (s)	Er	Max Er	Ei	Max Ei	Dim
SD FGPM	1E-02	0.25	8.64E-02	2.67E-01	2.24E-02	5.04E-02	9.9
	1E-04	1.15	2.21E-04	6.79E-04	7.80E-04	1.44E-03	55.6
	1E-06	2.46	5.65E-07	2.63E-06	5.72E-05	1.86E-04	102.2
	1E-08	6.09	5.98E-09	1.15E-07	4.61E-06	1.88E-05	114.0
	1E-10	9.81	2.35E-09	4.59E-08	3.48E-06	2.16E-05	113.4
SD Cplex	1E-06	4.66	8.86E-09	4.26E-08	5.50E-06	2.46E-05	156.0
SD ACDM	None	3.63	1.53E-09	1.97E-08	2.65E-06	1.99E-05	113.1
Cplex		4.29

Table 3. Table 3: Comparison for the three choices of master solvers. Average number of iterations and average dimension of the last master.

	Portfolio Instances
	SD Cplex	SD ACDM	SD FGPM
iterations	108.3	111.2	99.4
final dimension	109.3	79.8	77.7
	GS Instances
	SD Cplex	SD ACDM	SD FGPM
iterations	171.4	172.4	145.7
final dimension	168.3	137.4	130.7
	GL Instances
	SD Cplex	SD ACDM	SD FGPM
iterations	132.9	118.4	89.3
final dimension	126.6	85.5	70.7

Equations

$$\begin{array}[]{lll}\min&f(x)~{}=~{}x^{\top}Qx+c^{\top}x\\ \mbox{ s.t. }&a_{i}^{T}x~{}=~{}b_{i},&i\in\cal{E}\\ &a_{i}^{T}x~{}\geq~{}b_{i},&i\in\cal{I}\end{array}$$

$$X=\{x\in {\mathrm{I}\mathrm{R}}^n:a_i^{T}x=b_i,i\in \mathcal{E}\}\cap \{x\in {\mathrm{I}\mathrm{R}}^n:a_i^{T}x\ge b_i,i\in \mathcal{I}\}$$

$$conv(X_k)=\{x|x=\sum _{i=1}^m{\lambda }_i{\tilde{x}}_i,\sum _{i=1}^m{\lambda }_i=1,{\lambda }_i\ge 0\}$$

$$\begin{array}[]{ll}\min&\nabla f(x_{k})^{\top}(x-x_{k})\\ \mbox{ s.t.}&x\in X\\ \end{array}$$

$$\begin{array}[]{ll}\min&f(x)\\ \mbox{ s.t. }&x\in conv(X_{k})\\ \end{array}$$

$$\begin{array}[]{ll}\min&\nabla f(x_{k})^{\top}(x-x_{k})\\ \mbox{ s.t. }&x\in X\\ \end{array}$$

$$\begin{array}[]{ll}\min&f(x)~{}=~{}x^{\top}Qx+c^{\top}x\\ \mbox{ s.t. }&x=\sum_{i=1}^{k-1}\lambda_{i}\tilde{x}_{i}\\ &\sum_{i=1}^{k-1}\lambda_{i}=1\\ &\lambda_{i}\geq 0,\\ \end{array}$$

$$\begin{array}[]{ll}\max&\alpha\\ \mbox{ s.t. }&(1-\alpha)\lambda^{s}+\alpha\lambda^{t}\geq 0.\end{array}$$

$${\alpha }^{\ast }={\left(\underset{i}{\max }\frac{{\lambda }_i^s-{\lambda }_i^t}{{\lambda }_i^s}\right)}^{-1}.$$

$$\underset{\beta \in [0,1]}{\min }f(B[(1-\beta ){\lambda }^s+\beta {\lambda }^p]).$$

$${\alpha }^{\ast }={\left(\underset{i}{\max }\frac{{\lambda }_i^s-{\lambda }_i^t}{{\lambda }_i^s}\right)}^{-1}$$

$$\underset{\beta \in [0,1]}{\min }f(B[(1-\beta ){\lambda }^s+\beta {\lambda }^p])$$

$${\lambda }_{k+1}={\lambda }_k+{\beta }_k(p[{\lambda }_k-s_k\nabla f({\lambda }_k){]}_{\Delta }-{\lambda }_k),$$

$${\hat{\lambda }}_k=p[{\lambda }_k-s\nabla f({\lambda }_k){]}_{\Delta }$$

$$\underset{x\in \Delta }{\min }\Vert x-y{\Vert }_2.$$

$${\bar{f}}_k=\underset{0\le i\le \min \{M,k\}}{\max }f({\lambda }_{k-i})$$

$${\rho }_{k+1}=min\{{\rho }_{max},\max \{{\rho }_{min},a_k/b_k\}\}$$

$$\nabla f(x_k{)}^{\top }({\tilde{x}}_k-x_k)\le -\epsilon <0,$$

$$\begin{array}[]{ll}\min&f(x)\\ \mbox{ s.t. }&x\in conv(X_{k})\\ \end{array}$$

$$\nabla f(x_k{)}^{\top }({\tilde{x}}_k-x_k)\le -\epsilon <0.$$

$$\underset{x\in X}{\min }\nabla f(x_k{)}^{\top }(x-x_k)=\nabla f(x_k{)}^{\top }({\tilde{x}}_k-x_k)\ge 0,$$

$${\tilde{x}}_k\notin conv(X_k).$$

$$\nabla f(x_k{)}^{\top }(x-x_k)\le 0.$$

$$f(y)\ge f(x)+\nabla f(x{)}^{\top }(y-x).$$

$$(c_k)\nabla f(x_k{)}^{\top }(x-x_k)\le 0.$$

$$C_k=\{x\in {\mathrm{I}\mathrm{R}}^n:\nabla f(x_i{)}^{\top }(x-x_i)\le 0,i=0,\dots ,k-1\}.$$

$$\begin{array}[]{ll}\min&f(x)\\ \mbox{ s.t. }&x\in conv(X_{k})\\ \end{array}$$

$$\begin{array}[]{ll}\min&\nabla f(x_{k})^{\top}(x-x_{k})\\ \mbox{ s.t. }&x\in X\cap C_{k}\\ \end{array}$$

$$f(x_{k+1})\le f(x_k+{\alpha }_k{d}_k)<f(x_k).$$

$$\underset{x\in X\cap C_k}{\min }\nabla f(x_k{)}^{\top }(x-x_k)=\nabla f(x_k{)}^{\top }({\tilde{x}}_k-x_k)\ge 0,$$

Full text

1 Introduction

We consider the following problem

[TABLE]

with $Q\in\rm{I\!R}^{n\times n}$, $c\in\rm{I\!R}^{n}$, $a_{i}\in\rm{I\!R}^{n}$ and $b_{i}\in\rm{I\!R},\ i\in\cal{E}\cup\cal{I}$.

Moreover, we assume that the polyhedral set

[TABLE]

is non-empty and bounded and that the Hessian matrix $Q$ is positive semidefinite. Among all possible problems of type (1), we are particularly interested in the ones with the following additional properties:

• •

The number of constraints is considerably smaller than the number of variables in the problem, i.e. $|{\cal{E}}\cup{\cal{I}}|\ll n$;

• •

the Hessian matrix $Q$ is dense.

A significant number of large-scale problems, arising in many different fields (e.g. Communications, Statistics, Economics and Machine Learning), present a structure similar to the one described above boyd2004convex .

Solution methods for this class of problems can be mainly categorized into either interior point methods or active set methods nocedal2006sequential . In interior point methods, a sequence of parametrized barrier functions is (approximately) minimized using Newton’s method. The main computational burden is represented by the calculation of the Newton system solution (used to get the search direction). Even if those methods are relatively recent (they started becoming populare in the 1990s), a large number of papers and books exist related to them (see, e.g. gondzio2012interior ; wright2005interior ; nesterov1994interior ; wright1997primal ; ye2011interior ).

In active set methods, at each iteration, a working set that estimates the set of active constraints at the solution is iteratively updated. This gives a subset of constraints to watch while searching the solution (which obviously reduces the complexity of our search in the end). Those methods, which have been widely used since the 1970s, turn out to be effective when dealing with small- and medium-sized problems. They usually guarantee efficient detection of unboundedness and infeasibility (other than returning an accurate estimate of the optimal active set). An advantage of active set methods over interior points is that they are well-suited for warmstarts, where a good estimate of the optimal active set or solution is used to initialize the algorithm. This turns out to be extremely useful in applications where a sequence of QP problems is solved, e.g., in a sequential quadratic programming method. A detailed overview of active set methods can be found in nocedal2006sequential .

In this paper, we develop a simplicial decomposition type approach (see e.g. von1977simplicial ; patriksson2015traffic ) specifically tailored to tackle problems with the aforementioned features. However, it is worth noting that the algorithm proposed can handle any problem of type (1) and can also be easily modified in order to deal with problems having a general convex objective function. The reasons why we use this kind of methods are very easy to understand. Simplicial decomposition like methods, which are closely related to column generation approaches patriksson2015traffic , are both well suited to deal with large-scale problems and to be used in applications where sequences of QPs need to be solved (since they can take advantage of warmstarts). Those tools can thus be fruitfully used in, e.g., Branch and Price like schemes for convex quadratic integer programming.

The paper is organized as follows. In Section 2, we describe in depth the classic simplicial decomposition framework. In Section 3, we present some strategies to improve the efficiency of the framework itself. In Section 4, we report our numerical experience. Finally, in Section 5, we draw some conclusions.

2 Simplicial Decomposition

Simplicial Decomposition (SD) represents a class of methods used for dealing with large scale convex problems. It was first introduced by Holloway in holloway1974extension and then further studied in other papers like, e.g., von1977simplicial ; hearn1987restricted ; ventura1993restricted . A complete overview of this kind of methods can be found in patriksson2015traffic .

The method basically uses an iterative inner approximation of the feasible set $X$. The method can be viewed as a special case of column generation applied to a non linear problem (we refer the reader to desaulniers2006column for an extensive analysis of such a method). In practice, the feasible set $X$ is approximated with the convex hull of an ever expanding finite set $X_{k}=\{\tilde{x}_{1},\tilde{x}_{2},\dots,\tilde{x}_{m}\}$ where $\tilde{x}_{i}$, $i=1,\dots,~{}m$ are extreme points of X. We denote this set with $conv(X_{k})$:

[TABLE]

At each iteration, it is possible to add new extreme points to $X_{k}$ in such a way that a function reduction is guaranteed when minimizing the objective function over the convex hull of the new (enlarged) set of extreme points. If the algorithm does not find at least one new point, the solution is optimal and the algorithm terminates.

The use of the proposed method is particularly indicated when the following two conditions are satisfied:

Minimizing a linear function over $X$ is much simpler than solving the original nonlinear problem; 2. 2.

Minimizing the original objective function over the convex hull of a relatively small set of extreme points is much simpler than solving the original nonlinear problem (i.e. tailored algorithms can be used for tackling the specific problem in our case).

First condition is needed due to the way a new extreme point is generated. Indeed, this new point is the solution of the following linear programming problem

[TABLE]

where a linear approximation calculated at the last iterate $x_{k}$ (i.e. the solution obtained by minimizing $f$ over $conv(X_{k})$ ) is minimized over the original feasible set $X$.

Below, we report the detailed scheme related to the classical simplicial decomposition algorithm bertsekas2015convex ; patriksson2015traffic ; von1977simplicial (see Algorithm 1). At a generic iteration $k$ of the simplicial decomposition algorithm, given the set of extreme points $X_{k}$, we first minimize $f$ over the set $conv(X_{k})$ (Step 1), thus obtaining the new iterate $x_{k}$ then, at Step 2, we generate an extreme point $\tilde{x}_{k}$ by solving the linear program (5). Finally, at Step 3, we update $X_{k}$.

Finite convergence of the method is stated in the following Proposition (see, e.g., bertsekas2015convex ; von1977simplicial ):

Proposition 1

Simplicial Decomposition algorithm obtains a solution of Problem (1) in a finite number of iterations.

In von1977simplicial , a vertex dropping rule is also used to get rid of those vertices in $X_{k}$ whose weight is zero in the expression of the solution $x_{k}$ (Step 1). This dropping phase does not change the theoretical properties of the algorithm (finiteness still remains), but it can guarantee significant savings in terms of CPU time since it keeps the dimensions of the master problem small.

3 Some strategies to improve the efficiency of a simplicial decomposition framework

In this section, we discuss a few strategies that, once embedded in the simplicial decomposition framework, can give a significant improvement of the performances, especially when dealing with large scale quadratic problems with a polyhedral feasible set described by a small number of equations.

Firstly, we present and discuss two tailored strategies to efficiently solve the master problem, which exploit the special structure of the generated simplices. Then, we present a couple of strategies for speeding up the solution of the pricing problem.

3.1 Strategies for efficiently solving the master problem

Here, we describe two different ways for solving the master problem. At first, we analyze an adaptive conjugate directions method that can be used for dealing with the minimization of a quadratic function over a simplex, then we describe another tool, based on a * projected gradient method*, that allows us to efficiently handle the more general problem of minimizing a convex function over a simplex.

3.1.1 An adaptive conjugate directions based method for solving the master

Before describing the details related to the first method, we report a result (see e.g. pshenichnyui1978numerical ) for the conjugate directions method that will be useful to better understand our algorithm.

Proposition 2

Conjugate directions method makes it possible to find the minimum point of a convex quadratic function $f(x):\rm{I\!R}^{n}\to\rm{I\!R}$, and the solution of the problem is obtained after less than $n$ steps.

At iteration $k$, the master problem we want to solve (Step 1 of the SD Algorithm) is the following:

[TABLE]

where the set $X_{k}=\{\tilde{x}_{1},\dots,\tilde{x}_{k-1}\}$ represents the affine basis given by all the vertices generated in the previous iterations (that is we are assuming, for the sake of clarity, that all points generated so far are included in the set $X_{k}$: if some points, with zero weight, have been removed with the so-called vertex dropping rule, the method works as well). Inspired by the approach described in von1977simplicial , we developed a procedure that uses in an efficient way suitably chosen sets of conjugate directions for solving the master. The main idea is trying to reuse, as much as possible, the conjugate directions generated at previous iterations of the SD Algorithm.

In practice, we start from the solution of the master at iteration $k-1$, namely $x_{k-1}$, and consider the descent direction connecting this point with the point generated by the subproblem at iteration $k-1$, namely $\bar{d}_{k-1}=\tilde{x}_{k-1}-x_{k-1}$ (we express it in terms of the new coordinates of problem (6)). Furthermore, we assume that a set of conjugate directions $D=\{d_{1},\dots,d_{k-2}\}$, also expressed in terms of the new coordinates of problem (6), is available from previous iterations. We then use a Gram-Schmidt like procedure to turn direction $\bar{d}_{k-1}$ into a new direction $d_{k-1}$ conjugate with respect to the set $D$. We use the basis $B=[\tilde{x}_{1},\dots,\tilde{x}_{k}]$ to express points $x^{s}=x_{k-1}$ and $x^{t}=x_{k-1}+d_{k-1}$ thus obtaining respectively points $\lambda^{s}$ and $\lambda^{t}$. We hence intersect the halfline emanating from $x^{s}$ (and passing by $x^{t}$) with the boundary of the simplex in (6) by solving the following problem:

[TABLE]

The solution of problem (7) can be directly written as

[TABLE]

We finally define point $\lambda^{p}=(1-\alpha^{*})\lambda^{s}+\alpha^{*}\lambda^{t}$ and solve the following problem

[TABLE]

If the optimal value $\beta^{*}<1$ we get, by Proposition 2, an optimal solution for the master. Otherwise, $\beta^{*}=1$ and we are on the boundary of the simplex. In this case, we just drop those vertices whose associated coordinates are equal to zero, and get a new smaller basis $B$. If $B$ is a singleton, we can stop our procedure, otherwise we minimize $f(x)$ in the new subspace defined by $B$. In order to get a new set of conjugate directions in the considered subspace, we use directions connecting point $x^{*}=B\lambda^{*}=B[(1-\beta^{*})\lambda^{s}+\beta^{*}\lambda^{p}]$ with each vertex $\tilde{x}_{j}$ in $B$ (that is $\bar{d}_{j}=\tilde{x}_{j}-x^{p}$) and then use a Gram-Schmidt like procedure to make them conjugate (we want to remark that all directions $\bar{d}_{j}$ need to be expressed in terms of the new basis $B$). We report the algorithmic scheme below (see Algorithm 2).

Finite convergence of an SD scheme that uses Algorithm 2 for solving the master can be obtained by using same arguments as in von1977simplicial . The proof is based on the fact that our polyhedral feasible set contains a finite number of simplices (whose vertices are extreme points of the feasible set). Since the interior of each simplex has at most one relative minimum and the objective function strictly decreases between two consecutive points $x_{k}$ and $x_{k+1}$ (keep in mind that $\nabla f(x_{k})^{\top}(\tilde{x}^{k}-x^{k})<0$), no simplex can recur. Now, observing that at each iteration we get a new simplex, we have that the number of iterations must be finite.

3.1.2 A fast gradient projection method for solving the master

The second approach is a Fast Gradient Projection Method (FGPM) and belongs to the family of gradient projection approaches (see e.g. birgin2000nonmonotone for an overview of gradient projection approaches). The detailed scheme is reported below (See Algorithm 3). At each iteration of the method, the new point we generate is

[TABLE]

where $\beta_{k}\in(0,\rho_{k}]$, $\rho_{k},s_{k}>0$ and $p[\lambda_{k}-s_{k}\nabla f(\lambda_{k})]_{\Delta}$ is the projection over the master simplex in (6) of the point $\lambda_{k}-s_{k}\nabla f(\lambda_{k})$, chosen along the antigradient. When $p[\lambda_{k}-s_{k}\nabla f(\lambda_{k})]_{\Delta}\neq\lambda_{k}$, it is easy to see that the direction we get is a feasible descent direction.

The method can be used in two different ways:

• a)

we fix $s_{k}$ to a constant value and use a line search technique to get $\beta_{k}$;

• b)

we fix $\beta_{k}$ and make a search changing $s_{k}$ (thus getting a curvilinear path in the feasible set).

In our algorithm we consider case $a)$ where $s_{k}=s>0$.

At each iteration, projecting the point $y_{k}=\lambda_{k}-s\nabla f(\lambda_{k})$ over the simplex corresponds to solve the following problem:

[TABLE]

A fast projection over the simplex is used to generate the search direction condat2014fast . This particular way of projecting a point over the simplex is basically a Gauss-Seidel-like variant of Michelot’s variable fixing algorithm michelot1986finite ; that is, the threshold used to fix the variables is updated after each element is read, instead of waiting for a full reading pass over the list of non-fixed elements (See condat2014fast for further details).

A nonmonotone line search grippo1986nonmonotone combined with a spectral steplength choice is then used at Step 3 (see birgin2000nonmonotone for further details) to speed up convergence. In Algorithm 4 we report the detailed scheme of the line search. Convergence of the FPGM algorithm to a minimum follows from the theoretical results in birgin2000nonmonotone . Therefore, the convergence of an SD method that uses FPGM to solve the master problem directly follows from the results in the previous sections.

In the FGPM Algorithm, we exploit the particular structure of the feasible set in the master, thus getting a very fast algorithm in the end. We will see later on that the FGPM based SD framework is even competitive with the ACDM based one, when dealing with some specific quadratic instances.

3.2 Strategies for efficiently solving the pricing problem

Now we describe two different strategies for speeding up the solution of the pricing problem (also called subproblem). The first one is an early stopping strategy that allows us to approximately solve the subproblem while guaranteeing finite convergence. The second one is the use of suitably generated inequalities (the so called shrinking cuts) that both cut away a part of the feasible set and enable us to improve the quality of extreme points picked in the pricing phase.

3.2.1 Early stopping strategy for the pricing

When we want to solve problem (1) using simplicial decomposition, efficiently handling the subproblem is, in some cases, crucial. Indeed, the total number of extreme points needed to build up the final solution can be small for some real-world problem, hence the total time spent to solve the master problems is negligible when compared to the total time needed to solve subproblems. This is the reason why we may want to approximately solve subproblem (5) in such a way that finite convergence is guaranteed (a similar idea was also suggested in bertsekas2015convex ). In order to do that, we simply need to generate an extreme point $\tilde{x}_{k}$ satisfying the following condition:

[TABLE]

with $\varepsilon>0$. Roughly speaking, we want to be sure that, at each iteration $k$, $d_{k}=\tilde{x}_{k}-x_{k}$ is a descent direction. Below, we report the detailed scheme related to the simplicial decomposition algorithm with early stopping (see Algorithm 5).

At a generic iteration $k$ we generate an extreme point $\tilde{x}_{k}$ by approximately solving the linear program (5). This is done in practice by stopping the algorithm used to solve problem (5) as soon as a solution satisfying constraint (8) is found. In case no solution satisfies the constraint, we simply pick the optimal solution of (5) as the new vertex to be included in the simplex at the next iteration.

Finite convergence of the method can be proved in this case as well:

Proposition 3

Simplicial decomposition with early stopping strategy for the subproblem obtains a solution of Problem (1) in a finite number of iterations.

Proof. Extreme point $\tilde{x}_{k}$, obtained approximately solving subproblem (5), can only satisfy one of the following conditions

$\nabla f(x_{k})^{\top}(\tilde{x}_{k}-x_{k})\geq 0$, and subproblem (5) is solved to optimality. Hence we get

[TABLE]

that is necessary and sufficient optimality conditions are satisfied and $x_{k}$ minimizes $f$ over the feasible set $X$; 2. 2.

$\nabla f(x_{k})^{\top}(\tilde{x}_{k}-x_{k})<0,$ whether the pricing problem is solved to optimality or not, that is direction $d_{k}=\tilde{x}_{k}-x_{k}$ is descent direction and

[TABLE]

Indeed, since $x_{k}$ minimizes $f$ over $conv(X_{k})$ it satisfies necessary and sufficient optimality conditions, that is $\nabla f(x_{k})^{\top}(x-x_{k})\geq 0$ for all $x\in conv(X_{k})$.

From (9) we thus have $\tilde{x}_{k}\notin X_{k}$. Since our feasible set $X$ has a finite number of extreme points, case 2) occurs only a finite number of times, and case 1) will eventually occur. $\Box$

3.2.2 Shrinking cuts

It is worth noticing that, at each iteration $k$, the objective function values of the subsequent iterates $x_{k+1},x_{k+2},\dots,$ generated by the method will be not greater than the objective function value obtained in $x_{k}$, hence the following condition will be satisfied:

[TABLE]

This can be easily seen by taking into account convexity of $f$. Indeed, choosing two points $x,y\in\rm{I\!R}^{n}$, we have:

[TABLE]

Thus, if $\nabla f(x)^{\top}(y-x)>0$, we get $f(y)>f(x)$. Hence, $f(y)\leq f(x)$ implies $\nabla f(x)^{\top}(y-x)\leq 0$.

We remark that all those vertices $\tilde{x}_{i}\in X_{k}$ not satisfying condition (10) have the related coefficient $\lambda_{i}=0$ in the convex combination (2) giving the master solution $x_{k}$ at iteration $k$. Proving this fact by contradiction is easy. Indeed, if we assume that a vertex $\tilde{x}_{i}$ is such that $\nabla f(x_{k})^{\top}(\tilde{x}-x_{k})>0$ and the related $\lambda_{i}\neq 0$, then we can build a feasible descent direction in $x_{k}$ thus contradicting its optimality.

We can take advantage of this property, as also briefly discussed in bertsekas2015convex , by adding the cuts described above. The basic idea is the following: let $x_{k}$ be the optimal point generated by the master at a generic iteration $k$, we can hence add the following shrinking cut $c_{k}$ to the next pricing problems:

[TABLE]

More precisely, let $\{x_{1},\dots,x_{k}\}$ be the set of optimal points generated by the master problems up to iteration $k$; then, for $k>0$, we identify as $C_{k}$ the polyhedron defined by all the associated shrinking cuts as follows:

[TABLE]

(We are assuming $x_{0}:=\tilde{x}_{0}$). Therefore, at Step 2, we generate an extreme point $\tilde{x}_{k}$ by minimizing the linear function $\nabla f(x_{k})^{\top}(x-x_{k})$ over the polyhedral set $X\cap C_{k}$. Finally, at Step 3, if $\nabla f(x_{k})^{\top}(\tilde{x}-x_{k})\geq 0$, the algorithm stops, otherwise we update $X_{k}$ by adding the point $\tilde{x}_{k}$ and $C_{k}$ by adding the cut $\nabla f(x_{k})^{\top}(x-x_{k})\leq 0$.

Below, we report the detailed scheme related to the simplicial decomposition algorithm with shrinking cuts (see Algorithm 6).

In practice, we implemented the algorithm with the two following variants:

• •

At the end of Step 2, after the solution of the pricing problem, we remove all shrinking cuts that are not active. In this way we are sure to have a pricing problem that is computationally tractable by keeping its size under control.

• •

After a considerably large number of iterations $\bar{k}$, no more shrinking cuts are added to the pricing. This is done to ensure the convergence of the Algorithm.

Finite convergence of the method is stated in the following Proposition:

Proposition 4

Simplicial decomposition algorithm with shrinking cuts obtains a solution of Problem (1) in a finite number of iterations.

Proof. We first show that at each iteration the method gets a reduction of $f$ when suitable conditions are satisfied. Since at Step 2 we get an extreme point $\tilde{x}_{k}$ by solving subproblem (11), if $\nabla f(x_{k})^{\top}(\tilde{x}_{k}-x_{k})<0$, we have that $d_{k}=\tilde{x}_{k}-x_{k}$ is a descent direction and there exists an $\alpha_{k}\in(0,1]$ such that $f(x_{k}+\alpha_{k}d_{k})<f(x_{k})$. Since at iteration $k+1$, when solving the master problem, we minimize $f$ over the set $conv(X_{k+1})$ (including both $x_{k}$ and $\tilde{x}_{k}$), then the minimizer $x_{k+1}$ must be such that

[TABLE]

Extreme point $\tilde{x}_{k}$, obtained solving subproblem (11), can only satisfy one of the following conditions

$\nabla f(x_{k})^{\top}(\tilde{x}_{k}-x_{k})\geq 0$. Hence we get

[TABLE]

that is necessary and sufficient optimality conditions are satisfied and $x_{k}$ minimizes $f$ over the feasible set $X\cap C_{k}$. Furthermore, if $x\in X\setminus C_{k}$, we get that there exists a cut $c_{i}$ with $i\in\{0,\dots,k-1\}$ such that

[TABLE]

Then, by convexity of $f$, we get

[TABLE]

so $x_{k}$ minimizes f over $X$. 2. 2.

$\nabla f(x_{k})^{\top}(\tilde{x}_{k}-x_{k})<0$, that is direction $d_{k}=\tilde{x}_{k}-x_{k}$ is descent direction and

[TABLE]

Indeed, since $x_{k}$ minimizes $f$ over $conv(X_{k})$ it satisfies necessary and sufficient optimality conditions, that is we have $\nabla f(x_{k})^{\top}(x-x_{k})\geq 0$ for all $x~{}\in~{}conv(X_{k})$.

Since from a certain iteration $\bar{k}$ on we do not add any further cut (notice that we can actually reduce cuts by removing the non-active ones), then case 2) occurs only a finite number of times. Thus case 1) will eventually occur. $\Box$

Obviously, combining the Shrinking cuts with the Early Stopping strategy can be done (this is a part of what we actually do in practice) and finite convergence still holds for the simplicial decomposition framework.

4 Computational results

4.1 Instances description

We used two sets of instances as test-bed: portfolio instances and generic quadratic instances. They are both described in the following subsections.

4.1.1 Portfolio optimization problems

We consider the formulation for portfolio optimization problems proposed by Markowitz in markowitz . The instances used have a quadratic objective function (the risk, i.e. the portfolio return variance) and only two constraints: one giving a lower bound $\mu$ on the expected return and one representing the so call “budget” constraint. The problem we want to solve is then described as follows

[TABLE]

where $\Sigma\in{\rm{I\!R}}^{n\times n}$ is the covariance matrix, $r$ is the vector of the expected returns, and $e$ is the n-dimensional vector of all ones.

We used data based on time series provided in beasley andcesarone . Those data are related to sets of assets of dimension $n=$ 226, 457, 476, 2196. The expected return and the covariance matrix are calculated by the related estimators on the time series related to the values of the assets.

In order to analyze the behavior of the algorithm on larger dimensional problems, we created additional instances using data series obtained by modifying the existing ones. More precisely, we considered the set of data with $n=2196$, and we generated bigger series by adding additional values to the original ones: in order not to have a negligible correlation, we assumed that the additional data have random values close to those of the other assets. For each asset and for each time, we generate from 1 to 4 new values, thus obtaining 4 new instances whose dimensions are multiples of 2196 (that is 4392, 6588, 8784, 10980).

For each of these 8 instances, we chose 5 different thresholds for the expected return: $0.006$, $0.007$, $0.008$, $0.009$, $0.01$, we thus obtained 40 portfolio optimization instances.

4.1.2 Generic quadratic problems

The second set of instances is of the form:

[TABLE]

with $Q\in{\rm{I\!R}}^{n\times n}$ symmetric and positive definite matrix, $c\in{\rm{I\!R}^{n}}$, $A\in{\rm{I\!R}}^{m\times n}$, $b\in{\rm{I\!R}^{m}}$ , $l,u\in{\rm{I\!R}^{n}}$ and $-\infty<l\leq u<+\infty$. In particular, $Q$ was built starting from its singular value decomposition using the following procedure:

• •

the $n$ eigenvalues were chosen in such a way that they are all positive and equally distributed in the interval $(0,3]$;

• •

the $n\times n$ diagonal matrix $S$, containing these eigenvalues in its diagonal, was constructed;

• •

an orthogonal, $n\times n$ matrix $U$ was supplied by the QR factorization of a randomly generated $n\times n$ square matrix;

• •

finally, the desired matrix $Q$ was given by $Q=USU^{\top}$, so that it is symmetric and its eigenvalues are exactly the ones we chose.

The coefficients of the linear part of the objective function were randomly obtained, in a small range, between $0.05$ and $0.4$, in order to make the solution of the problem quite sparse.

The $m$ constraints (with $m\ll n$) were generated in two different ways: step-wise sparse constraints (S) or random dense ones (R). In the first case, for each constraint, the coefficients associated to short overlapping sequences of consecutive variables were set equal to 1 and the rest equal to 0. More specifically, if $m$ is the number of constraints and $n$ is the number of columns, we defined $s=2*n/(m+1)$ and all the coefficients of each $i$-th constraint are zero except for a sequence of $s$ consecutive ones, starting at the position $1+(s/2)*(i-1)$. In the second case, each coefficient of the constraint matrix takes a uniformly generated random value in the interval $[0,1]$. The right-hand side was generated in such a way to make all the problems feasible: for the step-wise constraints, the right hand side was set equal to $f*s/n$, with $0.4\leq f\leq 1$ and for a given random constraint, the corresponding right-hand side $b$ was a convex combination of the minimum $a_{min}$ and the maximum $a_{max}$ of the coefficients related to the constraint itself, that is $b=0.75*a_{min}+0.25*a_{max}$.

Each class of constraints was then possibly combined with two additional type of constraints: a budget type constraint (b) $e^{\top}x=1$, and a ”relaxed” budget type constraints (rb) $slb\leq e^{\top}x\leq sub$. Summarizing, we obtained six different classes of instances:

• •

S, instances with step-wise constraints only;

• •

S-b, instances with both step-wise constraints and budget constraint;

• •

S-rb, instances with both step-wise and relaxed budget constraints;

• •

R, instances with dense random constraints only;

• •

R-b, instances with both dense random constraints and budget constraint;

• •

R-rb, instances with both dense random and relaxed budget constraints.

For each class, we fixed $n=2000,3000,\dots,10000$, while the number of both step-wise and dense random constraints $m$ was chosen in two different ways:

$m=2,\,22,\,42$ for each value of $n$;

• 2)

$m=n/32$, $n/16$, $n/8$, $n/4$, $n/2$ for each value of $n$.

In the first case, we then have problems with a small number of constraints, while, in the second case, we have problems with a large number of constraints. Finally, for each class and combination of $n$ and $m$ we randomly generated five instances. Hence, the total number of instances with a small number of constraints was 450 and the total number of instances with a large number of constraints was 750.

4.2 Preliminary tests

Here, we first describe the way we chose the Cplex optimizer for solving our convex quadratic instances. Then, we explain how we set the parameters in the different algorithms used to solve the master problem in the SD framework.

4.2.1 Choice of the Cplex optimizer

As already mentioned, we decided to benchmark our algorithm against Cplex version 12.6.2 (see cplex for further details). The optimizers that can be used in Cplex for solving convex quadratic continuous problems are the following: primal simplex, dual simplex, network simplex, barrier, sifting and concurrent. The aim of our first test was to identify, among the 6 different options, which is the most efficient for solving instances with a dense $Q$ and $n\gg m$.

In Table 1, we present the results concerning instances with 42 constraints and three different dimensions $n$: 2000, 4000 and 6000. We chose problems with a small number of constraints in order to be sure to pick the best Cplex optimizer for those problems where the SD framework is supposed to give very good performances. For a fixed $n$, three different instances were solved of all six problem types. So, each entry of Table 1 represents the averages computing times over 18 instances. A time limit of 1000 seconds was imposed and in brackets we report (if any) the number of instances that reached the time limit.

The table clearly shows that the default optimizer, the barrier and the concurrent methods give poor performances when dealing with the quadratic programs we previously described. On the other side, the simplex type algorithms and the sifting algorithm seem to be very fast for those instances. In particular, sifting gives the overall best performance. Taking into account these results, we decided to use the Cplex sifting optimizer as the baseline method in our experiments. It is worth noticing that the sifting algorithm is specifically conceived by Cplex to deal with problems with $n\gg m$, representing an additional reason for comparing our algorithmic framework against this specific Cplex optimizer.

4.2.2 Tolerance setting when solving the master problem

We have three options available for solving the master problem in the SD framework: ACDM, FGPM and Cplex. In order to identify the best choice, we need to properly set tolerances for those methods. When using Cplex as the master solver, we decided to keep the tolerance to its default value (that is $1E10-6$). The peculiar aspect of ACDM is that no tolerance needs to be fixed a priori. On the other hand, with FGPM, the tolerance setting phase is very importance since, as we will see, it can significantly change the performance of the algorithm in the end.

In Table 2, we compare the different behaviors of our SD framework for the three different choices of master solver. Each line of the table represents the average values concerning the 54 instances used in the previous experiment. Column “T” represents the time (in seconds) spent by the algorithms. “Er” and “Max Er” represent the average and maximum relative errors with respect to the value found by Cplex (using sifting optimizer). “Ei” and “Max Ei” represent the average and maximum distance (calculated using $\ell_{\infty}$ norm) from the solution found by Cplex. In the last column, “Dim” represents the dimension of the final master program.

By taking a look at the table, we can easily see that the ACDM based SD framework gets the best results in terms of errors with respect to Cplex. We can also see that the performance of the FGPM based one really changes depending on the tolerance chosen. If we want to get for FGPM the same errors as ACDM, we need to set the tolerance to very low values, thus considerably slowing down the algorithm. In the end, we decided to use a tolerance of $10E-6$ for FGPM, which gives a good trade-off between computational time and accuracy. This means anyway that we gave up precision to keep the algorithm fast with respect to ACDM.

4.3 Numerical results related to the complete testbed

Now, we analyze the performances of our SD framework when choosing different options for both solving the master and the pricing problem. Summarizing, we used three different methods for solving the master: Cplex, ACDM and FGPM. As for the pricing problems, we considered the use of the Early stopping (E) technique described in Section 3.2.1 and the Shrinking cuts (Cuts), described in Section 3.2.2. A further option we used in the SD framework is the use of the LP sifting optimizer in the solution of the pricing problem instead of the standard one. We also notice that, in order to save CPU time, the vertex dropping rule described in Section 2 was always used in the framework. Summing up, for each choice of the master solver, we compared 8 different sets of options related to the pricing solver, indicated as follows:

$\bullet$ Default (D) $\bullet$ Sifting (Sif)

$\bullet$ Cuts (C) $\bullet$ Sifting+Cuts (Sif-C)

$\bullet$ Early stopping (E) $\bullet$ Sifting+Early stopping (Sif-E)

$\bullet$ Cuts+Early stopping (CE) $\bullet$ Sifting+Cuts+Early stopping (Sif-CE)

4.3.1 Portfolio optimization instances

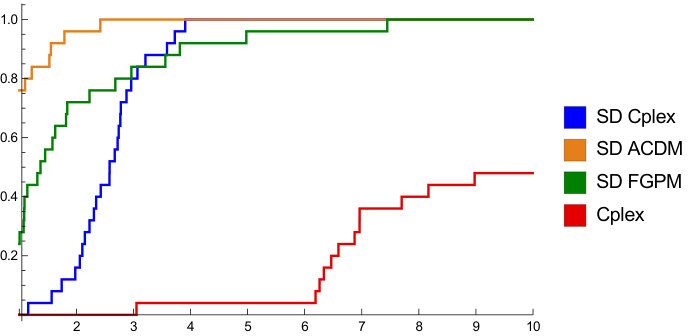

Firstly, we tested the framework on the portfolio optimization instances. For the largest values of $n$, that is $n>2000$, in Figure 1, we show the performance profiles related to the framework with the three different master solvers and the sifting Cplex optimizer. We produced the performance profiles according to Dolan2002 and using the software Mathematica version 10.2 (see mathematica for further details). For each SD method, the best pricing option was considered. We can easily notice that the best choice in terms of master solver is ACDM.

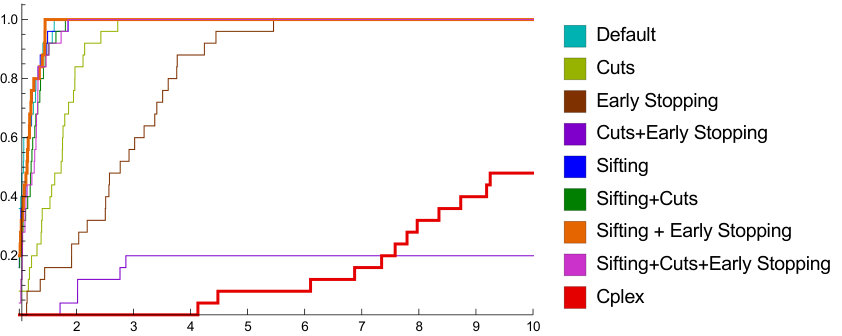

In Figure 2, we report the performance profiles related to the best master solver (that is ACDM) for the different pricing options. As we can see, the best option for the pricing is Sifting + Early Stopping.

4.3.2 Generic quadratic instances

Small number of constraints (GS)

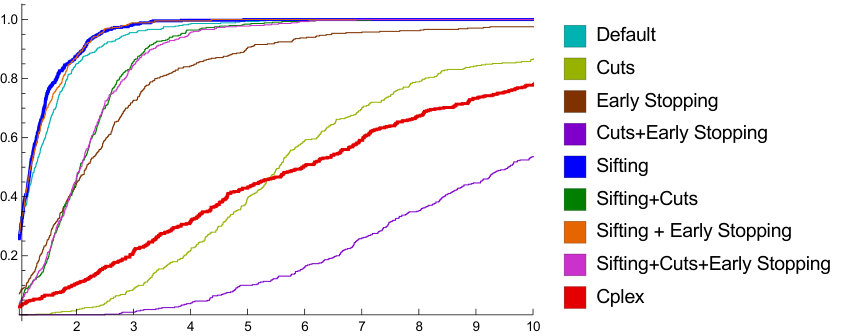

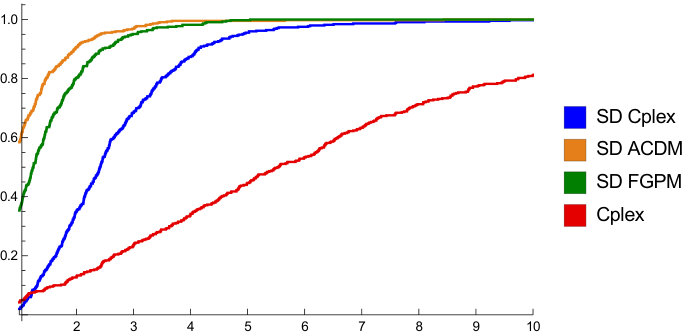

We first analyze the results related to the generic quadratic problems with a small number of constraints. The performance profiles reported in Figures  3 and 4 are related to all classes of constraints described before.

Similarly to the results on portfolio instances, ACDM represents the best choice for solving the master; sifting is the best pricing option for ACDM, whose performance does not change a lot with the addition of the Early stopping strategy.

Large number of constraints (GL)

Here, we analyze the results obtained for instances with a larger number of constraints. We need to keep in mind, anyway, that our SD framework works well only when the number of constraints is significantly smaller than the number of variables.

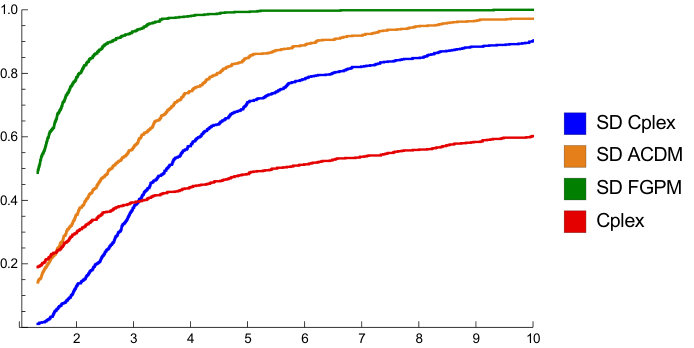

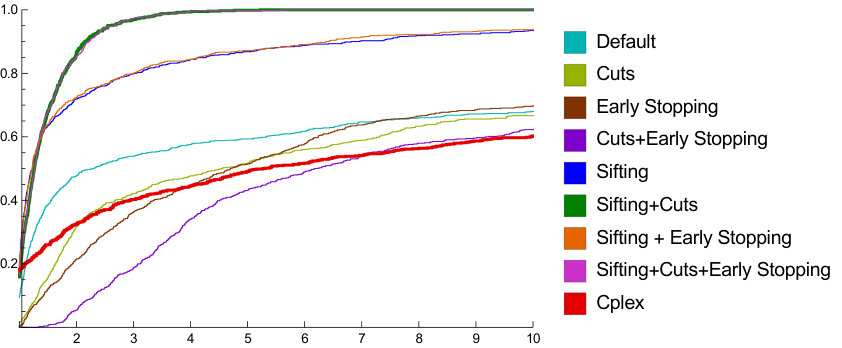

Analogously as before, in Figures 5 and  6, we analyze the performances of the framework for the different choices of master solvers and pricing options. The results are compared using performance profiles (we consider all types of constraints in the analysis).

In this case something different happens:

• •

Cplex, SD ACDM and SD Cplex, reach the time limit on some instances;

• •

the best master solver now is clearly FGPM. SD ACDM and SD Cplex are even worse than Cplex in terms of efficiency, but are more robust.

• •

the best pricing option is Sifting + Cuts. So, the use of this type of cuts, which was ineffective when dealing with portfolio and GS instances, significantly improves the performance here. We get the same improvement when using the other master solvers too.

As we said, some of the algorithms did not solve all the instances within the time limit of 1000 seconds. In particular, 122 instances out of 750 were not solved by Cplex, only 8 by SD Cplex and 4 by SD ACDM (both with the Sifting + Cuts option); SD FGPM (with the Sifting + Cuts option), on the other side, solved all the instances within the time limit.

The biggest difference with respect to the previous results is that now the performance profiles of SD FGPM are better than those obtained using the other methods (and, in particular, better than SD ACDM, which was the best one so far). The reason why this happens will become clearer later on (see Section 4.5), when an in-depth analysis of the results will be shown. We anyway need to keep in mind that SD ACDM usually gives better solutions in terms of errors when compared with SD FGPM.

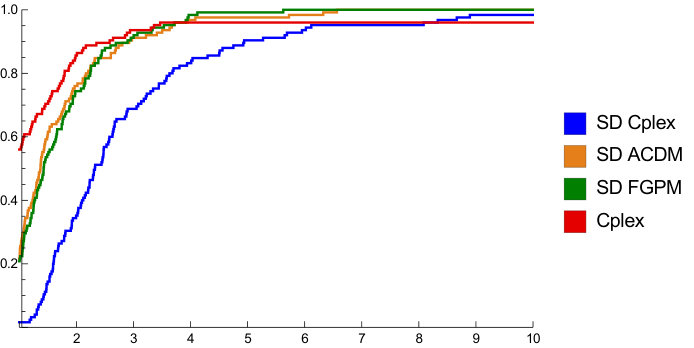

Even though the overall results clearly say that the SD method is better than the Cplex sifting optimizer, for a subset of instances this is not always true. Indeed, after analyzing the results for each specific type of instance, we noticed that for the GL problems with dense random constraints and with the addition of the budget constraint, the results of our SD framework were a bit worse than those obtained using Cplex. Performance profiles related to those results are reported Figure 7.

4.4 CPU time usage in the SD framework

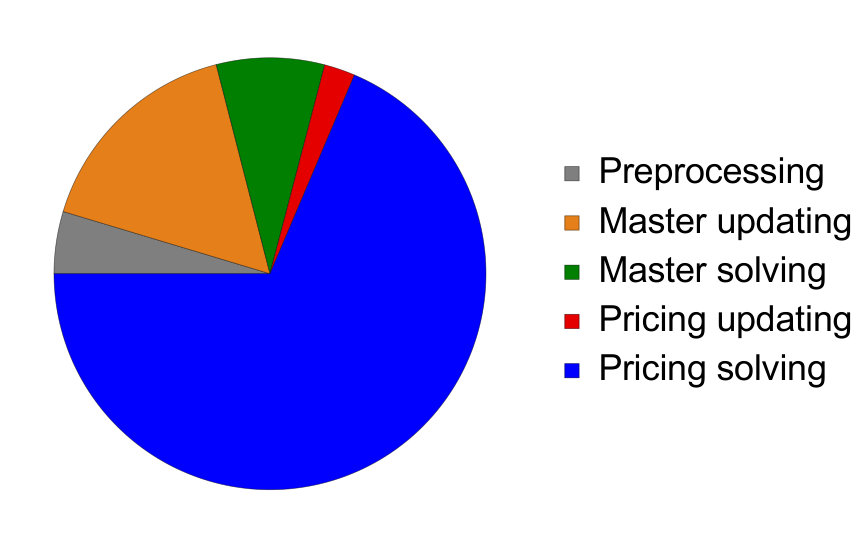

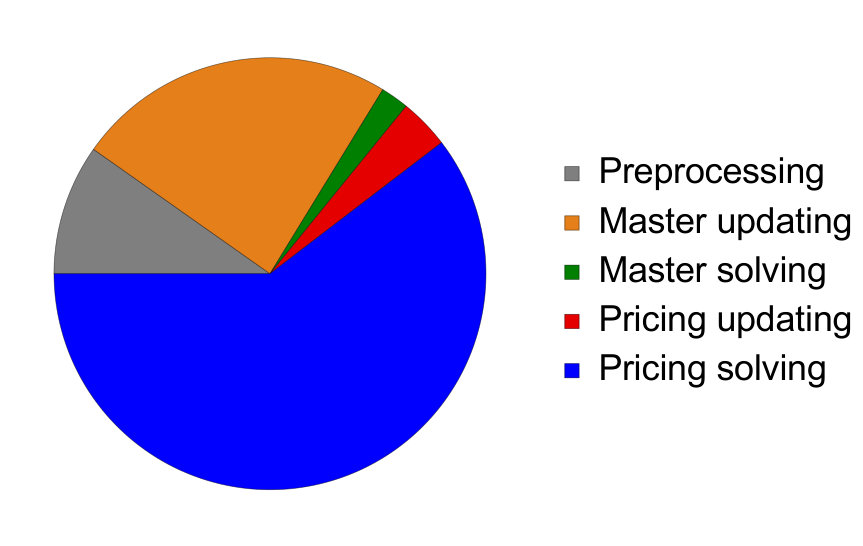

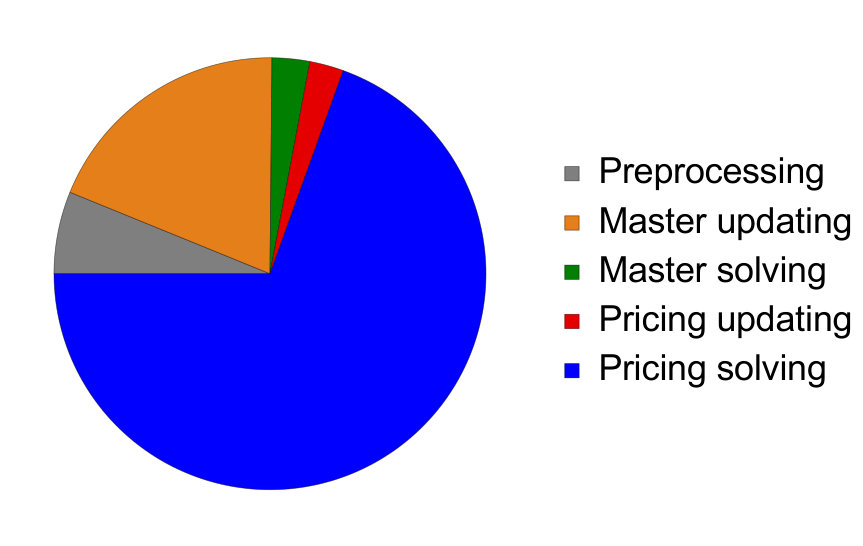

Now we analyze the way CPU time is used in the SD framework, that is we show the average CPU time needed for preprocessing data, solving the master problems and solving the pricing problems (failures are not considered in the analysis). In Figure 8, we report the aggregated results over all the solved instances. In each figure, we report the time spent by SD in the preprocessing phase of the algorithm (preprocessing), in the solution of the master and pricing problem. The solving time of both the pricing and master problem is split in the time needed to update the data structure (updating) and the time needed to solve to problem (solvers). For each figure we provide also the average computing time over the whole testbed.

Table 3 contains the average number of iterations needed to achieve the solution and the average dimension of the last master program, which is the dimension of the optimal face in the original domain.

In particular, one can note that the dimension of the last master is greater when using SD Cplex (i.e., both SD ACDM and SD FGPM tend to find sparser solution than SD Cplex). From these tables it is also clear that SD FGPM saves time with respect to SD ACDM mainly because it needs less iterations to satisfy the stopping criterion. This is mainly due to the tolerance chosen for FGPM. As we have seen before, the choice made gives, on one side, better results in terms of CPU time, but, on the other side, it gives a slight deterioration of the solution quality in all instances. It is also worth noticing that:

• •

the reduction obtained by SD FGPM with respect to SD ACDM, in terms of average number of iterations, is around $25\%$ (see Table 3);

• •

the average CPU time needed for solving the pricing in SD FGPM is nearly halved with respect to SD ACDM.

The CPU time reduction in the pricing phase seems to be caused by two different factors: pricing problems in SD FGPM get very similar very soon thus requiring less iterations of the LP method to be solved; shrinking cuts are more effective when embedded into SD FGPM.

Summarizing, SD ACDM is more precise and reliable. Furthermore, it gives the best performances when dealing with portfolio an GS instances. SD FGPM seems to be a good choice when dealing with GL instances (we find good solutions in a smaller amount of time).

4.5 In-depth analysis

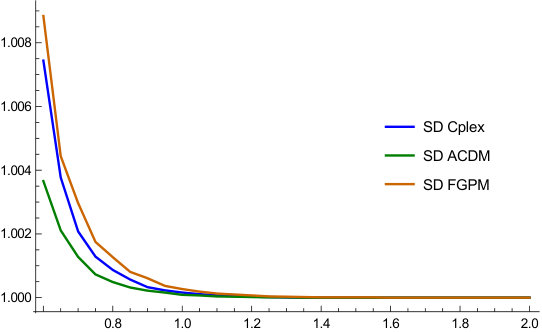

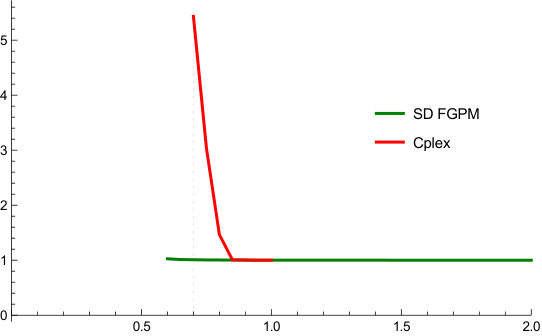

In order to better analyze the behavior of the SD framework, we show now how the objective function value changes with respect to the elapsed time. Since we want to get meaningful results, we only consider those instances solved in more than 10 seconds (but always within the time limit of 1000 seconds). In particular, we consider instances with random dense constraints and we take a set of 25 instances for each of the three types of additional constraints. Hence, we plot

• •

on the x-axis the CPU time ratio, that is the CPU time elapsed divided by the overall time needed by Cplex to get a solution on the same instance.

• •

on the y-axis the objective function ratio, that is the objective function value divided by the optimal value obtained by Cplex on the same instance.

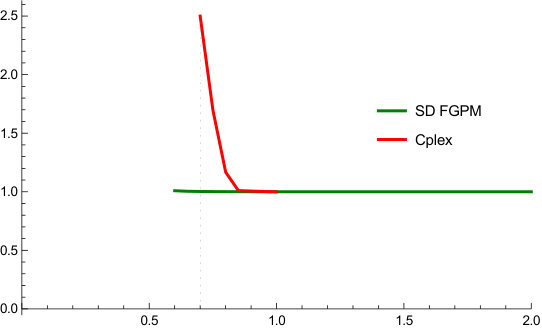

All the results are averaged over the whole set of instances. For the SD framework, we plot the results up to twice the time needed by Cplex to get a solution. In the analysis, we always consider the setting ”Sif-CE”, which considers all the pricing options (and gives same performance as the best one). Figures 9 and 10 show the overall results for the 75 instances considered: the first figure shows the comparison between Cplex and SD FGPM, while the second one shows the comparison of the three different SD framework versions. From the comparison of Cplex and SD FGPM, it is easy to notice that SD gets a good objective function value very soon. Indeed, at a CPU time ratio 0.6 (i.e., $60\%$ of the overall Cplex CPU time) corresponds an objective function ratio slightly bigger than 1 for SD FGPM, while at the same CPU time ratio Cplex still needs to find a feasible solution. Cplex gets a first feasible solution for a CPU time ratio equal to 0.7 (in this case the objective function ratio is bigger than 2.5), and it obtains an objective function ratio close to 1 only for a CPU time ratio bigger than 0.8. By taking a look at the comparison of the three different versions of our SD framework, we notice that SD FGPM actually takes longer than the others to get an objective function ratio close to 1. The better results obtained for SD FGPM hence depend, as we already noticed, on the way we choose the tolerance in the master solvers. Finally, in Figure 11, we report the plots related to those instances where Cplex outperforms the SD framework. Once again, we can see that SD FGPM gets a good objective function ratio very soon, while Cplex takes much longer to obtain a similar ratio.

5 Conclusions

We presented an efficient SD framework to solve continuous convex quadratic problems. It embeds two ad-hoc methods for solving the master problem, namely an adaptive conjugate directions based method and a fast gradient projection method. Furthermore, three different strategies to speed up the pricing are included: an early stopping technique, a method to shrink the feasible region based on some specific cuts, and a sifting strategy to solve the pricing problem.

We showed, through a wide numerical experience, that our algorithm is better than Cplex when dealing with instances with a dense Hessian matrix and with a number of constraints considerably smaller than the number of variables.

In Table 4, we summarize the recommended settings with respect to the instances we solved. For portfolio instances (PORTFOLIO), the best master solver is ACDM and the best pricing option is sifting with early stopping. For generic quadratic instances with a small number of constraints (SMALL m) the best master optimizer is again ACDM and the the best pricing option is sifting. Finally, for generic quadratic instances with a large number of constraints (LARGE m) the cuts play an important role (best pricing option is sifting with cuts) and FGPM is the best master solver.
