Faraday's Law and Magnetic Induction: cause and effect, experiment and theory

TL;DR

This paper critically examines Faraday's Law, highlighting the distinction between causality and mathematical expression, and explores how explicit causal equations might be formulated within electromagnetic theory.

Contribution

It analyzes various approaches to explicitly incorporate causality into Faraday's Law, clarifying the relationship between experimental causality and mathematical formulation.

Findings

The standard equation does not directly encode causality.

Explicit causal formulations are possible but complex.

The distinction impacts understanding of electromagnetic induction.

Abstract

Faraday's Law of induction is often stated as "a change in magnetic flux causes an EMF"; or, more cautiously, "a change in magnetic flux is associated with an EMF"; It is as well that the more cautious form exists, because the first "causes" form is incompatible with the usual expression $V = - \partial_t \Phi$. This is not, however, to deny the causality as reasonably inferred from experimental observation - it is the equation for Faraday's Law of induction which does not represent the claimed cause-and-effect relationship. Here I investigate a selection of different approaches, trying to see how an explicitly causal mathematical equation, which attempts to encapsulate the "a change in magnetic flux causes ..." idea, might arise.

Figures

Equations

$$\mathcal{V}$$

$${\partial }_t\Phi$$

$$\underset{\delta \to 0}{\lim }\frac{R(t_0+\delta )-R(t_0-\delta )}{2\delta }$$

$$\frac{R(t_0+\delta )-R(t_0-\delta )}{2\delta }$$

$$R(t_0+\delta )$$

$$Q(t_0)$$

$${\partial }_t\mathcal{V}$$

$${\partial }_t\mathbf{B}$$

$${\int }_S\mathbf{dS}\cdot {\partial }_t\mathbf{B}$$

$${\partial }_t{\int }_S\mathbf{dS}\cdot \mathbf{B}$$

$${\partial }_t\Phi$$

$${\partial }_t\mathbf{D}$$

$${\int }_S\mathbf{dS}\cdot {\partial }_t\mathbf{D}$$

$$ϵ{\partial }_t{\int }_S\mathbf{dS}\cdot \mathbf{E}$$

$$\nabla \times {\partial }_t\mathbf{D}$$

$$ϵ{\int }_S\mathbf{dS}\cdot \left[\nabla \times {\partial }_t\mathbf{E}\right]$$

$$-{\int }_S\mathbf{dS}\cdot \left[\nabla \times \mathbf{J}\right]$$

$$ϵ{\partial }_t{\oint }_C\mathbf{dl}\cdot \mathbf{E}$$

$$-{\oint }_C\mathbf{dl}\cdot \mathbf{J}$$

$${\partial }_t{\oint }_C\mathbf{dl}\cdot \mathbf{E}$$

$$-{ϵ}^{-1}{\oint }_C\mathbf{dl}\cdot \mathbf{J},$$

$${\partial }_t\mathcal{V}$$

$$-{ϵ}^{-1}{\oint }_C\mathbf{dl}\cdot \mathbf{J}.$$

$${\partial }_t\mathcal{V}$$

$${\partial }_t\mathbf{p}=\mathbf{F}$$

$$d{\mathcal{V}}_L$$

$${\mathcal{V}}_L$$

$${\partial }_t{\mathbf{p}}_{bar}$$

$${\partial }_t{P}_{\text{bar}}$$

$${\partial }_t{\mathbf{p}}_{cur}$$

$${\partial }_t{P}_{\text{cur}}$$

Full text

I Introduction

Michael Faraday was the first person to publish experimental results on electromagnetic induction, a phenomenon which is frequently described as a current being induced when the magnetic flux through a conducting coil is changed.

The phenomenon is compactly described by a mathematical model relating the “electro-motive force” (EMF) $\mathscr{V}$ around a closed circuit to the temporal changes in magnetic flux $\Phi$ – the integral of the magnetic field over the surface delineated by that closure. This Faraday’s law of induction can be directly related to the Maxwell-Faraday vector equation (Bleaney and Bleaney, 1965, p.160). Using the notation where $\partial_{t}\equiv d/dt$, the equations are written as

[TABLE]

where $\bm{E}$ is electric field and $\bm{B}$ is magnetic field.

However, a fundamental law of causality demands that effects cannot occur before their causes; and this expectation has mathematical consequences. These consequences give rise in particular to the famous Kramers Kronig relations Bohren (2010); Landau and Lifshitz (1984); Lucarini et al. (2005), which can be used to constrain both the spectral properties of physical quantities and the models used to describe them.

Here we take a local view of causality, rather than a global one, and use the time domain most natural to expressions of causal behaviour. In this case a scheme exists Kinsler (2011) for attributing specific cause and effect roles to the components of mathematical models that are based on temporal differential equations111See also e.g. Corduneanu (2002, 2000) for mathematical details.. Most simply, this means that in any equation of the mathematical model it is the highest-order time derivative term which is to be regarded as the effect, with the other terms as causes; but note that it can also be applied to systems of coupled equations (e.g. Maxwell’s equations (Kinsler, 2011, Sec. V), as well as later in this paper in Subsec. V.2). As a simple example, since Newton’s second law can be written as $\partial_{t}\bm{v}=\bm{F}/m$, then according to Kinsler (2011), we can state that the force $\bm{F}$ causes a change in the velocity $\bm{v}$ of a mass $m$. The use of this interpretation is particularly natural when considering the computational solution of dynamic physical models (see (Kinsler, 2011, Appendix A), and where the main focus of attention is what happens as the current state of the system is updated Kinsler (2014, 2018) (i.e., integrated forwards in time), or as the universe extends itself into its “future” (as in e.g. the causal set approach Rideout and Sorkin (2000)).

Note that other discussions of and approaches to causality in electrodynamics relevant to Faraday’s Law do exist Jefimenko (2004); Hill (2010); Savage (2012). In particular, one significant school of thought prefers to relate everything back to the original source terms (see e.g. Jefimenko (2004), and remarks in (Kinsler, 2011, Appendix B)). Unfortunately, since Faraday’s Law contains no explicit references to source charges, we cannot analyse it in regards to cause and effect on that basis – we would need a different model that did refer to the source charges and their motions (e.g. see Boyer (2015)).

Consequently, in what follows we choose to only use the local and Kramers Kronig compatible definition Kinsler (2011) for what constitutes a causal interpretation of a mathematical model.

Using the local view of causality described in Kinsler (2011), since (1) has no time derivatives applied to $\mathscr{V}$, but one time derivative applied to $\Phi$, this means that the EMF $\mathscr{V}$ must be considered a cause, where the change in flux $\partial_{t}\Phi$ is its effect. As a consequence, it would be more intuitive to rewrite (1) instead as

[TABLE]

where we are likewise compelled to describe the spatial gradients of the electric field $\operatorname{\nabla}\operatorname{\times}\bm{E}$ as a cause, and the resulting temporal changes in field $\bm{B}$ as its effect. Somewhat disturbingly, this now means we are unable to interpret our mathematical model of Faraday’s law of induction as our preferred causal statement: i.e. where changes in flux induce an EMF (and hence drive currents) Thide (2004); Jackson (1999); Reitz et al. (1980). However, based on our mathematical model, we are still able to make the weaker statement where the two are merely equated or associated with one another222When looking up the definition of “induce” we see that it is in essence the same as “causes”. Some instances of the various phrasings of “cause”, “induce”, and “associated with” from the literature are discussed in the appendix..

How to be causal: Consider the simple model equation $\partial_{t}R(t)=Q(t)$, which under the interpretation used here is interpreted as “$Q$ causes changes in $R$”. Using the mathematical definition of the derivative, at some arbitrary time $t_{0}$ the model equation is

$\displaystyle\lim_{\delta\rightarrow 0}\frac{R(t_{0}+\delta)-R(t_{0}-\delta)}{2\delta}$ $\displaystyle=Q(t_{0}).$

(3)

Just before we take the limit, and for some small enough value of $\delta$, we have

$\displaystyle\frac{R(t_{0}+\delta)-R(t_{0}-\delta)}{2\delta}$ $\displaystyle=Q(t_{0}).$

(4)

Now let us try to use this as a predictor of the future. We immediately see that the latest-time (or most future-like) quantity is $R(t_{0}+\delta)$, so we rearrange to put this on the left, and get

$\displaystyle R(t_{0}+\delta)$ $\displaystyle=R(t_{0}-\delta)+2\delta Q(t_{0}).$

(5)

Here, we see that to update our knowledge of $R$ to its next value at $t+\delta$ requires (a) past knowledge of $R$ (i.e. $R(t_{0}-\delta)$) and (b) current knowledge of $Q$ (i.e. $Q(t_{0}$)). Thus it is clear that the value of $Q$ causes changes in $R$.

If we instead wanted to calculate $Q$, hoping to say something like “$R$ causes $Q$”, we would first rearrange (4) into

$\displaystyle Q(t_{0})$ $\displaystyle=\frac{R(t_{0}+\delta)-R(t_{0}-\delta)}{2\delta},$

(6)

but will immediately see that $Q(t_{0})$ depends on a future value of $R$, namely $R(t_{0}+\delta)$ – and a dependence on future values is incompatible with standard notions of causality.

This situation suggests that (2), despite its utility, is simply not a good causal representation of the experiment we had in mind. To resolve this we need to to make a clear distinction between the causality apparent in an experiment, and the causal interpretation of the mathematical model that is – necessarily – only an approximation to that experiment. While we would usually hope that these agree, it seems that in the case of Faraday’s law they do not, and in Sec. II we discuss why (or how) this can be.

Clearly, it would be desirable for our mathematical description of induction to explicitly show how EMF or electrical current could be generated in a conductor, whether by the varying properties of the magnetic field, or by motion of the conductor within those fields. In what follows we try three (non-relativistic) approaches to finding a mathematical model which describes how some property or behaviour of the magnetic flux (or perhaps just the magnetic field) is explicitly attributable as being the cause of an EMF.

The first, in section III is based on the Maxwell-Faraday equation, and fails. The second, in section IV, is based instead on the Maxwell-Ampere equation, and achieves that essential goal, but perhaps not in a very satisfactory way. The third, in section V, is based on the Lorentz force law, and we try both a simple abstract calculation as well as a specific setup, common in many undergraduate courses, and derive a model for the current due to magnetic fields and motion. Finally, in section VI, we conclude.

This undergraduate level presentation discussing magnetic induction highlights the distinction between any inferred experimental causality and that encoded in its mathematical model. It shows that the apparently useful definition of an EMF actually works against our attempts to generate a model where it is induced by changes in magnetic flux. In contrast, an alternative focus on the electrical currents generated by motion and or magnetic field variation has no such limitations.

II Experiment

Consider an example experiment consisting of two pieces of apparatus, (i) a magnet, and (ii) a loop or coil with a voltmeter attached, as depicted in fig. 1. When we move the magnet in the vicinity of the loop, we see a voltage induced. On the basis of this experimental experience, it is therefore quite natural – and indeed accurate – to infer that moving the magnet caused a voltage (or EMF) appear. If also a student of physics, we might then also relate the motion of the magnet to the amount of magnetic flux crossing the loop, and so say our experiment indicates that “a change in flux causes an EMF”.

The “experimental causality” just described is not controversial. However, what is under examination here is the conflation of this experimental experience of causality with any causal interpretation of the mathematical expression of Faraday’s Law, i.e. (2).

For a better understanding we need to start by being clearer about why we might deduce that the voltage was caused by our actions in moving the magnet. Notably, we should realise that this is not merely because we saw a finite voltage registered on the voltmeter, since it might simply have been poorly zeroed and always have some finite reading, or offset by the effects of some external field irrelevant to the induction experiment. Instead, we say “caused” because after (and as) we moved the magnet near the loop, the voltage changed. The change in voltage is the visible effect that leads us to look for its cause. At the very least, then, we should want our causal model of induction to describe how changes in voltage (“EMF”) occur due to external stimuli.

Let us now try to mathematically codify our experiment, allowing for the pre-defined input (the motion of the magnet), while looking for the resulting effect on the output (the EMF $\mathscr{V}$). Assuming for simplicity a fixed-strength magnet, with an equally fixed orientation, the sole input to our model only needs to be its velocity $\bm{v}(t)$. This $\bm{v}(t)$ is the cause; it is something we specify in the experimental design and then implement. We are hoping – or expecting – this cause to give rise to a change. This change should be visible as an effect on the measured EMF, so that at one moment it might be zero, but the next it will be different – i.e. it should change with time, and somehow as a result of the cause $\bm{v}(t)$. Thus we might write

[TABLE]

where $\mathscr{L}()$ is a function or operator understood to contain all the necessary information about electromagnetism, the field pattern produced by the magnet, the Lorentz force law on charges, and circuit theory.

We can at a glance now see that the structure of the mathematical model (7) for our experiment is not of the same form as Faraday’s Law: (2) only explicitly refers to changes in flux $\partial_{t}\Phi$, and not to changes in EMF. Indeed, this should not need be surprising, since (2) is not even an attempt at a microscopic model of the experimental process, where the moving magnet produces a changing electromagnetic field distribution, which then goes on to influence the motion of electrons, producing or changing electrical currents (e.g. Boyer (2015)), and thus subsequently giving rise to an EMF. Since so much experimental detail is omitted from (2), it is not at first sight clear why we should expect the two to match at all, let alone perfectly.

Nevertheless, in what follows we will attempt to find a Faraday-like law that matches better to our experimental concept.

III Maxwell-Faraday Equation

First let us consider the standard derivation of Faraday’s law of induction starting with the curl Maxwell’s equation; note however some approaches take the reverse approach, and start with induction and reduce it to the curl equation.

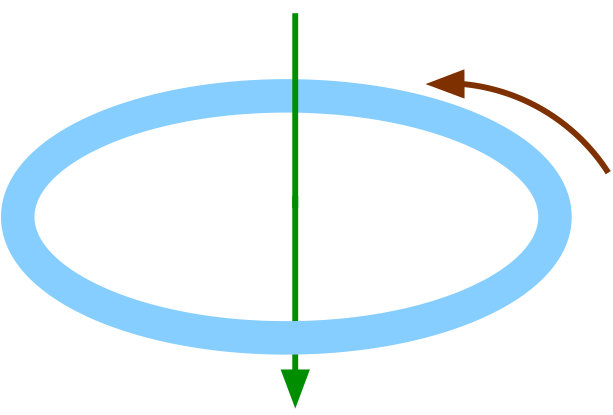

We start with a loop of material, and regard that loop as the boundary $C$ of some enclosed surface $S$, and treat the electric and magnetic fields $\bm{E}$ and $\bm{B}$, as in fig. 2 The derivation proceeds by starting with the Maxwell-Faraday equation, taking a surface integral of both sides, and then applying Stokes’ theorem to the LHS in order to convert that surface integral into a line integral over elements $\bm{dl}$ along $C$:

[TABLE]

The causal interpretation of this equation must be Kinsler (2011) that the EMF “causes” changes in flux $\Phi$ – we cannot in fact take the common interpretation that changes in flux induce (or cause) an EMF. Note that this is not an interpretation of experimental facts or observations, but one based on the mathematical model. A causal diagram Kinsler (2015) for the mathematical model is shown in fig. 3.

Further, note that the EMF, i.e. $\mathscr{V}=\oint_{C}\bm{dl}\cdot\bm{E}$, which is supposed to represent the current-generating potential induced in the wire, is not calculated as we perhaps might have expected: i.e. by following a single charge on its path around a conducting loop to work out the voltage difference traversed. Instead what we have done is consider the forces applied to a continuous line of infinitesimal charges on the loop at a single instant, and integrated those forces. Without a model for the motion of these charges, what we have modelled is more like a dielectric ring, with bound charges and currents tied to their own locations, and not a conducting wire loop with freely moving charges and currents Kumar (2017).

Of course, from a practical perspective Faraday’s Law of induction derived above and shown in eqn. (1) is an exceedingly useful expression, and it is compatible with experimental measurements. Notably, in an electric motor or generator, the speed of the axle’s rotation supplies us a natural angular frequency $\omega$, so that the time derivative of flux becomes a simple multiplication by $\omega$; and further, in such a quasi-stationary case, attribution of causality becomes unimportant. However, its utility is not any guarantee that it will supply a mathematical model encapsulating the casual properties that we might hope for for the generation of EMF. Neverthless, we will see later in section V that this difficulty is not present when finding models that show effects on the current as a result of changes in magnetic field or flux.

IV Maxwell-Ampere Equation

In section III we saw that the Maxwell-Faraday equation did not provide the causal interpretation we wanted. Consequently, let us try an alternative derivation for a model of induction starting with the curl Maxwell’s equation that represents Ampere’s Law. The aim here is to show how some suitable property of the magnetic field – hopefully related to a magnetic flux – explicitly causes an EMF to change. This would mean we can address the generation of an EMF from nothing, and use that to motivate how an induced current will appear. Since we have seen in the preceeding section that according to Kinsler (2011), the Maxwell-Faraday equation is the wrong way around to motivate a “magnetic fields causing (inducing) current” picture, the Maxwell-Ampere equation with its reversed roles for electric and magnetic contributions may seem more promising.

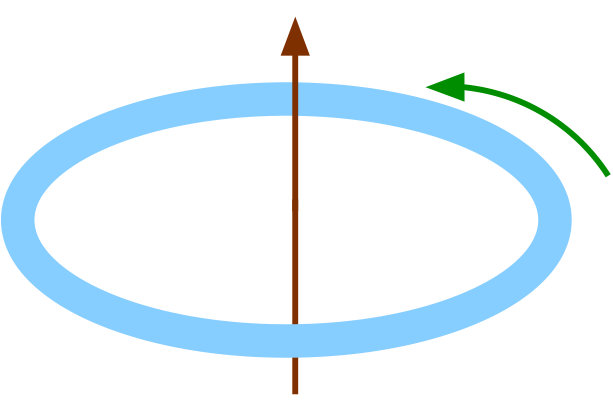

Again we take a loop containing charges, with enclosed surface $S$ and boundary $C$, and treat the electric displacement and magnetic induction fields $\bm{D}$ and $\bm{H}$, as in fig. 4. The derivation proceeds by starting with the Maxwell-Ampere equation, taking a surface integral of both sides, and then applying Stokes’ theorem to the RHS in order to convert that surface integral into a line integral:

[TABLE]

where $\bm{J}$ is the electric current.

From this we can straightforwardly see that neither an EMF or a flux $\Phi$ emerges. But some further thought leads us to more success by means of taking the curl of both sides before applying the surface integral. With $\epsilon$ being the permittivity, and $\mu$ the permeability, we have:

[TABLE]

This equation does now give us an EMF from the LHS line integral, calculated just as in section III. Since $\operatorname{\nabla}\cdot\bm{B}={0}$, we can therefore write

[TABLE]

This result is an induction-like equation which we can give a well defined causal interpretation where the EMF is caused: being that spatial variations in $\bm{B}$ (or, when integrated, spatial variations in flux), drive changes in EMF; as do currents.

Although we could try to treat this general case, it is instructive to simplify this and take the case of zero current, and all $\bm{dS}$ oriented along $z$, and $\bm{B}$ primarily aligned along, and varying in, the $z$ direction, so that only its $B_{z}$ component is significant. Subject to these assumptions, and calculating the effective magnetic flux as $\Phi_{\textup{A}}=SB_{z}$, i.e. after moving the RHS surface integral through the spatial derivatives, we can write a simplified equation

[TABLE]

A causal diagram Kinsler (2015) for the model is shown in fig. 5.

As a final note, in situations where it is reasonable to replace $c\partial_{z}$ with a $\partial_{t}$, we can also recover something equivalent to the usual form, but with an extra time derivative on both sides. However, with this replacement the flux $\Phi_{\textup{A}}$ is again subjected to the highest order time derivative. Thus the induction model has also returned to the same causal interpretation – one that is reversed from our “flux as a cause” preference.

V Lorentz Force Law

Despite the relatively familiar nature of the calculations in sections III and IV, in many ways it might be seen as more natural to derive a model of induction of current by starting with the Lorentz Force Law for the momentum $\bm{p}$ of an electric charge $q$ in a purely magnetic field:

[TABLE]

This is in and of itself a model where changes in the charge’s momentum are caused by the (magnetic) Lorentz force $\bm{F}$.

As in the previous calculations, we now hope to find it useful to define an EMF-like quantity. However, whereas those calculations derived EMF from a line integral of the electric field, here we instead base it on an integral over charges that are moving; and to emphasize this distinction we denote it $\mathscr{V}_{L}$ rather than simply $\mathscr{V}$.

V.1 A simple loop

Here we will apply it to (one of) the charges in our conducting loop. This is a more general formulation of that in Bleaney and Bleaney (Bleaney and Bleaney, 1965, p.160), but they use it merely as a support for something equivalent to the standard calculation as done in section III.

Since $\mathscr{V}_{L}=W/q$ for potential (EMF) $\mathscr{V}_{L}$, work $W$, and charge $q$, and work increment on a charge is given by $dW=\bm{F}\cdot\bm{dl}$ with force $F$ along line element $\bm{dl}$,

[TABLE]

First we line-integrate over the loop (contour $C)$ containing charges of $q$ and travelling at $\bm{v}$, to get the total EMF $\mathscr{V}_{L}$,

[TABLE]

Next we convert the RHS line integral to a surface integral of a curl by Stoke’s theorem

[TABLE]

so that now we can use the standard vector identity for $\operatorname{\nabla}\operatorname{\times}(\bm{A}\operatorname{\times}\bm{B})$,

[TABLE]

The first term vanishes since $\operatorname{\nabla}\cdot\bm{B}=0$; and we can further simplify by removing the second term if the velocity field for the charges (essentially the scaled current) has no sources or sinks. Here, for convenience, we go further and insist on a constant velocity field $\bm{v}$ so that the third term also vanishes. The result is

[TABLE]

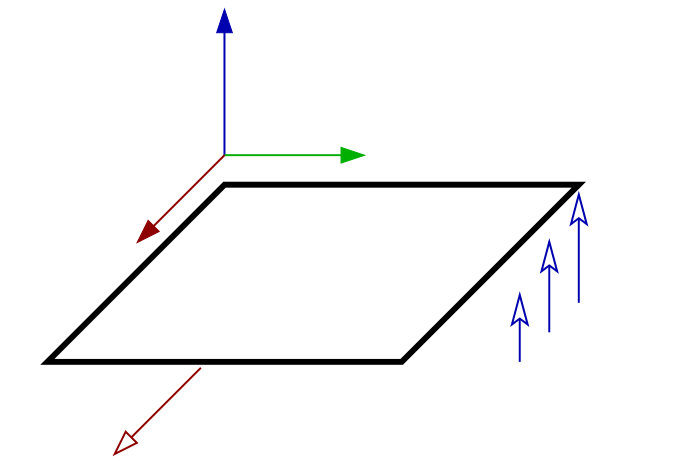

To make this result easier to understand, we further simplify the situation as shown in fig. 6, considering a square loop in the $xy$ plane, which bounds the surface $S$ whose area $S$ is perpendicular to the $z$ axis. The magnetic field is oriented along $z$, so that the only non-zero component is $B_{z}$, and it varies only along $x$, and at a fixed rate. We then move our loop sideways parallel to the $x$ axis at a fixed speed $v$, so that we get a straightforward equality, but one without any time derivatives, and therefore no implied causality:

[TABLE]

This seems most closely related to the Maxwell-Ampere formulation in section IV, which also depends on spatial gradients of $B$. However, we could choose to adapt this relation by converting the numerator $dx$ part of the speed $v={dx}/{dt}$, and the denominator $dx$ part of the field gradient ${dB_{z}}/{dx}$, to get

[TABLE]

which is the normal expression of Faraday’s Law, if we assume the equivalence of $\mathscr{V}_{L}$ and $\mathscr{V}$, despite their being derived from different starting points. Regardless of this, we have still failed to find a mathematical model with the causal properties we are looking for; where properties of the magnetic field or its flux cause currents to appear or change.

V.2 U-shaped bar and moving rod

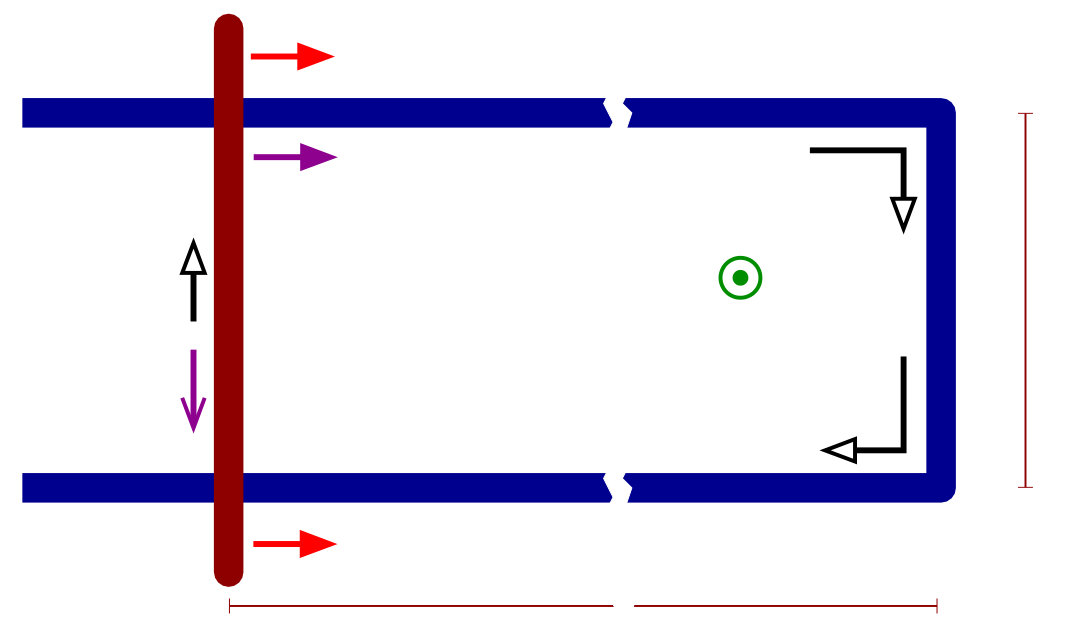

Let us now try to make more progress by treating a specific situation instead of abstract constructions. Consider the standard undergraduate style system of a long rectangular conducting U-shape in a constant magnetic field, with a conducting bar closing a current loop, as depicted in fig. 7. The bar then is said to slide along the arms of the U, thus changing the area enclosed by the loop, hence changing the enclosed flux. We might then straightforwardly apply Faraday’s Law from the LHS of (1), and use the rate of change of flux to calculate an EMF, and then (if we want to) an induced current associated with that EMF.

However, given our decision to insist on there being a particular causal interpretation, and because Faraday’s Law does not comply with that interpretation, we must therefore choose a different mathematical model. Since without assuming spatial gradients of the field, which are not a necessary feature of our example, we cannot use the Ampere-based expression in (19), we will start with the force law, However, using the Lorentz Force Law (21) means that we can see immediately that there are two forces on charges relevant here:

First, there is the the magnetic force on the charges in the bar, due to the motion of the bar in the magnetic field. This force is oriented along the bar, modifying the charge velocity (electric current) in the bar, and then by extension in the entire loop.

Second, there is a magnetic force on the charges in the bar, due to the along-bar motion of those charges (i.e. the current) in the magnetic field. This force pushes the charges perpendicular to the bar, which can be related to the Hall effect. Here we assume that this Hall effect rapidly polarizes the bar, on a timescale much faster than other processes, so that the net effect shows only in a residual slowing force on the bar itself.

This means that we can use the force law to calculate (a) how the current in the loop responds to the velocity ${\bm{v}}$ of the bar, and (b) how the motion of the bar responds to the current $\bm{J}$ in the loop. These will naturally be dynamic equations with an explicit causality.

Here we take the wire U to be fixed and rigid, so that any forces on it due to current flow within it, and/or the presence of electromagnetic fields, are neglected. The wire U itself has arbitrarily long arms with a separation and base length of ${L_{\textrm{bar}}}$, each with a linear charge density ${\sigma}$. The bar has mass $M$ and velocity ${\bm{v}}$, to give a momentum ${P_{\textrm{bar}}}$. It is mounted perpendicular to the wire U’s arms, a distance $L$ from their base, and (also) has a charge density ${\sigma}$ and length ${L_{\textrm{bar}}}$.

The current ${J}$ consists of flow of charges with forward momentum ${P_{\textrm{cur}}}$. It has a total charge ${Q}$, but with only ${q}={L_{\textrm{bar}}}{\sigma}$ in the bar, which is the only part that gets pushed by the magnetic force. If the (effective) mass density of the charges333Attempting to describe accurately how the charges respond as a group is difficult and complicated. One must somehow average over the many distinct microscopic influences on each charge: not only from its local environment in the conductor and any externally applied fields, but also the many interactions between it and the other charges Darwin (1936); Essen (2009); Boyer (2015) must be considered. Here we simply reduce the combined effect of all such complications down into an effective mass density. is ${\rho}$, the velocity of the charges along the bar is $\bm{u}$, and their speed is $u={P_{\textrm{cur}}}/{\rho}L_{\textrm{tot}}(t)$ where $L_{\textrm{tot}}(t)=2{L_{\textrm{bar}}}+2L(t)$. The corners of the U and the contacts between the U and the bar are assumed to divert (e.g. perhaps by elastic reflection) the charges around the loop (i.e. into their new direction), so that ${P_{\textrm{cur}}}$ is only either forward (clockwise on fig. 7) or backward (anticlockwise) around the loop; the charge density of the current is also assumed to be fixed444A further detail, neglected here, is that each movement of the bar either orphans or inherits some extra charges due to the change in side-wide length..

The total force on the bar is only due to the magnetic force, which needs to be summed over the length ${L_{\textrm{bar}}}$. Note that the field inside the loop is not important here, what counts is its strength at each point in the bar, at the instant the total force is integrated. The force density on each element of the bar is

[TABLE]

so that in total we get

[TABLE]

The total force on the current is not only the magnetic force, which needs to be summed over the bar’s length ${L_{\textrm{bar}}}$, but also includes a linear resistive term $\gamma(t)$, where $\gamma(t)=rL_{\textrm{tot}}(t)$ and $r$ is proportional to resistance per unit length. Note that (again) the field inside the loop is not important here, what counts is its strength along the bar at its current location. Since the speed of the bar along the wires is ${P_{\textrm{bar}}}/{M}$, the force density on each element of the current is

[TABLE]

so that in total, we have

[TABLE]

These are two linear coupled differential equations, and can be combined most easily by taking the time derivative of the ${P_{\textrm{cur}}}$ equation, and substituting one into the other. Simplifying the equations by not displaying the explicit time dependences of $L_{\textrm{tot}}(t)$ and $\gamma(t)$, we get

[TABLE]

where

[TABLE]

Note that we cannot directly replace ${P_{\textrm{cur}}}$ with current ${J}$ in the differential equations, since they are related via the total conductor length $L_{\textrm{tot}}(t)$. Further, the driving term dependent on $\partial_{t}B_{z}$ is proportional to $v(t)={P_{\textrm{bar}}}(t)/{M}$, which has its own dynamics: if the magnetic field is changing in time, it is not sufficient to try to solve only (37), we also need to consider (30).

Since there are some complicated interdependences contained within this result, we now consider some instructive special cases.

V.2.1 Constant magnetic field

Consider the case where the magnetic field is a constant over all time as well as space, so that $\partial_{t}B_{z}=0$; i.e. the third RHS term of (37) vanishes. Here, the bar, after being given an initial push, will oscillate forwards and backwards according to the frequency parameter $\Omega(t)$, but with the amplitude of those oscillations dying away with a rate given by $\gamma(t)$.

We can also see that for small variations in $L(t)$ and $L_{\textrm{tot}}(t)$, the frequency parameter will be effectively constant, and so become a true frequency of oscillation. In this regime, we can straightforwardly substitute $P_{\textrm{cur}}$ with the current $J=\sigma P_{\textrm{cur}}/\rho L_{\textrm{tot}}$, and get

[TABLE]

This would result in damped sinusoidal variations in current, and hence related oscillations in the speed of the bar; since the acceleration of the bar can be related to the current by (30).

V.2.2 Time varying magnetic field

The result (37) has retained the possibility for a time-dependent $B_{z}$. We can see that the change in the field $\partial_{t}B_{z}$ acts to accelerate the current, but in manner dependent on ${P_{\textrm{bar}}}$ (i.e. the bar velocity). So the current still wants to oscillate, albeit in a way unlikely to be a simple sinusoid, with the field changes acting as a driving term.

Note that causality is maintained, since the effect on ${P_{\textrm{cur}}}$ is second order in time, one order greater than that on $B_{z}$ Kinsler (2011, 2010).

V.2.3 EMF

We can now consider what (37) tells us about the EMF induced in the loop; and since whate we are doing is based on the Lorentz force law, we use EMF $\mathscr{V}_{L}$ rather than the usual Faraday Law $\mathscr{V}$. Since $\mathscr{V}_{L}$ is the work per unit charge, or the line (loop) integral of the force, and force is just the change in the momentum, we have that $\mathscr{V}_{L}=\sigma^{-1}\partial_{t}P_{\textrm{cur}}$. This means that for small changes in $L_{\textrm{tot}}(t)$, we can almost reuse (37) directly – we just apply another time derivative and substitute for $P_{\textrm{cur}}$, to get

[TABLE]

The equation might at a first glance appear to show time-like changes in the magnetic field causing alterations in the EMF. Of course, since it contains more model dependent detail, some differences with standard Faraday’s Law in (2) or the alternate Ampere-derived one in (19) are to be expected.

The difficulty now is that the right hand side, as a direct result of the conversion from ${P_{\textrm{cur}}}$ to $\mathscr{V}_{L}$ now has a second order time derivative acting on $B$, just as does the left hand side acting on $\mathscr{V}_{L}$. Since they have equal orders of time derivative, they share the same causal status – combined together correctly they could be interpreted as being the effect of the other terms in (40), i.e. the cause-like terms $\mathscr{V}_{L}$ and ${\partial_{t}}\gamma\mathscr{V}_{L}$, as well as ones involving $v$.

This means that (40) does not have the causal interpretation we were searching for, e.g. such as where first-order time-like changes in the magnetic field caused second-order alterations in the EMF.

V.3 Discussion

Here we have seen that for both our force law based calculations, i.e. the very simple one and the more realistic system, both fail to supply us with a result where properties of the magnetic field can be said to cause changes in the EMF. Nevertheless, the causal attributions like that which we aimed for can still be made by not referring to the EMF, but instead using statements like (changes in) magnetic field properties induce currents.

VI Conclusion

In this paper we have tried to search for a version or rederivation of Faraday’s Law whose mathematical form mimics the causal interpretation we would like to have, namely: changes in magnetic flux through a loop induce changes in the EMF around that loop. However, the usual mathematical form of Faraday’s Law is incompatible with this desire, and only allows us to say that EMF causes changes in flux.

To address this apparent deficiency, we derived a Faraday-like law based on the Maxwell Ampere curl equation, which indeed allowed us to talk of induced changes in the EMF, but these were instead caused by spatial gradients in the magnetic flux, which is not quite what we had hoped. This led us to try an alternative approach based on the Lorentz force law, whose microscopic foundations showed promise in that properties of the magnetic field indeed induced (caused) changes in current, both in an abstract and a more realistic setting. However, when the mathematical model was converted to refer instead to induced changes in an EMF-like quantity $\mathscr{V}_{L}$, we found that the model became incompatible with the desired causal interpretation.

In summary, our investigation has shown that one should be careful when making causal interpretations of magnetic induction processes. First, one should clearly distinguish between interpretations relevant to an experiment, and those relevant to a mathematical model; a distinction that is vital in the case of Faraday’s Law. Second, since the closest we can get to a “changes in magnetic flux induces EMF” is based on the Maxwell Ampere equation and not Maxwell Faraday, we need to be careful when deciding on causal interpretations of empirical laws derived from or compatible with experiment.

Acknowledgements

I am grateful for the support provided by STFC (the Cockcroft Institute ST/G008248/1 and ST/P002056/1) and EPSRC (the Alpha-X project EP/N028694/1). I would also like to acknowledge the hospitality of Imperial College London, and many interesting discussions with Jonathan Gratus and Martin W. McCall; as well as other debate on news:sci.physics.electromag.

Appendix: Commentary

Many treatments of induction involve both discussion of the experimental observations as well as a mathematical model (Faraday’s Law) used to describe the process. This combination of topics, whilst being a perfectly natural one, often makes it hard to pin down what attributions of causality are being made. Notably, when reading about magnetic induction, and on finding a statement along the lines of “a change in magnetic flux causes (or induces) an EMF”, it is frequently not clear whether it refers to:

(a)

an inference made on the basis of experimental observation, where it may be perfectly reasonable.

(b)

an inference based on Faraday’s Law (i.e. (1)), where it is emphatically not justified

Ironically, therefore, it is often the more mathematical treatments which are an easy target for criticism, since their statements tend to refer almost unambiguously to the mathematical model (e.g. Thide (2004)). However, a preceeding statement referring to experiment would most likely have been enough to obscure the specific detail of the claimed cause-and-effect reasoning. Indeed, more generally the context of the “caused” or “induced” claim is even less clear – e.g. I own a text Reitz et al. (1980) that makes both the weaker “associated”, as well as the stronger “induced EMF” claim … but against a backdrop where Faraday’s Law is carefully introduced as an experimental law, but is nevertheless in the presence of mathematical description.

Along these lines, a great deal of simpler material (e.g. at cliffsnotes.com, or schoolphysics.co.uk, or hyperphysics.phy-astr.gsu.edu) also merges discussions of experiment, theory, and practical calculation. Therefore one cannot say unequivocally that they are “wrong”, even if a reader, led by the experimental attribution of causality, has been led to assume that Faraday’s Law, i.e. (1), is a good model for the cause-and-effect present in the experiment.

For example, imagine we read a treatment that first says that in an experiment “changes in flux induce (cause) EMF”, but then subsequently states or implies that this is somehow encapsulated or represented by Faraday’s Law (1). In that case, why should we not – naively but wrongly – then also be led to attribute the same causality that applied to an experiment, to the mathematical Faraday’s Law, where it does not apply? We could very probably defend any such a discussion as not being wrong, but could we really say that it is sufficently clear?
