The MUSE-Wide Survey: A first catalogue of 831 emission line galaxies

TL;DR

The MUSE-Wide survey provides a first catalog of 831 emission line galaxies in the Chandra Deep Field South, showcasing the survey's depth and the effectiveness of the LSDCat software in identifying diverse galaxy populations across a broad redshift range.

Contribution

This work introduces a new large spectroscopic catalog of emission line galaxies using MUSE data, including a novel detection method and detailed redshift measurements across a wide redshift span.

Findings

Identification of 831 emission line galaxies with redshifts 0.04 to 6

High accuracy in photometric-redshift comparison for z<1.5

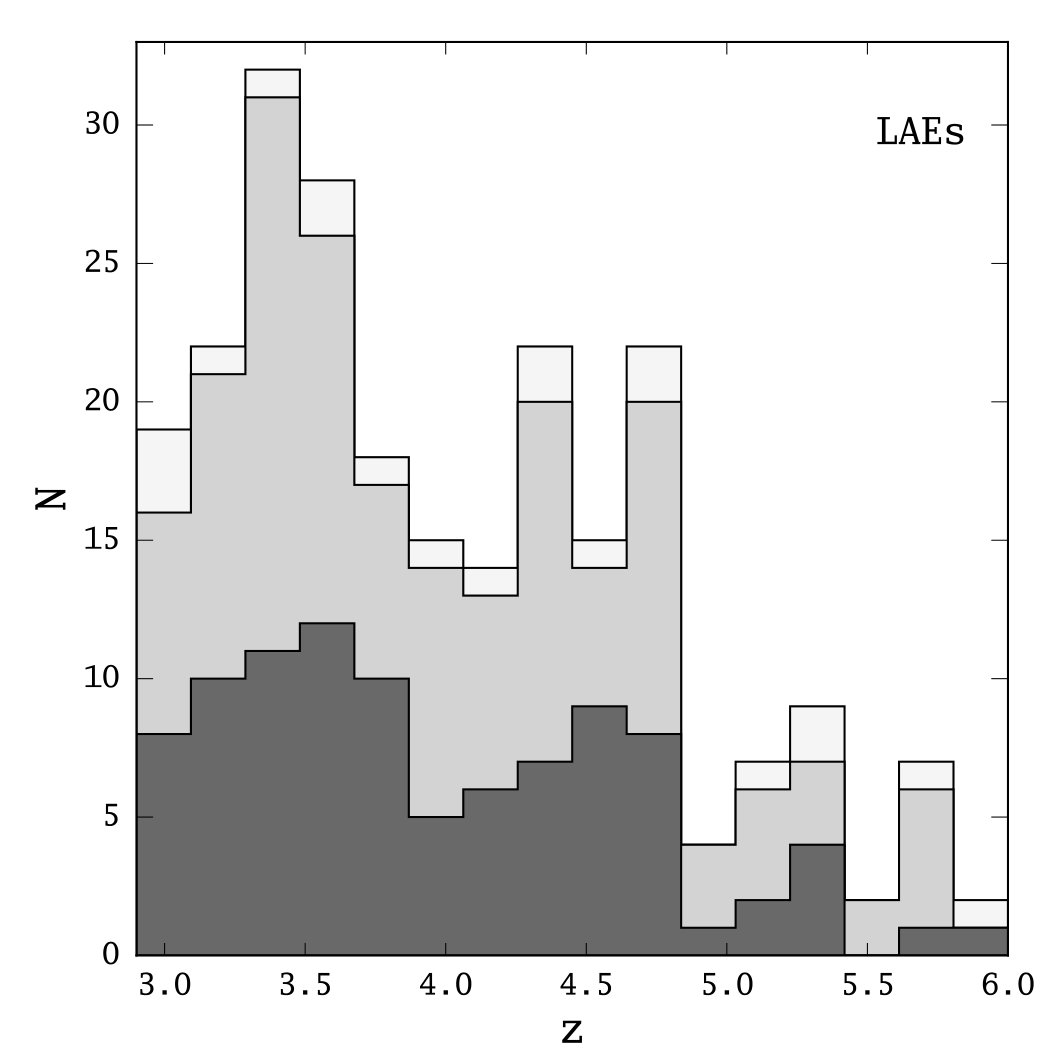

Detection of 237 Lyman alpha emitters at 3<z<6

Abstract

We present a first instalment of the MUSE-Wide survey, covering an area of 22.2 arcmin$^2$ (corresponding to $\sim$20% of the final survey) in the CANDELS/Deep area of the Chandra Deep Field South. We use the MUSE integral field spectrograph at the ESO VLT to conduct a full-area spectroscopic mapping at a depth of 1h exposure time per 1 arcmin$^2$ pointing. We searched for compact emission line objects using our newly developed LSDCat software based on a 3-D matched filtering approach, followed by interactive classification and redshift measurement of the sources. Our catalogue contains 831 distinct emission line galaxies with redshifts ranging from 0.04 to 6. Roughly one third (237) of the emission line sources are Lyman $\alpha$ emitting galaxies with $3 < z < 6$, only four of which had previously measured spectroscopic redshifts. At lower redshifts 351 galaxies are detected primarily by their [OII] emission line ($0.3 \lesssim z \lesssim 1.5$), 189 by their [OIII] line ($0.21 \lesssim z \lesssim 0.85$), and 46 by their H$\alpha$ line ($0.04 \lesssim z \lesssim 0.42$). Comparing our spectroscopic redshifts to photometric redshift estimates from the literature, we find excellent agreement for $z<1.5$ with a median $\Delta z$ of only $\sim 4 \times 10^{-4}$ and an outlier rate of 6%, however a significant systematic offset of $\Delta z = 0.26$ and an outlier rate of 23% for Ly$\alpha$ emitters at $z>3$. Together with the catalogue we also release 1D PSF-weighted extracted spectra and small 3D datacubes centred on each of the 831 sources.

Figures

Tables

Table 1. Table 1: Log of Observations

Pointing	Pointing centre		Date	AG Seeing	Airmass	Conditions
	${\alpha }_{\mathrm{J2000}}$	${\delta }_{\mathrm{J2000}}$		[″]
MUSE-candels-cdfs-01	03h32m15.04s	-27∘48′29.4″	2014-10-20	0.86	1.087	photometric / grey
MUSE-candels-cdfs-02	03h32m16.48s	-27∘49′21.5″	2014-09-20	1.05	1.076	clear / grey
MUSE-candels-cdfs-03	03h32m17.80s	-27∘50′13.6″	2014-11-17	0.93	1.061	clear / grey
MUSE-candels-cdfs-04	03h32m19.67s	-27∘51′07.1″	2014-11-17	0.76	1.041	clear / grey
MUSE-candels-cdfs-05	03h32m20.70s	-27∘51′59.8″	2014-11-19	1.03	1.017	clear / dark
MUSE-candels-cdfs-06	03h32m18.91s	-27∘48′10.7″	2014-11-18	0.84	1.021	clear / dark
MUSE-candels-cdfs-07	03h32m20.36s	-27∘49′02.6″	2014-11-19	0.92	1.026	photometric / dark
MUSE-candels-cdfs-08	03h32m21.89s	-27∘49′55.3″	2014-11-19+20	1.00	1.034	photometric / dark
MUSE-candels-cdfs-09	03h32m23.25s	-27∘50′47.9″	2014-11-26	0.87	1.044	photometric / dark + grey
MUSE-candels-cdfs-10	03h32m24.68s	-27∘51′40.8″	2014-11-27	0.90	1.071	photometric / grey
MUSE-candels-cdfs-11	03h32m22.91s	-27∘47′50.9″	2014-11-28	0.95	1.104	photometric / grey
MUSE-candels-cdfs-12	03h32m24.35s	-27∘48′43.2″	2014-11-27	1.02	1.144	photometric / grey
MUSE-candels-cdfs-13	03h32m25.88s	-27∘49′36.2″	2014-11-27	1.07	1.193	photometric / dark
MUSE-candels-cdfs-14	03h32m27.21s	-27∘50′28.9″	2014-11-28	0.88	1.229	photometric / grey
MUSE-candels-cdfs-15	03h32m28.66s	-27∘51′21.5″	2014-12-25	0.83	1.241	photometric / grey
MUSE-candels-cdfs-16	03h32m32.62s	-27∘51′02.1″	2014-11-28	0.83	1.228	photometric / grey
MUSE-candels-cdfs-17	03h32m36.60s	-27∘50′43.8″	2014-12-23	0.80	1.191	clear / dark
MUSE-candels-cdfs-18	03h32m40.58s	-27∘50′24.3″	2014-12-21	0.89	1.191	photometric / dark
MUSE-candels-cdfs-19	03h32m44.60s	-27∘50′04.6″	2014-12-21	0.82	1.223	photometric / dark
MUSE-candels-cdfs-20	03h32m48.61s	-27∘49′46.0″	2014-12-23	0.82	1.288	clear / dark
MUSE-candels-cdfs-21	03h32m52.54s	-27∘49′26.1″	2014-12-23	0.72	1.388	clear / dark
MUSE-candels-cdfs-22	03h32m31.19s	-27∘50′09.8″	2014-12-22	0.79	1.338	clear / dark
MUSE-candels-cdfs-23	03h32m35.23s	-27∘49′50.3″	2014-12-24	0.86	1.266	photometric / dark
MUSE-candels-cdfs-24	03h32m39.14s	-27∘49′31.5″	2014-12-26	0.81	1.168	photometric / grey

Table 2. Table 2: Coefficients p 0 subscript 𝑝 0 p_{0} and p 1 subscript 𝑝 1 p_{1} of FWHM ​ ( λ ) = p 0 + p 1 ​ ( λ − 7000 ​ Å ) FWHM 𝜆 subscript 𝑝 0 subscript 𝑝 1 𝜆 7000 Å \mathrm{FWHM}(\lambda)=p_{0}+p_{1}(\lambda-7000\,\mathrm{\AA{}}) that describe the wavelength dependence of the PSF FWHM in each of the datacubes. These coefficients are used as input parameters in LSDCat for the spatial filtering.

Pointing	$p_0$	$p_1$	Method
No.	[″]	[${10}^{-5}$ ″/Å]
01	0.836	-4.429	fit to ID 10548, $m_{\mathrm{F814W}}=22.18$
02	0.940	-3.182	compact galaxies, no star
03	0.944	-4.460	fit to ID 8374, $m_{\mathrm{F814W}}=19.39$
04	0.747	-4.219	compact galaxies, no star
05	1.026	-3.003	compact galaxies, no star
06	0.835	-4.332	compact galaxies, no star
07	0.935	-3.966	compact galaxies, no star
08	0.991	-5.007	compact galaxies
09	0.833	-8.069	fit to ID 68879, $m_{\mathrm{F814W}}=19.73$
10	0.890	-3.051	compact galaxies
11	0.989	-3.771	compact galaxies
12	1.020	-4.123	compact galaxies, no star
13	1.063	-5.285	compact galaxies
14	0.884	-4.844	compact galaxies
15	0.702	-4.441	fit to ID 5744, $m_{\mathrm{F814W}}=20.3$
16	0.859	-3.784	fit to ID 6475, $m_{\mathrm{F814W}}=18.86$
17	0.780	-3.534	compact galaxies
18	0.929	-3.479	compact galaxies, no star
19	0.814	-3.524	compact galaxies, no star
20	0.713	-5.196	compact galaxies, no star
21	0.836	-4.255	fit to ID 9801, $m_{\mathrm{F814W}}=21.92$
22	0.788	-3.253	fit to ID 7813, $m_{\mathrm{F814W}}=20.23$
23	0.777	-3.019	compact galaxies, no star
24	0.728	-4.232	compact galaxies, no star

Table 3. Table 3: Columns of the object table

Column Name	Short Description	Example Entrya𝑎aa𝑎a$a$Entries containing …are truncated compared to the original format of the table.
UNIQUE_ID	Unique MUSE-Wide object ID	101001006
RA	Right ascension ${\alpha }_{\mathrm{J2000}}$ [deg]	53.060185…
DEC	Declination ${\delta }_{\mathrm{J2000}}$ [deg]	-27.813464…
Z	Redshift	0.310564…
Z_ERR	Error on the redshift	0.000018…
LEAD_LINE	Highest S/N detected lineb𝑏bb𝑏b$b$Emission line identifiers are explained in Table 4.	Ha
SN	S/N of the LEAD_LINE	76.106950…
QUALITY	Quality flag (Sect. 3.2)	a
CONFIDENCE	Confidence value (Sect. 3.2)	3
OTHER_LINES	Other detected linesb𝑏bb𝑏b$b$Emission line identifiers are explained in Table 4.	O2,Hg,Hb…
GUO_ID	Associated source in
	Guo et al. (2013) catalogue	10720
GUO_SEP	Angular separation to
	Guo et al. (2013) source [″]	0.37
SKELTON_ID	Associated source in
	Skelton et al. (2014) catalogue	20736
SKELTON_SEP	Angular separation to
	Skelton et al. (2014) source [″]	0.25

Table 4. Table 4: Columns of the emission line table

Column	Unit(s)	Description
UNIQUE_ID	—	Unique MUSE-Wide object ID.
POINTING_ID	—	Pointing Number (see Fig. 1).
OBJ_ID	—	Object ID – only unique per pointing.
RID	—	Running ID – only unique per pointing.
IDENT	—	Line identification.
COMMENT	—	Free-form comment added during.
		classification and cleaning (Sect. 3.2).
SN	—	Detection significance (Sect. 3.1.3).
{RA,DEC,LAMBDA}_SN	deg / Å	3D S/N-weighted position.
{RA,DEC,LAMBDA}_PEAK_SN	deg / Å	S/N-peak position.
{RA,DEC}_1MOM	deg	First central moment coordinate, determined
		in optimal narrow band image (Sect. 3.3).
LAMBDA_NB_{MIN,MAX}	Å	Minimum- and maximum wavelength of optimal
		narrow band image. Used for flux integration.
R_KRON	arcsec	Kron-Radius (see Sect. 3.3).
F_KRON,F_{2,3,4}KRON	10-20erg s-1 cm-2	Flux extracted in ($k\times$) R_KRON aperture within
		narrow band defined by LAMBDA_NB_{MIN,MAX}.
F_KRON_ERR,F_{2,3,4}KRON_ERR	10-20erg s-1 cm-2	Error on the extracted flux.
BORDER_FLAG	—	Flag indicating whether 3$\times R_{\mathrm{Kron}}$ overlaps with FoV border.

Table 5. Table 5: Detected emission lines in the catalogue

Transition(s)	IDENTa𝑎aa𝑎a$a$Emission line identifier code used in the IDENT column of the emission line table described in Sect. 4.2.	Air Wavelength(s)b𝑏bb𝑏b$b$Wavelengths are from the “Atomic Line List” compiled by P. van Hoof: http://www.pa.uky.edu/~peter/atomic/. Wavelengths longward of 2000 Å were queried in air wavelengths and converted to vacuum wavelengths with the formula used in the Vienna atomic line database (Ryabchikova et al. 2015): http://www.astro.uu.se/valdwiki/Air-to-vacuum\%20conversion.	Vacuum Wavelength(s)b𝑏bb𝑏b$b$Wavelengths are from the “Atomic Line List” compiled by P. van Hoof: http://www.pa.uky.edu/~peter/atomic/. Wavelengths longward of 2000 Å were queried in air wavelengths and converted to vacuum wavelengths with the formula used in the Vienna atomic line database (Ryabchikova et al. 2015): http://www.astro.uu.se/valdwiki/Air-to-vacuum\%20conversion.	Detections	Commentsc𝑐cc𝑐c$c$(1): doublet in single object resolved into two individual line detections. (2): 237 LAEs, with five having the double peak profile resolved into two individual line detections. (3): used for redshift determination. (4): doublet unresolved, i.e. always detected as single line. (5): in all except eight detections (103035109, 105019069, 109021072, 109023081, 114015092, 115046179, 124009024, and 124040076) the $[$O II$]$ $\lambda \lambda$3726,3729 doublet is unresolved. (6): blend with H$\epsilon$.
		[Å]	[Å]
O vi $\lambda \lambda$1032,1038	O6_2	…	1031.93, 1037.62	2	(1)
Ly$\alpha$ $\lambda$1216	Lya	…	1215.670	242	(2),(3)
N v $\lambda \lambda$1238,1242	N5	…	1238.821, 1242.804	1	(4)
C iv $\lambda \lambda$1549,1550	C4	…	1548.203, 1550.777	3	(3),(4)
Mg ii $\lambda$2796	Mg2	2795.528	2796.290	1
$[$O II$]$ $\lambda \lambda$3726,3729	O2	3726.032, 3728.815	3727.048, 3729.832	480	(3),(5)
$[$Ne iii$]$ $\lambda$3869	Ne3	3869.06	3870.115	49
$[$Ne iii$]$ $\lambda$3968	Ne32	3967.79	3968.872	3	(6)
H$\zeta$ $\lambda$3889	Hzet	3889.049	3890.109	2
H$\epsilon$ $\lambda$3970	Heps	3970.072	3971.154	1
H$\delta$ $\lambda$4102	Hd	4101.734	4102.852	18
H$\gamma$ $\lambda$4340	Hg	4340.464	4341.647	74
$[$O iii$]$ $\lambda$4363	O3_3	4363.210	4364.400	2
H$\beta$ $\lambda$4861	Hb	4861.325	4862.650	183	(3)
$[$O iii$]$ $\lambda$4959	O3_1	4958.911	4960.263	135	(3)
$[$O iii$]$ $\lambda$5007	O3_2	5006.843	5008.208	304	(3)
He i $\lambda$5876	He1	5875.615	5877.217	6
$[$O i$]$ $\lambda$6300	O1	6300.304	6302.022	3
$[$N ii$]$ $\lambda$6549	N2_1	6548.04	6549.825	4
H$\alpha$ $\lambda$6563	Ha	6562.80	6564.589	73	(3)
$[$N ii$]$ $\lambda$6583	N2_2	6583.46	6585.255	19
$[$S ii$]$ $\lambda$6717	S2_1	6716.44	6718.271	30
$[$S ii$]$ $\lambda$6730	S2_2	6730.81	6732.645	17

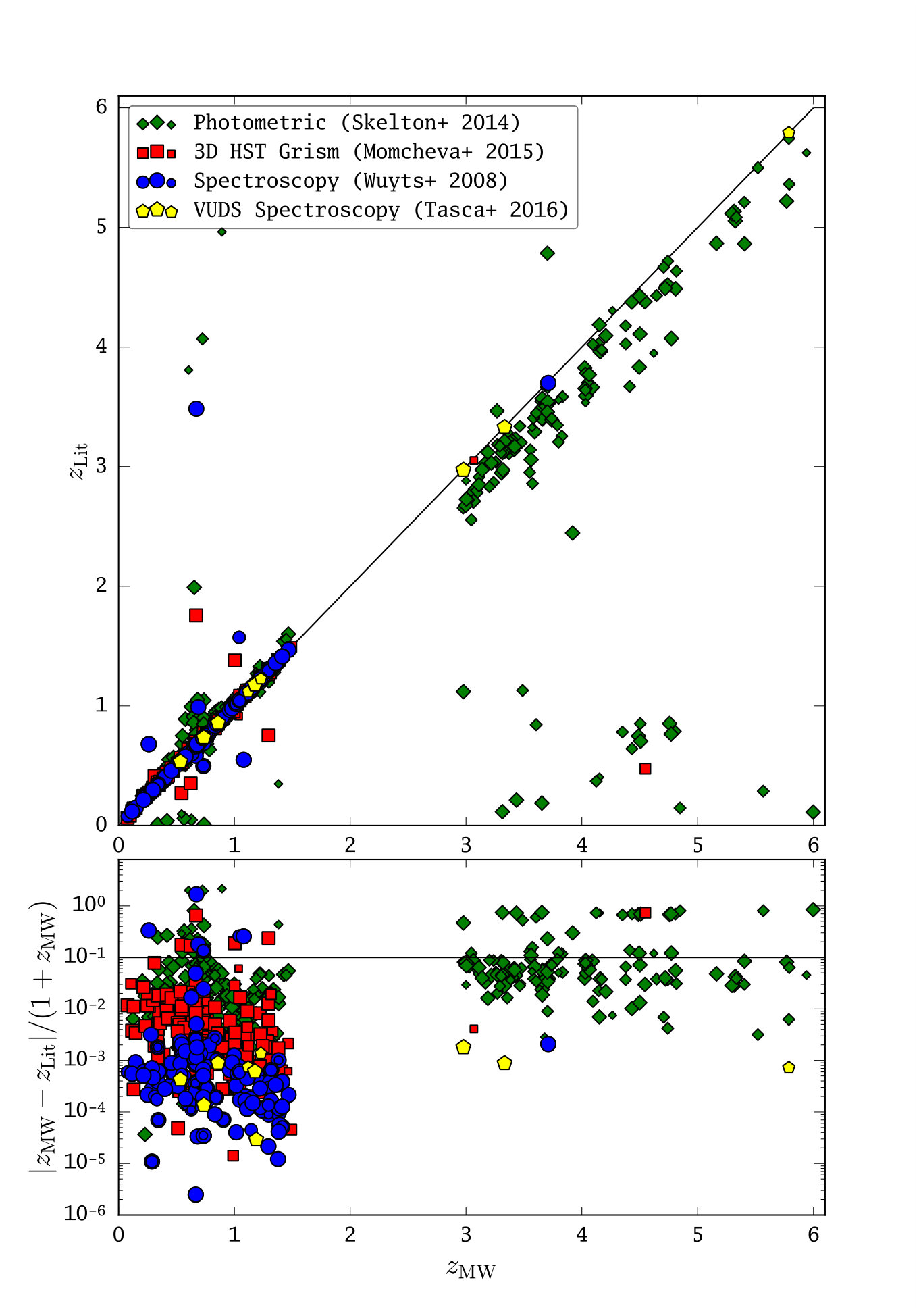

Table 6. Table 6: Catastrophic redshift mismatches (defined as | z MW − z Lit | / ( 1 + z MW ) > 0.1 subscript 𝑧 MW subscript 𝑧 Lit 1 subscript 𝑧 MW 0.1 |z_{\mathrm{MW}}-z_{\mathrm{Lit}}|/(1+z_{\mathrm{MW}})>0.1 ) between MUSE-Wide and literature redshifts for objects within a 0.5″ search radius around a MUSE-Wide position.

Redshift source	$z\lesssim 2$	$z\gtrsim 3$
Spectroscopy (Wuyts et al. 2008)	7/139 (5%)	0/2 (0%)
Spectroscopy (Tasca et al. 2017)	0/7 (0%)	0/3 (0%)
3D-HST grism (Momcheva et al. 2016)	6/182 (3%)	1/2 (50%)
Photometric (Skelton et al. 2014)	19/241 (8%)	31/103 (30%)
total	32/569 (5%)	32/110 (29%)

Table 7. Table 7: Crossmatch between MUSE emission line galaxies and X-ray sources flagged as AGN from the Chandra 7Ms source catalogue (Luo et al. 2017 )

ID	$z$	ID	Separation	X-ray Flux	$z$
MUSE Wide	MUSE	Chandra 7Ms	(“)	(erg/s/cm2)	Chandra
102007068	0.338	304	0.20	2.982e-16	0.340
102008071	0.338	312	0.86	6.491e-17	0.336
102031144	0.665	290	0.20	3.498e-16	0.664
102037154	1.412	287	0.51	5.925e-17	1.413
103022086	0.670	322	0.24	1.510e-16	0.671
104014050	3.662	337	0.17	1.269e-15	3.660
106036089	0.904	344	0.82	6.638e-17	0.956a
106048103	0.665	340	0.15	2.406e-15	0.666
108025145	0.736	407	0.49	7.387e-17	0.736
109030090	1.044	447	0.17	5.737e-16	1.043
111004005	0.604	367	0.28	4.594e-15	0.604
113001007	0.232	508	0.94	2.411e-17	0.220a
113010038	0.577	460	0.35	2.778e-16	0.577
114024110	1.035	443	0.26	8.709e-16	1.036
114028115	1.098	509	0.30	1.525e-16	1.097
115003085	3.710	551	0.11	2.158e-15	3.700
116003060	1.364	634	0.14	3.899e-17	1.363b
117034085	0.228	693	1.13	6.435e-17	2.302
119034073	1.015	814	0.15	4.348e-15	1.016
120023032	1.118	861	0.25	1.744e-16	1.120
123005089	0.544	640	0.51	4.219e-17	0.552b
123051191	4.510	625	1.33	2.102e-17	2.616b

Equations

$$f(\lambda )=A\times \exp \left\{-\frac{(\lambda -{\lambda }_0{)}^2}{2\times (a_{\mathrm{asym}}(\lambda -{\lambda }_0)+d{)}^2}\right\}$$

Full text

1 Introduction

Most spectroscopic samples of high-redshift galaxies are based on a photometric pre-selection of targets (e.g. Noll et al. 2004; Vanzella et al. 2005, 2006, 2008; Popesso et al. 2009; Balestra et al. 2010; Mallery et al. 2012; Le Fèvre et al. 2013, 2015). These surveys have very successfully maximised their spectroscopic success rates, i.e. the fraction of galaxies with scientifically usable spectra among all targeted objects, by employing photometric redshift priors. However, an inevitable conceptual drawback of this pre-selection approach is that the selection process itself will leave its imprint on the final sample properties. Moreover, multi-objects spectrographs have only limited freedom in choosing targets for simultaneous observation, and even state-of-the-art surveys hardly ever obtain target sampling rates above 50%, more often well below this level. Finally, aperture effects in the preconfigured slit mask can lead to significant flux losses especially from complex objects and/or extended emission line regions.

Integral field spectroscopy (IFS) provides an alternative approach that circumvents many of these problems. Contiguous areas in the sky can be mapped instead of targeting individual objects, providing spectral information of everything within the field of view and within the sensitivity limits of the observation (see van Breukelen et al. 2005 and Adams et al. 2011 for pioneering implementations). The new panoramic IFS instrument MUSE (Multi Unit Spectroscopic Explorer) at the ESO Very Large Telescope is a particularly powerful machine specifically designed to perform blind surveys for extremely faint high-redshift galaxies (Bacon et al. 2009, 2014; Caillier et al. 2014). The discovery potential of MUSE was strikingly demonstrated by a 27 hour integration in the Hubble Deep Field South (Bacon et al. 2015), where 189 redshifts could be measured inside a single MUSE field of 1 arcmin2. While surveying the sky with MUSE overcomes the above mentioned limitations, this obviously happens at the expense of covering only a very small area at a time.

Here we present results from the MUSE-Wide survey, a GTO programme complementing the ongoing ultra-deep pencil-beam MUSE surveys (Bacon et al., A&A submitted). MUSE-Wide trades depth for survey area by covering many fields with relatively shallow exposures (1h per field). Nevertheless, the obtained depth already suffices to obtain source densities (i.e. multiplex factors) of several tens of objects per arcmin2 with useful spectra, at a target sampling rate of essentially 100% and with all the benefits of a powerful integral field unit (IFU). In particular, MUSE features an excellent spatial sampling at $0\aas@@fstack{\prime\prime}2\times 0\aas@@fstack{\prime\prime}2$ spatial pixels and a spectral resolution of 2.5Å over one octave in wavelengths from 4750Å to 9350Å.

A full description of the MUSE-Wide survey strategy will be present in a forthcoming dedicated publication, accompanying a first general data release (Urrutia et al., in prep.). Here we only summarise the currently available material that forms the basis of the present publication. The MUSE-Wide survey focuses on areas with extremely deep HST imaging, with special emphasis on the GOODS-South (Giavalisco et al. 2004) and CANDELS-Deep/CDFS (Grogin et al. 2011; Koekemoer et al. 2011) regions, which in addition to the HST coverage also contains a plethora of multiwavelength data.

This paper describes the outcome of a blind search for emission line objects in 24 MUSE-Wide fields in the CDFS region, covering a footprint of 22.2 arcmin2 and yielding a total of 831 galaxies, of which more than half had no spectroscopic redshift until now. Besides the catalogue we also publish object-specific data products suitable for further investigations.

The structure of the paper is as follows: In Sect. 2 we outline the observations and data reduction. We then describe in Sect. 3 how we detect, parameterise and classify emission line sources in our datacubes, including details of the redshift determination procedure. In Sect. 4 we present and describe the source catalogue and data products. Sect. 5 is dedicated to a global characterisation of the obtained sample. We present our conclusions and outlook in Sect. 6.

2 Observations and data reduction

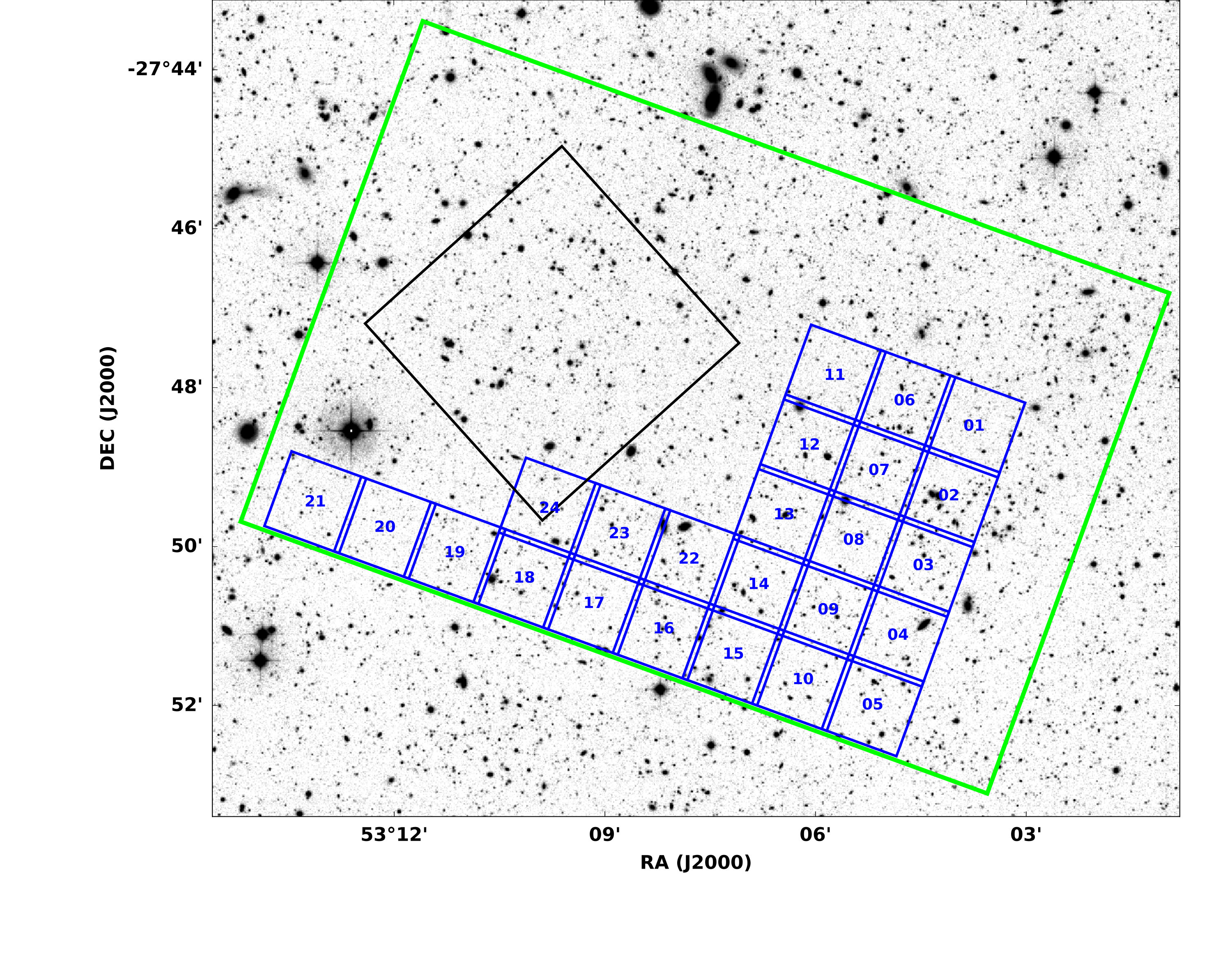

Our current dataset is based on the analysis of 24 adjacent 1′$\times$1′ MUSE pointings in the CANDELS Deep region of the GOODS-South field obtained during the first semester of MUSE guaranteed time observations. Observations were carried out in grey and dark time under photometric and clear conditions from September to December 2014 (ESO programme 094.A-0205, PI: Lutz Wisotzki). In Figure 1 we show the footprint of the survey area. We matched the position angle of our pointings to the 70∘ position angle (east of north) of the CANDELS Deep region (indicated by the green box in Figure 1). In Table 1 we provide a log of our observations. Standard star exposures were taken at the beginning and at the end of each night.

We integrated 1 hour on each pointing. Each integration was split into 4 exposures of 15 minutes. In between exposures small dither offsets (typically smaller than 1″) were applied and the spectrograph was rotated by 90 degrees. This procedure, which is recommended in the MUSE User’s manual222http://www.eso.org/sci/facilities/paranal/instruments/muse/doc.html, ensures that patterns of the 24 individual spectrographs and their image slicers are averaged out. With the exception of pointings 08, 09, 12, and 16 all exposures for a pointing were obtained in immediate succession. Pointing 08 was split into two exposure sequences in two subsequent nights, while pointings 09, 12, and 16 where taken at different times during a night. Adjacent pointings have an overlap of 4″. Taking this overlap and the exact geometry of the MUSE field of view into account, the total area exposed with MUSE in the 24 pointings taken in the first cycle of the MUSE-Wide survey is 22.2 arcmin2.

For the reduction of the individual pointings we used version 1.0 of the MUSE data reduction system333Available from ESO via http://www.eso.org/sci/software/pipelines/muse/muse-pipe-recipes.html. (Weilbacher et al. 2014, and in prep.), in combination with custom developed python444http://www.python.org routines and the ZAP tool presented in Soto et al. (2016). An in-depth description and validation of the data reduction procedure will be given in the publication complementing the full data release (Urrutia et al., in prep.), in the following we only provide a brief overview.

We used the set of calibration exposures taken closest in time to the actual observations to create master biases, master flats, dispersion solutions, and trace tables. For the illumination correction, we always chose the illumination frames that were taken before the science observation. Using the standard-star exposures we constructed response curves for flux-calibration. We applied these calibration products with the pipeline routine muse_scibasic to all 24 spectrographs CCD images belonging to one science exposure. The result of this process are so-called pixel tables for each exposure containing calibrated flux values, errors, wavelengths, and information on their location on the sky.

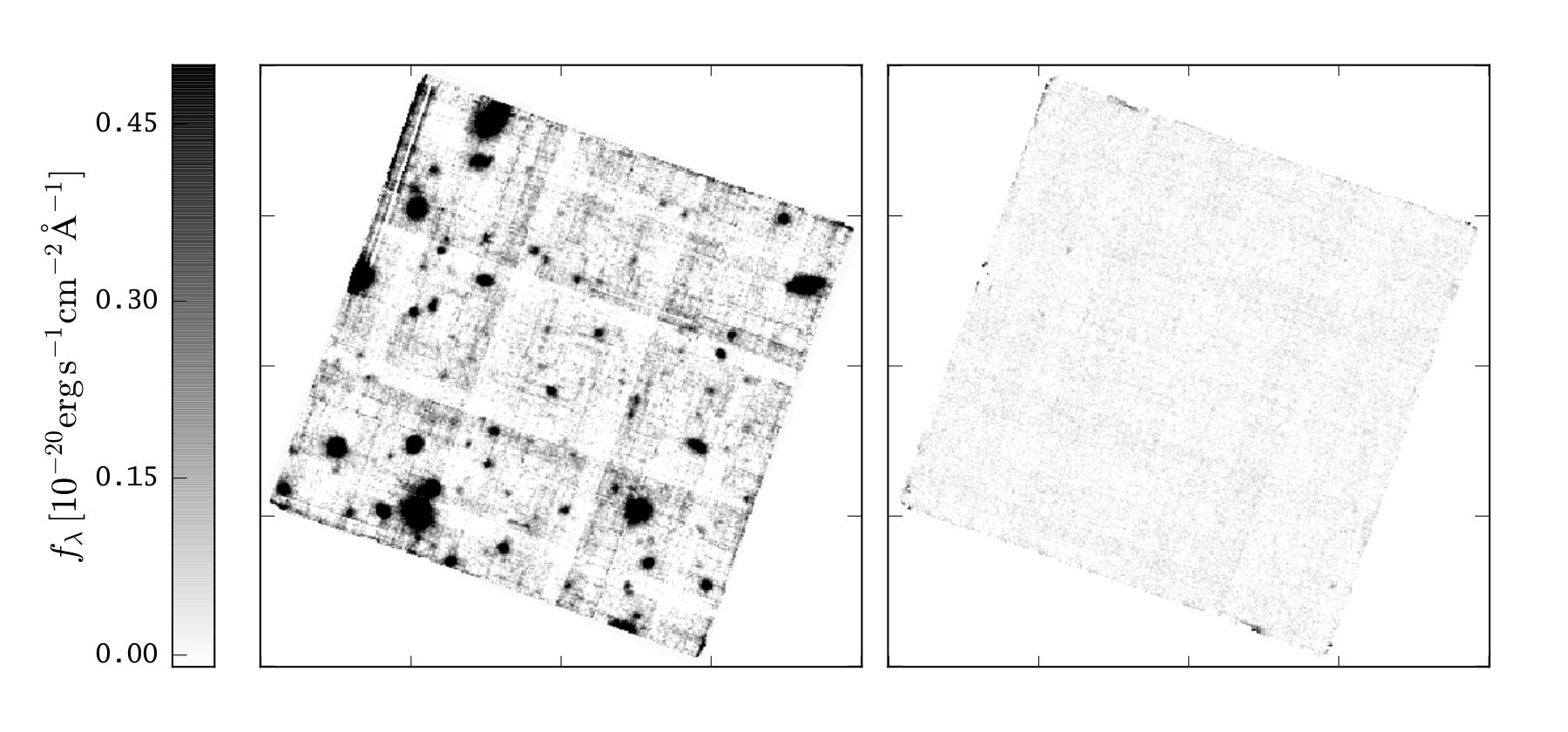

It is known that the current version of the MUSE pipeline sky-subtraction routine (Streicher et al. 2011) leaves significant systematic residuals that hamper the detection of faint object signals (Soto et al. 2016). For this reason we developed and applied our own sky-subtraction routine that works on the pixel tables. We found, that this procedure, in combination with the ZAP tool by Soto et al. (2016), provided a more optimal result compared to using only ZAP. Our procedure will be detailed in Urrutia et al., (in prep.). Finally, we applied the self-calibration method described in Sect. 3.1 of Bacon et al. (2015) to remove systematic mean zero-flux level offsets between slices555The self-calibration procedure is part of the Muse Python Data Analysis Framework (MPDAF, Bacon et al. 2016, see also Conseil et al. 2016). MPDAF is available at http://mpdaf.readthedocs.io/en/latest..

For each exposure we then used the pipeline routine muse_scipost that resamples the pixtables into datacubes and propagates errors into a corresponding variance datacube. The datacubes were corrected for differential atmospheric refraction using the formula by Filippenko (1982). Remaining sky-subtraction residuals after the application of our own routine were then purged from the cubes using the ZAP-software of Soto et al. (2016). We then created white-light images from these datacubes by summation over the spectral axis. By performing 2D Gaussian fits to compact objects within those images (compact galaxies, or, when available, stars) we determined a reference registration for each exposure datacube. Using these determined offsets for the individual cubes, we ran muse_scipost again, to resample all exposures onto a common world-coordinate system grid. We created a combined datacube for each pointing by averaging the corresponding four exposures with rejection of 3$\sigma$ outliers.

In an additional postprocessing step we adjusted the zero level for all layers. This was needed since none of the preceding reduction steps (including the sky subtraction) actually enforces a spatially coherent zero background level. We obtained this zero level correction by masking out all continuum sources in a wavelength-collapsed white-light image of the field and then computing the average of the remaining unmasked spaxels in each layer. While these corrections were found to be small except very close to strong night sky lines, with median values around $2\times 10^{-22}$ erg s*-1* cm*-2* Å*-1*, as systematic offsets they are nevertheless potentially significant for large aperture integrations. We subtracted the corrections layer by layer from the combined cubes and thus obtained the final flux datacube.

After the procedure described above we have 24 datacubes that contain $\approx$3.5$\times 10^{8}$ exposed volume-pixels (so called voxels). The spatial sampling is 0.2″$\times$0.2″, the spectral sampling is 1.25Å, and the wavelength range extends from 4750Å to 9350Å. The wavelength axis is given in air wavelengths in the barycentric reference frame. For each cube the astrometry is such that the east-west and south-north axes are parallel to the spatial coordinate axes. Complementary to the flux datacubes we produced a final variance datacube by propagating the individual variance values. We also created exposure-map cubes, where we track the number of individual single exposures that went into a voxel of the final datacube. The datacube, variance cube and exposure-map cubes are stored in separate header and data units (HDUs) of a single FITS file (Pence et al. 2010) taking 5 GB of disk space for each pointing.

3 Emission line source detection and classification

3.1 Detection and parameterisation of emission line source

candidates

On each of the 24 datacubes we performed the following tasks to build a catalogue of emission line source candidates:

Empirical estimation and correction of the MUSE pipeline propagated variance cubes. 2. 2.

Removal of source continua from the datacube. 3. 3.

Cross-correlation of the datacube with a 3D matched filter for compact emission line sources. 4. 4.

Thresholding and cataloguing of emission line source candidates. 5. 5.

Position, size, and flux measurements of the emission line source candidates.

For tasks 3 to 5 we have developed the emission Line Source Detection and Cataloguing Tool LSDCat666LSDCat is available via the Astrophysics Source Code Library: http://www.ascl.net/1612.002 (Herenz & Wistozki 2016).. In the following subsections we briefly describe the above steps. For an in-depth description of LSDCat we refer to Herenz & Wisotzki (2017) (in the following HW17).

3.1.1 Empirical correction of the MUSE pipeline propagated noise

Both for emission line source detection and flux measurements we require an accurate characterisation of the noise in our datacubes. However, we expect that the variance cubes provided by the pipeline underestimate the true variance. First, because the pipeline propagates variances from the CCD level through the various reduction steps, thus these formal variance values do not account for hidden (non-Gaussian) systematics such as imperfect flat-fielding or imperfect sky-subtraction. Second, in the resampling process carried out by the MUSE pipeline co-variance terms are neglected.

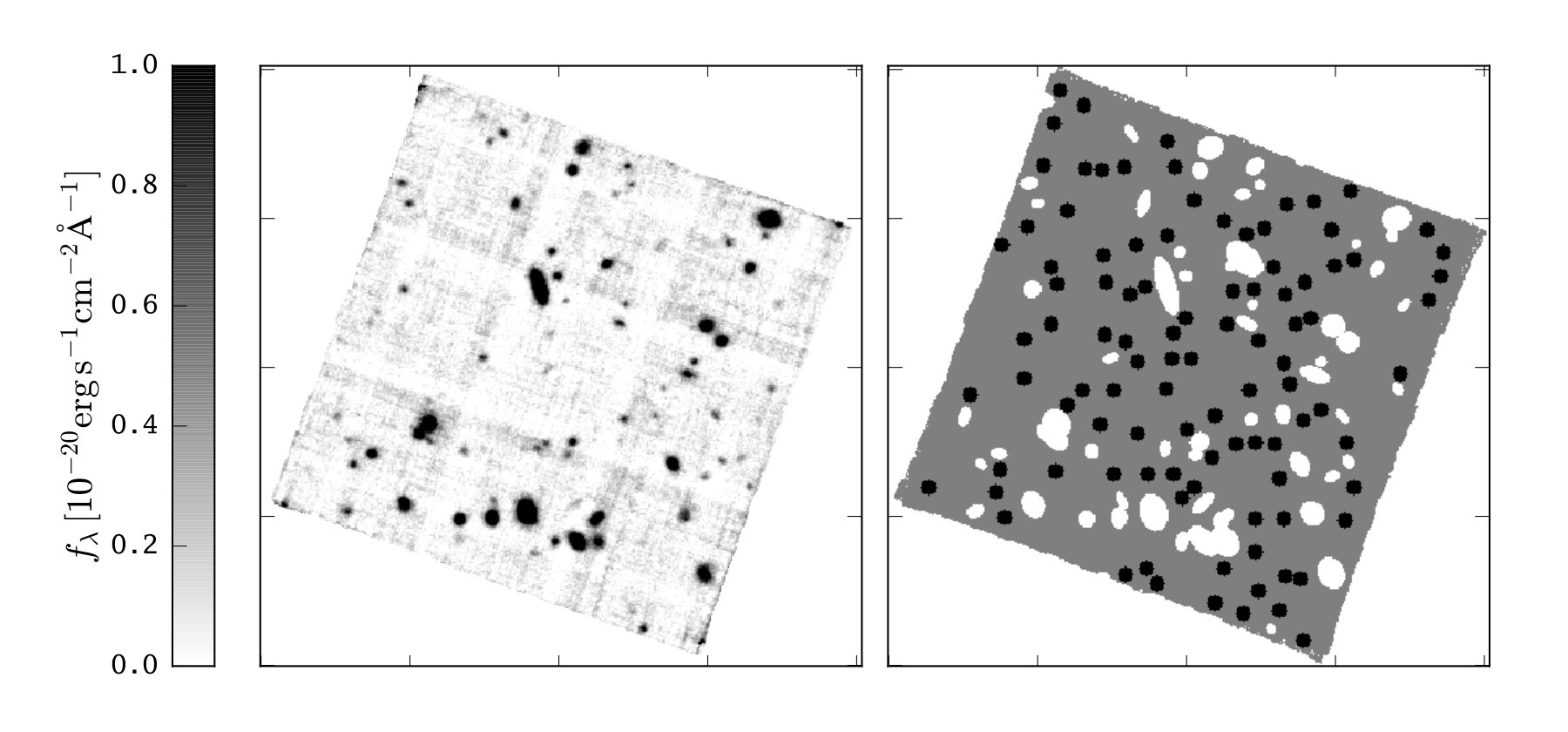

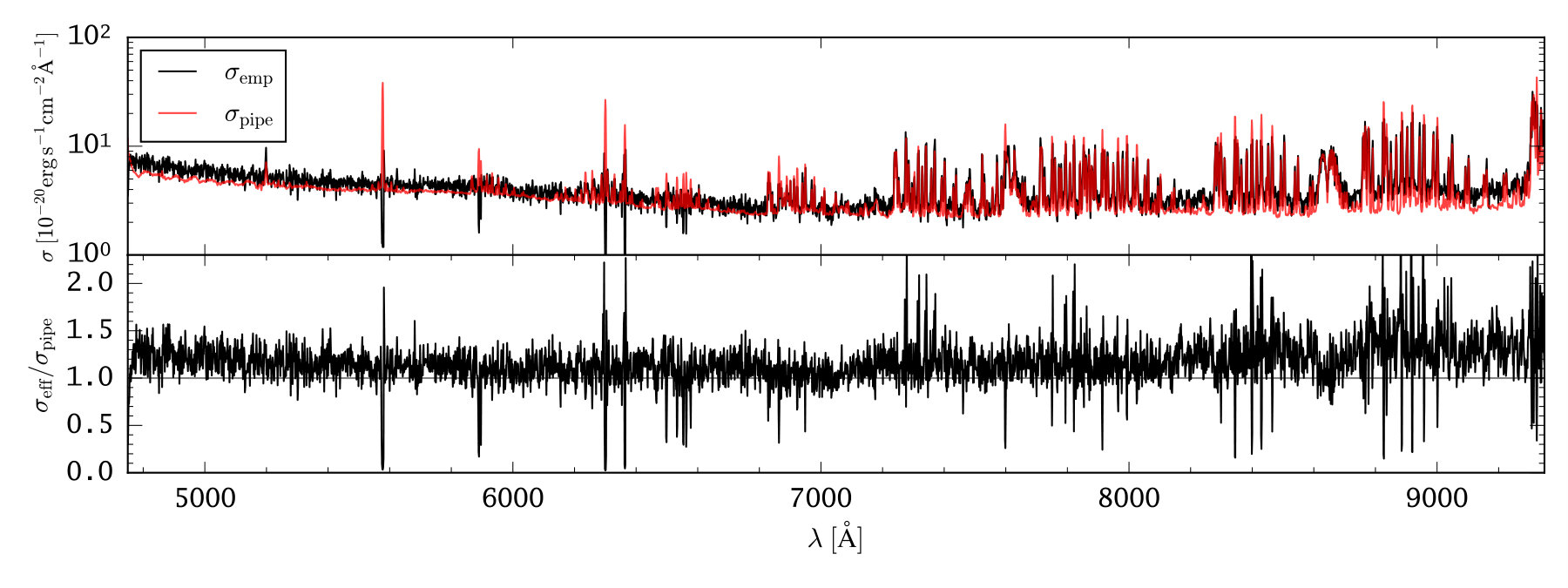

In order to quantify and correct the formal variances produced by the pipeline, we determined an empirical variance estimate from the flux datacubes by analysing the pixel statistics for each datacube layer in regions of blank sky. However, direct pixel-to-pixel noise statistics as such would also be biased towards lower values since also here covariance terms introduced in the resampling process would be neglected. To overcome this issue we placed circular apertures with a 2″ diameter (10 pixels) at random positions in each pointing. By prohibiting these apertures to overlap with $\mathrm{m}_{\mathrm{F814}}<25$ mag sources from the Guo et al. (2013) CANDELS GOODS-S photometric catalogue we ensured that blank sky was sampled. The width of the distribution of average pixel values in those apertures, characterised by its standard deviation, was then used as an estimate of the noise for each spectral layer. Due to the small FoV of MUSE we were limited to use only 100 apertures. Hence, we estimated the width of the distribution for each layer via $\sigma_{\mathrm{emp}}=(q_{75}-q_{25})/(2\sqrt{2}\mathrm{erf}^{-1}(1/2))\approx 0.7413\,(q_{75}-q_{25})$, where $\mathrm{erf}^{-1}$ is the inverse error function and $q_{75}-q_{25}$ is the interquartile range of the distribution (e.g., Sect. 3.2.2 in Ivezić et al. 2014). We then compared the so obtained empirical noise values $\sigma_{\mathrm{emp}}^{2}$ to an average value $\sigma_{\mathrm{pipe}}^{2}$ of the pipeline propagated variance in each layer – this process is illustrated in Figure 2. As can be seen the ratio $\sigma_{\mathrm{emp}}/\sigma_{\mathrm{pipe}}$ is greater than one in almost all datacube layers. For all cubes we found typically $\sigma_{\mathrm{emp}}=1.15-1.20\,\sigma_{\mathrm{pipe}}$. This is consistent with an empirical noise estimate made for MUSE datacubes obtained with a similar observing strategy (Borisova et al. 2016, their Sect. 3.3). However, as can be also seen in Figure 2 there is a small number of layers where the ratio $\sigma_{\mathrm{emp}}/\sigma_{\mathrm{pipe}}$ is less than one. The affected layers are in the cores of sky emission lines where they suffer from over-subtraction of the high-frequency noise by the ZAP routine.

In order to correct the pipeline propagated variance estimate, we replace the values in the variance cubes with the empirical noise estimate $\sigma_{\mathrm{emp}}^{2}$. In layers where $\sigma_{\mathrm{emp}}/\sigma_{\mathrm{pipe}}<1$ we use the average value from the pipeline. Due to the dither- and rotation pattern typically $\lesssim 10$% of voxels of the datacube have not contributions from all four exposure. These voxels are mostly on the border of the FoV. To adjust the noise estimates for those voxels we rescale their $\sigma_{\mathrm{emp}}^{2}$ with $4/N_{\mathrm{exp}}$, where $N_{\mathrm{exp}}$ is the number of exposures contributing to that voxel.

There are two caveats with this empirical noise estimate. First, due to the small number of apertures our noise estimate is itself noisy. This can be seen when comparing the smooth $\sigma_{\mathrm{pipe}}$-curve to the noisier $\sigma_{\mathrm{emp}}$-curve in Figure 2. Second, our estimate does not take correlated noise in the spectral direction into account. We will address these shortcomings of the described empirical noise estimate in future releases of the MUSE-Wide data (Urrutia et al., in prep.). Nevertheless, compared to the MUSE pipeline propagated variances that underestimate the true variance our empirical estimation approach is an improvement.

3.1.2 Removal of source continua

The source detection algorithm in LSDCat searches for emission line signals and implicitly assumes that significant source continua are subtracted from the datacube. We achieved this by subtracting a 151 pixel wide running median in the spectral direction from the datacube. The full width of the median filter was chosen to be 151 spectral layers (188.75Å), which is much broader than the width of the targeted emission lines and narrow enough to robustly subtract slowly varying continua. The remaining residuals in the datacube are either real emission lines or residual features from continua varying at high frequencies (e.g. cold stars). We demonstrate the effectiveness of our median-filter subtraction method in Fig. 3.

3.1.3 Cross-correlation with matched filter

The detection algorithm of LSDCat is based on matched filtering, an operation that maximises the S/N ratio of emission lines within the datacube (e.g. Schwartz & Shaw 1975; Das 1991; Bertin 2001; Zackay & Ofek 2015; Vio & Andreani 2016). To this aim the algorithm transforms the input datacube by convolving it with a three-dimensional template that matches the expected signal of an emission line in the datacube. The 3D convolution is performed as two successive convolutions, a 2D convolution in each spectral layer and a 1D convolution in the spectral direction for each spaxel.

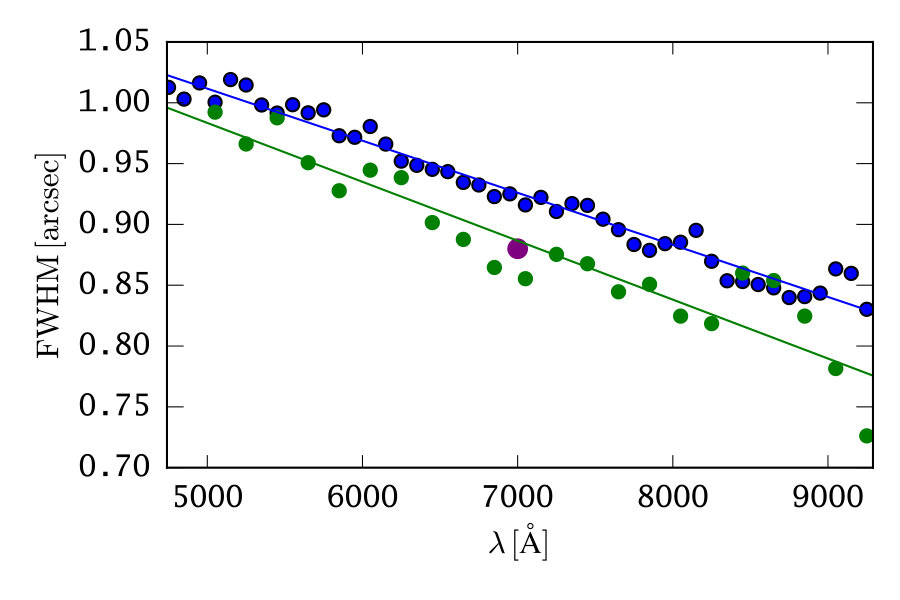

As the template for the 2D convolution in each spectral layer we use the circular Gaussian profile option of LSDCat. For the matched filtering this template provides a reasonably good approximation of the seeing induced point spread function (PSF). The width of the PSF, typically given as the full width at half maximum (FWHM), depends on wavelength (e.g., Hickson 2014). The input-parameters for LSDCat describing this width and its wavelength dependence need to be supplied as the coefficients $p_{0}$ and $p_{1}$ of the linear function $\mathrm{FWHM}(\lambda)[\arcsec]=p_{0}+p_{1}(\lambda-7000\mathrm{\AA{}})$ that provides an acceptable approximation over the wavelength range under consideration here. In principle, the determination of the $\mathrm{FWHM}(\lambda)$ dependence, and thus the optimal coefficients in $p_{0}$ and $p_{1}$, can be achieved by fitting a 2D Gaussian function to a reasonably bright star in each spectral layer of the datacube. However, by choice the CANDELS fields are devoid of bright stars. Hence, for numerous of our pointings selecting objects from the Guo et al. (2013) CANDELS GOODS-S photometric catalogue with $\mathtt{CLASS\_STAR}>0.95$, i.e. objects that are likely stars, results only in objects with $\mathrm{m}_{\mathrm{F814}}>23$ mag. For these objects even binning of 100 spectral layers of the datacube, does not result in a S/N-ratio sufficient for reliable 2D Gaussian fits. However, for stars brighter than $\mathrm{m}_{\mathrm{F814}}\lesssim 22$ mag such fits do converge. For 13 of the 24 pointings this direct point-source fit could be employed. To get the FWHM values in the binned layers we used the PAMPELMUSE software (Kamann 2013, Kamann et al. 2013). For the remaining fields we devised a minimisation scheme utilising compact galaxies. For this we visually selected compact galaxies within the FoV of a pointing from the CANDELS F814W image. We then convolved these galaxies with 2D Gaussians of different FWHMs and resampled these convolved images to the spatial resolution of MUSE. In a series of $\sim 100-200$ binned layers we then determined the $\chi^{2}$ of the differences between the convolved and resampled images to the real data. Finally, we fitted the sequence of FWHM values at different wavelengths with a linear function to obtain $p_{0}$ and $p_{1}$. For the 13 pointings that have a star in the field we found that the two methods agree within 10% on the derived $\mathrm{FWHM}(\lambda)$ dependence. This is shown for one example in Figure 4. We list in Table 2 all $p_{0}$ and $p_{1}$ coefficients that we used as input for the spatial filtering procedure in LSDCat. For pointings with both the stellar- and compact object-based estimates of the PSF available, we used the coefficients resulting in $\mathrm{FWHM}(7000\mathrm{\AA})$ being closest to the autoguider seeing value given in Table 1, which we consider to be the best seeing estimate at this wavelength.

For the spectral convolution LSDCat uses a 1D Gaussian template. Its width needs to be specified as the velocity FWHM – $v_{\mathrm{FWHM}}$ – in km s*-1*. We fixed this parameter in our emission line search to $v_{\mathrm{FWHM}}=250$ km s*-1*. We found this to be the best single value for achieving the highest S/N for the majority of LAEs in MUSE datacubes (HW17). Moreover, taking the instrumental resolution of MUSE into account, this value is also consistent with the expectations from the distributions of LAE FWHMs in the literature (e.g., Dawson et al. 2007; Mallery et al. 2012; Yamada et al. 2012). Although the width of the spectral filter is optimised for LAEs, we emphasise that the resulting S/N of an Gaussian emission line decreases only as $\sqrt{2k/(k^{2}+1)}$ if instead of the optimal $v_{\mathrm{FWHM,\,correct}}$ a different $v_{\mathrm{FWHM,\,incorrect}}$ is chosen, where $k=v_{\mathrm{FWHM,\,incorrect}}/v_{\mathrm{FWHM,\,correct}}$ (HW17; see also Zackay & Ofek 2015). Moreover, for the same reason the resulting S/N is also quite robust against moderate shape mismatches between the Gaussian template and the real emission line profiles.

Equipped with a set of carefully vetted parameters for the cross-correlation with the matched filter, we then applied the relevant LSDCat routines lsd_cat_spatial.py and lsd_cat_spectral.py to our 24 datacubes. These routines also propagate our empirically estimated variances accordingly. As a result, we obtained 24 new datacubes (S/N-cubes) that contained in each voxel the detection significance of an emission line being present at this position in terms of S/N.

3.1.4 Thresholding and cataloguing of emission line source

candidates

LSDCat collects emission line candidates by thresholding the S/N-cubes from the matched-filtering procedure. This task is performed by the routine lsd_cat.py, which collects all detections in the form of a catalogue containing their peak S/N value, the 3D coordinate of the peak, and the numbers of voxels constituting the detection cluster.

In theory, i.e. for perfect data without artifacts, the voxel values of the matched-filter processed cubes are directly related to the probability of rejecting the null hypothesis of no source signal being present at a voxel position. Under this assumption the choice of the S/N threshold can directly be related to the number of expected false detections in a datacube from its total number of voxels. In practice, however, we have to face the difficulties of possible unknown systematics in the data and the limitations of our empirical noise estimate (Sect. 3.1.1). Moreover, as we describe in Sect. 3.2, our source classification scheme is semi-automatic and requires a careful visual inspection of most sources. This necessitates a low ratio of spurious to real detections.

By successively lowering the detection threshold and visual inspection of the detected sources, we found that the number of unclassifiable (likely spurious) sources increased rapidly when we lowered the S/N threshold below eight. This value represents “the point of diminishing returns” that we adopted for our emission line search.

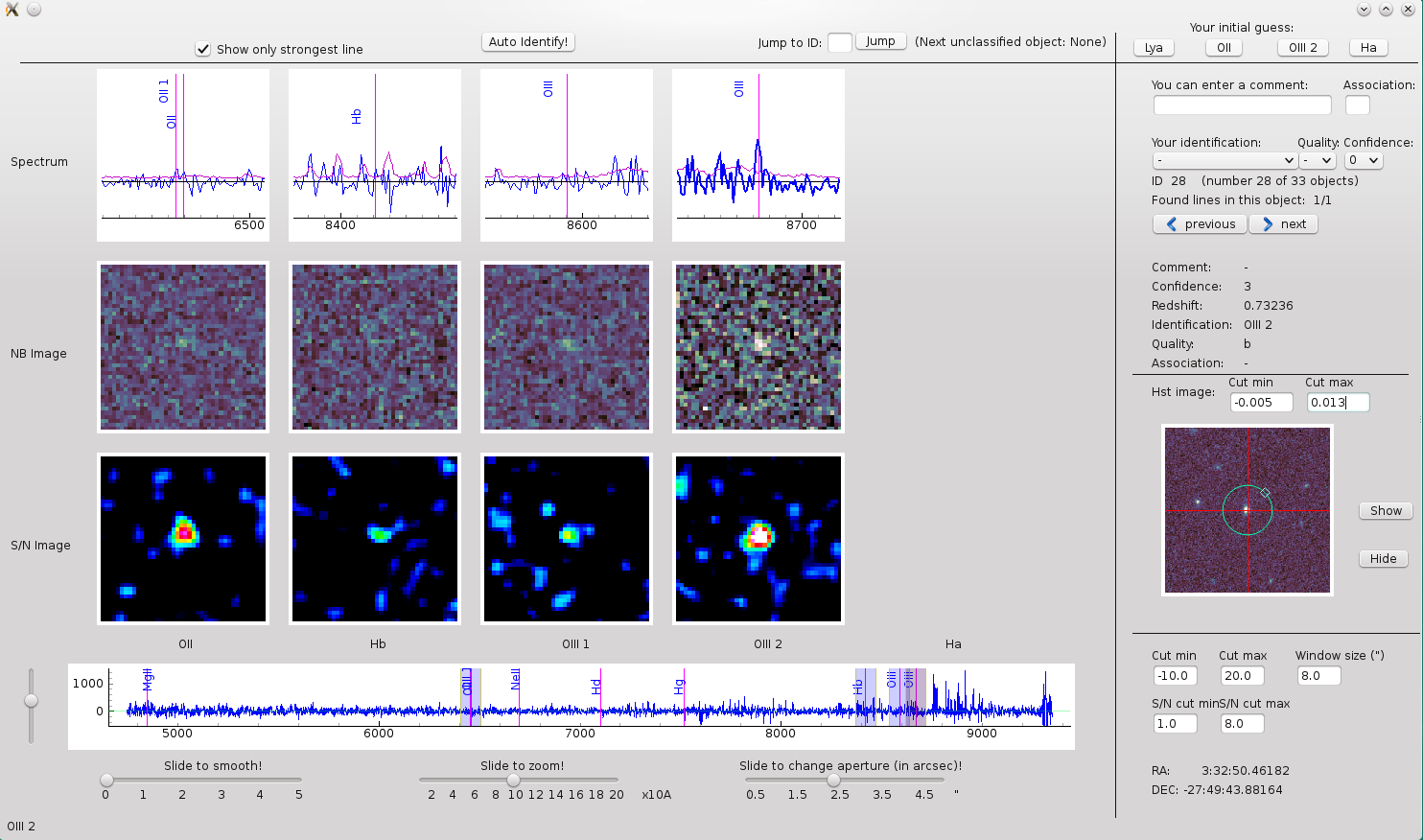

3.2 Classification and cleaning

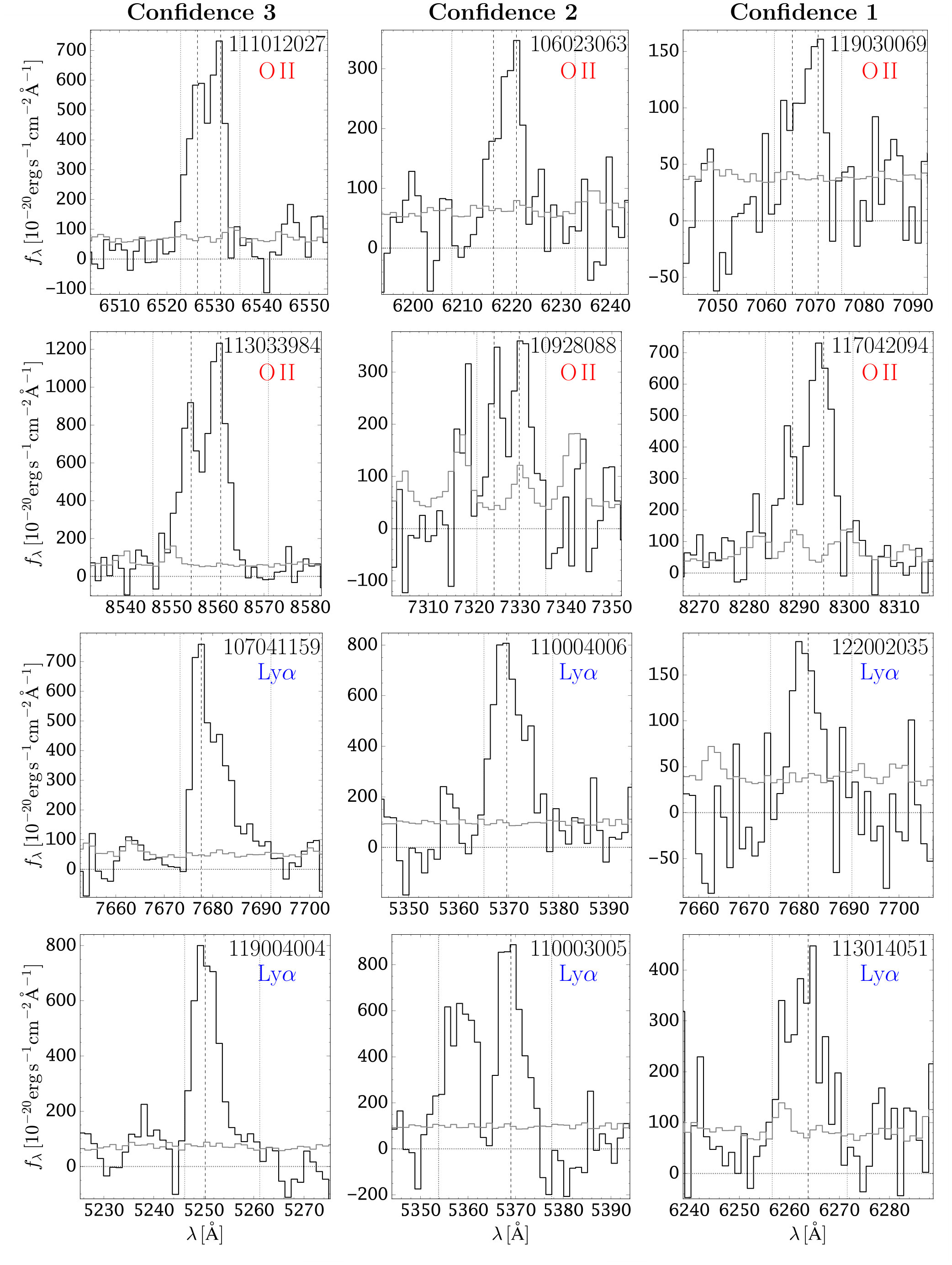

With the S/N threshold of eight LSDCat provided us with a catalogue of 2603 line detections over all 24 fields. The process of identifying those individual detections, grouping them into to objects, as well as purging spurious detections from the initial catalogue was the obvious next step.

LSDCat groups multiple line detections together if they are within a search radius of 0.8″on the sky. Our initial catalogue contained 374 groups consisting of two or more detections and 642 spatially isolated single detections. We inspected those emission line groups and single line detections with an interactive graphical tool QtClassify developed especially for this task. The functionality and appearance of QtClassify are detailed in Appendix A. With this tool all groups and single line detections were inspected independently by three investigators (ECH, JK, and TU). Afterwards these individual classifications were consolidated into a final classification for each object. During consolidation a final quality and confidence value were assigned to each detection. While our quality value indicates the amount of objective information within the datacube and the cross-correlated S/N datacube that aided the decision process for a particular classification, our confidence value is a more subjective measure of “belief” towards the final classification.

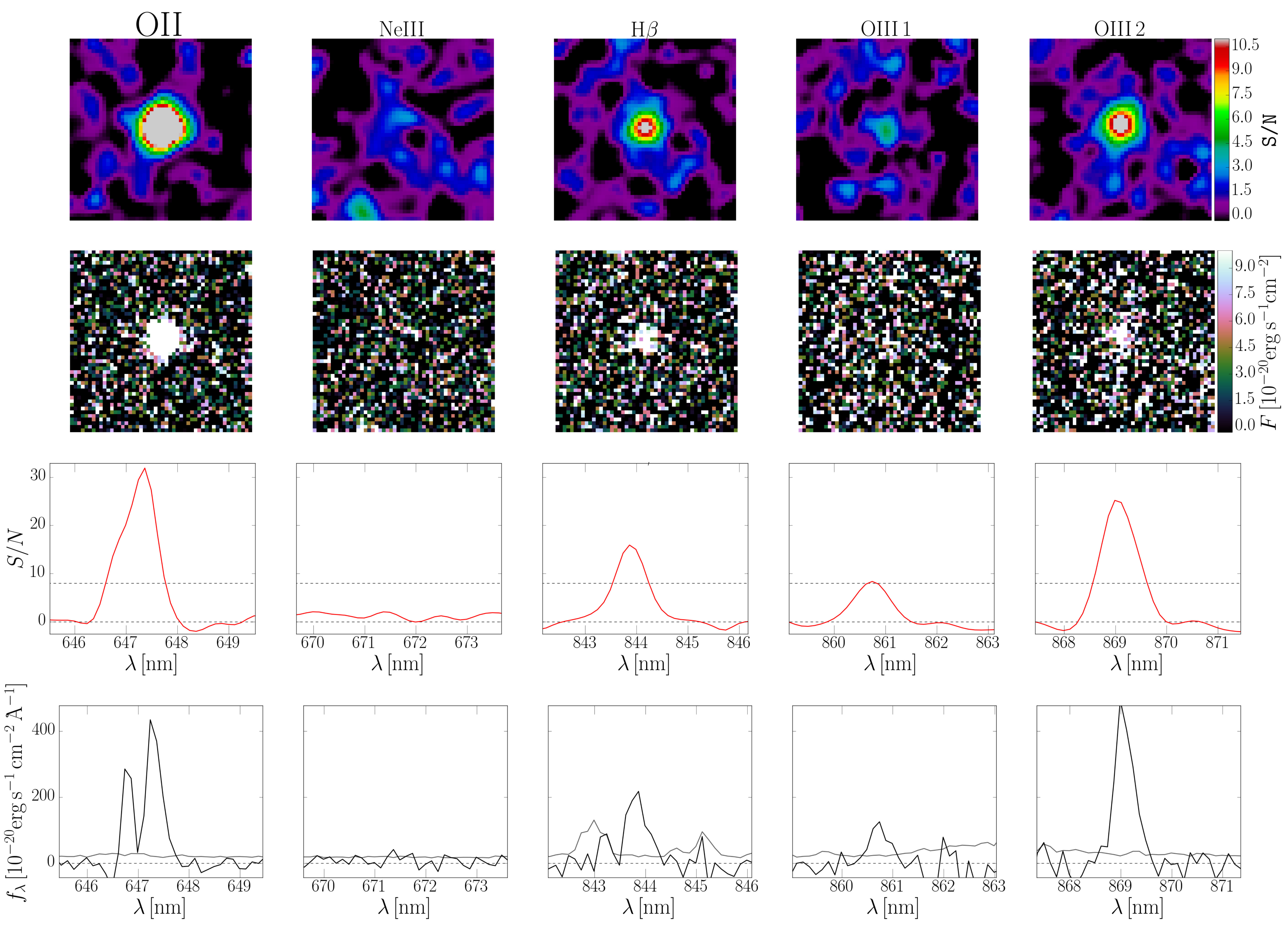

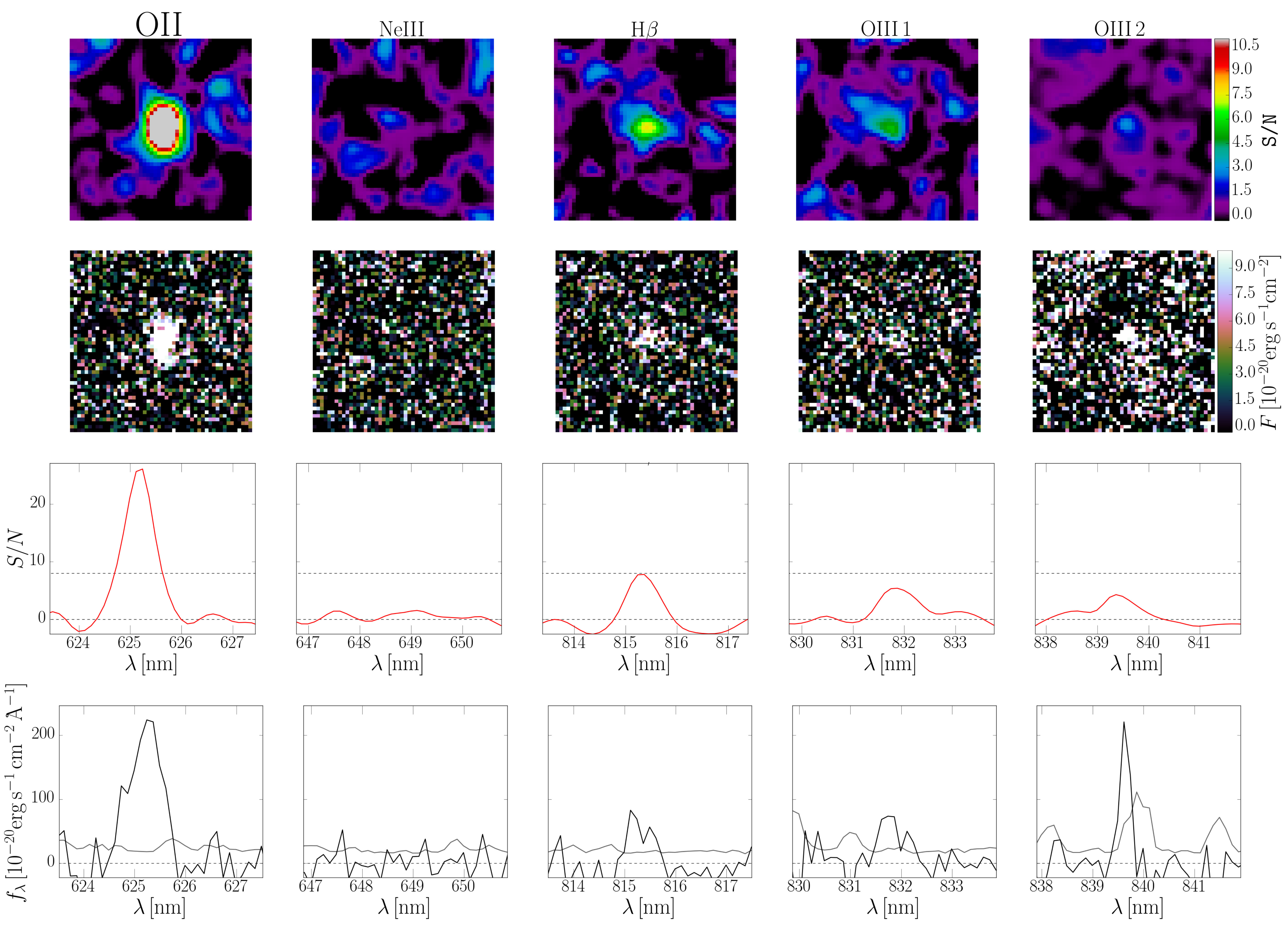

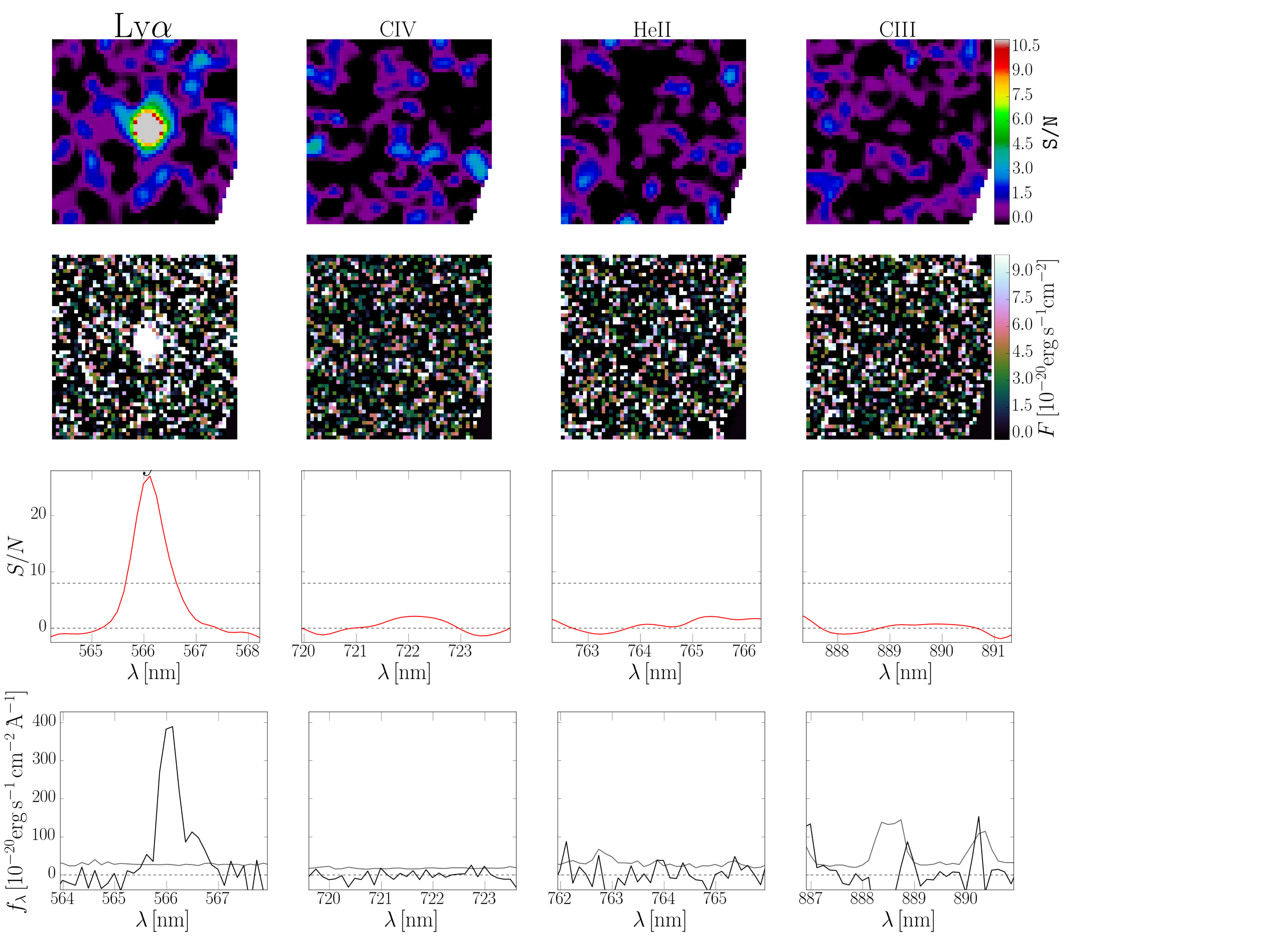

In detail we assign quality flags A, B, and C according to the following criteria:

• •

Quality A: Multiple emission lines were detected at the same location on the sky and it was possible to anchor a unique redshift solution for the object. These unambiguous identifications were assigned automatically in QtClassify but were confirmed by visual cross-checks. We show an example of a quality A classified object in Fig. 5. There are 288 “Quality A” objects in the final catalogue (34.7%).

• •

Quality B: Only one emission line was detected above the detection threshold. However, one or more other lines below the detection threshold could also be seen. These, mostly unambiguous, identifications were assigned manually in QtClassify. We show an example of a quality B classified object in Fig. 6. There are 117 “Quality B” objects in the final catalogue (14%).

• •

Quality C: Only one emission line was detected and no secondary lines are visible. The identification was based on the visual appearance of the line (e.g. double peak matches [O II] $\lambda\lambda$3726,3728 profile, characteristic Ly$\alpha$ profile shape), and the appearance of the object in the HST CANDELS images. Prior information on the photometric redshifts was not included. We show an example of a quality C classification in Fig. 7. There are 426 “Quality C” objects in the final catalogue (51.3%). For these objects the confidence measure indicates how sure the investigators are on a certain classification.

The confidence values 3, 2, and 1 indicate the following:

• •

Confidence 3: We are certain of the classification. All quality A and most quality B identifications have confidence 3. For single line detections these objects are characterised by a very well resolved [O ii] double-peak or a characteristic Ly$\alpha$ profile. In total we have 578 objects marked with a confidence value 3 in the final catalogue (70%).

• •

Confidence 2: We are quite sure of the classification, but not with the same degree of certainty as for confidence 3. Often the reason was simply a somewhat lower S/N of the detection, or a remaining (however slight) possibility that another line might mimique the appearance of the classified line. Such cases were discussed among the classifiers in the consolidation process. Often the line profile had to be evaluated in detail and examined in apertures of different sizes in QtClassify. In some cases also CANDELS images and photometry were inspected in the consolidation process. However, we did not consult any photometric redshift catalogues. 210 objects in the final catalogue are marked with confidence 2 (25.3%).

• •

Confidence 1: We are unsure regarding the classification but are certain that the detection is not spurious. Often the classifiers initially disagreed on the classification. Inspection of the line profile and HST imaging data did not resolve the uncertainty. The final classification represents our “best guess”. These lines usually show the lowest S/N-ratios. Only 43 objects, i.e. 5.2% of all objects in our catalogue, are in this category.

To illustrate our confidence measure we show several line profiles of emission lines that were classified either as Ly$\alpha$ or [O ii] in Fig. 8.

During the consolidation session we also flagged spurious detections (e.g., telluric line residuals, or detections caused by increased noise near the FoV borders) and detections caused by residuals due to imperfect continuum subtraction. Only 74 of the 2603 line detections in the initial catalogue were flagged as spurious. Moreover 636 line detections were caused by continuum residuals, most of them were bundled up in very few objects, cold stars or bright early-type galaxies for which the median filter subtraction does a poor job of removing the continua, with 30 or more detections each. These detections were removed from the final emission line table. Moreover, due to the overlap of the pointings, some sources were detected twice in adjacent pointings. In the final catalogue we tabulate for such sources only the quantities determined for the detections in the pointing where the source is located farthest away from the edge, where the measurements are less affected by possible edge effects. Furthermore, some low-$z$ galaxies tended to fragment into detections of, e.g., multiple H ii regions. Such fragmented detections were manually merged into single objects. The removal of double-detections and manual cleaning of fragmented objects removed 241 emission line detections from the initial catalogue. Finally, it turned out that eight of the inspected line groups (i.e. multiple detections within a 0.8″ radius) are not one object, but are a by chance superposition of two objects at different redshifts.

By construction, all objects with quality flag A have a confidence value of 3 in the final catalogue. Most of the objects with quality B also have a confidence value of 3 (107), but for a few objects (10) the S/N of the additional lines was very low so that we assigned them with a confidence value of 2. None of the quality B objects has a confidence value 1. In the quality C class 183 of the 426 single line detections got assigned a confidence value of 3, 200 of them got assigned a confidence value of 2, and for 43 objects we were unsure regarding the final classification (confidence value 1).

After the consolidation and cleaning steps of the initial catalogues described above we arrive at a final catalogue of 1652 emission lines from 831 emission line galaxies.

3.3 Positions, spatial extents, and flux measurements

LSDCat determines the positions, spatial extents, and fluxes of detected emission lines with the routine lsd_cat_measure.py. As source positions in our catalogue we primarily use the first central moments that are determined in a pseudo narrow-band image, generated from summing over several layers in the matched-filtered version of the datacube. The layers used in this summation are given by the spectral coordinates of voxels that are above a certain analysis threshold $\mathrm{S/N}_{\mathrm{ana}}$ in the S/N-cube. After visual inspection of the line profiles, we found that setting $\mathrm{S/N}_{\mathrm{ana}}=3$ delivers a band that is optimally suited for almost all emission lines. However, currently LSDCat does not offer an algorithm to deblend close-by neighbouring sources. For those sources the first central moments can be ambiguous. In such cases we tabulate as primary coordinate the S/N peak position introduced in Sect. 3.1.4. These cases are identified by searching in the LSDCat output catalogues for detections where the S/N-peak position differs significantly from the first-moment coordinate ($\geq$0.5″; cf. Sect. 5.2, where we comment on the astrometric precision of the catalogue). More details on the available coordinates per emission line are given in Sect. 4 where we describe the contents of the final source catalogue.

LSDCat also measures the spatial extents of our detections by calculating the characteristic light distribution weighted radius introduced by Kron (1980). To calculate the Kron radius $R_{\mathrm{Kron}}$ the LSDCat algorithm follows closely the SExtractor implementation (Bertin & Arnouts 1996). The calculation is performed on the same pseudo narrow-band images that were used for the determination of the centroids above. Since for low-S/N detections the Kron radius can become erroneously small, we limit the boundary to $R_{\mathrm{Kron}}^{\mathrm{min}}=0.6$″ in such cases. This ensures that the smallest aperture diameter for the flux measurement, described below, is always larger than the FWHM of the seeing disk.

Finally, we used LSDCat to measure the fluxes of all emission lines. To do this, first, the algorithm creates pure line emission images by summing up layers containing only the emission line signal. As above, the bandwidth of these images is given by the spectral coordinates of the voxels above $\mathrm{S/N}_{\mathrm{ana}}=3$ in the S/N-cube. We then integrate the flux in these images within $k\times R_{\mathrm{Kron}}$ apertures, with $k=1$, $k=2$, $k=3$, and $k=4$. The $k=3$ aperture is expected to contain $>95\%$ of the total flux for compact sources whose light-profile is mainly determined by PSF broadening (e.g. Graham & Driver 2005). Moreover, we show in the LSDCat publication (HW17) that automatically determined fluxes based on the LSDCat $k=3$ aperture compare well with manually determined fluxes based on a curve-of-growth method.

We caution that for some double peaked Ly$\alpha$ emission lines in our catalogue we find that the spectral width determined by LSDCat does not always encompass the weaker bluer peak of the profile in its entirety (e.g., object 110003005 in Fig. 8). In a few cases it even misses the blue peak completely (e.g., objects 107041159, 11004006, and 119004004 in Fig. 8). In particular, 87 of our 237 Ly$\alpha$ emitters show a blue peak and in 53 of those the blue peak is not or only partially included in the automatically determined flux integration bandwidth. Fitting the blue and red peak simultaneously in the 1D extracted spectra (described in Sect. 4.3), we find that the average flux loss for those 53 objects is 10%. Rather than manually changing the spectral integration width for those sources we opt for providing a homogenised set of automatically determined flux measurements. We will address the accurate measurement of LAE fluxes in a forthcoming publication. Moreover, the fluxes in automatically determined $3\,R_{\mathrm{Kron}}$ apertures are also not robust for galaxies that are exceptionally extended or have close by companions. For such objects emission line flux ratios will likely be distorted. Another caveat of the provided fluxes is, that for all except eight [O ii] detections the $\lambda\lambda$3726,2729Å doublet is detected as a single line, thus the tabulated flux is integrated over both lines. We encourage users interested in more accurate emission line flux measurements to exploit the information contained in the 3D source datacubes that we provide with this catalogue (Sect. 4.4).

3.4 Redshift measurements

The line detection and identification gives us an approximate measure of the redshift which we improved as described in the following. To accurately measure redshifts of the 831 emission line galaxies in our sample we use 1D spectra that we extracted for each of our objects. These spectra are released with the catalogue and the extraction is described in Sect. 4.3. Depending on whether the source is a high-$z$ LAE or a low-$z$ galaxy detected by its rest-frame optical emission line we employed different emission line fitting strategies. We describe the fitting method in the following two subsections. All our redshifts are vacuum redshifts within the barycentric reference frame.

3.4.1 Determining Lyman $\alpha$ galaxy redshifts

To determine the redshifts of the LAEs we fitted the Ly$\alpha$ line profiles with the formula

[TABLE]

introduced by Shibuya et al. (2014). Eq. (1) describes an asymmetric Gaussian profile used to fit Ly$\alpha$ profiles. Shibuya et al. (2014) argue that Eq. (1) provides a more robust peak wavelength for the typical LAE profiles than a simple Gaussian. The free parameters $A$, $\lambda_{0}$, $a_{\mathrm{asym}}$, and $d$ in our fit to Eq. (1) are the amplitude, the peak wavelength, the asymmetry parameter, and the typical width of the line, respectively. It is known and commonly attributed to the complex Ly$\alpha$ radiative transfer physics that Ly$\alpha$ redshift measurements are systematically offset by $\sim 100$ – $200$ km s*-1* with respect to the systemic redshift determined from rest-frame optical emission lines (e.g. McLinden et al. 2011; Rakic et al. 2011; Chonis et al. 2013; Erb et al. 2014; Song et al. 2014; Hashimoto et al. 2015; Trainor et al. 2015). No correction for such offsets was applied here.

In practical terms, the fitting was performed in a window around the peak with flux values being greater than 10 % of the peak flux. For the 87 Ly$\alpha$ emitters in our sample that show a double peaked profile we restricted the fit to the region of the red peak. For 11 objects we had to adjust the window size manually to avoid strong sky-subtraction residuals. We accounted for a possible continuum by subtracting a running median from the 1D spectrum. Finally, we determined the error on each redshift by repeating the fitting procedure 100 times on random realisations of the spectra generated by perturbing each spectral pixel according to the noise statistics of that pixel from the associated error spectrum.

3.4.2 $z\lesssim 1.5$ galaxies

Emission line galaxies at $z\lesssim 1.5$ are detected in MUSE datacubes by the typical strong rest-frame optical emission lines of star-forming galaxies (e.g. Kennicutt 1992): [O ii] $\lambda\lambda$3276,3278 (detected in 472 objects), [O iii] $\lambda\lambda 4958,5006$ (detected in 310 objects), H$\beta$ (detected in 184 objects), and H$\alpha$ $\lambda 6563$ (detected in 73 objects). In Table 5 we list the air- and vacuum wavelengths of these transitions.

To determine redshifts we fitted 1D Gaussian profiles to those emission lines. The [O ii] $\lambda\lambda$3276,3278 doublet was fitted by a double component Gaussian with fixed separation and free intensity ratio, while all other lines were fitted with single components. The continuum was subtracted with a 151 pixel wide running median in spectral direction. For objects having several detected emission lines we computed the S/N-weighted mean redshift of all emission line fits. The error on the redshift was determined by repeating the fitting procedure 100 times on realisations of the spectra generated by perturbing each pixel according to the noise statistics from the error spectrum.

4 Source catalogue, spectra, and datacubes

With this publication we provide the following data products:

• •

A catalogue of all 831 detected emission line objects.

• •

A table of all 1652 detected emission lines in those objects.

• •

1D PSF-weighted extracted spectra of the emission line objects .

• •

3D datacubes of the emission line objects.

The tabular data is available in its entirety in the electronic version of the journal. Moreover, these data is also available via the MUSE-Science website888http://muse-vlt.eu/science/muse-wide-survey and via the CDS999Placeholder for CDS URL, when assigned, where also the 1D spectra and 3D datacubes are stored. In the following subsections we describe these data products in detail.

4.1 Object Table

In Table 3 we present the columns of the catalogue that contains all 831 detected emission line galaxies in the first 24 pointings (22.2 arcmin2) of the MUSE-Wide survey. The details of the 14 columns are given below:

• •

UNIQUE_ID contains a unique MUSE-Wide ID. This ID is composed of nine digits divided into four groups of the format ABBCCCDDD. Here A designates the MUSE-Wide survey-area (1$\equiv$ECDF-S CANDELS/Deep, 2$\equiv$COSMOS CANDELS (not used in the catalogue described here), or other numbers for future MUSE-Wide regions), BB indicates the pointing number (here 01–24, see Fig. 1), CCC refers to the per-pointing object ID, and DDD to the running ID of the strongest line. These last two identifiers relate to the emission-line table explained in Sect. 4.2.

• •

RA and DEC contain the position of the galaxy in right-ascension $\alpha_{\mathrm{J2000}}$ and declination $\delta_{\mathrm{J2000}}$. For most sources this position is given as first central moments determined in an adaptive narrow-band image (Sect. 3.3) of the lead line (see column LEAD_LINE description below). However, for 40 sources this position differed by more than 0.5″ to the peak S/N position found in the initial thresholding step (Sect. 3.1.4). Visual inspection revealed that these cases are often affected by blends with neighbouring sources. Since the peak S/N-coordinate is less affected by blending, for those 40 cases we replace the first central moment coordinate with the peak S/N coordinate. We also provide more positional parameters per emission line detection in Sect. 4.2.

• •

Z contains the redshift $z$ for each galaxy and column Z_ERR contains the error on this quantity as explained in Sect. 3.4.

• •

LEAD_LINE contains the lead line for each galaxy. The lead line is defined as a galaxy’s emission line that has the highest S/N after the matched-filtering process (Sect. 3.1.3). The lead line is therefore not necessarily the line with the highest flux. Potential identifiers encountered in the LEAD_LINE column are tabulated in Table 5.

• •

SN contains the S/N of the lead line.

• •

QUALITY and CONFIDENCE tabulate the quality and confidence values indicating the robustness of the object classification and line identification as described Sect. 3.2.

• •

OTHER_LINES we provide a comma-separated list of all other emission lines that were detected above the detection threshold, but at a lower S/N than the lead line. This field is empty in case of a single line detection. Potential identifiers encountered in the OTHER_LINES column are tabulated in Table 5 (see also Sect. 4.2 below).

In the last four columns of the object-table we provide cross-matches (and angular separations) to existing catalogues based on source detection in HST imaging of the CANDELS-GOODS-S field.

• •

GUO_ID contains the object identifier of the cross-matched source from the CANDELS GOODS-S catalogue (Guo et al. 2013). Its value is set to 0 for objects where no counterpart could be assigned.

• •

GUO_SEP gives the angular separation between the MUSE-Wide position and Guo et al. (2013) source.

• •

SKELTON_ID contains the in object identifier of the cross-matched source from the 3D-HST/CANDELS photometric catalogue (Skelton et al. 2014). It is set to 0 for objects where no counterpart could be assigned.

• •

SKELTON_SEP gives the angular separation between the MUSE-Wide position and the Skelton et al. (2014) source.

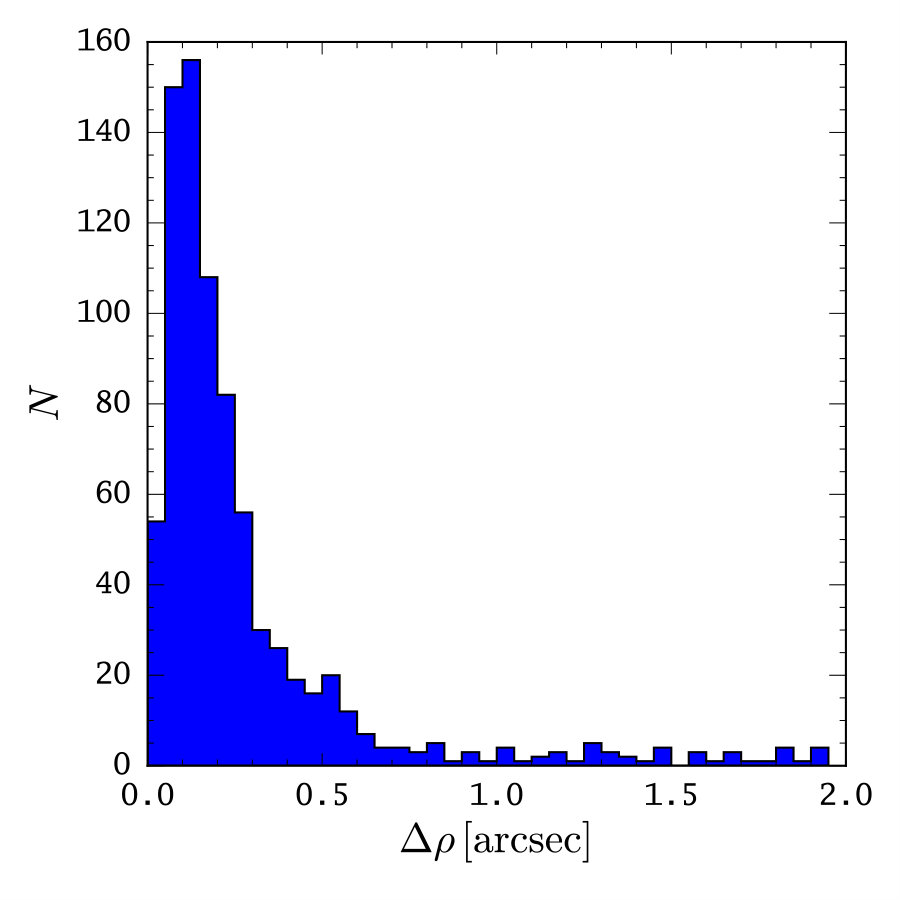

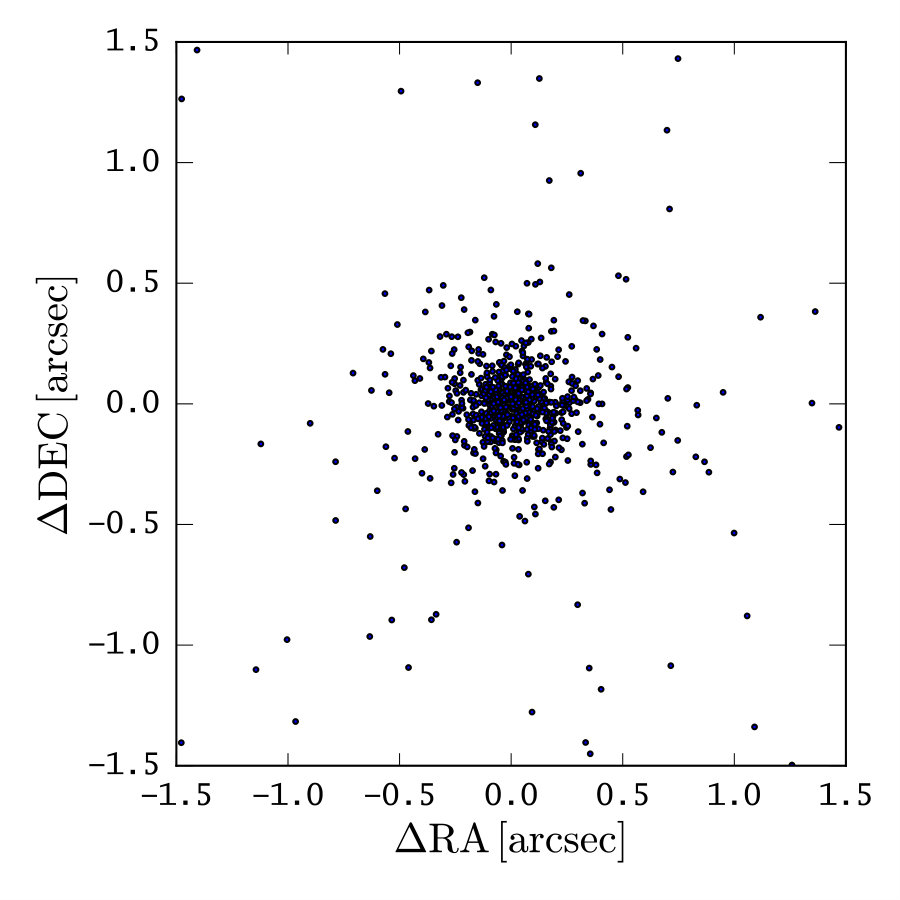

These cross-matches where obtained by first selecting for each object in our catalogue the corresponding object with the smallest on-sky separation in the photometric catalogues. In Fig. 9 we show the relative distances in right ascension and declination with respect to the Skelton et al. (2014) catalogue, as well as histogram of the angular separations $\Delta\rho$. Both panels of Figure look almost identical if we compare to the positions from the Guo et al. (2013) catalogue instead. The isotropic distribution around $(\Delta\mathrm{RA},\Delta\mathrm{Dec}=(0,0)$ indicates that there is no systematic off-set in the positions reported in our catalogue. The median $\Delta\rho$ of this catalogue cross-match is 0.17″ (0.19″) and 83% (80%) of all MUSE-Wide objects have a photometric counterpart in Skelton et al. (2014) catalogue (the Guo et al. 2013 catalogue) within 0.5″. Visual inspection of F814W thumbnails with catalogue positions overlaid (see examples in Fig. 10) reveals that all photometric counterparts with $\Delta\rho\leq 0.5$″ are certain associations. Based on this visual screening we included 34 and 36 additional counterparts with angular separations $\geq 0.5$″ from the Skelton et al. (2014) and Guo et al. (2013) catalogue, respectively. For these sources either the broad-band photometric centroid appears to be offset from the emission-line centroid, or in the case of some low-redshift sources the photometric catalogues tend to separate one source into multiple detections (see, e.g., ID 101200036 in bottom row of Fig. 10).

4.2 Emission Line Table

For each of the 1652 detected emission lines listed in columns LEAD_LINE and OTHER_LINES of the object catalogue LSDCat outputs a set of measurements. We supplement the object catalogue by providing a table that contains these measurements as well as additional information for all emission lines. This table is available only in electronic format at the CDS as a FITS table and contains the following columns, which are also briefly summarised in Table 4:

• •

UNIQUE_ID contains the unique identifier for each detected galaxy in our survey (cf. Sect. 4.1). Therefore, this column establishes the link between the object table and the emission line table.

• •

OBJECT_ID is a unique integer identifier for each identified object within a MUSE-Wide pointing. This identifier separates spatially overlapping objects, i.e. two galaxies at different redshifts but at the same position on the sky. This integer number, padded with zero digits on the left, comprise the digits CCC of UNIQUE_ID. While in the present catalogue never more than 100 objects are within a pointing, we reserve the third digit for future MUSE-Wide catalogue publications to ensure a unified system across different MUSE-Wide catalogues.

• •

RID is the running index from our initial LSDCat catalogues after thresholding (Sect. 3.1.4) and thereby uniquely indexes each detected emission line in a pointing. This integer number, padded with zeros on the left, comprise the digits DDD of UNIQUE_ID. Since we removed 951 of the detections in the classification and cleaning process of the initial catalogue (Sect. 3.2), the RID column is not a running integer index per pointing in the final catalogue.

• •

IDENT contains the identification of each catalogued emission line established in the classification process (Sect. 3.2). We encode line identifications in a string of four alphanumeric characters. A legend of all those emission lines identifiers, their common designations and their wavelengths is given in Table 5. In this table we also list the total number of detections of a particular emission line in our catalogue.

• •

COMMENT: During the consolidation of our classifications with QtClassify we added comments when necessary. These are stored in this column.

• •

BORDER_FLAG contains a logical flag, indicating whether the 3 Kron-radii extraction aperture for the emission line flux measurement overlaps with the FoV borders of the particular pointing in which the flux was extracted.

The other columns in the emission line table stem directly from LSDCat:

• •

SN contains the detection significance of a particular emission line.

• •

RA_SN, DEC_SN, and LAMBDA_SN contain the 3D S/N weighted right ascension, declination, and wavelength coordinate.

• •

RA_PEAK_SN, DEC_PEAK_SN, and LAMBDA_PEAK_SN contain the position of the emission line peak in the S/N cubes.

• •

RA_1MOM, and DEC_1MOM contain the first central image moment coordinate determined in a synthesised narrow band image of the emission lines (cf. Sect. 3.3).

• •

R_KRON contains the Kron-radius of a line detection determined in the same synthesised narrow-band (cf. Sect. 3.3).

• •

LAMBDA_NB_MIN and LAMBDA_NB_MAX contain the maximum and minimum wavelength of the synthesised narrow band.

• •

F_KRON, F_2KRON, F_3KRON, and F_3KRON contain the integrated flux over the emission line in the synthesised narrow-band within a circular aperture of radius $R_{\mathrm{Kron}}$, $2\times R_{\mathrm{Kron}}$, $3\times R_{\mathrm{Kron}}$, and $4\times R_{\mathrm{Kron}}$ respectively (see also Sect. 3.3).

• •

F_KRON_ERR, F_2KRON_ERR, F_3KRON_ERR, and F_3KRON_ERR contain the propagated errors on the flux measurements.

For algorithmic details on the above listed measurements we refer the reader to the LSDCat paper (HW17).

4.3 1D Spectra

We provide a 1D spectrum for each of our objects. These are created by utilising a 2D weighted extraction in each spectral layer. As weights we adopt a normalised 2D Gaussian PSF, where we use the same parameterisation that we used for the matched-filtering explained in Sect. 3.1.3. For compact, unresolved sources, the spectral pixels of the so extracted 1D spectra give a nearly unbiased and S/N-optimised estimate of the total flux within each spectral layer. However, for extended sources (or for extended emission line profiles in compact sources), these spectra underestimate the total flux. These spectra should therefore only be used to get a first impression of the spectral characteristics of a source in our catalogue, while measurements should be performed on the source datacubes described in Sect. 4.4 below.

We distribute the 1D spectra as FITS binary tables with file names spectrum_ABBCCCDDD.fits, where ABBCCCDDD is the unique ID introduced in Sect. 4.1. The tables contain four columns: AIR_WAVE and AIR_VAC contain the air- and vacuum wavelength, respectively, in Ångstrom (see note below Table 5 for details on the applied conversion). FLUX and FLUX_ERROR contain the flux and the propagated error in the extraction in units of $10^{-20}$ erg s*-1cm-2Å-1*.

4.4 Source datacubes

For each emission line galaxy we also provide three-dimensional source datacubes. These source datacubes are created from the per-pointing datacubes whose reduction was described in Sect. 2. Each source datacube is centred on the coordinate given in column RA and DEC of the object table (Sect. 4.1). The spatial dimensions of the extracted cubes are set to encompass 4.5 times the maximum Kron-radius from the set of an object’s detected emission lines. We do not remove or mask neighbouring objects that fall into the extracted field of view of the source datacubes. Moreover, if objects are close to the border of the FoV, the source datacubes contain voxels set to nan (not a number) in regions where no data were available.

We distribute these source datacubes as FITS files named objcube_ABBCCCDDD.fits, where ABBCCCDDD is the unique ID introduced in Sect. 4.1. These FITS files contain three HDUs. The first HDU stores the actual minicube in a 3D flux array in units of $10^{-20}$ erg s*-1cm-2Å-1*, while the second HDU stores the empirical noise estimate $\sigma_{\mathrm{emp.}}$ (Sect. 3.1.1) as an 1D array, in the same units, for the pointing where the mini-cube was extracted.

The third HDU of the mini-cube FITS file contains a 2D exposure map of the same spatial dimensions as the mini-cube itself. Each pixel of this map shows the average number of exposures that went into the corresponding spaxel. Since each MUSE-Wide cube consists of four exposures, the exposure map values range from zero to four. Values less than four are encountered either when single exposures were affected by cosmic rays on the detector and thus was masked out in the muse_scipost resampling process (Sect. 2), or near the FoV borders where several spaxels contain less than four exposures because of the drizzling pattern. Outside the FoV the values of the exposure map are zero.

5 Characteristics of the sample

While an extensive scientific exploration of the presented sample is beyond the scope of this paper, we provide in this section some basic characteristics of our emission line selected galaxy sample from the first 24 MUSE-Wide pointings.

5.1 Redshift distribution

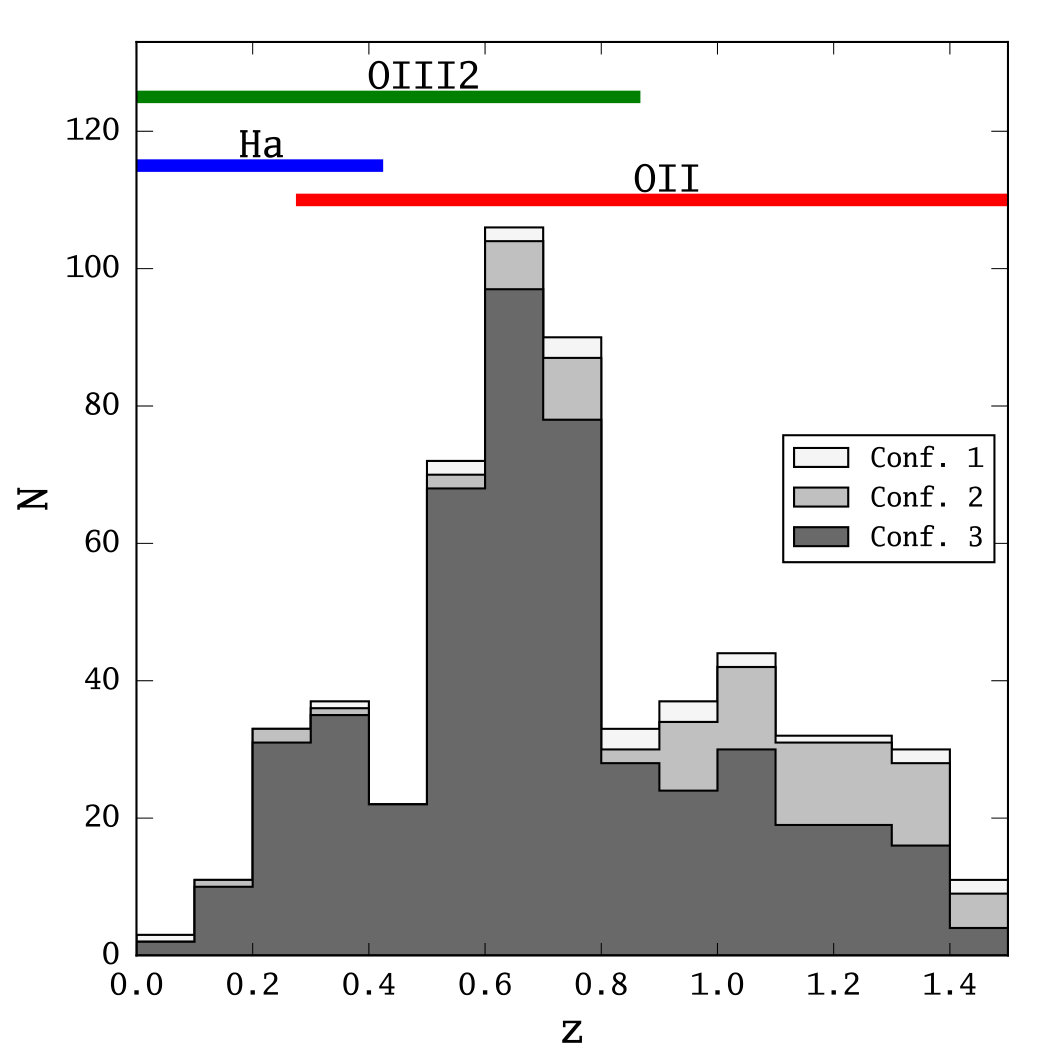

In Fig. 11 we show a histogram of the redshift-distribution obtained from the emission line fits described in Sect. 3.4. We have 595 galaxies at $z<2$ detected by their rest-frame optical emission lines and 238 $z>2.95$ galaxies, of which 237 where detected by strong Ly$\alpha$ emission and a single object where the C IV had a higher S/N than Ly$\alpha$. At the depth of MUSE-Wide the absence of strong nebular lines between [O ii] and Ly$\alpha$ results in a “redshift desert” in the interval $1.5\lesssim z\lesssim 3$.

5.2 Redshift comparison with existing photometric and spectroscopic catalogues

We now compare our 831 emission line selected galaxies to existing photometric and spectroscopic redshift measurements from the literature within our survey area.

Momcheva et al. (2016) presented a redshift catalogue of $\sim 10^{5}$ sources in all CANDELS fields containing grism redshifts from the 3D-HST survey (Brammer et al. 2012; Momcheva et al. 2016), photometric redshifts from 3D-HST/CANDELS photometry (Skelton et al. 2014), as well as a compilation of ground-based spectroscopic redshifts also contained in Skelton et al. (2014). For the CDF-S region under scrutiny here the ground-based redshifts in this compilation are taken from the compilation by Wuyts et al. (2008; see their Table 3 for individual spectroscopic campaigns). To be conservative, we here include only objects that have a photometric counterpart within a 0.5″ radius of the MUSE-Wide position, i.e. we discard all manually assigned cross-matches from Sect. 4.1. 141 of the remaining 669 secure associations have a ground based spectroscopic redshift (139 at $z\lesssim 2$ and 2 at $z\gtrsim 3$), 184 have a grism redshift (182 at $z\lesssim 2$ and 2 at $z\gtrsim 3$), and 344 have a photometric redshift (241 at $z\lesssim 2$ and 103 at $z\gtrsim 3$).

Using the search radius of 0.5″ we also cross-matched our objects with the first data release of the VIMOS Ultra Deep Survey (Le Fèvre et al. 2015; Tasca et al. 2017). We find matches to 10 of our objects in their spectroscopic redshift catalogue: seven at $z<1.5$, and three at $z\gtrsim 3$ galaxies.

In Fig. 12 we compare the literature redshifts for the 679 objects that could be cross-matched with the 3D-HST or VUDS catalogues. Following the literature (e.g. Skelton et al. 2014), we define a catastrophic redshift mismatch between two catalogues as one with $|z_{\mathrm{MW}}-z_{\mathrm{Lit}}|/(1+z_{\mathrm{MW}})>10$ %, where $z_{\mathrm{MW}}$ is the MUSE-Wide redshift and $z_{\mathrm{Lit}}$ is the corresponding literature redshift. Based on this definition 64 of the 3D-HST redshifts (i.e., 9.6% of secure cross-matches within a search radius 0.5″) are in disagreement. On the other hand the 10 VUDS redshifts are in excellent agreement with the MUSE-Wide redshift, all characterised by $|z_{\mathrm{MW}}-z_{\mathrm{VUDS}}|/(1+z_{\mathrm{MW}})<10^{-3}$.

In Table 6 we summarise the statistics on the redshift mismatches and indicate whether the mismatch is a low- or high-$z$ source. We find the highest rate of catastrophic mismatches (30%) between MUSE-Wide and literature redshifts amongst photometrically determined redshifts at $z\gtrsim 3$. For the 3D-HST grim redshifts the agreement is mostly excellent, except for a few cases at low-redshift and one of the only two grism redshift at high-$z$. Notably, all low-$z$ mismatches have the highest confidence value in our catalogue, meaning that the MUSE-Wide data leaves no doubt on the obtained redshift. The high-$z$ grism redshift mismatch could be reconciled if we would classify this single emission line detection as [O ii] instead of Ly$\alpha$. Based on our visual inspection of the line profile, however, we flagged this source with confidence $=2$, meaning that we have at most minor doubts on our line classification. Finally, only 5 from 140 spectroscopic redshifts from Wuyts et al. (2008) are in disagreement with our catalogue. Four of those were marked with the highest confidence flag in our classification and only in one case we did have minor doubts. Notably, one single line detection classified as Ly$\alpha$ in the Wuyts et al. (2008) compilation clearly shows a characteristic O ii profile that likely was not resolved in the previous spectrum.

We notice that for high-$z$ LAEs in our sample a systematic offset between photometric and spectroscopic redshifts with $|z_{\mathrm{MW}}-z_{\mathrm{3DHST}}|/(1+z_{\mathrm{MW}})\sim 10^{-1.5}$ exists. 23% of the LAEs have $\Delta z=z_{\mathrm{MW}}-z_{\mathrm{Lit}}>+0.1$ and the median $\Delta z$ is +0.26, with the upper and lower quartiles being +0.17 and +0.44, respectively. This systematic offset is much larger then the known systematic offset of the Ly$\alpha$ line to the systemic redshift discussed in Sect. 3.4.1. Recently, Oyarzún et al. (2016) reported very similar offsets between photometric and spectroscopic redshifts of LAEs. They found that the magnitude of the offset correlates with the Ly$\alpha$ equivalent width. Hence, a possible source of the discrepancy is that Ly$\alpha$ line flux is missing from the spectral energy distribution templates which are used in the photometric redshift fitting.

5.3 Emission line fluxes and continuum magnitudes

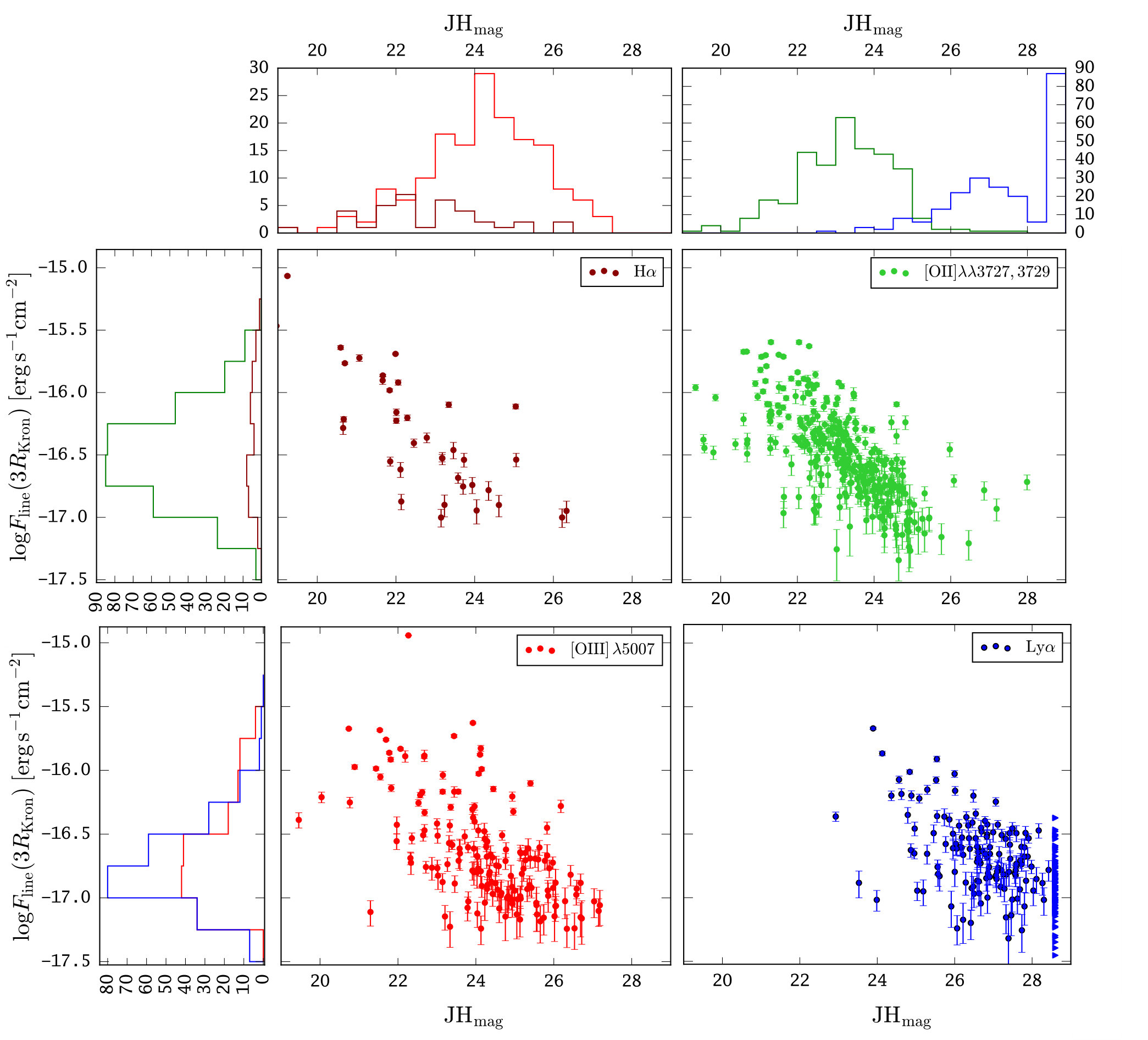

To characterise our sample we compare in Fig. 13 the measured line fluxes in 3$\times R_{\mathrm{Kron}}$ apertures with the continuum magnitudes in the $JH_{\mathrm{IR}}$ magnitude from the 3D-HST catalogues. As described in Sect. 3.6 of Momcheva et al. (2016) (see also their Table 5) the $JH_{\mathrm{IR}}$ magnitudes have been measured with SExtractor’s MAG_AUTO in a coadded image created from the HST WFC3 $J_{125}$, $JH_{140}$, and $H_{160}$ images.

Redshifts from the 3D-HST grism survey are provided for objects with $JH\leq 24$. Similarly, previous ground based spectroscopic deep-field follow-up campaigns target objects to a limiting photometric depth. For example, the VIMOS VLT Deep sample contains objects with $i_{\mathrm{AB}}$-magnitudes brighter than 24.75 (Le Fèvre et al. 2013). However, as can be seen from Fig. 13, a significant fraction of galaxies in MUSE-Wide is characterised by very faint continuum emission. This is especially so for the Ly$\alpha$ emitting high-$z$ galaxy population in our catalogue and thus explains the previous lack of spectroscopic redshifts for those galaxies.

The $JH_{\mathrm{IR}}$ distribution of tha LAE population peaks at $JH_{\mathrm{IR}}\sim 27$ for objects that have a photometric counterpart in the CANDELS 3D-HST catalogue. However, 87 MUSE-Wide LAEs have no cross-matches to the deep 3D-HST catalogue within 0.5″. We place those objects arbitrarily at $JH_{\mathrm{IR}}=29$ in Fig. 13. We caution that most of these objects in fact show prominent photometric counterparts but were missed in the 3D-HST NIR-based detection. Therefore we expect most of the upper limits in the bottom right panel of Fig. 13 moving towards brighter magnitudes. A detailed evaluation of the continuum-faint population of MUSE-Wide LAEs is beyond the scope of this catalogue release and will be subject of a future study.

5.4 Active Galactic Nuclei

Traditionally blind spectroscopic surveys hunting for emission lines galaxies unveiled numerous active galaxies (e.g. Zamorano et al. 1994), so naturally we want to check that in our sample as well. At low redshift, where H$\alpha$ and nearby lines fall within the wavelength range covered by MUSE, we can employ the BPT diagram (Baldwin et al. 1981) to distinguish AGN from star forming galaxies. However, for larger redshifts, we need to rely on ancillary spectroscopic data from the near-IR to use the BPT diagram. This is beyond the scope of this paper.

We therefore opt to crossmatch our emission line sources with the main catalog of the 7Ms Chandra Deep Field South (Luo et al. 2017). A match was deemed succesful if our emission line position was within 3 times the X-ray positional accuracy (SIGMAX or column 6 in Table 4 of the (Luo et al. 2017) catalogue). In addition to an X-ray match, we required that the object type column (column 70) of the X-ray catalog be “AGN” as to not include any X-rays from star formation regions. We find 22 candidate AGNs in our emission line catalog which we present in Table 13.

Most of the matched sources already have been spectroscopically identified in previous campaigns to identify optical counterparts to X-ray sources (e.g. Szokoly et al. (2004), see Luo et al. (2017) for an extensive list of 26 identification references). Nevertheless, we can assign spectroscopic redshifts to 5 objects which previously only had photometric redshifts determined. All, but two of the redshifts are in excellent with the MUSE determined redshift. These are the ones with the largest distance between the X-ray and MUSE position, so most likely a different X-ray counterpart was assigned. Among the 17 AGN are two well known type 2 high redshift quasars (MUSE-WIDE IDs: 104014050, 115003085), both of which have the highest Ly$\alpha$ flux in our survey (Norman et al. 2002; Mainieri et al. 2005).

6 Conclusions and outlook

We present the first results from the ongoing MUSE-Wide survey. Using LSDCat, a novel 3D source detection algorithm based on matched filtering, we constructed a catalogue of 831 galaxies with altogether 1656 detected emission lines, all located in a footprint of 22.2 arcmin2 within the CANDELS-Deep/CDFS region. More than half of these galaxies did not have spectroscopic or HST grism redshifts until now.

Because of the emission line selection, the properties of these galaxies are quite different from those of photometrically preselected samples: The redshift distribution features two disjoint domains, a low to intermediate redshift category with $z<1.5$ where rest-frame optical nebular lines are detected, and a high-redshift ($z>2.9$) category of strong Ly$\alpha$ emitters; in between these domains, MUSE-Wide suffers from the well-known “redshift desert” effect caused by the dearth of strong emission lines in the UV. Nevertheless, compared to the already extensive spectroscopic coverage in these fields, MUSE-Wide adds significantly to both the low/intermediate- and the high-redshift domain by achieving a spatial target sampling rate of essentially 100%, irrespective of the distribution and shapes of sources in the sky.

While our adopted selection criteria reveal objects that are similar to those found in narrowband imaging, there are also some notable differences. Rather than by covering a large solid angle in the sky, at predefined small redshift windows, such as obtained by instruments like Hyper Suprime-Cam (Miyazaki et al. 2012), MUSE-Wide gains its survey volume through its high redshift path length. Since all our survey fields are fully included within the footprints of very deep multi-band HST imaging and other multi-wavelength deep field efforts, the amount of available information per object is maximised. An obvious further advantage over narrowband-selected samples is the fact that all MUSE-Wide sources are already spectroscopically confirmed.

In order to promote the legacy aspect of our survey we provide not only the spectra, catalogue data, and flux measurements, but also datacube cutouts centred on each of the 831 objects. Several of the low and intermediate-redshift objects in our sample are clearly spatially extended. With HST prior morphological information and using our datacube cutouts it will be possible, e.g., to perform spatially resolved kinematic analyses (such as in Contini et al. 2016) or investigate gas-phase metallicity gradients, thus conduct studies that normally come at considerable extra observational costs.

Of particular scientific interest is the high-redshift part of this sample, because of the unique combination of MUSE IFU with deep HST data. Remarkably, only 3 out of the 238 high-$z$ emission line objects in the surveyed 22.2 arcmin2 were previously known as spectroscopically confirmed Ly$\alpha$ emitters. It is now established that Ly$\alpha$ in high-$z$ galaxies essentially always has a significant circumgalactic component that extends much beyond the stellar continuum emission region (Wisotzki et al. 2016). MUSE now facilitates the inclusion of this extended nature of the Ly$\alpha$ line into demographic studies, especially important for quantifying the completeness of LAE selection and the impact on the Ly$\alpha$ luminosity function (Herenz et al., in prep.). We are also investigating several other aspects of LAE demographics which will be presented in a suite of forthcoming papers.

The present sample is by construction restricted to galaxies with significantly detected emission lines. As a next step we are working on an extended redshift survey that includes also continuum-selected objects with only weak or without emission lines. This extension will further enhance the legacy value of MUSE-Wide, especially for relatively low redshifts. Furthermore, results from the deep and ultra-deep MUSE surveys (Bacon et al. 2015 and in prep.) will provide constraints on the faintest parts of the galaxy population at all redshifts accessible to MUSE. Combining such multi-tier approaches has always been a winning strategy for astronomical surveys, and MUSE makes no exception here.

At the time of writing, observations for MUSE-Wide are proceeding well and the goal of observing 100 MUSE pointings was reached February 2017. Besides serving our own scientific interests, this survey will remain a very valuable community resource, and we have committed ourselves to release the data to the public as soon as possible, after careful quality control and postprocessing where needed. The first comprehensive data release (DR1, Urrutia et al. in prep) is currently anticipated for 2017, covering 44 MUSE fields in the CDFS region. Further data releases will follow.

Acknowledgements.

We thank the support staff at ESOs VLT for help with the visitor mode observations. This research made extensive use of the astropy pacakge (Astropy Collaboration et al. 2013). All plots in this paper (except Fig. 14) were created using matplotlib (Hunter 2007). E.C.H, J.C., J.K., R.S., T.U., and L.W. acknowledge funding by the Competitive Fund of the Leibniz Association through grants SAW-2013-AIP-4 and SAW-2015-AIP-2. R.B. acknowledges support from the ERC advanced grant 339659-MUSICOS.

Appendix A QtClassify

QtClassify is a graphical user interface (GUI) that helps to classify emission line objects detected in wide-field IFS data. Its development was loosely inspired by the SpecPRO GUI used in classical imaging and spectroscopic surveys (Masters & Capak 2011). QtClassify is publicly available and can be downloaded via the Astrophysics Source Code Library (Kerutt 2017): http://ascl.net/1703.011.

In Fig. 14 we display a screenshot of QtClassify. As input it requires a – preferentially continuum-subtracted – datacube, a catalogue tabulating the positions of the emission lines, and a S/N datacube. Optionally, broadband imaging data can also be loaded into the software. For creating the catalogue and S/N cube qtClassify is currently geared towards the outputs of LSDCat (Herenz & Wisotzki 2017). However, in principle it can be used with any IFS datacube and any catalogue that contians one entry for each emission line with all entries grouped into objects by position.

The main idea of QtClassify is to use the full 3D information in the datacubes to classify emission lines by simultaneously displaying regions in the cube where other lines would be expected given an initial guess for the identification of the strongest detected line. Strongest here means the line with the highest signal-to-noise ratio (determined e.g. by the matched-filtering procedure in LSDCat, but it is also possible to use line flux instead). The default guesses are Ly$\alpha$ $\lambda$1216, [O ii] $\lambda\lambda$3726,3729, [O iii] $\lambda$5007 and H$\alpha$ $\lambda$6563, but they be changed by customising the input list of options.

To help classify the lines, there are several rows with information (see Fig. 14). When clicking on one of the possible guesses, the columns change to the positions where you would expect other lines. The first row (’Spectrum’) displays the part of the automatically extracted spectrum with an indication where the line is expected. The second row (’NB Image’) shows a monochromatic layer of the actual datacube and the third row (’S/N Image’) shows a monochromatic layer of the S/N cube. When interacting with the programme, the user can move the mouse through the spectral parts in the first row, which will automatically also move through the corresponding wavelength layers in the second and third rows generating a “movie-like” sequence of monochromatic slices in the datacube. The bottom panel shows the full spectrum where the zoomed-in parts of the first row are indicated by shaded areas. On the right of the window, a broadband image (in the example displayed in Fig. 14 from the HST CANDELS data) can be displayed if needed. The cuts for the broadband image as well as for the monochromatic images of the datacube and the S/N cube can be interactively adjusted. Several sliders at the bottom of the window allow interactive smoothing and zooming of the spectrum, as well as changing the size of the extraction aperture for the displayed spectrum.

In order to make it less tedious to go through all the detected emission lines, there is a button at the top that automatically identifies all lines where a unique redshift solution can be automatically anchored. For this, QtClassify looks at all objects with multiple emission lines and internally tries to determine a redshift using a list of typical emission lines (similar to the peak correlation algorithm by Garilli et al. 2010). This list can be adjusted and extended. This automatic procedure fails, of course, when only a single, maybe even spurious, emission line is detected, or when a superposition of objects at different redshifts occurs at the same position on the sky. Those objects have to be manually classified by the QtClassify user.

The interactive classification is done via a drop-down menu that presents a list of emission lines to the user, including various classes of spurious detections (e.g. cosmics, noise-peaks, telluric-, or continuum-subtraction residuals). In addition the classifier can enter confidence value and quality flag (cf. Sect. 3.2). Cases of overlaps, where one entry in the catalogue has emission lines from multiple objects, are not covered by QtClassify and have to be sorted out separately in a later stage of the catalogue construction. Here the comment function enables one to take notes for this process. Multiple entries at different positions on the sky that belong to the same object can be marked as associations. It is possible to stop classifying at any point and resume later with the output catalogue of QtClassify as input, since it automatically saves the classifications in columns that are appended to the input catalogue.
