Quantum chaos in an electron-phonon bad metal

TL;DR

This paper investigates quantum chaos in a solvable large-N electron-phonon system, revealing how chaos parameters relate to phonon properties and resistivity, especially in a strange metal regime without long-lived quasiparticles.

Contribution

It provides a detailed analysis of quantum chaos measures in an electron-phonon model with high resistivity, showing their dependence on phonon lifetime and velocity, and compares dispersive versus dispersionless phonon cases.

Findings

mbda_L is proportional to inverse phonon lifetime.

v_B is proportional to effective phonon velocity.

D_E and D_L are always comparable.

Abstract

We calculate the scrambling rate $\lambda_L$ and the butterfly velocity $v_B$ associated with the growth of quantum chaos for a solvable large-$N$ electron-phonon system. We study a temperature regime in which the electrical resistivity of this system exceeds the Mott-Ioffe-Regel limit and increases linearly with temperature - a sign that there are no long-lived charged quasiparticles - although the phonons remain well-defined quasiparticles. The long-lived phonons determine $\lambda_L$, rendering it parametrically smaller than the theoretical upper-bound $\lambda_L \ll \lambda_{max}=2\pi T/\hbar$. Significantly, the chaos properties seem to be intrinsic - $\lambda_L$ and $v_B$ are the same for electronic and phononic operators. We consider two models - one in which the phonons are dispersive, and one in which they are dispersionless. In either case, we find that $\lambda_L$ is proportional to the inverse phonon lifetime, and $v_B$ is proportional to the effective phonon velocity. The thermal and chaos diffusion constants, $D_E$ and $D_L\equiv v_B^2/\lambda_L$, are always comparable, $D_E \sim D_L$. In the dispersive phonon case, the charge diffusion constant $D_C$ satisfies $D_L\gg D_C$, while in the dispersionless case $D_L \ll D_C$.

Figures

Tables

Table 1. Table 1: Comparison of the diffusion coefficients of charge, D C subscript 𝐷 𝐶 D_{C} , heat, D E subscript 𝐷 𝐸 D_{E} and chaos, D L ≡ v B 2 / λ L subscript 𝐷 𝐿 superscript subscript 𝑣 𝐵 2 subscript 𝜆 𝐿 D_{L}\equiv v_{B}^{2}/\lambda_{L} for the two large- N 𝑁 N electron-phonon models studied - that with dispersive and non-dispersive phonons. Here v B subscript 𝑣 𝐵 v_{B} is the “butterfly velocity” and λ L subscript 𝜆 𝐿 \lambda_{L} is the scrambling rate which in all cases is parametrically smaller than the bound 2 ​ π ​ T 2 𝜋 𝑇 2\pi T , ω 0 subscript 𝜔 0 \omega_{0} is the average phonon frequency, E F subscript 𝐸 𝐹 E_{F} is the electron Fermi energy, and g 𝑔 g is the dimensionless electron-phonon coupling. v e ​ l subscript 𝑣 𝑒 𝑙 v_{el} and v p ​ h subscript 𝑣 𝑝 ℎ v_{ph} are, respectively, the root mean squared bare electron and phonon velocities (averaged over the Brillouin zone), where v p ​ h = 0 subscript 𝑣 𝑝 ℎ 0 v_{ph}=0 in the dispersionless model. All results assume N 𝑁 N large and ω 0 ≪ T ≪ E F ≪ g ​ T much-less-than subscript 𝜔 0 𝑇 much-less-than subscript 𝐸 𝐹 much-less-than 𝑔 𝑇 \omega_{0}\ll T\ll E_{F}\ll gT .

	${\lambda }_L$	$v_B$	$D_C$	$D_E\sim D_L$
Dispersionless phonons	$\frac{1}{N}\frac{{\omega }_0^2}{T}$	$\frac{1}{N}\frac{{\omega }_0}{T}\sqrt{\frac{E_F}{gT}}{v}_{el}$	$\frac{v_{el}^2}{\sqrt{E_{F}gT}}$	$\frac{1}{N}\frac{E_F}{gT}\frac{v_{el}^2}{T}$
Dispersive phonons	$\frac{1}{N}\frac{{\omega }_0^2}{T}$	$v_{ph}$	$\frac{v_{el}^2}{\sqrt{E_{F}gT}}$	$N{v}_{ph}^2\frac{T}{{\omega }_0^2}$

Equations

$$⟨[A(0),B(x,t)][A(0),B(x,t){]}^{†}⟩\sim e^{{\lambda }_L(t-\frac{|x|}{v_B})}.$$

$${\lambda }_L\le {\lambda }_{max}=2\pi T.$$

$$H=H_{\mathrm{el}}+H_{\mathrm{ph}}+H_{\mathrm{int}},$$

$$H_{\mathrm{el}}$$

$$H_{\mathrm{ph}}$$

$$H_{\mathrm{int}}$$

$$g\equiv \frac{{\alpha }^2\nu }{M{\omega }_0^2}\gg 1,$$

$$\Sigma (\omega )$$

$$\Sigma (\omega )=\frac{1}{2}\left[\omega -i\sqrt{\frac{4gT}{\nu }-{\omega }^2}\right];$$

$$\Gamma (\mathbf{q},i{\omega }_n)$$

$${\Gamma }^{\prime \prime }(\mathbf{q},q_0)$$

$${\tilde{v}}_{ph}(\mathbf{q})\equiv {\partial }_{\mathbf{q}}{\Gamma }^{\prime }(\mathbf{q},0)=\frac{1}{2\pi N}\frac{{\omega }_0}{T}\sqrt{\frac{\nu }{gT}}\int \frac{d^{d}k}{(2\pi {)}^d}{ϵ}_{\mathbf{k}}{v}_{\mathbf{k}+\mathbf{q}}.$$

$$\tilde{f}(x,t)=\frac{\theta (t)}{N^2}$$

$$\times \sum _{ab}\mathrm{Tr}\left[\sqrt{\rho }\{c_a(x,t),c_b^{†}(0,0)\}\sqrt{\rho }\{c_a(x,t),c_b^{†}(0,0){\}}^{†}\right].$$

$$f(\mathbf{q},\omega )=\frac{1}{N}\int \frac{d^{d+1}}{(2\pi {)}^{d+1}}kf(k,\mathbf{q},\omega )$$

$$f(k,\mathbf{q},\omega )=G^R(k+\mathbf{q})G^A(k-\omega )$$

$$\times [1-{\alpha }^2\int \frac{d^{d+1}{k}^{\prime }}{(2\pi {)}^{d+1}}{D}^W(k-k^{\prime })f(k^{\prime },\mathbf{q},\omega )$$

$$+\frac{1}{N}{\alpha }^4\int \frac{d^{d+1}{k}^{\prime }}{(2\pi {)}^{d+1}}\mathcal{F}(k,k^{\prime },\mathbf{q},\omega )f(k^{\prime },\mathbf{q},\omega )]+O\left(\frac{1}{N}\right).$$

$$\mathcal{F}(k,k^{\prime },\omega )$$

$$\frac{1}{Z}\mathrm{Tr}\left[e^{-\beta H}{X}_{\alpha \beta }(x,t)X_{\alpha \beta }(0,i\frac{\beta }{2})\right]\equiv D^W(x,t)$$

$$\frac{1}{Z}\mathrm{Tr}\left[e^{-\beta H}{c}_a(x,t)c_a^{†}(0,i\frac{\beta }{2})\right]\equiv G^W(x,t).$$

$${\lambda }_L\sim 0.25\frac{1}{N}\frac{{\omega }_0^2}{T}.$$

$$v_B\sim \max \left(v_{ph},{\partial }_{\mathbf{q}}{\Gamma }^{\prime }(\mathbf{q},\omega =0)\right),$$

$$h(x,t)=\frac{1}{N^4}\theta (t)\sum _{abcd}$$

$$\mathrm{Tr}\left[\sqrt{\rho }\left[X_{ab}(x,t),X_{cd}(0,0)\right]\sqrt{\rho }{\left[X_{ab}(x,t),X_{cd}(0,0)\right]}^{†}\right].$$

$$J^Q(i{\omega }_n)=\frac{1}{\beta }\sum _{a,{\nu }_n}{\nu }_n\int \frac{d^{d}k}{(2\pi {)}^d}{v}_{el}(\mathbf{k})c_a^{†}(\mathbf{k},{\nu }_n)c_a(\mathbf{k},{\nu }_n+{\omega }_n);$$

$$\kappa =-\frac{1}{T}\underset{\omega \to 0}{\lim }\frac{\Im \left[\Pi (\omega )\right]}{\omega },$$

$$\kappa=\left\{\begin{tabular}[]{cc}$N^{3}\langle v_{ph}^{2}\rangle\frac{T}{\omega_{0}^{2}}$&(Dispersive case)\\ $N^{3}\langle\tilde{v}_{ph}^{2}\rangle\frac{T}{\omega_{0}^{2}}$&(Non-dispersive case)\end{tabular}\right.$$

$$N\rho (T)=\frac{gT}{\nu ⟨v_{el}^2⟩},$$

$$D_E\ge D_L.$$

$$H=H_0+H_{\mathrm{int}}\equiv H_{\mathrm{el}}+H_{\mathrm{ph}}+H_{\mathrm{int}},$$

$$\begin{array}{rl}{H}_{\mathrm{el}}& =\sum _{a=1}^N\int \frac{d^{d}k}{(2\pi {)}^d}{\xi }_{\mathbf{k}}{c}_a^{†}(\mathbf{k})c_a(\mathbf{k})\\ H_{\mathrm{ph}}& =\sum _{a,b=1}^N\int \frac{d^{d}q}{(2\pi {)}^d}\left[\frac{1}{2}M{\omega }_{\mathbf{q}}^2|X_{ab}(\mathbf{q}){|}^2+\frac{1}{2M}|P_{ab}(\mathbf{q}){|}^2\right],\\ H_{\mathrm{int}}& =\frac{\alpha }{\sqrt{N}}\sum _{a,b=1}^N\int \frac{d^{d}k}{(2\pi {)}^d}\frac{d^{d}q}{(2\pi {)}^d}{X}_{ab}(\mathbf{q})c_a^{†}(\mathbf{k})c_b(\mathbf{k}+\mathbf{q}).\end{array}$$

$$v_{ph}^2={⟨{\left({\partial }_{\mathbf{q}}{\omega }_{\mathbf{q}}\right)}^2⟩}_{BZ},$$

$$g=\frac{{\alpha }^2\nu }{M{\omega }_0^2}\gg 1,$$

Full text

Introduction.– The thermalization properties of a closed interacting system have been characterized by the quantities governing many-body quantum chaos - the scrambling rate (or Lyapunov exponent) $\lambda_{L}$ and the butterfly velocity $v_{B}$Larkin and Ovchinnikov (1969); Sekino and Susskind (2008); Shenker and Stanford (2014); Kitaev (2014); Patel and Sachdev (2017); Banerjee and Altman (2017); Chowdhury and Swingle (2017); Blake (2016a). These are defined by the intermediate-time increase in the expectation value of the squared commutator of two spatially separated local operators $A$ and $B$

[TABLE]

The butterfly velocity is the speed at which the effects of a local perturbation propagate, while the Lyapunov exponent $\lambda_{L}$ is a measure of the rate at which the information of a local perturbation is scrambled into non-local degrees of freedom. It has been shown Maldacena et al. (2016) that in a general quantum system, $\lambda_{L}$ is bounded by the temperature, $T$ (setting $\hbar=k_{B}=1$):

[TABLE]

The notion of quantum chaos is especially pertinent to strongly interacting systems. The Lyapunov exponent saturates the bound in systems with a holographic dual Shenker and Stanford (2014) and in the Sachdev-Ye-Kitaev model Sachdev and Ye (1993); Kitaev (2014); Maldacena and Stanford (2016); Gu et al. (2016), and it is conjectured that systems without long-lived “quasiparticle” excitations generically saturate the bound, i.e. $\lambda_{L}\sim T$ Patel and Sachdev (2017). Conversely, Fermi liquids Aleiner et al. (2016); Banerjee and Altman (2017) and weakly coupled large-$N$ models Gu et al. (2016); Chowdhury and Swingle (2017) display a Lyapunov rate that is parametrically smaller than this bound.

$\lambda_{L}$ is generally not directly measurable in condensed matter systems. However, it was proposed that either the charge Blake (2016a, b) or energy Patel and Sachdev (2017) diffusivities, $D_{C}$ and $D_{E}$ respectively, are related to $D_{L}\equiv v_{B}^{2}/\lambda_{L}$.

A well-known class of strongly correlated condensed matter systems are the “bad metals” Emery and Kivelson (1995); Hussey et al. (2004). These materials, which vary microscopically, are defined by a metallic resistivity which increases linearly with temperature, and reaches values above the Mott-Ioffe-Regel (MIR) limit Ioffe and Regel (1960) without saturation. The large value of resistivity in these materials at high temperatures suggests non-quasiparticle transport and rapid momentum degradation, the characteristics of an incoherent metal.

The strongly coupled nature and anomalous transport properties of bad metals naturally raise the question of chaos in these systems. In particular, does the bound on the scrambling rate, Eq. (2), lead to a universal bound on transport in bad metals Hartnoll (2015)? Is a strongly incoherent metal necessarily also strongly chaotic, in the sense that Eq. (2) is saturated? In this paper, we calculate the Lyapunov exponent, butterfly velocity, and thermal diffusion coefficients for a class of solvable large-$N$, electron-phonon systems which display bad metallic behavior - namely, a linear-in-$T$ growth of the electrical resistivity above the MIR limit. We find that the scrambling rate and the butterfly velocity are the same whether one uses electron or phonon operators to define them, suggesting that $\lambda_{L}$ and $v_{B}$ are intrinsic properties of the system. The results are formulated in Table 1. Our main result is that scrambling and energy are both transported mainly by the phonons, in contrast with charge transport. We therefore find that $D_{E}$ is parametrically the same as $D_{L}$, $\lambda_{L}$ is far from saturating the bound in Eq. (2), and $D_{L}$ bears no relation to the charge diffusion constant, $D_{C}$.

Model.– Our system is composed of $N\gg 1$ electron bands, which interact with $N^{2}$ optical phonon modes, on a $d$-dimensional lattice. On each site, the phonon displacement couples to the electron density. In this type of large-$N$ expansion, inspired by the work of Fitzpatrick et al. Fitzpatrick et al. (2014), the large number of phonons strongly renormalize the electrons, as reflected by an $O(1)$ electron self energy. On the other hand, the backaction of the electrons on the phonons and on the electron-phonon vertex is suppressed by a factor of $1/N$.

The Hamiltonian is given by

[TABLE]

where

[TABLE]

Here, $c^{\dagger}_{a}(\mathbf{k})$ is the Fourier transform of $c^{\dagger}_{a}(i)$, which creates an electron of flavor $1\leq a\leq N$ on site $i$; the electronic dispersion is $\xi_{\mathbf{k}}=\epsilon(\mathbf{k})-\mu(T)$, with $\epsilon(\mathbf{k})\in[-\Lambda/2,\Lambda/2]$ (where $\Lambda$ is the bandwidth). $\mu(T)$ is the chemical potential and $\beta=1/T$. For simplicity, we take $\epsilon{(\mathbf{k}})$ to correspond to a nearest-neighbor hopping on a $d-$dimensional hypercubic lattice. Furthermore, we will work at half filling, so that $\mu(T)=0$ and the Fermi energy, $E_{F}=\Lambda/2$. None of the results in the relevant range of $T$ depend qualitatively on these choices. $X_{ab}(\mathbf{q})$ is the Fourier transform of the phonon displacement operator $X_{ab}(i)$ of flavor $a,b$, and $P_{ab}$ is the conjugate momentum; $M$ is the ionic mass, and $\alpha$ is the electron-phonon coupling strength. The lattice spacing $a$ is set to $1$.

We consider two types of models which differ by the $\mathbf{q}$ dependence of the phonon frequency $\omega_{\mathbf{q}}$; a dispersionless (Einstein) model and a model with dispersive optical phonons. In all cases, we define the typical phonon frequency to be $\omega_{0}\equiv\left\langle\omega_{\mathbf{q}}\right\rangle$, and the root-mean-squared phonon velocity as, $v_{ph}=\sqrt{\left\langle\left|\partial_{\mathbf{q}}\omega_{\mathbf{q}}\right|^{2}\right\rangle}$ where the brackets denote an average over the Brillouin zone. ($v_{ph}=0$ in the non-dispersive model.)

We define the dimensionless electron-phonon coupling constant (which we will take to be large)

[TABLE]

with $\nu$ the density of states at the Fermi energy. As in Ref. Werman and Berg (2016); Werman et al. (2017), we consider temperatures such that $\omega_{0}\ll T\ll E_{F}\ll gT$, - a “high temperature” regime in which electronic quasiparticles are no longer well-defined.

Single particle properties.– Taking the limit $N\rightarrow\infty$ allows us to solve the model (24) order by order in $1/N$. In the rest of this section, we present results for the dispersionless phonons, while the dispersionful case is considered in the appendix. Just as in Werman and Berg (2016), the leading order contributions result in a self-consistent Dyson’s equation for the fermion self-energy $\Sigma(\omega)$ (more details appear in the appendix):

[TABLE]

The electron self-energy in the high-$T$ regime $gT\gg E_{F}$ is given by

[TABLE]

Note that in this regime $\Sigma^{\prime\prime}(0)\gg E_{F}$, i.e., there are no well-defined electron-like quasiparticles.

The phonon self energy is subleading in $1/N$; however, it is of crucial importance in calculating the scrambling rate. To leading order in $1/N$, it is given by the fermion polarization function:

[TABLE]

The phonon lifetime is given by $\Gamma^{\prime\prime}(\mathbf{q},q_{0})=-\Im\Gamma^{R}(\mathbf{q},q_{0})$, which for small real external frequencies $q_{0}\ll T$ results in (see Appendix) 111It is at first surprising that the phonon decay rate in Eq. (9) is independent of $g$, given that it must vanish as $g\to 0$; however, here the explicit proportionality to $g$ from Eq. (Quantum chaos in an electron-phonon bad metal) is cancelled by an implicit dependence of the electron-response function in the assumed limit $g\gg E_{F}/T$.

[TABLE]

As we are concerned with the spatial propagation of scrambling, we also need the velocity of the phonons. Because the bare phonon dispersion vanishes, the effective phonon dispersion originates in the $\mathbf{q}$ dependence of the real part of the self-energy, $\Gamma^{\prime}(\mathbf{q},\omega)=\Re\Gamma^{R}(\mathbf{q},\omega)$; for $\omega=0$, this becomes to lowest order in $E_{F}/gT$

[TABLE]

*Electronic scrambling rate.– * Following Ref. Stanford (2016), we calculate a regularized version of Eq. (1), in which the thermal density matrix ${\rho}=e^{-\beta H}/\mathrm{Tr}[e^{-\beta H}]$ is split between the two commutators. We define the quantity

[TABLE]

$f(\mathbf{q},\omega)=\int d^{d}xdte^{-i(\mathbf{q}\mathbf{x}-\omega t)}\tilde{f}(x,t)$ is the Fourier transform of (39) in space and its Laplace transform in time. To proceed, we evaluate Eq. (39) on a generalized Keldysh contour (see Ref. Stanford (2016), and the Appendix). $f(\mathbf{q},\omega)$ obeys the Bethe-Salpeter equation (schematically represented in Fig. 5)

[TABLE]

Here, $k$ is a $d+1$-vector $(k_{0},\mathbf{k})$, and

[TABLE]

and we define

[TABLE]

as the phonon Wightman propagator, and in the same way

[TABLE]

The $\alpha^{4}$ term in Eq. (12) is naively suppressed by a factor of $1/N$ relative to the rest. However, when evaluated with the bare phonon propagators, it diverges; one must include the phonon self-energy, which renders this term of the same order as the other diagrams.

If $\tilde{f}$ has an exponentially growing part, $\tilde{f}(\mathbf{0},t)=\frac{1}{N}e^{\lambda_{L}t}+O\left(\frac{1}{N^{2}}\right)$, its Laplace transform $f(\mathbf{q},\omega)$ should divrege for $\omega=i\lambda_{L}$. We look for divergencies in $f(\mathbf{k},k_{0},\omega=i\lambda_{L})$, and for this imaginary frequency we may ignore the inhomogeneous term in Eq. (12). Solving the resulting equation for $\omega=i\lambda_{L}$ results in

[TABLE]

The butterfly velocity $v_{B}$ can be extracted by the relation $[f(\mathbf{q},\lambda_{L})-f(q=0,\lambda_{L})]/f(q=0,\lambda_{L})\sim v_{B}^{2}q^{2}/\lambda_{L}^{2}$ (more information appears in the appendix). This results in

[TABLE]

i.e. the butterfly velocity is equal to the characteristic group velocity of the phonons.

Phonon scrambling rate.– A similar calculation produces the scrambling rate and butterfly velocity for the phonons, obtained from the quantity

[TABLE]

It results in the same values for $\lambda_{L}$ and $v_{B}$, which suggests that the chaos quantities are intrinsic to the model, independent of which operators are chosen.

*Thermal transport- *The Matsubara thermal current operator of this system is given by (see appendix for details)

[TABLE]

we calculate the thermal conductivity following the Luttinger prescription Luttinger (1964a, b); Shastry (2009)

[TABLE]

where $\Pi(\omega)$ is the retarded thermal current-thermal current correlation function. To leading order in $1/N$ and $E_{F}/gT$, this results in

[TABLE]

In both cases, the heat capacity is dominated by the phonons, $c=N^{2}k_{B}$ (where we have inserted $k_{B}$ for clarity). Using the Einstein relation $\kappa=cD_{E}$, we arrive at the thermal diffusion coefficients.

Charge transport.– The conductivity of this model has been analyzed in Refs. Werman and Berg (2016); Werman et al. (2017). In the high temperature regime $gT\gg E_{F}$, the resistivity is given by

[TABLE]

which parametrically exceeds the Mott-Ioffe-Regel limit Ioffe and Regel (1960), which is $N\rho_{\mathrm{MIR}}=O(1)$ in our units 222In conventional units, $N\rho_{MIR}=\hbar a^{d-2}/e^{2}$.

It should be emphasized that there momentum is not even nearly conserved in our model; in the regime $T\gg\omega_{0}$, phonons throughout the Brillouin zone are excited, so that umklapp scattering is just as efficient as normal scattering. In addition, we show in the appendix that phonon drag contributions are suppressed in this model, leading to a large resistivity.

Discussion.– We calculate the scrambling rate $\lambda_{L}$ and butterfly velocity $v_{B}$ for both the electrons and the phonons in this system. We find that they are the same for the two operators - which suggests that $\lambda_{L}$ and $v_{B}$ are intrinsic properties, independent of the specific operators used in Eq. (1). Intuitively, since the electrons and phonons are coupled, it is expected that scrambling (i.e., the spread of operators over the system) of one would lead to scrambling of the other; therefore, we expect that there cannot be two independent scrambling rates. This is consistent with the finding of Ref. Chowdhury and Swingle (2017) that the scrambling rate in an $O(N)$ field theory is the same of the primary field and for a composite operator.

Our system is composed of strongly renormalized electrons coupled to weakly interacting phonons. The phonon excitations are well defined quasiparticles - in the sense that lifetime $\tau=NT/\omega_{0}^{2}$ is parametrically longer than the inverse energy, $1/\omega_{0}$. This explains why the bottleneck for scrambling in this system is the loss of phonon phase coherence, and thus the scrambling rate is determined by the phonon scattering rate. This is also consistent with the fact that in the limit $\omega_{0}\rightarrow 0$, where the phonons act essentially as (annealed) disorder, the scrambling rate must vanish Swingle and Chowdhury (2017); Patel et al. (2017). Similarly, we find that the butterfly velocity is proportional to the effective phonon velocity, and is unrelated to the electronic velocity.

The scrambling rate we find is far from the bound, $\lambda_{L}\ll\lambda_{max}$, due to the existence of phononic quasiparticles. Nevertheless, charge transport in the system does not reflect this fact - the resistivity of this model is larger than the Ioffe-Regel limit, due to the strong scattering of the electrons. This supports the notion that in general, $D_{C}$ is unrelated to $D_{L}$ Davison et al. (2017). That $D_{L}\approx D_{E}$ is consistent with the fact that in our model both the thermal transport and the propagation of chaos are dominated by phonons.

These results raise the question of the general relation between energy diffusion and scrambling. Clearly, the energy diffusivity can be much larger than $D_{L}$; this is the case, for instance, in a relativistic field theory where momentum is conserved Chowdhury and Swingle (2017). It is therefore plausible to propose that

[TABLE]

This relation does not hold universally; a one-dimensional counter example has been presented in Ref. Gu et al. (2017). The extent to which Eq. (23) is valid in spatial dimensions $d>1$ remains an open question. Moreover, even concerning the relation between $D_{C}$ and $D_{L}$, it remains an open question whether in a system in which all degrees of freedom are strongly scattered - one in which $\lambda_{L}\sim 2\pi T$ - a more general relation between $D_{C}$ and $D_{L}$ might be possible. For instance, in Ref. Zhang et al. (2016), evidence was presented that in the normal state of the cuprates, $D_{C}\sim D_{E}$, and furthermore it was speculated that both are comparable to the bounding value of $D_{L}$ with $\lambda_{L}\sim 2\pi T$.

Acknowledgements.– We thank Ehud Altman, Debanjan Chowdhury, Sean Hartnoll, Andy Lucas, Aavishkar Patel, and Subir Sachdev for enlightening discussions. SAK was supported by the Department of Energy, Office of Basic Energy Sciences under contract DE-AC02-76SF00515.

Supplementary Material for:

Quantum chaos in an electron-phonon bad metal

I Model

I.1 Hamiltonian

The system we consider is composed of $N\gg 1$ identical electron flavors interacting with $N^{2}$ optical, phonon modes, in $d$ spatial dimensions. In this type of large-$N$ expansion, inspired by the work of Fitzpatrick et al. Fitzpatrick et al. (2014), the phonon modes act as a momentum and energy bath for the electrons, while each phonon mode is only weakly affected by the electrons.

The Hamiltonian of the system is given by

[TABLE]

where

[TABLE]

The electronic Hamiltonian is given in terms of operators $c^{\dagger}_{a}(\mathbf{k})$ which create an electron of flavor $a$ and energy $\xi_{\mathbf{k}}$. For simplicity, we consider an particle-hole symmetric spectrum and work at an electronic density of $n=0.5$ per flavor, which allows us to set the chemical potential $\mu(T)$ to [math] at all temperatures.

$X_{ab}$ is a symmetric matrix of phonon displacement operators, and $P_{ab}$ the corresponding momenta. We consider an optical spectrum $\omega_{\mathbf{q}}=\omega_{0}+\omega_{1}(\mathbf{q})$. To simplify the calculations, we assume that $\omega_{0}\gg|\omega_{1}(\mathbf{q})|$; thus the only effect of $\omega_{1}(\mathbf{q})$ is the introduction of a finite bare phonon velocity

[TABLE]

where the brackets denote an average over the first Brillouin zone (BZ). We consider cases in which $v_{ph}$ is either zero or non-zero, as explained below. For concreteness, we will use $\omega_{1}(\mathbf{q})=\omega_{1}\sum_{i=1\dots d}\cos(q_{i})$ when it is needed in the calculation.

We define the dimensionless coupling constant

[TABLE]

with $\nu$ the $T=0$ electronic density of states at the Fermi energy.

The coupling between each flavor of phonon to the electrons is suppressed by $1/\sqrt{N}$; the relatively small number of electrons relative to the phonons thus implies that the phonons are weakly affected by the interactions, resulting in self-energy corrections that appear only at subleading orders in $1/N$. The electrons, on the other hand, are strongly affected by the $N^{2}$ phonos, and their self energy can become larger than the Fermi energy, $E_{F}$. This is a consequence of our particular large-$N$ limit.

We consider temperatures such that

[TABLE]

with $W$ the bandwidth. We focus on the high temperature regime $gT\gg W$, in which the electronic lifetime is shorter than $W^{-1}$.

I.2 Self energies

I.2.1 Electron self energy

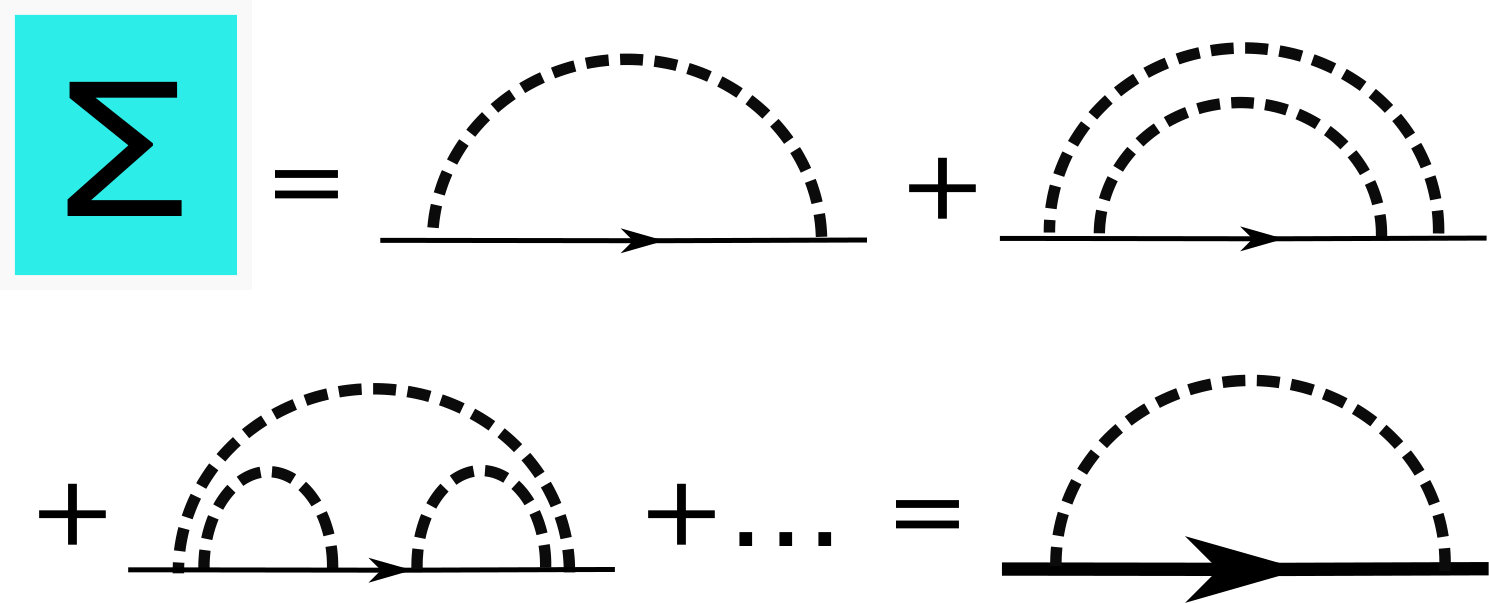

Just as in Fitzpatrick et al. (2014), the full set of rainbow diagrams, depicted in Figure 2, contributes to the electron self-energy to lowest order in $1/N$. This results in a self-consistent Dyson’s equation for the fermion self-energy:

[TABLE]

where $k_{0}$ denotes the frequency. Here, for simplicity, we consider a model with a momentum independent electron-phonon coupling; as a result, the electron self-energy at high temperatures is nearly momentum independent, as we will show. We do not expect this assumption to qualitatively change the final results for the scrambling rate and the thermal conductivity; as shown previously, the charge transport at high temperatures is sensitive to the nature of the electron-phonon coupling Werman et al. (2017).

At high temperatures $gT\gg W$, we neglect the electronic dispersion relative to the self-energy term, and the resulting equation is

[TABLE]

In the dispersive case, we neglect $\omega_{1}(\mathbf{q})$ relative to $\omega_{0}$, and therefore get, for both dispersive and non-dispersive phonons

[TABLE]

which may be solved to give

[TABLE]

results that are correct up to order $(W/gT)^{2}$, due to the particle-hole symmetric spectrum. Here, $G^{R}(\mathbf{k},k_{0})$ is the retarded Green’s function at momentum $\mathbf{k}$ and frequency $k_{0}$. The scattering rate on the Fermi energy, $\Sigma^{\prime\prime}(0)$, is much larger than the bandwidth, and the electronic quasiparticles are not well defined.

It must be emphasized that, since $T\gg\omega_{0}$, the phonons are highly excited over the entire Brillouin zone. Therefore, the contributions of regular and umklapp scattering processes to the electronic self-energy are of the same order of magnitude. Hence, momentum is not even approximately conserved in our system.

I.2.2 Phonon self energy

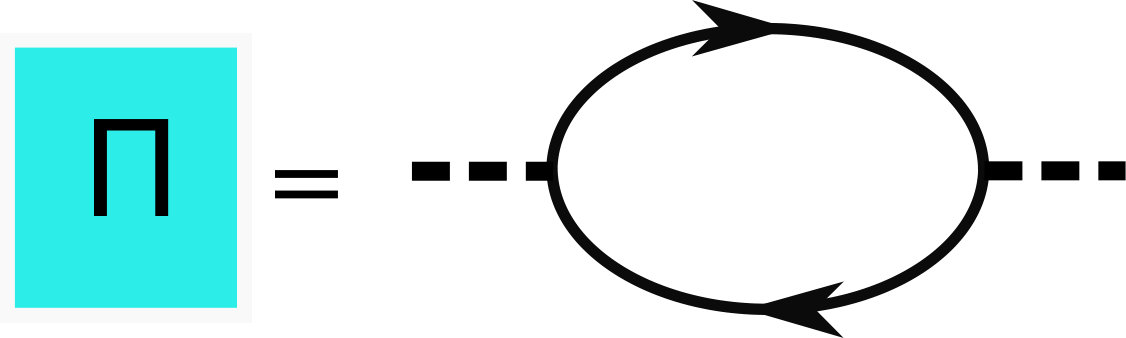

The phonon self energy is subleading in $1/N$; however, it is of crucial importance in calculating the scrambling rate and the thermal conductivity. To leading order in $1/N$, the diagram which contributes to the self energy is shown schematically in Fig. 3, and is given by

[TABLE]

Analytically continuing to real time, we get

[TABLE]

where $G^{R,A}$ are retarded and advanced Green’s functions, respectively, and $A(\mathbf{k},\epsilon)=-2\Im\left\{G^{R}(\mathbf{k},\epsilon)\right\}$ is the electron spectral function.

The phonon lifetime is given by $\Pi^{\prime\prime}(\mathbf{q},q_{0})=-\Im\Pi^{R}(\mathbf{q},q_{0})$, which for small external frequencies $q_{0}\ll T$ gives

[TABLE]

As we are concerned with the spatial propagation of chaos, we will also need the velocity of the phonons. For a finite bare dispersion $\omega_{1}(\mathbf{q})$, the leading order contribution is simply the bare velocity $v_{ph}$. In the case of a vanishing bare velocity, $v_{ph}=0$, the leading order velocity originates in the $\mathbf{q}$ dependence of the real part of the self-energy, $\Pi^{\prime}(\mathbf{q},q_{0})=\Re\Pi^{R}(\mathbf{q},q_{0})$; for $q_{0}=0$, this becomes to lowest order in $W/gT$

[TABLE]

We thus define a renormalized phonon velocity $\tilde{v}_{ph}$ (applicable when $v_{ph}=0$):

[TABLE]

where $v_{\mathbf{k}}=\partial_{\mathbf{k}}\xi_{\mathbf{k}}$ is the electronic velocity.

II Electronic scrambling rate

II.1 Definition

The scrambling rate is defined as the exponetial rate of growth of the expression

[TABLE]

Following Refs. Maldacena and Stanford (2016); Stanford (2016), we regularize this expression by splitting the thermal density matrix ${\rho}=e^{-\beta H}/Z$ (where $Z=\mathrm{Tr}[e^{-\beta H}]$), and placing $\sqrt{\rho}$ between the two commutators in Eq. (38). For electrons, we use an anti-commutator rather than a commutator Patel and Sachdev (2017). We thus define the function

[TABLE]

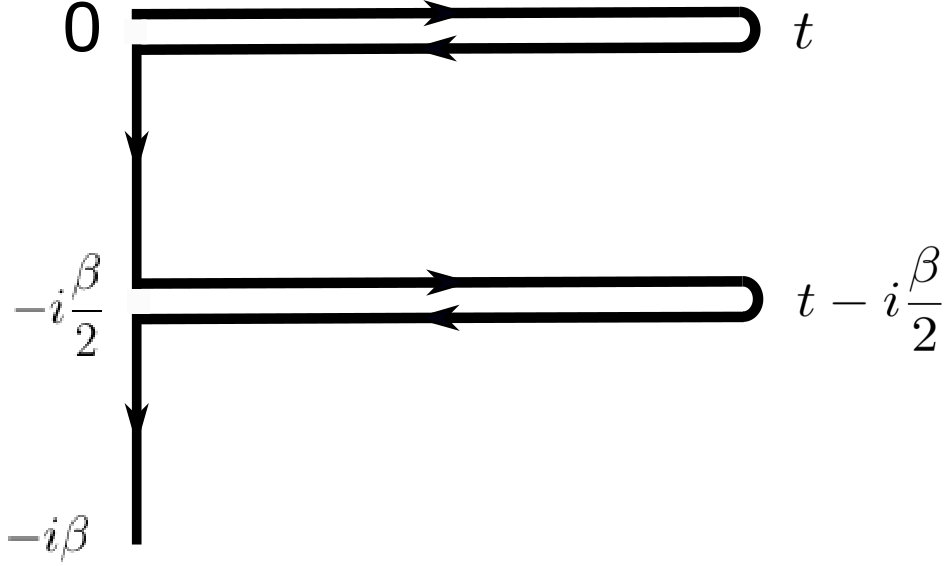

where $T_{C}$ orders the operators along the contour $C$ which is shown in Fig. 4, and the superscript $H_{0}$ denotes time evolution with respect to $H_{0}$. The subscript $t_{\eta}$ with $\eta=0,1$ refers to the forward/backward branch of each fold, respectively, and $c(t+i\tau)=e^{-H_{0}\tau}c^{H_{0}}(t)e^{H_{0}\tau}$. [Note that $e^{\beta H_{0}/2}e^{-\beta H_{0}/2}=1$ has been inserted in Eq. (39).] This form is amenable to perturbation theory, as Wick’s theorem may be used.

We expand the exponential $e^{-i\int_{C}H^{H_{0}}_{\mathrm{int}}(\bar{t})d\bar{t}}$, and organize the series in powers of $1/N$. For example, the $\alpha^{2}$ term is

[TABLE]

The form of the contour $C$ leads to several qualitatively different contributions:

$\bar{t}_{1}$ and $\bar{t}_{2}$ are both on the same real time fold: this leads to a self-energy correction to the propagators, which are taken into account by using the self-energies calculated in the previous section. 2. 2.

$\bar{t}_{1}$ and $\bar{t}_{2}$ are both imaginary times: this leads to corrections to the thermal state, which is also taken into account by considering the fully dressed propagators. Contractions between the external operators $c_{a}(x,t)$, $c_{b}(0)$ and vertex operators at imaginary times vanish due to the summation over $\eta,\eta^{\prime}$. 3. 3.

$\bar{t}_{1}$ and $\bar{t}_{2}$ are on different real time folds: this leads to a qualitatively new contribution, with contractions of the form (where flavor and spatial indices have been suppressed),

[TABLE]

and must be taken into account. 4. 4.

$\bar{t}_{1}$ is real and $\bar{t}_{2}$ is imaginary: this contribution is subleading in $1/N$.

II.2 Bethe-Salpeter equation for $f(\omega)$

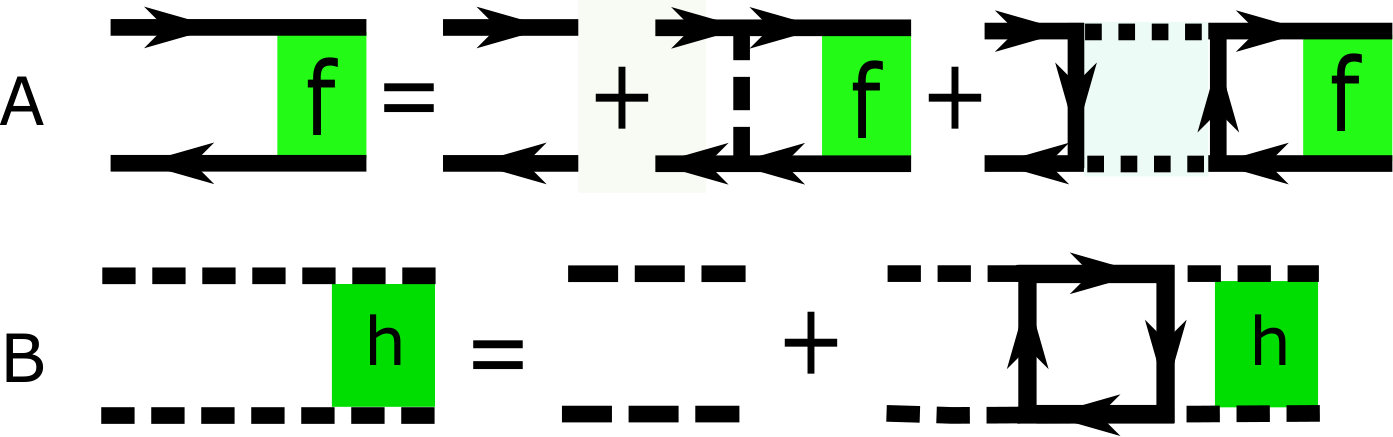

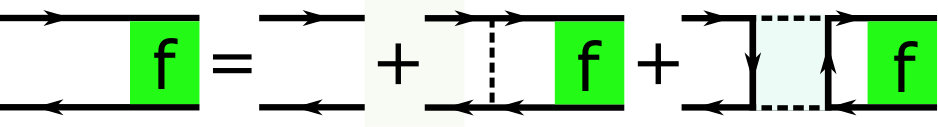

We obtain $f(\omega)$ by summing an infinite series of diagrams. The summation is equivalent to solving a self-consistent Bethe-Salpeter equation for the two-particle correlator. To leading order in $1/N$, the Bethe-Salpeter equation, which is schematically shown in Fig. 5, is given by

[TABLE]

Here,

[TABLE]

and we define

[TABLE]

as the phonon Wightman propagator, and in the same way

[TABLE]

An explicit calculation shows that (see, e.g., Ref. Patel and Sachdev (2017))

[TABLE]

with $A$, $B$ the electron and phonon spectral functions, respectively.

Naively, the $\alpha^{4}$ in Eq. (42) appears to be sub-leading in powers of $1/N$. However, as we shall show below, it is actually of the same order as the $\alpha^{2}$ term, and must be kept. This is because this term diverges unless the self-energy of the phonons, which is of order $1/N$, is used.

If $f(t)$ has an exponentially growing part, $f(t)=\frac{1}{N}e^{\lambda_{L}t}+O\left(\frac{1}{N^{2}}\right)$, its Laplace transform should divrege for $z=i\lambda_{L}$. We look for divergences in $f(\mathbf{k},k_{0},\omega=i\lambda_{L})$ and for this imaginary frequency we may ignore the inhomogenous term in Eq. (42) to get

[TABLE]

At long times, $f(t)$ is expected to saturate. This effect is captured by higher order terms in $1/N$ Stanford (2016).

II.3 Solution of the Bethe-Salpeter equation

In the high temperature regime, the Green’s functions are given by the results of section I.2. The term $G^{R}(\mathbf{k},k_{0})G^{A}(\mathbf{k},k_{0}-\omega)$ may be approximated, for $k_{0},\omega\ll\sqrt{gT/\nu}$, by

[TABLE]

Since the phonon propagators are unrenormalized (even at high temperature) to leading order in $1/N$, they are strongly peaked on shell. The term $D^{R}(\mathbf{k},k_{0})D^{A}(\mathbf{k},k_{0}-\omega)$, that appears in Eq. (43) above, will therefore be replaced by:

[TABLE]

In the last line, we kept only terms that diverge at $\omega=0$ in the limit $1/N\rightarrow 0$. Note that, by Eq. (35), $\Pi^{\prime\prime}(k_{0})\propto 1/N$. Therefore, the $\alpha^{4}$ term in Eq. (42) is in fact of the same order in $1/N$ as the $\alpha^{2}$ term.

The Bethe-Salpeter equation is therefore (assuming that $\omega$ is much smaller than the electronic energy scale $gT/\nu$)

[TABLE]

using the relation $g=\alpha^{2}\nu/K$, and setting the argument of both the electron spectral functions to zero (as $T\ll\sqrt{gT/\nu}$), this becomes

[TABLE]

where in the last line we have neglected $\omega_{0}$ relative to the electronic energy scales, and we define

[TABLE]

We make the ansatz $f(k_{0},\omega)=\tilde{f}(\omega)/\cosh(k_{0}/2T)$ and perform the integral over $k^{\prime}_{0}$ to get

[TABLE]

which is solved by

[TABLE]

We therefore conclude that the electronic scrambling rate is

[TABLE]

II.4 Butterfly velocity and diffusion constant

The out-of-time-ordered correlation function, evaluated at two distinct, spatially separated points, allows us to quantify the rate of propagation of scrambling in both space and time. More specifically, we define the function

[TABLE]

which is expected to obey

[TABLE]

We study its Fourier transform, $f(\mathbf{q},t)=\int d^{d}xe^{-i\mathbf{q}\mathbf{x}}f(x,t)$, which has two limiting behaviors:

If the ballistic term is absent, $v=0$, we get

[TABLE]

so that the velocity scale for chaos propagation, which is the butterfly velocity, is given by $\tilde{v}=\sqrt{D_{L}\lambda_{L}}$, and $D_{L}$ represents the leading correction to the Lyapunov exponent at small $q$:

[TABLE] 2. 2.

If the diffusive term is absent, we get

[TABLE]

and in this limit the butterfly velocity is given by $v$, which characterizes the dependence of the prefactor of the exponent in $f(q,t)$ on $q$, rather than the $q$ dependence of the scrambling rate.

We therefore define the butterfly velocity as by $v_{B}=\max\left(v,\tilde{v}\right)$, where $v^{2}$ is the coefficient of the $q^{2}$ term in the prefactor of the exponent in $f(q,t)$ and $\tilde{v}$ is the coefficient of the $q^{2}$ term in $\lambda_{L}(q)$. More precisely,

[TABLE]

The $q$-dependent Bethe-Salpeter equation for the Fourier transform $f(\mathbf{q},\omega)$ is given by

[TABLE]

Here

[TABLE]

This Bethe-Salpeter equation can be schematically written in a matrix form

[TABLE]

understood as an equation for the vector $f(k,q,\omega)$ (indexed by $k$), with an inhomogenous term $f_{0}(k,q,\omega)$. $\mathcal{M}$ is an operator that can be read off from Eq. (62). Finding the Lyapunov exponent corresponds to finding the $\omega$ for which $\mathcal{M}$ has an eigenvalue $\lambda=1$, and for frequencies for which $1-\mathcal{M}(k,q,\omega)$ has an inverse, $f(k,q,\omega)$ is given by

[TABLE]

Therefore, the $q$-dependence of $\lambda_{L}$ originates in the $q$-dependence of $\mathcal{M}$, while the $q$-dependence of the amplitude of $f(k,q,\omega)$ has contributions from the $q$-dependence of both $\mathcal{M}$ and $f_{0}$.

Any $q$-dependence originates from the electron or phonon propagator pairs, which we expand for small $\mathbf{q}$ to give (for small $k_{0}$)

[TABLE]

(the terms linear in $v_{\mathbf{k}},\partial_{\mathbf{k}}\Pi^{\prime}(\mathbf{k})$ will vanish under integration.)

The dominant contribution to the $q$ dependence of the integral operator $\mathcal{M}(k,k^{\prime},q,\omega)$ comes from the $D^{R}(\mathbf{k+q},k_{0})D^{A}(\mathbf{k},k_{0}-\omega)$ term. We roughly estimate the magnitude of the leading $q$ dependence of $\mathcal{M}$ as

[TABLE]

The $q$-dependence of the inhomogeneous term, $\int d^{d}kG^{R}(\mathbf{k+q},k_{0})G^{A}(\mathbf{k},k_{0}-\omega)$, is smaller by at least a factor of $\omega_{0}^{2}/E_{F}^{2}\ll 1$,

[TABLE]

Therefore, using Eqs. (67) and (61), we conclude that

[TABLE]

III Phonon scrambling rate

III.1 Definition

We now calculate the scrambling rate and corresponding butterfly velocity of defined in terms of the phonon coordinates. The calculation follows similar lines to that of the electronic scrambling rate.

We define the function

[TABLE]

and its Laplace transform $h(\omega)$.

III.2 Bethe-Salpeter equation

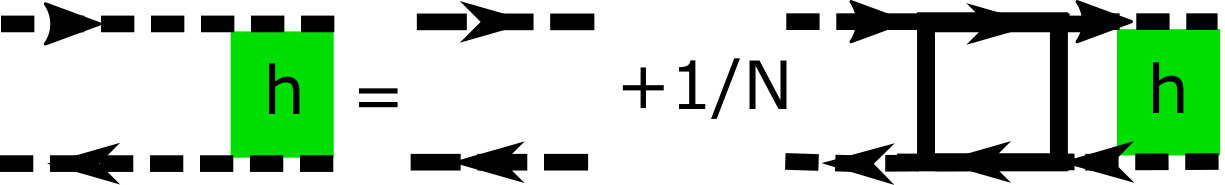

The Bethe-Salpeter equation for $h(\omega)$, represented schematically in Fig. 6, is

[TABLE]

with

[TABLE]

As before, to find the scrambling rate, we ignore the homogenous term. This gives the equation

[TABLE]

As was discussed around Eq. (49) above, the phonon propagators are strongly peaked, and we replace them with $\delta$-functions and residues:

[TABLE]

At high temperatures, we set $\omega_{0}=0$ in all electronic quantities, and get

[TABLE]

We make the ansatz $h(\mathbf{k},k_{0},\omega)=\tilde{h}(\omega)2\pi\delta(k_{0})$ and get

[TABLE]

Inserting in this expression the high-$T$ form of the electron propagators, we get (all the electron propagators have $\epsilon=0$ for their argument, as $T\ll E_{F}$)

[TABLE]

which up to a factor of two gives the same scrambling rate as the electrons.

In the same way, the butterfly velocity may be calculated, and it results in the same velocity as for the electrons, up to a numerical prefactor.

IV Thermal conductivity

IV.1 Dispersive phonons

In the case of dispersive phonons, the thermal conductivity is dominated by the contribution of the $N^{2}$ long lived phonons. These phonons are well defined quasiparticles, and therefore the thermal conductivity may be calculated using the semiclassical result:

[TABLE]

The contribution of the electrons and the interaction terms are calculated in the next section, and are shown to be subleading in $1/N$.

IV.2 Dispersionless phonons

IV.2.1 Thermal current operator

In this case, we use the Kubo formula to calculate the thermal conductivity, which requires the definition of the thermal current operator. For simplicity, we will calculate the thermal conductivity in a one-dimensional version of the system; the extension to higher dimensions is straightforward. The Hamiltonian is given by

[TABLE]

where

[TABLE]

The time derivative of the single-site energy density is given by

[TABLE]

where the rest of the terms vanish because of the locality of $H^{ph}_{i}$ and $H^{int}_{i}$. Here, $H^{el}=\sum_{i}H^{el}_{i}$, and similarly for the phonon and interaction terms. The first term on the right hand side results in the usual electronic thermal current, which is

[TABLE]

The other two terms of Eq.(82) result in the following contribution, which we term the phonon assisted (pa) contribution:

[TABLE]

which corresponds to the thermal current (see, e.g., Mahan (1993))

[TABLE]

where $l_{i}$ is the position of site $i$.

Therefore, we get two contributions to the thermal current:

[TABLE]

which can be shown to be equal to

[TABLE]

with $\dot{c}_{a}(\mathbf{k})=i[H,c_{a}(\mathbf{k})]$.

IV.2.2 Kubo formula

We calculate the thermal conductivity using the Luttinger prescriptionLuttinger (1964a, b); Shastry (2009), which states that

[TABLE]

where $\Pi^{J_{Q}J_{Q}}(\omega)$ is the retarded thermal-current thermal-current correlation function.

IV.2.3 Naive leading order in $1/N$

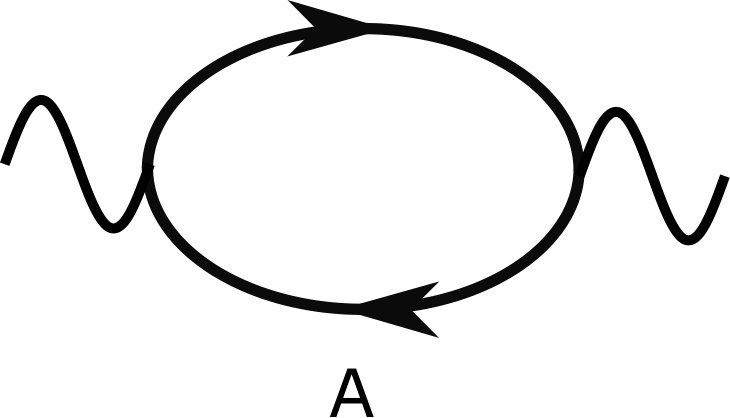

Expanding in powers of $1/N$, there is a single diagram which contributes to lowest order in $1/N$; it is shown in Fig. 7. Vertex corrections appear only in subleading orders in $\omega_{1}/\omega_{0}$; they all vanish if the phonon propagator is momentum independent.

Diagram $A$ is given by (using the Matsubara electron Green’s function, $G_{\mathbf{k}}(i\nu_{n})$, and exchanging the time derivative to an additional factor of $\nu_{n}$)

[TABLE]

Performing the Matsubara summation and analytically continuing $i\omega_{n}\rightarrow\omega+i\delta$, we get

[TABLE]

We therefore get

[TABLE]

Since $T\ll E_{F}$, we use the Sommerfeld expansion to get

[TABLE]

IV.2.4 Phonon drag

Momentum is not even approximately conserved in our model, as umklapp scattering by a phonon into the second Brillioun zone is just as probable as a normal scattering process. Therefore, we need not worry about a sharp Drude peak due to an approximate sound mode in the system Hartnoll et al. (2016). However, the occupation numbers of the $N^{2}$ phonons are an approximately conserved quantity, as their lifetime is finite only due to $1/N$ effects (see Eq. (35)) . Therefore, their effect on the thermal conductivity must be carefully studied; this is known as phonon drag Holstein (1964).

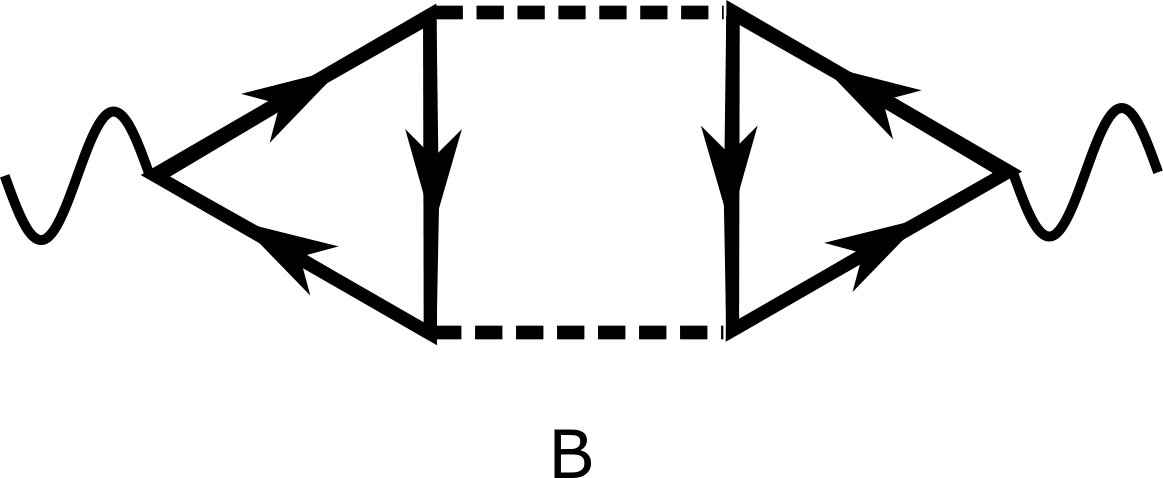

The diagrams which represent phonon drag in thermal transport are those that may be separated into two parts by severing two phonon propagators. The leading order diagram is given in Fig. 8. These diagrams are naively suppressed by $1/N$; however, as was shown before, the phonon propagator pair $D^{R}(\epsilon)D^{A}(\epsilon+\omega)\approx\delta(\epsilon\pm\omega_{0})/[\omega+i\Gamma]$ gives a contribution which is $O(N)$ in the d.c. limit, $\omega\rightarrow 0$.

We calculate the contribution of this diagram following Carrega et al. (2012). It is given by

[TABLE]

where

[TABLE]

The function

[TABLE]

has a branch cut when $\Im[z]=0,-\omega_{n}$ and $\Re[z]\neq 0$; therefore, the Matsubara summation over $\Omega_{n}$ in Eq. (93) results in (after analytical continutation $i\omega_{n}\rightarrow\omega+i\delta$)

[TABLE]

and therefore

[TABLE]

where we have used $\frac{dn_{B}(\Omega)}{d\Omega}=-\frac{T}{\Omega^{2}}$ for $T\gg\Omega$.

$(M\omega_{0}/\alpha^{2})\Gamma_{\mathbf{q}}(\omega_{0}-i\delta,\omega_{0}+i\delta)$ is given by (see Carrega et al. (2012) for details):

[TABLE]

in the last two lines, we change $q\rightarrow-q$, which results in an additional minus signs, as the two integrals are odd in $q$:

[TABLE]

To lowest order in $\omega_{0}/\sqrt{gT/\nu}$, only the last two lines contribute; this results in (expanding $G_{\mathbf{k}}(\epsilon\pm\omega_{0})$ to lowest order in $\xi_{\mathbf{k}}/\sqrt{gT/\nu}$ so the momentum integral does not vanish)

[TABLE]

This results in a phonon-drag thermal conductivity

[TABLE]

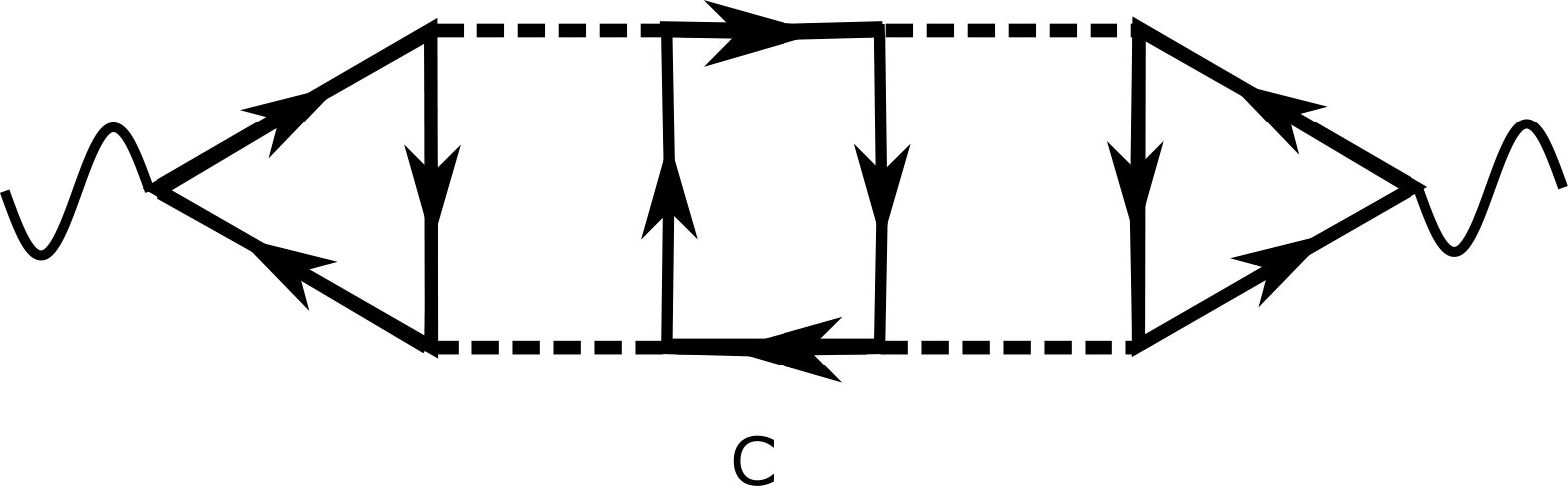

Higher order phonon-drag diagrams, like the one depicted in Fig. 9 are suppressed by factors of $E_{F}/gT$ relative to the lowest order diagram. Therefore, $\kappa\approx\kappa_{B}$.

V Charge conductivity

The conductivity of this model has been studied in Werman and Berg (2016); Werman et al. (2017). The current operator is given by

[TABLE]

We calculate the conductivity using the Kubo formula,

[TABLE]

with $\Pi^{JJ}(\omega)$ the retarded current-current correlation function. the naive leading order in $N^{-1}$ and in $\omega_{1}/\omega_{0}$ contribution to the conductivity is given by (depicted in Fig. 7, with the appropriate current vertex; all vertex corrections vanish for displersionless phonons)

[TABLE]

and therefore

[TABLE]

The phonon drag contribution is shown schematically in Fig. 8; the leading order (in $E_{F}/gT$) is given by

[TABLE]

where

[TABLE]

The fact that the electron Green’s function is momentum independent to leading order in $E_{F}/gT$ renders the phonon drag contribution

[TABLE]

and we neglect it. Hence, we get that $\sigma\approx\sigma_{A}$. Comparing Eqs. (105,101) we see that in the high temperature regime of our model, the Wiedemann-Franz law

[TABLE]

is strongly violated.
