Protecting a superconducting qubit from energy decay by selection rule engineering

TL;DR

This paper demonstrates a superconducting qubit with tunable transition dipoles that leverages selection rule engineering to significantly extend its energy decay lifetime, enhancing quantum coherence.

Contribution

It introduces a superconducting artificial atom with tunable transition dipoles, enabling control over energy decay via selection rule engineering, which was previously limited in such systems.

Findings

Achieved over two orders of magnitude increase in qubit lifetime

Extended qubit lifetime beyond 2 milliseconds

Maintained fixed transition frequency around 3.5 GHz

Abstract

Quantum control of atomic systems is largely enabled by the rich structure of selection rules in the spectra of most real atoms. Their macroscopic superconducting counterparts have been lacking this feature, being limited to a single transition type with a large dipole. Here we report a superconducting artificial atom with tunable transition dipoles, designed such that its forbidden (qubit) transition can dispersively interact with microwave photons due to the virtual excitations of allowed transitions. Owing to this effect, we have demonstrated an in-situ tuning of qubit's energy decay lifetime by over two orders of magnitude, exceeding a value of $2~\textrm{ms}$, while keeping the transition frequency fixed around $3.5~\textrm{GHz}$

Figures

Tables

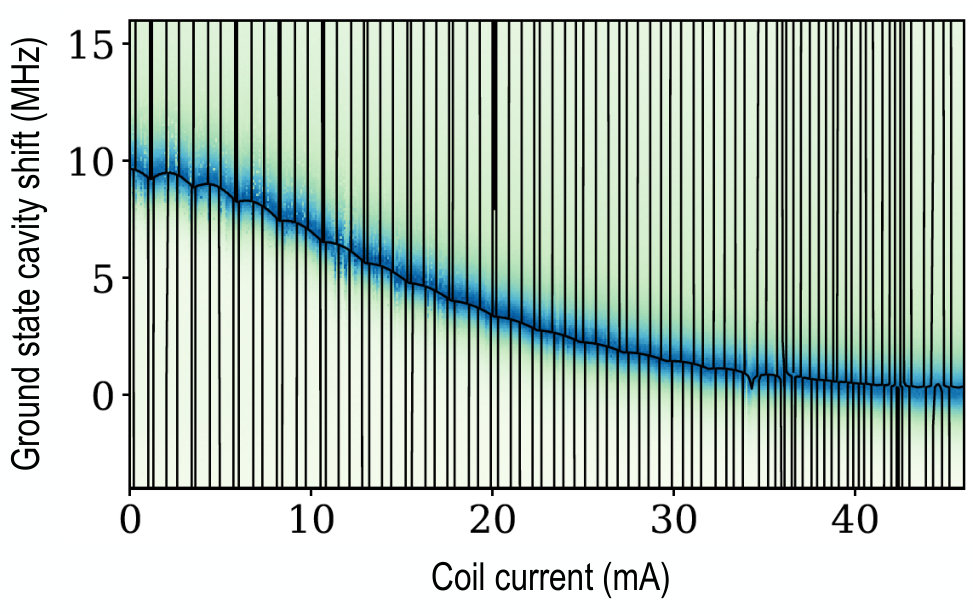

Table 1. Table 1: Circuit parameters extracted from spectroscopy data. The atom’s parameters E J Σ , d , E C , E L subscript 𝐸 subscript 𝐽 Σ 𝑑 subscript 𝐸 𝐶 subscript 𝐸 𝐿 E_{J_{\Sigma}},d,E_{C},E_{L} were extracted by fitting the data in Fig.  2 a. The cavity frequency ω c subscript 𝜔 𝑐 \omega_{c} and the coupling constant g 𝑔 g , defined by Eq.  5 , are extracted from fitting the ground state cavity shift shown in Fig.  6 . All energies are given in units of GHz .

$E_{J_{\Sigma }}$	$d$	$E_C$	$E_L$	${\omega }_c/2\pi$	$g$
$17.61$	$0.13$	$0.55$	$0.72$	$10.304$	$0.082$

Equations

$$H_{\text{a}}=4E_C{n}^2+E_L\frac{{\varphi }^2}{2}-E_J({\varphi }_1)\cos (\varphi -{\varphi }_J({\varphi }_1)-{\varphi }_2).$$

$$E_J({\varphi }_1)=E_{J\Sigma }|\cos \frac{{\varphi }_1}{2}|\sqrt{1+d^2{\tan }^2\frac{{\varphi }_1}{2}}$$

$${\varphi }_J({\varphi }_1)=\arctan (d\tan \frac{{\varphi }_1}{2})$$

$$E_{J\Sigma }=E_{J1}+E_{J2},d=|E_{J1}-E_{J2}|/E_{J\Sigma }.$$

$$H_{cQED}=H_a+\hslash {\omega }_c{a}^{†}a+gn(a+a^{†}),$$

$${\chi }_j=\frac{g^2}{16E_C^2}\sum _{k\ne j}\frac{{\omega }_{jk}^3}{{\omega }_{jk}^2-{\omega }_c^2}\times (d_{jk}{)}^2.$$

$$H_{\text{fluxon-photon}}=\hslash ({\omega }_c+{\chi }_{01}{\sigma }_z)a^{†}a.$$

$$1/T_1^{j\to i}=\frac{1}{{\hslash }^2}|d_{ij}{|}^{2}S({\omega }_{ij}),$$

$$1/T_1^{j\to i}{|}_{\text{dielectric loss}}=2\tan \delta R_{Q}C{\omega }_{ij}^2\times d_{ij}^2,$$

$$1/T_1^{j\to i}{|}_{\text{quasiparticle tunneling}}=x^{qp}F(\omega )\times (d_{ij}^{qp}{)}^2,$$

$$(d_{ij}^{qp}{)}^2=|⟨i|\sin \frac{\varphi -{\varphi }_2}{2}|j⟩{|}^2+|⟨i|\sin \frac{\varphi -{\varphi }_2-{\varphi }_1}{2}|j⟩{|}^2$$

Full text

An interesting example of such a system is an optical atomic clock Ludlow et al. (2015). Its host atom (or ion) has a highly controlled and long-lived clocking transition despite the fact that the atom faces a fixed dissipative environment – the vacuum. This is made possible by a rich structure of selection rules in the spectra of many even hydrogen-like atoms and ions. For instance, the transition $S_{1/2}-P_{1/2}$ of a Ca+ ion has a relatively large transition dipole and belongs to the “allowed” type with a radiative lifetime of the order of $10~{}\mathrm{ns}$. A similar frequency transition (visible) $S_{1/2}-D_{5/2}$ sees the same radiative environment, and yet its lifetime exceeds $1~{}\mathrm{s}$. This transition is “forbidden” as its dipole is nulled by the symmetry of atomic wave functions, and the long lifetime is due to a much weaker quadrupolar coupling. One can then encode a qubit onto the forbidden (clocking) transition and yet efficiently read it out by measuring the state-dependent fluorescence of the allowed transition. Other allowed transitions are often utilized for qubit state preparation by optical pumping and two-tone Raman drives Cirac and Zoller (1995). Moreover, even a two-qubit remote gate operation can be performed on a pair of decoupled atomic clock qubits by a joint quantum measurement Moehring et al. (2007).

Inspired by this atomic clock example, one may ask the following questions with regard to superconducting qubits: (i) can we engineer a forbidden transition in a superconducting circuit, and how would its quality factor $Q_{1}$ grow upon reducing the transition dipole? (ii) can a forbidden transition still interact with a cavity mode in order to perform measurement and multi-qubit operations? Unfortunately, common superconducting circuits lack the selection rule diversity of real atoms. In fact, their spectra correspond to either a two-level system or a weakly anharmonic oscillator, and thus are limited to only one transition type Clarke and Wilhelm (2008).

In this work we have designed a fluxonium artificial atom Manucharyan et al. (2009) such that it combines both allowed and forbidden transitions. Moreover, unlike real atoms, here the transition dipoles are continuously and broadly tunable by magnetic flux. We show that even with a vanishing transition dipole, a qubit still undergoes a finite and purely dispersive (longitudinal) interaction with cavity photons, enabled by the other atomic transitions with large dipoles. This effect allowed us to explore energy relaxation in our circuit in the regime of extreme decoupling from environment. The measured quality factor of a qubit transition, deliberately confined to a narrow range near $3.5~{}\textrm{GHz}$, scales linearly with the inverse square of the transition’s dipole, and reaches a benchmark value of $Q_{1}>4\times 10^{7}$ corresponding to $T_{1}>2~{}\textrm{ms}$.

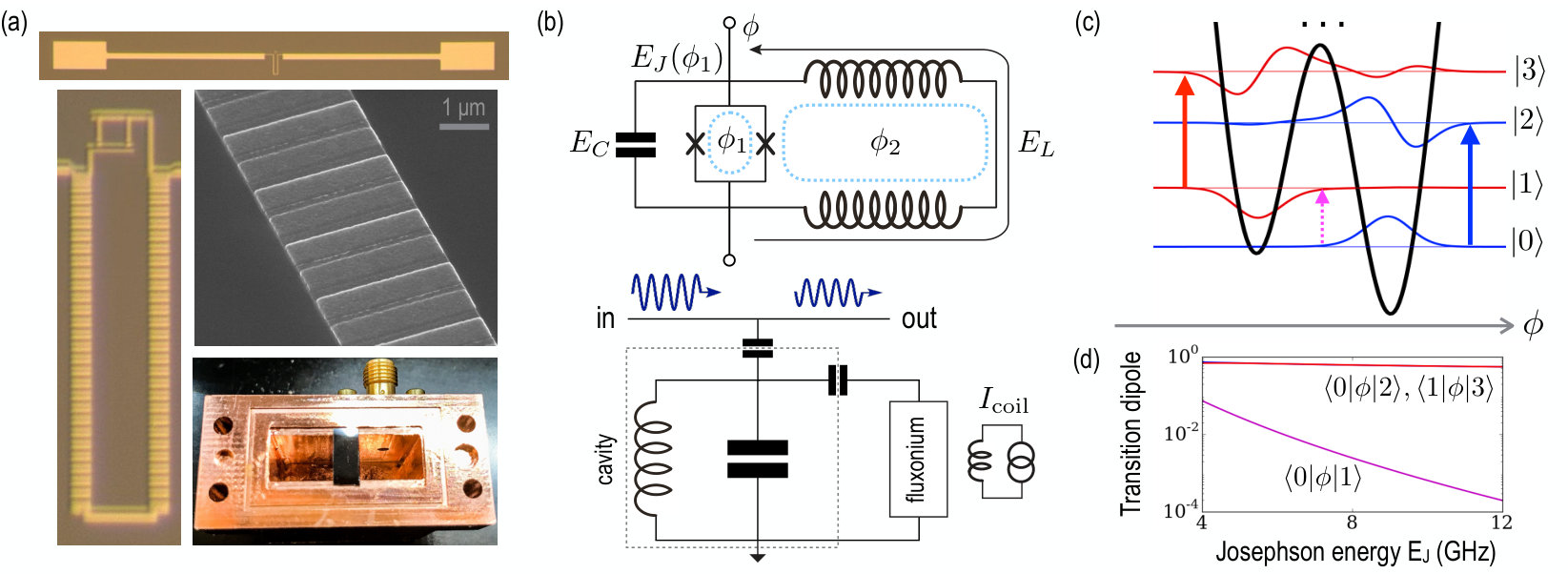

Compared to original fluxonium design, here we have replaced the single weak junction with a flux-tunable split-junction and coupled it capacitively to a 3D copper cavity using a mm-size antenna (Fig. 1a). The resulting modified fluxonium can be viewed as a 3D transmon shunted by a large linear inductance of a Josephson array (Fig. 1b). The circuit Hamiltonian, given by Eq. (1), is defined by the inductive energy of the Josephson chain $E_{L}$, the charging energy of the total capacitance $E_{C}$, and the variable Josephson energy of the split-junction $E_{J}(\phi_{1})$, as well as by the two fluxes $\phi_{1}$ and $\phi_{2}$ piercing the split-junction and the main loops, respectively. The generalized flux $\phi$ in the inductance is a position-like quantum variable of the circuit (we take all fluxes in units of $\hbar/2e$). It moves in an effective potential given by $U(\phi)=E_{L}\phi^{2}/2-E_{J}(\phi_{1})\cos(\phi+\phi_{J}(\phi_{1})-\phi_{2})$, where $E_{J}(\phi_{1})$ and $\phi_{J}(\phi_{1})$ are given by Eq. (2). Kinetic energy is given by the term $4E_{C}n^{2}$, where $n=-i\partial_{\phi}$ is a momentum-like continuous variable conjugate to $\phi$.

Two distinct transition types emerge in our circuit in the regime $E_{L}/E_{J}\ll 1$ and $E_{J}/E_{C}\gtrsim 10$. The former condition ensures that the potential $U(\phi)$ consists of multiple Josephson wells, whose depth and elevation are tuned by the external fluxes $\phi_{1}$ and $\phi_{2}$, respectively. The latter condition weakens quantum tunneling such that every low energy state of the circuit tends to localize inside a single well (Fig. 1c). The intra-well transitions are called plasmons by analogy with plasma oscillations in junctions. Similar transitions occur in a transmon Koch et al. (2007), except that here a plasmon remains charge-insensitive even for a small value of $E_{J}/E_{C}$ due to the inductive shunt Koch et al. (2009). The inter-well transitions are called fluxons. These are accompanied by a twist in the superconducting phase along the fluxonium main loop by $2\pi$. A fluxon is analogous to the transition of a flux qubit Paauw et al. (2009), except that it is about $10^{2}-10^{3}$ times less sensitive to flux noise due to the large number of junctions in the fluxonium loop Manucharyan et al. (2012). As long as the two adjacent wells are offset against each other, the two states connected by a fluxon would have a vanishing overlap Kerman (2010). Fluxon is therefore a “strongly forbidden” transition in the sense that any operator $O(\phi)$ would have an exponentially small matrix element for sufficiently large ratio $E_{J}/E_{C}$. By contrast, plasmons are “strongly allowed” (Fig. 1d), because their transition dipoles, naturally defined as matrix elements of $\phi$, are all near unity for a broad range of values of $E_{J}/E_{C}$ Zhu and Koch (2013).

Because of the vanishing transition dipole, the transverse interaction of a fluxon with a cavity mode is negligible. However, we found that there is a purely dispersive longitudinal interaction between the two in the form of $H_{\textrm{int}}=\chi\sigma_{z}a^{\dagger}a$, where $a$ is the photon annihilation operator, and $\sigma_{z}$ is the fluxonium Hamiltonian projected onto its two eigenstates connected by a fluxon (see appendix A.2). The origin of a finite dispersive shift $\chi$ can be understood as follows. In the state [math], which can be approximately viewed as the vibrational ground state of the lower well, fluxonium shifts the bare cavity resonance by an amount $\chi_{0}$, due to virtual excitations of the lower well (blue) plasmon. The shift $\chi_{0}$ grows as the plasmon frequency approaches the cavity resonance, and has a relatively large magnitude similar to that of a typical transmon qubit. Analogously, the state $1$ shifts the cavity by an amount $\chi_{1}$, due the higher well (red) plasmon. Since the lower and higher well plasmons have different frequencies, $\chi_{0}\neq\chi_{1}$, giving rise to a finite dispersive shift $\chi=\chi_{1}-\chi_{0}$. Quantitatively, the values of $\chi_{0(1)}$ are found by summing contributions from virtual excitations of every transition starting from the states $0(1)$, and in general there is no reason for the two to be equal Zhu et al. (2013).

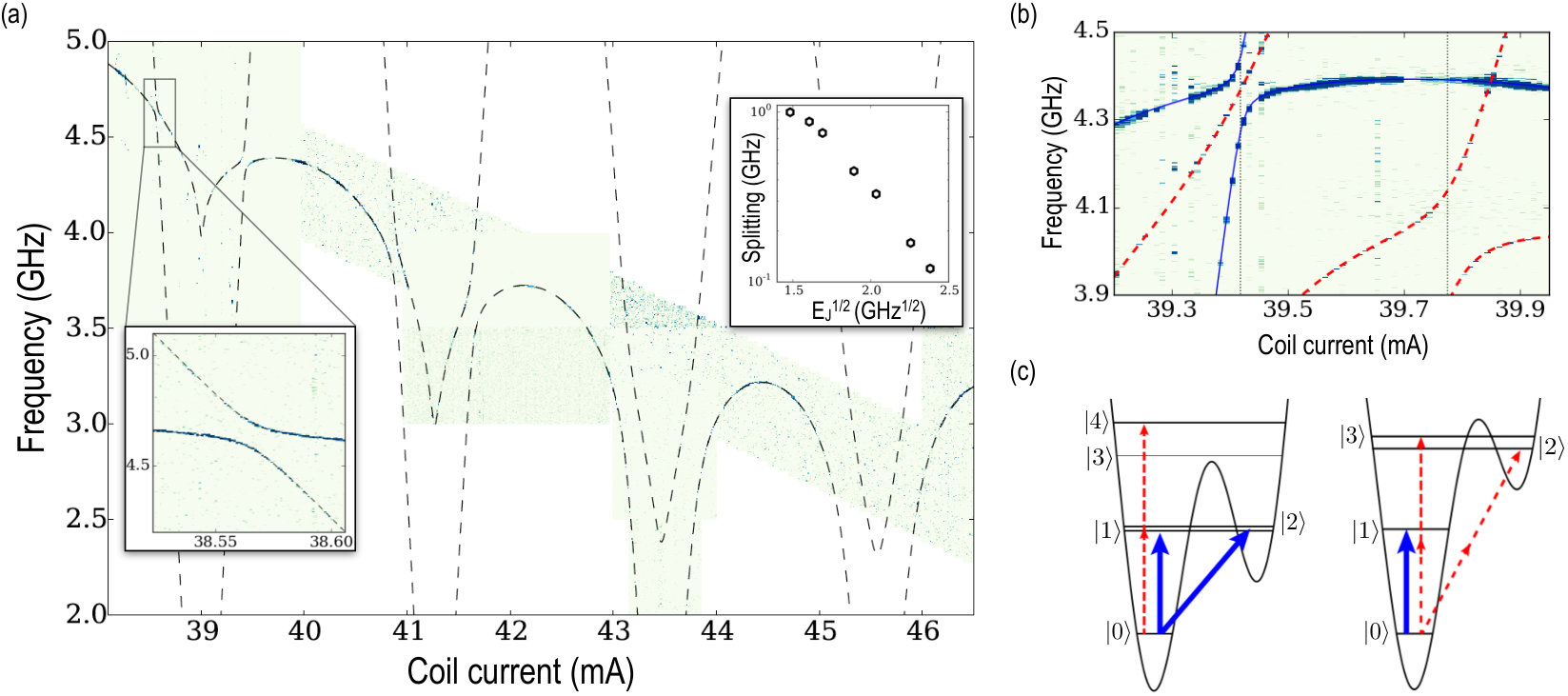

The spectrum of our artificial atom is revealed by a two-tone transmission spectroscopy signal measured as a function of the spectroscopy tone frequency and the current in the external coil that creates a global flux bias (Fig. 2). The readout tone was irradiated near the cavity’s resonance at $10~{}\mathrm{GHz}$. Due to linearity of the coil, it is safe to assume that $\phi_{1,2}=\beta_{1,2}I_{\textrm{coil}}$, where $I_{\textrm{coil}}$ is the coil current and $\beta_{1,2}$ are flux couping constants. The two observed resonances vary with the coil current in a sophisticated quasi-periodic manner (Fig. 2a). Nevertheless, the two fit remarkably well to the numerically-obtained lowest transitions of the circuit Hamiltonian (Eq. 1) involving only six adjustable parameters: $E_{C},E_{L},E_{J_{1}},E_{J_{2}},\beta_{1},\beta_{2}$. Here $E_{J_{1,2}}$ are the Josephson energies of the two junctions in the SQUID. Having established a tight correspondence between the data and a simple circuit model of our atom, we now proceed to interpret the most essential spectral features of the data in Fig. 2a.

The quasi-periodicity of the spectrum as a function of the coil current corresponds to changing the external flux in the main loop by a flux quantum, i.e. $\phi_{2}\rightarrow\phi_{2}+2\pi$. The SQUID loop has a much smaller area and hence a much larger period. The point of inversion symmetry of the spectrum at $I_{\textrm{coil}}\approx 45.5~{}\mathrm{mA}$ corresponds to biasing the SQUID loop with a half a flux quantum, i.e $\phi_{1}=\pi$, and the Josephson energy $E_{J}(\phi_{1}=\pi)=|E_{J_{1}}-E_{J_{2}}|$ reaches its minimum. The separation of the spectrum into fluxons and plasmons is particularly apparent in the region $38~{}\mathrm{mA}<I_{\textrm{coil}}<42~{}\mathrm{mA}$. The weakly flux-dependent transition with multiple sweet-spots is the lower-well plasmon. Due to the presence of the inductive shunt, plasmon’s frequency is not a monotonic function of $E_{J}$, although it reduces with $E_{J}$ on average. The transition that changes linearly with the coil current in a zigzag pattern is a fluxon. The avoided crossings correspond to a full hybridization of a fluxon with a plasmon (Fig. 2a, left inset). The frequency splitting quantifies the strength of inter-well transitions, varying from $100~{}\mathrm{MHz}$ at $I_{\textrm{coil}}=38.56~{}\mathrm{mA}$, where a fluxon is well defined, to over $1~{}\mathrm{GHz}$ near $\phi_{1}=\pi$, where this notion becomes vague. The top inset of Fig. 2a illustrates that at sufficiently large values of $E_{J}$, the logarithm of the splitting scales as $E_{J}^{1/2}$, in agreement with the WKB description of tunneling.

Two-photon resonances appear at a higher spectroscopy tone power and match theory without adjustable parameters (Fig. 2b). Thus, at $I_{\textrm{coil}}\approx 39.4~{}\mathrm{mA}$, we observe a two-photon transition to the 4th excited state of the circuit, which lies above the barrier. Coincidentally, this two-photon resonance landed right inside the small frequency gap formed by the conventional one-photon fluxon-plasmon splitting. As the offset between the two wells increases further, we observe a two-photon avoided crossing of the second and third excited states at $I_{\textrm{coil}}\approx 39.8~{}\mathrm{mA}$. It corresponds to a hybridization of a fluxon with a two-plasmon excited state of the lower well. The two-photon data also reveals that the plasmon’s anharmonicity is about $700~{}\textrm{MHz}$, a value significantly larger than that of conventional transmons, but similar to recently developed capacitively-shunted flux qubits Yan et al. (2016).

In order to proceed to analysis of energy relaxation data, we also need the knowledge of transition dipoles of our artificial atom. Measuring them accurately is hard. Instead, we can simply calculate them using the parameters of the circuit Hamiltonian obtained from fitting the spectroscopy data. This approach is justified by the fact that our simple four-parameter Hamiltonian (Eq. 1) appended by the two current-to-flux conversion constants $\beta_{1,2}$, matches multiple atomic transitions with intricate current dependence over a large range frequencies and has a power-broadened line-width not exceeding $0.1\%$.

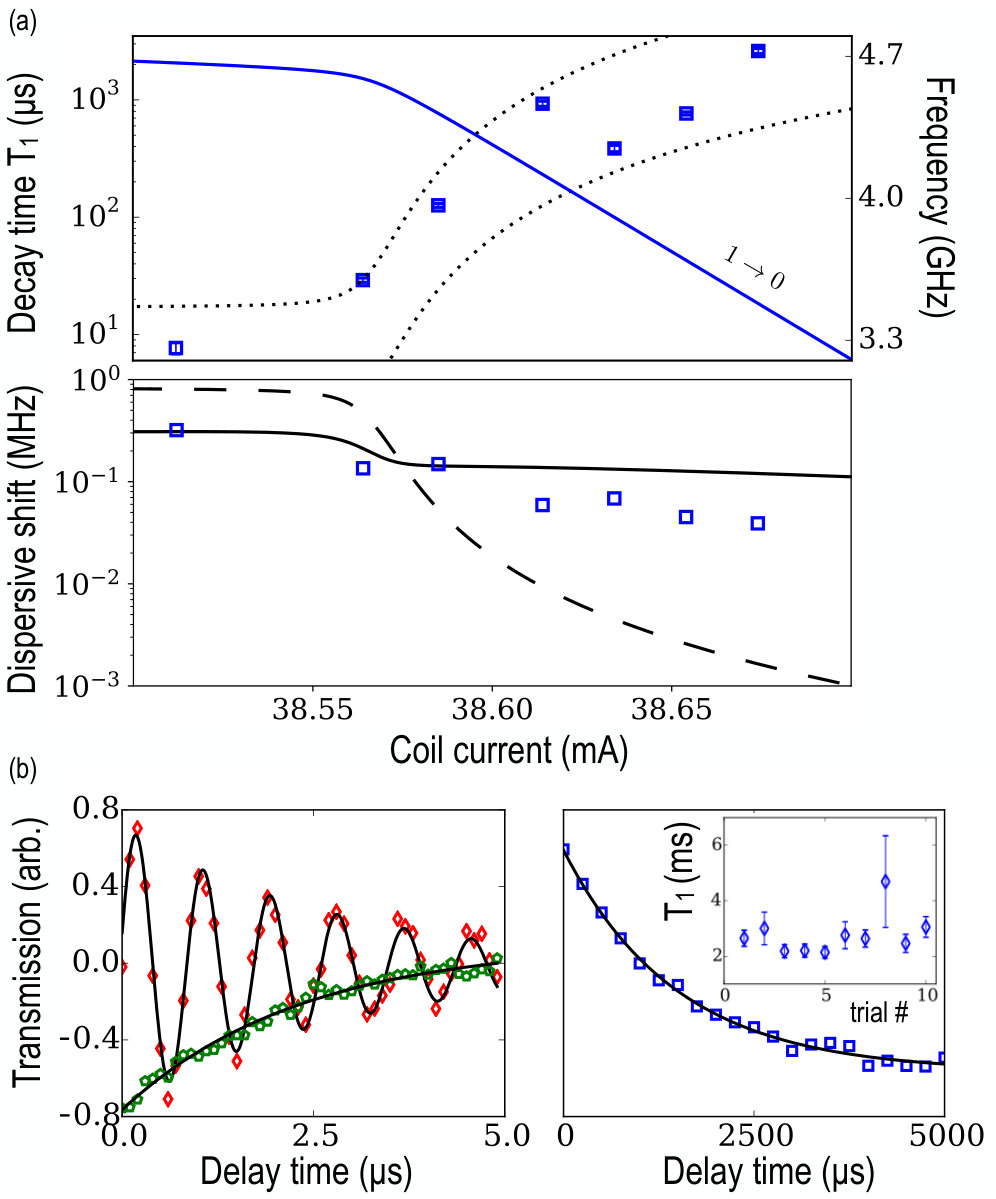

Controlled inhibition of energy decay in our circuit is most clearly demonstrated by measuring the lifetime of the lowest $0-1$ transition as we tune the coil current through the plasmon-fluxon anticrossing, shown in the lower inset of Fig. 2a. Indeed, we observed a drastic enhancement of the $T_{1}$ time from $T_{1}<10~{}\mathrm{\mu s}$ at the plasmon side to $T_{1}>1~{}\mathrm{ms}$ at the fluxon side (Fig. 3a). To interpret the data quantitatively, we turned to the model of dielectric loss, commonly encountered in transmon qubits Wang et al. (2015). This model echoes the observed enhancement of $T_{1}$ and requires the bounds on the effective loss tangent of the split-junction to lie between $2\times 10^{-5}<\tan\alpha<2\times 10^{-6}$. For the same range of coil currents, we plot the calculated dispersive shift $\chi$, which remarkably does not drop significantly at the fluxon side of the anticrossing (Fig. 3b). The measured dispersive shift, extracted from the Rabi oscillations amplitude, agrees reasonably well with theory (Eq. 6), without using any assumptions. In sharp contrast, the dispersive shift, calculated taking into account only the [math] and $1$, drops rapidly with the increase of $T_{1}$, thereby emphasizing the importance of plasmons in enabling the dispersive circuit QED with a forbidden transition.

Rabi oscillations along with $\pi$-pulse echo experiments demonstrate that a fluxon remains coherent even when its transition dipole suppressed to the extent that $T_{1}>1.5~{}\textrm{ms}$ (Fig. 3c). The coherence time $T_{2}$, given by the characteristic decay time of the echo signal, is given by $T_{2}\approx 2~{}\mu s$, and is likely limited by the first-order flux noise in both the main and the SQUID loops. The decay of the readout signal following a $\pi$ pulse on a qubit fits the exponential function well and repeated experiments did not produce more than a factor of two variation of $T_{1}$ within about one hour (Fig. 3c - inset). This leads us to believe that the fluctuation of $T_{1}$ values in Fig. 3a occurs on longer than a one hour time scale.

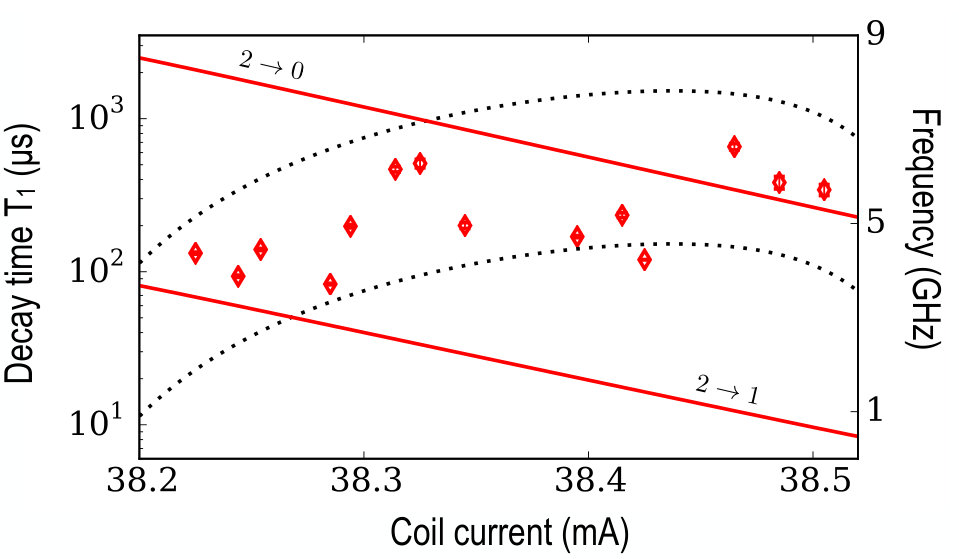

For a control experiment, we note that the transitions $1-2$ and $0-2$ become forbidden at the plasmon side of the anticrossing, i.e. for $I_{\textrm{coil}}<38.55~{}\textrm{mA}$. To test this idea, we have measured the decay of the readout signal following a $\pi$-pulse applied to the $0-2$ transition (Fig. 4). Again, we observed long relaxation times reaching values over $600~{}\mathrm{\mu s}$ at a point corresponding to the $0-2$ transition frequency of about $6.5~{}\textrm{GHz}$ and $2-1$ transition frequency of about $2.8~{}\textrm{GHz}$. The measured $T_{1}$ values, as a function of $I_{\textrm{coil}}$, fall within the bounds imposed by the same dielectric loss models previously applied to the $0-1$ decay data at the other side of the anticrossing (Fig. 3). We also note, that the direct decay channel $2-0$ turns out to be negligible compared to the indirect channel $2-1-0$. Given that the transition $1-0$ here decays much faster than $2-1$, we therefore associate the decay of the $2$-state with the environment at the frequency of the $2-1$ transition.

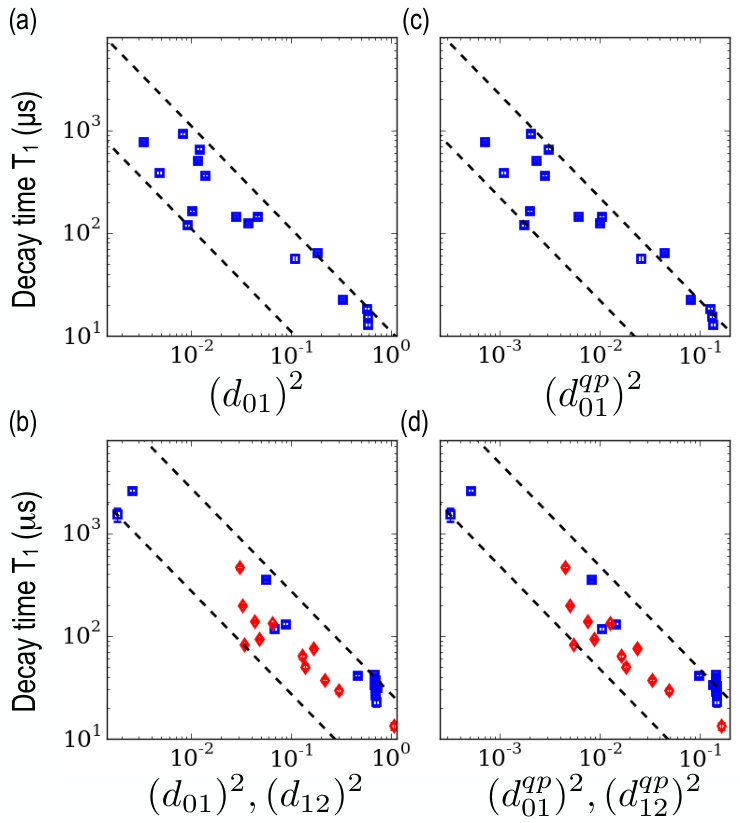

Finally, we have collected energy decay times for the lowest transition taken at a number of special values of $I_{\textrm{coil}}$ such that the transition dipole $d_{01}$, given by $d_{01}=\langle 0|\phi|1\rangle$, vastly varies while the transition frequency is confined to a narrow interval $3.5-4.5~{}\textrm{GHz}$. All such transitions lose energy to the essentially identical environment. Therefore, Fermi’s golden rule predicts that at zero temperature $1/T_{1}^{1\rightarrow 0}\propto(d_{01})^{2}$ for an arbitrary linearly-coupled environment. Our data obeys this simple scaling for the values of $T_{1}$ spanning a remarkable range of over two orders of magnitude (Fig. 5a). Despite some fluctuations, the data clearly shows that the dramatic enhancement of $T_{1}$ of a qubit occurs solely due to the reduction of its transition dipole. Because the suppression of $d_{01}$ deep in the fluxon regime has no classical analog, the observed scaling evidences that the energy decay occurs by a spontaneous emission rather than by a thermal activation. Data for the neighboring $2.5-3.5~{}\textrm{GHz}$ frequency range, including relaxation of the $2-1$ transition, confirms our conclusion (Fig. 5b).

The only known non-linear loss mechanism in which coupling to the bath cannot be described using the matrix elements of $\phi$ is quasiparticle tunneling across the small junctions Catelani et al. (2011b); Pop et al. (2014). The effective transition dipole $d_{ij}^{qp}$ is responsible for the coupling to quasiparticles turns out to be a more complex function of $\phi$, given by Eq. (11). Plotting the measured $T_{1}$’s as a function of the calculated value of $(d^{qp}_{ij})^{2}$, we find the same as for the linear dissipation (Fig. 5c,d). The similarity of the two data sets, (a,b) and (c,d) of Fig. 5, reflects the simple fact that the fluxon transition is forbidden irrespective of the loss mechanism because of the vanishing overlap of the qubit states wave functions illustrated in Fig. 1c

In conclusion, we have realized an artificial circuit atom with tunable selection rules and demonstrated a dispersive circuit QED with a strongly forbidden atomic transition. The observation of a quality factor as high as $Q_{1}>4\times 10^{7}$, without showing signs of saturation upon reducing the transition dipole, validates the general idea of protecting qubits from an arbitrary dissipative environment. Our specific method of inhibiting energy decay came with a disadvantage that the fluxon is first-order flux sensitive. Nevertheless, its coherence time was over $2~{}\mu s$ thanks to the large inductance of the Josephson array comprising the fluxonium main loop. Our experiment is thus a natural starting point for implementing more sophisticated protection schemes Ioffe and Feigel’man (2002), e.g. those based around $0-\pi$ qubits, which rely on a similar mechanism for protecting against energy decay, but offer additional protection from dephasing and gate errors Brooks et al. (2013); Bell et al. (2014).

Future improvements to this experiment include enhancing the fluxon’s dispersive shift by arranging the plasmons closer to the cavity, utilizing Raman transitions to speed-up single-qubit gate operations, and increasing the chain inductance to further suppress flux noise. The combination of forbidden and allowed transitions in a single artificial circuit atom makes it useful for a range of quantum applications, from testing the limits of energy relaxation in macroscopic circuits and exploring the driven dynamics of meta-stable quantum systems to controlling photonic states of cavities Mirrahimi et al. (2014); Vlastakis et al. (2013) and creating coherently interacting spin $1/2$ registers for quantum annealers Boixo et al. (2014); Weber et al. (2017).

Appendix A Theoretical methods

A.1 Tunable Fluxonium Hamiltonian

The Hamiltonian of the fluxonium atom with a split-junction is given by

[TABLE]

The charging energy $E_{C}=e^{2}/2C$ contains the total capacitance $C$ including the dominant antenna contribution that shunts the split-junction of the fluxonium. The inductive energy scale is defined as $E_{L}=E_{JA}/N$, where $E_{JA}$ is the Josephson energy of the array junctions and $N$ is the total number. The tunable Josephson energy $E_{J}(\phi_{1})$ is given by the relations

[TABLE]

A.2 Circuit QED with a forbidden transition

The coupling of the atom to a 3D cavity mode is given by a transverse linear coupling in the form of

[TABLE]

where $a$ is the photon annihilation operator, $\omega_{c}$ is the cavity mode frequency, and $g$ is an empirical coupling constant.

Applying second-order perturbation theory, one obtains the following expression for the dispersive shift, $\chi_{j}$, of the cavity by the atomic state $j$:

[TABLE]

The transition dipoles $d_{jk}$ are given by $d_{jk}=\langle j|\phi|k\rangle$. Here we have taken into account that $\phi$ and $n$ are linearly related via $2en=C(\hbar/2e)\dot{\phi}$.

The most important property of Eq. (6) can be illustrated with Fig. 1c. Namely, the fluxon’s dispersive shift $\chi_{01}\neq 0$ even though $d_{01}\rightarrow 0$. Moreover, $\chi_{01}$ can be of the same order of magnitude as $\chi_{02,13}$ (plasmon shifts) if $\omega_{02}\neq\omega_{13}$ and either $\omega_{13}\approx\omega_{c}$ or $\omega_{02}\approx\omega_{c}$. This leads to a purely dispersive coupling of the fluxon transition $0-1$ to the cavity, given by an effective Hamiltonian

[TABLE]

A.3 Energy relaxation rates

A.3.1 Dielectric loss and other linear dissipation

The linear coupling of an atomic transition to a specific environment is given by the interaction Hamiltonian $H_{int}=(\hbar/2e)\phi I$, where $I$ represents the collective environmental degree of freedom and $\phi$ is the generalized coordinate of the atom. According to Fermi’s golden rule, relaxation rate is given by

[TABLE]

where $S(\omega_{ij})$ is the spectral density of noise of the environmental variable $I$ at the transition frequency $\omega_{ij}$. In the case of the commonly encountered dielectric loss Wang et al. (2015), the dissipation presumably originates from filling the shunting capacitance $C$ with a lossy dielectric, characterized by a loss tangent, $\tan\delta$. In that case $S(\omega)=2(\hbar\omega)^{2}R_{Q}C\tan\delta$, and

[TABLE]

where we have introduced reduced superconducting resistance quantum, $R_{Q}=\hbar/4e^{2}\approx 1~{}k\Omega$. Note that when the coupling is via the charge variable $n$ or a different relaxation mechanism (e.g. Purcell effect), the expression (8) still holds, but $S(\omega)$ will be a different function of frequency.

A.3.2 Quasiparticle loss

Quasiparticle tunneling across the small junction of fluxonium has been recently identified as a peculiar non-linear dissipation source. Here the coupling Hamiltonian must be written as $H_{int}=(\hbar/2e)\sin\frac{\phi-\phi_{2}}{2}\times I_{R}+(\hbar/2e)\sin\frac{\phi-\phi_{2}-\phi_{1}}{2}\times I_{L}$ which includes independent tunneling processes in both the left and the right junctions of the SQUID. Where operators $I_{R,L}$ represent the environment seen by the two junctions. Assuming that the noise spectral densities of $I_{L}$ and $I_{R}$ are identical, the quasiparticle relaxation rate is given by

[TABLE]

where $F(\omega)$ is given in Ref. Catelani et al. (2011a), $x_{qp}$ is the fraction of broken Cooper pairs in the superconductor, and the effective transition dipole is given by the relation

[TABLE]

Note that for a fixed frequency this mechanism predicts the same scaling of $T_{1}$ with the updated transition dipole as in the case of a linear loss considered above.

Appendix B Experimental methods

The fluxonium device was fabricated on an untreated Si chip by e-beam lithography using a bi-layer MMA/PMMA resist and a double-angle electron-beam deposition/oxidation/deposition sequence. The chip was mounted inside a 3D copper cavity with a single coupling port with an external quality factor of about $2,000$. The port was probed by a microwave transmission in a hanger geometry with the rest of the microwave setup being similar to that used in Ref. Manucharyan et al. (2012). The table below summarizes circuit model parameters extracted from spectroscopy data.
