The convective surface of the red supergiant Antares. VLTI/PIONIER interferometry in the near infrared

TL;DR

This study used near-infrared interferometry to resolve Antares' photosphere, revealing convective cells of various sizes that influence measurements of the star's angular diameter and limb-darkening.

Contribution

First direct interferometric resolution of Antares' photosphere constraining convective cell sizes and their impact on stellar measurements.

Findings

Convective cells range from 5% to 45% of the star's diameter.

Convective cells significantly affect angular diameter and limb-darkening measurements.

Interferometric signals are compatible with diverse convective cell sizes.

Abstract

Context. Convection is a candidate to explain the trigger of red supergiant star mass loss. Owing to the small size of the convective cells on the photosphere, few of their characteristics are known. Aims. Using near infrared interferometry, we intend to resolve the photosphere of red supergiant stars and to bring new constraints on their modeling. Methods. We observed the nearby red supergiant Antares using the 4-telescope instrument VLTI/PIONIER. We collected data on the three available configurations of the 1.8m telescopes in the H band. Results. We obtained unprecedented angular resolution on the disk of a star (6% of the star angular diameter) that limits the mean size of convective cells, brings new constraints on numerical simulations. Using an analytical model with a distribution of bright spots we determine their effect on the visibility signal. Conclusion. We determine that the interferometric signal on Antares is compatible with convective cells with various sizes from 45% to 5% of the angular diameter. We also conclude that convective cells can strongly affect the angular diameter and limb-darkening measurements. In particular, the apparent angular diameter becomes dependent on the sampled position angles.

Figures

Tables

Table 1. Table 1: Adopted uniform disk diameters for the interferometric calibrators. ( Bonneau et al. 2006 , 2011 and Mérand et al. 2005 )

Name	Diameter
	(mas)
HR 5969	$1.79\pm 0.13$
HR 6145	$0.84\pm 0.06$
HD 142407	$1.27\pm 0.09$
HD 143900	$1.28\pm 0.05$
HD 148643	$1.47\pm 0.08$
$ψ$ Oph	$1.89\pm 0.13$

Table 2. Table 2: UD and LDD best fit parameters with a PA and spectral channel selection of the squared visibilities in the first and second lobes (spatial frequencies below 50 arcsec -1 ). The given PA is associated to the first lobe data.

PA range (∘) and baselines	Wavelength ($\mu$m)	${\theta }_{\mathrm{UD}}$ (mas)	${\tilde{\chi }}_{\mathrm{UD}}^2$	${\theta }_{\mathrm{LDD}}$ (mas)	${\delta }_{\mathrm{LDD}}$	${\tilde{\chi }}_{\mathrm{LDD}}^2$
114.48 - 117.95	1.609	$34.54\pm 2.32$	13.0	$37.70\pm 0.42$	$0.55\pm 0.07$	0.3
A1-B2 + A1-C2	1.661	$35.62\pm 3.17$	146.9	$39.77\pm 0.30$	$0.66\pm 0.05$	0.6
	1.713	$36.09\pm 1.47$	39.4	$39.15\pm 0.32$	$0.47\pm 0.05$	0.7
109.01 - 112.34	1.609	$35.56\pm 1.92$	13.7	$38.54\pm 0.37$	$0.51\pm 0.06$	2.1
A1-B2 + A1-C2	1.661	$36.38\pm 1.05$	139.3	$40.13\pm 0.34$	$0.65\pm 0.05$	1.7
	1.713	$36.31\pm 1.68$	38.9	$39.34\pm 0.31$	$0.47\pm 0.05$	1.2
103.35 - 107.10	1.609	$36.43\pm 1.86$	12.2	$39.03\pm 0.47$	$0.48\pm 0.08$	2.0
A1-B2 + A1-C2	1.661	$42.13\pm 3.22$	57.0	$40.31\pm 0.48$	$0.64\pm 0.08$	2.3
	1.713	$36.24\pm 2.81$	39.4	$39.32\pm 0.41$	$0.47\pm 0.06$	1.3
9.07 - 9.85	1.609	$35.45\pm 1.04$	13.3	$38.47\pm 0.87$	$0.50\pm 0.02$	0.2
B2-C1 + A1-C2	1.661	$36.03\pm 3.06$	157.7	$39.99\pm 0.25$	$0.65\pm 0.04$	0.3
	1.713	$35.96\pm 1.67$	40.3	$39.11\pm 0.44$	$0.47\pm 0.06$	0.2
14.40 - 15.14	1.609	$35.14\pm 1.37$	13.8	$38.22\pm 1.11$	$0.52\pm 0.03$	0.4
B2-C1 + A1-C2	1.661	$35.23\pm 1.41$	150.4	$39.52\pm 0.34$	$0.67\pm 0.05$	0.3
	1.713	$35.25\pm 1.95$	32.2	$38.49\pm 0.51$	$0.45\pm 0.07$	0.3
17.90 - 18.60	1.609	$35.08\pm 1.28$	13.7	$38.18\pm 1.06$	$0.52\pm 0.03$	0.2
B2-C1 + A1-C2	1.661	$35.00\pm 1.48$	145.6	$39.30\pm 0.32$	$0.67\pm 0.05$	0.4
	1.713	$34.96\pm 1.51$	27.9	$38.07\pm 0.46$	$0.43\pm 0.06$	0.5
21.50 - 22.16	1.609	$35.02\pm 1.27$	13.9	$38.14\pm 1.04$	$0.53\pm 0.03$	0.4
B2-C1 + A1-C2	1.661	$35.45\pm 3.13$	152.9	$39.61\pm 0.28$	$0.67\pm 0.04$	0.3
	1.713	$35.53\pm 1.74$	34.9	$38.59\pm 0.41$	$0.45\pm 0.06$	0.2
24.54 - 25.15	1.609	$34.71\pm 1.80$	13.8	$37.86\pm 1.45$	$0.54\pm 0.05$	0.2
B2-C1 + A1-C2	1.661	$34.41\pm 1.73$	131.9	$38.92\pm 0.32$	$0.67\pm 0.05$	0.8
	1.713	$34.76\pm 2.97$	24.7	$37.72\pm 0.38$	$0.42\pm 0.05$	0.8
27.69 - 28.24	1.609	$34.99\pm 1.47$	13.7	$38.10\pm 0.24$	$0.53\pm 0.04$	0.2
B2-C1 + A1-C2	1.661	$35.68\pm 3.12$	155.4	$39.77\pm 0.28$	$0.66\pm 0.04$	0.2
	1.713	$35.98\pm 1.52$	39.6	$38.95\pm 0.33$	$0.46\pm 0.05$	0.2

Table 3. Table 3: Mean LDD parameters derived in each spectral channel from the PA-dependent fit (Table 2 ).

Parameter	1.61 $\mu$m	1.66 $\mu$m	1.71 $\mu$m
${\theta }_{\mathrm{LDD}}$ (mas)	$38.27\pm 0.37$	$39.69\pm 0.40$	$38.79\pm 0.54$
${\delta }_{\mathrm{LDD}}$	$0.52\pm 0.02$	$0.66\pm 0.01$	$0.46\pm 0.02$

Table 4. Table 4: Best matching LDD and Gaussian hotspot distribution model. The χ ~ 2 superscript ~ 𝜒 2 \tilde{\chi}^{2} statistic is computed over 1000 instances of the model and takes into account both the squared visibilities and the closure phases (contrary to the analytical models tested earlier). The χ ~ LDD 2 subscript superscript ~ 𝜒 2 LDD \tilde{\chi}^{2}_{\mathrm{LDD}} corresponds to the value of the best fitted LDD model over the entire dataset associated to a spectral channel.

All channels
Parameter	Value
FWHMdist 1	17 mas
I1	3 %
Filling factordist 1	0.5
FWHMdist 2	2 mas
I2	10 %
Filling factordist 21	0.4

Table 5. Table 5: LD power law exponent for different RSGs

Name	LD parameter	Ref.
Antares	$0.52\pm 0.02$	(1)
Betelgeuse	$0.23\pm 0.09$	(2)
$α$ Her	$0.394\pm 0.180$	(3)
T Per	$0.32\pm 0.2$	(4)
RS Per	$0.34\pm 0.2$	(4)

Table 6. Table 6: Characteristics of the RHD simulations used to analyze our VLTI/PIONIER data. (See C11a for more details).

Model	L	Teff	R⋆	$\log g$	Grid	Grid
	(L⊙)	(K)	(R⊙)		(N	res.
					points)	[$R_{\odot }$]
st35gm03n07	$\mathrm{91\hspace{0.17em}932}\pm 1400$	$3487\pm 12$	$830.0\pm 2.0$	$-0.335\pm 0.002$	${235}^3$	8.6
st35gm03n13	$\mathrm{89\hspace{0.17em}477}\pm 857$	$3430\pm 8$	$846.0\pm 1.1$	$-0.354\pm 0.001$	${235}^3$	8.6

Table 7. Table 7: Comparison of the RHD simulations with the PIONIER data of Antarès. The χ ~ 2 superscript ~ 𝜒 2 \tilde{\chi}^{2} is computed over the entire squared visibility dataset.

	${\tilde{\chi }}^2$
Simulation	mean	min.	std. dev.
st35gm03n07	1838	356	1178
st35gm03n13	871	252	326

Table 8. Table 8: Log of the PIONIER observations of Antares and its calibrators

UT		Star	Configuration
2014-Apr-24	04:17	HR 5969	A1-B2-C1-D0
	04:41	Antares	A1-B2-C1-D0
	05:03	HR 6145	A1-B2-C1-D0
	05:19	Antares	A1-B2-C1-D0
	05:38	HD 148643	A1-B2-C1-D0
	05:51	Antares	A1-B2-C1-D0
	06:08	HR 5969	A1-B2-C1-D0
	06:22	Antares	A1-B2-C1-D0
	06:34	HR 6145	A1-B2-C1-D0
	06:47	Antares	A1-B2-C1-D0
	07:04	$\psi$ Oph	A1-B2-C1-D0
	07:16	Antares	A1-B2-C1-D0
	07:43	Antares	A1-B2-C1-D0
	07:44	HR 5969	A1-B2-C1-D0
	07:57	Antares	A1-B2-C1-D0
	08:15	$\psi$ Oph	A1-B2-C1-D0
	08:30	Antares	A1-B2-C1-D0
	08:43	HR 5969	A1-B2-C1-D0
	08:56	Antares	A1-B2-C1-D0
	09:09	$\psi$ Oph	A1-B2-C1-D0
	09:26	Antares	A1-B2-C1-D0
	09:39	HR 5969	A1-B2-C1-D0
	09:52	Antares	A1-B2-C1-D0
	10:05	$\psi$ Oph	A1-B2-C1-D0
	10:18	Antares	A1-B2-C1-D0
2014-Apr-29	04:44	HR 5969	D0-H0-G1-I1
	05:32	HD 148643	D0-H0-G1-I1
	06:18	Antares	D0-H0-G1-I1
2014-May-04	07:41	HD 148643	A1-G1-K0-J3
	08:03	Antares	A1-G1-K0-J3
	08:26	Antares	A1-G1-K0-J3
	08:37	HR 5969	A1-G1-K0-J3
	09:09	HD 148643	A1-G1-K0-J3
	09:27	Antares	A1-G1-K0-J3
	09:39	HR 6145	A1-G1-K0-J3
	10:04	Antares	A1-G1-K0-J3
2014-May-7	06:16	HD 142407	A1-G1-K0-J3
	06:36	Antares	A1-G1-K0-J3
	07:00	HD 143900	A1-G1-K0-J3
	07:17	Antares	A1-G1-K0-J3
	07:33	HR 6145	A1-G1-K0-J3
	07:46	Antares	A1-G1-K0-J3
	08:04	HD 142407	A1-G1-K0-J3
	08:21	Antares	A1-G1-K0-J3
	08:44	HD 143900	A1-G1-K0-J3
	09:05	Antares	A1-G1-K0-J3
	09:30	HR 6145	A1-G1-K0-J3
	09:45	Antares	A1-G1-K0-J3

Table 9. Table 9: Result of the F-test performed on the LDD and random Gaussian spot distribution models on the squared visibilities only. The LDD model fit did not converged when using only the closure phases.

Model	Parameter	$1.61\mu$m	$1.66\mu$m	$1.71\mu$m
	${\theta }_{\mathrm{LDD}}$ (mas)	$37.84\pm 0.31$	$38.81\pm 0.31$	$38.24\pm 0.10$
LDD with	${\delta }_{\mathrm{LDD}}$ (from Table 3)	$0.52\pm 0.02$	$0.66\pm 0.01$	$0.46\pm 0.02$
spot dist.	Mean ${\tilde{\chi }}^2$	71	58	51
	Std. deviation ${\tilde{\chi }}^2$	41	29	29
	Min ${\tilde{\chi }}^2$	16	23	17
LDD.	${\theta }_{\mathrm{LDD}}$ (mas)	$37.81\pm 0.09$	$38.14\pm 0.09$	$37.97\pm 0.09$
alone	${\delta }_{\mathrm{LDD}}$ (mas)	$0.45\pm 0.02$	$0.40\pm 0.01$	$0.34\pm 0.02$
	${\tilde{\chi }}_{\mathrm{LDD}}^2$	21	17	19
	F	31	-21	11

Equations

$$V_{\mathrm{LDD}}(u,v)=\Gamma (\nu +1)\frac{J_{\nu }(x)}{(x/2{)}^{\nu }},$$

$$I_{\mathrm{spot}}(\mu )=\frac{I_i}{N_{\mathrm{spot},i}}{\mu }^{{\delta }_{\mathrm{LDD}}}.$$

$$\begin{gathered} r_{\mathrm{spot}}=\frac{{\theta }_{\mathrm{LDD}}}{2}\sqrt{\cos \left(m\times \frac{\pi }{2}\right)}; \\ {\theta }_{\mathrm{spot}}=n\times 2\pi , \end{gathered}$$

$$\begin{array}[]{l}V(u,v)=(1-\sum_{i}I_{i})V_{\mathrm{LDD}}(u,v)+\sum_{i}\sum_{\mathrm{spots}}\left\{I_{\mathrm{spot}}(u,v)\right.\\ \\ \times\exp\left[-\frac{(2\pi r_{\mathrm{spot}}\sigma_{i})^{2}}{2}\right]\exp\left[-2j\pi(ux_{\mathrm{spot}}+vy_{\mathrm{spot}})\right]\left.\right\}\end{array},$$

$$F=\frac{{\chi }_{\mathrm{LDD}}^2-{\chi }_{\mathrm{model}}^2}{N_{\mathrm{param},\text{leavevmode}\mathrm{model}}-N_{\mathrm{param},\text{leavevmode}\mathrm{LDD}}}\times \frac{N_{\mathrm{data}}-N_{\mathrm{param},\text{leavevmode}\mathrm{model}}}{{\chi }_{\mathrm{model}}^2}.$$

$$\nu [{\mathrm{arcsec}}^{-1}]=\nu [{\mathrm{R}}_{\odot }^{-1}]\cdot d[\mathrm{pc}]\cdot 214.9,$$

Full text

*Aims. *Using near infrared interferometry, we intend to resolve the photosphere of RSGs and to bring new constraints on their modeling.

*Methods. *We observed the nearby red supergiant Antares using the four-telescope instrument VLTI/PIONIER. We collected data on the three available configurations of the 1.8m telescopes in the H band.

*Results. *We obtained unprecedented angular resolution on the disk of a star (6% of the star angular diameter) that limits the mean size of convective cells and offers new constraints on numerical simulations. Using an analytical model with a distribution of bright spots we determine their effect on the visibility signal.

*Conclusions. *We determine that the interferometric signal on Antares is compatible with convective cells of various sizes from 45% to 5% of the angular diameter. We also conclude that convective cells can strongly affect the angular diameter and limb-darkening measurements. In particular, the apparent angular diameter becomes dependent on the sampled position angles.

1 Introduction

Chemical enrichment of the Universe is driven by evolved stars. Although currently rare, massive stars were much more numerous during the early times of the Universe. When entering the red supergiant (RSG) phase in their later evolution, these stars experience intense mass loss. The material expelled from the star cools, allowing the formation of molecules and dust that will be essential contributions to new stellar systems. However, the processes driving this outflow of material remain only partly understood.

RSG stars do not experience flares or large-scale pulsations that could inject enough momentum for the material to be launched away from the star. Arroyo-Torres et al. (2015) demonstrated that pulsation models do not reproduce the molecular extension of the atmosphere of RSG that would be consistent with their mass loss. Harper (2010) stated that there is no available physical scenario that can be shown to initiate the outflow of massive evolved stars.

Schwarzschild (1975) predicted that, compared to the sun, the photosphere of RSG could be host to a smaller number of much larger convective cells. From spectroscopic observations of a sample of RSGs, Josselin & Plez (2007) proposed that large convective cells could trigger mass loss by locally lowering the effective gravity and allowing radiative pressure on molecular lines to initiate the outflow.

Early imaging observations offered further evidence for convective activity. Only two large hot spots were detected over the visible hemisphere of Betelgeuse by Haubois et al. (2009) in a high-dynamic-range reconstructed image from IOTA H band interferometric observations. Chiavassa et al. (2010b, hereafter C10b) identified a possible convective pattern in the same dataset using 3D radiative hydrodynamics simulations (RHD).

Antares ($\alpha$ Sco, HD 148478, HR 6134) is the closest RSG ($\pi=5.89\pm 1.00$ mas, van Leeuwen 2007). Its apparent diameter of $\sim 37$ mas, measured from VLTI/AMBER data by Ohnaka et al. (2013, hereafter O13), makes it one of the largest stars in our sky. The same authors derived a mass of $15\pm 5$ M⊙ and an age of 11-15 Myr. It is a classical RSG with a spectral type M0.5Iab. It has a B3V companion (Antares B) located far enough away (2.7”, Ohnaka 2014) that we can consider the primary alone in the present study.

Around this RSG, O13 observed upward and downward motions of CO in the upper atmosphere or near circumstellar region (1.3 R⋆), strongly pointing towards a convection-based mechanism. Observations of the circumstellar environment of Antares by Ohnaka (2014) using the VLT/VISIR instrument revealed a clumpy and dusty envelope. This is compatible with convection-triggered mass loss.

Pugh & Gray (2013) studied the short timescale radial velocity variations of the star. In addition to large hot spots, reported earlier on RSG, they suggested that this observation could be associated to smaller-scale convective activity. Stothers (2010) showed that the long secondary photometric period of RSGs, and in particular of Antares, could be related to convection. Therefore we see that there are several reasons for suspecting the importance of convection in RSG atmospheres, and for hypothesizing that it is triggering the mass loss. However, an observational basis for constraining the spatial scale of convection is needed for empirical and theoretical modeling of the mass loss.

Until now, near-infrared interferometric observations of RSGs have only probed the spatial frequencies up to the fifth or sixth lobe of the visibility function at most. Convective simulations from Chiavassa et al. (2011, hereafter C11a) predicted that the convective cell structures could enhance the visibility signal up to the tenth lobe at least. The smaller granules detected at those high spatial frequencies are expected to be more numerous. They have yet to be detected with optical interferometry. This is essential to minimally constrain the surface convection pattern on RSGs.

Interferometry is the only way to obtain detailed observations of the photospheric region of RSGs. We present VLTI/PIONIER observations of Antares at a very high angular resolution ($\sim 1/15^{\mathrm{th}}$ of the stellar radius). In Sect. 2 we present our observations and the data reduction. We fit the data with analytical models in Sect. 3, ranging from classical disks to a distribution of models that includes bright Gaussian spots. We continue the analysis with 3D radiative hydrodynamics simulations in Sect. 4.

2 Observations

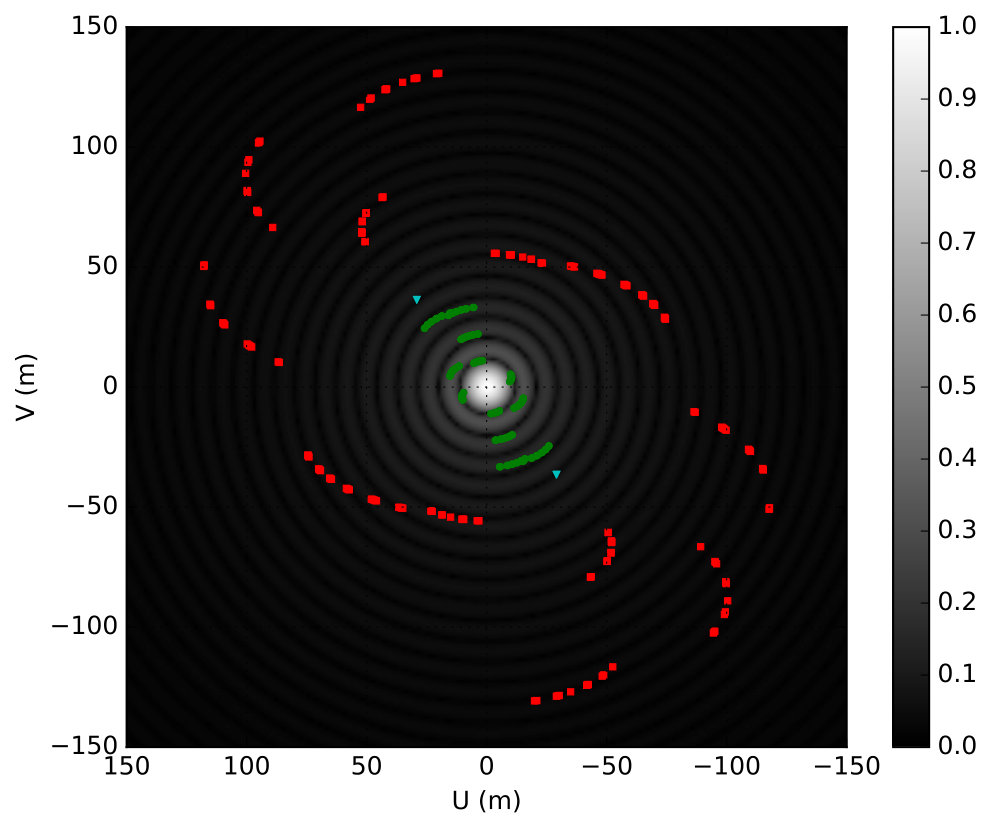

To observe Antares, we used the European Southern Observatory’s Very Large Telescope Interferometer (VLTI, Haguenauer et al. 2010) located on top of Cerro Paranal in Northern Chile with the PIONIER instrument (Precision Integrated-Optics Near-infrared Imaging ExpeRiment, Le Bouquin et al. 2011), which recombines the light of four telescopes simultaneously. We observed with the four 1.8 m diameter Auxiliary Telescopes (AT) of the VLTI in three different configurations that gave us access to baselines from 11.3 m to 153.0 m on the ground. The resulting ($u,\,v$) coverage is represented in Fig. 1. The instrument was configured in the high spectral resolution mode (R $\sim 40$) that produces seven spectral channels over the H band ($1.54-1.80\leavevmode\nobreak\ \mu$m). To avoid saturation, without using a neutral density, we read only the three central pixels of the detector ($1.60-1.71\leavevmode\nobreak\ \mu$m). Antares and its calibrators were observed on 2014 April 24, 29 and May 4 and 7.

The data were reduced using the publicly available PIONIER pipeline (Le Bouquin et al. 2011). We adopted the angular diameters of Table 1 for the calibrators, obtained using the JMMC tool SearchCal111Available at http://www.jmmc.fr/searchcal (Bonneau et al. 2006, 2011). The pipeline automatically computes the uncertainties: on the uncalibrated data it derives the statistical dispersion over 100 scans each of $\sim$ 30 s exposure. Then for the calibrated product it quadratically adds the error from the transfer function. As PIONIER is a four-telescope instrument, we finally got six squared visibility and four closure phase measurements per observation and per spectral channel. We had to ignore the data from baseline A1-K0 because of their poor signal to noise ratio.

3 Analytical model analysis

3.1 Classical disk models

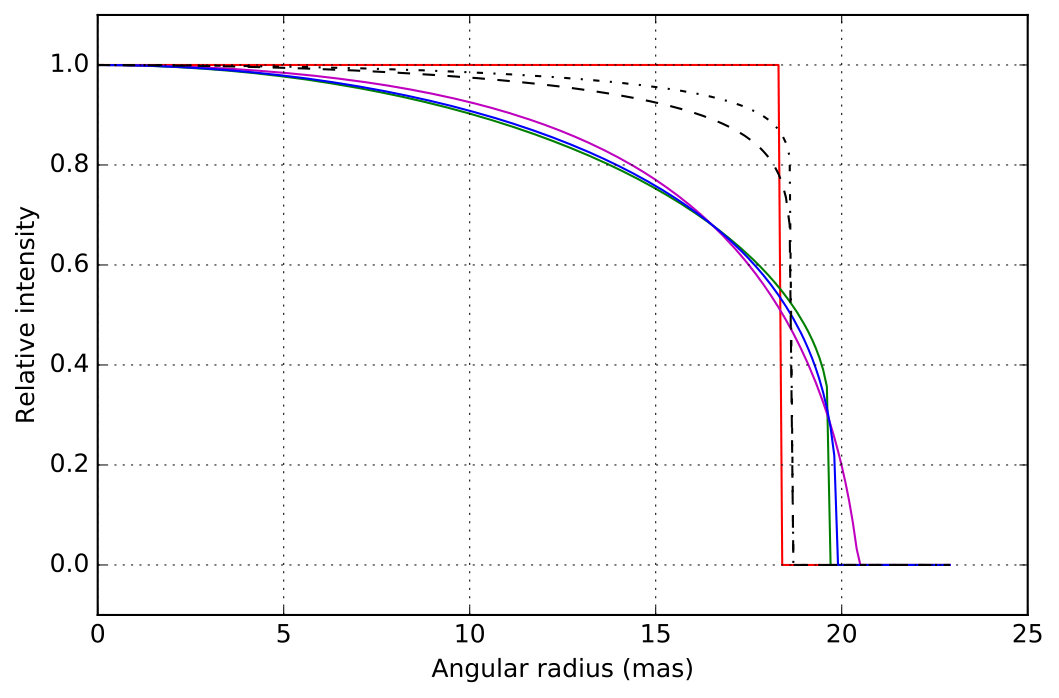

To derive the angular diameter of the star, we use two different models that are commonly employed in the literature for RSGs: a uniform disk (UD) and a power law limb-darkened disk (LDD, with $I(\mu)/I_{0}=\mu^{\delta}$). The squared visibility of the later is given by Hestroffer (1997) :

[TABLE]

where $\nu=\delta/2+1$ and $\Gamma$ is the Euler function.

No bandwidth smearing was used in any of the following fits as tests showed that its effect kept the derived values within their error bars.

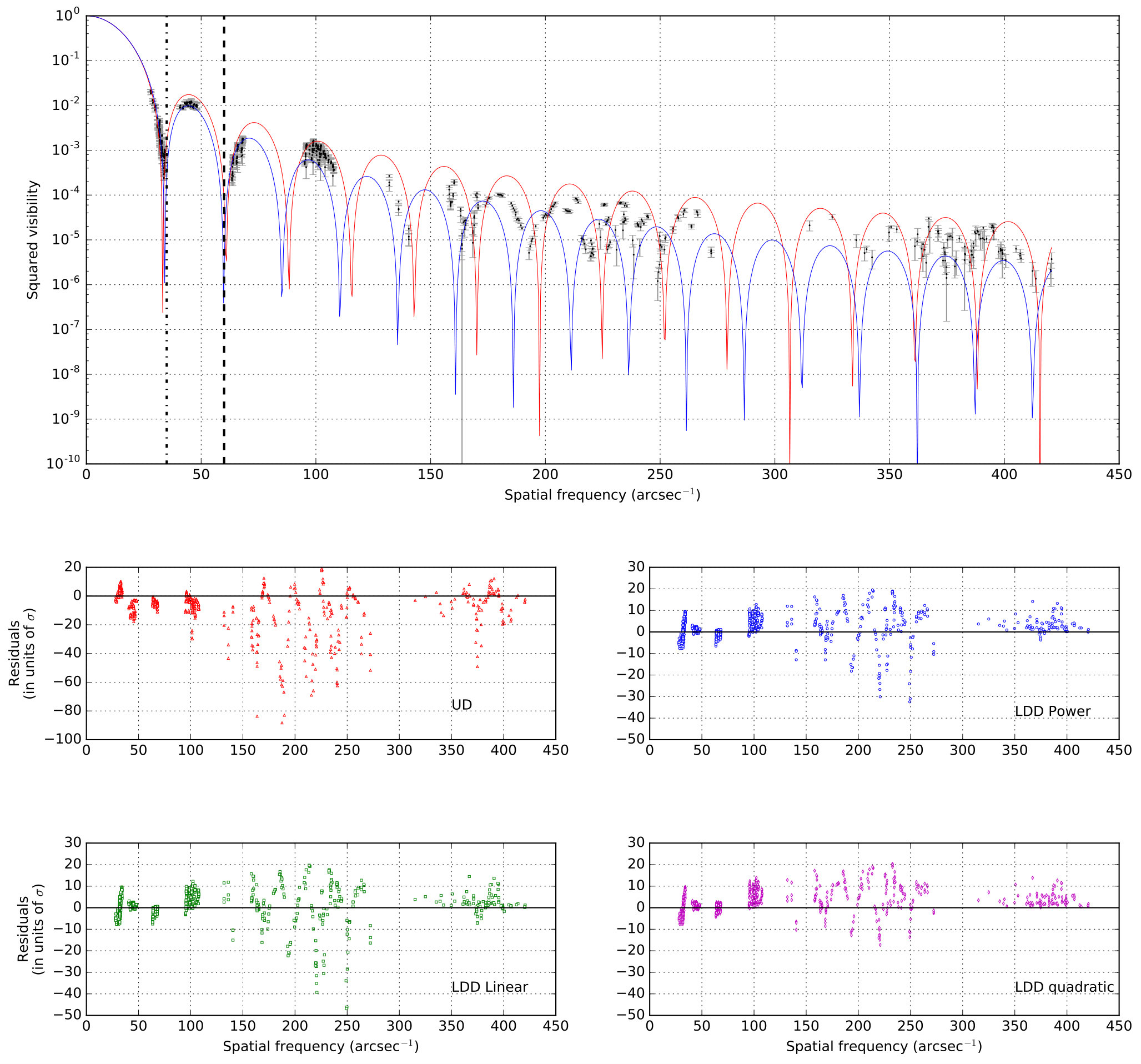

We first fitted the entire squared visibility dataset (all baseline lengths and spectral channels). However we noticed important positive deviations from the simple disk models indicating the presence of small additional features on the stellar surface. The reduced $\chi^{2}$ ($\tilde{\chi}^{2}$ hereafter) reaches $\sim 180$ for the UD model and $\sim 25$ for the LDD.

To avoid the contamination of possible small scale features (also suggested by the closure phase deviations from 0∘ or 180∘ on Fig. 5), we then only fitted the first lobe of the squared visibility function (spatial frequencies lower than 35 arcsec*-1*) for the UD model and the first two lobes for the LDD model (spatial frequencies lower than 50 arcsec*-1*). The $\tilde{\chi}^{2}$ is $\sim 20$ and $\sim 16$, respectively, meaning that important deviations from the models are present.

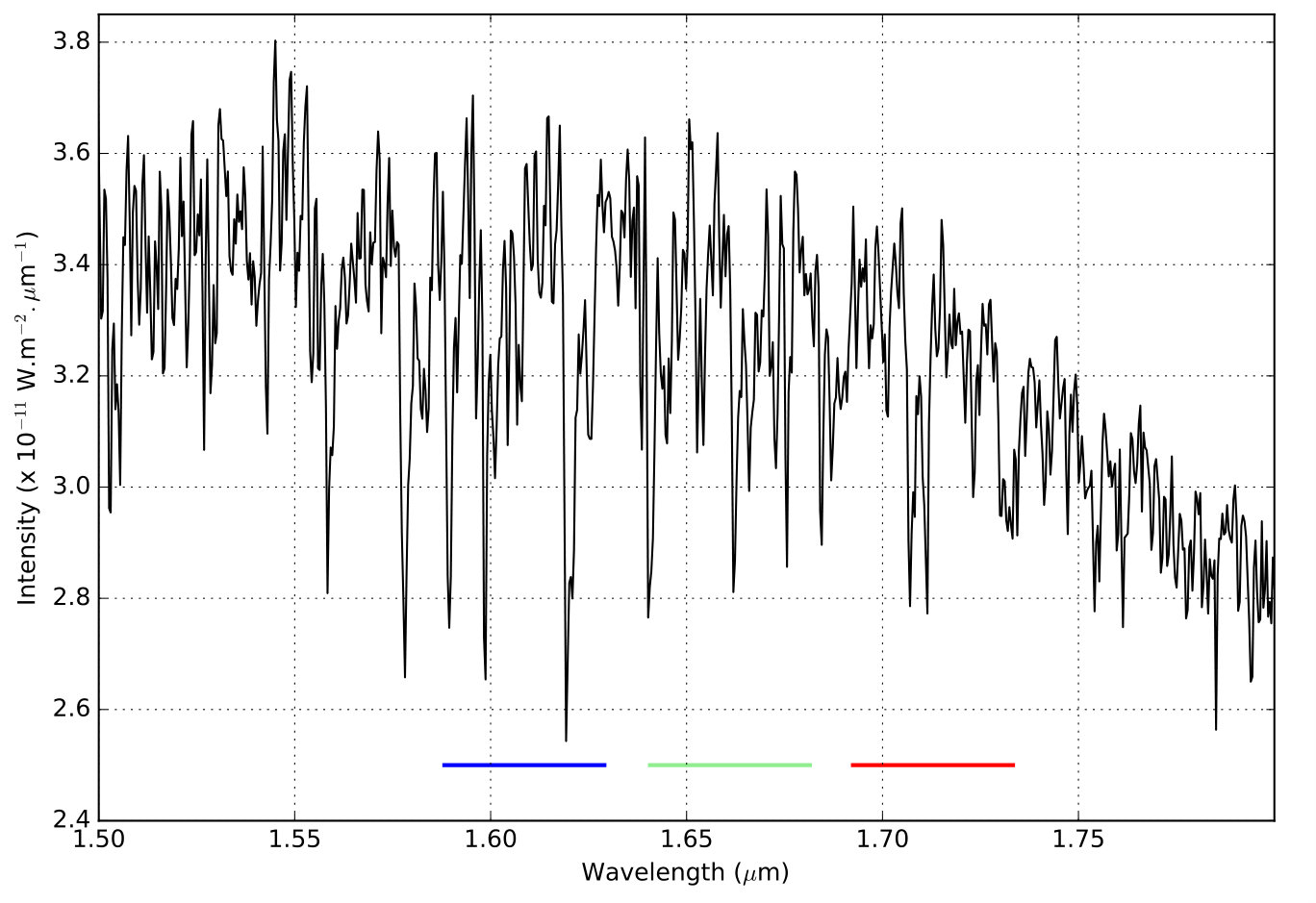

Our VLTI/PIONIER observations consist of three distinct spectral channels probing various molecular lines (Fig. 2). Fitting those three channels separately in the first and first two lobes for the UD and LDD models, respectively, lowers the $\tilde{\chi}^{2}$ to 18-56 for the UD and 7-10 for the LDD. Therefore, we can conclude that the star does not look the same in these three different wavelengths in the H band. Still, some deviations cannot be reproduced by the models.

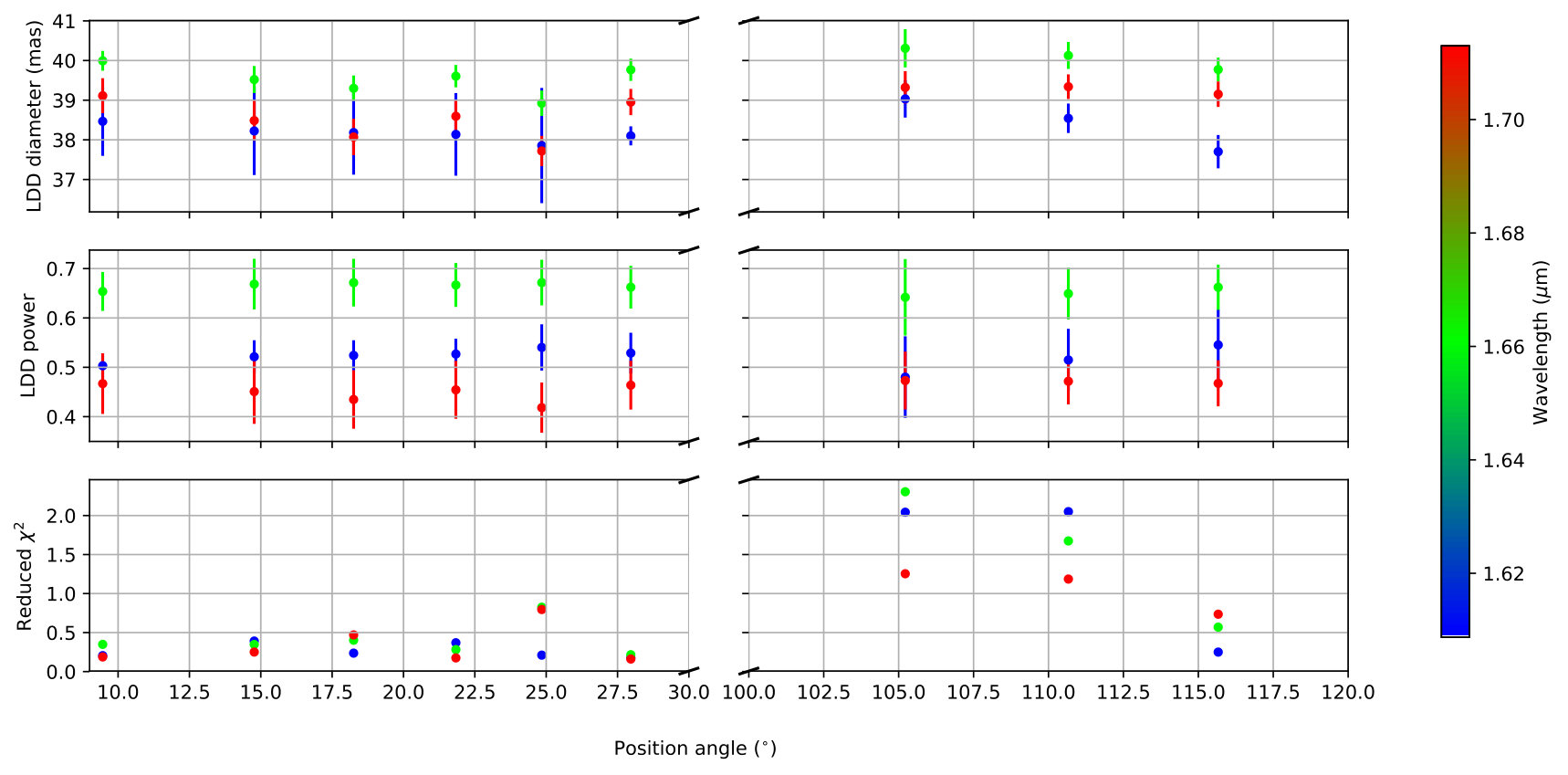

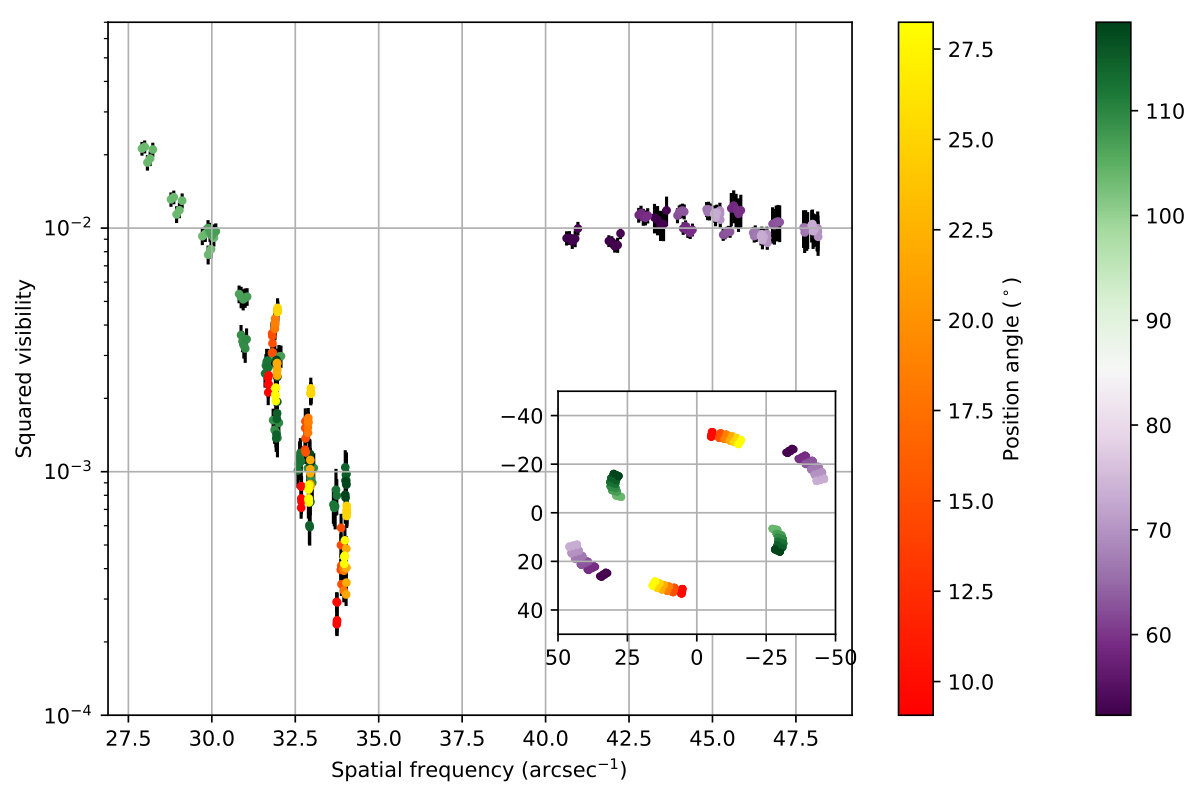

In addition to the spectral channels, our observations cover several position angle (PA) directions in the first and second lobes. Figure 3 represents the PA dependency of the squared visibilities in the first two lobes. Three areas can be distinguished. In the first lobe, the baseline A1-B2 (green in Fig. 3) probes baseline lengths between 9.8 and 11.4m and PA between 103∘ and 119∘. The squared visibility mainly depends on the spatial frequency and depends weakly on the PA. The same can be said of baseline A1-C2 (violet in Fig. 3, baseline lengths in [14.3; 16 m], PA in [50∘; 80∘]). For baseline B2-C1 (yellow-orange in Fig. 3), the situation is different: over a small baseline length range (11.1 to 11.4 m) and a significant PA range (9∘ to 29∘), the squared visibilities show great variation. As we do not have more azimuthal information, we made the following choice to build sub-samples: considering the fast squared visibility variation in PA for baseline B2-C1, each record was put in a different sub-sample. For the A1-B2 baseline and its slow squared visibility variation with PA, we defined three sub-samples equally spread in PA. Finally, the second lobe data (A1-C2) were used in every sample as they are dominated by uv-radius variation. We fitted a UD and LDD power law model for each spectral channel and each PA sub-sample. The results are presented in Table 2. For the LDD, the best fit values are summarized in Fig. 4.

The UD model still poorly reproduces the data. However, with this selection of sub-datasets, the $\tilde{\chi}^{2}$ for the LDD model has values very close to 1 (and often below 1). This indicates that when separated according to their wavelength and PA, the data can be reproduced by a LDD model. The minimum angular diameter is, most of the time, reached for the shorter wavelength, which is consistent with this spectral channel being closest to the minimum H- opacity (Gray 2008, p155). Additionally, we remark that the LDD power-law coefficient remains relatively constant compared to the angular diameter variations. This is probably caused by the presence of the same second lobe data in each sub-dataset: according to Hanbury Brown et al. (1974), the second lobe is more sensitive to the LD effect than the first lobe. Unfortunately, we do not have other PA data points to perform this fit differently.

Although it is possible to use different disk models for different spectral channels, it is against the principle of a disk model to discriminate along the PA. We adopt the weighted and averaged-over-PA parameters from Table 3 for the LDD model in each spectral channel.

C11a and Montargès et al. (2016) showed that PA discrepancies in the LDD modeling of RSG were compatible with feature(s) on the stellar photosphere. Therefore, we favor this hypothesis and analyze our data with models capable of reproducing this effect. In particular, we do not use 1D wavelength dependent spherical models as they are not able to reproduce these PA variations.

3.2 LDD model with Gaussian hotspots

Photospheric features on RSG stars are interpreted as the top of convective cells where hot material emerges from the stellar interior. To fit our high angular resolution PIONIER data with such a model, we must use small spot sizes (smaller than 1/10 of the stellar diameter). Considering the number of small features that can be placed on the photosphere and the many possible locations, classical model fitting is excluded. We rely on comparison of the data with observables computed from an empirical model. The model we use consists of a LDD star on which we add distributions of randomly positioned Gaussian spots of fixed size (described by the full width at half maximum, FWHM). We fit each spectral channel independently. For each distribution $i$, we can tune the maximum fraction of the visible photosphere that can be occupied by the spots ($f_{i}$) and the intensity contribution ($I_{i}$). It is then equally distributed among the individual spots, after a weighting by the limb darkening at the spot’s central coordinates:

[TABLE]

Owing to projection of the sphere onto the plane of the sky, the probability of encountering spots near the limb is higher than near the center. In the model, spot radial and azimuthal positions are defined by:

[TABLE]

where $m$ and $n$ are two independent random variables between 0 and 1. The detailed expression of the complex visibility function for a LDD with a distribution of Gaussian bright spots is (derived from the single spot model of Montargès et al. 2016):

[TABLE]

with $x_{\mathrm{spot}}=r_{\mathrm{spot}}\cos(\theta_{\mathrm{spot}})$, $y_{\mathrm{spot}}=r_{\mathrm{spot}}\sin(\theta_{\mathrm{spot}})$, $\sigma_{i}=$ FWHM${}_{i}/(2\sqrt{2\ln(2)})$ and $j^{2}=-1$. The expression of $V_{\mathrm{LDD}}$ is given by Eq. 1.

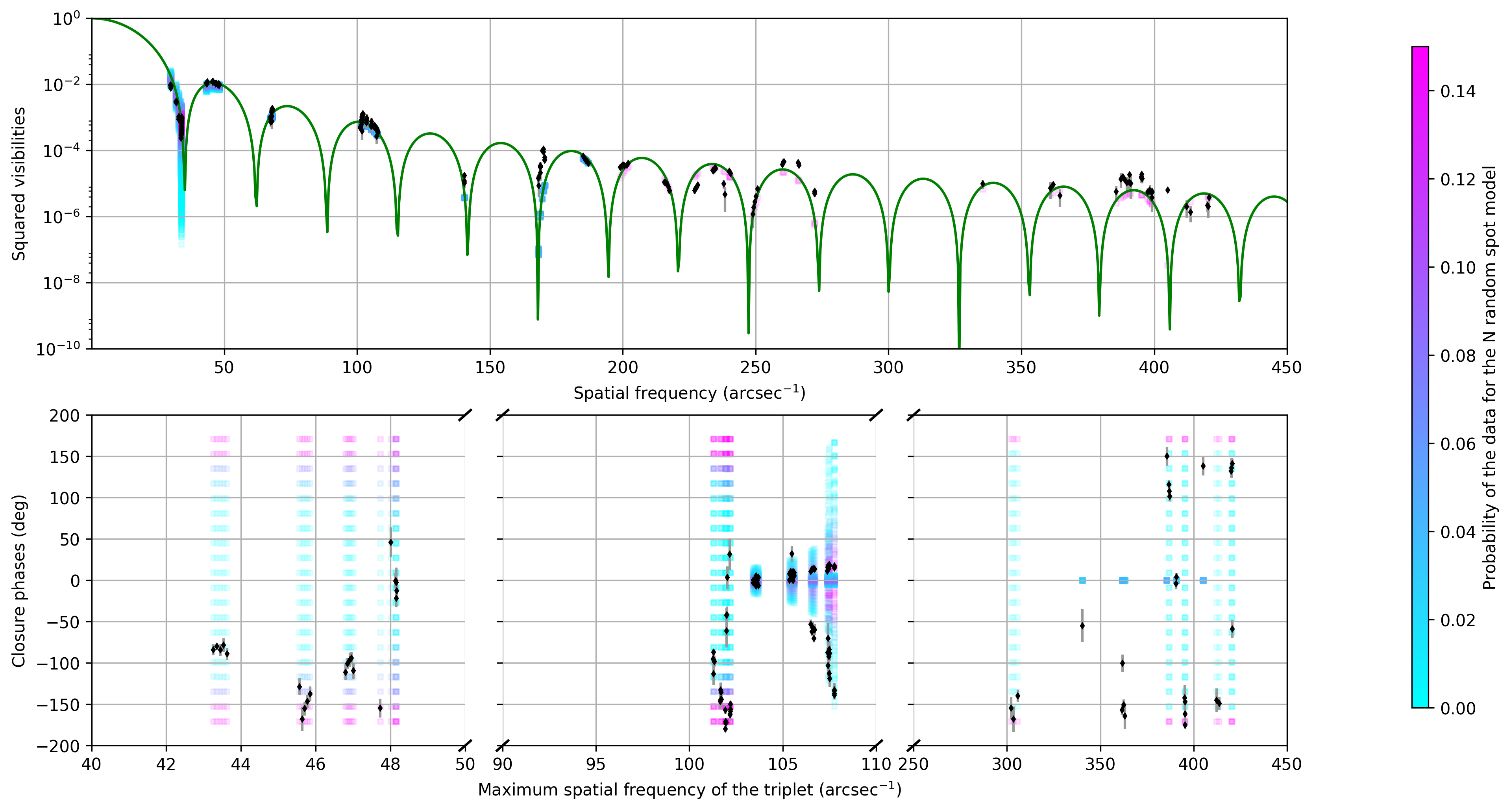

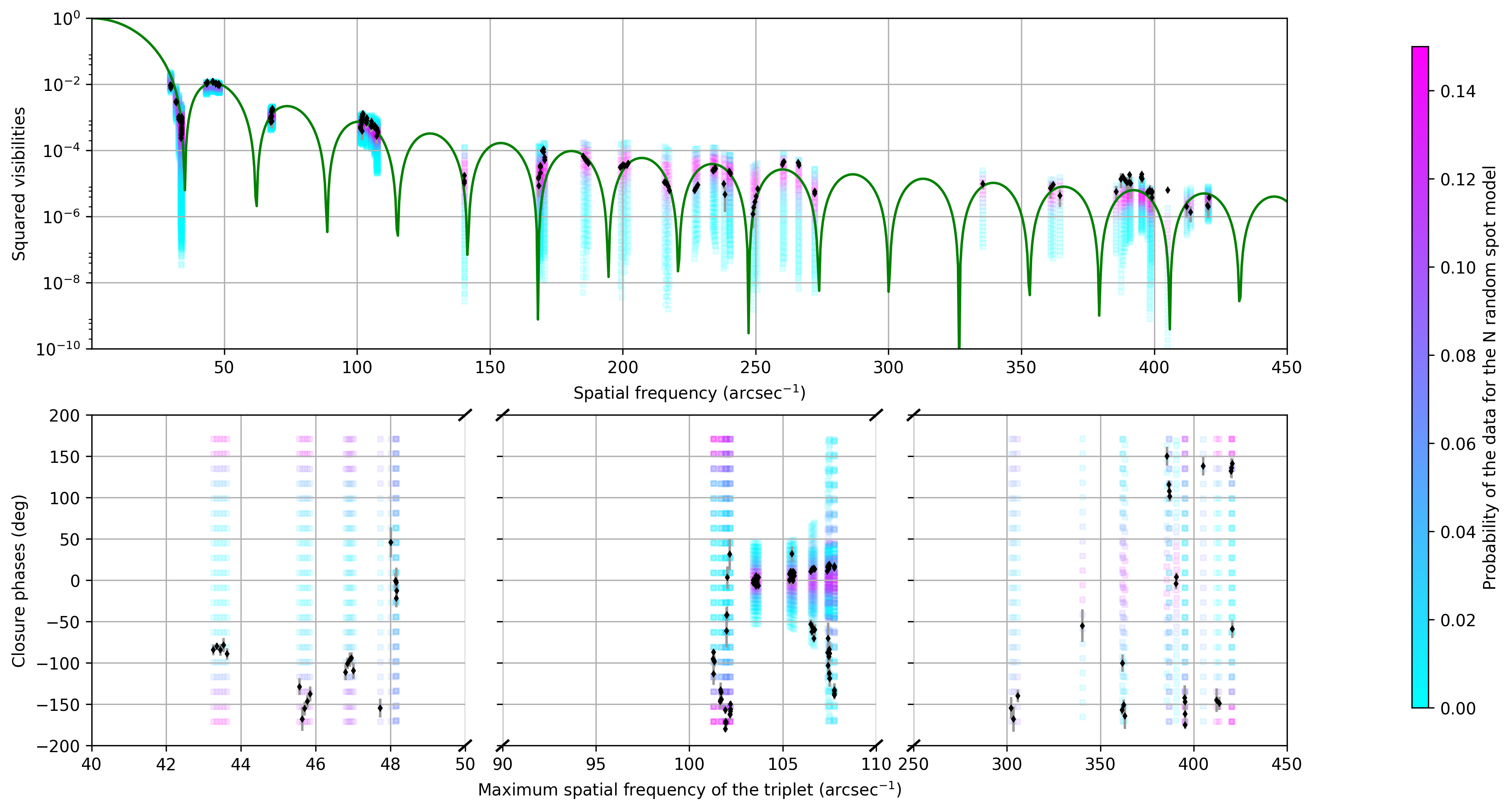

Since many spot configurations are possible, we consider here the result of 1000 such random models. To have an accurate overview of the observables, we derive the probability of obtaining a given squared visibility or closure phase value. Examples of individual size distributions are given in Appendix B.

Montargès et al. (2016) showed that the presence of spots directly affects the angular diameter measurement. Therefore, for each distribution we matched with our dataset, we explored a 4 mas range around the best LDD diameter derived in Table 3 with a step of 0.1 mas. In Fig. 5, we present the model that best matches the data. Its parameters are summarized in Table 4. As this model exploits both the squared visibilities and the closure phases, for a fair comparison we derived the $\tilde{\chi}^{2}$ associated to the best fitted LDD alone over the whole spatial frequency range using these two observables ($\tilde{\chi}^{2}_{\mathrm{LDD}}$ in Table 4). We also performed an F-test to determine if the better match of the spot distributions is significant with respect to the null hypothesis (classical LDD). The F parameter is defined by:

[TABLE]

In principle, the test should be performed on the squared visibilities and closure phases separately. Indeed, the closure phase is a function of the triple product that can be derived from the visibilities: a joint test might assume too many degrees of freedom or even be biased. However, this is impossible here because a LDD model fit does not converge on the closure phases alone. We present the F-test on the squared visibilities only in Appendix C. It shows that the spotty model fit is significant in the first and third channels, for squared visibilities taken separately. Here, we present the fit on both observables: the squared visibilities constrain the shape and size of the features while the closure phases deal with the asymmetries and therefore give positional information. We note that in the case of a fibered interferometer like PIONIER, the visibility amplitude is a function of the phase distribution over the pupils, but is independent from the phase delay between the pupils, while the closure phase depends only on the phase delays. Correlations between the two observables may happen at very low fluxes but such sources are too faint to be observable with near infrared interferometry. Therefore we are confident that the joint F-test on closure phases and squared visibilities is reliable on Antares. The critical value for a (2, 5) F distribution333http://www.itl.nist.gov/div898/handbook/eda/section3/eda3673.htm is 5.143. Our F values are much higher than this. Therefore, the lower $\tilde{\chi}^{2}$ of our distributions of bright Gaussian spots is significant compared to the single LDD model; the better match is not an effect of the increased number of parameters.

However, our best match model should not be taken as the characteristics of the actual feature distribution. Indeed, the actual features are probably not symmetric Gaussians and probably have a continuous size distribution. Our model expresses a possible scenario to reproduce the observed squared visibilities and closure phases. In particular, it offers an explanation for the enhanced power of the high-frequency squared visibilities compared to the LDD, and for the spread of the squared visibilities depending on the PA.

Among the different combinations we explored, two fundamental conclusions arise. Firstly, the cloud-like shape of the squared visibilities and closure phases at high spatial frequencies (higher than 300 arcsec*-1*) can only be reproduced by introducing non-resolved spots (e.g., with a FWHM no greater than 2 mas). Secondly, the introduction of a distribution of spots with any FWHM leads to modifications of the shape of the first and second lobes of the squared visibility function (see Appendix B). Therefore, the presence of bright features on the stellar surface has direct consequences on the low-spatial-frequency range historically used to determine the angular diameter of the star and its LD.

3.3 Limb darkening

In Table 5, we present LD measurements on several RSG stars and compare them to our results on Antares at 1.61 $\mu$m. We considered only power-law models.

The value of the LD parameter is higher than the previous measurement in the K band continuum by O13. Although we have analyzed our dataset differently, we would like to state that even by considering the whole spatial frequency range, we reach a LD parameter of $\sim 0.4$; still higher than theirs. This makes it also higher than similar observations on other RSGs. However, as we have only one PA direction in the second lobe to constrain the LD measurement, we cannot exlude that this value is biased by photospheric features.

4 Numerical approach: radiative hydrodynamics simulation

To go beyond analytical models, we now turn to numerical convective simulations based on 3D radiative hydrodynamics computations. On Betelgeuse, C10b and Montargès et al. (2014) managed to reproduce the measured squared visibilities with such numerical models. However, Montargès et al. (2016) did not reproduce both the squared visibilities and the closure phases of their H band PIONIER observations of the same star. They suggested that the convective activity was disturbed by the presence of a large hot spot identified as the top of a huge convective cell.

To fit our PIONIER data of Antares, we used two simulations obtained with the CO5BOLD code (COnservative COde for the COmputation of COmpressible COnvection in a BOx of L Dimensions, L = 2, 3, Freytag et al. 2012), with stellar parameters close to those derived on Antares (O13). The characteristics of these numerical models are given in Table 6. We note that rotation is not yet implemented in these models. Computation of RHD models is complex and very demanding of computer resources, and it has not yet been possible to prepare a suite of models specifically tuned to Antares. For now, we choose the best available models, and leave for the future custom model generation and iteration for each star studied.

We checked that we do not reach the numerical limit induced by the spatial gridding of the simulations. According to Chiavassa et al. (2009, Eq.3), artifacts will affect the derived visibilities for spatial frequencies higher than 0.03 $R_{\odot}^{-1}$. Using the equation:

[TABLE]

we convert this to 1250 arcsec*-1*. We note that the distance in parsec is not the actual distance between the solar system and Antares but the distance required for the stellar model to have the same apparent angular size as Antares. Therefore, our VLTI/PIONIER data, although with a very high resolution, are still below the frequency of expected artifacts in the simulations.

For each simulation, hundreds of temporal snapshots were computed; each of them is a realization of the convective pattern of the star. Using the 3D pure-LTE (local thermodynamical equilibrium) radiative transfer code Optim3D (Chiavassa et al. 2009), intensity images are computed in the three spectral channels of our PIONIER observations. As Antares may have any orientation on the plane of the sky relative to the simulation, we rotated each image around its center. We used 36 angle positions between 0∘ and 180∘. The distance of Antares was taken into account by scaling the angular diameters to the value we derived from the LD power law. Interferometric observables were computed using a Fast Fourier Transform algorithm.

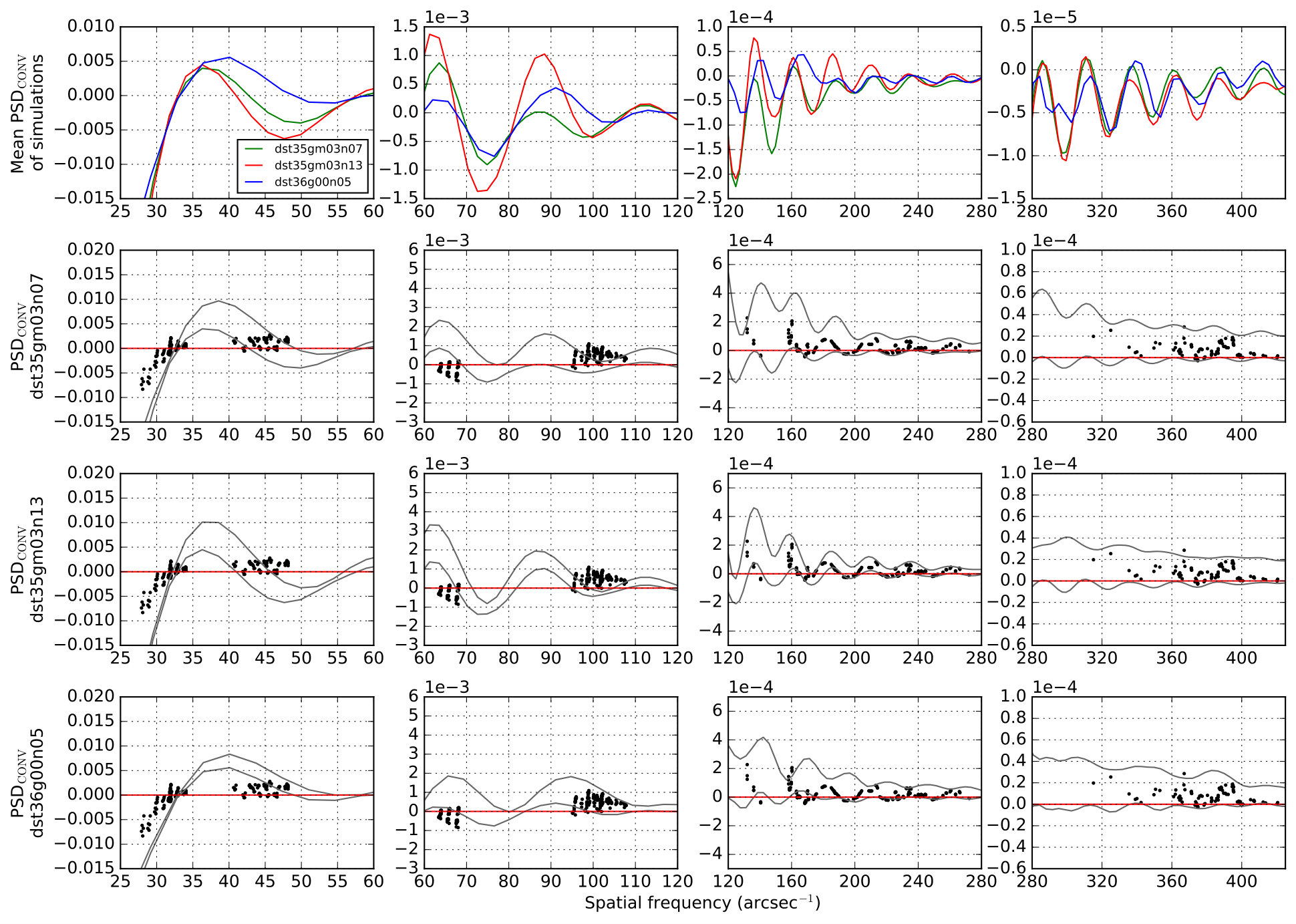

Contrary to previous matches of interferometric data with these simulations (C10b, Chiavassa et al. 2010c, Montargès et al. 2014, 2016 or Arroyo-Torres et al. 2015) , we did not seek the best matching snapshot and rotation angle. Instead, we considered the $\tilde{\chi}^{2}$ associated to the whole grid of temporal snapshots and rotation angles for both simulations. The characteristics of these $\tilde{\chi}^{2}$ distributions are given in Table 7. The closure phases are mostly constrained by positional information of the inhomogeneities. Therefore, we only considered the squared visibilities that give mainly information about the number and size of the stellar features.

The simulation st35gm03n13 gives a better match to the observed squared visibilities. It has a non-gray opacity approximation (we refer to C11a for the details about this physical approximation). This causes an intensified heat exchange of a fluid element with its environment, reducing the temperature/density fluctuations (Fig. 5 in C11a). Less intense fluctuations reduce the surface intensity contrast of nearby areas and, eventually, interferometric observables. On the contrary, the st35g03n07 simulation has a gray opacity approximation.

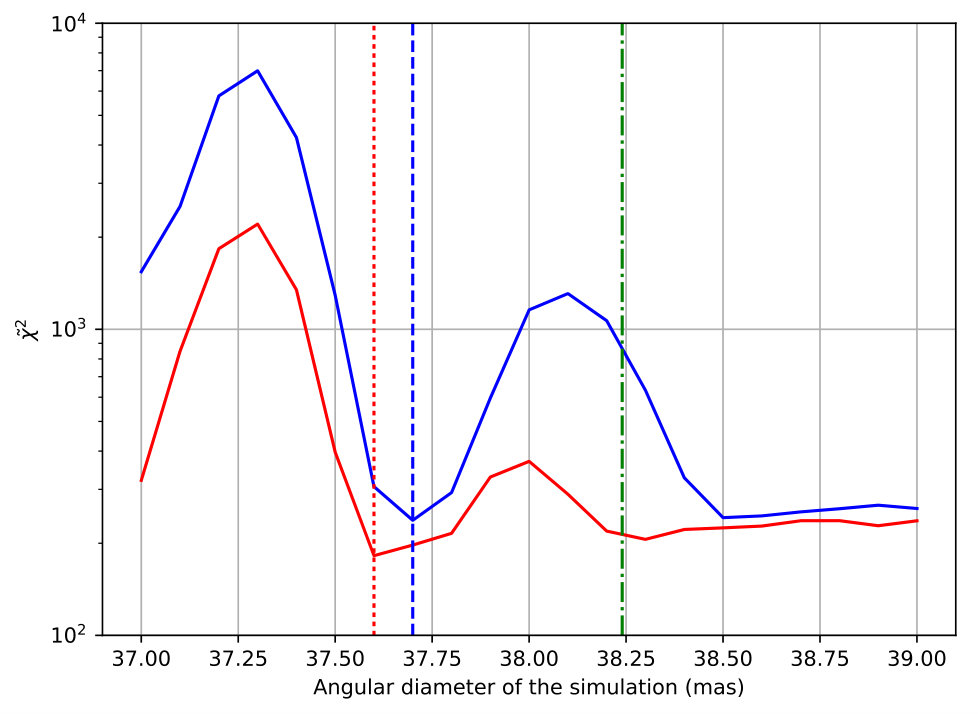

We saw in Sect. 3 that the angular diameter determination is strongly sensitive to the presence of stellar features as they may directly affect the squared visibilities in the first lobe. Thus, for the best matching temporal snapshot of the best simulation, we generated squared visibilities matching our PIONIER observations for a stellar model between 37.0 and 39.0 mas with a step of 0.1 mas, and we kept the 36 rotation angles. The mean and minimum $\tilde{\chi}^{2}$ are represented on Fig. 6. It appears that the $\tilde{\chi}^{2}$ value strongly depends on the fixed angular diameter of the simulation. In particular, the simulations computed with the best LDD diameter ($38.24\pm 0.37$ mas) derived in Sect. 3.1 do not give the best result. The minimum $\tilde{\chi}^{2}$ of 182.2 is reached for an angular diameter of $37.60\pm 0.08$ mas at 1.61 $\mu$m. This smaller size between the 3D simulations and the classical angular diameter fit of interferometric data is consistent with previous results from Chiavassa et al. (2010a) that noted a similar discrepancy with K giant observations. The main origin would be the presence of bright inhomogeneities that force a smaller angular diameter in order to keep the same integrated luminosity over the stellar disk.

However, this $\tilde{\chi}^{2}$ , computed over the squared visibilities only, remains worse than what is achievable with the power law LDD alone ($\sim 25$ for the whole squared visibility data in Sect. 3.1) or the random distribution of Gaussian spots ($\sim 28-44$ in Sect. 3.2 for both closure phases and visibilities, that should be in principle more difficult to fit). This is also what was obtained on the RSG Betelgeuse (Montargès et al. 2016). This comes as a surprise as previous interferometric observations in the H (C10b) and K bands (Montargès et al. 2014) were well matched by 3D RHD simulations. It is not within the scope of this paper to study the quality of the match between observations and simulations over time for RSG stars but we would like to stress the importance of continuous monitoring of these stars over time with various interferometric instruments. Their convective patterns do not appear to be always reproducible by current state-of-the-art RHD simulations.

5 Conclusions

5.1 The angular diameter, limb-darkening, and photospheric features

We present highly resolved interferometric observations of the nearby RSG Antares using the three available AT configurations of the VLTI with the PIONIER instrument. These observations have allowed us to study the angular diameter and limb-darkening of the star.

The deviations from the uniform disk and limb-darkened disk models depend on the position angle of the measurements and affect the derived values for the angular diameter while not affecting the limb-darkening. In Sect. 3.1 we determined that the photospheric features could affect the angular diameter measurement even if one only considers low- spatial-frequencies data (first and second lobe squared visibility). The effect of these inhomogeneities can only be traced if several PA are probed by the interferometric observations. In particular, RSG observations covering a single direction of the ($u,v$) plane cannot reveal such bias in the angular diameter. Consequently, the angular diameter derived from the averaged angular diameter over several PA can only be a rough approximation. A proper estimation of the angular diameter needs to use a model that generates photospheric features consistent over the whole squared visibility and closure phase data. When doing so by adding a single bright Gaussian spot model over a LDD (on Betelgeuse, Montargès et al. 2016), or a distribution of Gaussian spots or even a 3D RHD simulation (on Antares, present work), the derived angular diameter is smaller than with a classical featureless model.

5.2 The convective signature

We also showed (subject to the assumptions of Sect. 3.2 on the joint F-test on both squared visibilities and closure phases) that the departure from the disk model at intermediate and high spatial frequency was compatible with a LDD model combined with distributions of Gaussian spots. Additionally, it is also qualitatively compatible with convective RHD simulations. This means that our data detected small convective cells. Our dataset does not reach the numerical threshold of simulations beyond which artifacts can appear.

Schwarzschild (1975) made several predictions concerning the sizes and number of photospheric features for RSGs. Using physical models to derive the quantities characterizing the subphotospheric convection of a RSG, he derived a characteristic size of $0.14\leavevmode\nobreak\ R_{\star}$ (within the scenario of convective cells of the maximum possible physical scale). In the case of Antares, this would correspond to elements with a characteristic size of 2.7 mas. We see that even his largest estimation corresponds to the smaller features we are able to resolve (Sect.3.2).

C10b and Montargès et al. (2014, 2016) studied the convective surface of the prototypical RSG Betelgeuse. The various datasets of C10b and the VLTI/AMBER observation of Montargès et al. (2014) were rather well matched by convective simulations. However, the four epochs of the VLTI/PIONIER observations of Montargès et al. (2016) cannot be reproduced by 3D RHD simulations due to the presence of a bright surface feature on the stellar disk.

For our PIONIER observations of Antares, the signal is not well reproduced either but we determine that the match is strongly affected by the angular diameter imposed on the simulation. It appears that the reproduction of photospheric features on RSG by 3D RHD simulations still requires improvement of the physical recipes of the model. Temporal monitoring at different wavelengths of several RSG stars would help constrain those missing ingredients by providing more examples of convective patterns.

Acknowledgements.

We are grateful to the Paranal Observatory team for the successful execution of the observations. This research received the support of PHASE, the high angular resolution partnership between ONERA, Observatoire de Paris, CNRS and University Denis Diderot Paris 7. We acknowledge financial support from the “Programme National de Physique Stellaire” (PNPS) of CNRS/INSU, France. The authors would like to thank Alain Chelli for his useful advice on the handling of closure phases and squared visibilities from a statistical point of view. We used the SIMBAD and VIZIER databases at the CDS, Strasbourg (France)444Available at http://cdsweb.u-strasbg.fr/, and NASA’s Astrophysics Data System Bibliographic Services. This research has made use of Jean-Marie Mariotti Center’s Aspro555Available at http://www.jmmc.fr/aspro service, of the LITpro666Available at http://www.jmmc.fr/litpro software (co-developped by CRAL, LAOG and FIZEAU) and of the SearchCal service777Available at http://www.jmmc.fr/searchcal (co-developped by FIZEAU and LAOG/IPAG). This research made use of IPython (Pérez & Granger 2007) and Astropy888Available at http://www.astropy.org/, a community-developed core Python package for Astronomy (Astropy Collaboration et al. 2013).

Appendix A Log of the VLTI/PIONIER observations

Our VLTI/PIONIER observations of Antares and its calibrators are given for each array configuration in Table 8.

Appendix B Example of random Gaussian spot distribution in a limb-darkened disk

To obtain more details on the model used in the following examples, we refer the reader to Sect. 3.2. The example are presented in Figs. 7, 8, 9 and 10.

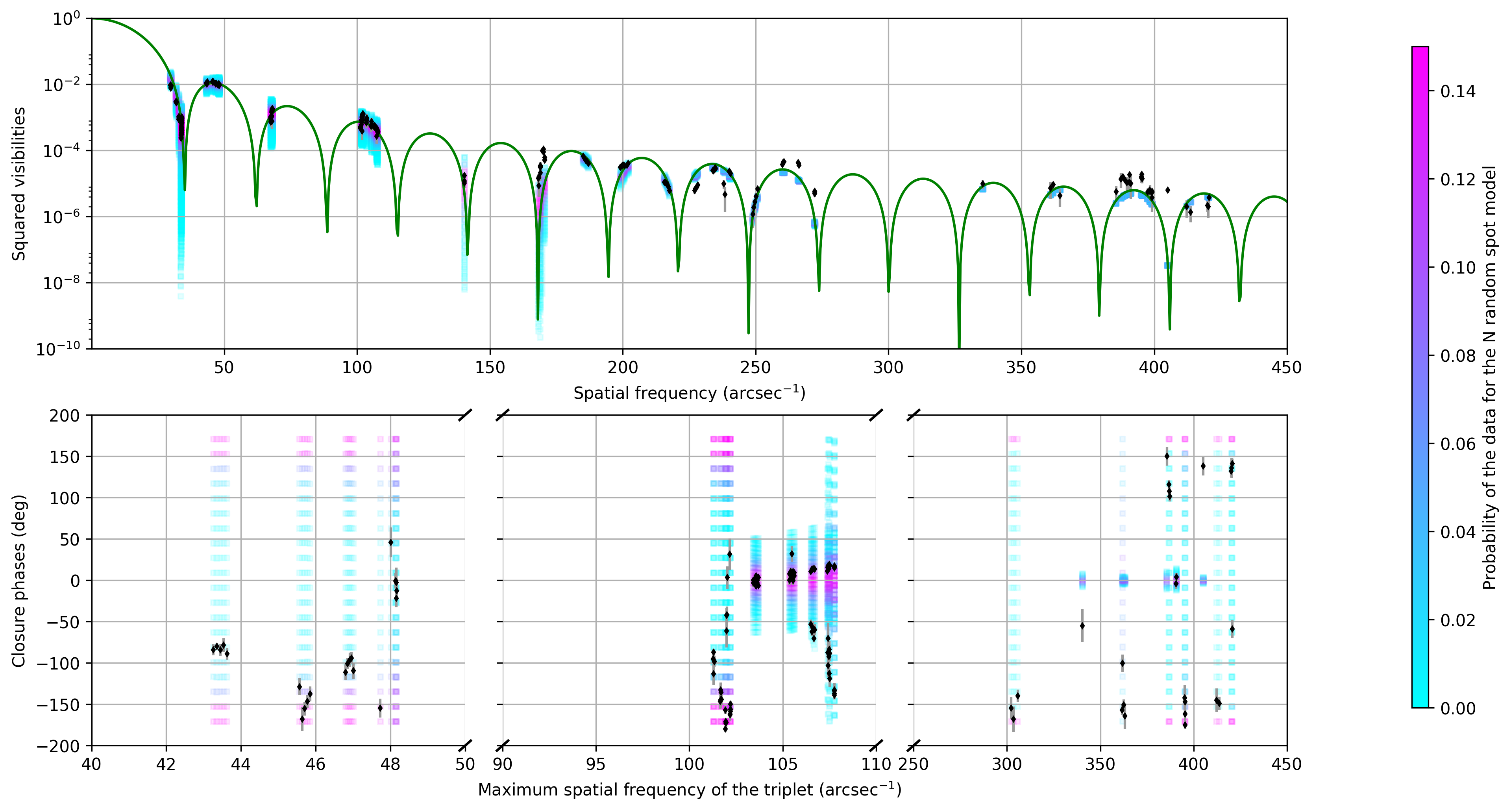

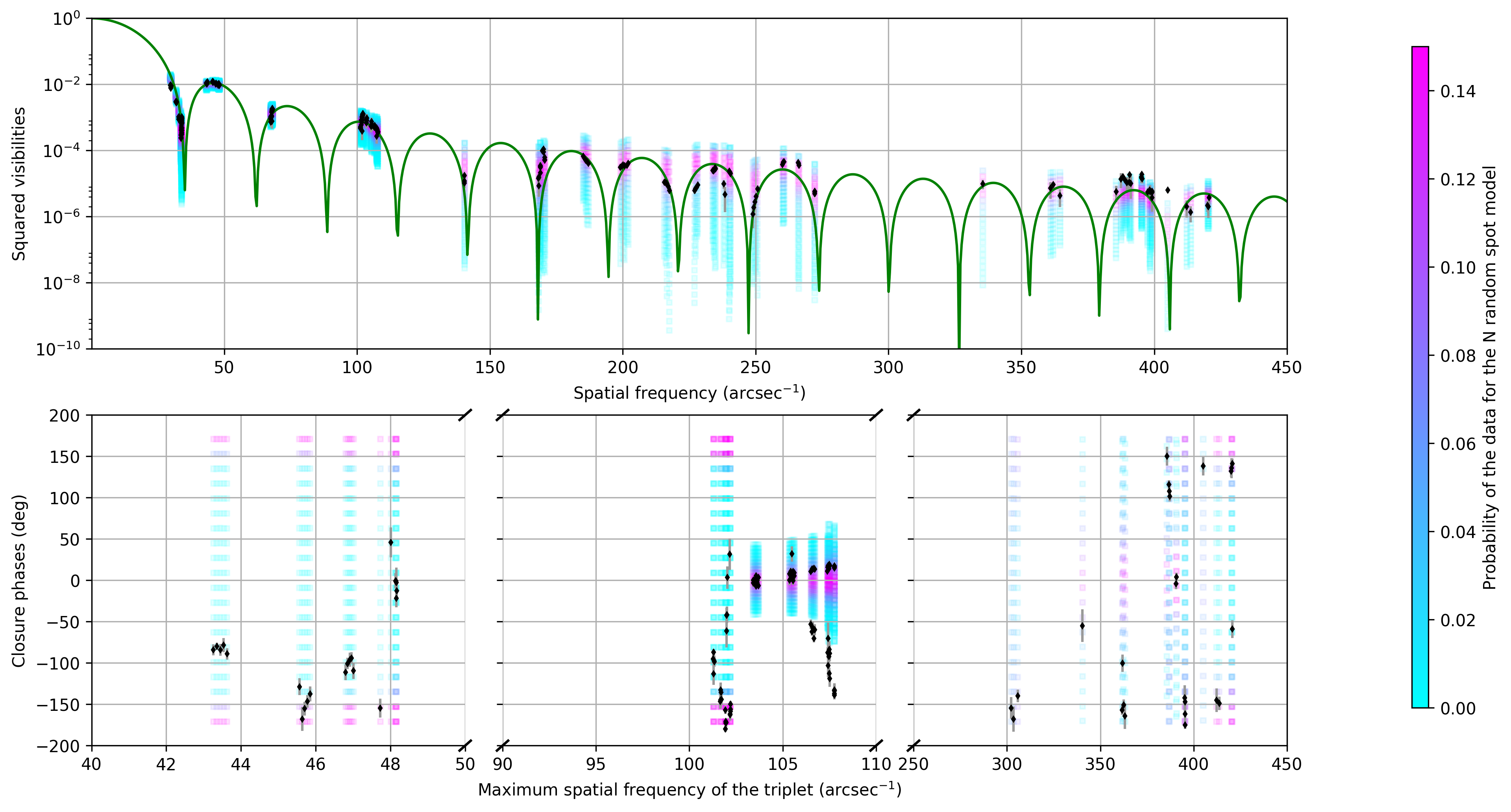

The decreasing size of the bright Gaussian spots creates more dispersion of the squared visibilities at higher and higher spatial frequencies and also increases the closure phase signal (deviation from 0∘ or 180∘).

Appendix C F-test to determine the significance of the limb-darkening disk and Gaussian spot distribution model fit on the squared visibilities

We performed an F-test to determine if the better match of the spot distribution model is significant with respect to the null hypothesis (classical LDD). The F parameter expression is given in Eq. 5. We tried to perform the test separately on the squared visibilities and closure phases. However, it was impossible to make the LDD model (without spots) fit to converge with the closure phases only. Therefore, we only present the F-test on the squared visibilities. The critical value for a (2, 5) F distribution999http://www.itl.nist.gov/div898/handbook/eda/section3/eda3673.htm is 5.143. Therefore, from the values of Table 9, our model fitting with bright spots is significant only in the first and third spectral channels of our VLTI/PIONIER squared visibilities. This could mean that at 1.66 $\mu$m the features are less prominent but this is without taking into account the closure phase signal. In Sect. 3.2, we present the fit on both the squared visibilities and closure phases with a F factor much higher, meaning that the closure phases bring information about the asymmetries that are reproduced by our model.
