Simultaneous X-ray, gamma-ray, and Radio Observations of the repeating Fast Radio Burst FRB 121102

TL;DR

This study conducted simultaneous multi-wavelength observations of the repeating FRB 121102, finding no X-ray or gamma-ray counterparts to radio bursts, and set stringent upper limits on high-energy emissions, informing models of FRB origins.

Contribution

First simultaneous multi-wavelength campaign on FRB 121102 providing tight constraints on high-energy counterparts and host environment implications.

Findings

No X-ray bursts detected during radio bursts.

Upper limits placed on X-ray and gamma-ray fluences.

No persistent X-ray source detected at the FRB location.

Abstract

We undertook coordinated campaigns with the Green Bank, Effelsberg, and Arecibo radio telescopes during Chandra X-ray Observatory and XMM-Newton observations of the repeating fast radio burst FRB 121102 to search for simultaneous radio and X-ray bursts. We find 12 radio bursts from FRB 121102 during 70 ks total of X-ray observations. We detect no X-ray photons at the times of radio bursts from FRB 121102 and further detect no X-ray bursts above the measured background at any time. We place a 5$\sigma$ upper limit of $3\times10^{-11}$ erg cm$^{-2}$ on the 0.5--10 keV fluence for X-ray bursts at the time of radio bursts for durations $<700$ ms, which corresponds to a burst energy of $4\times10^{45}$ erg at the measured distance of FRB 121102. We also place limits on the 0.5--10 keV fluence of $5\times10^{-10}$ erg cm$^{-2}$ and $1\times10^{-9}$ erg cm$^{-2}$ for bursts emitted at any time during the XMM-Newton and Chandra observations, respectively, assuming a typical X-ray burst duration of 5 ms. We analyze data from the Fermi Gamma-ray Space Telescope Gamma-ray Burst Monitor and place a 5$\sigma$ upper limit on the 10--100 keV fluence of $4\times10^{-9}$ erg cm$^{-2}$ ($5\times10^{47}$ erg at the distance of FRB 121102) for gamma-ray bursts at the time of radio bursts. We also present a deep search for a persistent X-ray source using all of the X-ray observations taken to date and place a 5$\sigma$ upper limit on the 0.5--10 keV flux of $4\times10^{-15}$ erg s$^{-1}$ cm$^{-2}$ ($3\times10^{41}$ erg~s$^{-1}$ at the distance of FRB 121102). We discuss these non-detections in the context of the host environment of FRB 121102 and of possible sources of fast radio bursts in general.

Figures

Tables

Table 1. Table 1: Summary of Joint X-ray/Radio Observations

Telescope	Obs ID/	Start time	End time	Exposure time
	Proj. Code	(UTC)	(UTC)	(s)
XMM-Newton	0792382801	2016-09-16 00:39:57	2016-09-16 06:21:37	13490
	0792382901	2016-09-17 23:59:20	2016-09-18 06:31:00	15621
Chandra	19286	2016-11-26 01:12:24	2016-11-26 07:36:48	20810
	19287	2017-01-11 22:33:22	2017-01-12 04:44:43	19820
GBT	GBT16B-391	2016-09-16 03:59:12	2016-09-16 08:00:04	14452
		2016-09-18 04:02:15	2016-09-18 08:00:04	14269
	CH18500414	2016-11-26 02:06:46	2016-11-26 07:30:04	19398
		2017-01-11 23:13:56	2017-01-12 04:45:05	19869
Effelsberg		2016-09-16 04:04:06	2016-09-16 07:04:24	10818
Arecibo	P3054	2017-01-12 01:46:27	2017-01-12 03:30:57	6270

Table 2. Table 2: Detected Radio Bursts

Burst No.	Barycentric	Peak Flux Density	Fluence	Gaussian FWHM	X-ray Fluence Limitbb5$\sigma$ confidence upper limit. See Section 3.2 for details.
	Arrival TimeaaCorrected for dispersion delay to infinite frequency using DM=559 pc cm-3.	(Jy)	(Jy ms)	(ms)	(10-10 erg cm-2)
GBT 1	57647.232346450619	0.36	0.82	$2.16\pm 0.06$	2
GBT 2	57647.232346883015	0.08	0.16	$1.94\pm 0.25$	2
GBT 3	57649.173812898174	0.36	1.32	$3.45\pm 0.07$	2
GBT 4	57649.218213226581	0.29	0.34	$0.88\pm 0.07$	2
GBT 5	57765.049526345771	0.17	0.33	$1.40\pm 0.09$	5
GBT 6	57765.064793212950	0.38	0.83	$1.79\pm 0.04$	5
GBT 7	57765.069047502300	0.20	0.62	$2.97\pm 0.12$	5
GBT 8ccGBT 8/AO 1 and GBT 9/AO 3 are GBT and Arecibo co-detections (see Section 3.1).	57765.100827859293	0.09	0.18	$2.46\pm 0.28$	5
GBT 9ccGBT 8/AO 1 and GBT 9/AO 3 are GBT and Arecibo co-detections (see Section 3.1).	57765.120778204779	0.56	1.08	$1.36\pm 0.03$	5
GBT 10	57765.136498608757	0.11	0.22	$1.68\pm 0.17$	5
AO 1ccGBT 8/AO 1 and GBT 9/AO 3 are GBT and Arecibo co-detections (see Section 3.1).	57765.100827849608	0.09	0.37	$4.29\pm 0.11$	5
AO 2	57765.108680842022	0.02	0.03	$3.69\pm 0.57$	5
AO 3ccGBT 8/AO 1 and GBT 9/AO 3 are GBT and Arecibo co-detections (see Section 3.1).	57765.120778202479	0.02	0.05	$4.34\pm 0.44$	5
AO 4	57765.143337535257	0.03	0.10	$3.66\pm 0.32$	5

Table 3. Table 3: Burst limits for different X-ray spectral models

Model	$N_H$	kT/$\Gamma$	Absorbed 0.5–10 keV	Unabsorbed 0.5–10 keV	Extrapolated 10 keV–1 MeV
	( cm-2)	(keV/-)	Fluence Limit	Energy LimitaaAssuming the measured luminosity distance to FRB 121102, 972 Mpc (Tendulkar et al., 2017).	Energy LimitaaAssuming the measured luminosity distance to FRB 121102, 972 Mpc (Tendulkar et al., 2017).
			(${10}^{-11}$ erg cm-2)	(${10}^{45}$ erg)	(${10}^{47}$ erg)
Blackbody	${10}^{22}$	10	$5$	6	$2$
Blackbody	${10}^{24}$	10	$13$	110	$30$
Cutoff PL	${10}^{22}$	0.5	$3$	4	$13$
Cutoff PL	${10}^{24}$	0.5	$11$	120	$400$
Soft PL	${10}^{22}$	2	1.3	3	0.04
Soft PL	${10}^{24}$	2	8	300	40

Equations

$$F_{lim}=\frac{{\mu }_{lim}}{{\sum }_i\frac{N_i{A}_i}{E_i}}.$$

Full text

X-rays: bursts, X-rays: general, gamma rays: general, stars: neutron

††facilities: GBT (GUPPI), Arecibo (PUPPI), Effelsberg (PFFTS), XMM (EPIC/pn, EPIC/MOS), CXO (ACIS-I), Fermi (GBM)††software: PRESTO, XMM SAS v16.0, HEASoft v6.19, CIAO v4.8.2

1 Introduction

Fast radio bursts (FRBs) are a recently discovered (Lorimer et al., 2007; Thornton et al., 2013) class of radio transient that have as yet unclear physical origins. They are short (durations of milliseconds), bright (peak flux densities $\sim 0.1-10$ Jy at 1–2 GHz) bursts, that appear to be coming from outside the Galaxy based on their high dispersion measures (DMs). Their implied distances, based on the DM excesses in comparison to the expected line-of-sight contributions from our Galaxy (Cordes & Lazio, 2002; Yao et al., 2017), suggest that they come from cosmological redshifts (i.e. $z\stackrel{{\scriptstyle>}}{{{}_{\sim}}}0.5$; Thornton et al., 2013). To date, 23 FRB sources have been discovered, 17 of which have been found with the Parkes Telescope, one each at the Arecibo and Green Bank Telescopes (Spitler et al., 2014; Masui et al., 2015), three using the UTMOST array (Caleb et al., 2017), and one at the Australian Square Kilometre Array Pathfinder (Bannister et al., 2017). See Petroff et al. (2016) for a catalog of published FRBs111http://www.astronomy.swin.edu.au/pulsar/frbcat/.

The first FRB discovered at a telescope other than Parkes was FRB 121102 (Spitler et al., 2014) at the 305-m Arecibo telescope in the PALFA Survey (Cordes et al., 2006; Lazarus et al., 2015). Follow-up observations of FRB 121102 revealed additional bursts from a location and DM consistent with the original burst (Spitler et al., 2016). This showed that FRB 121102 cannot be explained by cataclysmic models (e.g. Kashiyama et al., 2013; Falcke & Rezzolla, 2014), though this may not be true of all FRBs. Strong arguments were also made for the extragalactic nature of FRB 121102 based on the lack of any evidence for any Galactic H II region to provide the excess dispersing plasma (Scholz et al., 2016).

The extragalactic nature was confirmed when a direct sub-arcsecond localization of the repeating bursts was achieved from Karl G. Jansky Very Large Array (VLA) observations in late 2016 (Chatterjee et al., 2017) and a host galaxy was identified. Using optical imaging and spectroscopy with the Gemini and Keck telescopes, the host was found to be a faint, low-metallicity, star-forming, dwarf galaxy with a redshift of $z=0.193$ (implying a luminosity distance of 972 kpc; Tendulkar et al., 2017). The VLA observations also showed that the source of FRB 121102 is coincident with a 0.2 mJy persistent radio source and European VLBI Network (EVN) observations further showed that the persistent source is compact to $\stackrel{{\scriptstyle<}}{{{}_{\sim}}}0.2$ mas ($\stackrel{{\scriptstyle<}}{{{}_{\sim}}}0.7$ pc, given the host distance) and that the bursts come from within $\stackrel{{\scriptstyle<}}{{{}_{\sim}}}12$ mas ($\stackrel{{\scriptstyle<}}{{{}_{\sim}}}40$ pc) of the persistent source (Marcote et al., 2017). Using Hubble Space Telescope observations, Bassa et al. (2017) resolved the host galaxy and showed that the burst and persistent radio source is located in a bright star forming region on the outskirts of the galaxy. Though they are co-located, and thus very likely share some kind of physical or evolutionary relationship, the persistent source and the source of radio bursts do not necessarily need to be one and the same.

Many models have been proposed for FRBs (for a review see Katz, 2016a). The extreme luminosities and short duration of FRBs point to coherent emission originating from a compact object. Two classes of known phenomena that emit repeated radiation on those timescales are X-ray/gamma-ray bursts from magnetars (Popov & Postnov, 2013) and giant pulses from radio pulsars (Pen & Connor, 2015; Cordes & Wasserman, 2016). The identification of the host galaxy of FRB 121102 as a low-metallicity dwarf (Tendulkar et al., 2017), as well as the source’s projected location in a star forming region (Bassa et al., 2017), bolsters the case for the possible magnetar nature of the source since these galaxies are preferentially hosts to long gamma-ray bursts (LGRBs) and hydrogen-poor superluminous supernovae (SLSNe-I), which are thought to result in the birth of magnetars (Lunnan et al., 2014). The nature of the persistent source in this model would be a pulsar wind nebula driven by the young magnetar (Kashiyama & Murase, 2017) or an interaction of the supernova blast wave with surrounding progenitor wind bubble (Metzger et al., 2017).

Known Galactic magnetars produce both X-ray and gamma-ray bursts/flares and radio pulsations on timescales of a few to hundreds of milliseconds, similar to the durations of FRB radio bursts. Lyutikov (2002) estimates a ratio of radio to X-ray energy emitted in such bursts of $10^{-4}$ based on analogies to solar flares. The model of Lyubarsky (2014) where a synchrotron maser is produced from a magnetized shock, predicts $10^{-5}-10^{-6}$. Given the energies of radio bursts of FRBs, $\sim 10^{39}-10^{41}$ erg, these models predict X-ray energies of $\sim 10^{43}-10^{47}$ erg which may be detectable by X-ray and gamma-ray telescopes.

Here we present a campaign of simultaneous X-ray and radio observations in late 2016 and early 2017 with the goal of detecting or constraining any X-ray counterparts to the radio bursts from FRB 121102. This improves on previous X-ray burst searches (e.g. Scholz et al., 2016), which were not simultaneous and thus sub-optimal for probing coincident X-ray bursts. In Section 2 we describe the observations performed. In Section 3 we present the results of our search for radio (Arecibo, Green Bank, and Effelsberg Telescopes), X-ray (Chandra and XMM-Newton) and gamma-ray (Fermi) bursts during the coordinated campaign as well as limits on a persistent X-ray source. We discuss the significance of these results in Section 4.

2 Observations

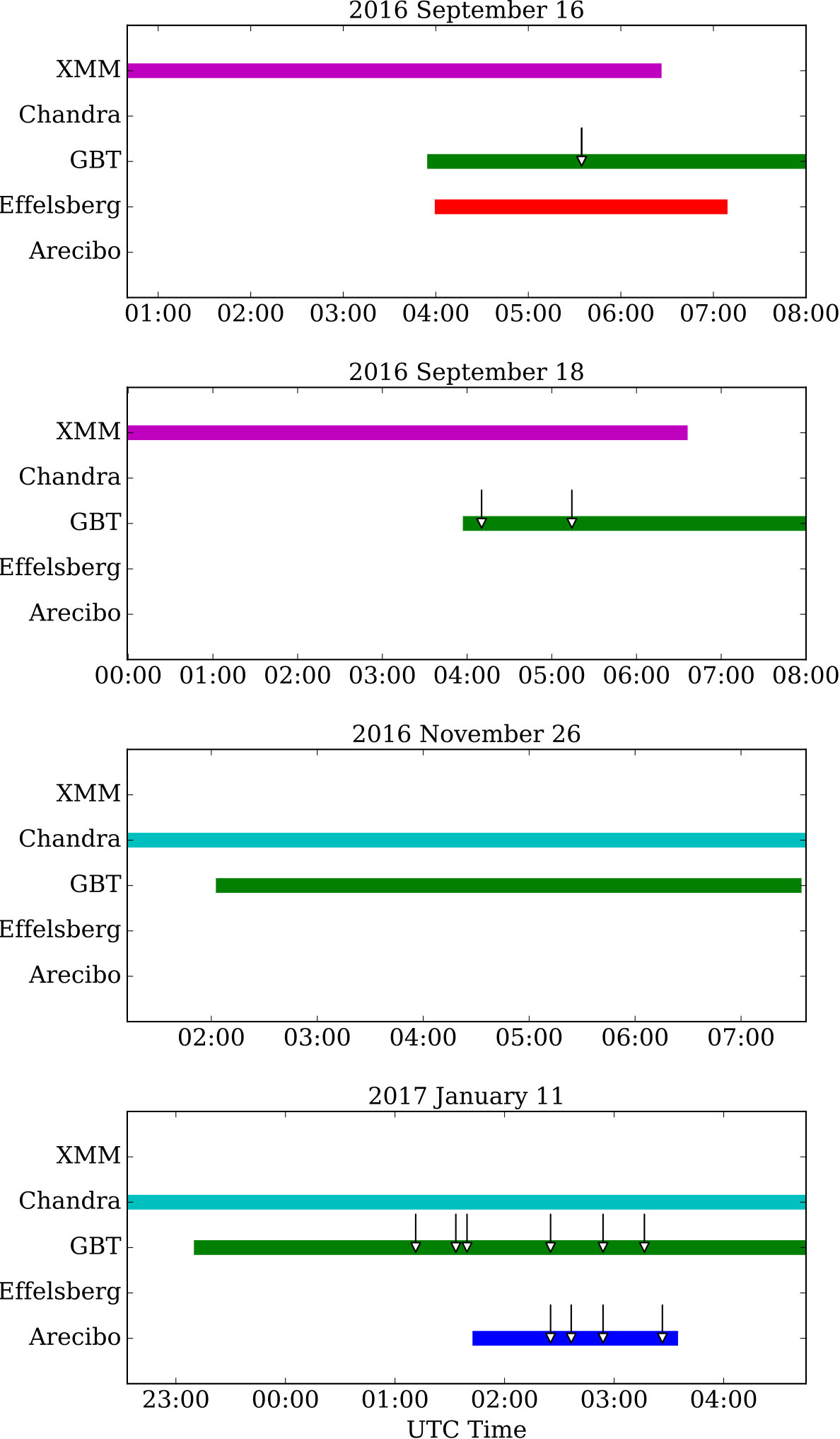

In 2016 September, 2016 November, and 2017 January, we undertook coordinated observations between radio telescopes, namely the Green Bank, Arecibo, and Effelsberg telescopes, and the XMM-Newton and Chandra X-ray telescopes. Table 1 and Figure 1 summarize the observations presented here and their overlap. In all cases, the telescopes were pointed at the position of FRB 121102, R.A. = 05h31m58$\fs$701, decl. = +33°08′52$\farcs$55 (Marcote et al., 2017). This position was also used to correct the arrival times of the data to the solar-system barycenter (SSB). For all data sets, the DE405 solar system ephemeris was used for barycentric corrections.

\floattable

2.1 Green Bank Telescope

The 110-m Robert C. Byrd Green Bank Telescope (GBT) observed FRB 121102 on 2016 September 16, 2016 September 18, 2016 November 26, and 2017 January 11 during periods that overlapped with either XMM-Newton or Chandra observations (Table 1; Figure 1). FRB 121102 was observed with the S-band receiver at a center frequency of 2 GHz and a bandwidth of 800 MHz, of which about 600 MHz is usable due to receiver roll-off and the masking of spectral channels containing radio frequency interference (RFI). We used the Green Bank Ultimate Pulsar Processing Instrument (GUPPI; DuPlain et al., 2008) in coherent dedispersion mode where each of the spectral channels were corrected for dispersion in real time to DM=$557$ pc cm*-3*. These coherently dedispersed observations therefore do not suffer from intra-channel DM smearing as the correction is performed before Stokes parameters are formed. This mode provides full Stokes parameters, 512 spectral channels (each 1.56 MHz wide) and a time resolution of 10.24 $\upmu$s.

2.2 Effelsberg Telescope

The 100-m Effelsberg telescope performed a three hour observation of FRB 121102 on 2016 September 16, simultaneous with both the GBT and XMM-Newton observations (Table 1). Data were recorded at 1.4 GHz with an observing configuration that was identical to what is used for the HTRU-N pulsar and fast transient survey. Details can be found in Barr et al. (2013). FRB 121102 was observed with the central pixel of the 7-beam L-band receiver and data were recorded with the PFFTS pulsar search mode backends. The data cover a frequency range of 1210 to 1510 MHz with 512 frequency channels and have a time resolution of 54.613 $\mu$s. Note, unlike the GBT and Arecibo observations, these data were not coherently dedispersed, and so suffer from $\sim 1$ ms of intra-channel DM smearing at the DM of FRB 121102.

2.3 Arecibo Telescope

The 305-m William E. Gordon Telescope at Arecibo Observatory observed FRB 121102 on 2017 January 12 simultaneously with GBT and Chandra observations (Table 1). We used the single-pixel L-wide receiver with the Puerto Rican Ultimate Pulsar Processing Instrument (PUPPI) backend. This setup provided 800 MHz of bandwidth centered at 1380 MHz, of which about 600 MHz is usable due to receiver roll-off and RFI excision. As with GUPPI, the data were coherently dedispersed to DM=$557$ pc cm*-3* in real time with 512 spectral channels (each 1.56 MHz wide) and a time resolution of 10.24 $\upmu$s.

2.4 XMM-Newton

Two XMM-Newton Director’s Discretionary Time (DDT) observations were performed on 2016 September 16 and 18 (Table 1). These DDT observations were scheduled in response to a period of high radio burst activity, with several bursts detected per hour (Chatterjee et al., 2017; Law et al., 2017). We used the EPIC/pn camera in Small Window mode (5.7-ms time resolution) and the EPIC/MOS cameras in Timing mode (1.75-ms time resolution). The Timing mode observations provide only one dimension of spatial information which results in a high background (see Section 3.2).

Unfortunately, the pn-mode observations have a deadtime fraction of 29%. This means that for every 5.7-ms frame of the pn observation, the telescope is blind to X-ray photons for 1.65 ms. Though this time resolution is helpful in resolving bursts when a significant number of counts are detected, the deadtime is detrimental when placing a limit following a non-detection. We therefore do not use the pn-mode data below when placing fluence limits for putative X-ray bursts.

Standard tools from the XMM-Newton Science Analysis System (SAS) version 16.0 and HEASoft version 6.19 were used to reduce the data. For each observation, the raw Observation Data Files (ODF) level data were downloaded and were pre-processed using the SAS tools emproc and epproc. Data were filtered so that single–quadruple events with energies between 0.1–12 keV (pn) and 0.2–15 keV (MOS) were retained, and standard “FLAG” filtering was applied. The light curves were then inspected for soft proton flares and none were found. Event arrival times were then corrected to the SSB. For the pn, we extracted source events from an 18″ radius (80% encircled energy) source region centered on the position of FRB 121102. For the MOS cameras, we extracted events from a 20-pixel (22″) wide strip centered on the position of the source.

2.5 Chandra X-ray Observatory

The Chandra X-ray Observatory targeted FRB 121102 on 2016 November 26 (ObsID 19286) and 2017 January 11 (ObsID 19287) using the front-illuminated ACIS-I instrument for 20 ks in both instances. The detector was operated in VFAINT mode with the entire array read out using a 3.2-s frame time. These observations were part of a joint Chandra/GBT Cycle 18 project to obtain contemporaneous data with the two telescopes.

The resulting Chandra data sets were analyzed using CIAO222Chandra Interactive Analysis of Observations. http://cxc.harvard.edu/ciao/ version 4.8.2 (Fruscione et al., 2006) following standard procedures recommended by the Chandra X-ray Center. We extracted events from a 1″ radius region (95% encircled energy) centered on the position of FRB 121102 and corrected the photon arrival times to the SSB using the aforementioned source position.

3 Analysis and Results

3.1 Radio bursts

The radio observations from GBT, Effelsberg, and Arecibo were searched for bursts using standard tools in the PRESTO333http://www.cv.nrao.edu/~sransom/presto/ (Ransom, 2001) software package. For the purposes of searching, the data were downsampled by a factor of 8 (to a time resolution of 81.92 $\upmu$s) for Arecibo and GBT observations and a factor of 16 (874 $\upmu$s resolution) for Effelsberg observations. We first used rfifind to identify frequency and time blocks contaminated by RFI, which were masked in the subsequent search. The data were then dedispersed in a DM range of 507–607 pc cm*-3* with step size 0.5 pc cm*-3* for GBT, 535–585 pc cm*-3* with a step size of 1 pc cm*-3* for Effelsberg, and 527–626 pc cm*-3* with a step size of 1 pc cm*-3* for Arecibo. Burst candidates were identified in a boxcar matched filtering search for pulse widths up to 20 ms and S/N $>$ 5 using single_pulse_search.py. Due to the effects of RFI, our search is only complete in the Arecibo observation to S/N $\stackrel{{\scriptstyle>}}{{{}_{\sim}}}$ 13 and to S/N $\stackrel{{\scriptstyle>}}{{{}_{\sim}}}$ 7 for Effelsberg and GBT.

Four astrophysical bursts at a DM consistent with that of FRB 121102 were found in the GBT observations on 2016 September 16 and 18 at times that overlapped with the simultaneous XMM-Newton observations (labelled, in this work, as bursts GBT 1–4). Radio bursts at times outside of the simultaneous X-ray coverage are not presented here. Five more bursts were found in the GBT observation on 2017 January 11 that overlapped with the Chandra observation (bursts GBT 5–7, 9, and 10). Three bursts were found in the search of the 2017 January 11 Arecibo observation (AO 1, 2, and 4). During one of the detected GBT bursts (GBT 9) a coincident burst (AO 3) was found in the Arecibo observation when searching specifically at the time of burst GBT 9, which was otherwise missed due to RFI. Similarly, burst GBT 8 was found at the time of burst AO 1. The remainder of the GBT- and Arecibo-detected bursts were not detected in the corresponding other telescope. To summarize, a total of 12 radio bursts were found with two co-detections (GBT 8/AO 1 and GBT 9/AO 3).

In the Effelsberg observation on 2016 September 16 all events with S/N $>$ 7 can be attributed to RFI. Since these observations overlap with the times of GBT detected bursts, the three second windows around the arrival times of the coincident GBT bursts were searched manually, using a range of downsample factors, but no bursts were identified. These contemporaneous non-detections, as well as those during the 2017 January 11 Arecibo and GBT observations that did not result in co-detections, are likely due to the narrow-band nature of FRB 121102 radio bursts (see Spitler et al., 2016; Scholz et al., 2016).

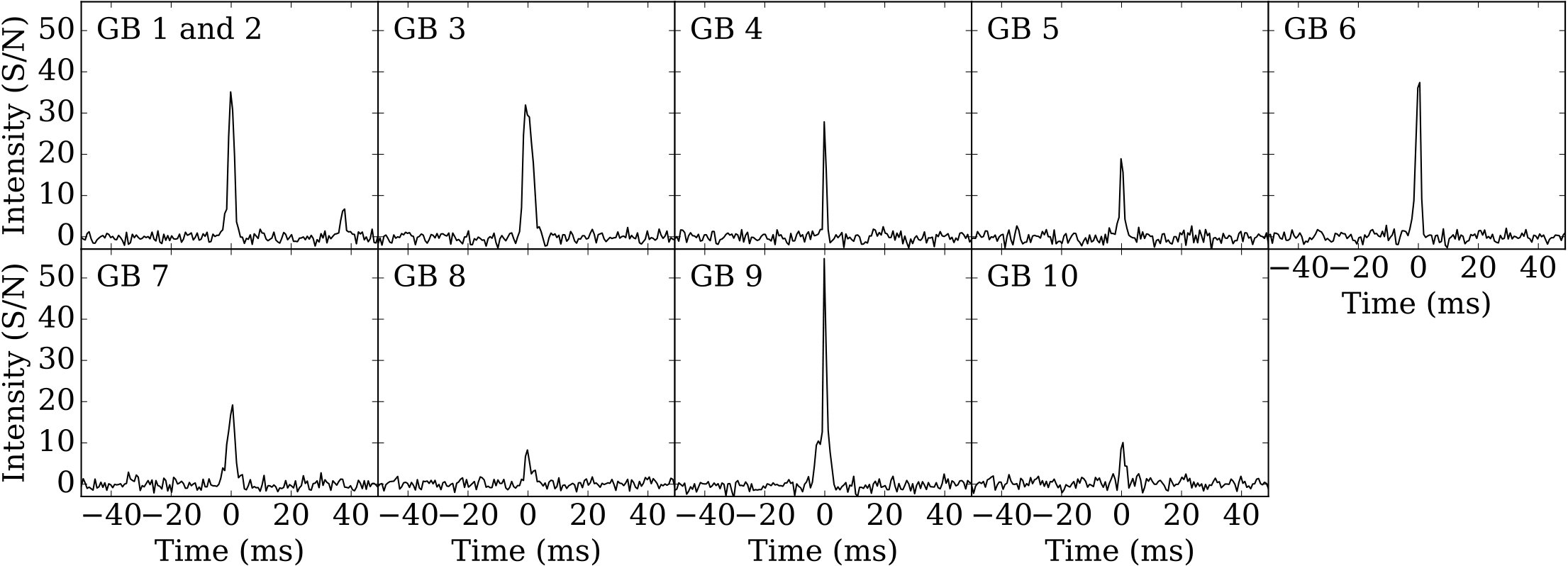

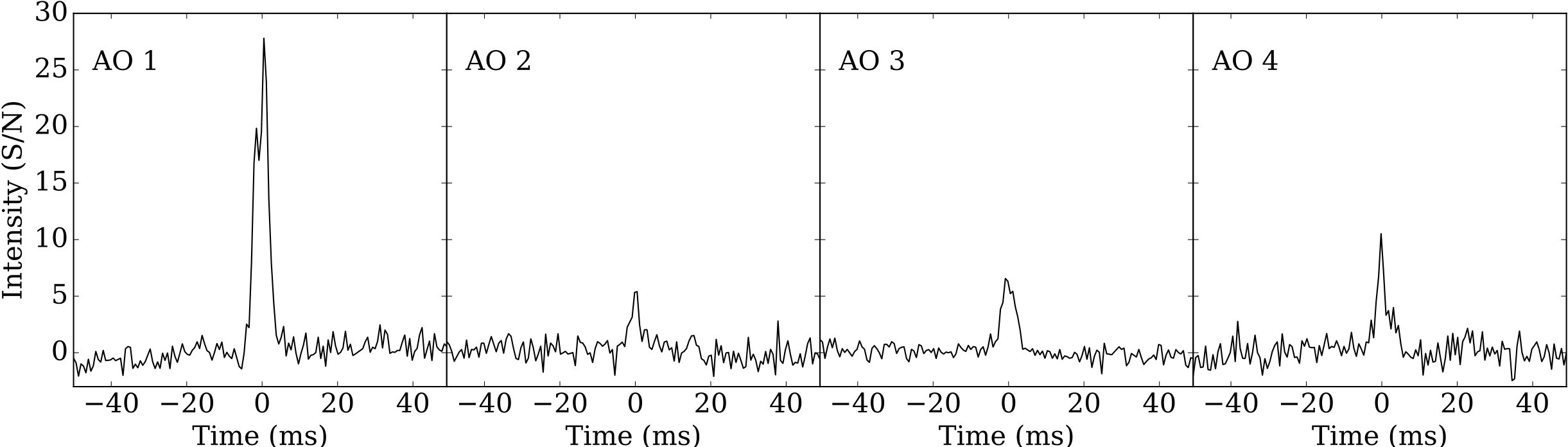

The GBT detected radio bursts are shown in Figure 2 and those detected at Arecibo are shown in Figure 3. We show only the time series for each burst and defer a full spectral analysis of the bursts to a future work. For each burst we measured the peak flux density, fluence and burst width (Gaussian FWHM) using an identical procedure to Scholz et al. (2016). These values are shown in Table 2. We note that bursts GBT 1 and 2 arrived $\sim 40$ ms apart. This is the minimum separation reported thus far for radio bursts from FRB 121102. This does not necessarily imply an upper limit to an underlying periodicity of $<40$ ms, as we cannot exclude the possibility that this is a single wide burst with multiple peaks or, if the source is a rotating object, that multiple bursts were emitted during a single rotation. We defer a more detailed analysis of the arrival times to a future work with a much larger sample of bursts. The measured radio burst arrival times were corrected to the SSB and corrected for the dispersive delay to infinite frequency using DM=$559$ pc cm*-3* (Scholz et al., 2016) (which is more accurately measured than the DM=$557$ pc cm*-3* used during data collection; see Section 2) and are therefore directly comparable to the SSB-referenced arrival times of the X-ray photons.

\floattable

3.2 Limit on X-ray burst emission

For each detected radio burst, we searched nearby in time for X-ray photons that could be due to X-ray bursts. In the 2016 September 16 XMM-Newton observation, the closest photon to Bursts 1 and 2 was 5.8 seconds away. The false alarm probability for an event to arrive in such a window given the 0.5–10 keV background count rate of 0.01 counts s*-1* is 25%. In the 2016 September 18 XMM-Newton observation no photons were closer than 0.7 seconds from a radio burst (background count rate 0.05 counts s*-1*, false alarm probability 13%). In the 2017 Jan 11 Chandra observation, a single photon was detected at the source position and was 893 seconds away from the closest radio burst (background count rate $5\times 10^{-5}$ counts s*-1*, false alarm probability 42%). Given the high probability that these are background events, we have no reason to think they are related to FRB 121102. For each observation, the total number of X-ray counts detected within the source extraction region of FRB 121102 was consistent with the background count rate.

For both XMM-Newton and Chandra observations we also performed a similar exercise as above with the raw event lists (Level 1 for Chandra and ODF-level for XMM-Newton) prior to applying any standard filtering in case a bright X-ray burst was flagged as a cosmic ray. There was no evidence for any X-ray events in excess of the unfiltered background count rate.

We place a limit on the number of X-ray counts from FRB 121102 using the Bayesian method of Kraft et al. (1991). For a putative X-ray burst at the time of a detected radio burst we can place an upper limit of 14.4 counts at a 5$\sigma$ confidence limit in 0.5–10 keV. This limit is independent of duration up to the time of the nearest detected photon (see above) because the background is negligible. For an X-ray burst arriving outside this window at any time during the observation, the background rate and trials factor depend on the assumed duration. So, we assume a duration of 5 ms, similar to that of the radio bursts, which leads to a 0.5–10 keV count limit of 32.3 counts during the XMM-Newton observations and 33.8 counts for Chandra (5$\sigma$ confidence).

A count limit, $\mu_{lim}$ can be translated to a fluence limit by dividing by a spectrally averaged effective area for the instrument, $A$, and multiplying by an average photon energy, $E$. We can also stack individual limits, under the assumption that X-ray bursts with similar spectra are emitted at the times of every radio burst. In the case where zero counts are detected in each detector (i.e. XMM-Newton/MOS and Chandra/ACIS), and the background count rate is negligible, the count rate limit is simply $\mu_{lim}=-\log(1-CL)$, where $CL$ is the desired confidence level (in our case 0.9999994 for 5$\sigma$), and the fluence limit takes the form,

[TABLE]

Here the sum is over each instrument, which have each observed simultaneously during $N_{i}$ radio bursts. We read the effective area of each telescope as a function of energy from the ancillary response files for each telescope444From http://cxc.harvard.edu/caldb/prop_plan/imaging/index.html for Chandra/ACIS, http://xmm2.esac.esa.int/external/xmm_sw_cal/calib/epic_files.shtml for XMM-Newton/EPIC.. Using these effective area curves, in Figure 5 we plot the limiting burst energy as a function of photon energy. Here we derive a model-independent limit where there is an equal probability of a source photon occurring across the entire band. The 5$\sigma$ confidence upper limit on the 0.5–10 keV fluence for a single X-ray burst at the time of one of the detected radio bursts is $2\times 10^{-10}$ erg cm*-2* for observations simultaneous with XMM-Newton and $5\times 10^{-10}$ erg cm*-2* for Chandra, or $3\times 10^{46}$ erg and $6\times 10^{46}$ erg at the luminosity distance of FRB 121102, respectively. If we additionally assume that X-ray bursts of similar fluence are emitted at the time of every radio burst (i.e. stacked as per Equation 1), the upper limit at the time of the bursts becomes $3\times 10^{-11}$ erg cm*-2* ($4\times 10^{45}$ erg at the source distance). The limit for an X-ray burst arriving at any time during the X-ray observations is $5\times 10^{-10}$ erg cm*-2* for XMM-Newton and $1\times 10^{-9}$ erg cm*-2* for Chandra for an assumed duration of 5 ms (which correspond to energy limits of $6\times 10^{46}$ erg and $1\times 10^{47}$ erg).

3.3 Limit on gamma-ray burst emission

We also searched data from the Fermi Gamma-ray Burst Monitor (GBM; Meegan et al., 2009) for gamma-ray burst counterparts during the radio bursts presented in this work. FRB 121102 was only visible to GBM during the 2016 September XMM-Newton/GBT observations, and so our limit applies only to those four bursts. In an analysis similar to what has been done for previous FRB 121102 radio bursts (Younes et al., 2016), we used the Time Tagged Event GBM data in the energy range 10–100 keV and searched for excess counts in 1 and 5 ms bins in 2 s windows centered on the arrival time of the four radio bursts. We find no signals that are not attributable to Poisson fluctuations from the background count rate at a 5$\sigma$ confidence level. Taking into account the effective area of Fermi/GBM at 10–100 keV, the background count rate, and a typical photon energy of 40 keV, we place an upper limit of $1\times 10^{-8}$ erg cm*-2* for each burst and $4\times 10^{-9}$ erg cm*-2* if we assume a gamma-ray burst is emitted at the time of each radio burst which, at the measured luminosity distance, corresponds to a 10–100 keV burst energy limit of $5\times 10^{47}$ erg.

3.4 Limit on persistent X-ray source

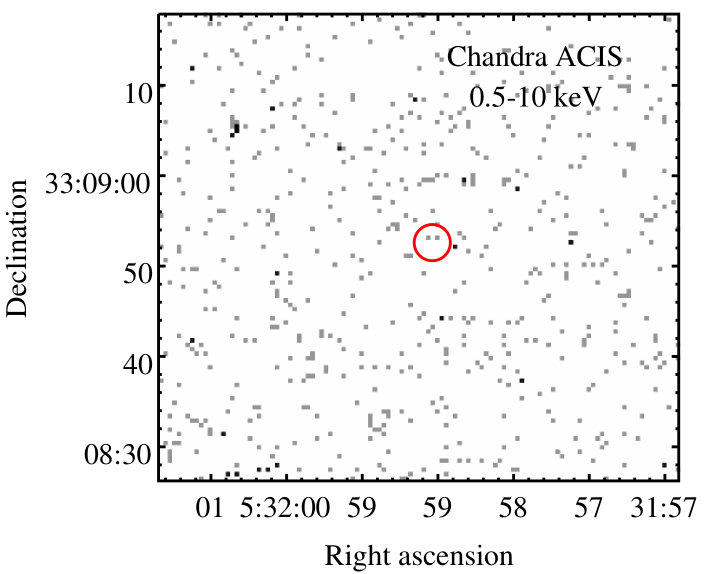

In order to probe more deeply for faint emission from a persistent X-ray source at the location of FRB 121102 than previous limits (Scholz et al., 2016; Chatterjee et al., 2017), we produced a summed image of all the Chandra data to date. We co-added, aspect-corrected, and exposure-corrected the two ACIS-I exposures from our 2016 November and 2017 January observations along with the ACIS-S exposure previously presented in Scholz et al. (2016) using the merge_obs script in CIAO. In the combined 80-ks exposure, only two events are registered within an aperture of radius $1\arcsec$ centered on the position of FRB 121102 (see Figure 4), entirely consistent with being due to background emission. We measure a 0.5–10 keV background count rate in a $40\arcsec$ radius region away from the source to be 0.20 counts s*-1* sq. arcsec*-1*. Using the number of detected counts and measured background rate, we place a count rate limit using the Bayesian method of Kraft et al. (1991), and translate it to a flux using the same method as in the burst case (Section 3.2). Assuming a photoelectrically absorbed power-law source spectrum with a spectral index of $\Gamma=2$ and a hydrogen column density of N_{\mathrm{H}}$$\sim 1.7\times 10^{22} cm*-2* (as in Chatterjee et al., 2017), the 5-$\sigma$ upper limit on any persistent 0.5–10 keV X-ray emission from FRB 121102 or the host galaxy is $4\times 10^{-15}$ ergs cm*-2* s*-1*. As the XMM-Newton data presented in this work were included for the persistent X-ray source limit in Chatterjee et al. (2017), their value of $5\times 10^{-15}$ ergs cm*-2* s*-1* is still valid for the XMM-Newton images.

4 Discussion

From the non-detections of X-ray photons at the times of radio bursts from FRB 121102 we have placed a 0.5–10 keV X-ray burst energy limit of $4\times 10^{45}$ erg assuming an X-ray burst emitted at the time of every radio burst. If we search for bursts at any time during X-ray observations of FRB 121102 we can place a 0.5–10 keV X-ray energy limit of $6\times 10^{46}$ erg and $1\times 10^{47}$ erg for XMM-Newton and Chandra observations, respectively, assuming a burst duration of 5 ms. These model-independent limits, however, assume an equal probability of source photons arriving across the entire 0.5–10 keV band, and do not take into account the effects of photoelectric absorption. These limits, therefore, can change significantly depending on the assumed spectral model, and come with several caveats which we will explore here.

4.1 Effect of source models and caveats

Potential sources of X-ray bursts that accompany FRBs can have different underlying spectra. Here we explore the effect of different source spectra on the fluence limits. To generate the assumed source spectra we use XSPEC v12.9.0n using abundances from Wilms et al. (2000) and photoelectric cross-sections from Verner et al. (1996) for $N_{\mathrm{H}}$.

We initially estimate the $N_{\mathrm{H}}$ to the source from the DM–$N_{\mathrm{H}}$ relation of He et al. (2013). We take the DM contribution from our Galaxy to be 188 pc cm*-3* (from the NE2001 model of Cordes & Lazio, 2002). The DM of the host has been estimated to be $55\stackrel{{\scriptstyle<}}{{{}_{\sim}}}\mathrm{DM}_{\mathrm{host}}\stackrel{{\scriptstyle<}}{{{}_{\sim}}}225$ pc cm*-3* (Tendulkar et al., 2017), so we use the average value of 140 pc cm*-3*. We assume that the IGM does not have a significant contribution to the $N_{\mathrm{H}}$, as it is expected to be nearly fully ionized and thus provides negligible X-ray absorption (e.g. Behar et al., 2011; Starling et al., 2013). This Galactic plus host DM of 328 pc cm*-3* corresponds to N_{\mathrm{H}}$$\sim 1\times 10^{22} cm*-2*.

However, such a determination only holds in environments similar to our Galaxy. Photoelectric absorption and dispersion are dominated by separate components of the ISM, namely atomic metals and free electrons, respectively, and their ratios could be significantly different in other environments. To illustrate the effect of excess X-ray absorption, we also consider a case where the $N_{\mathrm{H}}$ is two orders of magnitude higher at $\sim 1\times 10^{24}$ cm*-2*. At this $N_{\mathrm{H}}$ nearly all of the 0.5–10 keV X-ray flux is absorbed. This situation may be possible in a supernova remnant in the first few decades following the supernova, where the ratio of atomic metals to free electrons could be high (Metzger et al., 2017).

For the spectra of the bursts we assume a few fiducial models. We take a blackbody spectrum with $kT=10$ keV as a model similar to those observed in magnetar hard X-ray bursts (e.g. Lin et al., 2012; An et al., 2014). We take a cutoff power-law with index $\Gamma=0.5$ and cutoff energy of 500 keV as a spectrum typical of a magnetar giant flare (Mazets et al., 2005; Palmer et al., 2005, for SGR 1806$-$20). Finally, we use a power-law model with index $\Gamma=2$ as an example soft spectrum to contrast with the harder magnetar models.

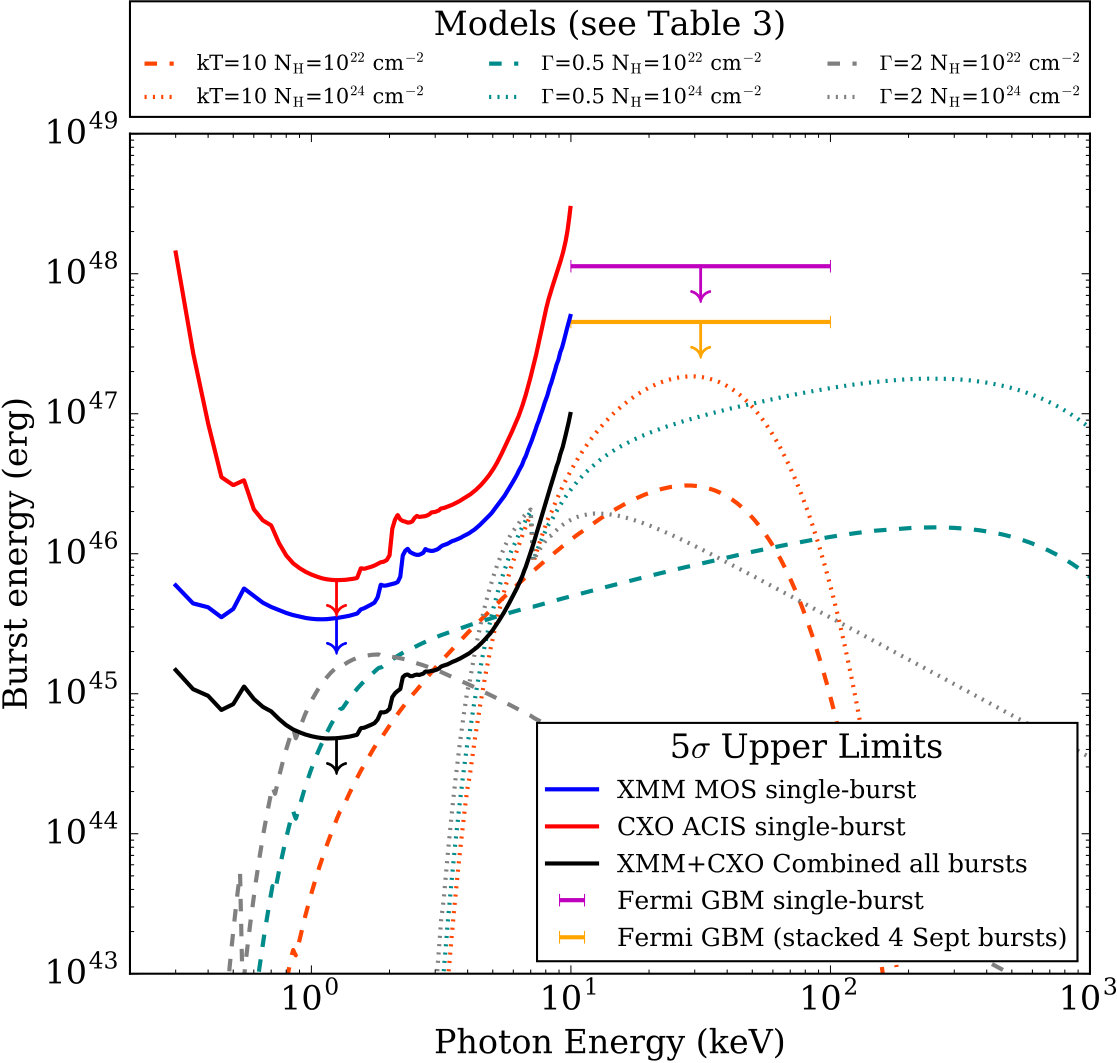

In Table 3 we give the fluence limits for each of these models and the implied limit on their unabsorbed emitted energy both in the 0.5–10 keV band and extrapolated to the 10 keV–1 MeV gamma-ray band. Note that the energy limits are highly dependent on the amount of absorption and the gamma-ray energy is heavily dependent on the assumed spectrum, as it is extrapolated outside of the 0.5–10 keV band. In Figure 5 we plot each model normalized to its fluence upper limit.

It is clear that assumptions on the underlying spectral model change the implication for the X-ray–gamma-ray luminosity. If the X-ray absorption is increased, the energy limits for the models in Table 3 increase by 1–2 orders of magnitude. Furthermore, a burst that primarily emits energy outside of the 0.5–10 keV soft X-ray band, similar to the magnetar burst and flare models in Table 3, can be much more luminous than in a soft model and be undetectable by Chandra and XMM-Newton.

\floattable

When searching for X-rays at the time of radio bursts and placing an associated limit, we are assuming that an X-ray burst is emitted at the same time as each radio burst and that periods of radio burst activity are correlated with X-ray activity. However, if the episodic detection of radio bursts is not intrinsic but due to amplification of the intrinsic emission from lensing by the intervening medium (e.g. Cordes et al., 2017), the detection of radio bursts and X-ray bursts may not be strongly correlated. If the radio bursts are externally amplified, their intrinsic energies could be lower by $\stackrel{{\scriptstyle<}}{{{}_{\sim}}}10^{2}$ than what is implied from their detection (Cordes et al., 2017). So, if the intrinsic source of FRBs also produces X-ray emission with a fluence ratio $F_{R}/F_{X}$, the expected X-ray emission could be up to two orders of magnitude lower if the radio burst is extrinsically amplified.

4.2 Comparison to previous limits

For all of the known FRBs at the time, Tendulkar et al. (2016) placed a limit on the fluence ratio defined as $\eta=F_{\mathrm{1.4\,GHz}}/F_{\gamma}$, where $F_{\mathrm{1.4\,GHz}}$ is the radio fluence at a frequency of 1.4 GHz and $F_{\gamma}$ is the gamma-ray fluence. The most constraining limit is for FRB 010724 with $\eta>8\times 10^{8}$ Jy ms erg*-1* cm2. If we assume our fiducial giant flare model (i.e. cut-off powerlaw with $\Gamma=0.5$ and cutoff energy of 500 keV) with $N_{\mathrm{H}}$=$10^{22}$ cm*-2*, our gamma-ray fluence limit is $1\times 10^{-10}$ erg cm*-2* for a typical photon energy of 20 keV (as in Tendulkar et al., 2016). If we further assume that the 1.4 GHz fluence is approximately the same as the 2 GHz fluence, we can place a lower limit on the ratio of radio to gamma-ray fluence of $\eta>6\times 10^{9}$ Jy ms erg*-1* cm2 for FRB 121102. We can also compare to our Fermi/GBM limits which, though less constraining, do not rely on an extrapolation from soft X-rays into gamma-ray wavelengths. Using this limit the corresponding fluence ratio limit is $\eta>2\times 10^{8}$ Jy ms erg*-1* cm2.

A gamma-ray burst counterpart to FRB 131104 with energy of $5\times 10^{51}$ erg has been claimed by DeLaunay et al. (2016), though it has been contested by Shannon & Ravi (2017). The implied radio to gamma-ray fluence ratio from the claimed detection is $\eta=6\times 10^{5}$ Jy ms erg*-1* cm2. DeLaunay et al. (2016) also searched for Swift/BAT sub-threshold events at any time Swift/BAT was pointed towards the source for 16 FRBs, including FRB 121102, and concluded that there is no evidence for repeated gamma-ray emission from those FRBs above Swift/BAT sensitivities. We can nevertheless compare our limits to an event similar to that claimed for FRB 131104. Our limits clearly rule out an event of that magnitude at any time during XMM-Newton or Chandra observations of FRB 121102. Further, such an event is clearly ruled out from the Fermi/GBM limits, both at the time of the bursts and at any time while FRB 121102 is visible to GBM and actively emitting radio bursts.

4.3 Models of FRBs

Models of FRBs from magnetars predict a small ratio between the fluence of radio and high-energy emission. Since the radio is a small fraction of the total emitted energy in these models, high-energy emission may be detectable. Based on analogies to solar flares, Lyutikov (2002) estimates a ratio of $10^{-4}$. Lyubarsky (2014) predicts $10^{-5}-10^{-6}$ based on a model of a synchrotron maser produced from a magnetized shock during magnetar activity. Our X-ray limit implies a radio-to-X-ray ratio of $>10^{-6}-10^{-8}$, depending on the spectral model and the absorbing column, which is close to the range where we can begin constraining these models.

We can also compare our limits to the most luminous magnetar giant flare emitted in our Galaxy, that of SGR 1806$-$20. The 2004 giant flare had a spectrum similar to that of our canonical giant flare in Table 3, a gamma-ray luminosity of $\sim 10^{47}$ erg s*-1*, and a duration of $\sim 100$ ms (Mazets et al., 2005; Palmer et al., 2005). For the N_{\mathrm{H}}$$=1\times 10^{22} cm*-2* case, this corresponds to a 0.5–10 keV fluence of $\sim 5\times 10^{-12}$ erg cm*-2* at the luminosity distance of FRB 121102. This is approximately an order of magnitude lower than our corresponding extrapolated limit.

4.4 The nature of the persistent source

Chatterjee et al. (2017) showed that FRB 121102 is associated with a $\sim 0.2$ mJy persistent radio source and Marcote et al. (2017) further showed, using European VLBI Network observations, that the persistent source is compact to a projected size of 0.7 pc and consistent with being coincident with the source of the FRB 121102 bursts. Two possible scenarios are considered in Marcote et al. (2017) for the persistent source: an extragalactic neutron star embedded in a supernova remnant (SNR), perhaps producing a pulsar wind nebula (PWN). Alternatively, an AGN origin is considered. Here we explore how the limit on X-ray emission from a persistent source at the location of FRB 121102 informs these scenarios.

At the luminosity distance of FRB 121102, 972 Mpc (Tendulkar et al., 2017), no nebula similar to those in our Galaxy would be visible by several orders of magnitude (e.g. the Crab nebula would have a 0.5–10 keV X-ray flux of $\sim 1\times 10^{-19}$ erg s*-1* cm*-2*, well below the sensitivities of current X-ray detectors). However, given the possibility that the radio bursts of FRB 121102 originate from a young neutron star (e.g. Cordes & Wasserman, 2016; Lyutikov et al., 2016; Katz, 2016b), a nebula resulting from either the supernova that produced the neutron star or a wind driven by either the rotational (PWN) or magnetic (magnetar wind nebula) energy of the young neutron star is an attractive model for the persistent radio source (Metzger et al., 2017).

Given the existence of a luminous persistent radio source at such a distance, one might also expect an exceptionally luminous X-ray source. Taking the Crab nebula and scaling its X-ray flux by the ratio between its radio luminosity and the radio luminosity of the persistent counterpart to FRB 121102 (a factor of $4\times 10^{5}$), we arrive at a 0.5–10 keV X-ray flux of $\sim 5\times 10^{-14}$ erg s*-1* cm*-2*. This is over an order of magnitude brighter than the 5$\sigma$ limit that we placed in Section 3.4. We can therefore confidently rule out a scaled version of the Crab nebula. However, such a nebula, powered by a young ($<100$ yr) pulsar or magnetar, does not have an analogue in our Galaxy, and may therefore have properties different from that of the Crab. Furthermore, in the case that the nebula is a bright X-ray emitter, the soft X-rays may be absorbed by the supernova ejecta (Metzger et al., 2017). For example, assuming a Crab-like X-ray spectrum, our hypothetical ‘scaled-Crab’ nebula would have an absorbed 0.5–10 keV X-ray flux below our 5$\sigma$ limit for N_{\mathrm{H}}$$\stackrel{{\scriptstyle>}}{{{}_{\sim}}}5\times 10^{23}  cm*-2*.

The persistent source coincident with FRB 121102 could also plausibly be a massive black hole, resembling the properties observed in low-luminosity active galactic nuclei (LLAGNs). It was shown by Marcote et al. (2017) that the observed persistent radio emission cannot be explained by either a stellar-mass black hole (such as in X-ray binaries) or an intermediate-mass black hole. On the other hand, the mass of a super-massive black hole is constrained by the stellar mass of the dwarf galaxy (Tendulkar et al., 2017). We would thus expect a black hole mass in the range $\sim 10^{5}-10^{7}\ \mathrm{M_{\odot}}$.

Considering our upper-limit on the X-ray emission (which implies a luminosity of $\lesssim 10^{41}\ \mathrm{erg\ s^{-1}}$) and the radio flux density at 5 GHz (Chatterjee et al., 2017; Marcote et al., 2017) we infer a ratio between the radio and X-ray luminosities (Terashima & Wilson, 2003) of $\log R_{\rm X}\gtrsim-2.7$, consistent with the ratio observed in radio-loud AGNs (Ho, 2008). This ratio is also consistent with the values of $R_{\rm X}\sim-2$ observed in radio-loud LLAGNs (Paragi et al., 2012) and so a massive black hole resembling a radio-loud LLAGNs but scaled down in mass remains a plausible model for the persistent radio source.

5 Conclusion

Here we have placed the deepest limits to date on soft (0.5–10 keV) X-ray emission emitted during FRBs as well as from persistent X-ray emission from the location of an FRB source. These limits rule out extreme scenarios but allow many reasonable models. Our limits on the 0.5-10 keV burst energy at the time of radio bursts range from $10^{45}$ to $10^{47}$ erg depending on the underlying model and level of X-ray absorption. We can confidently rule out events with GRB-like energies  ($\stackrel{{\scriptstyle>}}{{{}_{\sim}}}10^{49}$ erg). Our limits, however, are about an order of magnitude higher than the brightest observed Galactic giant flare, so we do not rule out that model. However, X-ray bursts from possible FRB sources, like magnetars, may emit the majority of their flux at photon energies higher than 10 keV. Pointed hard X-ray/soft gamma-ray observations with telescopes such as NuSTAR will therefore be interesting.

Our limit on the persistent luminosity of an X-ray source at the location of the FRB 121102 source is $3\times 10^{41}$ erg s*-1*. We showed that if we assume that the persistent radio source at the location of FRB 121102 has a Crab Nebula-like spectrum, it should have been detectable in our X-ray observations. However, such a nebula could be undetectable if there is a high amount of X-ray absorption, or if the nebular spectrum has a higher radio-X-ray luminosity ratio than that of the Crab Nebula. We also show that the radio-X-ray luminosity ratio limit is consistent with known radio-loud LLAGNs.

More fundamentally, at $\sim$Gpc distances, the fluxes we expect for shorter wavelength (i.e. optical–X-ray–gamma-ray) counterparts are unreachable at millisecond timescales if the energy emitted at those wavelengths is comparable to the emitted radio energy of FRBs. Therefore, if an event that produces an FRB emits a large fraction of its energy at radio wavelengths we would not expect multi-wavelength burst counterparts to be detectable. However, we must place the most stringent limits possible in case the converse, that the radio emission is a small fraction of the total emitted energy, is true. Such limits therefore inform possible models of FRBs. In the future, with instruments that promise to detect large numbers of FRBs (e.g. CHIME, UTMOST, DSA-10, ALERT) we may accumulate a sample of relatively nearby ($\stackrel{{\scriptstyle<}}{{{}_{\sim}}}$100 Mpc), bright, repeating FRBs which would be more likely to have detectable high-energy burst counterparts.

P.S. is a Covington Fellow at DRAO. S.B. and S.C. acknowledge support from NASA Chandra grants GO7-18059A and GO7-18059B issued by the Chandra X-ray Observatory Center, which is operated by the Smithsonian Astrophysical Observatory for and on behalf of NASA under contract NAS8-03060. J.W.T.H. acknowledges funding from an NWO Vidi fellowship. J.W.T.H. and C.G.B. acknowledge support from the European Research Council under the European Union’s Seventh Framework Programme (FP/2007-2013) / ERC Grant Agreement nr. 337062 (DRAGNET; PI Hessels). L.G.S. gratefully acknowledges support from the ERC Starting Grant BEACON under contract no. 279702 and the Max Planck Society. V.M.K. holds the Lorne Trottier and a Canada Research Chair and receives support from an NSERC Discovery Grant and Herzberg Prize, from an R. Howard Webster Foundation Fellowship from the Canadian Institute for Advanced Research (CIFAR), and from the FRQNT Centre de Recherche en Astrophysique du Quebec. C.J.L. is supported by the NSF under Grant No. 1611606. B.M. acknowledges support from the Spanish Ministerio de Economía y Competitividad (MINECO) under grants AYA2016-76012-C3-1-P and MDM-2014-0369 of ICCUB (Unidad de Excelencia “María de Maeztu”). The Green Bank Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities, Inc. The Arecibo Observatory is operated by SRI International under a cooperative agreement with the National Science Foundation (AST-1100968), and in alliance with Ana G. Méndez-Universidad Metropolitana, and the Universities Space Research Association. Based on observations with the 100-m telescope of the MPIfR (Max-Planck-Institut für Radioastronomie) at Effelsberg. Based on observations obtained with XMM-Newton, an ESA science mission with instruments and contributions directly funded by ESA Member States and NASA. This research has made use of data obtained from the Chandra Data Archive, and software provided by the Chandra X-ray Center (CXC) in the application package CIAO.
