Time-dependent mean-field investigations of the quasifission process

TL;DR

This paper explores the use of time-dependent Hartree-Fock theory to understand quasifission dynamics, which are crucial for the formation of superheavy elements, and discusses potential extensions for analyzing observable distributions.

Contribution

It introduces a microscopic TDHF approach to study quasifission and proposes extensions to better analyze nuclear observables related to superheavy element formation.

Findings

TDHF effectively models quasifission dynamics.

Calculations inform compound nucleus formation probabilities.

Extensions can improve observable distribution analysis.

Abstract

We demonstrate that the microscopic Time-dependent Hartree-Fock (TDHF) theory provides an important approach to shed light on the nuclear dynamics leading to the formation of superheavy elements. In particular, we discuss studying quasifission dynamics and calculating ingredients for compound nucleus formation probability calculations. We also discuss possible extensions to TDHF to address the distribution of observables.

Figures

Equations

$${\sigma }_{\mathrm{ER}}=\sum _{L=0}^{J_{\max }}{\sigma }_{\mathrm{cap}}(E_{c.m.},L)P_{\mathrm{CN}}(E^{\ast },L)W_{\mathrm{sur}}(E^{\ast },L),$$

$$W(\theta )=\sum _{J=0}^{J_{\mathrm{CN}}}{\mathcal{F}}_J^{(FF)}(\theta ,K_0^2(\alpha ))+\sum _{J=J_{\mathrm{CN}}}^{J_{\max }}{\mathcal{F}}_J^{(QF)}(\theta ,K_0^2(\alpha )),$$

$${\Im }_{ij}(t)/m=\int \text{leavevmode}{d}^{3}r\rho (\mathbf{r},t)(r^2{\delta }_{ij}-x_i{x}_j),$$

Full text

1 Introduction

Synthesis of superheavy elements (SHE) (dullmann2015, ) with fusion-evaporation reactions is strongly hindered by the quasifission (QF) mechanism which prevents the formation of an equilibrated compound nucleus and depends on the structure of the reactants. Within the last few years the time-dependent Hartree-Fock (TDHF) approach negele1982 ; simenel2012 ; nakatsukasa2016 has been utilized for studying the dynamics of quasifission golabek2009 ; kedziora2010 ; simenel2012 ; simenel2012b ; wakhle2014 ; oberacker2014 ; hammerton2015 ; umar2015c ; umar2015a ; sekizawa2016a ; umar2016 and scission dynamics simenel2014a ; scamps2015a ; simenel2016a ; goddard2015 ; goddard2016 ; bulgac2016 . Such calculations are now numerically feasible to perform on a 3D Cartesian grid without any symmetry restrictions and with much more accurate numerical methods umar2006c ; sekizawa2013 ; maruhn2014 ; schuetrumpf2016 .

Much progress has been obtained by the community working on developments and applications of the time-dependent mean-field approaches to nuclear dynamics since the last edition of the FUSION conference scamps2015 ; sekizawa2015b ; simenel2015a ; stevenson2015 ; wakhle2015 ; washiyama2015b . Particularly, the study of quasifission is showing a great promise to provide insight based on very favorable comparisons with experimental data wakhle2014 ; hammerton2015 . These include comparison with experimental kinetic energy (TKE) and mass-angle distributions (MAD). In particular, the dependence of quasifission on the orientation of deformed nuclei hinde1996 ; hinde2008 ; nishio2008 ; nishio2012 , time-scales for the quasifission process toke1985 ; rietz2011 ; rietz2013 , the connection between the sticking times and the rotation of the compound nucleus toke1985 ; thomas2008 , influence of magic shells itkis2004 ; knyazheva2007 ; kozulin2014 ; wakhle2014 are some of the experimental insights obtained from the theory. Similarly, an extension of TDHF called the density-constrained TDHF umar2006b ; umar2009a (DC-TDHF) has been used to obtain microscopic potential barriers, capture cross-sections, and excitation energies for superheavy oberacker2010 ; umar2010a and lighter systems umar2006a ; umar2012a .

2 Insights from TDHF

2.1 Capture cross-sections

The experiments to discover new elements are notoriously difficult, with fusion evaporation residue (ER) cross-section in pico-barns. This cross-section is commonly expressed in the product form

[TABLE]

where $\sigma_{\mathrm{cap}}(E_{\mathrm{c.m.}},L)$ is the capture cross section at center of mass energy $E_{\mathrm{c.m.}}$ and angular momentum $L$. $P_{\mathrm{CN}}$ is the probability that the composite system fuses into a compound nucleus (CN) rather than breaking up via quasifission, and $W_{\mathrm{sur}}$ is the survival probability of the fused system against fission.

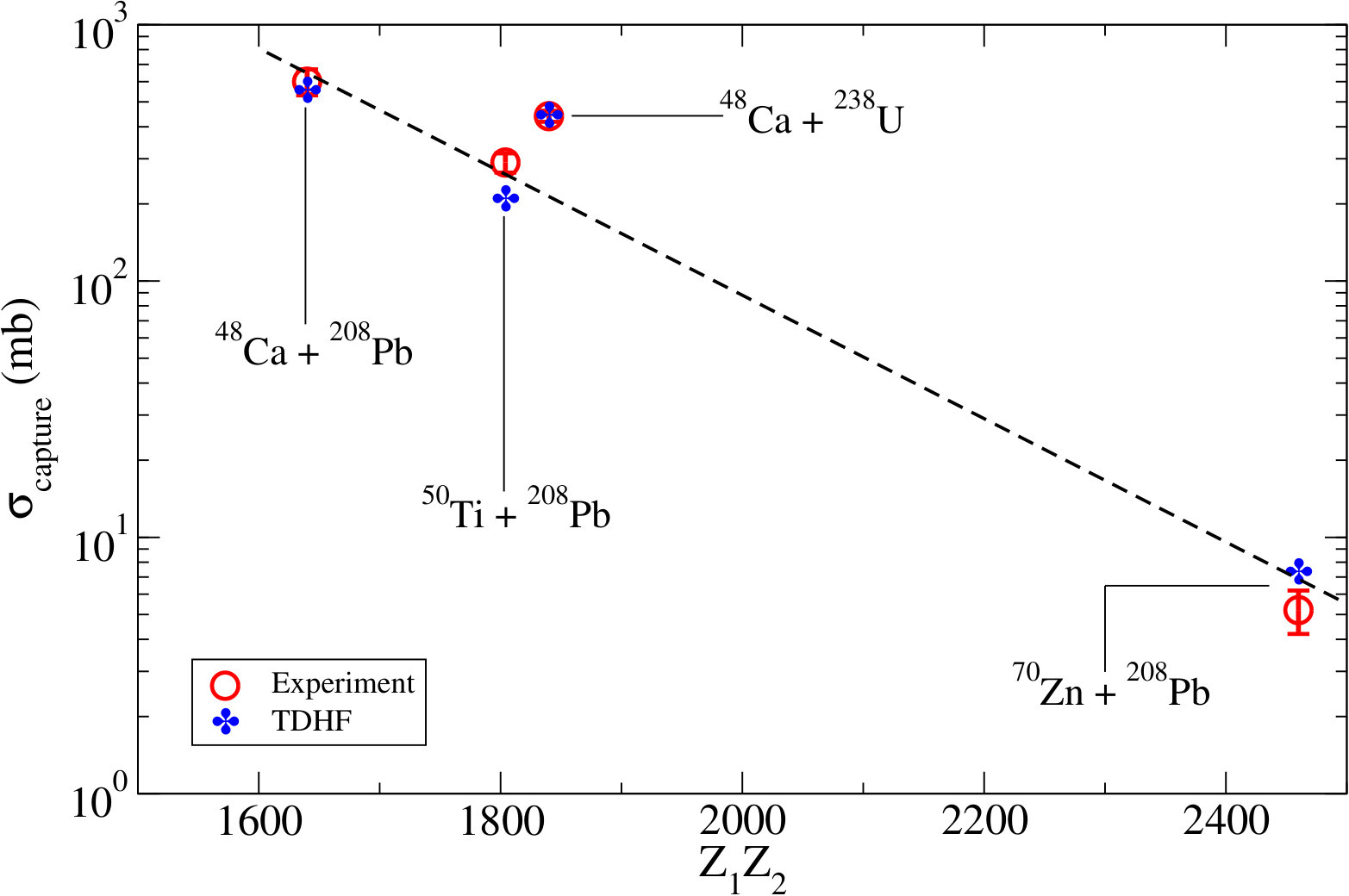

The TDHF time-evolution coupled with the DC-TDHF approach have been used to calculate capture cross-sections (cross-section for the system to be trapped in a potential pocket) for a variety of systems umar2010a ; oberacker2010 . Calculation of capture cross-sections for reactions involving deformed nuclei are particularly difficult since an average over all orientations of the deformed nucleus with respect to the beam direction has to be taken umar2006a . In Fig. 1 we plot the calculated capture cross-sections with the corresponding experimental ones. We see that there is a very reasonable agreement with the experiment for these systems. The dashed line shows a linear dependence for systems with 208Pb as the target. The systems with 238U target fall on another line with different slope kozulin2016 ; bock1982 ; toke1985 .

2.2 Mass-angle distributions

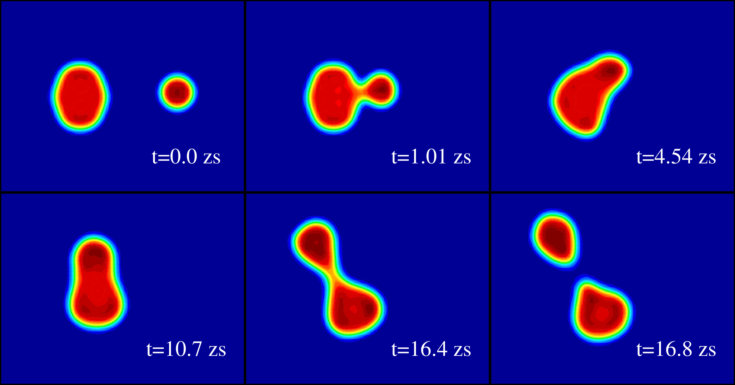

Study of quasifission together with capture are intimately related to understanding the process for forming a compound nucleus, the quantity named $P_{\mathrm{CN}}$ in Eq. 1 yanez2013 . Figure 2 shows the time-evolution of the ${}^{50}\mathrm{Ti}+^{249}\mathrm{Bk}$ reaction at $E_{\mathrm{c.m.}}=233$ MeV and impact parameter $b=1.0$ fm umar2016 . For this impact parameter and energy TDHF theory predicts quasifission.

As the nuclei approach each other, a neck forms between the two fragments which grows in size as the system begins to rotate. Due to the Coulomb repulsion and centrifugal forces, the dinuclear system elongates and forms a very long neck which eventually ruptures leading to two separated fragments. In this case, the contact time is found to be $16$ zs.

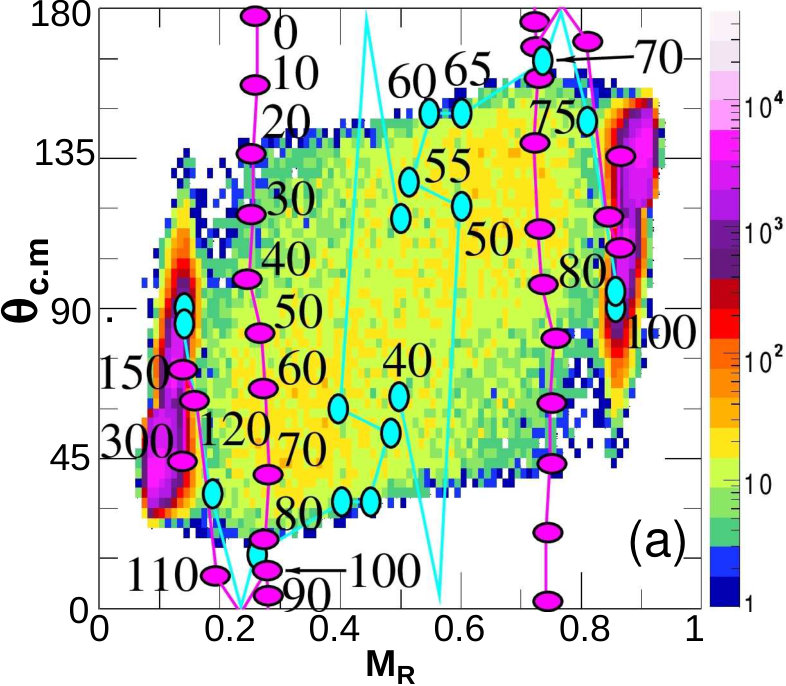

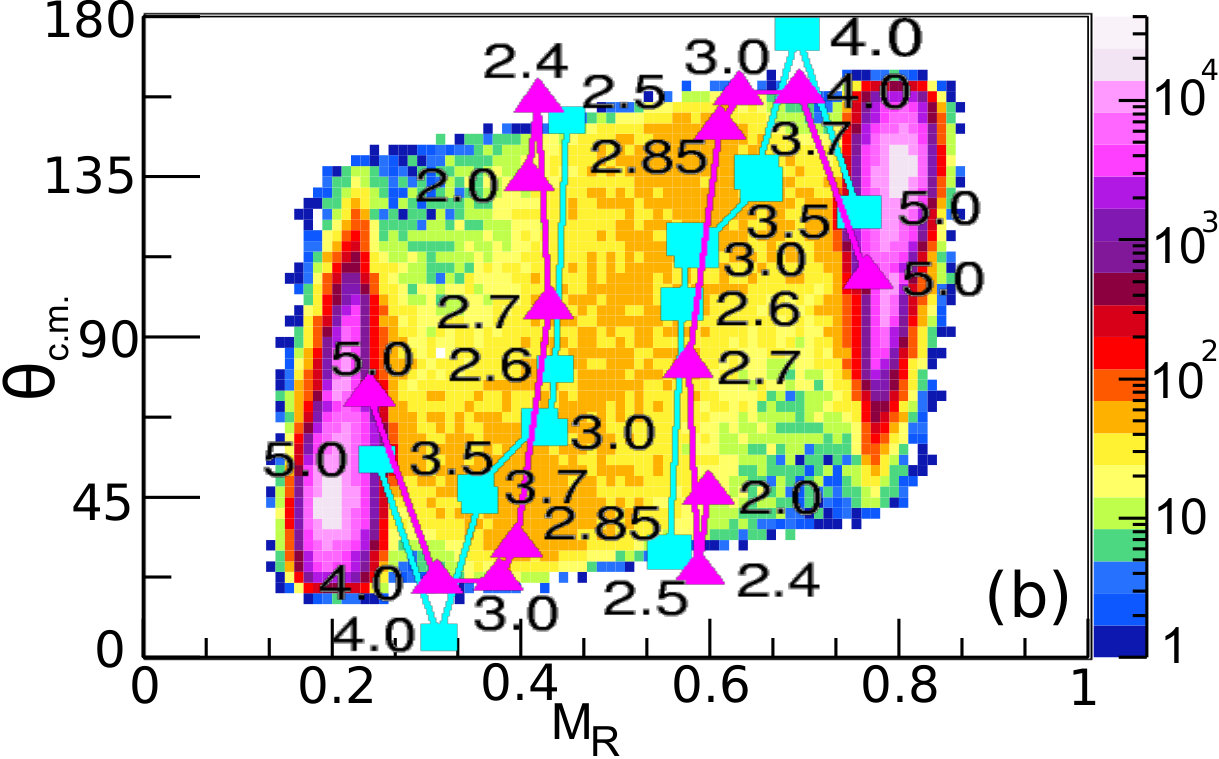

The utilization of TDHF to study quasifission can serve to gain insights about this reaction process that is not easily available from the experiments. Experimentally, the produced fragments in the collisions of relatively heavy systems originate from deep-inelastic, quasifission, and fusion-fission events. Fragments produced from deep-inelastic collisions correspond to smaller mass/charge exchange, while the fragments from the fusion-fission peak around the symmetric breakup of the equilibrated excited compound nucleus. Fragments coming from the quasifission process fill the region in between but can also contribute to the symmetric breakup region. Sometimes these are referred to as fast-quasifission (t$\approx$few-35 zs) versus slow-quasifission (t>35 zs). We observe that the quasifission is a dynamical process and does not correspond to an equilibrated system. One of the best ways to visualize the distribution of produced fragments is through the so-called mass-angle distribution (MAD) toke1985 ; hinde2008 . In Fig. 3 we show MADs corresponding to two reactions (a) 40Ca+238U at energy $E_{\mathrm{c.m.}}/V_{B}=1.142$ wakhle2014 , and (b) 54Cr+186W at energy $E_{\mathrm{c.m.}}/V_{B}=1.130$ hammerton2015 , where $V_{B}$ corresponds to the Bass barrier height. The plot shows the detected fragments with respect to their c.m. detection angle and mass-ratio $M_{R}=M_{1}/(M_{1}+M_{2})$. The filled symbols show the fragments obtained from TDHF calculations marked by the value of the initial orbital angular momentum in units of $\hbar$ (a) or the impact parameter in units of fm (b). The multiplicity of the experimental masses are shown in the adjoint legends. These reactions illustrate very clearly the deformation dependence of the quasifission products. For the highly asymmetric reactions involving an actinide nucleus such as the 40Ca+238U system, the large deformation of Uranium has a major impact on quasifission products. As we see in Fig. 3(a) the TDHF results originating from collisions with the tip of the Uranium (purple symbols) contribute mainly to the mass asymmetric regions, whereas collisions with the side of the Uranium (cyan symbols) provide significant contribution to the more mass symmetric region. For the less mass asymmetric and neutron-rich system 54Cr+186W shown in Fig. 3(b) TDHF contributes less to the mass symmetric region and the effects of deformation has largely disappeared.

The primary reason for the tip orientation resulting in a more asymmetric breakup is due to the fact that for this orientation nuclei come into contact earlier and rapid excitation builds up while the system is still in a less compact configuration umar2010a . We also note that the calculations correctly produce the transition from deep-inelastic to the quasifission regime. In addition, TDHF calculations also explain the dependence of MADs on the beam energy wakhle2014 , as well as the dependence on the neutron-richness of the target and/or projectile hammerton2015 .

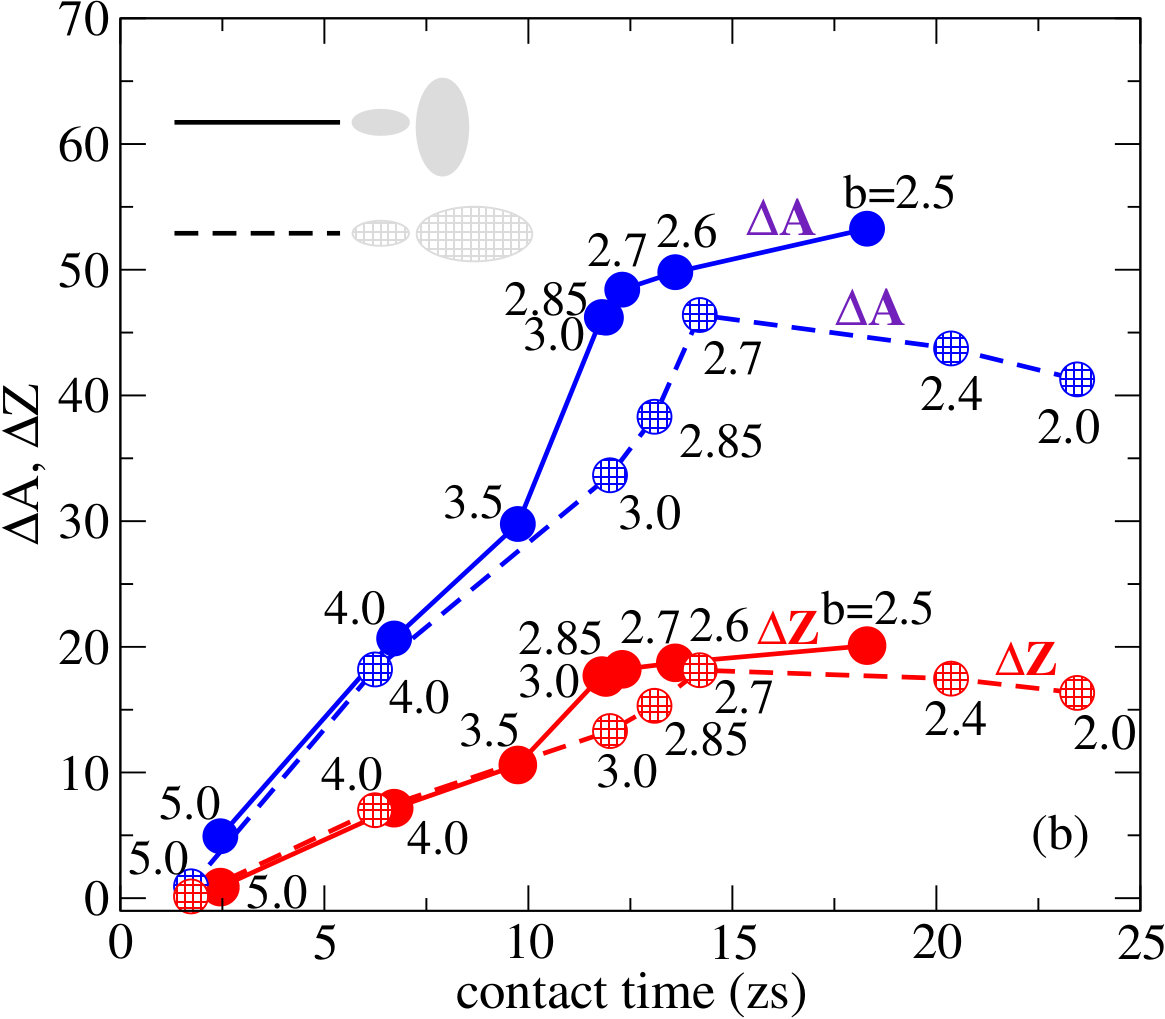

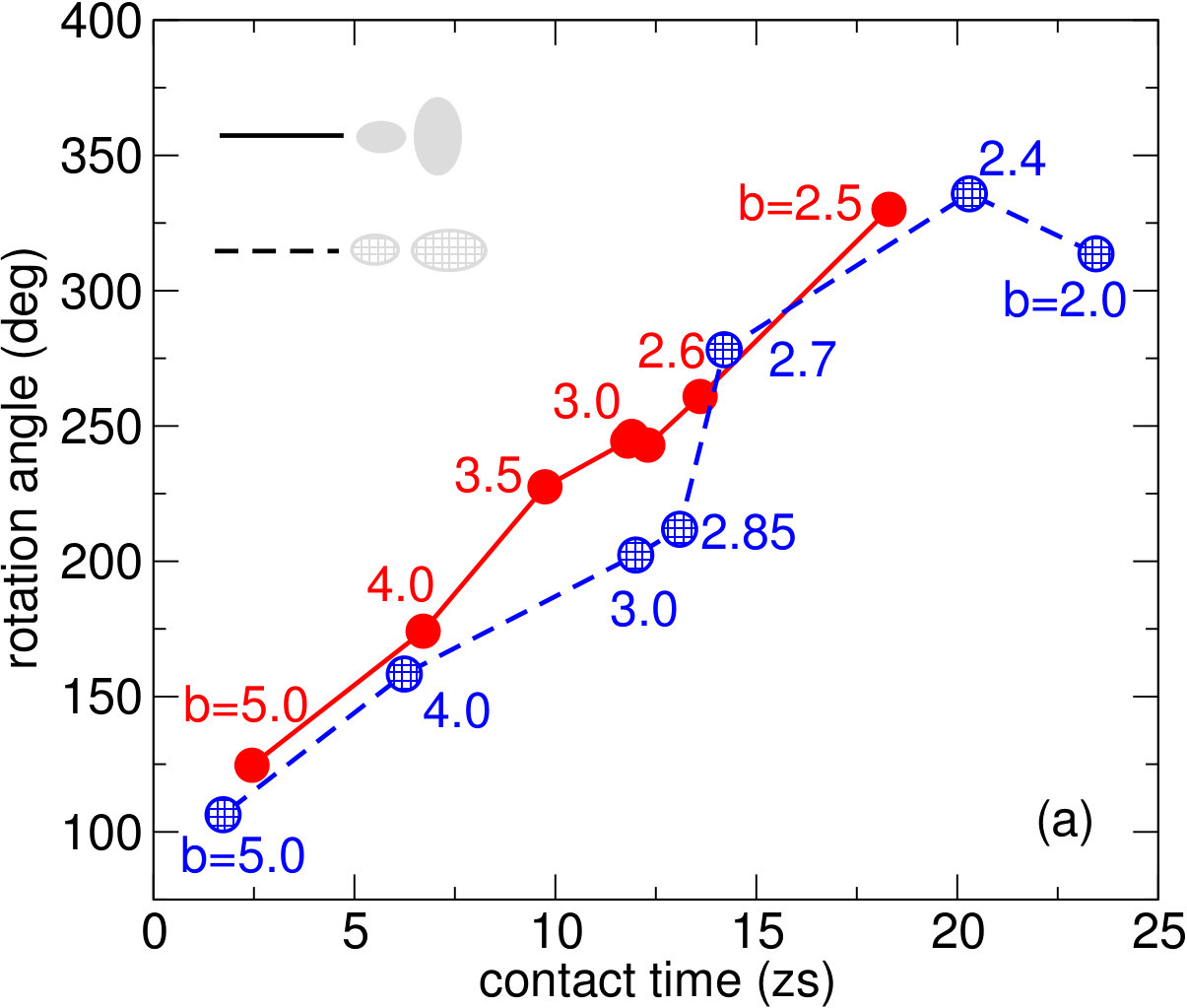

Other quantities that can be studied are the relationship between the mass/charge transfer and rotation angle with the contact-time (time interval from initial contact to scission). In Fig. 4 we show these quantities for 54Cr+186W at energy $E_{\mathrm{c.m.}}/V_{B}=1.130$. In Fig. 4 we plot the rotation angle (a) and mass/charge transfer (b) as a function of contact time (zs) for 54Cr+186W at energy $E_{\mathrm{c.m.}}/V_{B}=1.130$. The numbers adjoint to points indicate the impact parameter in units of fm. We note from Fig. 4(a) that the rotation angle generally increases for smaller impact parameters with the caveat that for small impact parameters the relationship may not be linear i.e. the rotation angle for $b=2.4$ fm is longer than that for $b=2.0$ fm. This was also observed for other systems umar2016 . A similar behavior is observed in the mass and charge transfer for the tip orientation as seen in Fig. 4(b).

2.3 Fragment TKEs

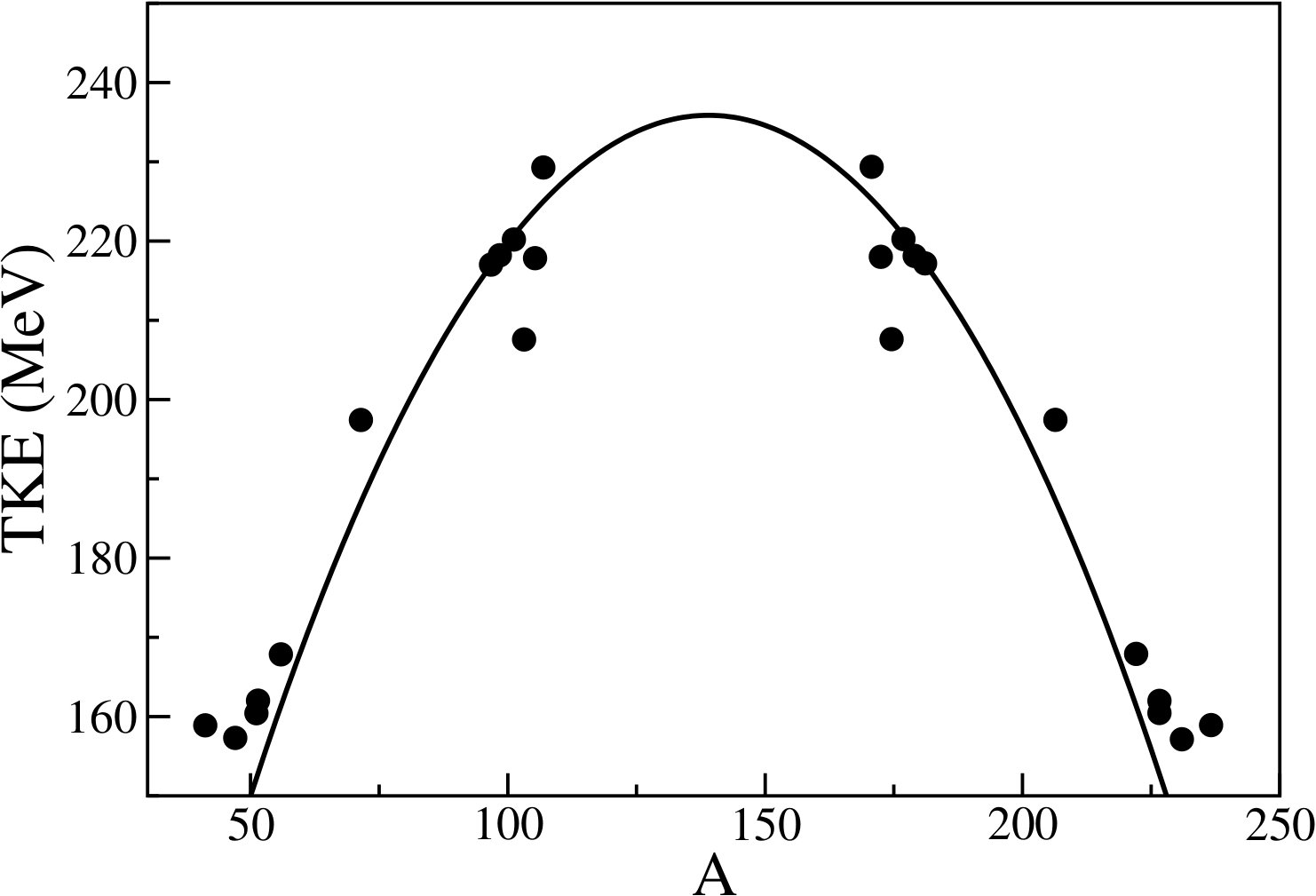

The total kinetic energy of the fission fragments has been investigated experimentally for several systems itkis2004 ; knyazheva2007 ; kozulin2014 The quasi-fission contact times are long enough to enable the conversion of the initial relative kinetic energy in to internal excitations. Experimentally, the measured total kinetic energy (TKE) of the quasi-fission fragments in 40,48Ca+238U reactions is in relatively good agreement with the Viola systematics toke1985 ; nishio2012 . The TDHF approach contains one-body dissipation mechanisms which are dominant at near-barrier energy. It can then be used to predict the final TKE of the fragments. The TKE of the fragments formed in 40Ca+238U have been computed for a range of central collisions up to $10\%$ above the barrier. Figure 5 shows that the TDHF predictions of TKE are in excellent agreement with the Viola systematics viola1985 ; hinde1992 . This indicates that the relative TKE of the quasi-fission fragments are primarily due to their Coulomb repulsion and do not carry a fraction of the initial TKE as is the case for deep-inelastic collisions.

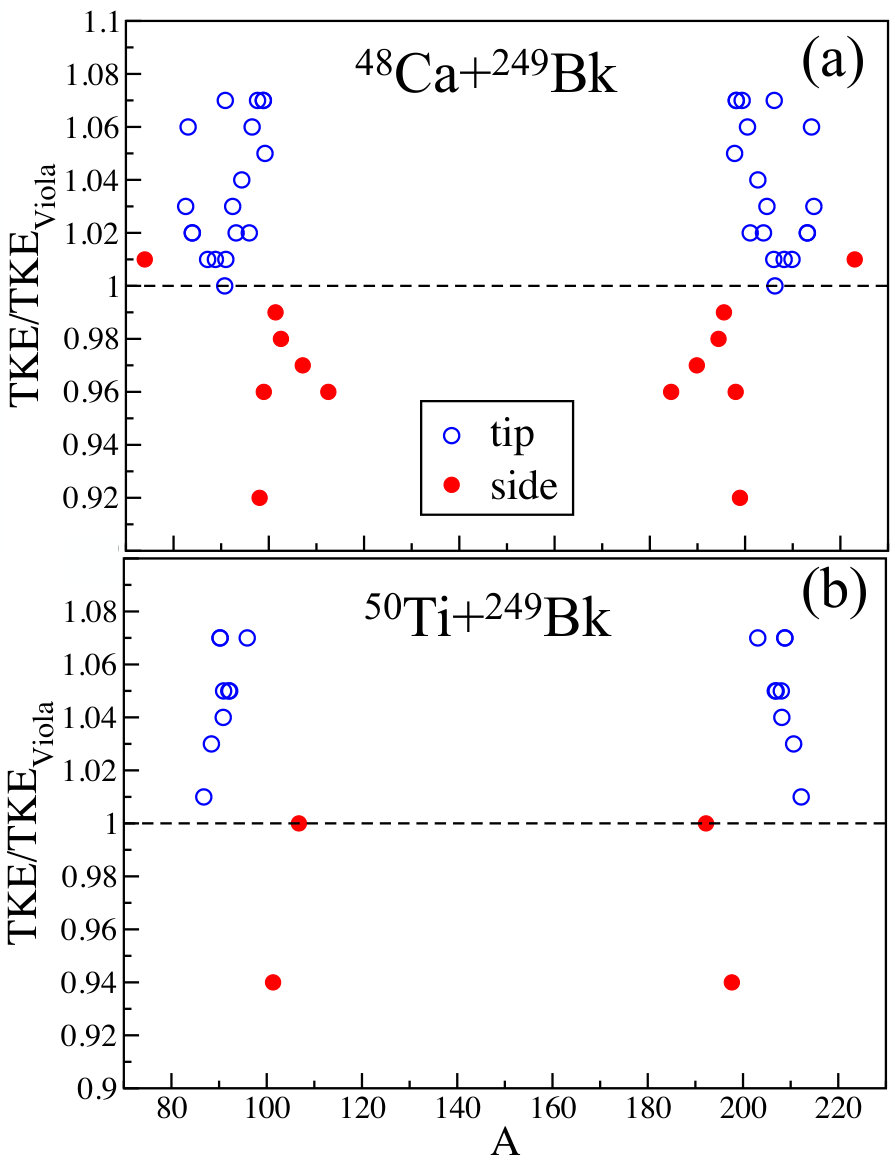

However, a detailed study of the 48Ca,50Ti+249Bk systems also shows an influence of the orientation on the TKE umar2016 . This is illustrated in Fig. 6 which shows that collisions with the tip are less dissipated than collisions with the side of the actinide. Recently, very nice results have also been obtained for the 64Ni+238U system sekizawa2016 which compares favorably to the experiment kozulin2016 .

2.4 Shape evolutions

The proper characterization of fusion-fission and quasifission is one of the most important tasks in analyzing reactions leading to superheavy elements. Experimental analysis of fusion-fission and quasifission fragment angular distributions $W(\theta)$ is commonly expressed in terms of a two-component expression huizenga1969 ; back1985 ; back1985a ; keller1987 ; tsang1983 ,

[TABLE]

where $\alpha\equiv FF$ (fusion-fission) or $QF$ (quasifission). Here, $J_{\mathrm{CN}}$ defines the boundary between fusion-fission and quasifission, assuming a sharp cutoff between the angular momentum distributions of each mechanism.

The quantum number $K$ is known to play an important role in fission vanbenbosch1973 . The latter is defined as the projection of the total angular momentum along the deformation axis. In the Transition State Model (TSM) vanbenbosch1973 , the characteristics of the fission fragments are determined by the $K$ distribution at scission. The argument $K_{0}$ entering Eq. 2 is the width of this distribution which is assumed to be Gaussian. It obeys $K_{0}^{2}=T\Im_{eff}/\hbar^{2}\;,$ where the effective moment of inertia, $\Im_{eff}$, is computed from the moments of inertia for rotations around the axis parallel and perpendicular to the principal deformation axis $\frac{1}{\Im_{eff}}=\frac{1}{\Im_{\parallel}}-\frac{1}{\Im_{\perp}}\;,$ and $T$ is the nuclear temperature at the saddle point. The physical parameters of the fusion-fission part are relatively well known from the liquid-drop model sierk1986 ; cohen1974 . In contrast, the quasifission process never reaches statistical equilibrium. In principle, it has to be treated dynamically, while Eq. (2) is based on a statistical approximation. In addition, the usual choice for the nuclear moment of inertia for the quasifission component, $\Im_{0}/\Im_{eff}=\text{1.5}$ back1985 ; yanez2013 ; loveland2015 , is somewhat arbitrary. Here, $\Im_{0}$ is the moment of inertia of an equivalent spherical nucleus.

We have developed methods to extract these ingredients directly from TDHF time-evolution of collisions resulting in quasifission umar2015a . The main collective observable of interest for fission and quasifission (both dynamical and statistical) studies is the moment of inertia of the system. The proper way to calculate the moment-of-inertia for such time-dependent densities (particularly for non-zero impact parameters) is to directly diagonalize the moment-of-inertia tensor represented by a $3\times 3$ matrix with elements

[TABLE]

where $\rho$ is the local number-density calculated from TDHF evolution, $m$ is the nucleon mass, and $x_{i=1,2,3}$ denote the Cartesian coordinates. Numerical diagonalization the matrix $\Im$ gives three eigenvalues. One eigenvalue corresponds to the moment-of-inertia $\Im_{\parallel}$ for the nuclear system rotating about the principal axis. The other two eigenvalues define the moments of inertia for rotations about axes perpendicular to the principal axis.

Using the time-dependent moment-of-inertia obtained from the TDHF collision one can calculate the so-called effective moment-of-inertia defined above. It is standard to compute the effective moment of inertia relative to a spherical system using the mass independent quantity $\Im_{0}/\Im_{eff}$, where $\Im_{0}$ is the moment-of-inertia of a spherical nucleus with the same number of nucleons tsang1983 ; yanez2013 .

In our publication umar2015a we have calculated the moment-of-inertia ratio for the 48Ca + 249Bk non-central collisions at $E_{\mathrm{c.m.}}=218$ MeV. At the point of final touching configuration the moment-of-inertia ratios are in the range $1.4-1.8$, suggesting a relatively strong impact parameter dependence. We have also studied the energy, impact parameter, and orientation dependence of this ratio and shown that a simple impact parameter modeling of the ratio may not be appropriate. Some of these methods have been utilized in experimental papers prasad2016 .

3 Beyond TDHF Calculations

The mean-field description of reactions using TDHF provides the mean values of the proton and neutron drift. It is also possible to compute the probability to form a fragment with a given number of nucleons koonin1977 ; simenel2010 ; sekizawa2013 ; scamps2013a , but the resulting fragment mass and charge distributions are often underestimated in dissipative collisions dasso1979 ; simenel2011 . Much effort has been done to improve the standard mean-field approximation by incorporating the fluctuation mechanism into the description. At low energies, the mean-field fluctuations make the dominant contribution to the fluctuation mechanism of the collective motion. Various extensions have been developed to study the fluctuations of one-body observables. These include the TDRPA approach of Balian and Vénéroni balian1992 , the time-dependent generator coordinate method goutte2005 , or the stochastic mean-field (SMF) method ayik2008 . The effects of two-body dissipation on reactions of heavy systems using the TDDM tohyama1985 ; tohyama2002a , approach have also been recently reported assie2009 ; tohyama2016 . Here we discuss some recent results using the SMF method ayik2015a .

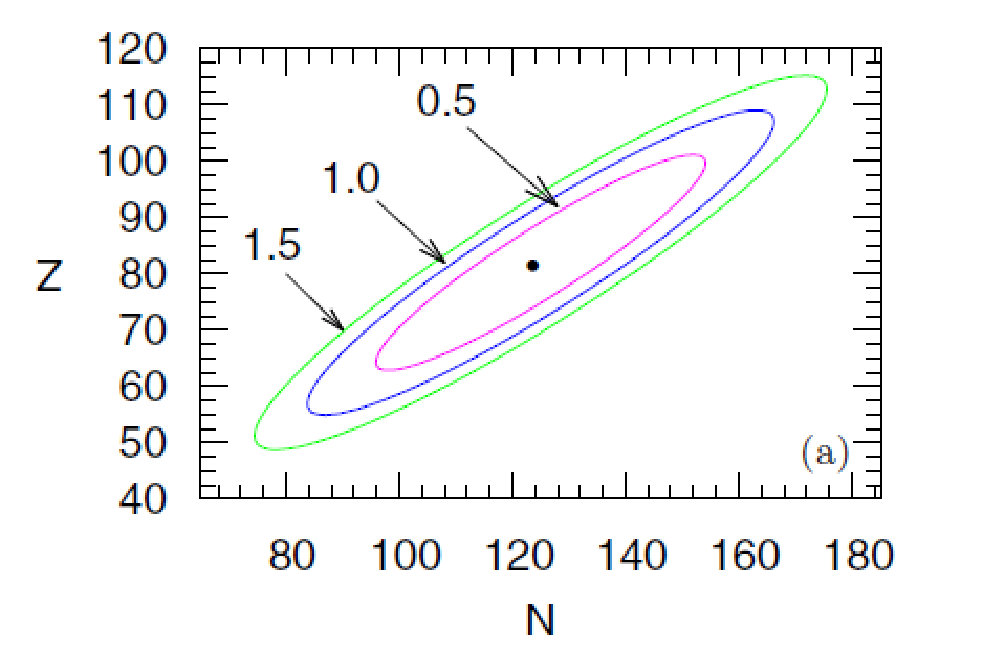

In the stochastic mean-field (SMF) approach, the fluctuations in the initial state are incorporated in a stochastic manner by introducing a proper distribution the initial single-particle density matrices ayik2008 . This results in an ensemble of single-particle density matrices generated by evolving each density in its own mean-field Hamiltonian. By calculating the expectation values of an observable in each event, it is possible to determine probability distributions of observables. In a number of studies, it has been shown that the SMF approach provides a good approximation for fluctuations of the collective motion. In particular, in small amplitude limit, the approach gives rise to the same expression for the dispersion of one-body observables familiar from the variational approach of Balian and Vénéroni balian1992 .

In the di-nuclear regime, the SMF approach gives rise to Langevin description for nucleon exchange between projectile-like and target-like nuclei characterized by diffusion and drift coefficients ayik2009 . It is well known that the Langevin description is equivalent to the evolution of the distribution function of the collective variable according to the Fokker-Plank equation. As a result of this equivalence, instead of carrying out stochastic simulations, it is more convenient to calculate the transport coefficients and employ the Fokker-Plank approach. When the drift coefficients are linear functions of mass and charge asymmetry variables, the primary fragment charge and mass distribution $P\left(N,Z,t\right)$, is given by a correlated Gaussian in the neutron-proton plane. The distribution function is specified by the mean neutron, $\overline{N}$, and mean proton, $\overline{Z}$, numbers of target-like or project-like fragments, and co-variances $\sigma_{NN}$, $\sigma_{ZZ}$, and $\sigma_{NZ}$ . The co-variances are determined by a set of coupled differential equations in which the inputs are provided by the neutron and proton diffusion and the drift coefficients. In the SMF approach these transport coefficients are calculated in terms of the solutions of the TDHF equations. Calculations take into account the full collision geometry and do not involve any fitting parameter other than the standard parameters of the Skyrme interaction. In the earlier investigations, transport coefficients were calculated in the semi-classical approximation in Markovian limit yilmaz2014 ; ayik2015a . Recently, we were able to calculate these transport coefficients in the quantal framework by including the shell structure and the Pauli blocking in an exact manner ayik2016 . As an example, in Fig. 7 we show the result of nucleon diffusion calculations in the central collisions of 40Ca+238U system at bombarding energies $E_{cm}=202$ MeV. Figure 7 illustrates a few equal probability lines for primary population of the target-like fragments at the exit channel in the $\left(N,Z\right)$ plane. Probability of populating a fragment with neutron and proton numbers $\left(N,Z\right)$ relative to the fragment with mean neutron numbers $\left(\overline{N},\overline{Z}\right)$ is determined by $e^{-C}$, where $C$ indicates numbers on the equal probability lines shown in Fig. 7. In this figure dot at the centers of ellipses indicates the elements with the mean neutron and proton number at the exit channel. The mean values of neutron and proton numbers at the exit channel are $\left(\overline{N}=125,\overline{Z}=82\right)$ and $\left(\overline{N}=137,\overline{Z}=86\right)$ in Ca induced collisions. For example, the probability of populating a heavy trans-uranium primary fragment with $\left(\overline{N}=155,\overline{Z}=98\right)$ relative to the probability of populating the element with mean neutron and proton numbers is about $exp\left(-0.5\right)=0.6$. We note that the correlated Gaussian function specified by the first two moments provides an approximate description of the primary fragment population. The approximation is reasonable within the ellipse with $C=1.0$ around the center point, but becomes gradually unreasonable as we move out from the center points near to the tail of the distribution function. For example, as seen beyond the upper ends of the ellipse with $C=1.5$, we observe finite but small probabilities for populating fragments even exceeding the total mass of the system. Therefore, in particular near the tail region, more accurate description of the fragment population probability is required. Also we, note that the primary fragments de-excite by fission and by light particle emission. This de-excitation process is not incorporated into the calculations.
