Multiphoton Effects Enhanced Due to Ultrafast Photon-Number Fluctuations

TL;DR

This paper demonstrates that ultrafast photon-number fluctuations in bright squeezed vacuum significantly enhance multi-photon optical harmonic generation, offering a more efficient approach for nonlinear optics applications involving fragile structures.

Contribution

The study introduces the use of bright squeezed vacuum with quantum noise as a pump to greatly enhance multi-photon effects, surpassing traditional coherent sources.

Findings

Up to two orders of magnitude increase in harmonic generation efficiency.

Ultrafast photon-number fluctuations boost multi-photon effects without increasing damage risk.

Potential applications in nonlinear optics of fragile structures.

Abstract

Multi-photon processes are the essence of nonlinear optics. Optical harmonics generation and multi-photon absorption, ionization, polymerization or spectroscopy are widely used in practical applications. Generally, the rate of an n-photon effect scales as the n-th order autocorrelation function of the incident light, which is high for light with strong photon-number fluctuations. Therefore `noisy' light sources are much more efficient for multi-photon effects than coherent sources with the same mean power, pulse duration and repetition rate. Here we generate optical harmonics of order 2-4 from bright squeezed vacuum (BSV), a state of light consisting of only quantum noise with no coherent component. We observe up to two orders of magnitude enhancement in the generation of optical harmonics due to ultrafast photon-number fluctuations. This feature is especially important for the nonlinear optics of fragile structures where the use of a `noisy' pump can considerably increase the effect without overcoming the damage threshold.

Figures

Tables

Table 1. Table 1: Characteristics of the obtained harmonic generation from BSV: statistical enhancement with respect to the pseudo-coherent source ( A B ​ S ​ V ( n ) / A p ​ s ( n ) subscript superscript 𝐴 𝑛 𝐵 𝑆 𝑉 subscript superscript 𝐴 𝑛 𝑝 𝑠 A^{(n)}_{BSV}/A^{(n)}_{ps} ) (left), the ratios of the corresponding correlation functions g B ​ S ​ V ( n ) / g p ​ s ( n ) subscript superscript 𝑔 𝑛 𝐵 𝑆 𝑉 subscript superscript 𝑔 𝑛 𝑝 𝑠 g^{(n)}_{BSV}/g^{(n)}_{ps} (center) and maximal harmonic generation efficiency η max ( n ) ≡ F n ​ ω / F subscript superscript 𝜂 𝑛 subscript 𝐹 𝑛 𝜔 𝐹 \eta^{(n)}_{\max}\equiv F_{n\omega}/F from Fig.  1 c (right).

n	$A_{BSV}^{\left(n\right)}/A_{ps}^{\left(n\right)}$	$g_{BSV}^{\left(n\right)}/g_{ps}^{\left(n\right)}$	${\eta }_{\max }^{\left(n\right)}$
2	$2.86\pm 0.08$	$2.94\pm 0.06$	$\left(3.2\pm 0.3\right)\times {10}^{-7}\%$
3	$13.6\pm 0.8$	$14.5\pm 0.6$	$\left(1.38\pm 0.12\right)\times {10}^{-9}\%$
4	$71\pm 6$	$63\pm 2$	$\left(4.9\pm 0.7\right)\times {10}^{-10}\%$

Equations

$$R^{(n)}\sim g^{(n)}{F}^n,$$

$${\xi }^{(n)}\equiv \frac{R^{(n)}}{F^n}.$$

$$g_{n\omega }^{(2)}\equiv \frac{⟨:N_{n\omega }^2:⟩}{⟨N_{n\omega }{⟩}^2}.$$

$$g_{n\omega }^{(2)}=\frac{g_{\omega }^{(2n)}}{(g_{\omega }^{(n)}{)}^2}.$$

Full text

In any multi-photon process, one example being the generation of optical harmonics, a certain number of photons of the initial radiation get annihilated to produce the effect. For this reason, the output signal of an $n$-photon process scales as the normally ordered $n$-th order moment of the incident photon number, $\langle:N^{n}:\rangle\equiv\langle(a^{\dagger})^{n}a^{n}\rangle$ Mollow1968 ; Agarwal1970 , similar to the rate of $n$-photon coincidences Glauber1963 in a quantum optics experiment. It follows that the rate $R^{(n)}$ of an $n$-photon effect scales as the $n$-th order normalized autocorrelation function of the incident light, $g^{(n)}\equiv\langle:N^{n}:\rangle/\langle N\rangle^{n}$,

[TABLE]

where $F\sim\langle N\rangle$ is the input photon flux.

According to Eq. (1), one can define the statistical efficiency of an $n$-photon effect Qu1992 ; Lecompte1975 ; Delone1980 as

[TABLE]

In this form the efficiency follows the changes in the statistics of the input radiation and does not depend on its photon flux. Clearly, it should scale with the $n$-th order normalized intensity correlation function.

Enhancement due to intensity fluctuations has been demonstrated for the second-harmonic generation Qu1992 ; Qu1995 and recently, also for two-photon absorption Jechow2013 from thermal light, for which $g^{(n)}=n!$. Instead of thermal light, one can use multimode laser light Lecompte1975 ; Delone1980 as the latter has intensity fluctuations due to the contributions of different temporal modes. In fact, pulsed light is more efficient for $n$-photon processes than continuous-wave light with the same mean intensity for the same reason: it has strong intensity modulation.

Nevertheless, in practice one always observes multiphoton effects with coherent light, for which $g^{(n)}=1$. The reason is that thermal light with high intensity is hard to produce; thermal radiation used in Refs. Qu1992 ; Qu1995 ; Jechow2013 was obtained from a below-threshold laser, which is not very bright. Another standard source of thermal light, rotating ground glass disc, not only suffers from low brightness, but also has very slow intensity fluctuations. As an efficient source, one would desire a bright pulsed one with each pulse having ultrafast intensity fluctuations.

Exceptionally interesting in this connection is bright squeezed vacuum (BSV) produced via high-gain parametric down-conversion (PDC). It can be extremely bright — up to hundreds of mW mean power Perez2015 ; Spasibko2016 — and has highly fluctuating photon number. In fact, this state has no coherent component and only consists of quantum noise. Taken separately, signal and idler BSV beams have thermal statistics; but whenever they are indistinguishable, the statistics shows ‘superbunched’ behavior with $g^{(n)}=(2n-1)!!$ Janszky1987 ; Boitier2011 ; Iskhakov2012 . This makes BSV extremely efficient for multi-photon effects Popov2002 , as one can see from Fig. 1a showing $g^{(n)}(n)$ for the cases of coherent (black), thermal (red) and BSV (blue) light.

BSV intensity fluctuations are not only strong; they can be extremely fast as well. Due to the broad spectrum, whose bandwidth can reach 100-150 THz Strekalov2005 ; Tiihonen2006 ; Katamadze2015 , BSV generated through PDC has correlation times as short as a few femtoseconds. For pulsed broadband BSV the intensity will fluctuate not only from pulse to pulse, but also within a single pulse. Although pulse-to-pulse fluctuations could be, in principle, mimicked by modulating the beam, fluctuations within the pulse can not.

The latter makes BSV an extremely valuable source for nonlinear effects. Any nonlinear effect with ultrashort response time will ‘feel’ the fast photon-number fluctuations of BSV and its efficiency will be therefore dramatically enhanced. In our experiment, we demonstrate this enhancement in the generation of the second (SH), third (TH) and fourth (FH) optical harmonics.

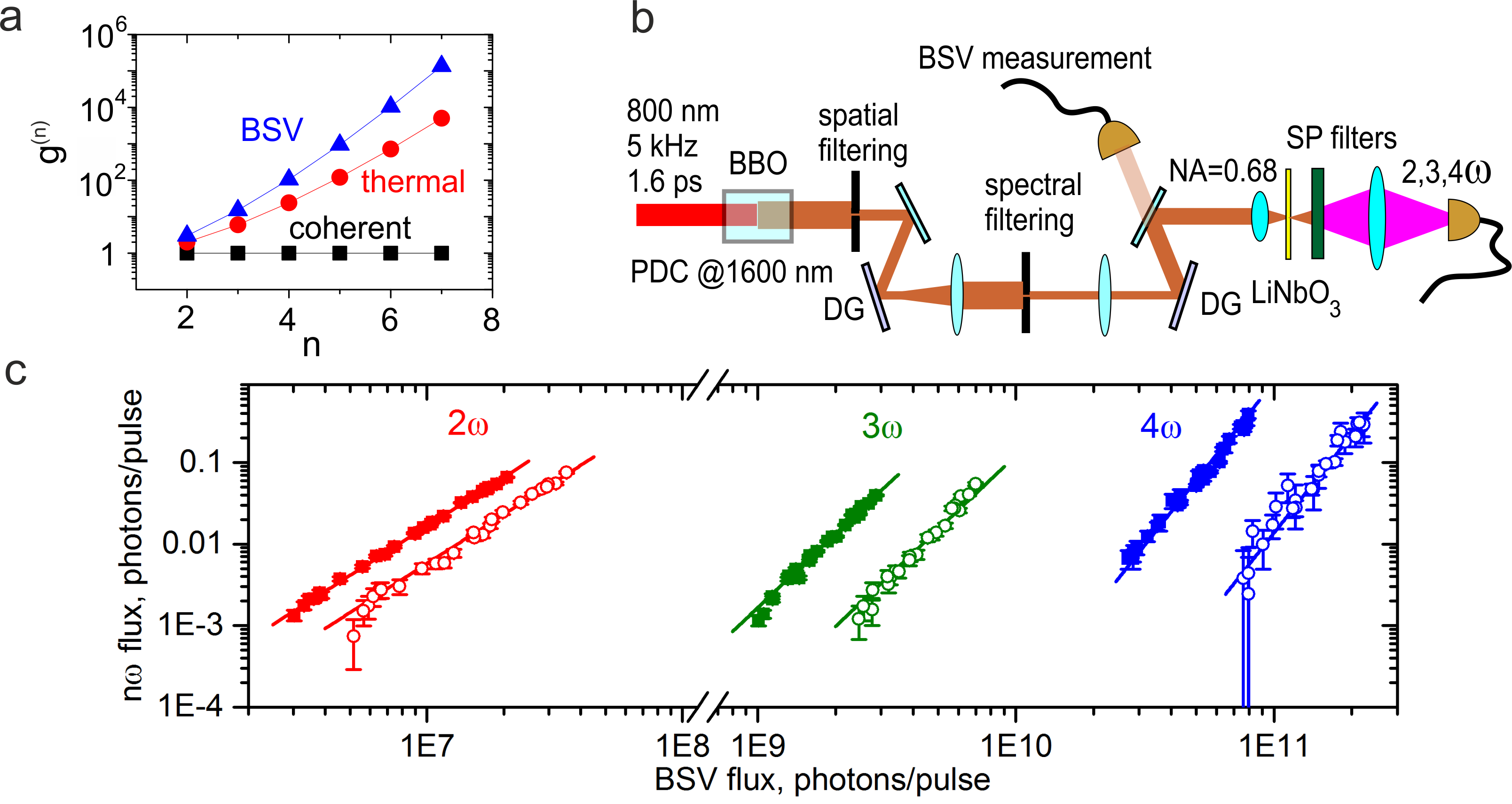

The experimental setup is shown in Fig. 1b. For the generation of optical harmonics we use broadband BSV radiation around the frequency degeneracy (1600 nm) Spasibko2016 produced in a beta barium borate (BBO) crystal (see Methods). After spatial and spectral filtering, BSV is tightly focused on the surface of a lithium niobate (LiNbO3) crystal, where SH, TH, and FH are generated without phase-matching. The radiation of optical harmonics is separated from BSV first by short-pass filters and then by different bandpass filters. The photon number in each pulse of the harmonics radiation is measured with an avalanche photodiode or with a charge-integrating detector based on a Si PIN photodiode Iskhakov2009 .

For monitoring and controlling the statistics of BSV radiation, we tap off its small part and measure the numbers of photons in each pulse with an infrared charge-integrating detector under narrowband filtering (see Methods).

The values of normalized correlation functions measured for BSV indeed coincide, within the measurement accuracy, with the theoretical predictions (see Methods). However, these values can be achieved not at the highest possible power of BSV. The reason is that inside the BBO crystal producing PDC, incoherent second-harmonic generation takes place if the PDC power is high. This process is more likely to happen for strongest pulses; therefore Krasinski1976 ; Leuchs1986 it reduces photon-number fluctuations and leads to a decrease in $g^{(n)}$. We use this fact to control the statistics of BSV: by changing the phase matching and, correspondingly, by making BSV radiation weaker or stronger, we make $g^{(n)}$ higher or lower, respectively (see Methods for more details).

For each optical harmonic, we measure the dependence of the output photon flux on the BSV flux, spectrally filtered to a bandwidth of $3.3$ nm. Panel c in Fig. 1 shows these dependences by red, green, and blue filled squares for the second, third, and fourth harmonics, respectively.

The statistical efficiencies $\xi^{(n)}$, according to Eq. 2, can be obtained from the fits with the quadratic, cubic, and quartic dependencies, $f_{n}(x)=A^{(n)}x^{n}$, $n=2,3,4$, shown by solid lines. This has to be compared with the ‘standard’ situation where the harmonics are generated from coherent light. In the absence of a coherent source with exactly the same wavelength, pulse duration, and repetition rate as the BSV radiation, we create a pseudo-coherent source. To this end, we reduce the photon-number fluctuations of BSV using post-selection (see Methods). By imposing a condition on the photon number in the tapped off beam to be within certain boundaries, we also reduce the photon-number fluctuations in the transmitted beam Iskhakov2016 , so that the intensity correlation functions for the post-selected pulses reach almost unity. The power dependences for different harmonics generation from this pseudo-coherent source are plotted in Fig. 1c by empty circles, with the same colours as in the case of BSV, and also fitted by power dependences (lines). One can see that the statistical efficiency is indeed considerably higher for BSV than for pseudo-coherent light. The enhancement factors are shown in Table I (second column), together with the ratios of the correlation functions for BSV and the pseudo-coherent light source (third column). As expected, there is agreement between the two.

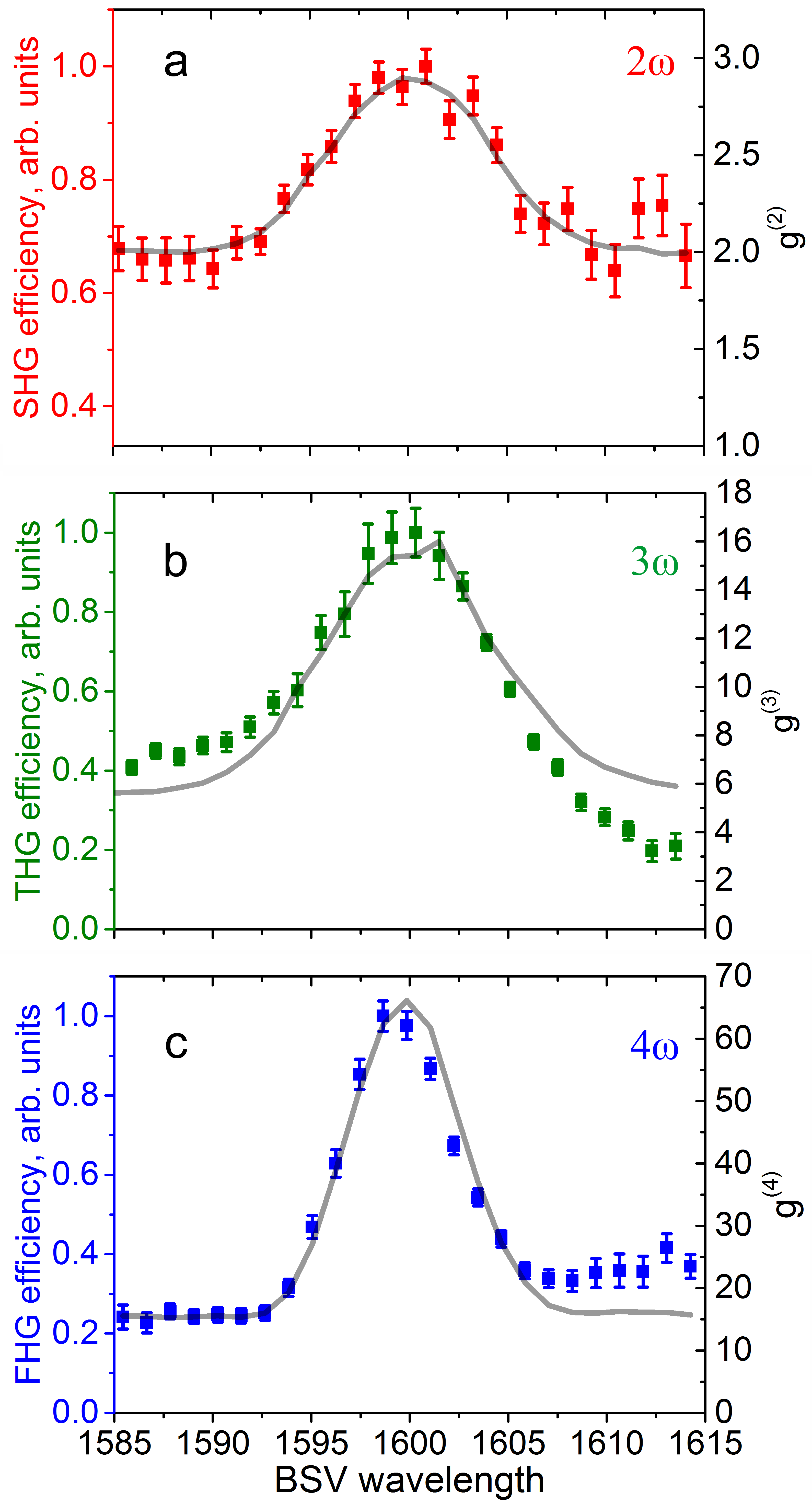

To compare the efficiency of harmonics generation from degenerate BSV with the one from thermal light, we scan the BSV wavelength around the degeneracy point $1600$ nm and measure the rates of the SHG, around $800$ nm, of the THG, around $533$ nm, and of the FHG, around $400$ nm. The generation efficiencies, calculated according to Eq. 2, are plotted in Fig. 2, together with the corresponding correlation functions of BSV. By scanning the wavelength we pass from BSV with thermal statistics (far from the degeneracy point) to BSV with the superbunched statistics (around the degeneracy point). The efficiency follows the correlation function, and we observe an enhancement by factors of $2$, $2.5$, and $4$ for SHG, THG, and FHG with BSV compared to thermal light, respectively.

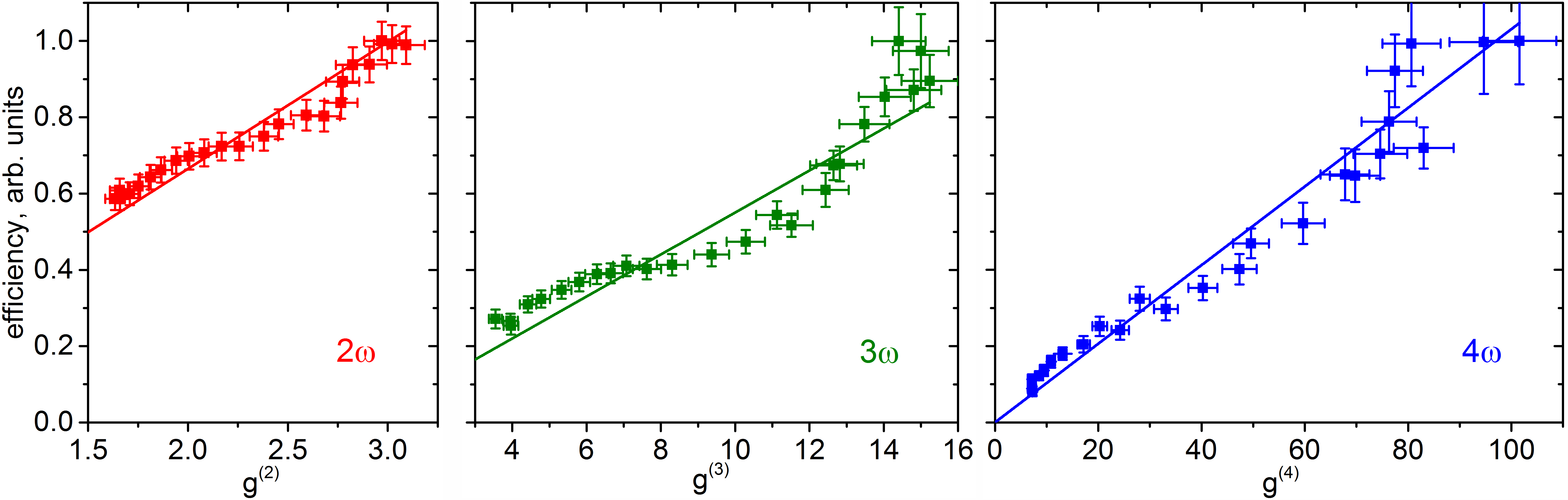

The scaling of the harmonic generation efficiency with the normalized correlation functions is demonstrated by Fig. 3, which shows the efficiencies of SHG (left), THG (middle) and FHG (right) from BSV measured as functions of the second-, third-, and fourth-order correlation functions, respectively. To vary the values of the correlation functions we change the orientation of the BBO crystal, which changes the BSV generation efficiency and hence the statistics of the BSV through the second-harmonic generation in the same BBO crystal, see Methods.

In all measurements shown in Fig. 3, the optical harmonics are generated from broadband BSV, with the typical times of intensity fluctuations being $80$ fs. At the same time, $g^{(n)}$ were measured under $2.5$ nm filtering (see Methods).

Because the statistical efficiency $\xi^{(n)}$ of an $n$-th order harmonic generation scales as the $n$-th order normalized correlation function, the data presented in all three panels of Fig. 3 generally follow a linear fit $\xi^{(n)}\sim g^{(n)}$ (lines).

We see that the photon-number ‘noise’ dramatically increases the efficiency of optical harmonic generation. It turns out that the generated harmonics are even ‘noisier’ Ducuing1964 . Indeed, the second-order normalized correlation function $g^{(2)}_{n\omega}$ for the $n$-th harmonics is, by definition,

[TABLE]

The normal ordering can be omitted due to the high mean photon number $\langle N_{n\omega}\rangle$. Then, from Eq. (1), we get Teich1966 ; Qu1995

[TABLE]

Thus, the correlation functions for the harmonics can be estimated from the ones for the pump. Note that the obtained result is valid for any type of the pump statistics.

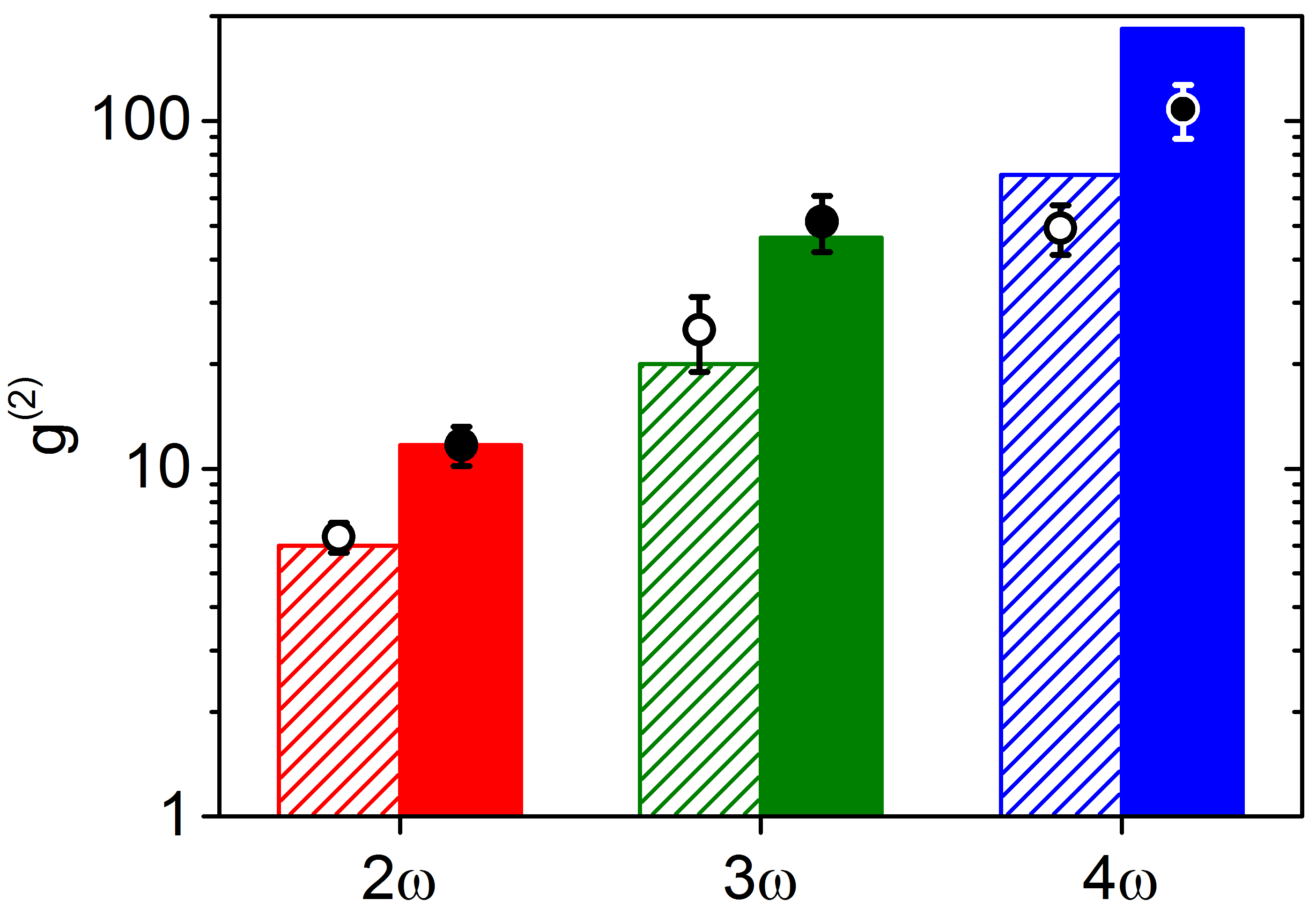

The bars in Fig. 4 show the theoretically predicted values of the second-order normalized correlation function (bunching parameter) for all three optical harmonics generated from superbunched (colored) and thermal (shaded) BSV. The expected values are very high and range from $6$, for SHG from thermal light Qu1995 ; Allevi2015 , to $184$, for FHG from superbunched BSV.

The experimental results are shown by black circles on each bar. The correlation function was measured by registering coincidences in a Hanbury Brown-Twiss setup (see Methods). The data, in good agreement with the theory, show a huge increase of fluctuations in the generated optical harmonics.

These results, obtained for one particular case of optical harmonic generation, show that BSV is an extremely useful source for multi-photon effects in general. Among other applications, the use of BSV as a pump will be beneficial for the nonlinear optics of fragile structures. Indeed, in our experiment we generate harmonics without phase-matching from extremely low powers (from a few nW to tens of $\mu$W). According to Fig. 1, to achieve the same rate of a four-photon effect one can use BSV with the mean power reduced about three times compared to the case of coherent pumping. This can help to dramatically increase the sensitivity while being considerably below the damage threshold.

An important feature of BSV is the time scale of its photon-number fluctuations. Here we have demonstrated a bandwidth of $9$ THz, corresponding to times of $80$ fs, but one can achieve times at least an order of magnitude shorter. Such behaviour cannot be mimicked by any external intensity modulation. Moreover, although here for simplicity we used a single spatial mode, the multimode spatial structure of PDC will not change its ‘noisy’ behaviour and one can use the whole frequency and angular spectrum of BSV for exciting multiphoton effects.

Finally, the observation of extremely strong photon bunching in the radiation of optical harmonics from BSV is very interesting in connection with the intensely discussed topic of extreme events and ‘rogue waves’ Dudley2014 , observed for processes with ‘heavy-tailed’ probability distributions. To the best of our knowledge, the observed $g^{(2)}=110\pm 20$ considerably exceeds all values reported in the literature Meuret2015 and indicates a photon-number probability distribution with a very ‘heavy tail’. The perspective of observing multi-photon effects from such radiation is even more interesting; however, it would require a higher sensitivity than the one of our experiments.

Acknowledgments. We acknowledge the financial support of the joint DFG-RFBR project CH1591/2-1 - 16-52-12031 NNIOa and of the G-RISC program, projects P-2017a-19, P-2016a-5, P-2016a-6.

Author contributions. K.Yu.S., D.A.K. and V.L.K. carried out the experimental work and contributed to the analysis of the data; M.V.C., T.V.M. and G.L. initiated and supervised the project; all authors discussed the results and contributed to the writing of the manuscript.

Methods

BSV generation and controlling its statistics. We produce broadband BSV radiation in a $10$ mm BBO crystal using as a pump the amplified radiation of a Ti-sapphire laser with the wavelength $800$ nm, the pulse duration $1.6$ ps, and the repetition rate $5$ kHz. The pump is focused into the crystal by a cylindrical lens with a focal length of $700$ mm, so that the beam remains unfocused in the plane of the optic axis and the pump walk-off Perez2015 is not pronounced. The crystal is cut at 19.9*∘* degrees to the optic axis, which provides type-I collinear phase-matching around the degenerate wavelength $1600$ nm Spasibko2016 . After the crystal we cut off the pump by dichroic mirrors and two FEL1200 long-pass filters. A slit is used to filter BSV to a single spatial mode. The spectral filtering is made by a 4f-monochromator, which allows the wavelength to be scanned from $1550$ nm to $1650$ nm and the bandwidth around the degenerate wavelength $1600$ nm to be changed. Although the bandwidth of unfiltered BSV is $400$ nm Spasibko2016 , the largest bandwidth allowed by filtering is $75$ nm.

We found out that BSV in the BBO crystal experiences further sum frequency generation, 1600 nm $\to$ 800 nm. This process acts on BSV as a nonlinear absorber. It reduces fluctuations by absorbing more photons from higher energy bursts Krasinski1976 ; Leuchs1986 . The contribution of this process can be tuned by tilting the crystal closer or further from the exact phase-matching position. Using this method we change the statistics of BSV and can reduce its correlation functions to $g^{(2)}=1.55\pm 0.05$, $g^{(3)}=3.5\pm 0.2$, and $g^{(4)}=7.1\pm 0.5$. The dependence of $g^{(2)}$ on the crystal orientation is shown in Fig. 5.

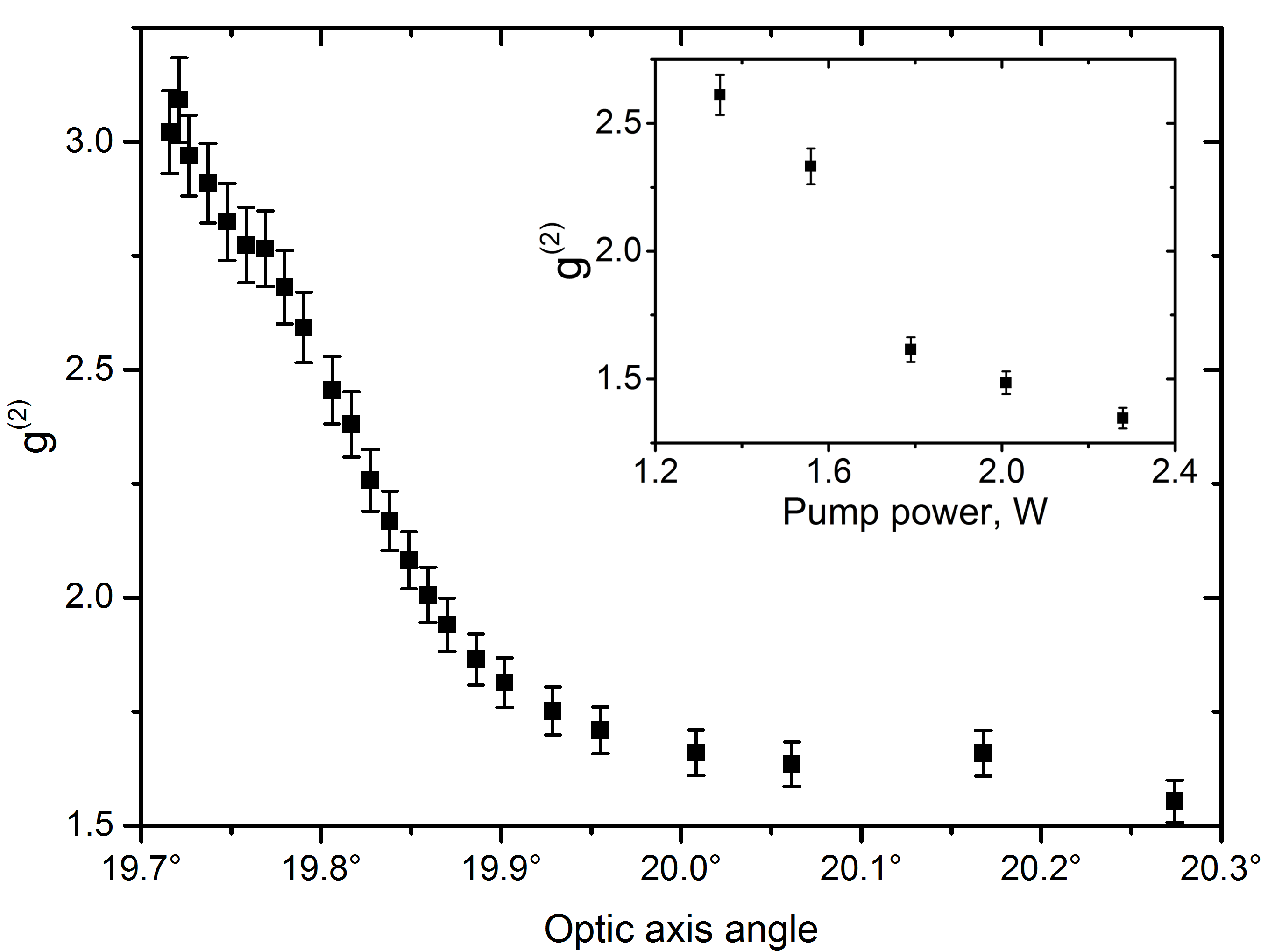

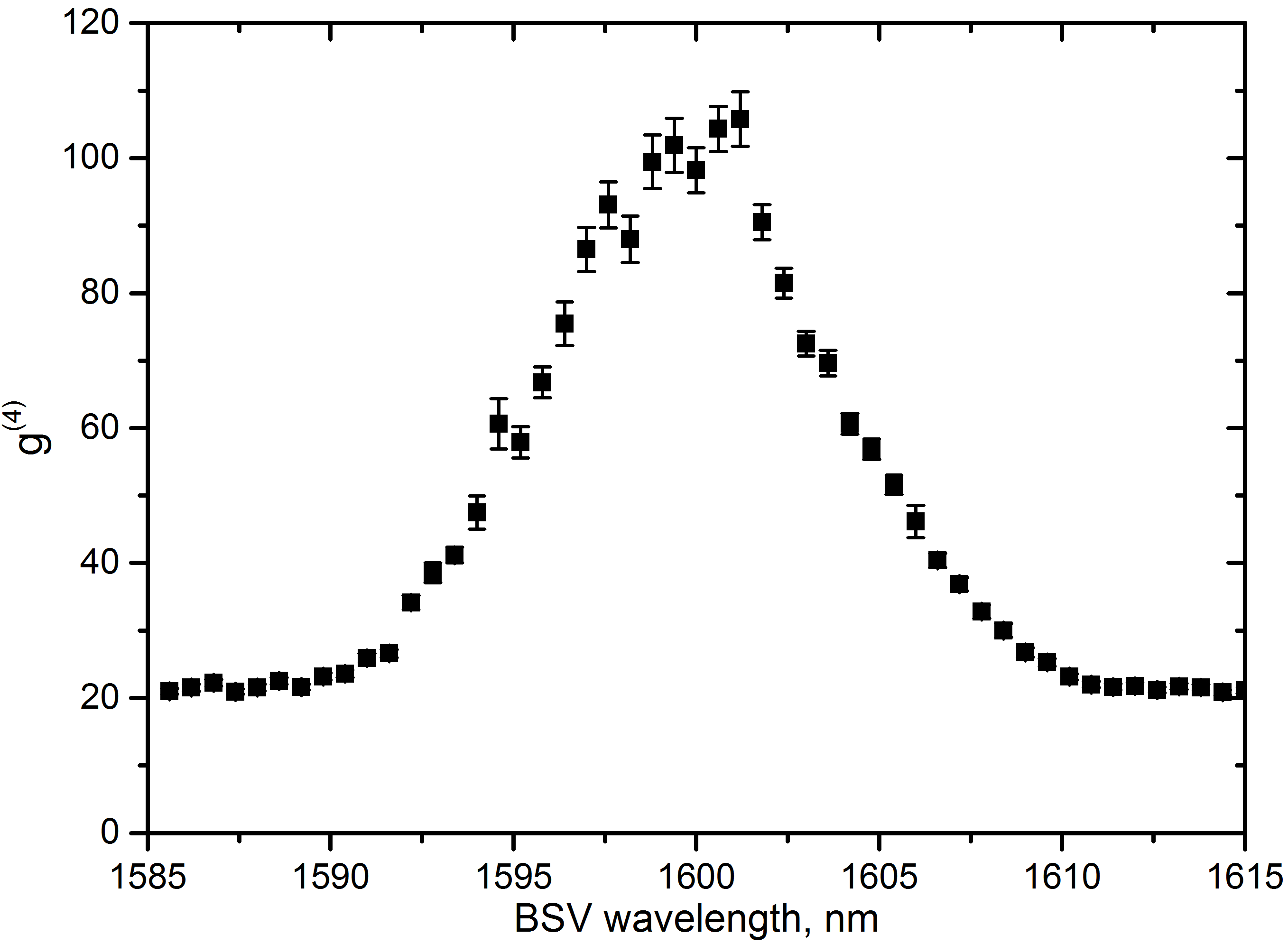

With the crystal oriented far from the exact phase matching, the strong photon-number fluctuations of BSV are maintained, and the measured correlation functions reach their theoretical values: $g^{(2)}_{BSV}=2.97\pm 0.06$, $g^{(3)}_{BSV}=14.8\pm 0.6$, and $g^{(4)}_{BSV}=108\pm 9$ (Fig. 6). At the same time, the highest values of $g^{(n)}$ can be only achieved with the mean power of BSV not higher than $4$ mW before spatial and spectral filtering, which is not enough for FHG after all filtering losses. The fourth harmonic is therefore produced with a reduced value of $g^{(4)}=69\pm 2$.

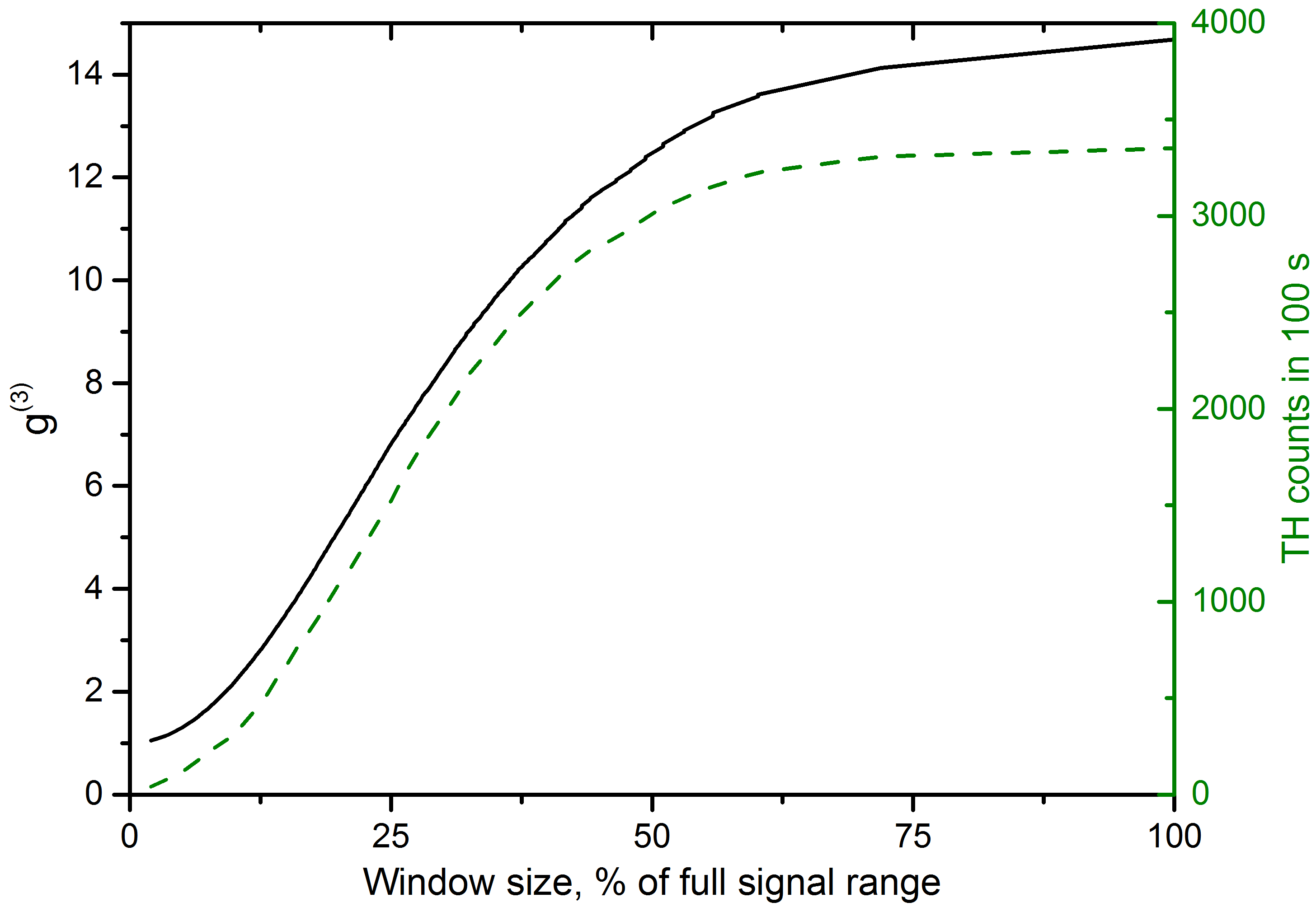

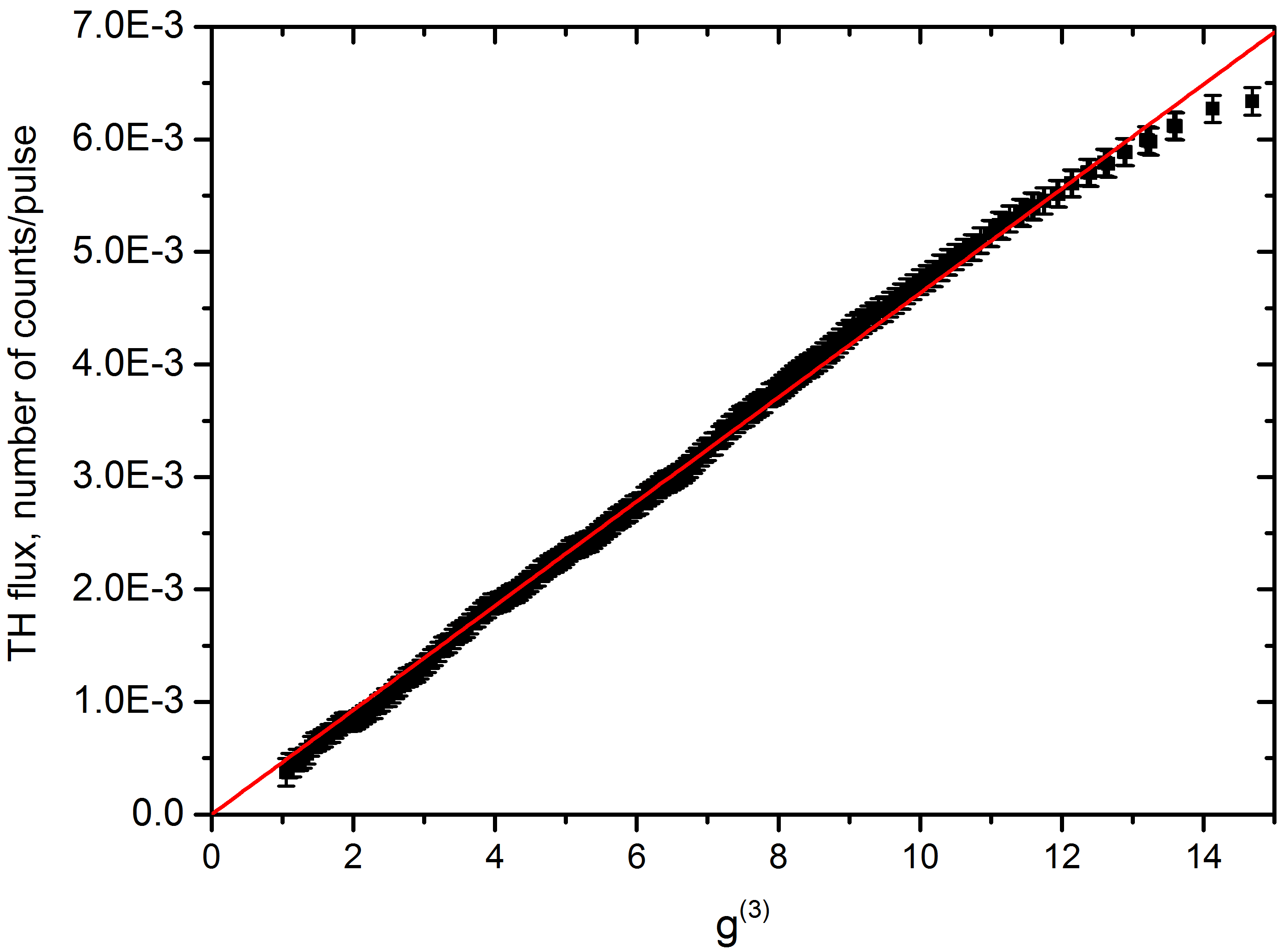

Obtaining pseudo-coherent light by post-selection. For controlling the statistics of BSV, we tap off about 0.6% of its power on a beam sampler. For each pulse, we record the number of photons in the reflected BSV beam and in the harmonic radiation. From the obtained dataset we choose only pulses in which the number of photons in BSV lies within certain boundaries. Only for those pulses the data on the harmonics are further processed. This way we restrict the BSV fluctuations and mimic the generation of optical harmonics from coherent light. We choose this post-selection ‘window’ to be as small as possible, but large enough for the harmonic flux after post-selection to be measurable (Fig. 7). The minimal values of correlation functions obtained this way are $g^{(2)}=1.01\pm 0.002$, $g^{(3)}=1.02\pm 0.003$, $g^{(4)}=1.1\pm 0.007$. After post-selection, the flux of each optical harmonic is linear in the corresponding correlation function; Fig. 8 shows THG as an example.

Correlation functions for BSV are measured under narrowband filtering, the bandwidth ranging from $4.5$ nm to $2.5$ nm. Otherwise, intensity fluctuations within each pulse lead to multimode detection and therefore to the reduction of the correlation functions. We measure the photon number in each BSV pulse using a charge-integrating detector with the same design as the one used in the visible range, but based on an InGaAs PIN photodiode Hamamatsu G12180-020A. The detector has a dynamic range from few thousands to several millions of photons per pulse, a quantum efficiency of 85% at 1600 nm, and the electronic noise equivalent to $1600$ photons per pulse. It produces electronic pulses with the area $S=KN$, where $N$ is the input number of photons and $K=5.0\pm 0.4\quad pV\times s$. The correlation functions are calculated from the data using the formula $g^{(n)}=M^{n-1}\sum_{i}S_{i}^{n}/\left[\sum_{i}S_{i}\right]^{n}$, where $S_{i}$ is the area of each electronic pulse and $M$ is the number of pulses. Here, one can use a single detector and ignore the normal ordering in the correlation function definition due to the large mean number of photons in BSV.

Generation of optical harmonics. In the generation of all optical harmonics, we focus BSV on the surface of a $1$ mm thick lithium niobate crystal slab by a lens with the focal length $3.1$ mm and numerical aperture 0.68. Because the Rayleigh length ($7\mu$m) is much smaller than the crystal length, harmonic generation in the bulk is suppressed due to the Gouy phase, and for more efficient harmonic generation the beam waist is placed on the crystal surface Rostovtseva1980 . The crystal optic axis is in the plane of the slab; this orientation does not provide phase matching for any harmonic generation. The polarization of the BSV as well as of all harmonics is along the optic axis, which means that the interaction involves the $z$ components of all nonlinear susceptibilities, which are the largest for LiNbO3. For the filtering of optical harmonics, the following filters are used: three FGB25 and FBH800-40 for SH, two FGS900A and MF530-43 for TH, and two FGS900A and FBH400-40 for FH.

Measurement of the second-order correlation function for the optical harmonics. For each harmonic generated from BSV after narrowband filtering, the correlation function $g^{(2)}$ is measured with a Hanbury Brown – Twiss setup. The harmonic radiation is collimated by a lens with the focal length $3.1$ mm, split using a zero-order wave plate and a Glan prism, and fed in two gated single-photon Perkin&Elmer SPCM-AQRH-16 counters. The photocounts are sent to a coincidence circuit and the correlation function is found as $g^{(2)}=M\sum_{i}N^{c}_{i}/\left[\sum_{i}N^{1}_{i}\sum_{i}N^{2}_{i}\right]$, where $N^{c,1,2}_{i}=0,1$ are the numbers of coincidences and counts in detectors 1 and 2, respectively, for different pulses and $M$ is the number of pulses.
