Robust doubly charged nodal lines and nodal surfaces in centrosymmetric systems

TL;DR

This paper extends the understanding of topological stability in centrosymmetric systems, revealing the existence of doubly charged nodal lines and surfaces across multiple symmetry classes, with implications for semimetals and superconductors.

Contribution

It generalizes homotopy analysis to all centrosymmetric Altland-Zirnbauer classes, identifying new robust, multiply charged topological nodes without additional crystalline symmetries.

Findings

Doubly charged nodal lines in AZ+I classes CI and AI.

Doubly charged nodal surfaces in AZ+I classes D and BDI.

Development of tight-binding models exhibiting these nodes.

Abstract

Weyl points in three spatial dimensions are characterized by a $\mathbb{Z}$-valued charge -- the Chern number -- which makes them stable against a wide range of perturbations. A set of Weyl points can mutually annihilate only if their net charge vanishes, a property we refer to as robustness. While nodal loops are usually not robust in this sense, it has recently been shown using homotopy arguments that in the centrosymmetric extension of the $\textrm{AI}$ symmetry class they nevertheless develop a $\mathbb{Z}_2$ charge analogous to the Chern number. Nodal loops carrying a non-trivial value of this $\mathbb{Z}_2$ charge are robust, i.e. they can be gapped out only by a pairwise annihilation and not on their own. As this is an additional charge independent of the Berry $\pi$-phase flowing along the band degeneracy, such nodal loops are, in fact, doubly charged. In this manuscript, we generalize the homotopy discussion to the centrosymmetric extensions of all Atland-Zirnbauer classes. We develop a taylored mathematical framework dubbed the AZ+$\mathcal{I}$ classification and show that in three spatial dimensions such robust and multiply charged nodes appear in four of such centrosymmetric extensions, namely AZ+$\mathcal{I}$ classes $\textrm{CI}$ and $\textrm{AI}$ lead to doubly charged nodal lines, while $\textrm{D}$ and $\textrm{BDI}$ support doubly charged nodal surfaces. We remark that no further crystalline symmetries apart from the spatial inversion are necessary for their stability. We provide a description of the corresponding topological charges, and develop simple tight-binding models of various semimetallic and superconducting phases that exhibit these nodes. We also indicate how the concept of robust and multiply charged nodes generalizes to other spatial dimensions.

Figures

Tables

Table 1. Table 1: Summary of the main findings of the manuscript. The first four columns list the ten possible symmetry classes together with their Cartan label (CL). The headers 𝒯 , 𝒫 , 𝒞 𝒯 𝒫 𝒞 \mathcal{T},\mathcal{P},\mathcal{C} (in gray) correspond to the AZ classification  Altland and Zirnbauer ( 1997 ) , while the headers 𝔗 , 𝔓 , 𝒞 𝔗 𝔓 𝒞 \mathfrak{T},\mathfrak{P},\mathcal{C} correspond to the AZ+ ℐ ℐ \mathcal{I} classification which we introduce in Sec.  II and consider throughout the manuscript. The rest of the table applies to the AZ+ ℐ ℐ \mathcal{I} case only. The fifth column lists the classifying spaces M CL subscript 𝑀 CL M_{\textrm{CL}}   Kitaev ( 2009 ) relevant for each symmetry class as explained in Sec.  III . Here, n , ℓ > 0 𝑛 ℓ 0 n,\ell>0 indicate the number of occupied and unoccupied bands ( n = ℓ 𝑛 ℓ n=\ell whenever 𝔓 𝔓 \mathfrak{P} or 𝒞 𝒞 \mathcal{C} is present). The next block of the table lists the large n , ℓ 𝑛 ℓ n,\ell limit homotopy groups of M CL subscript 𝑀 CL M_{\textrm{CL}} which exhibit the Bott periodicity π d + 8 ​ ( M CL ) = π d ​ ( M CL ) subscript 𝜋 𝑑 8 subscript 𝑀 CL subscript 𝜋 𝑑 subscript 𝑀 CL \pi_{d+8}(M_{\textrm{CL}})=\pi_{d}(M_{\textrm{CL}})   Lundell ( 1992 ) with the exception of π 0 ​ ( M CL ) subscript 𝜋 0 subscript 𝑀 CL \pi_{0}(M_{\textrm{CL}}) which counts the number of connected components of M CL subscript 𝑀 CL M_{\textrm{CL}} . Note that in some cases we write 2 ​ ℤ 2 ℤ 2\mathbb{Z} instead of ℤ ℤ \mathbb{Z} as the naturally formulated topological invariant takes even values, and we type 𝟘 0 \mathbbold{0} for a trivial (one-element) group. As discussed in Sec.  IV , the homotopy groups π p ​ ( M CL ) subscript 𝜋 𝑝 subscript 𝑀 CL \pi_{p}(M_{\textrm{CL}}) that determine the charges of a node are those with δ CL − 1 ≤ p ≤ D − 1 subscript 𝛿 CL 1 𝑝 𝐷 1 \delta_{\textrm{CL}}-1\leq p\leq D-1 where δ CL subscript 𝛿 CL \delta_{\textrm{CL}} is the node codimension determined in Sec.  III and listed for all AZ+ ℐ ℐ \mathcal{I} classes in Tab.  2 . The homotopy groups relevant in D = 3 𝐷 3 D=3 are typesetted in bold. We observe that AZ+ ℐ ℐ \mathcal{I} classes AI , BDI , D and CI support doubly charged nodes in this spatial dimension. The last three columns indicate the corresponding topological charges, namely ∫ ℱ ℱ \int\!\mathcal{F} is the (first) Chern number, ∫ q − 1 ​ 𝑑 q superscript 𝑞 1 differential-d 𝑞 \int\!q^{-1}dq is the winding of the off-diagonal block of 𝒬 ​ ( 𝒌 ) 𝒬 𝒌 \mathcal{Q}(\boldsymbol{k}) , ∫ 𝒜 𝒜 \int\!\mathcal{A} is the Berry phase, sign ⁡ Pf sign Pf \operatorname{sign}\operatorname{Pf} is the sign of the Pfaffian of the Hamiltonian, and π 1 ​ [ 𝖲𝖮 ​ ( n ) ] subscript 𝜋 1 delimited-[] 𝖲𝖮 𝑛 \pi_{1}[\mathsf{SO}(n)] is the homotopy class of a closed path inside the orthogonal group. For the four classes with doubly charged nodes in D = 3 𝐷 3 D=3 we list in Tabs.  3 and  4 the relevant homotopy groups for systems not reaching the large n , ℓ 𝑛 ℓ n,\ell limit, which come to play in the simple models presented in Secs.  VI to  IX .

CL

$𝔗$

$𝔓$

$𝒞$

classifying space $M_{\text{CL}}$

homotopy group ${\pi }_p\left(M_{\text{CL}}\right)$ for $p=\dots$

topological charge $c_{\text{CL}}\left(S^p\right)$

$(𝒯$

$𝒫$

$𝒞)$

$0$

$1$

$2$

$3$

$4$

$5$

$6$

$7$

$8$

$p=0$

$p=1$

$p=2$

$A$

$\times$

$\times$

$\times$

$\text{U}\left(n+\ell \right)/\text{U}\left(n\right)\times \text{U}\left(\ell \right)$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathbb{Z}$

$\mathrm{𝟘}$

$\mathbb{Z}$

$\mathrm{𝟘}$

$\mathbb{Z}$

$\mathrm{𝟘}$

$\mathbb{Z}$

$-$

$-$

$\int ℱ$

$\mathrm{AIII}$

$\times$

$\times$

$1$

$\text{U}\left(n\right)$

$\mathrm{𝟘}$

$\mathbb{Z}$

$\mathrm{𝟘}$

$\mathbb{Z}$

$\mathrm{𝟘}$

$\mathbb{Z}$

$\mathrm{𝟘}$

$\mathbb{Z}$

$\mathrm{𝟘}$

$-$

$\int q^{-1}𝑑q$

$-$

$\mathrm{AI}$

$+1$

$\times$

$\times$

$\text{O}\left(n+\ell \right)/\text{O}\left(n\right)\times \text{O}\left(\ell \right)$

$\mathrm{𝟘}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{𝟘}$

$2\mathbb{Z}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathbb{Z}$

$-$

$\int 𝒜$

${\pi }_1\left[\mathrm{𝖲𝖮}\left(n\right)\right]$

$\mathrm{BDI}$

$+1$

$+1$

$1$

$\text{O}\left(n\right)$

${\mathbb{Z}}_{\mathrm{𝟚}}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{𝟘}$

$2\mathbb{Z}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathbb{Z}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{sign}\mathrm{Pf}$

${\pi }_1\left[\mathrm{𝖲𝖮}\left(n\right)\right]$

$-$

$D$

$\times$

$+1$

$\times$

$\text{O}\left(2n\right)/\text{U}\left(n\right)$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{𝟘}$

$\mathrm{𝟐}\mathbb{Z}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathbb{Z}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{sign}\mathrm{Pf}$

$-$

$\int ℱ$

$\mathrm{DIII}$

$-1$

$+1$

$1$

$\text{U}\left(2n\right)/\text{Sp}\left(n\right)$

$\mathrm{𝟘}$

$\mathrm{𝟐}\mathbb{Z}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathbb{Z}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{𝟘}$

$-$

$\int q^{-1}𝑑q$

$-$

$\mathrm{AII}$

$-1$

$\times$

$\times$

$\text{Sp}\left(n+\ell \right)/\text{Sp}\left(n\right)\times \text{Sp}\left(\ell \right)$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathbb{Z}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{𝟘}$

$2\mathbb{Z}$

$-$

$-$

$-$

$\mathrm{CII}$

$-1$

$-1$

$1$

$\text{Sp}\left(n\right)$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathbb{Z}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{𝟘}$

$2\mathbb{Z}$

$\mathrm{𝟘}$

$-$

$-$

$-$

$C$

$\times$

$-1$

$\times$

$\text{Sp}\left(n\right)/\text{U}\left(n\right)$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathbb{Z}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{𝟘}$

$2\mathbb{Z}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$-$

$-$

$\int ℱ$

$\mathrm{CI}$

$+1$

$-1$

$1$

$\text{U}\left(n\right)/\text{O}\left(n\right)$

$\mathrm{𝟘}$

$\mathbb{Z}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

${\mathbb{Z}}_{\mathrm{𝟚}}$

$\mathrm{𝟘}$

$2\mathbb{Z}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$\mathrm{𝟘}$

$-$

$\int q^{-1}𝑑q$

${\pi }_1\left[\mathrm{𝖲𝖮}\left(n\right)\right]$

Table 2. Table 2: Determining the node codimension δ CL subscript 𝛿 CL \delta_{\textrm{CL}} . The first four columns indicate for every AZ+ ℐ ℐ \mathcal{I} class our representation of 𝔗 𝔗 \mathfrak{T} , 𝔓 𝔓 \mathfrak{P} and 𝒞 𝒞 \mathcal{C} , if present. The fifth column lists the basis matrices σ i subscript 𝜎 𝑖 \sigma_{i} of a two-band Hamiltonian ℋ 2 × 2 subscript ℋ 2 2 \mathcal{H}_{2\times 2} that are compatible with the listed operators, and the sixth column achieves the same for basis matrices σ i ⊗ τ j tensor-product subscript 𝜎 𝑖 subscript 𝜏 𝑗 \sigma_{i}\otimes\tau_{j} of a four-band Hamiltonian ℋ 4 × 4 subscript ℋ 4 4 \mathcal{H}_{4\times 4} . For classes DIII DIII \mathrm{DIII} and CII CII \mathrm{CII} , Kramer’s degeneracy associated with 𝔗 2 = − 𝟙 superscript 𝔗 2 1 \mathfrak{T}^{2}=-\mathbbold{1} together with the presence of 𝔓 𝔓 \mathfrak{P} necessitates a minimum of four bands, such that ℋ 2 × 2 subscript ℋ 2 2 \mathcal{H}_{2\times 2} is non-existent ( ∅ \varnothing ). Similarly, 𝔗 2 = − 𝟙 superscript 𝔗 2 1 \mathfrak{T}^{2}=-\mathbbold{1} of class AII implies a double degeneracy of bands for all 𝒌 𝒌 \boldsymbol{k} , meaning that a minimum of four bands is necessary to obtain a node formed by touching valence and conduction bands. The column δ CL subscript 𝛿 CL \delta_{\textrm{CL}} indicates the node codimension for each AZ+ ℐ ℐ \mathcal{I} class. It is obtained by counting the number of traceless basis elements of the minimal model (typesetted in black). As explained in Sec.  III , stable nodes are permitted when D ≥ δ CL 𝐷 subscript 𝛿 CL D\geq\delta_{\textrm{CL}} and their dimension is given by the difference D − δ CL 𝐷 subscript 𝛿 CL D-\delta_{\textrm{CL}} . We list the node type appearing in D = 3 𝐷 3 D=3 explicitly in the last column.

CL	$𝔗$	$𝔓$	$𝒞$	basis of ${\mathscr{H}}_{2\times 2}$	basis of ${\mathscr{H}}_{4\times 4}$	${\delta }_{\text{CL}}$	nodes in $D=3$
$A$	$\times$	$\times$	$\times$	$\{\mathrm{𝟙},{\sigma }_{𝕩},{\sigma }_{𝕪},{\sigma }_{𝕫}\}$	$\{\mathrm{𝟙},{\sigma }_{𝕩},{\sigma }_{𝕪},{\sigma }_{𝕫}\}\otimes \{\mathrm{𝟙},{\tau }_{𝕩},{\tau }_{𝕪},{\tau }_{𝕫}\}$	$3$	point
$\mathrm{AIII}$	$\times$	$\times$	${\sigma }_z$	$\{{\sigma }_x,{\sigma }_y\}$	$\{{\sigma }_x,{\sigma }_y\}\otimes \{\mathrm{𝟙},{\tau }_{𝕩},{\tau }_{𝕪},{\tau }_{𝕫}\}$	$2$	line
$\mathrm{AI}$	$𝒦$	$\times$	$\times$	$\{\mathrm{𝟙},{\sigma }_{𝕩},{\sigma }_{𝕫}\}$	$\{\mathrm{𝟙},{\sigma }_{𝕩},{\sigma }_{𝕫}\}\otimes \{\mathrm{𝟙},{\tau }_{𝕩},{\tau }_{𝕫}\}\cup \left\{{\sigma }_{𝕪}\otimes {\tau }_{𝕪}\right\}$	$2$	line Fang et al. (2015)
$\mathrm{BDI}$	$𝒦$	${\sigma }_z𝒦$	${\sigma }_z$	$\left\{{\sigma }_x\right\}$	${\sigma }_x\otimes \{\mathrm{𝟙},{\tau }_{𝕩},{\tau }_{𝕫}\}\cup \left\{{\sigma }_{𝕪}\otimes {\tau }_{𝕪}\right\}$	$1$	surface
$D$	$\times$	$𝒦$	$\times$	$\left\{{\sigma }_y\right\}$	${\sigma }_y\otimes \{\mathrm{𝟙},{\tau }_{𝕩},{\tau }_{𝕫}\}\cup \{\mathrm{𝟙},{\sigma }_{𝕩},{\sigma }_{𝕫}\}\otimes {\tau }_{𝕪}$	$1$	surface Agterberg et al. (2017)
$\mathrm{DIII}$	$i{\sigma }_y𝒦$	${\sigma }_x𝒦$	${\sigma }_z$	$\varnothing$	$\{{\sigma }_x,{\sigma }_y\}\otimes {\tau }_y$	$2$	line
$\mathrm{AII}$	$i{\sigma }_y𝒦$	$\times$	$\times$	$\left\{\mathrm{𝟙}\right\}$	$\mathrm{𝟙}\otimes \{\mathrm{𝟙},{\tau }_{𝕩},{\tau }_{𝕫}\}\cup \{{\sigma }_{𝕩},{\sigma }_{𝕪},{\sigma }_{𝕫}\}\otimes {\tau }_{𝕪}$	$5$	(none)
$\mathrm{CII}$	$i{\tau }_y𝒦$	$-i{\sigma }_z\otimes {\tau }_y𝒦$	${\sigma }_z$	$\varnothing$	$\left\{{\sigma }_x\otimes \mathrm{𝟙}\right\}\cup {\sigma }_{𝕪}\otimes \{{\tau }_{𝕩},{\tau }_{𝕪},{\tau }_{𝕫}\}$	$4$	(none)
$C$	$\times$	$i{\sigma }_y𝒦$	$\times$	$\{{\sigma }_x,{\sigma }_y,{\sigma }_z\}$	$\{{\sigma }_x,{\sigma }_y,{\sigma }_z\}\otimes \{\mathrm{𝟙},{\tau }_{𝕩},{\tau }_{𝕫}\}\cup \left\{\mathrm{𝟙}\otimes {\tau }_{𝕪}\right\}$	$3$	point
$\mathrm{CI}$	$𝒦$	$i{\sigma }_y𝒦$	$i{\sigma }_y$	$\{{\sigma }_x,{\sigma }_z\}$	$\{{\sigma }_x,{\sigma }_z\}\otimes \{\mathrm{𝟙},{\tau }_{𝕩},{\tau }_{𝕫}\}$	$2$	line

Table 3. Table 3: The relevant homotopy groups π p ​ ( M CL ) subscript 𝜋 𝑝 subscript 𝑀 CL \pi_{p}(M_{\textrm{CL}}) for AZ+ ℐ ℐ \mathcal{I} symmetry classes supporting doubly charged nodes in D = 3 𝐷 3 D=3 for few-band models. Class AI contains more special cases and is treated separately in Tab.  4 . The exceptional values are typesetted in a bold font, while the values following the large n 𝑛 n result of Tab.  1 are displayed in gray. Note that in all cases a minimum of four bands ( n = 2 𝑛 2 n=2 ) is necessary to realize a node with a pair of non-trivial topological charges.

	BDI			D			CI
	${\pi }_0$	${\pi }_1$	${\pi }_2$	${\pi }_0$	${\pi }_1$	${\pi }_2$	${\pi }_1$	${\pi }_2$
$n=1$ (2 bands)	${\mathbb{Z}}_{\mathrm{𝟚}}$	$\mathrm{𝟘}$	$\mathrm{𝟘}$	${\mathbb{Z}}_{\mathrm{𝟚}}$	$\mathrm{𝟘}$	$\mathrm{𝟘}$	$\mathbb{Z}$	$\mathrm{𝟘}$
$n=2$ (4 bands)	${\mathbb{Z}}_{\mathrm{𝟚}}$	$\mathbb{Z}$	$\mathrm{𝟘}$	${\mathbb{Z}}_{\mathrm{𝟚}}$	$\mathrm{𝟘}$	$2\mathbb{Z}$	$\mathbb{Z}$	$\mathbb{Z}$
$n\ge 3$	${\mathbb{Z}}_{\mathrm{𝟚}}$	${\mathbb{Z}}_{\mathrm{𝟚}}$	$\mathrm{𝟘}$	${\mathbb{Z}}_{\mathrm{𝟚}}$	$\mathrm{𝟘}$	$2\mathbb{Z}$	$\mathbb{Z}$	${\mathbb{Z}}_{\mathrm{𝟚}}$

Table 4. Table 4: The relevant homotopy groups π p ​ ( M AI ) subscript 𝜋 𝑝 subscript 𝑀 AI \pi_{p}(M_{\textrm{AI}}) for few-band models contain multiple exceptions (displayed in bold) differing from the large n , ℓ 𝑛 ℓ n,\ell limit (displayed in gray) of Tab.  1 . We briefly tackle these exceptions in Sec.  IX .

${\pi }_1\left(M_{\text{AI}}\right)$	$n=1$	$n\ge 2$
$\ell =1$	$\mathbb{Z}$	${\mathbb{Z}}_{\mathrm{𝟚}}$
$\ell \ge 2$	${\mathbb{Z}}_{\mathrm{𝟚}}$	${\mathbb{Z}}_{\mathrm{𝟚}}$

Table 5. Table 5: List of selected unconventional superconducting (SC) and superfluid materials and their location within Fig.  3 (c), assuming the order parameters considered in the cited references. For certain entries, label (m) indicates the explicit presence and (s) the explicit absence of multi-orbital pairing, and for all materials we neglect the possible presence of SOC in Ξ 𝒌 subscript Ξ 𝒌 \Xi_{\boldsymbol{k}} . The symmetry analysis of Sec.  V.2 predicts the dimensionality of stable nodes indicated in the last column. In some of the cases, further point group symmetries may impose additional nodes of a different dimension (e.g. the line node at k z = 0 subscript 𝑘 𝑧 0 k_{z}=0 of URu 2 Si 2 (s)   Kasahara  et al. ( 2007 ) protected by a horizontal mirror symmetry). On the other hand, the vertical mirror symmetries of d 𝑑 d -wave cuprates only serve to locate the nodal lines within high-symmetry planes, but are not essential for the stability of the NLs.

pair condensate material	${\Delta }_{𝒌}$ parity	SRS	$𝒯$ present	AZ+$ℐ$ class	nodes
SrPtAs (m) Fischer and Goryo (2015), URu2Si2 (m) Agterberg et al. (2017)	even	(none)	$\times$	D	surfaces
cuprates ($d$-wave) Scalapino (1995), CeCoIn5 Higemoto et al. (2002)	even	SU(2)	$✓$	CI	lines
SrPtAs (s) Fischer et al. (2014), URu2Si2 (s) Kasahara et al. (2007)	even	$\mathrm{𝖲𝖴}\left(2\right)$	$\times$	C	points
3He-B Vollhardt and Wölfle (1990)	odd	(none)	$✓$	CII	(none)
PrOs4Sb12 Aoki et al. (2007)	odd	(none) or $𝖴\left(1\right)$	$\times$	C or A	points
3He-A Vollhardt and Wölfle (1990)	odd	$𝖴\left(1\right)$	$\times$	A	points
CePt3Si Hayashi et al. (2006), Li2Pt3B Yuan et al. (2006)	(no $ℐ$)	(none)	$✓$	AIII	lines
LaNiC2 Hillier et al. (2009)	(no $ℐ$)	(none)	$\times$	A	points

Table 6. Table 6: Overview of the sets of Pauli matrices used in the manuscript. The last two rows are only relevant for Secs.  VII to  IX when developing example TB models on a SrPtAs -like lattice. We use the words “orbital” and “sublattice” interchangeably if the orbitals reside at different lattice sites.

symbol	corresponding two-level degree of freedom
$\sigma$	spin ($\uparrow \leftrightarrow \downarrow$)
$s$	particle-hole ($\text{p}\uparrow \leftrightarrow \text{h}\uparrow$)
$\varsigma$	reduced particle-hole ($\text{p}\uparrow \leftrightarrow \text{h}\downarrow$)
$\tau$	orbital
	[same color interlayer ($\text{A}\leftrightarrow \text{B}$) in Fig. 5]
$r$	orbital

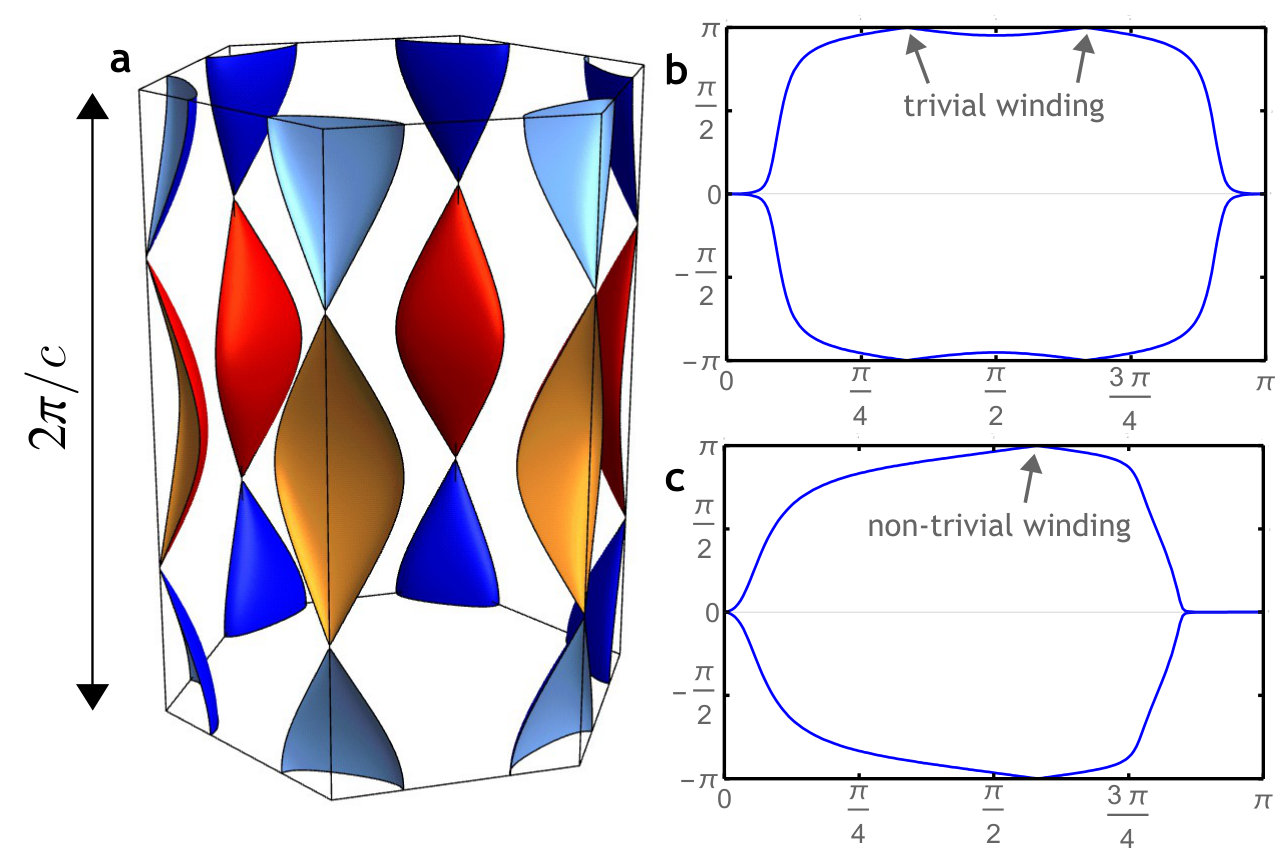

	(intralayer $\text{red}\leftrightarrow \text{blue}$ in Fig. 5)
$\rho$	orbital
	(interlayer $\text{red}\leftrightarrow \text{blue}$ in Fig. 5)

Equations

$$\mathcal{T}\mathcal{H}(\mathbf{k}){\mathcal{T}}^{-1}=\mathcal{H}(-\mathbf{k})$$

$$\mathcal{P}\mathcal{H}(\mathbf{k}){\mathcal{P}}^{-1}=-\mathcal{H}(-\mathbf{k})$$

$$\mathcal{C}\mathcal{H}(\mathbf{k}){\mathcal{C}}^{-1}=-\mathcal{H}(\mathbf{k})$$

$$\mathcal{I}\mathcal{H}(\mathbf{k}){\mathcal{I}}^{-1}=\mathcal{H}(-\mathbf{k}){\mathcal{I}}^2=\text{mathbbold}1\text{(U)}$$

$$\mathcal{TI}=\mathfrak{T}\text{and}\mathcal{P}\mathcal{I}=\mathfrak{P}$$

$$\mathfrak{T}\mathcal{H}(\mathbf{k}){\mathfrak{T}}^{-1}$$

$$\mathfrak{P}\mathcal{H}(\mathbf{k}){\mathfrak{P}}^{-1}$$

$$\mathcal{C}\mathcal{H}(\mathbf{k}){\mathcal{C}}^{-1}$$

$${\mathcal{H}}_{2\times 2}(\mathbf{k})=\sum _{i=0}^3{f}_i(\mathbf{k}){\sigma }_i$$

$${\mathcal{H}}_{4\times 4}(\mathbf{k})=\sum _{i,j=0}^3{g}_{ij}(\mathbf{k}){\sigma }_i\otimes {\tau }_j$$

$$\mathcal{H}(\mathbf{k})=\sum _{a=1}^{n+\ell }|u^a(\mathbf{k})⟩{\epsilon }^a(\mathbf{k})⟨u^a(\mathbf{k})|$$

$$\mathcal{Q}(\mathbf{k})=\sum _{a=1}^{n+\ell }|u^a(\mathbf{k})⟩\mathrm{sign}\left[{\epsilon }^a(\mathbf{k})\right]⟨u^a(\mathbf{k})|.$$

$$\mathcal{Q}(\boldsymbol{k})=\left(\begin{array}[]{cc}\mathbbold{0}&q(\boldsymbol{k})\\ q^{\dagger}(\boldsymbol{k})&\mathbbold{0}\end{array}\right)$$

$$c_{\text{CL}}(S^p)\in {\pi }_p(M_{\text{CL}}).$$

$$c_{\text{CL}}^{(D)}\in \underset{p={\delta }_{\text{CL}}-1}{\overset{D-1}{⨁}}{\pi }_p(M_{\text{CL}}).$$

$$\dots \to {\pi }_p(E)\to {\pi }_p(B)\to {\pi }_{p-1}(F)\to {\pi }_{p-1}(E)\to \dots$$

$${\mathfrak{T}}^2=\mathcal{TITI}={\mathcal{T}}^2{\mathcal{I}}^2={\mathcal{T}}^2$$

$${\mathcal{P}}^2=\mathcal{T}\mathcal{C}\mathcal{T}\mathcal{C}={\mathcal{T}}^2{\mathcal{C}}^2={\mathcal{T}}^2.$$

$${\mathfrak{P}}_{(\mathsf{a})}^2=\mathcal{T}\mathcal{C}{\mathcal{I}}_{(\mathsf{a})}\mathcal{T}\mathcal{C}{\mathcal{I}}_{(\mathsf{a})}=-(\mathcal{T}\mathcal{C}{)}^2{\mathcal{I}}_{(\mathsf{a})}^2=-{\mathcal{P}}^2$$

$${\mathfrak{P}}_{(\mathsf{b})}^2=\mathcal{T}\mathcal{C}{\mathcal{I}}_{(\mathsf{b})}\mathcal{T}\mathcal{C}{\mathcal{I}}_{(\mathsf{b})}=(\mathcal{T}\mathcal{C}{)}^2{\mathcal{I}}_{(\mathsf{b})}^2={\mathcal{P}}^2,$$

$$H(\boldsymbol{k})=\frac{1}{2}\left(\begin{array}[]{cc}c^{a\dagger}_{\boldsymbol{k}}&c^{a{\phantom{\dagger}}}_{-\boldsymbol{k}}\end{array}\right)\mathcal{H}^{ab}_{\textrm{BdG}}(\boldsymbol{k})\left(\begin{array}[]{c}c^{b{\phantom{\dagger}}}_{\boldsymbol{k}}\\ c^{b\dagger}_{-\boldsymbol{k}}\end{array}\right)$$

$$\mathcal{H}^{ab}_{\textrm{BdG}}(\boldsymbol{k})=\left(\begin{array}[]{cc}\Xi^{ab}_{\boldsymbol{k}}&\Delta^{ab}_{\boldsymbol{k}}\\ -\Delta^{ab*}_{-\boldsymbol{k}}&-\Xi^{ba}_{-\boldsymbol{k}}\end{array}\right)$$

$${\mathcal{P}}_{\text{t}}=s_x\mathcal{K}$$

$${\mathcal{I}}_{\text{BdG}}={\mathcal{I}}_0\oplus (\pm {\mathcal{I}}_0)\in \left\{{\mathcal{I}}_0\otimes \text{mathbbold}{1}_s,{\mathcal{I}}_0\otimes s_z\right\}.$$

$$\pm {\mathcal{I}}_0{\Delta }_{\mathbf{k}}{\mathcal{I}}_0^{-1}={\Delta }_{-\mathbf{k}}=-{\Delta }_{\mathbf{k}}^{\top }$$

$$\pm {\Delta }_{\mathbf{k}}=-{\Delta }_{\mathbf{k}}^{\top }$$

$${\Delta }_{\mathbf{k}}^{+}=\sum _{j=0,x,y}{\psi }_{\mathbf{k}}^j(\mathrm{i}{\sigma }_y)\otimes {\tau }_j+\sum _{i=x,y,z}{d}_{\mathbf{k}}^{iz}{\sigma }_i(\mathrm{i}{\sigma }_y)\otimes {\tau }_z$$

$${\Delta }_{\mathbf{k}}^{-}={\psi }_{\mathbf{k}}^z(\mathrm{i}{\sigma }_y)\otimes {\tau }_z+\sum _{\begin{array}{c}i=x,y,z\\ j=0,x,y\end{array}}{d}_{\mathbf{k}}^{ij}{\sigma }_i(\mathrm{i}{\sigma }_y)\otimes {\tau }_j$$

$${\Xi }_{\mathbf{k}}{\sigma }_{\mathbf{n}}-{\sigma }_{\mathbf{n}}{\Xi }_{\mathbf{k}}$$

$${\Delta }_{\mathbf{k}}{\sigma }_{\mathbf{n}}^{\top }+{\sigma }_{\mathbf{n}}{\Delta }_{\mathbf{k}}$$

$$\mathcal{T}=\mathrm{i}{\sigma }_y\mathcal{K}$$

$$H_{1/2}(\boldsymbol{k})=\frac{1}{2}\left(\begin{array}[]{cc}c^{\alpha\dagger}_{\boldsymbol{k}\uparrow}&c^{\alpha{\phantom{\dagger}}}_{-\boldsymbol{k}\downarrow}\end{array}\right)\mathcal{H}^{\alpha\beta}_{1/2}(\boldsymbol{k})\left(\begin{array}[]{c}c^{\beta{\phantom{\dagger}}}_{\boldsymbol{k}\uparrow}\\ c^{\beta\dagger}_{-\boldsymbol{k}\downarrow}\end{array}\right)$$

$$\mathcal{H}^{\alpha\beta}_{1/2}(\boldsymbol{k})=\left(\begin{array}[]{cc}\Xi_{\boldsymbol{k},\uparrow\uparrow}^{\alpha\beta}&\Delta_{\boldsymbol{k}\uparrow\downarrow}^{\alpha\beta}\\ -\Delta_{-\boldsymbol{k}\downarrow\uparrow}^{\alpha\beta*}&-\Xi_{-\boldsymbol{k}\downarrow\downarrow}^{\beta\alpha}\end{array}\right)$$

$${\mathcal{P}}_{\text{s}}=\mathrm{i}{\varsigma }_y\mathcal{K}$$

$${\mathcal{I}}_{1/2}={\mathcal{I}}_{\tau }\oplus (\pm {\mathcal{I}}_{\tau })\in \left\{{\mathcal{I}}_{\tau }\otimes \text{mathbbold}{1}_{\varsigma },{\mathcal{I}}_{\tau }\otimes {\varsigma }_z\right\}.$$

$$c_{\text{D}}^{(3)}\in {\pi }_0(M_{\text{D}})\oplus {\pi }_2(M_{\text{D}})=\text{mathbbold}{Z}_2\oplus 2\text{mathbbold}Z.$$

Full text

I Introduction

The advent of topological aspects of condensed matter systems Volovik (2003), which has been initiated by the discovery of the Quantum Hall effects von Klitzing et al. (1980); Thouless et al. (1982); Laughlin (1981); Tsui et al. (1982); Laughlin (1983); Moore and Read (1991) and strongly amplified by the discovery of topological insulators Kane and Mele (2005); Bernevig and Zhang (2006); Bernevig et al. (2006); König et al. (2007); Fu et al. (2007); Fu and Kane (2007); Hsieh et al. (2008); Hasan and Kane (2010); Hughes et al. (2011); Qi and Zhang (2011); Shiozaki and Sato (2014); Bradlyn et al. (2017), has in recent years naturaly led to extensive research of gapless topological phases. While electrons in such systems may emulate various high-energy physics particles like the massless Weyl Murakami (2007); Wan et al. (2011); Weng et al. (2015a); Huang et al. (2015a); Lv et al. (2015); Xu et al. (2015a, b) and Dirac Novoselov et al. (2005); Katsnelson et al. (2006); Wang et al. (2012); Young et al. (2012); Neupane et al. (2014); Liu et al. (2014a, b); Wehling et al. (2014); Steinberg et al. (2014); Young and Kane (2015) fermions, it has been recognized that the lower degree of symmetry of condensed matter systems also enables the appearance of gapless spectra that have no analog in high-energy physics. Examples include multi-Weyl points Fang et al. (2012); Tsirkin et al. (2017), “tipped” (or type-II) Weyl points Xu et al. (2015c); Soluyanov et al. (2015), “hyper-Dirac” (or double Dirac) points Wieder et al. (2016), effective spin-1 fermions Bradlyn et al. (2016), nexus fermions Heikkilä and Volovik (2015); Zhu et al. (2016); Weng et al. (2016a, b); Chang et al. (2016), various Weyl and Dirac loops Burkov et al. (2011); Chen et al. (2015a); Yu et al. (2015); Weng et al. (2015b); Fang et al. (2015); Kim et al. (2015); Bian et al. (2016a, b); Chen et al. (2015b); Liang et al. (2016); Heikkilä and Volovik (2016); Hirayama et al. (2017); Geilhufe et al. (2017); Furusaki (2017) and even Weyl chains and Weyl nets Bzdušek et al. (2016); Yu et al. (2017) and Dirac chains Wang et al. (2017). All of these are associated with a topological protection, novel surface spectra, and some were found to exhibit unusual transport features, notably the chiral anomaly Nielsen and Ninomiya (1983); Son and Spivak (2013); Hosur and Qi (2013); Huang et al. (2015b). In the present work we refer to a general touching of conduction and valence bands as a node, and depending on its dimension we further specify it as a nodal point, line or surface. To avoid confusion, by a nodal loop we mean a nodal line that does not wind around the Brillouin zone (BZ).

The topological protection of many of the mentioned nodes requires the presence of certain crystalline symmetries. For example, Dirac points require a rotational symmetry Yang and Nagaosa (2014); Yang et al. (2015); Gao et al. (2016), most nodal line materials need a mirror or a glide symmetry Chiu and Schnyder (2014); Bzdušek et al. (2016), and the hyper-Dirac points Wieder et al. (2016); Bradlyn et al. (2016) only arise in certain non-symmorphic lattices. Once the relevant crystalline symmetry is removed (e.g. by applying strain), these nodes cease to be topologically protected and may be trivially gapped out. On the other hand, nodes protected solely by global symmetries are more stable as they are not susceptible to the removal of crystalline symmetries. By global symmetries we mean those of the Atland-Zirnbauer (AZ) classification Altland and Zirnbauer (1997), i.e. time-reversal symmetry ($\mathcal{T}$), particle-hole symmetry ($\mathcal{P}$) and chiral symmetry ($\mathcal{C}$). Examples of such highly stable nodes include nodal lines protected by $\mathcal{C}$ (in superconductors Hayashi et al. (2006) and in semimetals with sublattice symmetry Burkov et al. (2011)), and Weyl points (in semimetals Wan et al. (2011), superfluids Volovik (2003) and superconductors Goswami and Balicas (2013); Fischer et al. (2014)) which do not require any symmetry (besides the translational symmetry of a crystalline system or a liquid).

Nodes protected by global symmetries alone are still characterized by a differing degree of stability. For example, a Weyl point is characterized by a $\mathbbold{Z}$-valued charge – the Chern number – and a set of Weyl points can mutually annihilate only if their net charge vanishes. In this manuscript, we refer to this property as the robustness of the nodes. An analogous $\mathbbold{Z}$ charge can also be defined for nodal lines protected by $\mathcal{C}$ which wind around BZ. However, such a charge is absent for nodal loops of the same system – these can be shrunk to a point and then gapped out on their own, hence we don’t describe them as robust. A question therefore arises as whether there are other species of nodes that reach this high level of stability we call robustness. The answer is unfavorable – for systems with three spatial dimensions ($D=3$) and global symmetries only, the two examples above capture all robust nodes.

Interestingly, it was noticed in Ref. Fang et al. (2015) that the set of robust nodes becomes enlarged if one considers centrosymmetric systems. Since inversion symmetry ($\mathcal{I}$) is typically not removed by straining (unless we encounter a structural phase transition Bzdušek et al. (2015)), nodes protected jointly by global symmetries and $\mathcal{I}$ are still very stable. In particular, Ref. Fang et al. (2015) used homotopy arguments to show that $D=3$ centrosymmetric electron bands respecting $\mathcal{T}$ and $\textsf{SU}(2)$ spin-rotation symmetry (corresponding to AZ class AI) exhibit nodal loops with a $\mathbbold{Z}_{2}$ charge analogous to the Chern number of Weyl points. 111Similar considerations using the notions of $K$-theory appeared recently also in Refs. Zhao et al. (2016); Zhao and Lu (2017). The non-trivial second homotopy group has also been reported in Sec. III.D of Ref. Morimoto and Furusaki (2014) although this work didn’t study the consequences of this property. The non-trivial charge on a gapped 2D manifold has been also identified in Tab. C.2 of Ref. Ryu et al. (2010). A nodal loop with a non-trivial value of this charge cannot be gapped out on its own but only by an annihilation with another such a loop. Furthermore, since this charge is independent of the Berry $\pi$-phase flowing along the band degeneracy, such nodal loops are also doubly charged. All these conclusions remain true in systems breaking both $\mathcal{T}$ and $\mathcal{I}$ provided that the composed $\mathcal{T}\mathcal{I}$ symmetry is preserved Li et al. (2017). We refer to both described situations as belonging to the centrosymmetric extension of the AI class. Note that “robust” and “multiply charged” describe different node attributes. We will argue that a single topological invariant protected by global symmetries and $\mathcal{I}$ is always sufficient to facilitate robust nodes, although they may have to wind around BZ for this to be the case. Being multiply charged is therefore a stronger and more peculiar feature.

In this manuscript, we generalize the homotopy arguments of Ref. Fang et al. (2015) to the centrosymmetric extension of all AZ classes (termed “AZ+$\mathcal{I}$ classes” for brevity) of arbitrary spatial dimension $D$, and provide an exhaustive list of multiply charged nodes appearing in them. Specifically in $D=3$ we identify four non-trivial instances: AZ+$\mathcal{I}$ classes CI and AI support doubly charged nodal loops, while we find doubly charged nodal surfaces in classes D and BDI. In $D=2$ the only class supporting doubly charged nodes is BDI, and there are no multiply charged nodes in $D=1$. On the other hand, all AZ+$\mathcal{I}$ classes support multiply charged nodes for $D\geq 6$.

Focusing further on $D=3$, we work out a description of both topological charges and develop simple tight-binding (TB) models exhibiting doubly charged nodes for the four non-trivial instances. The presented TB models do not attempt to describe any specific material, but rather to supply the reader with a way of easily checking our claims. We nevertheless argue that all of these nodes can appear in realistic crystalline solids. Specifically, the doubly charged nodal loops of class CI have natural realization in singlet superconducting (SC) phase of nodal line metals, nodal surfaces of class D have very recently been discussed in the context of multi-orbital SCs Agterberg et al. (2017); Timm et al. (2017), the nodal loops of class AI apply to semimetals respecting $\mathcal{T}\mathcal{I}$ in the absence of spin-orbit coupling, and nodal surfaces of class BDI are relevant to AI-like systems supplemented by the sublattice symmetry. Furthermore, the results for class AI are naturally applicable to nodes formed by photonic Lu et al. (2013), phononic Po et al. (2016) and magnonic Li et al. (2017) bands, since for bosonic excitations $\mathcal{T}$ naturally squares to $+1$. We remark that while providing the complete topological classification of multiply charged nodes of the AZ+$\mathcal{I}$ classes, this manuscript does not investigate the possible associated surface states and transport signatures which we leave for a future work.

The manuscript is structured as follows: In Sec. II we formalize the notion of AZ+$\mathcal{I}$ classes. In Sec. III we fix a canonical representation of the relevant symmetries in every AZ+$\mathcal{I}$ class, and use it to determine the dimensionality of stable nodes supported by the class in any spatial dimensions $D$. In Sec. IV we use homotopy theory to determine the topological charges of these nodes. We further elaborate here on the distinction between robust and multiply charged nodes. Then in Sec. V we discuss how the individual AZ+$\mathcal{I}$ classes relate to actual physical systems. Although such a discussion readily exists for AZ classes Schnyder et al. (2008), the Cartan labels of the AZ and of the AZ+$\mathcal{I}$ class of a given centrosymmetric system can be different, simply because $\mathcal{I}$ and $\mathcal{P}$ may be non-commuting. As this is a potentially confusing point, we dedicate significant space to carefully enumerate all the possibilities.

The sections introduced so far already contain our main findings, and the remaining pages mostly serve to strenghten our claims with examples and with derivations of the topological charges. We sequentially go through all four AZ+$\mathcal{I}$ classes supporting doubly charged nodes in $D=3$, and we develop a simple TB model on a hexagonal SrPtAs-like lattice Fischer and Goryo (2015) for each of them. For each model, we explicitly calculate both topological charges of the exhibited nodes. We gradually discuss AZ+$\mathcal{I}$ class D exhibiting $\mathbbold{Z}_{2}\oplus 2\mathbbold{Z}$ nodal surfaces in Sec. VI, class BDI with $\mathbbold{Z}_{2}\oplus\mathbbold{Z}_{2}$ nodal surfaces in Sec. VII, class CI with $\mathbbold{Z}\oplus\mathbbold{Z}_{2}$ nodal lines in Sec. VIII, and finally class AI with $\mathbbold{Z}_{2}\oplus\mathbbold{Z}_{2}$ nodal lines in Sec. IX. While most of the formulated charges appear within the ten-fold way classification Ryu et al. (2010), in three cases we encounter a somewhat unusual $\mathbb{Z}_{2}$ charge corresponding to a closed path winding inside Lie group $\mathsf{SO}(n)$ Fang et al. (2015), which we formalize using Wilson loops Soluyanov and Vanderbilt (2011); Alexandradinata et al. (2016). We conclude with some final remarks in Sec. X.

II Symmetry classification

A classification of Hamiltonians according to their global symmetries was developed in Ref. Altland and Zirnbauer (1997). By these we mean time-reversal ($\mathcal{T}$), particle-hole ($\mathcal{P}$) and chiral ($\mathcal{C}$) symmetry . In momentum ($\boldsymbol{k}$-)space they fulfil

[TABLE]

where (AU) indicates antiunitarity and (U) unitarity. There are ten possibilities which are listed alongside their Cartan label (CL) in the first four columns of Tab. 1.

Apart from the discrete set of $2^{D}$ time-reversal invariant momenta (TRIMs), $\mathcal{T}$ and $\mathcal{P}$ relate Hamiltonians at two different $\boldsymbol{k}$-points. These non-local constraints have to be incorporated when developing the ten-fold way classification of gapped topological insulators and superconductors Kitaev (2009); Schnyder et al. (2009); Ryu et al. (2010); Wen (2012); Ludwig (2016). However, when characterizing nodes of a gapless system, one only needs to know the Hamiltonian in the vicinity of the node, which is typically not constrained by conditions (1a) and (1b). Consequently, a $D=3$ system exhibits nodal points (lines) in the absence (presence) of $\mathcal{C}$, as is shown using homotopy theory in the subsequent sections. Additional nodal points imposed by conditions (1a) and (1b) may be fixed at TRIMs, but these are unremovable and thus not of relevance to us.

The conclusion that $\mathcal{T}$ and $\mathcal{P}$ don’t affect the classification of nodes is changed in the presence of crystalline symmetries Chiu and Schnyder (2014). In the present work, we consider the presence of inversion symmetry ($\mathcal{I}$) which is typically robust against simple straining. It fulfils

[TABLE]

such that compositions

[TABLE]

We call such symmetry classes as the centrosymmetric extensions of AZ classes (or “AZ+$\mathcal{I}$ classes” for brevity) and list them together with their CL in the first four columns of Tab. 1.

We remark that CLs of the AZ class and of the AZ+$\mathcal{I}$ class corresponding to a given centrosymmetric system may be different – a subtlety that is further detailed in Sec. V. Furthermore, classification (3) also applies to non-centrosymmetric systems. Especially, symmetries (3a) can be present even when $\mathcal{T},\mathcal{P},\mathcal{I}$ themselves are absent.

III Node dimensionality

In this section we systematically determine the dimension of nodes supported by the individual AZ+$\mathcal{I}$ classes for arbitrary $D$. To achieve this, we fix canonical representations of operators (3) and use them to determine the codimension $\delta_{\textrm{CL}}$ of the node, i.e. the number of conditions to be fulfilled to make two bands touch. Provided that $D\geq\delta_{\textrm{CL}}$, nodes of dimension $D-\delta_{\textrm{CL}}$ occur.

Our choice of representing operators $\mathfrak{T},\mathfrak{P},\mathcal{C}$ is shown in Tab. 2 where $\mathcal{K}$ indicates complex conjugation, and $\sigma_{i}$ and $\tau_{i}$ are Pauli matrices corresponding to two different degrees of freedom. The choice is rather arbitrary, but this freedom does not influence the analysis of the node codimension and of the node charges in the subsequent text. Specifically, we apply the following rules:

• $(i)$

Set $\mathcal{C}=\sigma_{z}$ to enforce a block-off-diagonal form (6) of the Hamiltonian.

• $(ii)$

Represent antiunitary operators squaring to $+1$ by $\mathcal{K}$, and those squaring to $-1$ by $\mathrm{i}\sigma_{y}\mathcal{K}$.

These requirements are incompatible if all $\mathfrak{T}$, $\mathfrak{P}$ and $\mathcal{C}$ are present, hence classes BDI, DIII, CII and CI contain certain exceptions to rules ($i$) and ($ii$). Finally, we always apply the rule:

• $(iii)$

Set $\mathfrak{T}\mathfrak{P}=\mathcal{C}$ if all three symmetries are present.

Having fixed the representations of $\mathfrak{T}$, $\mathfrak{P}$ and $\mathcal{C}$, the node codimension $\delta_{\textrm{CL}}$ is determined by considering the minimal model capturing degeneracies between the valence and the conduction bands. This is either a two-band Hamiltonian

[TABLE]

expanded using a product of pairs of Pauli matrices (i.e. Dirac matrices) $\sigma_{i}\otimes\tau_{j}$, and $f_{i}$ and $g_{ij}$ are real-valued functions. Model (4) can be always locally obtained by projecting out bands not forming the node. By Kramer’s theorem, the minimal model is (4b) whenever the symmetry class contains $\mathfrak{T}^{2}=-1$, and (4a) otherwise.

Local constraints (3) forbid the presence of some of the basis matrices in expansions (4). For the representation of operators given in Tab. 2 we systematically analyze these constraints, and we list the symmetry-compatible basis matrices and their number $\delta_{\textrm{CL}}$ further in Tab. 2. The unit matrix is not relevant for the node dimension (although it may be relevant for its experimental signatures Soluyanov et al. (2015)) and is therefore not counted in $\delta_{\textrm{CL}}$. We observe that the remaining basis matrices of the minimal model are always anticommuting, which implies that a node occurs at $\boldsymbol{k}_{0}$ whenever the $\delta_{\textrm{CL}}$ function values $f_{i}(\boldsymbol{k}_{0})$ [or $g_{ij}(\boldsymbol{k}_{0})$] vanish. Solutions to $\delta_{\textrm{CL}}$ equations in $D$ dimensions generically occur on a $(D-\delta_{\textrm{LC}})$-dimensional manifold – the node dimension of the corresponding AZ+$\mathcal{I}$ class. We provide the explicit outcome of the analysis for $D=3$ in the last column of Tab. 2.

We remark that for classes with $\mathfrak{P}$ or $\mathcal{C}$ the presented arguments only work for nodes located at zero energy (i.e. at the Fermi level). For nodes at a non-zero energy (i.e. ones formed entirely within the valence or within the conduction bands), symmetries $\mathfrak{P}$ and $\mathcal{C}$ don’t restrict the effective model (4) and can be dropped from the AZ+$\mathcal{I}$ description. This a rather trivial observation and we do not return to it again in the following sections.

IV Topological charges

Knowing the dimensionality of the nodes for all the AZ+$\mathcal{I}$ classes, we now determine the corresponding topological charges. We generalize the method explained in Sec. II.B of Ref. Fang et al. (2016), and consider $p$-spheres $S^{p}$ wrapping around the nodes. The largest sphere fitting into the Brillouin zone (BZ) is $S^{D-1}$. By the smalled sphere $S^{0}$ we mean a pair of points (rather than just a single point). However, not all of these come into play. For example, all circles $S^{1}\subset\textrm{BZ}$ in a class supporting nodal points are continuously contractible to a single point without encountering a gap closing, and therefore cannot host any topological obstruction. The same is true for $S^{0}$ in such a system, and a few more similar examples are illustrated in Fig. 1. Simple counting reveals that only $p$-spheres with $\delta_{\textrm{CL}}-1\leq p\leq D-1$ can be non-contractible and may therefore accommodate a topological charge.

To identify the topological charge supported by $S^{p}$, we first perform spectral flattening Ryu et al. (2010). For a system with $n$ occupied and $\ell$ unoccupied bands, we decompose the Hamiltonian $\mathcal{H}(\boldsymbol{k})$ on $S^{p}$ using the eigensystem $\{\varepsilon^{a}(\boldsymbol{k}),\left|{u^{a}(\boldsymbol{k})}\right>\}_{a=1}^{n+\ell}$ as

[TABLE]

Note that the description using $\{\left|{u^{a}(\boldsymbol{k})}\right>\}_{a=1}^{n+\ell}\in\mathsf{U}(n+\ell)$ is redundant because rotating the occupied (unoccupied) states by a $\mathsf{U}(n)$ [$\mathsf{U}(\ell)$] matrix leaves $\mathcal{Q}(\boldsymbol{k})$ invariant, meaning that $\mathcal{Q}(\boldsymbol{k})\in\mathsf{U}(n+\ell)/\mathsf{U}(n)\!\times\!\mathsf{U}(\ell)\equiv M_{\textrm{A}}$ which is the classifying space in the absence of AZ+$\mathcal{I}$ symmetries. The decompositions (5) may not be achieved with a smooth gauge in the case of Chern bands, nevertheless, the flat-band Hamiltonian $\mathcal{Q}(\boldsymbol{k})\in M_{\textrm{A}}$ is smooth.

Conditions (3) of a given symmetry class CL constrain $\mathcal{Q}(\boldsymbol{k})$ to be an element of a smaller classifying space $M_{\textrm{CL}}\subseteq M_{\textrm{A}}$. For example, $\mathcal{C}=\sigma_{z}$ leads to

[TABLE]

with $q(\boldsymbol{k})\in\mathsf{U}(n)\equiv M_{\textrm{AIII}}$. All relevant classifying spaces are listed in Ref. Kitaev (2009) and we reproduce them in Tab. 1.

Every $S^{p}\subset\textrm{BZ}$ with a gapped spectrum is associated with a continuous map $\mathcal{F}:S^{p}\to M_{\textrm{CL}}$. Continuous deformations of $S^{p}$ as well as of $\mathcal{H}(\boldsymbol{k})$ (such that the spectrum on $S^{p}$ is kept gapped) lead to continuous changes of $\mathcal{F}$. One may thus consider the equivalence class $[\mathcal{F}]$ of maps continuously reachable from $\mathcal{F}$. Especially, if a constant map $\mathcal{F}_{\mathfrak{m}}:S^{p}\to\mathfrak{m}$ with a fixed element $\mathfrak{m}\in M_{\textrm{CL}}$ cannot be reached from $\mathcal{F}$, then $S^{p}$ cannot be shrunk to a single point $\boldsymbol{k}_{0}\in\textrm{BZ}$. This implies that $S^{p}$ accommodates a topological obstruction, i.e. it contains an unremovable node. We therefore deduce a connection between the equivalence class $[\mathcal{F}]$ and the charge $c_{\textrm{CL}}(S^{p})$ accommodated by the $p$-sphere. The order of the charge for $p\geq 1$ corresponds to the number of distinct equivalence classes $[\mathcal{F}]$, which is captured by the homotopy group $\pi_{p}(M_{\textrm{CL}})$ Nakahara (2003). The charge on $S^{p}$ is then some element

[TABLE]

Collecting the charges supported by all $p$-spheres enclosing a node of a given AZ+$\mathcal{I}$ class, the complete topological charge of the node becomes

[TABLE]

A node may become multiply charged whenever more than one of the groups in direct sum (7b) are non-trivial. We read from Tabs. 1 and 2 that for $D=3$ in the large $n,\ell$ limit, doubly charged nodal lines appear in AZ+$\mathcal{I}$ classes AI and CI, and doubly charged nodal surfaces exist in classes BDI and D.

More care is required if one studies few-band models not reaching the large $n,\ell$ limit of Ref. Lundell (1992). In that case, the homotopy groups may differ from those listed in Tab. 1. If $M_{\textrm{CL}}$ is a Lie group (classes AIII, BDI and CII), the homotopy groups can be readily found in various sources (e.g. Ito (1993)), while if $M_{\textrm{CL}}$ is a fiber bundle $B=E/F$ (all other classes), one can determine $\pi_{p}(B)$ from the long exact sequence of homomorphisms Hatcher (2002)

[TABLE]

We carried out the analysis for the classes supporting doubly charged nodes in $D=3$, and we list the results in Tabs. 3 and 4. In particular, we find that in all four instances the minimal half-filled models exhibiting doubly charged nodes contain four bands.

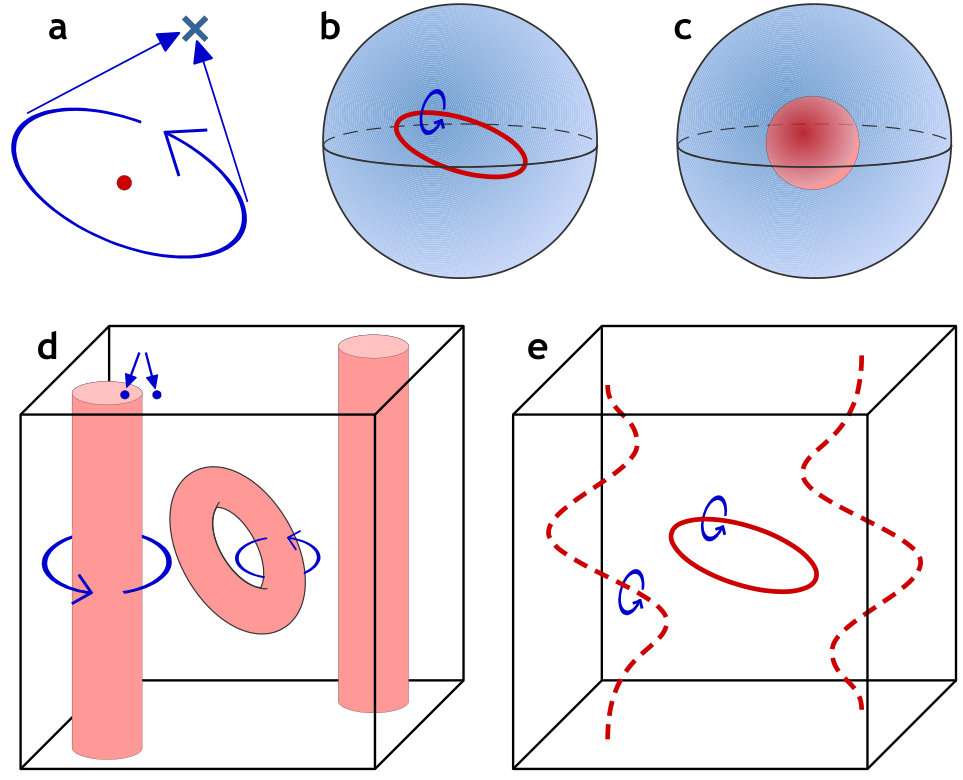

Let us briefly discuss the concept of node robustness, which is characterized by the presence of such a charge that a set of nodes can mutually annihilate only if their net charge vanishes. Clearly, the nodal loop in Fig. 1(e) with a non-trivial $c(S^{1})$ and trivial $c(S^{2})$ is not robust: It can be shrunk to a single point, and since at that stage $c(S^{1})$ ceases to be defined (there is no “loop interior”), nothing prevents us from gapping out the spectrum entirely. The result would be different if $c(S^{2})$ were non-trivial, because then the nodal point (corresponding now to the shrunk nodal loop) would be enclosed by a sphere carrying a topological obstruction Fang et al. (2015). This dichotomy should be contrasted with the case of winding nodal lines in Fig. 1(e) which cannot be shrunk to a point, such that $c(S^{1})$ never ceases to be meaningful. Such winding nodal lines are robust regardless of the higher homotopy charge.

An analogous dichotomy exists for the nodal torus and the nodal cylinder with non-trivial $c(S^{1})$ and a trivial higher charge that are illustrated in Fig. 1(d): The cylinder is robust while the torus is not. In the same spirit, a nodal surface with a non-trivial $c(S^{0})$ also becomes robust if both of its dimensions wind around BZ. Generally, if the highest non-trivial charge in expansion (7b) corresponds to $\tilde{p}$-sphere, the nodal object has to possess $D-\tilde{p}-1$ winding coordinates to become robust.

V Realizations of AZ+$\mathcal{I}$ classes

We have already warned the reader that the Cartan labels of the AZ and of the AZ+$\mathcal{I}$ class corresponding to a given centrosymmetric system may be different. In this section we explain that this disagreement occurs when $\mathcal{I}\mathcal{P}\neq\mathcal{P}\mathcal{I}$, and we further discuss how the individual AZ+$\mathcal{I}$ classes are realized as various semimetallic and superconducting phases. Our discussion is focused on centrosymmetric systems only. The generalization to non-centrosymetric cases is straightforward, and we include it in the scheme of Fig. 3.

Before delving into the scrutiny of operators $\mathcal{P}$ and $\mathfrak{P}$, let us show that time-reversal behaves “nicely” in the sense that always $\mathcal{T}^{2}=\mathfrak{T}^{2}$, thus not leading to a Cartan label difference. The reason is that $\mathcal{T}$ and $\mathcal{I}$ act on different degrees of freedom (flipping the sign of time vs. position), therefore the commutator $[\mathcal{T},\mathcal{I}]=0$ and

[TABLE]

where $\mathcal{I}^{2}=\mathbbold{1}$ is true for any system. This implies that in the absence of symmetries $\mathcal{P}$ and $\mathcal{C}$, the AZ label and the AZ+$\mathcal{I}$ label of a given centrosymmetric material do coincide, and are either A, AI or AII. Class A exhibits nodal points, and corresponds to Weyl semimetals Wan et al. (2011) as well as to their photonic analogue Lu et al. (2013). Similarly, class AI corresponds to nodal line semimetals in the absence of spin-orbit coupling (SOC) (including both “Type A” and “Type B” nodal line materials of Tab. 1 in Ref. Fang et al. (2016)) as well as their bosonic counterparts Lu et al. (2013); Po et al. (2016); Li et al. (2017). Finally, class AII does not exhibit any stable nodes in the absence of additional crystalline symmetries. These three scenarios correspond to the Fig. 3(a).

In the following two subsections we show that always $\mathfrak{P}^{2}=\pm\mathcal{P}^{2}$, where the sign depends on the specific system realization. The discussion is split into Subsec. V.1 dealing with non-superconducting systems with sublattice symmetry (SLS) which is summarized in Fig. 3(b), and Subsec. V.2 dealing with superconducting (SC) which is captured by Fig. 3(c).

V.1 $\mathcal{P}$ from sublattice symmetry

The sublattice realization of $\mathcal{C}$ corresponds to acting on two sets of sites (i.e. “sublattices”) with opposite sign, therefore $\mathcal{C}^{2}=\mathbbold{1}$. Furthermore, this operation is insensitive to spin, meaning that $\mathcal{C}$ and $\mathcal{T}$ commute. The composition $\mathcal{P}=\mathcal{T}\mathcal{C}$ fulfills

[TABLE]

This subsection is thus relevant only to AZ classes BDI and CII, which are themselves distinguished by the presence or absence of SOC. We want to find the associated $\mathrm{AZ}$+$\mathcal{I}$ classes.

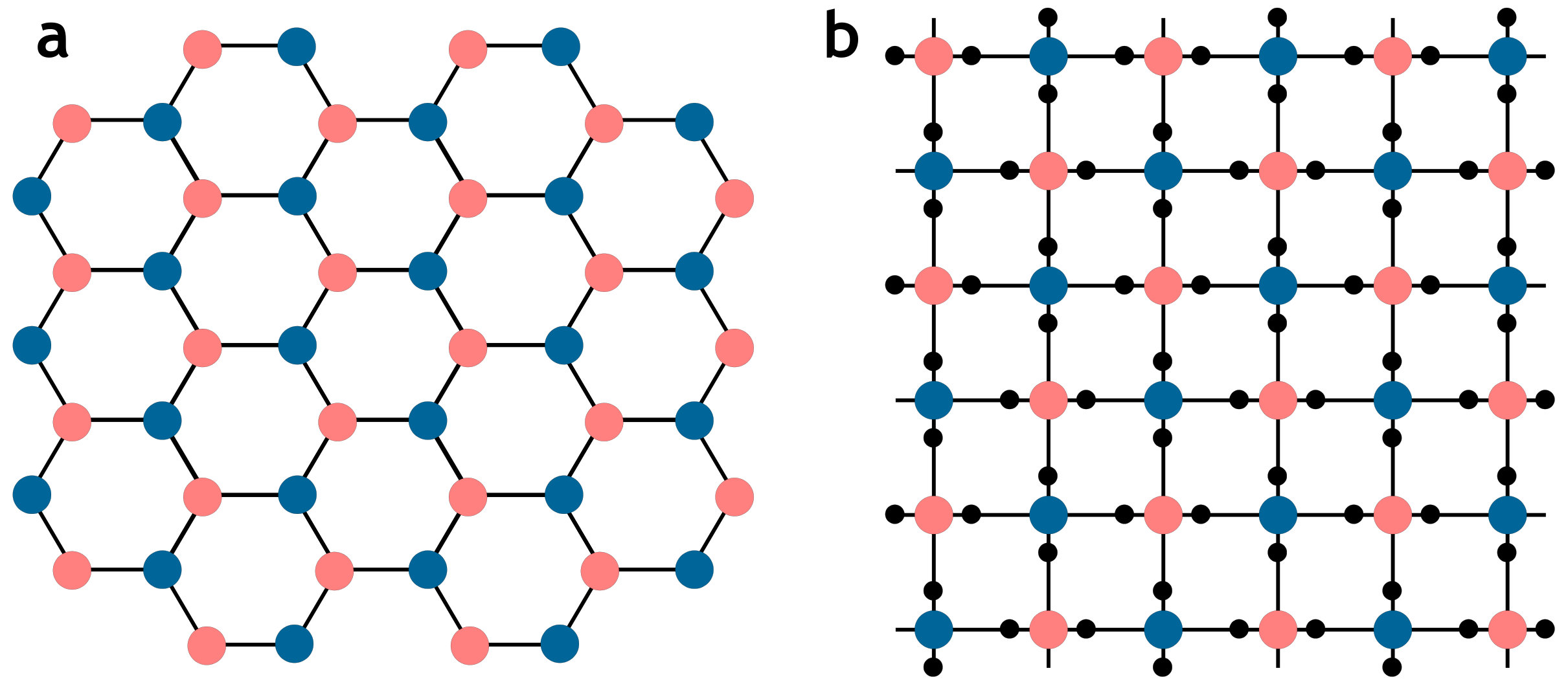

We begin with the example of the graphene lattice which contains two sublattices [light red and dark blue in Fig 2(a)]. Within the nearest-neighbor (NN) TB description, electrons only hop between the two sublattices (i.e. not within them), meaning that the Hamiltonian is off-diagonal in the sublattice (orbital) basis captured by Pauli matrices $\tau_{i}$. Therefore, the Hamiltonian anticommutes with $\mathcal{C}=\tau_{z}$. On the other hand, inversion symmetry switches the two sublattices, such that $\mathcal{I}_{\mathsf{(a)}}=\tau_{x}$ and $\mathcal{I}_{\mathsf{(a)}}\mathcal{C}=-\mathcal{C}\mathcal{I}_{\mathsf{(a)}}$. It follows that $\mathfrak{P}=\mathcal{P}\mathcal{I}_{\mathsf{(a)}}$ obeys

[TABLE]

On the other hand, the lattice in Fig. 2(b) has $\mathcal{C}=\tau_{z}$ and $\mathcal{I}_{\mathsf{(b)}}=\mathbbold{1}_{\tau}$ which commute ($\mathcal{I}$-even SLS). In this case

[TABLE]

meaning that the AZ and AZ+$\mathcal{I}$ Cartan labels coincide. Such a situation arises in various non-symmorphic lattices including various distorted perovskites with doubled unit cells Shirane and Yamada (1969); Dove (1997).

V.2 $\mathcal{P}$ from superconductivity

The commutation relation of $\mathcal{P}$ and $\mathcal{I}$ in SC systems depends on the parity of the gap function $\Delta_{\boldsymbol{k}}$. Furthermore, the relevant AZ and AZ+$\mathcal{I}$ classes finely depend on the presence of time-reversal symmetry (TRS) and on the degree of spin-rotation symmetry (SRS). To systematically tackle all the possibilities, we largely follow Sec. II.C of Ref. Schnyder et al. (2008) which similarly treats the case of AZ classification. For simplicity, we only consider SC with zero momentum and even frequency pairing.

The most general SC Hamiltonian takes the form Altland and Zirnbauer (1997)

[TABLE]

is the Bololyubov-de Gennes (BdG) Hamiltonian, in which $\Xi_{\boldsymbol{k}}^{\phantom{\dagger}}=\Xi^{\dagger}_{\boldsymbol{k}}$ describes the underlying normal metal band structure which may or may not contain SOC, and the gap function obeys $\Delta_{\boldsymbol{k}}^{\phantom{\top}}=-\Delta^{\top}_{-\boldsymbol{k}}$ due to the fermionic statistics. Hamiltonian (12b) is automatically furnished with particle-hole operator

[TABLE]

where Pauli matrices $s_{i}$ act on the particle-hole degree of freedom. Operator (13) squares to $\mathcal{P}_{\textrm{t}}^{2}=+\mathbbold{1}$.

The system described by (12) is assumed to be centrosymmetric. We can decompose the inversion operator of the normal metal state as $\mathcal{I}_{0}=\mathcal{I}_{\tau}\otimes\mathbbold{1}_{\sigma}$ where $\mathcal{I}_{\tau}$ is the orbital component, Pauli matrices $\sigma_{i}$ represent the spin degree of freedom, and the $\mathbbold{1}_{\sigma}$ part follows because spin is an axial vector. The symmetry relates $\mathcal{I}_{0}\Xi_{\boldsymbol{k}}\mathcal{I}_{0}^{-1}=\Xi_{-\boldsymbol{k}}$. Operator $\mathcal{I}_{0}$ is real because it only permutes the orbitals. Furthermore, inversion symmetry does not mix electrons and holes, hence the inversion operator of (12b) is diagonal in $s$, leaving only two options

[TABLE]

These translate to a constraint on the gap function

[TABLE]

In single-orbital SCs, Eq. (15a) contains $2\times 2$ matrices in the spin-degree of freedom with $\mathcal{I}_{0}=\mathbbold{1}_{\sigma}$. Eq. (15a) therefore simplifies to

[TABLE]

where the $\pm$ sign is inherited from Eq. (15a). We see that single-orbital SCs have to follow one of two scenarios. Either “$+$” is realized in Eq. (15b) (singlet, $\mathcal{I}$-even $\Delta_{\boldsymbol{k}}$), such that $\Delta_{\boldsymbol{k}}=\psi_{\boldsymbol{k}}(\mathrm{i}\sigma_{y})$ with a complex-valued scalar function $\psi_{\boldsymbol{k}}$ even in $\boldsymbol{k}$. In this case $\mathcal{I}_{\textrm{BdG}}=\mathcal{I}_{0}\otimes\mathbbold{1}_{s}$ commutes with $\mathcal{P}_{\textrm{t}}$, such that $\mathfrak{P}^{2}=\mathcal{P}^{2}_{\textrm{t}}=+\mathbbold{1}$. Alternatively, the “$-$” sign in Eq. (15b) is realized (triplet, $\mathcal{I}$-odd $\Delta_{\boldsymbol{k}}$), and the gap function takes the form $\Delta_{\boldsymbol{k}}=\left(\boldsymbol{d}_{\boldsymbol{k}}\cdot\boldsymbol{\sigma}\right)(\mathrm{i}\sigma_{y})$ with a complex-valued vector function $\boldsymbol{d}_{\boldsymbol{k}}$ odd in $\boldsymbol{k}$. In this case $\mathcal{I}_{\textrm{BdG}}=\mathcal{I}_{0}\otimes s_{z}$ anticommutes with $\mathcal{P}_{\textrm{t}}$, such that $\mathfrak{P}^{2}=-\mathcal{P}^{2}_{\textrm{t}}=-\mathbbold{1}$. However, as explained in Ref. Schnyder et al. (2008), the presence of SRS renders description (12) redundant and a finer examination is necessary. We do so below after first commenting on the multi-orbital case.

In multi-orbital SCs, the presence of inversion symmetry may be insufficient to enforce the singlet/triplet separation. The gap function can be a mixture of both, provided that the parity in the spin degree of freedom is compensated by the parity in the orbital one. Let us illustrate this on the graphene lattice of Fig. 2(a) with $\mathcal{I}_{0}=\tau_{x}\otimes\mathbbold{1}_{\sigma}$. The symmetry group permits two mixed representations. First, the even one ($\mathcal{I}$-even $\Delta_{\boldsymbol{k}}$) with

[TABLE]

where $\psi_{\boldsymbol{k}}^{z},d_{\boldsymbol{k}}^{iy}$ are even and $d_{\boldsymbol{k}}^{i0},d_{\boldsymbol{k}}^{ix}$ are odd in $\boldsymbol{k}$. In this case $\mathcal{I}_{\textrm{BdG}}=\mathcal{I}_{0}\otimes s_{z}$ anticommutes with $\mathcal{P}_{\textrm{t}}$ such that $\mathfrak{P}^{2}=-\mathcal{P}^{2}_{\textrm{t}}=-\mathbbold{1}$. Contrastingly, the lattice of Fig. 2(b) has a trivial $\mathcal{I}_{0}=\mathbbold{1}_{\tau}\otimes\mathbbold{1}_{\sigma}$, such that the simplification to Eq. (15b) becomes valid, and the singlet/triplet separation of the previous paragraph applies again.

We now combine the obtained information with the arguments of Ref. Schnyder et al. (2008). We begin with systems without a continuous SRS, meaning that there is no normalized combination of Pauli matrices $\mathbf{n}\cdot\boldsymbol{\sigma}\equiv{\sigma}_{\mathbf{n}}$ such that

[TABLE]

simultaneously for all momenta in BZ. Note that SRS can be removed either by the presence of SOC in $\Xi_{\boldsymbol{k}}$ or by the electron pairing encoded in $\Delta_{\boldsymbol{k}}$. If such a system breaks TRS, the only AZ symmetry is $\mathcal{P}_{\textrm{t}}^{2}=+\mathbbold{1}$ which corresponds to AZ class $\mathrm{D}$. Depending on the inversion-parity of $\Delta_{\boldsymbol{k}}$ in Eq. (15a) we obtain $\mathfrak{P}^{2}=\pm\mathcal{P}_{\textrm{t}}^{2}=\pm\mathbbold{1}$. The positive sign ($\mathcal{I}$-even $\Delta_{\boldsymbol{k}}$) leads to AZ+$\mathcal{I}$ class D while the negative sign ($\mathcal{I}$-odd $\Delta_{\boldsymbol{k}}$) moves us to AZ+$\mathcal{I}$ class C. On the other hand, a system respecting TRS has additional

[TABLE]

squaring to $-\mathbbold{1}$, and belongs to AZ class DIII. The corresponding AZ+$\mathcal{I}$ class for $\mathcal{I}$-even $\Delta_{\boldsymbol{k}}$ remains DIII, while $\mathcal{I}$-odd $\Delta_{\boldsymbol{k}}$ leads to AZ+$\mathcal{I}$ class CII. Note that in the absence of SOC such realizations of AZ+$\mathcal{I}$ classes D and DIII are only possible in multi-orbital SCs, because $\mathcal{I}$-even $\Delta_{\boldsymbol{k}}$ in single-orbital case indicates a pure singlet state having the full $\textsf{SU}(2)$ SRS, which contradicts the original assumption.

We further consider SCs with $\textsf{U}(1)$ SRS which means that there is (up to the overall sign) a single matrix $\sigma_{\mathbf{n}}$ fulfilling Eqs. (17) for all $\boldsymbol{k}\in\textrm{BZ}$. As shown in Ref. Schnyder et al. (2008), their Hamiltonians (12b) canonically decouple into two blocks, rendering the original description redundant. If we rotate the coordinates such that the conserved spin component is $\sigma_{z}$, then one of the blocks becomes

[TABLE]

is the reduced BdG Hamiltonian. Operator $\mathcal{P}_{\textrm{t}}$ of Eq. (13) relates the two blocks, and in the absence of TRS the single block (19b) contains none of symmetries (1). We thus end up in AZ class A which corresponds to the same AZ+$\mathcal{I}$ class. The additional presence of TRS manifests within a single block as chiral symmetry $\mathcal{C}=\varsigma_{y}$ where Pauli matrices $\varsigma_{i}$ correspond to the particle-hole degree of freedom of Eqs. (19). Such SCs correspond to AZ and AZ+$\mathcal{I}$ class AIII, regardless of the parity of $\Delta_{\boldsymbol{k}}$.

Finally, we tackle SCs with the complete $\textsf{SU}(2)$ SRS, meaning that Eqs. (17) are fulfilled for every $\mathbf{n}$ and $\boldsymbol{k}$. These are automatically pure singlet SCs with no SOC. In this case, the block (19b) develops particle-hole symmetry Schnyder et al. (2008)

[TABLE]

squaring to $-\mathbbold{1}$. In the absence of TRS this corresponds to AZ class C. Depending on the inversion-parity of $\Delta_{\boldsymbol{k}}$ in Eq. (15a), the inversion operator induced into the block (19b) from $\mathcal{I}_{\textrm{BdG}}$ is

[TABLE]

The “$+$” sign of Eq. (21) corresponds to $\mathcal{I}$-even $\Delta_{\boldsymbol{k}}$, when $\mathcal{P}_{\textrm{s}}$ and $\mathcal{I}_{1/2}$ commute and the AZ+$\mathcal{I}$ class remains C. This is the case of single-orbital singlet SCs, and of multi-orbital SC in which the three $d_{\boldsymbol{k}}^{iz}$ terms in Eq. (16a) vanish. On the other hand, the “$-$” sign relates to the $\mathcal{I}$-odd case $\Delta_{\boldsymbol{k}}$ with $\mathfrak{P}^{2}=-\mathcal{P}_{\textrm{s}}^{2}=+\mathbbold{1}$ such that the AZ+$\mathcal{I}$ class switches to D. This situation corresponds to a very fine-tuned multi-orbital case when the nine $d_{\boldsymbol{k}}^{ij}$ of Eq. (16b) vanish, and as such may be relevant only to certain artificially engineered systems. Ultimately, if the singlet SC preserves TRS, the block (19b) develops $\mathcal{T}_{\textrm{s}}=\mathcal{K}$ squaring to $+\mathbbold{1}$ leading to AZ class CI. Under such circumstances, the $\mathcal{I}$-even $\Delta_{\boldsymbol{k}}$ case belongs to AZ+$\mathcal{I}$ class CI, while the $\mathcal{I}$-odd $\Delta_{\boldsymbol{k}}$ case corresponds to AZ+$\mathcal{I}$ class BDI.

We remark that the relevant AZ+$\mathcal{I}$ class of single-orbital singlet SCs is susceptible to the inclusion of SOC in $\Xi_{\boldsymbol{k}}$. In the presence of TRS, the gradual decrease of SRS due to the presence of SOC corresponds to AZ+$\mathcal{I}$ class evolution $\textrm{CI}\to\textrm{AIII}\to\textrm{DIII}$. While all three classes in 3D exhibit nodal lines, only class CI nodal lines (corresponding to no SOC) are according to Tab. 1 characterized by a pair of charges. On the other hand, in the absence of TRS the inclusion of SOC leads to AZ+$\mathcal{I}$ class evolution $\textrm{C}\to\textrm{A}\to\textrm{D}$. In 3D this implies that the removal of a continuous SOC inflates the Weyl points into doubly-charged nodal surfaces Agterberg et al. (2017).

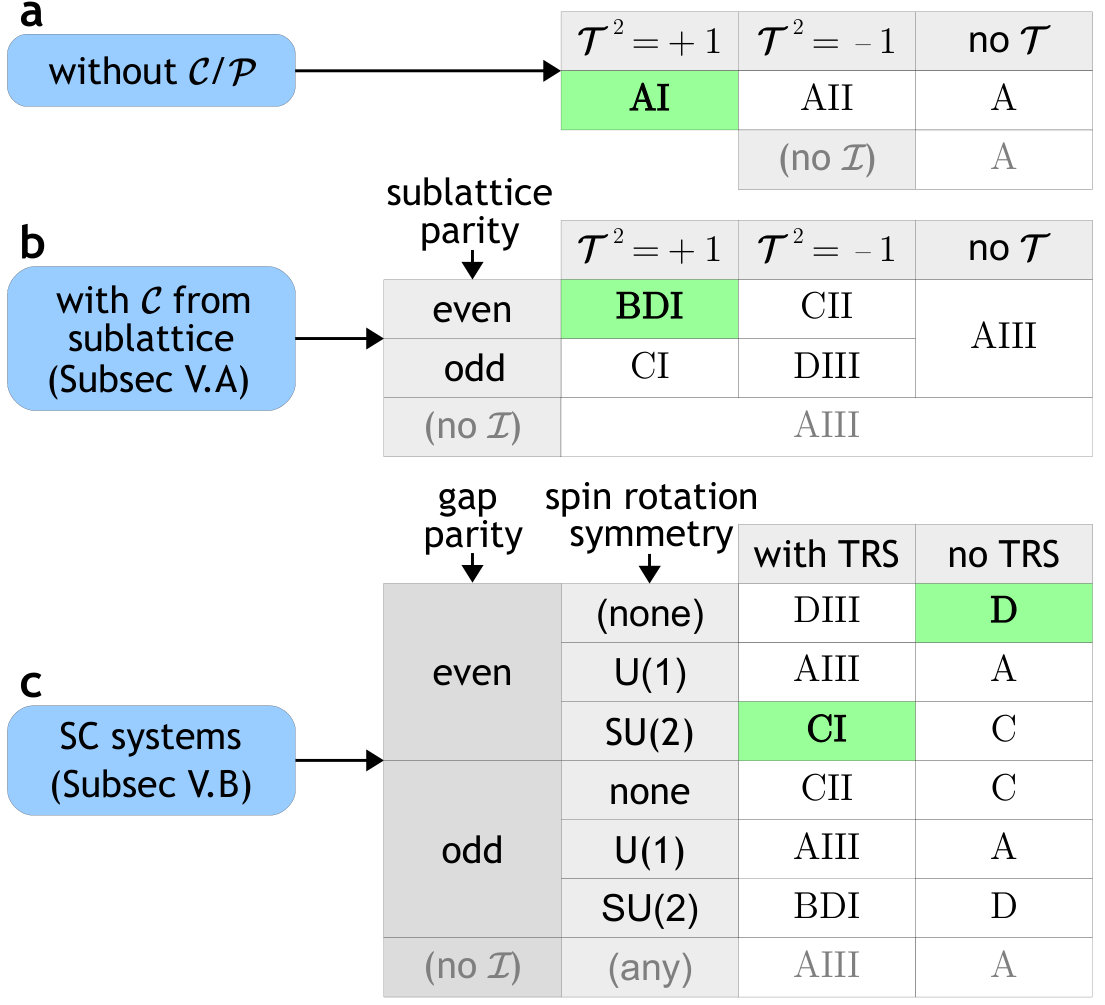

As a guide for the reader, we provide in Tab. 5 a list of some well-known examples of exotic superconductors with their relevant AZ+$\mathcal{I}$ classes. In several cases, there is no consensus on the symmetry of the SC order parameter, hence in the table we explicitly assume an order parameter suggested by the provided references. The focus of this manuscript, however, is not the classification of existing materials, but a study of doubly charged nodes permitted in 3D. To meet this goal, the subsequent sections focus on the realizations of AZ+$\mathcal{I}$ classes indicated with green background in Fig. 3.

VI $\mathbbold{Z}_{2}\oplus 2\mathbbold{Z}$ nodal surfaces in class $\mathrm{D}$

In the remainder of the manuscript we individually discuss each of the four AZ+$\mathcal{I}$ symmetry classes supporting doubly charged nodes in $D=3$. As shown in Tabs. 3 and 4, the minimal half-filled model capable to realize doubly charged nodes always contains four bands, hence we begin each section by introducing the most general four-band Hamiltonian compatible with the AZ+$\mathcal{I}$ symmetries (3). We continue with an explanation of the two topological charges, and conclude by constructing a concrete TB model on a SrPtAs-like lattice.

The present section focuses on AZ+$\mathcal{I}$ class D. According to Tabs. 1 and 2, its zero-energy nodes take the form of surfaces characterized by a pair of topological charges

[TABLE]

We show that the $\pi_{0}$-charge can be understood as the sign of the Pfaffian of the Hamiltonian and the $\pi_{2}$-charge as the (first) Chern number, as is indicated in the rightmost block of Tab. 1. In the last subsection we discuss how such nodal surfaces naturally appear in TRS breaking multi-orbital superconductors.

VI.1 General $4$-band Hamiltonian

The six $4\times 4$ matrices compatible with $\mathfrak{P}=\mathcal{K}$ which appear in Tab. 2 can be arranged into a pair of vectors

[TABLE]

such that $\{v_{i},v_{j}\}=\{w_{i},w_{j}\}=2\delta_{ij}$ and $[v_{i},w_{j}]=0$. The most general four-band Hamiltonian of this class is

[TABLE]

The gap closes whenever $\lVert{\boldsymbol{a}(\boldsymbol{k})}\rVert=\lVert{\boldsymbol{b}(\boldsymbol{k})}\rVert$. This is a single condition, manifesting the codimension $\delta_{\textrm{D}}=1$ listed in Tab. 2.

Although the $4\times 4$ matrices $v_{i}$ (as well as $w_{i}$) are anticommuting, they do not form a Dirac basis because their algebra is closed under commutator, $[v_{i},v_{j}]=2\mathrm{i}\epsilon_{ijk}v_{k}$. Following Ref. Zhao et al. (2016), we refer to it as a double Weyl basis. An important characteristic is that a double Weyl Hamiltonian $\mathcal{H}_{\textrm{d.W.}}\propto\boldsymbol{k}\cdot\boldsymbol{v}$ describes two superimposed Weyl points of the same chirality (which can be split using terms $\propto\!w_{i}$). 333 We remark that our definition of a “double Weyl point” in a SC differs from that of Ref. Schnyder and Brydon (2015). This is to be contrasted with a Dirac Hamiltonian $\mathcal{H}_{\textrm{D.}}\propto\boldsymbol{k}\cdot\boldsymbol{\Gamma}$ which creates two superimposed Weyl points of opposite chirality (which can be split using a term $\propto\!\Gamma_{45}$). Consequently, a double Weyl point is a source of two Berry phase quanta, while the Chern number of a Dirac point vanishes.

VI.2 Interpretation of $\pi_{0}(M_{\mathrm{D}})=\mathbbold{Z}_{2}$

The six matrices (23) are antisymmetric and imaginary. The hermiticity of $\mathcal{H}(\boldsymbol{k})$ along with $\mathfrak{P}=\mathcal{K}$ entail

[TABLE]

As a consequence, $\mathrm{i}\mathcal{H}(\boldsymbol{k})$ is a skew-symmetric and even-dimensional matrix with real entries. One can therefore construct a non-vanishing Pfaffian $\operatorname{Pf}[\mathrm{i}\mathcal{H}(\boldsymbol{k})]$ which is a real-valued function of $\boldsymbol{k}$. For (24a) specifically

[TABLE]

which changes sign at the nodal surface.

This observation generalizes to an arbitrary class D model: The presence of a node at $\boldsymbol{k}_{0}$ is revealed by a pair of zero energy states. This enforces $\det[\mathcal{H}(\boldsymbol{k})]=\prod_{a}\varepsilon^{a}(\boldsymbol{k})$ to vanish at $\boldsymbol{k}_{0}$ and to depend quadratically on $(\boldsymbol{k}-\boldsymbol{k}_{0})$. By the identity

[TABLE]

the Pfaffian also vanishes at $\boldsymbol{k}_{0}$, but it varies linearly with $(\boldsymbol{k}-\boldsymbol{k}_{0})$. This implies that $\operatorname{Pf}[\mathrm{i}\mathcal{H}(\boldsymbol{k})]$ has a different sign at two points $\{\boldsymbol{k}_{1},\boldsymbol{k}_{2}\}\cong S^{0}$ located on the opposite sides of the nodal surface. We can therefore formulate the zeroth homotopy charge as

[TABLE]

This charge has been recently discussed in work Agterberg et al. (2017).

VI.3 Interpretation of $\pi_{2}(M_{\mathrm{D}})=2\mathbbold{Z}$

A natural candidate for an integer topological charge on a $2$-sphere is the (first) Chern number. We show below that this is indeed the case here, and we explain why the particle-hole symmetry enforces it to be even.

The Chern number is formulated as Ryu et al. (2010)

[TABLE]

where $\boldsymbol{\mathcal{F}}(\boldsymbol{k})$ is the Berry curvature determined from

[TABLE]

where $\boldsymbol{\mathcal{A}}(\boldsymbol{k})$ is the Berry-Wilczek-Zee (BWZ) connection Berry (1984); Wilczek and Zee (1984), $a,b$ label the occupied bands, and $\partial_{i}\equiv\partial/\partial_{k_{i}}$. For non-degenerate bands, the second term in Eq. (30a) vanishes after taking the trace such that we can decompose the integrand of Eq. (29) into the contributions of individual bands,

[TABLE]

One can similarly determine the Berry curvature and the Chern number of the unoccupied bands.

The curvature of an occupied band $\left|{u^{a}(\boldsymbol{k})}\right>$ and the curvature of a particle-hole related unoccupied band \left|{\widetilde{u}^{a}(\boldsymbol{k})}\right>=\mathfrak{P}\left|{u^{a}(\boldsymbol{k})}\right>{\color[rgb]{0,0,0}=\left|{\widetilde{u}^{a}(\boldsymbol{k})}\right>^{*}} differ only in the overall sign. To see this, first note that $\boldsymbol{\mathcal{A}}(\boldsymbol{k})$ is skew-Hermitian,

[TABLE]

such that its diagonal terms are imaginary. Taking the curl in Eq. (30a) preserves this property, hence the band curvatures in Eq. (31) are imaginary too. It follows that

[TABLE]

as we wanted to show.

Relation (33) readily explains why the Chern number (29) takes even values: Consider a nodal surface $S^{2}_{\textrm{node}}$ along with a surface $S^{2}_{\textrm{in}}$ inside of it and a surface $S^{2}_{\textrm{out}}$ enclosing it. Since $S^{2}_{\textrm{in}}$ can be trivially shrunk to a point without encountering a node, $c_{\mathrm{D}}(S^{2}_{\textrm{in}})=0$. The node $S^{2}_{\textrm{node}}$ is created by switching one occupied and one empty band, which by Eq. (33) carry opposite Berry curvatures, which integrate to opposite Chern numbers $c$ and $-c$. Consequently, the charge $c_{\textrm{D}}(S^{2}_{\textrm{out}})=c_{\textrm{D}}(S^{2}_{\textrm{in}})+c-(-c)=2c$ is indeed even. These considerations give the nodal surface a peculiar interpretation as an inflated double Weyl point Agterberg et al. (2017). The reason is that $S^{2}_{\textrm{node}}$ is a source of an even number of Berry phase quanta, reminiscent of double Weyl points. This is consistent with our discussion of the double Weyl basis in Subsec. VI.1. Work Agterberg et al. (2017) also dubbed these objects in the context of SC as Bogolyubov Fermi surfaces.

We demonstrate these observations by setting $\boldsymbol{a}(\boldsymbol{k})=\left(0,m,0\right)$ and $\boldsymbol{b}(\boldsymbol{k})=\boldsymbol{k}$ in the general $4$-band model (24a). This produces a nodal sphere with radius $\left|{m}\right|$. We further rotate the basis as $\sigma_{x}\mapsto\sigma_{y}\mapsto\sigma_{z}\mapsto\sigma_{x}$ using $\mathcal{U}_{\sigma}$, where

[TABLE]

This is accompanied by a transformation $\mathfrak{P}=\mathcal{K}\mapsto\sigma_{x}\mathcal{K}$. Then the Hamiltonian decouples into two blocks, $\mathcal{H}(\boldsymbol{k})=\mathcal{H}_{1}(\boldsymbol{k})\oplus\mathcal{H}_{2}(\boldsymbol{k})$, with

[TABLE]

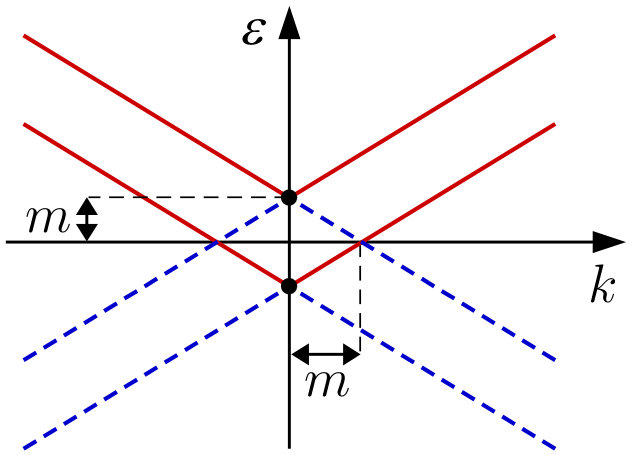

Clearly, this is a pair of Weyl points of the same chirality with energy offset $\pm m$, as illustrated in Fig. 4. We observe that indeed $c_{\mathrm{D}}(S^{2}_{\textrm{in}})=0$ and $\left|{c_{\textrm{D}}(S^{2}_{\textrm{out}})}\right|=2$.

VI.4 Example class D model

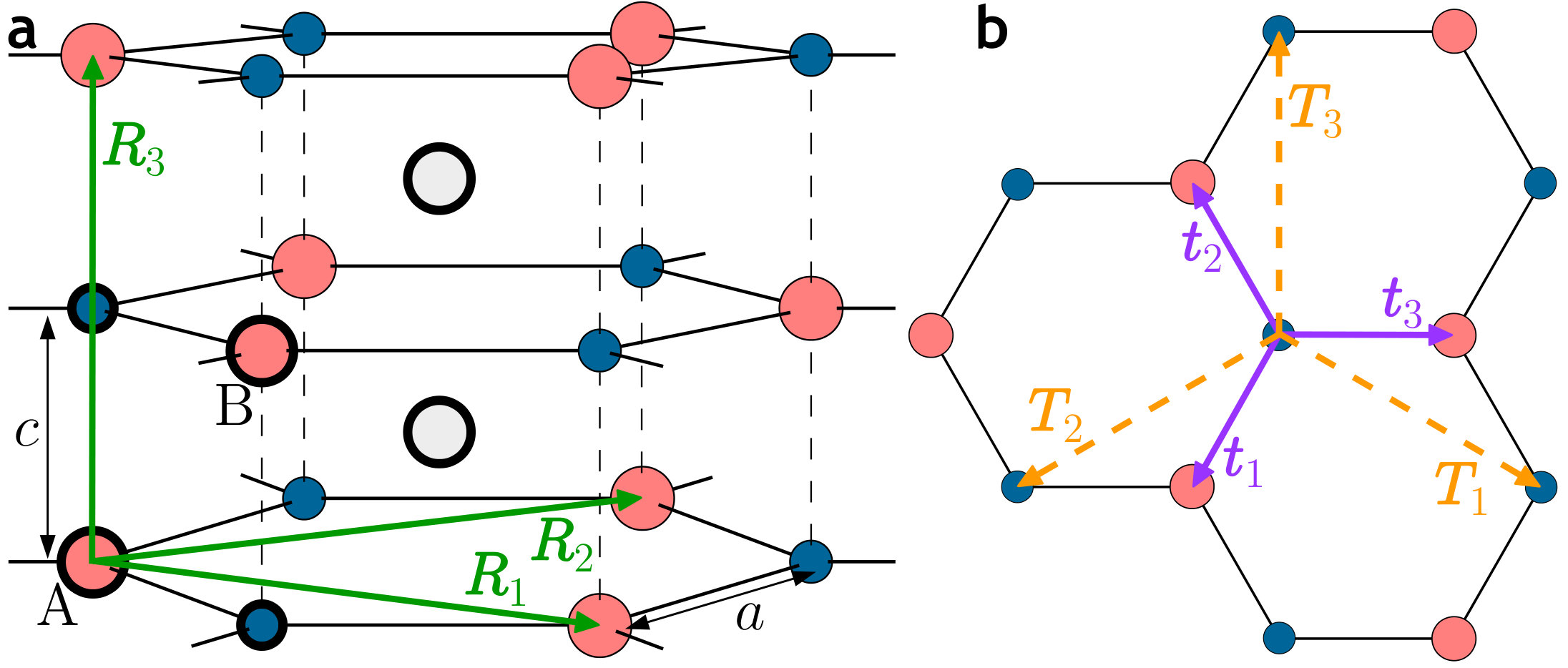

We provide the reader with a simple way of testing the presented ideas by introducing a TB model on a SrPtAs-like lattice adapted from Ref. Fischer and Goryo (2015). This reference observed the formation of nodal surfaces in a multi-orbital $d\pm\mathrm{i}d$ SC phase Fischer et al. (2014) with an admixed $p$-wave component, corresponding to AZ+$\mathcal{I}$ class D. As illustrated in Fig. 5(a), the centrosymmetric structure of SrPtAs consists of graphene-like layers with platinum (Pt) and arsenic (As) atoms on the two sublattices, and of intercalated strontium (Sr) atoms. Our goal here is not to provide a realistic description of SrPtAs, but to demonstrate the possible appearance of the doubly charged nodal surfaces in this lattice for the properly set values of the TB parameters.

We assume that $s$-like orbitals located at the Pt sites enter the TB model. The primitive Bravais vectors are

[TABLE]

where $f$ denotes a function on $\mathbb{R}$, the first superscript $p\in\mathbb{Z}$, and the second superscript indicates a set of three vectors, $\mathbf{v}=\{\boldsymbol{v}_{n}\}_{n=1}^{3}$.

The NN intra-layer hopping with amplitude $t_{0}/2$ and the intra-orbital hopping across two layers with amplitude $t_{z}^{\prime}/2$ produce

[TABLE]

which reduces the SRS of \mathcal{H}(\boldsymbol{k}){\color[rgb]{0,0,0}=\sum_{i}\mathcal{H}_{i}(\boldsymbol{k})} (which corresponds to $\Xi_{\boldsymbol{k}}$ in the notation of Subsec. V.2) to $\mathsf{U}(1)$. The meaning of Pauli matrices $\sigma_{i},\tau_{i}$ follows Tab. 6.

We set the parameters of TB model (37) to

[TABLE]

where $\mu$ is the chemical potential. Then the Fermi surface consists of a pair of pockets centered on the corners of BZ as shown in Fig. 6(a). We further let the system develop a SC $d+\mathrm{i}d$ order parameter

[TABLE]

However, the multi-orbital character of the SrPtAs lattice allows us to admix a $p$-wave order parameter Fischer and Goryo (2015)

[TABLE]

which preserves the even parity of $\Delta_{\boldsymbol{k}}$ (as well as the $E_{2\textrm{g}}$ representation) and that does not vanish along the vertical BZ edges. Importantly, (39b) breaks SRS altogether, such that the system is shifted to AZ+$\mathcal{I}$ class D exhibiting doubly charged nodal surfaces. To check this, we set

[TABLE]

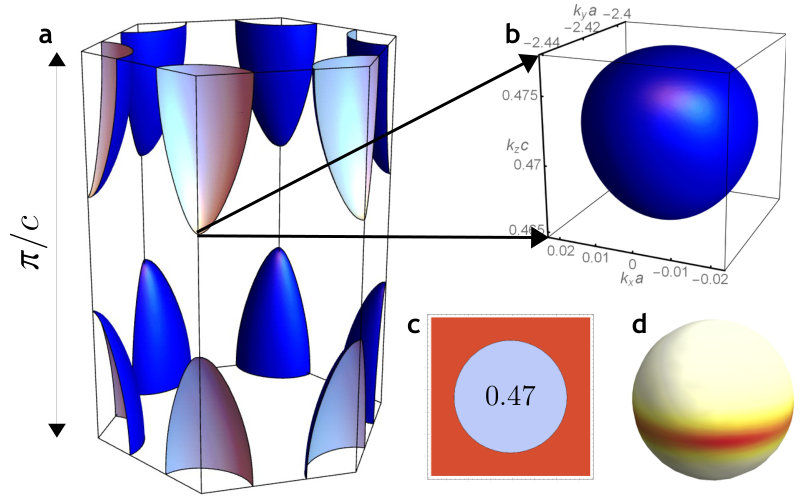

and find tiny nodal surfaces at the expected position, plotted in Fig. 6(b). Rotating the basis by $\mathcal{U}^{\dagger}_{s}\otimes\mathbbold{1}_{\sigma}\otimes\mathcal{U}^{\dagger}_{\tau}$ with matrix $\mathcal{U}$ from Eq. (34) leads to $\mathfrak{P}=\mathcal{K}$, such that we can check the sign of $\operatorname{Pf}\left[\mathrm{i}\mathcal{H}(\boldsymbol{k})\right]$ on a plane crossing the nodal surface, plotted in Fig. 6(c). Finally, we calculate the Berry curvature over the occupied states on an ellipsoid with radii $\frac{1}{10}(\frac{1}{a},\frac{1}{a},\frac{1}{c})$ centered on the nodal surface, plotted in Fig. 6(d). Numerical integration of (29) reveals that indeed $\left|{c_{\textrm{D}}(S_{\textrm{out}}^{2})}\right|=2$.

VII $\mathbbold{Z}_{2}\oplus\mathbbold{Z}_{2}$ nodal surfaces in class BDI

The AZ+$\mathcal{I}$ class BDI is the only one that supports doubly charged nodes already in $D=2$, explicitly

[TABLE]

Most of our discussion applies equally well to both cases, although all the explicit examples are provided for $D=3$. In the following subsections we first construct the most general $4$-band Hamiltonian of this symmetry class and determine its spectrum. We show that the $\pi_{0}$-charge is again the Pfaffian invariant (28), although an alternative determinant formulation becomes possible too. On the other hand, the $\pi_{1}$-charge is new and corresponds to the winding of a closed path inside $\mathsf{SO}(n)$. We develop a way to determine this charge by plotting the matrix spectrum along the path. In the last subsection we develop a non-SC model on a lattice consisting of dimerized AAA-stacked graphene layers, which belongs to symmetry class BDI and that exhibits doubly charged nodal cylinders. Nodal surfaces belonging to this symmetry class have been previously predicted in certain three-dimensional graphene networks Zhong et al. (2016), although these didn’t carry a non-trivial value of the higher $\pi_{1}$-charge.

VII.1 General $4$-band Hamiltonian

We order the four basis matrices of Tab. 2 into a pair of two-component vectors

[TABLE]

fulfilling $\{v_{i},v_{j}\}=\{w_{i},w_{j}\}=2\delta_{ij}$ and $[v_{i},w_{j}]=0$. We encode the general $4$-band Hamiltonian using a pair of real-valued vector functions $\boldsymbol{p}=(p_{1},p_{2}),\boldsymbol{r}=(r_{1},r_{2})$ as

[TABLE]

The gap closes whenever $\lVert{\boldsymbol{p}(\boldsymbol{k})}\rVert=\lVert{\boldsymbol{r}(\boldsymbol{k})}\rVert$. Since this is a single scalar constraint, we deduce the codimension $\delta_{\textrm{BDI}}=1$, thus confirming again that AZ+$\mathcal{I}$ class BDI in $D=3$ supports nodal surfaces.

VII.2 Interpretation of $\pi_{0}(M_{\mathrm{BDI}})=\mathbbold{Z}_{2}$

The presence of $\mathcal{C}=\sigma_{z}$ guarantees a block-off-diagonal form of $\mathcal{H}(\boldsymbol{k})$, while $\mathfrak{T}=\mathcal{K}$ makes it real. Consequently,

[TABLE]

For the $n=2$ model (43a) explicitly

[TABLE]

Since $\mathfrak{P}$ fixes nodes to zero energy, they are exposed by

[TABLE]

Nodal surfaces separate regions with opposite sign of $\det A(\boldsymbol{k})$. This implies that for $S^{0}=\{\boldsymbol{k}_{1},\boldsymbol{k}_{2}\}$ there is

[TABLE]

In fact, this is just the Pfaffian invariant (28) in disguise. Rotating the basis by $\mathcal{U}_{\sigma}$ leads to $\mathfrak{T}=\sigma_{x}\mathcal{K}$, $\mathfrak{P}=\mathcal{K}$ and $\mathcal{C}=\sigma_{x}$, such that the transformed Hamiltonian $\mathcal{U}_{\sigma}\mathcal{H}(\boldsymbol{k})\mathcal{U}_{\sigma}^{\dagger}\equiv\widetilde{\mathcal{H}}(\boldsymbol{k})$ is antisymmetric and has a well-defined Pfaffian. It follows that

[TABLE]

such that formula (28) is applicable for calculating the charge $c_{\textrm{BDI}}(S^{0})$ too.

Before moving on, we make a passing remark on the generality of the $\mathbbold{Z}_{2}$ Pfaffian invariant (28) resp. (47) for nodal surfaces occurring in an arbitrary systems with a spectral symmetry, by which we mean that for any reason the eigenvalues of $\mathcal{H}(\boldsymbol{k})$ and $-\mathcal{H}(\boldsymbol{k})$ coincide. For AZ+$\mathcal{I}$ classes D and BDI of the last two sections, such a spectral symmetry was enforced by $\mathfrak{P}$, but a very recent Ref. Türker and Moroz (2017) also considers systems with nodal surfaces protected by a global $\mathsf{U}(1)$ symmetry corresponding to $\left[\mathcal{H}(\boldsymbol{k}),\gamma^{5}\right]$ where $\gamma^{5}$ is the “chiral” Dirac matrix. The spectral symmetry in their example model follows from the additional chiral symmetry (3d) also present in the model.

The spectral symmetry allows one to diagonalize the Hamiltonian as

[TABLE]

VII.3 Interpretation of $\pi_{1}(M_{\mathrm{BDI}})=\mathbbold{Z}_{2}$

We first explain why $M_{\textrm{BDI}}=\mathsf{O}(n)$. Note that $\mathcal{C}=\sigma_{z}$ relates pairs of states with energies $\pm\varepsilon^{a}$,

[TABLE]

where $(a,+)$ and $(a,-)$ label a pair of bands. It follows from the orthogonality of states (50) that

[TABLE]

Furthermore, all the eigenstates are real because of $\mathfrak{T}=\mathcal{K}$. It follows that the flat-band Hamiltonian $\mathcal{Q}(\boldsymbol{k})$ acquires the block-off-diagonal form (6) with

[TABLE]

Every $S^{1}\subset\textrm{BZ}$ with a gapped spectrum therefore traces a closed path image in $\mathsf{O}(n)$. The charge $c_{\textrm{BDI}}(S^{1})$ corresponds to the homotopy equivalence class of this image.

The space $\mathsf{O}(n)$ consists of two separate components characterized by $\det q(\boldsymbol{k})=\pm 1$. This is just the $\pi_{0}$-charge (47), i.e. the sign of $\det(\boldsymbol{k})$ is fixed unless one crosses a nodal surface, hence the image of a gapped $S^{1}\subset\textrm{BZ}$ lies entirely within one of the two components. If $\det[q(\boldsymbol{k})]=-1$, we replace $q(\boldsymbol{k})$ by its composition with a mirror symmetry with respect to the $n^{\textrm{th}}$ coordinate, while we keep it unchanged otherwise. Then the analysed $q(\boldsymbol{k})\in\mathsf{SO}(n)$, and we formally write down the $\pi_{1}$-charge as the homotopy equivalence class

[TABLE]

within the special orthogonal group. In the subsequent sections we will encounter a similar charge appearing also in the case of nodal lines of AZ+$\mathcal{I}$ classes CI and AI.

Determining the homotopy class (53) can be achieved by tracking the eigenvalues of $q(\boldsymbol{k})$. For $n$ even, the eigenvalues come in complex conjugate pairs $\mathrm{e}^{\pm\mathrm{i}\alpha}$, while for $n$ odd there is an additional eigenstate (axis of rotation) with eigenvalue $1$. The charge $c_{\textrm{BDI}}(S^{1})$ may be non-trivial if the eigenvalue phases $\alpha_{i}$ contain a non-trivial winding along $S^{1}$. More specifically, one has to count the number of crossings at $\alpha=\pm\pi$ which is a robust $\pi_{1}[\mathsf{SO}(2)]=\mathbbold{Z}$ quantity for $n=2$, while for $n\geq 3$ only the parity $\pi_{1}[\mathsf{SO}(n)]=\mathbbold{Z}_{2}$ is conserved since then a pair of $\pm\pi$ crossings is allowed to annihilate. For $n=1$ there is just the static unit eigenvalue and the topological charge $\pi_{1}[\mathsf{SO}(1)]=\mathbbold{0}$ is absent. These observations are in accord with the exceptional entries in Tab. 3.

We demonstrate this procedure on model (43a). The off-diagonal block $q\in\mathsf{SO}(2)$ becomes

[TABLE]

where the first expression applies if $\lVert{\boldsymbol{p}}\rVert>\lVert{\boldsymbol{r}}\rVert$, and the second one otherwise. Let us be more specific by setting $\boldsymbol{p}(\boldsymbol{k})=(k_{x},k_{y})$ and $\boldsymbol{r}(\boldsymbol{k})=(m,0)$. Then the spectrum $\varepsilon(\boldsymbol{k})=\pm m\pm\sqrt{k_{x}^{2}+k_{y}^{2}}$ exhibits a zero-energy nodal cylinder at $k_{x}^{2}+k_{y}^{2}=m^{2}$, as wella as a pair of nodal lines with energies $\pm m$ coinciding at $k_{x}=0=k_{y}$. These nodal lines tie the (un)occupied bands in a way that makes the nodal cylinder robust: One can at best shrink the cylinder to a line by setting $m=0$, but it reappers for both $m>0$ and $m<0$. To check the topological charge, we consider a circular path $S^{1}:\boldsymbol{k}(\varphi)=(k\cos\varphi,k\sin\varphi,0)$ with $\varphi\in[0,2\pi]$. We find

[TABLE]

where the first expression applies for $k>m$ ($S^{1}$ enclosing the nodal cylinder), and the second one otherwise. We observe that the invariant (53) is trivial inside and non-trivial outside the nodal cylinder, as expected.

We remark that invariant (53) does not correspond to the Berry phase. Although the nodal lines at energies $\pm m$ of the considered model both carry Berry $\pi$-phase, their pairwise appearance (imposed by $\mathfrak{P}$) leads to net Berry $2\pi$-phase both outside and inside of the nodal cylinder. This doubling is similar to the presence of an even Chern number in AZ+$\mathcal{I}$ class D. The difference here is that Berry phases $2\pi$ and [math] are indistinguishable and therefore both trivial.

VII.4 Example class BDI model

As an example realization of the doubly charged nodal surfaces of AZ+$\mathcal{I}$ class BDI, we consider AAA-stacked graphene layers, obtained by identifying the Pt and As sites in Fig. 5. The layers are further assumed dimerized into nearby pairs at distance $c$, the pairs being separated by larger gaps $rc$ with $r>1$. Importantly, we require the presence of a sublattice realization of $\mathcal{C}$ which is usually only approximately present in realistic systems.

Sticking to the Pauli matrix notation of Tab. 6, we consider intralayer NN hoppings

[TABLE]

where $\rho_{\pm}=\tfrac{1}{2}(\rho_{x}\pm\mathrm{i}\rho_{y})$, and h.c. denotes the Hermitian conjugation. The spatial inversion of the system $\mathcal{I}=\rho_{x}\otimes r_{x}$ commutes with the sublattice symmetry $\mathcal{C}=\rho_{z}\otimes r_{z}$, making this an $\mathcal{I}$-even SLS model. Since the Hamiltonian respects TRS and does not contain SOC, the scheme of Fig. 3(b) locates us in AZ+$\mathcal{I}$ class BDI.

To be specific, we consider parameter values

[TABLE]

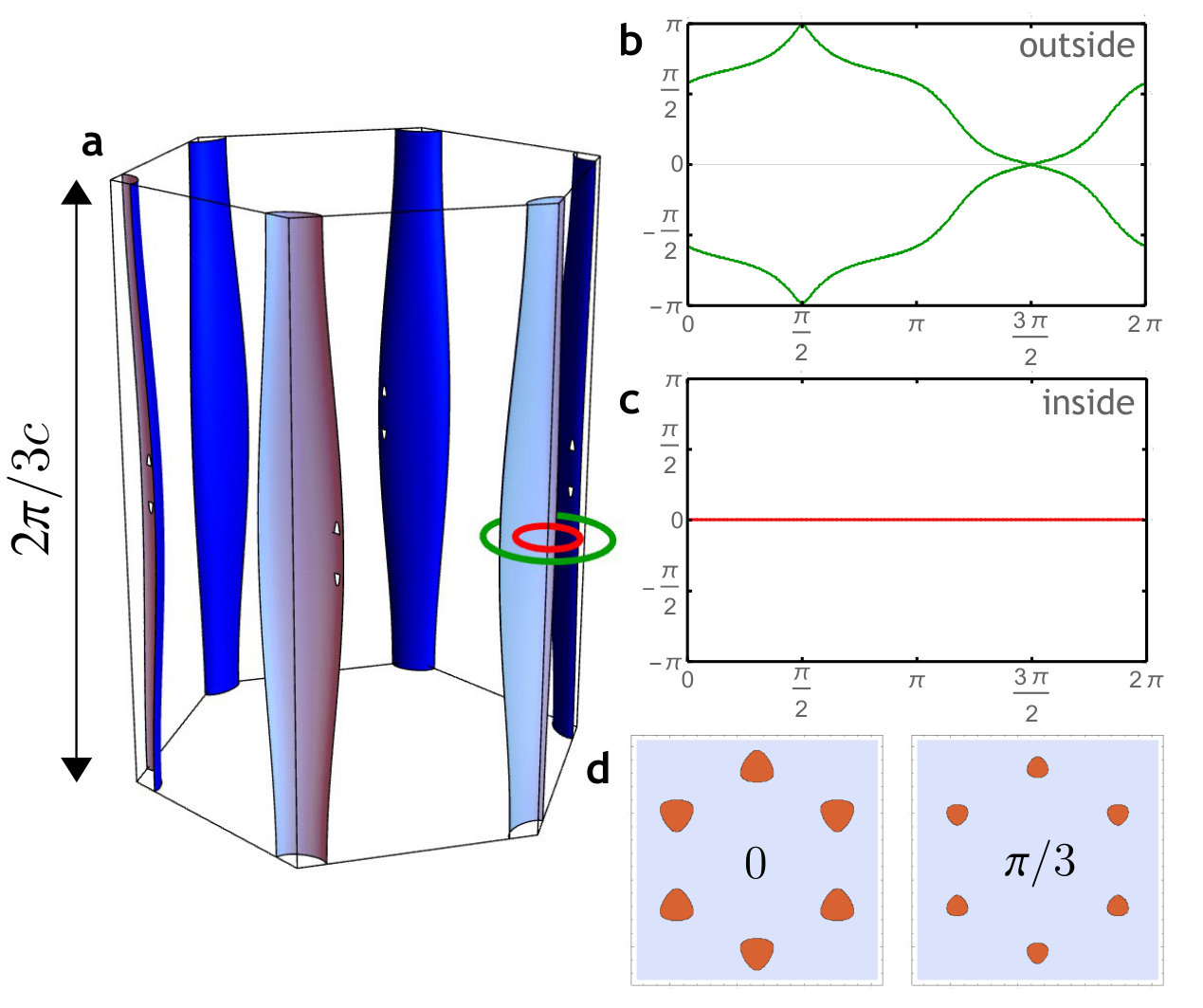

which create a pair of nodal cylinders centred on the vertical BZ edges, see Fig. 7(a). Rotating the basis by

[TABLE]

leads to $\mathcal{C}=\rho_{z}\otimes\mathbbold{1}_{r}$ and $\mathfrak{T}=\mathcal{K}$, as has been required for the calculation of the topological charges. In Figs. 7(b,c) we check the $q(\boldsymbol{k})$ eigenvalue winding (53) along a path that encloses (green) and a path that is enclosed by (red) the nodal cylinder. In Fig. 7(d) we plot the sign of $\det[q(\boldsymbol{k})]$ within the horizontal high-symmetry planes of the BZ. These two calculations confirm that both charges (47) and (53) of the nodal cylinders are non-trivial.

VIII $\mathbbold{Z}\oplus\mathbbold{Z}_{2}$ nodal lines in class $\mathrm{CI}$

The AZ+$\mathcal{I}$ class CI in $D=3$ exhibits nodal lines characterized by a pair of topological charges

[TABLE]

According to Tab. 3, the minimal model supporting a non-trivial value of the higher charge contains four bands. In the following subsections we first introduce the general $4$-band Hamiltonian belonging to this symmetry class and determine its spectrum. We show that the $\pi_{1}$-charge corresponds to the winding of the determinant of $q(\boldsymbol{k})$ – the off-diagonal block of the flat-band Hamiltonian $\mathcal{Q}(\boldsymbol{k})$. We further show that the $\pi_{2}$-charge corresponds to the homotopy equivalence class inside $\mathsf{SO}(n)$ just like for the $\pi_{1}$-charge of the AZ+$\mathcal{I}$ class $\mathrm{BDI}$. The difference is that the role of the Hamiltonian block $q(\boldsymbol{k})$ gets replaced by Wilson loop operators $\mathcal{W}(S^{1})$. In the last subsection we show how this species of nodal lines may appear in TRS preserving singlet SC phase of nodal line metals without SOC, provided that the sign of the gap function changes along the (cylindrical or torical) Fermi surface. A viable route to realize such a phase experimentally might be through the SC proximity effect.

VIII.1 General $4$-band Hamiltonian

We order the six symmetry-compatible basis matrices of Tab. 2 into a pair of three-component vectors

[TABLE]

such that $\{v_{i},v_{j}\}=\{w_{i},w_{j}\}=2\delta_{ij}$ and $[v_{i},w_{j}]=-\mathrm{i}\delta_{ij}\,\sigma_{y}\otimes\mathbbold{1}_{\tau}$. A general $4$-band Hamiltonian is expressed using two real-valued vector functions $\boldsymbol{a}(\boldsymbol{k})$ and $\boldsymbol{b}(\boldsymbol{k})$ as

[TABLE]

The gap closes whenever simultaneously $\lVert{\boldsymbol{a}(\boldsymbol{k})}\rVert=\lVert{\boldsymbol{b}(\boldsymbol{k})}\rVert$ and $\boldsymbol{a}(\boldsymbol{k})\cdot\boldsymbol{b}(\boldsymbol{k})=0$. This is a pair of scalar constraints, compatible with $\delta_{\textrm{CI}}=2$ that has been determined independently in Tab. 2. This means that the nodal objects in $D=3$ are one-dimensional lines.

VIII.2 Interpretation of $\pi_{1}(M_{\mathrm{CI}})=\mathbbold{Z}$

The presence of $\mathcal{C}$ implies a natural interpretation of the $\mathbbold{Z}$-valued $\pi_{1}$-charge as the usual winding number Ryu et al. (2010), with $\mathcal{I}$ not playing a role. Rotating the basis of Tab. 2 by $\mathcal{U}_{\sigma}$ of Eq. (34) leads to the canonical form $\mathcal{C}\propto\sigma_{z}$, when the off-diagonal block $q(\boldsymbol{k})$ of the flat-band Hamiltonian (5b) acquires an integer winding

[TABLE]

Formula (62) remains valid if we replace $q(\boldsymbol{k})$ by the off-diagonal block of the rotated $\mathcal{H}(\boldsymbol{k})$.

VIII.3 Interpretation of $\pi_{2}(M_{\mathrm{CI}})=\mathbbold{Z}$

The $\pi_{2}$-charge of AZ+$\mathcal{I}$ class CI can be understood in the way presented in the supplemental material to Ref. Fang et al. (2015). Here we apply a slight modification to that procedure which replaces the gauge-dependent Wilson operators on open-ended paths by gauge-invariant ones on closed loops. The invariant is also related to the $\pi_{1}$-charge of AZ+$\mathcal{I}$ class BDI.

To determine the charge on a gapped $S^{2}$, we proceed as follows: We pick two arbitrary (but different) points $\textrm{N,S}\in S^{2}$ and consider a set of continuously varying closed paths $S^{1}(\theta)\subset S^{2}$ with $\theta\in[0,\pi]$ such that:

• $(i)$

$S^{1}(0)=\textrm{N}$ and $S^{1}(\pi)=\textrm{S}$ are single points,

• $(ii)$

for $0<\theta<\pi:S^{1}(\theta)$ are homeomorphic to a circle,

• $(iii)$

for $\theta_{1}\neq\theta_{2}:S^{1}(\theta_{1})\cap S^{1}(\theta_{2})=\varnothing$.

One can visualize loops $S^{1}(\theta)$ as the parallels on a globe with N,S the geographic poles, although any other choice is equally good. The union $\cup_{\theta}S^{1}(\theta)=S^{2}$ reproduces the original sphere. We further consider the Wilson operator Wilczek and Zee (1984); Soluyanov and Vanderbilt (2011); Alexandradinata et al. (2016). For a path $\gamma$ from $\boldsymbol{k}_{\textrm{i}}$ to $\boldsymbol{k}_{\textrm{f}}$ this is

[TABLE]

where $P_{\textrm{occ.}}(\boldsymbol{k})$ is the projector onto the occupied states of $\mathcal{H}(\boldsymbol{k})$ and the bar indicates path-ordering. Wilson loop operator $\mathcal{W}(\gamma)$ describes the adiabatic evolution of the occupied states along $\gamma$, and as such has to be unitary, $\mathcal{W}^{\dagger}\mathcal{W}=\mathbbold{1}$. For $\boldsymbol{k}_{\textrm{i}}\neq\boldsymbol{k}_{\textrm{f}}$ it depends on gauge, but for a closed path $S^{1}$

[TABLE]

it becomes gauge-invariant. Additionally, the AZ+$\mathcal{I}$ class CI respects $\mathfrak{T}=\mathcal{K}$ which allows us to find a real set of eigenvectors. It follows from the definition (63a) that $\mathcal{W}(S^{1})$ is real unitary, i.e. an element of $\mathsf{O}(n)$.

To obtain the $\pi_{2}$-charge, we determine $\mathcal{W}[S^{1}(\theta)]\equiv\mathcal{W}(\theta)$ which depends continuously on $\theta$. Since $\mathcal{W}(0)=\mathcal{W}(\pi)=\mathbbold{1}$, the Wilson loop $\mathcal{W}(\theta)$ traces a closed path in $\mathsf{SO}(n)$, and $c_{\textrm{CI}}(S^{2})$ is expressed as the homotopy equivalence class of loops in the special orthogonal group,

[TABLE]

The topological classification for various $n$ follows

[TABLE]

which agrees with Tab. 3.

A more illustrative geometric interpretation of charge (65) exists for the $n=2$ case (61). To keep the discussion simple, we consider a specific choice

[TABLE]

This creates a nodal loop at $k_{x}^{2}+k_{y}^{2}-m^{2}=0=k_{z}$ which has a non-trivial $\pi_{2}$-charge (65) as is checked in Fig. 8(a). The nodal loop lies on a surface $S_{\boldsymbol{a},\boldsymbol{b}}^{2}=\left\{\boldsymbol{k}|k_{x}^{2}+k_{y}^{2}+k_{z}^{2}=m^{2}\right\}$ defined by $\lVert\boldsymbol{a}(\boldsymbol{k})\rVert=\lVert\boldsymbol{b}(\boldsymbol{k})\rVert$. Note that while vector field $\boldsymbol{b}(\boldsymbol{k})$ has a fixed direction, field $\boldsymbol{a}(\boldsymbol{k})$ has a hedgehog structure on $S_{\boldsymbol{a},\boldsymbol{b}}^{2}$. The map

[TABLE]

is characterized by the second homotopy group $\pi_{2}(S^{2})=\mathbbold{Z}$, and the hedgehog structure of the considered $\boldsymbol{a}(\boldsymbol{k})$ corresponds to a non-trivial element of $\pi_{2}(S^{2})$. By virtue of Eq. (61b), the nodal loop separates the “northern hemisphere” of $S_{\boldsymbol{a},\boldsymbol{b}}^{2}$ with $\boldsymbol{a}(\boldsymbol{k})\cdot\boldsymbol{b}(\boldsymbol{k})>0$ from the “southern” one with $\boldsymbol{a}(\boldsymbol{k})\cdot\boldsymbol{b}(\boldsymbol{k})<0$. Because of the non-trivial winding of map (68), the two “geographic poles” with parallel vectors $\boldsymbol{a}(\boldsymbol{k})\times\boldsymbol{b}(\boldsymbol{k})=\boldsymbol{0}$ appear somewhere on $S^{2}_{\boldsymbol{a},\boldsymbol{b}}$. Since $\boldsymbol{a}(\boldsymbol{k})$ varies continuously on $S^{2}_{\boldsymbol{a},\boldsymbol{b}}$, the presence of the two “poles” makes the equator separating the two hemispheres – i.e. the nodal loop – robust.

We compare these observations to a model with

[TABLE]

which for $\widetilde{m}=0$ produces a nodal line at the same location as model (67) but with a trivial $\pi_{2}$-charge (65) as checked in Fig. 8(b). In this case, the surface $S^{2}_{\widetilde{\boldsymbol{a}},\boldsymbol{b}}=S^{2}_{\boldsymbol{a},\boldsymbol{b}}$ remains unchanged, but the winding (68) of $\boldsymbol{n}_{\widetilde{\boldsymbol{a}}}(\boldsymbol{k})$ is trivial because $\boldsymbol{n}_{\widetilde{\boldsymbol{a}}}(\boldsymbol{k})$ lies on a circle with $n_{y}=0$. Indeed, increasing $\widetilde{m}$ from zero to $\pm m$ shrinks the nodal line to a point, and a gap opens for $\left|{\widetilde{m}}\right|>\left|{m}\right|$, thus manifesting the trivial value of its $\pi_{2}$-charge.

VIII.4 Example class CI model

In Sec. V we identified two qualitatively different realizations of AZ+$\mathcal{I}$ class CI. Here we focus on the case of a TRS-preserving singlet SC in the absence of SOC. We first show how such a class of systems relates directly to $\boldsymbol{k}\cdot\boldsymbol{p}$ models (67) and (69). We afterwards develop a concrete TB model of a nodal line metal on a SrPtAs-like lattice of Fig. 5, and we show that its singlet SC phase exhibits doubly charged nodal loops whenever the gap function changes sign along the Fermi surface. The SC order parameter may either appear spontaneously at low enough temperatures, or it may be induced at an interface through the proximity effect.

Consider a two-orbital system with $\mathcal{I}=\mathbbold{1}_{\tau}$ without a sublattice realization of $\mathcal{C}$. According to the discussion in Subsec. V.2, its singlet SC phase acquires AZ+$\mathcal{I}$ symmetries $\mathfrak{P}=\mathrm{i}\varsigma_{y}\otimes\mathbbold{1}_{\tau}\mathcal{K}$ and $\mathfrak{T}=\mathcal{K}$. These are precisely the forms listed in Tab. 2, meaning that the symmetry-compatible basis matrices of the reduced BdG Hamiltonian (19) are exactly those organized in Eqs. (60) (with replaced $\sigma_{i}\mapsto\varsigma_{i}$). More specifically, model (67) corresponds to the (non-reduced) BdG Hamiltonian (12b) with

[TABLE]

Notice that the underlying nodal line of the metallic band structure (70a) makes nodal loops of the SC phase (70b) robust: One can at best shrink the loop to a point by setting $m=0$, but the loop reappears for $m\neq 0$ of both signs. The reason is that the underlying electron-like FS (for $m<0$) evolves directly into a hole-like FS (for $m>0$) via the nodal line which glues the bands together. This touching is protected by the Berry $\pi$-phase invariant. We illustrate such a band evolution and the robustness of such SC nodal loops in Fig. 8(c).

We compare this to model (69) which arises from

[TABLE]

This leads to a cylindrical $\widetilde{\textrm{FS}}=\left\{\boldsymbol{k}|k_{x}^{2}+k_{y}^{2}=m^{2}-\widetilde{m}^{2}\right\}$ without an underlying nodal line (apart from the fine-tuned case $\widetilde{m}=0$ which is accidental and does not carry a topological charge). This makes it possible to remove $\widetilde{\textrm{FS}}$ by setting $\left|{\widetilde{m}}\right|>\left|{m}\right|$ which also eliminates the nodal loop of the SC phase (70b) as illustrated in Fig. 8(d). We infer that the doubly charged nodes of the gap function are bound to SC phase of nodal line metals. This observation supplements the already known unusual SC phases enabled by non-trivial Fermi surface topology Li and Haldane (2015); Nandkishore (2016).

We now develop a concrete TB model belonging to this symmetry class to make our ideas more tangible. We consider again the lattice of Subsec. VII.4 but without dimerization. There are two orbitals per unit cell that lead to $\mathcal{I}=r_{x}$ and $\mathcal{C}=r_{z}$. We consider parameters

[TABLE]

and further $t_{3}=t_{2}$, $r=1$ and $\mu=0$. The hexagonal crystalline symmetry imposes nodal lines running along the vertical BZ edges. The chosen TB parameters (71) lead to touching electron and hole Fermi pockets as shown in Fig. 9(a). We further assume that the system acquires a singlet SC order parameter

[TABLE]

The AZ+$\mathcal{I}$ symmetries of this model are $\mathfrak{T}=r_{x}\mathcal{K}$, $\mathfrak{P}=\mathrm{i}r_{x}\otimes\varsigma_{y}\mathcal{K}$ and $\mathcal{C}=\mathrm{i}\varsigma_{y}$, which is modified to the choice of Tab. 2 if one rotates the basis by $\mathcal{U}^{\dagger}_{r}$ of Eq. (34).

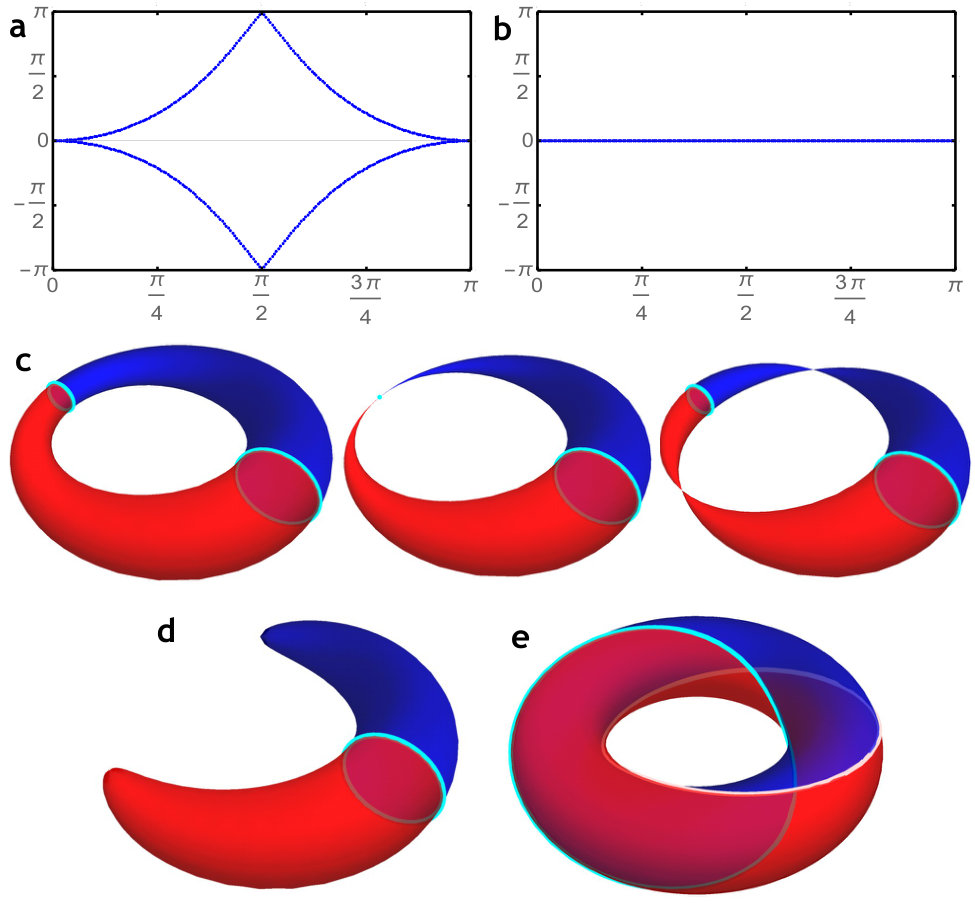

The developed model exhibits four SC nodal loops for $\left|{\delta}\right|<1$ [one pair at heights $k_{z}c=\pm\arccos(-\delta)$ at both BZ edges] which move along the touching Fermi pockets when varying $\delta$. These nodes annihilate in pairs at $k_{z}=0$ ($k_{z}=\pi$) for $\delta=-1$ ($\delta=+1$). They shrink to points for $\delta=0$ when they coincide with the touching points of the Fermi pockets. To check the $\pi_{2}$-charge of these nodes, we set $\psi^{0}=0.2$ and $\delta=-\sqrt{3}/{2}$ which locates them at $k_{z}c=\pm\pi/4$. In Fig. 9(b) we plot the trivial eigenvalue winding on an ellipsoid with radii $(\tfrac{\pi}{3a},\tfrac{\pi}{3a},\tfrac{\pi}{3c})$ centered at $\boldsymbol{k}_{\textrm{c}}=(0,\frac{4\pi}{3\sqrt{3}a},0)$ which contains a pair of SC nodal loops, while in Fig. 9(c) we plot the non-trivial eigenvalue winding for an ellipsoid of the same dimensions centered at $\tilde{\boldsymbol{k}}_{\textrm{c}}=(0,\tfrac{4\pi}{3\sqrt{3}a},\tfrac{\pi}{4c})$ containing a single SC nodal loop. These observations imply a non-trivial value of the $\pi_{2}$-charge (65). The $\pi_{1}$-charge (62) is non-trivial for every (non-accidental) SC nodal line of this symmetry class.

IX $\mathbbold{Z}_{2}\oplus\mathbbold{Z}_{2}$ nodal lines in class $\mathrm{AI}$

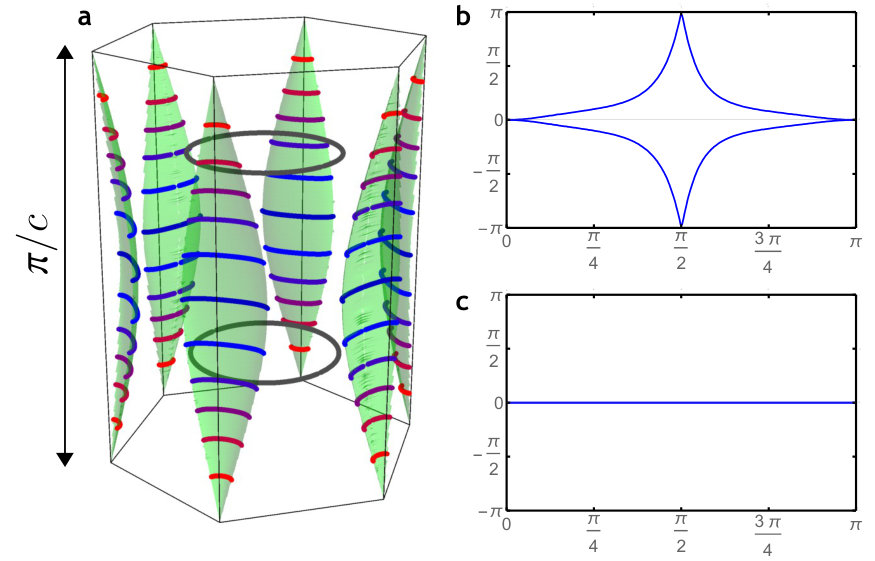

We finally discuss the AZ+$\mathcal{I}$ class AI in $D=3$, which has been to varying degree considered in Refs Fang et al. (2015); Zhao et al. (2016); Zhao and Lu (2017). This symmetry class supports nodal lines with charge

[TABLE]

According to Tab. 4, the minimal half-filled model supporting a non-trivial $\pi_{2}$-charge contains four bands. The nine basis matrices of Tab. 2 can be organized into three vectors (called real Dirac basis by Ref. Zhao and Lu (2017))

[TABLE]

fulfilling $\{v_{i}^{(a)},v_{j}^{(b)}\}=2\left[\delta_{ij}\delta^{ab}\mathbbold{1}+\epsilon_{ijk}\epsilon^{abc}v_{k}^{(c)}\right]$. We failed to derive analytic conditions for the occurrence of a gap closing, so we proceed directly with the discussion of the topological charges. The $\pi_{1}$-charge is just the Berry phase, which is for closed paths quantized to $\{0,\pi\}$ by $\mathfrak{T}$. The $\pi_{2}$-charge is again the $\pi_{1}[\mathsf{SO}(n)]$ homotopy equivalence class of Wilson loop operators that has been explained for AZ+$\mathcal{I}$ class CI in Subsec. VIII.3. In the last subsection we develop a TB model on a SrPtAs-like lattice that exhibits either singly or doubly charged nodal loops, depending on the chosen parameter values.

IX.1 Interpretation of $\pi_{1}(M_{\mathrm{AI}})=\mathbbold{Z}_{2}$

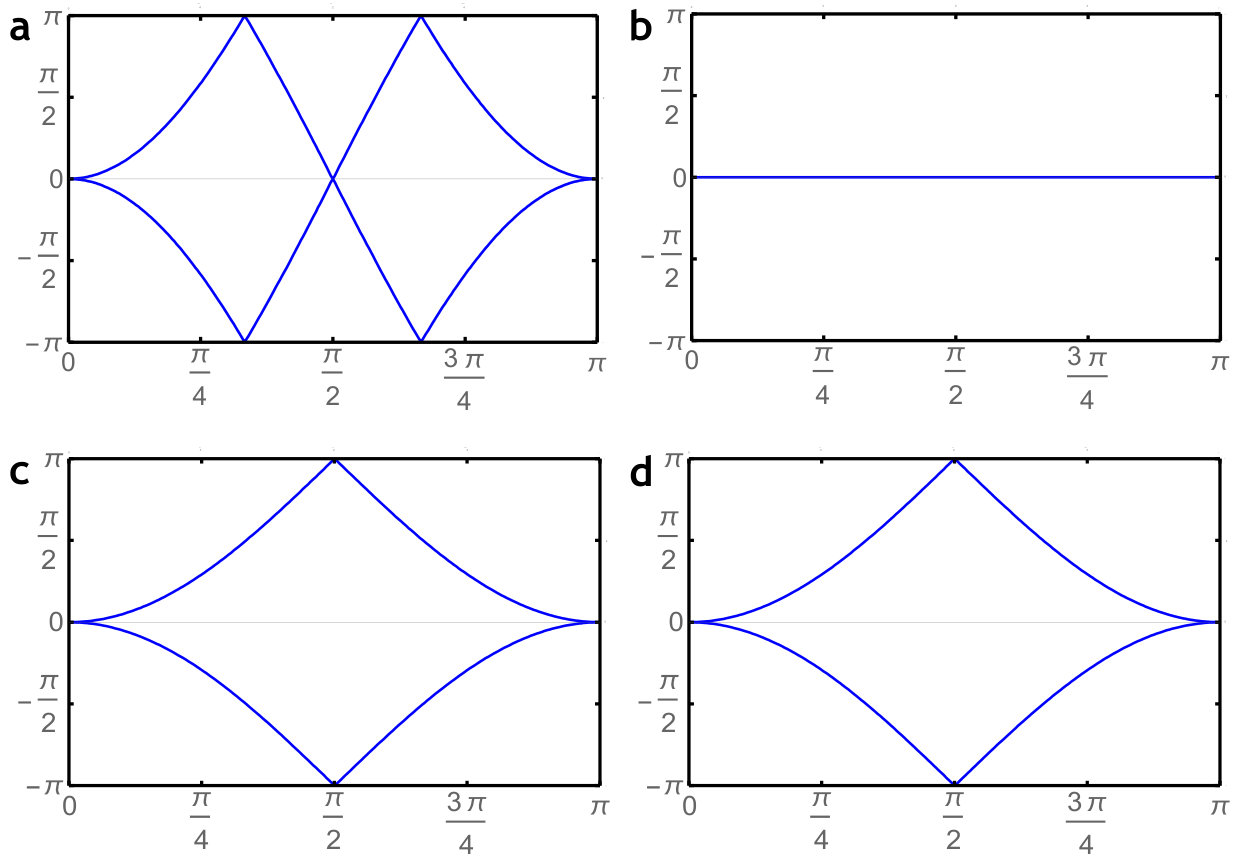

The $\pi_{1}$-charge $c_{\textrm{AI}}(S^{1})$ of AZ+$\mathcal{I}$ class AI corresponds to the Berry phase acquired along $S^{1}$, which is obtained from the Wilson loop operator $\mathcal{W}(S^{1})$ of Eq. (63) as

[TABLE]

The Berry phase is quantized because $\mathfrak{T}=\mathcal{K}$ makes it possible to find a real set of eigenvectors $\left|{u^{a}(\boldsymbol{k})}\right>$, such that $\mathcal{W}(S^{1})\in\mathsf{O}(n)$ has determinant $\pm 1$.

Note that according to Tab. 4 there is an exception to the order of the $\pi_{1}$-charge in half-filed 2-band models. In this case, the basis of symmetry-compatible Hamiltonians is two-dimensional (spanned by $\sigma_{x}$ and $\sigma_{z}$) and thus allows for a richer $\mathbbold{Z}$-valued winding number.

IX.2 Interpretation of $\pi_{2}(M_{\mathrm{AI}})=\mathbbold{Z}_{2}$

The $\pi_{2}$-charge of this symmetry class is

[TABLE]

i.e. it corresponds to the homotopy equivalence class of Wilson loop operators $\mathcal{W}(\theta)\in\mathsf{SO}(n)$ for a set of closed paths $S^{1}(\theta)$ covering $S^{2}$, just like for the AZ+$\mathcal{I}$ class CI. However, we see from Tab. 4 that the order of charge (76) is modified whenever $\min\{n,\ell\}\leq 2$. Such exceptions were absent in symmetry class CI. We use the rest of the subsection to clarify this complication.

The key observation is that the homotopy class (76) can be determined for two Wilson loop operators, $\mathcal{W}^{\textrm{occ.}}\in\mathsf{SO}(n)$ over the occupied and $\mathcal{W}^{\textrm{un.}}\in\mathsf{SO}(\ell)$ over the unoccupied bands. The presence of $\mathfrak{P}$ in class CI enforces the two Wilson operators to have identical spectra, so nothing is gained by considering both. On the other hand, particle-hole symmetry is absent in class AI which allows the Wilson spectra to be different. As with the other topological charges, we expect the sum of the two charges to be trivial, but the sum has to be perceived in the sense of $\pi_{1}[\textsf{SO}(n+\ell)]$, which may differ from groups $\pi_{1}[\textsf{SO}(n)]$ and $\pi_{1}[\textsf{SO}(\ell)]$, cf. (66). In fact, the latter two may be different themselves.

For example, for $n=2$ and $\ell=1$ the two occupied bands admit $c_{\textrm{AI}}^{\textrm{occ.}}(S^{2})\in\mathsf{SO}(2)=\mathbbold{Z}$, while the unoccupied band has a trivial $c^{\textrm{un.}}_{\textrm{AI}}(S^{2})\in\mathsf{SO}(1)=\mathbbold{0}$. The sum of the two has to be trivial within $\pi_{1}[\textsf{SO}(2+1)]=\mathbbold{Z}_{2}$ which only percieves the parity, hence $c^{\textrm{occ.}}_{\textrm{AI}}(S^{2})$ must be an even integer as indicated in Tab. 4. An example Hamiltonian with a prescribed charge $2\nu\in 2\mathbbold{Z}$ is

[TABLE]

where $\boldsymbol{k}=k\boldsymbol{n}_{(\theta,\varphi)}$ is expressed using spherical coordinates $(k,\theta,\varphi)$, and

[TABLE]

with $\alpha\in[0,\pi]$ and $\beta\in[0,2\pi)$ is the unit vector in a specified direction, expanded in Cartesian coordinates. The Wilson loop spectra $\mathcal{W}^{\textrm{occ.}}$ and $\mathcal{W}^{\textrm{un.}}$ of model (77) with $2\nu=2$ are plotted in Figs. 10(a,b). This enrichment to $2\mathbbold{Z}$ is in a stark contrast to models with $n\geq 3$ and $\ell=1$ when the only consistent choice of charges summing to [math] (mod $2$) is $c^{\textrm{occ.}}_{\textrm{AI}}(S^{2})=0\;(\in\mathbbold{Z}_{2})$ and $c_{\textrm{AI}}^{\textrm{un.}}(S^{2})=0\;(\in\mathbbold{0})$, such that no topological classification remains. The same conclusion is also found for $n=\ell=1$. Clearly, the order of the charge is unchanged if we exchange $n\leftrightarrow\ell$, which is manifested by the symmetry of Tab. 4.

For $n=2$ and $\ell\geq 3$ we find $\mathbbold{Z}$ topologically inequivalent classes: Charges $c^{\textrm{occ.}}_{\textrm{AI}}(S^{2})\in\mathbbold{Z}$ and $c_{\textrm{AI}}^{\textrm{un.}}(S^{2})\in\mathbbold{Z}_{2}$ have to sum up to [math] (mod $2$). Clearly, there is a unique solution to $c^{\textrm{un.}}_{\textrm{AI}}(S^{2})$ for any $c_{\textrm{AI}}^{\textrm{occ.}}(S^{2})$. Finally, in the case $n=\ell=2$ we have to pick two integers that sum up to [math] (mod $2$), meaning they are either both even or both odd. This corresponds to the $\mathbbold{Z}\oplus\mathbbold{Z}$ entry in the middle of Tab. 4. As a non-trivial example, consider

[TABLE]

i.e. where we just increase the dimension of Hamiltonian (77) by putting $k$ in its bottom-right corner, which produces an additional trivial unoccupied state. As indicated by the subscripts, Hamiltonian (79) has charges $c^{\textrm{occ.}}_{\textrm{AI}}=2\nu$ and $c_{\textrm{AI}}^{\textrm{un.}}=0$, manifested again by the Wilson loop spectra of Fig. 10(a,b). On the other hand, the two charges of Zhao and Lu (2017)

[TABLE]

with a real Dirac basis (74) are $\nu$ and $-\nu$. We plot the corresponding spectra of $\mathcal{W}^{occ.}$ and $\mathcal{W}^{un.}$ for $\nu=1$ in Fig. 10(c,d). The somewhat unusual charge appearing for $n=\ell=2$ stems from the fact that the classifying space $\mathsf{O}(4)/\mathsf{O}(2)\!\times\!\mathsf{O}(2)$ is homeomorphic to a double cover of $S^{2}\times S^{2}$ Gluck and Warner (1983); arctic tern (2017).

We remark that Hamiltonians (77), (79) and (80) are fine-tuned such that the node is contracted to a single point at $\boldsymbol{k}=\boldsymbol{0}$. The study of how the exceptional charges $c_{\textrm{AI}}^{\textrm{occ.}}(S^{2})$ and $c_{\textrm{AI}}^{\textrm{un.}}(S^{2})$ manifest themselves in the few-band spectra when the Hamiltonian becomes detuned is beyond the scope of the present manuscript.

IX.3 Example class AI model

We consider a SrPtAs-like lattice with $s$-like orbitals at both the Pt and the As sites (assumed inequvalent) contributing to a TB model. In the absence of SOC, the hexagonal lattice symmetry enforces nodal lines running along the vertical BZ edges. A single unit cell extends over two layers and contains a pair of orbitals in each.

We stick to the Pauli matrix notation of Tab. 6, such that the two orbitals of the same species [same color in Fig. 5(a)] are exchanged by $\mathcal{I}=\rho_{x}\otimes r_{x}$. We consider intralayer hoppings with amplitude $t_{1}$

[TABLE]

The representation $\mathfrak{T}=\rho_{x}\otimes r_{x}\mathcal{K}$ in the employed basis differs from the choice of Tab. 2, but there is no need for a basis transformation as the Wilson loop formulation of charges (75) and (76) applies to any basis.

Model (81) exhibits a gap closing at $\boldsymbol{k}$ with energy $-mt_{0}/t_{3}$ whenever the pair of conditions

[TABLE]

are fulfilled. Nodal loops appear in the model for $\left|{m}\right|<2$ and a small enough ratio $\left|{t_{2}/t_{1}}\right|$. These loops annihilate in pairs at the $k_{z}c=0$ plane for $m=-2$, and at the $k_{z}c=\pi/{2}$ plane for $m=2$, and we plot their trace for the intermediate values of $m$ and for parameters

[TABLE]

which sets their vertical location to $k_{z}c=\pi/4$. In Fig. 11(b) we plot the Wilson loop spectrum for an ellipsoid with radii $\left(\tfrac{1}{a},\tfrac{1}{a},\tfrac{1}{c}\right)$ centered at $\boldsymbol{k}_{\textrm{c}}=\left(0,\tfrac{4\pi}{3\sqrt{3}a},\tfrac{\pi}{4c}\right)$ which contains a single nodal loop. The spectrum has a non-trivial winding, thus exposing the non-trivial value of the $\pi_{2}$-charge.

Interestingly, a topological transition occurs for

[TABLE]

in which pairs of the doubly charged nodal loops merge together, thus forming nodal loops with a trivial value of the $\pi_{2}$-charge. For the values of $t_{1}$, $t_{3}$, $m$ listen in Eqs. (83), the transition occurs for $t_{2\textrm{c}}=1/\sqrt{2}$. Choosing $t_{2}=1.5>t_{2\textrm{c}}$, we find the nearly circular nodal loops drawn in gray in Fig. 11(a). In Fig. 11(c) we plot the Wilson loop spectrum on an ellipsoid with radii $\left(\tfrac{3}{2a},\tfrac{3}{2a},\tfrac{3}{2c}\right)$ centred at $\tilde{\boldsymbol{k}}_{\textrm{c}}=\left(0,0,\tfrac{\pi}{4c}\right)$ which encloses a single such a nodal loop. The spectrum has a trivial winding, thus confirming the trivial value of the $\pi_{2}$-charge. Indeed, these loops disappear from the spectrum for $t_{2}>3/\sqrt{2}$, thus once again confirming their trivial nature.

X Summary

In this work we used homotopy theory to generalize the observation of doubly charged nodal lines in certain three-dimensional centrosymmetric semimetals by Ref. Fang et al. (2015) to the centrosymmetric extensions of all Atland-Zirnbauer (AZ) classes of arbitrary spatial dimension $D$. Our main results are summarized by Tab. 1 and Fig. 3. After explaining our strategy in Secs. II to IV, we treated in a greater detail all the symmetry classes supporting doubly charged nodes in $D=3$. This includes doubly charged nodal surfaces in the centrosymmetric extensions of the AZ classes (dubbed the “AZ+$\mathcal{I}$ classes”) D and BDI, and doubly charged nodal lines in the extensions of the classes CI and AI. Both topological charges characterizing these nodes are protected solely by the inversion symmetry and the global symmetries, making them very stable against a wide range of perturbations.

The doubly (and in higher spatial dimensions also “multiply”) charged nodes are often naturally robust in the sense that they can’t be gapped out on their own but only by annihilation in pairs, thus reaching the high degree of stability usually associated with Weyl points. In $D$ spatial dimensions, this is always the case for nodes with a non-trivial charge on $(D-1)$-spheres. On the other hand, if the largest $\tilde{p}$-sphere accommodating a non-trivial charge has only $\tilde{p}<(D-1)$ dimensions, the corresponding nodes need to possess $(D-1-\tilde{p})$ dimensions winding around the Brillouin zone torus to become robust in the same sense. This robustness is in a stark contrast with the case of the extensively studied nodes protected by crystalline symmetries (such as rotation axes or mirror planes) which are typically gapped out if the appropriate strain is applied.

We made a connection between the AZ+$\mathcal{I}$ symmetry classes and the physical systems in Sec. V. Restating the results for the symmetry classes supporting doubly charged nodes in $D=3$, class D nodal surfaces appear in time-reversal breaking multi-orbital superconductors (as has been recently also found in Ref. Agterberg et al. (2017)), robust nodal lines of class CI appear in singlet superconducting phases of nodal line metals, nodal lines of class AI are relevant for time-reversal symmetric semimetals without spin-orbit interaction, and nodal surfaces of class BDI may appear in AI-like system respecting a sublattice symmetry. Other realizations are also possible and are listed in Fig. 3. Although we didn’t search for actual materials exhibiting doubly charged nodes, we provided simple and realistic tight-binding models for each of the four cases to support our claims.

The present work leaves various questions open. For example, we didn’t formalize the meaning of the topological charges in Tab. 1 appearing on $p$-spheres with $p\geq 3$. Already for $p=1$ and $2$ we encountered an example of a charge that is absent in the tenfold way classification of gapped systems Ryu et al. (2010), namely the homotopy equivalence class of closed paths in the special orthogonal group $\mathsf{SO}(n)$. We also didn’t study the signatures of the multiple charges in the transport properties. For example, Ref. Agterberg et al. (2017) pointed out the unusual thermal conductivity and specific heat associated with class D nodal surfaces which are characterized by a $\mathbbold{Z}$-valued Chern number. Since these nodal surfaces can be interpreted as inflated double Weyl points, it might be interesting to look for signatures of the chiral anomaly in such systems. As another example, very recent Ref. Rui et al. (2017) showed that a small inversion-symmetry breaking perturbation in class AI nodal line semimetals facilitates an anomalous transverse Hall-like current. Since the topological charges of class CI nodal lines are closely related to those of class AI, we expect a related phenomenon to also exist in superconducting nodal line metals. Furthermore, doubly charged class AI nodal lines were very recently predicted to exist in magnon spectra of certain realistic $\mathfrak{T}$-symmetric antiferromangets Li et al. (2017). The way the higher charges are manifested in the surface spectra has also been left out for future studies.
