CaloCube: a novel calorimeter for high-energy cosmic rays in space

TL;DR

CaloCube is a cubic, homogeneous calorimeter designed for space-based high-energy cosmic ray detection, optimized for acceptance and resolution using small scintillating crystals, with prototype testing at CERN.

Contribution

This work introduces a novel cubic calorimeter design optimized for space missions, utilizing small scintillating crystals for improved acceptance and energy resolution.

Findings

Prototype based on CsI(Tl) crystals successfully tested at CERN.

Optimized crystal size and spacing for enhanced energy resolution.

CaloCube's geometry maximizes acceptance from all directions.

Abstract

In order to extend the direct observation of high-energy cosmic rays up to the PeV region, highly performing calorimeters with large geometrical acceptance and high energy resolution are required. Within the constraint of the total mass of the apparatus, crucial for a space mission, the calorimeters must be optimized with respect to their geometrical acceptance, granularity and absorption depth. CaloCube is a homogeneous calorimeter with cubic geometry, to maximise the acceptance being sensitive to particles from every direction in space; granularity is obtained by relying on small cubic scintillating crystals as active elements. Different scintillating materials have been studied. The crystal sizes and spacing among them have been optimized with respect to the energy resolution. A prototype, based on CsI(Tl) cubic crystals, has been constructed and tested with particle beams. Some results of tests with different beams at CERN are presented.

Figures

Tables

Table 1. Table 1: Main parameters of the simulated calorimeter geometries (see Sect.  3 for explanation).

	CsI(Tl)	BaF2	YAP(Yb)	BGO	LYSO(Ce)
l (cm)	3.60	3.20	2.40	2.30	2.10
Gap (cm)	0.30	0.27	0.20	0.19	0.18
N cubes	20 x 20 x 20	22 x 22 x 22	28 x 28 x 28	27 x 27 x 27	30 x 30 x 30
L (cm)	78.0	76.3	72.8	67.2	68.2
$L_{int}$ $({\lambda }_{int}$)	1.80	2.31	3.09	2.72	3.01
$L_{rad}$ $\left(X_0\right)$	38.88	34.73	24.96	55.54	53.75
$GF$ $\left(m^{2}sr\right)$	9.56	9.15	8.32	7.10	7.35

Table 2. Table 2: Parameters of the beam tests.

Test	Beam	Energy
Feb. 2013	ions from Pb + Be  A/Z=2	13-30 GeV
Mar. 2015	Ions from Ar + Poly	19-30 GeV
Aug./Sep. 2015	$\mu$, $\pi$, e	50, 75, 150, 180 GeV

Full text

\proceeding

INSTR17: Instrumentation for Colliding Beam Physics

27 February – 3 March, 2017

Novosibirsk, Russia

1 Introduction

The scientific rational driving CaloCube111CaloCube is an R&D project financed by INFN for 3+1 years (end 2017). [1] requirements is the direct measurement of the charges cosmic rays close to the ’knee’, the PeV region where the inclusive spectrum of cosmic rays changes slope becoming steeper and the composition progressively heavier. So far this region has been accessible only with ground based experiments detecting induced air-showers. This indirect measurements have large acceptance but result in large systematic errors due to model dependence for what concerns energy resolution and composition studies. Direct CR detection overcomes those limitations, but suffers from limited exposure, due to constraint in the apparatus mass in space mission. This constraint have limited the measurement of H and He spectra to 100 TeV and heavier nuclei to no more than 1 TeV. The detection of the knees of the H and He spectra requires an acceptance of at least 2.5 m2 sr$\times 5$ yr while the energy resolution is less constrained, being sufficient $\sim$ 40%. A possible detector design satisfying these requirements is a charge measuring device followed by a calorimeter.

Additionally this calorimeter can measure the cosmic rays electrons and, if coupled to a tracker-converter system and an anticoincidence shield, the high-energy gamma radiation. This possibility requires an energy resolution better than 2% and a high h/e rejection factor above 1 TeV.

2 The CaloCube concept

The goal of CaloCube is to achieve the above discussed performance with a space-borne calorimeter, within the constraint dictated by the limitation in weight ($\sim 2$ tons).

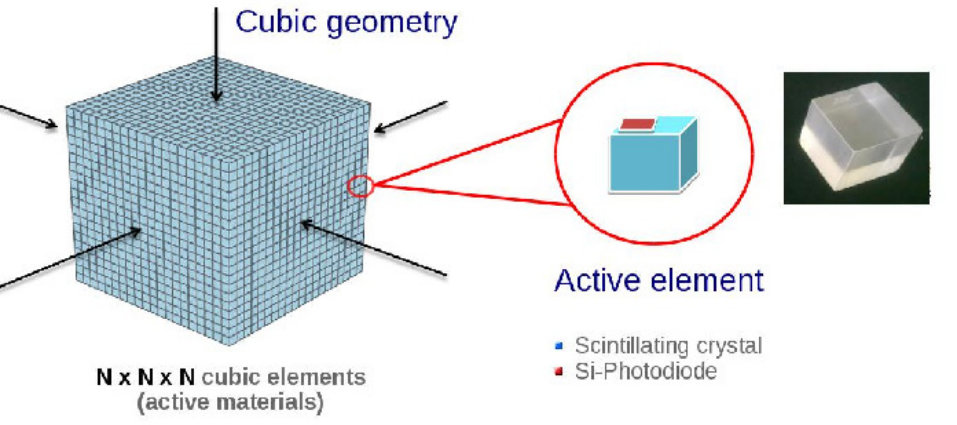

The proposed solution consists in a 3D array of cubic scintillating crystals, optically isolated from each other, readout by one or more photodiodes (PDs), arranged to form a cube (see Fig. 1). The homogeneous detector geometry provides the possibility to collect particles from five faces out of six (bottom is excluded), so the geometrical acceptance for a fixed mass budget is maximised. The cubic crystals, acting as active absorber, provides good energy resolution, while the high granularity provides 3D shower imaging, providing information for leakage correction and h/e separation.

Such stringent requirements can be obtained using a calorimeter in conjunction with a dE/dx detector, and for this purpose the CaloCube project was created, with the aim of designing and optimising of a calorimeter for measurements of high-energy cosmic rays in space [2, 3].

3 The Monte Carlo simulations and the expected performances

The calorimeter response depends on the adopted geometry and on the material used for the single scintillating crystals. For this reason, an accurate Monte Carlo, based on the FLUKA package, has been developed to carefully study the calorimeter operation in different configurations.

A NxNxN cubic geometry, with cubes of about 1 Molière radius size each, has been studied with different scintillating materials, sizes and gaps (distance between the adjacent cubes). Different configurations, comparable in terms of total weight ($W_{tot}\simeq 2$ tons) and active volume fraction (about 78%) are shown in Table 1.

Among the five materials, LYSO (Lu1.8Y0.2SiO5(Ce)) is the best one for protons, due to the better shower containment, which compensates for the smaller volume (due to its high density of 7.1 g/cm3).

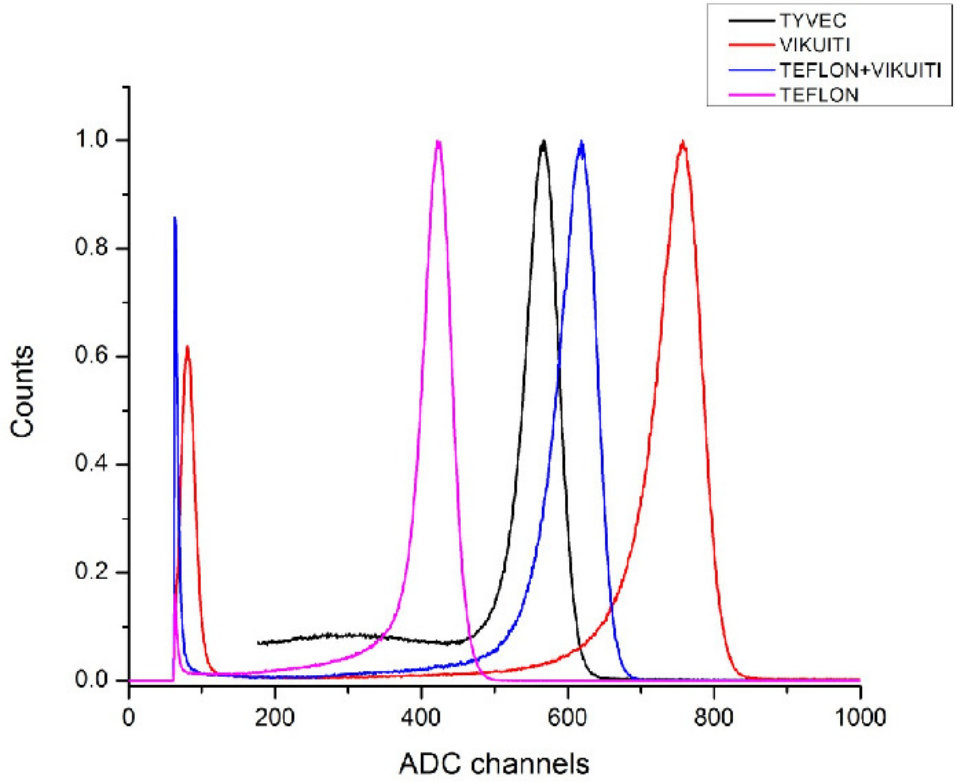

The collection efficiency of the scintillation light depends on the type of coating used to reflect the light and isolate each crystal from the adjacent ones. Several different materials have been tested measuring the signal induced by a 5.5 MeV $\alpha$ emitted by a 241Am source, and the results (in terms of signal amplitude) are shown in Fig. 3.

4 The prototype

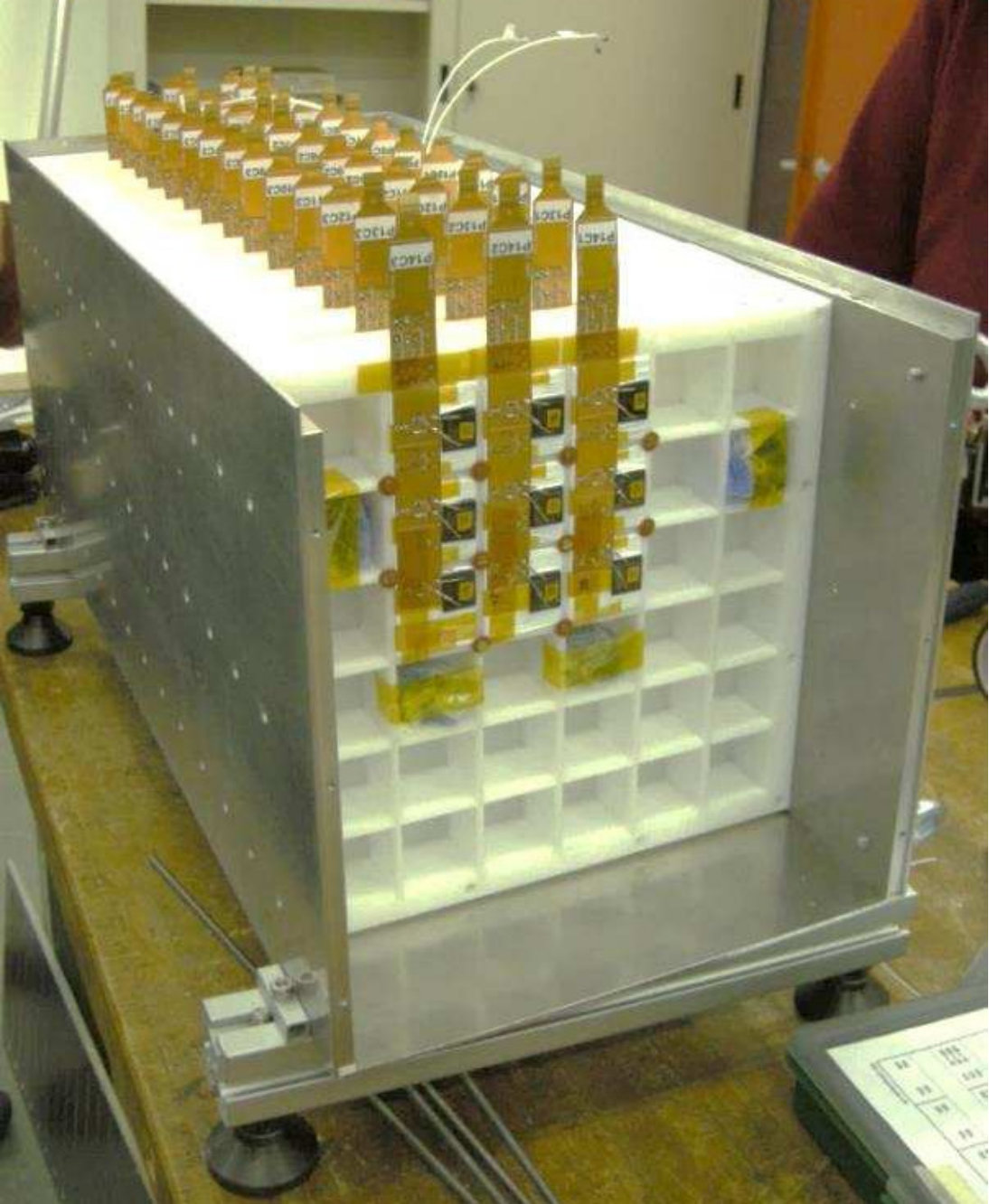

A small mechanical structure has been built, to allow the test of different geometric configurations on an accelerator beam. A prototype with 135 CsI(Tl) cubic crystals of 3.6 cm size, arranged in 15 planes of 3 x 3 cubes each, with a gap of 0.4 cm between them, has been built (Fig. 3) and tested on accelerator beams.

This prototype has a shower containment of about 1.5 Molière radius ($R_{M}$) and an active depth of 28.4 $X_{0}$ and 1.35 $\lambda_{\mathrm{i}nt}$, and has been tested at CERN with different particle beams, summarised in Table 2. Each crystal is wrapped with few layers of Teflon tape and optically coupled to a single PD, VTH2090H from Excelitas, a large-area ($\sim 100$ mm2) sensor that allows to clearly detect minimum-ionising protons with a signal-to-noise ratio of $\sim 15$. One of the most challenging requirements is the very large dynamic range ($10^{7}$) ranging from 20 MeV for minimum ionising protons to 10% of the energy of a PeV proton. This will be accomplished by using also a second small area PD ($\sim 1$ mm2). The front-end electronics is based on a custom designed high dynamic-range, low-noise ASIC, characterised by a dynamic range of 52.2 pC and an ENC$\sim 0.5$ fC at 70 pF input capacitance.

5 Beam test and results

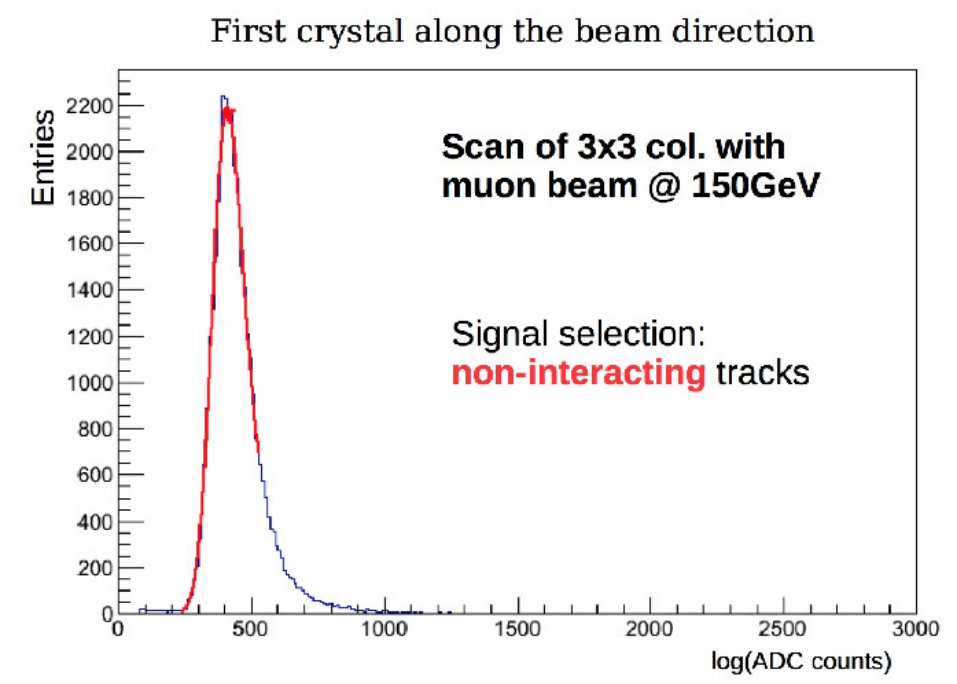

During the beam test at CERN in summer 2015, the prototype was exposed to $\mu^{\pm}$ beams, to obtain the response of each crystal to a minimum ionising particles (m.i.p.), thus determining the individual conversion factors between the deposited energy and the photodiode signal (Fig. 5). These factors were later used to equalise the response of all the cubes.

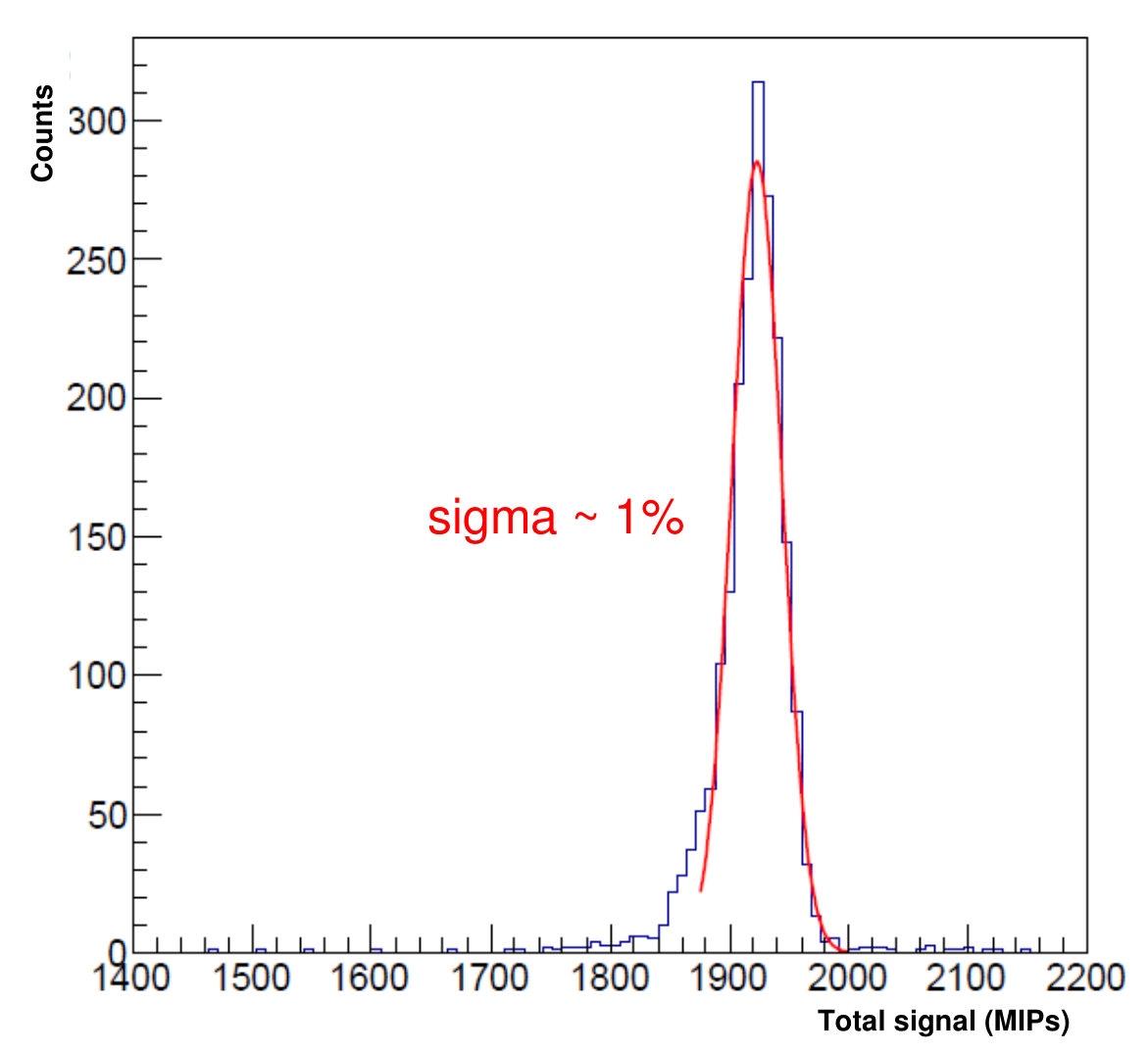

Then an estimate of the energy resolution has been determined, exposing the calorimeter to $\mathrm{e^{\pm}}$ beams of different energy, and determining the total deposited energy, given by the sum of the equalised signals of all the cubes. A preliminary result is shown in Fig. 5, referring to a beam of 50 GeV electrons. In this case the measured total energy (expressed in m.i.p) is in good agreement with the expectation, and the corresponding resolution is at level of 1%. In the 2013 beam test the prototype was exposed to ion beams of 12.8 and 30 GeV/n, containing A/Z=2 fragments produced by a primary Pb beam colliding with a Be target.

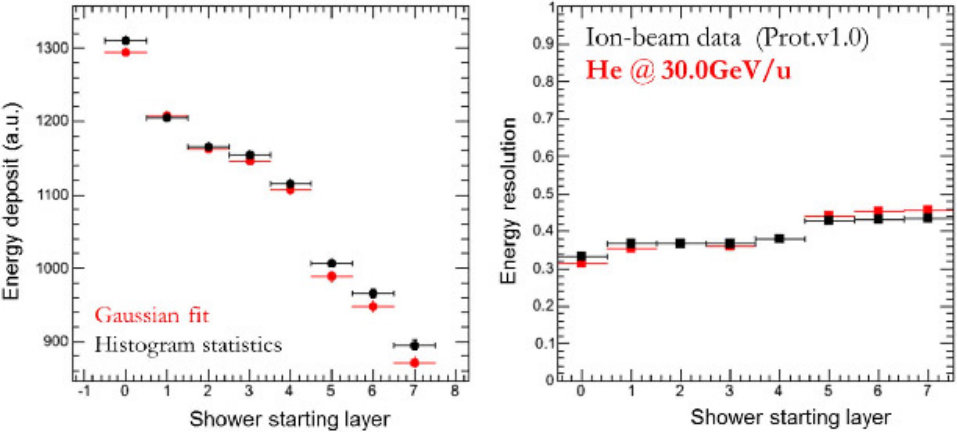

The single-crystal performances were studied, by selecting non-interacting ions. The observed dispersion among crystal responses was about 15%, with an average signal-to-noise ratio for deuterons of $\sim~{}10$. The single-crystal responses were equalised by normalising to the energy deposit of non-interacting He nuclei (set by definition to 4 MIP), the most abundant fragments. Showers were classified on the basis of the starting point, which in the beam-test set-up univocally determines the shower containment. Fig. 7 shows the energy deposit (left) and its relative fluctuations (right) for He induced showers, versus the shower starting layer; in spite of the significant leakage for showers starting progressively deeper inside the calorimeter, the energy resolution is almost constant and better than 40% down to the fifth layer.

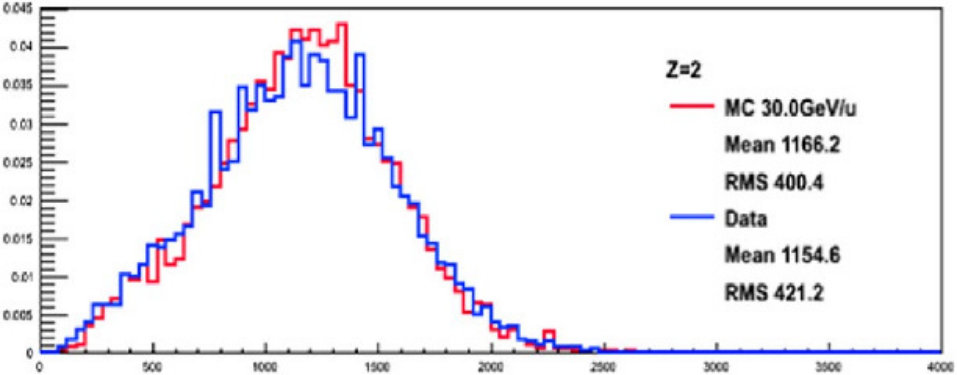

A Monte Carlo model of the prototype has been developed in Fluka and its predicted response is shown in Fig. 7 in comparison with real data. A fine tuning of the Monte Carlo was necessary in order to reproduce the beam-test data. In particular, an additional spread of 4.5% on the single-crystal responses and an optical cross-talk of 14% were introduced.

\acknowledgments

This work was supported by the Istituto Nazionale di Fisica Nucleare (INFN), through the CaloCube project, and by the H2020 project AIDA-2020, GA no. 654168. The authors thank CERN for the allocation of beam time at the North Area test facility.
