Disorder-Driven Density and Spin Self-Ordering of a Bose-Einstein Condensate in a Cavity

TL;DR

This paper investigates how a two-component Bose-Einstein condensate in a cavity undergoes self-ordering driven by disorder, leading to simultaneous density and spin orderings, symmetry breaking, and characteristic excitation spectra at the superradiance transition.

Contribution

It reveals the mechanism of disorder-driven spin and density self-ordering in a BEC within a cavity, highlighting symmetry breaking and the role of quantum fluctuations as a dynamical disorder source.

Findings

Simultaneous density and spin order emerge at the superradiance transition.

Spontaneous breaking of discrete and continuous symmetries occurs in the ordered phase.

Elementary excitations show mode softening at the superradiance threshold.

Abstract

We study spatial spin and density self-ordering of a two-component Bose-Einstein condensate via collective Raman scattering into a linear cavity mode. The onset of the Dicke superradiance phase transition is marked by a simultaneous appearance of a crystalline density order and a spin-wave order. The latter spontaneously breaks the discrete $\mathbf{Z}_2$ symmetry between even and odd sites of the cavity optical potential. Moreover, in the superradiant state the continuous $U(1)$ symmetry of the relative phase of the two condensate wavefunctions is explicitly broken by the cavity-induced position-dependent Raman coupling with a zero spatial average. Thus, the spatially-averaged relative condensate phase is locked at either $\pi/2$ or $-\pi/2$. This continuous symmetry breaking and relative condensate phase locking by a zero-average Raman field can be considered as a generic order-by-disorder process similar to the random-field-induced order in the two-dimensional classical ferromagnetic $XY$ spin model. However, the seed of the random field in our model stems from quantum fluctuations in the cavity field and is a dynamical entity affected by self-ordering. The spectra of elementary excitations exhibit the typical mode softening at the superradiance threshold.

Figures

Equations

$$i\frac{\partial }{\partial t}\alpha$$

$$+\eta \int \cos (k_{c}x)\left({\psi }_{\downarrow }^{\ast }{\psi }_{\uparrow }+{\psi }_{\uparrow }^{\ast }{\psi }_{\downarrow }\right)dx,$$

$$i\frac{\partial }{\partial t}{\psi }_{\downarrow }$$

$$+\eta (\alpha +{\alpha }^{\ast })\cos (k_{c}x){\psi }_{\uparrow },$$

$$i\frac{\partial }{\partial t}{\psi }_{\uparrow }$$

$$+\eta (\alpha +{\alpha }^{\ast })\cos (k_{c}x){\psi }_{\downarrow }.$$

$$\mathcal{E}(x)$$

$$+\hslash |\alpha {|}^2{\cos }^2(k_{c}x)(U_{\downarrow }{n}_{\downarrow }+U_{\uparrow }{n}_{\uparrow })$$

$$+4\hslash \eta |\alpha |\sqrt{n_{\downarrow }{n}_{\uparrow }}\cos (k_{c}x)\cos {\varphi }_{\alpha }\cos \Delta \varphi ,$$

$$\alpha =\frac{\eta \int \cos (k_{c}x)\left[{\psi }_{\downarrow }^{\ast }(x){\psi }_{\uparrow }(x)+{\psi }_{\uparrow }^{\ast }(x){\psi }_{\downarrow }(x)\right]dx}{{\Delta }_c+i\kappa -{\sum }_{\tau }{U}_{\tau }\int {\cos }^2(k_{c}x)n_{\tau }(x)dx}.$$

$$({\omega }^2-{\omega }_r^2)\left\{({\omega }^2-{\omega }_r^2)\left[{\delta }_c^2+(i\omega -\kappa {)}^2\right]+2{\delta }_c{\omega }_{r}N{\eta }^2\right\}=0,$$

$$\sqrt{N}{\eta }_c=\sqrt{\frac{{\delta }_c^2+{\kappa }^2}{2{\delta }_c}}\sqrt{{\omega }_r}\approx 2.15{\omega }_r.$$

$$\displaystyle\mathcal{H}^{(1)}=\frac{p^{2}}{2m}I_{4\times 4}+\sum_{\tau=\{\uparrow,1,2\}}\hbar\omega_{\tau}\sigma_{\tau\tau}+\hbar\omega_{c}\hat{a}^{\dagger}\hat{a}+\hbar\Big{[}\mathscr{G}(x)\hat{a}(\sigma_{1\downarrow}+\sigma_{2\uparrow})+\Omega_{1}e^{-i\omega_{p1}t}\sigma_{1\uparrow}+\Omega_{2}e^{-i\omega_{p2}t}\sigma_{2\downarrow}+\text{H.c.}\Big{]},$$

$${\tilde{\mathcal{H}}}^{(1)}$$

$$\mathcal{U}=\exp \left\{i\left[\left(\frac{{\omega }_{p1}+{\omega }_{p2}}{2}\right){\hat{a}}^{†}\hat{a}+\left(\frac{{\omega }_{p2}-{\omega }_{p1}}{2}\right){\sigma }_{\uparrow \uparrow }+\left(\frac{{\omega }_{p1}+{\omega }_{p2}}{2}\right){\sigma }_{11}+{\omega }_{p2}{\sigma }_{22}\right]t\right\}.$$

$$H=\int {\hat{\Psi }}^{†}(x){\tilde{\mathcal{M}}}^{(1)}\hat{\Psi }(x)dx+H_{\text{int}},$$

$$i\hslash \frac{\partial }{\partial t}\hat{a}$$

$$i\hslash \frac{\partial }{\partial t}{\hat{\psi }}_{\downarrow }$$

$$i\hslash \frac{\partial }{\partial t}{\hat{\psi }}_{\uparrow }$$

$$i\hslash \frac{\partial }{\partial t}{\hat{\psi }}_1$$

$$i\hslash \frac{\partial }{\partial t}{\hat{\psi }}_2$$

$${\hat{\psi }}_1^{\text{ss}}=\frac{1}{{\Delta }_1}\left[\mathcal{G}(x)\hat{a}{\hat{\psi }}_{\downarrow }+{\Omega }_1{\hat{\psi }}_{\uparrow }\right],$$

$${\hat{\psi }}_2^{\text{ss}}=\frac{1}{{\Delta }_2}\left[\mathcal{G}(x)\hat{a}{\hat{\psi }}_{\uparrow }+{\Omega }_2{\hat{\psi }}_{\downarrow }\right].$$

$$i\hslash \frac{\partial }{\partial t}\hat{a}$$

$$+\hslash \eta \int \cos (k_{c}x)\left[{\hat{\psi }}_{\uparrow }^{†}(x){\hat{\psi }}_{\downarrow }(x)+{\hat{\psi }}_{\downarrow }^{†}(x){\hat{\psi }}_{\uparrow }(x)\right]dx,$$

$$i\hslash \frac{\partial }{\partial t}{\hat{\psi }}_{\downarrow }$$

$$i\hslash \frac{\partial }{\partial t}{\hat{\psi }}_{\uparrow }$$

$${\mathcal{E}}_{\mathrm{PT}}(x)\simeq \frac{{\hslash }^2}{m}({\partial }_x\sqrt{n}{)}^2+\frac{{\hslash }^2}{4m}n\left[({\partial }_x\Delta \varphi {)}^2+({\partial }_x\Phi {)}^2\right]+\hslash \tilde{\delta }n+4\hslash \eta |\alpha |n\cos (k_{c}x)\cos {\varphi }_{\alpha }\cos \Delta \varphi ,$$

$${\mathcal{E}}_{\mathrm{PT}}(x)$$

$$H_{XY}=-J\sum _{⟨i,j⟩}{\mathbf{s}}_i\cdot {\mathbf{s}}_j+\sum _i{\mathbf{h}}_i\cdot {\mathbf{s}}_i,$$

$$H_{XY}=-J\sum _{⟨i,j⟩}\cos ({\theta }_i-{\theta }_j)+\sum _i{h}_i\cos {\theta }_i.$$

$$H_{XY}^{\mathrm{cont}}\simeq \int dxdy\left[-J(\nabla \theta {)}^2+h(x,y)\cos \theta \right].$$

$$i\frac{\partial }{\partial t}\delta \alpha$$

$$+\eta \int \cos (k_{c}x)\left({\psi }_{0\uparrow }\delta {\psi }_{\downarrow }^{\ast }+{\psi }_{0\downarrow }^{\ast }\delta {\psi }_{\uparrow }+{\psi }_{0\uparrow }^{\ast }\delta {\psi }_{\downarrow }+{\psi }_{0\downarrow }\delta {\psi }_{\uparrow }^{\ast }\right)dx,$$

$$i\frac{\partial }{\partial t}\delta {\psi }_{\downarrow }$$

$$+\eta \cos (k_{c}x){\psi }_{0\uparrow }(\delta \alpha +\delta {\alpha }^{\ast }),$$

$$i\frac{\partial }{\partial t}\delta {\psi }_{\uparrow }$$

$$+\eta \cos (k_{c}x){\psi }_{0\downarrow }(\delta \alpha +\delta {\alpha }^{\ast }).$$

$$\omega \left(\begin{array}{c}\delta {\alpha }_{+}\\ \delta {\alpha }_{-}\\ \delta {\psi }_{+\downarrow }\\ \delta {\psi }_{-\downarrow }\\ \delta {\psi }_{+\uparrow }\\ \delta {\psi }_{-\uparrow }\end{array}\right)={\mathbf{M}}_{\mathrm{B}}\left(\begin{array}{c}\delta {\alpha }_{+}\\ \delta {\alpha }_{-}\\ \delta {\psi }_{+\downarrow }\\ \delta {\psi }_{-\downarrow }\\ \delta {\psi }_{+\uparrow }\\ \delta {\psi }_{-\uparrow }\end{array}\right),$$

$${\mathbf{M}}_{\mathrm{B}}=\left(\begin{array}{cccccc}{\delta }_c-i\kappa & 0& \sqrt{N}\eta \sqrt{f_{\uparrow }}\mathcal{I}& \sqrt{N}\eta \sqrt{f_{\uparrow }}\mathcal{I}& \sqrt{N}\eta \sqrt{f_{\downarrow }}\mathcal{I}& \sqrt{N}\eta \sqrt{f_{\downarrow }}\mathcal{I}\\ 0& -({\delta }_c+i\kappa )& -\sqrt{N}\eta \sqrt{f_{\uparrow }}\mathcal{I}& -\sqrt{N}\eta \sqrt{f_{\uparrow }}\mathcal{I}& -\sqrt{N}\eta \sqrt{f_{\downarrow }}\mathcal{I}& -\sqrt{N}\eta \sqrt{f_{\downarrow }}\mathcal{I}\\ \sqrt{N}\eta \sqrt{f_{\uparrow }}\cos (k_{c}x)& \sqrt{N}\eta \sqrt{f_{\uparrow }}\cos (k_{c}x)& -\frac{\hslash }{2m}\frac{{\partial }^2}{\partial x^2}& 0& 0& 0\\ -\sqrt{N}\eta \sqrt{f_{\uparrow }}\cos (k_{c}x)& -\sqrt{N}\eta \sqrt{f_{\uparrow }}\cos (k_{c}x)& 0& \frac{\hslash }{2m}\frac{{\partial }^2}{\partial x^2}& 0& 0\\ \sqrt{N}\eta \sqrt{f_{\downarrow }}\cos (k_{c}x)& \sqrt{N}\eta \sqrt{f_{\downarrow }}\cos (k_{c}x)& 0& 0& -\frac{\hslash }{2m}\frac{{\partial }^2}{\partial x^2}& 0\\ -\sqrt{N}\eta \sqrt{f_{\downarrow }}\cos (k_{c}x)& -\sqrt{N}\eta \sqrt{f_{\downarrow }}\cos (k_{c}x)& 0& 0& 0& \frac{\hslash }{2m}\frac{{\partial }^2}{\partial x^2}\end{array}\right),$$

Full text

Introduction.—Loading Bose-Einstein condensates (BECs) into optical potentials created by dynamic cavity fields has opened a new avenue in ultracold atomic physics Brennecke et al. (2007); Slama et al. (2007); Colombe et al. (2007); Kollár et al. (2015), paving the way for realization of novel phenomena Ritsch et al. (2013). Seminal results include the Dicke superradiance phase transition Baumann et al. (2010, 2011); Klinder et al. (2015a), and quantum phase transitions between superfluid, superradiant Mott insulator, density-wave state, lattice supersolid, and supersolid phase with a broken continuous $U(1)$ symmetry due to the interplay between cavity-mediated long-range interactions and short-range collisional interactions Klinder et al. (2015b); Landig et al. (2016); Léonard et al. (2017). On the theoretical side, in addition to studying conventional quantum-optics and self-ordering aspects of coupled quantum-gas–cavity environments Moore et al. (1999); Domokos and Ritsch (2002); Maschler et al. (2008); Nagy et al. (2008); Piazza et al. (2013); Piazza and Strack (2014a); Keeling et al. (2014); Chen et al. (2014); Piazza and Ritsch (2015), many proposals have been put forward to simulate and realize exotic phenomena for ultracold atoms via coupling to dynamic cavity fields, including synthetic gauge fields Mivehvar and Feder (2014); Dong et al. (2014); Deng et al. (2014); Mivehvar and Feder (2015); Kollath et al. (2016); Zheng and Cooper (2016), topological states Pan et al. (2015); Gulácsi and Dóra (2015); Mivehvar et al. (2017); Sheikhan et al. (2016), and superconductor-related physics Ballantine et al. (2017).

In this Letter we study the Dicke superradiance phase transition for a generalized atomic system with both internal Dimer et al. (2007); Larson and Lewenstein (2009); Gopalakrishnan et al. (2011); Safaei et al. (2013); Zhiqiang et al. (2017) and external Baumann et al. (2010, 2011); Klinder et al. (2015a) quantized degrees of freedom, i.e., a spinor BEC, coupled to a single mode of a linear cavity (see Fig. 1). The ultracold four-level atoms are transversely illuminated by two sufficiently far red-detuned pump lasers polarized along the cavity axis $x$ so that to induce near resonant two-photon Raman transitions between the lowest two internal atomic states via the same cavity mode with the transverse polarization along $z$ as in Ref. Zhiqiang et al. (2017). After adiabatic elimination of the atomic excited states, the system reduces to a two-component BEC coupled via a cavity-induced position-dependent Raman coupling with a zero spatial average.

In contrast to conventional self-ordering Ritsch et al. (2013); Baumann et al. (2010), the condensate densities in the superradiant phase exhibit modulations with the half cavity-wavelength $\lambda_{c}/2$ periodicity. However, the discrete $\mathbf{Z}_{2}$ symmetry — the symmetry between even and odd lattice sites and positive and negative cavity-field amplitude — is spontaneously broken at the onset of the Dicke superradiance phase transition by a $\lambda_{c}$-periodic spin ordering. Despite filling all sites, the cavity field attains a non-zero value as it is collectively driven by the atomic spin density. The continuous $U(1)$ symmetry associated with the freedom of the relative phase of two condensate wavefunctions is explicitly broken in the superradiance state by the cavity-induced position-dependent Raman coupling with the zero spatial average. Thereby the relative condensate phase varies in space with the spatial average of either $\pi/2$ or $-\pi/2$ in order to minimize the total energy and yield a non-zero cavity field Jaksch et al. (2001).

Owing to this continuous symmetry breaking and relative condensate phase locking by the zero-average Raman field, the self-organization in our model can be considered as an order-by-disorder process Niederberger et al. (2008), equivalent to the spontaneous ordering in the two-dimensional classical ferromagnetic $XY$ spin model with a uniaxial random magnetic field Minchau and Pelcovits (1985); Feldman (1998); Wehr et al. (2006). The relative condensate phase plays the role of the spin angle and the position-dependent Raman field with zero spatial average mimics the random magnetic field. Nonetheless, the seed of the random field in our model stems from quantum fluctuations and the random field itself is a dynamical entity affected by the self-ordering.

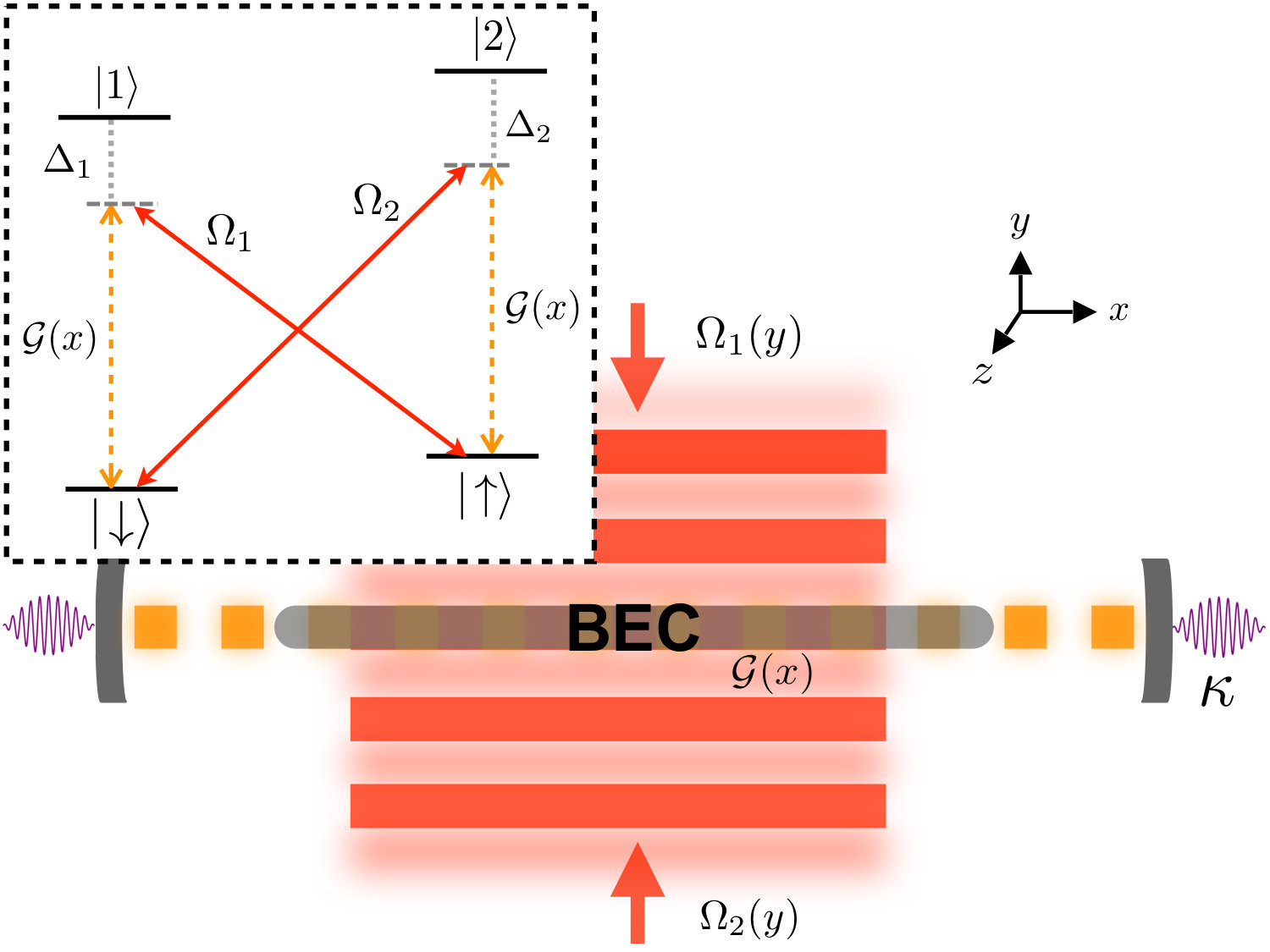

Model.—Consider four-level bosonic atoms inside a linear cavity illuminated in the transverse direction by two external standing-wave pump lasers as depicted in Fig. 1. A tight confinement along the transverse directions is assumed to freeze transverse motion. Two-photon Raman coupling is induced via the transition $\uparrow\>\leftrightarrow 1$ ($\downarrow\>\leftrightarrow 2$) coupled to the first (second) external pump laser with the Rabi frequency $\Omega_{1}$ ($\Omega_{2}$), along with the transitions $\downarrow\>\leftrightarrow 1$ and $\uparrow\>\leftrightarrow 2$ coupled to same empty cavity mode with identical coupling strength $\mathscr{G}(x)=\mathscr{G}_{0}\cos(k_{c}x)$. This constitutes a double $\Lambda$ configuration, where $\left|\tau\right>=\{\left|\downarrow\right>,\left|\uparrow\right>\}$ are the desired ground pseudospin states and $\{\left|1\right>,\left|2\right>\}$ are electronic excited states, with energies $\{\hbar\omega_{\downarrow}=0,\hbar\omega_{\uparrow},\hbar\omega_{1},\hbar\omega_{2}\}$. The pump and cavity frequencies, respectively, $\{\omega_{p1},\omega_{p2}\}$ and $\omega_{c}$ are assumed to be far red detuned from the atomic transition frequencies, that is, $\Delta_{1}\equiv(\omega_{p1}+\omega_{p2})/2-\omega_{1}$ and $\Delta_{2}\equiv\omega_{p2}-\omega_{2}$ are large. However, two-photon Raman transitions are close to resonant: $\omega_{c}-\omega_{p1}\approx\omega_{2p}-\omega_{c}\approx\omega_{\uparrow}$. The excited states then quickly reach steady states with negligible populations and can be adiabatically eliminated to obtain an effective model describing the two atomic pseudospin states coupled to the cavity field.

At the mean-field level, the system is described by a set of three coupled equations for the cavity-field amplitude $\alpha(t)=|\alpha(t)|e^{i\phi_{\alpha}(t)}$ and atomic condensate wavefunctions $\psi_{\tau}(x,t)=\sqrt{n_{\tau}(x,t)}e^{i\phi_{\tau}(x,t)}$ SM- :

[TABLE]

Here, $\tilde{\delta}\equiv\omega_{\uparrow}-(\omega_{p2}-\omega_{p1})/2+\Omega_{1}^{2}/\Delta_{1}-\Omega_{2}^{2}/\Delta_{2}$ is the Stark-shifted two-photon detuning, $U_{\downarrow(\uparrow)}\equiv\mathscr{G}_{0}^{2}/\Delta_{1(2)}$ is the maximum depth of the cavity-generated optical potential per photon for the spin-down (spin-up) atoms [or the maximum cavity-frequency shift per a spin-down (spin-up) atom], $\eta\equiv\mathscr{G}_{0}\Omega_{1}/\Delta_{1}=\mathscr{G}_{0}\Omega_{2}/\Delta_{2}$ is the balanced Raman-Rabi frequency (or the effective cavity pump strength), and $\Delta_{c}\equiv(\omega_{p1}+\omega_{p2})/2-\omega_{c}$. The decay of the cavity mode has been modeled as the damping term $-i\hbar\kappa\alpha$, with $\kappa$ being the decay rate. Two-body contact interactions between atoms have been assumed to be negligible for the sake of simplicity. When $\alpha\neq 0$, only the total number of the particles $N=\sum_{\tau}\int n_{\tau}(x)dx=\sum_{\tau}N_{\tau}$ is conserved due to the effective Raman coupling between the two condensates.

The total energy of the system can be expressed as $E=-\hbar\Delta_{c}|\alpha|^{2}+\int\mathscr{E}(x)dx$, where the energy-functional density is given by

[TABLE]

with $\Delta\phi\equiv\phi_{\downarrow}-\phi_{\uparrow}$. As can be seen from Eq. (Disorder-Driven Density and Spin Self-Ordering of a Bose-Einstein Condensate in a Cavity), in the absence of $\alpha$ the system possesses full translation symmetry $\mathcal{T}$ and $U(1)\times U(1)$ global symmetry representing the freedom of total and relative phases of the two condensate wavefunctions. A non-zero cavity field results in a position-dependent Raman field with zero mean $\int_{0}^{\lambda_{c}}\eta(\alpha+\alpha^{*})\cos{(k_{c}x)}dx=0$ over one cavity wavelength $\lambda_{c}=2\pi/k_{c}$, and reduces the $\mathcal{T}\times U(1)\times U(1)$ symmetry into a $\mathbf{Z}_{2}\times U(1)$ symmetry. The disceret $\mathbf{Z}_{2}$ symmetry represents the invariance of the system under the transformation $x\to x+\lambda_{c}/2$ and $\phi_{\alpha}\to\phi_{\alpha}+\pi$. The $U(1)$ symmetry represents the freedom of the total phase $\phi_{\downarrow}+\phi_{\uparrow}$ (i.e., the conservation of the total particle number): a simultaneous rotation of both condensate phases by an arbitrary constant phase, $\phi_{\tau}\to\phi_{\tau}+\varphi$, leaving $\Delta\phi$ invariant. Note that the $U(1)$ symmetry associated with the freedom of the relative phase $\Delta\phi$ of the two condensate wavefunctions is nonetheless explicitly broken by the last term in Eq. (Disorder-Driven Density and Spin Self-Ordering of a Bose-Einstein Condensate in a Cavity). Considering solely this term, the minimization of the energy amounts to the constraint $\cos(k_{c}x)\cos{\phi_{\alpha}}\cos{\Delta\phi}<0$. This in turn imposes a position-dependent constraint on $\Delta\phi$, as the phase $\phi_{\alpha}$ of the cavity-field amplitude is constant over entire space. Nonetheless, the kinetic-energy (i.e., first two) terms compete with this Raman coupling term and favors wavefunctions with uniform phases.

Self-ordering and symmetry breaking.—We numerically solve equations (Disorder-Driven Density and Spin Self-Ordering of a Bose-Einstein Condensate in a Cavity), assuming that the cavity-field amplitude quickly reaches its steady state,

[TABLE]

One can identify $\Theta\equiv\int\cos(k_{c}x)(\psi_{\downarrow}^{*}\psi_{\uparrow}+\text{H.c.})dx$ as an order parameter. Unlike normal self-ordering in a single component BEC, here the cavity-field amplitude is coupled to the atomic spin polarization, rather than atomic density. That is, the scattering of pump-laser photons into the cavity mode is accompanied by the atomic spin flip $\uparrow\leftrightarrow\downarrow$ and $\pm\hbar k_{c}$ momentum kick along the $x$ direction.

Using a self-consistent imaginary-time propagation method, we find the ground-state condensate wavefunctions $\psi_{\tau}(x)$ and the steady-sate cavity-field amplitude $\alpha$. Below a threshold pump strength $\eta_{c}$, the cavity mode is empty and the condensate wavefunctions are uniform, with arbitrary phases. By increasing the effective pump strength above the threshold $\eta_{c}$, the quantum fluctuations in the condensates trigger a constructive scattering of pump-laser photons into the cavity mode via the two-photon Raman processes. These cavity photons in turn stimulate the Raman processes, leading into a random-field-induced runaway ordering process seeded by quantum fluctuations.

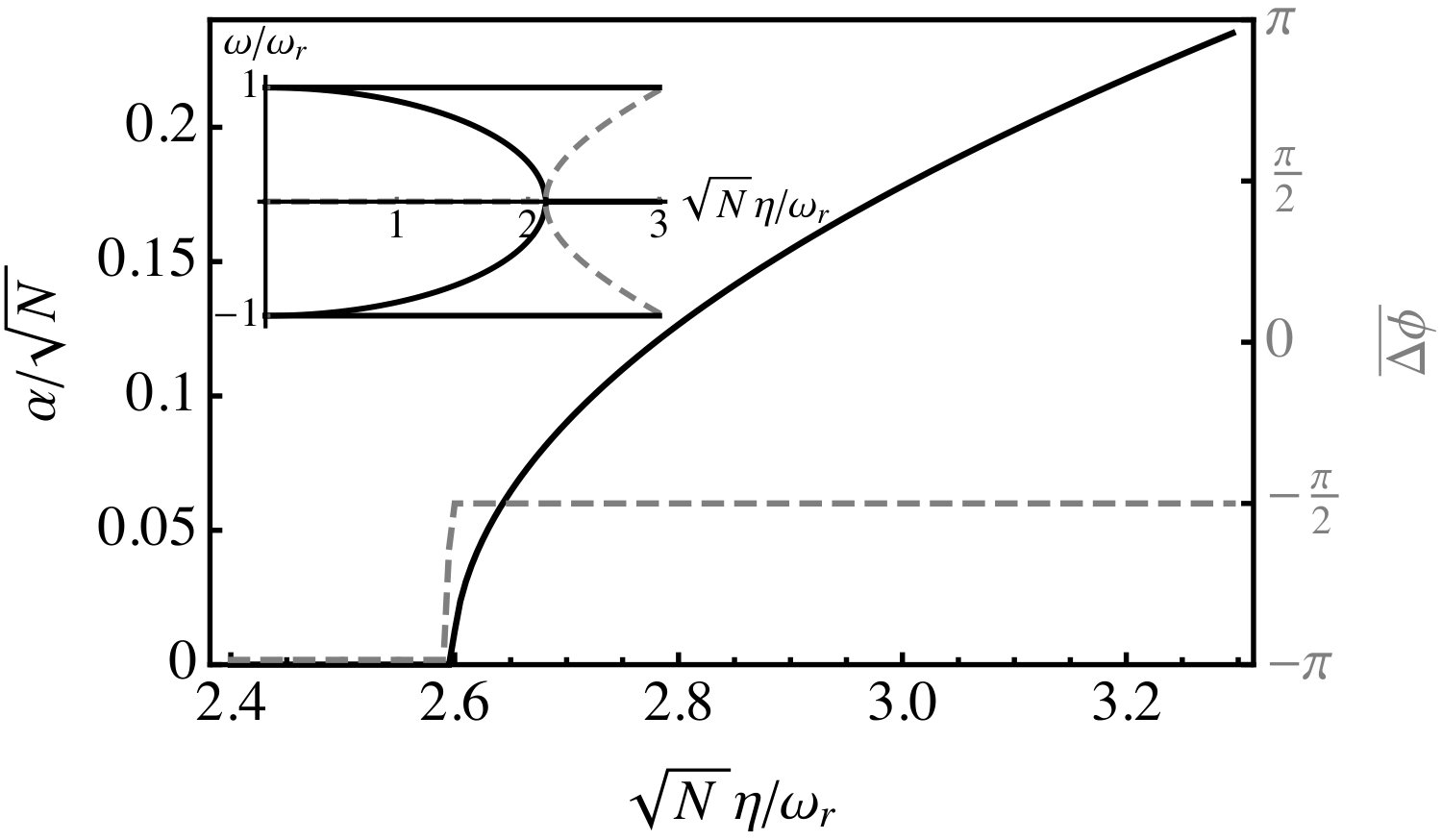

The results are presented in Figs. 2 and  3 for the lossless cavity limit ($\kappa=0$). In Fig. 2, the solid black curve shows the scaled cavity-field amplitude $\alpha/\sqrt{N}$ as a function of the dimensionless effective pump strength $\sqrt{N}\eta/\omega_{r}$ for $\Delta_{c}=-10\omega_{r}$, $NU_{\downarrow}=-2\omega_{r}$, $NU_{\uparrow}=-\omega_{r}$, and $\tilde{\delta}=0.5\omega_{r}$, with $\omega_{r}=\hbar k_{c}^{2}/2m$ being the recoil frequency. The initial condition for the fraction of atoms in each state is set to $f_{\downarrow}\equiv N_{\downarrow}/N=0.8$ and $f_{\uparrow}\equiv N_{\uparrow}/N=0.2$ (see also the discussion on elementary excitations in the following). For the given parameters, the superradiance phase transition occurs at the critical pump strength $\sqrt{N}\eta_{c}\approx 2.6\omega_{r}$, where the symmetry between $\alpha$ and $-\alpha$ is spontaneously broken.

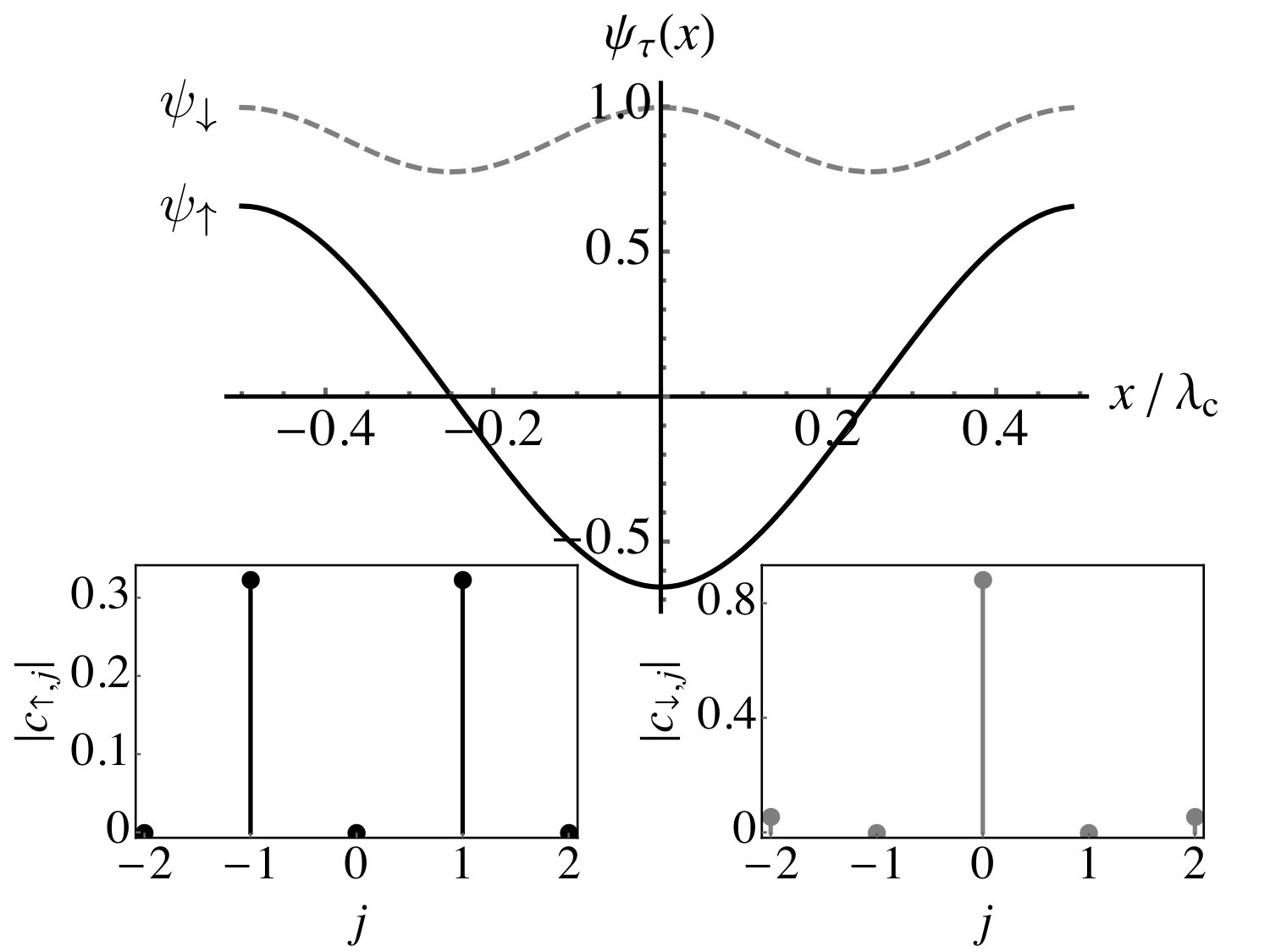

The corresponding condensate wavefunctions $\psi_{\tau}(x)$ deep in the superradiance phase are shown in Fig. 3 for $\sqrt{N}\eta=3.2\omega_{r}$ and the other parameters as in Fig. 2. The black solid (gray dashed) curve represents $\psi_{\uparrow}$ ($\psi_{\downarrow}$). Although the spin-down condensate wavefunction $\psi_{\downarrow}$ is $\lambda_{c}/2$ periodic, the spin-up condensate wavefunction $\psi_{\uparrow}$ breaks this discrete $\lambda_{c}/2$-translational symmetry. Note that the condensate densities $n_{\tau}(x)=|\psi_{\tau}(x)|^{2}$ for both components clearly have two identical peaks within one $\lambda_{c}$ and are, therefore, $\lambda_{c}/2$-periodic foo . Therefore, the $\mathbf{Z}_{2}$ symmetry is broken by a spin wave, rotating along the $y$ axis as $\psi_{x,\uparrow}(-\lambda_{c}/2)\equiv\psi_{\downarrow}^{\rm max}+|\psi_{\uparrow}^{\rm max}|$, $\psi_{\downarrow}^{\rm min}(-\lambda_{c}/4)$, $\psi_{x,\downarrow}(0)\equiv\psi_{\downarrow}^{\rm max}-|\psi_{\uparrow}^{\rm max}|$, and $\psi_{\downarrow}^{\rm min}(\lambda_{c}/4)$, rather than the density ordering. This is in a sharp contrast to the normal one-component self-ordered BEC, where the condensate density is $\lambda_{c}$-periodic in order to allow for in-phase constructive scattering of the pump-laser photons into the cavity mode. This is not the case in our model as the cavity field is coupled to the atomic spin polarization rather than density [see Eq. (3)], and it will be discussed in more detail in the following. Note also that the $U(1)$ symmetry representing the freedom of the total phase is broken here by imposing initial conditions in numerical calculations, resulting in purely real condensate wavefunctions for both components.

In the self-ordered state, the relative condensate phase $\Delta\phi(x)$ varies in space. For $\alpha>0$, the phase of the cavity-field amplitude is fixed over the entire space: $\phi_{\alpha}=0$. In order to satisfy the constraint $\cos(k_{c}x)\cos\phi_{\alpha}\cos{\Delta\phi}<0$, the relative condensate phase must therefore be $\Delta\phi=\pm\pi$ (modulo $2\pi$) for $|x|\leqslant\lambda_{c}/4$ (e.g., for real wavefunctions one condensate wavefunction is positive and the other negative) and $\Delta\phi=0$ (modulo $2\pi$) for $\lambda_{c}/4<|x|\leqslant\lambda_{c}/2$ (e.g., for real wavefunctions both condensate wavefunctions are either positive or negative); see Fig. 3. For $\alpha<0$ (i.e., $\phi_{\alpha}=\pi$), this is opposite, namely $\Delta\phi=0$ (modulo $2\pi$) for $|x|\leqslant\lambda_{c}/4$ and $\Delta\phi=\pm\pi$ (modulo $2\pi$) for $\lambda_{c}/4<|x|\leqslant\lambda_{c}/2$. This constraint on the relative condensate phase due to the energy is also consistent with Eq. (3). Consider for instance the $\alpha>0$ case, which implies that $\Delta\phi=\pm\pi$ for $|x|\leqslant\lambda_{c}/4$ and $\Delta\phi=0$ for $\lambda_{c}/4<|x|\leqslant\lambda_{c}/2$. This in turn ensures that the order parameter $\Theta$ is non-zero and negative: for $|x|\leqslant\lambda_{c}/4$ one has $\cos(k_{c}x)>0$ and $\cos{\Delta\phi}<0$, while $\cos(k_{c}x)<0$ and $\cos{\Delta\phi}>0$ for $\lambda_{c}/4<|x|\leqslant\lambda_{c}/2$. Since $\Delta_{c}-\sum_{\tau}\int\cos^{2}(k_{c}x)U_{\tau}n_{\tau}(x)dx$ must be negative to avoid heating, this yields a positive cavity-field amplitude $\alpha>0$ in a self-consistent way.

Around the threshold $\eta_{c}$ where $|\alpha|/\sqrt{N}\ll 1$, the weakly Raman-coupled two-component BEC is equivalent to the two-dimensional classical ferromagnetic $XY$ spin model in a uniaxial random magnetic field, where the relative condensate phase $\Delta\phi$ plays the role of the spin angle and the position-dependent Raman field with the zero spatial average mimics the random magnetic field Niederberger et al. (2008); SM- . The classical $XY$ spin model in two dimension has no net magnetization in the absence of the magnetic field due to the Mermin-Wagner-Hohenberg (MWH) no-go theorem Mermin and Wagner (1966); Hohenberg (1967), while a weak uniaxial random magnetic field breaks the continuos $U(1)$ symmetry associated with the freedom of spin angles and hence violates the applicability conditions of the MWH theorem, resulting in a spontaneous magnetization perpendicular to the random field Feldman (1998), even in small finite temperatures Minchau and Pelcovits (1985); Wehr et al. (2006). The applicability of the MWH theorem is also violated in our system by the explicitly broken $U(1)$ symmetry via the Raman field, as well as cavity-mediated long range interactions SM- . The corresponding zero-average-Raman-field induced order in the two-component BEC manifests in the averaged relative condensate phase $\overline{\Delta\phi}=(1/\lambda_{c})\int_{0}^{\lambda_{c}}\Delta\phi(x)dx$, which is locked at either $\pi/2$ or $-\pi/2$ Niederberger et al. (2008). The averaged relative condensate phase $\overline{\Delta\phi}$ is shown in Fig. 2 as the gray dashed curve. It takes the value $-\pi/2$ (which is favored over $\pi/2$ in our calculations duo to initial conditions) in the self-ordered state and an arbitrary value ($\approx-\pi$) otherwise. Note that even for exceedingly small Raman couplings $\eta|\alpha|\ll\omega_{r}$ in the onset of the Dicke superradiance, $\overline{\Delta\phi}$ is still fixed at $-\pi/2$, indicating that the superradiance phase transition in our model is indeed a random-field induced ordering process similar to the two-dimensional classical $XY$ spin model in a uniaxial random magnetic field. Nevertheless, the seed of the random Raman field stems form quantum fluctuations and it is a dynamical entity: the random Raman field triggers the self-ordering of the BEC and this in turn amplifies the dynamical random Raman field, resulting in a runaway process.

For $\tilde{\delta}>0$ and red-detuned cavity optical potentials $\hbar U_{\tau}|\alpha|^{2}\cos^{2}(k_{c}x)<0$ with $|U_{\downarrow}|>|U_{\uparrow}|$, the spin-down condensate is energetically favored over the spin-up component: $|\psi_{\downarrow}(x)|\geqslant|\psi_{\uparrow}(x)|$. Due to the kinetic energy cost, the spin-up condensate wavefunction $\psi_{\uparrow}(x)$ is therefore favored to change its phase $\phi_{\uparrow}(x)$ over space at $x=(l+1/2)\lambda_{c}/2$ (with $l\in\mathbb{Z}$) to fulfill the phase constraint discussed above; see Fig. 3. This implies that the zero-momentum mode of the spin-up condensate must be depleted. Due to the discrete $\lambda_{c}$-translation symmetry, one can decompose the condensate wavefunctions into traveling plane waves as $\psi_{\tau}(x)=\sum_{j}c_{\tau,j}e^{ijk_{c}x}$. The coefficients $c_{\tau,j}$ of the lowest three momentum modes $j=0,\pm 1,\pm 2$ for both condensates are depicted in the insets of Fig. 3. As expected, for the spin-up condensate the zero-momentum mode $j=0$ is almost completely depleted and the first excited momentum states $j=\pm 1$ are highly populated, while for the spin-down condensate the zero-momentum mode has the dominant population with a small contribution from the second excited momentum states $j=\pm 2$. Such a coupling of different spins to different momentum states is reminiscent of a synthetic spin-orbit interaction Lin et al. (2011). All higher momentum modes have a negligible population for both condensates.

The equations of motion (Disorder-Driven Density and Spin Self-Ordering of a Bose-Einstein Condensate in a Cavity) can be linearized for small quantum fluctuations around the mean-field solutions to yield spectrum $\omega$ of elementary excitations Horak and Ritsch (2001); Nagy et al. (2008). To this end, we linearize Eq. (Disorder-Driven Density and Spin Self-Ordering of a Bose-Einstein Condensate in a Cavity) around the trivial solution $\alpha=0$ and $\psi_{\tau}=\sqrt{Nf_{\tau}}$, with restricting atomic excitations to solely $e^{\pm ik_{c}x}$ owing to the Raman coupling (or cavity pump) $\propto\cos(k_{c}x)$, and obtain a sixth order characteristic equation SM- ,

[TABLE]

with $\delta_{c}\equiv-\Delta_{c}+N\sum_{\tau}f_{\tau}U_{\tau}/2$. The lowest four spectra composed mainly of the atomic excitations are shown in the inset of Fig. 2 as a function of the dimensionless pump strength. Two of the excitation branches, corresponding mainly to the atomic excitations of the spin-up component, approach zero by increasing $\eta$ and at the same time a pair of imaginary eigenvalues (dashed curves) appear, signaling dynamical instability in the trivial solution. This is the onset of the superradiance phase transition. The zero frequency $\omega=0$ solution of the characteristic equation (4) yields the threshold pump value,

[TABLE]

This is smaller than the threshold $\sqrt{N}\eta_{c}\approx 2.6\omega_{r}$ obtained from the mean-filed calculation. This can be attributed to the fact that here the atomic excitations are restricted to the lowest manifold $e^{\pm ik_{c}x}$, while this is not strictly true as can be seen from the insets of Fig. 3.

Finally, let us briefly comment on two simplifying assumptions used throughout the paper. First, adding weak two-body interactions will somewhat flatten the condensate wavefunctions without qualitative change of the results. However, strong two-body interactions along with a Raman coupling can give rise to a state with out-phase density modulations of the two Bose condensates Abad and Recati (2013). Second, a non-zero cavity decay $\kappa>0$ results in an imaginary $\alpha$ with a phase $\phi_{\alpha}\in[0,2\pi]$, rather than 0 or $\pi$ as discussed above for $\kappa=0$. Nonetheless, the averaged relative condensate phase $\overline{\Delta\phi}$ would be still locked at $\pm\pi/2$ as before. A finite decay can also induce cavity-mediated collisional relaxation. However, these collisions are ineffective up to long time scales proportional to the atom number $N$ Piazza and Strack (2014b).

Conclusions.—We studied spatial spin and density self-ordering of ultracold bosonic atoms with two internal ground states coupled via a single cavity mode. Interestingly, spin and density self-orderings are closely tied together due to light-induced spin-orbit coupling, which emerges as a result of an order-by-disorder process induced by a cavity-assisted Raman field. Although our model constitutes the simplest example of multi-component itinerant atoms coupled to dynamical cavity fields, it already highlights the rich physics which can result from the strong photon-induced spin- and position-dependent interactions between atoms in these systems (a related idea has been recently put forward for atoms coupled to photonic crystal waveguides Manzoni et al. (2017)). Therefore, our work opens a new avenue for exploring a wealth of novel many-body phenomena, including spin-Peierls transition, topological insulators, interaction-driven fractional topological and symmetry-broken phases, etc., in tunable multi-component cavity-QED environments.

We are grateful to Alessio Recati, Tobias Donner, and Manuele Landini for fruitful discussions. FM and HR are supported by the Austrian Science Fund project I1697-N27.

I Supplemental Material

Here, we present the details of the adiabatic elimination of the atomic excited states, equivalence of the Raman-coupled two-component Bose-Einstein condensate (BEC) and the two-dimensional (2D) classical $XY$ spin model in a uniaxial magnetic field, and derivation of the elementary-excitation spectra of the system.

I.1 Adiabatic Elimination of the Atomic Excited States

Consider four-level bosonic atoms inside a linear cavity, which are illuminated in the transverse direction by two external standing-wave pump lasers as depicted in Fig. 1 in the main text. A tight confinement along the transverse directions has been assumed so that the atomic motion along these directions is frozen. The transition $\uparrow\>\leftrightarrow 1$ ($\downarrow\>\leftrightarrow 2$) is induced by the first (second) external transverse laser with the Rabi frequency $\Omega_{1}$ ($\Omega_{2}$), while the transitions $\downarrow\>\leftrightarrow 1$ and $\uparrow\>\leftrightarrow 2$ are coupled to a cavity mode with identical coupling strength $\mathscr{G}(x)=\mathscr{G}_{0}\cos(k_{c}x)$ which is initially in the vacuum state. The scheme basically constitutes a double $\Lambda$ configuration, where $\{\left|\downarrow\right>,\left|\uparrow\right>\}$ are the ground pseudo-spin states and $\{\left|1\right>,\left|2\right>\}$ are electronic excited states, with energies $\{\hbar\omega_{\downarrow}=0,\hbar\omega_{\uparrow},\hbar\omega_{1},\hbar\omega_{2}\}$. The pump and cavity frequencies, respectively, $\{\omega_{p1},\omega_{p2}\}$ and $\omega_{c}$ are assumed to be far red detuned from the atomic transition frequencies.

The single-particle Hamiltonian density in the dipole and the rotating wave approximations reads:

[TABLE]

where $m$ is the atomic mass, $\hat{a}$ is the annihilation operator of cavity photons, $\sigma_{\tau\tau^{\prime}}=\left|\tau\right>\left<\tau^{\prime}\right|$, and H.c. stands for the Hermitian conjugate. Here, $p$ is the center-of-mass momentum operator of the atom along the cavity axis $x$, and and $I_{4\times 4}$ is the identity matrix in the internal atomic-state space. The single-particle Hamiltonian density (S1) can be conveniently expressed in the rotating frame of the pump laser

[TABLE]

through $\tilde{\mathcal{H}}^{(1)}=\mathscr{U}\mathcal{H}^{(1)}\mathscr{U}^{\dagger}+i\hbar(\partial_{t}\mathscr{U})\mathscr{U}^{\dagger}$ and exploiting the unitary transformation

[TABLE]

Here, we have defined $\Delta_{1}\equiv(\omega_{p1}+\omega_{p2})/2-\omega_{1}$, $\Delta_{2}\equiv\omega_{p2}-\omega_{2}$, and $\Delta_{c}\equiv(\omega_{p1}+\omega_{p2})/2-\omega_{c}$ as the atomic and cavity detunings with respect to the pump lasers, respectively, and $\delta\equiv\omega_{\uparrow}-(\omega_{p2}-\omega_{p1})/2$ is the relative two-photon detuning.

The corresponding many-body Hamiltonian takes the form,

[TABLE]

where $\hat{\Psi}(x)=(\hat{\psi}_{\downarrow},\hat{\psi}_{\uparrow},\hat{\psi}_{1},\hat{\psi}_{2})^{\mathsf{T}}$ are the bosonic atomic field operators satisfying the usual bosonic commutation relation $[\hat{\psi}_{\tau}(x),\hat{\psi}_{\tau^{\prime}}^{\dagger}(x^{\prime})]=\delta_{\tau,\tau^{\prime}}\delta(x-x^{\prime})$, and $\tilde{\mathcal{M}}^{(1)}$ is the matrix form of the Hamiltonian density $\tilde{\mathcal{H}}^{(1)}$, Eq. (S2). The interaction Hamiltonian $H_{\text{int}}$ accounts for the two-body contact interactions between atoms and will be omitted in the following. The Heisenberg equations of motion of the photonic and atomic field operators can be obtained using the many-body Hamiltonian (S4),

[TABLE]

where we have phenomenologically included the decay of the cavity mode $-i\hbar\kappa\hat{a}$.

Let us now assume that atomic detunings $\Delta_{j}$ are large so that the atomic field operators $\{\hat{\psi}_{1},\hat{\psi}_{2}\}$ of the excited states reach steady states very fast and we can therefore adiabatically eliminate their dynamics. Omitting the kinetic energies in comparison to $-\hbar\Delta_{1}$ and $-\hbar\Delta_{2}$, we obtain the steady-state atomic field operators of the excited states,

[TABLE]

Substituting the steady-state atomic field operators of the excited states (I.1) in the Heisenberg equations of motion (I.1) yields a set of effective equations for the photonic and ground-state atomic field operators,

[TABLE]

where we have introduced $\tilde{\delta}\equiv\delta+\Omega_{1}^{2}/\Delta_{1}-\Omega_{2}^{2}/\Delta_{2}$, $U_{\downarrow(\uparrow)}\equiv\mathscr{G}_{0}^{2}/\Delta_{1(2)}$, and $\eta\equiv\mathscr{G}_{0}\Omega_{1}/\Delta_{1}=\mathscr{G}_{0}\Omega_{2}/\Delta_{2}$. Replacing the photonic and atomic field operators $\hat{a}$ and $\hat{\psi}_{\tau}$ with their corresponding averages $\alpha\equiv\langle\hat{a}\rangle$ and $\psi_{\tau}\equiv\langle\hat{\psi}_{\tau}\rangle$, respectively, yields Eq. (1) in the main text.

II Equivalence of the Raman-coupled two-component BEC and the 2D classical $XY$ model in a uniaxial magnetic field

Without loss of generality, consider equal densities $n_{\uparrow}=n_{\downarrow}=n=\text{const.}$ for the two condensate components in the absence of the cavity field. In the onset of the superradiant state, we have $|\alpha|/\sqrt{N}\ll 1$. Therefore, one can assume that the condensate densities are not significantly different from each other and one still has $n_{\uparrow}\simeq n_{\downarrow}\simeq n$ Niederberger et al. (2008). Using these assumptions, the energy-functional density, Eq. (2) in the manuscript, around the superradiant phase transition can be recast as follows:

[TABLE]

where $\Phi\equiv\phi_{\downarrow}+\phi_{\uparrow}$. Note that the terms proportional to $|\alpha|^{2}$ have been omitted as $|\alpha|^{2}/N\ll|\alpha|/\sqrt{N}\ll 1$ (keeping them does not change the following discussion in anyway). Minimization of the energy ensures that $\Phi=\text{const.}$ The energy-functional density (S8) then reduces to

[TABLE]

where the first two terms in Eq. (S9) play no role in determining the relative condensate phase $\Delta\phi$.

The 2D classical $XY$ spin model in a magnetic field $\mathbf{h}_{i}$ is described by the Hamiltonian,

[TABLE]

where ${\langle i,j\rangle}$ indicates that the sum is over nearest neighbors. Parametrizing the spins with their angles $\theta_{i}$ with respect to the $x$ axis as $\mathbf{s}_{i}=(\cos\theta_{i},\sin\theta_{i},0)$ and assuming a uniaxial random magnetic field $\mathbf{h}_{i}=(h_{i},0,0)$ with $\sum_{i}h_{i}=0$ Wehr et al. (2006), Eq. (S10) can be recast as,

[TABLE]

Assuming small spin-angle fluctuations around a possible ordered state and going to the continuum limit, one obtains

[TABLE]

One can now immediately see the resemblance between the 2D classical $XY$ spin Hamiltonian $H_{XY}^{\rm cont}$ in the uniaxial random magnetic field in the continuum limit and the energy functional of the cavity-assisted Raman-coupled two-component BEC around the Dicke superradiance phase transition $E_{\rm PT}=\int\mathscr{E}_{\rm PT}(x)dx$. The relative condensate phase $\Delta\phi$ plays the role of the spin angle $\theta$ and the position-dependent Raman field $\propto\eta|\alpha|\cos\phi_{\alpha}\cos(k_{c}x)$ with the zero spatial average mimics the random magnetic field $h(x,y)$ Niederberger et al. (2008).

The Mermin-Wagner-Hohenberg (MWH) no-go theorem states that continuous symmetries cannot be spontaneously broken at finite temperature in systems with sufficiently short-range interactions in 1D and 2D. The uniaxial random magnetic field in the 2D classical $XY$ spin model (S11) explicitly breaks the rotational symmetry of the system and the MWH theorem is, therefore, no longer applicable. Hence, the system magnetizes in the transverse $y$ direction due to the random magnetic field Feldman (1998), even at small non-zero temperatures Wehr et al. (2006); Minchau and Pelcovits (1985).

On the other hand, our system (S9) violates the conditions of the MWH theorem in two ways: i) by explicitly breaking the continuous $U(1)$ symmetry via the zero-average Raman field Niederberger et al. (2008), as in the 2D classical $XY$ spin model in the uniaxial random magnetic field Wehr et al. (2006); Feldman (1998); Minchau and Pelcovits (1985), and ii) by cavity-induced long-range interactions. The latter are present because the Raman field is dynamic, i.e., it adapts to the atomic configuration. Since the MWH theorem is not applicable to our system as well, the relative condensate phase locked at $\pm\pi/2$ due to the cavity-induced zero-average Raman field should persist even for small non-zero temperatures.

Let us briefly comment on the thermalization issue. Since our system is driven-dissipative, no notion of temperature is in general available in the steady state as the relaxation does not lead to a thermal state Piazza and Strack (2014b). However, due to the long-range nature of cavity-mediated interactions, the steady-state is never reached in the thermodynamic limit $N,V\to\infty$ and $N/V\to\text{const.}$, since the relaxation time is extensive: $t_{\rm relax}\propto N$. Therefore, in the thermodynamic limit and for a finite time, the atoms do not experience any relaxation and remain in a thermal distribution in which they were prepared initially before being coupled to the cavity field. At relevant experimental time scales, the only effect of the cavity is, therefore, to provide a dynamical Raman field. In particular, at low enough temperatures where we can consider only the BEC components of the atoms, our system is described by Eq. (1) in the main manuscript.

II.1 Elementary Excitations

Assuming $\psi_{\tau}=\psi_{0\tau}+\delta\psi_{\tau}$ and $\alpha=\alpha_{0}+\delta\alpha$ Horak and Ritsch (2001); Nagy et al. (2008), where $\delta\psi_{\tau}$ and $\delta\alpha$ are quantum fluctuations around the mean-field solutions $\psi_{0\tau}$ and $\alpha_{0}$, we linearize Eq. (1) in the main text:

[TABLE]

Assuming ansätze $\delta\psi_{\tau}=e^{-i\mu_{\tau}t/\hbar}(\delta\psi_{+\tau}e^{-i\omega t}+\delta\psi_{-\tau}^{*}e^{i\omega t})$ and $\delta\alpha=\delta\alpha_{+}e^{-i\omega t}+\delta\alpha_{-}^{*}e^{i\omega t}$ for the quantum fluctuations, where the chemical potentials for the two components are equal $\mu_{1}=\mu_{2}$ when $\alpha_{0}\neq 0$, one can recast Eq. (II.1) in a matrix form for the positive and negative components,

[TABLE]

where $\mathbf{M}_{\rm B}$ is a non-Hermitian matrix determined straightforwardly from Eq. (II.1). The eigenvalues of the matrix $\mathbf{M}_{\rm B}$ gives Bogoliubov-type excitations of the condensates and field. The existence of imaginary eigenvalues signals dynamical instability in the mean-field solutions. Analyzing the stability of uniform condensate wavefunctions and vacuum cavity field $\alpha_{0}=0$ as a function of the effective pump $\eta$ yields the threshold $\eta_{c}$ of the self-ordering.

Without loss of generality, consider $\alpha_{0}=0$ and the real condensate wavefunctions $\psi_{0\tau}=\sqrt{Nf_{\tau}}$, where $f_{\tau}=N_{\tau}/N$ is the fraction of the atoms in state $\tau$ and the sum of the two condensate wavefunctions is normalized to the total number of atoms, $\sum_{\tau}\int_{0}^{\lambda_{c}}\psi_{0\tau}^{2}dx/\lambda_{c}=N$. The matrix $\mathbf{M}_{\rm B}$ can be readily obtained

[TABLE]

where we have substituted the chemical potentials $\mu_{\downarrow}=0$ and $\mu_{\uparrow}=\tilde{\delta}$, and introduced $\delta_{c}\equiv-\Delta_{c}+N\sum_{\tau}f_{\tau}U_{\tau}/2$ and the integral operator $\mathcal{I}$,

[TABLE]

Due to the form of the integral operator $\mathcal{I}$, only condensate fluctuations $\delta\psi_{\pm\tau}\propto\cos(k_{c}x)$ couple to the cavity-field fluctuation. Therefore, we recast the matrix $\mathbf{M}_{\rm B}$ in the restricted subspace,

[TABLE]

The eigenvalues $\omega$ of $\tilde{\mathbf{M}}_{\rm B}$ is obtained via the sixth order characteristic equation $\text{Det}(\tilde{\mathbf{M}}_{\rm B}-\omega I_{6\times 6})=0$:

[TABLE]

The zero frequency solution $\omega=0$ yields the self-ordering threshold,

[TABLE]
