Spin-polaron formation and magnetic state diagram in La doped $CaMnO_3$

TL;DR

This study uses density functional theory with Hubbard-U correction to explore spin-polaron formation and magnetic states in La-doped CaMnO3, revealing how lattice and magnetic interactions influence polaron stability across different phases.

Contribution

It demonstrates the stabilization mechanisms of spin-polarons in La-doped CaMnO3 and provides a theoretical magnetic state diagram consistent with experimental findings.

Findings

Spin-polarons form in G-type antiferromagnetic phase.

Lattice effects primarily stabilize spin-polarons at higher La concentrations.

Spin-polarons are unfavorable in C- and A-type antiferromagnetic phases.

Abstract

$La_xCa_{1-x}MnO_3$ (LCMO) has been studied in the framework of density functional theory (DFT) using Hubbard-U correction. We show that the formation of spin-polarons of different configurations is possible in the G-type antiferromagentic phase. We also show that the spin-polaron (SP) solutions are stabilized due to an interplay of magnetic and lattice effects at lower La concentrations and mostly due to the lattice contribution at larger concentrations. Our results indicate that the development of SPs is unfavorable in the C- and A-type antiferromagnetic phases. The theoretically obtained magnetic state diagram is in good agreement with previously reported experimental results

Figures

b), between the energy of the supercell where all the atoms are frozen in the positions corresponding to the optimized G-AFM structure but the spins are arranged as in the SP, and the energy of the optimized G-AFM supercell. The difference between $E^{SP}_{form}$ and $E_{1}$ is the relaxation energy, $E^{SP}_{relax}$ (Fig.3b), or the energy contribution due to structural rearrangements around the SP. The corresponding energies are shown in Fig.3b for four SP sizes. The contributions vary with the SP size being much larger for 17- and 21-site configurations than for 7-site and 12-site SPs. Fig.

Full text

Perovskite $CaMnO_{3}$-$LaMnO_{3}$ (CMO-LMO) system exhibits an outstandingly rich magnetic and structural polymorphism Moreo . $CaMnO_{3}$ (CMO) is an orthorhombic (Pnma) semiconductor with the band gap of 3.07 eV Jung . Its magnetic ground state is the G-type antiferromagnetic (G-AFM) structure, where each spin-up (down) atom is surrounded by 6 spin-down (up) atoms. Such a magnetic ordering is thought to be governed by the super-exchange interaction along the $Mn^{4+}(t_{2g}^{3})\uparrow-O(p)-Mn^{4+}(t_{2g}^{3})\downarrow$ bond chains Kramers . When trivalent $La^{3+}$ substitute atoms in the $Ca^{2+}$ sublattice extra valence electrons are added to the system. This extra charge can be redistributed among a large number of atoms or fully (or partially) localized at the d-orbitals of particular Mn atoms driving the double-exchange interaction in the mixed-valence $Mn^{3+}(e_{g}^{1})\uparrow-O(p)-Mn^{4+}(t_{2g}^{3})\uparrow$ bond alignment Zener . The Hund coupling may then assist the spin flip at the central site of the magnetic octahedron Herring , thus forming a ferromagnetic (FM) 7-site droplet or the so-called 7-site spin-polaron (SP). Such 7-site SPs can be joined together in different configurations forming larger FM droplets, for example, involving 12-, 17- or 21-sites Meskine1 ; Chen . Unlike classical polarons, where an electron is trapped due to a strong electron-lattice interaction Bondarenko1 ; Arapan , spin polarons are thought to localize largely due to magnetic interaction Yakovlev ; Emin . However, cooperative spin-charge-lattice effects are also important for SPs as the formation of the $Mn^{3+}(e_{g}^{1})$ state leads to the symmetry breaking by Jan-Teller distortions becoming more pronounced as the number of $Mn^{3+}$ atom increases. At a critical concentration the accumulated lattice deformation energy drives the magnetic transition to the C-type antiferromagnetic (C-AFM) state, which in $La$-doped $CaMnO_{3}$ is accompanied by the structural transition from Pnma orthorhombic to the $P_{1}/m$ monoclinic structure Moreo ; Ling1 ; Meskine1 ; Meskine2 ; Santhosh ; Loshkareva .

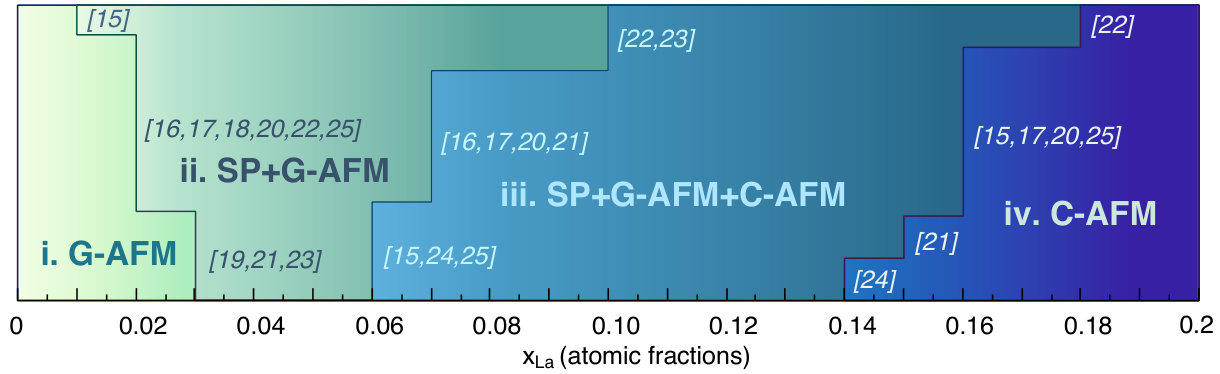

In Fig. 1 we summarize the available experimental data on the stability of the magnetic phases of $La_{x}Ca_{1-x}MnO_{3}$ for $x_{La}<0.2$. The concentrations at which the magnetic transitions are reported to take place, vary depending on the experimental setups and applied methods, nonetheless, all the experiments clearly demonstrate the existence of four distinct regions (i-iv), described below.

i. Concentration range $0<x_{La}<0.01-0.03$. For these small concentrations the G-AFM magnetic structure of CMO is preserved but the physical properties of the oxide are noticeably affected by doping. In particular, already La addition of 0.05-1 % is enough to have a crucial impact on the Hall coefficient suggesting an increased mobility of charge carriers Chiorescu . The measurements of electric conductivity confirm this suggestion reporting substantially higher values for the doped oxide compared to those for CMO Neumeier ; Lan . The magnetic saturation curve, $M_{s}(x_{La})$, measured for LCMO with $x_{La}<0.02-0.03$, shows a slope of only 1 $\mu B/Mn$, which is much smaller than should be expected in the case of a FM droplet forming in the G-AFM matrix Neumeier ; Cohn . This finding speaks in favor of a mean field-like distribution of extra charge due to La-doping rather than the electron localization scenario.

ii. Concentration range $0.01-0.03<x_{La}<0.06-0.10$. The oxide matrix still preserves the G-AFM order while a SP signature is also observed. The SP appearance has been detected by neutron powder diffraction, magnetization, Raman spectra and the heat conductivity measurements Ling1 ; Neumeier ; Cohn ; Cortes ; Wang ; Cornelius ; Granado1 . In contrast to the measurements done for smaller concentrations (region i), the slope of the $M_{s}(x_{La})$ curve now increases to 8 $\mu B/Mn$ Neumeier ; Cohn , confirming SP presence. Interestingly, the measured spontaneous magnetization is significantly smaller than a value to be expected in the case of full electron localization that suggests a partial character of localization Granado2 ; Wang ; Loshkareva . The neutron scattering measurements have distinguished isolated SPs of about 10.4 Å  in size separated by 41 Å  for $0.02<x_{La}<0.05$ and SPs up to 10.8 Å  in size separated by 24 Å for $0.05<x_{La}<0.10$ Granado2 ; Ling2 .

iii. Concentration range $0.06-0.1<x_{La}<0.14-0.18$. Here one finds a complex mixture of magnetic structures including G-AFM with SPs and emerging C-AFM ordering, whose appearance is accompanied by the structural transition to the monoclinic ($P_{1}/m$) phase Cornelius ; Wang ; Ling1 ; Neumeier ; Cohn ; Cortes ; Granado1 ; Granado2 ; Loshkareva .

iv. Concentration range $0.14-0.18<x_{La}<0.2$. According to numerous experiments Ling1 ; Wang ; Neumeier ; Cohn ; Ling2 ; Cortes ; Granado2 the C-AFM monoclinic phase is the only observed phase in this concentration interval.

The pioneer ab-initio calculation studying spin-polaron formation in $La$-doped CMO has shown that the charge localization at the SP sites has $e_{g}$ character Meskine2 . The study of the electron doped CMO, done employing model Hamiltonians, has demonstrated the stability of the 7-site SP solution Meskine1 ; Meskine2 ; Chen . The study of the model has also shown that beyond $x_{La}=0.045$, 7-site SP becomes unstable with respect to a FM spin order Chen .

Here we present a detailed ab-initio description of the magnetic state diagram of $La_{x}Ca_{1-x}MnO_{3}$ in the low-La concentration range. We consider the possibility for the SPs of different configurations to form in different AFM phases and analyze the role of magnetic and lattice contributions in their stabilization.

In our study we used the DFT+U approach, employing the projector augmented wave method Blochl and the Perdew, Burke, Ernzerhof parametrization Perdew of the exchange-correlation interaction as implemented in VASP Kresse . The cutoff energy was 550 eV. The calculations were done for the 3x2x3 supercell containing 72 Ca, 72 Mn and 216 O atoms. The La concentration was varied in the range of $0.013<x_{La}<0.133$ by replacing different number of Ca atoms by La (1-10 La/supercell). A 2x2x2 Monkhorst-Pack k-point mesh, which resulted in 8 irreducible k-points, was used for the integration over the Brillouin zone. In order to find the equilibrium orthorhombic ratio a structural optimization was performed at each $x_{La}$ in the manner described in Ref.Bondarenko2 . The lattice optimization was done keeping the G-AFM magnetic order. SPs were formed in the magnetic lattice by flipping the spin on the central atom in one or several Mn octahedra and allowing only atomic positions to relax.

The choice of the Hubbard U parameter is always an important issue in the calculations of complex oxides. Here we estimated the effective U parameter ($U_{eff}$=U-J Dudarev ) using the linear response method developed by Cococcioni Cococcioni , which, depending on the choice of the basis set, resulted in $U_{eff}(Mn_{3d})$ in the range of 3.45-4.23 eV. For our calculations, however, we utilized the rotationally invariant approach Liechtenstein . This approach was shown to be more appropriate for the description of complex magnetic structures Himmetoglu . We used J=0.9 eV, most common value applied for this class of compounds Anisimov . Further, we varied U in the range of U=0.9-8.9 eV that corresponds to U-J=0-8 eV. We found that $U<2.9$ eV overestimate the stability of the G-AFM structure, while $U>4.9$ eV fail to describe the $Mn_{3d}-O_{2p}$ hybridization and result in the stabilization of the long range FM structure. The U values between 2.9 and 4.9 eV reproduce qualitatively correct magnetic states, in agreement with experimental data Ling1 ; Granado2 ; Ling2 , (Fig.1). Based on the performed tests and the analysis of the parameters found in the literature Popovic ; Hong ; Aschaue , we chose to use U=3.9 eV and J=0.9 eV in the calculations presented here.

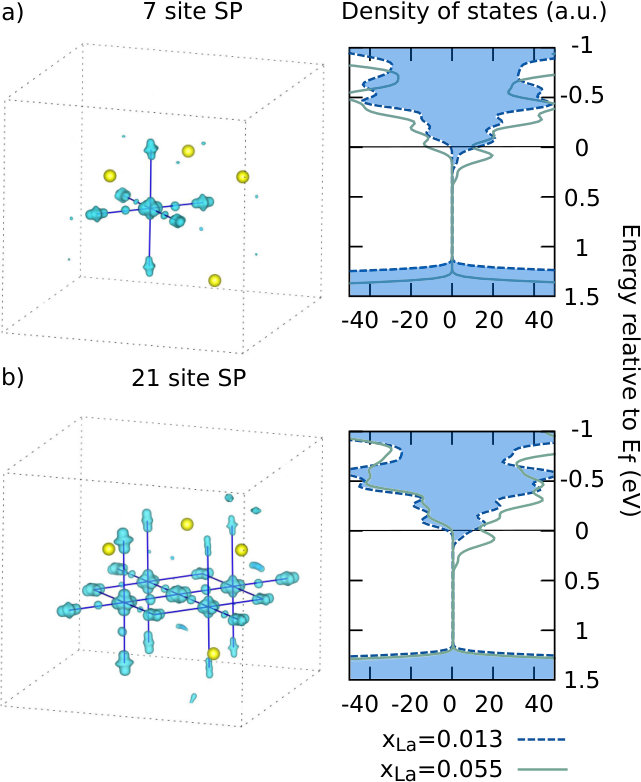

In Fig.2 we show the density of states (DOS) obtained for the 7- and 21-sites SPs formed in G-AFM matrix for two La concentrations. The excess electrons, donated by La, occupy a shoulder near the Fermi level, which is hardly visible for $x_{La}$=0.013 but becomes more evident as the La concentration increases (Fig.2). This shoulder consists of the $e_{g}$-states for all the studied SP configurations and La concentrations. The partial charge distribution shows that these $e_{g}$ states are mostly localized at the SP sites and have $3z^{2}-r^{2},x^{2}-y^{2}$ character. Somewhat larger degree of the $Mn({e^{1}_{g}})-O(p)$ hybridization is observed in the (101) plane as compared to the others. We have also performed hybrid functional calculations (HSE06) Heyd1 ; Hybrid of the 7-site SP configuration and obtained very similar DOSs to the ones shown in Fig.2.

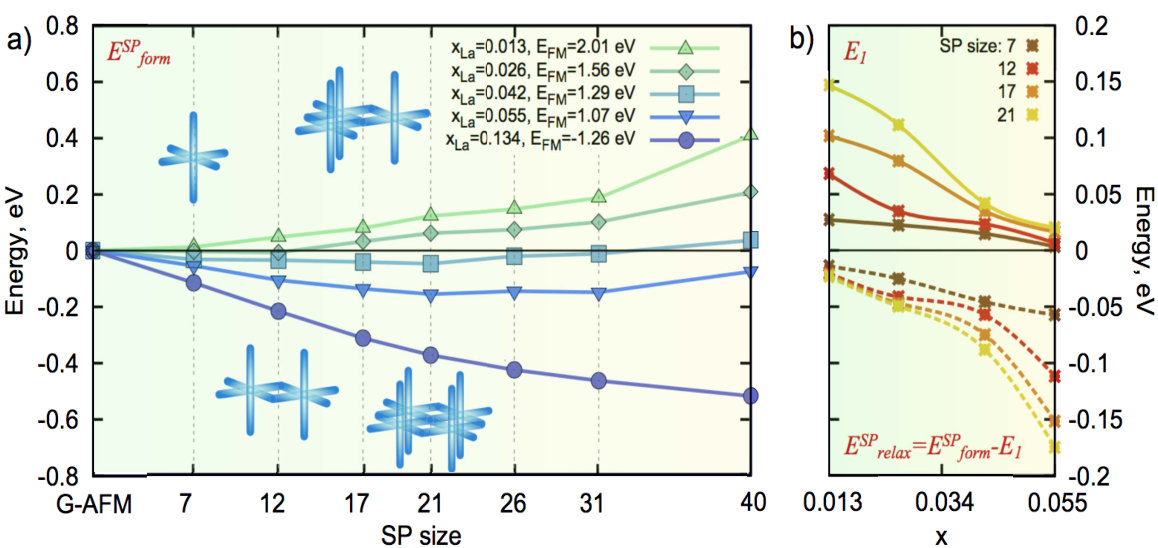

The formation energies of different SPs in the G-AFM phase calculated for five La concentrations are presented in Fig.3a. For $x_{La}=0.013$ the G-AFM solution is more stable than the 7-site SP configuration by 13 meV. Larger SPs have higher energies and, therefore, even less stable with respect to G-AFM. However, already for $x_{La}=0.026$ the situation changes. At this concentration the 7 and 12-site SPs become preferable by 3 meV and 6 meV, respectively. As La concentration increases we observe further stabilization of spin polaron solutions. For $x_{La}=0.042$ and $x_{La}=0.055$ 21-site SP has the lowest energy, lower than that of G-AFM by 46 meV and 155 meV, respectively. This indicates a gradual development of a long range FM order, which we find to fully stabilize for the largest considered here concentration, $x_{La}=0.134$ (Fig.3). Thus, we find the stabilization of the SP solutions between $x_{La}$=0.026 and 0.055. Most polaronic sites are situated in the (101) plane. The SPs prefer to form near the dopants. In particular, for $x_{La}$=0.013 we find that the energy of the 7-site SP increases by 18 meV as the SP-La separation distance changes from 3.34 Å to 6.56 Å.

Hypothetically, if one considers the case of a full localization of an extra electron at the SP sites one would expect to find additional 1 $\mu B$ per formed SP. The analysis of calculated Bader charges, however, shows that for small La concentrations the extra charge is practically totally smeared over the atoms of the oxide matrix. For $x_{La}$=0.013 (1 La/supercell), for example, only 0.06 $e^{-}$ for 7-site SP and 0.08 $e^{-}$ for 21-site SP of additional charge are found at the polaronic sites as compared to the rest of the sites in the supercell. In this case the SPs show an additional magnetic moment of 0.57 $\mu_{B}/SP$ for 7-site SP and 0.47 $\mu_{B}/SP$ for 21-site SP. For $x_{La}$=0.055 (4 La/supercell) we find extra 0.15 $e^{-}$ (7-site SP) and 0.20 $e^{-}$ (21-site SP) with the additional magnetic moments of 1.49 $\mu_{B}/SP$ (7-site SP) and 1.28 $\mu_{B}/SP$ (21-site SP). Therefore, we observe only partial charge localization at polaronic sites that agrees well with experimental findings Wang ; Loshkareva ; Granado2 .

To better understand the mechanism of the SP formation we try to separate lattice and magnetic contributions to the formation energy of the SP, $E^{SP}_{form}$, which is the difference between the total energies of the optimized supercell with SP and optimized G-AFM supercell. We estimate the contribution due to the spin subsystem reorganization by calculating the difference, $E_{1}$ (Fig.3b), between the energy of the supercell where all the atoms are frozen in the positions corresponding to the optimized G-AFM structure but the spins are arranged as in the SP, and the energy of the optimized G-AFM supercell. The difference between $E^{SP}_{form}$ and $E_{1}$ is the relaxation energy, $E^{SP}_{relax}$ (Fig.3b), or the energy contribution due to structural rearrangements around the SP. The corresponding energies are shown in Fig.3b for four SP sizes. The contributions vary with the SP size being much larger for 17- and 21-site configurations than for 7-site and 12-site SPs. Fig. 3b demonstrates that the lattice relaxation contribution for lower concentrations is rather small but it becomes substantially larger as La concentration increases. The magnetic contribution, on the contrary, decreases as more La is added. Therefore, the stabilization of smaller SPs (7- and 12-sites) is due to relatively small and comparable in value magnetic and lattice contributions. The stabilization of bigger SPs, however, is largely determined by the lattice contribution.

This conclusion is supported by the analysis of local lattice deformations. In particular, in the case of 7-site SP ($x_{La}$=0.013) the 6 Mn atoms surrounding the central Mn atom of SP shift away from it by $\sim 5\leavevmode\nobreak\ m$Å and the surrounding oxygens move away by $\sim 10\leavevmode\nobreak\ m$Å as compared to their positions in the G-AFM lattice. At the same time, Ca atoms come $\sim 5\leavevmode\nobreak\ m$Å closer to the SP center. For higher La concentrations ($x_{La}$=0.055), the displacements increase to $\sim 10\leavevmode\nobreak\ m$Å for Mn atoms, $\sim 50\leavevmode\nobreak\ m$Å for O atoms and $\sim 20\leavevmode\nobreak\ m$Å for Ca atoms. At low concentrations mainly the atoms of the SP are displaced. For higher concentrations majority of the atoms of the supercell become displaced and the distortion amplitude increases.

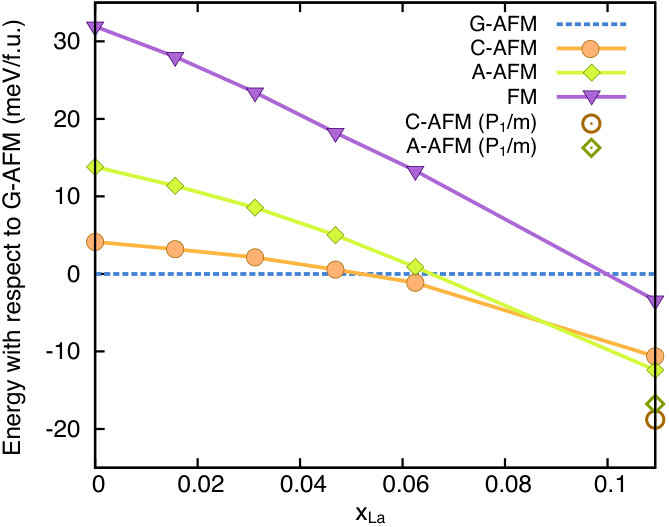

To clarify the total picture of the magnetic transitions in the low La concentration range we have examined four different magnetic phases experimentally observed in the CMO-LMO system: G-AFM, C-AFM, A-AFM and FM Wollan . For these calculations we have preserved the equilibrium orthorhombic lattice parameters but optimized the atomic positions for each magnetic structure. The total energies of these phases with respect to the energy of the G-AFM phase are shown in Fig.4. In the low concentration range, $0<x_{La}<0.052$, the G-AFM state is most stable. In concentration interval $0.052<x_{La}<0.091$ we see the stabilization of the C-AFM phase. Finally, for $0.091<x_{La}<0.103$ the A-AFM phase emerges. If we now compare data in Fig.4 to those in Fig.1 we will discover that the theoretically predicted stability intervals of G-AFM and C-AFM are in good agreement with the experimental observations. The stabilization of the A-AFM structure in the considered concentration range, however, does not agree with experiment (Fig.1). As a matter of fact, this is the consequence of keeping the orthorhombic symmetry preserved. Indeed, allowing the symmetry of the supercell to optimize at $x_{La}=0.11$ we find that it becomes monoclinic ($\beta=0.91^{\circ}$, a=14.89 Å, b=14.86 Å and c= 15.12 Å ). The monoclinic C-AFM phase is 8 meV/f.u. lower in energy than the A-AFM orthorhombic structure and 2.1 meV/f.u. lower than the A-AFM monoclinic structure. Therefore, our results confirm the stabilization of the monoclinic C-AFM phase in this concentration range.

Additionally, we have checked the possibility for spin to flip and form some kind of local FM order in C-AFM and A-AFM phases. We notice, however, that only the G-AFM structure naturally supports the appearance of FM droplets assisted by the double-exchange interaction along $Mn^{3+}(e_{g}^{1})\uparrow-O(p)-Mn^{4+}(t_{2g}^{3})\uparrow$ bonds, which can be achieved by the flip of a single spin. The arrangements of spins in the C- AFM and A-AFM phases do not allow a local FM droplet to form by the same manipulation. Nevertheless we flipped one spin in each of the structures, relaxed the atomic positions and compared the resulting total energies to that of the corresponding AFM structure. We found that the energies of all these configurations are higher than those of their parental AFM structures by 20-60 meV depending on La concentration.

To summarize, we have proposed an optimized approach, based on DFT+U, which allowed us to describe charge localization, spin polaron formation and magnetic polymorphism of LCMO. In particular, we have reported the reliable sizes of the SP as a function of La concentration, and demonstrated a non-trivial relationship between the two. In addition, we have provided a microscopic understanding of the relative importance of the role of exchange and lattice effects for the formation of the spin-polarons in La doped $CaMnO_{3}$.
